Adsorption of Carbon Dioxide with Ni-MOF-74 and MWCNT Incorporated Poly Acrylonitrile Nanofibers

by
Amir Hossein Harandizadeh
1,
Seyedfoad Aghamiri
1,*,
Mohammad Hojjat
1,
Marziyeh Ranjbar-Mohammadi
2,* and
Mohammad Reza Talaie
3
1
Department of Chemical Engineering, Faculty of Engineering, University of Isfahan, Isfahan 81746-73441, Iran
2
Department of Textile, Engineering Faculty, University of Bonab, Bonab 55513-95133, Iran
3
Chemical Engineering Department, Faculty of Chemical, Oil and Gas Engineering, Shiraz University, Molasadra St., Shiraz 84334-71946, Iran
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(3), 412; https://doi.org/10.3390/nano12030412
Submission received: 28 November 2021 / Revised: 18 December 2021 / Accepted: 18 December 2021 / Published: 27 January 2022
(This article belongs to the Section Environmental Nanoscience and Nanotechnology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Among the new adsorbent forms, nanofiber structures have attracted extra attention because of features such as high surface area, controllable properties, and fast kinetics. The objective of this study is to produce the polyacrylonitrile (PAN) electrospun nanofibers loaded with Ni-MOF-74/MWCNT to obtain maximum CO2 adsorption. The prepared PAN/MWCNT/MOF nanofiber based on the Box–Behnken design (BBD) model suggests the CO2 adsorption of about 1.68 mmol/g (at 25 °C and 7 bar) includes 14.61 w/v%, 1.43 w/w%, and 11.9 w/w% for PAN, MWCNT, and MOF, respectively. The results showed the effective CO2 adsorption of about 1.65 ± 0.03 mmol/g (BET = 65 m2/g, pore volume = 0.08 cm3/g), which proves the logical outcomes of the chosen model. The prepared PAN/MWCNT/MOF nanofiber was characterized using different analyzes such as SEM, TEM, TG, XRD, FTIR, and N2 adsorption–desorption isotherms. More MOF mass loading on the nanofiber surface via secondary growth method resulted in 2.83 mmol/g (BET = 353 m2/g, pore volume = 0.22 cm3/g, 43% MOF mass loading) and 4.35 mmol/g (BET = 493 m2/g, pore volume = 0.27 cm3/g, 65% MOF mass loading) CO2 adsorption at 7 bar for the first and second growth cycles, respectively. This indicates that secondary growth is more effective in the MOF loading amount and, consequently, adsorption capacity compared to the MOF loading during electrospinning.

1. Introduction

Adsorption is an efficient and low energy-consuming process to capture carbon dioxide. [1,2]. Adsorbent structural properties, such as volumetric working capacity, pressure drop, mass transfer, and thermal properties, regulate the performance of adsorptive gas separation processes [3]. These properties are determined by the parameters, such as specific heat, density, the heat of adsorption, porosity, total pore volume, the specific surface area of the adsorbent composite, and also the adsorbent arrangement in adsorption equipment [3,4].
Adsorbents are conventionally used in the form of beads and granules (pellets) in packed bed columns. Consequently, adsorbent particle size can impose disadvantages, such as mass transfer and pressure drop limitations. Therefore, the reduction in particle size is the most common way to decrease mass transfer resistance. However, it can cause more pressure loss [3]. The balance between pressure drop and mass transfer rate usually results in a bed geometry with a large diameter and small height at a particle size around 0.7 mm, which can induce considerable gas maldistribution and channeling. The novel adsorbent structures, such as monoliths, laminates, foams, and fabric structures, can be alternatives to solve the mentioned limitations. Among them, fabric structures due to unique advantages have recently attracted more attention [3,5,6].
The fabric structures are often nonwoven composites that display practical features for gas separation application. These structures are self-supporting and offer high adsorbent loadings, fast heat and mass transfer rates, low attrition rates, high mechanical strength, and low bed pressure drop. Moreover, they can eliminate fluidization problems in the packed bed columns [3,5,6]. Generally, adsorbents embed within the nonwoven structures in the following three ways: (1) development of the physical bonds between adsorbents and fibers, (2) mechanical entrapment of adsorbents within the structure, and (3) a combination of both [5].
The common nonwoven structures, as a substrate for adsorbent loading, are electrospun, meltblown, and spunbond. They show higher filtration efficiencies than conventional adsorbent shaping [5,7,8,9,10]. which is especially true in the case of electrospun nanofibers [11].
Nanofibers are promising adsorbent substrates because of advantages such as high porosity, high surface area, and excellent mechanical properties [12,13,14]. They are produced by applying a high voltage to a polymer solution in the electrospinning process [15,16]. A wide range of materials can be applied to synthesize nanofibers, including natural/synthetic polymers or composites. Besides performing as a supporter, the nanofiber can enhance the adsorption even partially either by intrinsic adsorption [17,18,19] or characteristics induced in nanofiber structure [11,20]. One of the most common polymers in nanofiber fabrication is polyacrylonitrile (PAN) because of its good mechanical properties (bending modulus and failure stress) and continuous formation of nanofibers [21].
Metal-organic frameworks (MOFs) as novel adsorbents have advantages such as high surface area, large pore volume, and a wide variety of structures and compositions [22,23,24]. Millward et al. [25,26] reported that some MOFs have higher saturated CO2 capacities compared with traditional zeolites at room temperature. MOFs of the DOBDC (2,5-dioxido-1,4-benzenedicarboxylate) series show different CO2 adsorption capacities at the same conditions depending on their metal centers. Therefore, the kind of metal in the center of the DOBDC series is the determining factor in the CO2 adsorption capacity [27]. The role of central metal may be related to the different ionic nature of the metal-oxide bonds and unsaturated metal centers (UMCs) in the M/DOBDC series, which are necessary for CO2 adsorption at sub-atmospheric pressures [27,28]. Yazaydin et al. [28] investigated experimentally and simulating methods to distinguish MOFs for the highest CO2 capacities at a pressure of about 0.1 atm. They considered a lot of MOFs and revealed that Mg/DOBDC and Ni/DOBDC have the highest CO2 adsorption capacities at 0.1 atm [28,29]. Their results showed the DOBDC series of MOFs with high ability and open metal sites as the novel candidate for CO2 adsorption. Ni/DOBDC has a higher CO2 capacity and relatively more stability than Mg/DOBDC at sub-atmospheric pressures [30]. Additionally, Ni/DOBDC has a higher CO2 adsorption capacity than commercial adsorbents such as NaX and 5A zeolites at 0.1 atm and 25 °C [31]. In addition, the CO2 adsorption capacity of Ni/DOBDC is more stable under the same moist conditions than NaX and 5A zeolites and regenerates at more mild conditions. Therefore, Ni/DOBDC, also known as Ni-MOF-74 or CPO-27-Ni, can be considered as one of the most promising candidates for CO2 capture from flue gas [32]. Recently, many investigations have been devoted to new structures of MOFs [21,22,32].
To approach the maximum adsorption in electrospun nanofiber-based adsorbent, loading a sufficient MOF amount on the fibers is needed. However, loading a high amount of MOF causes instability of the electrospinning process [21,33]. Hence, the MOFs secondary solvothermal growth, which is the growth of MOF particles on the nanofibers surface, can be used [21,33,34].
Researchers have also implemented many efforts to improve the nanofibers structure to obtain higher adsorption capacity [22,33,35,36]. Studies have shown that incorporating inorganic compounds in the composition of nanofibers results in a high modulus and high strength structure. Additionally, composite materials with the incorporation of organic–inorganic components have exhibited improved performance [37]. Therefore, the application of carbon nanotubes in the polymer matrixes enhances their mechanical [38] and electrical [39] properties. Moreover, CNT itself is a conventional CO2 adsorbent that is located along the axis of nanofiber yarns, and by upgrading the structure properties, it can directly increase the adsorption capacity [11,20]. However, CNTs aggregation occurs due to van der Waals interactions in the polymer solution [40], which causes many voids/defects between agglomerates and the polymer matrix, which affect the mechanical performance of composite fibers. Previous studies show that functionalization, such as carboxylation, can improve the dispersibility of CNTs and reduce the agglomeration [41,42,43,44].
In this study, for the first time in the literature, Ni-MOF-74-incorporated PAN nanofibrous structures were fabricated and used as the CO2 adsorbent. In addition, MWCNT was loaded in PAN nanofibers as the adsorbent subsidiary and structure improver. A Box–Behnken design (BBD) of response surface methodology (RSM) was applied to prepare different Ni-MOF-74/MWCNT loaded PAN-based nanofibers to reach the highest CO2 adsorption capacities. In addition, to increase the CO2 adsorption via the most utilization of MOF crystals in the nanofiber structure, the secondary growth of MOF crystals on nanofibers was inquired. Finally, the fabricated samples were characterized by SEM, TEM, XRD, FTIR, and TG analyses, and N2 adsorption–desorption isotherms. After that, the isotherm and CO2 adsorption capacity of the MOF/MWCNT incorporated structures were compared with MOF powder.

2. Experimental Section

2.1. Material

Reagent grade of Nickel acetate and 2,5-dihydroxyterephthalic acid were purchased from Sigma-Aldrich. Dimethylformamide (DMF), Ethanol, and tetrahydrofuran (THF) were purchased from Merck. Polyacrylonitrile (PAN) with a molecular weight of 100,000 (g/mol), was purchased from Polyacryl Company, Isfahan, Iran. MWCNT (Diameter <8 nm, Length ~30 nm, -COOH content ~3.86 wt.%) was provided by Neutrino Company, Tehran, Iran. Deionized (DI) water was used through this work.

2.2. MOF Synthesis

The Ni/DOBDC samples were synthesized according to the following hydrothermal method [27,31]. Nickel acetate (0.746 g or 3 mmol) and 2,5-dihydroxyterephthalic acid (0.298 g, 1.5 mmol) were added to 40 mL of 50 vol.% THF in DI water solution. Then the suspension sonicated for half an hour. The mixture was put into the autoclave and heated at 110 °C for 3 days to achieve the yellow crystalline MOF. For activation, the product was rinsed with a mixed solution of methanol, ethanol, and deionized water several times. The resulting MOFs were separated by centrifugation at 6000 rpm. Then MOF particles were dried in an evacuated oven at 100 °C for 2 h and known as Ni-MOF-74.

2.3. Electrospinning

To prepare the polymeric solution for electrospinning, the measured amounts of MOF and MWCNT, according to BBD, were mixed with the PAN-DMF solution.
The Polymeric solution injects through a capillary tip with a diameter of 0.7 mm using a 5 mL syringe.
Figure 1 demonstrates the schematic diagram of the electrospinning of PAN/MWCNT/MOF nanofibers. The anode of the high voltage power supply has clamped to the metal collector, and the cathode has been connected to the needle tip.
The applied voltage was 20 KV, the distance between the tip and the collector was 18 cm, and the flow rate of the spinning solution was 0.5 mL/h. The resulting nanofibers accumulated on an aluminum foil-wrapped drum rotating at approximately 250 rpm. Finally, nanofibers were vacuum dried at 100 °C for 12 h.

2.4. Design of Experiment/Response Surface Methodology (RSM)

Response surface methodology (RSM) is a suitable method for finding the effects of several independent variables on the response and determining the optimum conditions. Amongst different design of experiment (DOE) methods, many studies have adopted the Box–Behnken design, BBD, because of its need for fewer experiments [45,46].
To determine the effect of three variables, PAN concentration (X1), MWCNT concentration (X2), and MOF concentration (X3) on the CO2 adsorption capacity, BBD was used. Each parameter has three levels, which result in 17 experiments, while the CO2 adsorption is the response. Table 1 lists variables and levels, which have been chosen through the screening experiments. The standard analysis of variance was employed to analyze the model outputs, and the values of p ≤ 0.05 were considered statistically significant [45,46].

2.5. Secondary Growth of Ni-MOF-74 on the Nanofiber

The secondary loading of Ni-MOF-74 was performed via hanging up a PAN/MWCNT/MOF nanofiber (Section 2, Section 3 and Section 4) in a Teflon-autoclave during the MOF synthesizing process (as mentioned in Section 2.2). This process was repeated for two consecutive cycles until the nanofiber became saturated. The composite nanofiber was rinsed several times with a mixed solution of methanol, ethanol, and deionized water after each cycle to remove the remaining solvent and activate the adsorbent. Finally, it was placed in an evacuated oven at 100 °C for 2 h.

2.6. CO2 Adsorption Measurements

An experimental setup based on a volumetric method, Figure 2, was utilized to study the CO2 adsorption capacities of Ni-MOF-74 in powder and nanofibers forms. Adsorption capacities are determined by measuring the pressure and temperature of the adsorption cell. The difference between the initial and final pressures of the adsorption cell reveals the equilibrium amount of the adsorbed CO2. In a typical test run, 100 mg of a previously degassed sample at 100 °C for 12 h was used. Three similar adsorption/regeneration cycles run for each sample. The regeneration took place in an oven at 100 °C for 4 h. The accuracy in measuring pressure and temperature was 1000 Pa and 0.1 K, respectively.

2.7. Characterizations

The crystalline structure of the synthesized adsorbent was evaluated by the XRD method using a D8 ADVANCE XRD instrument (Bruker Corporation) in the 2θ range of 1–30° using Co Kα radiation (λ = 1.79 Å). The crystal size of synthesized MOF was calculated by using the Debye Scherrer equation (D = 0.9λ/β cos θ) to the reflections (2θ~7°) [46]. In the mentioned equation, D, λ, β, and θ are the crystal size X-ray wavelength, full width at half-maximum (FWHM) and Bragg angle, respectively. N2 adsorption–desorption isotherms of the samples were calculated at 77 K using a Nova instrument (Quantachrome NovaWin2, Boynton Beach, FL, USA) and also a BELSORP MINI instrument (Osaka, Japan). The specific surface area was estimated by the BET method. Field emission-scanning electron microscopy (FESEM, JEOL JSM 6490, JEOL Ltd., Tokyo, Japan) analysis was used to demonstrate the surface morphology of the fabricated samples. Besides, transmission electron microscopy (TEM, Philips CM120, Eindhoven, The Netherlands) analysis was used to prove the MWCNT’s existence along with the nanofibers. TGA test was performed using a Bahr STA-503 instrument at a heating rate of 10 K min−1 from 298.2 K to 853.2 K under the argon atmosphere. FTIR measurements were performed using a Jasco-Japan (model 6300, Tokyo, Japan) Fourier transform infrared spectrometer, which was configured for transmittance. Spectra were collected from the mid-infrared region (4000−400 cm−1) at a resolution of 4 cm−1 with the detector positioned perpendicular to the fiber direction.

3. Results and Discussion

3.1. MOF Synthesis

Figure 3 shows the SEM of the synthesized MOF crystals at different magnifications. The size of polyhedral crystalline particles is in the range of 6–9 µm.
Figure 4 demonstrates the XRD pattern of Ni-MOF-74 powder [47,48,49]. Two main peaks around 7 and 12 degrees confirm the presence of Ni-MOF-74. The crystal size of MOF by the Scherrer method using the mentioned XRD data is calculated to be about 9 µm [50].
The BET data analysis for synthesized Ni-MOF-74 evaluates the surface specific area of about 788 m2 g−1, the pore volume of 0.38 cm3 g−1, and the average pore diameter of 1.92 nm, which are in agreement with previous studies [51,52].

3.2. Nanofiber Characterizations

Considering the appearance of the neat PAN, PAN/MWCNT, PAN/MOF, and PAN/MWCNT/MOF nanofiber, it can conclude that with adding of MWCNT and MOF to the PAN solution, the PAN white color changes to dark grey, and yellow, respectively as shown in Figure 5. In comparison, the PAN/MWCNT/MOF structure shows a bright gray color, which is evidence of the following materials’ existence.
As shown in Figure 6a, the electrospun neat PAN nanofibers have a uniform, smooth, and bead-free morphology. The average diameter of the produced nanofibers is 136 ± 3 nm. These structures with a nanosized scale have a higher surface to volume ratio, resulting in more MOF loading sites.
In Figure 6b, the MWCNT loaded on the PAN nanofibers are shown as darker stains along the nanofiber. Figure 6c shows that MOF particles appear as polyhedral crystals, randomly scatter, and trap in nanofibers. Figure 6d exhibits that MOF particles in MOF/MWCNT/PAN nanofibers, besides linking to fibers surface, in some parts, are impregnated along fibers and made a swollen shape along with them. However, it seems that MWCNTs are loaded inside the fibers because of their small sizes, so they could not be seen on nanofibers surfaces except minor parts, which are colligated.

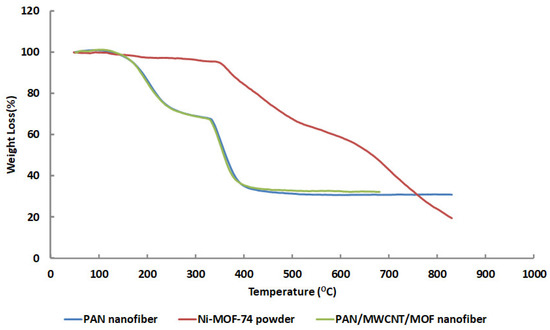

The TG analysis of Ni-MOF-74, PAN nanofiber, and PAN/MWCNT/MOF nanofiber are demonstrated in Figure 7. According to TG of MOF powder, the maximum loss occurs at 345–520 °C which is about 30%. While PAN and PAN/MWCNT/MOF nanofibers have similar two-step loss curves, they occur in the ranges of 125 to 225 °C with 27% weight and 328 to 383 °C about 32%, respectively. Therefore, it seems that MOF is stable at high temperatures up to 345 °C, but loading these particles in nanofibers structure does not help thermal stability, probably because of the lower percentage of MOF relative to PAN. According to the regeneration temperature of Ni-MOF-74 adsorbent at about 100 °C, no decomposition would happen in PAN/MWCNT/MOF structure during the regeneration process.

3.3. Box–Behnken Design

Table 2 shows parameter levels for each test run suggested by BBD and experimental responses which are CO2 adsorption capacities.
Additionally, BBD suggests Equation (1) as a quadratic model to relate CO2 adsorption capacity with model variables.
qt = 1.29 + 0.0587CMWCNT + 0.3250CMOF + 0.0575CPANCMOF − 0.0992CMOF2
where qt is adsorption capacity (mmol/g). This equation indicates that MOF concentration plays the most crucial role in increasing the CO2 adsorption capacity as shown in Table 3. In contrary, the effects of PAN concentration and MWCNT content are negligible.
Table 4 shows the analysis of the variance of this model. As it shows, p-value ≤ 0.0001 refers to suitable fitness and significance of the chosen model. Additionally, the chosen model suggests the highest possible adsorption capacity can be obtained from a solution of PAN (14.61 w/v%), MWCNT (1.43 w/w%), and MOF (11.90 w/w%), which has a CO2 adsorption capacity of 1.68 mmol/g. Confirmatory experiments have been conducted at these conditions three times which showed an adsorption capacity of 1.65 ± 0.03 mmol/g. This is an indication of the accuracy of the proposed model.
Table 4 illustrates the statistical parameters obtained from ANOVA. The least p-value belongs to MOF concentration, which leads to the importance of this variable.

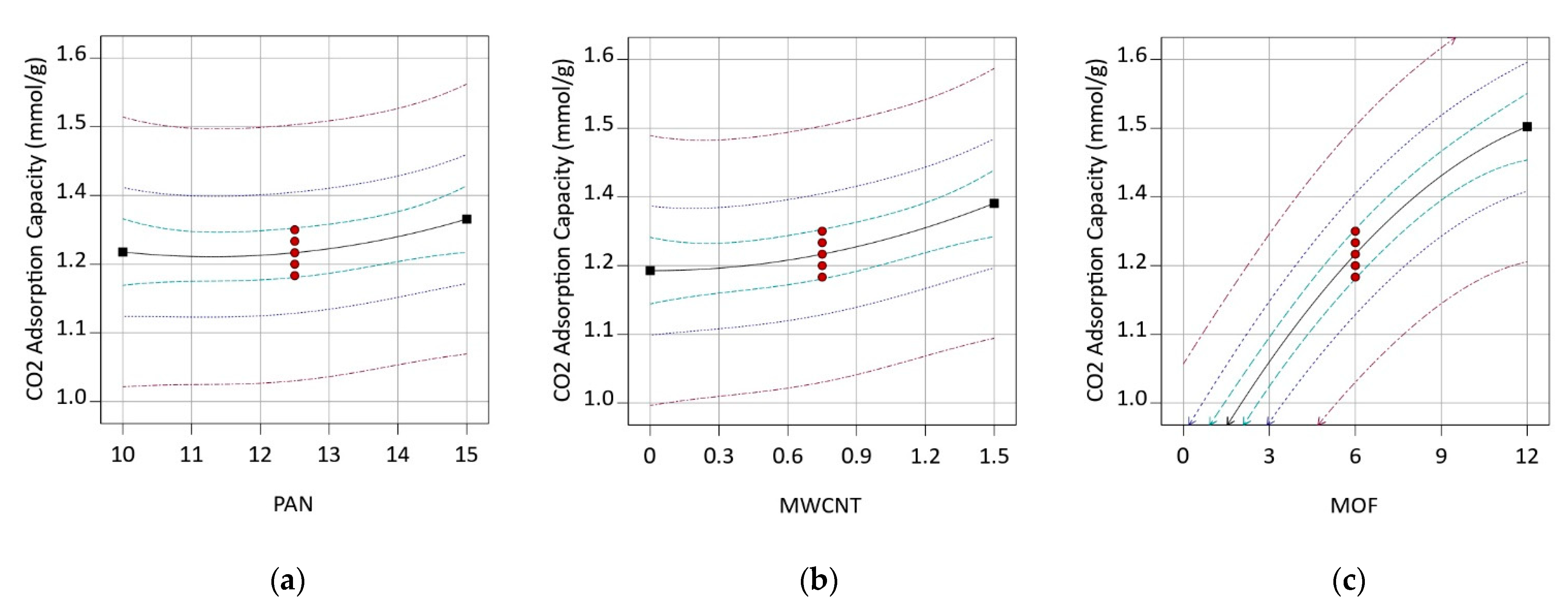

Figure 8 presents the effect of each variable on the response. By comparing three bilateral plots, one can conclude that both PAN and MWCNT concentrations individually have a limited impact on CO2 adsorption capacity. However, increasing the MOF concentration led to a significant enhancement in the response. The enhancement, as mentioned above, is a consequence of the enormous adsorption capacity of MOF particles. A decrease in CO2 adsorption, especially in higher MOF concentrations (more than 6%), is attributed to the electrospinning solution limitation for dispersing all of the MOF completely.

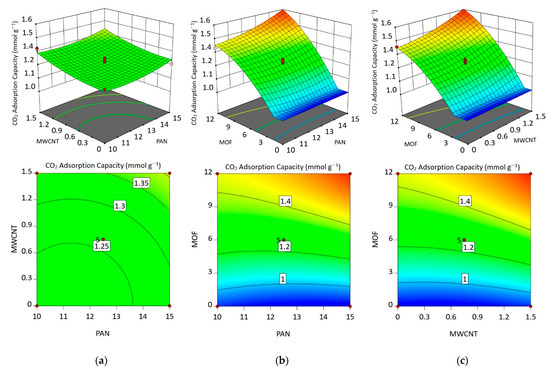

Figure 9 explores the response surface plots and counter plots for investigating the relation of any two variables on the response, while the third variable is in its center. According to Figure 9a, increasing the PAN concentration (more than about 11%) in interaction with MWCNT concentration harms CO2 adsorption. Moreover, it shows that in the higher concentration of MWCNT, the lower concentration of PAN is necessary for achieving maximum adsorption. This phenomenon could be related to increasing the solution viscosity induced by MWCNT enhancing. Hence, to adjust the solution viscosity and to obtain the highest adsorption, the PAN concentration should be reduced to get the suitable electrospinning without any MWCNT agglomeration and bead on the nanofiber morphology.
In investigating PAN/MOF plots (Figure 9b), it can be seen that at low concentrations of MOF (less than 6%), increasing the PAN concentration has no significant effect on the CO2 adsorption capacity. However, at the higher concentrations of MOF, adsorption capacity intensely depends on PAN concentration and enhances with increasing the PAN concentration. This phenomenon is presumably because of the considerable reduction in the solution viscosity due to the higher MOF concentrations. In a low concentration of MOF, viscosity reduction is less, and MOF particles load on nanofibers, completely. While at higher MOF concentrations solution viscosity intensely drops so that a lot of the MOF particles cannot properly load in nanofibers. Thus, an increase in PAN concentration helps the solution to encompass more MOF crystals and, thus, load more MOF crystals on the nanofiber substrate, which results in higher CO2 adsorption capacities.
The MWCNT/MOF plots in Figure 9c show that in low concentrations of MOF, increasing the MWCNT induces a slight increase in CO2 adsorption. However, at high concentrations of MOF (more than 6%), increasing the MWCNT concentration have a strong positive impact on the CO2 adsorption. It seems that in these concentrations, increasing MWCNT besides its structural improvement has a determining role in compensating solution viscosity, which misses during MOF addition.

3.4. Characterization of MOF Secondary Growth on the PAN/MWCNT Nanofiber

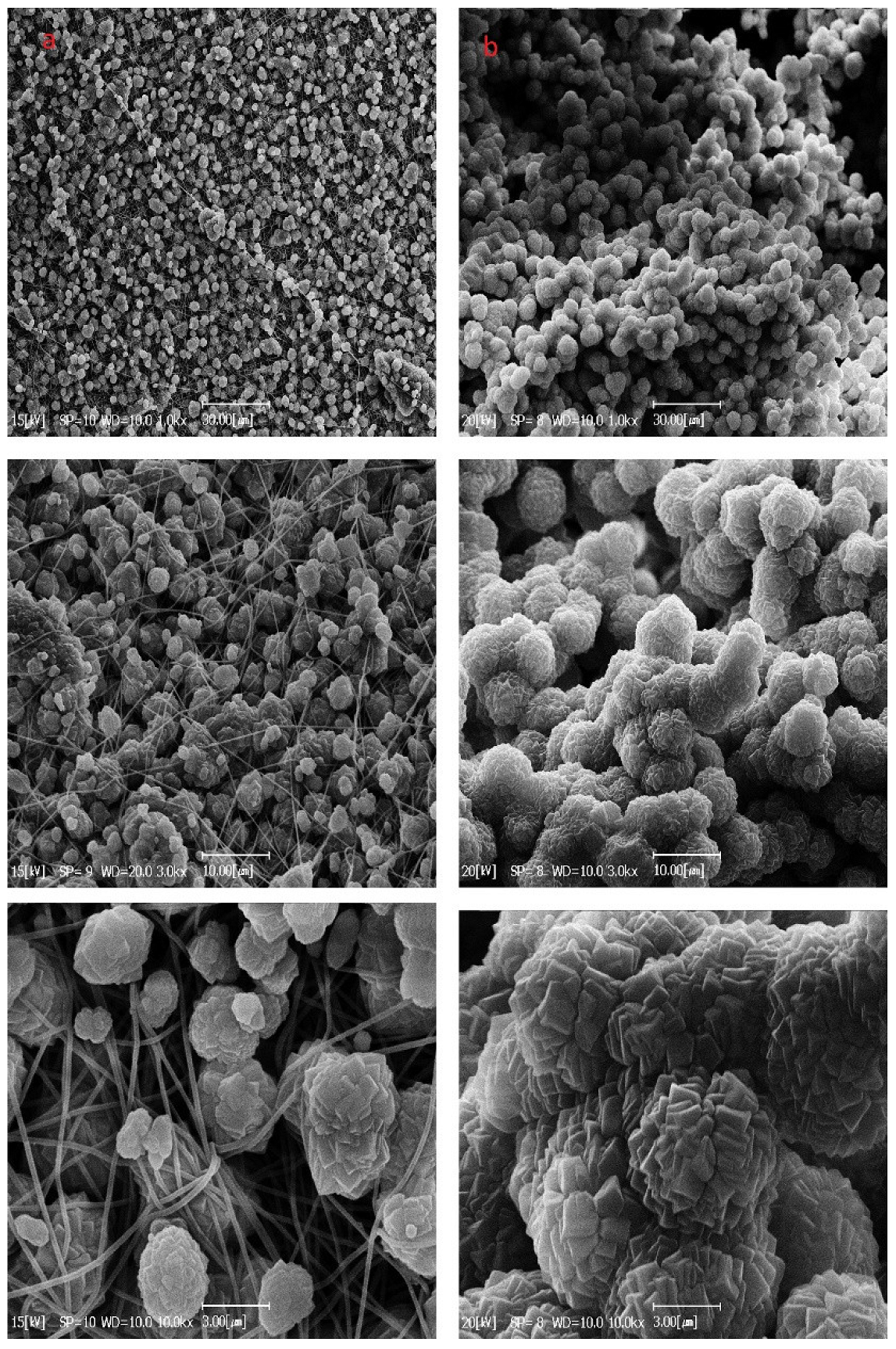

According to Figure 10, the first cycle of the secondary growth yields a uniform distribution of MOF crystals on the nanofiber mat. In the second cycle, the MOF crystals fill the remaining spaces on the nanofiber mat. They saturate the nanofiber surface, so the extra MOF crystals deposit on each other and induce the agglomerated MOF particles.

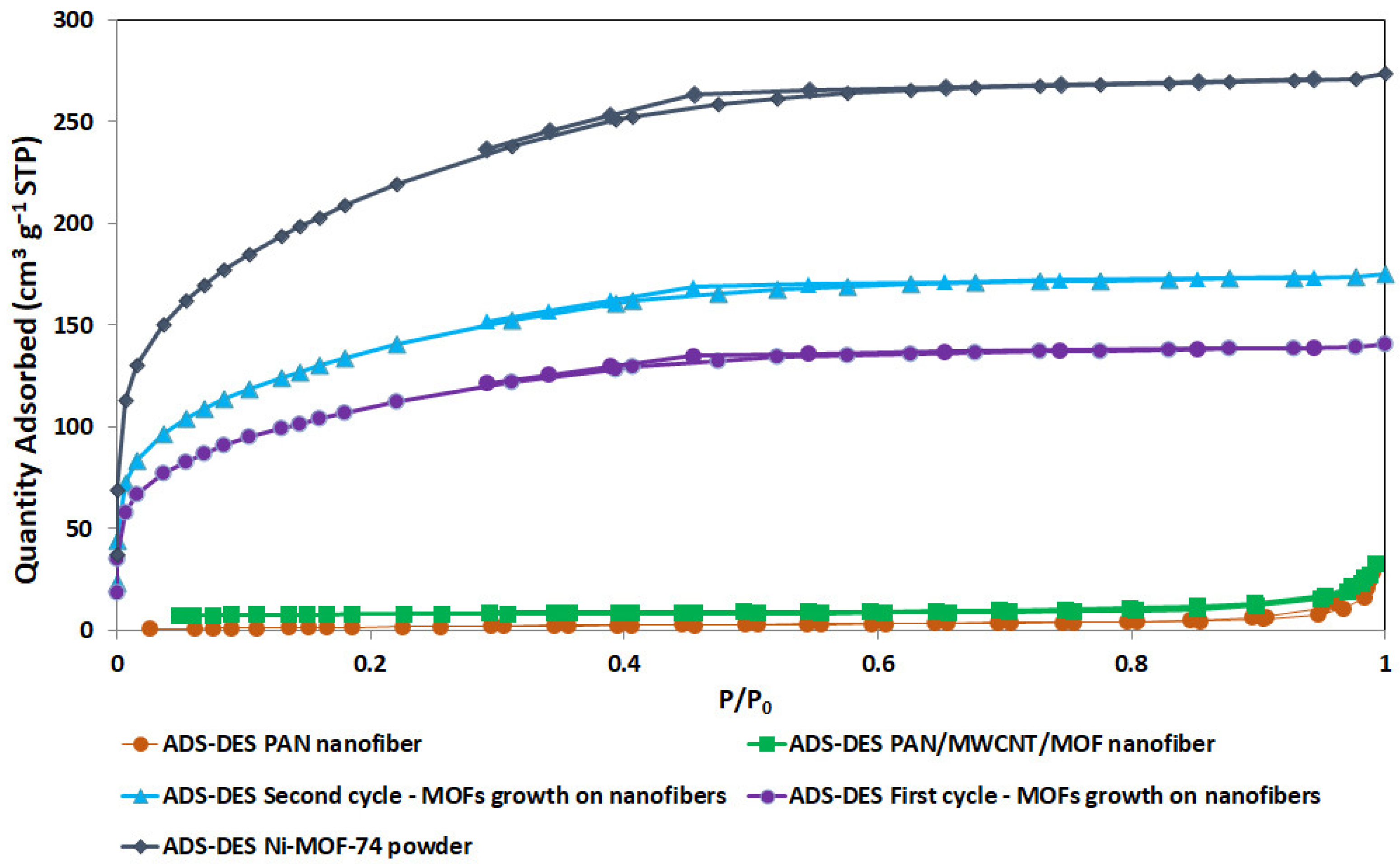

Figure 11 shows the N2 adsorption–desorption isotherm of PAN-based electrospun nanofiber loaded with different percentages of MOF/MWCNT and Ni-MOF-74 powder. The uptake of N2 molecules at a low relative pressure range (0 < P/Po < 0.1) and moderate pressure (0.5 < P/Po < 0.6), respectively, correspond to the relative volume of the micropores and the existence of mesopores [53]. The insignificant adsorption volume of the pure PAN-based nanofiber indicates the meager existence of pores in the nanofibers. With the MOF addition, there is a noticeable adsorption increase in the low relative pressure zone. A steeper increase happens in samples with higher loading of MOF, which is evidence of the presence of more micropores [54].
The isotherms of the MOF powder and the first and second cycles of MOFs growth resembled type I, according to IUPAC classification, indicating micropore domination in this structure. In contrast, the isotherms of the neat PAN nanofiber and PAN/MWCNT/MOF nanofiber are close to type II, which is characteristic of materials with less porosity or large cavities (macropores) [55].
Table 5 summarizes the corresponding BET surface area and pore structure information of PAN-based electrospun nanofibers loaded with different percentages of MOF/MWCNT and MOF powder. The improvement of the BET surface area and pore volume is evident in the excess MOF amount addition. However, the BET of the second cycle of MOFs growth compared to the first cycle of MOFs growth shows a poor performance despite more MOF loading, which can be a consequence of a blockage of pores due to MOF crystals agglomeration (as shown in Figure 10).

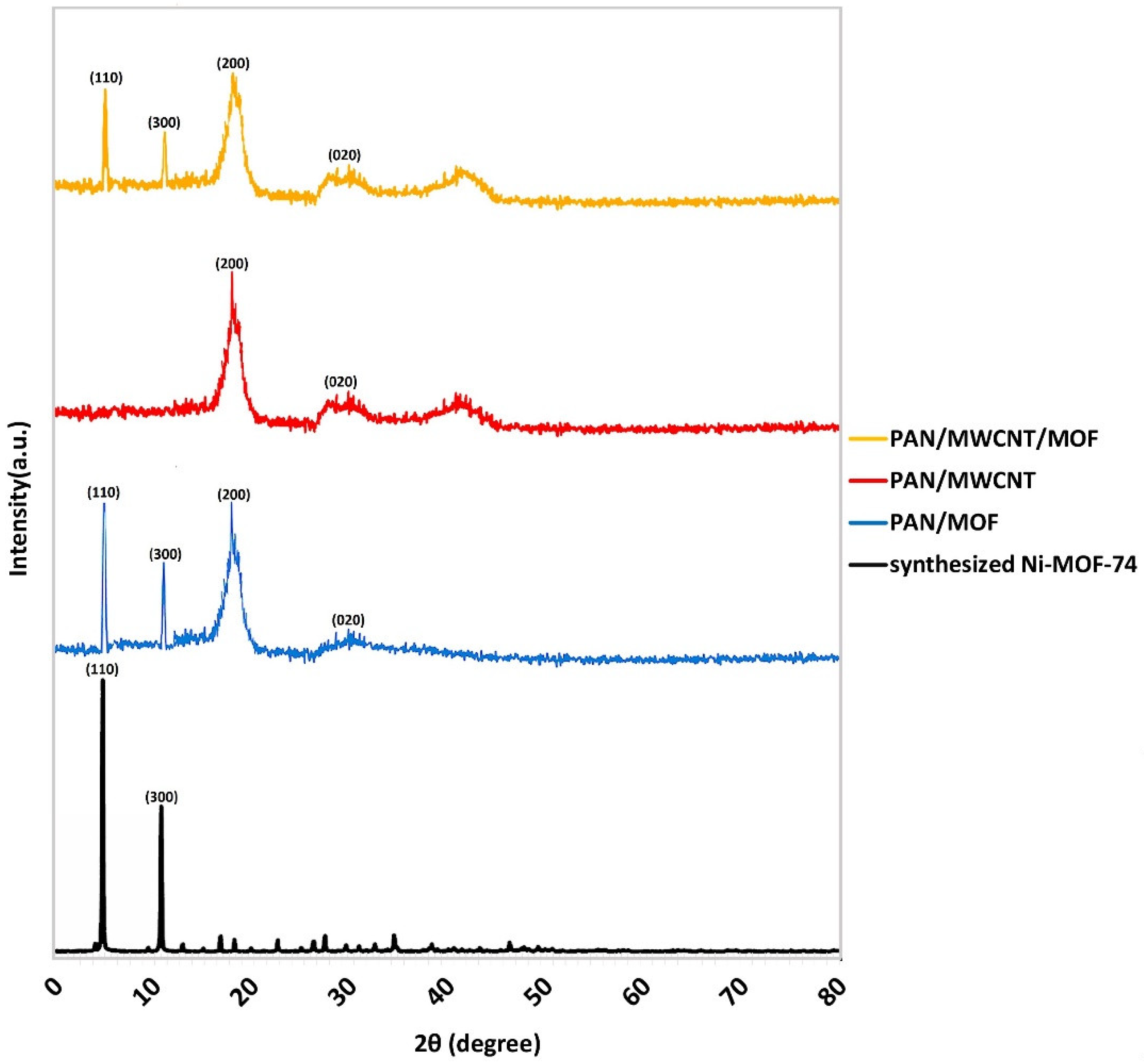

Figure 12 demonstrates the XRD patterns of Ni-MOF-74 powder, PAN/MWCNT, PAN/MOF, and PAN/MWCNT/MOF nanofiber. In the pattern of Ni-MOF-74 powder, two characteristic peaks, narrow and strong, are detectable at 2θ = 7° (110) and 12° (300) [49]. PAN/MWCNT nanofiber represents a broad peak at the range of 2θ = 15–22° (200) and a weak peak at 2θ = 31° (020), which are attributed to the crystal structure of PAN [56]. Furthermore, there are two characteristic peaks of MWCNT, one weak peak is at 2θ = 42° indicating the graphite-like structure of MWCNT and another peak is in the range of 2θ = 28–33°, which seems very difficult, due to the low loading of MWCNT and overlapping with the peak of PAN [57]. As shown in the both XRD pattern of PAN/MOF and PAN/MWCNT/MOF, the mentioned characteristic peaks of Ni-MOF-74 and MWCNT remained constant and in agreement with the structure of Ni-MOF-74. It is important to note that, all samples were successfully prepared without any damage to the crystal structure of the MOF. Such observations have been reported by another researcher [58].

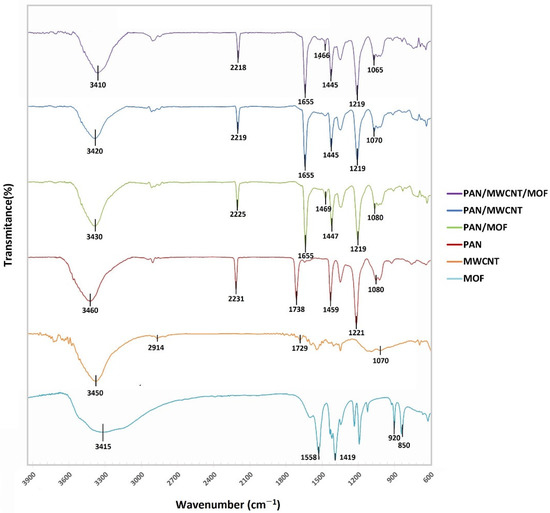

The FTIR spectra of all the samples including Ni-MOF-74 powder, MWCNT, PAN/MWCNT, PAN/MOF, and PAN/MWCNT/MOF nanofibers are shown in Figure 13. In the Ni-MOF-74 spectrum, the characteristic peaks at around 1558, 1419 cm−1 are ascribed to stretching vibrations of symmetric and asymmetric carboxylate groups (–COO–) [59]. Moreover, the peaks are located at 920, 850, and 3415 cm−1, which are attributed to stretching vibration of Ni–O, C–H, and –OH bonds, respectively [58]. The MWCNT spectrum represents the stretching vibration of C–O, C=O carboxylic acid group, CH2, and –OH bonds at 1070, 1729, 2914, and 3450 cm−1, respectively [60]. Additionally, Figure 13 depicts the PAN spectrums in presence of Ni-MOF-74 and MWCNT. As shown in the mentioned samples, there are characteristic peaks of PAN at around 3460, 2231, 1459, 1738, 1221, and 1080 cm−1, which can be attributed to the stretching vibration of the –OH, C≡N, CH2, C=O, C–O bonds from ester groups and the C–O bond from the carboxyl groups, respectively [57]. It is worth mentioning that, when comparing pure PAN nanofiber with MWCNT and Ni-MOF-74 incorporated PAN nanofibers, newly several absorption peaks and changes in the location of characteristic peaks were observed, which is due to the interaction between MWCNT and Ni-MOF-74 with the PAN nanofiber [57,58].

3.5. CO2 Adsorption Measurements

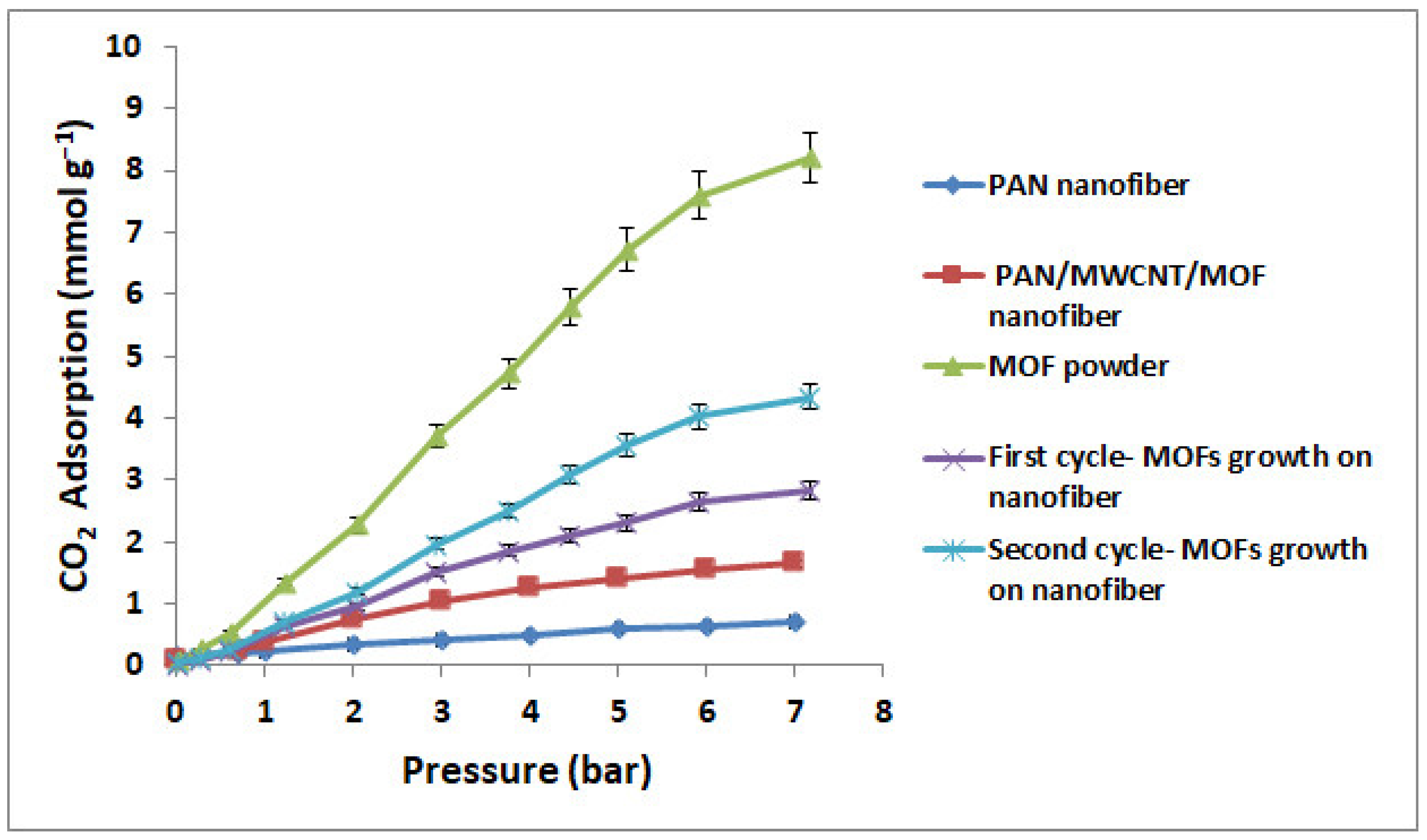

Figure 14 presents the CO2 adsorption capacity at 25 °C under 7 bar pressure for PAN nanofiber, PAN/MWCNT/MOF nanofiber, the first cycle of growth MOF, the second cycle of growth MOF, and MOF powder. The PAN nanofiber displays neglectable CO2 uptake, whereas the MOF loaded on PAN nanofibers exhibit the CO2 adsorption capacity comparable to that of MOF powder at the same pressure. The CO2 adsorption capacity of the first and second cycles of the MOFs growth at 25 °C and 7 bar, respectively are 2.83 and 4.35 mmol/g, which are equivalent to 35% and 53% of the adsorption capacity of the MOF powder (8.1 mmol/g). However, their MOF mass loading in the nanofiber structure is about 43 wt.% and 65 wt.%, respectively (Table 5). So, the capacity adsorption was lower than the excepted one, which can be related to MOFs agglomeration and ultimately pores blockage, as confirmed by the BET data (Table 5). For industrial applications, because of disadvantages such as higher pressure drop and high operation costs, the powder form of synthesized MOF must be shaped into common pellets or loaded in new structures, such as monoliths, foams, and nanofibers. In other similar studies, CO2 adsorption capacity of MOF pellet was estimated at about 70% CO2 adsorption capacity of powder [61], while as shown in this investigation, the CO2 adsorption capacity of the second cycle of the MOFs growth was about 20% less than pellet form.
On the other hand, to achieve a high-performance cyclic adsorption process, the indexes such as recovery, purity, productivity, and total energy of the cyclic adsorption process must be comprehensive considered [62], which are determined by the structural parameters, such as the mass and heat transfer coefficients, mass transfer zone, pressure drop, and adsorption capacity [3]. Therefore, the effect of structure on the following parameters, other than adsorption capacity, should be further studied. Thus, it seems that the nanofiber structure, other than lower adsorption capacity, because of special structural properties compared to the common structure (pellet), can potentially be a promising structure that should be considered further.

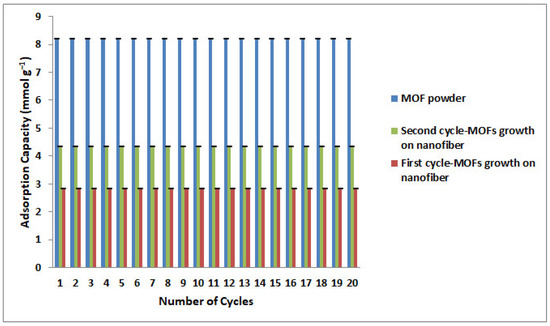

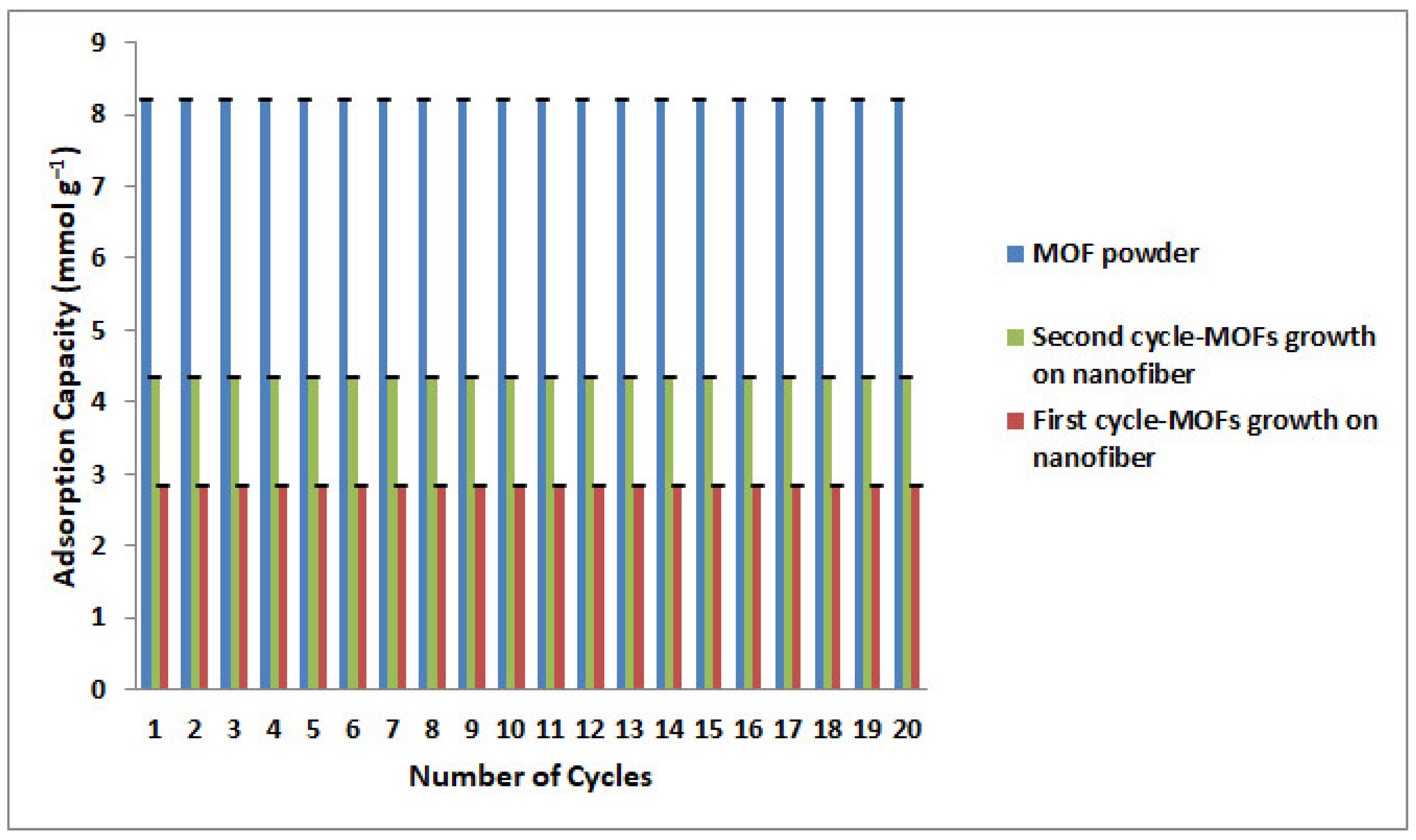

The cyclic stability of CO2 adsorption capacities for the first and second cycles of MOFs growth and MOF powder is presented in Figure 15. As can be observed, the samples held their adsorption capacity, and no considerable adsorption loss has occurred after twenty cycles.

4. Conclusions

PAN electrospun nanofibers loaded with MOF/MWCNT were fabricated and applied as the CO2 adsorbent. According to the BBD model, the maximum CO2 adsorption was about 1.68 mmol/g, at 25 °C and 7 bar, including 14.61 w/v%, 1.43 w/w%, and 11.90 w/w% for PAN, MWCNT, and MOF, respectively. The CO2 adsorption in the experimental setup was about 1.65 mmol/g, which is about 20% of the adsorption capacity of the MOF powder. The secondary growth strategy is applied mainly to increase amount of MOF loading, and consequently increase the adsorption capacity. The results of the first and second cycles of the MOF secondary growth displayed 35% and 53% of the adsorption capacity of the MOF powder, respectively, which in comparison to the common form of adsorbent (pellet) is still 20% less. However, other than the adsorption capacity, there are important structural parameters (the mass and heat transfer coefficients, mass transfer zone, pressure drop, etc.) that affect the cyclic adsorption process and, consequently, final performance. Therefore, besides adsorption capacity, the structural properties play a determining role, and to obtain a suitable adsorbent, a trade-off between both of them should be considered. Hence, because of advantages such as high porosity, high surface area, and excellent mechanical properties, the nanofiber structure can potentially be a promising structure that should be given more consideration.

Author Contributions

Conceptualization, A.H.H. and S.A.; methodology, A.H.H.; software, A.H.H. and M.R.-M.; validation, A.H.H., S.A. and M.H.; formal analysis, A.H.H. and S.A.; investigation, A.H.H., S.A. and M.R.-M.; data curation, A.H.H.; writing—original draft preparation, A.H.H.; writing—review and editing, S.A., M.R.-M., M.H. and M.R.T.; visualization, A.H.H.; supervision, S.A., M.R.-M., M.H. and M.R.T.; project administration, A.H.H. and S.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data used to support the findings of this study are included within the article.

Acknowledgments

The Iran National Science Foundation (INSF) supported this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mueller, U.; Schubert, M.; Teich, F.; Puetter, H.; Schierle-Arndt, K.; Pastré, J. Metal–organic frameworks—Prospective industrial applications. J. Mater. Chem. 2006, 16, 626–636. [Google Scholar] [CrossRef]
  2. Walton, K.S.; Millward, A.R.; Dubbeldam, D.; Frost, H.; Low, J.J.; Yaghi, O.M.; Snurr, R.Q. Understanding Inflections and Steps in Carbon Dioxide Adsorption Isotherms in Metal-Organic Frameworks. J. Am. Chem. Soc. 2008, 130, 406–407. [Google Scholar] [CrossRef] [PubMed]
  3. Rezaei, F.; Webley, P. Optimum structured adsorbents for gas separation processes. Chem. Eng. Sci. 2009, 64, 5182–5191. [Google Scholar] [CrossRef] [Green Version]
  4. Rezaei, F.; Webley, P. Structured adsorbents in gas separation processes. Sep. Purif. Technol. 2010, 70, 243–256. [Google Scholar] [CrossRef] [Green Version]
  5. Amid, H.; Mazé, B.; Flickinger, M.C.; Pourdeyhimi, B. Hybrid adsorbent nonwoven structures: A review of current technologies. J. Mater. Sci. 2016, 51, 4173–4200. [Google Scholar] [CrossRef]
  6. Guo, Z.; Huang, J.; Xue, Z.; Wang, X. Electrospun graphene oxide/carbon composite nanofibers with well-developed mesoporous structure and their adsorption performance for benzene and butanone. Chem. Eng. J. 2016, 306, 99–106. [Google Scholar] [CrossRef]
  7. Bansal, R.C.; Goyal, M. Activated Carbon Adsorption; CRC Press: Boca Raton, FL, USA, 2005; ISBN 9780429114182. [Google Scholar]
  8. Čejka, J. Metal-Organic Frameworks. Applications from Catalysis to Gas Storage. Edited by David Farrusseng. Angew. Chem. Int. Ed. 2012, 51, 4782–4783. [Google Scholar] [CrossRef]
  9. Reitz, W. A Review of: “Nonwoven Fabrics”. Mater. Manuf. Process. 2006, 21, 427. [Google Scholar] [CrossRef]
  10. Rezaei, F.; Lawson, S.; Hosseini, H.; Thakkar, H.; Hajari, A.; Monjezi, S.; Rownaghi, A.A. MOF-74 and UTSA-16 film growth on monolithic structures and their CO2 adsorption performance. Chem. Eng. J. 2017, 313, 1346–1353. [Google Scholar] [CrossRef]
  11. Lin, R.; Ge, L.; Liu, S.; Rudolph, V.; Zhu, Z. Mixed-matrix membranes with metal-organic framework-decorated CNT fillers for efficient CO2 separation. ACS Appl. Mater. Interfaces 2015, 7, 14750–14757. [Google Scholar] [CrossRef]
  12. Li, D.; Xia, Y. Electrospinning of Nanofibers: Reinventing the Wheel. Adv. Mater. 2004, 16, 1151–1170. [Google Scholar] [CrossRef]
  13. Wang, X.; Li, B. Electrospun Nanofibers for Energy and Environmental Applications; Springer: Berlin/Heidelberg, Germany, 2014; pp. 249–263. [Google Scholar]
  14. Ali, N.; Babar, A.A.; Zhang, Y.; Iqbal, N.; Wang, X.; Yu, J.; Ding, B. Porous, flexible, and core-shell structured carbon nanofibers hybridized by tin oxide nanoparticles for efficient carbon dioxide capture. J. Colloid Interface Sci. 2019, 560, 379–387. [Google Scholar] [CrossRef]
  15. Wang, X.; Ding, B.; Yu, J.; Wang, M. Engineering biomimetic superhydrophobic surfaces of electrospun nanomaterials. Nano Today 2011, 6, 510–530. [Google Scholar] [CrossRef]
  16. Ding, B.; Wang, M.; Wang, X.; Yu, J.; Sun, G. Electrospun nanomaterials for ultrasensitive sensors. Mater. Today 2010, 13, 16–27. [Google Scholar] [CrossRef]
  17. Zhang, H.; Xie, Z.; Wang, Y.; Shang, X.; Nie, P.; Liu, J. Electrospun polyacrylonitrile/β-cyclodextrin based porous carbon nanofiber self-supporting electrode for capacitive deionization. RSC Adv. 2017, 7, 55224–55231. [Google Scholar] [CrossRef] [Green Version]
  18. Su, C.; Tong, Y.; Zhang, M.; Zhang, Y.; Shao, C. TiO2 nanoparticles immobilized on polyacrylonitrile nanofibers mats: A flexible and recyclable photocatalyst for phenol degradation. RSC Adv. 2013, 3, 7503. [Google Scholar] [CrossRef]
  19. Ra, E.J.; Kim, T.H.; Yu, W.J.; An, K.H.; Lee, Y.H. Ultramicropore formation in PAN/camphor-based carbon nanofiber paper. Chem. Commun. 2010, 46, 1320. [Google Scholar] [CrossRef]
  20. Rahimi, M.; Singh, J.K.; Babu, D.J.; Schneider, J.J.; Müller-Plathe, F. Understanding Carbon Dioxide Adsorption in Carbon Nanotube Arrays: Molecular Simulation and Adsorption Measurements. J. Phys. Chem. C 2013, 117, 13492–13501. [Google Scholar] [CrossRef]
  21. Wahiduzzaman; Khan, M.R.; Harp, S.; Neumann, J.; Sultana, Q.N. Processing and Performance of MOF (Metal Organic Framework)-Loaded PAN Nanofibrous Membrane for CO2 Adsorption. J. Mater. Eng. Perform. 2016, 25, 1276–1283. [Google Scholar] [CrossRef]
  22. Wu, Y.N.; Li, F.; Liu, H.; Zhu, W.; Teng, M.; Jiang, Y.; Li, W.; Xu, D.; He, D.; Hannam, P.; et al. Electrospun fibrous mats as skeletons to produce free-standing MOF membranes. J. Mater. Chem. 2012, 22, 16971–16978. [Google Scholar] [CrossRef]
  23. Peralta, D.; Chaplais, G.; Simon-Masseron, A.; Barthelet, K.; Chizallet, C.; Quoineaud, A.A.; Pirngruber, G.D. Comparison of the behavior of metal-organic frameworks and zeolites for hydrocarbon separations. J. Am. Chem. Soc. 2012, 134, 8115–8126. [Google Scholar] [CrossRef]
  24. Rowsell, J.L.C.; Yaghi, O.M. Effects of Functionalization, Catenation, and Variation of the Metal Oxide and Organic Linking Units on the Low-Pressure Hydrogen Adsorption Properties of Metal−Organic Frameworks. J. Am. Chem. Soc. 2006, 128, 1304–1315. [Google Scholar] [CrossRef]
  25. Millward, A.R.; Yaghi, O.M. Metal-organic frameworks with exceptionally high capacity for storage of carbon dioxide at room temperature. J. Am. Chem. Soc. 2005, 127, 17998–17999. [Google Scholar] [CrossRef]
  26. Bao, Z.; Yu, L.; Ren, Q.; Lu, X.; Deng, S. Adsorption of CO2 and CH4 on a magnesium-based metal organic framework. J. Colloid Interface Sci. 2011, 353, 549–556. [Google Scholar] [CrossRef]
  27. Caskey, S.R.; Wong-Foy, A.G.; Matzger, A.J. Dramatic Tuning of Carbon Dioxide Uptake via Metal Substitution in a Coordination Polymer with Cylindrical Pores. J. Am. Chem. Soc. 2008, 130, 10870–10871. [Google Scholar] [CrossRef]
  28. Yazaydin, A.O.; Snurr, R.Q.; Park, T.-H.; Koh, K.; Liu, J.; LeVan, M.D.; Benin, A.I.; Jakubczak, P.; Lanuza, M.; Galloway, D.B.; et al. Screening of Metal−Organic Frameworks for Carbon Dioxide Capture from Flue Gas Using a Combined Experimental and Modeling Approach. J. Am. Chem. Soc. 2009, 131, 18198–18199. [Google Scholar] [CrossRef]
  29. Liu, Y.; Wang, Z.U.; Zhou, H.-C. Recent advances in carbon dioxide capture with metal-organic frameworks. Greenh. Gases Sci. Technol. 2012, 2, 239–259. [Google Scholar] [CrossRef]
  30. Liu, J.; Benin, A.I.; Furtado, A.M.B.; Jakubczak, P.; Willis, R.R.; LeVan, M.D. Stability Effects on CO2 Adsorption for the DOBDC Series of Metal–Organic Frameworks. Langmuir 2011, 27, 11451–11456. [Google Scholar] [CrossRef]
  31. Liu, J.; Wang, Y.; Benin, A.I.; Jakubczak, P.; Willis, R.R.; LeVan, M.D. CO2/H2O Adsorption Equilibrium and Rates on Metal−Organic Frameworks: HKUST-1 and Ni/DOBDC. Langmuir 2010, 26, 14301–14307. [Google Scholar] [CrossRef]
  32. Du, P.; Dong, Y.; Liu, C.; Wei, W.; Liu, D.; Liu, P. Fabrication of hierarchical porous nickel based metal-organic framework (Ni-MOF) constructed with nanosheets as novel pseudo-capacitive material for asymmetric supercapacitor. J. Colloid Interface Sci. 2018, 518, 57–68. [Google Scholar] [CrossRef]
  33. Dou, Y.; Zhang, W.; Kaiser, A. Electrospinning of Metal–Organic Frameworks for Energy and Environmental Applications. Adv. Sci. 2020, 7, 1902590. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Lee, D.J.; Li, Q.; Kim, H.; Lee, K. Preparation of Ni-MOF-74 membrane for CO2 separation by layer-by-layer seeding technique. Microporous Mesoporous Mater. 2012, 163, 169–177. [Google Scholar] [CrossRef]
  35. Meng, L.-Y.Y.; Park, S.-J.J. Effect of heat treatment on CO2 adsorption of KOH-activated graphite nanofibers. J. Colloid Interface Sci. 2010, 352, 498–503. [Google Scholar] [CrossRef] [PubMed]
  36. Iqbal, N.; Wang, X.; Ahmed Babar, A.; Yu, J.; Ding, B. Highly flexible NiCO2O4/CNTs doped carbon nanofibers for CO2 adsorption and supercapacitor electrodes. J. Colloid Interface Sci. 2016, 476, 87–93. [Google Scholar] [CrossRef]
  37. Lai, D.; Wei, Y.; Zou, L.; Xu, Y.; Lu, H. Wet spinning of PVA composite fibers with a large fraction of multi-walled carbon nanotubes. Prog. Nat. Sci. Mater. Int. 2015, 25, 445–452. [Google Scholar] [CrossRef] [Green Version]
  38. Dalton, A.B.; Collins, S.; Muñoz, E.; Razal, J.M.; Ebron, V.H.; Ferraris, J.P.; Coleman, J.N.; Kim, B.G.; Baughman, R.H. Super-tough carbon-nanotube fibres. Nature 2003, 423, 703. [Google Scholar] [CrossRef]
  39. Sandler, J.K.W.; Kirk, J.E.; Kinloch, I.A.; Shaffer, M.S.P.; Windle, A.H. Ultra-low electrical percolation threshold in carbon-nanotube-epoxy composites. Polymer 2003, 44, 5893–5899. [Google Scholar] [CrossRef]
  40. Zhang, J.; Wang, Q.; Wang, L.; Wang, A. Manipulated dispersion of carbon nanotubes with derivatives of chitosan. Carbon N. Y. 2007, 45, 1917–1920. [Google Scholar] [CrossRef]
  41. Clavé, G.; Campidelli, S. Efficient covalent functionalisation of carbon nanotubes: The use of “click chemistry”. Chem. Sci. 2011, 2, 1887. [Google Scholar] [CrossRef]
  42. Dyke, C.A.; Tour, J.M. Covalent Functionalization of Single-Walled Carbon Nanotubes for Materials Applications. J. Phys. Chem. A 2004, 108, 11151–11159. [Google Scholar] [CrossRef]
  43. Li, X.; Wong, S.Y.; Tjiu, W.C.; Lyons, B.P.; Oh, S.A.; He, C. Bin Non-covalent functionalization of multi walled carbon nanotubes and their application for conductive composites. Carbon N. Y. 2008, 46, 829–831. [Google Scholar] [CrossRef]
  44. Zhang, X.; Liu, T.; Sreekumar, T.V.; Kumar, S.; Moore, V.C.; Hauge, R.H.; Smalley, R.E. Poly(vinyl alcohol)/SWNT Composite Film. Nano Lett. 2003, 3, 1285–1288. [Google Scholar] [CrossRef]
  45. Ghosal, K.; Ghosh, D.; Das, S.K. Preparation and evaluation of naringin-loaded polycaprolactone microspheres based oral suspension using Box-Behnken design. J. Mol. Liq. 2018, 256, 49–57. [Google Scholar] [CrossRef]
  46. Heidari, M.; Bahrami, H.; Ranjbar-Mohammadi, M. Fabrication, optimization and characterization of electrospun poly(caprolactone)/gelatin/graphene nanofibrous mats. Mater. Sci. Eng. C 2017, 78, 218–229. [Google Scholar] [CrossRef]
  47. Díaz-García, M.; Mayoral, Á.; Díaz, I.; Sánchez-Sánchez, M. Nanoscaled M-MOF-74 Materials Prepared at Room Temperature. Cryst. Growth Des. 2014, 14, 2479–2487. [Google Scholar] [CrossRef]
  48. Xu, T.; Hou, X.; Liu, S.; Liu, B. One-step synthesis of magnetic and porous Ni@MOF-74(Ni) composite. Microporous Mesoporous Mater. 2018, 259, 178–183. [Google Scholar] [CrossRef]
  49. Dietzel, P.D.C.C.; Panella, B.; Hirscher, M.; Blom, R.; Fjellvåg, H. Hydrogen adsorption in a nickel based coordination polymer with open metal sites in the cylindrical cavities of the desolvated framework. Chem. Commun. 2006, 1, 959–961. [Google Scholar] [CrossRef]
  50. Thakkar, H.; Eastman, S.; Al-Naddaf, Q.; Rownaghi, A.A.; Rezaei, F. 3D-Printed Metal–Organic Framework Monoliths for Gas Adsorption Processes. ACS Appl. Mater. Interfaces 2017, 9, 35908–35916. [Google Scholar] [CrossRef]
  51. Scherrer, P. Göttinger Nachrichten Gesell; Mathematisch-Physikalische Klasse; Springer: Berlin, Germany, 1918; Volume 2. [Google Scholar]
  52. Bae, Y.-S.; Liu, J.; Wilmer, C.E.; Sun, H.; Dickey, A.N.; Kim, M.B.; Benin, A.I.; Willis, R.R.; Barpaga, D.; LeVan, M.D.; et al. The effect of pyridine modification of Ni–DOBDC on CO2 capture under humid conditions. Chem. Commun. 2014, 50, 3296–3298. [Google Scholar] [CrossRef]
  53. Grant Glover, T.; Peterson, G.W.; Schindler, B.J.; Britt, D.; Yaghi, O. MOF-74 building unit has a direct impact on toxic gas adsorption. Chem. Eng. Sci. 2011, 66, 163–170. [Google Scholar] [CrossRef]
  54. Yu, X.; Wang, J.; Huang, Z.-H.; Shen, W.; Kang, F. Ordered mesoporous carbon nanospheres as electrode materials for high-performance supercapacitors. Electrochem. Commun. 2013, 36, 66–70. [Google Scholar] [CrossRef]
  55. Yu, X.; Zhao, J.; Lv, R.; Liang, Q.; Zhan, C.; Bai, Y.; Huang, Z.-H.; Shen, W.; Kang, F. Facile synthesis of nitrogen-doped carbon nanosheets with hierarchical porosity for high performance supercapacitors and lithium–sulfur batteries. J. Mater. Chem. A 2015, 3, 18400–18405. [Google Scholar] [CrossRef]
  56. Do, D.D. Adsorption Analysis: Equilibria and Kinetics; (Series on Chemical Engineering); Imperial College Press: London, UK, 1998; Volume 2, ISBN 978-1-86094-130-6. [Google Scholar]
  57. Ge, J.J.; Hou, H.; Li, Q.; Graham, M.J.; Greiner, A.; Reneker, D.H.; Harris, F.W.; Cheng, S.Z.D. Assembly of Well-Aligned Multiwalled Carbon Nanotubes in Confined Polyacrylonitrile Environments: Electrospun Composite Nanofiber Sheets. J. Am. Chem. Soc. 2004, 126, 15754–15761. [Google Scholar] [CrossRef]
  58. Zhang, J.; Zhang, Y.; Zhang, D.; Zhao, J. Dry-jet wet-spun PAN/MWCNT composite fibers with homogeneous structure and circular cross-section. J. Appl. Polym. Sci. 2012, 125, E58–E66. [Google Scholar] [CrossRef]
  59. Amini, S.; Ebrahimzdeh, H.; Seidi, S.; Jalilian, N. Preparation of electrospun polyacrylonitrile/Ni-MOF-74 nanofibers for extraction of atenolol and captopril prior to HPLC-DAD. Microchim. Acta 2020, 187, 508. [Google Scholar] [CrossRef]
  60. Villajos, J.A.; Orcajo, G.; Martos, C.; Botas, J.Á.; Villacañas, J.; Calleja, G. Co/Ni mixed-metal sited MOF-74 material as hydrogen adsorbent. Int. J. Hydrogen Energy 2015, 40, 5346–5352. [Google Scholar] [CrossRef]
  61. Sadegh, H.; Zare, K.; Maazinejad, B.; Shahryari-ghoshekandi, R.; Tyagi, I.; Agarwal, S.; Gupta, V.K. Synthesis of MWCNT-COOH-Cysteamine composite and its application for dye removal. J. Mol. Liq. 2016, 215, 221–228. [Google Scholar] [CrossRef]
  62. Montazerolghaem, M.; Aghamiri, S.F.; Talaie, M.R.; Tangestaninejad, S. A comparative investigation of CO2 adsorption on powder and pellet forms of MIL-101. J. Taiwan Inst. Chem. Eng. 2017, 72, 45–52. [Google Scholar] [CrossRef]
Nanomaterials 12 00412 g001 550

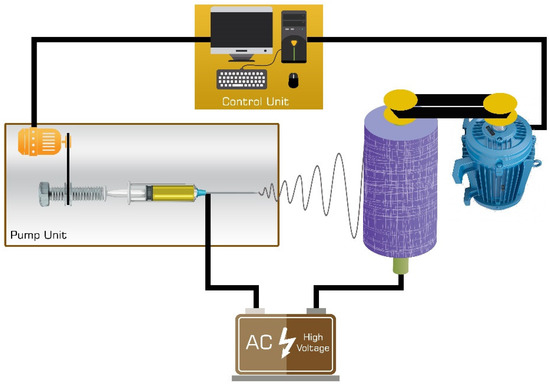

Figure 1. Schematic diagram of electrospinning of PAN/MWCNT/MOF nanofiber.
Figure 1. Schematic diagram of electrospinning of PAN/MWCNT/MOF nanofiber.
Nanomaterials 12 00412 g001
Nanomaterials 12 00412 g002 550

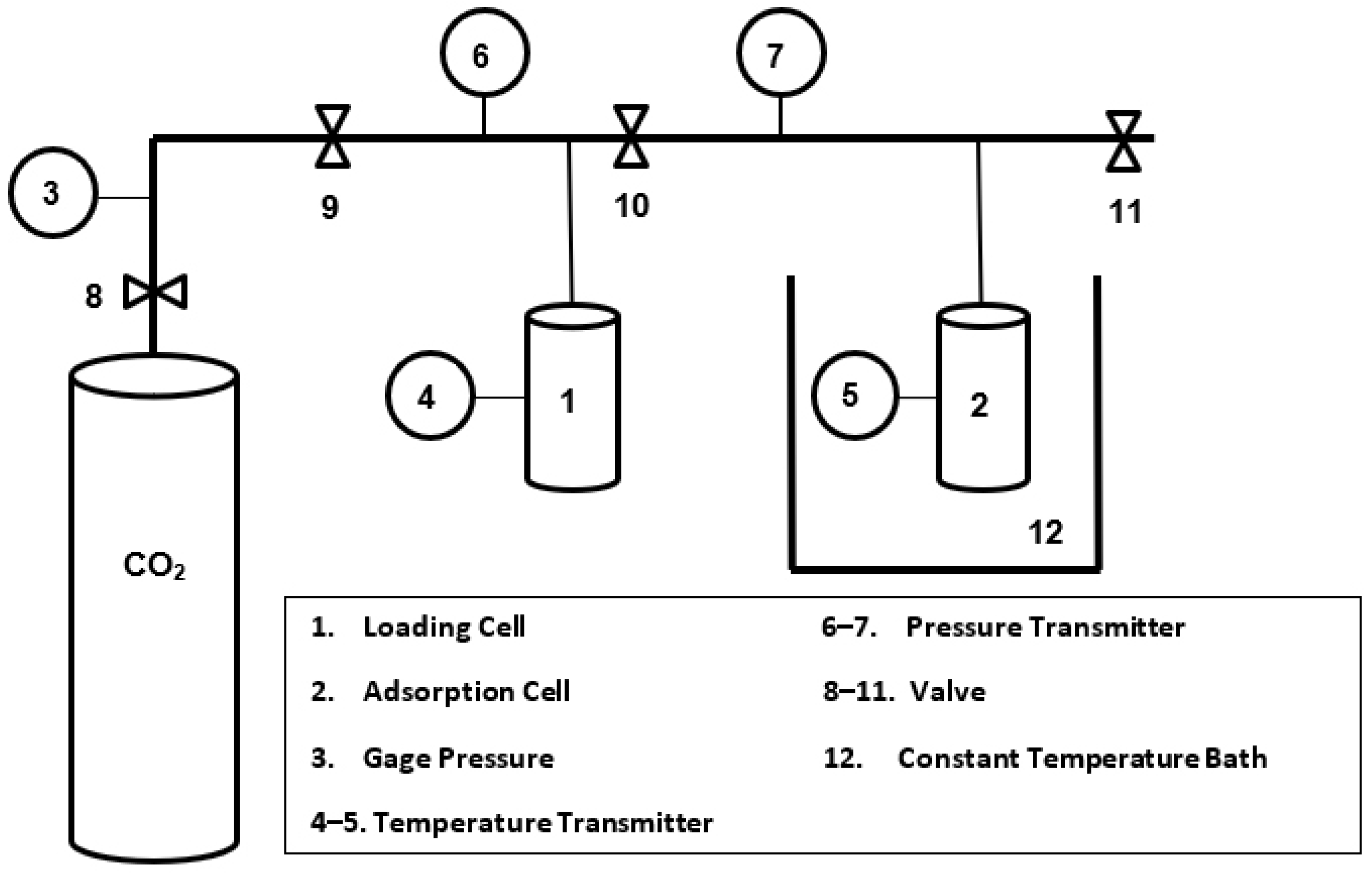

Figure 2. Experimental setup for CO2 adsorption evaluation.
Figure 2. Experimental setup for CO2 adsorption evaluation.
Nanomaterials 12 00412 g002
Nanomaterials 12 00412 g003 550

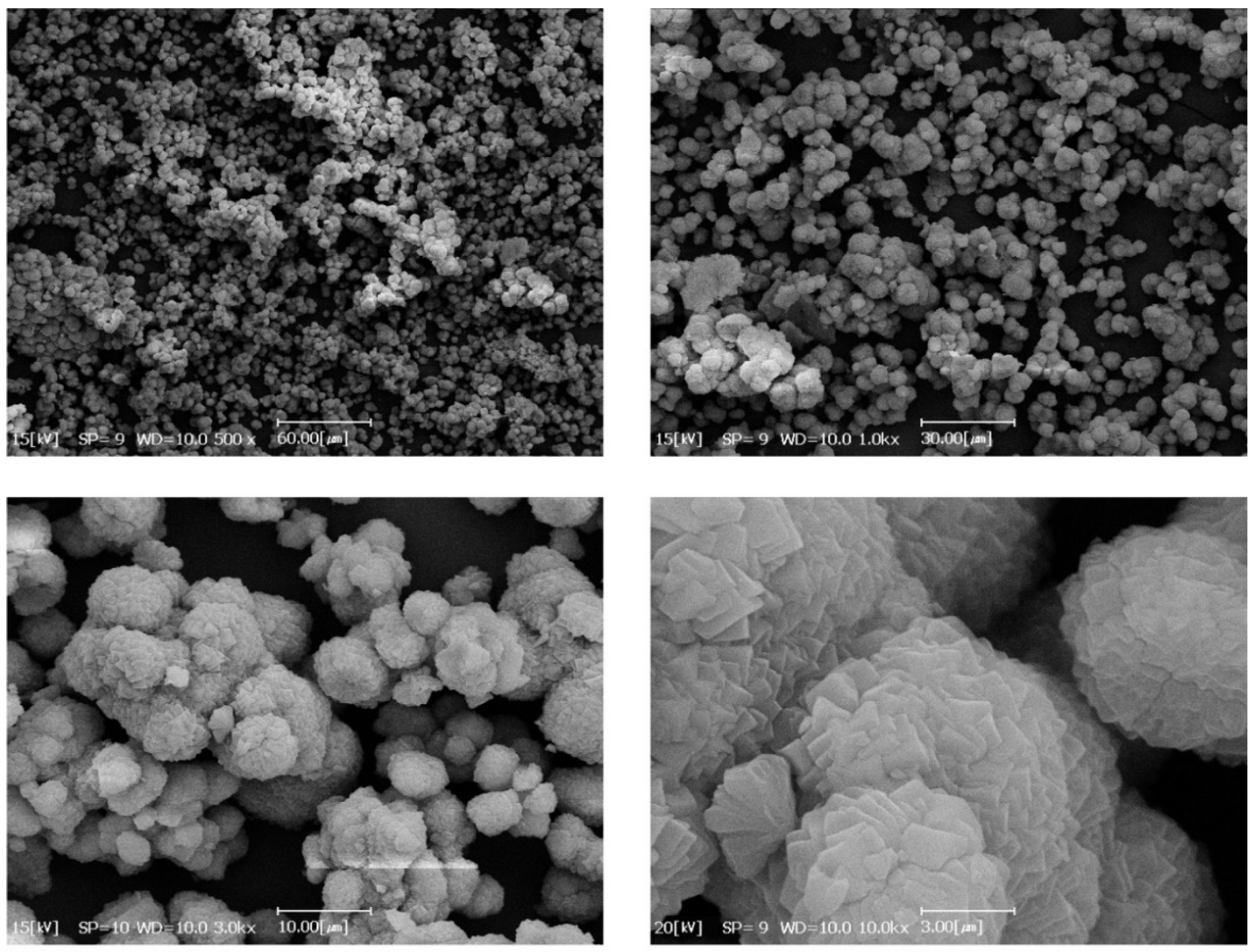

Figure 3. SEM images of synthesized Ni-MOF-74 particles at different magnifications.
Figure 3. SEM images of synthesized Ni-MOF-74 particles at different magnifications.
Nanomaterials 12 00412 g003
Nanomaterials 12 00412 g004 550

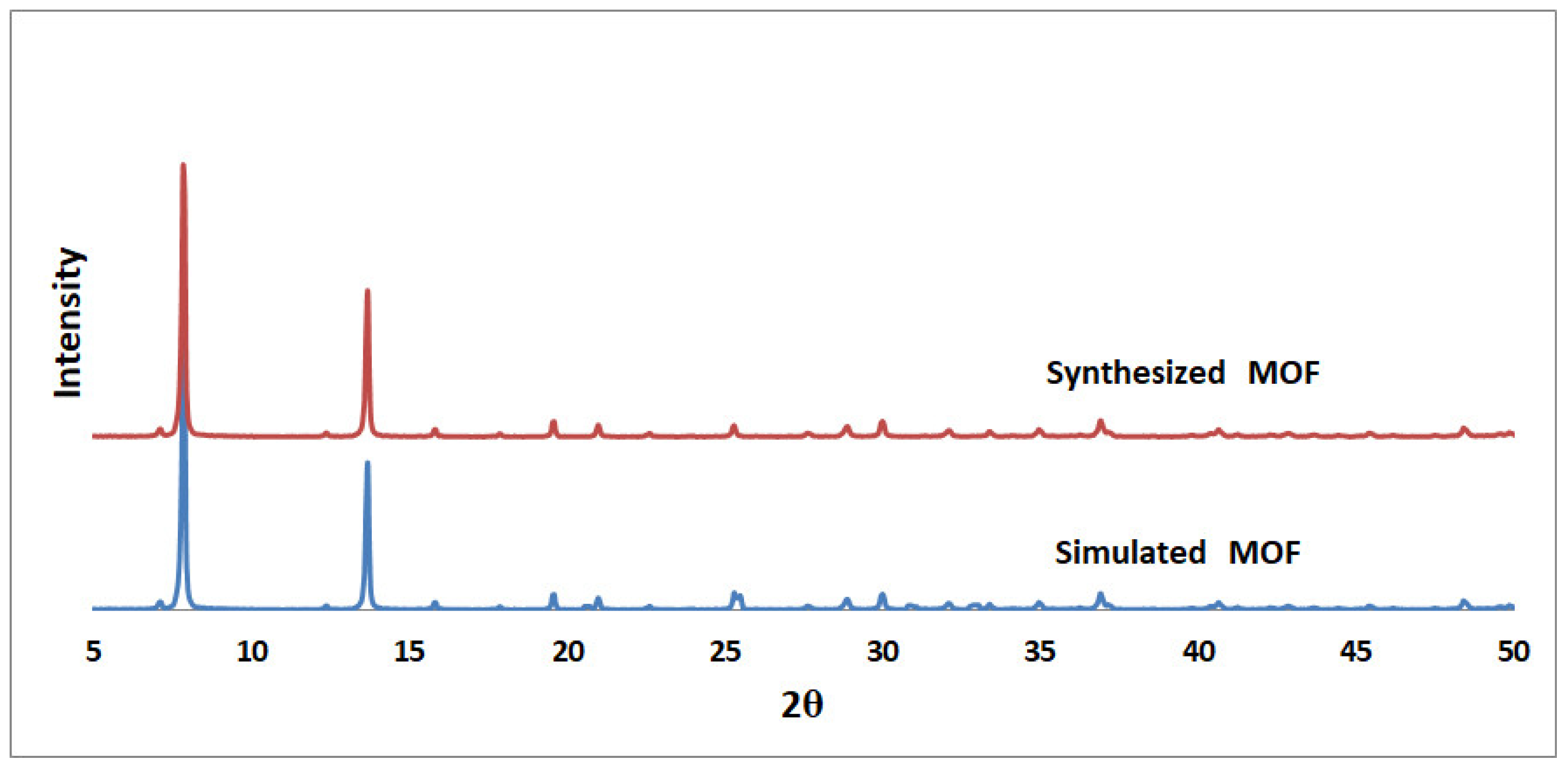

Figure 4. XRD pattern of synthesized Ni-MOF-74 in compared with simulated MOF [48].
Figure 4. XRD pattern of synthesized Ni-MOF-74 in compared with simulated MOF [48].
Nanomaterials 12 00412 g004
Nanomaterials 12 00412 g005 550

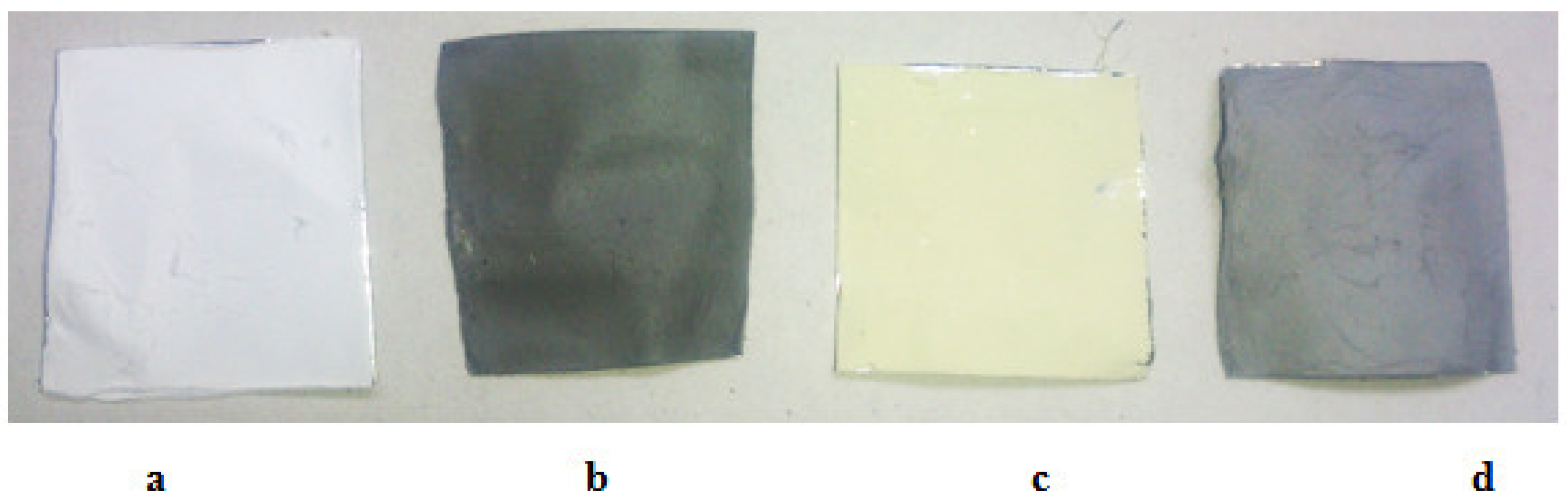

Figure 5. Optical images of electrospun nanofiber mats: (a) PAN; (b) PAN/MWCNT; (c) PAN/MOF; (d) PAN/MWCNT/MOF.
Figure 5. Optical images of electrospun nanofiber mats: (a) PAN; (b) PAN/MWCNT; (c) PAN/MOF; (d) PAN/MWCNT/MOF.
Nanomaterials 12 00412 g005
Nanomaterials 12 00412 g006 550

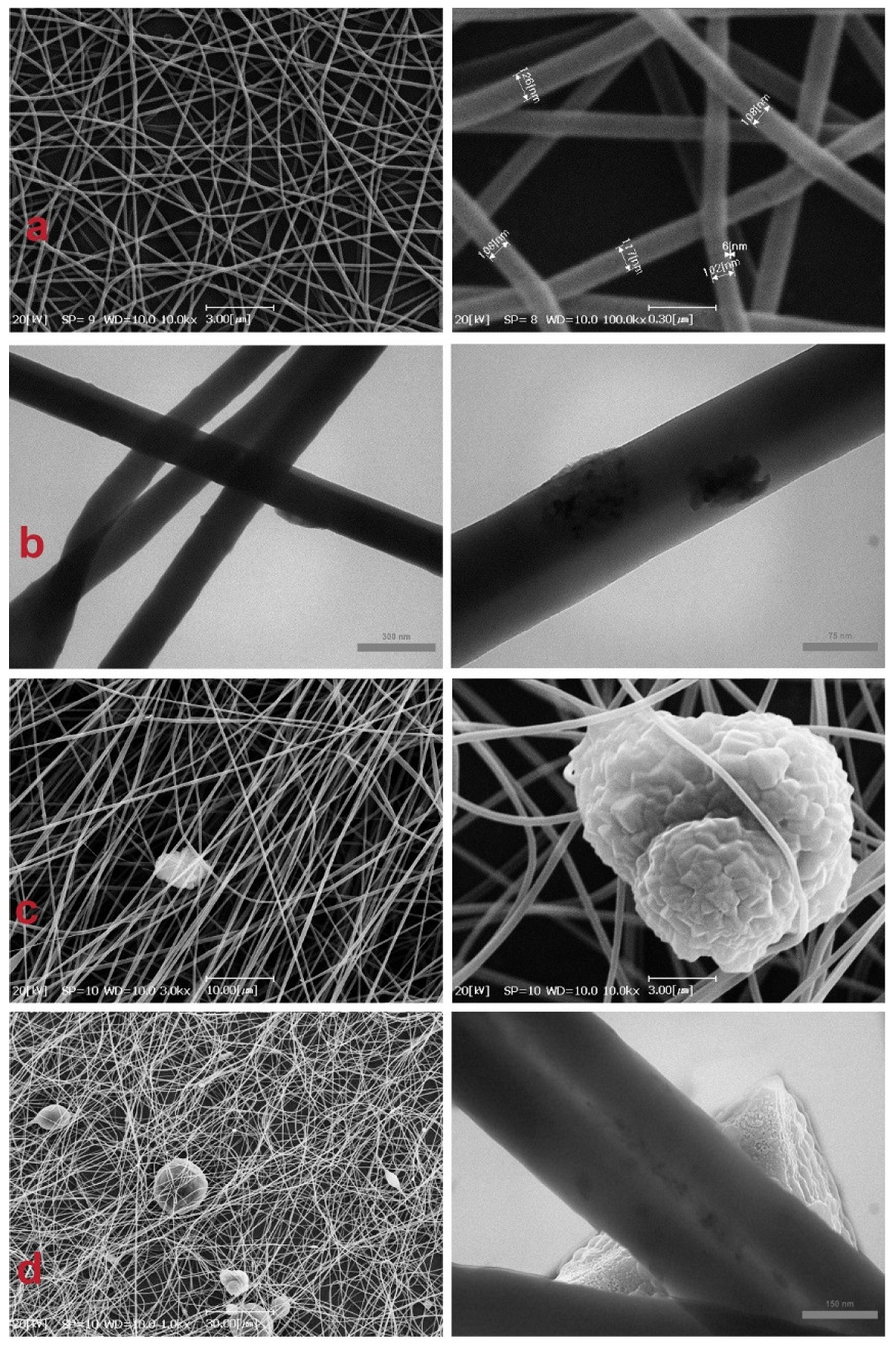

Figure 6. SEM and TEM images of electrospun nanofiber (a) PAN; (b) PAN/MWCNT; (c) PAN/MOF; (d) PAN/MWCNT/MOF.
Figure 6. SEM and TEM images of electrospun nanofiber (a) PAN; (b) PAN/MWCNT; (c) PAN/MOF; (d) PAN/MWCNT/MOF.
Nanomaterials 12 00412 g006
Nanomaterials 12 00412 g007 550
Figure 7. TG analysis of Ni-MOF-74, PAN nanofiber, and PAN/MWCNT/MOF nanofiber.
Figure 7. TG analysis of Ni-MOF-74, PAN nanofiber, and PAN/MWCNT/MOF nanofiber.
Nanomaterials 12 00412 g007
Nanomaterials 12 00412 g008 550
Figure 8. One-factor graphs of variables concentration effect on CO2 adsorption, (a) PAN (b) MWCNT (c) MOF.
Figure 8. One-factor graphs of variables concentration effect on CO2 adsorption, (a) PAN (b) MWCNT (c) MOF.
Nanomaterials 12 00412 g008
Nanomaterials 12 00412 g009 550
Figure 9. Response surface plots and counter plots on CO2 adsorption as follows: effect of (a) PAN and MWCNT concentration, (b) PAN and MOF concentration, (c) MWCNT and MOF concentration.
Figure 9. Response surface plots and counter plots on CO2 adsorption as follows: effect of (a) PAN and MWCNT concentration, (b) PAN and MOF concentration, (c) MWCNT and MOF concentration.
Nanomaterials 12 00412 g009
Nanomaterials 12 00412 g010 550
Figure 10. SEM images of MOFs growth on the nanofibers, (a) first cycle, (b) second cycle, at different magnifications.
Figure 10. SEM images of MOFs growth on the nanofibers, (a) first cycle, (b) second cycle, at different magnifications.
Nanomaterials 12 00412 g010
Nanomaterials 12 00412 g011 550
Figure 11. Nitrogen adsorption–desorption isotherms for PAN-based nanofibers loaded with different percentages of MOF/MWCNT and MOF powder.
Figure 11. Nitrogen adsorption–desorption isotherms for PAN-based nanofibers loaded with different percentages of MOF/MWCNT and MOF powder.
Nanomaterials 12 00412 g011
Nanomaterials 12 00412 g012 550
Figure 12. XRD patterns of Ni-MOF-74 powder, PAN/MWCNT, PAN/MOF, and PAN/MWCNT/MOF nanofibers.
Figure 12. XRD patterns of Ni-MOF-74 powder, PAN/MWCNT, PAN/MOF, and PAN/MWCNT/MOF nanofibers.
Nanomaterials 12 00412 g012
Nanomaterials 12 00412 g013 550
Figure 13. FTIR spectra of Ni-MOF-74 powder, PAN/MWCNT, PAN/MOF, and PAN/MWCNT/MOF nanofibers.
Figure 13. FTIR spectra of Ni-MOF-74 powder, PAN/MWCNT, PAN/MOF, and PAN/MWCNT/MOF nanofibers.
Nanomaterials 12 00412 g013
Nanomaterials 12 00412 g014 550
Figure 14. CO2 adsorption of PAN nanofiber, PAN/MWCNT/MOF nanofiber, MOF powder, first cycle—MOFs growth on nanofiber, second cycle—MOFs growth on nanofiber, and at 25 °C.
Figure 14. CO2 adsorption of PAN nanofiber, PAN/MWCNT/MOF nanofiber, MOF powder, first cycle—MOFs growth on nanofiber, second cycle—MOFs growth on nanofiber, and at 25 °C.
Nanomaterials 12 00412 g014
Nanomaterials 12 00412 g015 550
Figure 15. CO2 cyclic adsorption capacities of the first cycle—MOFs growth, the second cycle—MOFs growth and MOF powder at 25 °C and 7 bar.
Figure 15. CO2 cyclic adsorption capacities of the first cycle—MOFs growth, the second cycle—MOFs growth and MOF powder at 25 °C and 7 bar.
Nanomaterials 12 00412 g015
Table
Table 1. The variables and levels for Box–Behnken design.
Table 1. The variables and levels for Box–Behnken design.
VariableNameLevel and Quantities
X1PAN Concentration1012.515
X2MWCNT Concentration00.751.5
X3MOF Concentration0612
Table
Table 2. Experimental design variables and response.
Table 2. Experimental design variables and response.
RUNVariablesResponse
X1
(PAN,w/v%)		X2
(MWCNT,w/w%)		X3
(MOF,w/w%)		CO2 Adsorption
(mmol CO2/g at 25 °C and 7 bar)
115061.25 ± 0.03
212.50.7561.28 ± 0.02
312.51.5121.59 ± 0.02
4150.75121.63 ± 0.02
512.50.7561.25 ± 0.02
612.50.7561.22 ± 0.03
710060.86 ± 0.03
812.50.7561.39 ± 0.02
9150.7500.85 ± 0.02
10101.561.39 ± 0.03
1112.5000.85 ± 0.04
12100.7500.86 ± 0.03
1312.50121.43 ± 0.01
1412.50.7561.26 ± 0.03
1512.51.500.88 ± 0.02
16100.75121.40 ± 0.03
17151.561.39 ± 0.03
Table
Table 3. Statistical parameters of the ANOVA model.
Table 3. Statistical parameters of the ANOVA model.
SourceSum of SquaresDfMean SquareF-Valuep-Value
model0.946390.105163.040.0001≥significant
A(PAN)0.006610.00663.960.0867
B (CNT)0.027610.027616.560.0048
C (MOF)0.845010.8450506.640.0001≥
AB0.000010.00000.001.0000
AC0.013210.01327.930.0259
BC0.004210.00422.530.1555
A20.003810.00382.270.1755
B20.003810.00382.270.1755
C20.044210.044226.520.0013
Residual0.011770.0017
Lack of fit0.007730.00262.560.1931Not significant
Pure error0.004040.0010
Cor total0.958016
Table
Table 4. Analysis of variance of the quadratic model.
Table 4. Analysis of variance of the quadratic model.
Sum of SquaresMean SquaresF-ValueProbe (p) > F
Model0.94630.105163.040.0001<significant
Residual error0.01170.0017
Lack of fit0.00770.00262.560.1931
Pure error0.00400.0010
Table
Table 5. Textural properties of neat PAN nanofiber, the first and second cycles of MOFs growth on the nanofibers and the MOF powder.
Table 5. Textural properties of neat PAN nanofiber, the first and second cycles of MOFs growth on the nanofibers and the MOF powder.
SamplesMass Loading of MOF
(wt.%)		BET Surface Area
(m2/g)		Pore
Volume
(cm3/g)		Average Pore Diameter
(nm)
PAN nanofiber06.750.04426.1
PAN/MWCNT/MOF nanofiber12650.084.9
First cycle-MOFs growth on nanofibers433530.222.5
Second cycle-MOFs growth on nanofibers654930.272.2
Ni-MOF-74 powder1007880.381.9
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Harandizadeh, A.H.; Aghamiri, S.; Hojjat, M.; Ranjbar-Mohammadi, M.; Talaie, M.R. Adsorption of Carbon Dioxide with Ni-MOF-74 and MWCNT Incorporated Poly Acrylonitrile Nanofibers. Nanomaterials 2022, 12, 412. https://doi.org/10.3390/nano12030412

AMA Style

Harandizadeh AH, Aghamiri S, Hojjat M, Ranjbar-Mohammadi M, Talaie MR. Adsorption of Carbon Dioxide with Ni-MOF-74 and MWCNT Incorporated Poly Acrylonitrile Nanofibers. Nanomaterials. 2022; 12(3):412. https://doi.org/10.3390/nano12030412

Chicago/Turabian Style

Harandizadeh, Amir Hossein, Seyedfoad Aghamiri, Mohammad Hojjat, Marziyeh Ranjbar-Mohammadi, and Mohammad Reza Talaie. 2022. "Adsorption of Carbon Dioxide with Ni-MOF-74 and MWCNT Incorporated Poly Acrylonitrile Nanofibers" Nanomaterials 12, no. 3: 412. https://doi.org/10.3390/nano12030412

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
