Article

Modeling of BN-Doped Carbon Nanotube as High-Performance Thermoelectric Materials

by
Naiara L. Marana
1,
Julio R. Sambrano
2 and
Silvia Casassa
1,*
1
Theoretical Group of Chemistry, Chemistry Department, Torino University, 10125 Torino, Italy
2
Modeling and Molecular Simulations Group, São Paulo State University, UNESP, Bauru 15385-000, SP, Brazil
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(23), 4343; https://doi.org/10.3390/nano12234343
Submission received: 22 November 2022 / Revised: 30 November 2022 / Accepted: 2 December 2022 / Published: 6 December 2022
(This article belongs to the Section Theory and Simulation of Nanostructures)
Browse Figures
Versions Notes

Abstract

:
Ternary BNC nanotubes were modeled and characterized through a periodic density functional theory approach with the aim of investigating the influence on the structural, electronic, mechanical, and transport properties of the quantity and pattern of doping. The main energy band gap is easily tunable as a function of the BN percentage, the mechanical stability is generally preserved, and an interesting piezoelectric character emerges in the BNC structures. Moreover, C@(BN)1−xCx double-wall presents promising values of the thermoelectric coefficients due to the combined lowering of the thermal conductivity and increase of charge carriers. Computed results are in qualitative agreement with the little experimental evidence and therefore can provide insights on an atomic scale of the real samples and direct the synthesis towards increasingly performing hybrid nanomaterials.

1. Introduction

Nanotubes are one of the most interesting nanostructures due to their cylindrical shape, which confers certain properties and opens different possibilities for applications. The properties achieved by the one-dimensional nanostructure (1D) may differ from those of the corresponding two- (2D) and three-dimensional (3D). A classic example is carbon nanotubes (CNT), which have two electronic behaviors, metallic and semiconducting [1], depending on the chirality and the diameter of the nanotubes, whereas graphite (the most stable 3D structure of carbon) and graphene (the surface that generates the nanotubes) are always metallic [2].
Many theoretical and experimental studies have reported the technological applications of this new class of carbon structures, such as gas sensors, voltammetry, enzymatic biosensors, electronic devices and interconnects, field emission devices, electrochemical devices, such as supercapacitors and batteries, nanoscale sensors, electromechanical actuators, separation membranes, filled polymer composites, and many other possible applications [3,4]. Furthermore, studies have shown that single- (SWCNT) and multiwall (MWCNT) carbon nanotubes can resist large deformations and recover elastically, which is not observed for graphite or graphene structures. Finally, Avery [5] and Hung [6], among many others, reported that pure CNTs have potential as thermoelectric materials, which adds another application to the extensive list of carbon nanotube technology exploitation.
As a result of these exceptional properties and multiple applications, new nanotubes of different materials have begun to be synthesized and studied, among which is boron nitride (BN). Its structure is similar to the pristine structure of carbon nanotubes, but unlike CNTs, BN nanotubes (BNNT) have a band gap of around 5.50 eV [7], regardless of the chirality [8]. Due to the structural similarities, many studies have been carried out joining these two materials, forming BNC—carbon boron nitride—structures. By changing the BN concentration on the ternary structures, (BN)1−xCx, the band gap can be manipulated, and this may pave the way for the production of compounds having specific electronic behavior between that of graphite and boron nitride, making it possible to tune their electronic properties for the needs of specific applications. Besides that, studies have highlighted that BNC structures are considered super-hard materials due to their mechanical properties [9,10], which reinforces their technological appeal.
Despite the many studies related to investigating the properties of BNC structures [11,12,13,14], only a few are related to nanotubes. Kim and colleagues [15] performed a local Density Functional optimization of BNC double-wall nanotubes with different concentrations of BN and compared their models with the XPS results. They found, in good agreement with experimental findings, that the band gap can be reduced by structural defects along the internal wall up to the value of 1.6 eV. Chiang and colleagues [16] synthesized doped CNT nanotubes with different amounts of BN, forming core–shell heterojunctions, and studied their thermoelectric properties. They measured a significant improvement in the Seebeck coefficient when the percentage of BN reached about 6% and concluded that the ternary hybrid core–shell, C@BCN, has better thermoelectric performance than the pure CNT or BN ones. Sandonas and colleagues [17] simulated BNC-(6,6) single-wall nanotubes using different patterns of doping and BN concentrations and computed for the helical pattern at 50% a figure of merit up to 2.3 times higher than the corresponding values for a CNT at 300 K.
It is evident that in the phase of design and characterization of new materials to improve specific features, theoretical modeling can provide valuable information on the relationships between properties and structure at the atomic scale. In this sense, we propose a complete Density Functional Theory characterization of C@(BN)1−xCx zigzag double-wall nanotubes in order to investigate the effect of the quantity and morphology of the walls on their structural, electronic, mechanical, and transport properties. This study allows us to outline general trends and suggest lines of research toward the engineering of realistic and promising materials to be used as thermoelectric devices.
The manuscript is organized as follows: in the next section, methodologies (equations and theoretical background) and computational setup (DFT functionals, basis set, convergence criteria, and tolerances) are detailed. Then, pure BN and C double-wall structures are analyzed, and, subsequently, different hybrid nanotubes are modeled, by varying the percentage x of BN and its doping pattern. Thermoelectric quantities are finally calculated and compared with those of the single-wall structures ((BN)1−xCx) and pristine materials. Summary and general conclusions are given at the end.

2. Materials and Methods

Periodic computational simulations using Density Functional Theory (DFT) were carried out with the CRYSTAL23 program [18], a quantum-mechanic periodic code that solves the Schrödinger equation by expanding the wave function in a basis set of Gaussian-type orbitals, centered in the atomic positions. The hybrid version of the GGA Perdew–Burke–Ernzerhof [19] functional with 25% of the exact Hartree–Fock exchange [20] (PBE0) is adopted along with its empirical corrections to include long-range dispersion effects (PBE0-D3) as proposed by Grimme [21] and modified for solid-state systems [22].
The all-electron 6-21G* basis set is used for carbon [23], boron [24], and nitrogen [23] atoms. The computational setup, i.e., functional, basis set, integrals cut-off, which determines the accuracy of the methodology, is based on the results of previously published research [25,26].
In particular, the shrinking factor for both the diagonalization of the Fock matrix and the calculation of the energy is set to 4, corresponding to three independent k-points in the irreducible part of the Brillouin zone. Geometry optimization is performed using analytical gradients with respect to atomic coordinates and unit cell parameters within a quasi-Newtonian scheme combined with the Broyden–Fletcher–Goldfarb–Shanno procedure for the updating of the Hessian [27,28,29]. For each equilibrium structure, the full set of vibrational frequencies in Γ is obtained, within the harmonic approximation, by diagonalizing the mass-weighted Hessian matrix. These quantities are used to evaluate the zero-point energy (ZPE) and the thermal contributions to the vibrational energy and entropy in order to estimate the Gibbs free energy:
G T = E e l + E Z P E + E v i b + P V − T   S v i b
Elastic (c11) and piezoelectric (e11) constants along the periodic direction of the nanotube (x-axis) were calculated with CRYSTAL by computing the polarization via the Berry phase approach. This methodology has already been tested on similar materials and provided good general agreement with both experimental and theoretical results [30]. The thermodynamic stability of these structures was accounted for by performing a 3 ps Born–Oppenheimer molecular dynamics simulation on the C@CBN model, within the canonical ensemble at T = 300 K, with a beta version of the CRYSTAL code [31,32].
For the evaluation of the thermoelectric quantities, i.e., the Seebeck coefficient (S = ΔV/ΔT), the electron conductivity (σ), and the power factor (PF = S2σ), a denser net was adopted in the reciprocal space, containing 200 k-points along the periodic direction. These properties were calculated using the semi-classical Boltzmann transport equation theory [33] (BTE), as implemented in the CRYSTAL code, within the frozen band approximation, assuming the energy relaxation time for carriers (τ) a constant parameter [34]. The latter was set to 12 fs, according to our previous work on multiwall carbon nanotubes (MWCNT) [30]. For the total thermal conductivity (κ) necessary to provide a tentative estimation of the figure of merit (ZT = S2σ T/κ), values in the range from 1500–2500 W K−1 m−1 were used as a function of the BN doping percentage, in agreement with the study of Sandonas et al. [17] on BNC hetero-nanotubes. These quantities can also be derived by decreasing the reference experimental value for the carbon multiwall [35], 3000 W K−1 m−1, for a quantity that takes into account the effects of the BN doping on the thermal conductivity, on the basis of the measures performed by Chang et al. [36] on mats and independently by Pop and co-workers on single-wall nanotubes [37].
In order to highlight the modifications on the electronic and geometric structures introduced by the BN dopant on carbon double-wall nanotubes, as well as their repercussions on the transport properties, we turned our attention to the few experimental studies on the thermoelectric performance of carbon-based hybrid nanostructures.
We therefore used as a starting point the C@BNC nanotubes synthesized and characterized by Chiang et al. [16] and designed a set of double-wall structures with different doping concentrations and patterns. Such models represent the possible atomic-scale engineering of their promising samples.
The reference double-wall carbon C@C and BN@BN nanotubes were modeled according to a new methodology recently implemented in the CRYSTAL program, successfully applied to the study of multiwall nanotubes [30], and soon available in the new public version of the code. In particular, the zigzag double-wall nanotubes were generated by rolling up a previously optimized sheet of graphene and the graphene-like (0001) BN surface, respectively. Among different possibilities, the double-wall (11,0)@(20,0) nanostructure, already characterized in the case of carbon nanotubes [30], turns out to be the one with the most favorable energy balance, also in the case of the BN@BN (see Supplementary Materials Table S2). Their unit cell, shown in Figure 1 (and Supplementary Materials Figure S1, in the case of BN@BN), contains 44 and 80 carbon atoms in the inner (core) and outer (shell) wall, respectively, for a total of 124 atoms. Starting from the (11,0)@(20,0) carbon structure, a set of BN-doped double-wall hetero-nanotubes were created, C@(BN)1−xCx, by replacing some atoms of the outer wall with BN in a concentration 0.10 < x < 0.30. These models are shown in the right panels of Figure 1 and information on their unit cells is summarized in Table S1. Here and in the following, x represents the percentage of BN atoms out of the total number of carbon atoms of the outer wall (i.e., 80). Then, in accordance with the line of research opened by Sandonas et al. [17] on single-wall nanotubes, we have designed three different doping patterns to investigate the combined effects of the amount and morphology of BN. Referring to Figure 1, these structures were named: (i) symmetrical, (ii) non-symmetrical, and (iii) random, according to the arrangement of the hexagons formed by the BN heteroatoms along the periodic direction. Interestingly, the structural unity of cyclohexane is always preserved.
For comparison, single-wall nanotubes (20,0) (BN)1−xCx, were also generated and characterized, with x covering the same concentration range as in the outer wall of the corresponding double-wall system (see Figure 2).
The energy of the double-wall nanotubes was evaluated by means of three different quantities. The formation energy Eform is defined as follows:
E f o r m = E n w / n n w − E n − l a y e r s / n n − l a y e r s
where E n w and E n − l a y e r s are the total energies of the fully optimized (cell parameters and volume) single- (1 W) and double-wall (2 W) nanotubes and n-layered slab (one layer for the single and two layers for the double-wall nanotubes), respectively, and nx is the number of atoms in each reference cell. The inter-wall interaction Eiw provides an estimate of any interaction between the tubes:
E i w = 1 / n 2 w E 2 w − ∑ S W E S W
where ESW are the energies of the two optimized isolated single-wall structures.
The energy Emix, calculated considering the formation of the heterostructure C@BNC in a hypothetical equilibrium reaction with the pristine C@C, with a bulk of boron nitride and graphite as reservoirs for the BN and C atoms, respectively:
E m i x = E C B N + E b u l k − C − E n W − C − E b u l k − B N
where nW corresponds to a single- or double-wall carbon nanotube and E b u l k is the energy of BN ( E b u l k − B N ) and graphite ( E b u l k − C ). Emix provides a possible estimate of the relative stability of the doped double-wall nanotube with respect to the pristine one and therefore of the ease with which the mixed compounds could be obtained, working in excess of BN.
It is important to underscore that at any finite temperature, the properties of the C@BNC systems can differ considerably from those calculated at the DFT level, i.e., at T = 0 K. We have partly taken into account the temperature in the estimation of the Gibbs free energy of formation, evaluated according to Equation (4), and in the calculation of the transport properties where, within the frozen band approximation, the state’s occupation varies according to the Fermi distribution.

3. Results and Discussions

3.1. Structural Properties of C@(BN)1−xCx

As regards the structural characterization of carbon double-wall nanotubes, DW-CNT, a reference can be made to a previous article [30]. Instead, a preliminary study on BN@BN nanotubes was conducted to acquire information on their structural and electronic properties. As in the case of DW-CNT, DW-BN has bond lengths and angles close to those of the precursor (0001) two-layer surface, and this indicates that the wrapping of the layers takes place without significant structural stresses and distortions (see Tables S2–S4). The Egap for BN, at the PBE0 level, is that of a semiconductor, ranging from 3.59 to 4.12 eV, slightly less than that experimentally measured [38]. Interestingly enough, the double-wall BN, with the lower energy evaluated according to Equation (2), has the same structure that was computed for C@C, characterized by an internal/core diameter and an external/shell diameter of 8.95 and 16.15 Å, respectively, an inter-wall equilibrium distance of 3.66 Å, and 124 atoms in the reference periodic unit. The possible fine-tuning of the gap and the structural similarity with the carbon lattice are precisely the characteristics that make doping with BN particularly interesting. For the sake of completeness, the energetic and structural information of the reference (11,0)@(20,0) C@C and BN@BN double-wall systems are reported in Table 1.
Then, we started to model the double-wall C@(BN)1−xCx heterostructures. After a preliminary screening, based on the computed values of Emix and Egap, we concentrated our attention on two percentages of doping: 10% and 30% (out of the 80 atoms of the outer wall) corresponding to the 6% and 20% on the entire DW. The structural properties of these ternary double-walls are shown in Table 2, together with their main band gap energy and inter-wall energies Eiw, which is a measure of any interaction between the core and the shell walls. Also in Table 2, the same quantities are reported for the corresponding single-wall (BN)1−xCx nanostructures.
As can be seen in Table 2, the C@(BN)1−xCx nanotubes have diameters, C–C and B–N bond lengths, and inter-wall distances very similar to those of the pristine C@C double-wall. This indicates that BN doping does not introduce appreciable structural distortions and can occur within a wide range of concentrations. The values of Emix are in fact very low and decrease as the number of joints between the carbon lattice and the doping atoms decreases, the non-symmetrical structures being the ones forming at the lowest energy cost. This phenomenon has already been observed and well documented in the literature. Many theoretical studies [12,39] have analyzed the influence of the so-called nanodomains, i.e., small BN (or C) clusters dispersed into pure C (or BN) structures, on the formation energy of BNC hybrid compounds. The presence of nanodomains increases the number of interfaces, each of which is associated with a discrete energy cost. Indeed, the formation of boundaries leads to a reduction in the cohesion energies, since the C–C and B–N bonds are more effective than the mixed C–B and C–N ones, and an enhancement of the structural strain. These effects do not prevent the formation of ternary structures but, as the BN concentration increases, tend to favor the formation of homogeneous zones and minimize the extension of the interfaces.
Furthermore, Kah et al. [14] found that not only does the substitution pattern affect the stability, but the energy difference between the C–B and C–N interactions can also determine the type of boundaries that form. If, in the case of h-BNC layers, the C–B edges make the sheets less stable, in nanotubes this effect is yet to be explored and understood.
In this context, we can proceed to read and interpret our results. At low concentrations, random models have the maximum energy of formation and the maximum attractive interaction, as confirmed by the equilibrium distance between the walls, which is the shortest. Both for SW and DW, the non-symmetrical substitution pattern is formed with the minimum expenditure of energy. Such an effect can be attributed to the lower amount of B–C and N–C bonds and the minimum number of C/BN joints. In agreement with the studies just mentioned [14,39,40], for a doping concentration of 30%, the number of boundary B–C and N–C bonds per unit cell is 12, 8, and 2 in the random, symmetrical, and non-symmetrical structures, respectively, in excellent agreement with the decreasing trend calculated for Emix. Then, it is interesting to compare the values of Eiw of the C@(BN)1−xCx ternary structures with those of C@C which demonstrate the increase in attractive, and therefore stabilizing, interactions between the two walls when BN atoms are present. This effect is magnified when dispersive interactions are taken into account by means of the D3 a posteriori correction (for the C@(BN)0.10C0.90 non-symmetrical, the Emix = −0.10 eV and the Eiw = −0.032 eV). Consequently, DW hybrids benefit from an extra stabilizing contribution compared to SW, due to the favorable interaction between the walls.
To estimate the relative stability of the proposed structure at room temperature, the Gibbs free energies evaluated according to Equation (4), Gmix, were calculated for the symmetrical and non-symmetrical double-wall with 10% and 30% doping. Values are +8.42 eV (C@(BN)0.30C0.70 non-symmetrical), +9.93 eV (C@(BN)0.10C0.90 non-symmetrical), +15.34 eV (C@(BN)0.10C0.90 symmetrical), and +18.32 eV (C@(BN)0.30C0.70 symmetrical) and reproduce the trend obtained considering only the electronic contribution, i.e., Emix, confirming the C@(BN)0.30C0.70 non-symmetrical as the most favored structure from the thermodynamic point of view.
As regards the mechanical properties, carbon structures in general have good elastic behavior and are considered resistant materials. It was already demonstrated by Hultman and co-authors that the presence of BN, but also S atoms, contributes to increasing the rigidity of carbon thin films [10,40]. Carbon nanotubes were also found to exhibit excellent mechanical properties, very high resistance, and high elastic constants [30], and recent studies [41,42,43,44] showed that CBN materials retain elastic constants higher than that of pure BN ones. Our results are in perfect agreement with the literature data: (i) the Born criteria, namely c11 > 0, is satisfied for all the structures, and as the amount of BN doping increases, the elastic constants of the C@(BN)1−xCx ternaries slightly decrease. The same predictable behavior is calculated for the SW nanotubes. Nevertheless, as expected, the computed elastic constants of DW nanotubes are ~1.5 times greater than that of the SW structures, and a dopant concentration of approximately 30% preserves the excellent mechanical stability of the pristine carbon double-wall. This is in accordance with what can be expected based on the number of atoms per cell, which in the case of DW is about 1.5 times greater than that of SW. As regards the influence of the doping pattern, the random structures, which locally break the translational symmetry, are those with the minor value of c11.
Regarding the piezoelectric properties, our calculations show that zigzag carbon nanotubes do not exhibit piezoelectricity. Therefore, the piezoelectricity values obtained for the hybrid structures and reported in Table 1 are evidently due to doping with BN. The structures (BN)0.30C0.70 models, both for SW and DW, are those with the highest values of e11, even higher than that of pure BN, and with the same concentration, the non-symmetrical pattern is the one with the greatest piezoelectric character.
Finally, NVT molecular dynamics calculations at T = 300K were performed; as can be seen from Figure S3, for the non-symmetrical system with x = 30%, the MW structure remains unchanged, and the total energy oscillates around the value of equilibrium, confirming substantial thermal stability at room temperature.

3.2. One-Electron Properties

BN nanotubes, originally proposed by Rubio et al. (1994) [45], possess a geometrical structure very similar to their carbon counterpart but exhibit radically different electronic properties. Independent of the nanotube diameter and chirality, no metallic BN nanotubes are observed. In the engineering of high-performance thermoelectric materials, the goal is to overcome the metallic character of carbon nanotubes, reduce their thermal conductance, and continue to exploit their very high electrical conductivity. Band gap manipulation uses doping as a way to modify the material gap to one that is more favorable for a given application. Therefore, the different electronic characteristics of C and BN have been exploited in the synthesis of hybrid carbon nanostructures based on molecular doping with BN.
Studies on B- and N-substitutionally-doped carbon nanotubes have shown that their electronic properties strongly depend on both the composition and atomic configuration [15,46,47]. In particular, theoretical calculation and experimental measurements predict that BNC single- and multiwall are always semiconductors and possess a band gap that is adjustable by varying the chemical composition and atomic configuration [12,17]. The same behavior was found in multiwall heterostructures [16] and is confirmed by our calculations.
The values of Egap, reported in Table 2, show that the C@(BN)1−xCx and (BN)1−xCx become semiconductors and that there is an almost linear correlation between the percentage of BN and the opening of the energy gap.
In Figure 3, the band structures and density of states (DOS) of the double-wall nanotubes doped with 10% BN are shown. The results of C@(BN)0.10C0.90 were compared with the C@C, shown in Figure 3a. Then, it is possible to affirm that (i) the low-energy electronic transitions occur between states which mainly belong to the carbon atoms and (ii) the greatest contribution to the lower part of the conduction bands comes from the atoms of the external wall and are due to py and pz orbitals, which are much less involved in the C–C bonds along the periodic x-direction. This observation leads us to conclude, in agreement with Chiang and colleagues [16], that to modify the conduction and transport properties of these materials, it is appropriate to work on the atomic structure of the outer shell. Finally, it is worth noting that in the random model, the valence states in the region around −4.5 eV, which are characteristic of the periodic rows of BN, are missing.

3.3. Thermoelectric Properties

In summary, the doping of carbon nanotubes with BN increases the thermoelectric performance of pristine materials for at least two reasons: the tuning of the band gap into optimal values and the lowering of the thermal conductivity, as documented by, among others, Zettl and colleagues [48]. To these properties is added remarkable stability to these materials, and our Emix, computed for the SW and DW, goes exactly in this direction.
In their pioneering work, Chiang et al. [16] indicated the double-wall systems, made of metallic carbon cores and semiconducting BNC shells, C@CBN, as the ones with the best performance, due to a good compromise between conductivity and Seebeck coefficient. About this, the computed density of states confirms the influence of the outer wall composition in shaping the density around Efermi.
By varying the BN content of the external wall, Chiang et al. measured the highest Seebeck coefficient, 22.8 µV/K, corresponding to a power factor of 0.64 µW/mK2, for the sample containing 10% of BN atoms in the outer wall, at 300 K (corresponding to the 6% on the total). In the range of 10–30% (6%–20%), both the Seebeck coefficient and PF showed optimum values, and only when the percentage of doping increased over 40% (30%) did the thermoelectric performances start to decrease monotonously. Finally, they performed a temperature-dependent characterization of the sample at 10% (6%) in BN, concluding that in the range 300–600 K, as the electrical conductivity decreased, both S and PF slightly increased (23 → 28, 0.6 → 1.4) [15].
If Chiang et al. [16] pointed out with excellent precision the unique relationship between thermoelectric properties and BCN doping levels, the atomic-scale characterization of their samples, for obvious reasons, was somewhat simple. As such, the effect of different doping patterns on the thermopower of C@BNC systems is still unclear. At this point, theoretical models can help define a possible relationship between the geometric and electronic structure of these materials and their properties as thermoelectrics.
We first computed the transport coefficients for the double-wall hybrid materials with 10% of BN, corresponding to the Chiang sample at 6%. The results, collected in Figure 4, show that the morphology of the outer wall has a strong influence on both Seebeck and the power factor. The random pattern, with an Egap of 0.67 eV, presents the higher S, with a peak value of ~110 µV/K, but has a PF compatible with that of a p-type semiconductor (purple line). On the other hand, the non-symmetrical structure (green line) which presents lower values of Seebeck, shows particularly interesting features. At the maximum value of PF, ~4.1 µW/mK2, which is also the highest value among all those calculated, the carrier concentration is about −3.7510−22 and S about 40 µV/K. Then at this carrier concentration, as the temperature rises, passing from 300 to 600 K, the PF doubles and the Seebeck increases, as shown in the two insets of Figure 4.
The qualitative agreement with the data measured by Chiang et al. is impressive [16]. All the experimental trends are reproduced, and the overestimation of the quantities by the calculated values is probably due to (i) the approximations of the method and (ii) the models which, while simulating local disordered patterns, must possess a long-range order.
By increasing the BN percentage, 30% of doping is reached; again, the random and symmetrical C@(BN)0.30C0.70 structures present impressive peak values for the Seebeck coefficients, as reported in the (a) panel of Figure 5. However, their power factor is lower than that of the non-symmetrical model (blue line), which is once again the most interesting as far as transport properties are concerned. Its PF is only slightly lower than that of the corresponding 10% doped model (green line).
As the BN content exceeds 30%, the band gap widens, and the material loses interest as regards its possible use in thermoelectric applications. For completeness, both Seebeck and the power factor for all systems can be found in Supplementary Materials Figure S2.
Finally, with the aim of comparing the thermoelectric efficiency between single- and double-wall structures, we performed the same analysis on the (BN)1−xCx models (Supplementary Materials Figure S2). In Figure 4, the thermoelectric features of the best SW, the non-symmetrical at 10%, are superimposed on those of the DW. Despite the extremely high values of the Seebeck coefficients of the single-wall models, when the power factors are considered, the double-wall structures perform better.
To complete the comparison, we used reliable experimental values for thermal conductivity to estimate ZT for the non-symmetrical SW and DW with 10% of BN (κSW = 3000 and κDW = 2500 W K−1 m−1). The calculated values, 0.41 and 0.43, respectively, for the single- and double-wall models, are an order of magnitude higher than those obtained so far on experimental samples, but once again the comparison is in favor of the double-wall structure.

4. Conclusions

DFT was applied to the study of C@(BN)1−xCx and (BN)1−xCx ternary nanotubes, with x = 0.10 and 0.30 and different doping patterns. The analyzed nanotubes were structurally and energetically stable according to the formation and inter-wall energies. The predictions on the energy gap are in agreement with the literature results for different BNC ternary materials.
We can therefore conclude that the double-wall BN-doped carbon nanotubes can well manipulate C@C material into good thermoelectrics thanks to the opening of the energy gap. Furthermore, C@(BN)1−xCx are more appealing compared to single-wall nanotubes due to their mechanical stability and lower thermal conductivity, while they maintain high electrical conductivity and high values of the carrier concentration.
According to our results, the best performance can be achieved with a doping percentage of about 10% of BN in the external wall, corresponding to a total amount of BN of around 6%. Furthermore, from our modeling on the atomic scale, it was possible to deduce that the structures in which the heteroatoms of BN fit into the outer wall and form a homogeneous pattern, i.e., the non-symmetrical models, are those that have the best values of formation energy, mechanical stability, piezoelectric character, and thermal power.
This study highlights the possibility of applying nanotubes as thermoelectric materials and suggests synthesis paths toward the engineering of increasingly high-performing nanomaterials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12234343/s1, Table S1: Information on the unit cell for each model system, is shown in Figure 1 and Figure 2 of the manuscript. Total number of atoms, n tot , carbon atoms in the inner wall (core), n core C , carbon atoms in the outer wall (shell), n shell C , and boron and nitrogen atoms in the outer wall (shell), n shell BN for the double and single-wall systems and the different doping patterns; Table S2: Number of atoms (nat), bond length (B–N, in Å), inter-wall distance (diw, in Å), bond angle (B- N ^ -B, in degrees), internal and external diameters (Dint and Dext, respectively, in Å), formation (Eform, in eV), inter-wall (Eiw, in eV), and band gap energies (Egap, in eV) for double-wall boron nitride nanotubes, at the PBE0 level. Due to its key role, information on the structure of the carbon nanotube (11,0)@(20,0) are reported; Table S3: Bond length (B–N in Å) and angle (B– N ^ –B in degrees), band gap energy (Egap in eV), elastic (c11, Hartree), and piezoelectric (|e11|, |e|*Bohr) constants of BN bulk, surface, and single-walled nanotubes at the PBE0 level; Table S4: Bond length (C–C in Å) and angle (C– C ^ –C in degrees), band gap energy (Egap in eV), elastic (c11, Hartree), and piezoelectric (e11, |e|*Bohr) constants of C bulk, surface, and single-walled nanotubes; Figure S1: Unit cell of BN@BN double-walled nanotubes whose structural and energetic properties are reported in Table S2; Figure S2: (a) Seebeck coefficient (mV/K) and (b) power factor (mW/mK2) of (BN)1−xCx single-wall nanotubes; Figure S3: Molecular dynamics simulation of C@(BN)0.10C0.90 non-symmetrical within the canonical ensemble at T = 300 K (NVT).

Author Contributions

N.L.M. and S.C.: Conceptualization, Investigation, Methodology, Software, Validation, Supervision, Formal analysis, Writing—original draft, Writing—review & editing. J.R.S.: Conceptualization, Visualization, Writing—review. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by FAPESP (Fundação de Amparo à Pesquisa do Estado de São Paulo) Brazil (2016/25500-4, 2019/12430-6, 2013/07296-2, 2022/03959-6).

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful for the computational support provided by the São Paulo State University Julio de Mesquita Filho (Brazil) and the Theoretical Chemistry Group of the University of Turin (Italy).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lu, X.; Chen, Z. Curved Pi-Conjugation, Aromaticity, and the Related Chemistry of Small Fullerenes (<C60) and Single-Walled Carbon Nanotubes. Chem. Rev. 2005, 105, 3643–3696. [Google Scholar] [CrossRef] [PubMed]
  2. Hibino, H.; Tanabe, S.; Mizuno, S.; Kageshima, H.; Hibino, H.; Tanabe, S.; Mizuno, S.; Kageshima, H. Growth and Electronic Transport Properties of Epitaxial Graphene on SiC. J. Phys. D Appl. Phys. 2012, 45, 154008. [Google Scholar] [CrossRef]
  3. Endo, M.; Strano, M.S.; Ajayan, P.M. Potential Applications of Carbon Nanotubes. In Carbon Nanotubes; Springer: Berlin/Heidelberg, Germany, 2007; pp. 13–62. [Google Scholar]
  4. Sharma, P.; Kumar Mehra, N.; Jain, K.; Jain, N.K. Biomedical Applications of Carbon Nanotubes: A Critical Review. Curr. Drug Deliv. 2016, 13, 796–817. [Google Scholar] [CrossRef] [PubMed]
  5. Avery, A.D.; Zhou, B.H.; Lee, J.; Lee, E.S.; Miller, E.M.; Ihly, R.; Wesenberg, D.; Mistry, K.S.; Guillot, S.L.; Zink, B.L.; et al. Tailored Semiconducting Carbon Nanotube Networks with Enhanced Thermoelectric Properties. Nat. Energy 2016, 1, 1–9. [Google Scholar] [CrossRef]
  6. Hung, N.T.; Nugraha, A.R.T.; Hasdeo, E.H.; Dresselhaus, M.S.; Saito, R. Diameter Dependence of Thermoelectric Power of Semiconducting Carbon Nanotubes. Phys. Rev. B Condens. Matter Mater. Phys. 2015, 92, 165426. [Google Scholar] [CrossRef] [Green Version]
  7. Blase, X.; Rubio, A.; Louie, S.G.; Cohen, M.L. Stability and Band Gap Constancy of Boron Nitride Nanotubes. EPL 1994, 28, 335. [Google Scholar] [CrossRef] [Green Version]
  8. Vaccarini, L.; Goze, C.; Henrard, L.; Hernández, E.; Bernier, P.; Rubio, A. Mechanical and Electronic Properties of Carbon and Boron–Nitride Nanotubes. Carbon N. Y. 2000, 38, 1681–1690. [Google Scholar] [CrossRef]
  9. Wang, X.Y.; Zhuang, F.D.; Wang, R.B.; Wang, X.C.; Cao, X.Y.; Wang, J.Y.; Pei, J. A Straightforward Strategy toward Large BN-Embedded π-Systems: Synthesis, Structure, and Optoelectronic Properties of Extended BN Heterosuperbenzenes. J. Am. Chem. Soc. 2014, 136, 3764–3767. [Google Scholar] [CrossRef]
  10. Hellgren, N.; Berlind, T.; Gueorguiev, G.K.; Johansson, M.P.; Stafström, S.; Hultman, L. Fullerene-like BCN Thin Films: A Computational and Experimental Study. Mater. Sci. Eng. B 2004, 113, 242–247. [Google Scholar] [CrossRef]
  11. Liu, Z.; Zhang, M.; Wang, H.; Cang, D.; Ji, X.; Liu, B.; Yang, W.; Li, D.; Liu, J. Defective Carbon-Doped Boron Nitride Nanosheets for Highly Efficient Electrocatalytic Conversion of N2 to NH3. ACS Sustain. Chem. Eng. 2020, 8, 5278–5286. [Google Scholar] [CrossRef]
  12. Azevedo, S.; De Paiva, R. Structural Stability and Electronic Properties of Carbon-Boron Nitride Compounds. EPL (Europhys. Lett.) 2006, 75, 126. [Google Scholar] [CrossRef]
  13. Li, Y.; Gao, D.; Zhao, S.; Xiao, Y.; Guo, Z.; Fang, Y.; Lin, J.; Liu, Z.; Huang, Y.; Guo, K.; et al. Carbon Doped Hexagonal Boron Nitride Nanoribbon as Efficient Metal-Free Electrochemical Nitrogen Reduction Catalyst. Chem. Eng. J. 2021, 410, 128419. [Google Scholar] [CrossRef]
  14. Kah, C.B.; Smith, L.; Jayanthi, C.S.; Yu, M. The Electronic Structure Studies of Hybrid H-BNC Sheets Based on a Semi-Empirical Hamiltonian. Mater. Today Commun. 2021, 26, 102142. [Google Scholar] [CrossRef]
  15. Young, S.K.; Park, J.; Hyun, C.C.; Jae, P.A.; Jin, Q.H.; Hong, S.K. X-ray Photoelectron Spectroscopy and First Principles Calculation of BCN Nanotubes. J. Am. Chem. Soc. 2007, 129, 1705–1716. [Google Scholar] [CrossRef]
  16. Chiang, W.H.; Hsieh, C.Y.; Lo, S.C.; Chang, Y.C.; Kawai, T.; Nonoguchi, Y. C/BCN Core/Shell Nanotube Films with Improved Thermoelectric Properties. Carbon N. Y. 2016, 109, 49–56. [Google Scholar] [CrossRef]
  17. Medrano Sandonas, L.; Cuba-Supanta, G.; Gutierrez, R.; Landauro, C.V.; Rojas-Tapia, J.; Cuniberti, G. Doping Engineering of Thermoelectric Transport in BNC Heteronanotubes. Phys. Chem. Chem. Phys. 2019, 21, 1904–1911. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Erba, A.; Desmarais, J.; Casassa, S.; Civalleri, B.; Donà, L.; Bush, I.; Searle, B.; Maschio, L.; Daga, L.E.; Cossard, A.; et al. CRYSTAL23: A Program for Computational Solid State Physics and Chemistry. J. Chem. Theory Comput. 2022; submited. [Google Scholar]
  19. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Adamo, C.; Barone, V. Toward Reliable Density Functional Methods without Adjustable Parameters: The PBE0 Model. J. Chem. Phys. 1999, 110, 6158. [Google Scholar] [CrossRef]
  21. Grimme, S. Semiempirical GGA-Type Density Functional Constructed with a Long-Range Dispersion Correction. J. Comput. Chem. 2006, 27, 1787–1799. [Google Scholar] [CrossRef] [PubMed]
  22. Grimme, S.; Hansen, A.; Brandenburg, J.G.; Bannwarth, C. Dispersion-Corrected Mean-Field Electronic Structure Methods. Chem. Rev. 2016, 116, 5105–5154. [Google Scholar] [CrossRef]
  23. Dovesi, R.; Causa, M.; Orlando, R.; Roetti, C.; Saunders, V.R. Ab Initio Approach to Molecular Crystals: A Periodic Hartree–Fock Study of Crystalline Urea. J. Chem. Phys. 1990, 92, 7402–7411. [Google Scholar] [CrossRef]
  24. Orlando, R.; Dovesi, R.; Roetti, C.; Saunders, V.R. Ab Initio Hartree-Fock Calculations for Periodic Compounds: Application to Semiconductors. J. Phys. Condens. Matter 1990, 2, 7769. [Google Scholar] [CrossRef]
  25. Pinhal, G.B.; Marana, N.L.; Fabris, G.S.L.; Sambrano, J.R. Structural, Electronic and Mechanical Properties of Single-Walled AlN and GaN Nanotubes via DFT/B3LYP. Theor. Chem. Acc. 2019, 138, 1–11. [Google Scholar] [CrossRef]
  26. Marana, N.L.; Albuquerque, A.R.; La Porta, F.A.; Longo, E.; Sambrano, J.R. Periodic Density Functional Theory Study of Structural and Electronic Properties of Single-Walled Zinc Oxide and Carbon Nanotubes. J. Solid State Chem. 2016, 237, 36–47. [Google Scholar] [CrossRef]
  27. Fletcher, R. A New Approach to Variable Metric Algorithms. Comput. J. 1970, 13, 317–322. [Google Scholar] [CrossRef] [Green Version]
  28. Goldfarb, D. A Family of Variable-Metric Methods Derived by Variational Means. Math. Comput. 1970, 24, 23–26. [Google Scholar] [CrossRef]
  29. Shanno, D.F. Conditioning of Quasi-Newton Methods for Function Minimization. Math. Comput. 1970, 24, 647–656. [Google Scholar] [CrossRef]
  30. Marana, N.L.; Noel, Y.; Sambrano, J.R.; Ribaldone, C.; Casassa, S. Ab Initio Modeling of MultiWall: A General Algorithm First Applied to Carbon Nanotubes. J. Phys. Chem. A 2021, 125, 4003–4012. [Google Scholar] [CrossRef] [PubMed]
  31. Ribaldone, C.; Casassa, S. Condensed-Phase Hybrid Molecular Dynamics Made Feasible: Theory and Implementation. J. Chem. Theory Comput. 2022; submited. [Google Scholar]
  32. Marana, N.L.; Ribaldone, C.; Casassa, S.M. Condensed-Phase Hybrid Molecular Dynamics Made Feasible: First Applications. 2022; in preparation. [Google Scholar]
  33. Lundstrom, M. Fundamentals of Carrier Transport. Fundam; Cambridge University Press: Cambridg, UK, 2000. [Google Scholar] [CrossRef]
  34. Sansone, G.; Ferretti, A.; Maschio, L. Ab Initio Electronic Transport and Thermoelectric Properties of Solids from Full and Range-Separated Hybrid Functionals. J. Chem. Phys. 2017, 147, 114101. [Google Scholar] [CrossRef] [PubMed]
  35. Kim, P.; Shi, L.; Majumdar, A.; McEuen, P.L. Thermal Transport Measurements of Individual Multiwalled Nanotubes. Phys. Rev. Lett. 2001, 87, 215502. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Chang, C.W.; Han, W.Q.; Zettl, A. Thermal Conductivity of B–C–N and BN Nanotubes. Appl. Phys. Lett. 2005, 86, 173102. [Google Scholar] [CrossRef]
  37. Pop, E.; Mann, D.; Wang, Q.; Goodson, K.; Dai, H. Thermal Conductance of an Individual Single-Wall Carbon Nanotube above Room Temperature. Nano Lett. 2005, 6, 96–100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Lee, C.H.; Wang, J.; Kayatsha, V.K.; Huang, J.Y.; Yap, Y.K. Effective Growth of Boron Nitride Nanotubes by Thermal Chemical Vapor Deposition. Nanotechnology 2008, 19, 455605. [Google Scholar] [CrossRef] [Green Version]
  39. Guedes, J.P.; de Brito Mota, F.; Azevedo, S.; de Castilho, C.M.C. Structure, Energetic Stability and Tunable Electronic Properties of BxCyNz Armchair Nanotubes: A Theoretical Study on the Influence of Diameter and Local Carbon Concentration. Eur. Phys. J. B 2015, 88, 1–10. [Google Scholar] [CrossRef]
  40. Högberg, H.; Lai, C.C.; Broitman, E.; Ivanov, I.G.; Goyenola, C.; Näslund, L.Å.; Schmidt, S.; Hultman, L.; Rosen, J.; Gueorguiev, G.K. Reactive Sputtering of CSx Thin Solid Films Using CS2 as Precursor. Vacuum 2020, 182, 109775. [Google Scholar] [CrossRef]
  41. Gillis, P.P. Calculating the Elastic Constants of Graphite. Carbon N. Y. 1984, 22, 387–391. [Google Scholar] [CrossRef]
  42. Chen, L.; Zhao, Q.; Gong, Z.; Zhang, H. The Effects of Different Defects on the Elastic Constants of Single-Walled Carbon Nanotubes. In Proceedings of the 2010 IEEE 5th International Conference on Nano/Micro Engineered and Molecular Systems, Xiamen, China, 20–23 January 2010; pp. 777–780. [Google Scholar] [CrossRef]
  43. Lu, J.P. Elastic Properties of Carbon Nanotubes and Nanoropes. Phys. Rev. Lett. 1997, 79, 1297. [Google Scholar] [CrossRef] [Green Version]
  44. Popov, V.N.; Van Doren, V.E.; Balkanski, M. Elastic Properties of Crystals of Single-Walled Carbon Nanotubes. Solid State Commun. 2000, 114, 395–399. [Google Scholar] [CrossRef]
  45. Rubio, A.; Corkill, J.L.; Cohen, M.L. Theory of Graphitic Boron Nitride Nanotubes. Phys. Rev. B 1994, 49, 5081. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Stephan, O.; Ajayan, P.M.; Colliex, C.; Redlich, P.; Lambert, J.M.; Bernier, P.; Lefin, P. Doping Graphitic and Carbon Nanotube Structures with Boron and Nitrogen. Science 1994, 266, 1683–1685. [Google Scholar] [CrossRef] [PubMed]
  47. Ayala, P.; Arenal, R.; Loiseau, A.; Rubio, A.; Pichler, T. The Physical and Chemical Properties of Heteronanotubes. Rev. Mod. Phys. 2010, 82, 1843–1885. [Google Scholar] [CrossRef] [Green Version]
  48. Chang, C.W.; Han, W.-Q.; Zettl, A. Thermal Conductivity of B–C–N and BN Nanotubes. J. Vac. Sci. Technol. B Microelectron. Nanom. Struct. Process. Meas. Phenom. 2005, 23, 1883. [Google Scholar] [CrossRef]
Nanomaterials 12 04343 g001 550
Figure 1. Unit cell of the double-wall zigzag (11,0)@(20,0) carbon nanotube. The pristine model in the left panel (44@80 atoms) and the corresponding BN-doped structures, C@(BN)1−xCx, are shown in the upper right, x = 0.10, and lower, x = 0.30, panels, respectively, for the three different patterns. In the case of the random pattern, to preserve periodicity along x, the cell must be double. Color of the atoms: gray-carbon, blue-nitrogen and pink-boron.
Figure 1. Unit cell of the double-wall zigzag (11,0)@(20,0) carbon nanotube. The pristine model in the left panel (44@80 atoms) and the corresponding BN-doped structures, C@(BN)1−xCx, are shown in the upper right, x = 0.10, and lower, x = 0.30, panels, respectively, for the three different patterns. In the case of the random pattern, to preserve periodicity along x, the cell must be double. Color of the atoms: gray-carbon, blue-nitrogen and pink-boron.
Nanomaterials 12 04343 g001
Nanomaterials 12 04343 g002 550

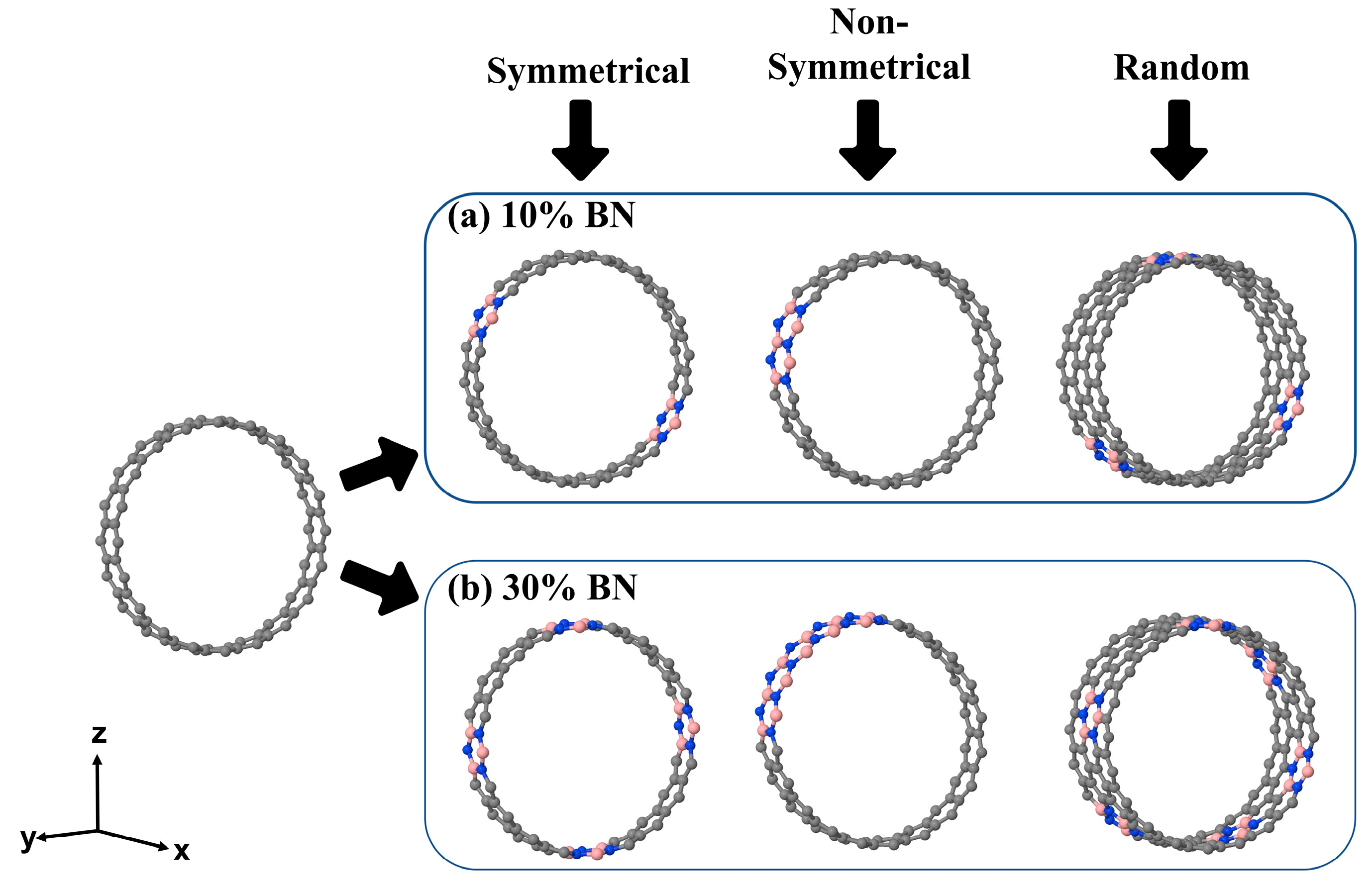

Figure 2. Unit cell of the single-wall zigazag (20,0) carbon nanotubes. The pristine model in the left panel (80 atoms) and the corresponding BN-doped structures, (BN)1−xCx, are shown in the upper right, x = 0.10, and lower, x = 0.30, panels, respectively, for the three different patterns. As for the double-wall, in the case of the random pattern, to preserve periodicity along x the cell must be double. Color of the atoms: gray-carbon, blue-nitrogen and pink-boron.
Figure 2. Unit cell of the single-wall zigazag (20,0) carbon nanotubes. The pristine model in the left panel (80 atoms) and the corresponding BN-doped structures, (BN)1−xCx, are shown in the upper right, x = 0.10, and lower, x = 0.30, panels, respectively, for the three different patterns. As for the double-wall, in the case of the random pattern, to preserve periodicity along x the cell must be double. Color of the atoms: gray-carbon, blue-nitrogen and pink-boron.
Nanomaterials 12 04343 g002
Nanomaterials 12 04343 g003a 550Nanomaterials 12 04343 g003b 550

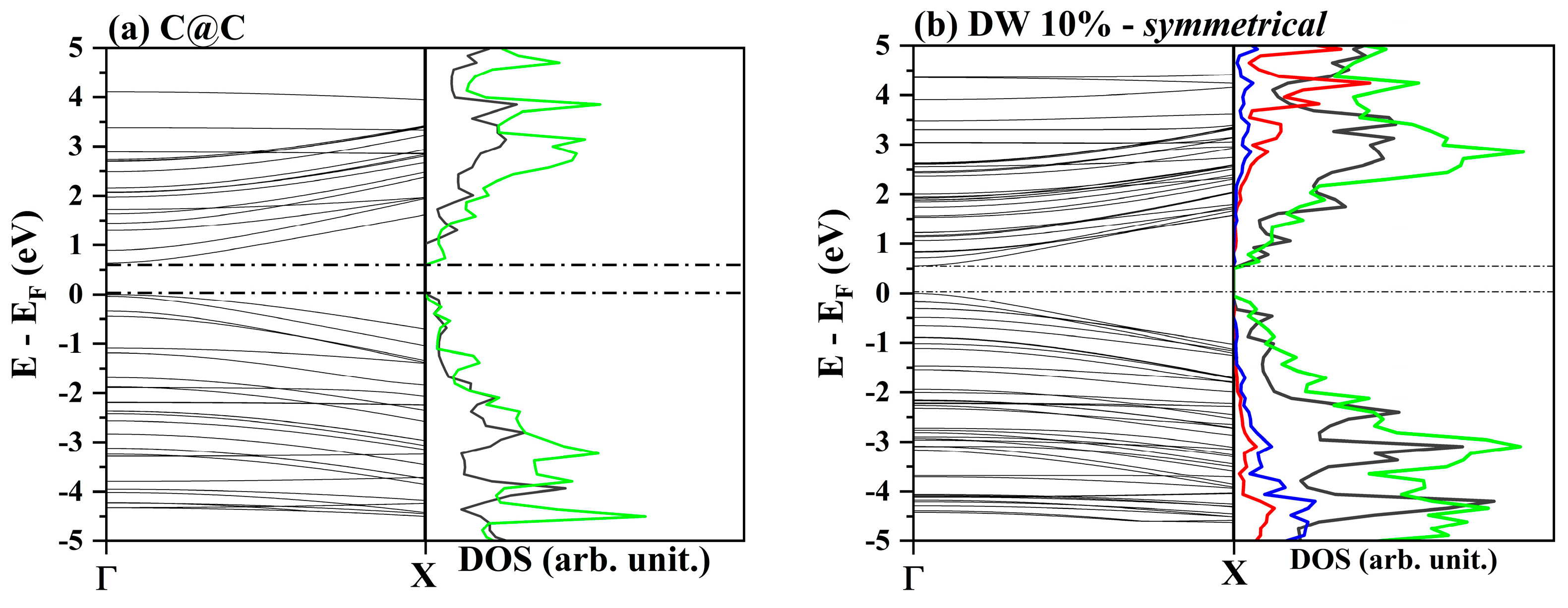

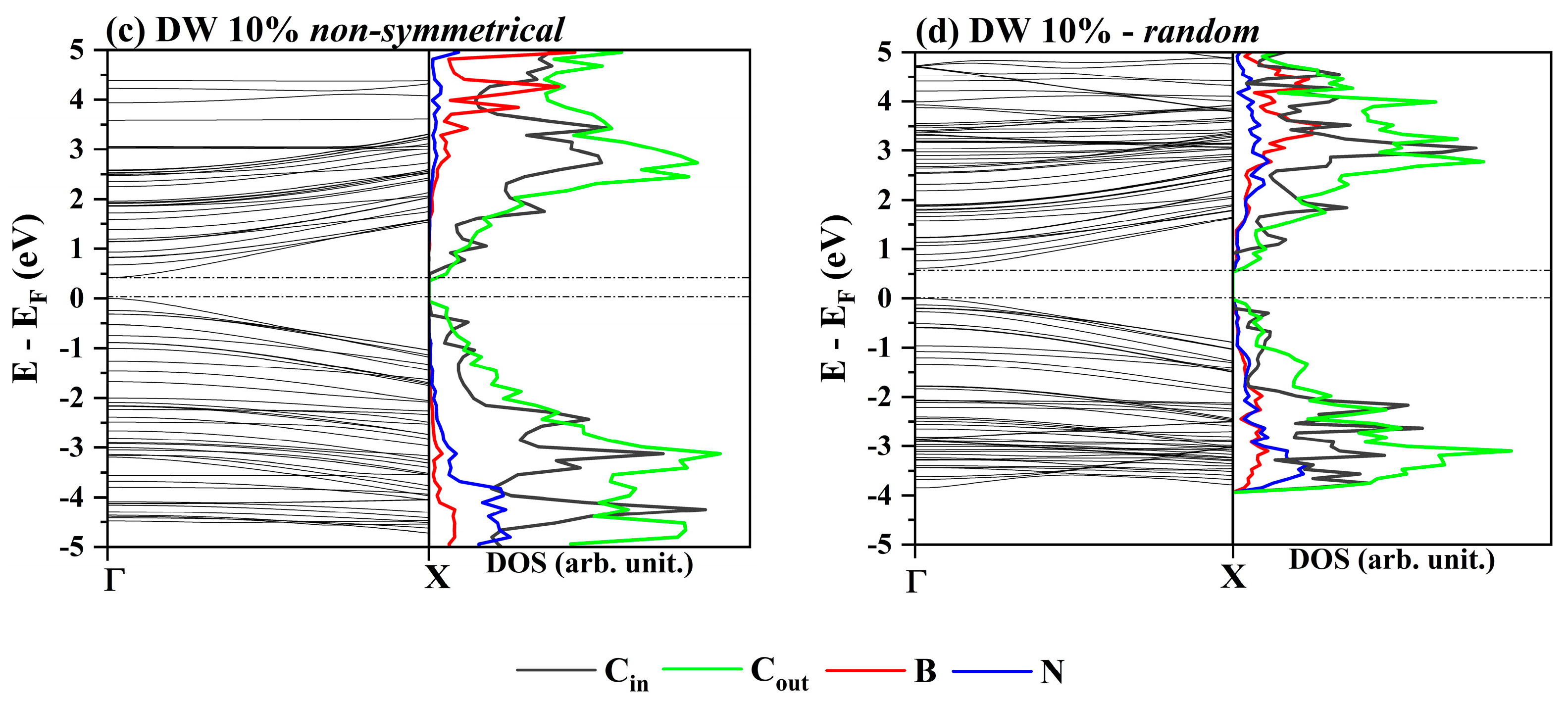

Figure 3. Band structures and DOS for zigzag nanotubes: a comparison between double-wall C@C (a) and the 10% doped C@(BN)0.10C0.90 with different patterns, i.e., symmetrical (b), non–symmetrical (c), and random (d). Carbon atoms of the internal and external walls are represented by gray and green lines, respectively, while boron and nitrogen are represented by red and blue lines, respectively.
Figure 3. Band structures and DOS for zigzag nanotubes: a comparison between double-wall C@C (a) and the 10% doped C@(BN)0.10C0.90 with different patterns, i.e., symmetrical (b), non–symmetrical (c), and random (d). Carbon atoms of the internal and external walls are represented by gray and green lines, respectively, while boron and nitrogen are represented by red and blue lines, respectively.
Nanomaterials 12 04343 g003aNanomaterials 12 04343 g003b
Nanomaterials 12 04343 g004 550
Figure 4. (a) Seebeck coefficient (µV/K) and (b) power factor (μW/mK2) of single– (in red) and double–wall nanotubes with 10% BN with different doping patterns: symmetrical in cyan, non–symmetrical in green, and random in purple. Inset: the non–symmetrical C@(BN)0.10C0.90 at different temperatures for the value of the chemical potential −4.20 eV, corresponding to a carrier concentration of −3.75 10−22.
Figure 4. (a) Seebeck coefficient (µV/K) and (b) power factor (μW/mK2) of single– (in red) and double–wall nanotubes with 10% BN with different doping patterns: symmetrical in cyan, non–symmetrical in green, and random in purple. Inset: the non–symmetrical C@(BN)0.10C0.90 at different temperatures for the value of the chemical potential −4.20 eV, corresponding to a carrier concentration of −3.75 10−22.
Nanomaterials 12 04343 g004
Nanomaterials 12 04343 g005 550
Figure 5. (a) Seebeck coefficient (µV/K) and (b) power factor (µW/mK2) for 30% BN-doped DW structures, C@(BN)0.3C0.7. Symmetrical: orange; random: gray; non–symmetrical: blue. For the sake of comparison, the C@(BN)0.10C0.90 non–symmetrical is also added, in green.
Figure 5. (a) Seebeck coefficient (µV/K) and (b) power factor (µW/mK2) for 30% BN-doped DW structures, C@(BN)0.3C0.7. Symmetrical: orange; random: gray; non–symmetrical: blue. For the sake of comparison, the C@(BN)0.10C0.90 non–symmetrical is also added, in green.
Nanomaterials 12 04343 g005
Table
Table 1. Structural properties (in Å) and energetics (in eV) at the PBE0 level of the reference systems: double-wall (11,0)@(20,0) zigzag carbon and BN nanotubes and (20,0) single-wall nanotubes. Bond length (C–C, B–N, C–B, and C–N), inter-wall distance (diw), internal and external diameters (Dint and Dext), formation and inter-wall energies (Eform, Eiw), band gap energy (Egap), elastic (c11, Hartree), and piezoelectric constants (|e11|, |e|*Bohr).
Table 1. Structural properties (in Å) and energetics (in eV) at the PBE0 level of the reference systems: double-wall (11,0)@(20,0) zigzag carbon and BN nanotubes and (20,0) single-wall nanotubes. Bond length (C–C, B–N, C–B, and C–N), inter-wall distance (diw), internal and external diameters (Dint and Dext), formation and inter-wall energies (Eform, Eiw), band gap energy (Egap), elastic (c11, Hartree), and piezoelectric constants (|e11|, |e|*Bohr).
C–CB–NdiwDintDextEformEiwEgapc11e11
BN@BN-1.453.459.0715.980.018−0.0095.84210.1167.94
C@C1.43-3.508.7115.710.067−0.0020.64261.750
C1.42---15.720.043-0.67174.040
BN-1.45--16.160.010-6.74136.3044.08
Table
Table 2. Structural properties (in Å) and energetics (in eV) at the PBE0 level of single (20,0) and double-wall (11,0)@(20,0) zigzag carbon nanotubes with different BN doping percentages and patterns. Bond length (C–C, B–N, C–B, and C–N), inter-wall distance (diw), internal and external diameters (Dint and Dext), formation and inter-wall energies per atom (Emix, Eiw), band gap energy (Egap), elastic (c11, Hartree), and piezoelectric constants (|e11|, |e|*Bohr).
Table 2. Structural properties (in Å) and energetics (in eV) at the PBE0 level of single (20,0) and double-wall (11,0)@(20,0) zigzag carbon nanotubes with different BN doping percentages and patterns. Bond length (C–C, B–N, C–B, and C–N), inter-wall distance (diw), internal and external diameters (Dint and Dext), formation and inter-wall energies per atom (Emix, Eiw), band gap energy (Egap), elastic (c11, Hartree), and piezoelectric constants (|e11|, |e|*Bohr).
C–C B–N C–B C–N diwDintDextEmixEiwEgapc11|e11|
Symmetrical
10%SW1.421.461.511.40--16.700.045-0.57165.0388.77
30%SW1.431.451.501.42--15.840.087-1.44157.5796.61
10%DW1.431.451.511.393.358.9415.630.028−0.0810.55255.7474.58
30%DW1.431.461.511.403.538.7215.770.057−0.0741.07251.6295.27
Non-symmetrical
10%SW1.421.451.521.40--16.390.021-0.45161.8089.83
30%SW1.431.451.521.40--16.330.016-0.55156.69104.61
10%DW1.431.451.521.403.448.7015.580.013−0.0870.43256.2192.23
30%DW1.431.471.521.393.368.9315.650.011−0.0850.52250.82100.94
Random
10%SW1.431.451.491.40--15.780.049-0.81164.4376.48
30%SW1.431.451.491.40--15.740.139-1.45156.87102.62
10%DW1.431.451.491.393.478.7115.650.029−0.0860.67247.3581.55
30%DW1.431.451.491.393.528.7115.750.088−0.0910.99244.41100.85
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Marana, N.L.; Sambrano, J.R.; Casassa, S. Modeling of BN-Doped Carbon Nanotube as High-Performance Thermoelectric Materials. Nanomaterials 2022, 12, 4343. https://doi.org/10.3390/nano12234343

AMA Style

Marana NL, Sambrano JR, Casassa S. Modeling of BN-Doped Carbon Nanotube as High-Performance Thermoelectric Materials. Nanomaterials. 2022; 12(23):4343. https://doi.org/10.3390/nano12234343

Chicago/Turabian Style

Marana, Naiara L., Julio R. Sambrano, and Silvia Casassa. 2022. "Modeling of BN-Doped Carbon Nanotube as High-Performance Thermoelectric Materials" Nanomaterials 12, no. 23: 4343. https://doi.org/10.3390/nano12234343

APA Style

Marana, N. L., Sambrano, J. R., & Casassa, S. (2022). Modeling of BN-Doped Carbon Nanotube as High-Performance Thermoelectric Materials. Nanomaterials, 12(23), 4343. https://doi.org/10.3390/nano12234343

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
