Lanthanide-Ion-Doping Effect on the Morphology and the Structure of NaYF4:Ln3+ Nanoparticles

Nikita A. Bogachev
Anna A. Betina
Tatyana S. Bulatova
Viktor G. Nosov
Stefaniia S. Kolesnik
Ilya I. Tumkin
Mikhail N. Ryazantsev
Mikhail Yu. Skripkin
1 and
Andrey S. Mereshchenko
Saint-Petersburg State University, 7/9 Universitetskaya emb., 199034 St. Petersburg, Russia
Nanotechnology Research and Education Centre RAS, Saint Petersburg Academic University, 8/3 Khlopina Street, 194021 St. Petersburg, Russia
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(17), 2972;
Submission received: 5 August 2022 / Revised: 21 August 2022 / Accepted: 24 August 2022 / Published: 27 August 2022
(This article belongs to the Section Inorganic Materials and Metal-Organic Frameworks)


Two series of β-NaYF4:Ln3+ nanoparticles (Ln = La–Nd, Sm–Lu) containing 20 at. % and 40 at. % of Ln3+ with well-defined morphology and size were synthesized via a facile citric-acid-assisted hydrothermal method using rare-earth chlorides as the precursors. The materials were composed from the particles that have a shape of uniform hexagonal prisms with an approximate size of 80–1100 nm. The mean diameter of NaYF4:Ln3+ crystals non-monotonically depended on the lanthanide atomic number and the minimum size was observed for Gd3+-doped materials. At the same time, the unit cell parameters decreased from La to Lu according to XRD data analysis. The diameter-to-length ratio increased from La to Lu in both studied series. The effect of the doping lanthanide(III) ion nature on particle size and shape was explained in terms of crystal growth dynamics. This study reports the correlation between the nanoparticle morphologies and the type and content of doping lanthanide ions. The obtained results shed light on the understanding of intrinsic factors’ effect on structural features of the nanocrystalline materials.

Graphical Abstract

1. Introduction

Lanthanide-doped functional nanomaterials are widely studied due to their optical properties and broad application within such areas as the design of luminescent thermometers and photocatalysts, the development of sensors of biologically important substances and solar cells, single-molecule microscopy, solid-state lasers, and so on [1,2,3,4,5,6,7,8,9,10,11,12]. Such compounds allow making multifunctional materials through a combination of optical, magnetic, and other properties, which make them attractive and promising materials for theranostics. Combining the magnetic and luminescent properties of lanthanides provides a possibility to create bimodal materials for molecular imaging and non-invasive optical diagnostics of tissues of living organisms in vivo using magnetic resonance imaging (MRI), as well as materials for the detection and targeted treatment of cancer cells at early stages of the disease [13,14,15,16]. The optical and magnetic properties of doped rare-earth-element ions are well known to be sensitive in one’s own way to the host matrix type, crystal structure, morphology and size of substances, and rare-earth-element concentration [17,18,19,20,21,22,23,24,25,26,27,28,29].
The synthesis conditions provide the ability of targeted control of the aforementioned factors and, therefore, are regularly discussed by different research groups [30]. It is shown that usually rare-earth-ion doping is conducted simultaneously with the synthesis of host materials. The effectiveness of doping is determined by the size and valence of the host matrix and doped rare-earth ions and by the similarity of their reactivity. Fluoride compounds, such as NaREEF4 (REE = rare-earth element) and especially NaYF4, are one of the most popular materials to be used as a matrix for the fabrication of rare-earth-based nanomaterials. Depending on the synthesis conditions, NaYF4 crystallizes in two different polymorphic forms—cubic α-NaYF4 or hexagonal β-NaYF4 phase. It is known that the hexagonal phase is one of the most efficient host structures for the preparation of luminescent materials. There are different ways of preparing NaYF4-based nanoparticles [28]. Among them, hydrothermal synthesis seems to be more convenient because it makes the preparation safer, cost-efficient, environmentally friendly, and allows controlling the growth parameters of single-crystalline nanostructures. Generally, the morphology and the size of the final particles depend on the time of synthesis, temperature, pressure, pH of the precursor solution, ratio of the precursors, ion sources, and the composition of the solvent [31,32,33,34].
Chunxia Li et al. [35] showed the relationship between the architectural features of hexagonal NaYF4 nanocrystals and the conditions of preparation, specifically, different fluoride sources and pH values of the reaction system. It was shown that the fluoride sources and pH values of solutions of the initial reaction strongly effect the morphologies and dimensions of the final particles via changing their shape from prismatic microrods to hexagonal prismatic structures. To explain experimental results, authors have suggested that the ions in the reaction media are selectively adsorbed on the different crystal facets and this process directly depends on the pH of the medium. The difference in adsorption leads, ultimately, to the difference in crystal growth rate along different crystal axes. At the same time, the general structure motif is determined by the anisotropic structure of the thermodynamically stable β-phase NaYF4 seeds. Authors have additionally checked the influence of the synthesis time on the parameters of the final crystals. They found that the crystalline phase is dependent on the time of synthesis: hydrothermal treatment for 1 h leads to the formation of an unstable cubic α-NaYF4 phase, which slowly turns to a biphasic mixture of α-NaYF4 and hexagonal β-NaYF4 after 4 h of treatment, and, finally, up to 8 h, the cubic phase is totally replaced by a hexagonal form. Similar results can be found in other publications also. Bin Jiang and Xiangfu Wang [36] simulated the in situ growth process of β-NaYF4 crystal at a high temperature and pressure using the molecular dynamics theory. Their calculation predicts anisotropic growth leading to hexagonal form of crystals with a growth trend to rod shape that is in a good agreement with real experimental results. Other approaches to synthesis, for example, addition of surfactants or chelating agents into reaction media or using water-organic solvent leads to formation of crystals with controllable micro- and nanoscale sizes of different morphology: sphere, rod, prism, disk, octahedral [37,38]. This effect is caused by the influence of these additives on the nucleation rates because they change the diffusion of ions onto the surface of growing crystals. Another path to control the morphology of NaYF4 is a variation in precursors ratio. For example, it was found that the molar ratio of ions in reaction media can strongly affect the size and structure of crystals and leads to the formation of microcrystals with different shapes [39,40,41,42]. This phenomenon is probably connected with the effect of ions (primarily, F and chelating ions) on the relative growth rates of crystals along different axes. This explanation is related to the fact that during the hydrothermal synthesis, there are several simultaneous competitive processes. One of them is the formation (and following decomposition) of complexes of rare-earth ions with a chelating agent, and the second one is the asymmetric adhesion of ions on the facets of a growing crystal. The varying of the components’ ratio leads to a change in the balance between these processes and ultimately generates a range of different forms. The effect of lanthanide ions’ nature on crystal growth, morphology, and size of NaLnF4 (Ln = La − Yb) crystals is also known [43]. The varying of lanthanides leads to changing the particle morphology from rod to disk following the increasing of the ionic radius of Ln3+. It is connected with the anisotropic distribution of charge density on different planes of hexagonal structure and the difference in adsorption of organic additives on them. In one’s own way, this ion radius increase provides the reduction in surface energy required for NaLnF4 nucleation. Therefore, the size of crystals tends to become less from NaYbF4 to NaLaF4. In the case of lanthanide-doped nanomaterials, there arises a new aspect of the dopant nature’s influence on the structural characteristics of the final products. Due to the high affinity of rare-earth ions between each other and their ability to replace each other isomorphically in the crystal lattice, doped nanoparticles can be considered as solid solutions. Therefore, the parameters of the crystal lattice and the size of nanocrystals for a series of doped particles are expected to change monotonically on the whole range of compositions. At the same time, the shape of crystals is supposed to be constant in case the other conditions are equal. This prediction is confirmed by a large number of studies of materials based on several rare earth elements [39,44]. In our previous studies for a series of NaYF4:Eu3+, Gd3+ phosphors [45], we have shown also that the substitution of yttrium ions by europium ions, as well as in the case of simultaneous doping NaYF4 by Eu3+ and Gd3+, results in increase in the unit cell parameters of particles. The size reduction in particles is observed at the Eu3+ and Gd3+ concentration rise: ranging from 714 nm for NaYF4 to 94 nm for NaY0.5Eu0.5F4 and to 40 nm for NaGd0.7Eu0.3F4 samples. The nanoparticles appear in the shape of hexagonal prisms with a diameter/height ratio of about 1/1 and the shape does not change within the concentration range. We reported the similar results in other studies of Gd3+-doped NaYF4:Yb3+ and Er3+/Tm3+ microparticles [46]. In this case, also the addition of the Gd3+ dopant led to a decrease in the size of the obtained crystals. As an explanation, we assumed that the size of the crystals is guided by crystal growth rates. The larger positive-charge density in the Gd3+-containing crystal nucleus slows the diffusion of negatively charged fluoride ions, which leads to a reduction in the crystal growth rate and a smaller final size of Gd3+-co-doped microcrystals. This effect of Gd3+ doping is known and discussed in the literature, where the experimental observations are confirmed by first-principles calculations [47]. Moreover, it is noticed that gadolinium doping allows significantly decreasing the reaction temperature and time required for cubic-to-hexagonal phase conversion. In contrast with gadolinium effect, it is also known that the addition of a small amount of lutetium leads to a significant increase in the nanoparticle diameter with almost no change in height [48].
Despite the large and still growing number of papers devoted to the study of the effect of various factors on the growth mechanism, size, and morphology of nanoparticles, such works are mainly related to the research of the effect of the external conditions. At the same time, there is a lack of studies revealing the relationship between the nature of the doped lanthanide ions and the structural characteristics of the obtained nanoparticles under the condition where the external factors are equal. To fill this gap, in our work, we studied the impact of the nature of the lanthanide ions on the size and morphology of the NaYF4-doped nanoparticles.

2. Materials and Methods

Anhydrous chlorides of the rare-earth elements (YCl3, LaCl3, CeCl3, PrCl3, NdCl3, SmCl3, EuCl3, GdCl3, TbCl3, DyCl3, HoCl3, ErCl3, TmCl3, YbCl3, LuCl3, 99.999%) were purchased from Chemcraft (Kaliningrad, Russia), NaOH, NH4F, citric acid, and ethanol were purchased from Sigma-Aldrich Pty Ltd. (Darmstadt, Germany), and used without additional purification.
Microcrystalline β-NaYF4 samples co-doped with Ln3+ were synthesized via the hydrothermal method using citric acid as a stabilizing agent. The common synthesis routine is described below. Rare-earth chlorides taken in stoichiometric amounts (total amount of rare-earth chlorides was 0.75 mmol) with 3 mmol of citric acid were dissolved in distilled water to obtain 5 mL solution in total. Then, 2.5 mL of an aqueous solution containing 9 mmol of NaOH was added to the flask of the previous solution. After vigorous stirring for 30 min, 8 mL of aqueous solution containing 11 mmol of NaOH and 11 mmol of NH4F was added into the above solution. The solution was maintained after vigorous stirring for 30 min at room temperature before being transferred to a Teflon-lined autoclave with an internal volume of 20 mL and heated for 17 h at the temperature of 180 °C. After that, the precipitate was separated from the reaction mixture by centrifugation, washed with ethanol and deionized water, and dried at 60 °C for 24 h. The desired microstructure materials were obtained in the form of white powders. In this work, we synthesized and studied two series of substances: NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 (Ln = La–Nd, Sm–Lu).
The morphologies of microstructures of the synthesized samples were characterized using scanning electron microscopy (SEM) on a Zeiss Merlin electron microscope (Zeiss, Jena, Germany) using an energy-dispersive X-ray spectroscopy (EDX) module (Oxford Instruments INCAx-act, Abingdon, UK). X-ray powder diffraction (XRD) measurements were performed on a D2 Phaser (Bruker, Billerica, MA, USA) X-ray diffractometer using Cu Kα radiation (λ = 1.54056 Å). The content of rare-earth ions was confirmed by EDX spectroscopy.

3. Results and Discussion

3.1. Crystal Structure

The X-ray powder diffraction (XRD) patterns are shown in Figure 1. Analysis of XRD patterns demonstrates that all synthesized materials of both series (NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4) have the same crystalline phase, which corresponds to the hexagonal β-NaYF4 (JCPDS № 16-0334). Additional diffraction peaks corresponding to the impurities were not observed. Thus, our data demonstrate that Y3+ ions are isomorphically substituted by Ln3+ ions in NaYF4 materials. The unit cell structure of β-NaYF4 is shown in Figure 1 [49]. In this structure, one can observe three positions of atoms: A, B, and C. Sodium atoms and vacancies are located at the position C (coordination number is 9) in a ratio 1:1. Sodium and yttrium(III) ions occupy position B (coordination number is 6) in a ratio 1:3. The stoichiometry of the unit cell is Na1.5Y1.5F6.
Unit cell parameters were refined from the XRD patterns by the Rietveld method. The dependence of the unit cell volume on the Ln3+ ion radius is shown in Figure 2 and in Tables S1 and S2, Supplementary Materials. Unit cell volumes linearly depend on the ionic radius of the doping lanthanide(III) ion, which decreases from La to Lu [50]. We found that unit cell volumes of NaY0.8Ln0.2F4 samples are in the range from 108 to 113 Å3, while for NaY0.6Ln0.4F4, this range is a bit wider (108–117 Å3), because NaY0.6Ln0.4F4 materials contain more ions with larger ionic radii than that of Y3+.

3.2. Morphology

The scanning electron microscopy (SEM) images of the synthesized materials are given in Figure 3 and Figure 4 (main text) and in Figures S1 and S2 (Supplementary Materials). The particle diameters were obtained from SEM images, and the size distribution is shown in the insets of Figure 3 and Figure 4 (main text) and in Figures S3 and S4 (Supplementary Materials). The mean diameter of the particle was calculated from this distribution and is given in the legends of Figure 3 and Figure 4 and in Tables S3 and S4 in Supplementary Materials. The particles have a shape of hexagonal prisms and size between 80 and 1100 nm depending on composition. The particle size nonmonotonically changes in series NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 regarding the atomic number of the doping lanthanide, Figure 5. The average particle diameter decreases from La to Gd, where it reaches minimum value, and then further increases from Gd to Lu. These observations can be explained from the dynamics of the crystal growth. The crystal size is determined by the ratio of nucleation and crystal growth rates. If the nucleation rate is larger than crystal growth rate, the small single crystals are formed. In the opposite case, when nucleation is slow, but crystal growth is fast, the large single crystals are formed. Na+ and citrate (Cit3−) ions, which are in great excess in the reaction mixture (Ln3+:Cit3−:Na+ = 1:4:27), can be adsorbed on different faces of the crystals/crystal grains. Na+ ions are predominantly adsorbed on [0001] the prismatic top/bottom crystal plane, and Cit3− ions are adsorbed more on [ 10 1 ¯ 0 ] side facets than on [0001] ones [51,52], Figure 6. The adsorbed Na+ and Cit3− ions inhibit crystal growth along corresponding directions. Hence, the decrease in unit cell volume results in the slowing down the crystal growth until the surface is fully covered by these ions. Therefore, the crystal growth rate effect is probably stronger pronounced in the beginning of the period. As was abovementioned, the unit cell volumes decrease in obtained samples from La to Lu. The smaller unit cell volumes correspond to the higher surface charge densities, which results in stronger adsorption of growth-inhibiting Na+ and Cit3− ions on the NaY1−xLnxF4 crystal grains resulting in slowing down the crystal growth rate. At the same time, Sun et al., reported [43] that NaLnF4 nucleation rate is higher for the lanthanides of larger ionic radius, and, therefore, should decrease from La to Lu. Thus, the observed particle size decrease from La to Gd is dominated by the decrease in crystal growth rate due to the adsorption of Na+ and Cit3− ions inhibiting crystal growth. At some point, probably for Gd-doped species, the large amount of Na+ and Cit3− ions covers the crystal grain surface, and additional Na+ and Cit3− adsorption is not favorable anymore. Therefore, from Gd to Lu, the crystal growth rate changes insignificantly. At the same time, the nucleation rate monotonically drops from La to Lu, which results in a rise in the crystal growth to nucleation rates ratio that leads to particle size increase from Gd to Lu. Comparing the particle sizes between NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 series, one can notice that between La and Ho, the materials containing 20 at. % of dopant are larger than samples containing 40 at. % of Ln3+. NaY0.8Er0.2F4 and NaY0.6Er0.4F4 particles have the comparable diameters of 637 ± 9 and 700 ± 30 nm, respectively, which are also close to the diameters of NaYF4 particles synthesized by the same method [45], 714 ± 35 nm. Er3+ and Y3+ ions have similar ionic radii of 1.062 and 1.075 Å, which results in closed unit cell volumes of NaY0.8Er0.2F4 (109.538 Å3), NaY0.6Er0.4F4 (109.456 Å3) (Figure 2), and NaYF4 (109.562 Å3) and in the same electrostatic behavior as the abovementioned materials. For Tm, Yb, and Lu, the opposite situation is observed: the materials containing 40 at. % of dopant are larger than samples containing 20 at. % of Ln3+. These observations are consistent with unit cell volumes values (Figure 2), where crossing of the curves corresponding to NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 is observed at Ho or Er; therefore, one can suppose that inversion between sizes of NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 also can be explained in terms of atomic radii of Ln3+. Indeed, as we mentioned previously, lanthanide ions with large atomic radii demonstrate a tendency towards faster nucleation. For the NaY1-xLnxF4 (Ln = La–Dy) series, nucleation is limited by Ln3+ ions, which form grains faster than Y3+ ions. Furthermore, this grain growth is determined by the presence of Y3+ ions. Hence, a higher concentration of Ln3+ ions (Ln = La–Dy) results in the formation of smaller particles. This explanation is consistent with data reported in previous works. Thus, previously, we reported that for NaEuxY1-xF4 materials [45], increasing the Eu3+ concentration from 0 to 50 at. % results in a particle size decrease from (714 ± 35) nm to (94 ± 5) nm. When the ionic radii of lanthanides are comparable, all ions form grains with similar rates. Indeed, in the NaEuxGd1−xF4 series, where Gd3+ and Eu3+ have close values of ionic radii (r(Gd3+) = 1.107 Å, r(Eu3+) = 1.12 Å), nanoparticles have similar sizes [53]. Hence, the particle size increases simultaneously with the increase the Ln3+ content when the ionic radii of doping lanthanides are lower than the ionic radius of yttrium (III) ion in series NaY1-xLnxF4 (Ln = Tm–Lu).
Additionally, one can notice that particle shape depends on the dopant atomic number: the diameter-to-length ratio increases from La to Lu in both NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 series (Figure 3 and Figure 4 in main text and in Figures S1 and S2 in Supplementary Materials). Thus, NaYF4:La3+ particles have a shape of elongated prisms or “rods” (Figure 3a and Figure 4a), but NaYF4:Lu3+ particles are observed as flattened prisms or “tablets” (Figure 3f and Figure 4f). As was abovementioned, Na+ and Cit3− ions are predominantly adsorbed on prismatic top/bottom [0001] and [ 10 1 ¯ 0 ] side crystal planes, correspondingly, and inhibit the crystal growth in these directions. The surface charge densities increase from La to Lu due to the unit cell volume reduction, which results in stronger adsorption of growth-inhibiting Na+ and Cit3− ions on the NaMF4 crystal grains (M = Y/Ln). We believe that charge densities increase effects on sodium ion adsorption to a greater degree than citrate ions, because Na+ is a small ion that has high positive charge density, but the negative charge of a citrate ion is delocalized along the citrate ion π-system. Therefore, the surface charge densities’ increase from La to Lu to a greater degree slows down the crystal growth along longitudinal direction [0001] than along the transverse one [ 10 1 ¯ 0 ] , which results in a flattening of the hexagonal-prism-shaped particles in the end of the period. For a better understating of above-described connection between growth factors and transformation of particles’ shape and size, a schematic illustration of the proposed explanation is given in Figure 7.

4. Conclusions

In this work, we reported the morphology and crystal size dependence on the nature of the doping lanthanide(III) ions in NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 series. The reported materials were synthesized by the one-pot hydrothermal method in an autoclave by heating at the temperature of 180 °C within 17 h. Analysis of XRD patterns demonstrated that all synthesized samples have a β-NaYF4 crystal structure. The unit cell parameters were calculated from XRD by the Rietveld method. It was demonstrated that the unit cell volume decreases from La to Lu simultaneously with Ln3+ ionic radii. According to scanning electron microscopy data, the particles of all the studied materials have a shape of hexagonal prisms and size of 80–1100 nm depending on the sample composition. The particle size nonmonotonically changes in both series as the atomic number of the doping lanthanide increases. The average particle diameter decreases from La to Gd, where it reaches the minimum value, and then further increases from Gd to Lu. Additionally, the particle shape depends on the dopant atomic number: the diameter-to-length ratio increases from La to Lu in both NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 series. The effect of the nature of the doping lanthanide(III) ion on particle size and shape was explained in terms of crystal growth dynamics, the relationship between the atomic number of the Ln3+ ion and the surface charge density, and the role of sodium and citrate ions presented in the reaction mixture in excess.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: SEM images of the NaY0.8Ln0.2F4 samples, Ln = (a) La (b) Ce (c) Pr (d) Nd (e) Sm (f) Eu (g) Gd (h) Tb (i) Dy (j) Ho (k) Er (l) Tm (m) Yb (n) Lu; Figure S2: SEM images of the NaY0.6Ln0.4F4 samples, Ln = (a) La (b) Ce (c) Pr (d) Nd (e) Sm (f) Eu (g) Gd (h) Tb (i) Dy (j) Ho (k) Er (l) Tm (m) Yb (n) Lu; Figure S3: Particle diameter distribution of the NaY0.8Ln0.2F4 samples, Ln = (a) La (b) Ce (c) Pr (d) Nd (e) Sm (f) Eu (g) Gd (h) Tb (i) Dy (j) Ho (k) Er (l) Tm (m) Yb (n) Lu; Figure S4: Particle diameter distribution of the NaY0.6Ln0.4F4 samples, Ln = (a) La (b) Ce (c) Pr (d) Nd (e) Sm (f) Eu (g) Gd (h) Tb (i) Dy (j) Ho (k) Er (l) Tm (m) Yb (n) Lu; Table S1: Unit cell parameters of the NaY0.8Ln0.2F4 samples; Table S2: Unit cell parameters of the NaY0.6Ln0.4F4 samples; Table S3: Mean particle diameter of the NaY0.8Ln0.2F4 samples; Table S4: Mean particle diameter of the NaY0.6Ln0.4F4 samples.

Author Contributions

Conceptualization, A.S.M.; Methodology, A.A.B., T.S.B. and A.S.M.; Formal Analysis, A.A.B., T.S.B., V.G.N. and A.S.M.; Investigation, I.I.T., A.A.B., T.S.B. and A.S.M.; Resources, N.A.B., M.Y.S. and A.S.M.; Data Curation, M.N.R., A.A.B., T.S.B. and A.S.M.; Writing—Original Draft Preparation, N.A.B., T.S.B., V.G.N. and A.S.M.; Writing—Review and Editing, N.A.B., T.S.B., V.G.N., M.Y.S. and A.S.M.; Visualization, S.S.K., A.A.B., T.S.B. and A.S.M.; Supervision, A.S.M.; Project Administration, A.S.M.; Funding Acquisition, A.S.M. All authors have read and agreed to the published version of the manuscript.


This research was funded by Fellowship of President of Russia MD-1191.2022.1.3.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in Supplementary Materials.


The measurements were performed in the Research Park of Saint-Petersburg State University (Magnetic Resonance Research Centre, Chemical Analysis and Materials Research Centre, Cryogenic Department, Interdisciplinary Resource Centre for Nanotechnology, Centre for X-ray Diffraction Studies, Centre for Optical and Laser Materials Research, Thermogravimetric and Calorimetric Research Centre, and Centre for Innovative Technologies of Composite Nanomaterials).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Chen, G.; Qiu, H.; Prasad, P.N.; Chen, X. Upconversion Nanoparticles: Design, Nanochemistry, and Applications in Theranostics. Chem. Rev. 2014, 114, 5161–5214. [Google Scholar] [CrossRef]
  2. Torresan, M.F.; Wolosiuk, A. Critical Aspects on the Chemical Stability of NaYF4-Based Upconverting Nanoparticles for Biomedical Applications. ACS Appl. Bio Mater. 2021, 4, 1191–1210. [Google Scholar] [CrossRef]
  3. van Swieten, T.P.; Yu, D.; Yu, T.; Vonk, S.J.W.; Suta, M.; Zhang, Q.; Meijerink, A.; Rabouw, F.T. A Ho3+-Based Luminescent Thermometer for Sensitive Sensing over a Wide Temperature Range. Adv. Opt. Mater. 2021, 9, 2001518. [Google Scholar] [CrossRef]
  4. Du, Y.; Wang, Y.; Deng, Z.; Chen, X.; Yang, X.; Sun, T.; Zhang, X.; Zhu, G.; Yu, S.F.; Wang, F. Blue-Pumped Deep Ultraviolet Lasing from Lanthanide-Doped Lu6O5F8 Upconversion Nanocrystals. Adv. Opt. Mater. 2020, 8, 1900968. [Google Scholar] [CrossRef]
  5. Pominova, D.; Proydakova, V.; Romanishkin, I.; Ryabova, A.; Kuznetsov, S.; Uvarov, O.; Fedorov, P.; Loschenov, V. Temperature Sensing in the Short-Wave Infrared Spectral Region Using Core-Shell Nagdf4:Yb3+, Ho3+, Er3+ @nayf4 Nanothermometers. Nanomaterials 2020, 10, 1992. [Google Scholar] [CrossRef]
  6. Hu, J.; Wang, R.; Fan, R.; Huang, Z.; Liu, Y.; Guo, G.; Fu, H. Enhanced Luminescence in Yb3+ Doped Core-Shell Upconversion Nanoparticles for Sensitive Doxorubicin Detection. J. Lumin. 2020, 217, 116812. [Google Scholar] [CrossRef]
  7. Schulze, T.F.; Schmidt, T.W. Photochemical Upconversion: Present Status and Prospects for Its Application to Solar Energy Conversion. Energy Environ. Sci. 2015, 8, 103–125. [Google Scholar] [CrossRef]
  8. Gargas, D.J.; Chan, E.M.; Ostrowski, A.D.; Aloni, S.; Altoe, M.V.P.; Barnard, E.S.; Sanii, B.; Urban, J.J.; Milliron, D.J.; Cohen, B.E.; et al. Engineering Bright Sub-10-Nm Upconverting Nanocrystals for Single-Molecule Imaging. Nat. Nanotechnol. 2014, 9, 300–305. [Google Scholar] [CrossRef]
  9. Shang, Y.; Chen, T.; Ma, T.; Hao, S.; Lv, W.; Jia, D.; Yang, C. Advanced Lanthanide Doped Upconversion Nanomaterials for Lasing Emission. J. Rare Earths 2022, 40, 687–695. [Google Scholar] [CrossRef]
  10. Zhao, E.; Liu, X.; Tang, D.; Liu, L.; Liu, G.; Zhou, B.; Xing, C. 800 Nm Laser Induced White Light Upconversion of Nd/Yb/Pr Triply Doped NaYF4 through a Dual-Sensitization Strategy. Mater. Res. Bull. 2021, 133, 111027. [Google Scholar] [CrossRef]
  11. Wen, S.; Zhou, J.; Zheng, K.; Bednarkiewicz, A.; Liu, X.; Jin, D. Advances in Highly Doped Upconversion Nanoparticles. Nat. Commun. 2018, 9, 2415. [Google Scholar] [CrossRef] [PubMed]
  12. Haase, M.; Schäfer, H. Upconverting Nanoparticles. Angew. Chem.-Int. Ed. 2011, 50, 5808–5829. [Google Scholar] [CrossRef] [PubMed]
  13. Xu, J.; Yang, P.; Sun, M.; Bi, H.; Liu, B.; Yang, D.; Gai, S.; He, F.; Lin, J. Highly Emissive Dye-Sensitized Upconversion Nanostructure for Dual-Photosensitizer Photodynamic Therapy and Bioimaging. ACS Nano 2017, 11, 4133–4144. [Google Scholar] [CrossRef] [PubMed]
  14. Li, K.; Hong, E.; Wang, B.; Wang, Z.; Zhang, L.; Hu, R.; Wang, B. Advances in the Application of Upconversion Nanoparticles for Detecting and Treating Cancers. Photodiagn. Photodyn. Ther. 2019, 25, 177–192. [Google Scholar] [CrossRef]
  15. Fan, W.; Shen, B.; Bu, W.; Chen, F.; Zhao, K.; Zhang, S.; Zhou, L.; Peng, W.; Xiao, Q.; Xing, H.; et al. Rattle-Structured Multifunctional Nanotheranostics for Synergetic Chemo-/Radiotherapy and Simultaneous Magnetic/Luminescent Dual-Mode Imaging. J. Am. Chem. Soc. 2013, 135, 6494–6503. [Google Scholar] [CrossRef] [PubMed]
  16. Liang, G.; Wang, H.; Shi, H.; Wang, H.; Zhu, M.; Jing, A.; Li, J.; Li, G. Recent Progress in the Development of Upconversion Nanomaterials in Bioimaging and Disease Treatment. J. Nanobiotechnol. 2020, 18, 154. [Google Scholar] [CrossRef]
  17. Wawrzynczyk, D.; Nyk, M.; Bednarkiewicz, A.; Strek, W.; Samoc, M. Morphology- and Size-Dependent Spectroscopic Properties of Eu3+-Doped Gd2O3 Colloidal Nanocrystals. J. Nanoparticle Res. 2014, 16, 2690. [Google Scholar] [CrossRef]
  18. Tromsdorf, U.I.; Bigall, N.C.; Kaul, M.G.; Bruns, O.T.; Nikolic, M.S.; Mollwitz, B.; Sperling, R.A.; Reimer, R.; Hohenberg, H.; Parak, W.J.; et al. Size and Surface Effects on the MRI Relaxivity of Manganese Ferrite Nanoparticle Contrast Agents. Nano Lett. 2007, 7, 2422–2427. [Google Scholar] [CrossRef]
  19. York, J.N.; Albanese, C.; Rodriguez, O.; Lee, Y.C.; Ackun-Farmmer, M.; van Keuren, E. The Effects of Particle Shape and Size on T2 Relaxation in Magnetic Resonance Imaging. J. Biomed. Nanotechnol. 2014, 10, 3392–3396. [Google Scholar] [CrossRef]
  20. Ni, D.; Bu, W.; Ehlerding, E.B.; Cai, W.; Shi, J. Engineering of Inorganic Nanoparticles as Magnetic Resonance Imaging Contrast Agents. Chem. Soc. Rev. 2017, 46, 7438–7468. [Google Scholar] [CrossRef]
  21. Sinha, S.; Mondal, A.; Kumar, K.; Swart, H.C. Enhancement of Upconversion Emission and Temperature Sensing of Paramagnetic Gd2Mo3O9: Er3+/Yb3+ Phosphor via Li+/Mg2+ Co-Doping. J. Alloys Compd. 2018, 747, 455–464. [Google Scholar] [CrossRef]
  22. Mikalauskaite, I.; Pleckaityte, G.; Skapas, M.; Zarkov, A.; Katelnikovas, A.; Beganskiene, A. Emission Spectra Tuning of Upconverting NaGdF4:20% Yb, 2% Er Nanoparticles by Cr3+ Co-Doping for Optical Temperature Sensing. J. Lumin. 2019, 213, 210–217. [Google Scholar] [CrossRef]
  23. Zhou, B.; Shi, B.; Jin, D.; Liu, X. Controlling Upconversion Nanocrystals for Emerging Applications. Nat. Nanotechnol. 2015, 10, 924–936. [Google Scholar] [CrossRef]
  24. Marashdeh, M.W.; Ababneh, B.; Lemine, O.M.; Alsadig, A.; Omri, K.; El Mir, L.; Sulieman, A.; Mattar, E. The Significant Effect of Size and Concentrations of Iron Oxide Nanoparticles on Magnetic Resonance Imaging Contrast Enhancement. Results Phys. 2019, 15, 102651. [Google Scholar] [CrossRef]
  25. Lu, J.; Mu, Z.; Zhu, D.; Wang, Q.; Wu, F. Luminescence Properties of Eu3+ Doped La3Ga5GeO14 and Effect of Bi3+ Co-Doping. J. Lumin. 2018, 196, 50–56. [Google Scholar] [CrossRef]
  26. Huang, J.; Zhong, X.; Wang, L.; Yang, L.; Mao, H. Improving the Magnetic Resonance Imaging Contrast and Detection Methods with Engineered Magnetic Nanoparticles. Theranostics 2012, 2, 86–102. [Google Scholar] [CrossRef]
  27. Gupta, S.K.; Abdou, M.; Zuniga, J.P.; Ghosh, P.S.; Mao, Y. Li+ Co-Doping Induced Phase Transition as an Efficient Strategy to Enhance Upconversion of La2Zr2O7:Er,Yb Nanoparticles. J. Lumin. 2020, 224, 117312. [Google Scholar] [CrossRef]
  28. Jiao, Y.; Ling, C.; Wang, J.X.; Amanico, H.; Saczek, J.; Wang, H.; Sridhar, S.; Xu, B.B.; Wang, S.; Wang, D. Controllable Synthesis of Upconversion Nanophosphors toward Scale-Up Productions. Part. Part. Syst. Charact. 2020, 37, 2000129. [Google Scholar] [CrossRef]
  29. Cao, R.; Liao, C.; Xiao, F.; Zheng, G.; Hu, W.; Guo, Y.; Ye, Y. Emission Enhancement of LiLaMo2O8:Eu3+ Phosphor by Co-Doping with Bi3+ and Sm3+ Ions. Dyes Pigments 2018, 149, 574–580. [Google Scholar] [CrossRef]
  30. Zheng, B.; Fan, J.; Chen, B.; Qin, X.; Wang, J.; Wang, F.; Deng, R.; Liu, X. Rare-Earth Doping in Nanostructured Inorganic Materials. Chem. Rev. 2022, 122, 5519–5603. [Google Scholar] [CrossRef]
  31. Bard, A.B.; Zhou, X.; Xia, X.; Zhu, G.; Lim, M.B.; Kim, S.M.; Johnson, M.C.; Kollman, J.M.; Marcus, M.A.; Spurgeon, S.R.; et al. A Mechanistic Understanding of Nonclassical Crystal Growth in Hydrothermally Synthesized Sodium Yttrium Fluoride Nanowires. Chem. Mater. 2020, 32, 2753–2763. [Google Scholar] [CrossRef]
  32. Szefczyk, B.; Roszak, R.; Roszak, S. Structure of the Hexagonal NaYF4 Phase from First-Principles Molecular Dynamics. RSC Adv. 2014, 4, 22526–22535. [Google Scholar] [CrossRef]
  33. Liu, H.; Han, J.; McBean, C.; Lewis, C.S.; Kumar Routh, P.; Cotlet, M.; Wong, S.S. Synthesis-Driven, Structure-Dependent Optical Behavior in Phase-Tunable NaYF4:Yb,Er-Based Motifs and Associated Heterostructures. Phys. Chem. Chem. Phys. 2017, 19, 2153–2167. [Google Scholar] [CrossRef] [PubMed]
  34. Ding, M.; Lu, C.; Cao, L.; Ni, Y.; Xu, Z. Controllable Synthesis, Formation Mechanism and Upconversion Luminescence of β-NaYF4:Yb3+/Er3+ Microcrystals by Hydrothermal Process. CrystEngComm 2013, 15, 8366–8373. [Google Scholar] [CrossRef]
  35. Li, C.; Yang, J.; Quan, Z.; Yang, P.; Kong, D.; Lin, J. Different Microstructures of β-NaYF4 Fabricated by Hydrothermal Process: Effects of PH Values and Fluoride Sources. Chem. Mater. 2007, 19, 4933–4942. [Google Scholar] [CrossRef]
  36. Jiang, B.; Wang, X. Dynamic Simulation of Growth of NaYF4 Nanocrystals at High Temperature and Pressure. J. Alloys Compd. 2020, 831, 154785. [Google Scholar] [CrossRef]
  37. Li, S.; Ye, S.; Chen, X.; Liu, T.; Guo, Z.; Wang, D. OH Ions-Controlled Synthesis and Upconversion Luminescence Properties of NaYF4:Yb3+,Er3+ Nanocrystals via Oleic Acid-Assisted Hydrothermal Process. J. Rare Earths 2017, 35, 753–760. [Google Scholar] [CrossRef]
  38. Sun, Y.; Chen, Y.; Tian, L.; Yu, Y.; Kong, X.; Zhao, J.; Zhang, H. Controlled Synthesis and Morphology Dependent Upconversion Luminescence of NaYF4:Yb, Er Nanocrystals. Nanotechnology 2007, 18, 275609. [Google Scholar] [CrossRef]
  39. Sun, C.; Schäferling, M.; Resch-Genger, U.; Gradzielski, M. Solvothermal Synthesis of Lanthanide-Doped NaYF4 Upconversion Crystals with Size and Shape Control: Particle Properties and Growth Mechanism. ChemNanoMat 2021, 7, 174–183. [Google Scholar] [CrossRef]
  40. Guo, X.; Li, P.; Yin, S.; Qin, W. Effect of NaF/RE (RE = Yb, Tm) Molar Ratio on the Morphologies and Upconversion Properties of NaYbF4:Tm3+ Microrods. J. Fluor. Chem. 2017, 200, 91–95. [Google Scholar] [CrossRef]
  41. Zhuang, J.; Liang, L.; Sung, H.H.Y.; Yang, X.; Wu, M.; Williams, I.D.; Feng, S.; Su, Q. Controlled Hydrothermal Growth and Up-Conversion Emission of NaLnF4 (Ln = Y, Dy-Yb). Inorg. Chem. 2007, 46, 5404–5410. [Google Scholar] [CrossRef]
  42. Wang, Z.; Tao, F.; Yao, L.; Cai, W.; Li, X. Selected Synthesis of Cubic and Hexagonal NaYF4 Crystals via a Complex-Assisted Hydrothermal Route. J. Cryst. Growth 2006, 290, 296–300. [Google Scholar] [CrossRef]
  43. Sun, X.; Wang, X.; Chen, B.; Zhao, F.; Xu, X.; Ren, K.; Lu, Y.; Qiao, X.; Qian, G.; Fan, X. Phase and Morphology Evolution of Luminescent NaLnF4 (Ln = La to Yb) Micro-Crystals: Understanding the Ionic Radii and Surface Energy-Dependent Solution Growth Mechanism. CrystEngComm 2019, 21, 6652–6658. [Google Scholar] [CrossRef]
  44. Ladol, J.; Khajuria, H.; Khajuria, S.; Sheikh, H.N. Hydrothermal Synthesis, Characterization and Luminescent Properties of Lanthanide-Doped NaLaF4 Nanoparticles. Bull. Mater. Sci. 2016, 39, 943–952. [Google Scholar] [CrossRef]
  45. Kolesnikov, I.E.; Vidyakina, A.A.; Vasileva, M.S.; Nosov, V.G.; Bogachev, N.A.; Sosnovsky, V.B.; Skripkin, M.Y.; Tumkin, I.I.; Lähderanta, E.; Mereshchenko, A.S. The Effect of Eu3+and Gd3+co-Doping on the Morphology and Luminescence of NaYF4:Eu3+, Gd3+phosphors. New J. Chem. 2021, 45, 10599–10607. [Google Scholar] [CrossRef]
  46. Vidyakina, A.A.; Kolesnikov, I.E.; Bogachev, N.A.; Skripkin, M.Y.; Tumkin, I.I.; Lähderanta, E.; Mereshchenko, A.S. Gd3+-Doping Effect on Upconversion Emission of NaYF4: Yb3+, Er3+/Tm3+ Microparticles. Materials 2020, 13, 3397. [Google Scholar] [CrossRef]
  47. Wang, F.; Han, Y.; Lim, C.S.; Lu, Y.; Wang, J.; Xu, J.; Chen, H.; Zhang, C.; Hong, M.; Liu, X. Simultaneous Phase and Size Control of Upconversion Nanocrystals through Lanthanide Doping. Nature 2010, 463, 1061–1065. [Google Scholar] [CrossRef]
  48. Vidyakina, A.A.; Zheglov, D.A.; Oleinik, A.V.; Freinkman, O.V.; Kolesnikov, I.E.; Bogachev, N.A.; Skripkin, M.Y.; Mereshchenko, A.S. Microcrystalline Anti-Stokes Luminophores NaYF4 Doped with Ytterbium, Erbium, and Lutetium Ions. Russ. J. Gen. Chem. 2021, 91, 844–849. [Google Scholar] [CrossRef]
  49. Krämer, K.W.; Biner, D.; Frei, G.; Güdel, H.U.; Hehlen, M.P.; Lüthi, S.R. Hexagonal Sodium Yttrium Fluoride Based Green and Blue Emitting Upconversion Phosphors. Chem. Mater. 2004, 16, 1244–1251. [Google Scholar] [CrossRef]
  50. Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomie Distances in Halides and Chaleogenides. Acta Crystallogr. Sect. A Cryst. Phys. Diffr. Theor. Gen. Crystallogr. 1976, 32, 751–767. [Google Scholar] [CrossRef]
  51. Wang, C.; Cheng, X. Controlled Hydrothermal Growth and Tunable Luminescence Properties of β-NaYF4:Yb3+/Er3+microcrystals. J. Alloys Compd. 2014, 617, 807–815. [Google Scholar] [CrossRef]
  52. Wang, M.; Huang, Q.L.; Hong, J.M.; Chen, X.T.; Xue, Z.L. Controlled Synthesis and Characterization of Nanostructured EuF3 with Different Crystalline Phases and Morphologies. Cryst. Growth Des. 2006, 6, 2169–2173. [Google Scholar] [CrossRef]
  53. Sudheendra, L.; Das, G.K.; Li, C.; Stark, D.; Cena, J.; Cherry, S.; Kennedy, I.M. NaGdF4:Eu3+ Nanoparticles for Enhanced X-ray Excited Optical Imaging. Chem. Mater. 2014, 26, 1881–1888. [Google Scholar] [CrossRef] [PubMed]

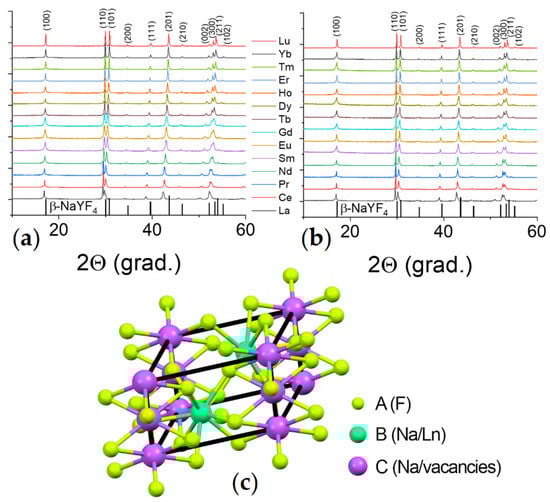

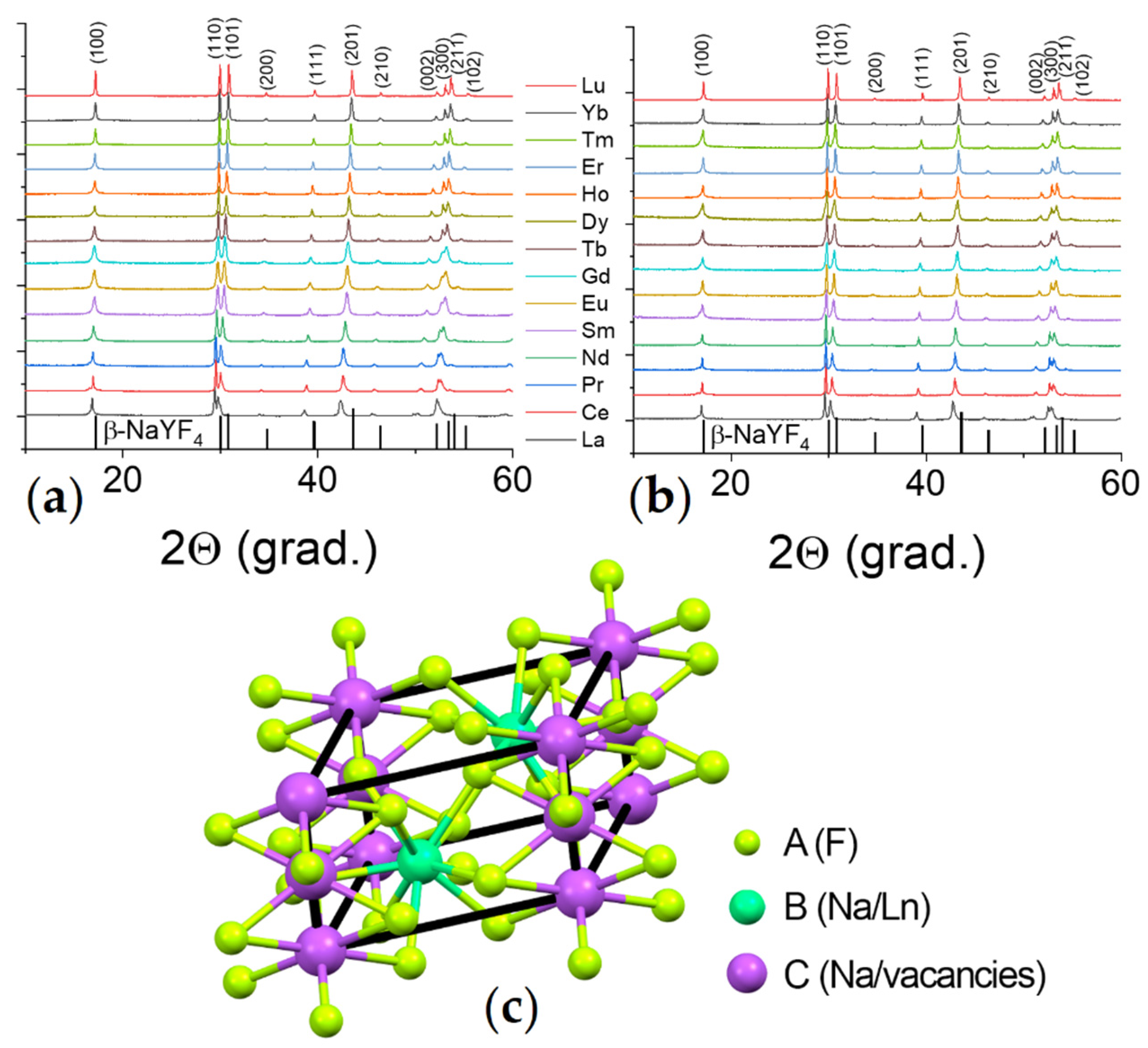

Figure 1. XRD patterns of (a) NaY0.8Ln0.2F4 and (b) NaY0.6Ln0.4F4 (Ln = La–Lu); (c) the fragment of NaYF4 crystal structure.
Figure 1. XRD patterns of (a) NaY0.8Ln0.2F4 and (b) NaY0.6Ln0.4F4 (Ln = La–Lu); (c) the fragment of NaYF4 crystal structure.
Nanomaterials 12 02972 g001

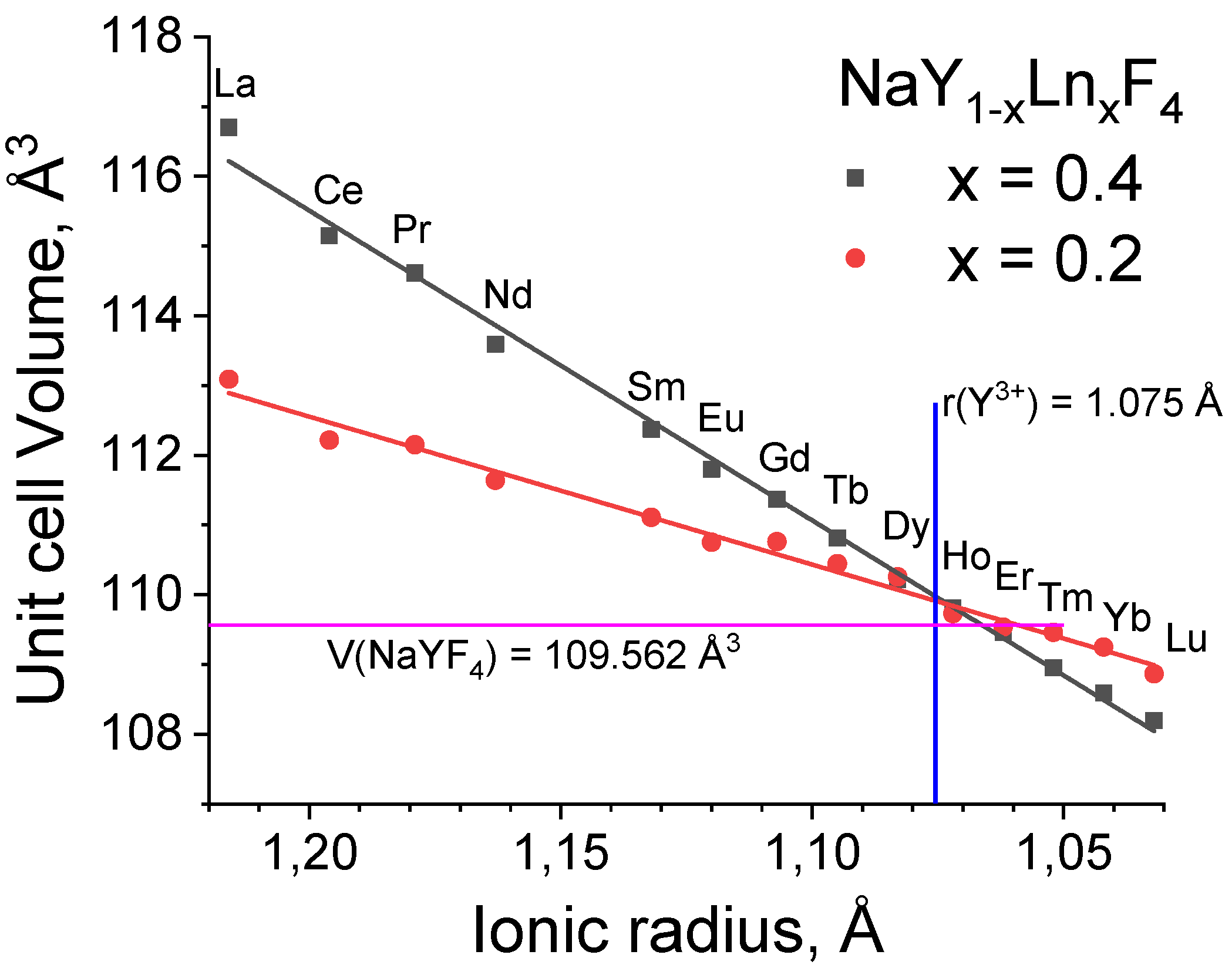

Figure 2. The dependence of unit cell volumes of NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 (Ln = La–Nd, Sm–Lu) on the ionic radii of Ln3+ ions (the coordination number is equal to 9). The ionic radius of Y3+ is shown as blue line for comparison. The unit cell volume of NaYF4 is shown as magenta line.
Figure 2. The dependence of unit cell volumes of NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 (Ln = La–Nd, Sm–Lu) on the ionic radii of Ln3+ ions (the coordination number is equal to 9). The ionic radius of Y3+ is shown as blue line for comparison. The unit cell volume of NaYF4 is shown as magenta line.
Nanomaterials 12 02972 g002

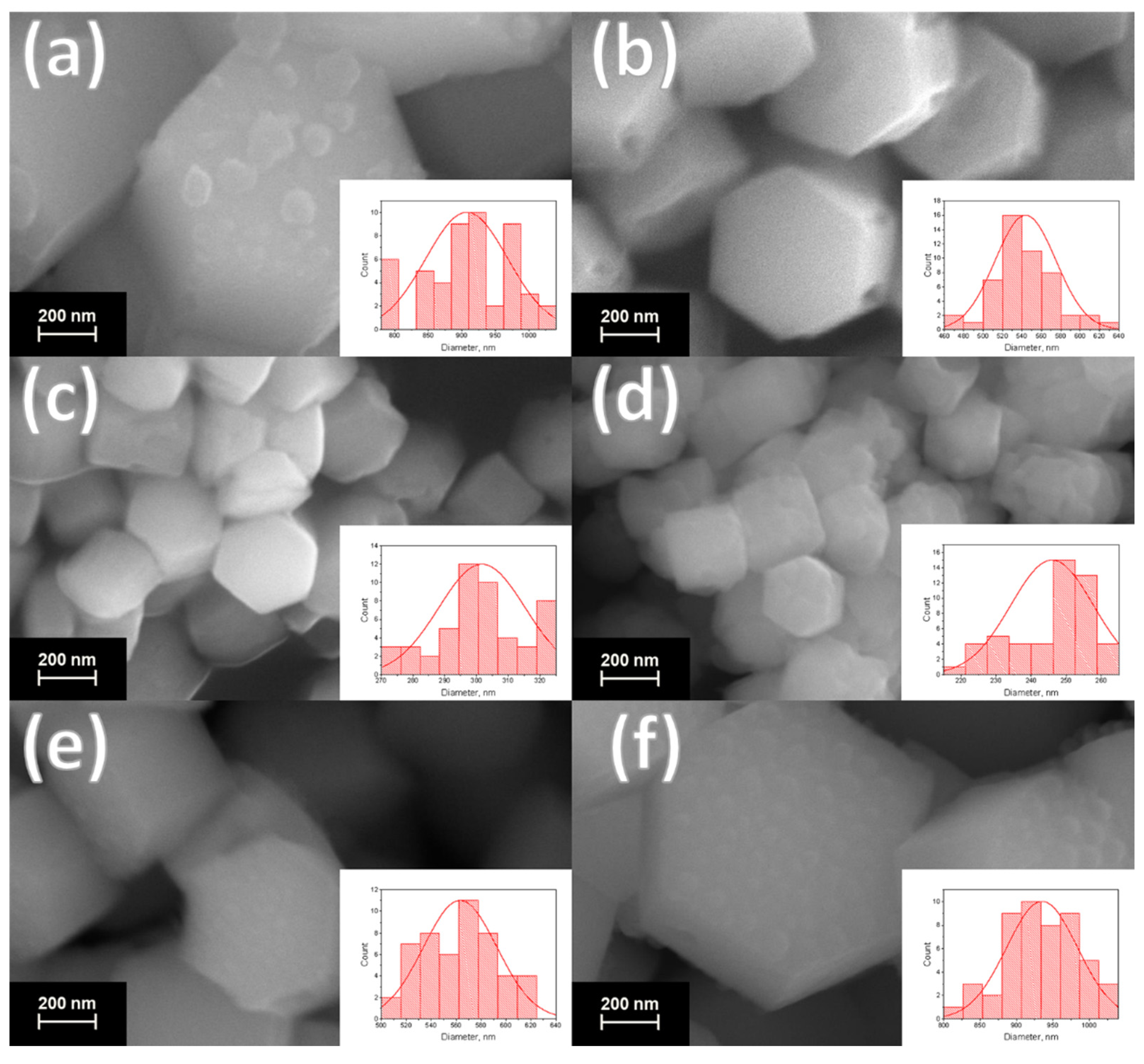

Figure 3. SEM images of the samples: (a) NaY0.8La0.2F4, (b) NaY0.8Pr0.2F4, (c) NaY0.8Sm0.2F4, (d) NaY0.8Gd0.2F4, (e) NaY0.8Ho0.2F4, (f) NaY0.8Lu0.2F4. Particle size distribution is shown in the insets. The average diameter of the particles is equal to 907 ± 61, 544 ± 31, 302 ± 14, 246 ± 12, 563 ± 30 and 935 ± 49 nm for the La3+, Pr3+, Sm3+, Gd3+, Ho3+ and Lu3+, respectively.
Figure 3. SEM images of the samples: (a) NaY0.8La0.2F4, (b) NaY0.8Pr0.2F4, (c) NaY0.8Sm0.2F4, (d) NaY0.8Gd0.2F4, (e) NaY0.8Ho0.2F4, (f) NaY0.8Lu0.2F4. Particle size distribution is shown in the insets. The average diameter of the particles is equal to 907 ± 61, 544 ± 31, 302 ± 14, 246 ± 12, 563 ± 30 and 935 ± 49 nm for the La3+, Pr3+, Sm3+, Gd3+, Ho3+ and Lu3+, respectively.
Nanomaterials 12 02972 g003

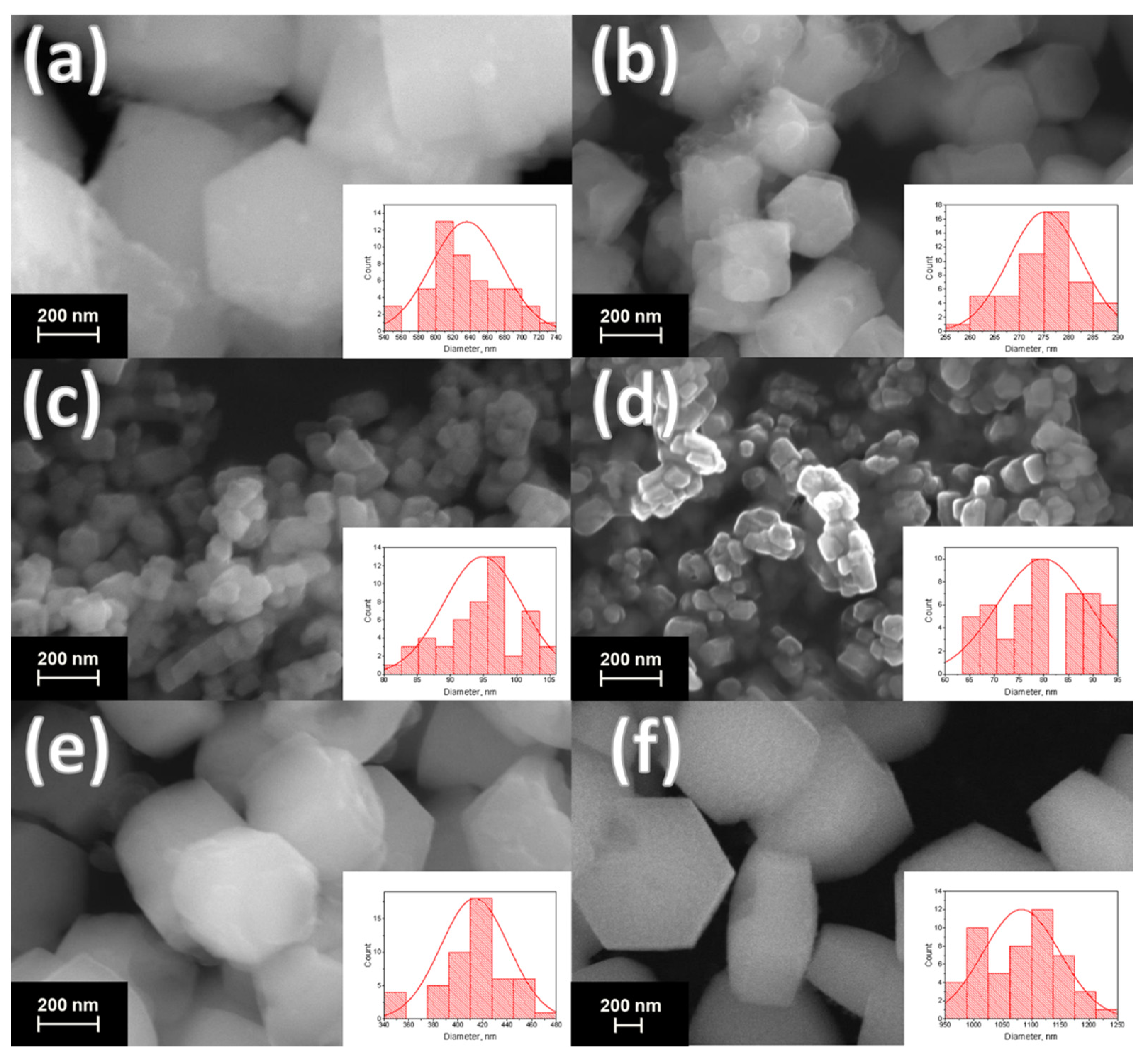

Figure 4. SEM images of the samples: (a) NaY0.6La0.4F4, (b) NaY0.6Pr0.4F4, (c) NaY0.6Sm0.4F4, (d) NaY0.6Gd0.4F4, (e) NaY0.6Ho0.4F4, (f) NaY0.6Lu0.4F4. Particle size distribution is shown in the insets. The average diameter of the particles is equal to 636 ± 41, 95 ± 6, 81 ± 4, 80 ± 9, 177 ± 8 and 1083 ± 67 nm for the La3+, Pr3+, Sm3+, Gd3+, Ho3+ and Lu3+, respectively.
Figure 4. SEM images of the samples: (a) NaY0.6La0.4F4, (b) NaY0.6Pr0.4F4, (c) NaY0.6Sm0.4F4, (d) NaY0.6Gd0.4F4, (e) NaY0.6Ho0.4F4, (f) NaY0.6Lu0.4F4. Particle size distribution is shown in the insets. The average diameter of the particles is equal to 636 ± 41, 95 ± 6, 81 ± 4, 80 ± 9, 177 ± 8 and 1083 ± 67 nm for the La3+, Pr3+, Sm3+, Gd3+, Ho3+ and Lu3+, respectively.
Nanomaterials 12 02972 g004

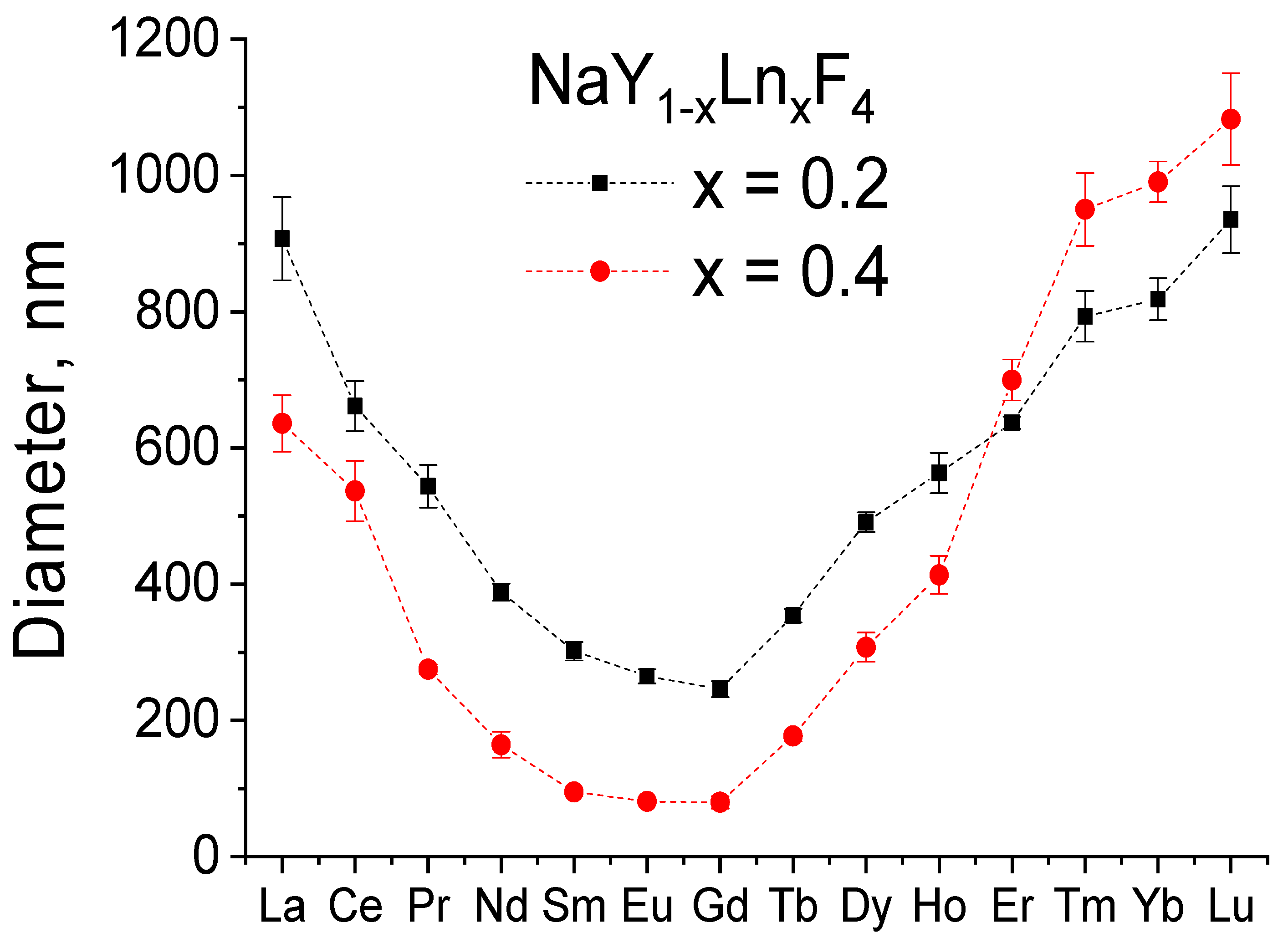

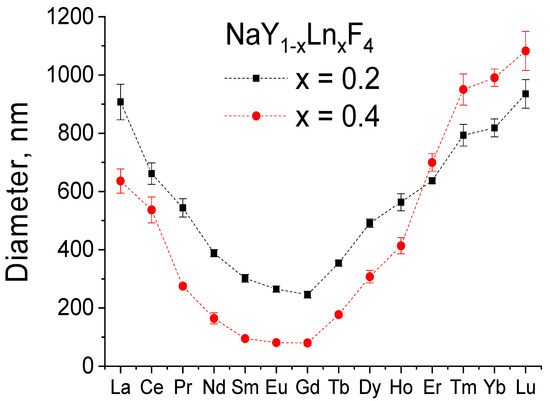

Figure 5. The average particle diameter of NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 (Ln = La–Lu) materials.
Figure 5. The average particle diameter of NaY0.8Ln0.2F4 and NaY0.6Ln0.4F4 (Ln = La–Lu) materials.
Nanomaterials 12 02972 g005

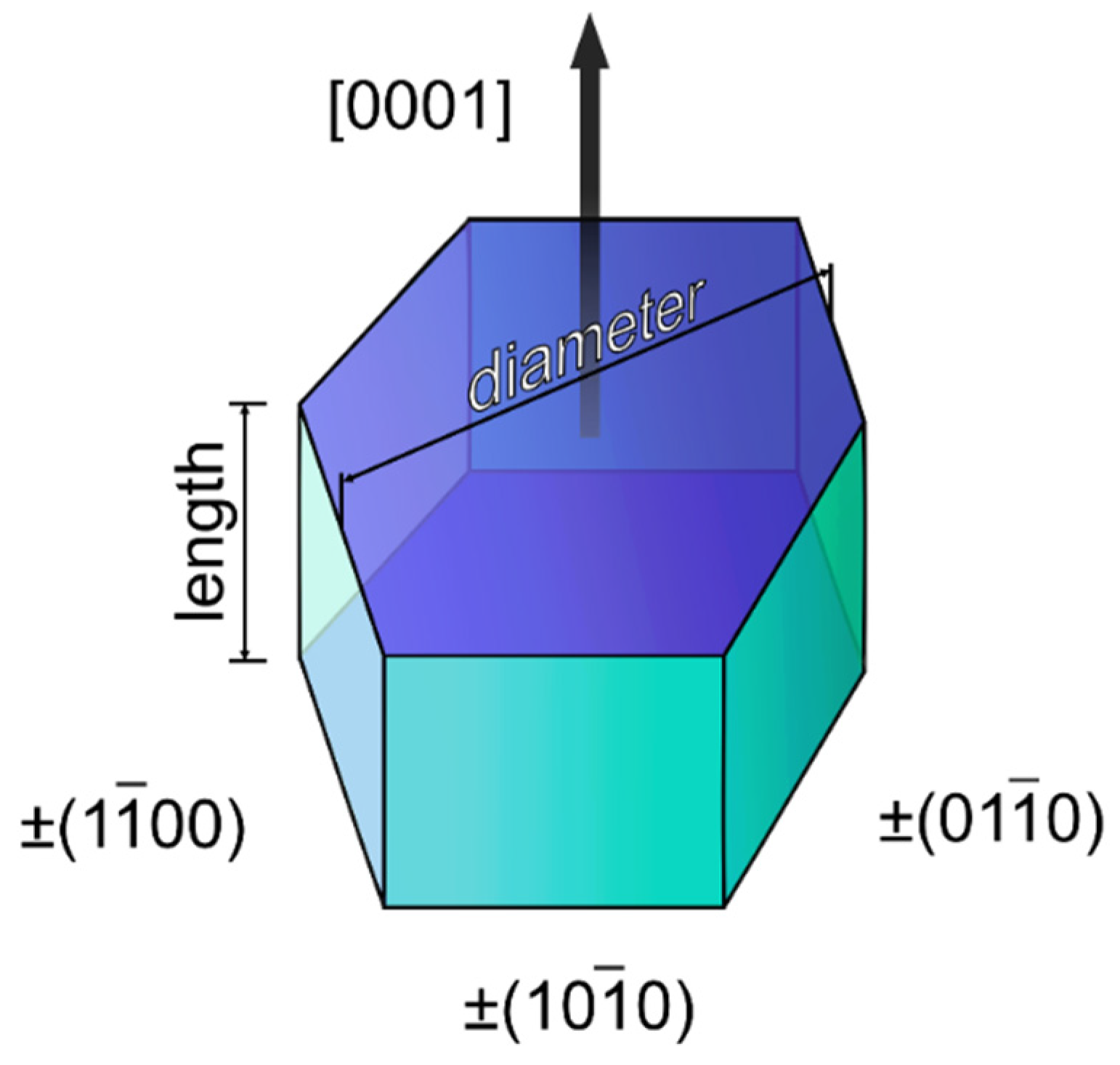

Figure 6. The shape and the anisotropy of the hexagonal prisms of β-NaYF4.
Figure 6. The shape and the anisotropy of the hexagonal prisms of β-NaYF4.
Nanomaterials 12 02972 g006

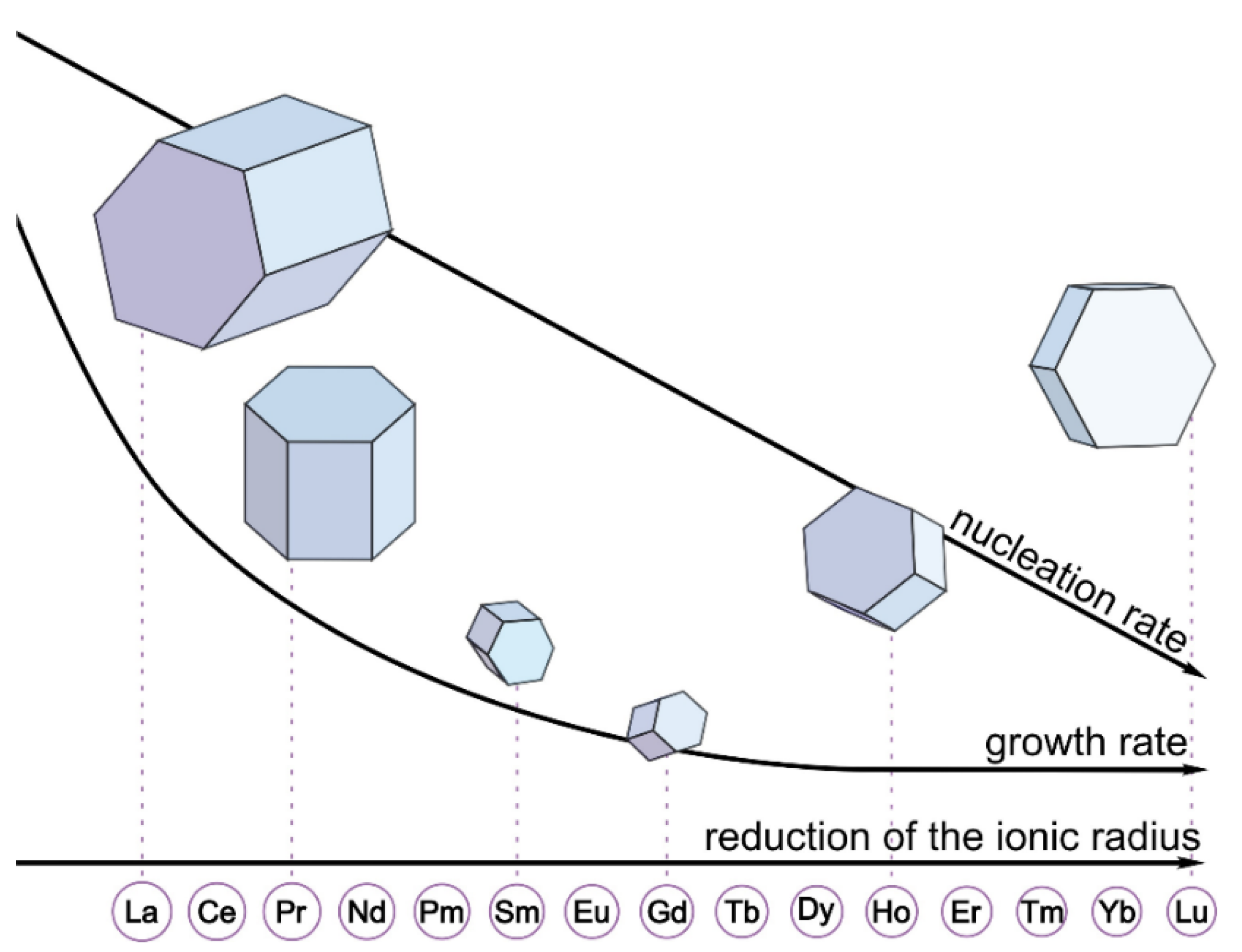

Figure 7. The effect of the crystal growth factors on the particle morphology of NaYF4:Ln3+.
Figure 7. The effect of the crystal growth factors on the particle morphology of NaYF4:Ln3+.
Nanomaterials 12 02972 g007
