Thermally Stable Magneto-Plasmonic Nanoparticles for SERS with Tunable Plasmon Resonance

by
Lina Mikoliunaite
1,2,
Martynas Talaikis
1,
Aleksandra Michalowska
3,
Jorunas Dobilas
4,
Voitech Stankevic
4,
Andrzej Kudelski
3 and
Gediminas Niaura
1,*
1
Department of Organic Chemistry, Center for Physical Sciences and Technology (FTMC), Sauletekio Av. 3, LT-10257 Vilnius, Lithuania
2
Department of Physical Chemistry, Faculty of Chemistry and Geosciences, Vilnius University, Naugarduko St. 24, LT-03225 Vilnius, Lithuania
3
Faculty of Chemistry, University of Warsaw, Pasteura St. 1, 02-093 Warsaw, Poland
4
Department of Functional Materials and Electronics, Center for Physical Sciences and Technology (FTMC), Sauletekio al. 3, LT-10257 Vilnius, Lithuania
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(16), 2860; https://doi.org/10.3390/nano12162860
Submission received: 29 July 2022 / Revised: 12 August 2022 / Accepted: 17 August 2022 / Published: 19 August 2022
(This article belongs to the Special Issue SERS/SERRS-Active Nanostructures and Nanocomposites)
Browse Figures
Versions Notes

Abstract

:
Bifunctional magneto-plasmonic nanoparticles that exhibit synergistically magnetic and plasmonic properties are advanced substrates for surface-enhanced Raman spectroscopy (SERS) because of their excellent controllability and improved detection potentiality. In this study, composite magneto-plasmonic nanoparticles (Fe3O4@AgNPs) were formed by mixing colloid solutions of 50 nm-sized magnetite nanoparticles with 13 nm-sized silver nanoparticles. After drying of the layer of composite Fe3O4@AgNPs under a strong magnetic field, they outperformed the conventional silver nanoparticles during SERS measurements in terms of signal intensity, spot-to-spot, and sample-to-sample reproducibility. The SERS enhancement factor of Fe3O4@AgNP-adsorbed 4-mercaptobenzoic acid (4-MBA) was estimated to be 3.1 × 107 for a 633 nm excitation. In addition, we show that simply by changing the initial volumes of the colloid solutions, it is possible to control the average density of the silver nanoparticles, which are attached to a single magnetite nanoparticle. UV-Vis and SERS data revealed a possibility to tune the plasmonic resonance frequency of Fe3O4@AgNPs. In this research, the plasmon resonance maximum varied from 470 to 800 nm, suggesting the possibility to choose the most suitable nanoparticle composition for the particular SERS experiment design. We emphasize the increased thermal stability of composite nanoparticles under 532 and 442 nm laser light irradiation compared to that of bare Fe3O4 nanoparticles. The Fe3O4@AgNPs were further characterized by XRD, TEM, and magnetization measurements.

Graphical Abstract

1. Introduction

Raman scattering is a very powerful vibrational spectroscopy tool for chemical analysis in various scientific fields [1]. However, it is also an extremely inefficient process as generally only one in 107 photons will result in a Raman photon. To increase Raman scattering efficiency, modifications and improvements have been suggested, and new phenomena have been discovered. One of the most widely known is surface-enhanced Raman spectroscopy (SERS) [2]. The effect was discovered almost 50 years ago [3,4,5] and subsequently became a powerful ultra-sensitive vibrational spectroscopy tool with a wide range of applications. The main mechanism responsible for the amplification of the Raman signal of molecules adsorbed or located nearby the surface is electromagnetic enhancement, originating due to the generation of local surface plasmon resonance by various shapes and sizes of metal nanostructures (usually silver and gold). The increase in the efficiency of the generation of the Raman signal in the SERS effect is roughly proportional to a fourth power of the enhancement of the electric field [6]. The example theoretical simulations of the field, enhanced for plasmonic systems and the more complex systems composed from plasmonic and non-metallic parts, can be found in the following contributions: [6,7,8,9,10] and [11,12,13,14,15], respectively. In addition, a chemical enhancement mechanism operates in many cases. The obtained enhancement could be achieved up to 108 times [2]. This method was suggested for use in the trace-level detection of explosives [16], the discrimination between bacteria and bacteriophages [17], cancer detection [18], and many other fields [2,19,20,21].
However, the progress of employing SERS techniques in real-world analytical and bioanalytical applications is hindered by the difficulty in simultaneously ensuring high sensitivity, efficiency, repeatability, and reproducibility [22,23]. The key role in SERS is played by the substrate responsible for providing the electromagnetic enhancement, which depends on the nanomaterial’s nature, size, shape, and structure. Recently, an interesting approach was suggested for the improvement of the SERS performance, involving the incorporation of magnetic properties to the SERS substrate system [24,25,26,27]. One of the main SERS challenges is related to measuring an especially low concentration of the samples, reaching 10−9 M or even a single molecule detection. In these measurements, the problem is usually to have at least some analyte molecules under the laser light, and the magnetic properties of the SERS substrate could help with this process. If the plasmonic structures have additional magnetic properties, the external magnetic field could be used for the concentration of the sample and lead particles, together with the analyte, in a specific place where the Raman signal could be registered [28,29]. There is another issue that magnetic properties are reported to solve—the coffee ring effect, obtained during the sample drying. When using the outer magnetic field during the drying process, a more uniform substrate could be obtained [30]. For these purposes, magnetic nanoparticles covered with a silver or gold layer were suggested. Importantly, the functional properties of these hybrid nanomaterials depend considerably on the form, composition, and structure of the nanoparticles [24,25,26,31,32,33,34]. The outer layer could be solid or made of smaller nanoparticles and also have a SiO2 interlayer or isolation shell on top. These magneto-plasmonic nanoparticles could be obtained by a few different techniques. Firstly, the magnetic core is synthesized. The most popular and easily obtained material is magnetite (Fe3O4) [27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44]. However, other materials could also be used: Fe [45,46], Co [47], Ni [48], and others [49]. Magnetite is obtained using some iron salts and other compounds, for example: NaOH [38,50,51], NaBH4 [45], ammonia [36,41,52] in water or solvothermal [37,40], sonochemial synthesis [35], and other methods [46,53,54,55] could be used. The plasmonic layer could be solid [38,45,50,51,53] or composed of nanoparticles [35,40,46,49,52,54], which later can be grown to a shell [37,55] or spikes [56]. Moreover, the intermediate layer of SiO2 could be used [35,37,41,46,52,55], as silver and gold do not easily adsorb on the surface of magnetite. The solid layer of silver or gold is usually obtained by the reduction of silver and gold salts [36,37,57] or by adsorbed seed growth [38,51]. If a layer is composed of plasmonic nanoparticles, then they are synthesized separately and later attached to the surface of the magnetite. In order to have a more stable system, an outer SiO2 layer could also be used [58]. These composited nanoparticles were also suggested for use in other purposes, such as the antimicrobial/antibacterial [37,49,52] or catalytical [35,40] removal or degradation of some materials [36,50,59,60]. What is more, an inverted system, where a gold nanoparticle is covered with magnetite, is also suggested [61] for Raman analysis.
We report on the synthesis and SERS performance of magneto-plasmonic nanoparticles with tunable SERS enhancement. These nanoparticles solve several problems: they have magnetic properties that help to concentrate the sample and avoid the “coffee-ring” effect while drying, as well as provide a unique possibility to tune the absorption maximum of the plasmonic band. It means one can easily form homogeneous layers from this magneto-plasmonic composite using a very simple procedure: the deposition of a layer of a sol of such a composite and the evaporation of the solvent after placing the sample in a strong magnetic field. The advantage of this method of obtaining homogeneous films for SERS measurements compared to the conventional method is a very low cost of substrate production—there is no need to use any complicated devices, such as a device for metal vapor deposition. The obtained composite was characterized with transmission electron microscopy, UV-Vis spectroscopy, XRD analysis, magnetization measurements, and Raman microscopy. The higher thermal stability of the decorated nanoparticles in comparison to the bare magnetite was determined in the presence of 532 and 442 nm laser radiation. The attached silver nanoparticles prevent the magnetite from overheating induced crystal structure change. In addition to this, the amount of AgNPs adsorbed on the surface of the magnetite could be controlled by the initial silver NP concentration. This also affects the plasmonic band position of the composite. The more silver nanoparticles are adsorbed on the surface of the magnetite, the more the red shift of the absorption maxima is noticed. In our experiment, the obtained interval was from 470 nm to more than 800 nm. This ability to adjust the absorption wavelength maximum is severely important in the SERS measurements where only one excitation wavelength is available or the sample has an absorption in the visible or near IR spectral range.

2. Materials and Methods

2.1. Materials

For the synthesis of the nanoparticles, iron sulphate heptahydrate (FeSO4·7H2O), sodium borhydride (NaBH4), and polyethylenimine (PEI, branched MW 25,000) were obtained from Aldrich Chemistry (St. Louis, MO, USA); silver nitrate (AgNO3) was from Fluka/ Honeywell (Seelze, Germany), while sodium hydroxide (NaOH), potassium nitrate (KNO3), and sodium citrate (C6H5Na3O7·2H2O (NaCit)) were purchased from POCH S.A. (Gliwice, Poland). 4-Mercaptobenzoic acid (4-MBA; 99%) was purchased from Sigma-Aldrich (St. Louis, MO, USA). In all the experiments, ultra-pure water (resistivity 18 MΩ cm) was used.

2.2. Synthesis of Magnetic Nanoparticles (Fe3O4)

The synthesis of the magnetic nanoparticles was adopted from [62]. Briefly, 0.175 g of FeSO4·7H2O was dissolved in 20 mL of distilled water, purged with N2 gases. Later, 2.5 mL of 2 M KNO3 and 2.5 mL of 1 M NaOH were added to the solution, followed by 5 mL of 8 mg/mL PEI solution. The prepared mixture was heated to 90 °C and kept for 2 h. N2 flow and magnetic stirring were used all the time.

2.3. Synthesis of Silver Nanoparticles (AgNPs)

The silver nanoparticles were synthesized using the method suggested by S. Wojtysiak and A. Kudelski [63]. In brief, a 100 mL solution containing 9.1 × 10−4 M AgNO3 and 2.81 × 10−3 M NaCit was placed in a 250 mL two-neck round bottom flask. Nitrogen was purged for 20 min, and continuous magnetic stirring was applied. After this, 20 times 10 μL of 0.2 M NaBH4 solution was added to the flask, and the solution immediately turned dark yellow. Nitrogen flow and stirring were kept up for another 15 min. Later, the solution was kept in the fridge for further use.

2.4. Decoration of Fe3O4 with AgNPs

The decoration of the magnetic nanoparticles with AgNPs was achieved by mixing a certain amount of as-prepared AgNPs with distilled water to a final volume of 5 mL, and to this, 400 μL of Fe3O4 sol was added. All the prepared solutions are listed in Table 1. The solutions were placed in an ultrasound and kept there for 45 min. The decorated nanoparticles (Fe3O4@AgNPs) were collected with a strong magnet and washed with distilled water 3 times. In the table, the silver nanoparticle ratio to the magnetite NPs was also calculated and displayed in the last column.

2.5. Characterization

The characterization of the decorated NPs was performed with TEM (Talos F200X electron microscope working at an accelerating voltage of 200 kV, Thermo Fisher, Waltham, MA, USA), UV-Vis spectroscopy (spectrometer Cary 5000, Agilent, Santa Clara, CA, USA), and a benchtop powder X-ray diffraction spectrometer (MiniFlex, Rigaku, Tokyo, Japan). The synthesized silver NPs were also visualized using SEM (SU70, Hitachi, Tokyo, Japan). Thermal stability during the Raman measurements was tested using SNOM apparatus (Alpha300R, WiTec, Ulm, Germany), equipped with a 532 nm laser source, an 1800 lines/mm grating, and a 20×/0.4 NA objective. Different laser power was used, and for this reason, the signal acquisition time was also adjusted. For 10 and 83 μW, the signal acquisition time was 250 s; for 500 and 1500 μW—125 s was chosen; and for 4800 μW—25 s was chosen. All the spectra were normalized to 1 in order to better show the magnetite transition process.
For the multiwavelength Raman characterization of the nanoparticles, an inVia Raman spectrometer (Renishaw, Wotton-under Edge, UK) equipped with a confocal Leica microscope and a thermoelectrically cooled (−70 °C) CCD camera was used. The excitation sources were 442 nm (with 2400 lines/mm grating and laser power of 220 μW), 532 nm (1800 lines/mm; 45 μW), 633 nm (1800 lines/mm; 47 μW), 785 nm (1200 lines/mm; 44 μW), and 830 nm (830 lines/mm; 76 μW). Laser radiation was focused on a sample using a 50×/0.75 NA objective lens; the acquisition time was 3 s, and the final spectra were obtained by averaging 50–60 spectra from different locations on the sample. In addition, 1064 nm excitation was realized by using the FT-Raman spectrometer MultiRAM (Bruker Optik, Ettlingen, Germany), equipped with a liquid nitrogen cooled Ge diode detector. The power of the Nd:YAG laser was restricted to 10–50 mW and focused to a 100 μm in diameter spot on the sample. The spectral resolution was 4 cm−1, and the aperture was 4 mm; final spectra were obtained by averaging 5 spectra from different locations on a surface with 100 interferogram scans each. In SERS experiments, 2 mM aqueous 4-MBA solution was used to adsorb nanoparticles with analyte. To calculate the SERS enhancement profiles, the SERS spectral intensity was divided by the Raman spectral intensity of a 4-MBA (0.1 M) ethanol solution, ISERS/IRaman. The Raman intensities of 4-MBA were scaled down so that the laser powers and acquisition times would match those in the SERS setup; the obtained ratios were normalized to 1. We assumed that the ratio of molecules probed during the SERS and Raman measurements were wavelength independent, NRaman/NSERS = constant.

3. Results and Discussion

3.1. Electronic Absorption Measurements

The separately synthesized silver nanoparticles were first characterized and later used for magnetite decoration. From many existing synthesis routes, a few were tested, and the procedure with the most stable and the smallest resulting nanoparticles was chosen. The synthesis procedure is described in the Materials and Methods section, and the obtained nanoparticles were stable in the fridge for at least 20 days. The AgNPs were characterized using SEM and UV-Vis absorption techniques (Figure 1). As can be seen in Figure 1, the spectral maximum of the bare silver nanoparticles is at 394 nm. This, according to the literature, corresponds to nanoparticles sized between 10 nm and 20 nm [64]. The SEM image of the silver nanoparticles adsorbed on the Si substrate is shown in the inset of Figure 1. The nanoparticles are quite homogeneous; the calculated size with the ImageJ program is 13 ± 3 nm. These results are in good agreement with the literature data.
The characterized nanoparticles were later used for the decoration of the magnetic NPs. According to the literature and our observation, the synthesized magnetite nanoparticles were around 50 nm in diameter. As the idea was to decorate it with plasmonic nanoparticles, their size should be remarkably smaller in comparison to the magnetite. It is known that the increase in the size of the plasmonic nanoparticle will shift the absorption peak to the longer wavelength. This will also affect the SERS enhancement factor. Other authors suggest that increasing the particle size produces a stronger LSPR signal [65]. However, the idea of this manuscript was to decorate the magnetite crystal with plasmonic nanoparticles. As the size of magnetite is 50 nm, the silver nanoparticles should be smaller (for example 13 nm); in this way, more hotspots could be achieved between the silver nanoparticles. This has already been shown on polystyrene spheres. Smaller distances between the nanoparticles result in a higher SERS signal [66]. Thus, 13 nm-sized citrate-stabilized AgNPs were expected to work well. The UV-Vis spectra of magnetite, the bare AgNPs, and the magnetite decorated with silver NPs are presented in Figure 2A. For magnetite, a gradual increase of the spectrum towards a shorter wavelength is observed, while for decorated NPs a broad plasmonic peak is also observed.
The decoration of magnetite with AgNPs was performed using different amounts of AgNP solution. As described in the Materials and Method section, the ratio of AgNPs to Fe3O4 was varied by diluting the Ag colloid solution with ultrapure H2O from an initial as-synthesized concentration (100%) to 20% and then adding 0.4 mL of a fixed concentration of Fe3O4. For all these samples, the UV-Vis spectra were measured and presented in the supporting information (Figure S1). All the colloid solutions exhibited a typical scattering background that exponentially increased towards shorter wavelengths; therefore, to minimize the background contribution and to accentuate the plasmonic profiles of the nanoparticles, differential spectra were calculated by subtracting the magnetite absorption spectrum from the composite nanoparticle absorption spectra. The obtained result is presented in Figure 2B. As can be seen, due to the increase of the AgNP amount the absorption spectra is changing. At the lowest amount of silver NPs, the most intensive plasmonic peak is observed at around 470 nm, with a slope to longer wavelengths, indicating an additional low-intensity peak. With the increasing of the AgNP sol volume in the “Ag decoration solution” from 35% to 50%, 75%, and 100%, the absorption peak red-shifts from 501 to 688, 740, and 814 nm, respectively. The shift is related to the intensification of the spectral component at longer wavelengths. When the amount of AgNPs in the final solution is more than 50% by volume, the second peak outgrows the one at the shorter wavelengths. The first peak at 470 nm could be attributed to the silver NP plasmons. In solution, this peak was at 394 nm; however, after adsorption on the magnetite the peak broadens and shifts to the longer wavelength. This was also noticed by other scientists and attributed to the agglomeration of plasmonic nanoparticles [58,67]. When the number of AgNPs on the surface of Fe3O4 is increasing they start to interact with each other, and due to that, an additional plasmonic peak appears. In addition to this, a red shift of the latter peak is seen. This effect was described in the publication of Ma et al. [68], where they theoretically calculated the local surface plasmon resonance properties of two or three silver nanospheres at different gap distances. It was concluded that the closer the two spheres are to each other, the more the red-shifted second plasmonic peak is obtained [68]. In this case, one could change the plasmonic maxima of the decorated nanoparticles simply by changing the amount of AgNPs used for the decoration procedure.

3.2. XRD Analysis

XRD analysis was also performed on all the decorated magnetite samples with the expectation of seeing the dependence of the silver peak on the amount of solution used for the decoration procedure. All the obtained XRD results are presented in the supporting information (Figure S2); however, here the diffractograms of pure magnetite and magnetite decorated with the highest amount of silver nanoparticles are presented together with the Crystallography Open Database files of magnetite (No. 9007644) and silver (No. 5000218) (Figure 3A). The peaks of silver and magnetite in the diffractograms are visible; thus, it is possible to calculate the dependence of their intensity ratio on the amount of AgNP solution used in the decoration procedure. Two peaks were chosen for comparison, 35.4° for magnetite and 38.2° for silver. The obtained results are presented in Figure 3B. The dependence of the XRD peaks ratio on the AgNP volume is evidence of the linear relationship between the AgNP dilution with ultrapure water and the final Ag to Fe3O4 molar ratio.

3.3. Magnetite Stability under Laser Radiation

During the Raman measurements, it was noticed that the magnetic nanoparticles are more stable under laser light if silver NPs are attached. For this reason, two samples were tested at different laser powers from 10 μW to 4800 μW. The obtained results are shown in Figure 4.
In Figure 4A, the Raman spectra of bare magnetite nanoparticles are presented. As can be seen at the lowest power, no Raman signal is registered at all; at 83 μW, a characteristic Fe3O4 peak at 667 cm−1 is seen; however, at 500 μW a change to the maghemite is already visible by the growth of three wide peaks. Magnetite and maghemite have almost identical lattice parameters, and in the Raman spectra, the A1g vibrational modes of those two materials are close to each other: 667 cm−1 for magnetite and 710 cm−1 for maghemite [69]. Thus, the change of the 667 cm−1 peak is related to the change of the crystallographic structure of iron oxide. Due to the change of the crystal structure, the magnetic properties are also changing. Magnetite is known to be ferromagnetic, maghemite—ferrimagnetic, and hematite weakly ferromagnetic or antiferromagnetic. Finally, at 1500 and 4800 μW, a clear hematite spectrum was registered. This heat-induced change was also observed by other scientists [70,71]. However, if the magnetite is decorated with silver nanoparticles (for this experiment the middle coverage Fe3O4@AgNP_0.5 was chosen), the crystal structure is more photo- and thermally resistant. At a laser power of 10 μW, a characteristic spectrum of silver nanoparticles enhancing a random contamination is seen. These peaks are also present at 83 μW; however, the characteristic magnetite peak at 667 cm−1 is also present. At higher powers (500 and 1500 μW), this characteristic peak is even more intensive, probably due to the SERS effect from the silver nanoparticles. Additionally, only at the highest power (4800 μW) the characteristic peak of hematite is present, indicating the change of magnetite crystal structure. Thus, resistivity to laser radiation at 532 nm considerably increases for hybrid magneto-plasmonic nanoparticles compared with bare Fe3O4. Due to the increased magnetite light absorbance towards the shorter wavelengths according to Figure 2A, the laser power dependency was reworked for the 442 nm excitation as well, and similarly to 532 nm, the higher photo- and thermal resistivity was recognized for composite magnetite–silver nanoparticles (Figure S3).
This advantage of increased nanoparticle stability can be explored in various spectroscopic studies. The observed findings can be associated with the thermal conductivity of the used materials. For magnetite nanoparticles, the thermal conductivity is 0.144 W/m K [72]. The bulk silver has a thermal conductivity of 406 W/m K; however, the theoretical thermal conductivity of silver nanoparticles is considerably lower, 0.425 W/m K at 300 K [73]. Thus, the difference between the silver and the magnetite nanomaterial thermal conductivity values is almost three times. Then the laser light is enlightened, the heating process starts, but in the presence of silver more heat is transferred to the surroundings from the magnetite surface and the degradation processes are slowed down.

3.4. Magnetic Properties of Decorated NPs

A study of the magnetic properties of the particles has shown that Fe3O4 particles decorated by AgNPs remain ferromagnetic. This is evidenced by the experiments using permanent magnets as well as the magnetization studies. Figure 5A,B shows an experiment in which Fe3O4 and Fe3O4@AgNP_0.5 nanoparticles were suspended in water (see Figure 5A) and placed in a permanent magnetic field (see Figure 5B). The permanent magnet in this case was placed to the side of the bottles with these solutions. As we can see, in both cases all the particles were attracted to the side of the bottles at the location of the magnet. After three minutes from the beginning of the experiment, the solution in both bottles became transparent. This proves that, using the given decoration method, all the AgNPs have adhered to the Fe3O4 particles and that the Fe3O4 particles do not lose their ferromagnetic properties after decoration.
In addition, magnetization studies of the synthesized nanoparticles were performed using a pulsed magnetic field with a duration of about 4 ms and a field strength up to 0.5 T (the measurement setup is presented in our previous work [69]). The results of these measurements are shown in Figure 5C. As can be seen, the shapes of the magnetization curves are very similar, and the coercive field for all the particles is the same, about 13 mT. However, the magnitude of magnetization saturation depends on the degree of particle decoration. For example, if for the undecorated Fe3O4 particles the magnetization saturation was 89 emu/g, then for the silver-decorated particles with a composition of Fe3O4@AgNP_0.5 it drops to 47 emu/g and for Fe3O4@AgNP_1 it drops to 36 emu/g. It is caused mainly because Ag is a diamagnetic material and changing the concentration of silver only leads to a reduction in the relative mass of Fe3O4 to the total mass of the decorated particles. Similar characteristics were obtained in other papers, for example when CoNPs [47] and FeNPs [49] were coated with AgNPs, as well as when FeNPs were coated with AuNPs [58,74].

3.5. SERS Measurements

The plasmonic properties of the composite silver-decorated magnetite nanoparticles were probed by drying a colloid solution on a solid surface under a strong magnetic field, followed by adsorption of the reporter 4-mercaptobenzoic acid (4-MBA) molecule (from 2 mM in H2O). Figure 6 compares the 4-MBA solution (0.1 M in ethanol) spectrum with the one obtained from Fe3O4@AgNP_0.5. The SERS bands due to contaminations were of diminishing intensity when compared with the spectral features of the 4-MBA adsorbate. The spectral modes that appear due to impurities are marked with the asterisks in Figure 6c. The broad bands in the vicinity of 1360 and 1580 cm−1 are related to the presence of a small amount of carbon species.
Drying the colloid solution droplet on a surface resulted in the accumulation of non-volatile solutes at the edge of the drop—an effect known as the “coffee ring” [75,76]. Such an accumulation leads to an uneven distribution of material, which in the case of plasmonic nanoparticles has already been shown to reduce the repeatability of the SERS signal and the overall spectral intensity [58,67]. When composite magneto-plasmonic nanoparticles are dried in a strong magnetic field, their distribution on a surface becomes highly homogeneous, as can be seen in the right-hand side image in Figure S4. Dried AgNPs and Fe3O4@AgNP_0.5 colloid droplets were adsorbed with 4-MBA and measured at 100 different locations on the sample surface; the intensities of the dominant band at 1587 cm−1 were plotted in Figure 7. The SERS enhancement reproducibility could be quantified by the relative standard deviation (RSD), which allows for the accessing of both the spot-to-spot reproducibility within a single sample and the sample-to-sample reproducibility amongst the different nanoparticle preparations. We found Fe3O4@AgNP_0.5 to exhibit a much greater spot-to-spot reproducibility, with values ranging from 27 to 44% for individual batches, compared to the AgNPs, with the RSD varying from 62 to 496%. Addressing the reproducibility between the different nanoparticle batches (sample-to-sample reproducibility), the intensity deviations were also higher for the bare silver nanoparticles; accordingly, the RSDs were 88% and 37% for the AgNPs and Fe3O4@AgNP_0.5.
TEM images were made to see how the silver nanoparticles were adsorbed on the surface of the magnetite (Figure 8). The Fe3O4 nanoparticles of 50 nm average diameter are attached with 13 nm AgNPs. The ability to control the number of AgNPs per one magnetic nanoparticle by simply adding different volumes of AgNPs to the Fe3O4 solution brings a practical aspect to the ability to tune the plasmon resonance intensity and frequency to match the given laser excitation. This has already been illustrated by the optical properties in Figure 2B, and now, we present the complementing multiwavelength-SERS results. The SERS enhancement factor (EF) is
E F = I S E R S I R a m a n N R a m a n N S E R S
where I and N are the intensity and number of probed molecules during the SERS and Raman experiments, respectively. We consider NRaman/NSERS to be excitation wavelength independent; therefore, one can compare the surface-enhancement capabilities between the different excitation wavelengths and the different compositions of Fe3O4@AgNP, just by analyzing their ISERS/IRaman. Figure 9 compares the normalized excitation profiles of 4-MBA adsorbed on a Fe3O4@AgNP that have a varied relative concentration of AgNPs. The profiles show that larger AgNP concentrations effectively increase the relative 1587 cm−1 band’s intensity, especially at longer wavelengths. Furthermore, a clear shift of the enhancement maxima towards the longer wavelengths can be observed. The shifting might be explained by the plasmon hybridization effect, which is highly dependent on the distance between the plasmonic materials, their shape, and the dielectric constant of the environment [77,78]. By changing the AgNP and Fe3O4 ratio in the solution, one can have control over the average distance between the plasmonic particles on a surface of larger magnetic particle, and in such a way, tune the plasmon resonance frequency.
Table 2 provides rough estimates of the enhancement factors (EF) calculated according to the dominant 1587 cm−1 band of 4-MBA for Fe3O4@AgNP_0.5 and AgNPs at laser exactions from 442 to 830 nm. The procedure to find EFs is detailed elsewhere [79].

4. Conclusions

In this work, magneto-plasmonic nanoparticles (Fe3O4 nanoparticles of 50 nm in diameter covered with Ag nanoparticles of 13 nm in diameter; Fe3O4@AgNP) were synthesized and studied for their possible use in surface-enhanced Raman spectroscopy. We have shown that simply by varying the initial volumes of the Fe3O4 and AgNP colloid solutions, we were able to manipulate the density of the AgNPs adsorbed on a single magnetite nanoparticle surface. The benefit of such a composition of Fe3O4@AgNPs is manifold. First, under a strong magnetic field the nanoparticles arrange in a more homogeneous way, which results in higher SERS signal enhancement and spectral reproducibility within the sample and between the batches, compared to bare silver nanoparticles. Second, the plasmon resonance frequency and intensity could be readily manipulated by simply changing the ratio between the magnetic and plasmonic parts of the composite, which allows for the tuning of the nanoparticles to a specific laser excitation wavelength in the SERS setup. Generally, the higher the AgNPs number per one Fe3O4 nanoparticle, the more red-shifted the plasmon resonance frequency and the higher its intensity. Third, these nanoparticles exhibited greater photo- and thermal stability under 532 and 442 nm light irradiation compared to the bare magnetite NPs. We estimated the SERS enhancement factors of Fe3O4@AgNP_0.5 hybrid nanoparticles for five laser excitations, with the highest found for 633 nm to be 3.1 × 107. Moreover, the advantage of the method used for obtaining homogeneous films for the SERS measurements compared to the conventional methods is a very low cost of substrate production – there is no need to use any complicated devices, such as a device for metal vapor deposition. One can easily form homogeneous layers from this magneto–plasmonic composite using a very simple procedure: deposition of a layer of a sol of such a composite and evaporation of the solvent after placing the sample in a strong magnetic field.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12162860/s1, Figure S1: absorption spectra of all prepared samples: magnetite (black), magnetite decorated with various amount of silver nanoparticles: 100% (dark yellow), 75% (blue), 50% (red), 35% (magenta), and 20% (dark blue); Figure S2: XRD diffractograms of all prepared samples: magnetite (black), magnetite decorated with various amount of silver nanoparticles: 100% (dark yellow), 75% (blue), 50% (red), 35% (magenta), and 20% (dark blue); Figure S3: Raman spectra of (A) magnetite nanoparticles and (B) composite magnetite–silver nanoparticles (Fe3O4@AgNP_0.5) at varied laser powers from 0.026 mW to 2.65 mW; the 442 nm laser radiation was focused to a spot of 1 μm in diameter on the dried nanoparticle samples; Figure S4: microscope images of AgNPs (left) and Fe3O4@AgNP_0.5 (right) drops dried on a glass slide. Fe3O4@AgNP_0.5 was dried under a strong magnetic field.

Author Contributions

Conceptualization, L.M., G.N., M.T., A.K. and A.M.; methodology, A.M.; investigation, L.M.; SERS measurements and calculations, M.T.; magnetivity measurements and interpretation, J.D. and V.S.; writing—original draft preparation, L.M. and M.T.; writing—review and editing, G.N., A.K., J.D., V.S. and A.M.; visualization, L.M.; supervision, G.N. and A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research is funded by the European Social Fund under the No. 09.3.3-LMT-K-712-19-0142 “Development of Competences of Scientists, other Researchers and Students through Practical Research Activities” measure under a grant agreement with the Research Council of Lithuania (LMTLT).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data supporting the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

G.N. gratefully acknowledges the Center of Spectroscopic Characterization of Materials and Electronic/Molecular Processes (SPECTROVERSUM Infrastructure) for use of Raman spectrometers.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Orlando, A.; Franceschini, F.; Muscas, C.; Pidkova, S.; Bartoli, M.; Rovere, M.; Tagliaferro, A. A comprehensive review on Raman spectroscopy applications. Chemosensors 2021, 9, 262. [Google Scholar] [CrossRef]
  2. Langer, J.; De Aberasturi, D.J.; Aizpurua, J.; Alvarez-Puebla, R.A.; Auguié, B.; Baumberg, J.J.; Bazan, G.C.; Bell, S.E.J.; Boisen, A.; Brolo, A.G.; et al. Present and future of surface-enhanced Raman scattering. ACS Nano 2020, 14, 28–117. [Google Scholar] [CrossRef] [PubMed]
  3. Fleischmann, M.; Hendra, P.; McQuillan, A.J. Raman spectra of pyridine adsorbed at a silver electrode. Chem. Phys. Lett. 1974, 26, 163–166. [Google Scholar] [CrossRef]
  4. Jeanmaire, D.L.; Van Duyne, R.P. Surface Raman spectroelectrochemitry. Part 1. Heterocyclic, aromatic, and aliphatic amines adsorbed on anodized silver electrode. J. Electroanal. Chem. Interfacial Electrochem. 1977, 84, 1–20. [Google Scholar] [CrossRef]
  5. Albrecht, M.G.; Creighton, J.A. Anomalously intense Raman spectra of pyridine at a silver electrode. J. Am. Chem. Soc. 1977, 99, 5215–5217. [Google Scholar] [CrossRef]
  6. Aroca, R. Surface-Enhanced Vibrational Spectroscopy; John Wiley & Sons: Hoboken, NJ, USA, 2006; ISBN 978-0-470-03565-8. [Google Scholar]
  7. Mahmoud, M.A.; O’Neil, D.; El-Sayed, M.A. Hollow and solid metallic nanoparticles in sensing and in nanocatalysis. Chem. Mater. 2014, 26, 44–58. [Google Scholar] [CrossRef]
  8. Kottmann, J.P.; Martin, O.J.F.; Smith, D.R.; Schultz, S. Dramatic localized electromagnetic enhancement in plasmon resonant nanowires. Chem. Phys. Lett. 2001, 341, 1–6. [Google Scholar] [CrossRef]
  9. Kelly, K.L.; Coronado, E.; Zhao, L.L.; Schatz, G.C. The Optical Properties of Metal Nanoparticles:  The Influence of Size, Shape, and Dielectric Environment. J. Phys. Chem. B 2003, 107, 668–677. [Google Scholar] [CrossRef]
  10. Radziuk, D.; Moehwald, H. Prospects for plasmonic hot spots in single molecule SERS towards the chemical imaging of live cells. Phys. Chem. Chem. Phys. 2015, 17, 21072–21093. [Google Scholar] [CrossRef]
  11. Deng, Y.; Cao, G.; Wu, Y.; Zhou, X.; Liao, W. Theoretical Description of Dynamic Transmission Characteristics in MDM Waveguide Aperture-Side-Coupled with Ring Cavity. Plasmonics 2015, 10, 1537–1543. [Google Scholar] [CrossRef]
  12. Chen, J.; Nie, H.; Tang, C.; Cui, Y.; Yan, B.; Zhang, Z.; Kong, Y.; Xu, Z.; Cai, P. Highly sensitive refractive-index sensor based on strong magnetic resonance in metamaterials. Appl. Phys. Express 2019, 12, 052015. [Google Scholar] [CrossRef]
  13. Deng, Y.; Cao, G.; Yang, H.; Zhou, X.; Wu, Y. Dynamic Control of Double Plasmon-Induced Transparencies in Aperture-Coupled Waveguide-Cavity System. Plasmonics 2018, 13, 345–352. [Google Scholar] [CrossRef]
  14. Zheng, Z.; Luo, Y.; Yang, H.; Yi, Z.; Zhang, J.; Song, Q.; Yang, W.; Liu, C.; Wu, X.; Wu, P. Thermal tuning of terahertz metamaterial absorber properties based on VO2. Phys. Chem. Chem. Phys. 2022, 24, 8846–8853. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, H.; Chen, Z.; Yang, H.; Wen, L.; Yi, Z.; Zhou, Z.; Dai, B.; Zhang, J.; Wu, X.; Wu, P. Multi-mode surface plasmon resonance absorber based on dart-type single-layer graphene. RSC Adv. 2022, 12, 7821–7829. [Google Scholar] [CrossRef]
  16. Botti, S.; Cantarini, L.; Palucci, A. Surface-enhanced Raman spectroscopy for trace-level detection of explosives. J. Raman Spectrosc. 2010, 41, 866–869. [Google Scholar] [CrossRef]
  17. Goeller, L.J.; Riley, M.R. Discrimination of Bacteria and Bacteriophages by Raman Spectroscopy and Surface-Enhanced Raman Spectroscopy. Appl. Spectrosc. 2007, 61, 679–685. [Google Scholar] [CrossRef]
  18. Jenkins, C.A.; Lewis, P.D.; Dunstan, P.R.; Harris, D.A. Role of Raman Spectroscopy and Surface Enhanced Raman Spectroscopy in Colorectal Cancer. World J. Gastr. Oncol. 2016, 8, 427–438. [Google Scholar] [CrossRef]
  19. Szaniawska, A.; Kudelski, A. Applications of Surface-Enhanced Raman Scattering in Biochemical and Medical Analysis. Front. Chem. 2021, 9, 664134. [Google Scholar] [CrossRef]
  20. Fan, M.; Andrade, G.F.S.; Brolo, A.G. A review on recent advances in the applications of surface-enhanced Raman scattering in analytical chemistry. Anal. Chim. Acta 2020, 1097, 1–29. [Google Scholar] [CrossRef]
  21. Eskandari, V.; Sahbafar, H.; Zeinalizad, L.; Hadi, A. A review of applications of surface-enhanced raman spectroscopy laser for detection of biomaterials and a quick glance into its advances for COVID-19 investigations. ISSS J. Micro Smart Syst. 2022, 748. [Google Scholar] [CrossRef]
  22. Bell, S.E.J.; Charron, G.; Cortés, E.; Kneipp, J.; de la Chapelle, M.L.; Langer, J.; Procházka, M.; Tran, V.; Schlücker, S. Towards reliable and quantitative surface-enhnaced Raman scattering (SERS): From key parameters to good analytical practice. Angew. Chem. Int. Ed. 2020, 59, 5454–5462. [Google Scholar] [CrossRef] [PubMed]
  23. Pérez-Jiménez, A.I.; Lyu, D.; Lu, Z.; Liu, G.; Ren, B. Surface-enhanced Raman spectroscopy: Benefits, trade-offs and future developments. Chem. Sci. 2020, 11, 4563–4577. [Google Scholar] [CrossRef] [PubMed]
  24. Huynh, K.-H.; Hahm, E.; Noh, M.S.; Lee, J.-H.; Pham, X.-H.; Lee, S.H.; Kim, J.; Rho, W.-Y.; Chang, H.; Kim, D.M.; et al. Recent Advances in Surface-Enhanced Raman Scattering Magnetic Plasmonic Particles for Bioapplications. Nanomaterials 2021, 11, 1215. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, C.; Meloni, M.M.; Wu, X.; Zhuo, M.; He, T.; Wang, J.; Wang, C.; Dong, P. Magnetic plasmonic particles for SERS-based bacteria sensing: A Review. AIP Adv. 2019, 9, 010701. [Google Scholar] [CrossRef]
  26. Gühlke, M.; Selve, S.; Kneipp, J. Magnetic separation and SERS observation of analyte moleculles on bifunctional silver/iron oxide composite nanostructures. J. Raman Spectrosc. 2012, 43, 1204–1207. [Google Scholar] [CrossRef]
  27. Lai, H.; Xu, F.; Wang, L. A review of the preparation and application of magnetic nanoparticles for surface-enhanced Raman scattering. J. Mater. Sci. 2018, 53, 8677–8698. [Google Scholar] [CrossRef]
  28. Busch, R.T.; Karim, F.; Sun, Y.; Fry, H.C.; Liu, Y.; Zhao, C.; Vasquez, E.S. Detection and Aggregation of Listeria Monocytogenes Using Polyclonal Antibody Gold-Coated Magnetic Nanoshells Surface-Enhanced Raman Spectroscopy Substrates. Front. Nanotechnol. 2021, 3, 653744. [Google Scholar] [CrossRef]
  29. Zhang, L.; Xu, J.; Mi, L.; Gong, H.; Jiang, S.; Yu, Q. Multifunctional magnetic-plasmonic nanoparticles for fast concentration and sensitive detection of bacteria using SERS. Biosens. Bioelectron. 2012, 31, 130–136. [Google Scholar] [CrossRef]
  30. Kolataj, K.; Ambroziak, R.; Kędziora, M.; Krajczewski, J.; Kudelski, A. Formation of bifunctional conglomerates composed of magnetic γ-Fe2O3 nanoparticles and various noble metal nanostructures. Appl. Surf. Sci. 2019, 470, 970–978. [Google Scholar] [CrossRef]
  31. Amendola, V.; Scaramuzza, S.; Agnoli, S.; Polizzi, S.; Meneghetti, M. Strong dependence of surface plasmon resonance and surface enhanced Raman scattering on the composition of Au-Fe nanoalloys. Nanoscale 2014, 6, 1423–1433. [Google Scholar] [CrossRef]
  32. Pinheiro, P.C.; Fateixa, S.; Trindade, T. SERS Detection of Penicillin G Using Magnetite Decorated with Gold Nanoparticles. Magnetochemistry 2017, 3, 32. [Google Scholar] [CrossRef]
  33. Nguyen, T.T.; Lau-Truong, S.; Mammeri, F.; Ammar, S. Star-Shaped Fe3−xO4-Au Core-Shell Nanoparticles: From Synthesis to SERS Application. Nanomaterials 2020, 10, 294. [Google Scholar] [CrossRef] [PubMed]
  34. Lai, H.; Shang, W.; Yun, Y.; Chen, D.; Wu, L.; Xu, F. Uniform arrangement of gold nanoparticles on magnetic core particles with metal-organic framework shell as a substrate for sensitive and reproducible SERS based assays: Application to the quantitation of Malathite Green and thiram. Microchim. Acta 2019, 186, 144. [Google Scholar] [CrossRef]
  35. Abbas, M.; Torati, S.R.; Kim, C.G. A novel approach for the synthesis of ultrathin silica-coated iron oxide nanocubes decorated with silver nanodots (Fe3O4/SiO2/Ag) and their superior catalytic reduction of 4-nitroaniline. Nanoscale 2015, 7, 12192–12204. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, Z.Y.; Gupta, A.; Chattopadhyay, S. Detection of mercury in spiked cosmetics by surface enhanced Raman spectroscopy using silver shelled iron oxide nanoparticles. Sens. Actuators B 2021, 337, 129788. [Google Scholar] [CrossRef]
  37. Wang, C.; Zhang, K.; Zhou, Z.; Li, Q.; Shao, L.; Hao, R.Z.; Xiao, R.; Wang, S. Vancomycin-modified Fe3O4@SiO2@Ag microflowers as effective antimicrobial agents. Int. J. Nanomed. 2017, 12, 3077–3094. [Google Scholar] [CrossRef]
  38. Lyon, J.L.; Fleming, D.A.; Stone, M.B.; Schiffer, P.; Williams, M.E. Synthesis of Fe oxide core/Au shell nanoparticles by iterative hydroxylamine seeding. Nano Lett. 2004, 4, 719–723. [Google Scholar] [CrossRef]
  39. Wheeler, D.A.; Adams, S.A.; López-Luke, T.; Torres-Castro, A.; Zhang, J.Z. Magnetic Fe3O4-Au core-shell nanostructures for surface enhanced Raman scattering. Ann. Physik. 2012, 524, 670–679. [Google Scholar] [CrossRef]
  40. Xuan, S.; Wang, Y.X.J.; Yu, J.C.; Leung, K.C.F. Preparation, characterization, and catalytic activity of core/shell Fe3O4@polyaniline@Au nanocomposites. Langmuir 2009, 25, 11835–11843. [Google Scholar] [CrossRef]
  41. Mahmed, N.; Jiang, H.; Heczko, O.; Söderberg, O.; Hannula, S.P. Influence of different synthesis approach on doping behavior of silver nanoparticles onto the iron oxide-silica coreshell surfaces. J. Nanopart. Res. 2012, 14, 987. [Google Scholar] [CrossRef]
  42. Muniz-Miranda, M.; Muniz-Miranda, F.; Giorgetti, E. Spectroscopic and microscopic analyses of Fe3O4/Au nanoparticles obtained by laser ablation in water. Nanomaterials 2020, 10, 132. [Google Scholar] [CrossRef] [PubMed]
  43. Fan, C.; Zhu, S.; Xin, H.; Tian, Y.; Liang, E. Tunable and enhanced SERS activity of magneto-plasmonic Ag-Fe3O4 nanocomposites with one pot synthesize method. J. Opt. 2017, 19, 015401. [Google Scholar] [CrossRef]
  44. Nguyen, T.T.; Mammeri, F.; Amar, S.; Nguyen, T.B.N.; Nguyen, T.N.; Nghiem, T.H.L.; Thuy, N.T.; Ho, T.A. Preparation of Fe3O4-Ag Nanocomposites with Silver Petals for SERS Application. Nanomaterials 2021, 11, 1288. [Google Scholar] [CrossRef] [PubMed]
  45. Tseng, W.J.; Chuang, Y.-C. Chemical Preparation of Bimetallic Fe/Ag Core/Shell Composite Nanoparticles. J. Nanosci. Nanotechnol. 2017, 18, 2790–2796. [Google Scholar] [CrossRef] [PubMed]
  46. Senapati, S.; Srivastava, S.K.; Singh, S.B.; Kulkarni, A.R. SERS active Ag encapsulated Fe@SiO2 nanorods in electromagnetic wave absorption and crystal violet detection. Environ. Res. 2014, 135, 95–104. [Google Scholar] [CrossRef]
  47. Kanwal, Z.; Raza, M.A.; Riaz, S.; Manzoor, S.; Tayyeb, A.; Sajid, I.; Naseem, S. Synthesis and characterization of silver nanoparticle-decorated cobalt nanocomposites (Co@AgNPs) and their density-dependent antibacterial activity. R. Soc. Open Sci. 2019, 6, 182135. [Google Scholar] [CrossRef]
  48. Gellini, C.; Deepak, F.L.; Muniz-Miranda, M.; Caporali, S.; Muniz-Miranda, F.; Pedone, A.; Innocenti, C.; Sangregorio, C. Magneto-Plasmonic Colloidal Nanoparticles Obtained by Laser Ablation of Nickel and Silver targets in Water. J. Phys. Chem. C 2017, 121, 3597–3606. [Google Scholar] [CrossRef]
  49. Jalali, S.A.H.; Allafchian, A.; Bahramian, H.; Amiri, R. An antibacterial study of a new magnetite silver nanocomposite. J. Environ. Chem. Eng. 2017, 5, 5786–5792. [Google Scholar] [CrossRef]
  50. Elhouderi, Z.A.; Beesley, D.P.; Nguyen, T.T.; Lai, P.; Sheehan, K.; Trudel, S.; Prenner, E.; Cramb, D.T.; Anikovskiy, M. Synthesis, characterization, and application of Fe3O4/Ag magnetic composites for mercury removal from water. Mater. Res. Express 2016, 3, 045013. [Google Scholar] [CrossRef]
  51. Yuen, C.; Liu, Q. Optimization of Fe3O4@Ag nanoshells in magnetic field-enriched surface-enhanced resonance Raman scattering for malaria diagnosis. Analyst 2013, 138, 6494–6500. [Google Scholar] [CrossRef]
  52. Chen, S.S.; Xu, H.; Xu, H.J.; Yu, G.J.; Gong, X.L.; Fang, Q.L.; Leung, K.C.F.; Xuan, S.H.; Xiong, Q.R. A facile ultrasonication assisted method for Fe3O4@SiO2-Ag nanospheres with excellent antibacterial activity. Dalton Trans. 2015, 44, 9140–9148. [Google Scholar] [CrossRef] [PubMed]
  53. Hu, R.; Zheng, M.; Wu, J.; Li, C.; Shen, D.; Yang, D.; Li, L.; Ge, M.; Chang, Z.; Dong, W. Core-shell magnetic gold nanoparticles for magnetic field-enhanced radio-photothermal therapy in cervical cancer. Nanomaterials 2017, 7, 111. [Google Scholar] [CrossRef] [PubMed]
  54. Ivashchenko, O.; Coy, E.; Peplinska, B.; Jarek, M.; Lewandowski, M.; Załȩski, K.; Warowicka, A.; Wozniak, A.; Babutina, T.; Jurga-Stopa, J.; et al. Influence of silver content on rifampicin adsorptivity for magnetite/Ag/rifampicin nanoparticles. Nanotechnology 2017, 28, 055603. [Google Scholar] [CrossRef] [PubMed]
  55. Hu, Y.; Sun, Y. Stable magnetic hot spots for simultaneous concentration and ultrasensitive surface-enhanced Raman scattering detection of solution analytes. J. Phys. Chem. C. 2012, 116, 13329–13335. [Google Scholar] [CrossRef]
  56. Quaresma, P.; Osório, I.; Dória, G.; Carvalho, P.A.; Pereira, A.; Langer, J.; Araújo, J.P.; Pastoriza-Santos, I.; Liz-Marzán, L.M.; Franco, R.; et al. Star-shaped magnetite@gold nanoparticles for protein magnetic separation and SERS detection. RSC Adv. 2014, 4, 3659–3667. [Google Scholar] [CrossRef]
  57. Chu, D.T.; Sai, D.C.; Luu, Q.M.; Tran, H.T.; Quach, T.D.; Kim, D.H.; Nguyen, N.H. Synthesis of Bifunctional Fe3O4@SiO2-Ag Magnetic–Plasmonic Nanoparticles by an Ultrasound Assisted Chemical Method. J. Electron. Mater. 2017, 46, 3646–3653. [Google Scholar] [CrossRef]
  58. Michałowska, A.; Krajczewski, J.; Kudelski, A. Magnetic iron oxide cores with attached gold nanostructures coated with a layer of silica: An easily, homogeneously deposited new nanomaterial for surface-enhanced Raman scattering measurements. Spectrochim. Acta A 2022, 277, 121266. [Google Scholar] [CrossRef]
  59. Veisi, H.; Razeghi, S.; Mohammadi, P.; Hemmati, S. Silver nanoparticles decorated on thiol-modified magnetite nanoparticles (Fe3O4/SiO2-Pr-S-Ag) as a recyclable nanocatalyst for degradation of organic dyes. Mater. Sci. Eng. C 2019, 97, 624–631. [Google Scholar] [CrossRef]
  60. Pinheiro, P.C.; Fateixa, S.; Daniel-da-Silva, A.L.; Trindade, T. An integrated approach for trace detection of pollutants in water using polyelectrolyte functionalized magneto-plasmonic nanoadsorbents. Sci. Rep. 2019, 9, 19647. [Google Scholar] [CrossRef]
  61. Michałowska, A.; Żygieło, M.; Kudelski, A. Fe3O4-protected gold nanoparticles: New plasmonic-magnetic nanomaterial for Raman analysis of surfaces. Appl. Surf. Sci. 2021, 562, 150220. [Google Scholar] [CrossRef]
  62. Kwizera, E.A.; Chaffin, E.; Shen, X.; Chen, J.; Zou, Q.; Wu, Z.; Gai, Z.; Bhana, S.; Oconnor, R.; Wang, L.; et al. Size- and Shape-Controlled Synthesis and Properties of Magnetic-Plasmonic Core-Shell Nanoparticles. J. Phys. Chem. C 2016, 120, 10530–10546. [Google Scholar] [CrossRef] [PubMed]
  63. Wojtysiak, S.; Kudelski, A. Influence of oxygen on the process of formation of silver nanoparticles during citrate/borohydride synthesis of silver sols. Colloids Surf. A 2012, 410, 45–51. [Google Scholar] [CrossRef]
  64. Paramelle, D.; Sadovoy, A.; Gorelik, S.; Free, P.; Hobley, J.; Fernig, D.G. A rapid method to estimate the concentration of citrate capped silver nanoparticles from UV-visible light spectra. Analyst 2014, 139, 4855–4861. [Google Scholar] [CrossRef] [PubMed]
  65. He, R.X.; Liang, R.; Peng, P.; Zhou, Y.N. Effect of the size of silver nanoparticles on SERS signal enhancement. J. Nanopart. Res. 2017, 19, 267. [Google Scholar] [CrossRef]
  66. Hu, Y.; Zhao, T.; Zhu, P.; Liang, X.; Sun, R.; Wong, C.-P. Tailoring Size and Coverage Density of Silver Nanoparticles on Monodispersed Polymer Spheres as Highly Sensitive SERS Substrates. Chem. Asian J. 2016, 11, 2428–2435. [Google Scholar] [CrossRef]
  67. Michałowska, A.; Kudelski, A. The First Silver-Based Plasmonic Nanomaterial for Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy with Magnetic Properties. Molecules 2022, 27, 3081. [Google Scholar] [CrossRef]
  68. Ma, Y.W.; Wu, Z.W.; Zhang, L.H.; Zhang, J.; Jian, G.S.; Pan, S. Theoretical Study of the Local Surface Plasmon Resonance Properties of Silver Nanosphere Clusters. Plasmonics 2013, 8, 1351–1360. [Google Scholar] [CrossRef]
  69. Zambzickaite, G.; Talaikis, M.; Dobilas, J.; Stankevic, V.; Drabavicius, A.; Niaura, G.; Mikoliunaite, L. Microwave-Assisted Solvothermal Synthesis of Nanocrystallite-Derived Magnetite Spheres. Materials 2022, 15, 4008. [Google Scholar] [CrossRef]
  70. Testa-Anta, M.; Ramos-Docampo, M.A.; Comesaña-Hermo, M.; Rivas-Murias, B.; Salgueiriño, V. Raman spectroscopy to unravel the magnetic properties of iron oxide nanocrystals for bio-related applications. Nanoscale Adv. 2019, 1, 2086–2103. [Google Scholar] [CrossRef]
  71. Shebanova, O.N.; Lazor, P. Raman study of magnetite (Fe3O4): Laser-induced thermal effects and oxidation. J. Raman Spectrosc. 2003, 34, 845–852. [Google Scholar] [CrossRef]
  72. Dayana, I.; Sembiring, T.; Tetuko, A.P.; Sembiring, K.; Sebayang, K.; Marbun, J.; Rianna, M.; Maulida, N.; Cahyarani, Z. Study of thermal conductivity of Fe3O4 nanoparticles coated with TEOS. In AIP Conference Proceedings; American Institute of Physics Inc.: College Park, MD, USA, 2020; Volume 2221, p. 110015. [Google Scholar] [CrossRef]
  73. Holt, N.; van Horn, A.; Montazeri, M.; Zhou, W. Microheater array powder sintering: A novel additive manufacturing process. J. Manuf. Processes 2018, 31, 536–551. [Google Scholar] [CrossRef]
  74. Zhai, Y.; Zhai, J.; Wang, Y.; Guo, S.; Ren, W.; Dong, S. Fabrication of iron oxide core/gold shell submicrometer spheres with nanoscale surface roughness for efficient surface-enhanced Raman scattering. J. Phys. Chem. C 2009, 113, 7009–7014. [Google Scholar] [CrossRef]
  75. Deegan, R.D.; Bakajin, O.; Dupont, T.F.; Huber, G.; Nagel, S.R.; Witten, T.A. Capillary flow as the cause of ring stains from dried liquid drops. Nature 1997, 389, 827–829. [Google Scholar] [CrossRef]
  76. Mampallil, D.; Eral, H.B. A review on suppression and utilization of the coffee-ring effect. Adv. Colloid Interface Sci. 2018, 252, 38–54. [Google Scholar] [CrossRef] [PubMed]
  77. Prodan, E.; Radloff, C.; Halas, N.J.; Nordlander, P. A Hybridization Model for the Plasmon Resonance of Complex Nanostructures. Science 2003, 302, 419–422. [Google Scholar] [CrossRef]
  78. Deng, L.; Zhai, Y.; Chen, Y.; Wang, N.; Huang, Y. Enhancing the plasmonic fields by a high refractive index dielectric coating for surface enhanced spectroscopies. J. Phys. D Appl. Phys. 2019, 52, 43LT01. [Google Scholar] [CrossRef]
  79. Aleknavičienė, I.; Pabrėža, E.; Talaikis, M.; Jankunec, M.; Račiukaitis, G. Low-cost SERS substrate featuring laser-ablated amorphous nanostructure. Appl. Surf. Sci. 2022, 571, 151248. [Google Scholar] [CrossRef]
Nanomaterials 12 02860 g001 550

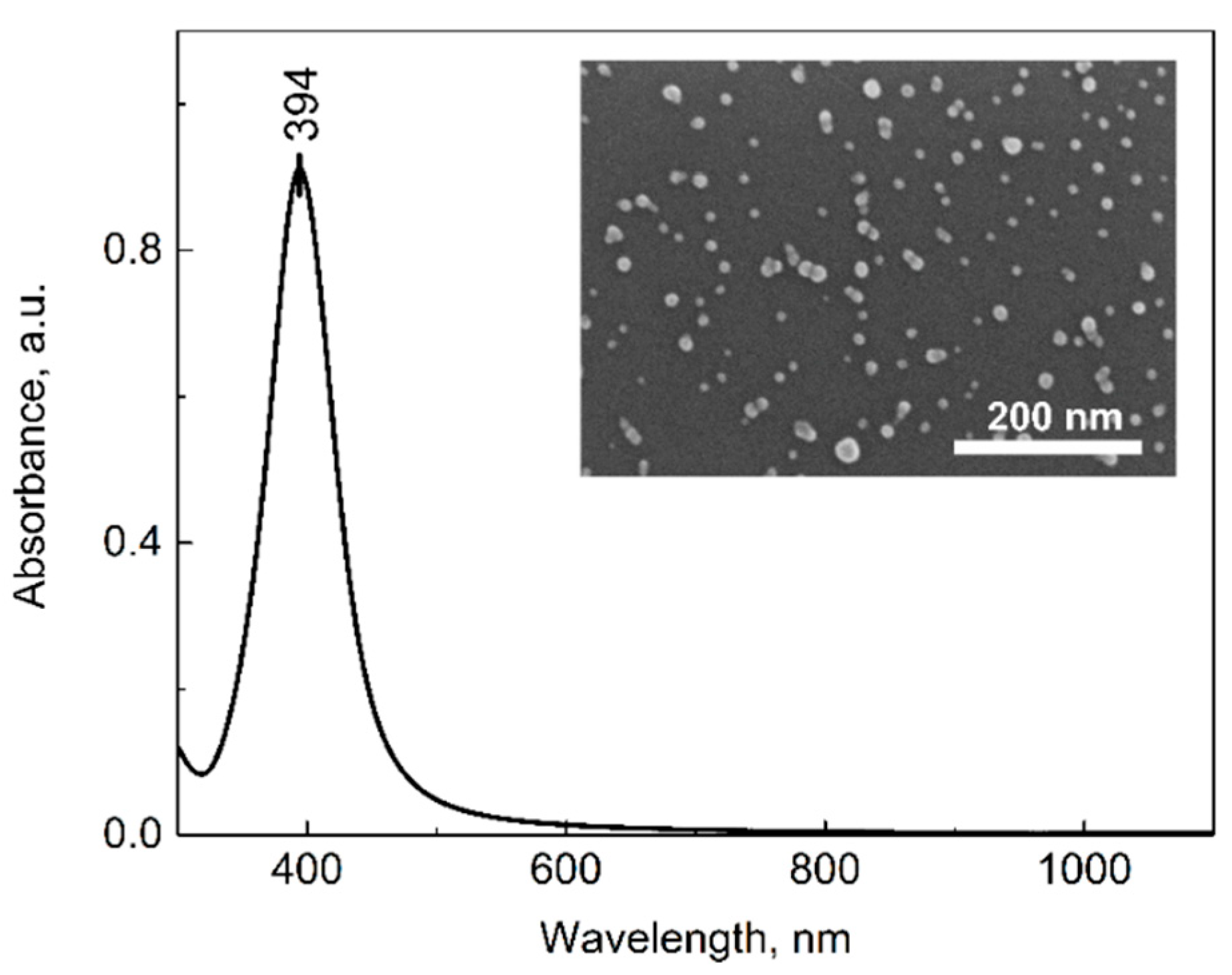

Figure 1. Absorption spectrum of synthesized silver NPs. SEM image of the nanoparticles on Si substrate is presented in the inset. Scale bar represents 200 nm.
Figure 1. Absorption spectrum of synthesized silver NPs. SEM image of the nanoparticles on Si substrate is presented in the inset. Scale bar represents 200 nm.
Nanomaterials 12 02860 g001
Nanomaterials 12 02860 g002 550

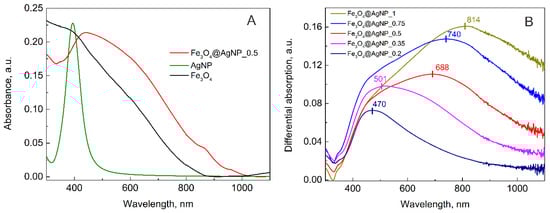

Figure 2. (A) Absorption spectrum of magnetite NPs (black), silver NPs (green), and magnetite NPs decorated with silver NPs (Fe3O4@AgNP_0.5; red); (B) the differential spectra of various amounts of AgNP-decorated magnetite, calculated by subtracting magnetite absorption spectra from each sample with decorated NPs.
Figure 2. (A) Absorption spectrum of magnetite NPs (black), silver NPs (green), and magnetite NPs decorated with silver NPs (Fe3O4@AgNP_0.5; red); (B) the differential spectra of various amounts of AgNP-decorated magnetite, calculated by subtracting magnetite absorption spectra from each sample with decorated NPs.
Nanomaterials 12 02860 g002
Nanomaterials 12 02860 g003 550

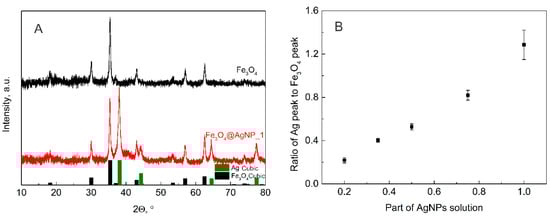

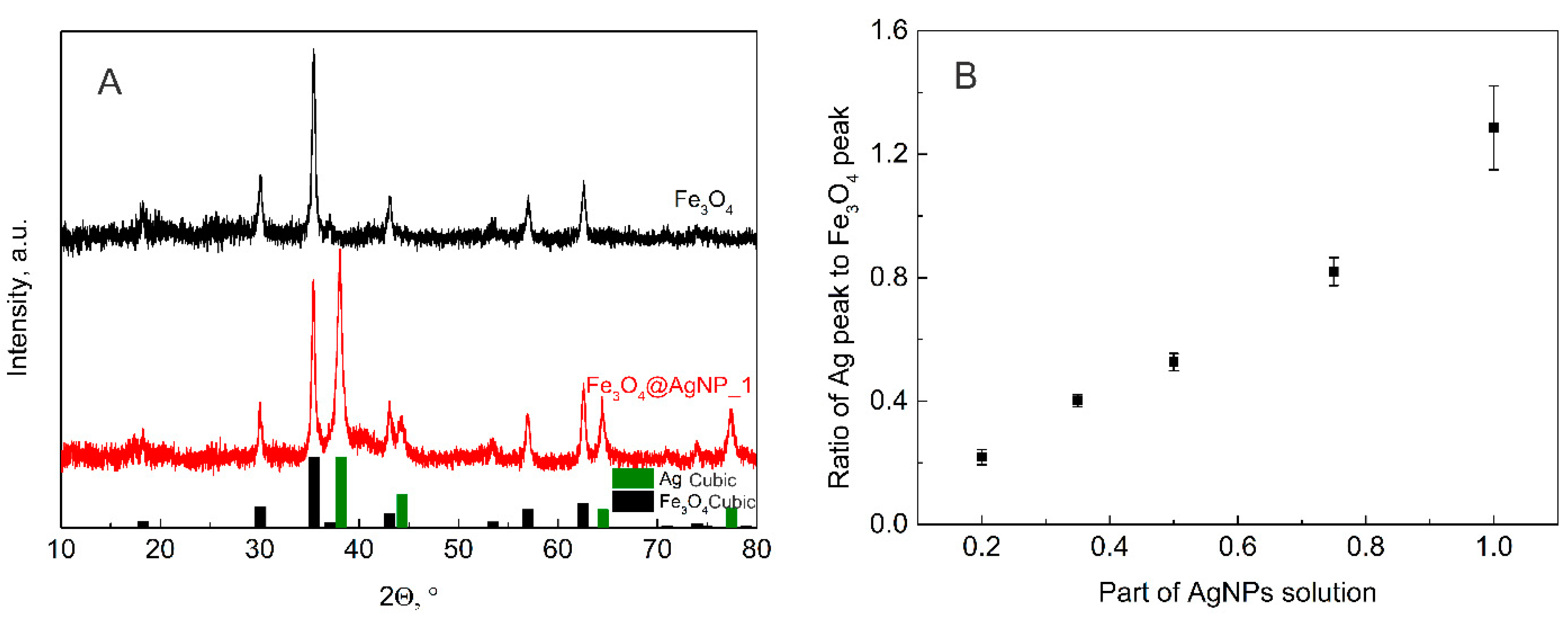

Figure 3. (A) XRD diffractograms of magnetite NPs (black) and magnetite NPs decorated with the highest amount of AgNPs (Fe3O4@AgNP_1; red); Crystallography Open Database files of magnetite (No. 9007644) and silver (No. 5000218) are presented in black and green columns, respectively. (B) Ratio of the main magnetite (35.4°) and silver (38.2°) peak intensities calculated for the different volume of AgNP solution used in decoration of magnetite.
Figure 3. (A) XRD diffractograms of magnetite NPs (black) and magnetite NPs decorated with the highest amount of AgNPs (Fe3O4@AgNP_1; red); Crystallography Open Database files of magnetite (No. 9007644) and silver (No. 5000218) are presented in black and green columns, respectively. (B) Ratio of the main magnetite (35.4°) and silver (38.2°) peak intensities calculated for the different volume of AgNP solution used in decoration of magnetite.
Nanomaterials 12 02860 g003
Nanomaterials 12 02860 g004 550

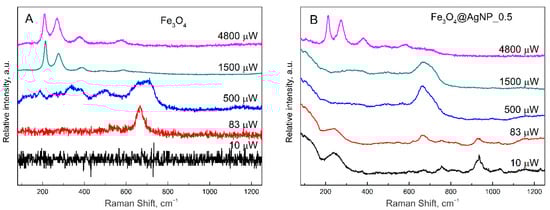

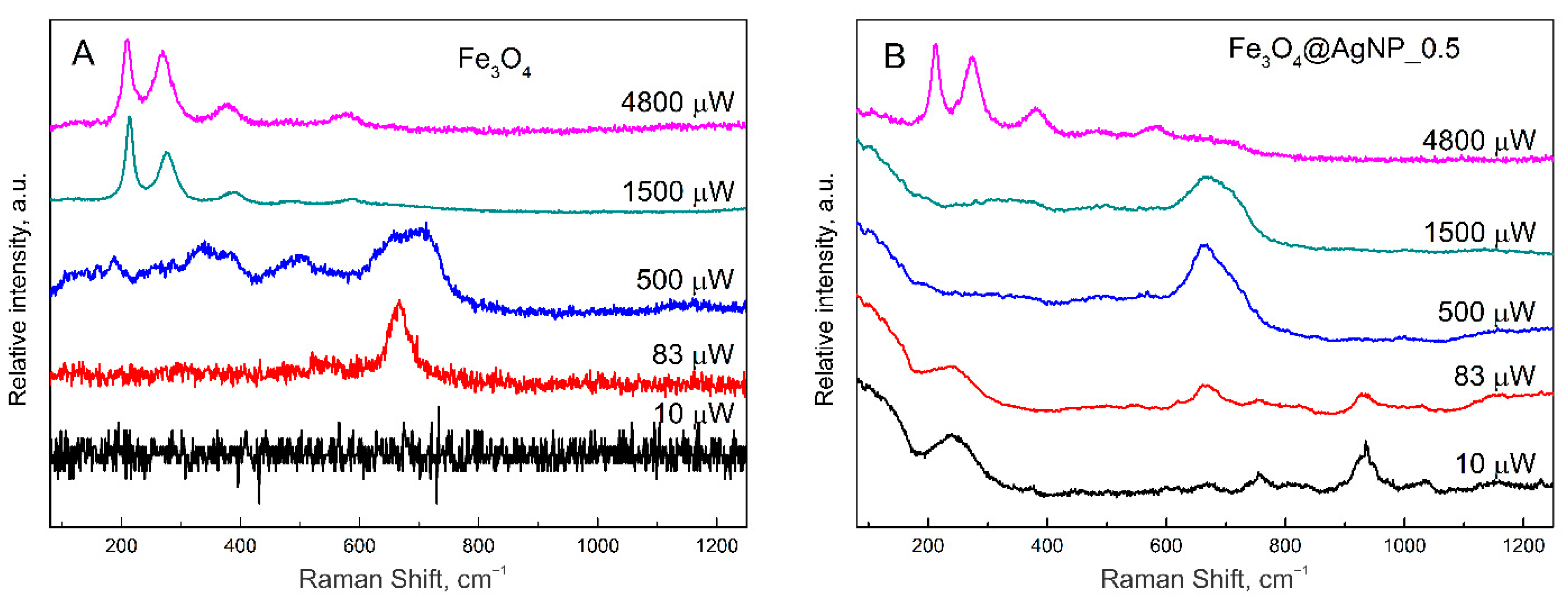

Figure 4. Raman spectra of (A) magnetite nanoparticles and (B) magnetite nanoparticles decorated with silver nanoparticles (Fe3O4@AgNP_0.5) at different laser powers from 10 μW to 4.8 mW. Spectra were taken at 532 nm laser light on the nanoparticle samples dried on glass substrate.
Figure 4. Raman spectra of (A) magnetite nanoparticles and (B) magnetite nanoparticles decorated with silver nanoparticles (Fe3O4@AgNP_0.5) at different laser powers from 10 μW to 4.8 mW. Spectra were taken at 532 nm laser light on the nanoparticle samples dried on glass substrate.
Nanomaterials 12 02860 g004
Nanomaterials 12 02860 g005 550

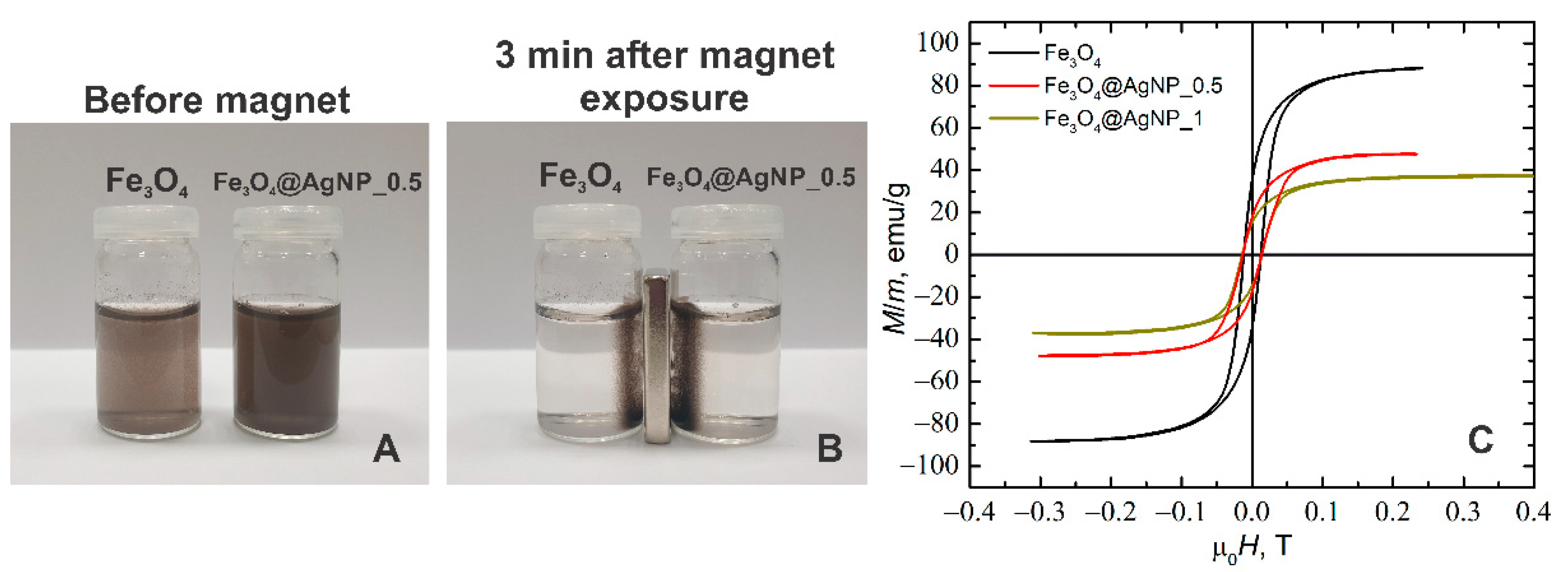

Figure 5. Solutions of magnetite and magnetite decorated with silver NPs (A) just prepared and (B) in 3 min after exposure to a permanent magnet; (C) Hysteresis loop of the magnetite (black), and magnetite decorated with silver nanoparticles: Fe3O4@AgNP_0.5 (red) and Fe3O4@AgNP_1 (dark yellow).
Figure 5. Solutions of magnetite and magnetite decorated with silver NPs (A) just prepared and (B) in 3 min after exposure to a permanent magnet; (C) Hysteresis loop of the magnetite (black), and magnetite decorated with silver nanoparticles: Fe3O4@AgNP_0.5 (red) and Fe3O4@AgNP_1 (dark yellow).
Nanomaterials 12 02860 g005
Nanomaterials 12 02860 g006 550

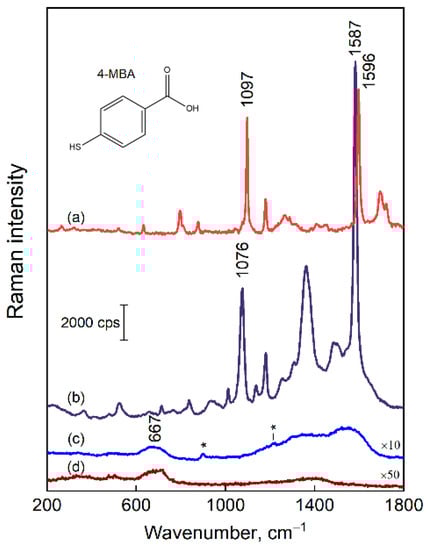

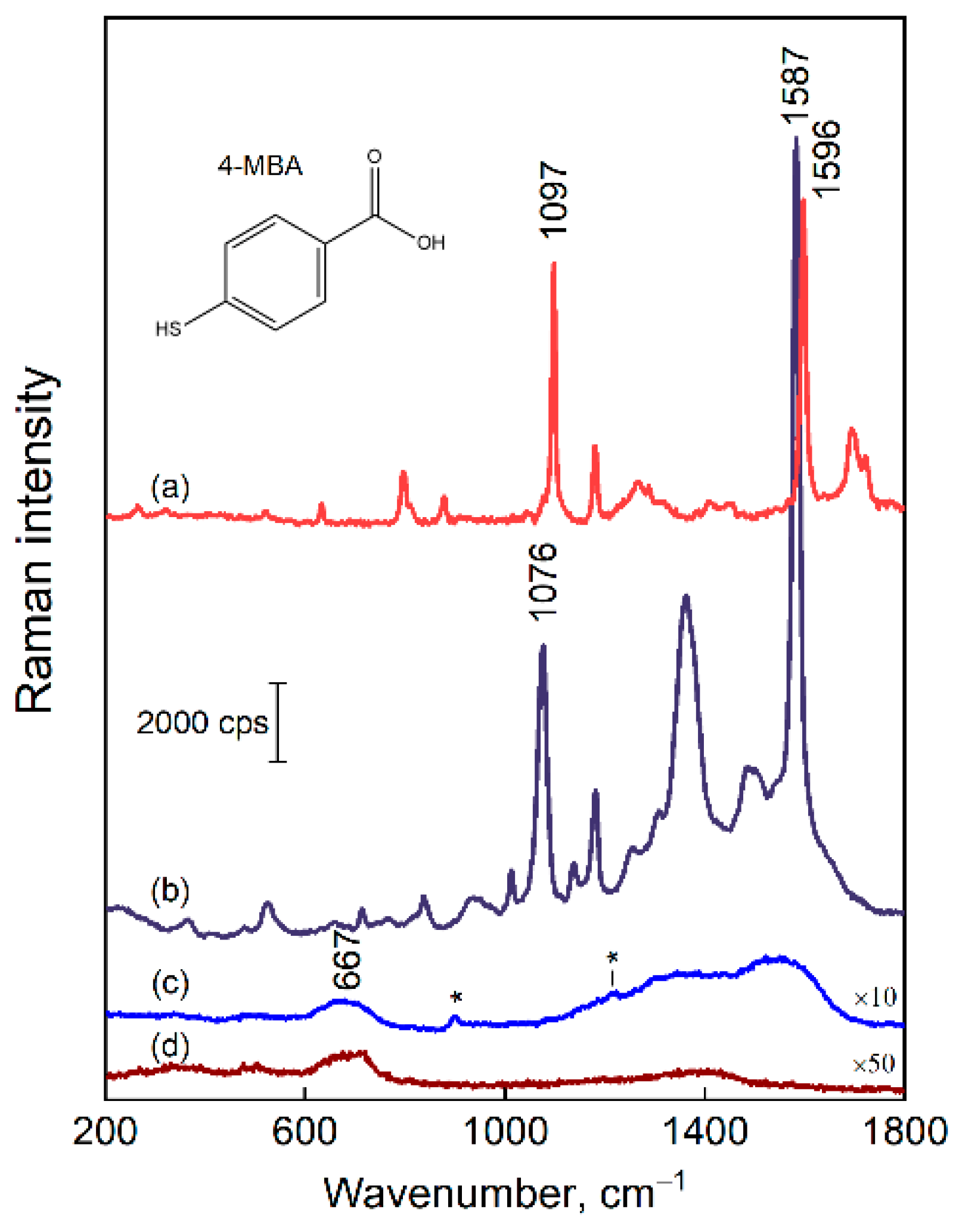

Figure 6. Raman-difference spectrum of 0.1 M 4-MBA in ethanol solution (ethanol spectrum is subtracted) (a), SERS spectrum of 4-MBA adsorbed on Fe3O4@AgNP_0.5 (b), SERS spectrum of bare Fe3O4@AgNP_0.5 (c). Notice the asterisks that mark spectral features due to contaminations. Raman spectrum of magnetite nanoparticles (d). The laser excitation wavelength was 532 nm. The scale bar applies for the (b–d) (notice the multipliers), whereas the intensity of (a) is arbitrary.
Figure 6. Raman-difference spectrum of 0.1 M 4-MBA in ethanol solution (ethanol spectrum is subtracted) (a), SERS spectrum of 4-MBA adsorbed on Fe3O4@AgNP_0.5 (b), SERS spectrum of bare Fe3O4@AgNP_0.5 (c). Notice the asterisks that mark spectral features due to contaminations. Raman spectrum of magnetite nanoparticles (d). The laser excitation wavelength was 532 nm. The scale bar applies for the (b–d) (notice the multipliers), whereas the intensity of (a) is arbitrary.
Nanomaterials 12 02860 g006
Nanomaterials 12 02860 g007 550

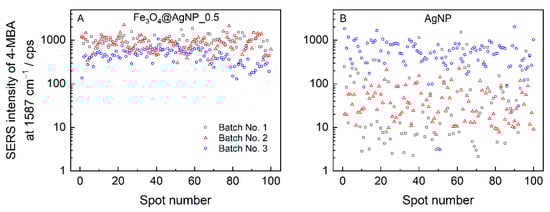

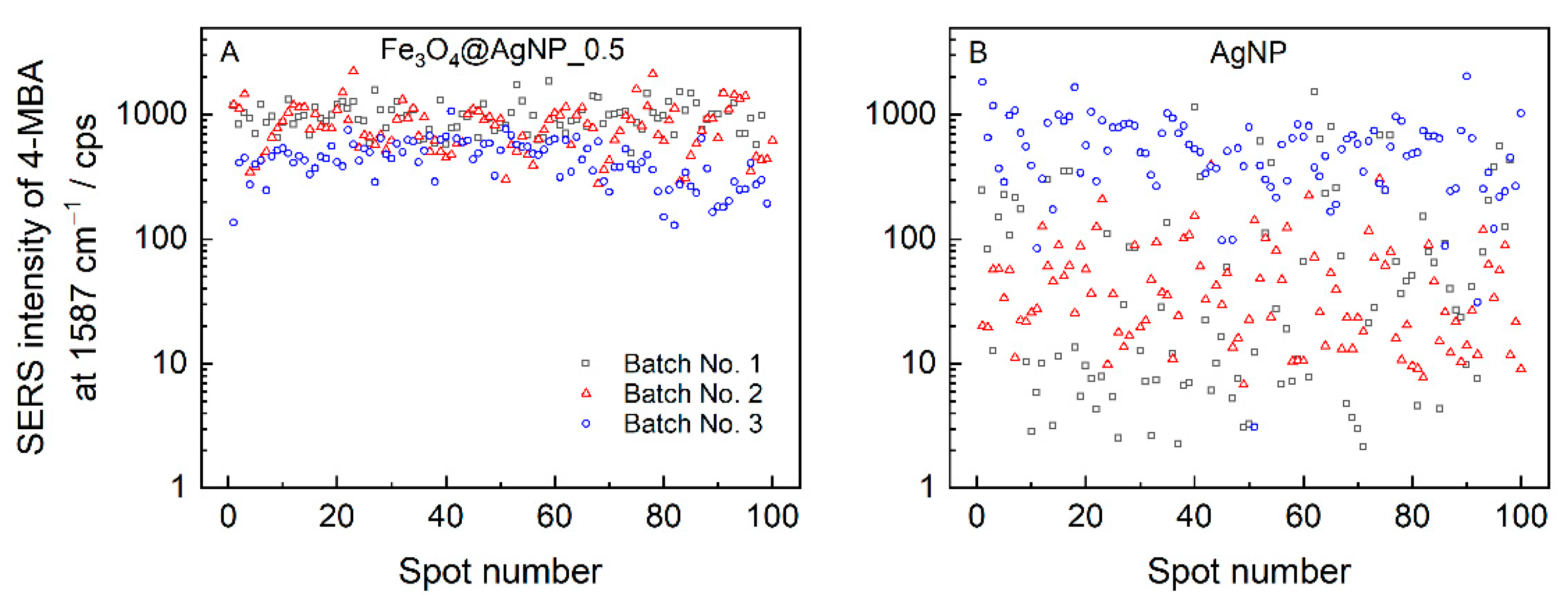

Figure 7. The intensity distribution of the dominant 1587 cm−1 band was obtained from 100 spectra of 4-MBA adsorbed on (A) Fe3O4@AgNP_0.5 and (B) AgNPs. Nanoparticles were dried while placing a glass slide in a strong magnetic field. Spectra were excited at 532 nm with 45 μW laser power focused to a spot on a surface of 1 μm in diameter and 12 s acquisition time. Three different preparations of Fe3O4@AgNP_0.5 and AgNPs are analyzed.
Figure 7. The intensity distribution of the dominant 1587 cm−1 band was obtained from 100 spectra of 4-MBA adsorbed on (A) Fe3O4@AgNP_0.5 and (B) AgNPs. Nanoparticles were dried while placing a glass slide in a strong magnetic field. Spectra were excited at 532 nm with 45 μW laser power focused to a spot on a surface of 1 μm in diameter and 12 s acquisition time. Three different preparations of Fe3O4@AgNP_0.5 and AgNPs are analyzed.
Nanomaterials 12 02860 g007
Nanomaterials 12 02860 g008 550

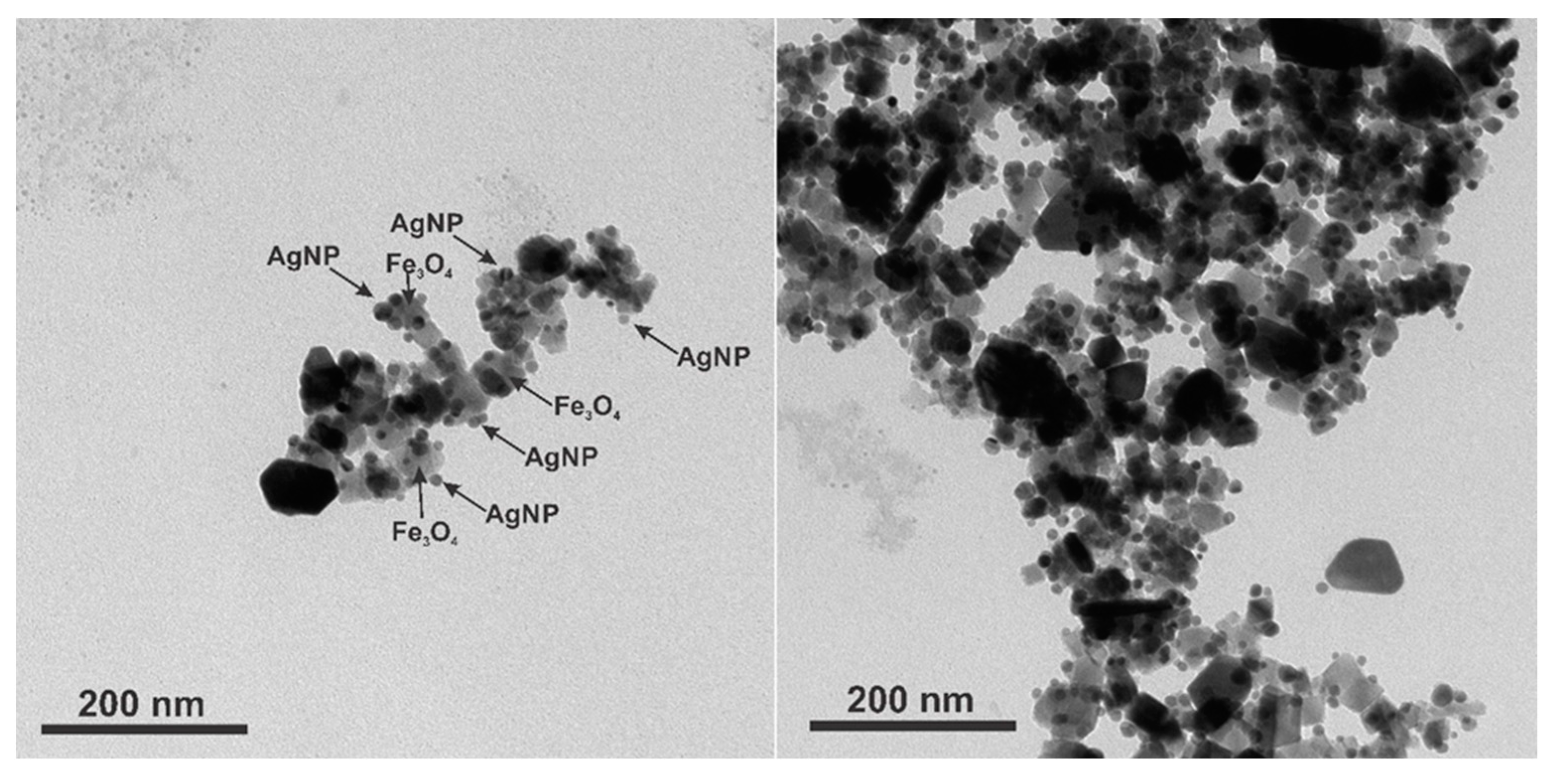

Figure 8. TEM images of cubic magnetite covered with spherical silver nanoparticles (Fe3O4@AgNP_0.5).
Figure 8. TEM images of cubic magnetite covered with spherical silver nanoparticles (Fe3O4@AgNP_0.5).
Nanomaterials 12 02860 g008
Nanomaterials 12 02860 g009 550

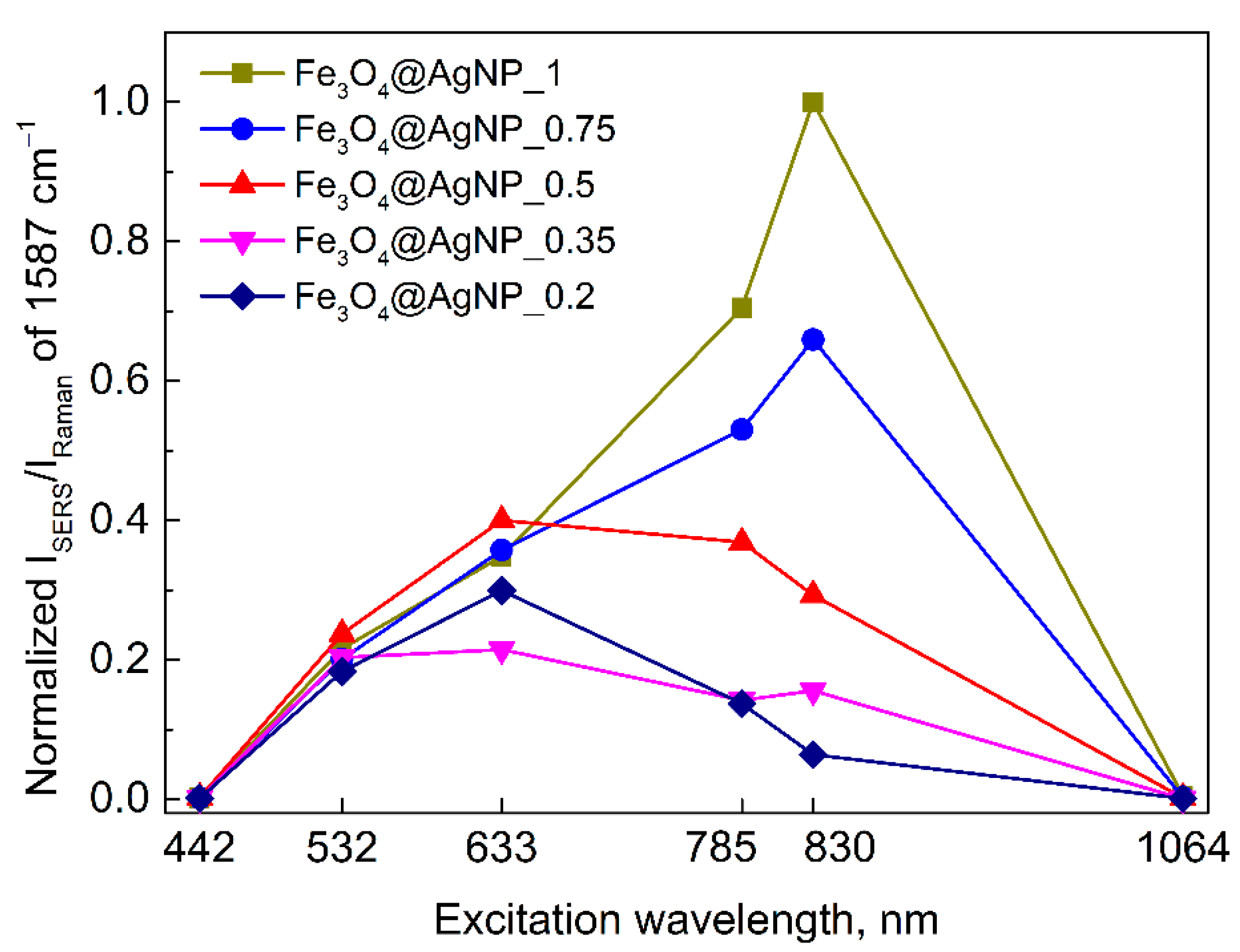

Figure 9. Excitation wavelength dependence of the normalized SERS intensity of 1587 cm−1 band from 4-MBA adsorbed on a Fe3O4@AgNP that have a varied relative concentration of AgNPs. Each data point is obtained by averaging 50–60 independent SERS measurements, except for 1064 nm excitation where 5 different measurements were averaged. The increase in available surface area for 4-MBA to adsorb and contribute to the signal with increasing relative AgNPs concentration (from sample Fe3O4@AgNP_0.2 to Fe3O4@AgNP_1) is accounted.
Figure 9. Excitation wavelength dependence of the normalized SERS intensity of 1587 cm−1 band from 4-MBA adsorbed on a Fe3O4@AgNP that have a varied relative concentration of AgNPs. Each data point is obtained by averaging 50–60 independent SERS measurements, except for 1064 nm excitation where 5 different measurements were averaged. The increase in available surface area for 4-MBA to adsorb and contribute to the signal with increasing relative AgNPs concentration (from sample Fe3O4@AgNP_0.2 to Fe3O4@AgNP_1) is accounted.
Nanomaterials 12 02860 g009
Table
Table 1. AgNP, H2O, and Fe3O4 volumes (mL) used in this study to form Fe3O4@AgNPs with varied silver and magnetite ratio. The ratio of AgNP to Fe3O4 NP is calculated in the last column.
Table 1. AgNP, H2O, and Fe3O4 volumes (mL) used in this study to form Fe3O4@AgNPs with varied silver and magnetite ratio. The ratio of AgNP to Fe3O4 NP is calculated in the last column.
V A g N P ,   mL V H 2 O ,   mL V F e 3 O 4 ,   mL Ratio of AgNP to Fe3O4 NP
Fe3O4@AgNP_1500.416.1
Fe3O4@AgNP_0.753.751.250.412.1
Fe3O4@AgNP_0.52.52.50.48.1
Fe3O4@AgNP_0.351.753.250.45.6
Fe3O4@AgNP_0.2140.43.2
Table
Table 2. Estimated enhancement factors for Fe3O4@AgNP_0.5 and AgNPs.
Table 2. Estimated enhancement factors for Fe3O4@AgNP_0.5 and AgNPs.
Wavelength, nmEnhancement Factor
Fe3O4@AgNP_0.5Ag
4425.4 × 1041.6 × 104
5325.0 × 1061.9 × 105
6333.1 × 1071.2 × 106
7852.4 × 1065.5 × 104
8304.3 × 1051.3 × 104
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mikoliunaite, L.; Talaikis, M.; Michalowska, A.; Dobilas, J.; Stankevic, V.; Kudelski, A.; Niaura, G. Thermally Stable Magneto-Plasmonic Nanoparticles for SERS with Tunable Plasmon Resonance. Nanomaterials 2022, 12, 2860. https://doi.org/10.3390/nano12162860

AMA Style

Mikoliunaite L, Talaikis M, Michalowska A, Dobilas J, Stankevic V, Kudelski A, Niaura G. Thermally Stable Magneto-Plasmonic Nanoparticles for SERS with Tunable Plasmon Resonance. Nanomaterials. 2022; 12(16):2860. https://doi.org/10.3390/nano12162860

Chicago/Turabian Style

Mikoliunaite, Lina, Martynas Talaikis, Aleksandra Michalowska, Jorunas Dobilas, Voitech Stankevic, Andrzej Kudelski, and Gediminas Niaura. 2022. "Thermally Stable Magneto-Plasmonic Nanoparticles for SERS with Tunable Plasmon Resonance" Nanomaterials 12, no. 16: 2860. https://doi.org/10.3390/nano12162860

APA Style

Mikoliunaite, L., Talaikis, M., Michalowska, A., Dobilas, J., Stankevic, V., Kudelski, A., & Niaura, G. (2022). Thermally Stable Magneto-Plasmonic Nanoparticles for SERS with Tunable Plasmon Resonance. Nanomaterials, 12(16), 2860. https://doi.org/10.3390/nano12162860

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
