Ab Initio Study of Structural, Electronic and Magnetic Properties of TM&(B@C60) (TM = V, Cr) Sandwich Clusters and Infinite Molecular Wires

by
Jie Ji
1,
Tianxia Guo
1,
Liyan Qian
1,
Xiaokang Xu
1,
Huanning Yang
1,
Yue Xie
1,
Maoshuai He
2,
Xiaojing Yao
3,*,
Xiuyun Zhang
1,* and
Yongjun Liu
1,*
1
College of Physics Science and Technology, Yangzhou University, Yangzhou 225002, China
2
College of Chemistry and Molecular Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
3
College of Physics and Hebei Advanced Thin Film Laboratory, Hebei Normal University, Shijiazhuang 050024, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(16), 2770; https://doi.org/10.3390/nano12162770
Submission received: 18 July 2022 / Revised: 8 August 2022 / Accepted: 9 August 2022 / Published: 12 August 2022
(This article belongs to the Special Issue First-Principles Investigations of Low-Dimensional Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
The geometrical structure, electronic and magnetic properties of B-endoped C60 (B@C60) ligand sandwich clusters, TM&(B@C60)2 (TM = V, Cr), and their one-dimensional (1D) infinite molecular wires, [TM&(B@C60)]∞, have been systematically studied using first-principles calculations. The calculations showed that the TM atoms can bond strongly to the pentagonal (η5-coordinated) or hexagonal rings (η6-coordinated) of the endoped C60 ligands, with binding energies ranging from 1.90 to 3.81 eV. Compared to the configurations with contrast-bonding characters, the η6- and η5-coordinated bonding is energetically more favorable for V-(B@C60) and Cr-(B@C60) complexes, respectively. Interestingly, 1D infinite molecular wire [V&(B@C60)-η6]∞ is an antiferromagnetic half-metal, and 1D [Cr&(B@C60)-η5]∞ molecular wire is a ferromagnetic metal. The tunable electronic and magnetic properties of 1D [TM&(B@C60)]∞ SMWs are found under compressive and tensile stains. These findings provide additional possibilities for the application of C60-based sandwich compounds in electronic and spintronic devices.

1. Introduction

Since the discovery of C60 in 1985 [1,2], various fullerenes and their derivatives have attracted great attention due to their extraordinary stability and unique chemical and physical properties [3,4,5,6,7]. Particularly, versatile polygons, such as pentagons and hexagons, in fullerenes enabled them to be potential ligands bonding in external metal elements. Using a laser vaporization method, Nakajima et al. [8,9,10] successfully synthesized TM-C60 (TM= 3d transition metal) complexes in the 1990s, and predicted that the TMn(C60)m clusters exhibit sandwich-like structures for m = n + 1, n ≤ 3 or ring-like structures for m = n, n > 3. These structure characteristics were later confirmed via theoretical studies [11]. In addition, the TM-C60 coordinated bonds in TMn(C60)m complexes were found to be dependent on the choice of TM atom [12,13]. However, differently from the comprehensively studied benzene (Bz)-ligand [10,14] or cyclopentadienyl (Cp)-ligand [15] sandwich complexes, most C60 sandwich complexes were confirmed to be non-magnetic or weakly magnetic [11,12,13], severely limiting their application in spintronic devices. Therefore, tuning the electronic and magnetic properties of fullerene-ligand sandwich complexes remains challenging.
Different from organic planar ligands (CnHn, n = 5–8) [16,17,18,19,20,21,22], the cage configuration of fullerenes enable their large spaces to accommodate other atoms or molecules for forming various core/shell complexes [23,24,25,26,27,28,29,30,31,32], which endows novel electronic properties on them and their TM-fullerene sandwich derivatives. For example, 1D infinite molecular wires, [TM&(TM@C60)]∞ (TM = Ti-Ni), composed of metallofullerene (TM@C60)[23,33,34] and 3d TM atoms, were identified as displaying robust antiferromagnetic (AFM) semiconducting properties [20]. Unfortunately, the physical and chemical properties of sandwich isomers with different endoped fullerenes are rarely investigated. Herein, we explore the structure, electronic and magnetic properties of TM(B@C60)2 (TM = V, Cr) sandwich clusters, as well as their 1D molecular wires (SMWs), [TM&(B@C60)]∞, constructed by the fabricated core/shell structure, B@C60 [35], as a building block. All the V-(B@C60) and Cr-(B@C60) sandwich complexes with η6- or η5- are thermodynamically stable, with high binding energies. Among them, the η6- and η5-coordinated bonding configurations are the stable ones, respectively, for the V and Cr atom. Moreover, 1D [V&(B@C60)-η6]∞ SMW is an antiferromagnetic half-metal, and 1D [Cr&(B@C60)-η5]∞ molecular wire is a ferromagnetic metal.

2. Models and Method

All the calculations were performed in the Vienna ab initio simulation package (VASP) [36,37] under the spin-polarized DFT framework. The exchange correlation interaction was described by the Perdew–Burke–Ernzerhof (PBE) [38] functional, and the interaction between valence electrons and ion nuclei was described by the projector–augmented wave potential (PAW) [39] method. In the process of calculations, the van der Waals (vdW) interaction was considered by using the DFT-D2 [40] method. In order to further consider the Coulomb interaction and exchange interactions of the d-electron in the transition metal atom, we adopted the GGA + U method [41], in which the parameter U was set to 3.0 Ev [42,43]. In order to find the magnetic ground state of the 1D [TM&(B@C60)]∞ SMWs, a 1 × 1 × 2 supercell consisting of two TM atoms and two (B@C60) units was used. The criteria for energy and atom force convergence were set to 10−4 eV and 0.01 eV/Å, respectively. To determine the magnetic ground states of the TM&(B@C60) clusters and molecular wires, diverse magnetic states with different magnetic moments were calculated and compared.

3. Results and Discussion

3.1. TM&(B@C60)2 (TM = V, Cr) Sandwich Clusters

First, we explored the structural characters of the endohedral B@C60 cluster (see Figure 1a). Similar to the C60 molecule, the point group symmetry of the B@C60 molecule is Ih, with the B atom sitting on the mass center of C60. The diameter of B@C60 is 7.09 Å and the C-C bond length is 1.45 Å. As shown in the spin density plot (see Figure 1b), the B atom in B@C60 is spin-polarized with a local magnetic moment of 1.0 μB. The partial density of state (PDOS) of B@C60 (Figure 1b) shows that the p states of the B atom is spin-polarized in the energy around the Fermi level, accounting for the 1.0 μB net magnetic moment. Two types of TM&(B@C60)2 configurations were considered: (i) TM&(B@C60)2-η5, in which the sandwiched TM atoms are bonded to two pentagonal rings of two B@C60 molecules forming η5-coordinate bonds; and (ii) TM&(B@C60)2-η6, in which the TM atoms are bonded to two hexagonal rings of two B@C60s forming η6-coordinate bonds. Figure 1c,d show the optimized structures of V&(B@C60)2 and Cr&(B@C60)2. Clearly, all the TM&(B@C60)2s favor normal sandwich configurations, with the TM atom sitting above the mass center of the pentagon or hexagon rings. For V&(B@C60)2, the η6 coordinated configuration is more stable than the η5 coordinated one, with an energy difference of 0.32 eV. On the contrary, the η5 coordinated configuration is energetically more stable for Cr&(B@C60)2, with approximately 0.50 eV less energy.
For V&(B@C60)2 and Cr&(B@C60)2, the distances of TM atoms from the mass center of the faced Cn ring (n = 5, 6) (dTM-C60) to the nearest carbon rings are in the range of 1.73–2.00 Å (see Table 1), which are a bit larger than those in the TM-Bz (1.70 Å) [44], TM-Cp (1.72 Å–1.81 Å) [15] and TM-C60 (1.75 Å) [6] sandwich compounds. In the compounds, the dTM-C60s in η5 coordinated systems are longer than those in the η6 coordinated ones by around 0.21~0.28 Å. Moreover, the B atoms in the TM&(B@C60)2s (Figure 1c,d) deviate from the center of C60 with 0.02~0.08 Å (see Table 1). In order to investigate the stability of these TM&(B@C60)2 sandwich clusters, the binding energies (Eb) are calculated based on the following formula:
Eb = ETM&(B@C60)2 − [ETM + 2EB@C60]
where ETM, EB@C60 and ETM&(B@C60)2 are the energies of the isolated TM atom, B@C60 molecule and TM&(B@C60)2, respectively. Shown in Table 1, the Ebs of V&(B@C60)2 and Cr&(B@C60)2 with η5/η6 coordinated bonding are approximately −1.90/−2.23 eV and −3.81/−3.31 eV, respectively, implying that these sandwich clusters are energetically stable. Figure 2 plots the PDOS of the TM&(B@C60)2 (TM = Ti, V) clusters to explore the physical origin of their stability. For V&(B@C60)2-η6, strong C-p and V-dx2−y2 orbitals hybridization are observed in the energy window of [−0.75, −0.60 eV], and the hybridization between B-p and V-dz2 states are in the energy window of [−0.25, 0 eV] (see Figure 2b) below the Fermi level. While in the case of V&(B@C60)2-η5, relatively weaker B-p and V-dz2 hybridization is found (see Figure 2a), which is responsible for its low stability. In Cr&(B@C60)2-η6, the hybridization between C-p orbitals and Cr-dx2-y2, dz2 orbitals is observed in the energy of [−0.5, −0.1 eV]. In contrast, for Cr&(B@C60)2-η5, stronger d-p hybridization is found deep in the energy window below the Fermi level, around [−1.3, −1.2 eV] and [−0.6, −0.4 eV]. As a result, the most energetically stable configuration is Cr&(B@C60)2-η5.
To determine the magnetic ground states of these TM&(B@C60)2 clusters, we considered different spin states for each system (see Table S1 in the supporting information, SI). For V&(B@C60)2, the magnetic moment of its ground state is 3.0 μB and 1.0 μB in their η5/η6 coordinated configurations. Their second lower-energy isomers are found to have magnetic moments of 5.0 μB and 3.0 μB, which are less stable than the ground states by approximately 0.01 eV and are 0.03 eV higher in energy, respectively. In addition, for Cr&(B@C60)2-η5 and Cr&(B@C60)2-η6, the magnetic moment of 6.0 μB and 2.0 μB is observed for their ground states, which are approximately 0.03 eV and 0.17 eV lower in energy, respectively, than their second higher-energy isomers with the same magnetic moment of 4.0 μB. The inset in Figure 2 shows the spin densities of V&(B@C60)2 and Cr&(B@C60)2. Clearly, the magnetic moments of both systems are mainly contributed to the B atoms and TM atoms. The B atom and TM atom for V&(B@C60)2-η5 and Cr&(B@C60)2-η6 contribute to opposite spins. In contrast, the same spins are found for the B atom and Cr atom in Cr&(B@C60)2-η5. As for V&(B@C60)2-η6, its magnetic moments mainly arise from two B atoms with opposite spins.

3.2. D infinite [TM&(B@C60)]∞ (TM = V, Cr) SMWs

Figure 3a,b show the optimized structures of 1D [V&(B@C60)]∞ and [Cr&(B@C60)]∞. Here, respective 1D [V&(B@C60)]∞ and [Cr&(B@C60)]∞ with η6- and η5-coordinated configurations are considered. Similar to the TM&(B@C60)2 clusters, both 1D [TM&(B@C60)]∞ SMWs have normal sandwich structures. The lattice constants of 1D [V&(B@C60)-η6]∞ and [Cr&(B@C60)-η5]∞ SMWs are 9.84 Å and 10.64 Å, respectively (see Table 1 and Figure 3a,b). Meanwhile, B atoms in the endoped C60 are separate from the mass center of C60, with the deviation values (Δh) of 0.32 Å and 0.09 Å, respectively. Table 1 shows that the dTM-C60 in 1D [V&(B@C60)-η6]∞ SMW and [Cr&(B@C60)-η5]∞ SMW are approximately 1.70 Å and 2.01 Å, respectively, and are a bit shorter than that in the finite sandwich clusters.
To evaluate the stability of these SMWs, we defined the binding energy (Eb) of SMWs as:
E b = E [ T M & ( B @ C 60 ) ] ∞ − E T M − E B @ C 60
where E[TM&(B@C60)]∞, ETM and EB@C60 are the energies of [TM&(B@C60)]∞ SMWs, 3d TM atoms and B@C60 ligand, respectively. As shown in Table 1, the binding energies of [V&(B@C60)-η6]∞ and [Cr&(B@C60)-η5]∞ are about −5.24 eV and −8.67 eV, respectively, larger than that of the reported 1D organometallic and non-organometallic SMWs [15,22,45,46,47]. The Bader charge calculations indicate that their high stability is correlated with charge transfer from the TM atom to B@C60 molecule, which is about 1.22e and 1.09 e for V and Cr, respectively. Figure 3c,d present the PDOS of 1D [V&(B@C60)-η6]∞ SMW and [Cr&(B@C60)-η5]∞ SMW. Strong hybridization between C-p and V-dz2, dx2-y2 orbitals are found in 1D [V&(B@C60)-η6]∞ SMW. As shown in Figure 4d, C-p and Cr-dyz of [Cr&(B@C60)-η5]∞ SMW are strongly hybridized.
Furthermore, to determine the magnetic ground state of 1D [V&(B@C60)-η6]∞ and [Cr&(B@C60)-η5]∞ SMWs, a double cell was constructed to explore their FM and AFM configurations (see Figure 4a,b). Obviously, 1D [V&(B@C60)-η6]∞ SMW favors an AFM ground state, in which two nearby V-B atoms (V-B dimer) FM couple with each other, while AFM couples with its nearby dimer (see Figure 4a). The FM state is less stable by approximately 0.35 eV higher in energy. On the contrary, 1D [Cr&(B@C60)-η5]∞ SMW has a FM ground state, which is more stable than the AFM state by approximately 0.10 eV lower in energy (see Table S2). Moreover, 1D [V&(B@C60)-η6]∞ SWM is found to be an AFM half-metal, in which the spin-up and spin-down electronic states are semiconducting and conducting, respectively (see Figure 4c), while 1D [Cr&(B@C60)-η5]∞ SMW is a FM metal(see Figure 4d). Finally, we explored the electronic and magnetic properties of the most stable 1D [TM&(B@C60)-η5]∞ (TM = V, Cr) SMWs under external strains. For 1D [V&(B@C60)-η6]∞ SMW, it undergoes an AFM HM-AFM semiconductor (SC) transition under 5% and 10% compressive strain (see Figure 5a,b and Table 2). On the contrary, it is changed to a FM metal under 5% and 10% tensile strain (see Figure 5c,d and Table 2). In addition, 1D [Cr&(B@C60)-η5]∞ SMW transfers to both a FM metal and a ferrimagnetic (FIM) metal under 5% compressive stain and 5% (10%) tensile strain (see Figure 5f–h and Table 2), respectively, and changes to an AFM metal under 10% compressive strain (see Figure 5e and Table 2).

4. Conclusions

Using first principles calculations, we systematically investigated the structure, electronic and magnetic properties of 3d transition metal atoms and B@C60 sandwich clusters, TM&(B@C60)2 (TM = V, Cr), and their 1D infinite SMWs, [TM&(B@C60)]∞. Our results showed that all the studied systems possess normal sandwich structures with extremely thermodynamic stabilities. It was found that respective η6- and η5-bonding configurations are confirmed for the systems with TM = V and Cr. One-dimensional [V&(B@C60)-η6]∞ and [Cr&(B@C60)-η5]∞ SMWs are an antiferromagnetic half-metal and a ferromagnetic metal. Furthermore, the magnetic properties can be modulated by exerting biaxial compressive and tensile strains. Finally, we should state that the diverse electronic and magnetic properties of the studied complexes may be highly sensitive to their surroundings [48,49]. Therefore, exploring their performance in a complicated environment, instead of non-free-standing states, is also of importance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12162770/s1, Table S1. Different spin states for each system. Table S2. The energy difference between FM and AFM states. Atomic coordination of V&(B@C60)2-η5. Atomic coordination of V&(B@C60)2-η6. Atomic coordination of Cr&(B@C60)2-η5. Atomic coordination of Cr&(B@C60)2-η6. Atomic coordination of [V&(B@C60)-η6]∞. Atomic coordination of [Cr&(B@C60)-η5]∞.

Author Contributions

J.J., T.G. and L.Q. contributed equally to this work. Investigation, data analysis, and writing—original draft, J.J, T.G. and L.Q.: investigation, X.X., H.Y. and Y.X.: investigation. writing—review and editing, M.H.: review and editing, X.Y. and Y.L.: supervision, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the NSFC (12004098), the Open Funds of the State Key Laboratory of Rare Earth Resource Utilization (RERU2021011), Science and Technology Project of Hebei Education Department (QN2020157). We thank the computational resources at Yangzhou University and Hebei Normal University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kroto, H.W.; Heath, J.R.; O’Brien, S.C.; Curl, R.F.; Smalley, R.E. C60: Buckminsterfullerene. Nature 1985, 318, 162–163. [Google Scholar] [CrossRef]
  2. Scott, L.T.; Boorum, M.M.; McMahon, B.J.; Hagen, S.; Mack, J.; Blank, J.; Wegner, H.; de Meijere, A. A Rational Chemical Synthesis of C60. Science 2002, 295, 1500–1503. [Google Scholar] [CrossRef] [PubMed]
  3. Goulart, M.; Kuhn, M.; Martini, P.; Chen, L.; Hagelberg, F.; Kaiser, A.; Scheier, P.; Ellis, A.M. Highly Stable [C60AuC60]+/− Dumbbells. J. Phys. Chem. Lett. 2018, 9, 2703–2706. [Google Scholar] [CrossRef]
  4. Lee, K.; Choi, B.; Plante, I.J.-L.; Paley, M.V.; Zhong, X.; Crowther, A.C.; Owen, J.S.; Zhu, X.; Roy, X. Two-Dimensional Fullerene Assembly from an Exfoliated Van Der Waals Template. Angew. Chem. Int. Ed. 2018, 57, 6125–6129. [Google Scholar] [CrossRef]
  5. Mararov, V.V.; Utas, T.V.; Bondarenko, L.V.; Tupchaya, A.Y.; Vekovshinin, Y.E.; Gruznev, D.V.; Mihalyuk, A.N.; Zotov, A.V.; Saranin, A.A. Self-Assembly of C60 Layers at Tl/NiSi2 Atomic Sandwich on Si(111). Surf. Sci. 2022, 715, 121934. [Google Scholar] [CrossRef]
  6. Rekhviashvilli, S.S.; Bukhurova, M.M. Equilibrium Parameters for Bilayer Graphene Filled with Fullerene C60 Molecules. Tech. Phys. Lett. 2021, 47, 403–404. [Google Scholar] [CrossRef]
  7. Talmazan, R.A.; Liedl, K.R.; Krautler, B.; Podewitz, M. The Intermolecular Anthracene-Transfer in a Regiospecific Antipodal C60 Difunctionalization. Org. Biomol. Chem. 2020, 18, 4090–4103. [Google Scholar] [CrossRef] [PubMed]
  8. Nakajima, A.; Nagao, S.; Takeda, H.; Kurikawa, T.; Kaya, K. Multiple Dumbbell Structures of Vanadium–C60 Clusters. J. Chem. Phys. 1997, 107, 6491–6494. [Google Scholar] [CrossRef]
  9. Nagao, S.; Kurikawa, T.; Miyajima, K.; Nakajima, A.; Kaya, K. Formation and Structures of Transition Metal−C60 Clusters. J. Phys. Chem. A 1998, 102, 4495–4500. [Google Scholar] [CrossRef]
  10. Nakajima, A.; Kaya, K. A Novel Network Structure of Organometallic Clusters in the Gas Phase. J. Phys. Chem. A 2000, 104, 176–191. [Google Scholar] [CrossRef]
  11. Zhang, X.; Wang, J.; Zeng, X.C. Ab Initio Study of Structural, Electronic, and Magnetic Properties of Vn(C60)m Complexes. J. Phys. Chem. A 2009, 113, 5406–5413. [Google Scholar] [CrossRef] [PubMed]
  12. Andriotis, A.N.; Menon, M. Geometry and Bonding in Small (C60)nNim Clusters. Phys. Rev. B 1999, 60, 4521–4524. [Google Scholar] [CrossRef]
  13. Andriotis, A.N.; Menon, M.; Froudakis, G.E. Contrasting Bonding Behaviors of 3d Transition Metal Atoms with Graphite and C60. Phys. Rev. B 2000, 62, 9867–9871. [Google Scholar] [CrossRef]
  14. Judai, K.; Hirano, M.; Kawamata, H.; Yabushita, S.; Nakajima, A.; Kaya, K. Formation of Vanadium-Arene Complex Anions and Their Photoelectron Spectroscopy. Chem. Phys. Lett. 1997, 270, 23–30. [Google Scholar] [CrossRef]
  15. Shen, L.; Yang, S.-W.; Ng, M.-F.; Ligatchev, V.; Zhou, L.; Feng, Y. Charge-Transfer-Based Mechanism for Half-Metallicity and Ferromagnetism in One-Dimensional Organometallic Sandwich Molecular Wires. J. Am. Chem. Soc. 2008, 130, 13956–13960. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, X.; Tan, Y.; Zhang, G.; Pei, Y. Electronic Structure and Spin Transport Properties of a New Class of Semiconductor Surface-Confined One-Dimensional Half-Metallic Eu(CnHn-2)N (N=7–9) Sandwich Compounds and Molecular Wires: First Principle Studies. J. Phys. Chem. C 2018, 122, 16168–16177. [Google Scholar] [CrossRef]
  17. Wang, C.H.; Xu, L.F.; Fan, X.-L.; Wang, J.-T. Structural Stability and Electronic Property of Sandwich Clusters (CmHm)Mn(CnHn) (m, n=5,6) Following an 18-Electron Principle. Phys. Lett. A 2011, 375, 562–567. [Google Scholar] [CrossRef]
  18. Shao, P.; Ding, L.P.; Luo, D.-B.; Lu, C. Probing the Structures, Electronic and Bonding Properties of Multidecker Lanthanides: Neutral and Anionic Lnn(COT)n (Ln = Ce, Nd, Eu, Ho and Yb; n, m = 1, 2) Complexes. J. Mol. Graph. Model. 2019, 90, 226–234. [Google Scholar]
  19. Zhang, X.; Liu, Y. Tunable Electronic and Magnetic Properties of Transition Metal-Cyclopentadiene Sandwich Molecule Wires Functionalized Narrow Single Wall Carbon Nanotubes. J. Phys. Chem. C 2016, 120, 19812–19820. [Google Scholar] [CrossRef]
  20. Zhang, X.; Gong, X.; Sun, Y.; Xu, M.; Xi, B.; Zhao, X.; Ye, X.; Yao, X.; He, M.; Liu, L.; et al. 3d Transition Metal-Metallofullerene-Ligand Molecular Wires: Robust One-Dimensional Antiferromagnetic Semiconductors. J. Phys. Chem. C 2019, 123, 30571–30577. [Google Scholar] [CrossRef]
  21. Lu, K.; Gao, W.; Xu, M.; Sun, Y.; Li, J.; Yao, X.; Liu, Y.; Zhang, X. Spin Transport Properties of One-Dimensional Benzene Ligand Organobimetallic Sandwich Molecular Wires. ACS Omega 2020, 5, 5534–5539. [Google Scholar] [CrossRef] [PubMed]
  22. Gao, W.; Yao, X.; Sun, Y.; Sun, W.; Liu, H.; Liu, J.; Liu, Y.; Zhang, X. Theoretical Study on Sandwich-Like Transition-Metal–Cyclooctatetraene Clusters and One-Dimensional Infinite Molecular Wires. ACS Omega 2019, 4, 9739–9744. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, S.; Sun, S. Recent Progress in the Studies of Endohedral Metallofullerenes. J. Organomet. Chem. 2000, 599, 74–86. [Google Scholar] [CrossRef]
  24. Bethune, D.S.; Johnson, R.D.; Salem, J.R.; de Vries, M.S.; Yannoni, C.S. Atoms in Carbon Cages: The Structure and Properties of Endohedral Fullerenes. Nature 1993, 366, 123–128. [Google Scholar] [CrossRef]
  25. Arie, A.A.; Lee, J.K. Effect of Boron Doped Fullerene C60 Film Coating on the Electrochemical Characteristics of Silicon Thin Film Anodes for Lithium Secondary Batteries. Synth. Met. 2011, 161, 158–165. [Google Scholar] [CrossRef]
  26. Das, P.; Chattaraj, P.K. Comparison between Electride Characteristics of Li3@B40 and Li3@C60. Front. Chem. 2021, 9, 638581. [Google Scholar] [CrossRef] [PubMed]
  27. Das, P.; Saha, R.; Chattaraj, P.K. Encapsulation of Mg2 inside a C60 Cage Forms an Electride. J. Comput. Chem. 2020, 41, 1645–1653. [Google Scholar] [CrossRef] [PubMed]
  28. Feng, L.; Hao, Y.; Liu, A.; Slanina, Z. Trapping Metallic Oxide Clusters inside Fullerene Cages. Acc. Chem. Res. 2019, 52, 1802–1811. [Google Scholar] [CrossRef] [PubMed]
  29. Koi, N.; Oku, T. Molecular Orbital Calculations of Hydrogen Storage in Carbon and Boron Nitride Clusters. Sci. Technol. Adv. Mater. 2004, 5, 625–628. [Google Scholar] [CrossRef]
  30. Kurotobi, K.; Murata, Y. A Single Molecule of Water Encapsulated in Fullerene C60. Science 2011, 333, 613–616. [Google Scholar] [CrossRef]
  31. Ren, Y.X.; Ng, T.Y.; Liew, K.M. State of Hydrogen Molecules Confined in C60 Fullerene and Carbon Nanocapsule Structures. Carbon 2006, 44, 397–406. [Google Scholar] [CrossRef]
  32. Tishchenko, O.; Truhlar, D.G. Atom-Cage Charge Transfer in Endohedral Metallofullerenes: Trapping Atoms within a Sphere-Like Ridge of Avoided Crossings. J. Phys. Chem. Lett. 2013, 4, 422–425. [Google Scholar] [CrossRef]
  33. Bolskar, R.D.; Benedetto, A.F.; Husebo, L.O.; Price, R.E.; Jackson, E.F.; Wallace, S.; Wilson, L.J.; Alford, J.M. First Soluble M@C60 Derivatives Provide Enhanced Access to Metallofullerenes and Permit in Vivo Evaluation of Gd@C60[C(COOH)2]10 as a Mri Contrast Agent. J. Am. Chem. Soc. 2003, 125, 5471–5478. [Google Scholar] [CrossRef] [PubMed]
  34. Shinohara, H. Endohedral Metallofullerenes. Rep. Prog. Phys. 2000, 63, 843–892. [Google Scholar] [CrossRef]
  35. Zou, Y.J.; Zhang, X.W.; Li, Y.L.; Wang, B.; Yan, H.; Cui, J.Z.; Liu, L.M.; Da, D.A. Bonding Character of the Boron-Doped C60 Films Prepared by Radio Frequency Plasma Assisted Vapor Deposition. J. Mater. Sci. 2002, 37, 1043–1047. [Google Scholar] [CrossRef]
  36. Kresse, G.; Hafner, J.J.P.R.B. Initio Molecular Dynamics for Open-Shell Transition Metals. Phys. Rev. B Condens. Matter Phys. 1993, 48, 13115–13118. [Google Scholar] [CrossRef] [PubMed]
  37. Kresse, G.; Furthmüller, J. Efficiency of Ab-Initio Total Energy Calculations for Metals and Semiconductors Using a Plane-Wave Basis Set. Comput. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  38. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef]
  39. Blöchl, P.E. Projector Augmented-Wave Method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef]
  40. Grimme, S. Semiempirical Gga-Type Density Functional Constructed with a Long-Range Dispersion Correction. J. Comput. Chem. 2006, 27, 1787–1799. [Google Scholar] [CrossRef]
  41. Xiang, H.; Dronskowski, R.; Eck, B.; Tchougréeff, A.L. Electronic and Magnetic Structure of Transition-Metal Carbodiimides by Means of GGA+U Theory. J. Phys. Chem. A 2010, 114, 12345–12352. [Google Scholar] [CrossRef] [PubMed]
  42. Wehling, T.O.; Lichtenstein, A.I.; Katsnelson, M.I. Transition-Metal Adatoms on Graphene: Influence of Local Coulomb Interactions on Chemical Bonding and Magnetic Moments. Phys. Rev. B 2011, 84, 235110. [Google Scholar] [CrossRef]
  43. Li, S.; Ao, Z.M.; Zhu, J.J.; Ren, J.C.; Yi, J.B.; Wang, G.X.; Liu, W. Strain Controlled Ferromagnetic-Antiferromagnetic Transformation in Mn-Doped Silicene for Information Transformation Devices. J. Phys. Chem. Lett. 2017, 8, 1484–1488. [Google Scholar] [CrossRef]
  44. Maslyuk, V.V.; Bagrets, A.; Meded, V.; Arnold, A.; Evers, F.; Brandbyge, M.; Bredow, T.; Mertig, I. Organometallic Benzene-Vanadium Wire: A One-Dimensional Half-Metallic Ferromagnet. Phys. Rev. Lett. 2006, 97, 097201. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, J.; Acioli, P.H.; Jellinek, J. Structure and Magnetism of VnBzn+1 Sandwich Clusters. J. Am. Chem. Soc. 2005, 127, 2812–2813. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, X.; Ng, M.-F.; Wang, Y.; Wang, J.; Yang, S.-W. Theoretical Studies on Structural, Magnetic, and Spintronic Characteristics of Sandwiched EunCOTn+1 (n = 1–4) Clusters. ACS Nano 2009, 3, 2515–2522. [Google Scholar] [CrossRef] [PubMed]
  47. Xiang, H.; Yang, J.; Hou, J.G.; Zhu, Q. One-Dimensional Transition Metal−Benzene Sandwich Polymers:  Possible Ideal Conductors for Spin Transport. J. Am. Chem. Soc. 2006, 128, 2310–2314. [Google Scholar] [CrossRef] [PubMed]
  48. Jacak, W.; Krasnyj, J.; Jacak, L. Reducing of Magnon-Induced Spin Pure Dephasing in Quantum Dots at Low Temperatures. Phys. Rev. B 2008, 78, 073303. [Google Scholar] [CrossRef]
  49. Jacak, L.; Krasnyj, J.; Jacak, W.; Gonczarek, R.; Machnikowski, P. Unavoidable Decoherence in Semiconductor Quantum Dots. Phys. Rev. B 2005, 72, 245309. [Google Scholar] [CrossRef]
Nanomaterials 12 02770 g001 550

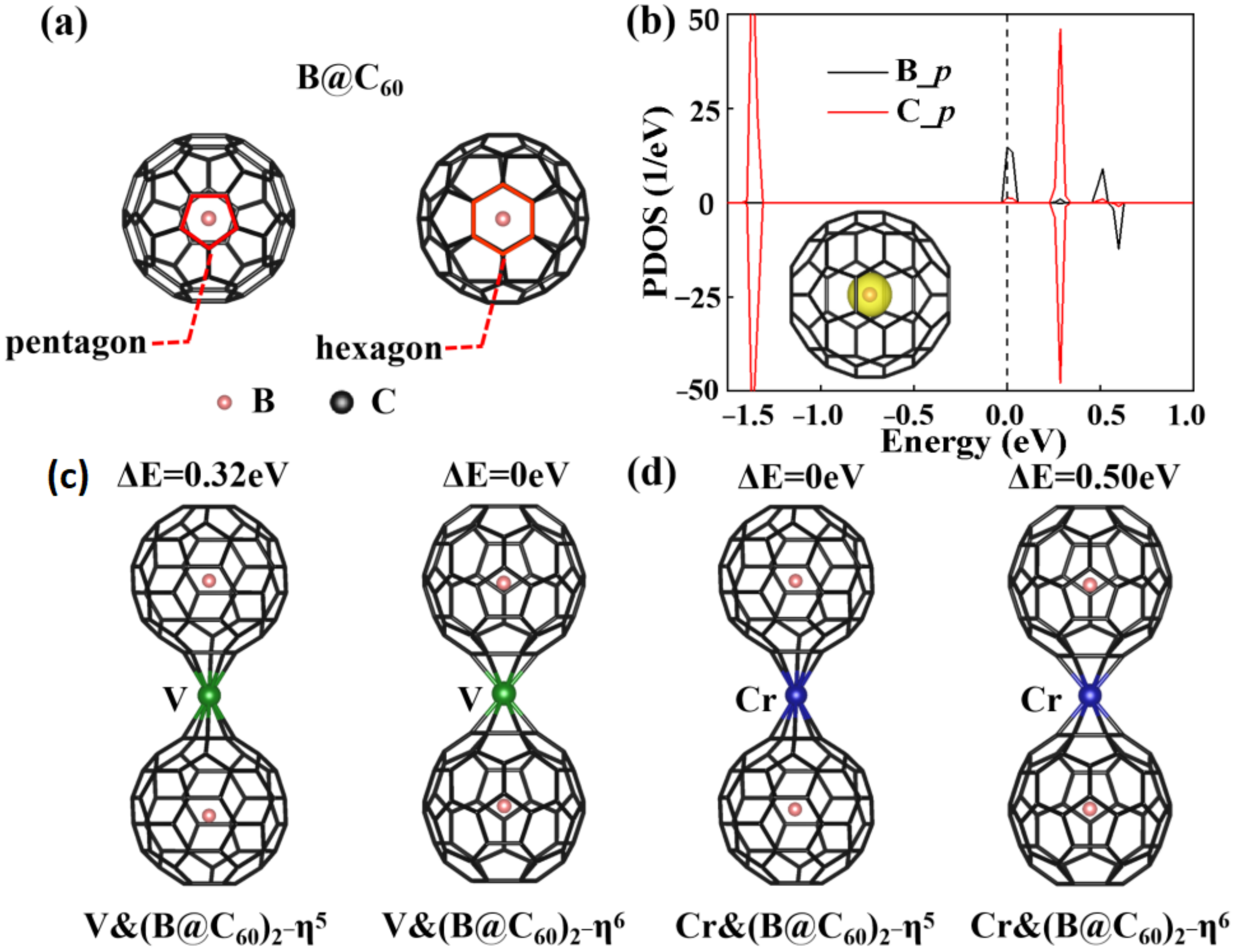

Figure 1. (a) Different views of B@C60; (b) the PDOS and spin density plot of B@C60 molecule; optimized structures of V&(B@C60)2 (c) and Cr&(B@C60)2 (d) with η5 and η6 bonding. ΔE is the energy difference between different bonding structures.
Figure 1. (a) Different views of B@C60; (b) the PDOS and spin density plot of B@C60 molecule; optimized structures of V&(B@C60)2 (c) and Cr&(B@C60)2 (d) with η5 and η6 bonding. ΔE is the energy difference between different bonding structures.
Nanomaterials 12 02770 g001
Nanomaterials 12 02770 g002 550

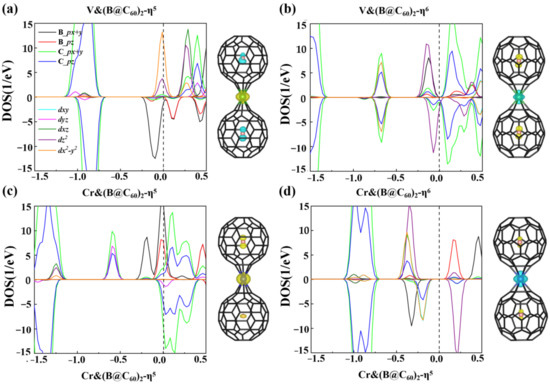

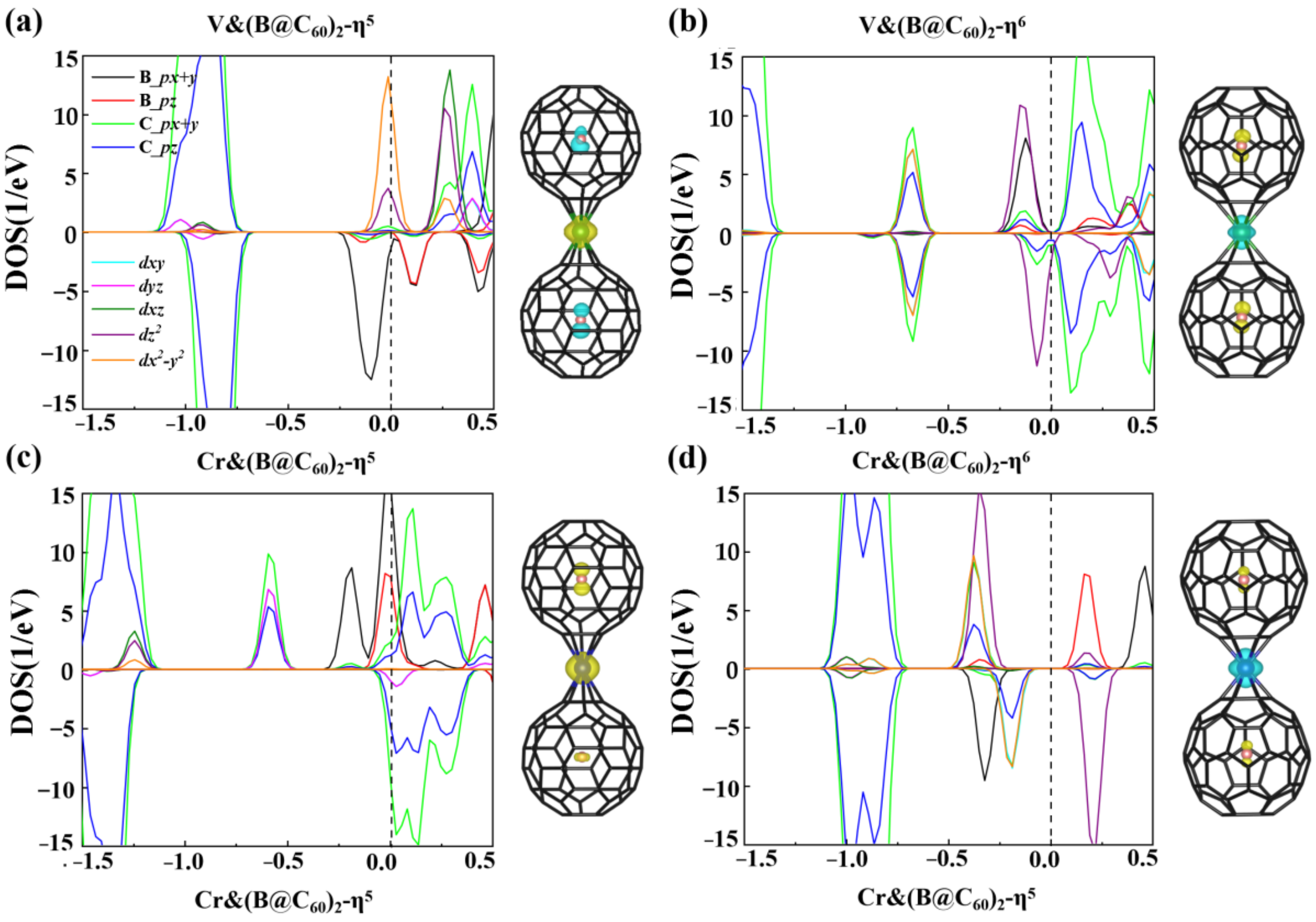

Figure 2. The spin density and PDOS of V&(B@C60)2 (a,b) and Cr&(B@C60)2 (c,d).
Figure 2. The spin density and PDOS of V&(B@C60)2 (a,b) and Cr&(B@C60)2 (c,d).
Nanomaterials 12 02770 g002
Nanomaterials 12 02770 g003 550

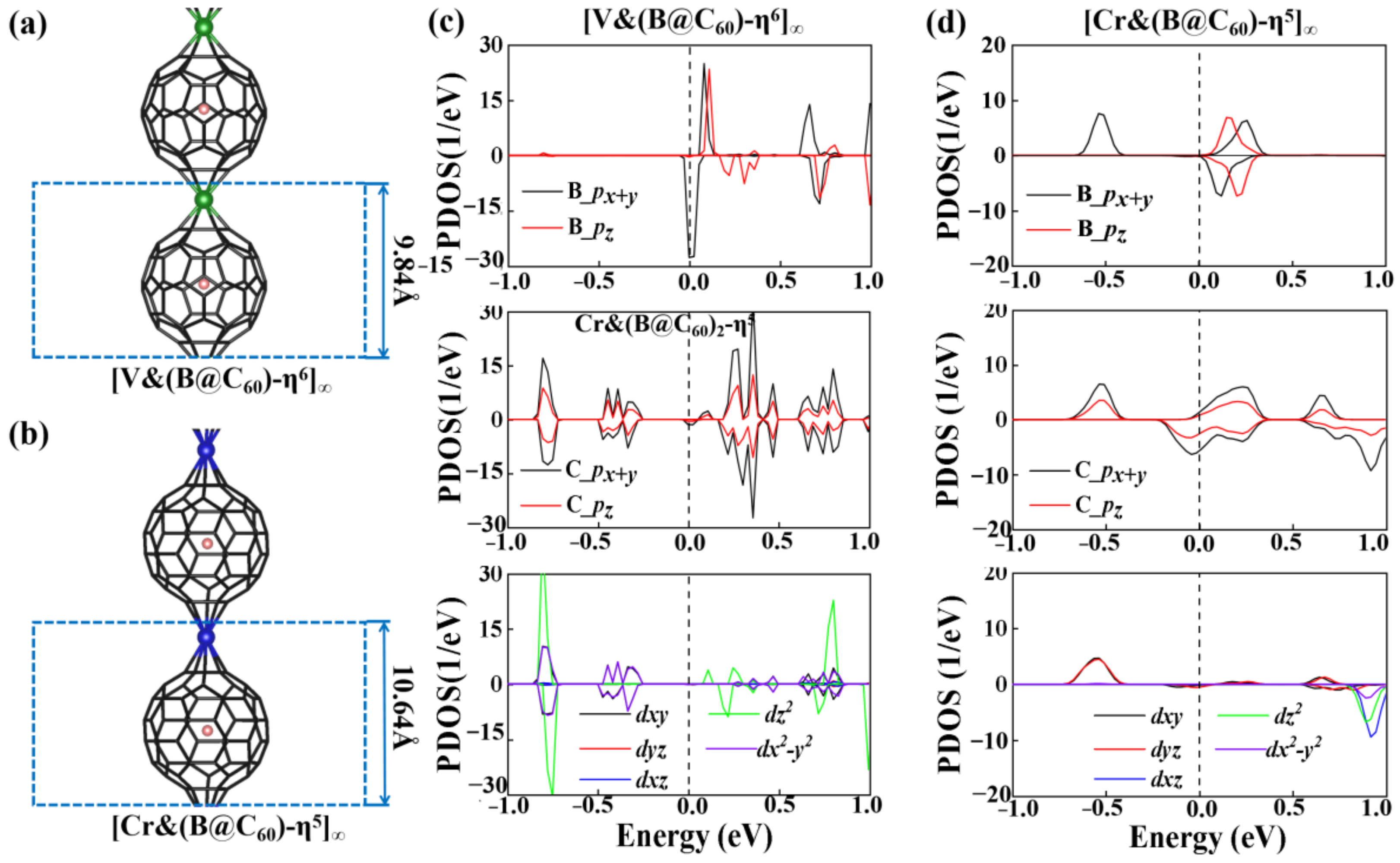

Figure 3. The optimized structures (a,b) and PDOS (c,d) of 1D [V&(B@C60)-η6]∞ and [Cr&(B@C60)-η5]∞ SMWs.
Figure 3. The optimized structures (a,b) and PDOS (c,d) of 1D [V&(B@C60)-η6]∞ and [Cr&(B@C60)-η5]∞ SMWs.
Nanomaterials 12 02770 g003
Nanomaterials 12 02770 g004 550

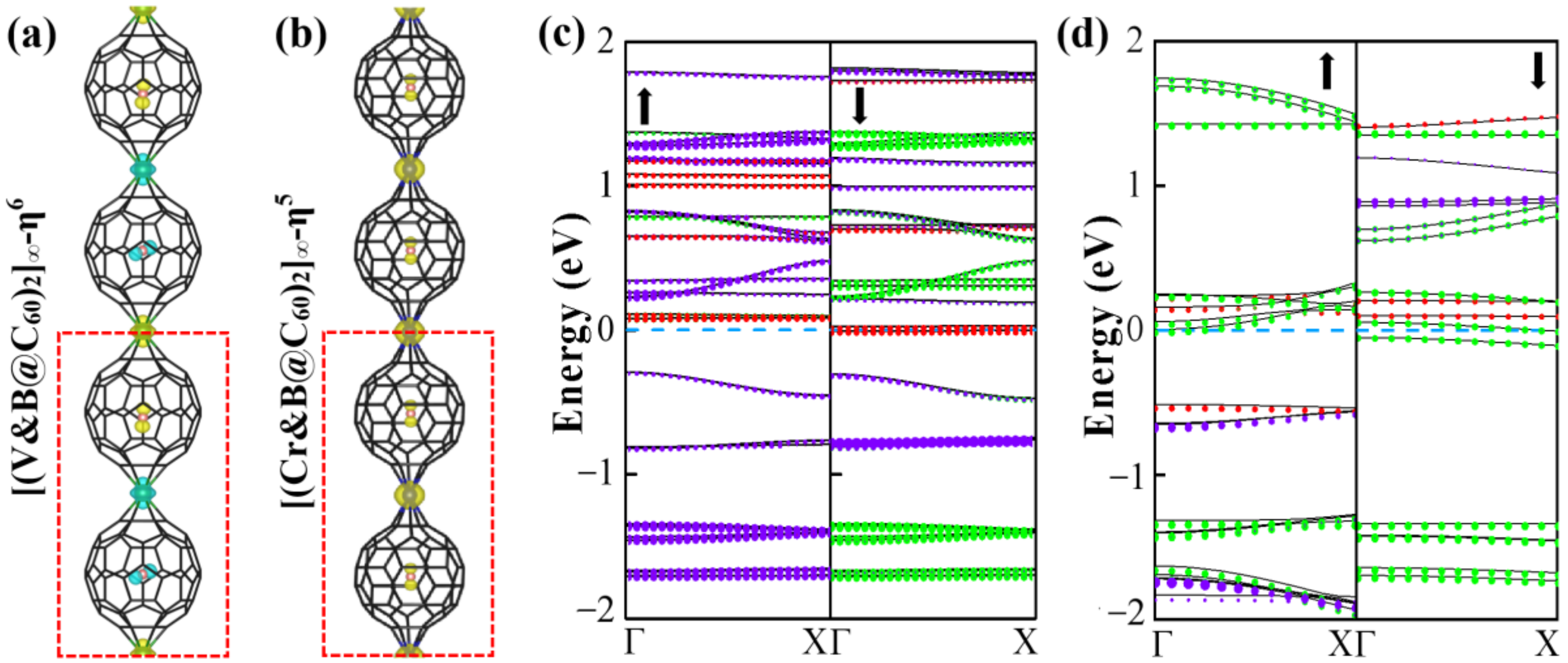

Figure 4. Spin densities (a,b) and decomposed band structures (c,d) of 1D [V&(B@C60)-η6]∞ and (b) [Cr&(B@C60)-η5]∞ SMWs, yellow and blue colors indicate up and down spins, respectively. red, green and violet colors represent B-p, C-p and TM-d orbitals, respectively, the size of the color balls is proportion to the contributions from the states.
Figure 4. Spin densities (a,b) and decomposed band structures (c,d) of 1D [V&(B@C60)-η6]∞ and (b) [Cr&(B@C60)-η5]∞ SMWs, yellow and blue colors indicate up and down spins, respectively. red, green and violet colors represent B-p, C-p and TM-d orbitals, respectively, the size of the color balls is proportion to the contributions from the states.
Nanomaterials 12 02770 g004
Nanomaterials 12 02770 g005 550

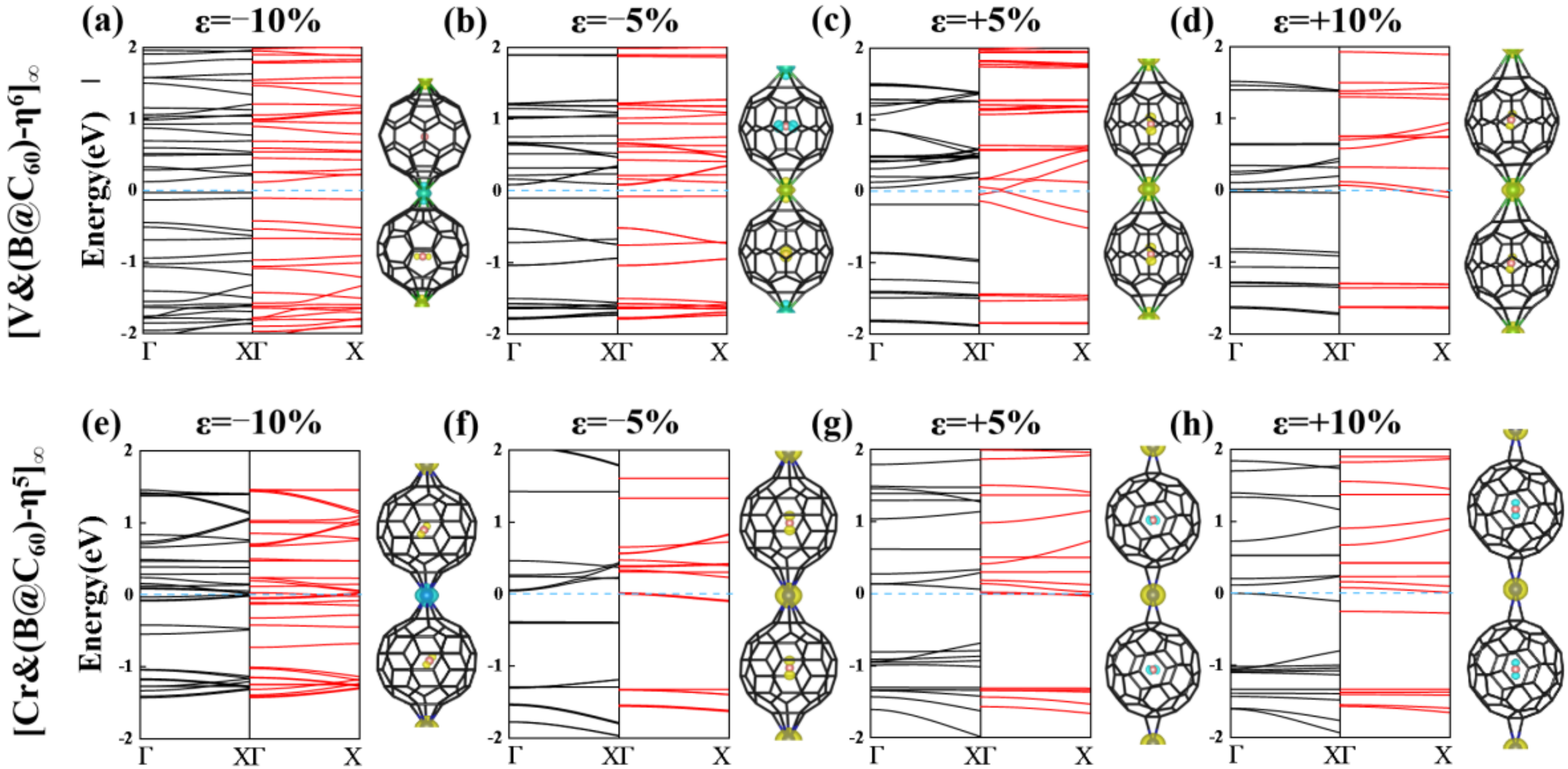

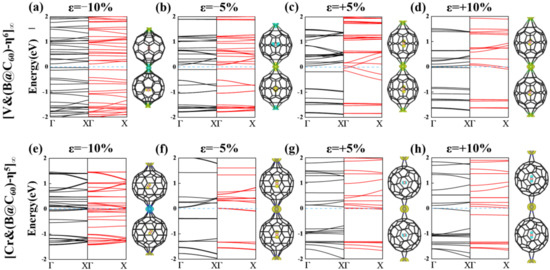

Figure 5. Band structures and spin density of 1D [V&(B@C60)-η6]∞ and (b) [Cr&(B@C60)-η5]∞ SMWs under several strains of −10% (a,e), −5% (b,f), +5% (c,g) and +10% (d,h); yellow and blue colors indicate up and down spins, respectively. The blue, black and red lines represent the Fermi level, the spin up and spin down electronic bands, respectively.
Figure 5. Band structures and spin density of 1D [V&(B@C60)-η6]∞ and (b) [Cr&(B@C60)-η5]∞ SMWs under several strains of −10% (a,e), −5% (b,f), +5% (c,g) and +10% (d,h); yellow and blue colors indicate up and down spins, respectively. The blue, black and red lines represent the Fermi level, the spin up and spin down electronic bands, respectively.
Nanomaterials 12 02770 g005
Table
Table 1. Optimized lattice constant (L, Å), local magnetic moment of TM atom and B atom (LMM, μB), binding energy (Eb, eV), the Bader charge (Δe, e) transferred from TM atom to B@C60 molecule, distance of TM atom to the mass center of faced Cn rings (dTM-C60), distance of B atom to the mass center of the nearest η5- or η6-carbon ring in C60 (dB-C60, Å), deviations of the encapsulated B atom to the mass center of C60 molecule (Δh, Å).
Table 1. Optimized lattice constant (L, Å), local magnetic moment of TM atom and B atom (LMM, μB), binding energy (Eb, eV), the Bader charge (Δe, e) transferred from TM atom to B@C60 molecule, distance of TM atom to the mass center of faced Cn rings (dTM-C60), distance of B atom to the mass center of the nearest η5- or η6-carbon ring in C60 (dB-C60, Å), deviations of the encapsulated B atom to the mass center of C60 molecule (Δh, Å).
SysL(Å)LMM(μB)Eb(eV)Δe(e)dTM-C60(Å)dB-C60(Å)Δh(Å)
TMB
V&(B@C60)2-η5——3.000.41−1.901.131.963.28–3.530.03
V&(B@C60)2-η6——1.000.41−2.231.301.733.12–3.210.02
Cr&(B@C60)2-η5——6.000.42−3.811.092.003.240.08
Cr&(B@C60)2-η6——2.000.41−3.311.001.733.10–3.220.03
[V&(B@C60)-η6]∞9.841.000.41−5.240.321.693.46–3.400.32
[Cr&(B@C60)-η5]∞10.644.000.41−8.670.092.013.31–3.320.08
Table
Table 2. Local magnetic moment of TM atom and B atom (LMM, μB) under different strain.
Table 2. Local magnetic moment of TM atom and B atom (LMM, μB) under different strain.
Sys LMM(μB)
ε = −10%ε = −5%ε = +5%ε = +10%
[V&(B@C60)-η6]∞V1.31/−1.331.00/−0.971.83/1.832.75/2.75
B0.36/−0.350.41/−0.420.42/0.420.42/0.42
[Cr&(B@C60)-η5]∞Cr2.85/−2.923.12/3.124.03/4.034.25/4.25
B0.38/0.380.37/0.37−0.42/−0.42−0.32/−0.32
