# Kirkwood-Buff Integrals Using Molecular Simulation: Estimation of Surface Effects

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

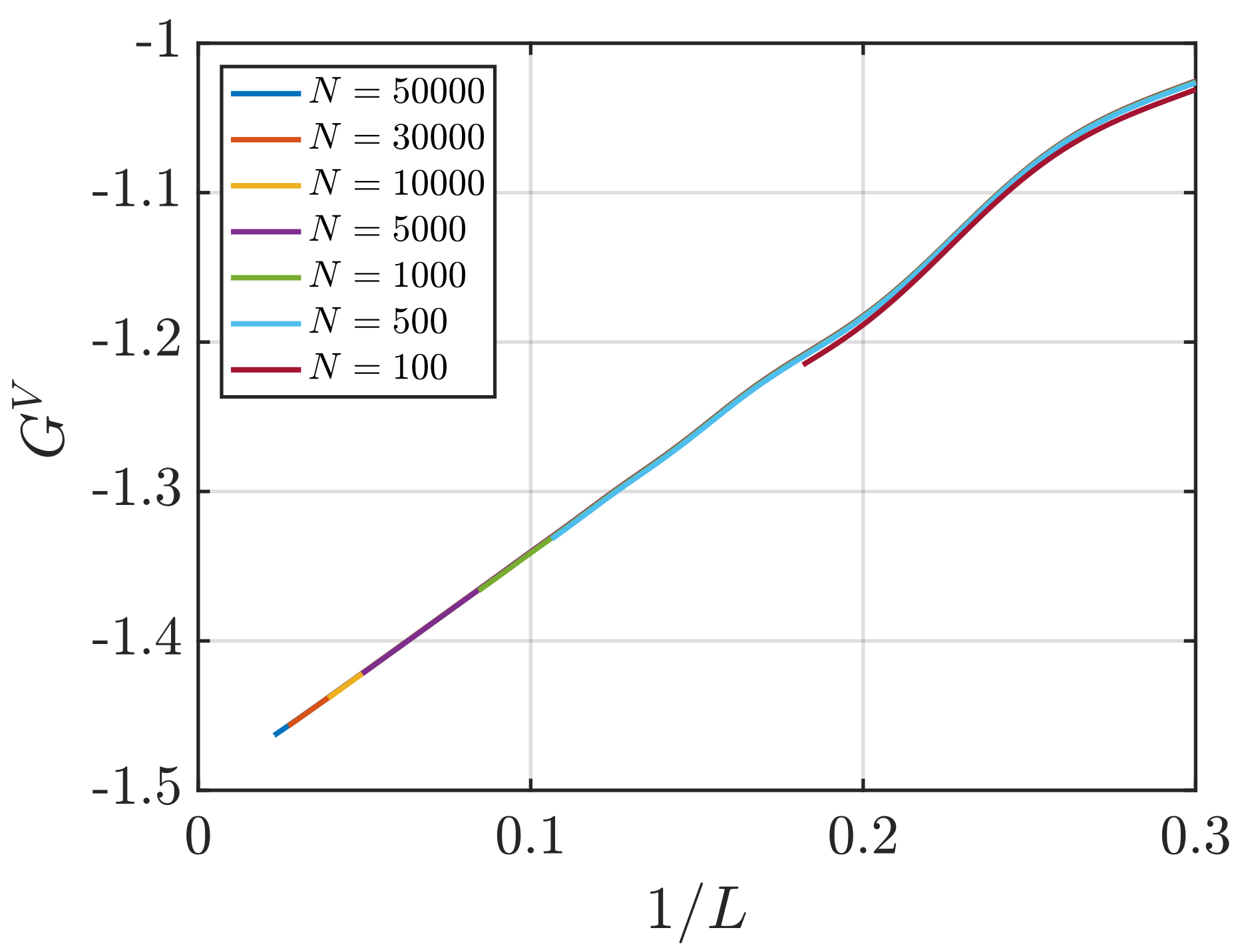

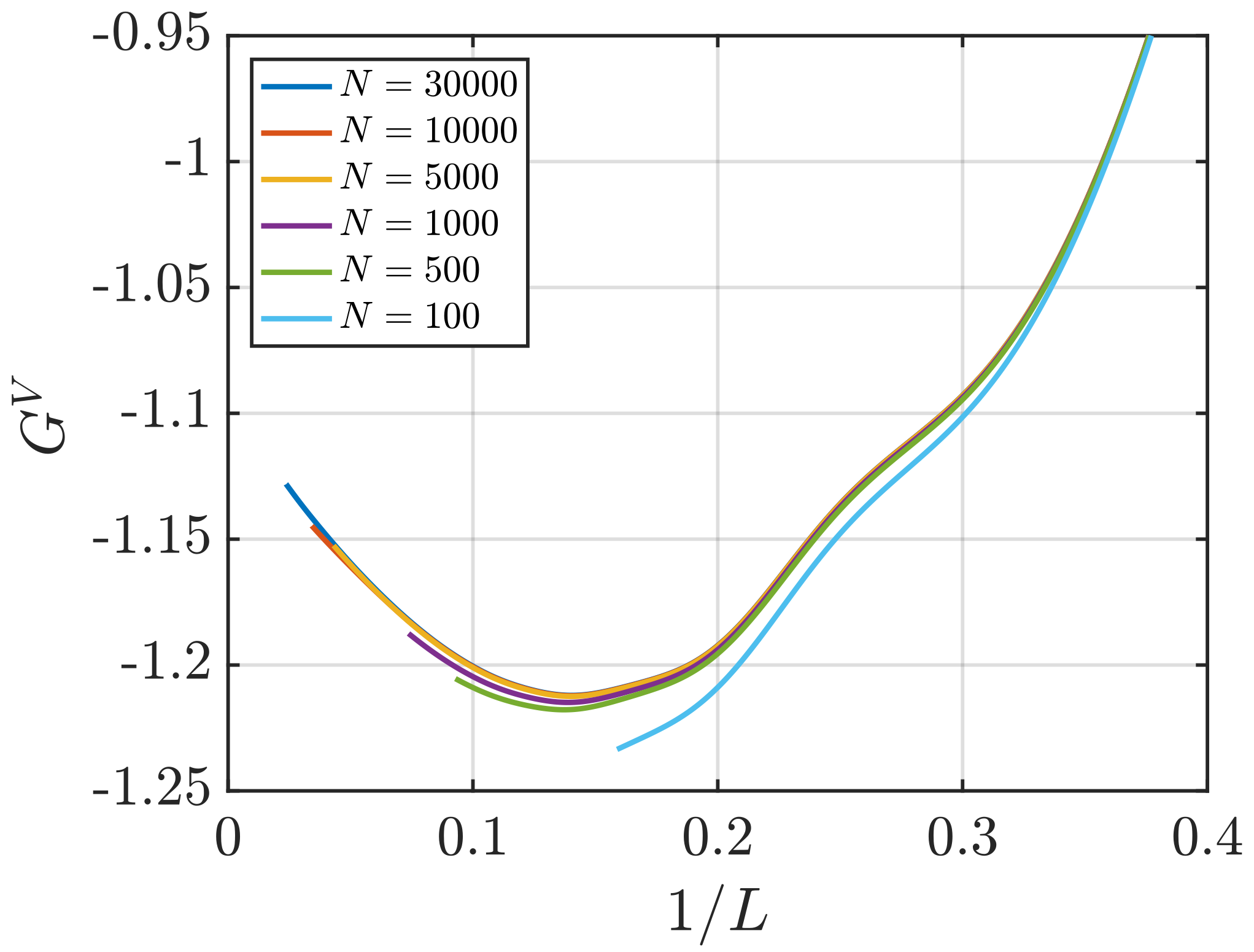

- Using the scaling of ${G}^{V}$ (Equation (4)) with $1/L$. To estimate ${G}^{\infty}$, the linear regime of the scaling is extrapolated to the limit $1/L\to 0$.

## 2. Methods

#### Simulation Details

## 3. Results

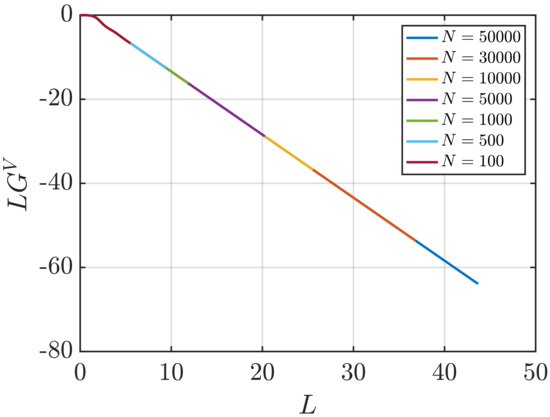

#### 3.1. Estimation of KB Integrals

#### Effect of System Size and Density

#### 3.2. Estimation of Surface Effects

#### Effect of System Size and Density

## 4. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Patterson, D. Effects of molecular size and shape in solution thermodynamics. Pure Appl. Chem.
**1976**, 47, 305–314. [Google Scholar] [CrossRef] - Koga, Y. Solution Thermodynamics and Its Application to Aqueous Solutions: A Differential Approach, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2017. [Google Scholar]
- Lee, L.L. Molecular Thermodynamics of Non-Ideal Fluids; Butterworth-Heinemann: Oxford, UK, 2016. [Google Scholar]
- Panagiotopoulos, A.Z. Molecular simulation of phase equilibria: Simple, ionic and polymeric fluids. Fluid Phase Equilib.
**1992**, 76, 97–112. [Google Scholar] [CrossRef] - Schnell, S.K.; Skorpa, R.; Bedeaux, D.; Kjelstrup, S.; Vlugt, T.J.H.; Simon, J.M. Partial molar enthalpies and reaction enthalpies from equilibrium molecular dynamics simulation. J. Chem. Phys.
**2014**, 141, 144501. [Google Scholar] [CrossRef] [Green Version] - Kirkwood, J.G.; Buff, F.P. The Statistical Mechanical Theory of Solutions. I. J. Chem. Phys.
**1951**, 19, 774–777. [Google Scholar] [CrossRef] - Ben-Naim, A. Molecular Theory of Solutions; Oxford University Press: Oxford, UK, 2006. [Google Scholar]
- Hall, D.G. Kirkwood–Buff theory of solutions. An alternative derivation of part of it and some applications. Trans. Faraday Soc.
**1971**, 67, 2516–2524. [Google Scholar] [CrossRef] - Newman, K.E. Kirkwood–Buff solution theory: Derivation and applications. Chem. Soc. Rev.
**1994**, 23, 31–40. [Google Scholar] [CrossRef] - Dawass, N.; Krüger, P.; Schnell, S.K.; Simon, J.M.; Vlugt, T.J.H. Kirkwood-Buff integrals from molecular simulation. Fluid Phase Equilib.
**2019**, 486, 21–36. [Google Scholar] [CrossRef] - Schnell, S.K.; Liu, X.; Simon, J.M.; Bardow, A.; Bedeaux, D.; Vlugt, T.J.H.; Kjelstrup, S. Calculating thermodynamic properties from fluctuations at small scales. J. Phys. Chem. B
**2011**, 115, 10911–10918. [Google Scholar] [CrossRef] - Krüger, P.; Schnell, S.K.; Bedeaux, D.; Kjelstrup, S.; Vlugt, T.J.H.; Simon, J.M. Kirkwood–Buff Integrals for Finite Volumes. J. Phys. Chem. Lett.
**2013**, 4, 235–238. [Google Scholar] [CrossRef] - Hill, T.L. Thermodynamics of Small Systems. J. Chem. Phys.
**1962**, 36, 3182–3197. [Google Scholar] [CrossRef] - Hill, T.L. Thermodynamics of Small Systems; Dover: New York, NY, USA, 1994. [Google Scholar]
- Dawass, N.; Krüger, P.; Schnell, S.K.; Bedeaux, D.; Kjelstrup, S.; Simon, J.M.; Vlugt, T.J.H. Finite-size effects of Kirkwood–Buff integrals from molecular simulations. Mol. Simu.
**2018**, 44, 599–612. [Google Scholar] [CrossRef] - Krüger, P.; Vlugt, T.J.H. Size and shape dependence of finite–volume Kirkwood-Buff integrals. Phys. Rev. E
**2018**, 97, 051301. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Strøm, B.A.; Simon, J.M.; Schnell, S.K.; Kjelstrup, S.; He, J.; Bedeaux, D. Size and shape effects on the thermodynamic properties of nanoscale volumes of water. Phys. Chem. Chem. Phys.
**2017**, 19, 9016–9027. [Google Scholar] [CrossRef] [PubMed] - Frenkel, D.; Smit, B. Understanding Molecular Simulation: From Algorithms to Applications, 2nd ed.; Academic Press: London, UK, 2002; Volume 1. [Google Scholar]
- Dawass, N.; Krüger, P.; Schnell, S.K.; Simon, J.M.; Vlugt, T.J.H. Kirkwood–Buff integrals of finite systems: Shape effects. Mol. Phys.
**2018**, 116, 1573–1580. [Google Scholar] [CrossRef] [Green Version] - Santos, A. Finite-size estimates of Kirkwood-Buff and similar integrals. Phys. Rev. E
**2018**, 98, 063302. [Google Scholar] [CrossRef] [Green Version] - Lennard-Jones, J.E. On the determination of molecular fields. II. From the equation of state of gas. Proc. R. Soc. A
**1924**, 106, 463–477. [Google Scholar] - Weeks, J.D.; Chandler, D.; Andersen, H.C. Role of Repulsive Forces in Determining the Equilibrium Structure of Simple Liquids. J. Chem. Phys.
**1971**, 54, 5237–5247. [Google Scholar] [CrossRef] - Borgis, D.; Assaraf, R.; Rotenberg, B.; Vuilleumier, R. Computation of pair distribution functions and three-dimensional densities with a reduced variance principle. Mol. Phys.
**2013**, 111, 3486–3492. [Google Scholar] [CrossRef] - De las Heras, D.; Schmidt, M. Better than counting: Density profiles from force sampling. Phys. Rev. Lett.
**2018**, 120, 218001. [Google Scholar] [CrossRef] [Green Version] - Jamali, S. Transport Properties of Fluids: Methodology and Force Field Improvement Using Molecular Dynamics Simulations. Ph.D. Thesis, Delft University of Technology, Delft, The Netherlands, 2020. [Google Scholar]
- Ganguly, P.; van der Vegt, N.F.A. Convergence of Sampling Kirkwood-Buff Integrals of Aqueous Solutions with Molecular Dynamics Simulations. J. Chem. Theory Comput.
**2013**, 9, 1347–1355. [Google Scholar] [CrossRef] - Cortes-Huerto, R.; Kremer, K.; Potestio, R. Communication: Kirkwood-Buff integrals in the thermodynamic limit from small-sized molecular dynamics simulations. J. Chem. Phys.
**2016**, 145, 141103. [Google Scholar] [CrossRef] [Green Version] - Hansen, J.P.; McDonald, I.R. Theory of Simple Liquids; Elsevier: Amsterdam, The Netherlands, 1990. [Google Scholar]

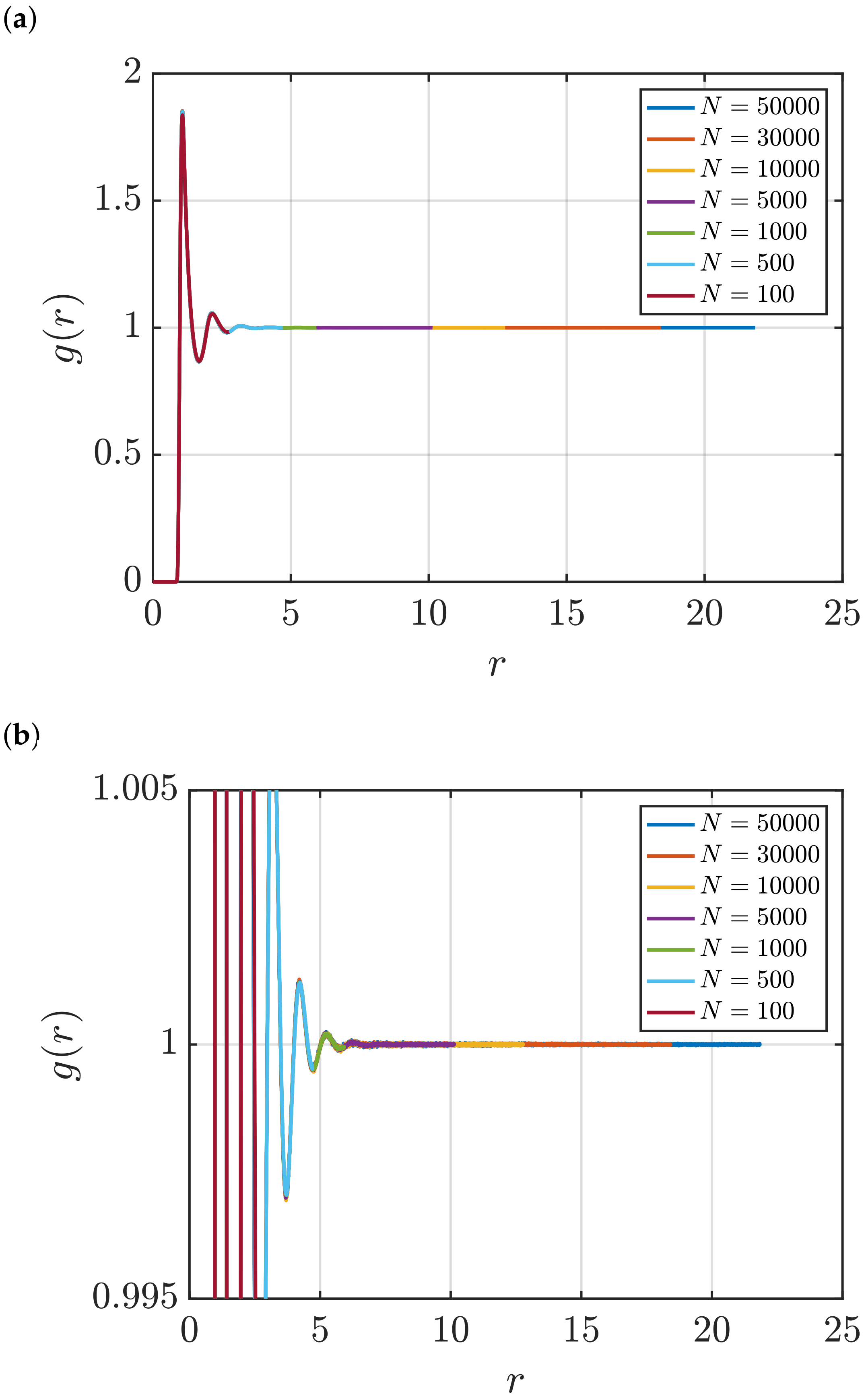

**Figure 1.**(

**a**) RDFs for systems of different sizes of a Weeks–Chandler–Andersen (WCA) fluid at T = 2 and ρ = 0.6 (dimensionless units). Molecular dynamics (MD) simulations in the NVT ensemble were used to compute g(r), and the Ganguly and van der Vegt correction [26] was applied (Equation (13)). (

**b**) A zoom in of the plots in Figure (

**a**) is shown.

**Figure 3.**(

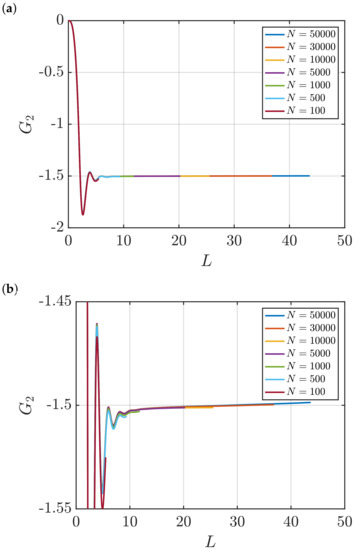

**a**) Estimation of KB integrals in the thermodynamic limit, G

_{2}(Equations (6) and (7)) vs. L for the WCA fluid at T = 2 and ρ = 0.6 (dimensionless units). The values of G

_{2}are computed for systems with varying number of molecules N. The used RDFs are provided in Figure 1. (

**b**) A zoom in of the plots in Figure (

**a**) is shown.

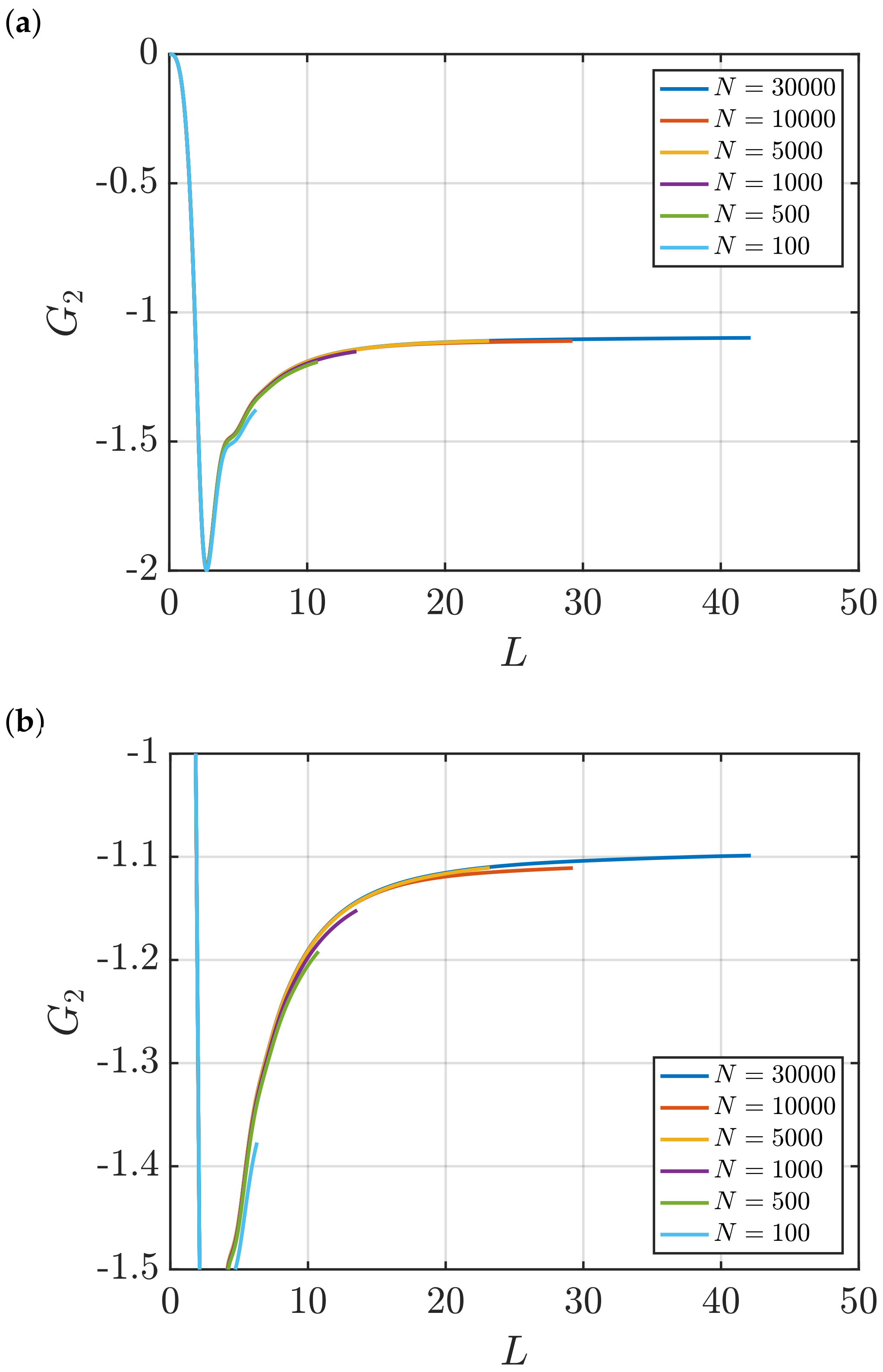

**Figure 7.**(

**a**) Estimation of KB integrals in the thermodynamic limit, G

_{2}(Equations (6) and (7)) vs. L for the LJ fluid at T = 2 and ρ = 0.4 (dimensionless units). The values of G

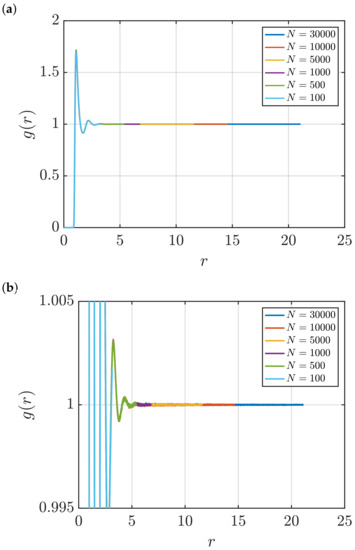

_{2}are computed for systems with varying number of molecules N. The used RDFs are provided in Figure 5. (

**b**) A zoom in of the plots in Figure (

**a**) is shown.

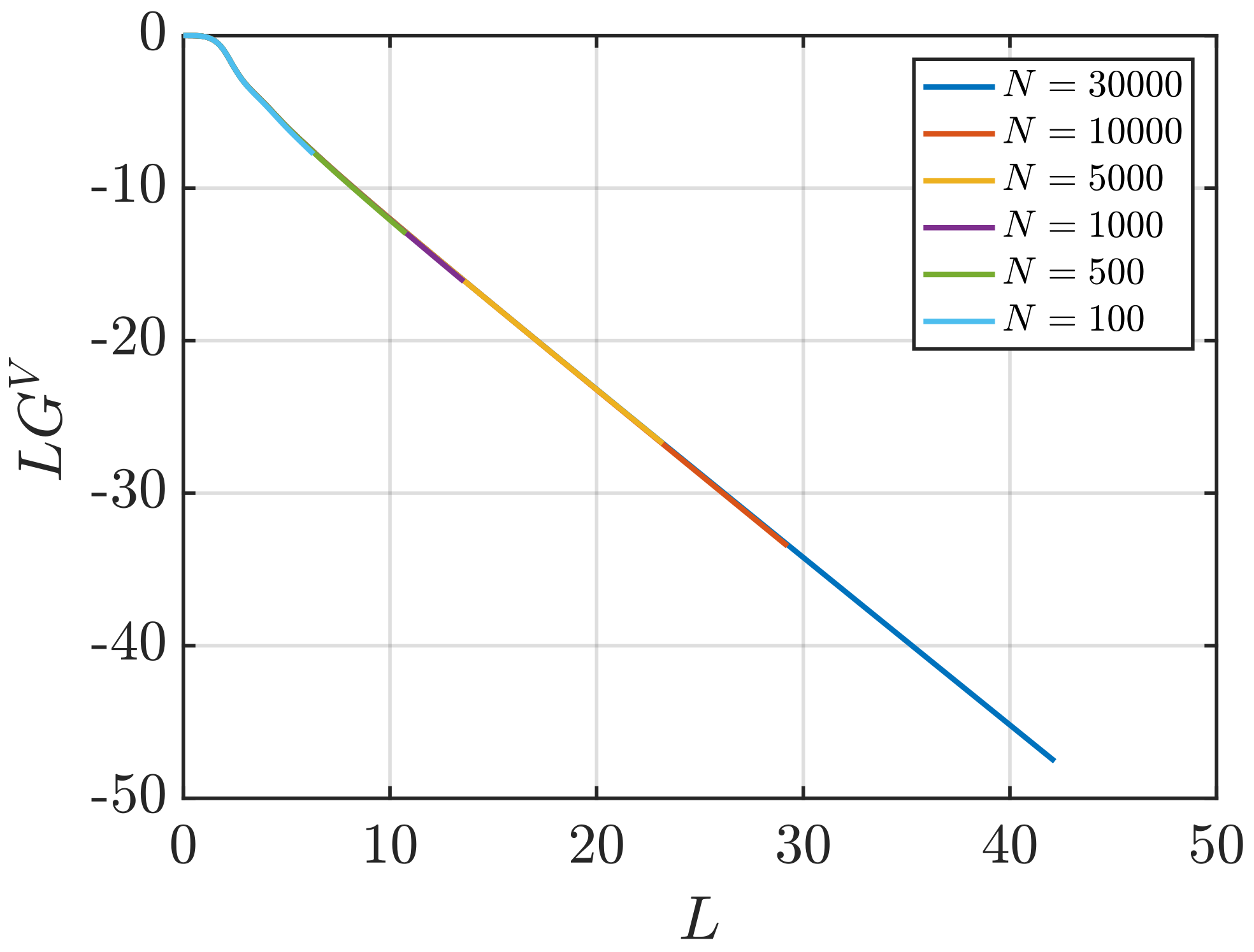

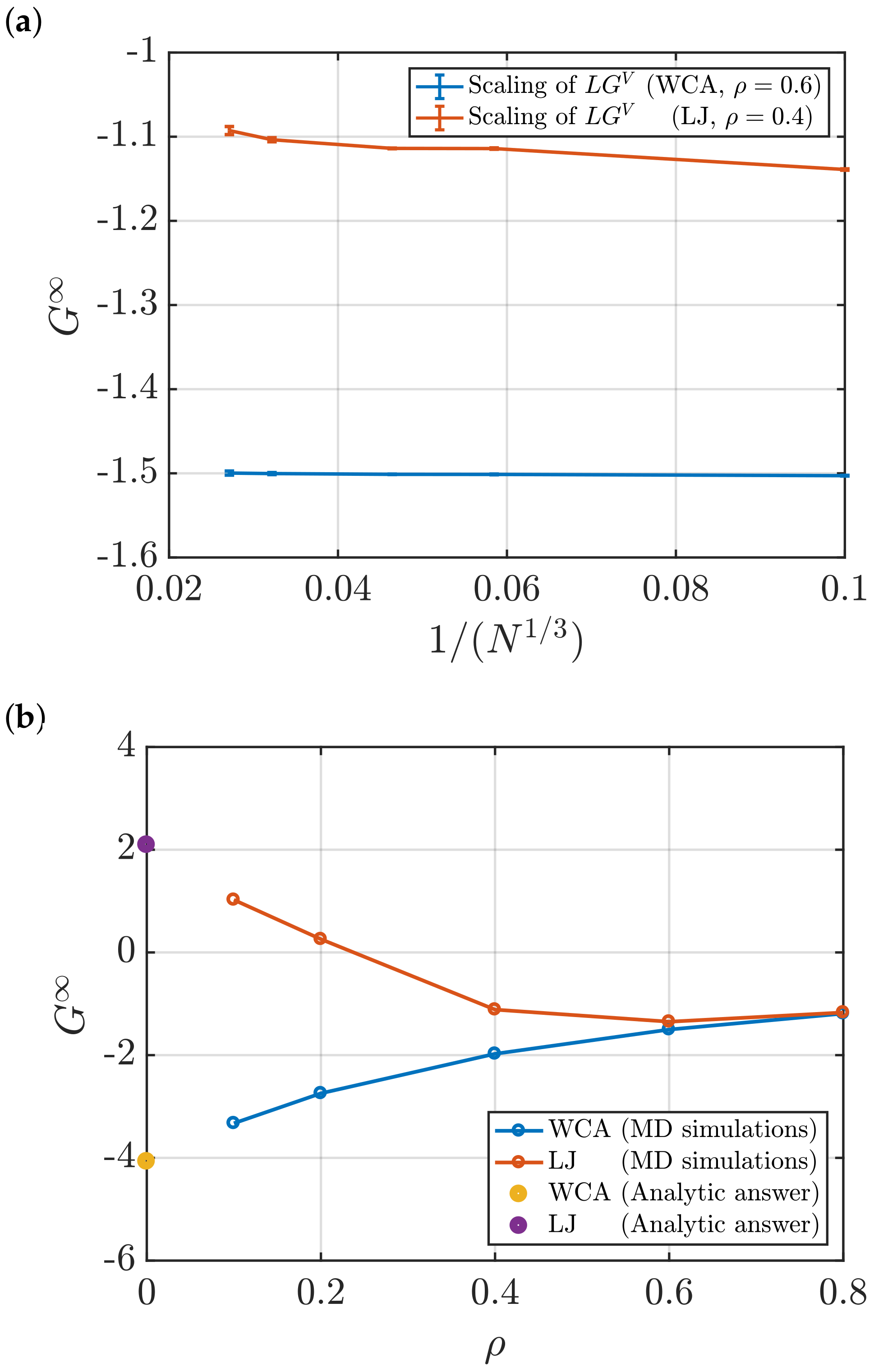

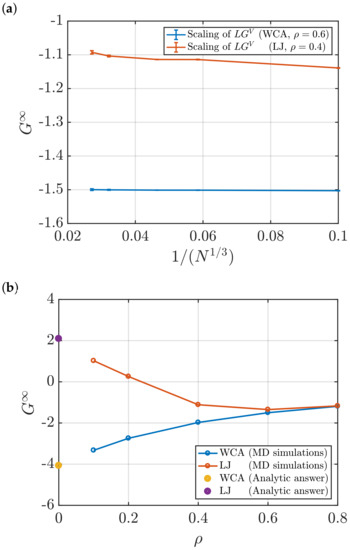

**Figure 9.**(

**a**) KB integrals in the thermodynamic limit G

^{∞}as a function of the size of the system for the WCA fluid at ρ = 0.6, and the LJ fluid at ρ = 0.4. Both fluids are simulated at T = 2 (dimensionless units). (

**b**) G

^{∞}as a function of dimensionless density ρ of LJ and WCA systems at T = 2. For all densities, the same number of particles is used, N = 10,000.

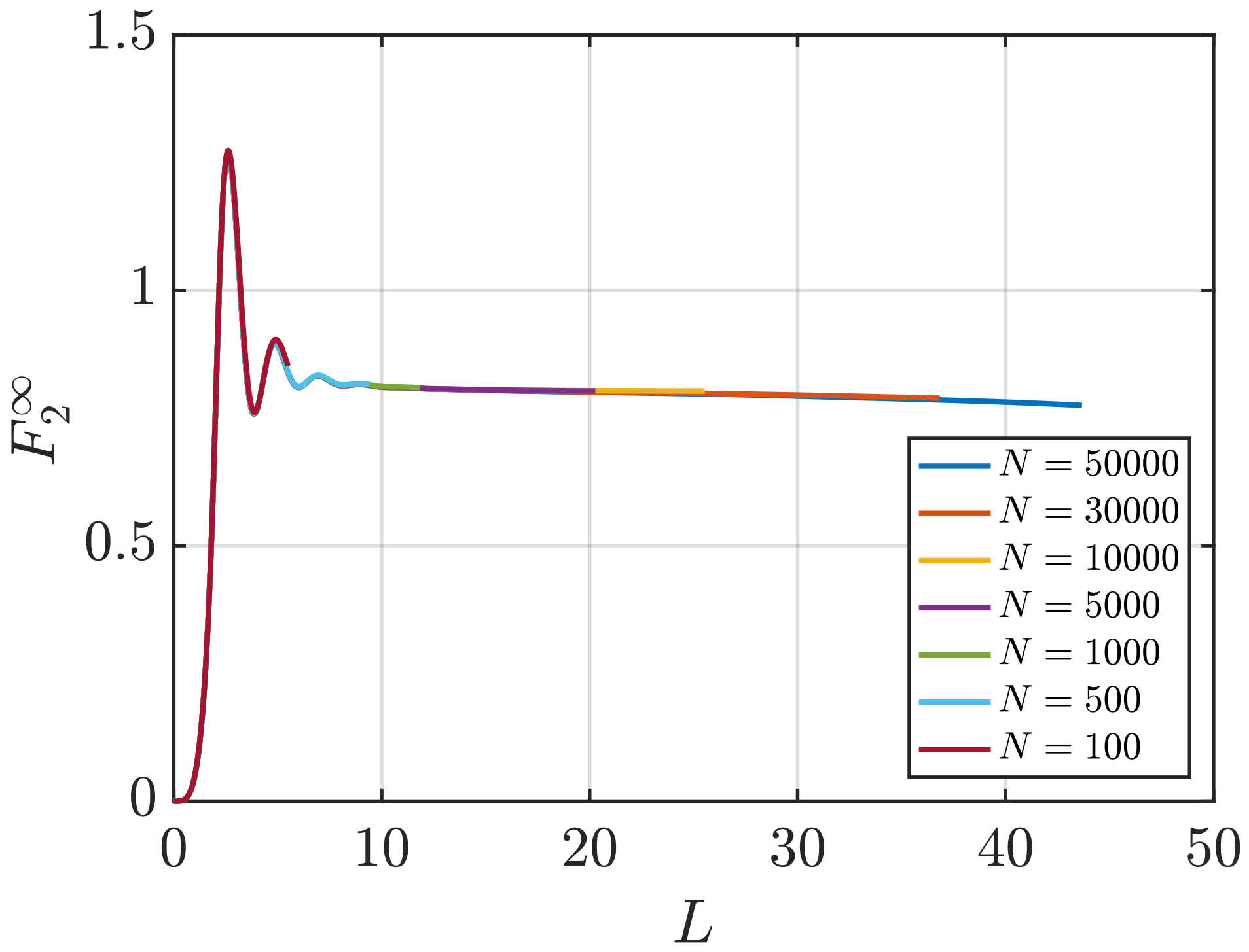

**Figure 10.**Estimation of the surface term in the thermodynamic limit ${F}_{2}^{\infty}$ (Equation (11)) vs. L for the WCA fluid at $T=2$ and $\rho =0.6$ (dimensionless units). The values of ${F}_{2}^{\infty}$ are computed for systems with varying number of molecules N. The used RDFs are provided in Figure 1.

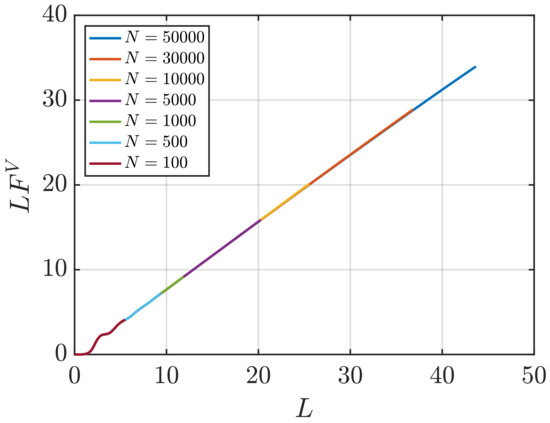

**Figure 11.**Surface effects of finite subvolumes multiplied by the diameter of the subvolume $L{F}^{v}$ (Equation (10)) vs. L for the WCA fluid at $T=2$ and $\rho =0.6$ (dimensionless units). The values of ${G}^{v}$ are computed for systems with varying number of molecules N. The used RDFs are provided in Figure 1.

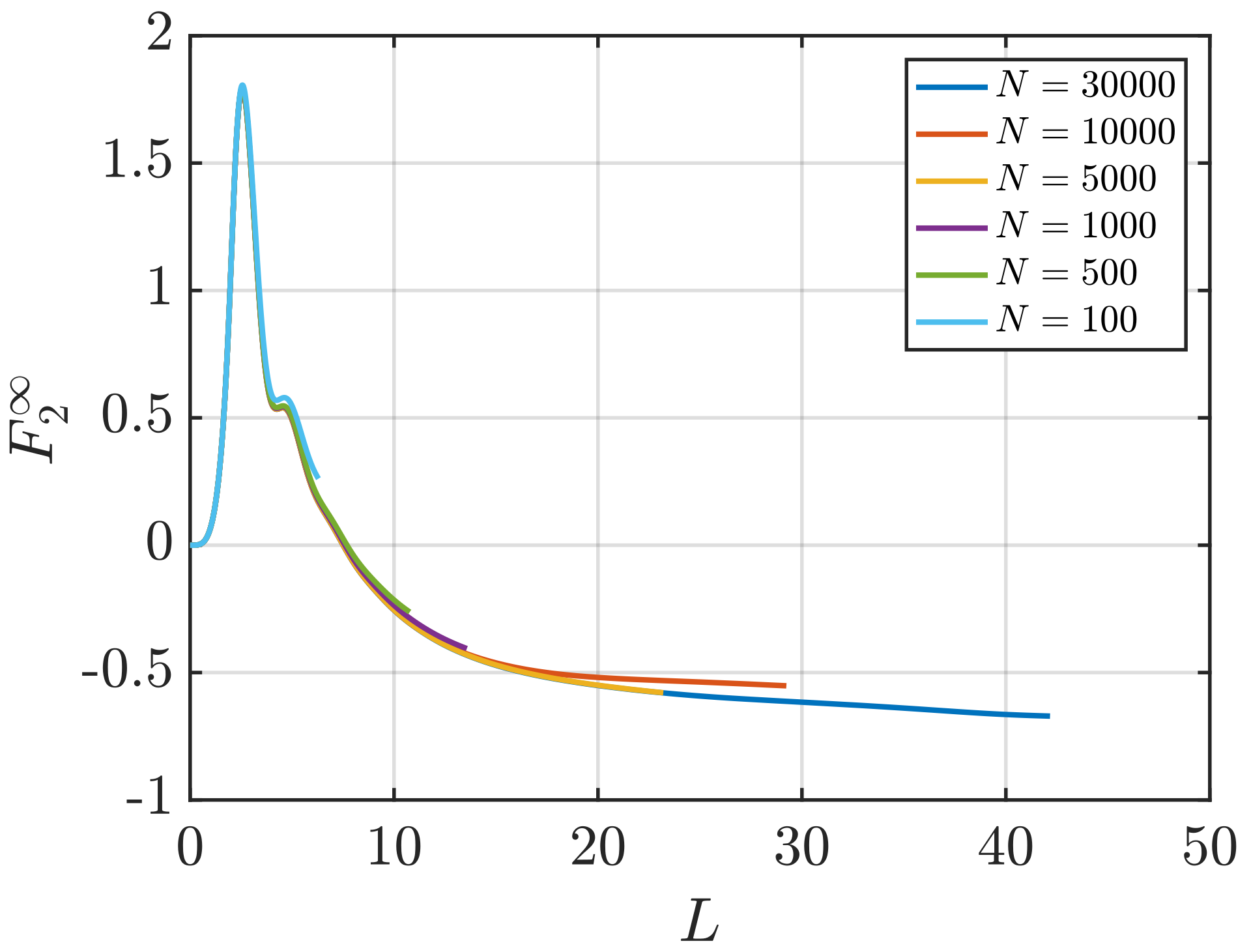

**Figure 12.**Estimation of the surface term in the thermodynamic limit ${F}_{2}^{\infty}$ (Equation (11)) vs. L for the LJ fluid at $T=2$ and $\rho =0.4$ (dimensionless units). The values of ${F}_{2}^{\infty}$ are computed for systems with varying number of molecules N. The used RDFs are provided in Figure 5.

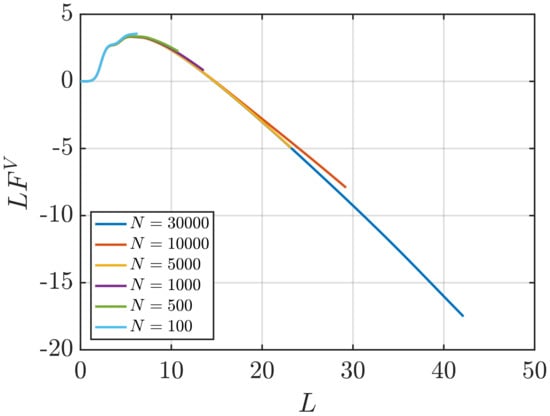

**Figure 13.**Surface effects of finite subvolumes multiplied by the diameter of the subvolume $L{F}^{V}$ (Equation (10)) vs. L for the LJ fluid at $T=2$ and $\rho =0.4$ (dimensionless units). The values of ${G}^{V}$ are computed for systems with varying number of molecules N. The used RDFs are provided in Figure 5.

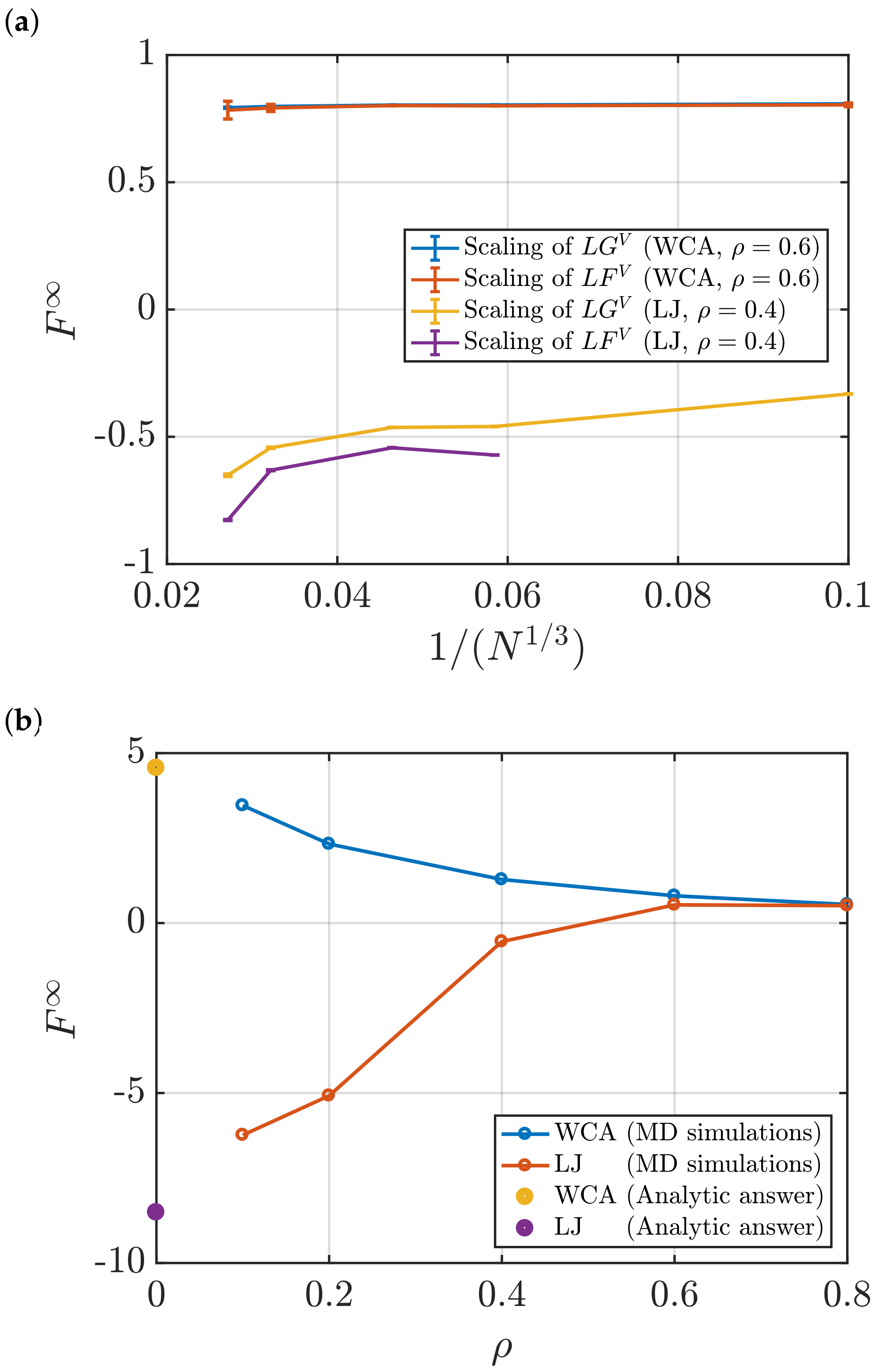

**Figure 14.**(
