Article

Fe-Cu Doped Multiwalled Carbon Nanotubes for Fenton-like Degradation of Paracetamol Under Mild Conditions

1
Departamento de Química Inorgánica y Química Técnica, Facultad de Ciencias, UNED, Paseo Senda del Rey nº 9, 28040 Madrid, Spain
2
Departamento de Ciencias, Escuela de Ingeniería, Arquitectura y Diseño, Universidad Europea de Madrid, c/ Tajo s/n, Villaviciosa de Odón, 28670 Madrid, Spain
3
Departamento de Ingeniería Industrial y Aeroespacial, Escuela de Ingeniería, Arquitectura y Diseño, Universidad Europea de Madrid, c/ Tajo s/n, Villaviciosa de Odón, 28670 Madrid, Spain
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(4), 749; https://doi.org/10.3390/nano10040749
Submission received: 16 March 2020 / Revised: 11 April 2020 / Accepted: 13 April 2020 / Published: 14 April 2020
(This article belongs to the Special Issue Application of Carbon Nanomaterials in Catalysis)

Abstract

:
A series of carbon nanotubes doped with Fe and/or Cu, Fe100−xCux/CNT (x = 0, 25, 50, 75 and 100) has been prepared by an easy method of wetness impregnation of commercial multiwalled carbon nanotubes previously oxidized with nitric acid. The wide characterization of the solids by different techniques demonstrates that the incorporation of Fe and Cu to the CNTs has been successfully produced. Fe100−xCux/CNT samples were tested as catalysts in the removal of paracetamol from aqueous solution by a combined process of adsorption and Fenton-like oxidation. Under mild conditions, 25 °C and natural pH of solution, i.e., nearly neutral, values of oxidation of paracetamol between 90.2% and 98.3% were achieved after 5 h of reaction in most of cases. Furthermore, with the samples containing higher amounts of copper, i.e., Cu100/CNT and Fe25Cu75/CNT, only 2 h were necessary to produce depletion values of 73.2% and 87.8%, respectively. The influence of pH and dosage of H2O2 on the performance has also been studied. A synergic effect between both Cu+/Cu2+ and Fe2+/Fe3+ in Fenton-like reaction was observed. These results demonstrate that Fe100−xCux/CNT are powerful Fenton-like catalyst for degradation of paracetamol from aqueous solution and they could be extended to the removal of other organic pollutants.

Graphical Abstract

1. Introduction

Advanced oxidation processes (AOPs) are based on the formation of highly reactive radicals capable to degrade recalcitrant organic wastewater contaminants with high efficiency [1,2,3,4]. Among them, heterogeneous processes based on the production of hydroxyl radicals from the decomposition of H2O2 by the action of catalysts containing the Fe3+/Fe2+ couple [5,6,7,8,9] or other elements with multiple redox state [10] have been broadly used. They are known as heterogeneous Fenton-like processes and overcome the drawbacks of homogenous counterparts of the limited narrow working pH (3–4) and the necessity of recovering the leached iron from the wastewater. In this sense heterogeneous catalysts containing active species stabilized on oxides [6,11,12,13] zeolites [14,15,16], clays [15,17,18] or carbon materials [19,20,21,22,23] have been widely applied for the degradation of dyes, pesticides, pharmaceuticals and so on. Moreover, magnetite-based catalysts are the most used in the heterogeneous Fenton oxidation, being recently revised [8].
The pharmaceutical compounds are products widely employed throughout the world and their presence in water resources is a worrying environmental issue. Paracetamol (acetaminophen) is one of these pharmaceutical products commonly used for humans as mild analgesics and anti-inflammatories, which is present in waste water treatment plant or even in natural waters [24,25], being necessary to develop efficient treatment processes for reducing its presence in aquatic environments.
Among carbon materials, carbon nanotubes (CNTs) are very interesting as catalysts or alternative supports to the conventional ones due to their excellent properties, such as the high mesoporosity and controlled pore size distribution, hollow and layered structures [26,27]. Furthermore, due to the hydrophobic character of their surface, CNTs exhibit more active sites to interact with organic pollutants. In this regard, different articles have reported the use of iron oxides supported over CNTs as heterogeneous Fenton catalysts for the degradation of phenolic compounds [28,29,30,31], herbicides [32], antibiotics [33] and dyes [34]. However, to the best of our knowledge, there are no studies of Fenton-like degradation of paracetamol using iron catalysts supported on carbon nanotubes. On the other hand, Cu2+/Cu+ pairs have been proven by other authors [10,35] and by us [13] as efficient catalysts for Fenton-like processes. All above considered, we have thought that the combination of both Fe3+/Fe2+ and Cu2+/Cu+ pairs together with the good surface properties of carbon nanotubes could lead to a synergic effect in the performance of this kind of processes. Hence, in this work, we report the facile synthesis of Fe-Cu/CNTs samples prepared by wet impregnation and their use as catalysts in the Fenton-like degradation of paracetamol. The influence of different variables such as the pH of reaction and H2O2 dosage on the catalytic activity has been investigated. The stability and recyclability of the catalysts, as well as the leaching and mineralization degree have been also studied.

2. Materials and Methods

2.1. Preparation of the Fe-Cu Doped Carbon Nanotubes

The commercial pristine multiwalled carbon nanotubes were provided by Sigma-Aldrich (Sigma-Aldrich-Merck, Madrid, Spain) (OD × L 6–9 mm × 5 μm and purity > 95%). They were previously functionalized by oxidation with nitric acid, according to the procedure described in [36]. The commercial carbon nanotubes used as raw material showed CoCu2Sn as impurity. However, it was removed after treatment with nitric acid in [36]. The oxidized carbon nanotubes (CNTO) were crushed and sieved to a 0.05 < d < 0.10 mm particle size, and then they were treated with iron and/or copper acetates by the incipient wetness impregnation method. A solution containing the corresponding mix of acetates in the appropriate concentration to obtain a metal loading of 7 wt % (with respect to CNTO) was added drop to drop to 0.40 g of CNTO. The obtained solid was dried at room temperature for 24 h and at 60 °C for 16 h and finally pyrolyzed under nitrogen flow at 400 °C for 30 min. Five catalysts were prepared, with the nominal composition of Fe100−xCux/CNT, with x = 0, 25, 50, 75 and 100.

2.2. Characterization of Samples

The textural properties of samples were determined from the nitrogen adsorption–desorption isotherms at −196 °C, by using a Micromeritics ASAP 2010 equipment (Micromeritics, Méringac, France). The samples were previously outgassed at 150 °C for 8 h until a vacuum set point of 200 µm Hg. The surface area and micropore surface were determined by the BET method and t-plot method, respectively, and the mesoporosity characteristics of samples were obtained by the BJH method. The morphology of the Fe1−xCux/CNT samples was analyzed by scanning electron microscopy (SEM). Experiments were carried out with a JEOL JSM 6335F microscope (JEOL, Austin, TX, USA) operating at 200 kV. Metal dispersion and nature were followed by high-resolution transmission electron microscopy (HRTEM) using an Oxford Instrument, model: X-Max (Oxford Instruments Nanoanalysis &Asylum Research, High Wycombe, UK) of 80 mm2 and resolution between 0.127 and 5.9 KeV and by X-Ray diffraction using a X’Pert Pro Panalytical (Malvern Panalytical, B.V., San Sebastián de los Reyes, Madrid, Spain) diffractometer with CuKα radiation (1.5406 Å), operating at 40 kV and 40 mA.
The content of iron and copper of the samples was determined by inductively coupled plasma optical emission spectrometry (ICP-OES) on an ICP-OES PlasmaQuant® PQ 9000 instrument (Analytic Jena, Upland, CA, USA). The metal leaching after reaction procedure was evaluated by measuring the concentration of metal in the final solution, after filtration through 0.45 mm Durapore membrane syringe filters, by inductively coupled plasma mass spectrometry (ICP-MS) on a Nexion 300D Perkin-Elmer instrument (PerkinElmer INC, Waltham, MA, USA).

2.3. Catalytic Activity

The adsorption experiments of paracetamol (PCM) were carried out in a Batch reactor by contacting 10 mg of catalyst with 25 mL of paracetamol solution (50 mg/L, 0.33 mM) under stirring at 700 rpm and 25 °C. The concentration of paracetamol in the solution at selected times was determined by measurements the UV-vis absorption at 243 nm in a Cary-1-UV-VIS (Varian Analytical instruments, Madrid, Spain) spectrophotometer. The adsorbed amount of PCM (Cads) was calculated as:
Cads = C0 − Ct
where C0 is the initial concentration of PCM and Ct is the concentration of PCM in solution at each selected time, t.
The decomposition curves of H2O2 in absence of paracetamol were determined by contacting 10 mg of catalyst with 25 mL of Milli-Q water and 39.3 μL of H2O2 (30% Sigma-Aldrich) (Sigma-Aldrich-Merck, Madrid, Spain). Samples were taken periodically and the concentration of H2O2 was calculated by measuring the absorbance at 405 nm of the yellow complex formed with titanyl sulphate [37]. The amount of decomposed H2O2 (Cdec) was calculated as:
Cdec = Ct/C0
where C0 is the initial concentration of H2O2 and Ct is the concentration at each selected time, t.
In order to carry out the experiments of paracetamol decomposition by H2O2, 125 mL of paracetamol solution were contacted with 50 mg of catalyst and after adsorption equilibrium (in 30 min) 196 μL of H2O2 (30%; 13.8 mM) were added. The paracetamol concentration was measured by a high-performance liquid phase chromatograph (HPLC) Agilent Technologies 6120 Quadrupole LC/MS (Agilent Technologies Spain, Las Rozas, Madrid, Spain), equipped with BIN pumps and 6120 Quadrupole LC/MS detection. The separation was achieved on a C18 reverse phase column (Zorbaz RP, Agilent, Agilent Technologies Spain, Las Rozas, Madrid, Spain) using an isocratic mobile phase (50/50 mixture of acetonitrile/water) acidified at pH 2.0 with formic acid, fed at 0.5 mL/min. The amount of decomposed paracetamol was calculated according to Equation (2), by replacing concentrations of H2O2 by PCM concentrations.
Some experiments of recyclability of catalysts were carried out. After each reaction, the catalysts were filtered off, washed with Milli-Q water and dried at 110 °C in a vacuum oven for 7 h. Due to the loss of catalyst produced between successive cycles, the amounts of H2O2 and paracetamol were rescaled according to the amount of catalyst.
The pH of the solution was measured at the beginning and at the end of the reaction, but it was not controlled during the same. The amount of H2O2 used was the corresponding to a concentration of 13.8 mM, twice the stoichiometric one, according to Equation (3):
C8H9NO2 + 21 H2O2 → 8CO2 + HNO3 + 25H2O
and it was chosen based on previous results [13,21,38]. For a more detailed explanation of the three former procedures see reference [13].
The total organic carbon (TOC) was measured using a Shimadzu TOC-V SCH spectrophotometer (Shimadzu Europa GmbH, Duisburg, Germany). TOC was calculated as the difference between the total carbon (TC) and inorganic carbon (IC) in the liquid samples at selected reaction times.

3. Results and Discussion

3.1. Characterization of Samples

Figure 1 displays the X-Ray diffraction patterns of the catalysts and the crystallite size of the detected phases, calculated by the Debye–Scherrer equation, are given in Table 1. The graphitic nature of the walls of carbon nanotubes was clearly observed by the diffraction peaks detected in all cases at 2θ = 26.2 and 44.4°(JCPDS-ICDD 01-0750-1621), and it was not significantly altered by the incorporation of metals to the nanotubes. For Fe100−xCux/CNT samples, with 100 ≤ x ≤ 50, the diffraction peaks of Fe3O4 (JCPDS-ICDD 01-079-0418) were observed at 2θ = 30.1, 35.4 and 62.5°.
The crystallite size of magnetite increases slightly in the order Fe100/CNT < Fe75Cu25/CNT < Fe50Cu50/CNT, which seem to indicate that the incorporation of increasing amount of copper diminishes the dispersion of Fe3O4. When the content of one of the metals was 25% with respect to the total metal load, no crystalline phase of that metal species was observed. Thus, any copper phase was detected in Fe75Cu25/CNT and any iron phase was detected for Fe25Cu75/CNT. The diffractograms of catalysts containing copper with x ≥ 50 displayed the peaks of metallic copper (JCPDS-ICDD01-085-1326) centered at 2θ = 43.3, 50.4 and 74.1, probably formed due to the reducing character of graphite sheets. The intensity of the main peak of Cu increased when increasing the content of copper in the sample, and the crystallite size also did it, from 18.7 nm for Fe50Cu50/CNT to 29.0 nm for Cu100/CNT. Additionally, Cu2O (JCPDS- 03-065-3288) was formed in Fe25Cu75/CNT and Cu100/CNT samples (peaks centered at 2θ = 36.5, 42.3 and 61.5°), with a crystallite size of 15.0 and 20.0 nm, respectively.
From the values of metal content, determined by ICP-OES (Table 2) it can be seen that the total amount was close to the theoretical ones; however, the copper was incorporated in a higher extent than the iron, and their measured values were anomalously higher than the expected. Unfortunately, we did not have an explanation for this fact, except that of a possible error during the preparation of samples.
The textural properties of samples are given in Table 3. Samples are mainly mesoporous, as deduced from the comparison of values of Vmes and Vp and from the low contribution of Smic to SBET values. The oxidation of carbon nanotubes produces an increment of SBET and pore volume (compare with the values for commercial carbon nanotubes, CNT), mainly of the mesopore volume, because a deagglomeration of nanotubes occurs and a removal of amorphous carbon and impurities from surface is produced. When CNTO are impregnated with the acetates, a decrease in the SBET and Vp is produced, due to the blockage of micro- and mesopores by the metallic phases, which have crystallite sizes in this range. However, a clear trend between the content of metal and the SBET values is not observed. As deduced from the shape of the isotherms (see Figure S1) and the average mesopore diameter values, the mesoporous structure of carbon nanotubes seems not to be affected by the impregnation with the metallic salts.
The morphology and metal dispersion of samples were studied by SEM and HRTEM. The TEM images of catalysts are shown in Figure 2. Fe3O4 nanoparticles of consistent shape were highly dispersed on the nanotubes in the Fe100/CNT catalyst (Figure 2A,B), with a mean particle size (calculated by ImageJ program) of 3.4 nm. These nanoparticles with similar size are also clearly detected in the images of Fe75Cu25/CNT (4 nm) and Fe50Cu50/CNT (4.6 nm) samples (Figure 2C–F). The particle sizes observed for Fe3O4 were very close to those detected by the Scherrer equation (Table 1) and similarly increased slightly in the order Fe100/CNT < Fe75Cu25/CNT < Fe50Cu50/CNT. However, in the catalysts containing higher amount of copper, i.e., Fe25Cu75/CNT and Cu100/CNT, these smaller particles associated to Fe3O4 were not observed. For these two catalysts, a combination of very small particles of copper phases (marked with red circles in Figure 2H,I), highly dispersed and hardly detected, together with big particles of aggregates of copper with size around 50–55 nm (also marked with red circles in Figure 2G,I) seems to exist, which indicates a heterogeneous dispersion of particles in these two samples. The incorporation of the metallic phases to the matrix of carbon nanotubes was also corroborated by analyzing the corresponding EDX spectra of TEM images and the EDX spectra of SEM images of the catalysts (Figures S2 and S3, respectively), although the wt % of metal measured was lower than the theoretical one, with the exception of Fe100/CNT and Fe75Cu25/CNT samples, for which it was close to the 7 wt %. The presence of both elements, Fe and Cu, was observed in the EDX spectra of TEM and SEM images (Figures S2 and S3, respectively) of the mixed samples and only one of the elements, Fe or Cu, in the corresponding spectra of monometallic samples. However, in order to know if nanoparticles detected in the spectra of mixed samples are nanocomposites of Fe-Cu, an additional study should be required.

3.2. Adsorption of Paracetamol

The kinetics of adsorption of paracetamol for the samples is displayed in Figure 3. The pH of paracetamol solution was about 6.2–6.6, which determines that under these conditions, the paracetamol is in its molecular form. As a result, the adsorption of the organic was produced through weak dispersed forces. Notice that a rapid adsorption occurred in the initial times, in such way that the adsorption equilibrium seemed to be reached at 30 min, and from this time the adsorbed amount kept constant or increased only slightly. The samples that adsorb less paracetamol were those showing the lowest Smic values, that is, Fe50Cu50/CNT and Fe25Cu75/CNT. Although the microporosity of these samples was very low or even null, between 11.5% and 14.6% of organic was adsorbed. It should be noticed that the surface of carbon nanotubes had a proportion of basal planes [39] and as a consequence, π–π interactions between carbon nanotubes surfaces and paracetamol aromatic rings must be important in the adsorption process on these materials. For the catalysts containing more micropores, the proportion of basal planes was higher and the π–π interactions would be more relevant. However, the trend observed in the adsorption capacity was not the same that the followed by Smic values; therefore, other factors such as the surface chemistry or the different crystalline phases cannot be discarded in the adsorption process.
As shown in Figure 3, catalysts adsorb between 11.8% and 22.5% of paracetamol at 300 min. However, as said above, the adsorbed amount practically kept constant from 30 min. For that reason, 30 min was selected as the time for equilibrating adsorption process before adding the H2O2 in the experiments of degradation of paracetamol.

3.3. Decomposition of H2O2

The capacity of the carbon nanotubes for the decomposition of H2O2 to produce hydroxyl radicals was investigated (Figure 4). It is known that both couples of species, Fe3+/Fe2+ and Cu2+/Cu+ are active in heterogeneous Fenton reactions as follows (where S represents the surface of the catalysts) [22,35]:
S-Fe2+ + H2O2 → S-Fe3+ + HO + HO
S-Fe3+ + H2O2 → S-Fe2++ HO2 + H+
S-Fe2+ + HO → S-Fe3+ + HO
S-Fe3+ + HO2 → S-Fe2+ + O2 + H+
S-Cu+ + H2O2 → S-Cu2+ + HO + HO
S-Cu2+ + H2O2 → S-Cu++ HO2 + H+
S-Cu+ + HO → S-Cu2+ + HO
S-Cu2+ + HO2 → S-Cu+ + O2 + H+
As deduced from Figure 4, the followed order in the decomposition of H2O2 was Fe75Cu25/CNT < Fe100/CNT < Fe50Cu50/CNT < Cu100/CNT <Fe25Cu75/CNT. The most active samples were those containing higher amounts of copper, but among them, the best catalyst was that containing also iron, indicating a synergetic effect between the two metals. Copper seems to result in being more active than iron in this reaction. This could be due to the fact that the Cu+/Cu2+/H2O2 system can work over a broader pH range, as compared to the Fe2+/Fe3+/H2O2 system. Notice that the decomposition of H2O2 in our work was carried out at the natural pH of paracetamol solution, i.e., near neutral conditions and the Fe2+/Fe3+ usually works in the 3–4 pH range. In this sense, Cu100/CNT decomposed completely the H2O2 in 180 min, in contrast to the 22% of remaining H2O2 observed for Fe100/CNT at that time. Notice also that CNTO only decomposed a 5% of H2O2 in all the reaction time, which indicates the activity of the incorporated metals (Fe-Cu) in the Fenton-like reaction under study.
It has been reported that the activity of the catalysts containing iron in the heterogeneous Fenton process depends on characteristics of these oxides, such as crystallinity and surface areas [40,41]. The order observed in the decomposition of H2O2 for our catalysts was not the followed by the microporosity of samples (see Smic values in Table 3). This means that the catalytic activity was not significantly affected by textural properties and other different factors seem to be involved in it.
As said above, the most active samples were those containing a higher amount of copper, especially Fe25Cu75/CNT and Cu100/CNT, for which Cu2O and Cu0 were detected by XRD. In the case of Fe50Cu50/CNT, less active than the former catalysts, Cu2O was not detected, but only metallic copper (in addition of Fe3O4), which suggests that Cu2O, with the presence of Cu+, which can be oxidized to Cu2+ and generate HO by Equation (8), was more active than Cu0 in this reaction. With respect to the catalysts containing iron the presence of the Fe2+/Fe3+ couple in form of Fe3O4 was also responsible for the decomposition of H2O2. Since the rate constant of Equation (8) (k = 1.0 × 104 M−1 s−1) was much higher than that of Equation (4) (k = 76 M−1 s−1) [42], samples containing higher amounts of copper showed higher Fenton-like activity than those containing only iron. Furthermore, the synergic effect between Cu and Fe and in general, the better performance of catalysts containing both metals with respect to that of Fe100/CNT can also be explained as follows. Fe3+ ions were thermodynamically susceptible to be reduced by Cu+ ions (Equation (12)). The redox reaction of Cu+/Fe3+ will accelerate the redox reactions of both Cu+/Cu2+ and Fe2+/Fe3+, thus promoting the overall Fenton reaction cycle, and as a result, improving the catalytic rate.
Cu+ + Fe3+ → Cu2+ + Fe2+
This synergic effect was also reported in the degradation of bisphenol A by Wang et al. [22] who found that the catalytic activity of iron-copper bimetallic nanoparticles embedded within ordered mesoporous carbon composite (CuFe-MC) was much higher than that of Fe-MC and Cu-MC.

3.4. Fenton-like Decomposition of Paracetamol

The kinetics of catalytic decomposition of paracetamol is depicted in Figure 5. A blank experiment of degradation of paracetamol by H2O2 in the absence of catalyst was also carried out, and as seen in Figure S4 its degradation was negligible, in this way discarding a direct reaction between both compounds. Two stages were observed in the kinetics of Figure 5. The first one, until 30 min, was due to the physisorption of paracetamol on carbon nanotubes surface, and the values of removed paracetamol (between 7.5% and 23%) were similar to those reported in Figure 3. The second stage produced after the addition of H2O2 corresponded to the paracetamol decomposition by the Fenton-like process.
As seen in Figure 5, the CNTO did not decompose the PCM and its removal was produced only by adsorption, and a decrease in the paracetamol concentration was not produced after adding H2O2. The degradation kinetics of paracetamol, considering only the Fenton-like contribution, and not the adsorption step, were adjusted to pseudo-first-order reaction kinetics, according to Equation (13):
ln (Ct/C0) = −kobst
where kobs is the pseudo-first-order apparent rate constant, and the constants were calculated from the slopes of the straight lines by plotting ln (Ct/C0) as a function of removal time (t; Figure 6). As deduced from the values of the constants (Table 4), the order in the kinetics decomposition of paracetamol was Fe75Cu25/CNT < Fe50Cu50/CNT < Fe100/CNT < Cu100/CNT < Fe25Cu75/CNT. This order was not the same than the followed in the decomposition of H2O2 in Figure 4. Based on our previous results [13], we thought that the amount of decomposed H2O2 in the presence of paracetamol could be different than in its absence, and therefore, it would affect to the amount of oxidized paracetamol. In order to check it, during the experiments of degradation of the organic we also registered the decomposition curves of H2O2, which are represented in Figure S4. By comparison of Figure S4 and Figure 4, it was deduced that in all cases the H2O2 was decomposed in a less extent in the presence of contaminant than if its absence, and the differences in the rates of decomposition were especially more significant at longer reaction times. It can be explained considering that a competitive effect between paracetamol and H2O2 by the active species of the catalysts must occur. Similar results were found by us for the decomposition of paracetamol by some perovskites containing copper [13] and by other authors for the decomposition of other organics [35,43].
As deduced from Figure 5, Fe100−xCux/CNT samples were efficient catalysts for the Fenton-like decomposition of paracetamol. Removal of this compound between 90.2% and 98.3% were achieved after 5 h of reaction (330 min including the adsorption step) for all the catalysts, except for Fe75Cu25/CNT (67% of paracetamol removal). These values were even higher than those obtained previously by us using mesoporous carbons containing iron (78–96%, with a percentage removed by adsorption between 20% and 60%) [21]. Furthermore, for the samples containing higher amounts of copper, that is, Cu100/CNT and Fe25Cu75/CNT, depletion values of 73.2% and 87.8%, respectively, were achieved in only 2 h of reaction.
According to Figure S4, the final amounts of decomposed H2O2 in presence of paracetamol for F100/CNT, Cu100/CNT and Fe25Cu75/CNT samples were very similar (between 75% and 80%) and the amounts or removed paracetamol for these three catalysts (between 92.3% and 98.3%) were also very close between them. However, in the case of Fe75Cu25/CNT, for which a degradation of paracetamol of 90.3% was achieved, the amount of decomposed H2O2 (53%) was significantly lower than for the former catalysts. It means that not all the decomposed hydrogen peroxide participated in the oxidation of paracetamol by Equation (14), but some of the generated HO could react with more H2O2 by Equation (15), producing an additional decomposition of H2O2.
Paracetamol + HO → R + H2O → …→ CO2 + H2O
H2O2 + HO → H2O + HO2
It has been proposed that HO· radicals are considered as the dominant reactive oxygen species (ROS) in Fenton-like systems. In order to check if these radicals are also the main ROS in our case, a radical scavenger assay was carried out, by testing Fe25Cu75/CNT in the presence of 2-propanol. As shown in the inset of Figure 5, the removal of paracetamol was strongly inhibited with the presence of the stoichiometric amount of 2-propanol (13.8 × 10−3 M) with respect to H2O2, and the calculated apparent rate constant was significantly reduced from 0.78 to 0.096 h−1, suggesting that HO was the dominant ROS in this study.

3.4.1. Leaching and Mineralization Degree

Determination of leaching of iron and copper was carried out in order to study the possible contribution of homogeneous Fenton to the degradation of paracetamol. The amounts of metals leached off into the aqueous solution after 5 h of reaction, expressed in mg/L, are listed in Table 5. Notice that the concentration of catalyst used in the reaction was 0.4 g/L. When the reaction was carried out at natural pH, for the mixed catalysts, the amount of leached iron, comprised between 0.1 and 0.58 mg/L were below EU guidelines (<2 ppm) [44]. In the case of Fe100/CNT the leaching of iron was higher, 3.99 mg/L; however, it was significantly lower than the values obtained by other authors using Fe3O4/MWCNT in the degradation of phenol and p-nitrophenol (5.25 mg/L) [28] and acid Orange II (29.3% of leached iron) [5]. As a contrast, the amount and percentage of leached copper in the mixed samples were much higher than those values for iron. When comparing catalysts containing only one component, the amount of lixiviated copper in Cu100/CNT was lower than that of leached iron in Fe100/CNT. The opposite occurs if reaction was carried out at pH 3. The leaching of both iron and copper increased when decreasing pH, but that for copper did it to a greater extent (from 2.17 to 18.61 mg/L), resulting in approximately the double of leached copper with respect to iron.
In order to evaluate the mineralization degree of paracetamol, the TOC values were measured. From the results of Table 6, mineralization degree increased with reaction time; however, the TOC reduction was lower than the corresponding to the paracetamol removal (Figure 5), indicating that this compound was transformed upon oxidation to intermediate products. These products could be some different carboxylic acids, such as ketomalonic, maleic, fumaric, oxalic, oxamic and succinic, which have been reported by different authors [45,46] as products of photo- or electrochemical degradation of the paracetamol. The presence of these acids could explain the decrease in the pH values of solutions along reaction time (Table 5). However, some additional experiments of monitoring of the decomposition products by mass spectrometry should be addressed in future works in order to check this assumption. For some of samples the TOC removal was higher than the obtained (60%) when paracetamol was decomposed by using a zeolite containing iron [47] and those reached (35–50%) in the presence of nanoparticles of iron at pH = 2.6 [38]. Furthermore, in those studies the reaction conditions were much more drastic than that used in our work. Other TOC removal values obtained previously by us for the degradation of paracetamol after 5 h were 52% with a LaCuO3 perovskite reference [13] and 45–50% with some Fe-carbon xerogels [13,21,38], which are also lower than the reported in the present work. Therefore, the FexCu100−x/CNT samples used are efficient catalysts in this Fenton-like process. From the results of Table 6, the best catalyst in terms of both removal and mineralization of paracetamol was Fe25Cu75/CNT, for which almost all the paracetamol was decomposed and a TOC removal of 85.6% after 300 min was achieved.

3.4.2. Influence of pH and Dosage of H2O2

In order to check the influence of the pH of reaction, the initial pH of solution was modified until pH 3 by addition of 10 wt % H2SO4. The kinetics of the decomposition of paracetamol for all the catalysts under this pH condition is displayed in Figure 7.
Notice that the reaction proceeds better at pH 3 than at natural pH with the catalysts containing higher amounts of iron and faster decompositions of paracetamol were produced (compare Figure 7 and Figure 5); however, the differences in the final decomposition values of paracetamol at both pH were not very significant. On the contrary, the performance of catalysts containing higher amount of copper was worse at pH 3 than at the natural pH of paracetamol solution. In this sense, significantly lower values of decomposition were achieved at acid pH, 64% and 46% for Fe25Cu75/CNT and Cu100/CNT, respectively, in contrast to 87.8% and 73.2% values obtained for those catalysts at natural pH. Furthermore, at pH 3, the catalytic activity decreased with the increment of the amount of copper in the catalysts. As regarding the kinetic curves, two stages could be clearly differentiated, and their corresponding apparent constants, k1 and k2, are included in Table 4. A very fast decomposition occurred in the first 15–30 min after the addition of H2O2, and then the reaction was significantly slowed down. From calculated apparent constants (Table 4) it is seen that the first step of the reaction occurred much faster the higher the iron content in samples was.
Additionally, when compared the performance of Cu100/CNT and Fe100/CNT at pH 3 (Figure 7), the decomposition of paracetamol achieved with the first catalyst was significantly lower (45%) than that for the second (100%), probably due to the higher leaching of copper (18.61 mg/L) with respect to iron (9.25 mg/L; see Table 4), which led to a loss of heterogeneous copper active sites. However, as said above, for Fe100/CNT, a faster and higher decomposition of paracetamol occurred at pH 3 with respect to that at natural pH. For this catalyst, the higher amount of leached iron (Table 4) at pH 3 seemed to increase the homogenous contribution to the performance of reaction, also changing the kinetics of reactions, as deduced from the different shape of decomposition curves at the two pH values. Regarding the TOC values (Table S1), in general the final mineralization degrees achieved when the reaction was carried out at pH 3 were lower than the obtained at pH 6.2. Therefore, as a whole, it is better to carry out the reaction at the natural pH, in this way avoiding the additional cost of modifying the pH by adding any acid and decreasing the leached metals.
As mentioned in the “Materials and Methods” section, the amount of H2O2 used in all the experiments was twice the stoichiometric one, according to the previous results. However, we decided to carry out some experiments using the stoichiometric amount, in order to study the influence of the dosage of H2O2 on the paracetamol decomposition. As deduced from Figure 8, the decomposition values were significantly lower for most of the catalysts when the stoichiometric amount of H2O2 was used (compare with data from Figure 5) and the apparent constant rate values decreased significantly by a factor of 2.7–4.5 (see Table 4).
Thus, the paracetamol decomposition was reduced between a 21% (for Fe25Cu75/CNT) and 52% (for Fe75Cu25/CNT). The exception was the catalyst containing only iron, i.e., Fe100/CNT, for which, the final depletion of paracetamol was almost the same for both H2O2 dosages, although the decomposition occurred faster when the higher amount of oxidant was used. For this catalyst two stages seemed to exist in the heterogeneous Fenton reaction: the induction period and rapid degradation stage, the degradation rates were accelerated after about 90 min after the adding of H2O2, as clearly seen by the values of the apparent constant rate calculated for both stages (Table 4).
Furthermore, the values of TOC removal were, in general, lower than those obtained when the double of amount of oxidant was used (see Table S2 in Supplementary Materials). Therefore, as a rule, the use of the stoichiometric amount of H2O2 decreased significantly the decomposition of paracetamol. Notice that H2O2 acted as a sink for HO radicals through Equation (15), decreasing the paracetamol oxidation, and additional H2O2 amount must be necessary to produce more oxidant radicals through Equations (4), (5), (8) and (9). Consequently, the reaction proceeded better when the H2O2 amount was the double of the stoichiometric.

3.4.3. Recyclability of Catalysts

Some experiments for studying the recyclability of the catalysts were carried out, more concretely, with three of the catalysts, Fe100/CNT, Cu100/CNT and the most active one, Fe25Cu75/CNT. The results of reusability are shown in Figure 9.
Notice that a decrease in the activity around 5–6% in the case of Fe100/CNT and Cu100/CNT, and about 10% for Fe25Cu75/CNT was produced for the first to the second cycle, probably due to the leaching of metals into solution (Table 4). The reduction of activity after three runs was comprised between 12% (for Cu100/CNT) and 15% (for Fe100/CNT and Fe25Cu75/CNT). However, despite the leaching of metals and the decrease in the activity, the TOC removal values were still significant and values between 45% and 78% of mineralization of paracetamol were achieved with recycled catalysts (Table S2). Therefore, the amount of remaining active sites in the catalysts was still enough to carry out the reaction in consecutive cycles.

4. Conclusions

In this work, we reported for the first time the preparation of Fe-Cu doped carbon nanotubes by an easy method and their application as efficient catalysts for the degradation of paracetamol (90–98% in 5 h) by a combined process of adsorption and Fenton-like oxidation under mild reaction conditions, 25 °C and pH nearly neutral. The catalysts containing higher amounts of copper, present as Cu2O and Cu, showed higher Fenton-like activity than those containing only iron, as Fe3O4. It could be explained by the higher rate constant of reaction Cu+/H2O2, with respect to that of Fe2+/H2O2, which should produce more HO oxidant radicals in the case of catalyst with more copper. Additionally, a synergic effect between both Cu+/Cu2+ and Fe2+/Fe3+ was produced, and as a result, Fe25Cu75/CNT was more active than the catalyst with only copper, i.e., Cu100/CNT. That catalyst was the best in terms of both removal and mineralization of paracetamol, for which the paracetamol was almost completely decomposed and a TOC removal of 85.6% after 5 h was achieved. The reaction proceeds in all cases better when the H2O2 amount was double that of the stoichiometric one. The acidification of initial solution until pH 3 exerted a positive effect on the paracetamol degradation when the catalysts containing high amounts of iron were used (probably due to the homogeneous contribution of leached iron) and a negative effect for the samples doped with higher amounts of copper. As a result of the leaching of metals, a decrease of paracetamol degradation around 12–15% occurred from the first to the third reaction cycle. However, the activity and the mineralization degree remained high. These catalysts could be extended to the Fenton-like removal of other contaminants present in waters.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/4/749/s1, Figure S1: Isotherms of adsorption-desorption of Fe100−xCux/CNT samples. Figure S2: EDX spectra from TEM images of CNTO and Fe100−xCux/CNT samples. Figure S3: SEM images of Fe100−xCux/CNT samples and corresponding EDX spectra. Figure S4: Decomposition kinetics of H2O2 (C0 = 13.8 × 10−3 mol/L) in the presence of paracetamol (C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. Table S1: Values of TOC (%) obtained at pH 3 at different reaction times. C0 of paracetamol: 50 mg/L; C0 H2O2: 13.8 × 10−3 mol/L. Table S2: Values of TOC (%) obtained at natural pH at different reaction times. C0 of paracetamol: 50 mg/L.

Author Contributions

M.L.R.-C. conceived and designed the experiments. N.B.-B. and I.L.-T. performed the synthesis and characterization of catalysts. M.G.-A. carried out the adsorption and catalytic experiments. A.C.-N. performed the analysis by TEM and SEM of nanomaterials. M.L.R.-C. supervised the experiments, wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Spanish Ministry of Science and Innovation (CTM2014-56668-R) and by European University of Madrid project (2017/UEM09 and 2018/UEM21).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Comninellis, C.; Kapalka, A.; Malato, S.; Parsons, S.A.; Poulios, I.; Mantzavinos, D. Advanced oxidation processes for water treatment: Advances and trends for R&D. J. Chem. Technol. Biotechnol. 2008, 83, 769–776. [Google Scholar]
  2. Gogate, P.R.; Pandit, A.B. A review of imperative technologies for wastewater treatment. I: Oxidation technologies at ambient conditions. Adv. Environ. Res. 2004, 8, 501–551. [Google Scholar] [CrossRef]
  3. Gogate, P.R.; Pandit, A.B. A review of imperative technologies for wastewater treatment. II: Hybrid methods. Adv. Environ. Res. 2004, 8, 553–597. [Google Scholar] [CrossRef]
  4. Poyatos, J.M.; Munio, M.M.; Almecija, M.C.; Torres, J.C.; Hontoria, E.; Osorio, F. Advanced oxidation processes for wastewater treatment: State of the art. Water Air Soil Pollut. 2010, 205, 187–204. [Google Scholar] [CrossRef]
  5. Rodriguez, A.; Ovejero, G.; Sotelo, J.L.; Mestanza, M.; Garcia, J. Heterogeneous Fenton catalyst supports screening for mono azo dye degradation in contaminated wastewaters. Ind. Eng. Chem. Res. 2010, 49, 498–505. [Google Scholar] [CrossRef]
  6. Rahim Pouran, S.; Abdul Raman, A.A.; Wan Daud, W.M.A. Review on the application of modified iron oxides as heterogeneous catalysts in Fenton reactions. J. Cleaner Prod. 2014, 64, 24–35. [Google Scholar] [CrossRef] [Green Version]
  7. Nidheesh, P.V. Heterogeneous Fenton catalysts for the abatement of organic pollutants from aqueous solution: A review. RSC Adv. 2015, 5, 40552–40577. [Google Scholar] [CrossRef]
  8. Munoz, M.; de Pedro, Z.M.; Casas, J.A.; Rodriguez, J.J. Preparation of magnetite-based catalysts and their application in heterogeneous Fenton oxidation – A review. Appl. Catal. B Environ. 2015, 176–177, 249–265. [Google Scholar] [CrossRef] [Green Version]
  9. He, J.; Yang, X.; Men, B.; Wang, D. Interfacial mechanisms of heterogeneous Fenton reactions catalyzed by iron-based materials: A review. J. Environ. Sci. 2016, 39, 97–109. [Google Scholar] [CrossRef]
  10. Bokare, A.D.; Choi, W. Review of iron-free Fenton-like systems for activating H2O2 in advanced oxidation processes. J. Hazard. Mater. 2014, 275, 121–135. [Google Scholar] [CrossRef]
  11. Garrido-Ramirez, E.G.; Theng, B.K.G.; Mora, M.L. Clays and oxide minerals as catalysts and nanocatalysts in Fenton-like reactions—A review. Appl. Clay Sci. 2010, 47, 182–192. [Google Scholar] [CrossRef]
  12. Pereira, M.C.; Oliveira, L.C.A.; Murad, E. Iron oxide catalysts: Fenton and Fenton-like reactions—A review. Clay Miner. 2012, 47, 285–302. [Google Scholar] [CrossRef]
  13. Carrasco-Diaz, M.R.; Castillejos-Lopez, E.; Cerpa-Naranjo, A.; Rojas-Cervantes, M.L. Efficient removal of paracetamol using LaCu1−xMxO3 (M = Mn, Ti) perovskites as heterogeneous Fenton-like catalysts. Chem. Eng. J. 2016, 304, 408–418. [Google Scholar] [CrossRef]
  14. Kuznetsova, E.V.; Savinov, E.N.; Vostrikova, L.A.; Parmon, V.N. Heterogeneous catalysis in the Fenton-type system FeZSM-5/H2O2. Appl. Catal. B Environ. 2004, 51, 165–170. [Google Scholar] [CrossRef]
  15. Navalon, S.; Alvaro, M.; Garcia, H. Heterogeneous Fenton catalysts based on clays, silicas and zeolites. Appl. Catal. B Environ. 2010, 99, 1–26. [Google Scholar] [CrossRef]
  16. Velichkova, F.; Delmas, H.; Julcour, C.; Koumanova, B. Heterogeneous fenton and photo-fenton oxidation for paracetamol removal using iron containing ZSM-5 zeolite as catalyst. AIChE J. 2017, 63, 669–679. [Google Scholar] [CrossRef] [Green Version]
  17. Ramirez, J.H.; Costa, C.A.; Madeira, L.M.; Mata, G.; Vicente, M.A.; Rojas-Cervantes, M.L.; Lopez-Peinado, A.J.; Martin-Aranda, R.M. Fenton-like oxidation of Orange II solutions using heterogeneous catalysts based on saponite clay. Appl. Catal. B: Environ. 2007, 71, 44–56. [Google Scholar] [CrossRef] [Green Version]
  18. Hassan, H.; Hameed, B.H. Iron-clay as effective heterogeneous Fenton catalyst for the decolorization of Reactive Blue 4. Chem. Eng. J. 2011, 171, 912–918. [Google Scholar] [CrossRef]
  19. Duarte, F.; Maldonado-Hodar, F.J.; Perez-Cadenas, A.F.; Madeira, L.M. Fenton-like degradation of azo-dye Orange II catalyzed by transition metals on carbon aerogels. Appl. Catal. B: Environ. 2009, 85, 139–147. [Google Scholar] [CrossRef]
  20. Wang, L.; Yao, Y.; Zhang, Z.; Sun, L.; Lu, W.; Chen, W.; Chen, H. Activated carbon fibers as an excellent partner of Fenton catalyst for dyes decolorization by combination of adsorption and oxidation. Chem. Eng. J. 2014, 251, 348–354. [Google Scholar] [CrossRef]
  21. Carrasco-Diaz, M.R.; Castillejos-Lopez, E.; Cerpa-Naranjo, A.; Rojas-Cervantes, M.L. On the textural and crystalline properties of Fe-carbon xerogels. Application as Fenton-like catalysts in the oxidation of paracetamol by H2O2. Microporous Mesoporous Mater. 2017, 237, 282–293. [Google Scholar] [CrossRef]
  22. Wang, Y.; Zhao, H.; Zhao, G. Iron-copper bimetallic nanoparticles embedded within ordered mesoporous carbon as effective and stable heterogeneous Fenton catalyst for the degradation of organic contaminants. Appl. Catal. B Environ. 2015, 164, 396–406. [Google Scholar] [CrossRef]
  23. Gholami, P.; Dinpazhoh, L.; Khataee, A.; Hassani, A.; Bhatnagar, A. Facile hydrothermal synthesis of novel Fe-Cu layered double hydroxide/biochar nanocomposite with enhanced sonocatalytic activity for degradation of cefazolin sodium. J. Hazard. Mater. 2020, 381, 120742. [Google Scholar] [CrossRef]
  24. Kolpin, D.W.; Furlong, E.T.; Meyer, M.T.; Thurman, E.M.; Zaugg, S.D.; Barber, L.B.; Buxton, H.T. Pharmaceuticals, Hormones, and Other Organic Wastewater Contaminants in U.S. Streams, 1999–2000: A National Reconnaissance. Environ. Sci. Technol. 2002, 36, 1202–1211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Gomez, M.J.; Martinez Bueno, M.J.; Lacorte, S.; Fernandez-Alba, A.R.; Agueera, A. Pilot survey monitoring pharmaceuticals and related compounds in a sewage treatment plant located on the Mediterranean coast. Chemosphere 2007, 66, 993–1002. [Google Scholar] [CrossRef] [PubMed]
  26. Serp, P.; Castillejos, E. Catalysis in Carbon Nanotubes. ChemCatChem 2010, 2, 41–47. [Google Scholar] [CrossRef]
  27. Melchionna, M.; Marchesan, S.; Prato, M.; Fornasiero, P. Carbon nanotubes and catalysis: The many facets of a successful marriage. Catal. Sci. Technol. 2015, 5, 3859–3875. [Google Scholar] [CrossRef] [Green Version]
  28. Tian, X.; Liu, Y.; Chi, W.; Wang, Y.; Yue, X.; Huang, Q.; Yu, C. Catalytic Degradation of Phenol and p-Nitrophenol Using Fe3O4/MWCNT Nanocomposites as Heterogeneous Fenton-Like Catalyst. Water Air Soil Pollut. 2017, 228, 1–12. [Google Scholar] [CrossRef]
  29. Liao, Q.; Sun, J.; Gao, L. Degradation of phenol by heterogeneous Fenton reaction using multi-walled carbon nanotube supported Fe2O3 catalysts. Colloids Surf. A Physicochem. Eng. Asp. 2009, 345, 95–100. [Google Scholar] [CrossRef]
  30. Zhou, L.; Zhang, H.; Ji, L.; Shao, Y.; Li, Y. Fe3O4/MWCNT as a heterogeneous Fenton catalyst: Degradation pathways of tetrabromobisphenol A. RSC Adv. 2014, 4, 24900–24908. [Google Scholar] [CrossRef]
  31. Cleveland, V.; Bingham, J.-P.; Kan, E. Heterogeneous Fenton degradation of bisphenol A by carbon nanotube-supported Fe3O4. Sep. Purif. Technol. 2014, 133, 388–395. [Google Scholar] [CrossRef]
  32. Yu, L.; Yang, X.; Ye, Y.; Wang, D. Efficient removal of atrazine in water with a Fe3O4/MWCNTs nanocomposite as a heterogeneous Fenton-like catalyst. RSC Adv. 2015, 5, 46059–46066. [Google Scholar] [CrossRef]
  33. Tang, J.; Wang, J. Fe3O4-MWCNT Magnetic Nanocomposites as Efficient Fenton-Like Catalysts for Degradation of Sulfamethazine in Aqueous Solution. Chem. Sel. 2017, 2, 10727–10735. [Google Scholar]
  34. Deng, J.; Wen, X.; Li, J. Degradation of methylene blue by heterogeneous Fenton-like reaction using Fe3O4/carbon nanotube composites. Acta Sci. Circumstantiae 2014, 34, 1436–1442. [Google Scholar]
  35. Zhang, L.; Nie, Y.; Hu, C.; Qu, J. Enhanced Fenton degradation of Rhodamine B over nanoscaled Cu-doped LaTiO3 perovskite. Appl. Catal. B Environ. 2012, 125, 418–424. [Google Scholar] [CrossRef]
  36. Delgado-Gomez, F.J.; Calvino-Casilda, V.; Cerpa-Naranjo, A.; Rojas-Cervantes, M.L. Alkaline-doped multiwall carbon nanotubes as efficient catalysts for the Knoevenagel condensation. Mol. Catal. 2017, 443, 101–109. [Google Scholar] [CrossRef]
  37. Sendel, E.B. Colorimetric Determination of Trases of Metals; IntersciencePublishers, Inc.: Hoboken, NJ, USA, 1959. [Google Scholar]
  38. Velichkova, F.; Julcour-Lebigue, C.; Koumanova, B.; Delmas, H. Heterogeneous Fenton oxidation of paracetamol using iron oxide (nano)particles. J. Environ. Chem. Eng. 2013, 1, 1214–1222. [Google Scholar] [CrossRef] [Green Version]
  39. Franz, M.; Arafat, H.A.; Pinto, N.G. Effect of chemical surface heterogeneity on the adsorption mechanism of dissolved aromatics on activated carbon. Carbon 2000, 38, 1807–1819. [Google Scholar] [CrossRef]
  40. Kong, S.-H.; Watts, R.J.; Choi, J.-H. Treatment of petroleum-contaminated soils using iron-mineral-catalyzed hydrogen peroxide. Chemosphere 1998, 37, 1473–1482. [Google Scholar] [CrossRef]
  41. Huang, H.H.; Lu, M.C.; Chen, J.N. Catalytic Decomposition of Hydrogen Peroxide and 2-chlorophenol with iron oxides. Water Res. 2001, 35, 2291–2299. [Google Scholar] [CrossRef]
  42. Li, K.; Zhao, Y.; Janik, M.J.; Song, C.; Guo, X. Magnetic mesoporous Fe3O4/C/Cu composite as Fenton-like catalysts. Appl. Surf. Sci. 2017, 396, 1383–1392. [Google Scholar] [CrossRef]
  43. Costa, R.C.C.; Lelis, M.d.F.F.; Oliveira, L.C.A.; Fabris, J.D.; Ardisson, J.D.; Rios, R.R.V.A.; Silva, C.N.; Lago, R.M. Remarkable effect of Co and Mn on the activity of Fe3−xMxO4 promoted oxidation of organic contaminants in aqueous medium with H2O2. Catal. Commun. 2003, 4, 525–529. [Google Scholar] [CrossRef]
  44. Deng, J.; Jiang, J.; Zhang, Y.; Lin, X.; Du, C.; Xiong, Y. FeVO4 as a highly active heterogeneous Fenton-like catalyst towards the degradation of Orange II. Appl. Catal. B Environ. 2008, 84, 468–473. [Google Scholar] [CrossRef]
  45. Sires, I.; Garrido, J.A.; Rodriguez, R.M.; Cabot, P.l.l.; Centellas, F.; Arias, C.; Brillas, E. Electrochemical Degradation of Paracetamol from Water by Catalytic Action of Fe2+, Cu2+, and UVA Light on Electrogenerated Hydrogen Peroxide. J. Electrochem. Soc. 2006, 153, D1–D9. [Google Scholar] [CrossRef]
  46. Yang, L.; Yu, L.E.; Ray, M.B. Degradation of paracetamol in aqueous solutions by TiO2 photocatalysis. Water Res. 2008, 42, 3480–3488. [Google Scholar] [CrossRef]
  47. Pereira, M.F.R.; Soares, S.F.; Orfao, J.J.M.; Figueiredo, J.L. Adsorption of dyes on activated carbons: Influence of surface chemical groups. Carbon 2003, 41, 811–821. [Google Scholar] [CrossRef]

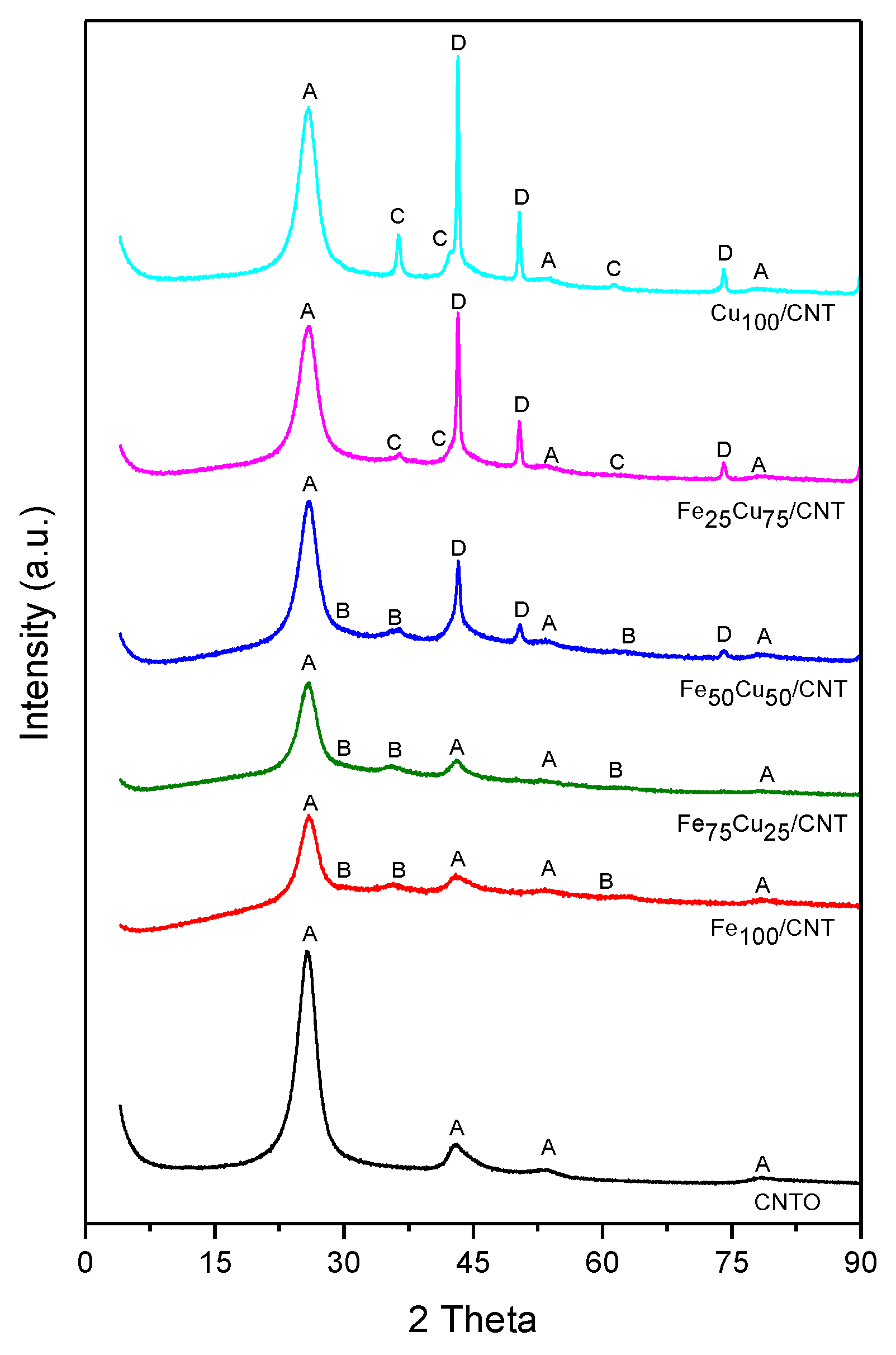

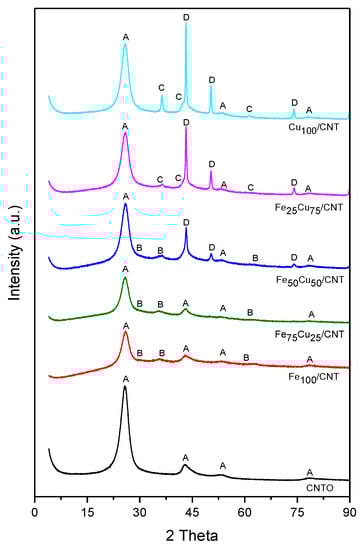

Figure 1. X-ray diffraction patterns of the catalysts. A: graphite; B: Fe3O4; C: Cu2O; D: Cu.
Figure 1. X-ray diffraction patterns of the catalysts. A: graphite; B: Fe3O4; C: Cu2O; D: Cu.
Nanomaterials 10 00749 g001
Figure 2. HRTEM images of Fe100−xCux/CNT. (A,B): Fe100/CNT; (C,D): Fe75Cu25/CNT; (E,F): Fe50Cu50/CNT; (G,H): Fe25Cu75/CNT and (I,J): Cu100/CNT. The presence of Cu and/or Cu2O particles is marked with red circles in Figures (GI).
Figure 2. HRTEM images of Fe100−xCux/CNT. (A,B): Fe100/CNT; (C,D): Fe75Cu25/CNT; (E,F): Fe50Cu50/CNT; (G,H): Fe25Cu75/CNT and (I,J): Cu100/CNT. The presence of Cu and/or Cu2O particles is marked with red circles in Figures (GI).
Nanomaterials 10 00749 g002aNanomaterials 10 00749 g002b

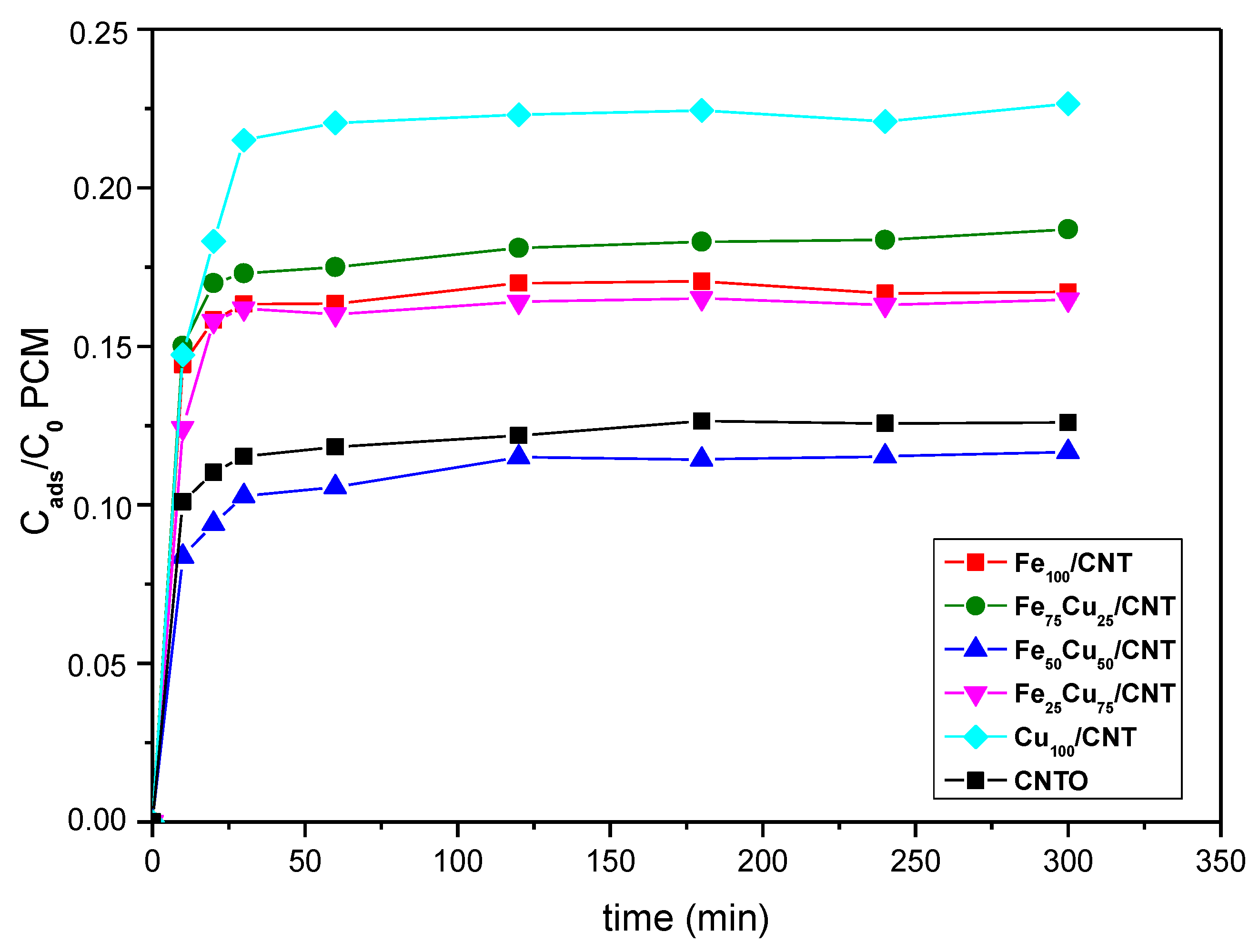

Figure 3. Adsorption kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on CNTO and Fe100−Cux/CNT samples.
Figure 3. Adsorption kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on CNTO and Fe100−Cux/CNT samples.
Nanomaterials 10 00749 g003

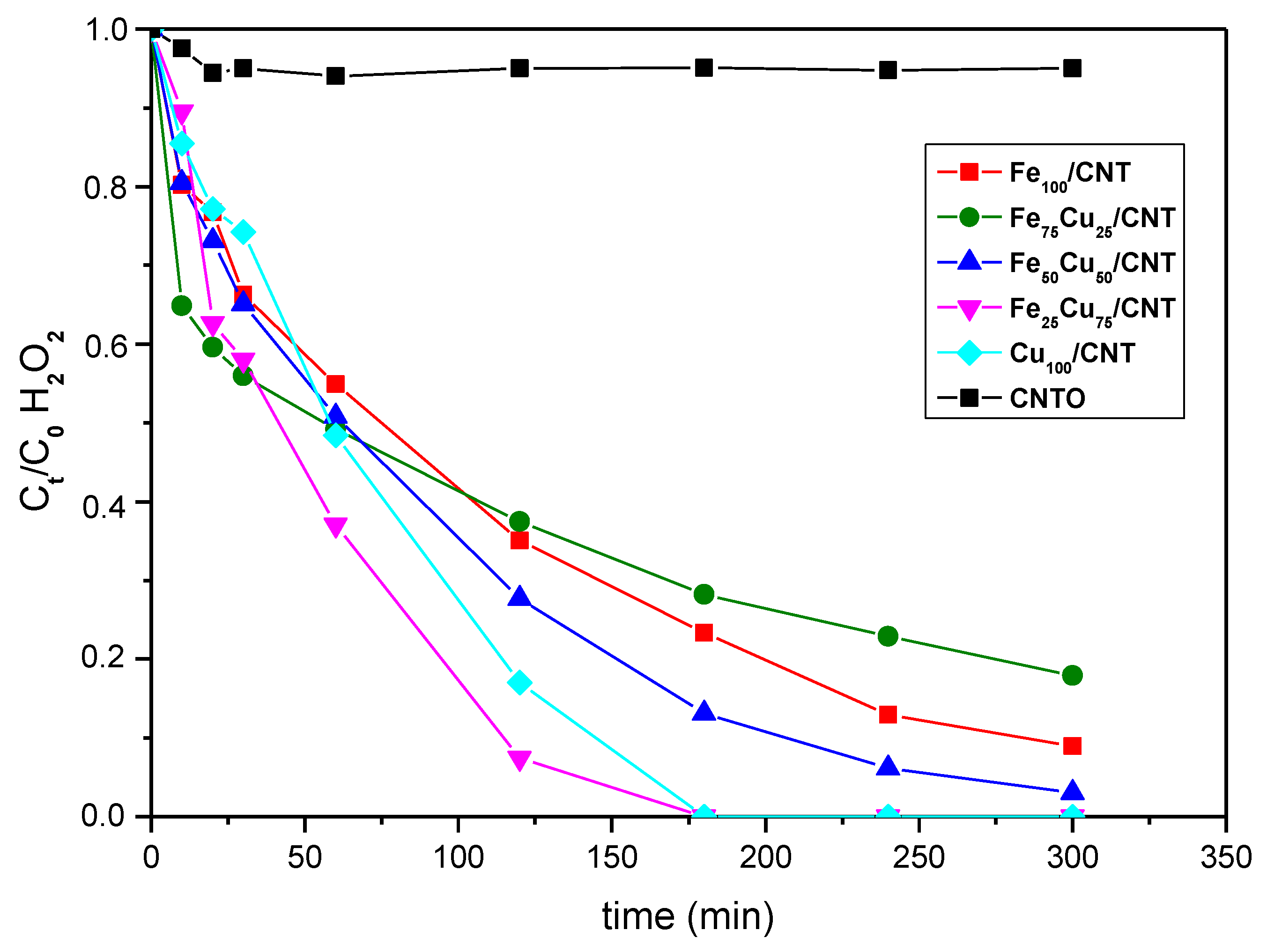

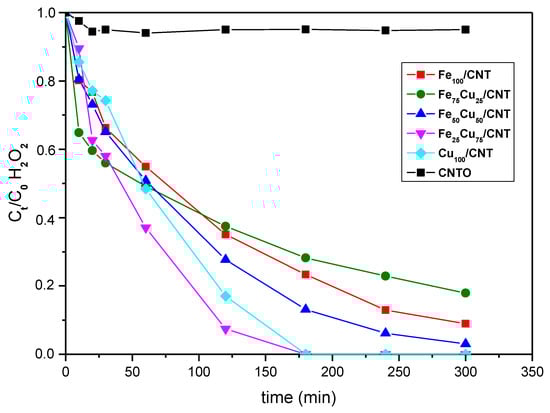

Figure 4. Decomposition kinetics of H2O2 (C0 = 13.8 × 10−3 mol/L) in absence of paracetamol at 25 °C on CNTO and Fe100−xCux/CNT samples.
Figure 4. Decomposition kinetics of H2O2 (C0 = 13.8 × 10−3 mol/L) in absence of paracetamol at 25 °C on CNTO and Fe100−xCux/CNT samples.
Nanomaterials 10 00749 g004

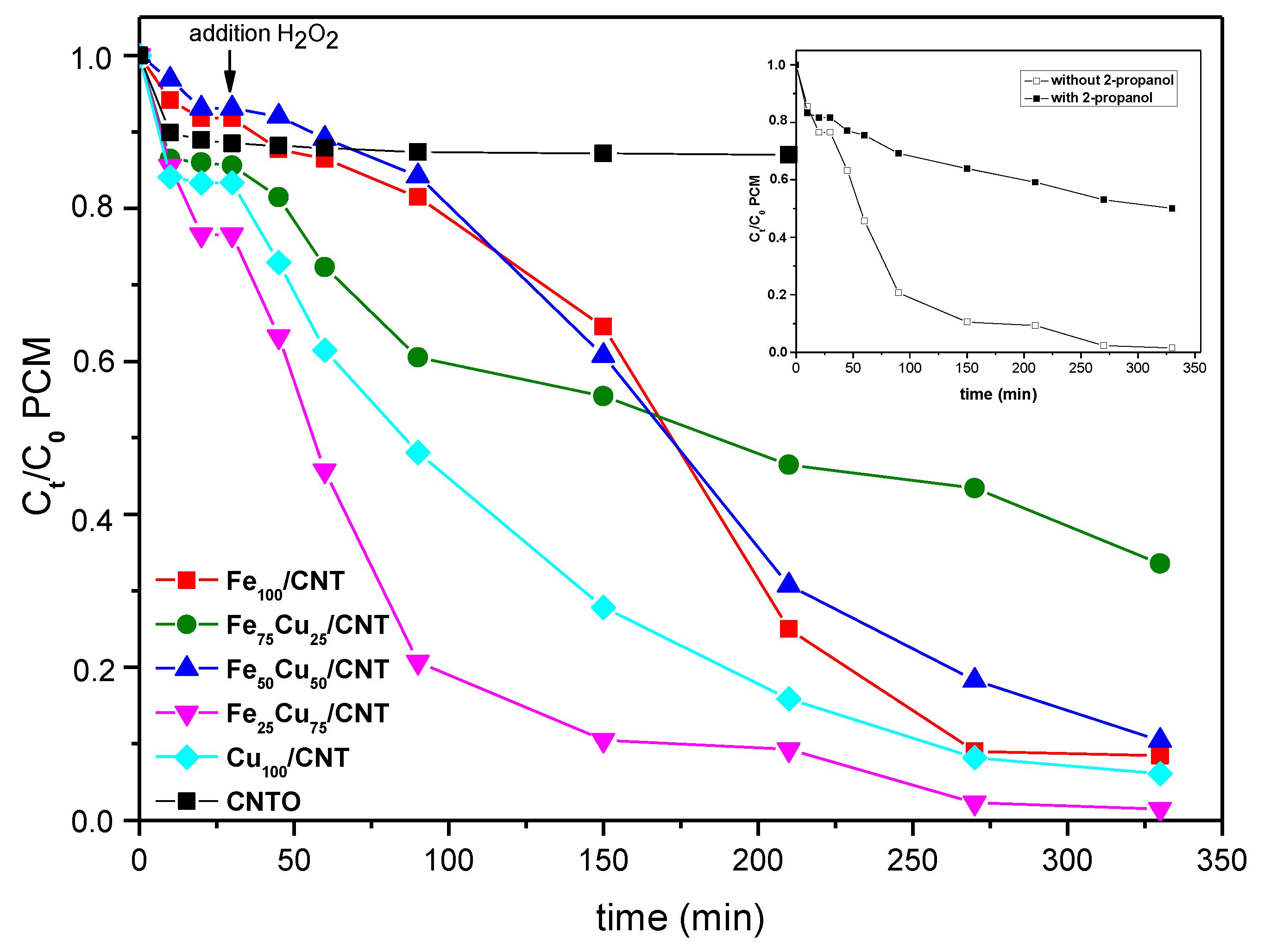

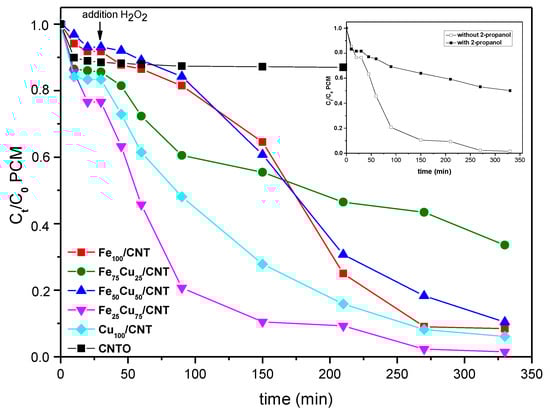

Figure 5. Decomposition kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 13.8 × 10−3 mol/L. Initial pH: 6.3–6.6. Inset: Decomposition kinetics of PCM for Fe25Cu75/CNT catalyst in the presence and absence of 2-propanol.
Figure 5. Decomposition kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 13.8 × 10−3 mol/L. Initial pH: 6.3–6.6. Inset: Decomposition kinetics of PCM for Fe25Cu75/CNT catalyst in the presence and absence of 2-propanol.
Nanomaterials 10 00749 g005

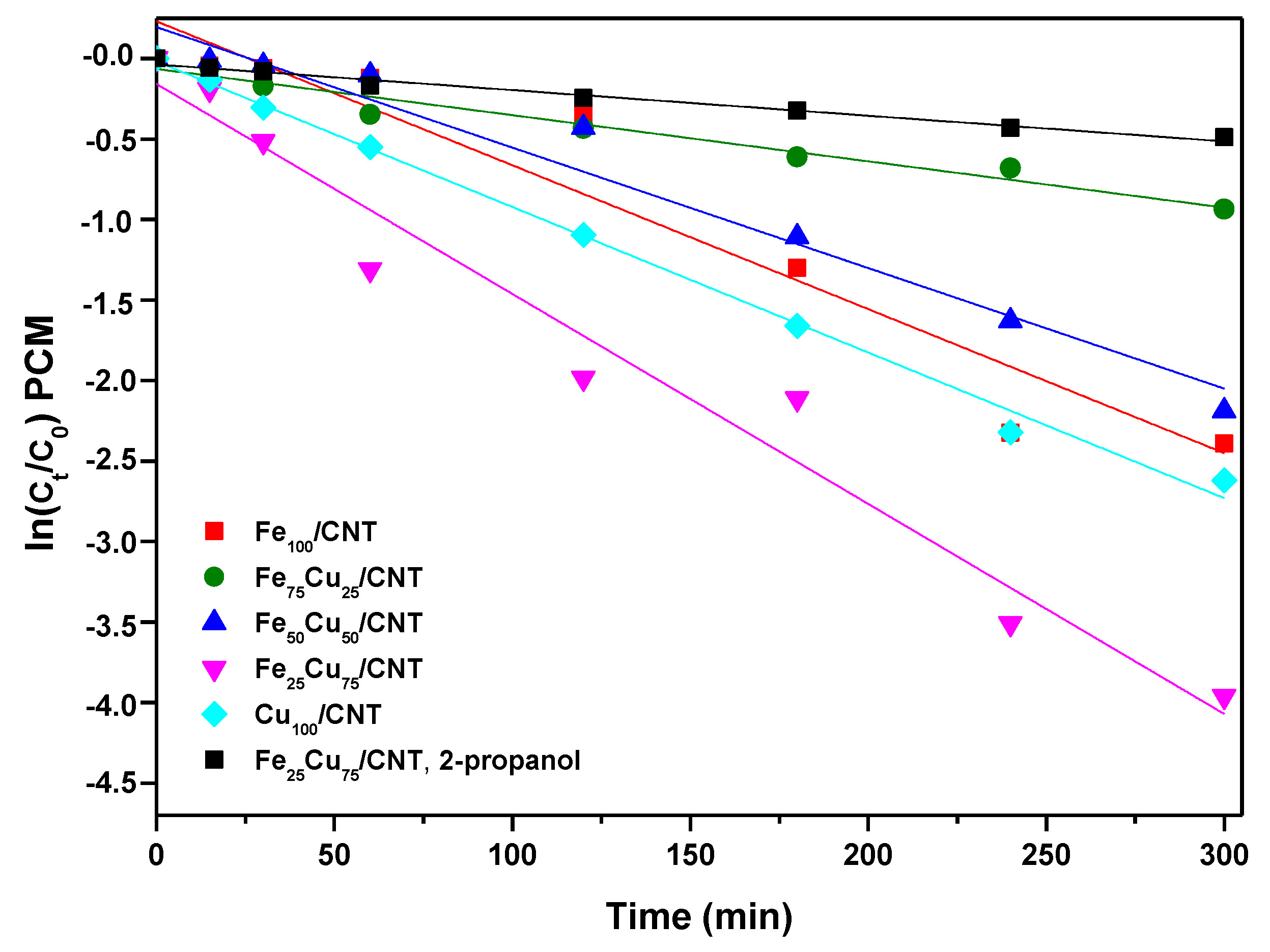

Figure 6. Plots of ln (Ct/C0) versus time for the paracetamol (C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 13.8 × 10−3 mol/L.
Figure 6. Plots of ln (Ct/C0) versus time for the paracetamol (C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 13.8 × 10−3 mol/L.
Nanomaterials 10 00749 g006

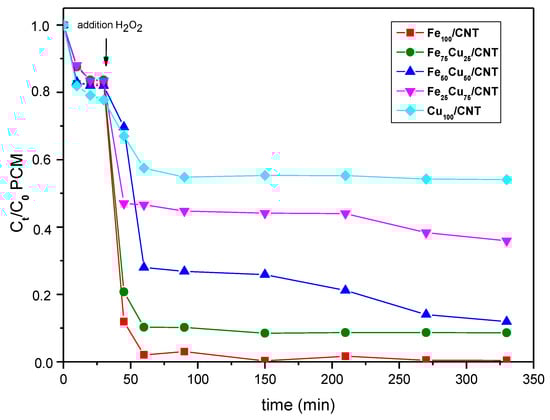

Figure 7. Decomposition kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 13.8 × 10−3 mol/L. Initial pH: 3.
Figure 7. Decomposition kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 13.8 × 10−3 mol/L. Initial pH: 3.
Nanomaterials 10 00749 g007

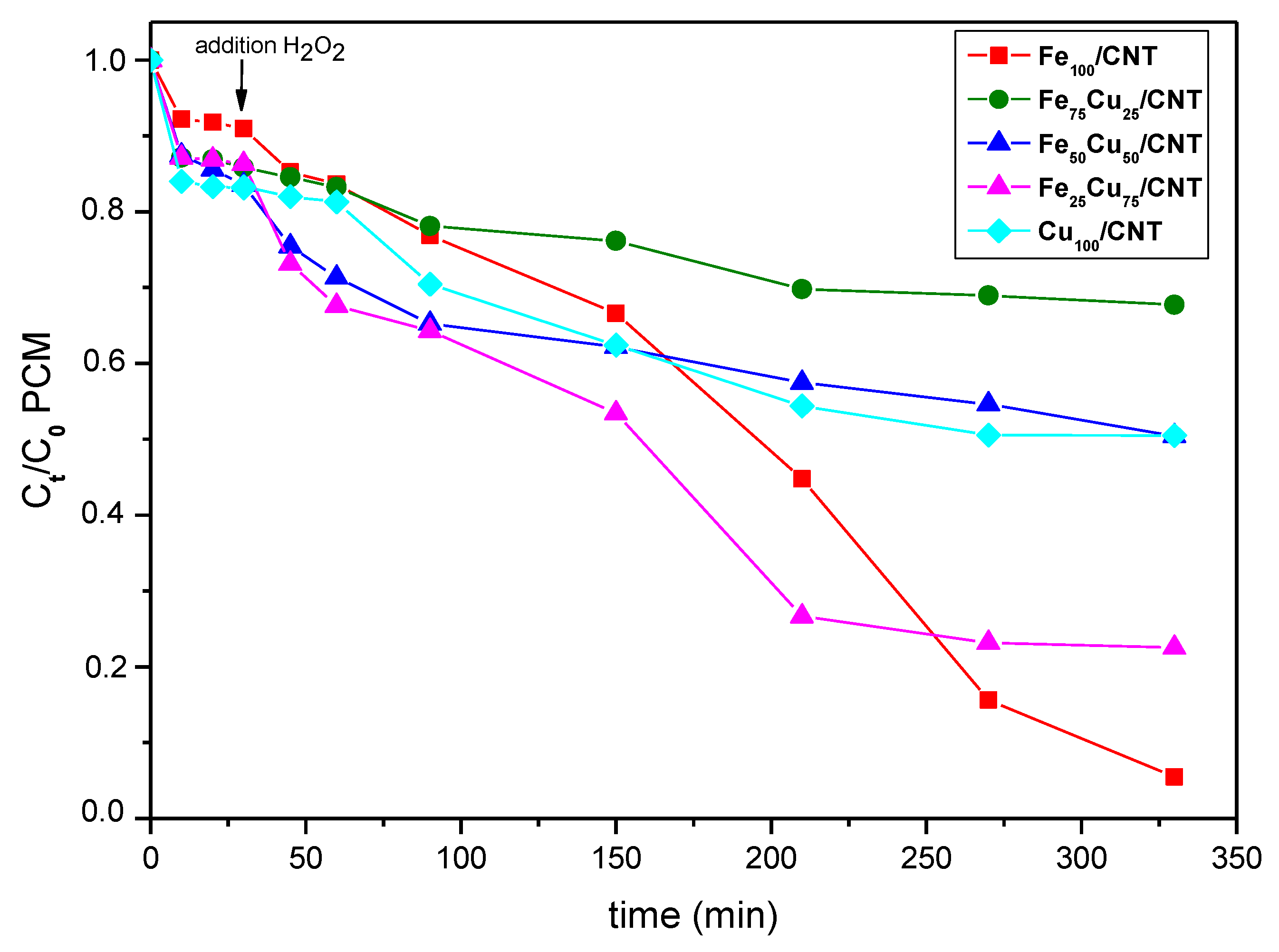

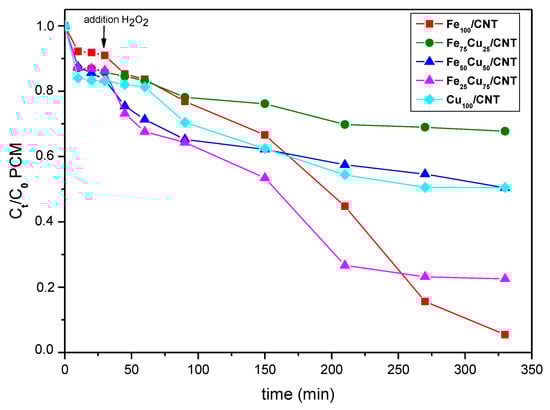

Figure 8. Decomposition kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 6.9 × 10−3 mol/L. Initial pH: 6.3–6.6.
Figure 8. Decomposition kinetics of paracetamol (PCM; C0 = 50 mg/L) at 25 °C on Fe100−xCux/CNT samples. C0 of H2O2: 6.9 × 10−3 mol/L. Initial pH: 6.3–6.6.
Nanomaterials 10 00749 g008

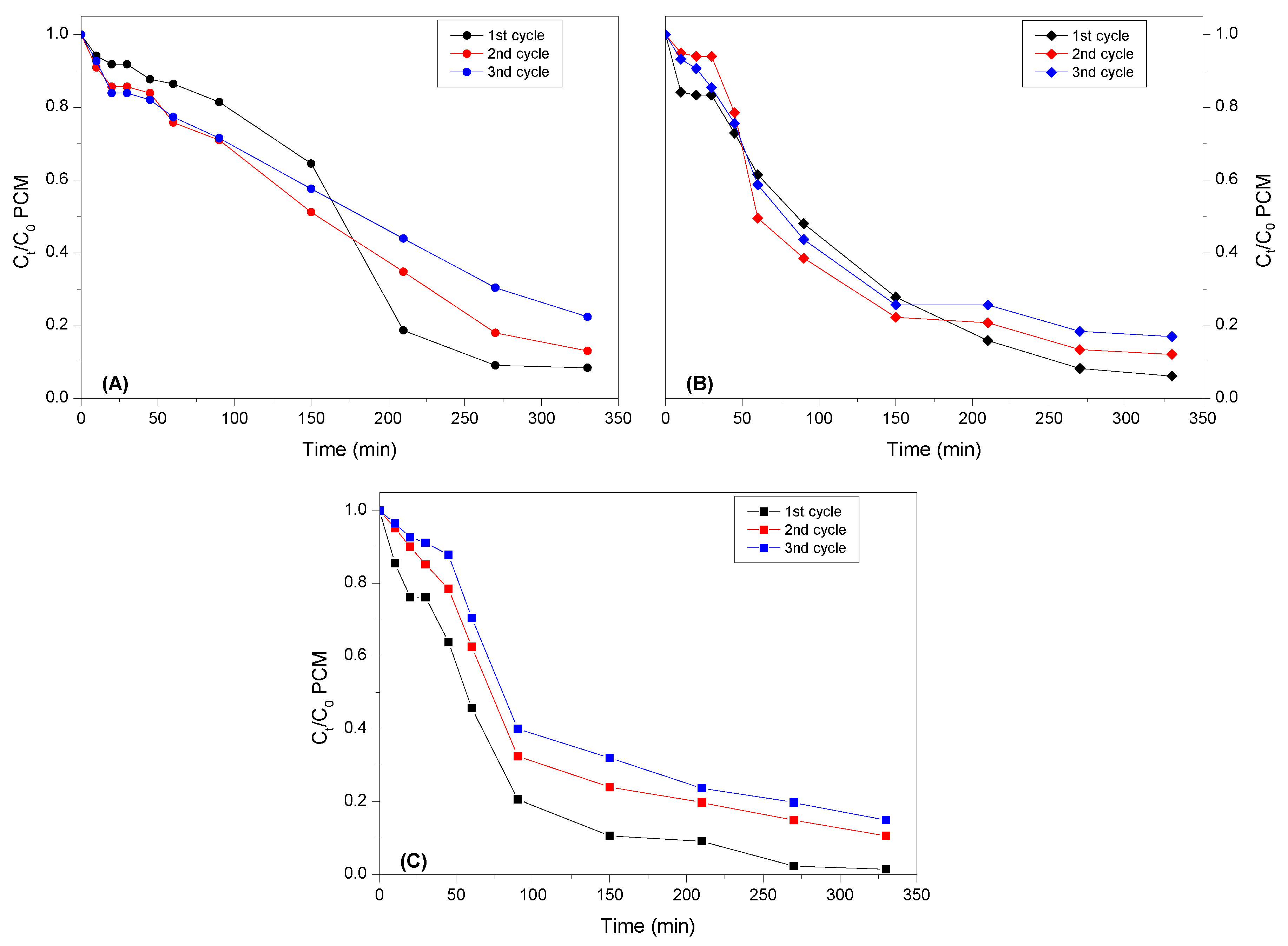

Figure 9. Recyclability of catalysts for the degradation of paracetamol (PCM). (A): Fe100/CNT; (B): Cu100/CNT and (C): Fe25Cu75/CNT.
Figure 9. Recyclability of catalysts for the degradation of paracetamol (PCM). (A): Fe100/CNT; (B): Cu100/CNT and (C): Fe25Cu75/CNT.
Nanomaterials 10 00749 g009
Table 1. Crystallite size (nm) of phases detected in oxidized carbon nanotubes (CNTO) and Fe100−xCux/CNT.
Table 1. Crystallite size (nm) of phases detected in oxidized carbon nanotubes (CNTO) and Fe100−xCux/CNT.
CatalystFe3O4CuCu2O
CNTO---
Fe100/CNT2.7--
Fe75Cu25/CNT2.9--
Fe50Cu50/CNT3.518.7-
Fe25Cu75/CNT-24.915.0
Cu100/CNT-29.020.0
Table 2. Content of metal (wt %) of Fe(100−x)Cux/CNT determined by inductively coupled plasma optical emission spectrometry (ICP-OES) *.
Table 2. Content of metal (wt %) of Fe(100−x)Cux/CNT determined by inductively coupled plasma optical emission spectrometry (ICP-OES) *.
CatalystFe (wt % ± sd)Cu (wt % ± sd)(Fe + Cu) (wt %± sd)
Fe100/CNT5.87 ± 0.06 (7)-5.87 ± 0.06
Fe75Cu25/CNT4.55 ± 0.04 (5.25)1.93 ± 0.01 (1.75)6.48 ± 0.04
Fe50Cu50/CNT2.91 ± 0.04 (3.5)3.82 ± 0.01 (3.5)6.73 ± 0.04
Fe25Cu75/CNT1.66 ± 0.01 (1.75)6.51 ± 0.09 (5.25)8.17 ± 0.09
Cu100/CNT-8.07 ± 0.11 (7)8.07 ± 0.11
* Between brackets: values corresponding to the theoretical ones.
Table 3. Textural properties of CNT, CNTO and Fe100−xCux/CNT samples.
Table 3. Textural properties of CNT, CNTO and Fe100−xCux/CNT samples.
CatalystSBET (m²/g)Smic (m²/g)VP (cm³/g)Vmes (cm³/g)dmes (nm)
CNT248.024.70.7990.51812.9
CNTO329.724.21.1360.95613.8
Fe100/CNT254.615.40.8170.70712.8
Fe75Cu25/CNT237.84.80.7750.67413.0
Fe50Cu50/CNT273.6-0.9460.83913.8
Fe25Cu75/CNT323.50.41.0730.92313.3
Cu100/CNT306.33.30.9690.86512.7
SBET = specific surface area; Smic = micropore surface area determined by t-plot; Vp = pore volume at single point at P/P0=0.967; Vmes = mesopore volume by BJH between 2 and 50 nm; dmes = average mesopore diameter (4V/A) by BJH.
Table 4. Values of apparent constants for pseudo-first-order kinetics of paracetamol decomposition. C0 of paracetamol: 50 mg/L.
Table 4. Values of apparent constants for pseudo-first-order kinetics of paracetamol decomposition. C0 of paracetamol: 50 mg/L.
pH = 6.3–6.6
C0 H2O2 = 13.8 × 10−3 mol/L
pH = 3
C0 H2O2 = 13.8 × 10−3 mol/L
pH = 6.3–6.6
C0 H2O2 = 6.9 × 10−3 mol/L
Catalystk (h−1)k1 (h−1) *k2 (h−1) *k (h−1)
Fe100/CNT0.537.360.340.15 (k1*), 1.05 (k2*)
Fe75Cu25/CNT0.174.200.030.05
Fe50Cu50/CNT0.452.150.220.10
Fe25Cu75/CNT0.782.290.060.29
Cu100/CNT0.540.610.0050.12
* Constants for the two stages observed in the kinetic curves.
Table 5. Leaching of metals after 5 h of reaction determined by inductively coupled plasma mass spectrometry (ICP-MS).
Table 5. Leaching of metals after 5 h of reaction determined by inductively coupled plasma mass spectrometry (ICP-MS).
CatalystLeaching of Iron (mg/L)Leaching of Iron * (%)Leaching of Copper (mg/L)Leaching of Copper * (%)
Fe100/CNT3.9917--
Fe75Cu25/CNT0.100.52.2629.2
Fe50Cu50/CNT0.584.9510.5669.1
Fe25Cu75/CNT0.101.410.5740.6
Cu100/CNT--2.176.7
Fe100/CNT, pH 39.2539.4--
Cu100/CNT, pH 3--18.6157.6
* Percentage of metal leached off with respect to the initial content in the carbon nanotubes catalysts.
Table 6. Values of total organic carbon (TOC) at different reaction times and values of pH of the paracetamol solutions before and after reaction. C0 of paracetamol: 50 mg/L; C0 of H2O2: 13.8 × 10−3 mol/L.
Table 6. Values of total organic carbon (TOC) at different reaction times and values of pH of the paracetamol solutions before and after reaction. C0 of paracetamol: 50 mg/L; C0 of H2O2: 13.8 × 10−3 mol/L.
TOC (%)pH
Catalyst15 min60 min180 min300 minInitialFinal
Fe100/CNT-88.470.17.16.315.12
Fe75Cu25/CNT-77.954.552.56.314.53
Fe50Cu50/CNT79.973.760.359.46.314.92
Fe25Cu75/CNT85.643.731.314.46.604.35
Cu100/CNT80.768.162.254.06.604.51

Share and Cite

MDPI and ACS Style

Barrios-Bermúdez, N.; González-Avendaño, M.; Lado-Touriño, I.; Cerpa-Naranjo, A.; Rojas-Cervantes, M.L. Fe-Cu Doped Multiwalled Carbon Nanotubes for Fenton-like Degradation of Paracetamol Under Mild Conditions. Nanomaterials 2020, 10, 749. https://doi.org/10.3390/nano10040749

AMA Style

Barrios-Bermúdez N, González-Avendaño M, Lado-Touriño I, Cerpa-Naranjo A, Rojas-Cervantes ML. Fe-Cu Doped Multiwalled Carbon Nanotubes for Fenton-like Degradation of Paracetamol Under Mild Conditions. Nanomaterials. 2020; 10(4):749. https://doi.org/10.3390/nano10040749

Chicago/Turabian Style

Barrios-Bermúdez, Niurka, Marta González-Avendaño, Isabel Lado-Touriño, Arisbel Cerpa-Naranjo, and María Luisa Rojas-Cervantes. 2020. "Fe-Cu Doped Multiwalled Carbon Nanotubes for Fenton-like Degradation of Paracetamol Under Mild Conditions" Nanomaterials 10, no. 4: 749. https://doi.org/10.3390/nano10040749

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
