A Two-Step Machine Learning Method for Predicting the Formation Energy of Ternary Compounds

Abstract

Predicting the chemical stability of yet-to-be-discovered materials is an important aspect of the discovery and development of virtual materials. The conventional approach for computing the enthalpy of formation based on ab initio methods is time consuming and computationally demanding. In this regard, alternative machine learning approaches are proposed to predict the formation energies of different classes of materials with decent accuracy. In this paper, one such machine learning approach, a novel two-step method that predicts the formation energy of ternary compounds, is presented. In the first step, with a classifier, we determine the accuracy of heuristically calculated formation energies in order to increase the size of the training dataset for the second step. The second step is a regression model that predicts the formation energy of the ternary compounds. The first step leads to at least a 100% increase in the size of the dataset with respect to the data available in the Materials Project database. The results from the regression model match those from the existing state-of-the-art prediction models. In addition, we propose a slightly modified version of the Adam optimizer, namely centered Adam, and report the results from testing the centered Adam optimizer.

1. Introduction

A key step in the data-driven materials discovery process is predicting the enthalpy of formation (the formation energy) for compounds that have not been synthesized yet [1]. Knowledge about the formation energy of a compound helps determine whether the compound is thermodynamically stable against competing phases. The phase stability can be determined using convex hull analysis [2]. In a compositional phase diagram, a convex hull is constructed by connecting the lowest formation energies. Compounds that lie on the convex hull are thermodynamically stable, and the ones above the hull are metastable or unstable [3]. In this regard, the computing of formation energies has an important role in virtual materials discovery. The formation energy of a compound can be calculated using an existing and popular computational method, namely density functional theory (DFT). However, assessing the thermodynamic stability of compounds with DFT-based calculations has two major limitations. First, the atomic structure of a new compound, which is an essential input for DFT-based calculations, cannot be known a priori. I n addition, computing the formation energy for an entire unknown chemical space is computationally very demanding and time consuming [4]. This is particularly true when compared with alternative approaches based on machine learning (ML) techniques [5,6,7,8,9,10].

ML methods have already shown the ability to predict many properties of materials, including the formation energy [11]. For formation energy prediction, different algorithms, such as kernel-based regression schemes, decision trees, and neural network (NN) models, have been employed [12]. Meredig et al. predicted the formation energy of ternary compounds using a heuristic formula and a rotation forest ensemble model [5]. Using rotation forest as the learning algorithm, they achieved a mean absolute error (MAE) of 0.16 eV/atom. Liu et al. predicted the formation energies of binary compounds using a deep learning method [6]. The descriptors used are the composition percentages of the elements contributing to the formation of the binary compounds. This method achieved an MAE between 0.115 eV/atom and 0.072 eV/atom depending on the number of layers and the type of initialization used for the weights in the deep learning model. Jha et al. developed ElemNet, an NN trained on data points from the Open Quantum Materials Database (OQMD) [13] that can predict formation energies with an MAE of 0.055 eV/atom [7].

Recently, graph-based models for predicting formation energy and other properties of molecules and crystals have been introduced [14]. Yan et al. [15] compared the performance of various models in terms of test MAE [8] on a dataset (training–validation–test split of 60,000–5000–4239) [10] from the Materials Project database (MPD) [16]. In predicting the formation energies, Matformer [15] achieves the best performance (0.021 eV/atom), followed by ALIGNN [10] (0.022 eV/atom), MEGNET [17] (0.030 eV/atom), and CGCNN [8] (0.031 eV/atom).

A major obstacle in training ML models to predict formation energies is the sparse available data. To partially overcome this issue, in this work, we present a two-step approach to predict the formation energies of ternary compounds. In the first step, we collect the knowledge from a heuristic formula and incorporate it into the NN training data used to predict the formation energies of the ternary compounds in the second step. The first step not only increases the size of the dataset with respect to the data available in the MPD but also adds some combinations of elements that are not available in the MPD. The training data for constructing the attributes were collected from the MPD and retrieved in 2019.

2. Methodology

A simple yet powerful metallurgical heuristic exists by which the formation energy of a ternary compound can be predicted from the formation energies of its binary constituents [18,19]. For example, the formation energy of ZrIn₂Bi can be calculated as the composition-based weighted average of the formation energies of its constituent binary compounds, namely Zr₃Bi and In₃Bi, with formation energies of −0.184 eV/atom and +0.040 eV/atom, respectively, like so:

$$\frac{1}{3}\times -0.184+\frac{2}{3}\times 0.040=-0.034.$$

(1)

However, this rule does not always estimate the corresponding values computed with DFT accurately. Meredig et al. found that the heuristically predicted formation energies for ternary compounds are systematically underestimated, and they improved the heuristically calculated values using linear regression [5]. We employed the above-mentioned metallurgical heuristic to increase the number of training data points for predicting the formation energies of ternary compounds. Our ML system has two units: classification and regression (see Figure 1). The important goal of the classification unit is to increase the size of the training dataset for the regressor unit. The regressor unit performs the actual prediction of the formation energies of ternary compounds.

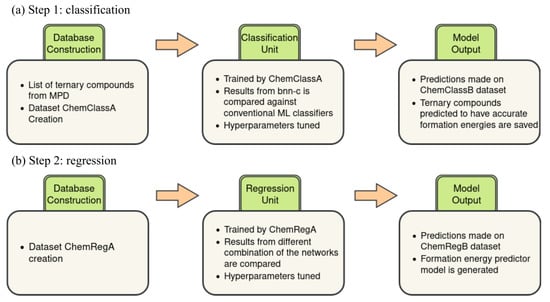

The objective of the classification unit is to classify whether the heuristically computed formation energies are accurate (see Figure 1a). The training dataset for the classification unit is created using the formation energies available in the MPD. Data points are created for ternary compounds for which the metallurgical heuristic rule is applicable, that is, DFT-computed formation energies for the ternary compound and its constituent binary compounds are available. We call this dataset ChemClassA. The accuracy of the heuristically computed formation energies is quantified by defining a threshold (T) against DFT-computed formation energies such that those heuristic estimates that fall within this threshold are labeled as accurate.

In addition, we create a dataset comprising all possible charge-neutral ternary compounds of the form $A_x{B}_y{C}_z$, where $x,y,z<$ 4, whose formation energies are not available in the MPD but can be expressed with the heuristic formula. We refer to them as the ChemClassB dataset. The trained classifier, then, will make predictions about whether the heuristically predicted formation energies of ChemClassB compounds are classified as accurate. Those ternary compounds from ChemClassB whose heuristically computed formation energies are classified as accurate are stored for the training of the regression model.

Our regression unit predicts the formation energies of charge-neutral ternary compounds of the form $A_x{B}_y{C}_z$, where $x,y,z<$ 4 (see Figure 1b). The dataset used for the training of the regression unit is generated by combining the formation energies of ternary compounds available in the MPD with the formation energies of compounds from ChemClassB that are classified as accurate. We call the resulting dataset the ChemRegA dataset. In this way, we increase the size of the training dataset by at least 100% for the regressor unit.

Adam [20] is a commonly used optimization algorithm to find the optimal parameters of an artificial NN. It is a first-order optimizer that uses momentum-based learning and incorporates an adaptive step size. In this paper, we propose a slight variation of the Adam approach, the so-called “centered Adam” (cAdam) optimizer, in the hope of improving it (see Section 2.1). We used the well-established MNIST dataset to test and compare the performance of cAdam with respect to Adam.

2.1. Centered Adam

Adam uses ${\widehat{m}}_t$ as an approximation of the expected value (=first moment) of $g_t$ and ${\widehat{v}}_t$ as an approximation of the second moment of $g_t$, also called “uncentered variance”. The update formula scales the steps using the second moment. The reason for this is to make larger steps if there is a low variance in the calculated gradients and to make smaller steps if the variance is large. One has to note that Adam does not actually calculate the variance $\mathbb{E}\left[{\left(g_t-\mathbb{E}\left[g_t\right]\right)}^2\right]$ but the second moment $\mathbb{E}\left[g_t^2\right]$ instead. If $\mathbb{E}\left[g_t\right]=0$, both definitions are identical, and fewer operations are required to calculate the second moment. However, $\mathbb{E}\left[g_t\right]=0$ implies that ${\Theta }_t$ is a critical point of the loss function, and the steps taken do not actually decrease the loss.

We propose changing the update rule for $v_t$ in Adam such that $v_t$ approximates the expected value of the variance instead of the second moment. The updated formula will be

$$v_t\leftarrow \beta v_{t-1}+\left(1-{\beta }_2\right){\left(g_t-m_t\right)}^2.$$

(2)

Note that we use $m_t$ as the approximation of $g_t$ rather than the bias-corrected ${\widehat{m}}_t$. This is because preliminary tests have shown that using the bias-corrected ${\widehat{m}}_t$ yields much worse results (on the MNIST dataset using parameters that worked well for Adam and cAdam with the update rule mentioned in Equation (2)). Using $m_t$ without bias correction also allows for the common runtime optimization of applying the bias corrections to the step size (float) instead of to $m_t$ (a vector) [21]. Algorithm 1 shows a pseudocode of the proposed cAdam approach.

Algorithm 1 Centered Adam algorithm $\left(cAdam\right)$

Require: ${\beta }_1,{\beta }_2\in \left[0,1\right],{\alpha }_t,\epsilon \in \mathbb{R}>0$            ▷ hyperparameters Require: $\nabla L:{\mathbb{R}}^d\to {\mathbb{R}}^d\mathrm{or}L:{\mathbb{R}}^d\to \mathbb{R}$             ▷ loss function L Require: ${\Theta }_0\in {\mathbb{R}}^d$                   ▷ parameter of loss function  All vector operations are element-wise  $m_0:=\overrightarrow{0}\in {\mathbb{R}}^d$  $v_0:=\overrightarrow{0}\in {\mathbb{R}}^d$  $t:=0\in {\mathbb{N}}_0$  while t ≤ maximum iterations or sufficient convergence of ${\theta }_t$ do   $t\leftarrow t+1$   $g_t\leftarrow \nabla L\left({\Theta }_{t-1}\right)$                       ▷ calculate gradient   $m_t\leftarrow {\beta }_1{m}_{t-1}+\left(1-{\beta }_1\right)g_t$                ▷ calculate first moment   $v_t\leftarrow {\beta }_2{v}_{t-1}+\left(1-{\beta }_2\right){\left(g_t-m_t\right)}^2$            ▷ calculate centered variance   ${\widehat{m}}_t\leftarrow m_t/\left(1-{\beta }_1^t\right)$               ▷ bias correction for first moment   ${\widehat{v}}_t\leftarrow v_t/\left(1-{\beta }_2^t\right)$                ▷ bias correction for centered variance   ${\Theta }_t\leftarrow {\Theta }_{t-1}-{\alpha }_t{\widehat{m}}_t/\left(\sqrt{{\widehat{v}}_t}+\epsilon \right)$             ▷ update parameters $\theta$  end while

Bias Correction for Centered Adam

Here, we will calculate the bias correction term for the new update rule of $v_t$. The bias correction for $m_t$ remains unchanged. First of all, we use an explicit formula for $v_t$ given by

$$v_t=\left(1-{\beta }_2\right)\sum _{i=1}^t{\beta }_2^{t-i}.{\left(g_i-m_i\right)}^2$$

(3)

instead of the recursive formula used in the implementation of the algorithm. The value $v_t$ is supposed to be an approximation of the expected value of ${\left(g_t-m_t\right)}^2$. We derive the expression for the bias correction term for $v_t$ here based on inspiration from the proof provided in Ref. [20]. Therefore, we want the expected value of the term $v_t$ to be equal to the expected value of ${\left(g_t-m_t\right)}^2$. The bias correction factor in Adam was derived in Ref. [20] under the assumption that the term ${\beta }_2^{t-i}\left(\mathbb{E}\left[g_t^2\right]-\mathbb{E}\left[g_i^2\right]\right)$ is small. Here, we assume ${\beta }_2^{t-i}\left(\mathbb{E}\left[g_t^2-m_t^2\right]-\mathbb{E}\left[g_i^2-m_i^2\right]\right)$ is small instead. This is even more likely to hold since $g_t^2-m_t^2$ should already be small because $m_t$ is supposed to be an approximation for $\mathbb{E}\left[g_t\right]$.

Finally, from the bias-corrected expression for $v_t$, we conclude that the bias correction for cAdam is the same as that of Adam using the linearity of $\mathbb{E}$, as follows:

$$\begin{array}{cc}\mathbb{E}\left[v_t\right]\hfill & =\mathbb{E}\left[\left(1-{\beta }_2\right){\displaystyle \sum _{i=1}^t}{\beta }_2^{t-i}.{\left(g_i-m_i\right)}^2\right]\hfill \\ \hfill & =\left(1-{\beta }_2\right){\displaystyle \sum _{i=1}^t}{\beta }_2^{t-i}.\mathbb{E}\left[{\left(g_i-m_i\right)}^2\right]\hfill \\ \hfill & =\left(1-{\beta }_2\right){\displaystyle \sum _{i=1}^t}{\beta }_2^{t-i}.\left(\mathbb{E}\left[{\left(g_t-m_t\right)}^2\right]-k_i\right)\hfill \\ \hfill & \left(\mathrm{where}{k}_i:=\mathbb{E}\left[{\left(g_t-m_t\right)}^2\right]-\mathbb{E}\left[{\left(g_i-m_i\right)}^2\right]\right)\hfill \\ \hfill & =\left(1-{\beta }_2\right){\displaystyle \sum _{i=1}^t}\left({\beta }_2^{t-i}.\mathbb{E}\left[{\left(g_t-m_t\right)}^2\right]-{\beta }_2^{t-i}.k_i\right)\hfill \\ \hfill & =\mathbb{E}\left[{\left(g_t-m_t\right)}^2\right]\left(1-{\beta }_2\right){\displaystyle \sum _{i=1}^t}{\beta }_2^{t-i}-\underset{=:{\delta }_t}{\underbrace{\left(1-{\beta }_2\right){\displaystyle \sum _{i=1}^t}\left({\beta }_2^{t-i}.k_i\right)}}\hfill \\ \hfill & =\mathbb{E}\left[{\left(g_t-m_t\right)}^2\right]{\displaystyle \sum _{i=1}^t}\left({\beta }_2^{t-i}-{\beta }_2^{t-i+1}\right)+{\delta }_t\hfill \\ \hfill & =\mathbb{E}\left[{\left(g_t-m_t\right)}^2\right]\left(1-{\beta }_2^t\right)+{\delta }_t.\hfill \end{array}$$

3. Computational Details

The NNs were implemented using Keras [22], a deep learning Python library, configured to use Tensorflow [23] at the back end. Conventional machine learning classification algorithms were implemented using the Sklearn [24] library. Furthermore, Numpy [25], Scipy [26], Pandas [27], and Matplotlib [28] were used at multiple instances in the implementation.

There were a total of 49,680 labeled entries within the ChemClassA dataset (accurate and inaccurate). The number of entries labeled as accurate was 10,160 and 15,830 for tolerances (T) of 5% and 10%, respectively. We used 117 descriptors for the classification unit (see Appendix A.1 for more details). The number of charge-neutral ternary compounds in ChemClassB was 254,287.

A total of 36 descriptors were used for the regression unit as described in Appendix A.2. The number of training data for regression depended on the T, as discussed in the next section. To avoid the problem of differently scaled input variables in the optimization algorithms, the inputs were re-scaled and normalized such that they had an expected value of 0 and a standard deviation of 1.

Hyperparameters are the configurations to which the NNs are tuned. These configurations play an important role in improving the performance of the network. Due to the need for classifier and regressor units in our ML system, we worked with two separate classes of NNs. We also used another NN to benchmark the cAdam optimizer against the Adam optimizer.

For our classification model, we started with a minimal configuration and applied incremental changes until we found the best-performing model. As a starting point, we used a network configuration described in

Table 1. Configuration of the baseline NN, bnn-c, for the classification.

Model Parameters
Activation function $\left(Hidden\right)$	ReLU
Activation function $\left(Output\right)$	Sigmoid
Configuration	117-117-1
Loss function	Binary cross-entropy
Training parameters
Batch size	128
Training cycles	512
Validation split	0.1
Test split	0.1
Optimizer parameters
Optimizer	Adam
Learning rate	0.001
$\epsilon$	$1/{10}^{-7}$
${\beta }_1$	0.9
${\beta }_2$	0.999

, which we call bnn-c. We employed two-stage validation for our classification model. First, the results from the bnn-c model were compared with the results from some commonly used conventional classification models. Secondly, the results from the incremental versions of bnn-c were compared against the results from bnn-c.

In the case of regression, we created NNs based on the parameters listed in

Table 2. NN parameters for the regression task.

Model Parameters
Activation function $\left(Hidden\right)$	ReLU/Sigmoid
Activation function $\left(Output\right)$	Linear
configuration	$\left(36-40-20-1\right)$/    $\left(36-50-10-1\right)$/    $\left(36-30-30-10-1\right)$
Loss function	Log cosh/Mean squared error
Training parameters
Batch size	100/1000/10,000
Training cycles	500
Validation split	0.2
Optimizer parameters
Optimizer	Adam/cAdam
Learning rate	0.01/0.001
$\epsilon$	${10}^{-7}$
${\beta }_1$	0.9
${\beta }_2$	0.999

. Furthermore, to test the cAdam optimizer, we created NNs based on the parameters mentioned in

Table 3. NN parameters for MNIST.

Model Parameters
Activation function $\left(Hidden\right)$	ReLU/Sigmoid
Activation function $\left(Output\right)$	Softmax/Sigmoid
configuration	$\left(784-32-10\right)$/    $\left(784-50-10-10\right)$/    $\left(784-20-15-10-10\right)$
Loss function	Categorical cross-entropy/    Mean squared error
Training parameters
Batch size	100/1000/10,000
Training cycles	5/25/50
Validation split	0.2
Optimizer parameters
Optimizer	Adam/cAdam
Learning rate	0.1/0.01/0.001
$\epsilon$	1/${10}^{-7}$
${\beta }_1$	0.9
${\beta }_2$	0.999

. We trained these models to classify the MNIST dataset, thus creating MNIST classifier models. The metrics of training time and mean absolute error were used to evaluate the performance of the regression models, whereas the metrics of training time and accuracy were used to evaluate the performance of the MNIST classifier models. In the regression and MNIST classifier models, a portion of the dataset was withheld as test data. The test data remained the same for every parameter setting and every repetition of model training. The models were trained five times, and the averages of the metrics, namely the training time, mean absolute error, and accuracy, were computed for further analysis.

4. Results and Discussion

4.1. Classification

The performance of bnn-c is compared with some of the benchmark models listed in

Table 4. Performance of bnn-c compared with conventional ML classifiers: logistic regression (LR), linear discriminant analysis (LDA), random forest (RF), k-nearest neighbors (KNN), and adaboost (AB).

Model	Accuracy	Precision	Recall	AUROC
LR	0.79	0.73	0.57	0.85
LDA	0.79	0.72	0.56	0.85
KNN	0.82	0.72	0.68	0.86
RF	0.74	0.74	0.29	0.72
AB	0.81	0.74	0.63	0.87
bnn-c	0.86	0.78	0.77	0.93

. We followed a 10-fold cross-validation method, and the means are reported in Table 4. From the results, we can infer that bnn-c produces a classification accuracy that is 4.88% better than the k-nearest neighbor method, the best among the benchmark models. The performance metric known as the receiver operating characteristic curve (ROC), which measures the classification capability of models at different classification thresholds, was obtained for the models. The area under the receiver operating characteristic curve (AUROC), which grades the classification capability of different models, was also calculated. From Table 4, it can be observed that the AUROC for bnn-c is 6.89% better than the best AUROC among the benchmark models. In addition, we tried different network layouts, and it was observed that the layout (117-117-117-1) improved the classification accuracy of bnn-c by 1.65%. The results are summarized in

Table 5. Performance comparison between bnn-c (first row) and modified NN configurations.

Layout	Accuracy (%)	Precision	Recall	AUROC
117-117-1	86.92	0.79	0.78	0.93
117-300-1	87.14	0.78	0.80	0.93
117-55-1	86.25	0.77	0.79	0.93
117-117-117-1	87.42	0.81	0.78	0.93
117-117-117-117-1	87.06	0.80	0.77	0.93

.

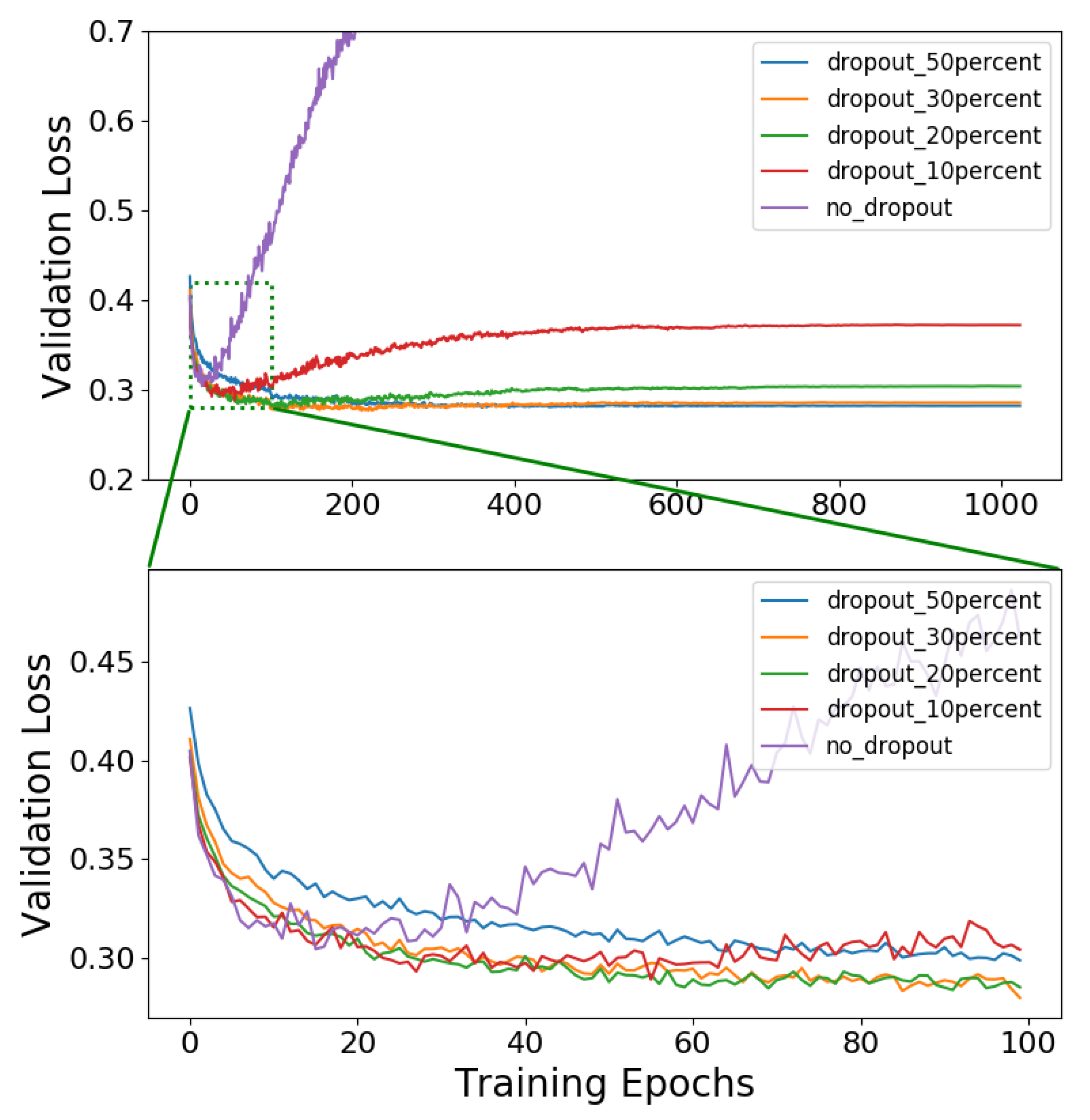

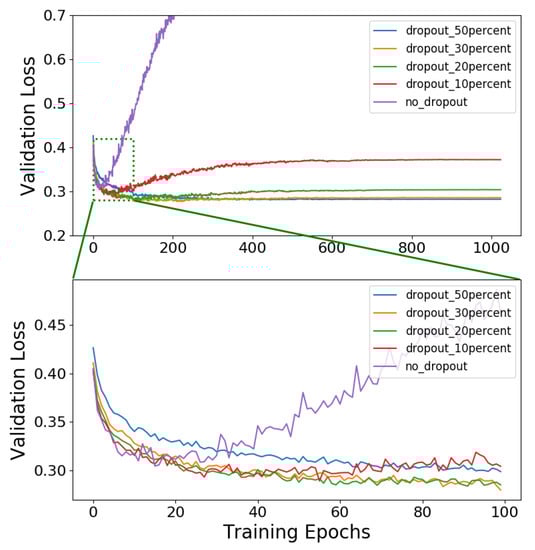

Figure 2 shows the loss curves obtained for the network architecture of (117-117-117-1), the Adam optimizer, and various degrees of dropout. We can observe that adding dropouts to the hidden layers improves the classification accuracy significantly. The results are summarized in

Table 6. Results obtained for the network architecture of (117-117-117-1) with various degrees of dropouts.

Dropout in %	Accuracy (%)	Precision	Recall	AUROC
50	87.82	0.86	0.72	0.93
30	88.24	0.82	0.79	0.94
20	88.29	0.84	0.77	0.94
10	88.51	0.83	0.78	0.94

. A dropout of 20% implemented on the hidden layers improves the classification accuracy by 2.9%. We followed a 6-fold cross-validation method with a dropout of 20% and an architecture of (117-117-117-1). The network accuracy is 88.28% with a standard deviation of 0.44%.

The classification unit, which was trained by the ChemClassA dataset configured for T = 10%, predicted 71,030 heuristic formation energies (out of 420,152 formation energies calculated for ChemClassB compounds) as accurate. It should be noted that these 71,030 formation energies correspond to 56,591 ternary compounds, as there was more than one formation energy for certain compounds. The classifier unit trained on the ChemClassA dataset with T = 5% labeled 28,715 formation energies (corresponding to 24,466 ternary compounds) as accurate. It is noted that in the first step, some combinations of elements are added to the ChemClassB dataset that do not exist in the MPD. For example, there is no ternary compound with H, Ir, and N elements available in the MPD. However, the heuristic formation energies of ternary compounds with these elements are available in the ChemClassB dataset. The training dataset used for the regression unit consists of the formation energies of ChemClassA compounds plus the formation energies of ChemClassB compounds that were labeled as accurate. By this means, the size of the dataset was increased from 40,049 to 96,640 for T = 10%. This corresponds to an increase of approximately 141% in the size of the data points. For T = 5%, the number of data points was increased by about 101% (from 24,466 entries to 49,345 entries).

4.2. Regression

The regression unit predicts the formation energies of ternary compounds whose heuristic formation energies cannot be calculated (240,248 compounds) or whose heuristic formation energies are not classified as accurate (229,821 and 197,696 ternary compounds for tolerances of 5% and 10%, respectively). For validation, we used the ternary compounds whose DFT-calculated formation energies are available but for whom the heuristic formula does not predict the formation energy accurately (7601 and 6231 compounds for T = 5% and T = 10%, respectively).

We compare the best five results of the regression unit in

Table 7. The best 5 of the 144 parameter combinations and results for the regression task. The units for the MAE values are eV/atom. Results are sorted by final validation loss.

Parameter	Best Values
Final val loss (MAE)	0.1116	0.11208	0.11416	0.11493	0.11534
Test loss (MAE)	0.11389	0.11298	0.11493	0.11445	0.11539
Test loss	0.012971	0.012764	0.0065903	0.0065354	0.0066426
Training time (in s)	44.379	566.85	577.92	80.447	44.17
Neurons per layer	(50, 10)	(50, 10)	(50, 10)	(30, 30, 10)	(40, 20)
Activation functions	Sigmoid	Sigmoid	Sigmoid	Sigmoid	Sigmoid
Last activation function	Linear	Linear	Linear	Linear	Linear
Loss function	MSE	MSE	Log cosh	Log cosh	Log cosh
Number of epochs	500	500	500	500	500
Batch size	1000	100	100	1000	1000
Optimizer	Adam	cAdam	cAdam	cAdam	Adam
Learning rate	0.01	0.001	0.001	0.01	0.01
$\epsilon$	${10}^{-7}$	${10}^{-7}$	${10}^{-7}$	${10}^{-7}$	${10}^{-7}$

. In Ref. [29], the best MAE was 0.129 eV/atom, whereas we achieved an MAE of 0.114 eV/atom. Especially noteworthy is the size of the NNs used to achieve these results. In Ref. [29], several network layouts were tested, and a layout of (36-512-256-128-64-1), which has almost 200,000 learnable parameters, yielded the best results. Here, the network with the best results has only 2371 learnable parameters using a layout of (36-50-10-1). Compared to the training parameters of Ref. [29], our best network uses different activation and loss functions as well as a constant learning rate. On average, cAdam shows improvement over Adam, being better in 58% of the tested settings. However, the improvement is minor and comes at the cost of, on average, 47% longer training time. The Adam variant comparison in Ref. [21] shows that this longer computing time is due to the implementation through the Tensorflow API. A recreation of Adam in the same way also runs significantly slower than the default version in Tensorflow.

4.3. MNIST Classifier

The best five results of the MNIST classifier are summarized in

Table 8. The best 5 of the 2592 parameter combinations and results for NNs trained on the MNIST dataset. Results are sorted by final validation accuracy. Every network was trained five times, and the average values are listed.

Parameter	Best Values
Final validation accuracy	0.97	0.9691	0.96905	0.96885	0.9688
Test accuracy	0.97006	0.96906	0.9681	0.97048	0.97084
Final validation loss	0.01339	0.0066957	0.01449	0.0070507	0.96845
Training time (in s)	46.666	43.602	86.105	86.874	23.122
Neurons per layer	$\left(50,10\right)$	$\left(50,10\right)$	$\left(50,10\right)$	$\left(50,10\right)$	$\left(50,10\right)$
Activation function $\left(Hidden\right)$	ReLU	ReLU	ReLU	ReLU	ReLU
Activation function $\left(Output\right)$	Sigmoid	Sigmoid	Sigmoid	Softmax	Softmax
Loss function	Cat-cross	Cat-cross	Cat-cross	Cat-cross	Cat-cross
Training cycles	50	25	50	50	25
Batch size	100	100	100	100	100
Optimizer	Adam	cAdam	cAdam	cAdam	Adam
Learning rate	0.001	0.1	0.1	0.1	0.1
$\epsilon$	${10}^{-7}$	1.0	1.0	1.0	1.0

. Our best-performing network on the MNIST dataset has a layout of (784-50-1-10), which has about 40,000 learnable parameters. The networks listed in Ref. [30] with a similar setup and performance have at least 300 hidden neurons, resulting in 200,000 to 500,000 learnable parameters. This significant difference in the number of learnable parameters can be explained by the findings in Ref. [31]. They introduce the intrinsic dimension of a model for a given problem, which describes the minimum number of parameters needed to reach a given accuracy. The number of parameters required to reach an accuracy of 90% for the MNIST dataset is about 750 [31]. The networks discussed here significantly surpass this number, so we can expect good results even with smaller networks. While [31] also shows that more parameters do tend to allow for better results, the gained performance becomes very small quite quickly. The extra computation time required for larger networks might be better spent on hyperparameter optimization or training for more epochs. In this experiment, cAdam performs better than Adam on 66% of the parameter settings at a cost of a 40% increase in training time. The differences in maximum accuracy, however, are small (see Table 8). Further analysis of results can be found in Ref. [21].

5. Summary

We proposed a two-step method to predict the formation energy of ternary compounds. The goal of the first unit, which is a classifier, is to increase the training dataset size for the second unit, which is a regression model to predict the formation energies. Based on available data in the MPD, a heuristic calculates the formation energies of ternary compounds, which are evaluated by the classifier. In this way, we increase the size of the training dataset for the regressor unit by at least 100%. Using a layout of (36-50-10-1) with the cAdam optimizer for the regression unit, an MAE of 0.114 eV/atom is achieved. The introduced optimizer cAdam, when trained on the MNIST dataset, yielded very similar results to Adam at a slightly higher computational cost.
