# A Time-Varying Incentive Optimization for Interactive Demand Response Based on Two-Step Clustering

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- In order to solve the problem of poor clustering under the complex electricity consumption situation of users in the existing research, we constructed a two-step clustering model based on the principle of reverse regulation. Our method can improve the poor clustering results of previous research that only adopted the first step of clustering based on a k-means clustering algorithm or the second step f clustering based on self-organizing competitive neural networks.
- In order to solve the problem that the single demand response strategy in the existing research is unable to effectively interact with the user side, we propose an interactive demand response optimization strategy based on two-step clustering. According to the clustering results of resident users, the peak and valley periods are determined by the primary class, and the peak–valley load time-sharing incentives are customized by the secondary subclass.
- The improved NSGA-II algorithm is used to solve the multi-objective peak–valley load time-sharing incentive model, which solves the problem that the existing research does not consider the difference of user power demand, and effectively improves the load characteristics of residential users through flexible incentive forms.

## 2. Related Work

## 3. A Two-Step Clustering Model Based on the Analysis of Consumer Behavior

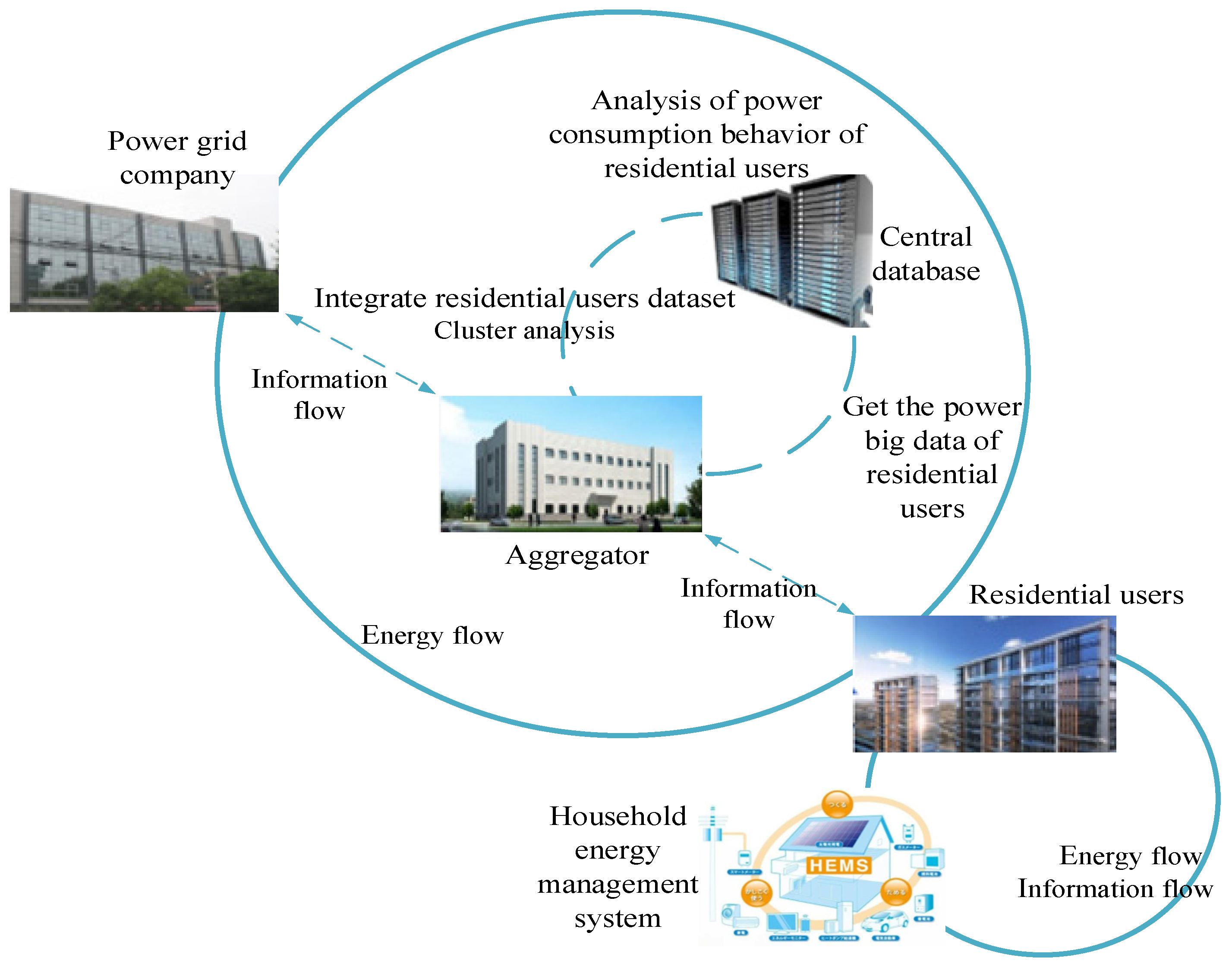

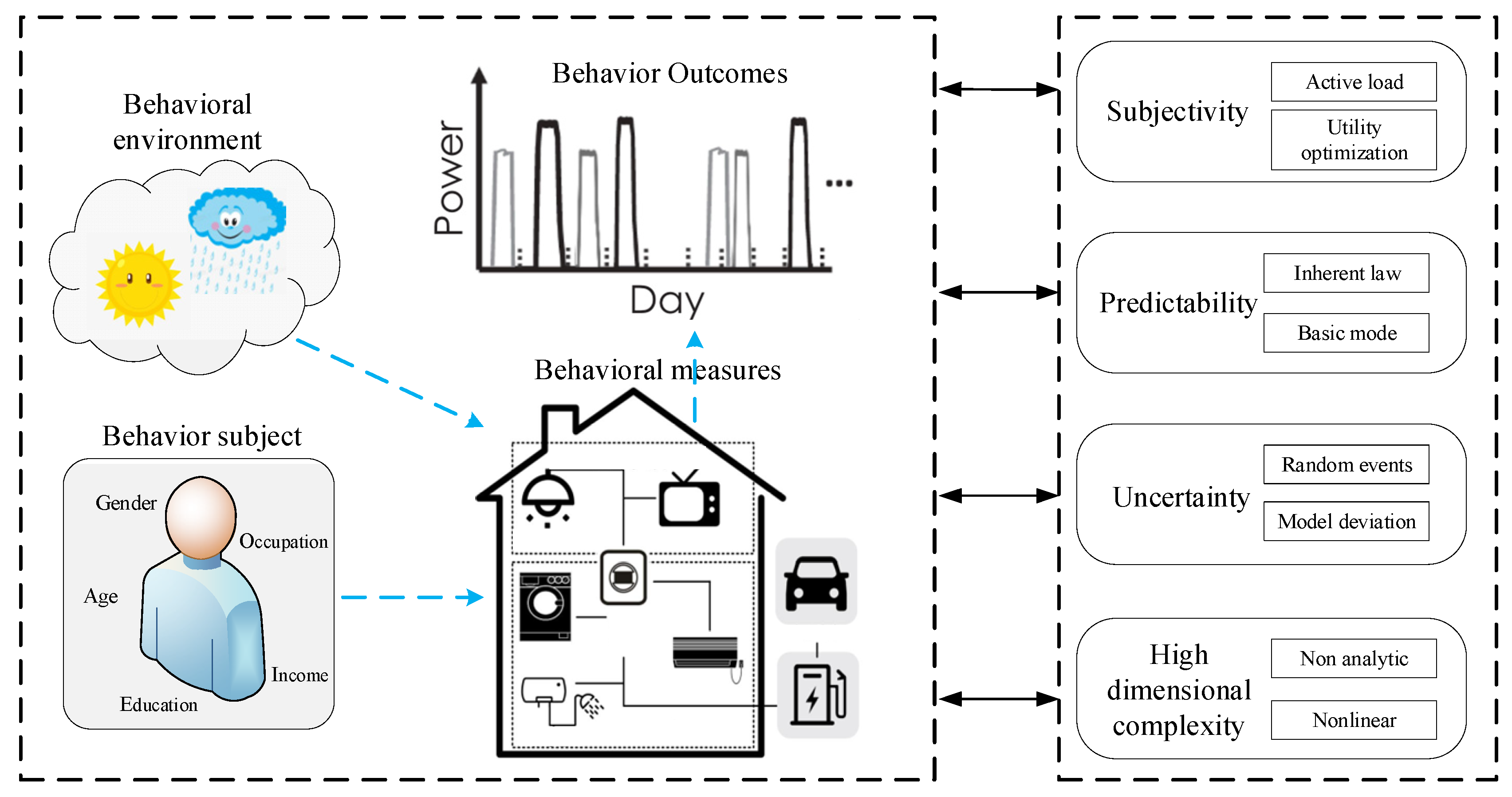

#### 3.1. Analysis of Power Consumption Behavior of Users

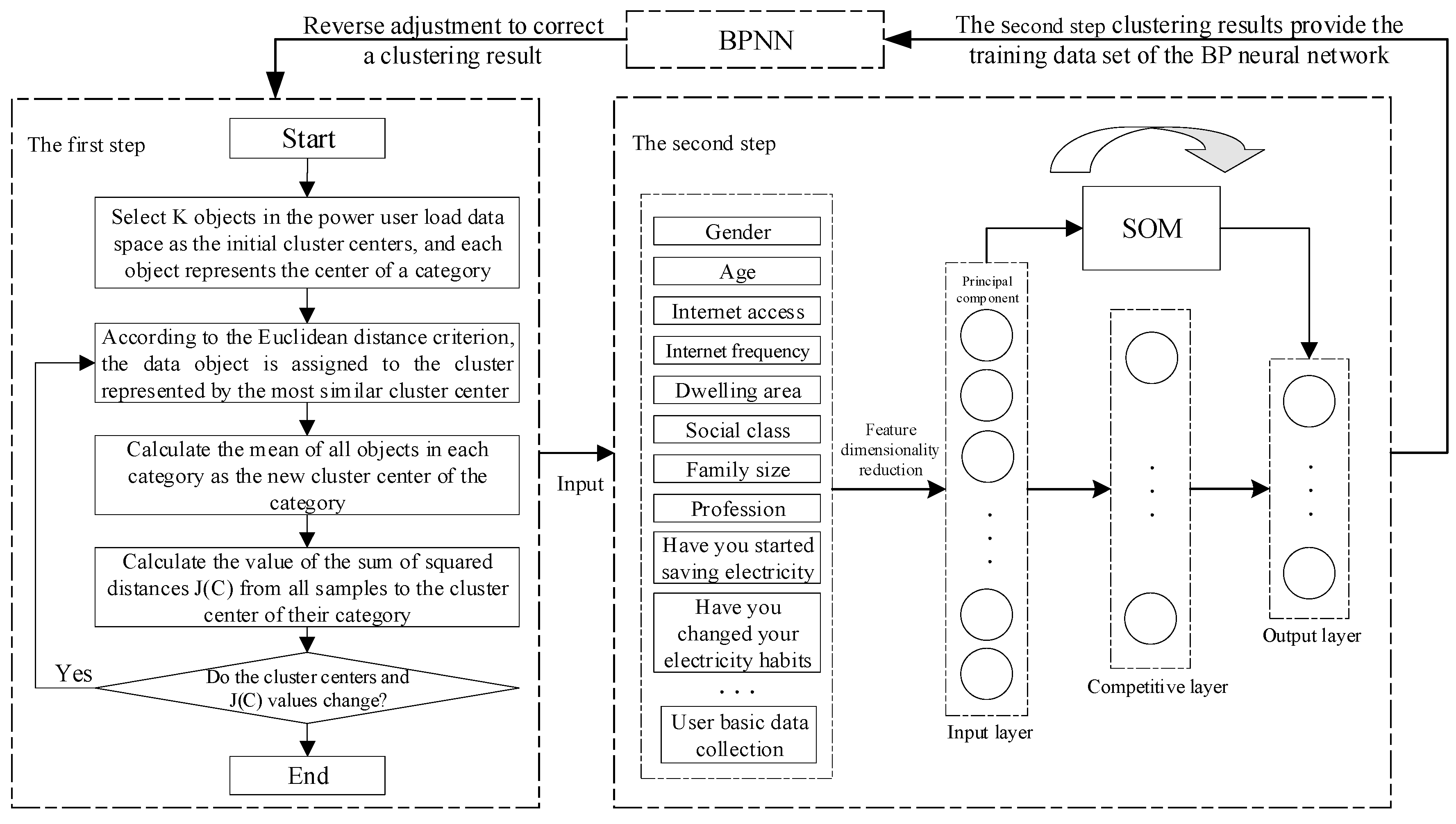

#### 3.2. Two-Step Clustering Model

## 4. Interactive Response Strategy

#### 4.1. Residential Load Modeling

#### 4.2. Multi-Objective Peak–Valley Time-Varying Incentive Optimization Strategy Based on Two-Step Clustering

- The peak–trough load period is based on the user’s daily electricity consumption, which can reflect the load characteristics of the power user, and the user can participate in the peak–trough load time-varying incentive response by adjusting the usage of household appliances.
- The impact of peak–trough load incentives on the total daily electricity consumption of residents within a certain range is almost negligible, so the default total user load before the electricity price of peak–trough load period optimization is consistent with the total load after peak–trough load incentive optimization.

_{1}indicating stronger and k

_{2}weaker regulatory potential. From the primary k class, it can be determined that the peak and trough load periods of time-varying incentives for users’ classes are T

_{kf}and T

_{kg}, respectively. From the secondary subclasses, it can be determined that the peak and trough load time-varying incentives of subclass k

_{1}are ${p}_{{k}_{1}f}$ and ${p}_{{k}_{1}g}$, respectively, while the peak and trough load time-varying incentives of subclass k

_{2}are ${p}_{{k}_{2}f}$ and ${p}_{{k}_{2}g}$, respectively.

_{n}is the electricity consumption cost of the user n, while ${l}_{nf}(t)$ and ${l}_{ng}(t)$ are the responded loads to the peak and trough load periods, respectively, after the implementation of the incentive policy.

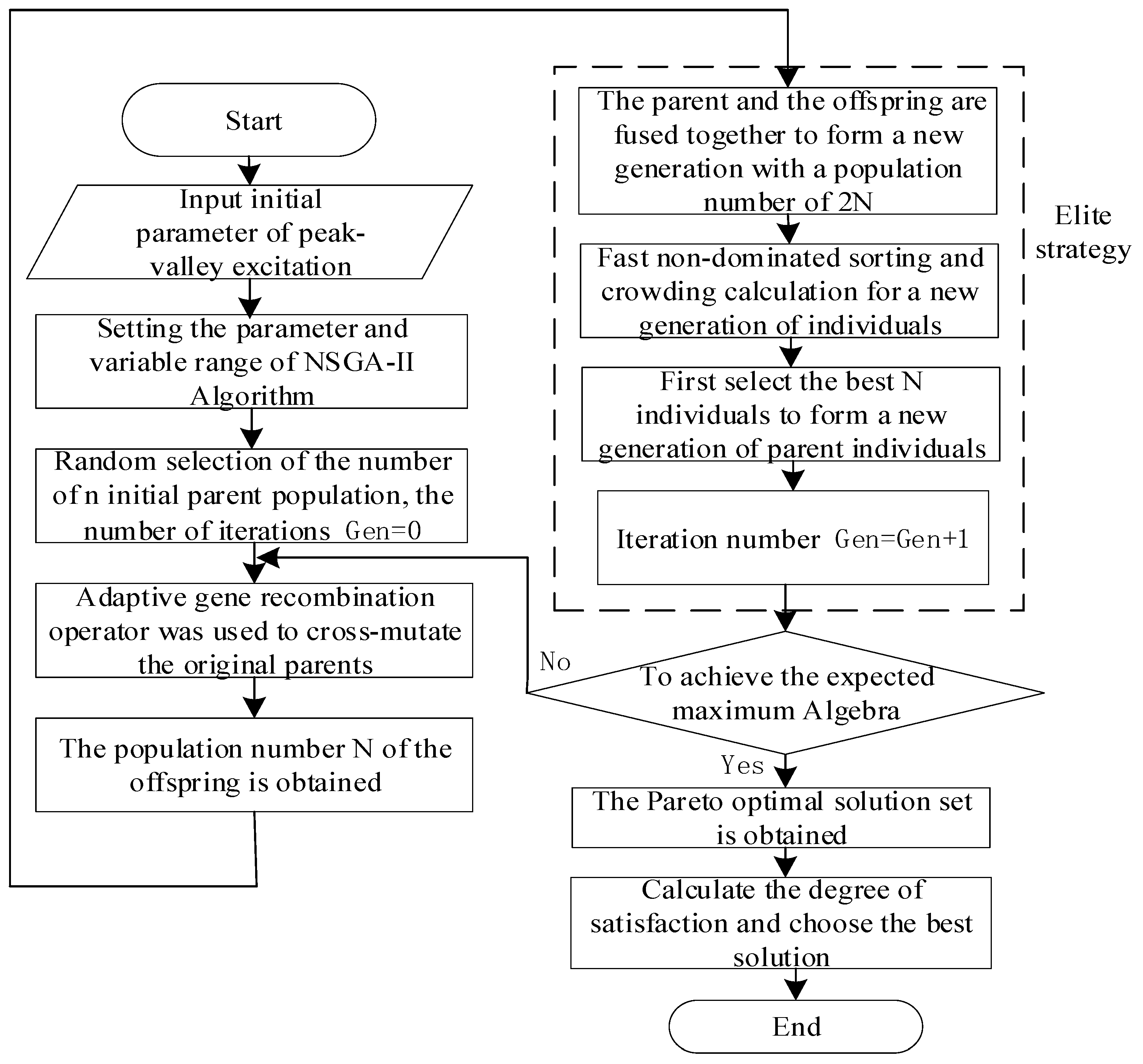

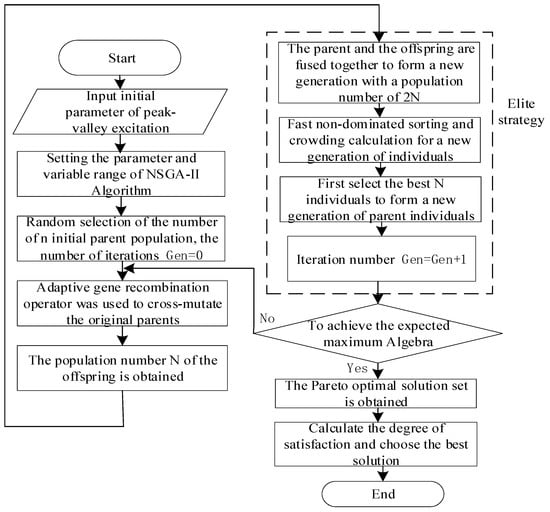

#### 4.3. Improved NSGA-II Multi-Objective Optimization Algorithm

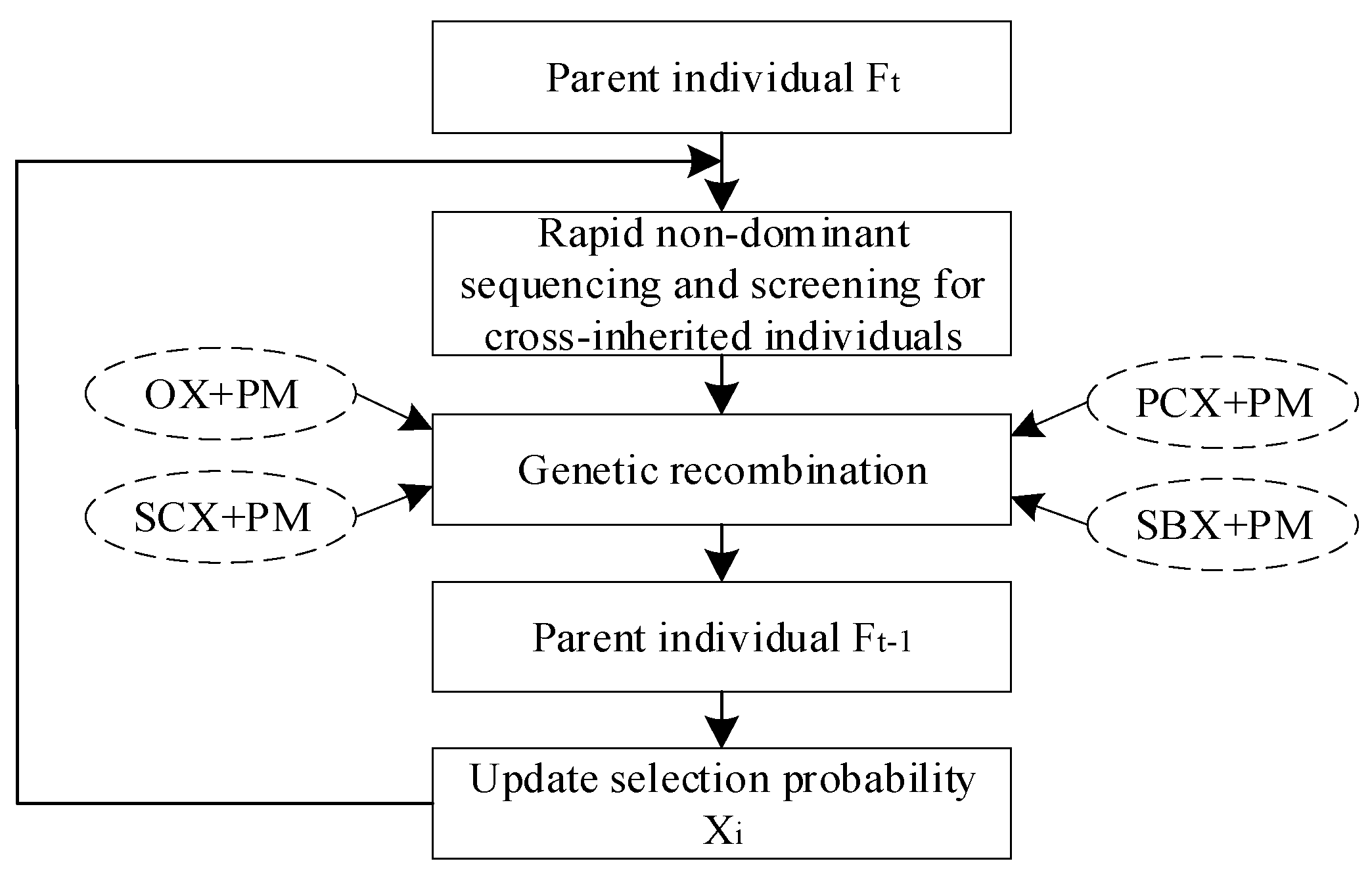

_{i}is the number of successful offspring produced by i, while $\tau $ is a constant in order to avoid the loss of the genetic recombination operator in the iterative process. We set $\tau =1$.

## 5. Performance Validation

#### 5.1. Experimental Environment and Data Introduction

#### 5.2. Experimental Results

## 6. Conclusions

- A two-step clustering model based on the principle of reverse regulation was adopted to improve the poor clustering results of the first step clustering based on k-means clustering algorithm and the second clustering based on self-organizing competitive neural networks, as well as to improve the clustering quality and clustering accuracy.
- By customizing the peak–valley time-varying incentives for different types of residential users, and using the improved NSGA-II algorithm to solve the model, the goal of saving users’ electricity consumption costs and reducing the peak–trough differences in the grid’s power load was realized.

- This paper does not consider the differences in the electricity consumption behavior of users in different countries and regions. In the future, the demand response optimization strategy proposed in this paper should be applied to more measured datasets to analyze the applicability of this method.
- In the follow-up, the non-cooperative game problems formed by power suppliers formulating different sales strategies for different types of residential users will be further analyzed, and the game equilibrium of the power market will be further studied.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Xu, S.; Chen, X.; Xie, J.; Rahman, S.; Wang, J.; Hui, H.; Chen, T. Agent-based modeling and simulation for the electricity market with residential demand response. CSEE J. Power Energy Syst.
**2021**, 7, 368–380. [Google Scholar] [CrossRef] - Zhao, Y.; Lin, Z.; Wen, F.; Ding, Y.; Hou, J.; Yang, L. Risk-Constrained Day-Ahead Scheduling for Concentrating Solar Power Plants with Demand Response Using Info-Gap Theory. IEEE Trans. Ind. Inform.
**2019**, 15, 5475–5488. [Google Scholar] [CrossRef] - Zhou, B.; Cao, Y.; Li, C.; Wu, Q.; Liu, N.; Huang, S.; Wang, H. Many-criteria optimality of coordinated demand response with heterogeneous households. Energy
**2020**, 207, 118267. [Google Scholar] [CrossRef] - Mazidi, M.; Monsef, H.; Siano, P. Robust day-ahead scheduling of smart distribution networks considering demand response programs. Appl. Energy
**2016**, 178, 929–942. [Google Scholar] [CrossRef] - Yantai, H.; Lei, W.; Weian, G. Chance Constrained Optimization in a Home Energy Management System. Smart Grid. IEEE Trans. Smart Grid
**2017**, 9, 252–260. [Google Scholar] - Mahesh Kumar, K.; Rama Mohan Reddy, A. An efficient k -means clustering filtering algorithm using density based initial cluster centers. Inf. Sci.
**2017**, 418–419, 286–301. [Google Scholar] [CrossRef] - Shiyu, Z.; Shaoyun, G. User Power Interaction Behavior Clustering Analysis That is Based on the Self-Organizing-Center K-Means Algorithm. IEEE Access
**2019**, 7, 175879–175888. [Google Scholar] - Wang, Y.; Qiu, J.; Tao, Y.; Zhao, J. Carbon-Oriented Operational Planning in Coupled Electricity and Emission Trading Markets. IEEE Trans. Power Syst.
**2020**, 35, 3145–3157. [Google Scholar] [CrossRef] - Qi, Z.; Haolin, L.; Xinying, W. Analysis of users’ electricity consumption behavior based on ensemble clustering. Glob. Energy Interconnect.
**2019**, 2, 480–489. [Google Scholar] - Sivaraj, C.; Alphonse, P.; Janakiraman, T. Energy-efficient and Load Distributed Clustering Algorithm for Dense Wireless Sensor Networks. Int. J. Intell. Syst. Appl.
**2017**, 9, 34–42. [Google Scholar] - Baoyi, W.; Jin, L.; Shaomin, Z. Study of Residential Power Load Patterns Based on Clustering and Deep Belief Network. J. Netw. Comput. Appl.
**2017**, 2, 7–13. [Google Scholar] - Aida Hosseini, B.; Vahid, N.; Mohammad-Ali, K. Conjunction of wavelet-entropy and SOM clustering for multi-GCM statistical downscaling. Hydrol. Res.
**2019**, 50, 1–23. [Google Scholar] - Zhang, X.; Han, Z.; Cai, J.; Jin, Z.; Yang, Q. Research on scheduling strategy of heterogeneous flexible load clusters with strong association consider dual-scale similarities. Int. J. Electr. Power Energy Syst.
**2022**, 141, 108201. [Google Scholar] [CrossRef] - Eskandarnia, E.; Al-Ammal, H.M.; Ksantini, R. An Embedded Deep-Clustering-Based Load Profiling Framework. Sustain. Cities Soc.
**2021**, 78, 103618. [Google Scholar] [CrossRef] - Xu, R. Efficient clustering for aggregate loads: An unsupervised pretraining based method. Energy
**2020**, 210, 118617. [Google Scholar] - Li, K.; Cao, X.; Ge, X.; Wang, F.; Lu, X.; Shi, M.; Yin, R.; Mi, Z.; Chang, S. Meta-Heuristic Optimization-Based Two-Stage Residential Load Pattern Clustering Approach Considering Intra-Cluster Compactness and Inter-Cluster Separation. IEEE Trans. Ind. Appl.
**2020**, 56, 3375–3384. [Google Scholar] [CrossRef] - Mohandes, B.; Moursi, M.; Hatziargyriou, N.; El Khatib, S. Incentive based Demand Response Program for Power System Flexibility Enhancement. Smart Grid. IEEE Trans. Smart Grid
**2020**, 12, 2212–2223. [Google Scholar] [CrossRef] - He, Y.; Chen, F.; Jiao, Z.; Guang, F.; Gao, X.; He, Q. Research on user demand response under time-of-use tariff policy based on Sigmoid function. In E3S Web of Conferences; EDP Sciences: Les Ulis, France, 2018; pp. 489–492. [Google Scholar]
- Pallonetto, F.; de Rosa, M.; D’Ettorre, F.; Finn, D.P. On the assessment and control optimisation of demand response programs in residential buildings. Renew. Sustain. Energy Rev.
**2020**, 127, 109861. [Google Scholar] [CrossRef] - Man, Y.; Yuzhen, Z.; Zhe, Y. The Time-of-Use Price of Electric Vehicle Charging and Discharging based on Monte Carlo Algorithm. In Proceedings of the 2018 International Conference on Big Data and Artificial Intelligence (ICBDAI 2018), Ningbo, China, 21–23 December 2018; Francis Academic Press: London, UK, 2018; pp. 76–83. [Google Scholar]
- Zhu, Y.; Liang, Z.; Su, H.; Wang, Y.; Wang, W. Research on Peak-Valley TOU Price Based on Demand Side Response. IOP Conf. Ser. Earth Environ. Sci.
**2018**, 199, 032048. [Google Scholar] [CrossRef] - Wang, B.; Cai, Q.; Sun, Z. Determinants of Willingness to Participate in Urban Incentive-Based Energy Demand-Side Response: An Empirical Micro-Data Analysis. Energy Convers. Perform. Sustain. Dev.
**2020**, 12, 8052. [Google Scholar] [CrossRef] - Chen, L.; Yang, Y.; Xu, Q. Retail dynamic pricing strategy design considering the fluctuations in day-ahead market using integrated demand response. Int. J. Electr. Power Energy Syst.
**2021**, 130, 106983. [Google Scholar] [CrossRef] - Goudarzi, A.; Li, Y.; Fahad, S.; Xiang, J. A game theory-based interactive demand response for handling dynamic prices in security-constrained electricity markets. Sustain. Cities Soc.
**2021**, 72, 103073. [Google Scholar] [CrossRef] - David, F.; Bruce, S.; Alexander, F. Modeling the Effects of Variable Tariffs on Domestic Electric Load Profiles by Use of Occupant Behavior Submodels. IEEE Trans. Smart Grid
**2017**, 8, 2685–2693. [Google Scholar] - Wei, H.; Liang, J.; Li, C.; Zhang, Y. Real-time Locally Optimal Schedule for Electric Vehicle Load via Diversity-maximization NSGA-II. J. Mod. Power Syst. Clean Energy
**2021**, 9, 940–950. [Google Scholar] [CrossRef] - Li, B.; Li, C.; Cui, X.; Lai, X.; Ren, J.; He, Q. A Disassembly Sequence Planning Method with Team-Based Genetic Algorithm for Equipment Maintenance in Hydropower Station. IEEE Access
**2020**, 8, 47538–47555. [Google Scholar] [CrossRef] - Irish Social Science Data Archive. Commission for Energy Regulation (CER) Smart Metering Project. 2012. Available online: http://www.ucd.ie/issda/data/commissionforenergyregulationcer/ (accessed on 12 November 2012).

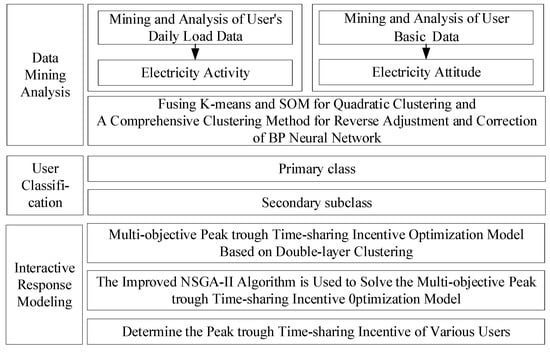

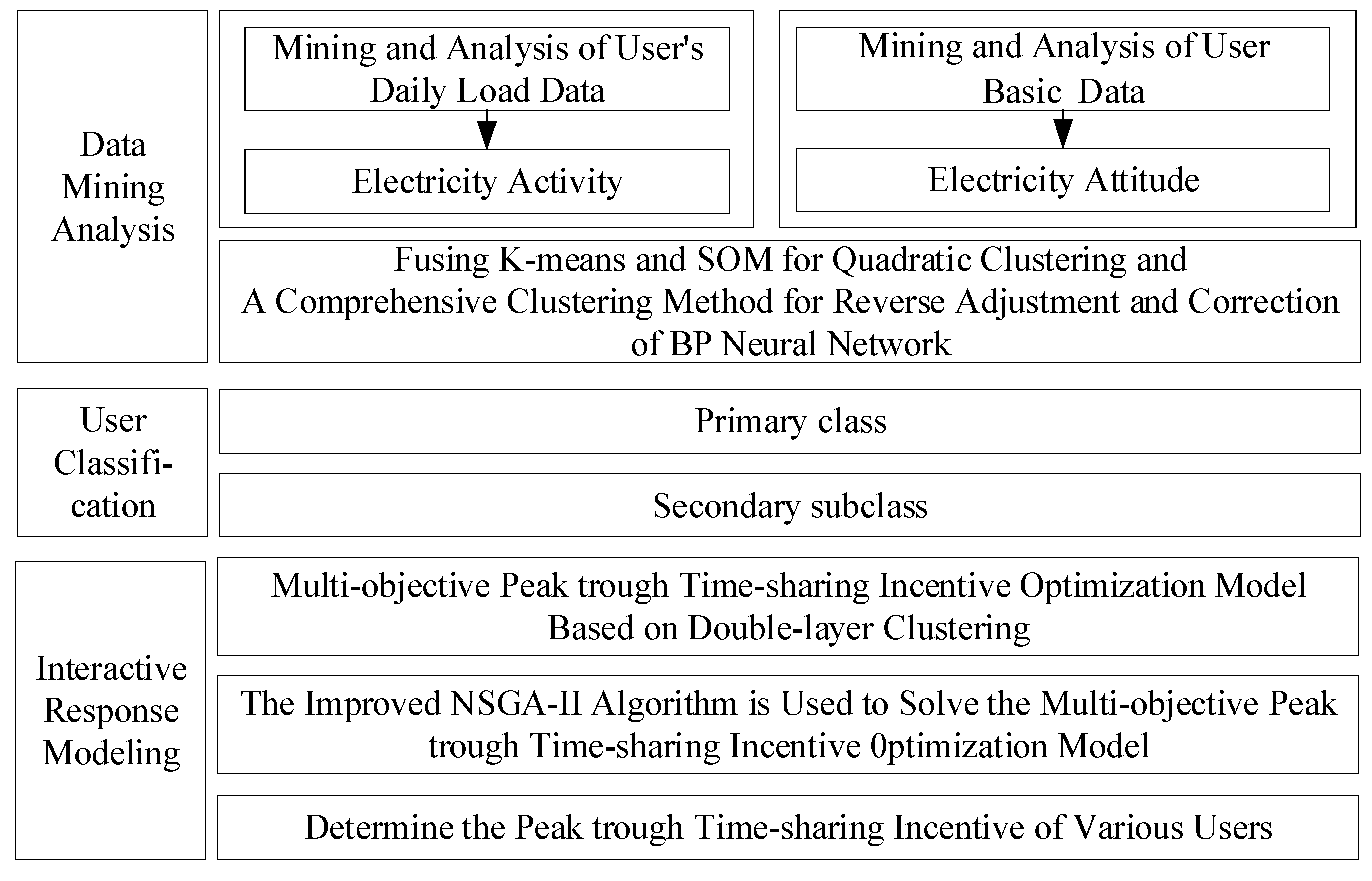

**Figure 4.**Interactive response strategy of time-varying excitation based on power consumption characteristics.

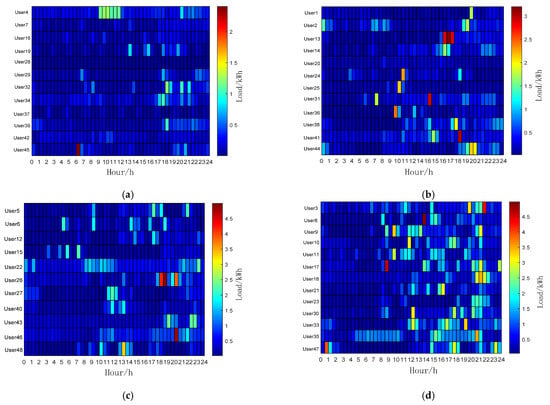

**Figure 7.**Results of two-step clustering based on the inverse correction principle. (

**a**) The first class. (

**b**) The second class. (

**c**) The third class. (

**d**) The fourth class.

User Category | Daily Average Load/kWh | Daily Mean Difference between Peak and Valley/kWh | Typical Load | |
---|---|---|---|---|

The second class | Subclass1 | 15.14 | 2.16 | Schedulable load |

Subclass2 | 15.28 | 2.25 | ||

The third class | Subclass1 | 21.54 | 2.87 | EV |

Subclass2 | 20.29 | 3.12 | ||

The fourth class | Subclass1 | 30.98 | 3.71 | Energy storage device |

Subclass2 | 33.21 | 4.19 |

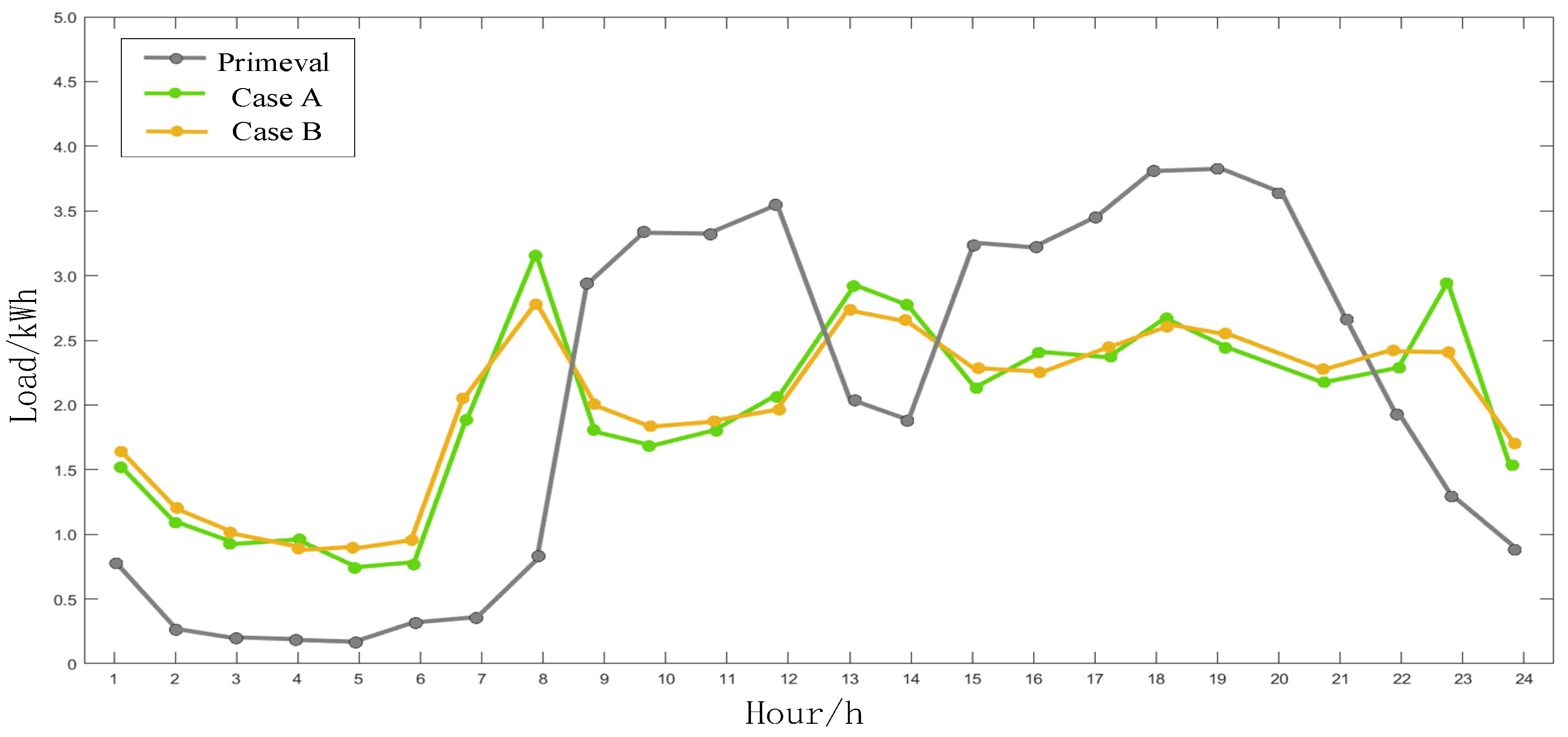

**Table 2.**Comparison of electricity consumption costs to a customer under the two demand response cases.

Case | Average Cost before Optimization/CNY | Optimized Average Cost/CNY | Cost Saving/CNY |
---|---|---|---|

Case A | 14.13 | 12.34 | 1.79 |

Case B | 14.13 | 11.85 | 2.28 |

User Category | Peak-Hour Excitation/(CNY/kWh) | Valley-Hour Excitation/(CNY/kWh) | |
---|---|---|---|

The second class | Subclass1 | −0.231 | +0.128 |

Subclass2 | −0.252 | +0.136 | |

The third class | Subclass1 | −0.202 | +0.141 |

Subclass2 | −0.211 | +0.147 | |

The fourth class | Subclass1 | −0.133 | +0.064 |

Subclass2 | −0.168 | +0.088 |

**Table 4.**Average daily peak–valley difference and power costs before and after the implementation of the strategy.

User Category | Daily Mean Difference between Peak and Valley/kWh | Average Cost before Optimization/CNY | Optimized Average Cost/CNY | Cost Saving/CNY | |
---|---|---|---|---|---|

The second class | Subclass1 | 1.27 | 7.26 | 5.98 | 1.28 |

Subclass2 | 1.31 | 7.34 | 5.92 | 1.42 | |

The third class | Subclass1 | 1.33 | 10.34 | 8.43 | 1.91 |

Subclass2 | 1.39 | 9.74 | 7.95 | 1.79 | |

The fourth class | Subclass1 | 1.89 | 14.87 | 12.41 | 2.46 |

Rubclass2 | 1.72 | 15.94 | 13.05 | 2.89 |
