A Review of System Strength and Inertia in Renewable-Energy-Dominated Grids: Challenges, Sustainability, and Solutions
Abstract
:1. Introduction
- An analysis of recent events and SO market intervention in the deregulated and weakly interconnected electricity markets of Australia, Ireland, and Texas.
- A critical review of current mitigation techniques including synchronous condensers and ancillary services.
- An evaluation of research gaps in system strength and inertia estimation methods, high-IBR grid modelling, and non-linear GFMI output current control techniques.
2. Understanding System Strength and Inertia
2.1. Definitions and Key Concepts
2.2. Impact of IBR Generation
3. System Strength and Inertia Challenges
3.1. System Strength Issues
Voltage Stability

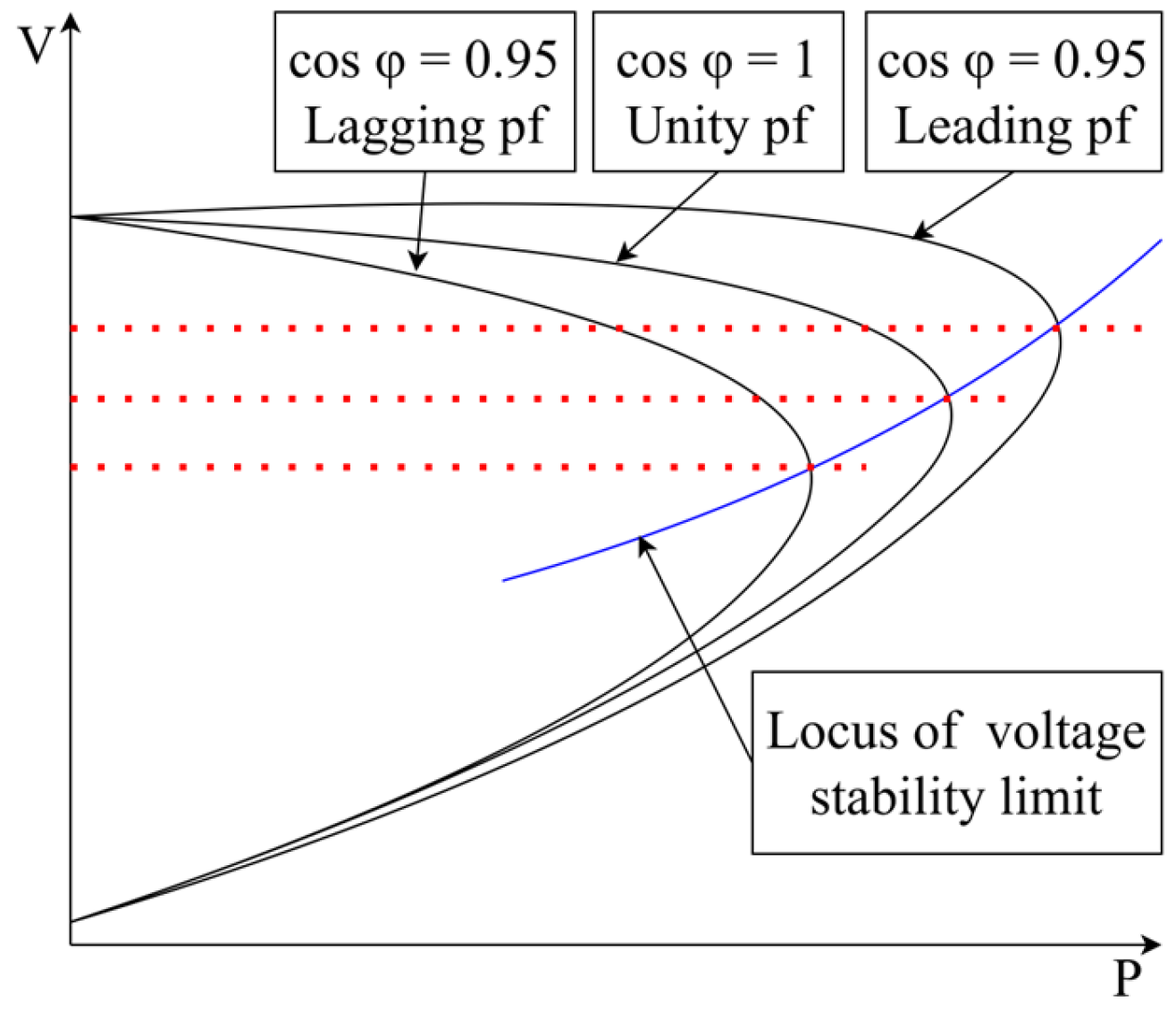

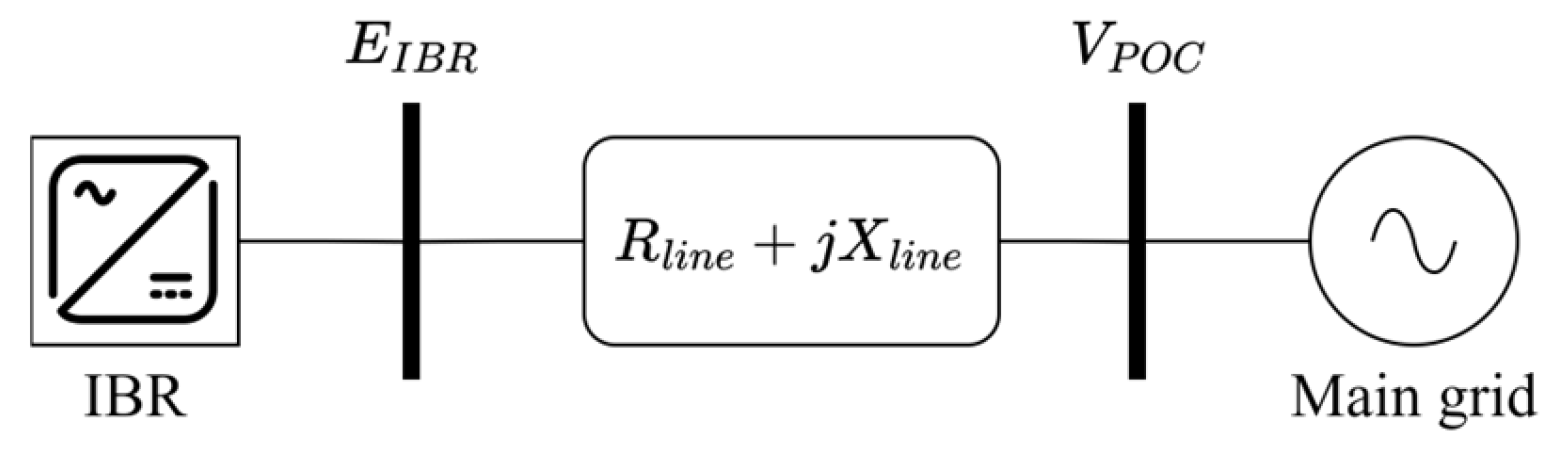

- IBRs cause a drop in SCR making the node voltage more susceptible to rapid current changes caused by transient conditions.
- GFLI algorithms demonstrate suboptimal performance under faulted conditions. IBR plant tripping during faulted conditions is a significant problem as shown by the examples provided in Section 4.3.
- The tripping in item 2 can lead to further voltage instability and entire plant tripping.
3.2. Inertia Issues

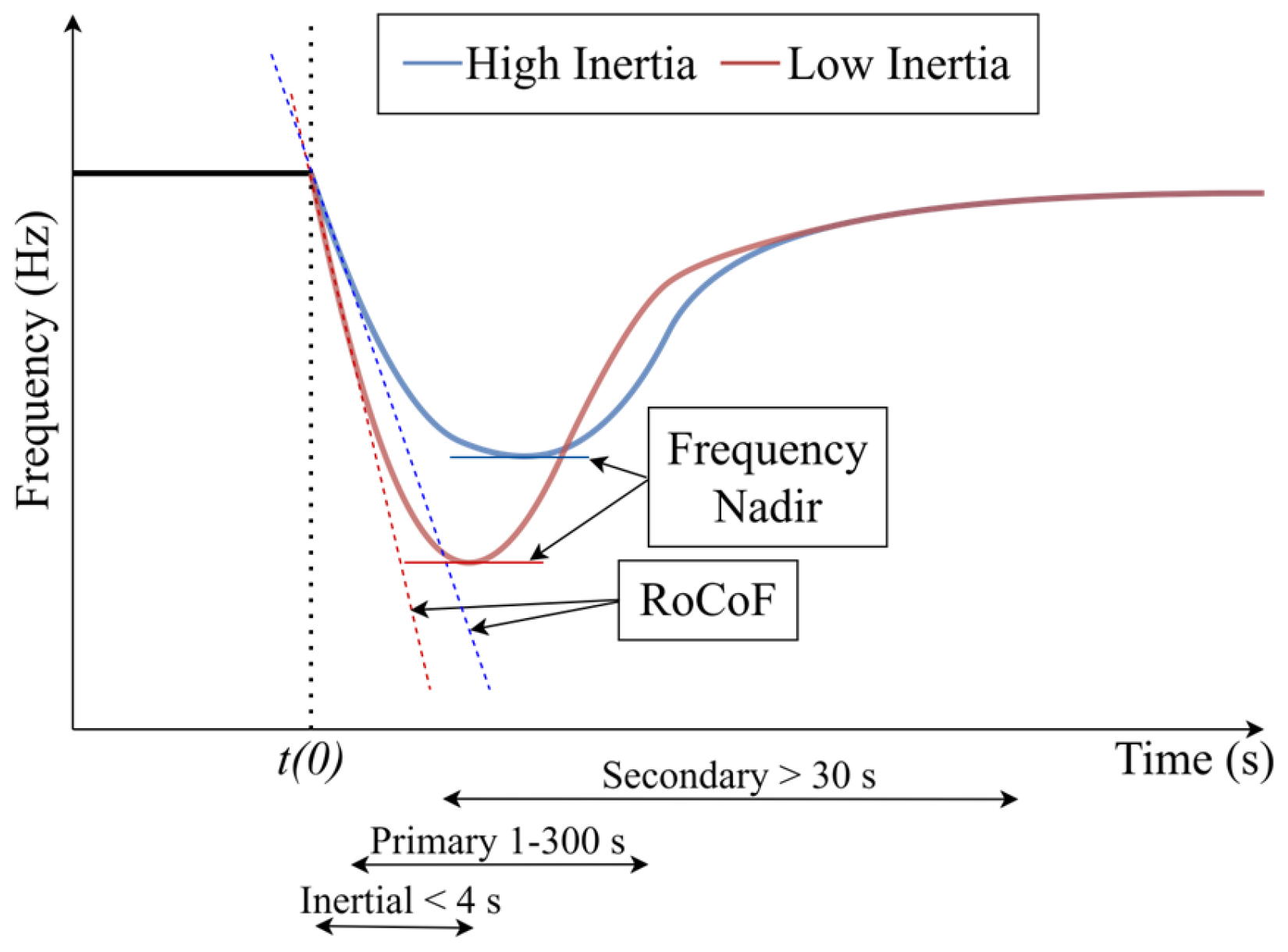

3.2.1. Frequency Stability

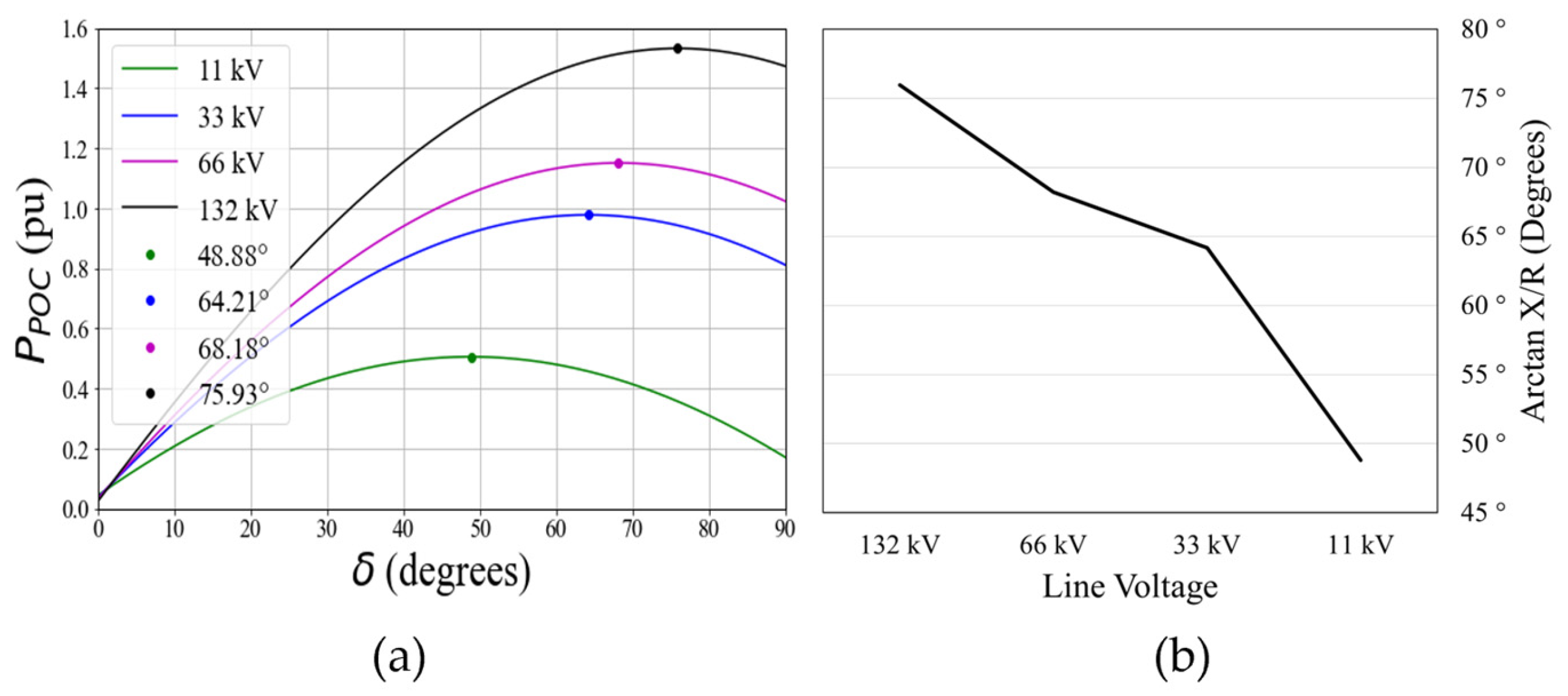

3.2.2. Angle Stability

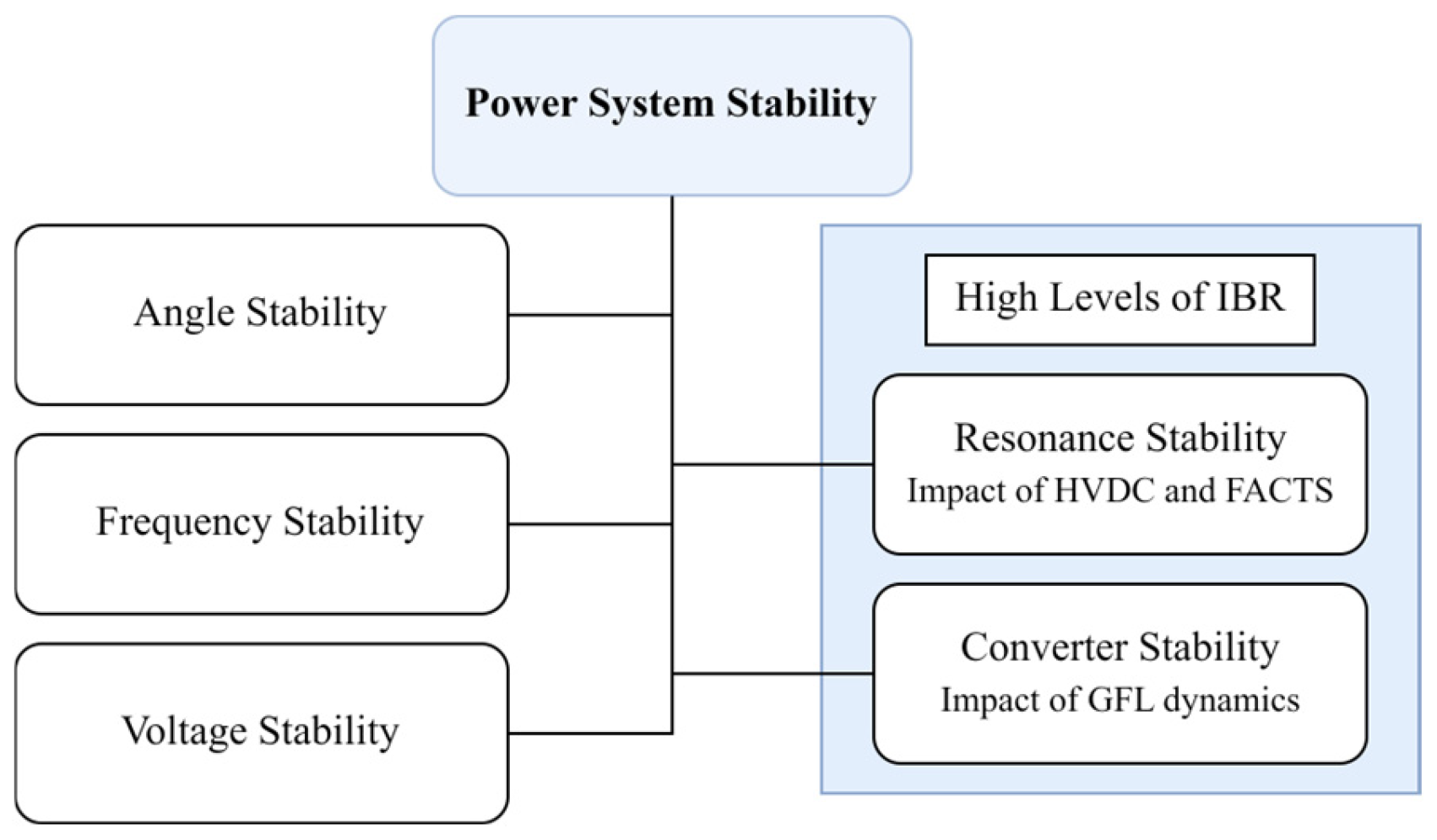

3.2.3. Emerging Stability Categories
- Resonance stability, related to the impact of HVDC and FACTS devices.
- Converter stability, relating to the impact of GFLI (both current and voltage source).

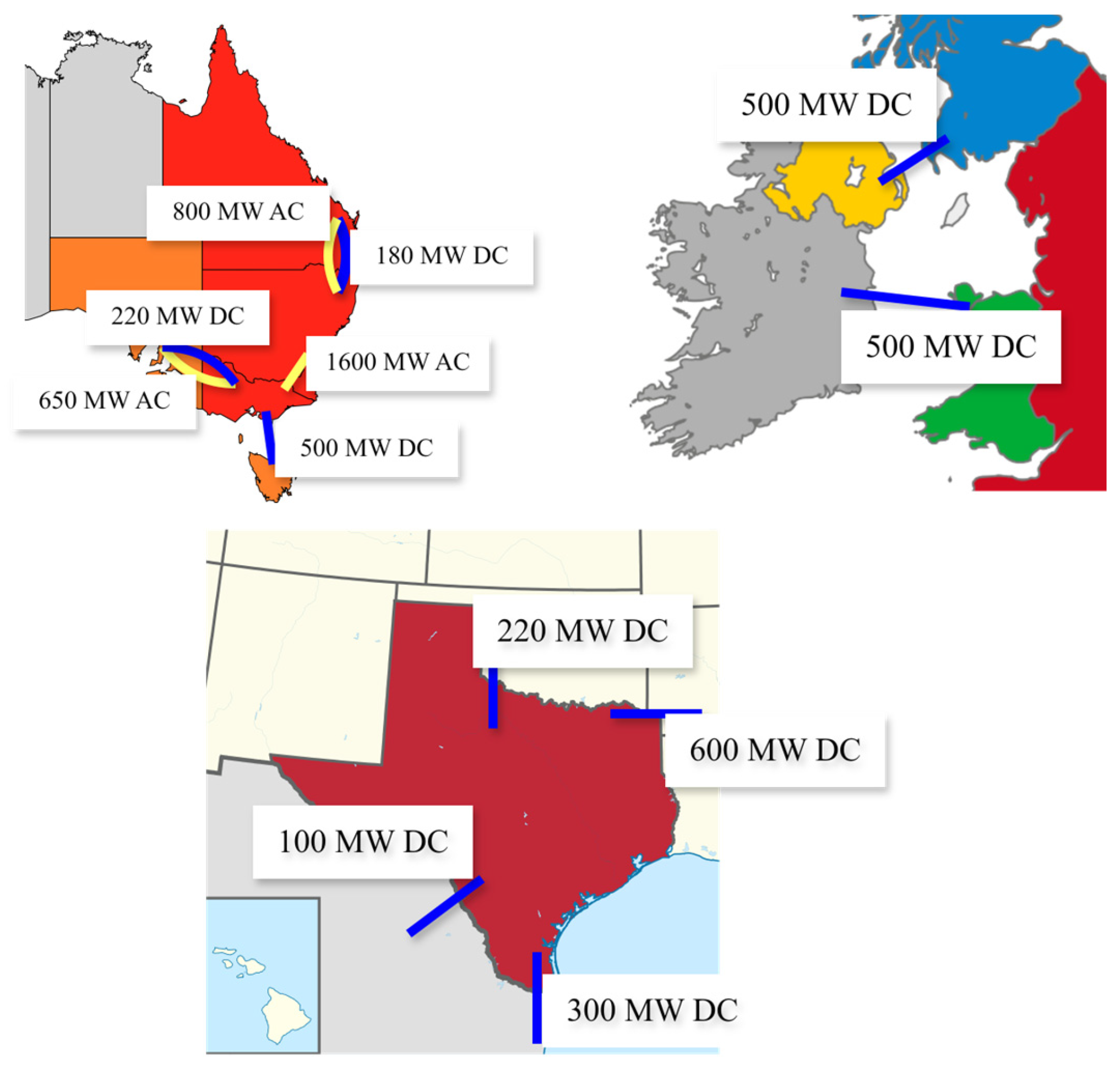

4. Case Studies from Regions with High Renewable Energy

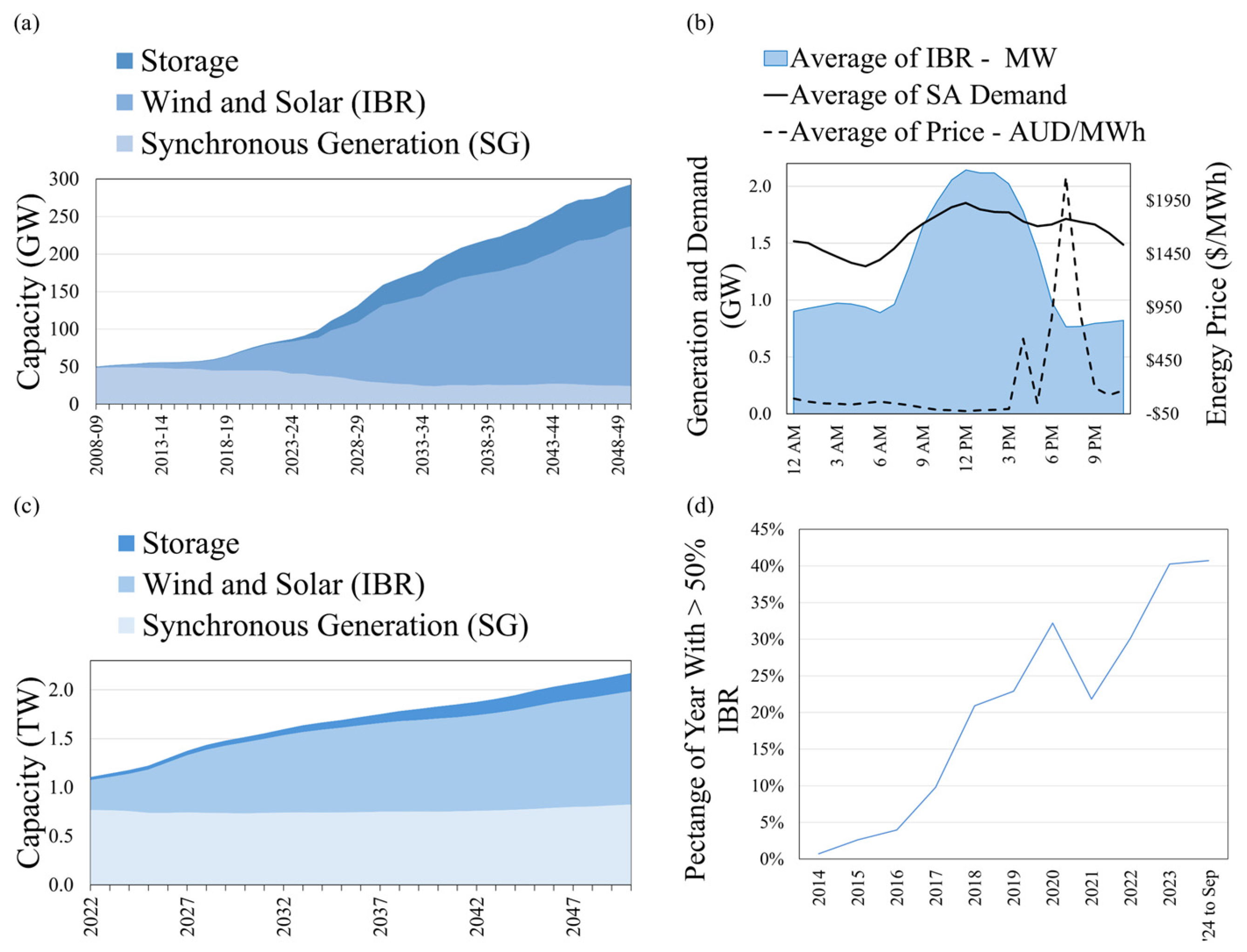

4.1. IBR Penetration Levels
4.2. System Operator Interventions
- Maximum system non-synchronous penetration (SNSP) limit of 75%.
- A minimum number of conventional units on (MUON) of seven units.

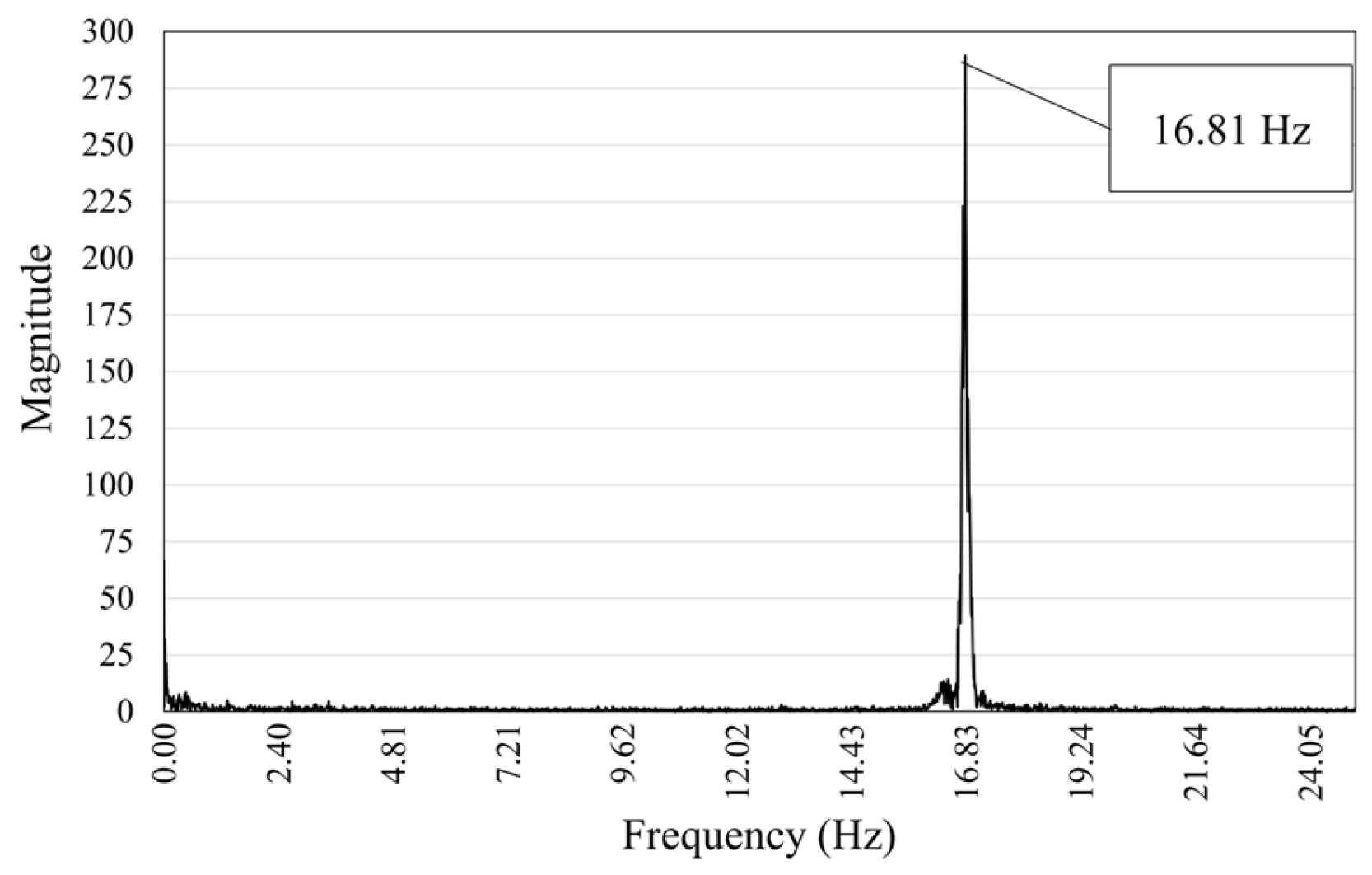

4.3. System Strength and Inertia Events
5. Mitigation Strategies
5.1. Synchronous Condensers
5.2. Flexible AC Transmission Systems

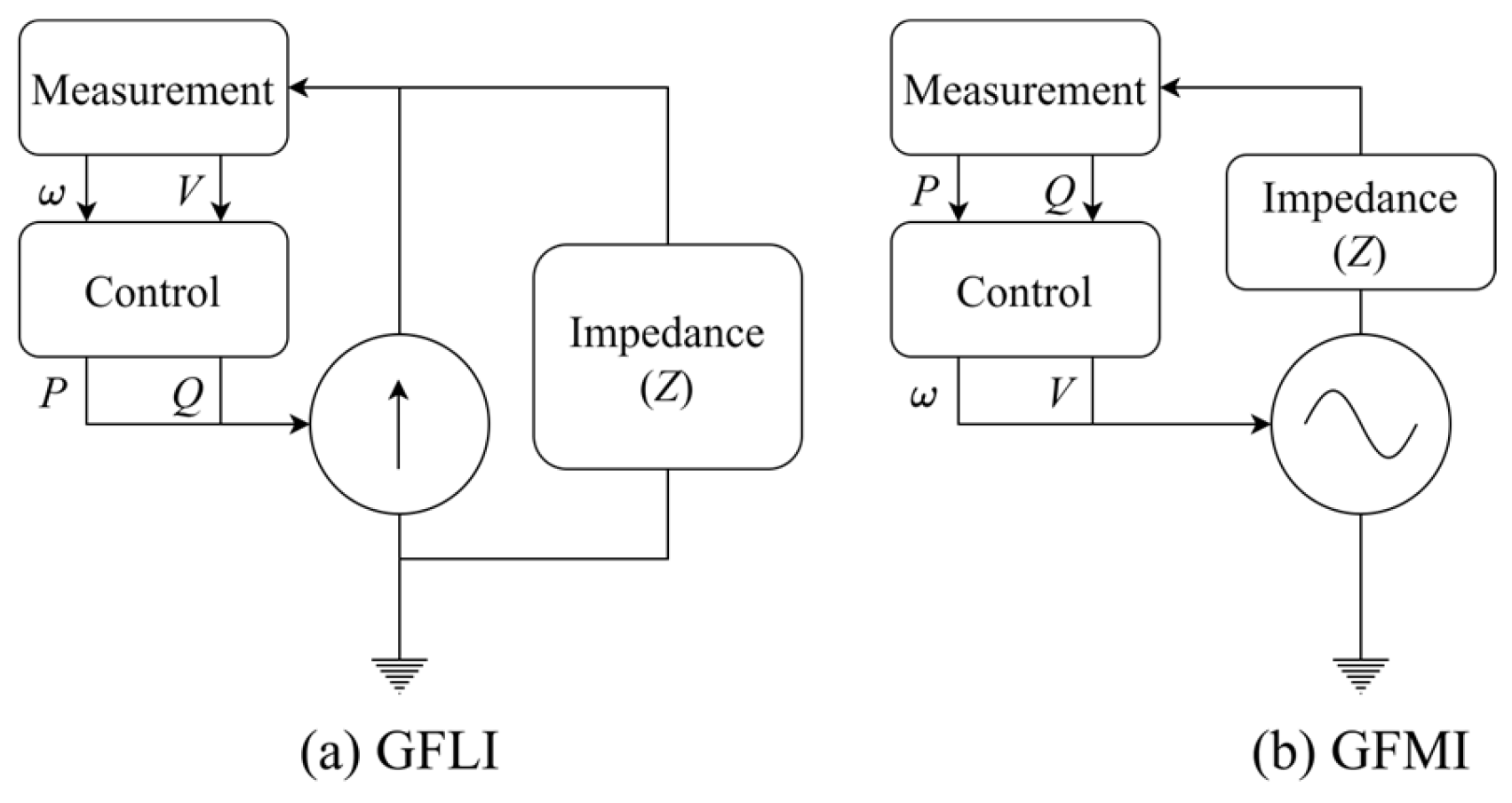

5.3. Grid-Forming Inverters
5.4. Ancillary Services
6. Future Research Direction
6.1. Improve System Strength and Inertia Evaluation Methodology
6.1.1. System Strength
Method | Formula | Contribution | Ref |
---|---|---|---|
SCRPOC | Commonly used metric. Suitable for single inverter connection at POC. | [104,105] | |
WSCR-MW | Considered N IBRs in the locality and provided a weighted value. | [104,105] | |
WSCR-MVA | As per WSCR-MW but considered IBR reactive power capability. | [104] | |
CSCR | Created composite bus and provides an average SCR. Assumes perfect bus coupling. | [104,107] | |
ESCR | Enhanced SCR by including shunt reactive compensation. | [108] | |
IILSCR | Used power tracing to reflect bus interactions | [106] |
6.1.2. Inertia

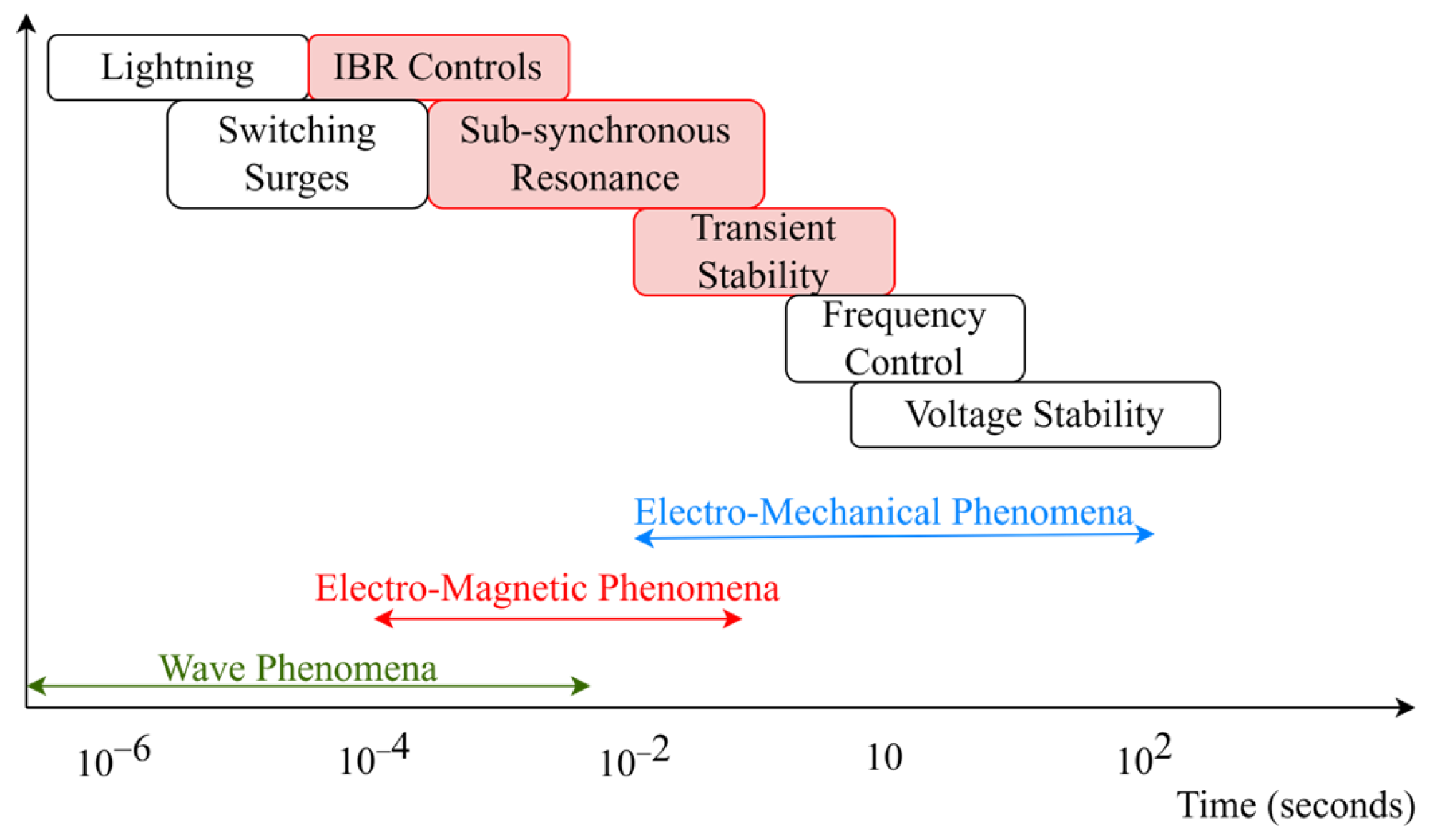

6.2. Improved Grid Modelling
6.3. Advanced GFLI/GFMI Control
6.3.1. Droop Control

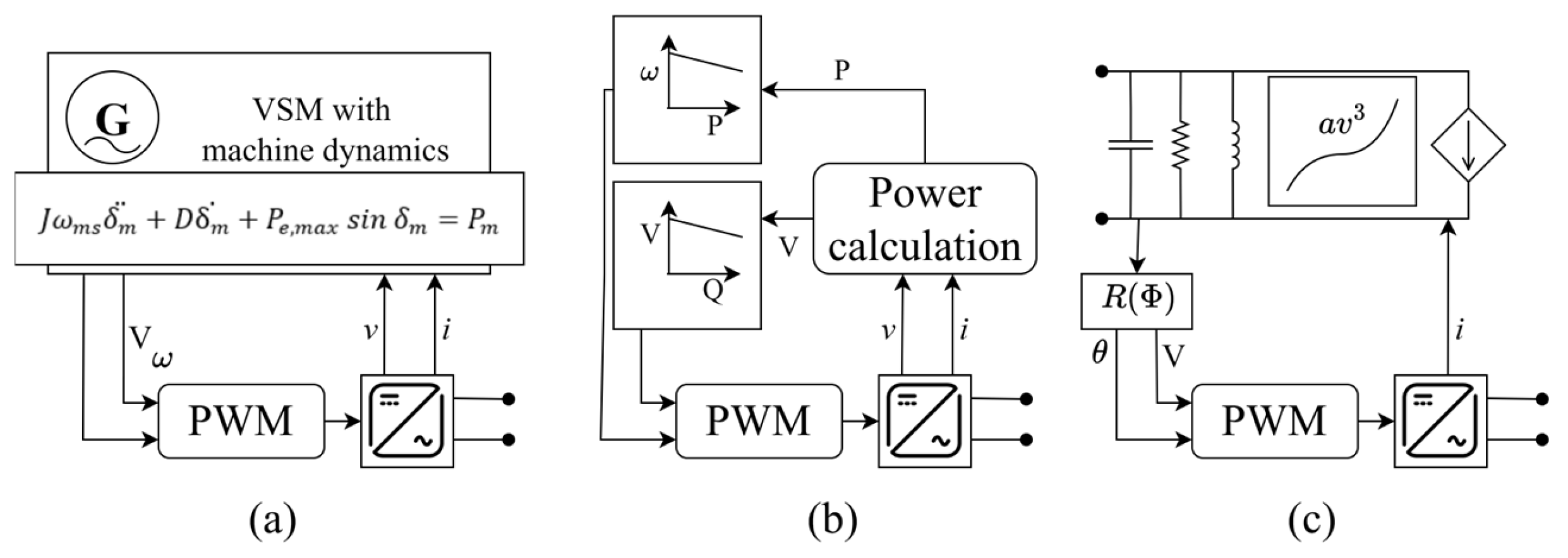

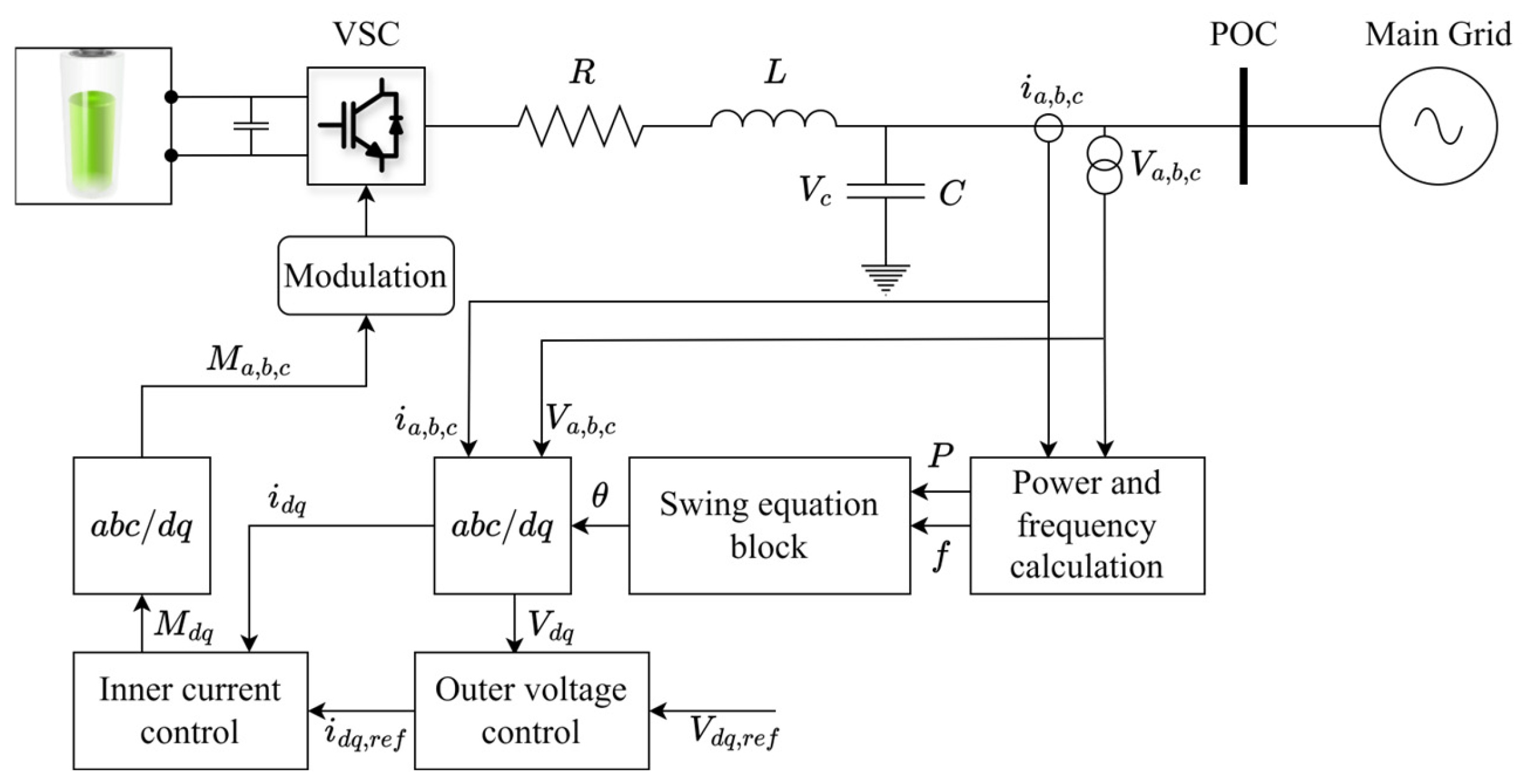

6.3.2. Virtual Synchronous Machine
- The energy storage ramp rate impact on VSM stability requires further study. Research is required before the integration and impact of energy storage for VSM systems is clear.
- The transient stability issue remains for VSM. This is due to the use of linear control techniques, such as PI, in many current implementations. Issues such as energy storage ramping and filter parameter changes have also been shown to impact stability. Non-linear techniques, SMC and MPC, have demonstrated increased stability margin and robustness for VSM, but research and real-world implementation remain limited.
- Smart-grid technologies like VSM involve the use of communications and can be computationally expensive. As VSMs are a critical power grid infrastructure, further research is required in this area to ensure that new solutions are secure, cost-effective, and implementable on existing inverter technology.

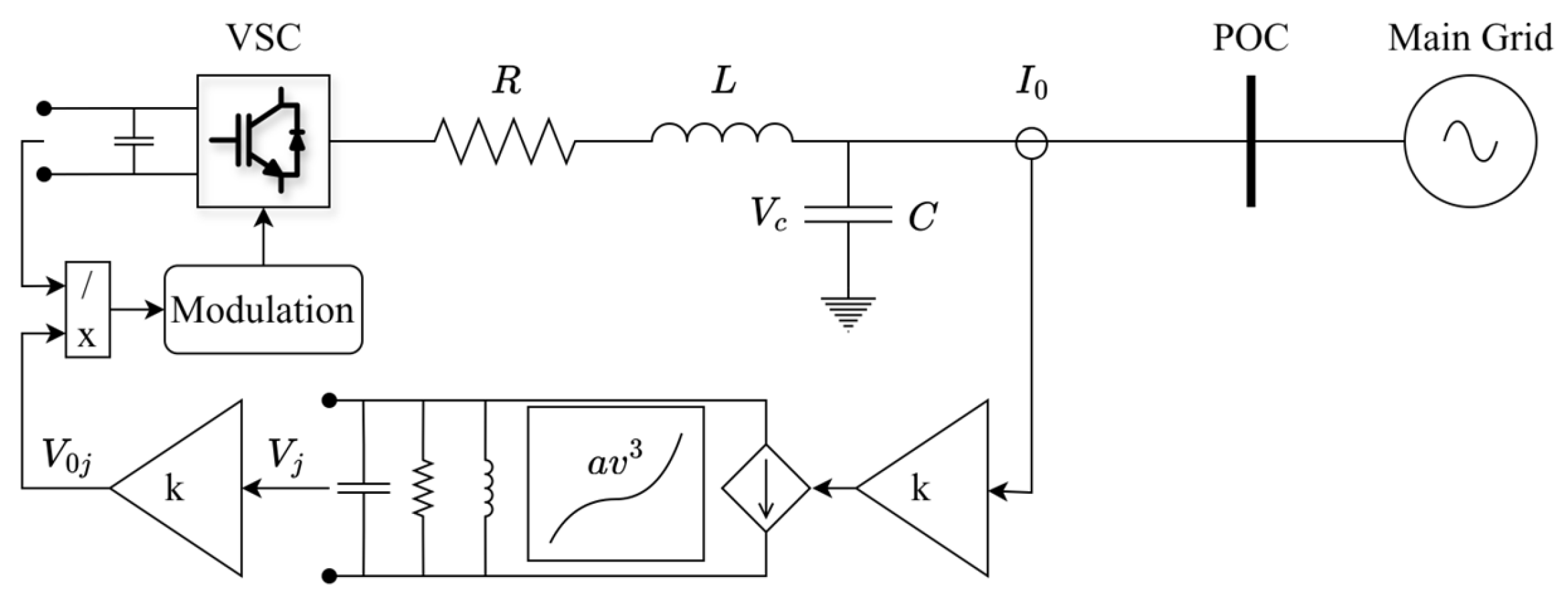

6.3.3. Dispatchable Virtual Oscillator Control
6.3.4. GFMI Fault Current
6.3.5. Swing Equation Derivation from Energy
7. Discussion
Benefit to Planetary Health
8. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
