Numerical Investigation of Extreme Wave-Induced Loading on Box Girder in Marine Environment
Abstract

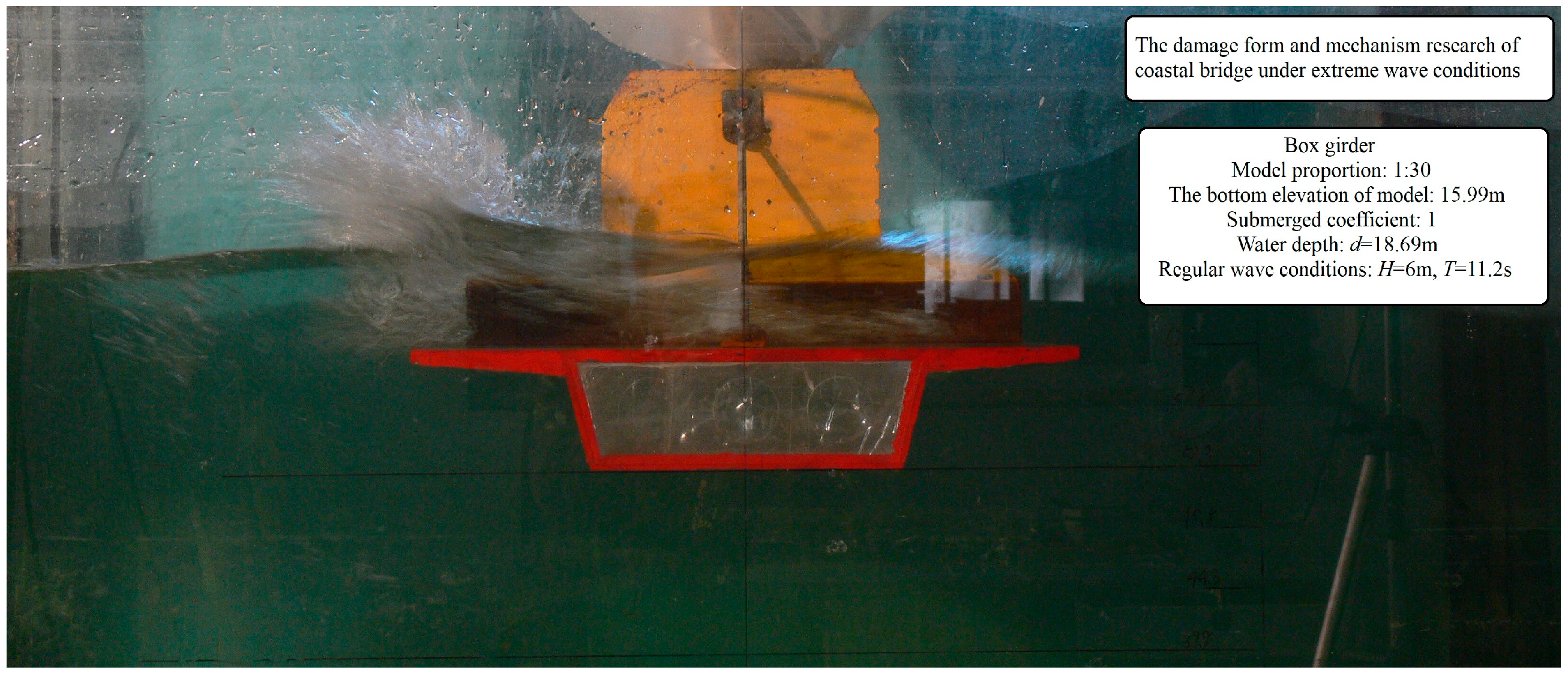

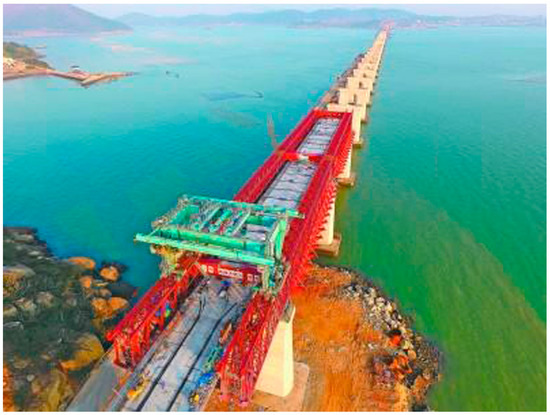

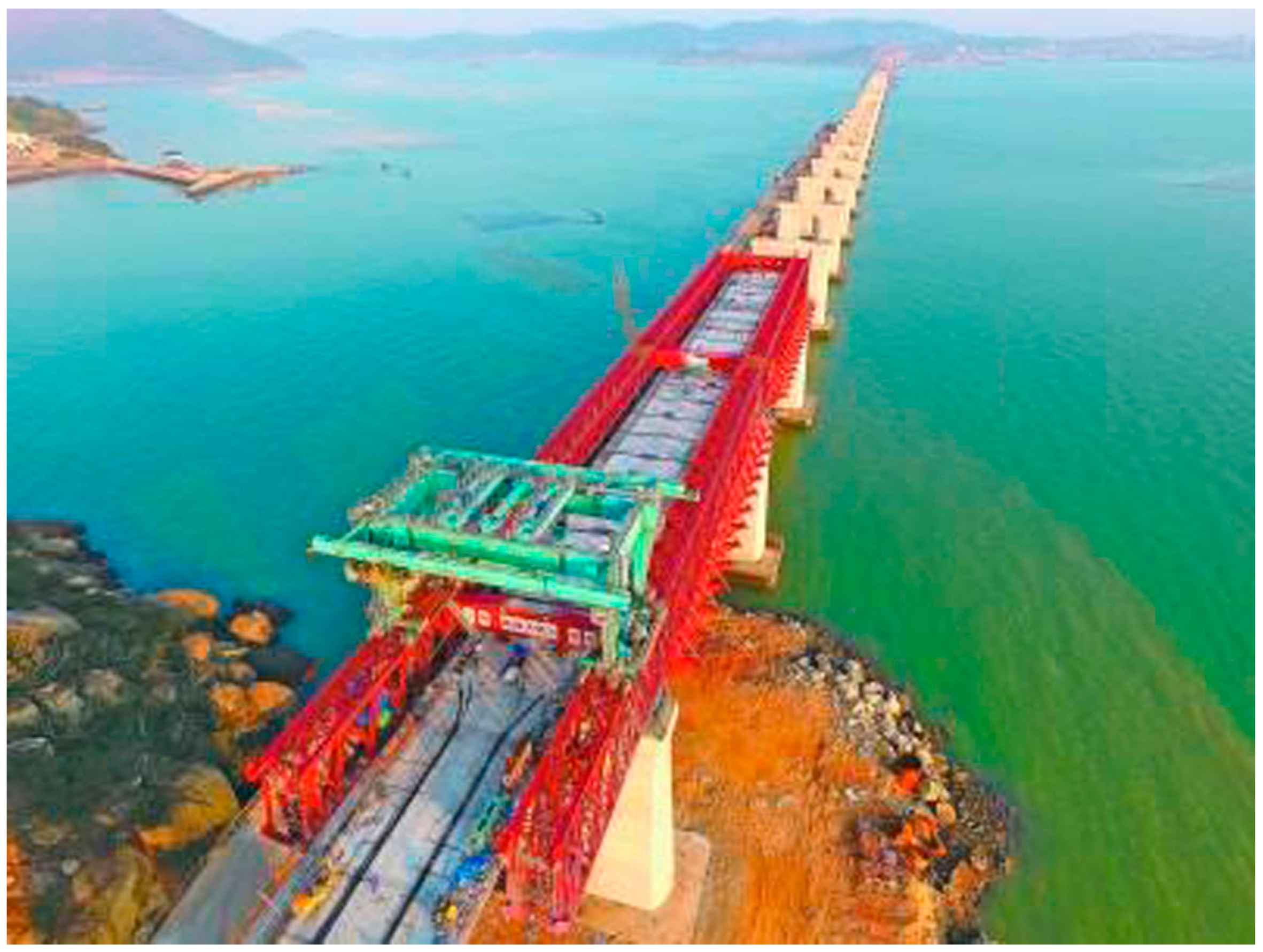

:1. Introduction

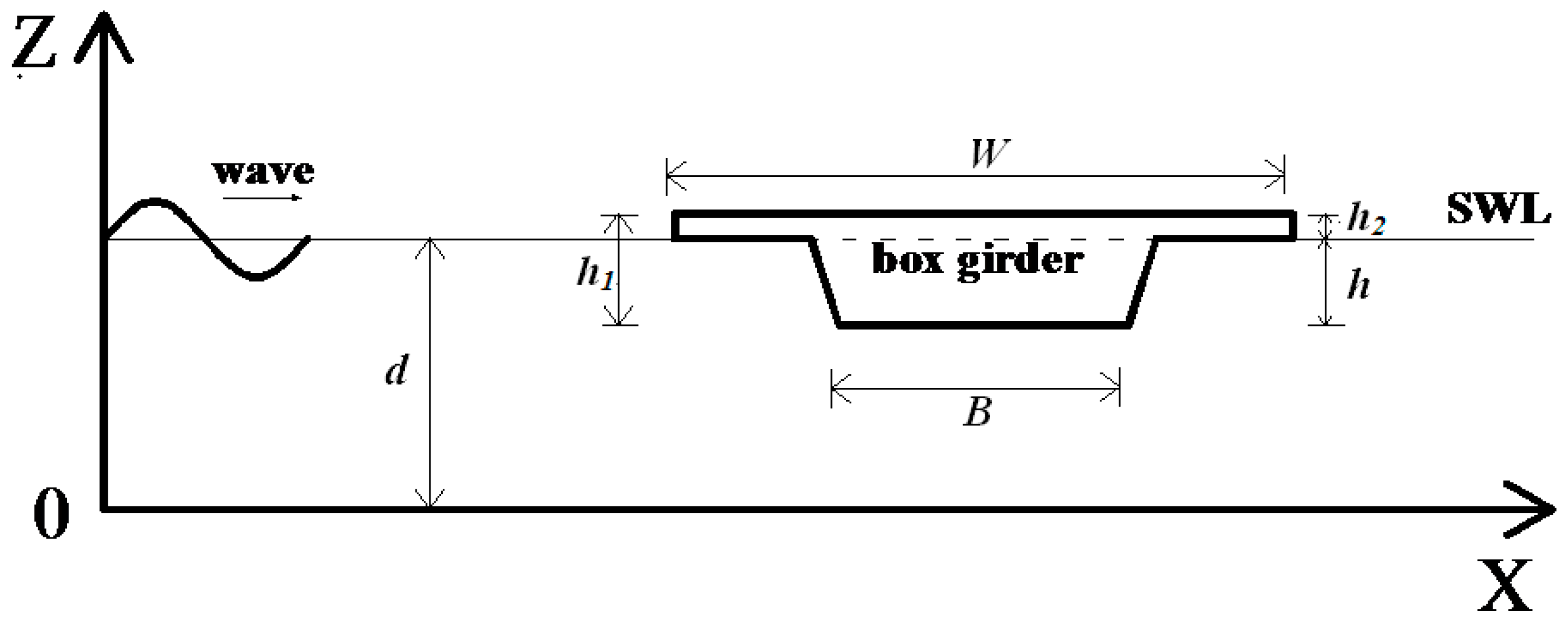

2. Numerical Model
2.1. Governing Equations

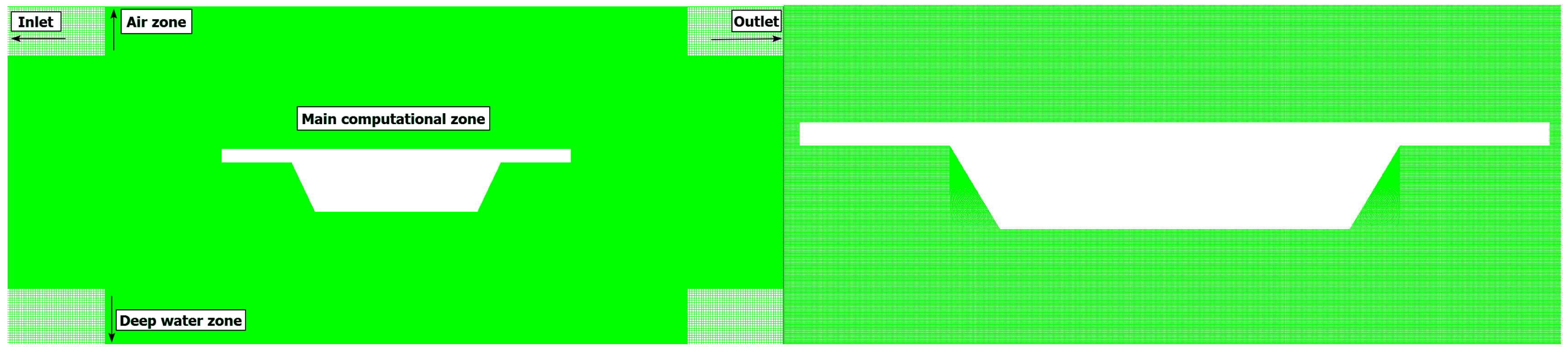

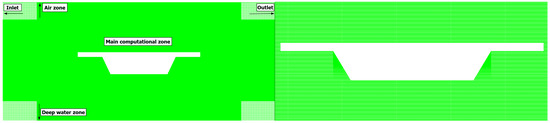

2.2. Boundary Conditions
- (1)
- Boundary conditions at the wave-inlet: Based on the analytical solutions and the laboratory measurement of wave theory, the values of wave vertical velocity (v), horizontal velocity (u), surface displacement (η), k and ε are given on the wave-inlet (inlet wave maker) boundary.
- (2)
- Boundary conditions at the water bottom: On the bottom boundary, no-slip boundary is applied.
- (3)
- Rigid wall boundary conditions: The near wall function method was used along the rigid wall boundary in this numerical model [28]. The box girder boundary was taken as the rigid wall boundary.
- (4)

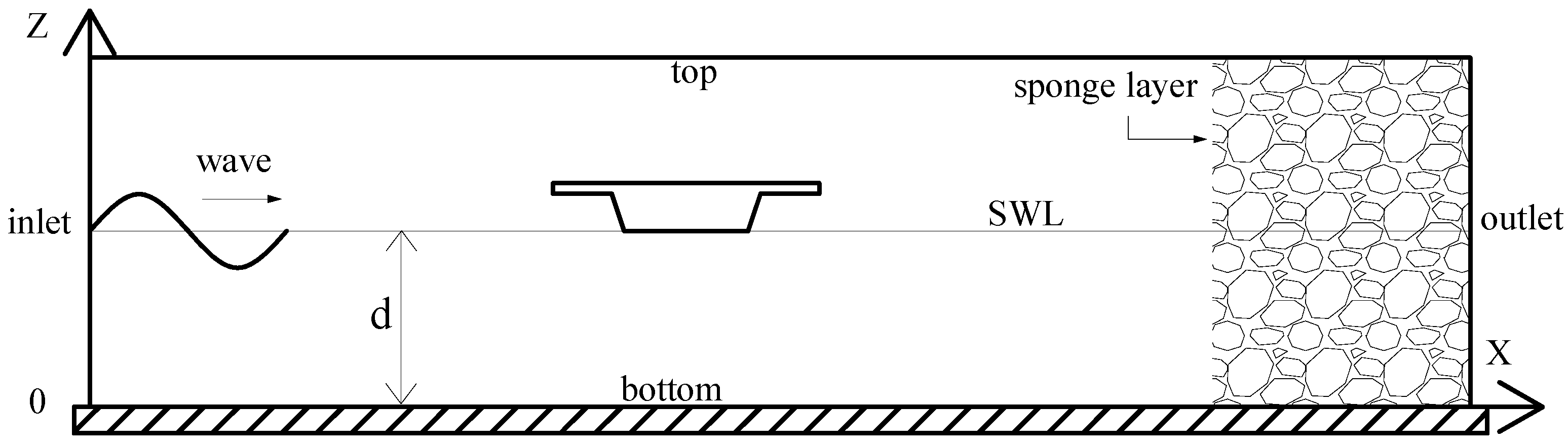

- Outlet boundary conditions: On the outlet boundary, in order to absorb the wave energy and make the wave going out of the outlet boundary without significant reflection, the Sommerfeld radiation conditions and a sponge layer was adopted. Larsen and Dancy proposed the sponge layer, which have very broad banded damping characteristics to absorb the wave energy [29]. In particularly, on the right of outlet boundary, the gradient of all hydrodynamic variables were assumed to be zero.
- (5)
- Boundary conditions at the free surface of water: In the present model, the actual pressure at the water surface should be equal to the atmospheric pressure and the relative pressure at the wave surface should be zero.

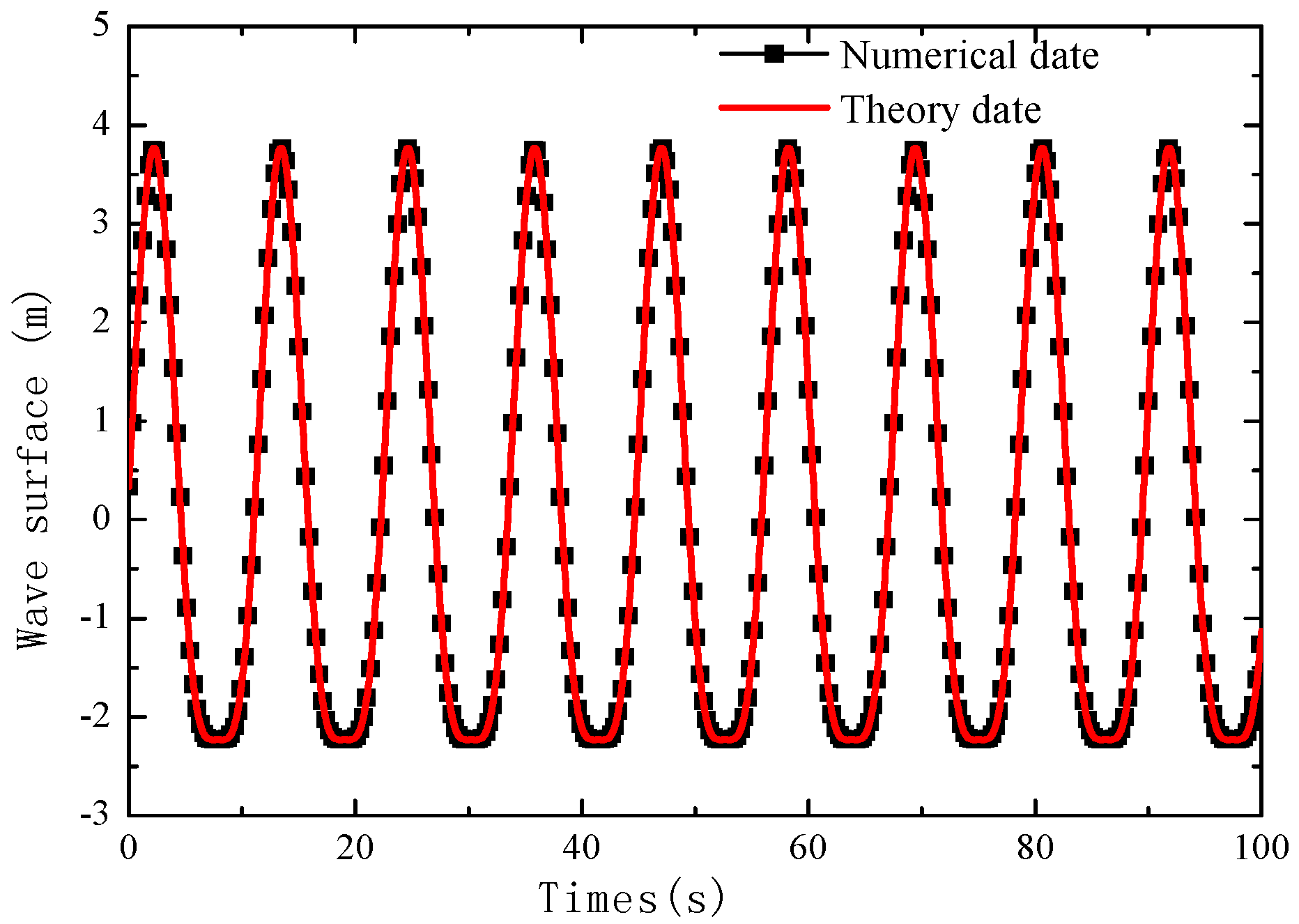

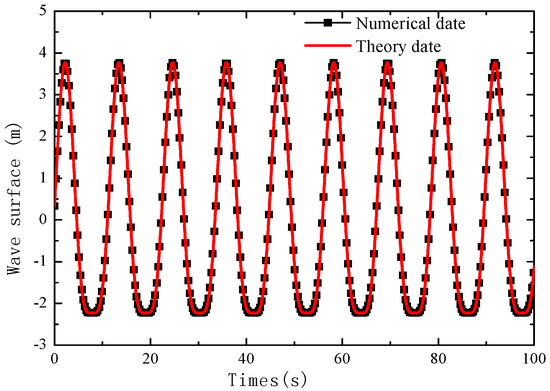

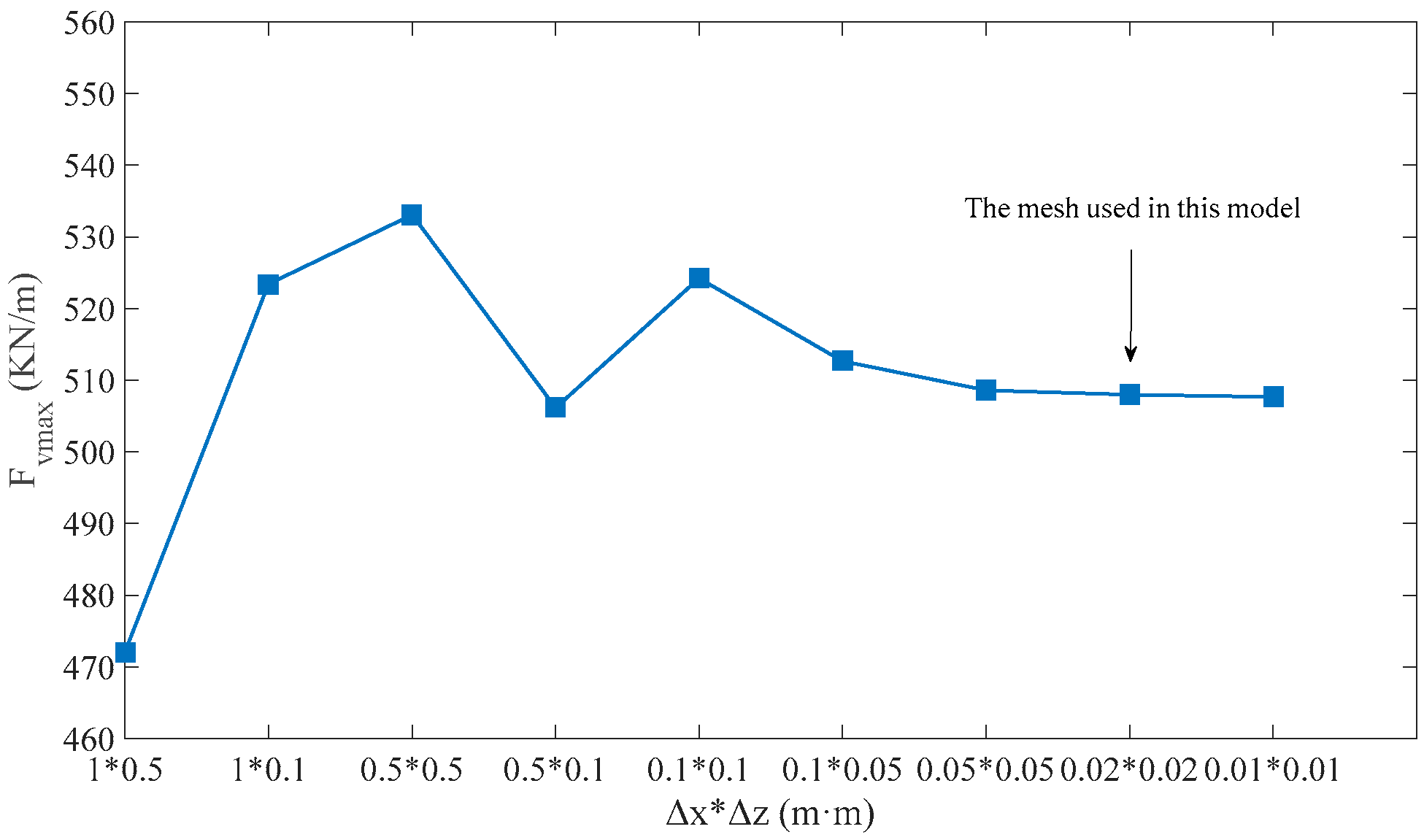

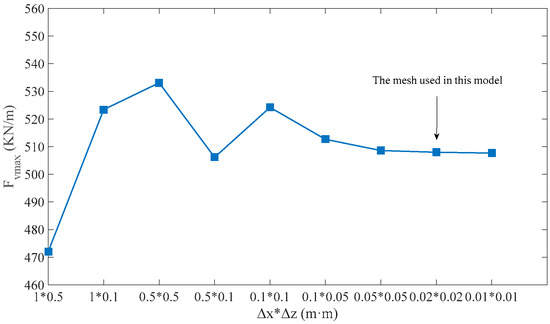

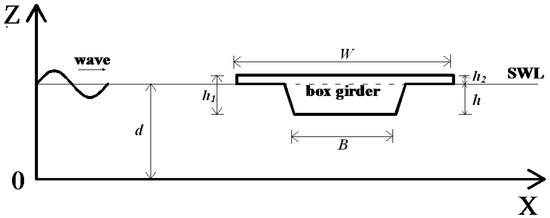

3. Model Verification
4. Results and Discussion
4.1. Effects of Wave Characteristic

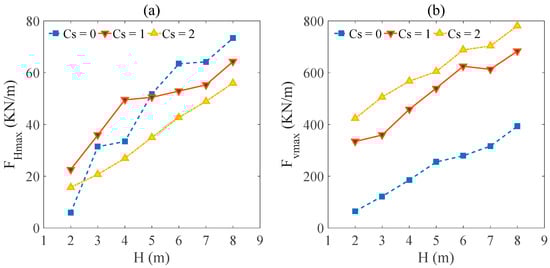

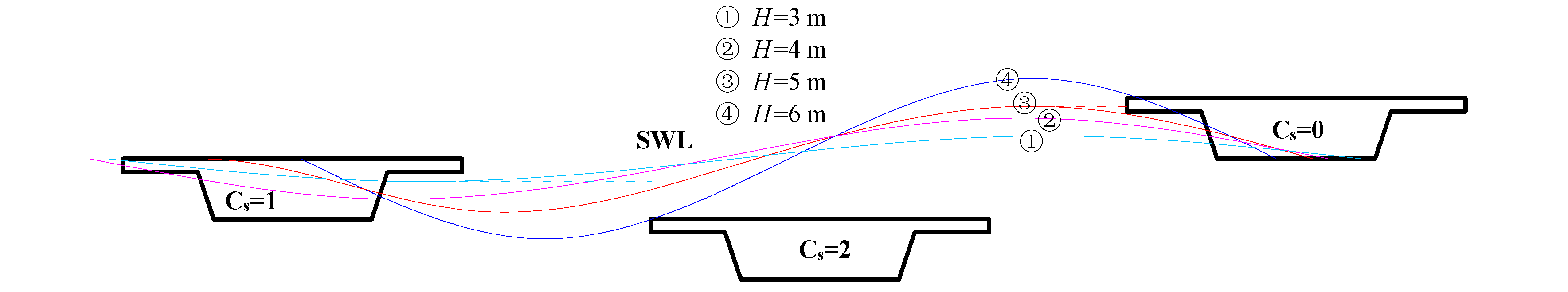

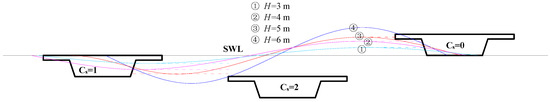

4.1.1. Effects of Wave Height

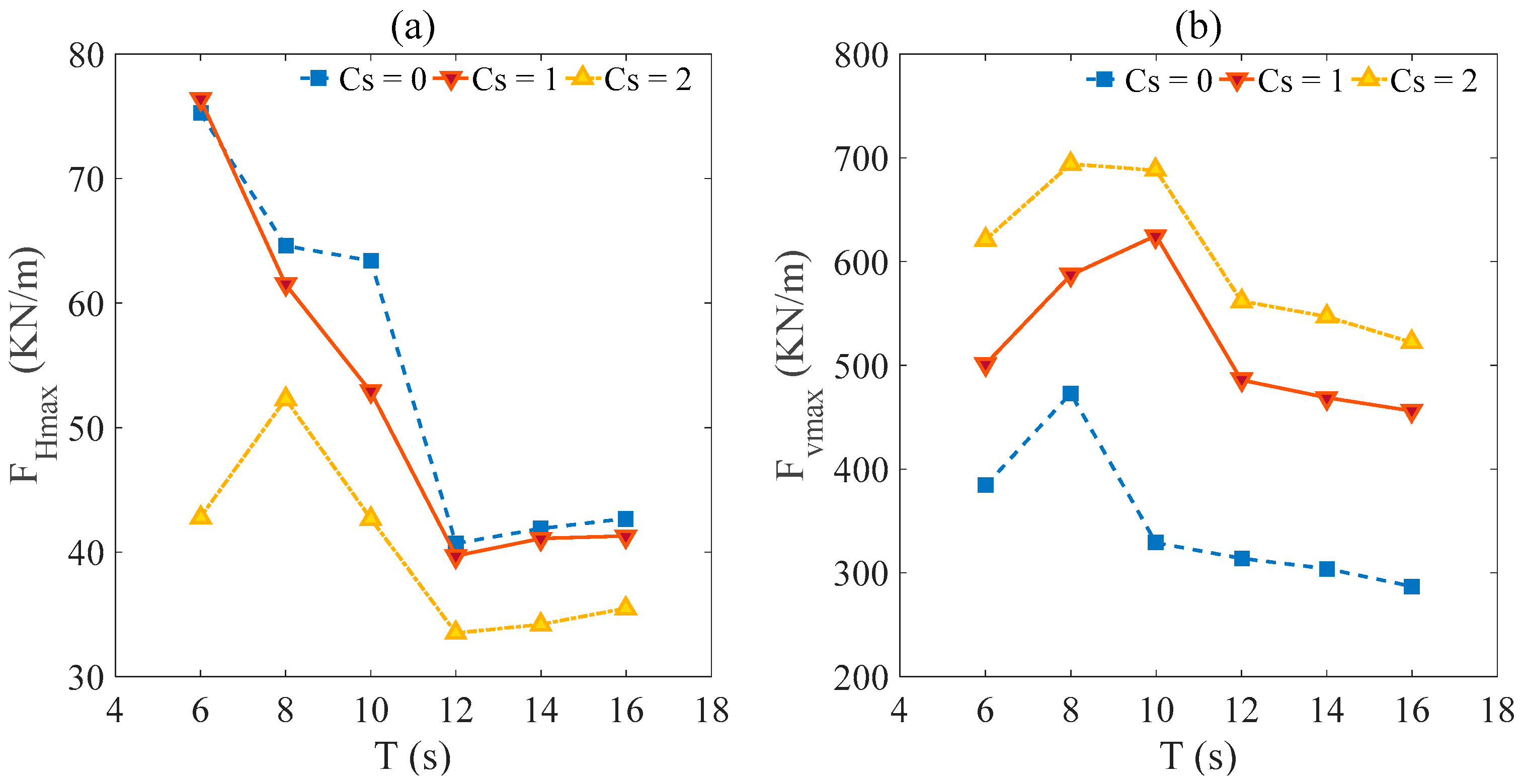

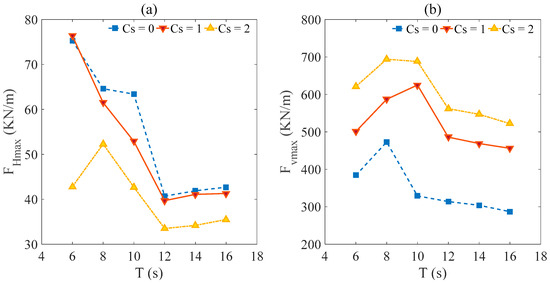

4.1.2. Effects of Wave Period

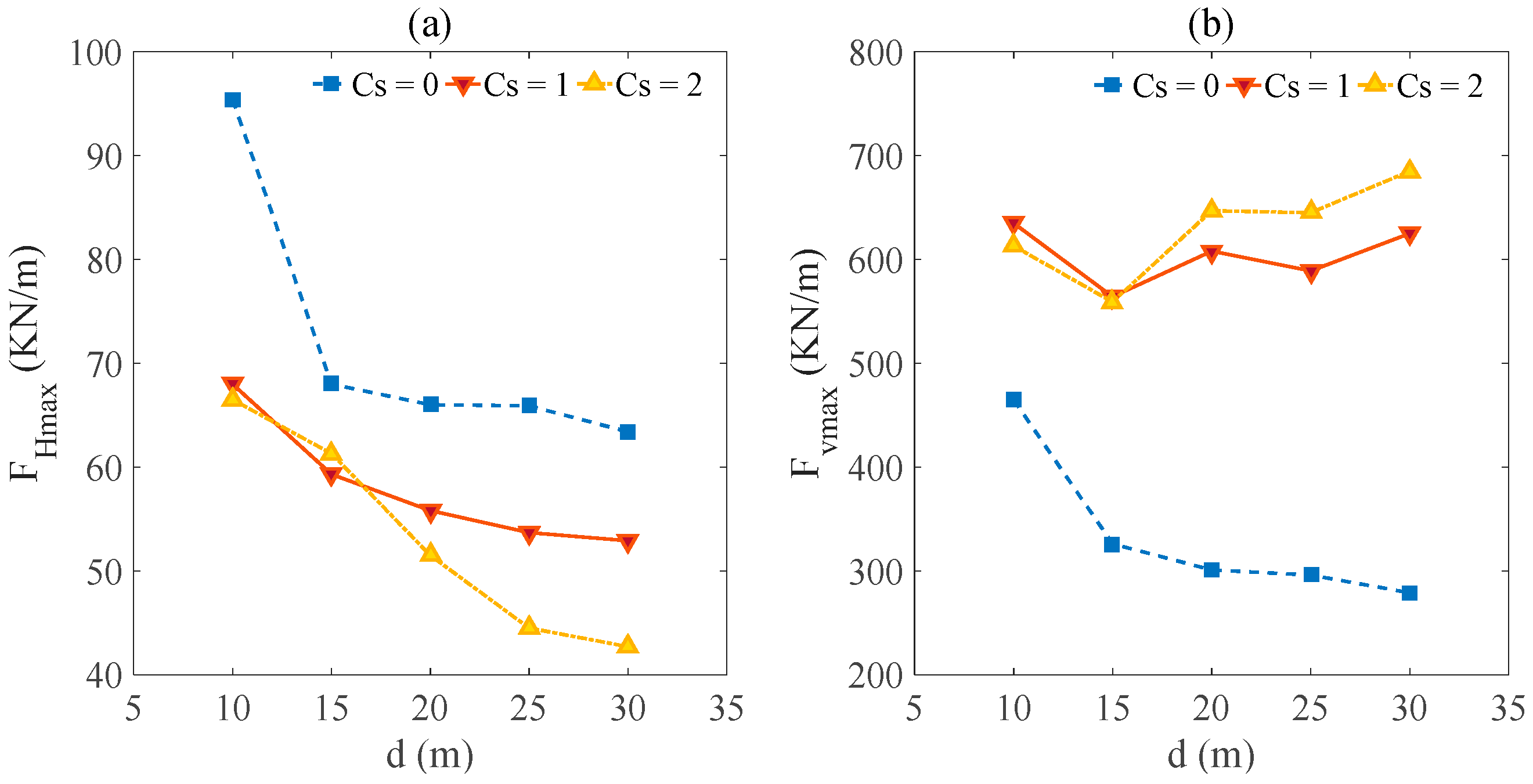

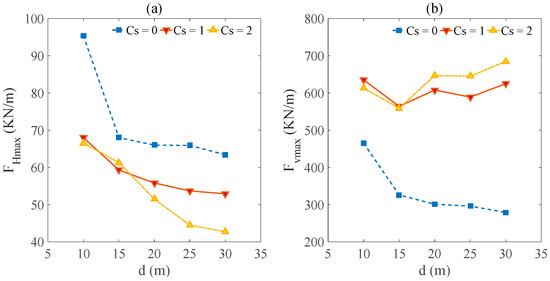

4.2. Effects of Water Depth
5. Applications for Engineering Practice
- (1)
- Based on the given wave characteristics, we can determine the value of H/(gT2).
- (2)

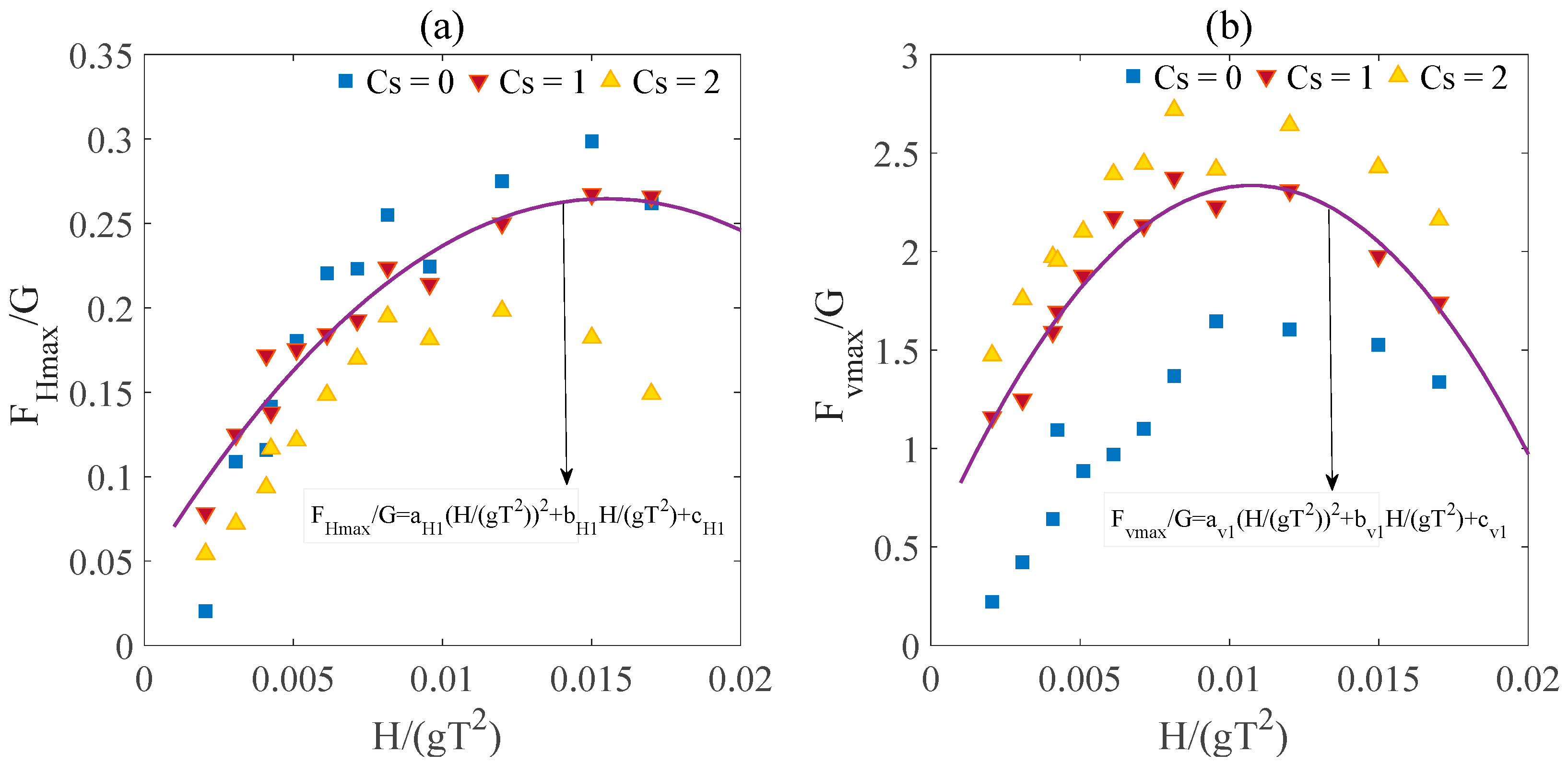

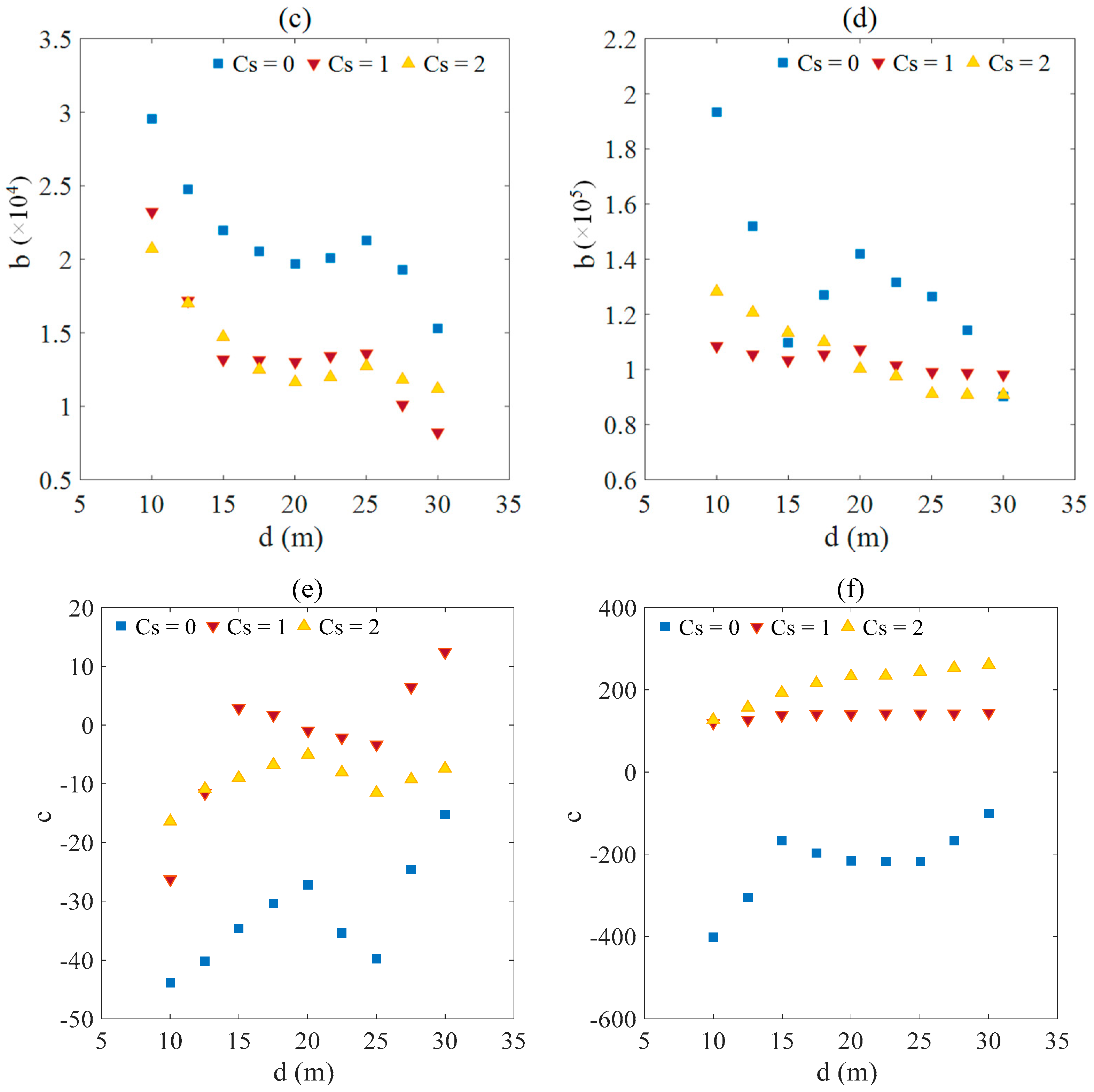

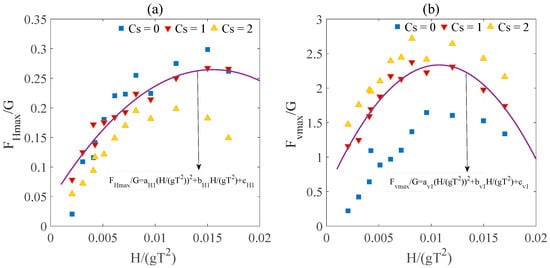

- With the given water depth and by calculating the submerged coefficient from the submerged depth of the bridge, we can determine three coefficients, (a, b, c) from Figure 14.
- (3)

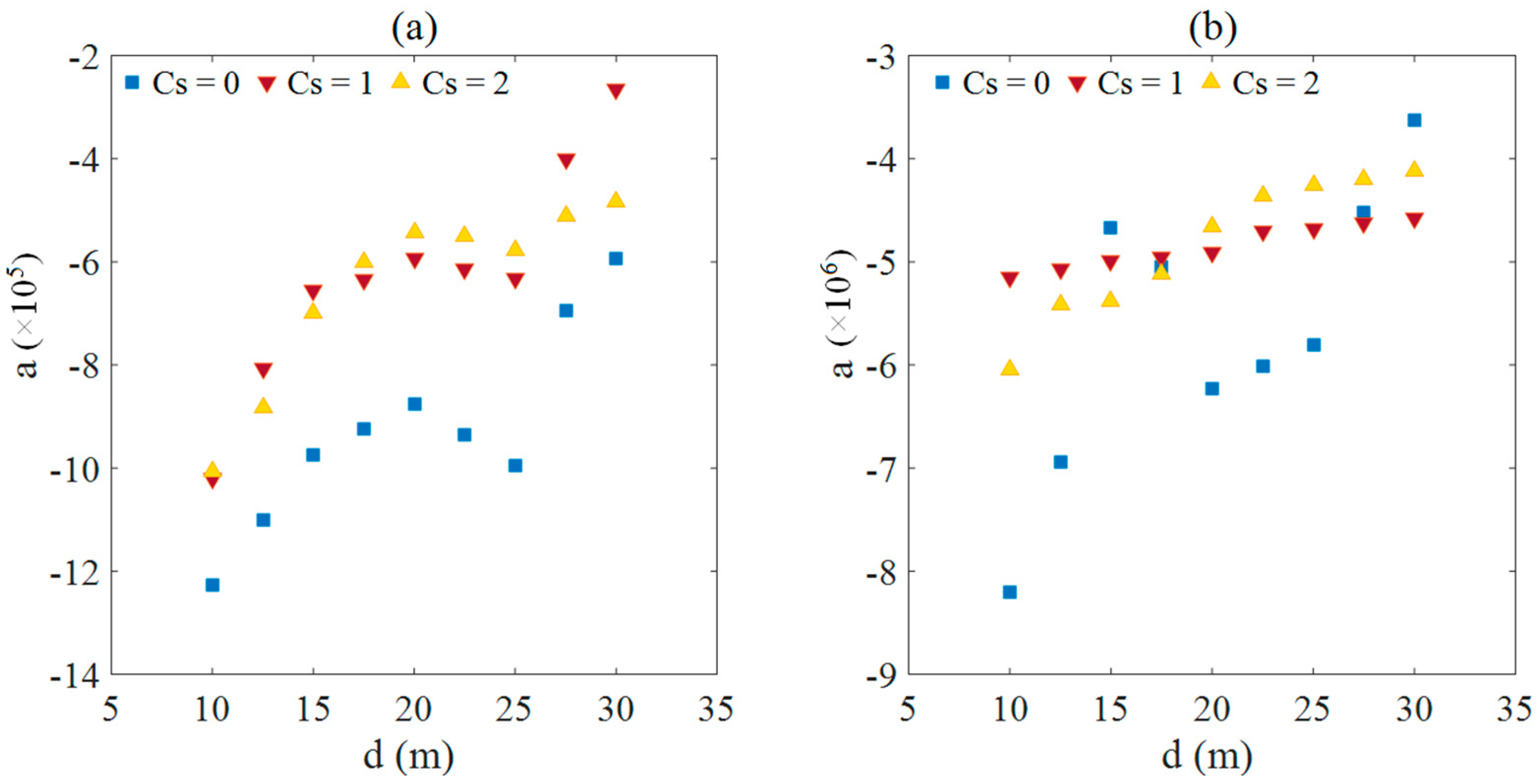

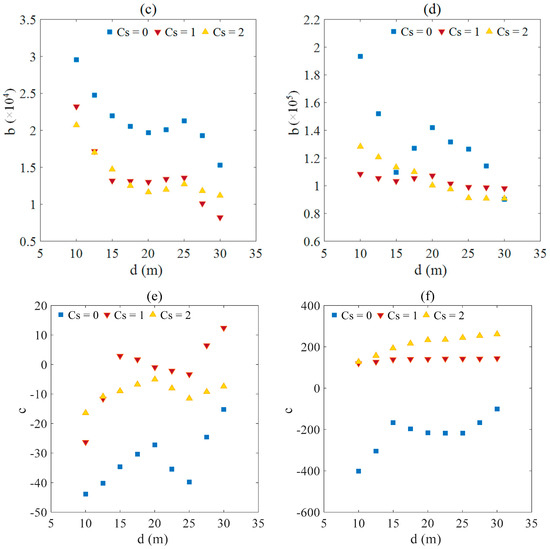

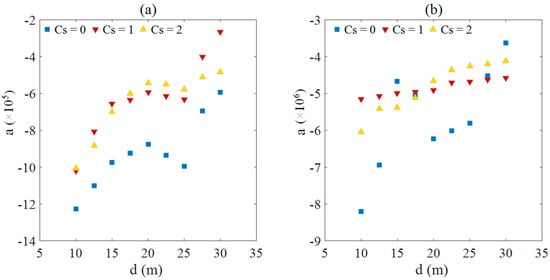

- The FHma and Fvmax can be calculated from Equations (7) and (8) with the coefficients, (a, b, c) obtained from Figure 15.
6. Conclusions
- (1)

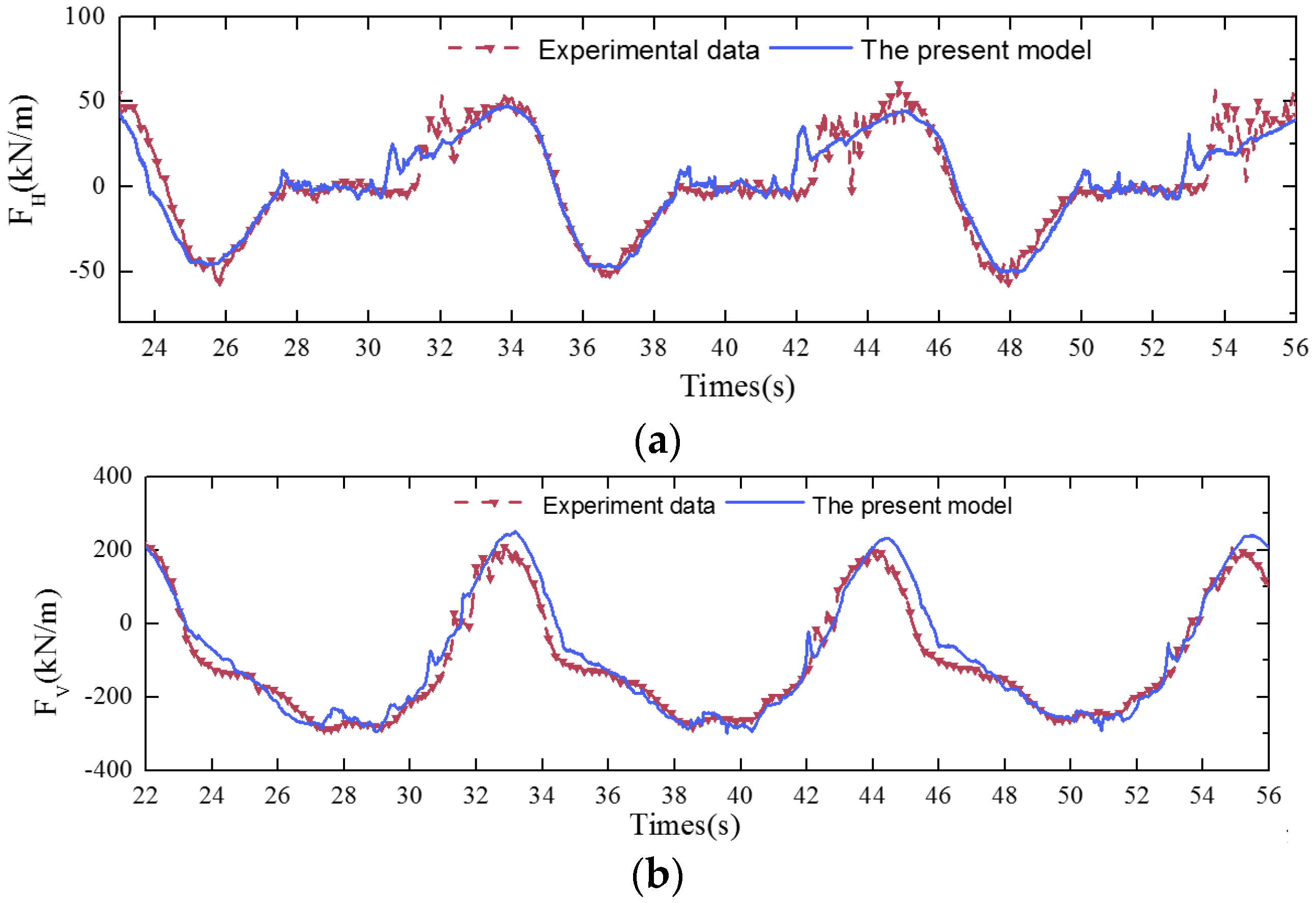

- As shown in the validations, the present model overall agrees well with the experimental data under the same conditions;
- (2)

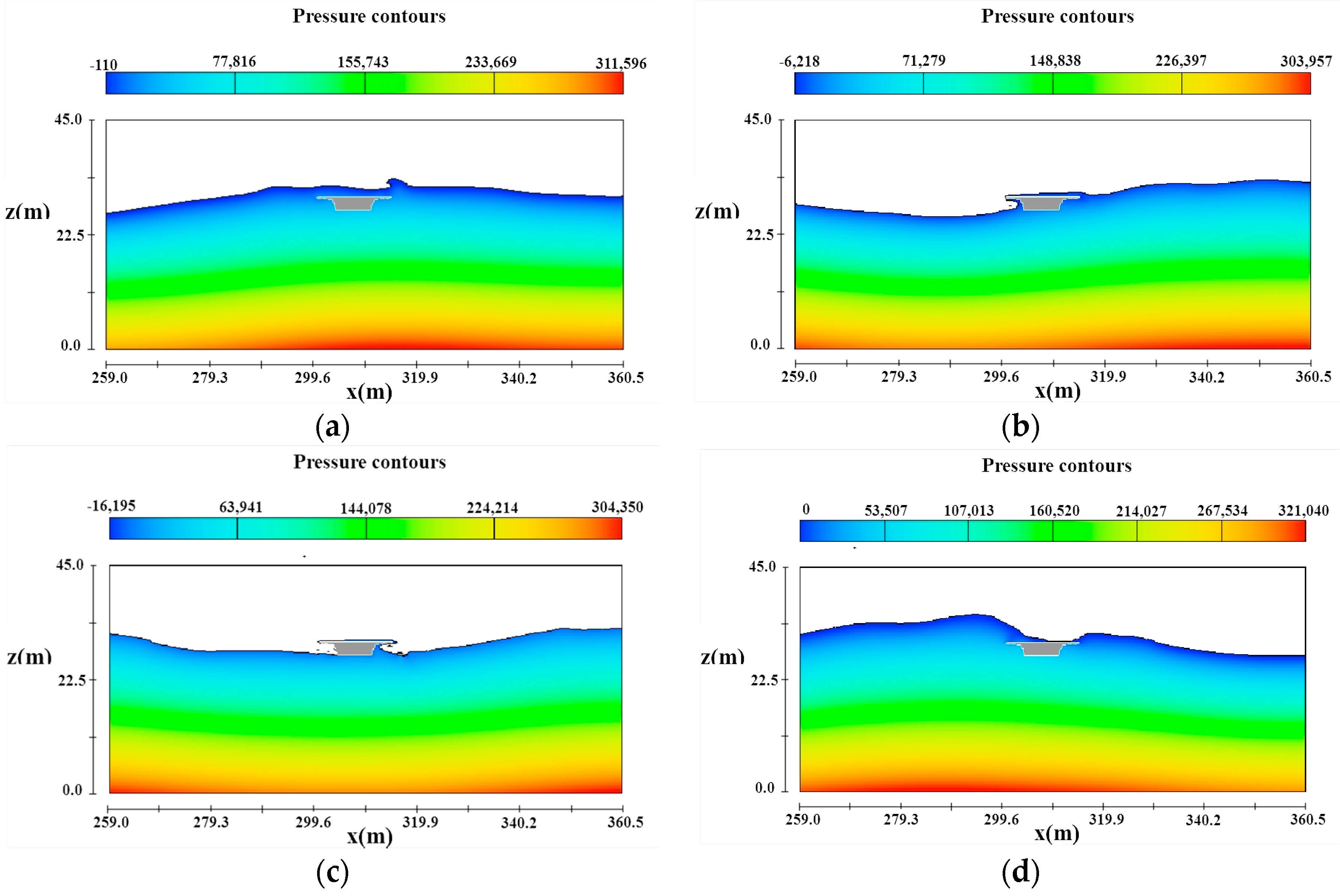

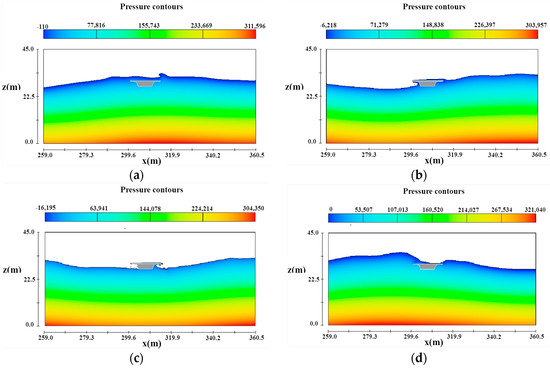

- The existence of a box girder can significantly affect the wave field around the box girder. Wave surges, wave breakings and wave run-up may occur on the surface of the box girder. Meanwhile, variations of wave pressure and wave profile around the box girder are quite different from the pressure contours and wave profile of T girder. It is necessary to investigate this type of coastal bridge girder under extreme wave conditions;
- (3)
- The maximum values of horizontal and vertical wave force increase with the increment of wave heights (H). With the increment of wave periods (T), the maximum horizontal force gradually decreases and thereafter, force gradually tends to stably increase. The maximum vertical (uplift) force increases first and then decreases, finally tending to stably decrease with the increment of wave periods (T). The increment of water depth (d) has negative effects on maximum horizontal forces. However, the effects of water depth (d) on maximum vertical force are much smaller than the effects on maximum horizontal force;
- (4)
- The mechanisms of extreme wave-induced wave forces on box girder may be different due to the variations of the submerged coefficients. Based on the present numerical model, the authors suggest a simplified procedure to estimate the horizontal and vertical of wave forces on coastal bridge box girder under various extreme wave conditions. The estimates of wave forces could provide a reference for the design and protection of the box girder coastal bridge under extreme wave conditions.
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Graumann, A.; Houston, T.; Lawrimore, J.; Levinson, D.; Lott, N.; McCown, S.; Stephens, S.; Wuerts, D. Hurricane Katrina: A Climatological Perspective-Preliminary Report; Technical Report No. 2005-01; NOAA’s National Climate Data Center: Washington, DC, USA, 2005.
- FEMA 549. Hurricane Katrina in the Gulf Coast. In Building Performance Observations, Recommendations, and Technical Guidance; Mitigation Assessment Team Report; July 2006. Available online: https://www.fema.gov/media-library-data/20130726-1520-20490-4067/549_cvr_toc.pdf (accessed on 11 February 2018).
- U.S. Agency for International Development (USAID). Tsunami Relief; Bureau for Legislative and Public Affairs: Washington, DC, USA, 2005.
- Shoji, G.; Moriyama, T. Evaluation of the structural fragility of a bridge structure subjected to a tsunami wave load. J. Nat. Disaster Sci. 2007, 29, 73–81. [Google Scholar] [CrossRef]
- Yeh, H.; Francis, M.; Peterson, C.; Katada, T.; Latha, G.; Chadha, R.; Singh, J.; Raghuraman, G. Effects of the 2004 Great Sumatra Tsunami: Southeast Indian Coast. J. Waterw. Port. Coast. Ocean Eng. 2007, 133, 382–400. [Google Scholar] [CrossRef]
- Ghobarah, A.; Saatcioglu, M.; Nistor, I. The impact of the 26 December 2004 earthquake and tsunami on structures and infrastructure. J. Eng. Struct. 2006, 28, 312–326. [Google Scholar] [CrossRef]
- Bricker, J.D.; Kawashima, K.; Nakayama, A. CFD analysis of bridge deck failure due to tsunami. In Proceedings of the International Symposium on Engineering Lessons Learned from the 2011 Great East Japan Earthquake, Tokyo, Japan, 1–4 March2012; pp. 1398–1409. [Google Scholar]
- Nickas, W.N.; Renna, R.; Sheppard, N.; Mertz, D.R. Hurricane-Based Wave Attacks; Florida Deptartment of Transportation: Tallahassee, FL, USA, 2005.
- Xu, G.; Cai, C.S. Wave forces on Biloxi bay bridge decks with inclinations under solitary waves. J. Perform. Constr. Facil. 2014, 29, 1–13. [Google Scholar] [CrossRef]
- Chen, Q.; Wang, L.; Zhao, H. Hydrodynamic investigation of coastal bridge collapse during Hurricane Katrina. J. Hydraul. Eng. 2009, 135, 175–186. [Google Scholar] [CrossRef]
- Elghamry, O.A. Wave Forces on a Dock; Technical Report NO. HEL-9-1; Hydraulic Engineering Laboratory, Institute of Engineering Research, University of California: Berkeley, CA, USA, 1963. [Google Scholar]
- Wang, H. Water wave pressure on horizontal plate. J. Hydraulics Div. 1970, 96, 1997–2017. [Google Scholar]
- French, J.A. Wave uplift pressures on horizontal platforms. In Proceedings of the Civil Engineering in the Oceans Conference; ASCE: New York, NY, USA, 1970; Volume I, pp. 187–202. [Google Scholar]
- Iradjpanah, K. Wave Uplift Pressure on Horizontal Platforms; Report: USCSCTR-01-84; University of Southern California: Los Angeles, CA, USA, 1984. [Google Scholar]
- Denson, K.H. Wave Forces on Causeway-Type Coastal Bridges; J. NASA STI/Recon Technical Report N; Water Resources Research Institute, Mississippi State University: Starkwell, MS, USA, 1978; Volume 79. [Google Scholar]
- Denson, K.H. Wave Forces on Causeway-Type Coastal Bridges: Effects of Angle of Wave Incidence and Cross-Section Shape; Water Resources Research Institute, Mississippi State University: Starkwell, MS, USA, 1980. [Google Scholar]
- Kaplan, P.; Murray, J.J.; Yu, W.C. Theoretical analysis of wave impact forces on platform deck structures. In Proceedings of the International Conference on Offshore Mechanics and Arctic Engineering; ASCE: New York, NY, USA, 1995; Volume 1, pp. 189–198. [Google Scholar]
- Douglass, S.L.; Chen, Q.; Olsen, J.M.; Edge, B.L.; Brown, D. Wave Forces on Bridge Decks; Final Report for US Department of Transportation; Federal Highway Administration, Office of Bridge Technology: Washington, DC, USA, 2006.
- Mcpherson, R.L. Hurricane Induced Wave and Surge Forces on Bridge Desks. Master’s Thesis, Texas A&M University, College Station, TX, USA, 2008. [Google Scholar]
- Xu, G.; Cai, C.S.; Deng, L. Numerical prediction of solitary wave forces on a typical coastal bridge deck with girders. J. Struct. Infrastruc. Eng. 2017, 13, 254–272. [Google Scholar] [CrossRef]
- Robertson, I.N.; Riggs, H.R.; Yim, S.C.; Young, Y.L. Lessons from Hurricane Katrina storm surge on bridges and buildings. J. Waterw. Port. Coast. Ocean Eng. 2007, 133, 463–483. [Google Scholar] [CrossRef]
- Robertson, I.N.; Yim, S.C.; Riggs, H.R.; Young, Y.L. Coastal bridge performance during Hurricane Katrina. Struct. Eng. Mech. Comput. 2007, 3, 1864–1870. [Google Scholar]
- Cuomo, G.; Shimosako, K.; Takahashi, S. Wave-in-deck loads on coastal bridges and the role of air. Coast Eng. 2009, 56, 793–809. [Google Scholar] [CrossRef]
- Xu, G.; Cai, C.S.; Chen, Q. Countermeasure of air venting holes in the bridge deck-wave interaction under solitary waves. J. Perform. Constr. Facil. 2016, 31, 04016071. [Google Scholar] [CrossRef]
- Azadbakht, M.; Yim, S.C. Effect of trapped air on wave forces on coastal bridge superstructures. J. Ocean Eng. Mar. Energy 2016, 2, 139–158. [Google Scholar] [CrossRef]
- Xiao, H.; Huang, W.; Chen, Q. Effects of submersion depth on wave uplift force acting on Biloxi bay bridge decks during Hurricane Katrina. Comput. Fluids 2010, 39, 1390–1400. [Google Scholar] [CrossRef]
- Rider, W.J.; Kothe, D.B. Reconstructing volume tracking. J. Comput. Phys. 1998, 141, 112–152. [Google Scholar] [CrossRef]
- Launder, B.E.; Spalding, D.B. The numerical computation of turbulent flows. Comput. Methods Appl. Mech. Eng. 1974, 3, 269–289. [Google Scholar] [CrossRef]
- Larsen, J.; Dancy, H. Open boundaries in short wave simulations—A new approach. Coast. Eng. 1983, 7, 285–297. [Google Scholar] [CrossRef]
- Zhu, Y.R. Analyses of the ranges of validity for several wave theories. Coast. Eng. 1983, 2, 13–29. (In Chinese) [Google Scholar]
- Jun, J.; Meng, B. Computation of wave loads on the superstructures of coastal highway bridges. Ocean Eng. 2011, 38, 2185–2200. [Google Scholar] [CrossRef]
- Xu, G.; Chen, Q.; Zhu, L. Characteristics of the Wave Loads on Coastal Low-Lying Twin-Deck Bridges. J. Perform. Constr. Facil. 2017, 32, 04017132. [Google Scholar] [CrossRef]
Different conditions | d = 10.59 m, H = 3 m, T = 11.2 s, Cs = 1 | d = 15.99 m, H = 4 m, T = 11.2 s, Cs = 0 | d = 15.99 m, H = 6 m, T = 11.2 s, Cs = 1 | d = 20.04 m, H = 4 m, T = 11.2 s, Cs = 1 | d = 20.04 m, H = 7 m, T = 11.2 s, Cs = 2 |
Proposed method (kN/m) | 25.64 | 26.82 | 51.05 | 35.15 | 43.74 |
Experimental data (kN/m) | 27.7093 | 28.5566 | 55.6371 | 36.9048 | 47.9507 |
Error | −7.52% | −6.08% | −8.24% | −4.75% | −8.78% |
Different conditions | d = 10.59 m, H = 3 m, T = 11.2 s, Cs = 1 | d = 15.99 m, H = 4 m, T = 11.2 s, Cs = 0 | d = 15.99 m, H = 6 m, T = 11.2 s, Cs = 1 | d = 20.04 m, H = 4 m, T = 11.2 s, Cs = 1 | d = 20.04 m, H = 7 m, T = 11.2 s, Cs = 2 |
Proposed method (kN/m) | 356.06 | 299.86 | 528.84 | 438.55 | 652.61 |
Experimental data (kN/m) | 361.9094 | 295.8260 | 520.5083 | 426.9431 | 666.6768 |
Error | −1.62% | 1.36% | 1.60% | 2.72% | −2.11% |
