A Simplified Method for the Evaluation of Floating-Body Motion Responses over a Sloping Bottom

Abstract

Recently, many floating renewable energy platforms have been deployed in coastal regions, where sloping bottoms are an important factor when evaluating their safety. In this article, a simplified method coupling an eigenfunction matching method (EMM) and a finite-depth Green’s function (FDGF) is developed to evaluate floating-body motion responses over a sloping bottom for which bathymetry is homogeneous in the longshore direction. We propose an extended EMM to create an incident wave model over the sloping bottom, thereby obtaining the Froude–Krylov (F–K) force and Neumann data on the wet surfaces of the floating body for the diffraction problem. An equivalent depth is introduced to account for the interaction between the sloping bottom and floating bodies when dealing with the diffraction and radiation problems. The accuracy of the present method is validated through a comprehensive comparison with numerical and/or experiment results for a liquefied natural gas (LNG) ship and a floating hemisphere from the literature. Generally, the present, simplified method can give predictions with sufficient accuracy.

1. Introduction

Recently, more and more floating renewable energy facilities have been installed in coastal regions. For example: (1) China’s first offshore floating PV station using ocean sun floats (water depth: 20–30 m) was set up in 2022 in the Chinese Yellow Sea (see Figure 1). (2) China’s first floating offshore wind turbine, called “San Xia Yin Ling Hao” (water depth: approximately 28 m), was connected to the grid in 2021 in Yangjiang in South China’s Guangdong province.

However, when a floating body is installed near shoreline and islands, the seabed’s effects on the motion of the floating body become more significant than those for a deep water environment [1]. From the beginning of the 21st century, lots of ocean engineering experts have paid attention to motion responses of floating structures in nearshore areas. Their investigations show that large interaction has been found between the seabed and the response characteristics of floating structures, especially in low-wave-frequency ranges [2,3].

For hydrodynamic problems, water depth is always assumed to be constant when considering seabed effects. Hydrodynamic theories have been well established for both two-dimensional (2D) and three-dimensional (3D) problems. And scholars have developed corresponding numerical approaches, which can be divided into two types, i.e., analytical approaches and numerical approaches. For two-dimensional [4,5,6] and three-dimensional [7,8] problems, analytical approaches (such as eigenfunction matching approaches) can be employed when the floating structure is of rectangular/cylindrical/spherical shape. In general, analytical approaches are always efficient, and their results have high accuracy, which means they can serve as benchmark solutions. While for hydrodynamic problems of arbitrary-geometry floating structures, numerical approaches are adopted due to their generality and flexibility. The boundary element method (BEM) is a specified numerical approach with a relatively small computational burden since all unknowns are distributed on the boundaries. Traditional surface-wave–body hydrodynamic problems using BEM always employ the finite-depth Green’s function (FDGF), the evaluation of which is time-consuming since the function meets the demand of requiring partial boundary conditions. Different numerical techniques such as polynomial approximation [9,10] and power series expansions [11,12] have been developed to calculate this function and its partial derivatives. Corresponding commercial software [10,13] has been well-utilized in ocean engineering fields. Another BEM method, called the Rankine source approach, puts a simple green function on all the boundaries except for those in the far field, for which the numerical integral needs to be calculated. However, truncation of the numerical domain always introduces unwanted wave reflection from the artificial boundaries, which can be treated by specified techniques (see Feng et al. [2], Israeli and Orszag [14], Filippas and Belibassakis [15], Zhang and Beck [16], etc.).

However, when it comes to areas near the shoreline, the degree of seabed changes is significant with respect to the average water depth. Thus, previous methods using a constant depth assumption can no longer be applied. Analytical approaches have been developed to deal with this type of problem. For example, hydrodynamic wave loads of the floating body over sill on the bottom can be calculated [17], and this was further extended by Liu et al. [18] to a more general situation. To study the sloping seabed problem, a 2D Rankine source method with a novel source distribution strategy was brought up to eliminate the reflection from the truncated boundary [19].

To investigate 3D wave–body interactions over a sloping seabed, scholars have proposed some new numerical models. For instance, a very large floating structure (VLFS) can be divided into a number of small bodies, and their hydrodynamic responses are solved by assuming every floating body is on a flat bottom with each local depth [20]. It should be pointed out that the researchers also assume a flat seabed for the far field in the circumferential direction. Another numerical model introduces a fixed underwater body to represent the undulating seabed [21,22]. However, the edge of the fixed body exerts a significantly irrational disturbance on the hydrodynamic responses [21], and an improved model by Hauteclocque et al. [23] was suggested to reduce the negative effects through introducing so-called transparent coefficients on the edges. Note that these coefficients are empirical and should be verified and corrected by experiments. Belibassakis [24] developed a new 3D BEM for the sloping seabed hydrodynamic problem by coupling a wave propagation model [25] and a sloping seabed Green’s function [26]. However, Belibassakis [24]’s method requires the seabed to be smoothly varying, which is not in conformity with reality.

Moreover, a direct model coupling Boussinesq equations and the Rankine source method to solve the outer domain and the inner domain, respectively, was developed by Ding et al. [27] so as to include nonlinear wave effects. Similarly, Kim and Kim [28] developed a Rankine source method coupled with a numerical wave tank, in which a numerical damping zone is introduced by modifying the free surface boundary condition to avoid wave reflection in the far field. Their investigation using an LNG ship in moderate depths revealed that the main portion of wave loads is contributed by linear water waves. In addition, inhomogeneous waves are considered in Yang et al. [29]’s model to analyze the hydroelastic responses of a VLFS.

It can be seen that existing research about wave–body hydrodynamic interactions over a sloping seabed is insufficient. In order to carefully consider the effects of a sloping seabed with computational efficiency guaranteed, this article tries to develop a simplified method based on a wave propagation model and FDGF.

Scholars and experts in coastal engineering fields have set up various models [30,31,32,33] to treat wave propagation over a sloping seabed. Among these models, EMM [32] can deal with arbitrarily shaped seabeds, while a mild-slope equation assumes the seabed inclination to be small enough, and Athanassoulis and Belibassakis [25]’s model assumes a consistently varied seabed. EMM was employed in our previous research [34] to consider sloping seabed effects in a wave–body interaction problem in which the normal sea situation is considered. In this article, we further extend EMM into oblique incident wave problems. And it is obvious that EMM can provide accurate estimation of not only the Froude–Krylov force but also the Neumann data on the wet surface of the floating body for the diffraction problem.

Though the FDGF in terms of the constant water depth assumption does not permit its direct application in a sloping bottom problem, we believe that by introducing a proper choice of an equivalent depth $h_e$ that is between the minimum and maximum depth of the bottom, one can obtain solutions with sufficient accuracy, as will be demonstrated later in this paper.

The differences between the present method and conventional commercial codes associated with finite-depth Green’s function are threefold. The first one is that in the present method, EMM is applied to take the sloping bottom effects on incident wave potential into account. A second difference is that the Neumann data of boundary condition on the wet surface for the diffraction problem are provided by EMM, while the counterpart for conventional commercial codes is pre-given, which does not take the sloping bottom into account. The last one is the choice of the equivalent depth for the diffraction and radiation problems. As implementation of EMM is not difficult and evaluation methods for the finite-depth Green function have been established in many literature sources so far, it is expected that the present simplified method can provide an efficient way to treat this type of problem.

The rest of this paper is organized as follows: The mathematical model of a 3D hydrodynamic problem over a sloping bottom is formulated in Section 2. Section 3 gives a detailed description of the present, simplified method to treat the present problem. Then, in Section 4, accuracy of this present method is verified by comparing experimental and numerical results from the existing literature. Finally, Section 5 gives the conclusions of this article.

2. Governing Equations and Boundary Conditions

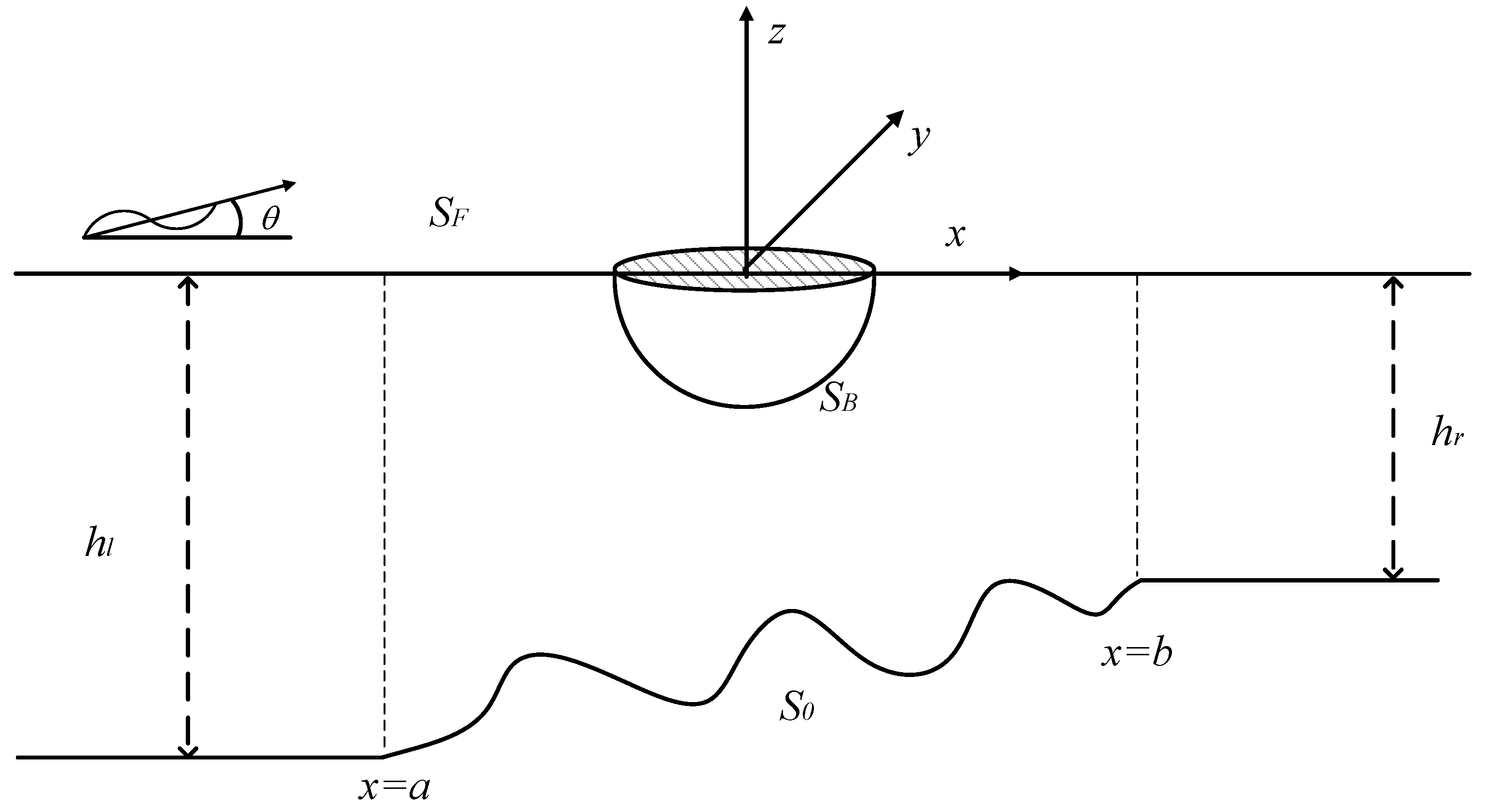

As shown in Figure 2, hydrodynamic responses of a floating structure over an undulating seabed are considered in this section. We use Cartesian coordinates ($x,y,z$) with a horizontal x-axis, upward z-axis and origin based on still water. An incident wave with angle $\theta$ propagates from left to right, with wave forces acting on the floating body. An arbitrarily one-dimensional (1D) varied seabed is assumed, since most bathymetric lines in coastal areas are straight in the y direction. The left and right semi-infinite bottoms are flat, and the undulating part lies between them. The varied depth is expressed as

$$h=\left\{\begin{array}{cc}{h}_l\hfill & x<a\\ h_r\hfill & x>b\end{array}\right.$$

(1)

where $h_l$ represents the depth of the left semi-infinite bottom, while $h_r$ represents the depth of the right semi-infinite bottom.

$S_0$, $S_F$ and $S_B$ denote the bottom, free water surface and wet surface of the floating body, respectively. An ideal fluid that is inviscid, incompressible and irrotational is assumed, and the amplitude a of the incident wave is small compared to the wavelength L ($a/L<1/30$) [35]; therefore, nonlinear effects are neglected. The water depth is also small compared to L ($h_l/L<0.5$) [35]; thus, the seabed exerts effects on the waves.

The governing equation of the velocity potential $\varphi$ over the fluid domain is given by

$$\frac{{\partial }^2\varphi }{\partial x^2}+\frac{{\partial }^2\varphi }{\partial y^2}+\frac{{\partial }^2\varphi }{\partial z^2}=0$$

(2)

When incident wave ${\varphi }_I$ acts on the floating body, the scattered wave field can be described by diffraction wave potential ${\varphi }_D$, while the forced oscillating body creates the radiation potential ${\varphi }_R$. All of the three potentials listed above must satisfy Equation (2).

On the still water surface, the wave potential gives

$$\frac{\partial \varphi }{\partial z}-\frac{{\omega }^2}{g}\varphi =0\left(on{S}_F\right)$$

(3)

where $\omega$ and g represent the frequency and gravitational acceleration, respectively.

An impenetrable seabed condition gives (n denotes a unit normal vector on the seabed)

$$\frac{\partial \varphi }{\partial n}=0\left(on{S}_0\right)$$

(4)

For the diffraction problem, the body is assumed to be fixed, with the incident wave acting on the body; thus, the boundary condition on the wet surface is given by

$$\frac{\partial {\varphi }_D}{\partial n}=-\frac{\partial {\varphi }_I}{\partial n}\left(on{S}_B\right),\mathrm{for}\mathrm{diffraction}\mathrm{problem}$$

(5)

On the other hand, for the radiation problem, the body is assumed to be experiencing forced oscillating motions $v_b$; then, the boundary condition on the wet surface is given by

$$\frac{\partial {\varphi }_R}{\partial n}=v_{bn}\left(on{S}_B\right),\mathrm{for}\mathrm{radiation}\mathrm{problem}$$

(6)

where $v_{bn}$ is the local velocity component on the boundary in the n direction, i.e., $v_{bn}=v_b·n$.

3. A Simplified Method Combining the Eigenfunction Matching Method with the Finite-Depth Green’s Function

In this section, to analyze motion responses of floating bodies over a sloping bottom, a simplified method is established based on the EMM and FDGF. The EMM is extended to treat the problem of oblique propagation of water waves over a sloping seabed. For the diffraction and radiation solutions, effects of the sloping seabed are considered by introducing an equivalent depth, and the FDGF is still utilized.

3.1. Incident Wave Problem for Sloping Bottom Environment

Since the seabed is assumed to be 1D varied, the dimensionality of ${\varphi }_I$ can be degraded [36] by

$${\varphi }_I(x,y,z)=e^{i{k}_{y}y}\phi (x,z)$$

(7)

where $k_y=k_{11}sin\theta$, and $k_{11}$ can be solved by

$$k_{11}tanh\left(k_{11}{h}_l\right)={\omega }^2/g$$

(8)

where $k_{11}$ is the first eigenvalue (wave number) of the first rectangular subdomain $x\in (-\infty ,a]$, and the first ‘1’ and the second ‘1’ represent the first subdomain and the first eigenvalue, respectively.

Thus, the corresponding 2D governing equation and boundary conditions are obtained

$$\frac{{\partial }^2\phi }{\partial x^2}+\frac{{\partial }^2\phi }{\partial z^2}-k_y^2\phi =0$$

(9)

$$\frac{\partial \phi }{\partial z}-\frac{{\omega }^2}{g}\phi =0\left(on{S}_F\right)$$

(10)

$$\frac{\partial \phi }{\partial n}=0\left(on{S}_0\right)$$

(11)

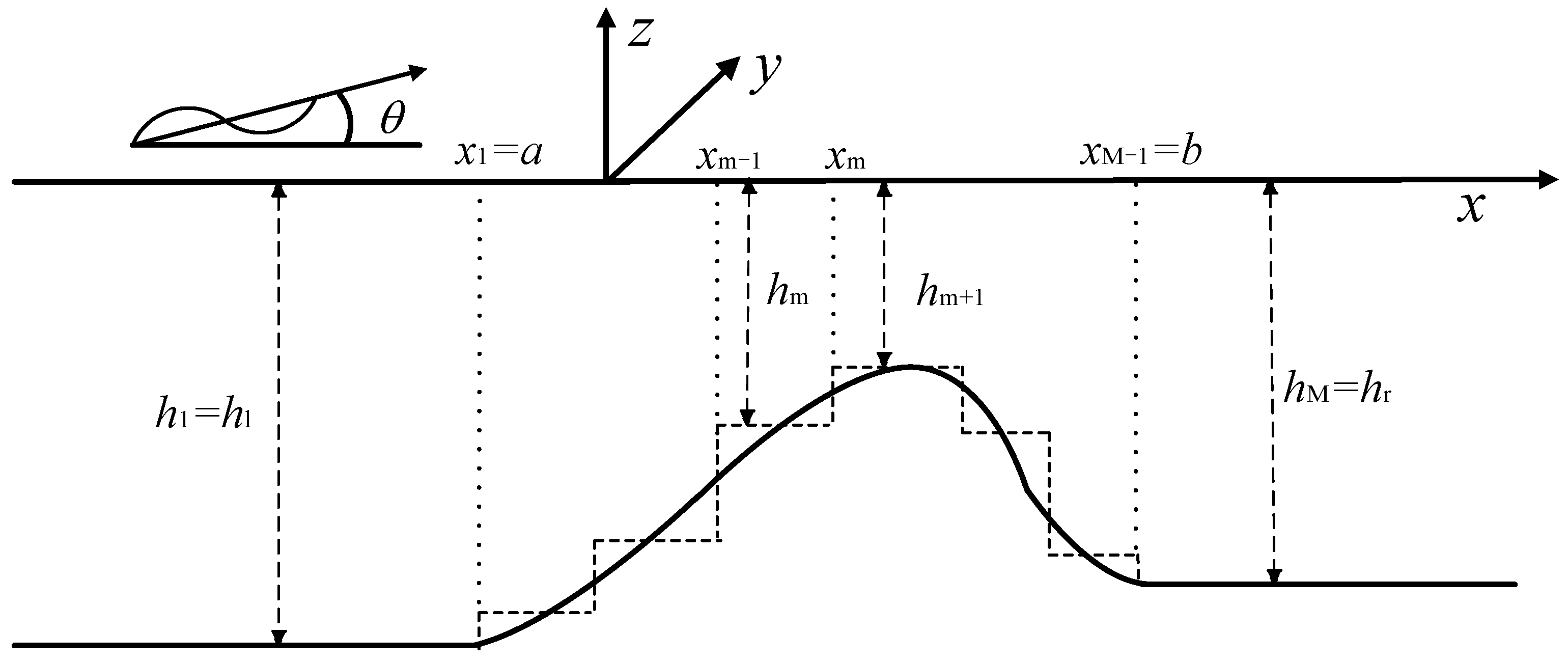

According to the main idea of EMM, we approximate the sloping seabed into shelves with vertical steps, thus forming a list of rectangular subdomains. From Figure 3, it can be seen that the seabed is divided into M parts, and $h_m$ represents the depth of the m-th rectangular subdomain $x\in (x_{m-1},x_m]$, for which the incident wave potential is given:

$$\phi =\left\{\begin{array}{cc}{\phi }_1\hfill & x\in (-\infty ,a],y\in (-\infty ,\infty ),z\in [-h_1,0]\\ {\phi }_m\hfill & x\in (x_{m-1},x_m],y\in (-\infty ,\infty ),z\in [-h_m,0]\\ {\phi }_M\hfill & x\in [b,\infty ),y\in (-\infty ,\infty ),z\in [-h_M,0]\end{array}\right.$$

(12)

By eigenfunction expansion of Equation (9), the wave potential in the m-th subdomain is given by

$$\begin{array}{cc}\hfill {\phi }_m& =[C{m}_1{e}^{i\sqrt{k_{m1}^2-k_y^2}(x-x_m)}+D{m}_1{e}^{-i\sqrt{k_{m1}^2-k_y^2}(x-x_{m-1})}]Z_{m,1}\hfill \\ \hfill & +\sum _{n=2}^{\infty }[C_{mn}{e}^{\sqrt{k_{mn}^2+k_y^2}(x-x_m)}+C_{mn}{e}^{-\sqrt{k_{mn}^2+k_y^2}(x-x_{m-1})}]Z_{m,n}\hfill \end{array}$$

(13)

where the first and remaining terms are the propagating eigenfunction and the evanescent eigenfunctions, respectively. $Z_{m,n}$ is the vertical expression of the n-th eigenfunction:

$$Z_{m,n}=\left\{\begin{array}{cc}cosh{k}_{m1}(z+h_m)/cosh{k}_{m1}{h}_m& n=1\\ cos{k}_{mn}(z+h_m)/cos{k}_{mn}{h}_m& n=2,3,4\dots \end{array}\right.$$

(14)

where $k_{mn}$ is obtained by solving the following equation:

$$\left\{\begin{array}{cc}{k}_{m1}tanh\left(k_{m1}{h}_m\right)={\omega }^2/g\hfill & \hfill \\ k_{mn}tan\left(k_{mn}{h}_m\right)=-{\omega }^2/g\hfill & \hfill n=2,3,4\dots \end{array}\right.$$

(15)

On the interfaces between adjacent rectangular subdomains, the pressure and normal velocity should be consistent. For instance, at $x=x_m$, the following equations should be satisfied:

$${\phi }_m={\phi }_{m+1}-h_{m+1}\le z\le 0$$

(16)

$$\frac{\partial {\phi }_m}{\partial x}=\left\{\begin{array}{cc}\frac{\partial {\phi }_{m+1}}{\partial x}\hfill & -h_{m+1}\le z\le 0\hfill \\ 0\hfill & -h_m\le z<-h_{m+1}\hfill \end{array}\right.$$

(17)

Multiplying the above equations by $Z_{m,n}$ and integrating over the vertical interface, one has

$${\int }_{-h_{m+1}}^0{\phi }_m{Z}_{m+1,n}\mathrm{d}z={\int }_{-h_{m+1}}^0{\phi }_{m+1}{Z}_{m+1,n}\mathrm{d}zn=1,2,3,\dots$$

(18)

$${\int }_{-h_m}^0\frac{\partial {\phi }_m}{\partial x}{Z}_{m,n}\mathrm{d}z={\int }_{-h_{m+1}}^0\frac{\partial {\phi }_{m+1}}{\partial x}{Z}_{m,n}\mathrm{d}zn=1,2,3,\dots$$

(19)

By substituting Equation (13) into Equations (18) and (19), assuming n to be truncated to N, and having m vary from 1 to $M-1$, then $2(M-1)N$ linear equations are derived with $2MN$ unknowns, i.e., $C_{mn}$ and $D_{mn}$.

In order to obtain solutions of the wave propagation problem, far field conditions give the remaining $2N$ linear equations, which are expressed as follows:

$$\left\{\begin{array}{cc}{C}_{11}=-ig/\omega \hfill & \\ D_{1n}=0\hfill & \hfill n=2,3,4\dots \\ D_{M1}=0\hfill & \\ C_{1n}=0\hfill & \hfill n=2,3,4\dots \end{array}\right.$$

(20)

3.2. Diffraction and Radiation Problems Considering the Sloping Seabed

By applying Green’s theorem, the boundary value problem for the diffraction and radiation potential can be solved by the following equations:

$$\frac{1}{2}\sigma \left(P\right)+\frac{1}{4\pi }{\int }_{S_B}\sigma \left(Q\right)\frac{\partial G}{\partial n\left(P\right)}\mathrm{d}S=\frac{\partial \varphi \left(P\right)}{\partial n\left(P\right)}$$

(21)

where P and Q are source points on the wet surfaces of floating bodies, G is Green’s function, $\sigma$ is the source strength, and $\frac{\partial }{\partial n}$ denotes the normal partial derivative. And the wave potential $\varphi \left(P\right)$ can be expressed as

$$\varphi (P)=\frac{1}{4\pi }{\int }_{S_B}\sigma \left(Q\right)G\mathrm{d}S$$

(22)

and

$$\frac{\partial \varphi \left(P\right)}{\partial n\left(P\right)}=-\frac{\partial {\varphi }_I}{\partial n}\left(on{S}_B\right),\mathrm{for}\mathrm{diffraction}\mathrm{problem}$$

(23)

$$\frac{\partial \varphi \left(P\right)}{\partial n\left(P\right)}=v_{bn}\left(on{S}_B\right),\mathrm{for}\mathrm{radiation}\mathrm{problem}$$

(24)

A good choice for the Green’s function G is the bottom-dependent Green’s function of water waves over a sloping bottom connecting two flat bottoms developed by Belibassakis and Athanassoulis [26], as it automatically satisfies all the boundary conditions except for the wet surfaces. However, its calculation is quite cumbersome and time-consuming, which restricts its direct application.

In this study, we still employ the FDGF established by John [37], which can be expressed in the following form:

$$G=\frac{1}{r}+\frac{1}{r_2}+2{\int }_0^{\infty }\frac{(k+\upsilon )coshk(z+h_e)coshk(\zeta +h_e)}{ksinhk{h}_e-\upsilon coshk{h}_e}{e}^{-kh}{J}_0\left(kR\right)\mathrm{d}k$$

(25)

where G denotes the velocity potential at the field point $(x,y,z)$ due to a point source at $(\xi ,\eta ,\zeta )$, $\upsilon ={\omega }^2/g$, r is the distance between the source and field points, and $r_2$ is the distance between the field point and the image of the source point with respect to the bottom: here, an equivalent constant depth $h_e$ is assumed to represent the contribution of the variable depth associated with the sloping seabed on the wave diffraction and radiation. Numerical methods for solving the finite-depth Green’s function have been fully studied elsewhere [10,11,12,33,38,39] and, thus, are not discussed here.

It is expected that solutions of the diffraction or radiation problem over a sloping bottom are between the results for the two constant water depths that denote the minimum and maximum depth of the bottom, i.e., $h_{min}$ and $h_{max}$, respectively. Kim and Kim [28]’s results are associated with the radiation problem of an LNG ship have confirmed this assumption. With this in mind, one purpose of this study is to determine the equivalent constant depth $h_e$ to represent a sloping seabed when analyzing wave diffraction and radiation to complete our simplified method.

After solving the problems above, incident, diffraction and radiation wave potentials are obtained. By using the Bernoulli equation and integrating it over the wet surface, the dynamic motion equations of the floating body are established:

$$(-{\omega }^2[M+A]-\mathrm{i}\omega \left[B\right]+\left[K\right])\left\{\xi \right\}=\left\{f_w\right\}$$

(26)

where M is the mass matrix of the floating body, A is added mass, B is the damping coefficient, K is the hydro-static restoring matrix, and $\xi$ and $f_W$ are the complex amplitude of motion responses and wave exciting forces, respectively. Noted that one can refer to ref. [9] for the detailed derivation process of these physical quantities.

4. Results and Discussion

The numerical results for an LNG ship over mild-slope seabeds using the present method are shown and verified with the results of Hauteclocque et al. [23], Kim and Kim [28] and the experimental results of Buchner [21]. In order to demonstrate a broader range of this simplified method, comparisons are also made with the results of a floating hemisphere over a steep-slope bottom using a BEM method using a sloping seabed Green’s function [24]. Through these investigations, the equivalent depth is determined, and the accuracy of the present method is examined.

4.1. Comparison with Numerical Results for an LNG Ship

The motion response induced by an LNG ship over a sloping bottom is investigated here to show the accuracy of the simplified method. The length of the slope and the depths of two flat bottoms are designated as $L=300$ m, $h_l=30$ m and $h_r=15$ m, respectively. The angle of the straight slope connecting the flat regions is $arctan1/20$, and it can be deemed to be a mild slope. The LNG ship is located at the center of the sloped bottom, the local water depth of which is 22.5 m. The size parameters of the LNG ship are given in

Table 1. The LNG ship’s size parameters.

Parameter	Unit	Value
Length	m	274
Beam	m	44.2
Draft	m	11
Displacement	m3	97120
Longitudinal center of gravity	m	−1.06 from midship
Vertical center of gravity	m	5.3 above still water plane
Roll radius of gyration	m	15.2
Pitch radius of gyration	m	68.5

.

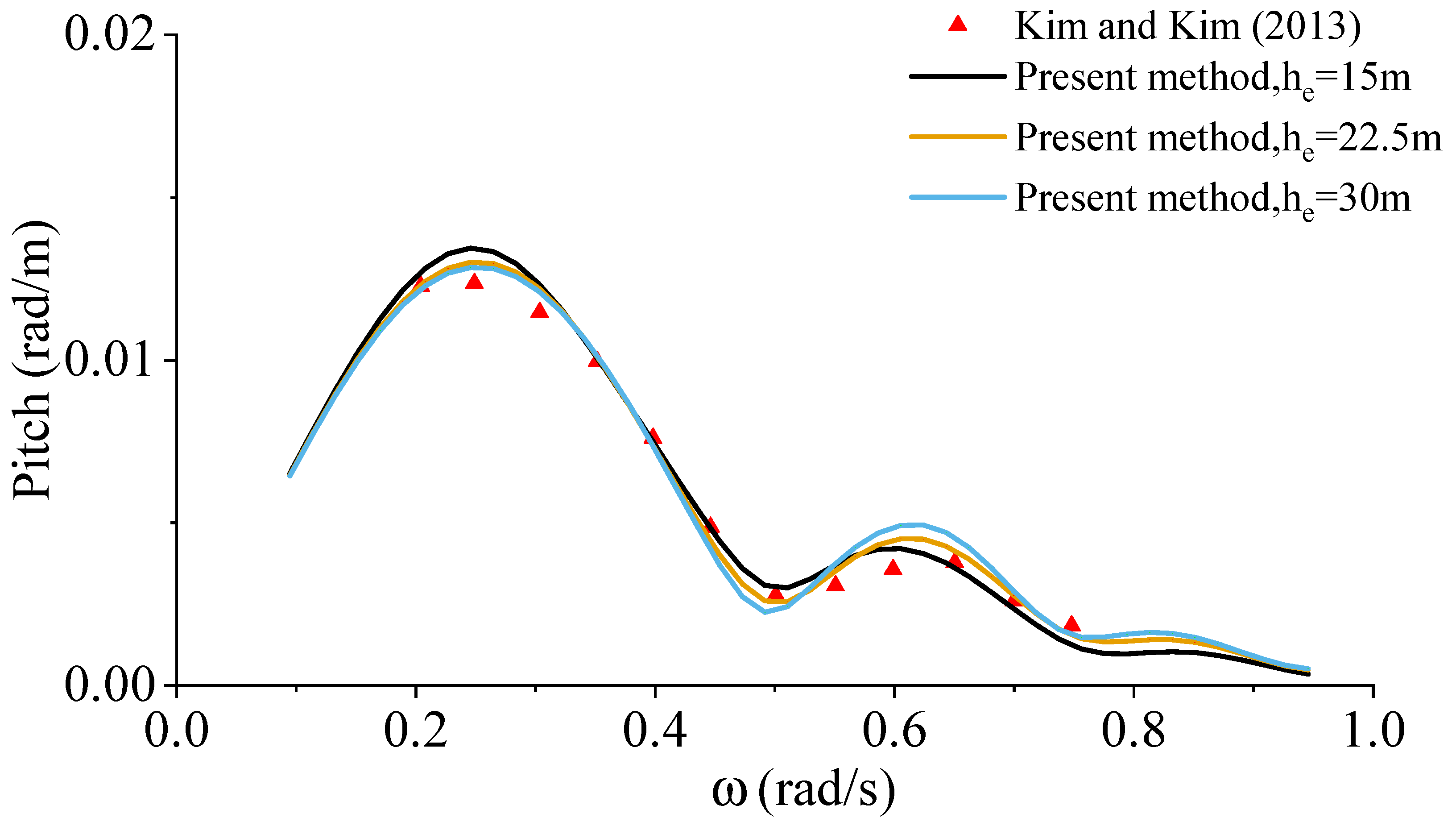

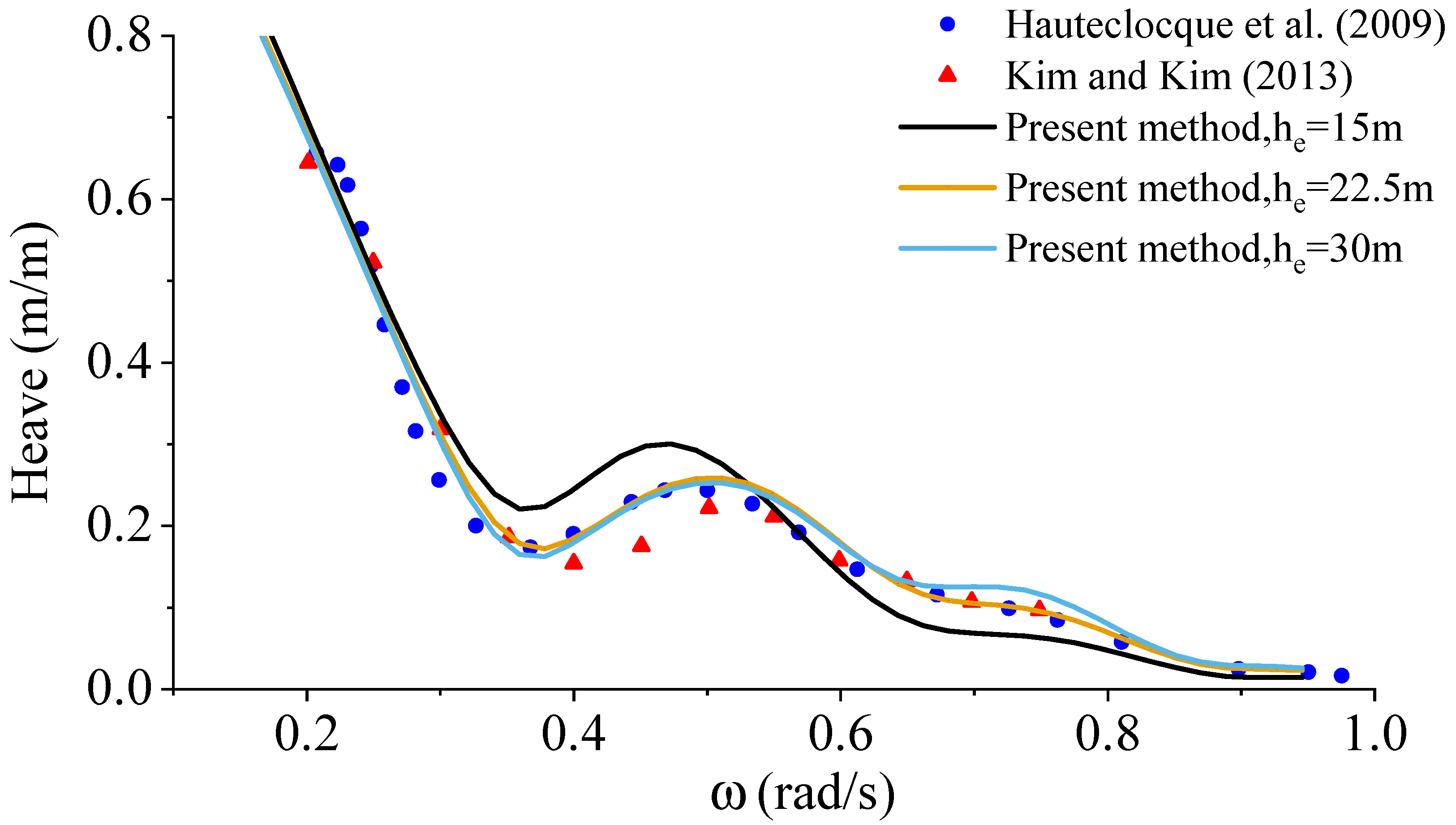

Figure 4, Figure 5 and Figure 6 show the predicted motion response amplitude operators (RAOs) of heave, pitch and surge calculated utilizing the present method with $h_e$ = 15, 22.5 and 30 m and compared with the solutions from [28], who employed a numerical tank coupled with a Rankine source method, and the results from [23], who applied a new formulation of BEM with incident wave angle θ = 0 deg. In Figure 4, the surge RAO using the present method with $h_e$ = 15 and 22.5 m shows good agreement with numerical results [23] over almost all the frequencies. From Figure 5 and Figure 6, it can be seen that the heave and pitch RAOs using the present method with $h_e$ = 22.5 m exhibit close agreement with numerical solutions from the literature [23,28]. It seems that the present, simplified method with an equivalent depth corresponding to the local depth at the midship position can give accurate predictions of motion RAOs of the floating structure over a sloping seabed. This supposition can be further confirmed from Figure 7, which shows comparison of the heave RAO between the present method with $h_e$ = 15, 22.5 and 30 m and the numerical results from Hauteclocque et al. [23] for an oblique wave $\theta =15deg$ for an LNG ship. The heave RAO for an oblique wave using the present method with $h_e$ = 15 and 22.5 m agrees well with the results from Hauteclocque et al. [23]. And the present method with $h_e$ = 15 m shows good agreement, especially in the frequency range 0.6 rad/s $\le \omega \le$ 0.8 rad/s.

4.2. Comparison with Experimental Results for an LNG Ship

A model test of an LNG ship was carried out to investigate its motion responses over a sloping seabed by Buchner [21], and the main particulars of that LNG ship are the same as those used by Kim and Kim [28] and are given in Table 1. The author found that a method including a second fixed body is not possible (without special measures) when representing variable bathymetry using diffraction theory. In his model test, the normal water depth of the basin was 35 m. A wedge-type wooden straight slope with a sloping angle of $arctan1/20$ (mild slope) and a horizontal length of 550 m long was mounted on the flat bottom of the basin. With this slope, the water depth gradually decreased from 28 m at the bow to 21.5 m midship and 15 m at the stern of the LNG ship. We assume the position of midship to be at x = 0 m; thus, the starting and end points of the slope are at x = −270 m and $x=$ 280 m, respectively.

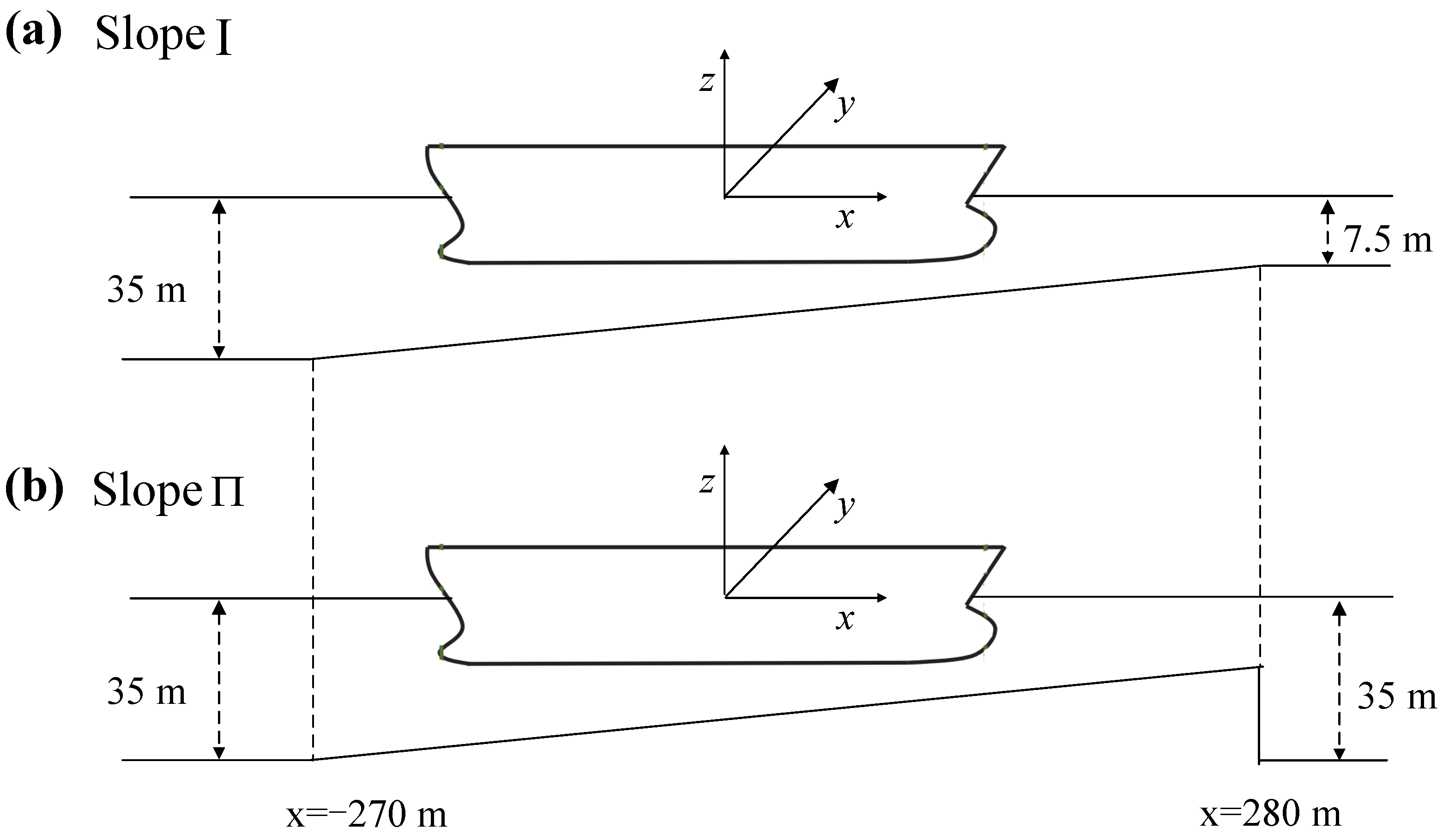

Buchner [21] intended to model a sloping bottom connecting two flat bottoms, the depths of which were 35 m and 7.5 m, respectively, as shown in Figure 8a Slope I. However, we suggest that the model test is identical to Slope II (see Figure 8b) with an abrupt step at x = 280 m. In order to demonstrate this, both slopes are calculated using the present method and are compared with the experimental results from [21].

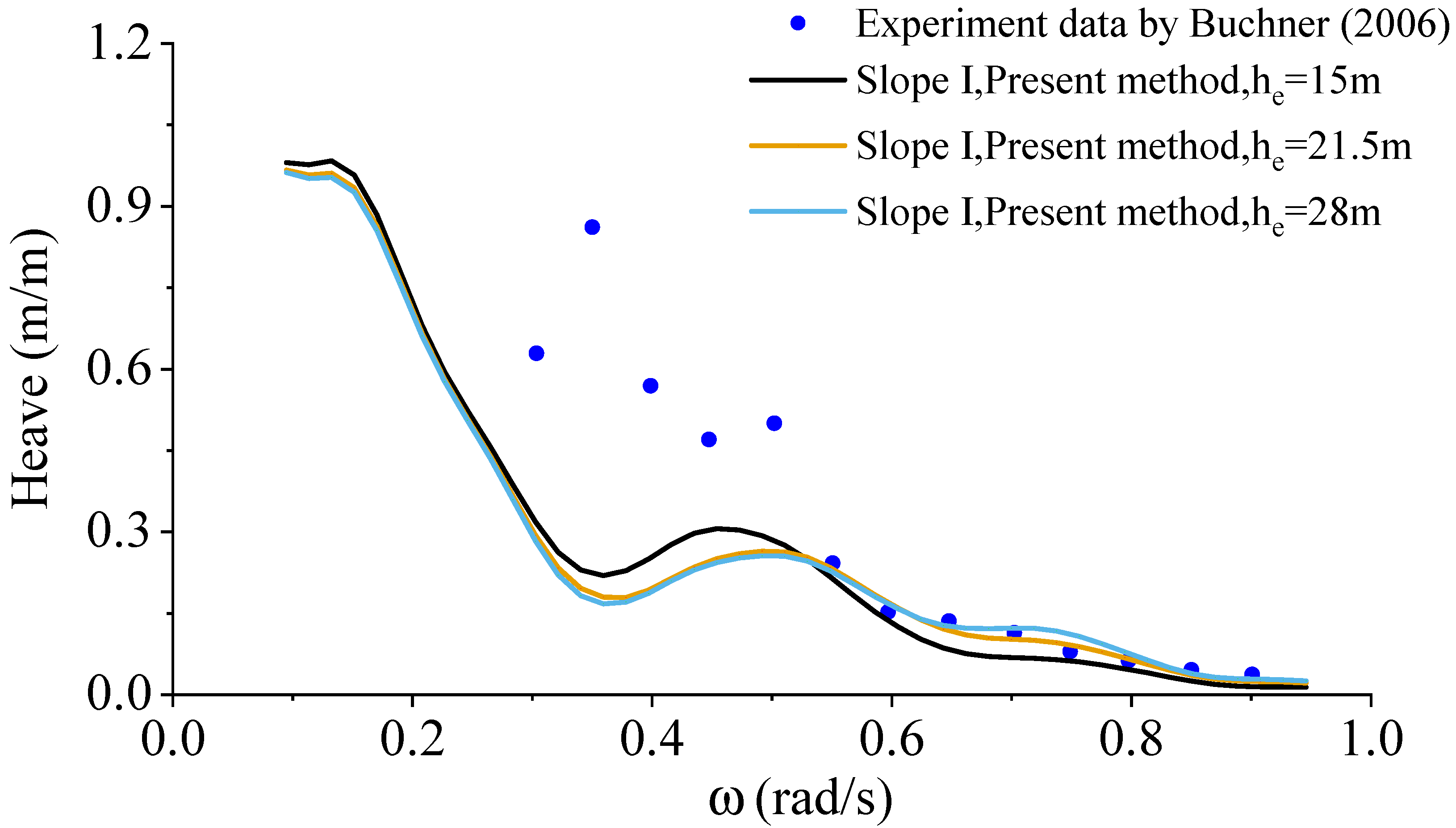

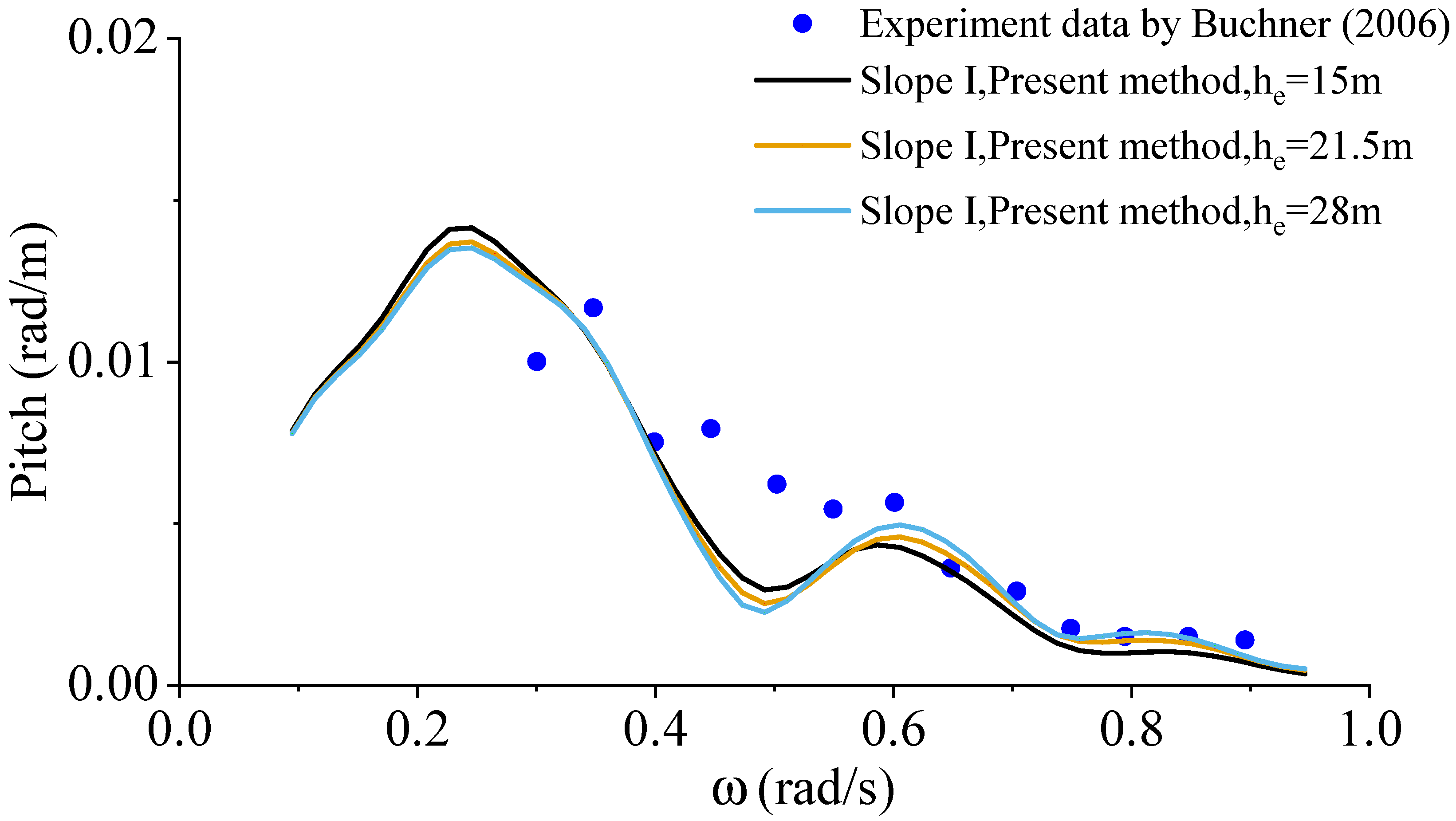

A comparison of pitch and heave motion RAOs between the present method with $h_e$ = 15, 21.5 and 28 m over Slope I and the experimental results from Buchner [21] is illustrated in Figure 9 and Figure 10, respectively. A slight difference between the curves of the pitch and heave motion RAOs using the present method with $h_e$ = 15, 21.5 and 28 m is observed. A possible reason is that the dominant factor of problems associated with sloping bottoms is the characteristics of incident waves, i.e., the Froude–Krylov force and Neumann data on the wet surfaces of floating bodies for the diffraction problem. In this connection, differences between the results for different equivalent depth $h_e$ values are not obvious; thus, we cannot tell which $h_e$ gives better prediction results. Though the overall trends between the present method and the experimental results are similar, they agree well only in high-frequency regions, i.e., $\omega >$ 0.65 rad/s for the pitch RAO and $\omega >$ 0.55 rad/s for the heave RAO.

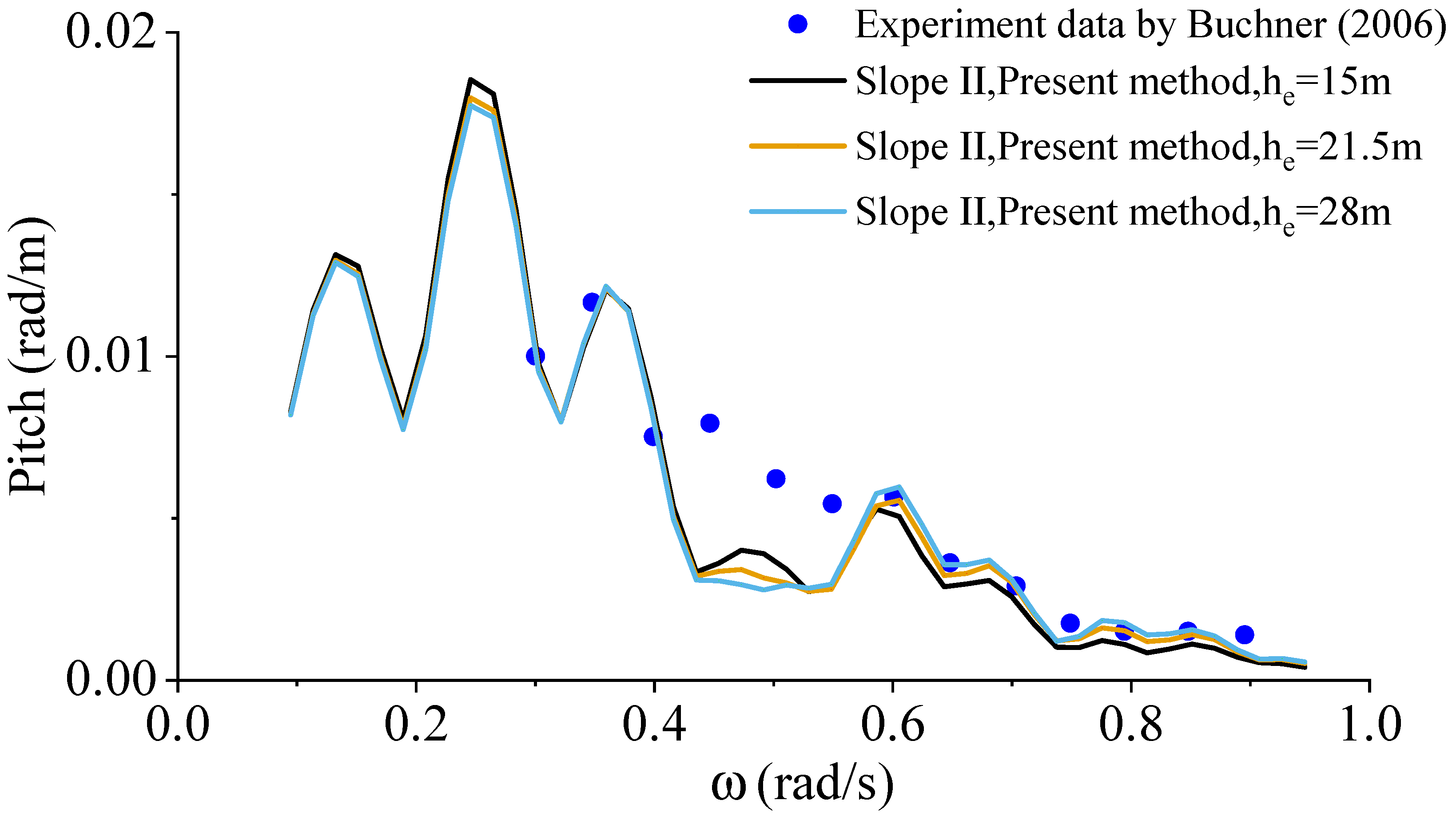

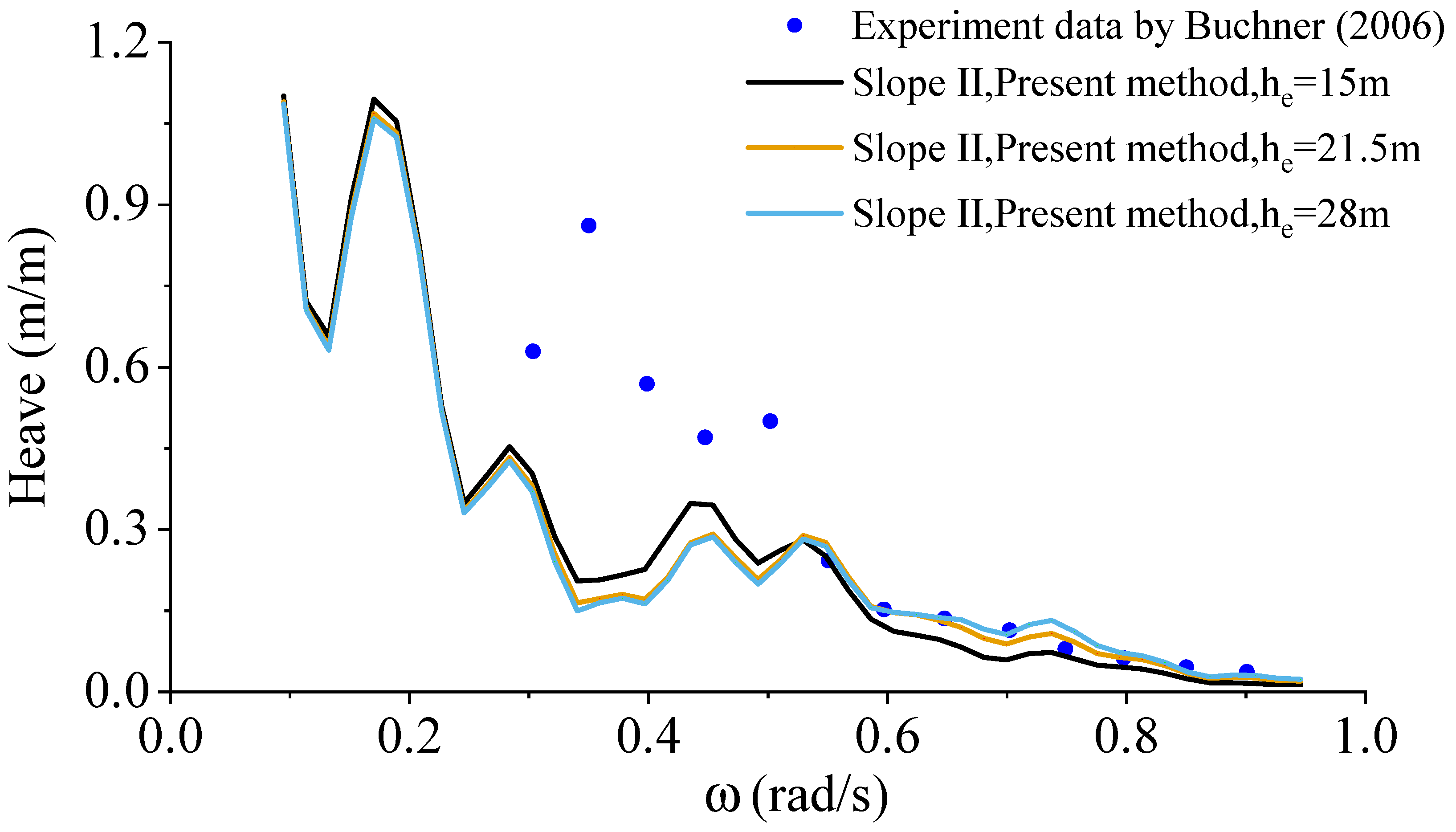

Figure 11 and Figure 12 show a comparison for pitch and heave motion RAOs, respectively, between the present method with $h_e$ = 15, 21.5 and 28 m over Slope II and the experimental results from Buchner [21]. For the pitch RAO, the results between the present method and the experimental results show good agreement except for a small region from 0.45 rad/s $<\omega <$ 0.6 rad/s. And the heave RAO using the present method agrees well with the experiment results when $\omega >$ 0.55 rad/s, while major differences occur in the low-frequency region. Note that the existence of the abrupt step at x = 280 m imposed a complex reflection of incident waves, leading to clear “wiggles” in the motion RAO curves using the present method (see Figure 11 and Figure 12), which is also observed in the experimental results.

Taken together, these results suggest that Slope II is more suitable for representing the model test, and differences between the results of the present method with different $h_e$ values are slight. In combination with the conclusion of the last subsection, we can infer that the present method with an equivalent depth $h_e$ corresponding to the local depth midship can give accurate predictions of motion RAOs for an LNG ship over a mild-slope bottom.

4.3. Comparison with Numerical Results for a Floating Hemisphere

In the above subsections, comparisons of our method with published data related to LNG ships over mild-slope bottoms are shown. To expand the applicable scope of the present method, problems associated with a steep-slope bottom are considered in this part.

Recently, by using the boundary element method [24], we numerically investigated the effects of a sloping bottom on a floating hemisphere [40]. Note that Belibassakis [24]’s method assumes that $h\left(x\right)$ should be second-order continuous. And the $h\left(x\right)$ used by Liu et al. [40] is expressed as

$$h\left(x\right)=\frac{h_l+h_r}{2}-\frac{h_r-h_l}{2}tanh3\pi \left(\frac{x-a}{b-a}-\frac{1}{2}\right)$$

(27)

where $a=-10$ m and $b=10$ m, and they are located at the start and end, respectively, of the sloping bottom areas. The water depths $h_l$ = 26 m and $h_r$ = 14 m are also assumed for the start and end of the slope, respectively; thus, the maximum slope of the bottom is 2.83, and the slope can be deemed to be very steep.

Table 2. The floating hemisphere’s size parameters.

Parameter	Unit	Value
Diameter	m	10
Displacement	m3	261.8
Vertical center of gravity	m	0
Roll radius of gyration	m	3.16
Pitch radius of gyration	m	3.16
Yaw radius of gyration	m	3.16

gives the size parameters of the floating hemisphere, and it is located at the center of the sloping bottom at a local water depth of 20 m.

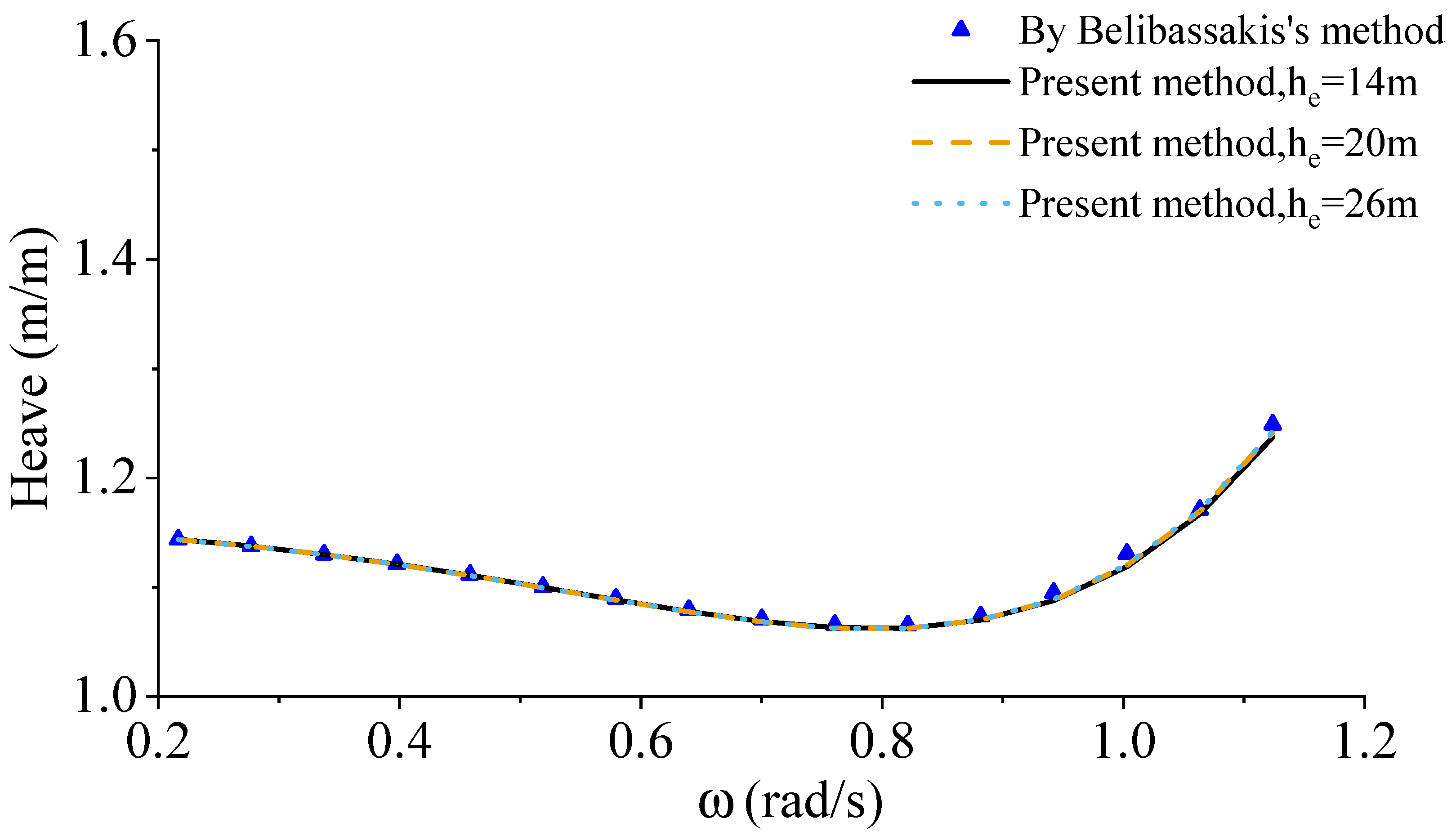

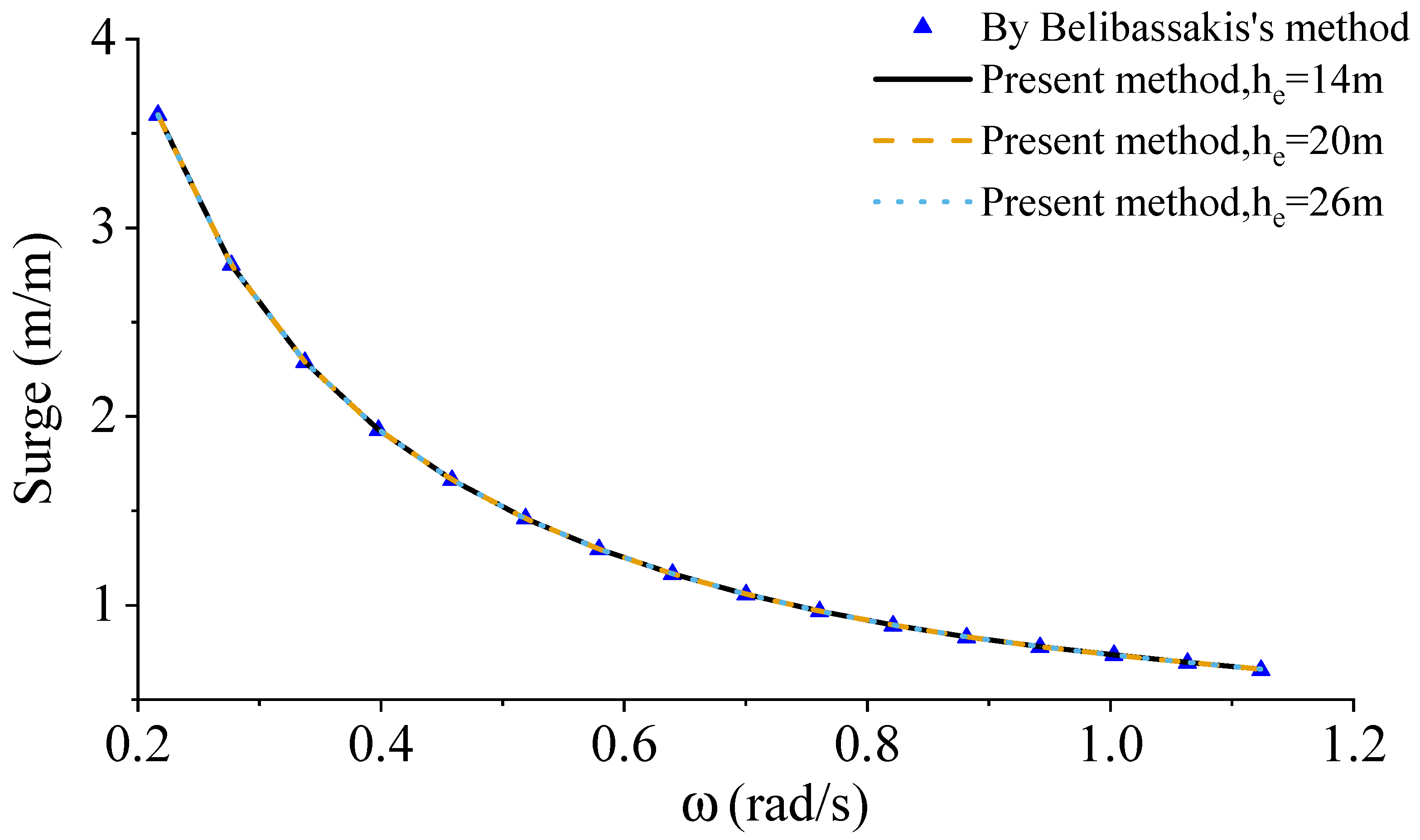

Numerical simulations associated with the hemisphere over a sloping bottom for an incident wave angle $\theta =0deg$ are shown in Figure 13 and Figure 14. They show a comparison of the surge and heave RAOs between the present method with $h_e$ = 14, 20 and 26 m and numerical results using Belibassakis [24]’s method. Firstly, it is observed that the results obtained using the present method with different $h_e$ values are nearly identical, which further confirms our supposition that the dominant factor for problems associated with sloping bottoms is the velocity potential of the incident wave, which determines the F-K wave force and Neumann data for wave diffraction problems. Then, good agreement between the results using the present method and the method in the literature [24] further validates our method.

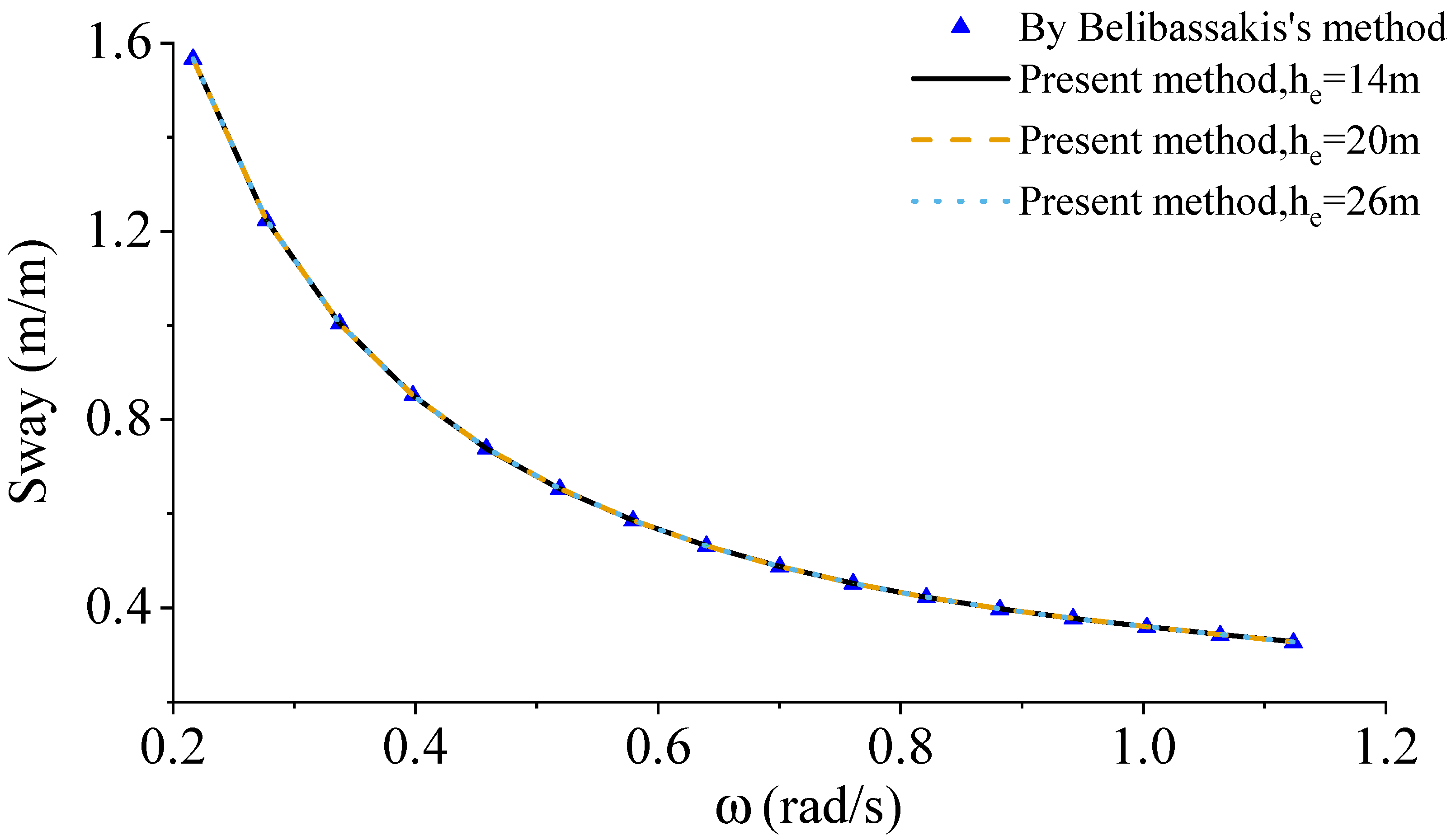

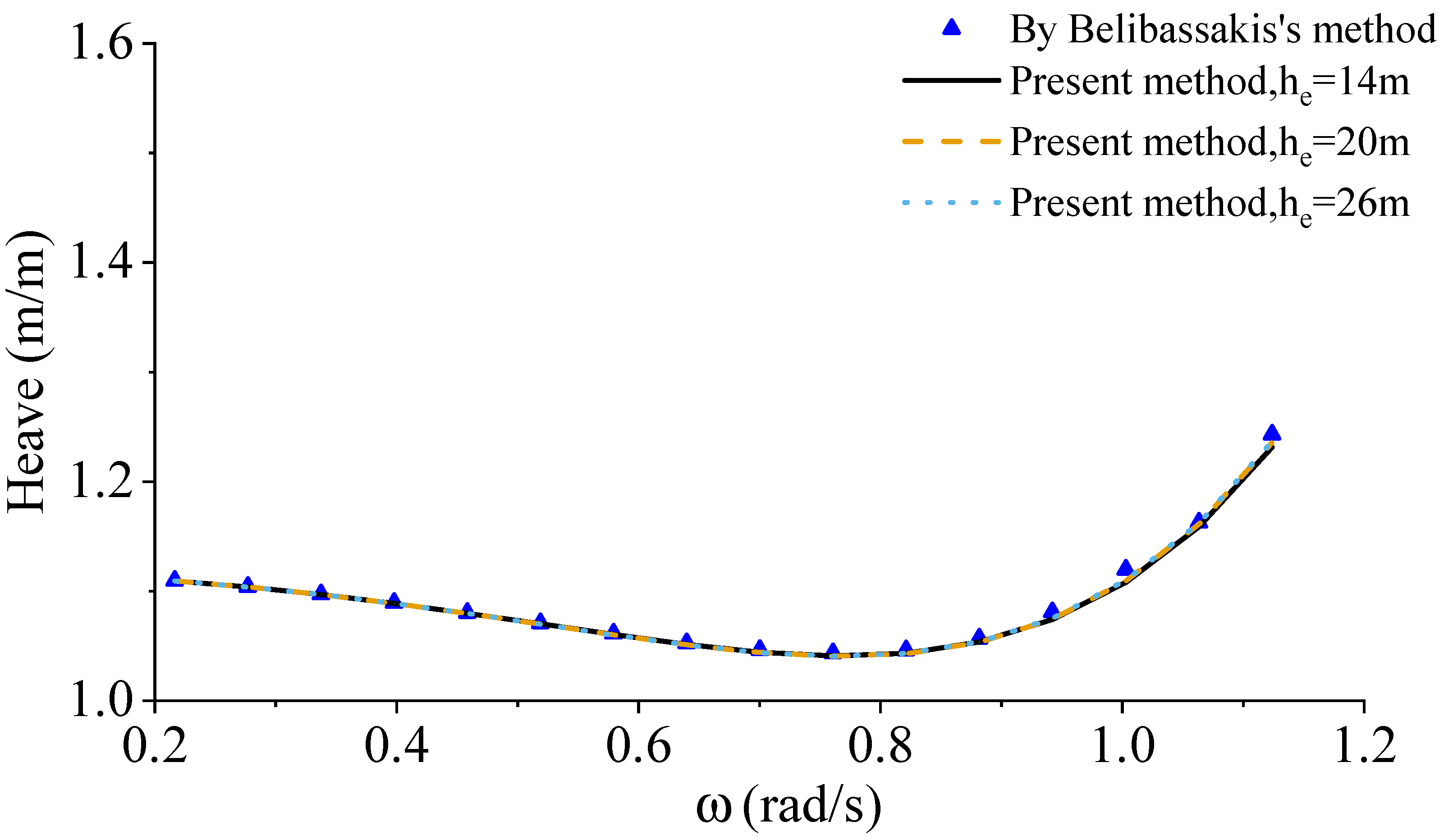

Further numerical simulations are performed to validate the present method for oblique waves. Figure 15, Figure 16 and Figure 17 show the comparison of surge, sway and heave RAOs between the present method with $h_e$ = 14, 20 and 26 m and numerical results using Belibassakis [24]’s method for an oblique wave $\theta =30deg$ for a floating hemisphere over a sloping bottom. Similar conclusions are deduced from these comparisons.

5. Conclusions

A simplified method combining the EMM with the FDGF is developed to study floating-body motion responses over a sloping seabed. An extended EMM is proposed to create an incident wave propagation model over a sloping bottom, with which the Froude–Krylov force and Neumann data on the wet surfaces of the floating body for the diffraction problem are obtained. Thus, the sloping bottom is carefully considered when solving the incident wave problem. In order to consider the effects of the undulating seabed for both wave diffraction and radiation, an equivalent depth between the minimum and maximum depths of the bottom is introduced, which indicates that a flat bottom is assumed when solving diffraction and radiation problems.

The accuracy of the present method is validated through some comparisons with numerical results and experimental data in the literature:

(1) For an LNG ship over a mild-slope bottom (a 300-meter-long slope), the present method with an $h_e$ corresponding to the local depth midship agrees well with numerical results [23,28] for both normal and oblique waves. However, the differences between the results for the minimum and maximum depths of the bottom with data in the literature are relatively large. For the second mild-slope case (a 550-meter-long slope), the differences due to different $h_e$ values are small, and the results using the present method agree well with the experimental results [21] except for at some frequency regions.

(2) Problems with respect to a hemisphere over a steep-slope bottom for both normal and oblique waves are further considered. The differences due to different $h_e$ values between the minimum and maximum depths with the present method are not visible, and they agree well with the solutions using Belibassakis [24]’s approach.

In summary, the present, simplified method with an equivalent depth corresponding to the local depth midship can always give numerical results with sufficient accuracy.
