Pronounced Seasonal and Spatial Variability in Determinants of Phytoplankton Biomass Dynamics along a Near–Offshore Gradient in the Southern North Sea
Abstract
:1. Introduction
2. Materials and Methods
2.1. Input Data
2.2. Time Trends for Input Data

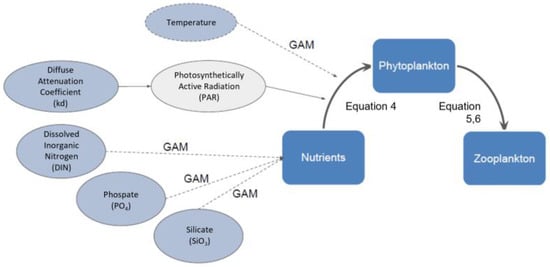

2.3. Ecological Model

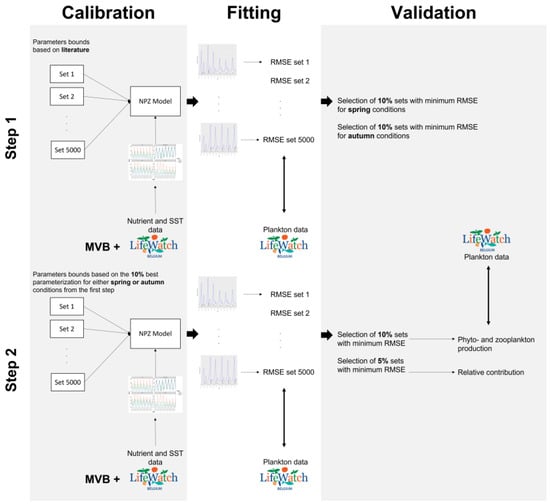

2.4. Selection of Model Parameters and Validation
2.5. Relative Contributions
3. Results
3.1. Model Fit

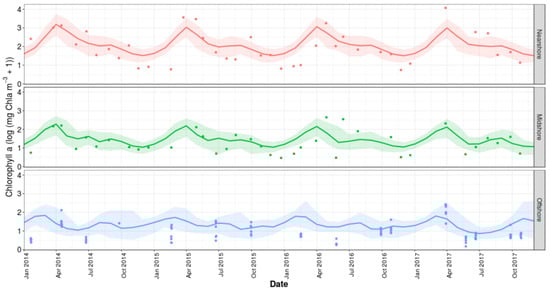

3.2. Phytoplankton Time Trends

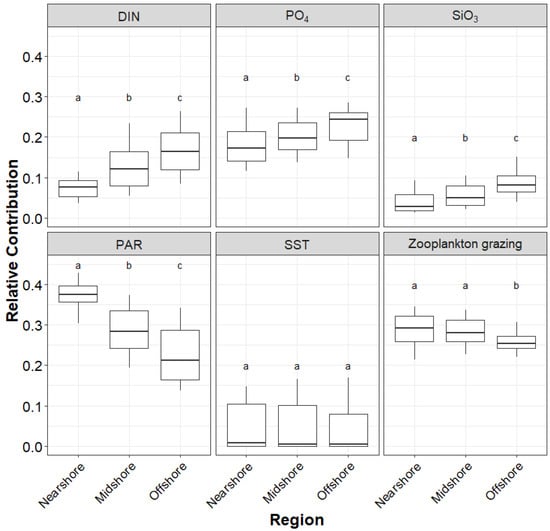

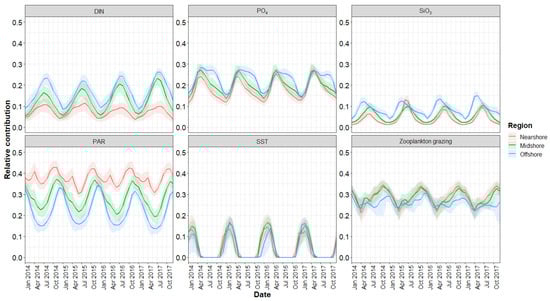

3.3. Relative Contributions
4. Discussion
4.1. Generalised Additive Modelling Performance
4.2. Comparison Phyto- and Zooplankton Modelling Results
4.3. Relative Contribution of the Key Determinants
4.4. Modelling with Field Data: Advantages and Limitations
4.5. Future Perspectives and Implications
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A. NPZD Model Parameters
Parameter | Minimum Possible Value | Maximum Possible Value | References |
---|---|---|---|
maxUptake | 0.25 (day−1) | 1.5 (day−1) | [19,108,109,110,111] |
excretionRate | 0.1 (day−1) | 0.2 (day−1) | [19,109,111] |
maxGrazing | 0.8 (day−1) | 1 (day−1) | [19,108,109,112,113] |
ksGrazing | 1 (mmol N m−3) | 4 (mmol N m−3) | [19,113,114] |
pFaeces | 0.2 (day−1) | 0.5 (day−1) | [19] |
mortalityRate | 0.25 ((mmol N m−3)−1 day−1) | 0.5 ((mmol N m−3)−1 day−1) | [19,108,109,110,111,113,115] |
ChlNratio | 1 (mg Chla/mmol N) | 8 (mg Chla/mmol N) | [50] |
ksPAR | 30 (µEinst m−2 s−1) | 250 (µEinst m−2 s−1) | [19] |
Tobs | 7 °C | 15 °C | [8,113,114] |
ksDIN | 0.25 (mmol N m−3) | 5 (mmol N m−3) | [8,19,108,109,110,111,112,113,114,115] |
ksP | 0.2 (mmol P m−3) | 0.5 (mmol P m−3) | [8,113] |
ksSi | 0.2 (mmol Si m−3) | 0.8 (mmol Si m−3) | [49] |
Kd * | 0.6 (m−1) | 1 (m−1) | Nearshore station |
0.27 | 0.67 | Midshore station | |
0.21 | 0.44 | Offshore stations |
Region of Interest | RMSE–Median (Q1–Q3) | Number of Simulations |
---|---|---|
Nearshore region | 1.34 (1.32–1.36) | 259 |
Midshore region | 0.44 (0.43–0.45) | 498 |
Offshore region | 0.40 (0.37–0.41) | 499 |
Variable | Nearshore Region | Midshore Region | Offshore Region |
---|---|---|---|
Chlorophyll-a | 39 | 37 | 98 |
Zooplankton | 40 | 37 | 96 |
Appendix B. Zooplankton Conversion
Taxon | Body Mass (mg C ind−1) | Species | Reference |
---|---|---|---|
Calanoida | 0.0006 | Acartia clausi, Temora longicornis, Paracalanus parvus, Centropages hamatus, Pseudocalanus elongatus, Centropages typicus and Calanus helgolandicus | [116] |
Noctiluca | 0.0003 | Noctiluca scintillans | [117] |
Harpacticoida | 0.001 | Euterpina acutifrons | [118] |
Appendicularia | 0.002 to 0.006 | Oikopleura dioica | [119] |
Taxon | C:N Ratio | Species | Reference |
---|---|---|---|
Calanoida | 5.5–7 | Acartia spp., Temora sp., Centropages, Oithona sp., Pseudo/Paracalanus spp. | [120] |
Noctiluca | 2.3–4.4 | Noctiluca scintillans | [121] |
Harpacticoida | 4.26–4.74 7.7–8.1 | Euterpina acutifrons | [122] [123] |
Appendicularia | 4.08 | Oikopleura dioica | [119] |

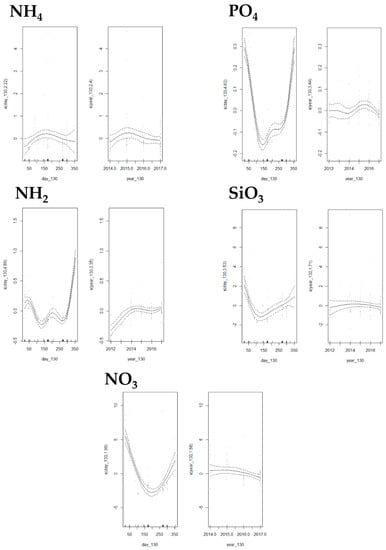

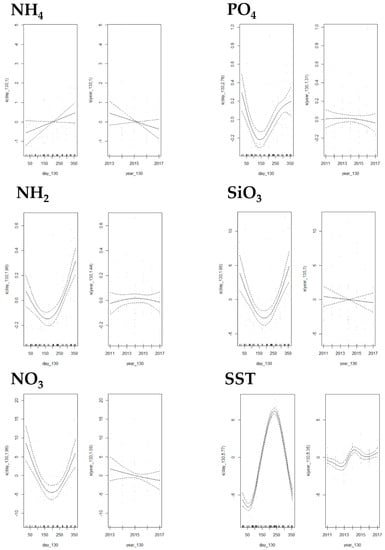

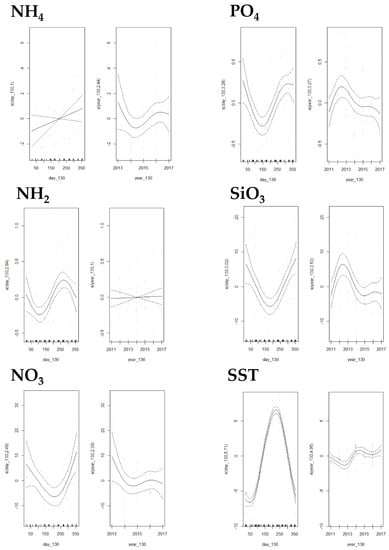

Appendix C. Smoothers for the Generalised Additive Models (GAMs) in the Three Regions of Interest, i.e., the Near-, Mid- and Offshore Regions

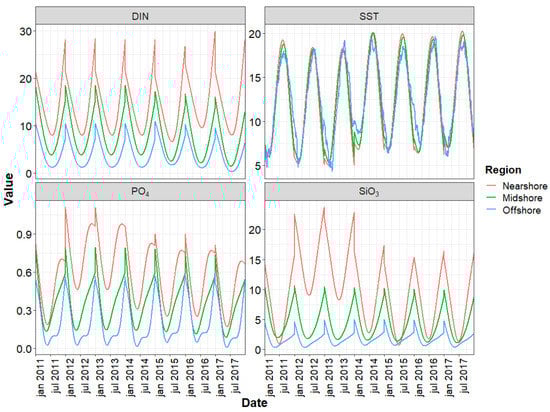

Appendix D. Time Trends of the GAMs in the Three Regions of Interest
Region of Interest | Nutrient and SST | RMSE | R2 |
---|---|---|---|
Nearshore region | DIN (mmol N m−3) | 9.61 | 0.30 |
PO4 (mmol P m−3) | 0.30 | 0.32 | |
SiO3 (mmol Si m−3) | 6.43 | 0.39 | |
SST (°C) | 1.82 | 0.94 | |
Midshore region | DIN (mmol N m−3) | 5.69 | 0.37 |
PO4 (mmol P m−3) | 0.23 | 0.30 | |
SiO3 (mmol Si m−3) | 3.65 | 0.29 | |
SST (°C) | 0.88 | 0.96 | |
Offshore region | DIN (mmol N m−3) | 2.33 | 0.55 |
PO4 (mmol P m−3) | 0.05 | 0.87 | |
SiO3 (mmol Si m−3) | 1.30 | 0.30 |
Nearshore Region | ||||||
---|---|---|---|---|---|---|
Variable | k- | k- | AIC | Adjusted R2 | k Performance | GAM |
s (day) | s (year) | |||||
PO4 | 3 | 3 | 58.1 | 0.19 | p-value < 0.05 for day, and 0.38 for year | PO4~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 50.26 | 0.30 | p-value < 0.05 for day, and 0.23 for year | ||
5 | 5 | 46.96 | 0.35 | p-value < 0.05 for day, and 0.07 for year | ||
6 | 6 | 47.6 | 0.36 | p-value < 0.05 for day, and 0.06 for year | ||
NH4 | 3 | 3 | 203.54 | 0.04 | p-values > 0.05 for both smoothers | NH4~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 201.27 | 0.12 | p-values > 0.05 for both smoothers | ||
5 | 5 | 202.06 | 0.11 | p-values > 0.05 for both smoothers | ||
NO2 | 3 | 3 | 44.04 | 0.08 | p-value < 0.05 for day, and 0.86 for year | NO2~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 33.44 | 0.25 | p-value < 0.05 for day, and 0.79 for year | ||
5 | 5 | 34.31 | 0.25 | p-value < 0.05 for day, and 0.81 for year | ||
NO3 | 3 | 3 | 336.38 | 0.25 | p-values < 0.05 for day, and 0.56 for year | NO3~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 334.55 | 0.31 | p-values < 0.05 for day and 0.26 for year | ||
5 | 5 | 335.36 | 0.32 | p-values < 0.05 for day, and 0.24 for year. | ||
SiO3 | 3 | 3 | 481.08 | 0.28 | p-value < 0.05 for day, and 0.22 for year | SiO3~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 476.2 | 0.35 | p-value < 0.05 for both smoothers | ||
5 | 5 | 471.5 | 0.41 | p-value < 0.05 for both smoothers | ||
6 | 6 | 472.28 | 0.41 | p-value < 0.05 for both smoothers | ||
Midshore Region | ||||||
Variable | k- | k- | AIC | Adjusted R2 | k Performance | GAM |
s(day) | s(year) | |||||
PO4 | 3 | 3 | 10.82 | 0.21 | p-values < 0.05 for day, and 0.67 for year | PO4~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 4.53 | 0.30 | p-values < 0.05 for day, and 0.71 for year | ||
5 | 5 | 4.96 | 0.31 | p-values < 0.05 for day, and 0.69 for year | ||
NH4 | 3 | 3 | 136.188 | 0.09 | p-values > 0.05 for both smoothers | NH4~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 136.19 | 0.09 | p-values > 0.05 for both smoothers | ||
5 | 5 | 136.188 | 0.09 | p-values > 0.05 for both smoothers | ||
NO2 | 3 | 3 | −27.8 | 0.37 | p-values < 0.05 for day, and 0.68 for year | NO2~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | −26.36 | 0.37 | p-values < 0.05 for day, and 0.72 for year | ||
5 | 5 | −25.81 | 0.37 | p-values < 0.05 for day, and 0.72 for year | ||
NO3 | 3 | 3 | 271.38 | 0.37 | p-values < 0.05 for day, and 0.31 for year | NO3~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 273.25 | 0.38 | p-values < 0.05 for day, and 0.41 for year | ||
5 | 5 | 274.05 | 0.38 | p-values < 0.05 for day, and 0.39 for year | ||
SiO3 | 3 | 3 | 362.68 | 0.28 | p-value < 0.05 for day, and 0.54 for year | SiO3~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 363.23 | 0.28 | p-value < 0.05 for day, and 0.56 for year | ||
5 | 5 | 363.47 | 0.28 | p-value < 0.05 for day, and 0.55 for year | ||
Offshore Region | ||||||
Variable | k- | k- | AIC | Adjusted R2 | k Performance | GAM |
s(day) | s(year) | |||||
PO4 | 3 | 3 | −281.69 | 0.80 | p-value < 0.05 for both smoothers | PO4~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | −288.22 | 0.82 | p-values < 0.05 for both smoothers | ||
5 | 5 | −306.43 | 0.84 | p-values < 0.05 for both smoothers | ||
6 | 6 | −327.19 | 0.87 | p-values < 0.05 for both smoothers | ||
NH4 | 3 | 3 | 232.78 | 0.05 | p-values ≥ 0.05 for both smoothers | NH4~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 230.73 | 0.09 | p-values > 0.05 for both smoothers | ||
NO2 | 3 | 3 | −46.83 | 0.37 | p-values < 0.05 for both smothers | NO2~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | −72.92 | 0.51 | p-values < 0.05 for both smoothers | ||
5 | 5 | −92.81 | 0.60 | p-values < 0.05 for both smoothers | ||
6 | 6 | −125.85 | 0.70 | p-values < 0.05 for both smoothers | ||
NO3 | 3 | 3 | 430.44 | 0.62 | p-values < 0.05 for day, and 0.10 for year | NO3~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 431.57 | 0.62 | p-values < 0.05 for day, and 0.14 for year | ||
SiO3 | 3 | 3 | 401.81 | 0.26 | p-values < 0.05 for day, and 0.07 for year | SiO3~s(day, k = ks(day)) + s(year, k = ks(year)) |
4 | 4 | 399.83 | 0.28 | p-value < 0.05 for day, and 0.37 for year | ||
5 | 5 | 396.58 | 0.31 | p-value < 0.05 for day, and 0.47 for year | ||
6 | 6 | 396.99 | 0.31 | p-value < 0.05 for day, and 0.47 for year |

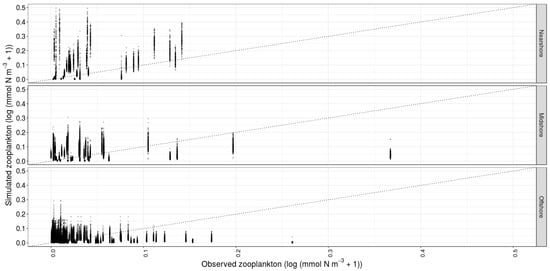

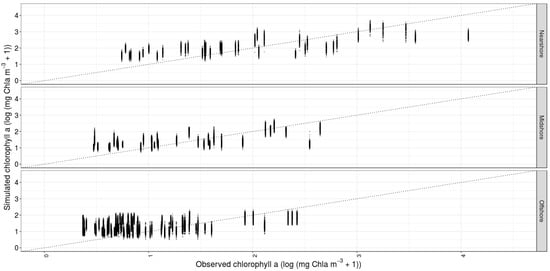

Appendix E. Model Validation: Observation versus Simulation

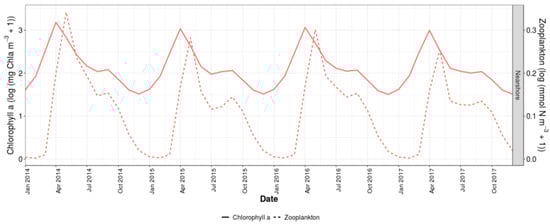

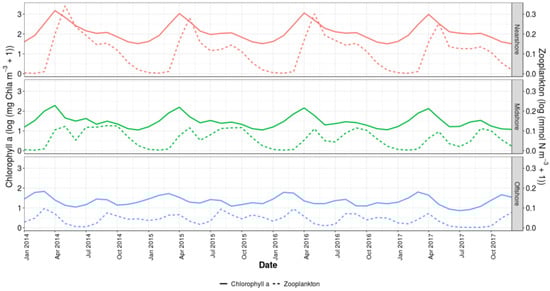

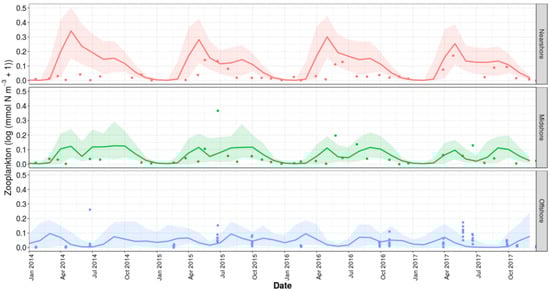

Appendix F. Simulated Zooplankton Abundances

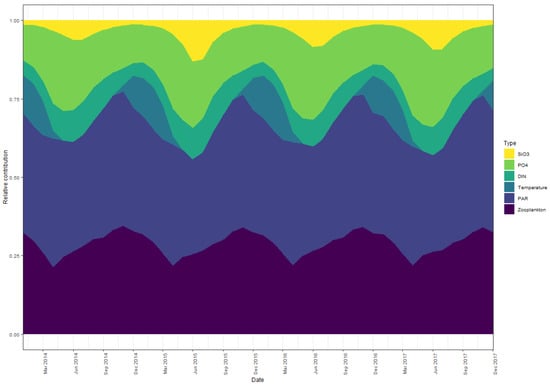

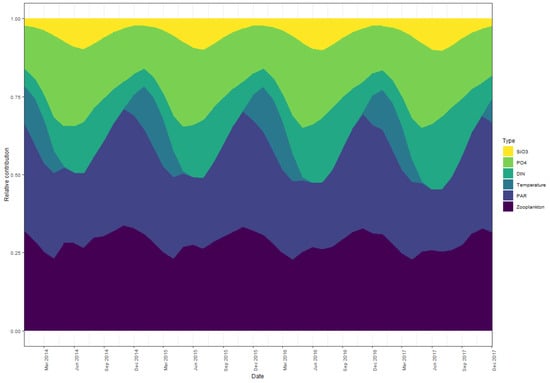

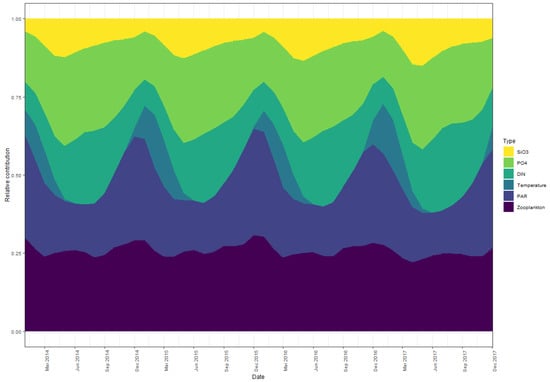

Appendix G. The Relative Contributions of the Determinants of Phytoplankton Biomass Dynamics in the Near-, Mid-, and Offshore Regions

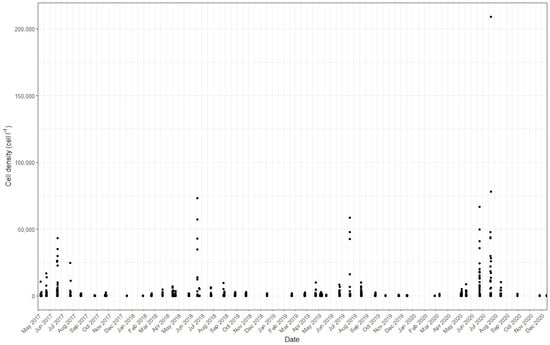

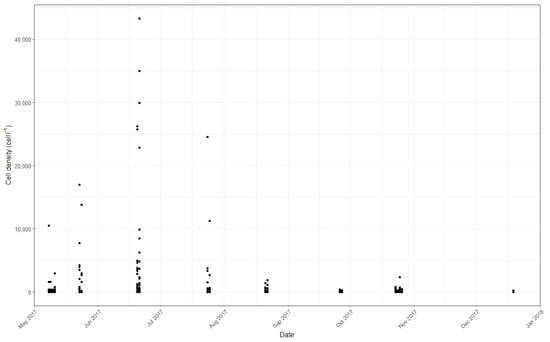

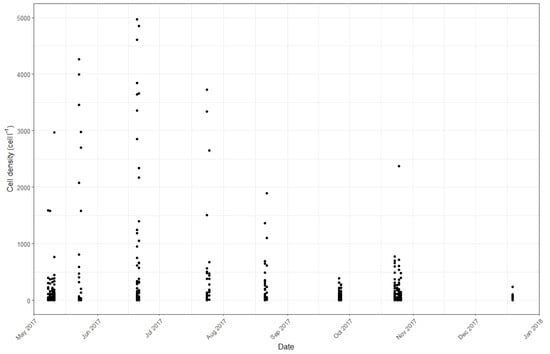

Appendix H. Diatom Cell Density in 2017
