# Key Region Extraction and Body Dimension Measurement of Beef Cattle Using 3D Point Clouds

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Acquisition of Beef Cattle Point Cloud Data

#### 2.2. Definition of Beef Cattle Body Dimensions

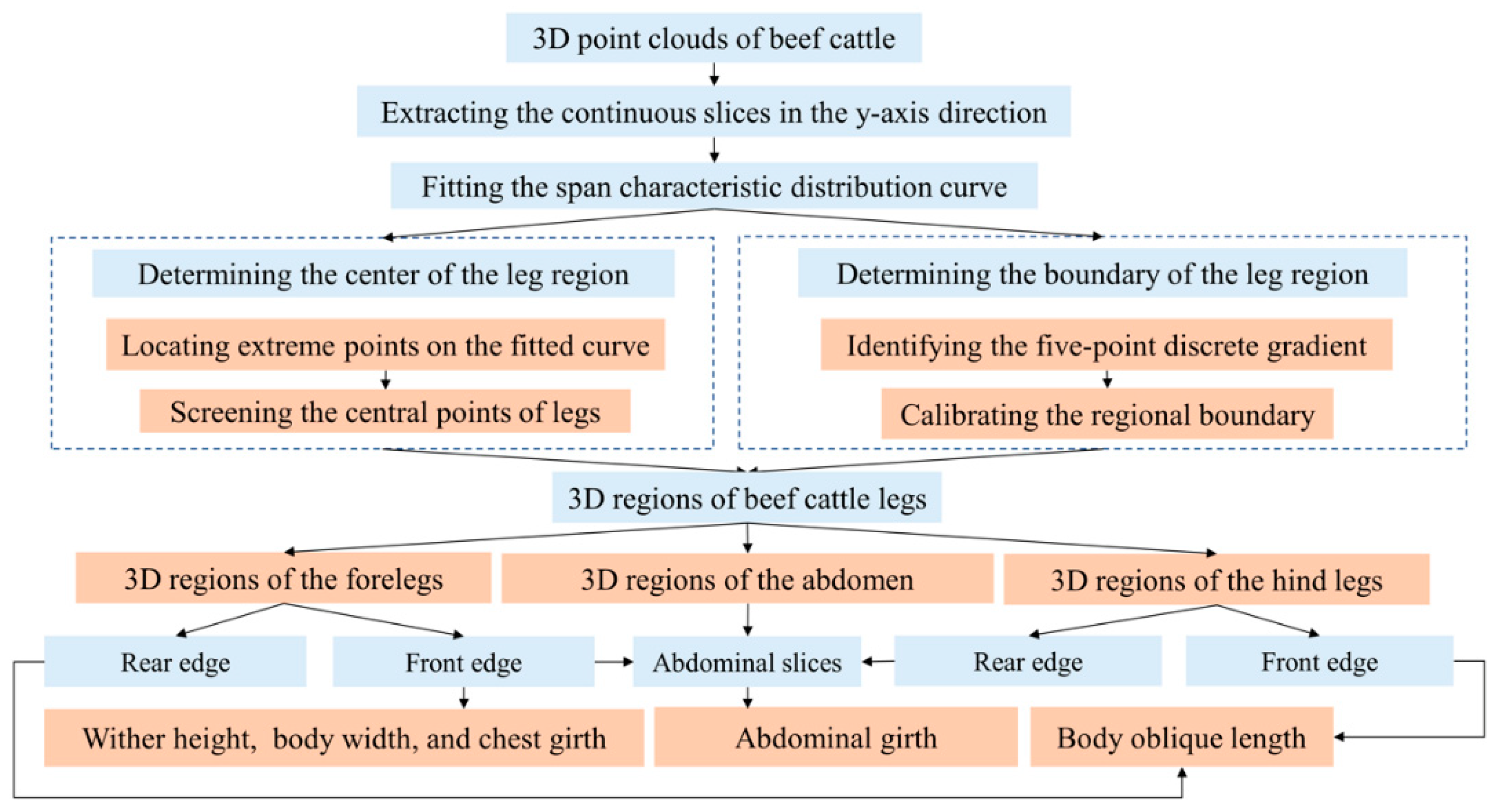

#### 2.3. Algorithm for Beef Cattle Body Dimension Calculation

#### 2.4. Identification of Point Clouds of Leg Regions

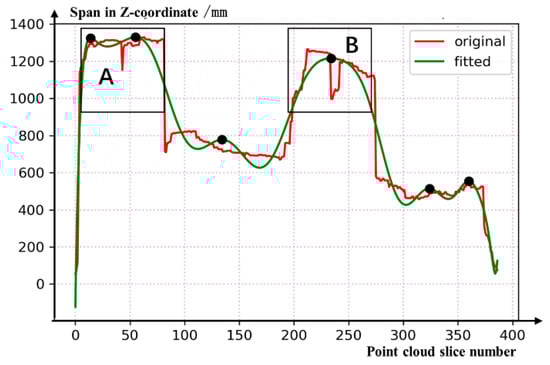

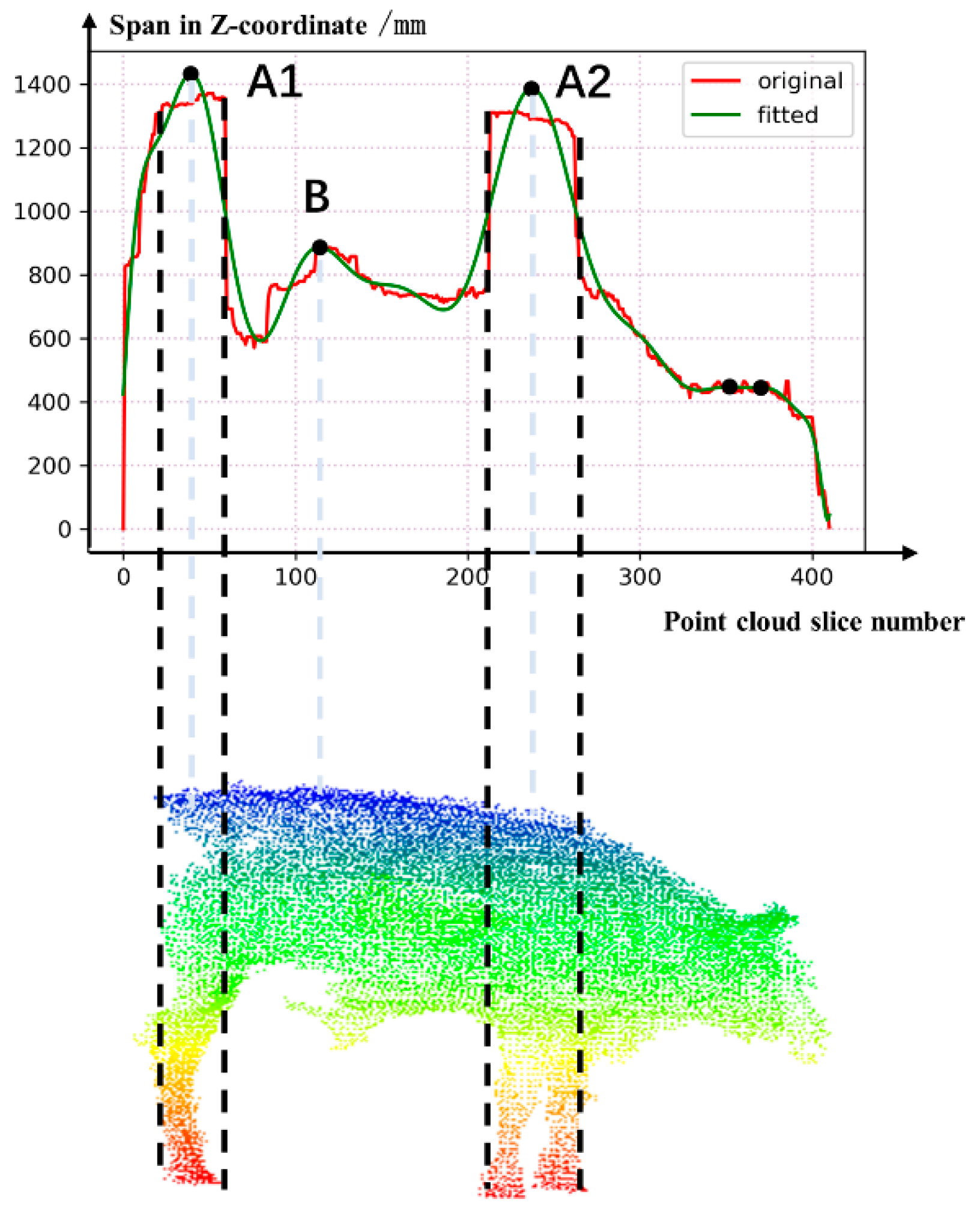

#### 2.4.1. Extraction of Continuous Slices and Span Characteristic Curves

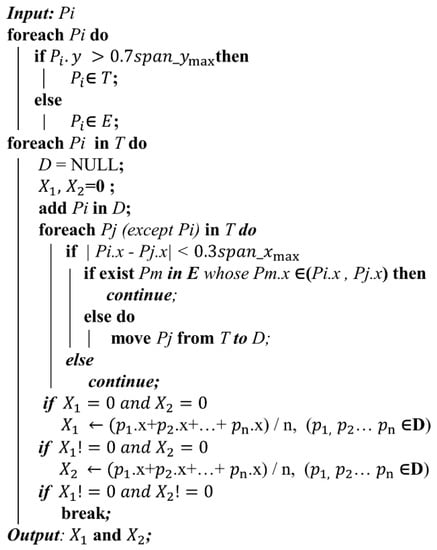

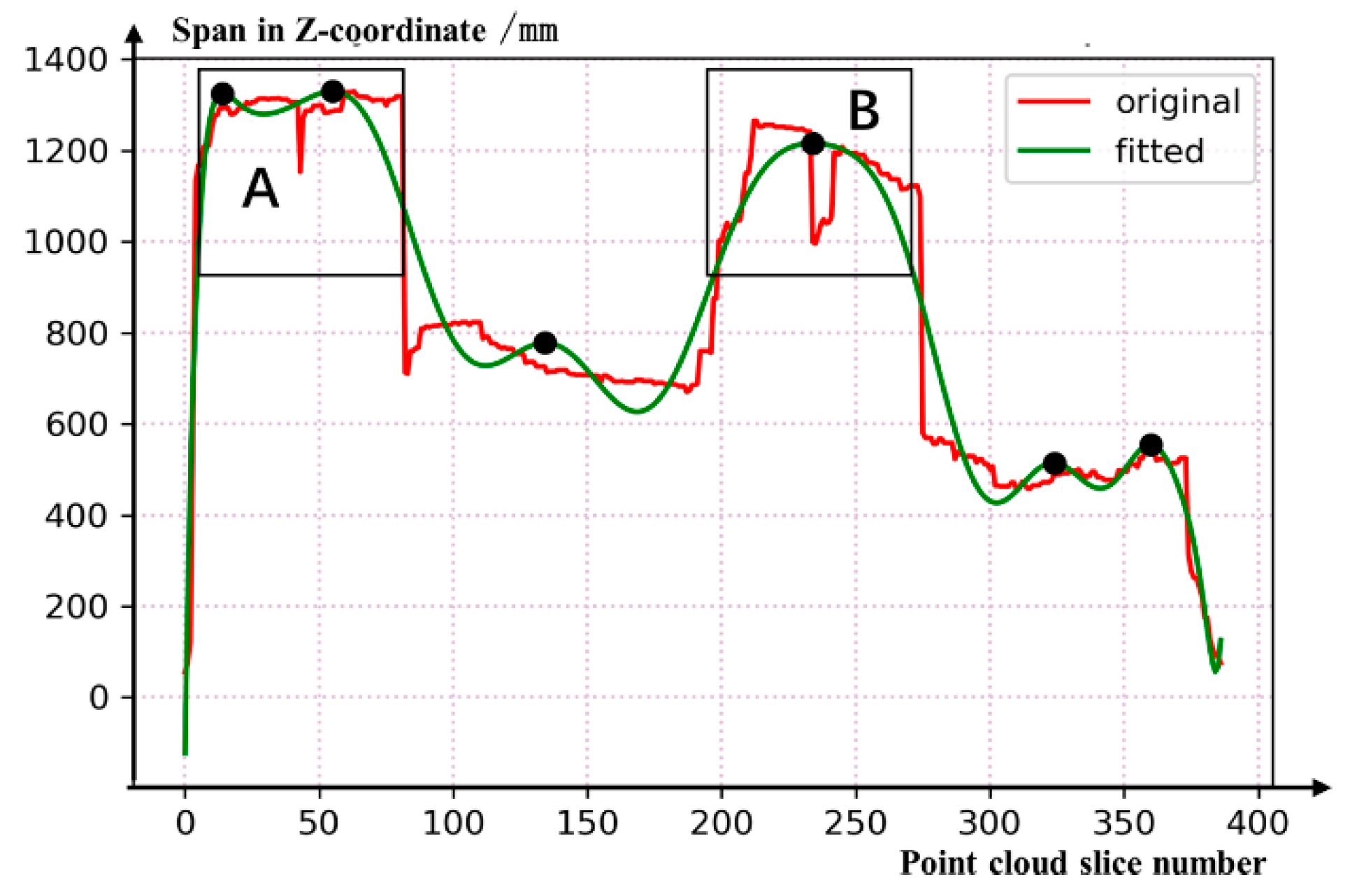

#### 2.4.2. Location of the Leg Region

_{max}is the span value of the range domain for the fitted curve, x

_{max}is the span value of the domain of the fitted curve, and X

_{1}and X

_{2}represent the x-coordinate values of the approximate midpoint in the leg region.

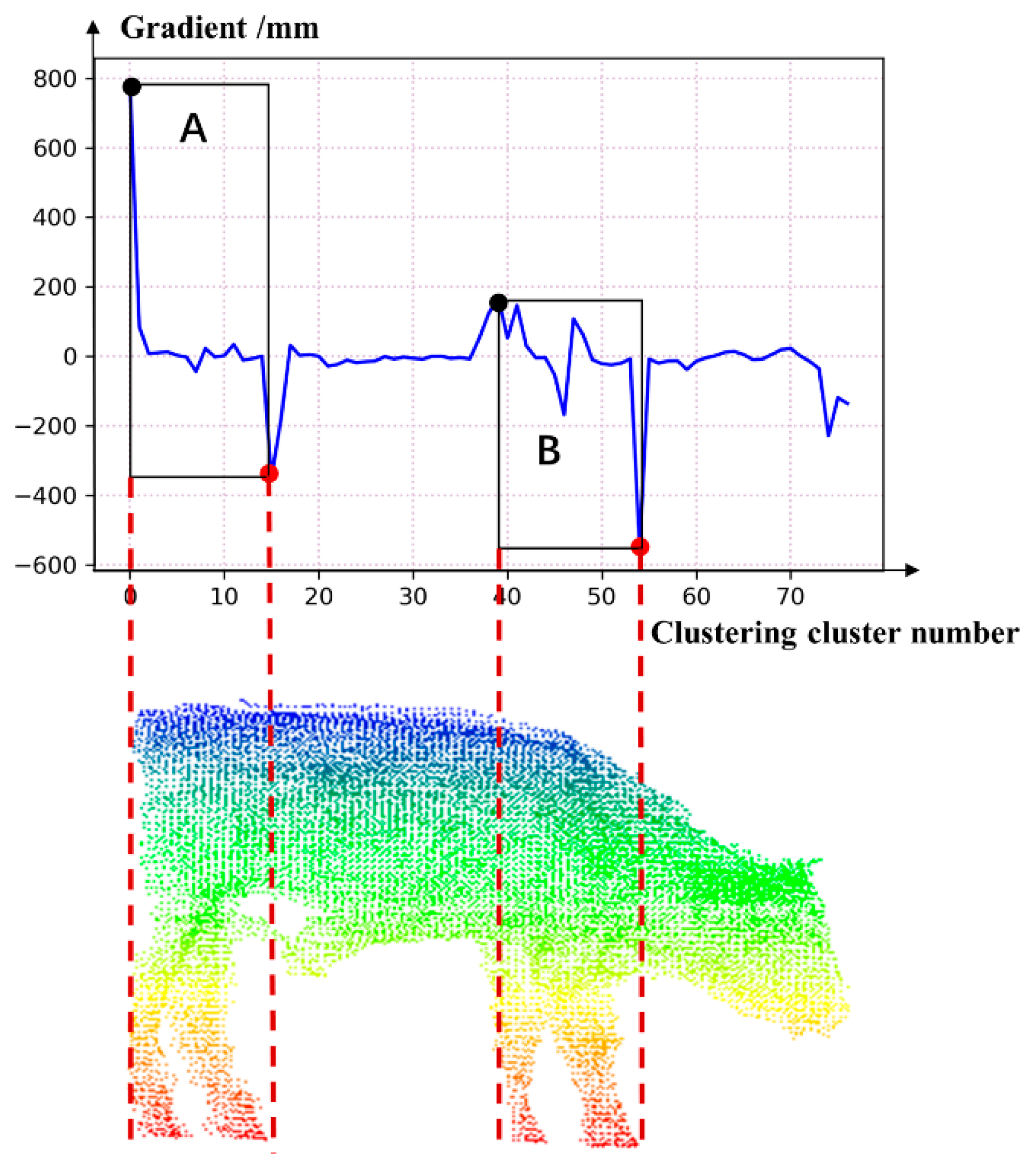

_{i}represents the discrete point on the distribution curve of span values. According to the independent variables in ascending order, the average gradient distribution of all the “five-point clusters” on the curve (Figure 5) was sequentially extracted, as shown in Figure 7. The gradient characteristic distribution curve (blue curve in Figure 7) shows that the maximum value (black dot) and the minimum value (red dot) appear at the boundary of the leg region, which is consistent with the geometric distribution characteristics of beef cattle point cloud slices. Therefore, the two points with the maximum gradient were selected as the starting boundary positions for regional segmentation. The two points with the minimum gradient were selected as the ending boundary positions, highlighted by the red dotted line in Figure 7. Each central point of the leg, along with the starting and ending boundaries, forms the regions of the forelegs and hind legs, which means that the automatic extraction of the leg region is implemented.

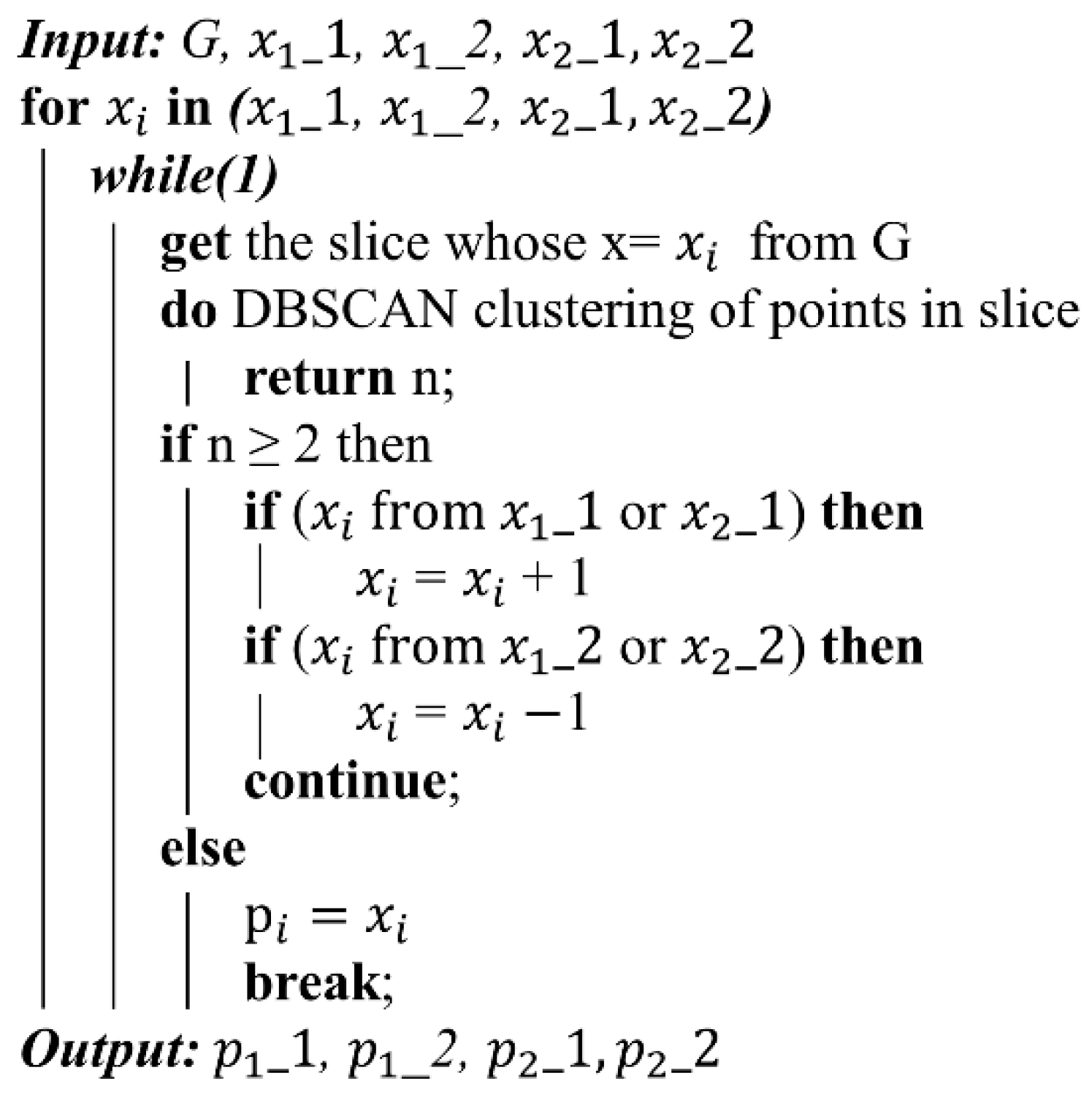

#### 2.4.3. Calibration of Boundaries for the Leg Region

_{1}_1 and x

_{1}_2 represent the x-coordinates of the front and back boundaries of the foreleg region before calibration, x

_{2}_1 and x

_{2}_2 represent the x-coordinates of the front and back boundaries of the hind leg region after calibration, p is the x-coordinate corresponding to the boundary of the leg region after calibration, and n is the number of clusters derived from the DBSCAN clustering algorithm.

#### 2.5. Extraction of the Key Regions for Body Dimension Calculation

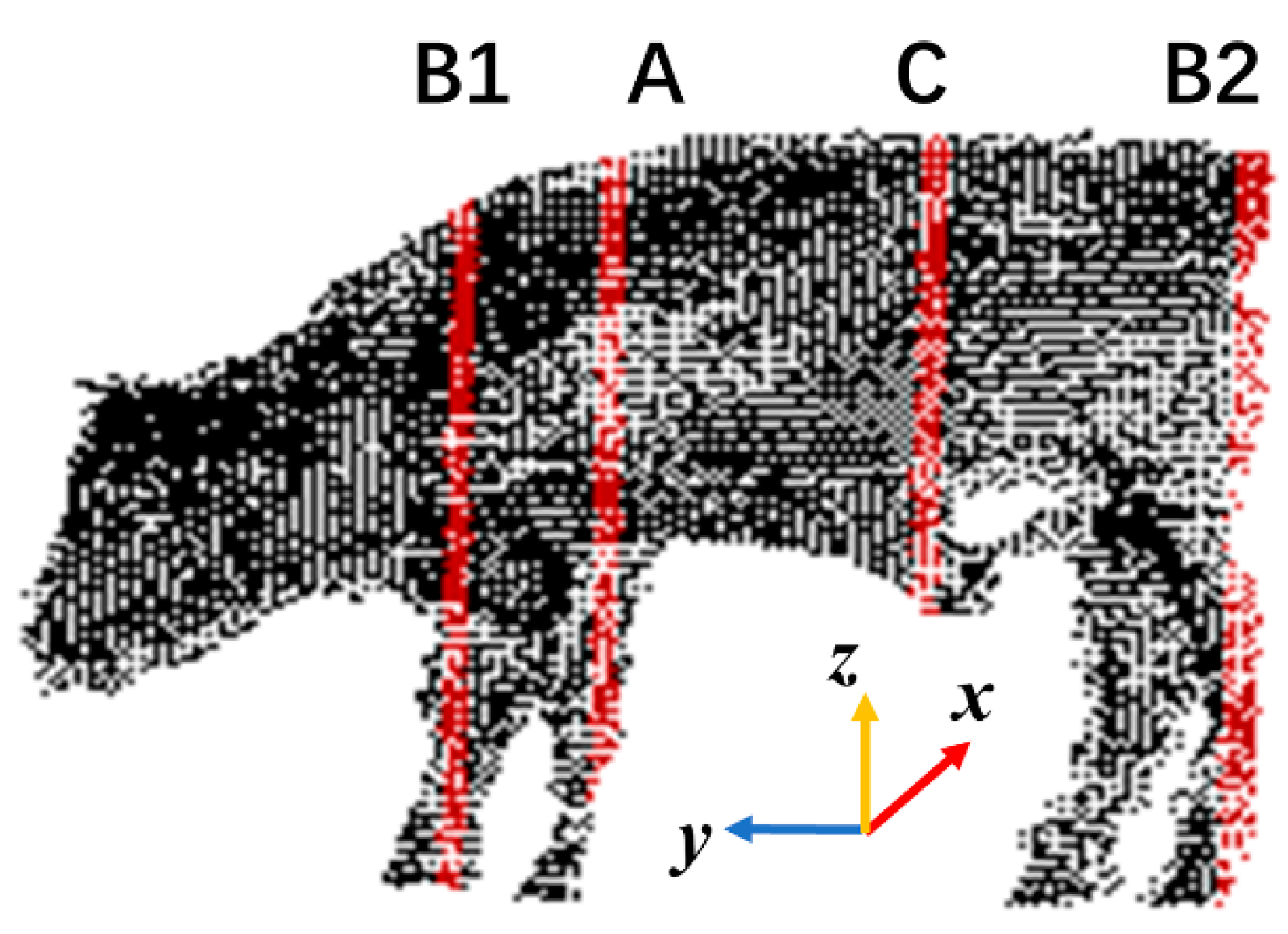

#### 2.5.1. Determination of the Longitudinal Cutting Plane

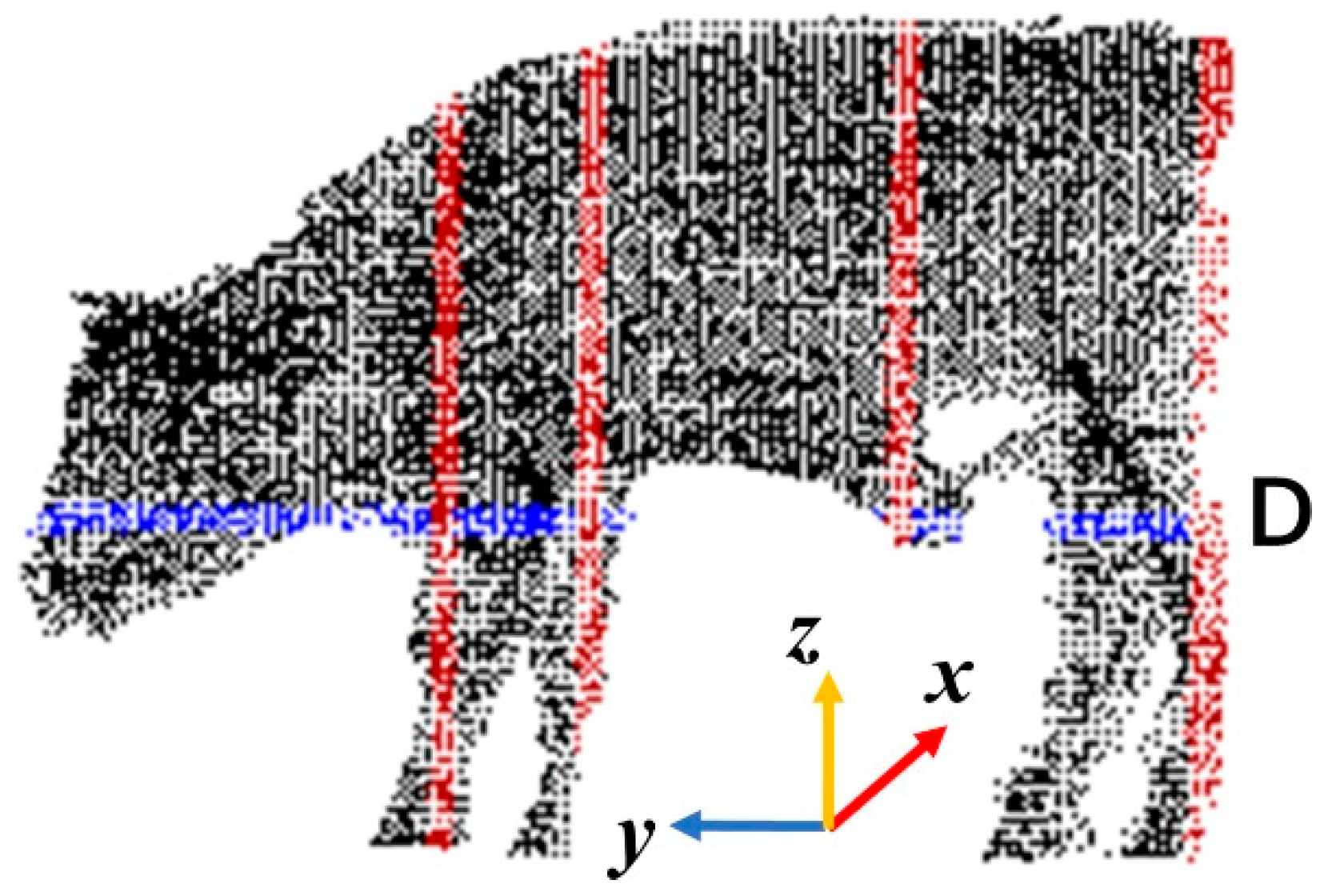

#### 2.5.2. Determination of the Horizontal Cutting Plane

#### 2.5.3. Extraction of Key Regions

#### 2.6. Extraction of the Key Regions for Body Dimension Calculation

#### 2.6.1. Body Oblique Length

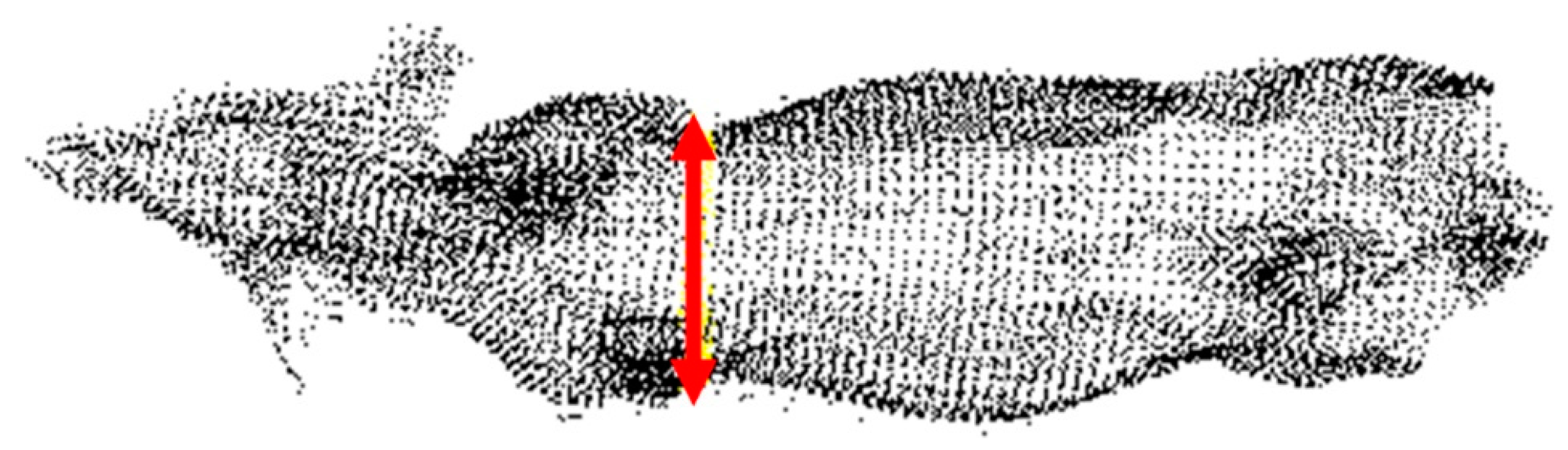

#### 2.6.2. Body Width

#### 2.6.3. Wither Height

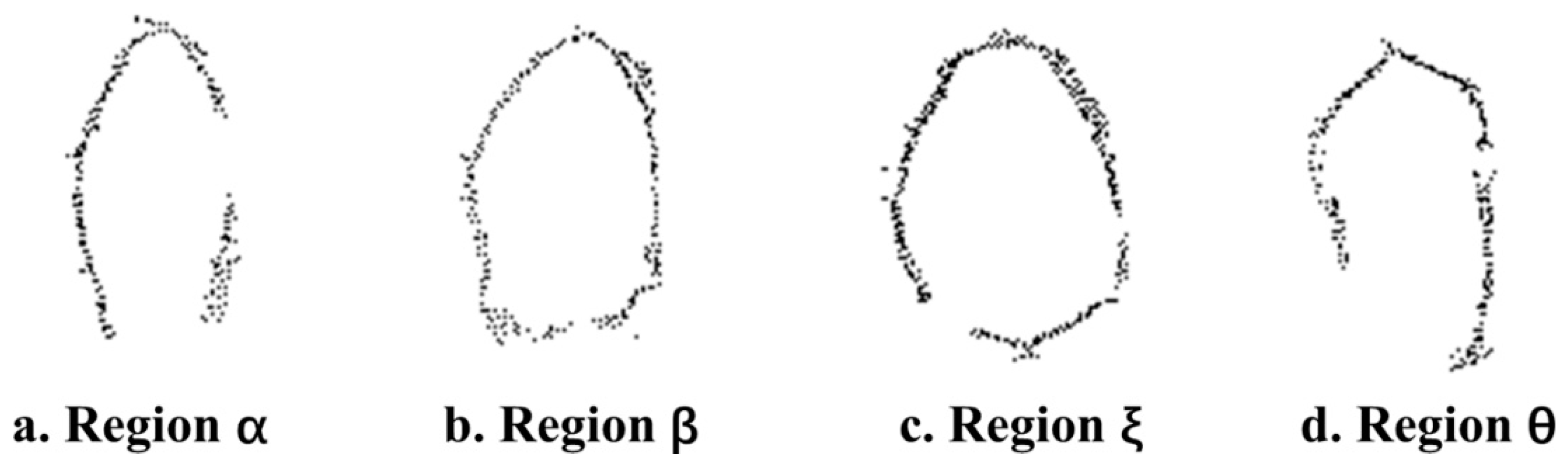

#### 2.6.4. Chest and Abdominal Girth

## 3. Results

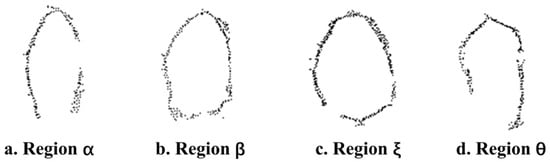

#### 3.1. Results of Locating Key Regions

#### 3.2. Body Measurement Results

## 4. Discussion

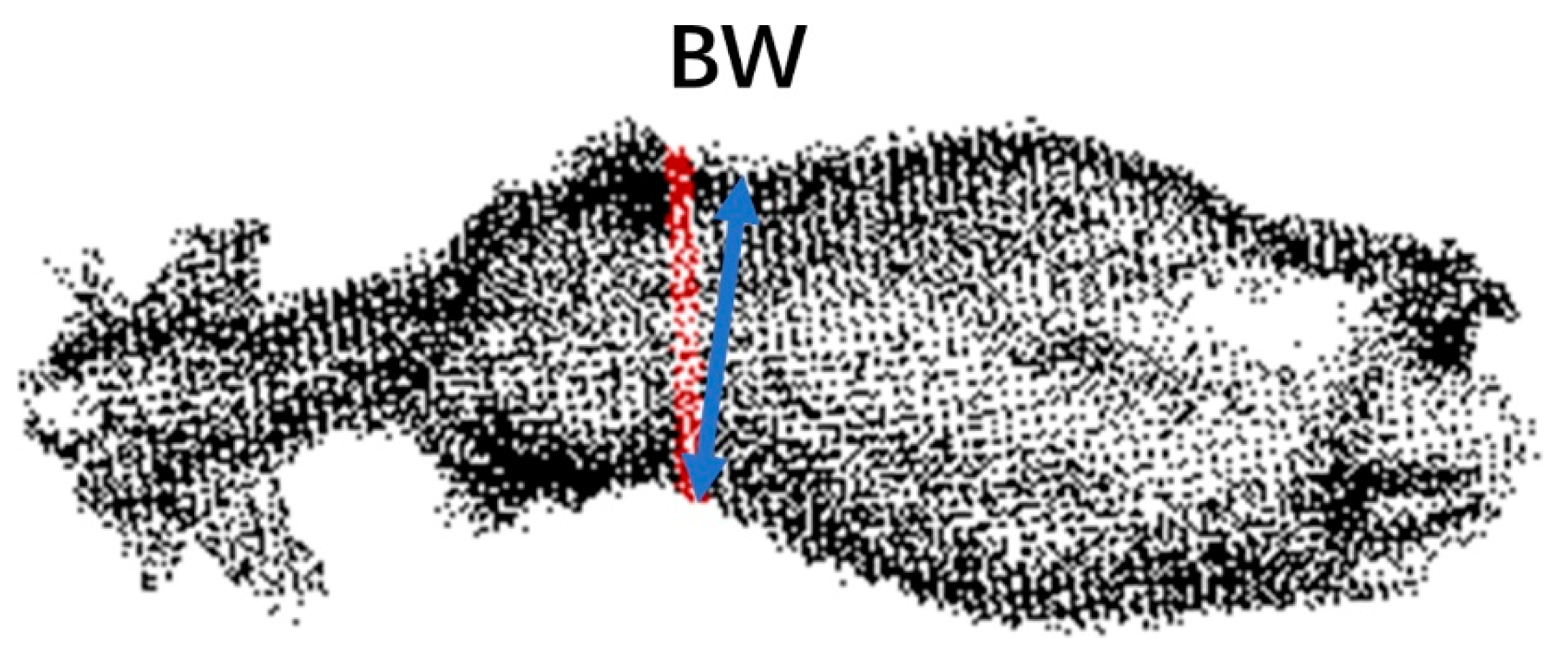

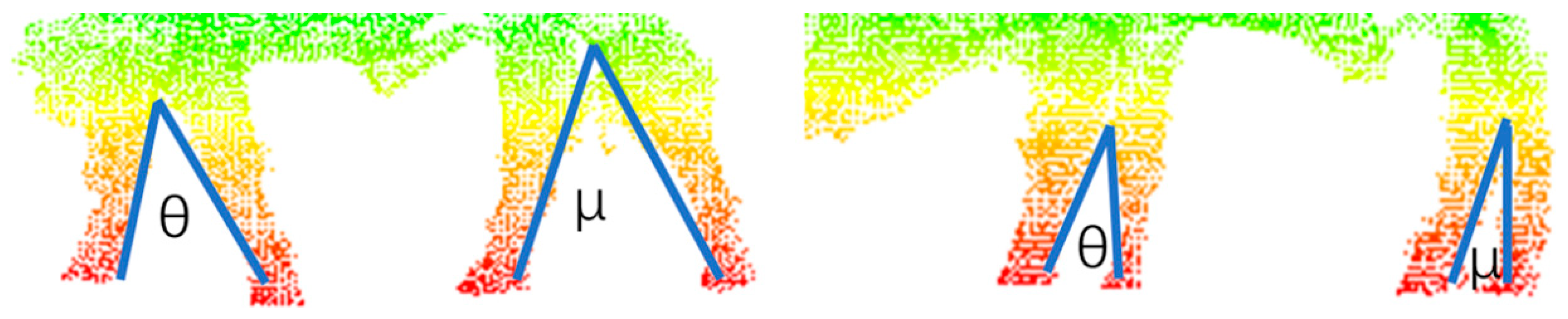

#### 4.1. The Error Analysis of Body Width

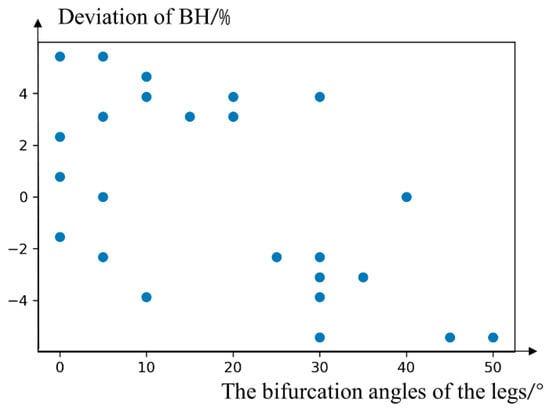

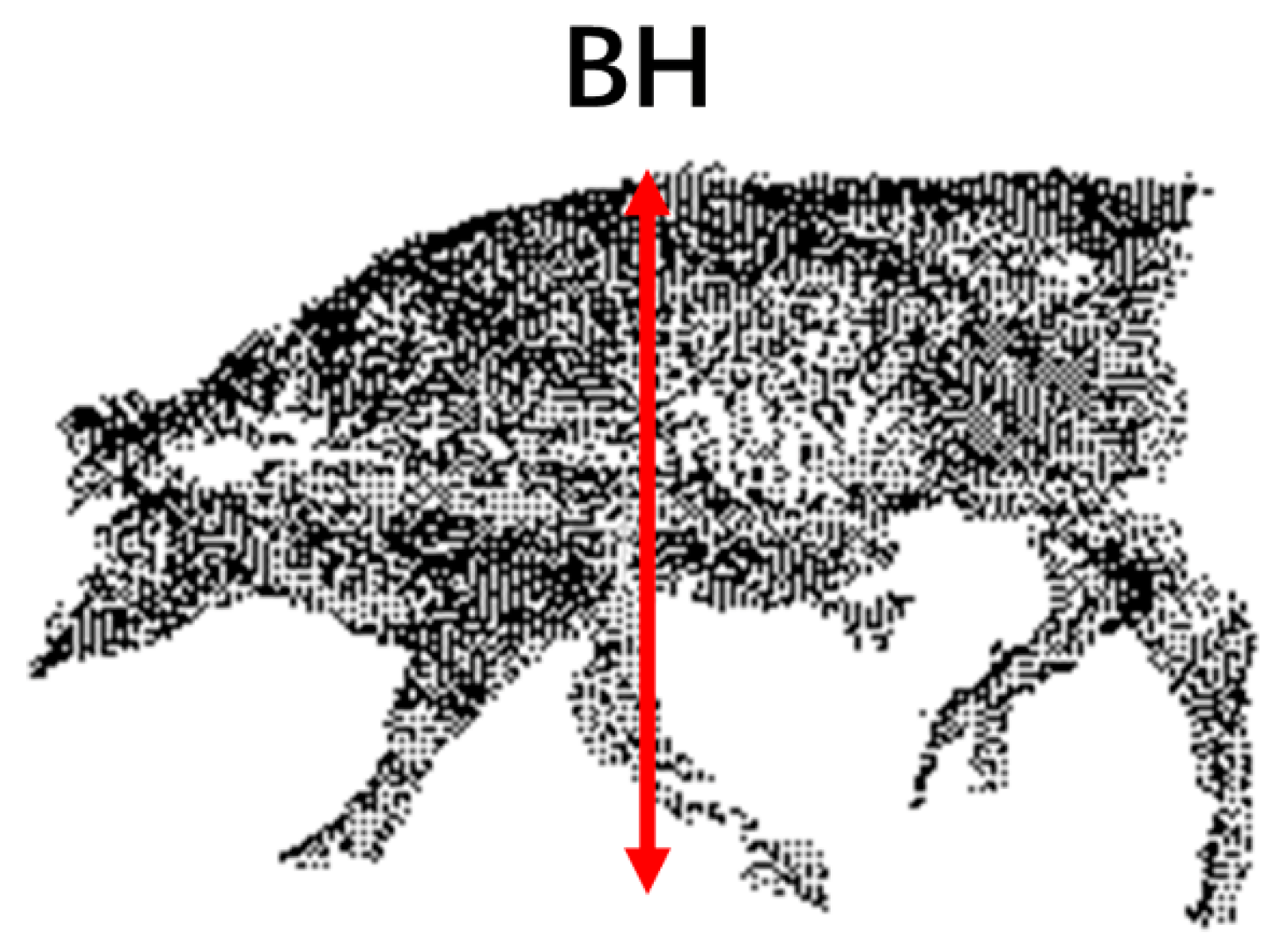

#### 4.2. The Error Analysis of Wither Height

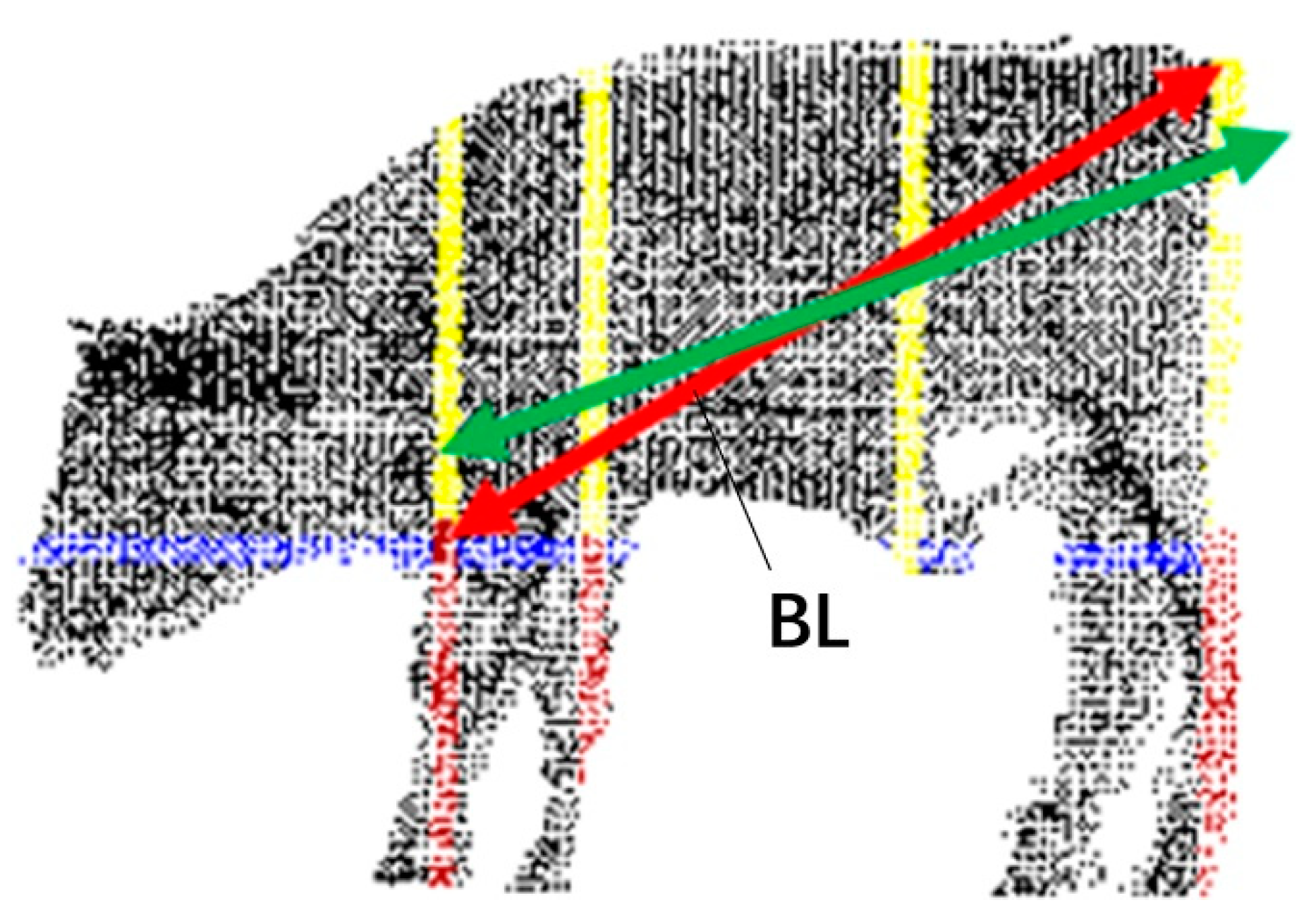

#### 4.3. The Error Analysis of Body Oblique Length

#### 4.4. The Error Analysis of Chest and Abdomen Girth

## 5. Conclusions

- (1)
- Based on the span distribution curve of continuous slices, a method for identifying the position and boundary of the leg region was proposed, and a method for key region extraction in the leg region was proposed to calculate the body dimensions. The shoulder, chest, abdomen, and buttock regions were accurately identified and extracted.
- (2)
- Based on the features of the key regions, the body oblique length, wither height, body width, chest girth, and abdominal girth were calculated, and the average measurement errors were 2.3%, 2.8%, 1.6%, 2.8%, and 2.6%, respectively. Compared with the method based on the “point” features, this method, focusing on the “region” features, is more suitable to deal with incomplete point clouds and poses limited requirements regarding animal postures, which shows its higher robustness.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Malafaia, G.C.; Mores, G.D.V.; Casagranda, Y.G.; Barcellos, J.O.J.; Costa, F.P. The Brazilian beef cattle supply chain in the next decades. Livest. Sci.
**2021**, 253, 104704. [Google Scholar] [CrossRef] - Cominotte, A.; Fernandes, A.F.A.; Dorea, J.R.R.; Rosa, G.J.M.; Ladeira, M.M.; van Cleef, E.H.C.B.; Pereira, G.L.; Baldassini, W.A.; Neto, O.R.M. Automated computer vision system to predict body weight and average daily gain in beef cattle during growing and finishing phases. Livest. Sci.
**2020**, 232, 103904. [Google Scholar] [CrossRef] - Yao, Z.; Li, J.; Zhang, Z.; Chai, Y.; Liu, X.; Li, J.; Huang, Y.; Li, L.; Huang, W.; Yang, G.; et al. The relationship between MFN1 copy number variation and growth traits of beef cattle. Gene
**2022**, 811, 146071. [Google Scholar] [CrossRef] [PubMed] - Rezagholivand, A.; Nikkhah, A.; Khabbazan, M.H.; Mokhtarzadeh, S.; Dehghan, M.; Mokhtabad, Y.; Sadighi, F.; Safari, F.; Rajaee, A. Feedlot performance, carcass characteristics and economic profits in four Holstein-beef crosses compared with pure-bred Holstein cattle. Livest. Sci.
**2021**, 244, 104358. [Google Scholar] [CrossRef] - Nguyen, D.V.; Nguyen, O.C.; Malau-Aduli, A.E.O. Main regulatory factors of marbling level in beef cattle. Vet. Anim. Sci.
**2021**, 14, 100219. [Google Scholar] [CrossRef] - Imaz, J.A.; Garcia, S.; González, L.A. Using automated in-paddock weighing to evaluate the impact of intervals between liveweight measures on growth rate calculations in grazing beef cattle. Comput. Electron. Agric.
**2020**, 178, 105729. [Google Scholar] [CrossRef] - Ouédraogo, D.; Soudré, A.; Ouédraogo-Koné, S.; Zoma, B.L.; Yougbaré, B.; Khayatzadeh, N.; Burger, P.A.; Mészáros, G.; Traoré, A.; Mwai, O.A.; et al. Breeding objectives and practices in three local cattle breed production systems in Burkina Faso with implication for the design of breeding programs. Livest. Sci.
**2020**, 232, 103910. [Google Scholar] [CrossRef] - Petherick, J.C.; Doogan, V.J.; Venus, B.K.; Holroyd, R.G.; Olsson, P. Quality of handling and holding yard environment, and beef cattle temperament: 2. Consequences for stress and productivity. Appl. Anim. Behav. Sci.
**2009**, 120, 28–38. [Google Scholar] [CrossRef] - Augspurger, N.R.; Ellis, M. Weighing affects short-term feeding patterns of growing-finishing pigs. Can. J. Anim. Sci.
**2002**, 82, 445–448. [Google Scholar] [CrossRef] - Mehtiö, T.; Pitkänen, T.; Leino, A.-M.; Mäntysaari, E.A.; Kempe, R.; Negussie, E.; Lidauer, M.H. Genetic analyses of metabolic body weight, carcass weight and body conformation traits in Nordic dairy cattle. Animal
**2021**, 15, 100398. [Google Scholar] [CrossRef] - Qiao, Y.; Kong, H.; Clark, C.; Lomax, S.; Su, D.; Eiffert, S.; Sukkarieh, S. Intelligent perception for cattle monitoring: A review for cattle identification, body condition score evaluation, and weight estimation. Comput. Electron. Agric.
**2021**, 185, 106143. [Google Scholar] [CrossRef] - Ruchay, A.; Kober, V.; Dorofeev, K.; Kolpakov, V.; Miroshnikov, S. Accurate body measurement of live cattle using three depth cameras and non-rigid 3-D shape recovery. Comput. Electron. Agric.
**2020**, 179, 105821. [Google Scholar] [CrossRef] - Kwon, K.; Mun, D. Iterative offset-based method for reconstructing a mesh model from the point cloud of a pig. Comput. Electron. Agric.
**2022**, 198, 106996. [Google Scholar] [CrossRef] - Weber, V.A.D.M.; Weber, F.D.L.; Gomes, R.D.C.; Oliveira Junior, A.D.S.; Menezes, G.V.; Abreu, U.G.P.D.; de Souza Belete, N.A.; Pistori, H. Prediction of Girolando cattle weight by means of body measurements extracted from images. Rev. Bras. Zootec.
**2020**, 49. [Google Scholar] [CrossRef] [Green Version] - Abramoff, M.D.; Magalhaes, P.J.; Ram, S.J. Image Processing with ImageJ. Biophotonics Int.
**2004**, 11, 36–42. [Google Scholar] - Guo, H.; Ma, X.; Ma, Q.; Wang, K.; Su, W.; Zhu, D. LSSA_CAU: An interactive 3d point clouds analysis software for body measurement of livestock with similar forms of cows or pigs. Comput. Electron. Agric.
**2017**, 138, 60–68. [Google Scholar] [CrossRef] - Kuzuhara, Y.; Kawamura, K.; Yoshitoshi, R.; Tamaki, T.; Sugai, S.; Ikegami, M.; Kurokawa, Y.; Obitsu, T.; Okita, M.; Sugino, T.; et al. A preliminarily study for predicting body weight and milk properties in lactating Holstein cows using a three-dimensional camera system. Comput. Electron. Agric.
**2015**, 111, 186–193. [Google Scholar] [CrossRef] - Xu, H.X. Intelligent Measurement Algorithm of Cattle Body dimensions based on Improved CenterNet. Infrared Laser Eng.
**2022**, 1–7. (In Chinese) [Google Scholar] - Weales, D.; Moussa, M.; Tarry, C. A robust machine vision system for body measurements of beef calves. Smart Agric. Technol.
**2021**, 1, 100024. [Google Scholar] [CrossRef] - Wang, K.; Zhu, D.; Guo, H.; Ma, Q.; Su, W.; Su, Y. Automated calculation of heart girth measurement in pigs using body surface point clouds. Comput. Electron. Agric.
**2019**, 156, 565–573. [Google Scholar] [CrossRef] - Guo, H.; Li, Z.; Ma, Q.; Zhu, D.; Su, W.; Wang, K.; Marinello, F. A bilateral symmetry based pose normalization framework applied to livestock body measurement in point clouds. Comput. Electron. Agric.
**2019**, 160, 59–70. [Google Scholar] [CrossRef] - Yin, L.; Cai, G.; Tian, X.; Sun, A.; Shi, S.; Zhong, H.; Liang, S. Three dimensional point cloud reconstruction and body size measurement of pigs based on multi-view depth camera. Trans. Chin. Soc. Agric. Eng.
**2019**, 35, 201–208. [Google Scholar] - Shi, S.; Yin, L.; Liang, S.; Zhong, H.; Tian, X.; Liu, C.; Sun, A.; Liu, H. Research on 3D surface reconstruction and body dimensions measurement of pigs based on multi-view RGB-D cameras. Comput. Electron. Agric.
**2020**, 175, 105543. [Google Scholar] [CrossRef] - Li, G.; Liu, X.; Ma, Y.; Wang, B.; Zheng, L.; Wang, M. Body dimensions measurement and live body weight estimation for pigs based on back surface point clouds. Biosyst. Eng.
**2022**, 218, 10–22. [Google Scholar] [CrossRef] - Li, J.; Ma, W.; Li, Q.; Zhao, C.; Tulpan, D.; Yang, S.; Ding, L.; Gao, R.; Yu, L.; Wang, Z. Multi-view real-time acquisition and 3D reconstruction of point clouds for beef cattle. Comput. Electron. Agric.
**2022**, 197, 106987. [Google Scholar] [CrossRef] - Chen, H.; Liang, M.; Liu, W.; Wang, W.; Liu, P.X. An approach to boundary detection for 3D point clouds based on DBSCAN clustering. Pattern Recognit.
**2022**, 124, 108431. [Google Scholar] [CrossRef] - Thurnhofer-Hemsi, K.; López-Rubio, E.; Blázquez-Parra, E.B.; Ladrón-de-Guevara-Muñoz, M.C.; de-Cózar-Macías, Ó.D. Ensemble ellipse fitting by spatial median consensus. Inf. Sci.
**2021**, 579, 310–324. [Google Scholar] [CrossRef]

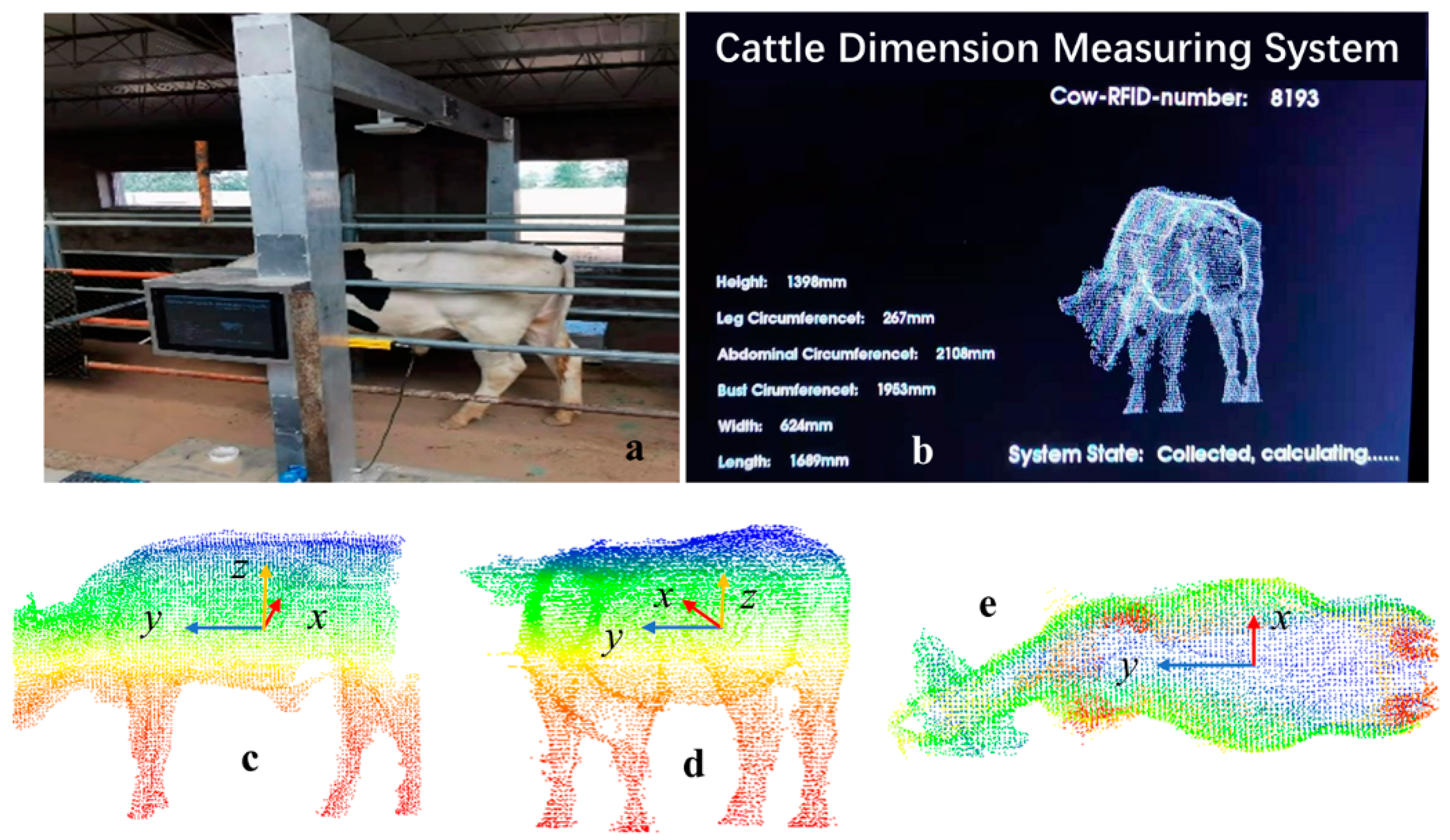

**Figure 1.**Beef cattle point cloud data acquisition equipment (

**a**), user interface (

**b**), and examples of collected point cloud data (front view (

**c**,

**d**), top view (

**e**)).

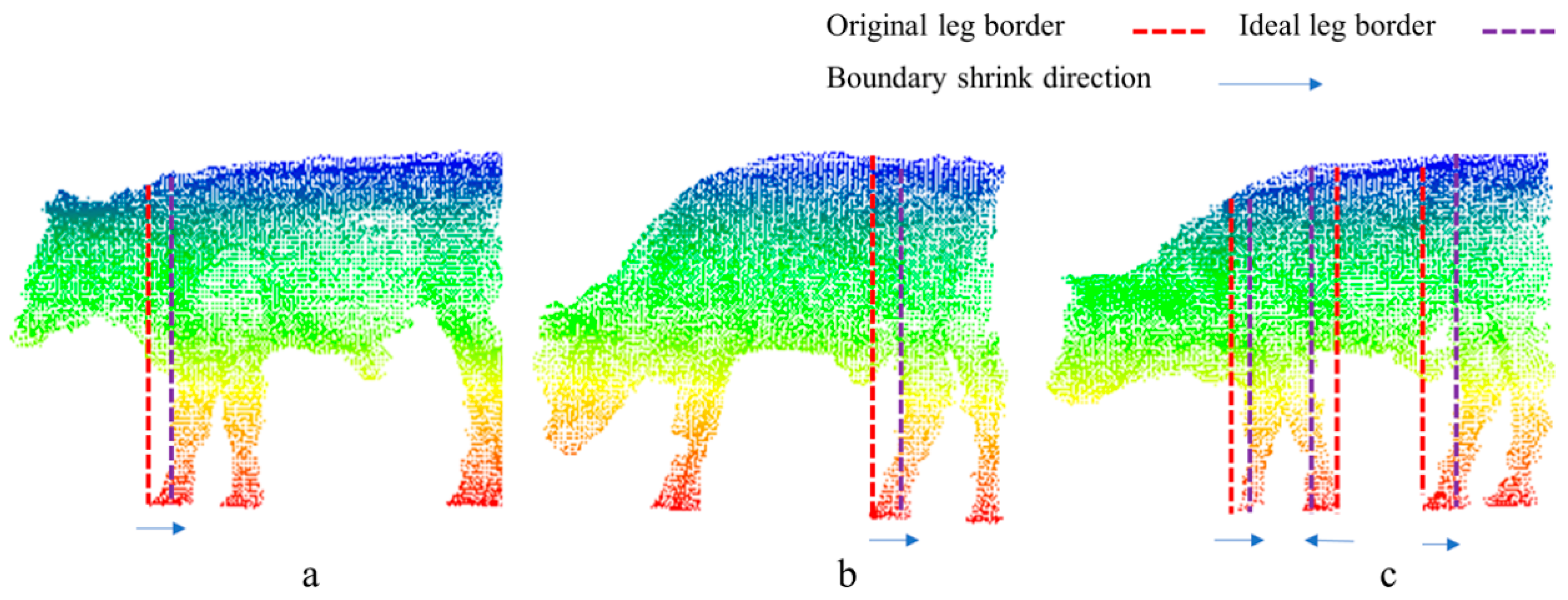

**Figure 8.**The errors arising from boundary calibration for beef cattle leg region. ((

**a**) Broadened foreleg region, (

**b**) broadened hind leg region, (

**c**) broadened regions of forelegs and hind legs).

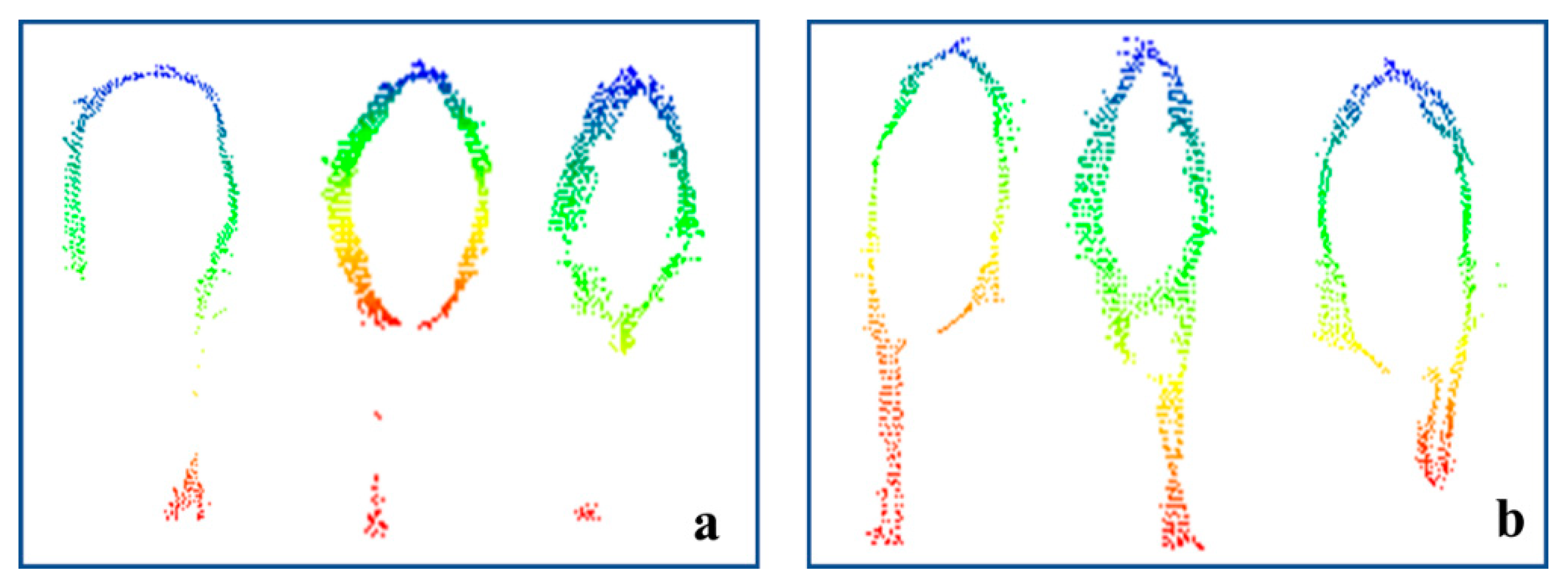

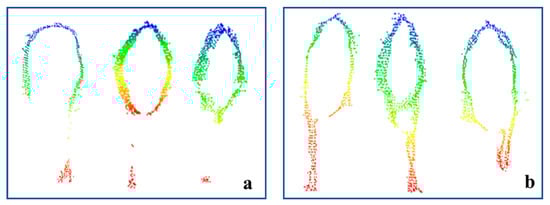

**Figure 9.**The longitudinal slices of beef cattle point clouds with the inflated and calibrated boundaries of the same leg regions. (

**a**) The slice with the broadened width, (

**b**) the slice with the desired width.

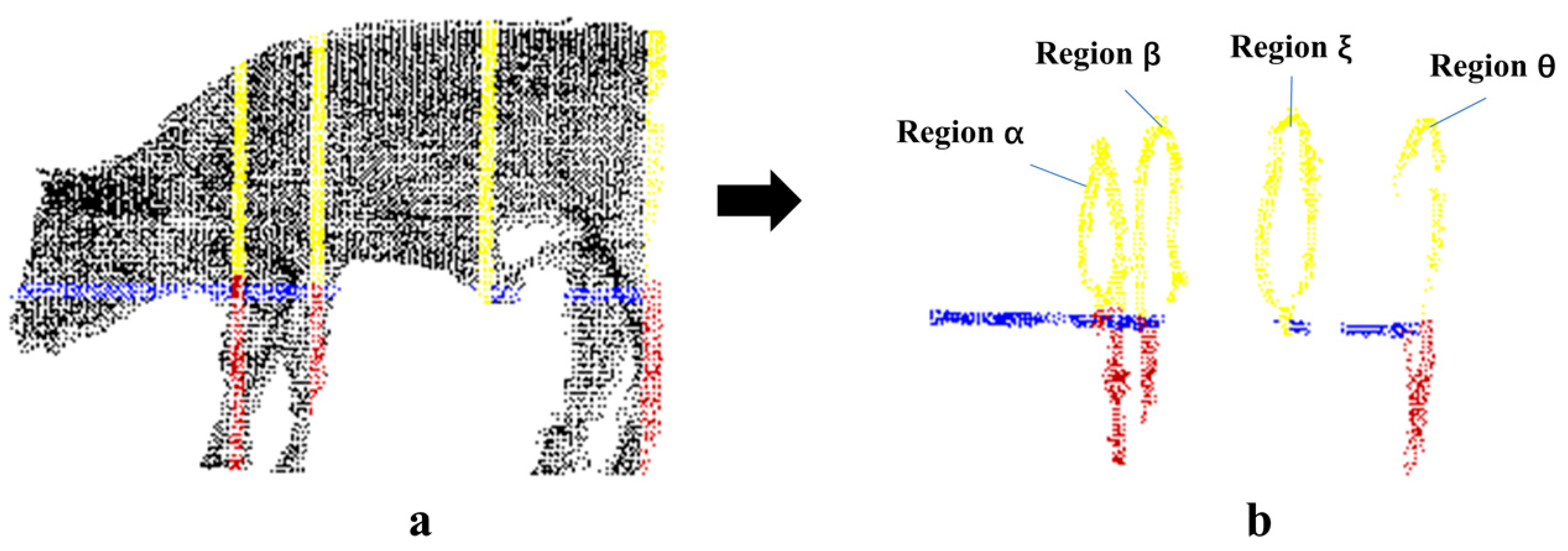

**Figure 13.**The results of key region extraction for (

**a**) the original beef cattle point clouds and (

**b**) the extracted regions for body dimension calculation.

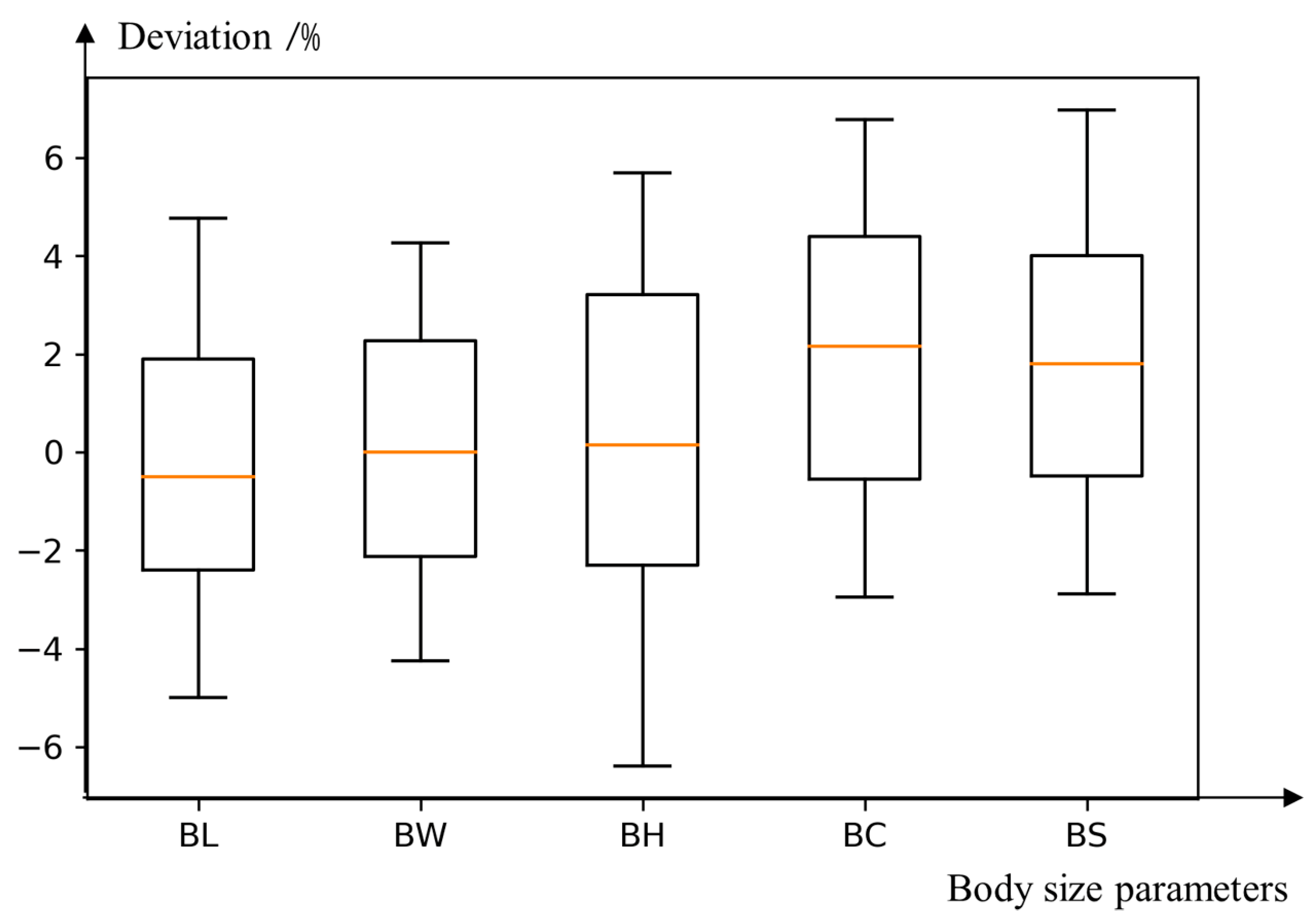

**Figure 16.**The error distribution of each body dimension (calculated for 182 sets of point clouds corresponding to 10 beef cattle).

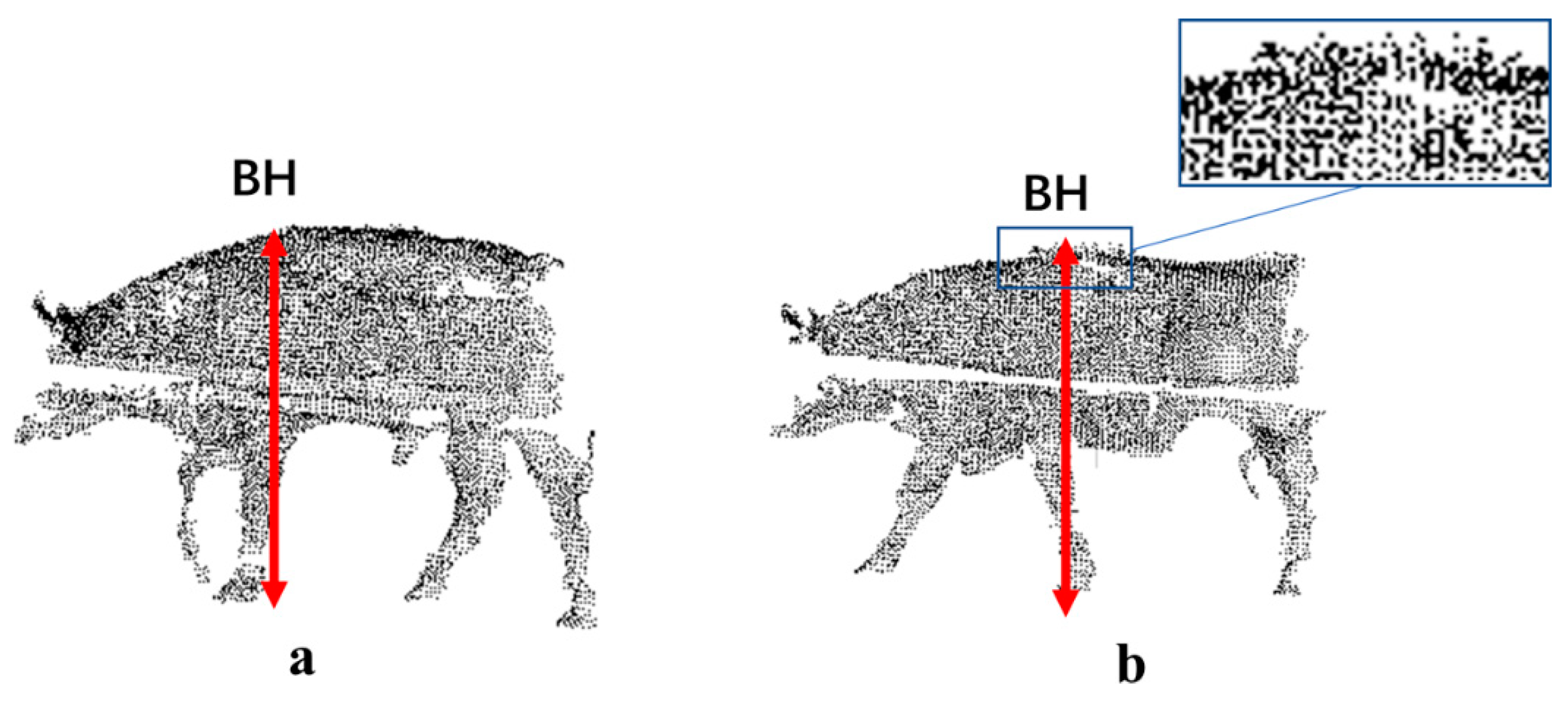

**Figure 21.**Two enlarged wither height cases. ((

**a**) Animal with an arched back, (

**b**) animal with hair lift).

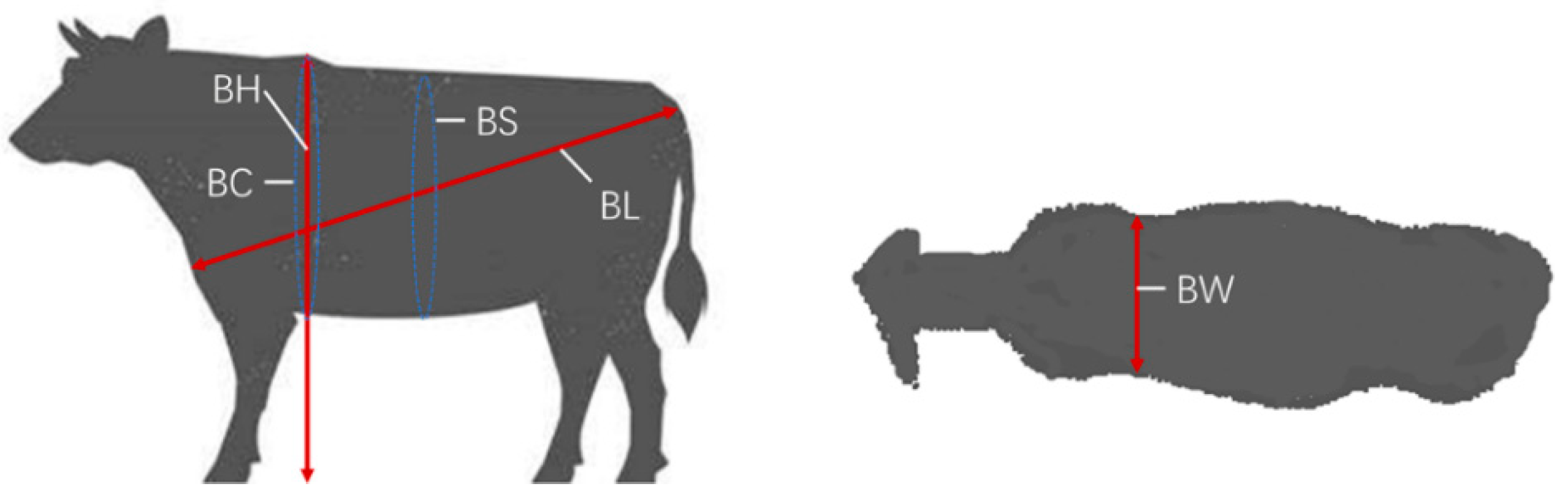

Parameters | Symbol | Measurement Standard |
---|---|---|
