# A Method to Study the Influence of the Pesticide Load on the Detailed Distribution Law of Downwash for Multi-Rotor UAV

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. UAV Research Models and Methods

#### 2.1. Physical Structure Model

#### 2.2. Governing Equations of the Downwash Flow Field

_{r}, H

_{r}, and Q are total internal energy, total enthalpy, and rotational angular velocity vector, respectively; ${\varphi}_{x}$, ${\varphi}_{y}$, and ${\varphi}_{z}$ are sticky terms in three directions; and $\overrightarrow{q}$ and ${\overrightarrow{q}}_{w}$ denote absolute speed and implicated speed.

#### 2.3. Turbulence Model and Solution Method of Downwash Airflow

## 3. Study on the Influence of Load on the Distribution of Downwash Flow Field

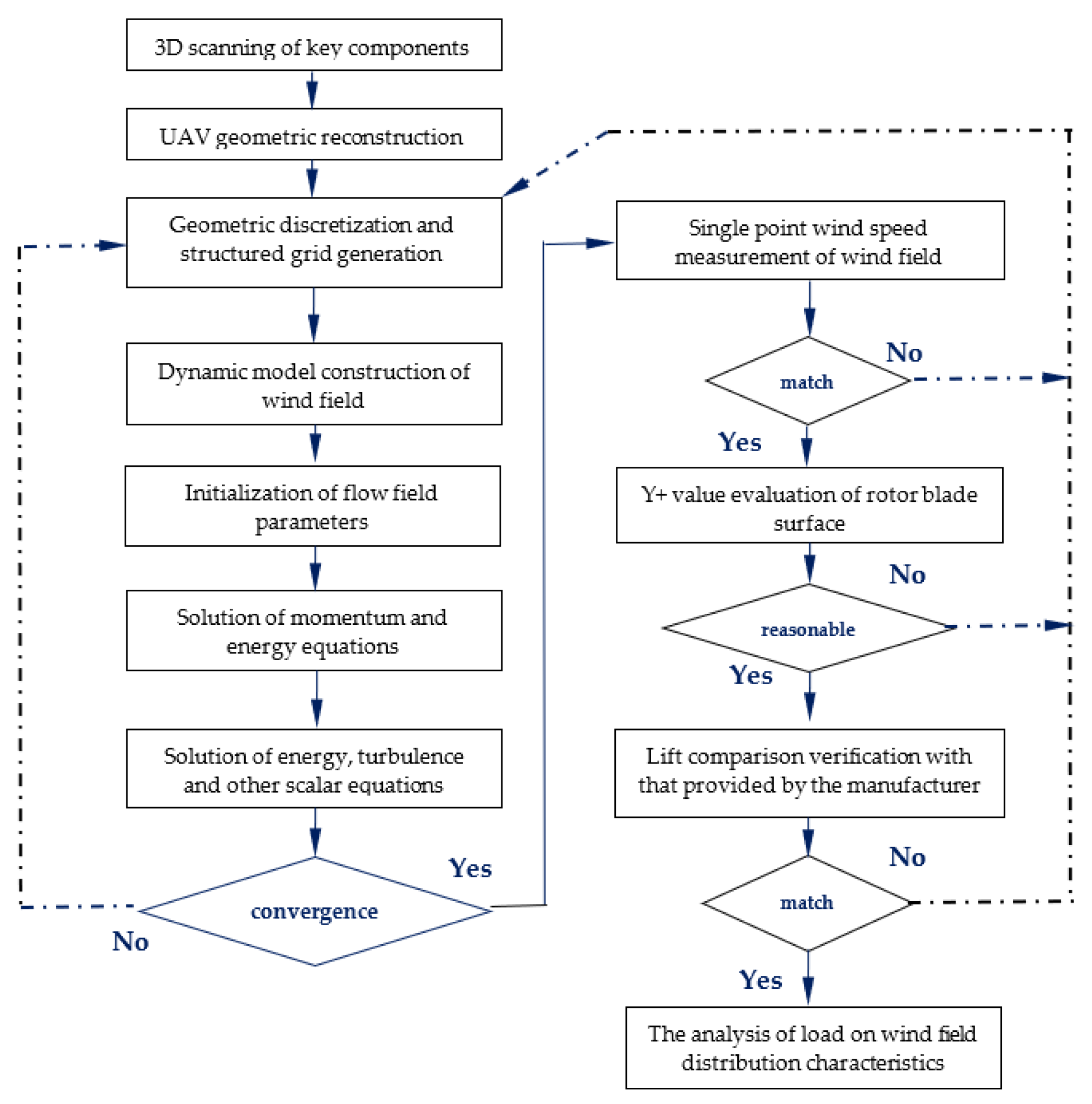

#### 3.1. Reliability Verification of Numerical Calculation for Downwash Flow Field

#### 3.2. Effect of Load on Longitudinal and Transverse Wind Speed Distribution of Downwash

#### 3.3. Effect of Load on Flow Characteristics of Downwash

## 4. Conclusions

- (1)
- The errors between the calculated and the experimental values of wind speed in the vertical direction for the critical observation points were within 11%, the calculated values of the rotor pulling force were in good agreement with the design values, and the y+ value of the rotor wall was within a reasonable range.
- (2)
- Spray height of this multi-rotor plant protection UAV was recommended to be 2.5 m or higher, and the influence area of the downwash at the height of 2.5 m was dissipated into the focused circle.
- (3)
- The nozzles were recommended to be installed directly under the two rotors along the y-direction, the centrifugal nozzle with positive y-axis rotate counterclockwise, and the centrifugal nozzle with negative y-axis rotate clockwise, so that the droplets can be induced by the same turning rotor to the underside of the rotorcraft body and effectively dispersed. In addition, further work will focus on the influence mechanism of wind field, droplet, and crop interaction on the canopy deposition.
- (4)
- Compared with the four-rotor plant protection UAV [29], the six-rotor plant protection UAV had obvious inter wing interference. Under the influence of wing interference caused by the opposite velocity of adjacent rotor, the turbulent effect of down wash flow was obvious, and the “airflow inlet” and “airflow outlet” region appeared between the wings area at the cross section.
- (5)
- The results show that the pesticide load had an obvious effect on the longitudinal distribution of downwash airflow. As the load increased, the longitudinal distribution of flow field transited from “shrinkage–expansion–shrinkage” to “shrinkage–expansion”.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Lan, Y.; Shengde, C.; Fritz, B.K. Current status and future trends of precision agricultural aviation technologies. International. J. Agric. Biol. Eng.
**2017**, 10, 1–17. [Google Scholar] - Li, J.; Lan, Y.; Shi, Y. Research progress on airflow characteristics and field pesticide application system of rotary-wing UAV. Trans. Chin. Soc. Agric. Eng.
**2018**, 34, 104–118. [Google Scholar] - States, U. Unmanned Flight: The Drones Come Home-Pictures. National Geographic. March 2013. Available online: https://www.nationalgeographic.com/magazine/2013/03/drones-come-home/ (accessed on 18 June 2018).
- Su, D.; Yao, W.; Yu, F.; Liu, Y.; Zheng, Z.; Wang, Y.; Xu, T.; Chen, C. Single-Neuron PID UAV Variable Fertilizer Application Control System Based on a Weighted Coefficient Learning Correction. Agriculture
**2022**, 12, 1019. [Google Scholar] [CrossRef] - Xuemei, L.; Xinghua, L.; Huiyuan, C.; Jin, Y. Research Progress and Trend Analysis of Crop Canopy Droplet Deposition. Trans. Chin. Soc. Agric. Mach.
**2021**, 52, 1–20. [Google Scholar] - Shuping, F.; Yu, R.; Yangyang, L.; Chenming, H.; Xuyang, C.; Bin, L. Route Planning of Helicopters Spraying Operations in Multiple Forest Areas. Forests
**2021**, 12, 1658. [Google Scholar] - Yulong, N.; Huichun, Z.; Jiaqiang, Z.; Kunqi, Y.; Weikang, Y.; Meng, Z. Research on profiling tracking control optimization of orchard sprayer based on the phenotypic characteristics of tree crown. Comput. Electron. Agric.
**2022**, 192, 106455. [Google Scholar] - Dunn, A.M.; Julien, G.; Ernst, W.R.; Cook, A.; Doe, K.G.; Jackman, P.M. Evaluation of buffer zone effectiveness in mitigating the risks associated with agricultural runoff in Prince Edward Island. Sci. Total Environ.
**2011**, 409, 868–882. [Google Scholar] [CrossRef] - Craig, I.P. The GDS model-a rapid computational technique for the calculation of aircraft spray drift buffer distances. Comput. Electron. Agric.
**2010**, 43, 235–250. [Google Scholar] [CrossRef] - Qin, W.C.; Qiu, B.J.; Xue, X.Y.; Chen, C.; Xu, Z.F.; Zhou, Q.Q. Droplet deposition and control effect of insecticides sprayed with an unmanned aerial vehicle against plant hoppers. Crop Prot.
**2016**, 85, 79–88. [Google Scholar] [CrossRef] - Ahmad, F.; Qiu, B.; Dong, X.; Ma, J.; Huang, X.; Ahmed, S.; Chandio, F.A. Effect of operational parameters of UAV sprayer on spray deposition pattern in target and off-target zones during outer field weed control application. Comput. Electron. Agric.
**2020**, 172, 105350. [Google Scholar] [CrossRef] - He, Y.; Xiao, S.; Fang, H.; Dong, T.; Tang, Y.; Nie, P.; Wu, J.; Luo, S. Development situation and spraying decision of spray nozzle for plant protection UAV. Trans. Chin. Soc. Agric. Eng.
**2018**, 34, 113–124. [Google Scholar] - Wang, C.; He, X.; Wang, X.; Wang, Z.; Wang, S.; Li, L.; Bonds, J.; Herbst, A.; Wang, Z. Testing method and distribution characteristics of spatial pesticide spraying deposition quality balance for unmanned aerial vehicle. Int. J. Agric. Biol. Eng.
**2018**, 11, 18–26. [Google Scholar] [CrossRef] [Green Version] - Zhang, Y.; Li, Y.; He, Y.; Liu, F.; Cen, H.; Fang, H. Near ground platform development to simulate UAV aerial spraying and its spraying test under different conditions. Comput. Electron. Agric.
**2018**, 148, 8–18. [Google Scholar] [CrossRef] - Jian, Z.; Qing, C.; Minghong, S.; Hongping, Z.; Linyun, X. Interaction and influence of a flow field and particleboard particles in an airflow forming machine with a coupled Euler-DPM model. PloS ONE
**2021**, 16, 1–25. [Google Scholar] - Ling, W.; Du, C.; Mengchao, Z.; Yu, W.; Ze, Y.; Shumao, W. CFD Simulation of Low-attitude Droplets Deposition Characteristics for UAV based on Multi-feature Fusion. IFAC Pap. OnLine
**2018**, 51, 648–653. [Google Scholar] [CrossRef] - Li, J.; Shi, Y.; Lan, Y.; Guo, S. Vertical distribution and vortex structure of rotor wind field under the influence of rice canopy. Comput. Electron. Agric.
**2019**, 159, 140–146. [Google Scholar] [CrossRef] - Zhiwei, T.I.A.N.; Xinyu, X.U.E.; Yang, X.U.; Fengbo, Y.A.N.G.; Zhu, S.U.N. Effect of Plant Protection UAVs Downwash on Crop Canopy. Trans. Chin. Soc. Agric. Mach.
**2021**, 52, 40–48. [Google Scholar] - Shengde, C.H.E.N.; Yubin, L.A.N.; Bradley, K.F.; Jiyu, L.I.; Aimin, L.I.U.; Yuedong, M.A.O. Effect of Wind Field below Rotor on Distribution of Aerial Spraying Droplet Deposition by Using Multi-rotor UAV. Trans. Chin. Soc. Agric. Mach.
**2017**, 48, 105–113. [Google Scholar] - Yeo, D.; Shrestha, E.; Paley, D.A.; Atkins, E.M. An Empirical Model of Rotorcraft UAV Downwash for Disturbance Localization and Avoidance. In Proceedings of the AIAA Atmospheric Flight Mechanics Conference, Kissimmee, FL, USA, 5–9 January 2015. [Google Scholar]
- Bludau, J.; Rauleder, J.; Friedmann, L.; Hajek, M. Real-Time Simulation of Dynamic Inflow Using Rotorcraft Flight Dynamics Coupled With a Lattice-Boltzmann Based Fluid Simulation. In Proceedings of the 55th AIAA Aerospace Sciences Meeting, Grapevine, TX, USA, 9–13 January 2017. [Google Scholar] [CrossRef]
- Endalew, A.M.; Debaer, C.; Rutten, N.; Vercammen, J.; Delele, M.A.; Ramon, H.; Nicolaï, B.M.; Verbovena, P. Modelling pesticide flow and deposition from air-assisted orchard spraying in orchards: A new integrated CFD approach. Agric. Forest Meteorol.
**2010**, 150, 1383–1392. [Google Scholar] [CrossRef] - Salcedo, R.; Vallet, A.; Granell, R.; Garcerá, C.; Moltó, E.; Chueca, P. Euleriane Lagrangian model of the behaviour of droplets produced by an air-assisted sprayer in a citrus orchard. Biosyst. Eng.
**2017**, 154, 76–91. [Google Scholar] [CrossRef] - Ryan, S.D.; Gerber, A.G.; Holloway, A.G.L. A computational study on spray dispersal in the wake of an aircraft. Trans. ASABE
**2013**, 56, 847–868. [Google Scholar] - Zhang, B.; Tang, Q.; Chen, L.P.; Xu, M. Numerical simulation of wake vortices of crop spraying aircraft close to the ground. Biosyst. Eng.
**2016**, 145, 52–64. [Google Scholar] [CrossRef] - Zhang, B.; Tang, Q.; Chen, L.P.; Zhang, R.R.; Xu, M. Numerical simulation of spray drift and deposition from a crop spraying aircraft using a CFD approach. Biosyst. Eng.
**2018**, 166, 184–199. [Google Scholar] [CrossRef] - Gao, X.F.; Shi, W.D.; Zhang, D.S.; Zhang, Q.H.; Fang, B. Optimization Design and Test of Vortex Pump Based on CFD Orthogonal Test. Trans. Chin. Soc. Agric. Mach.
**2014**, 45, 101–106. [Google Scholar] - Niu, Y. Research on Internal Ballistic Flow Field Characteristics of Self-Eject Launch; Beijing Institute of Technology: Beijing, China, 2016. [Google Scholar]
- Guo, Q.; Zhu, Y.; Tang, Y.; Hou, C.; He, Y.; Zhuang, J.; Zheng, Y.; Luo, S. CFD simulation and experimental verification of the spatial and temporal distributions of the downwash airflow of a quad-rotor agricultural UAV in hover. Comput. Electron. Agric.
**2020**, 172, 105343. [Google Scholar] [CrossRef]

**Figure 2.**Scanning and reconstruction of crucial components of multi-rotor plant protection UAV: (

**a**) Airframe structure of multi-rotor plant protection UAV; (

**b**) Optimscan5-2015011K05 scanner; (

**c**) Closely markers in places with significant curvature changes; (

**d**) Synthesis of multi-angle surface point clouds by a team member; (

**e**) Schematic diagram of wall structured mesh for vital components; (

**f**) Partially enlarged view of the structured mesh model of the rotor component.

**Figure 4.**Reliability verification of wind field model: (

**a**) Wind speed test preparation; (

**b**) Test of z-direction speed under the rotor; (

**c**) Calculation cloud map of z-direction velocity of the longitudinal section below rotor; (

**d**) Relative error of z-velocity calculation and test; (

**e**) The y+ cloud map of the rotor wall after the wind field calculation is stabilized.

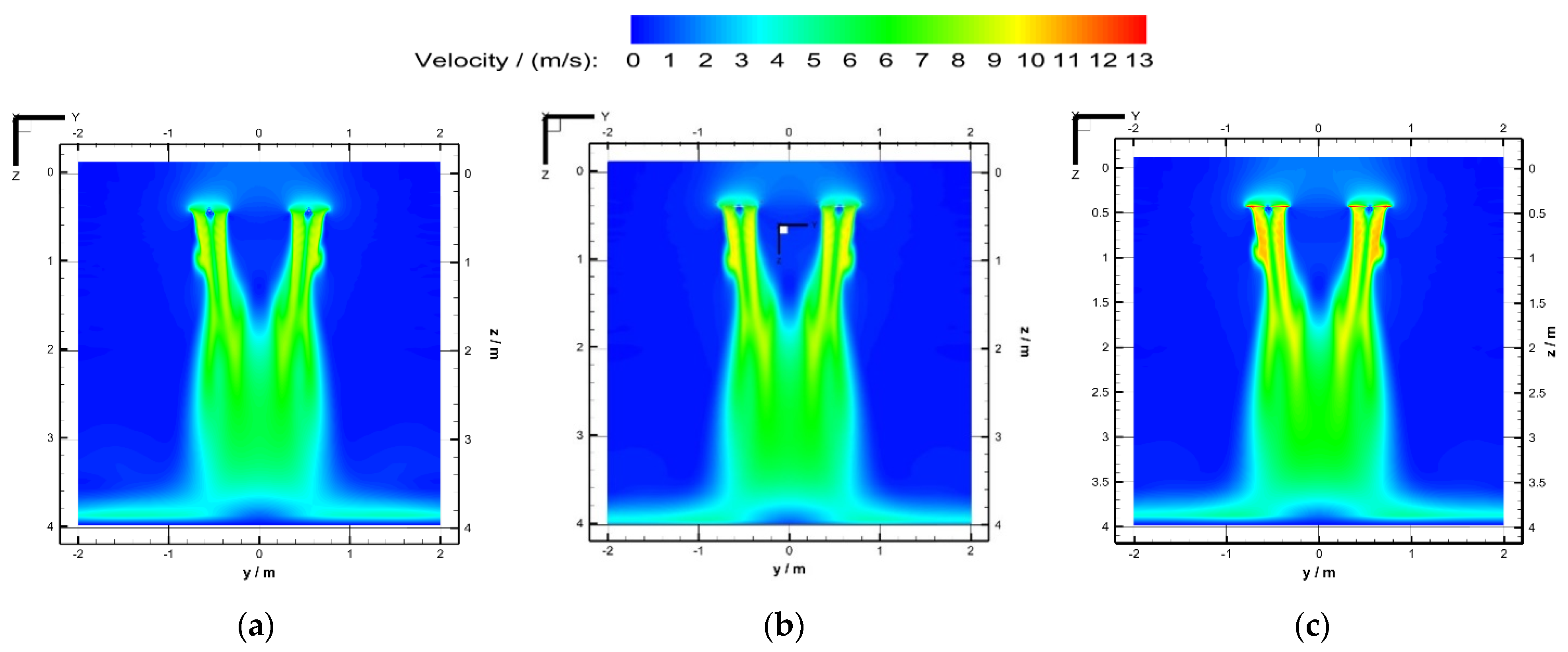

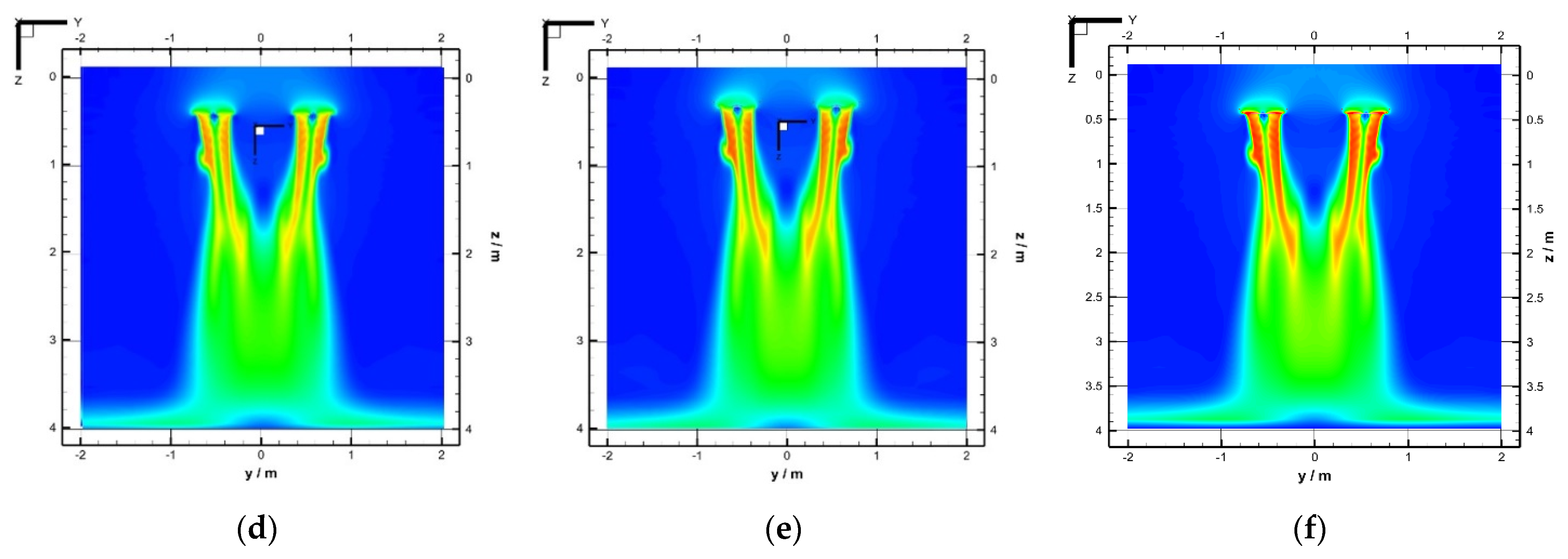

**Figure 5.**Velocity distribution of the ZOY planes of different pesticide load: (

**a**) 0 kg; (

**b**) 1 kg; (

**c**) 2 kg; (

**d**) 3 kg; (

**e**) 4 kg; (

**f**) 5 kg.

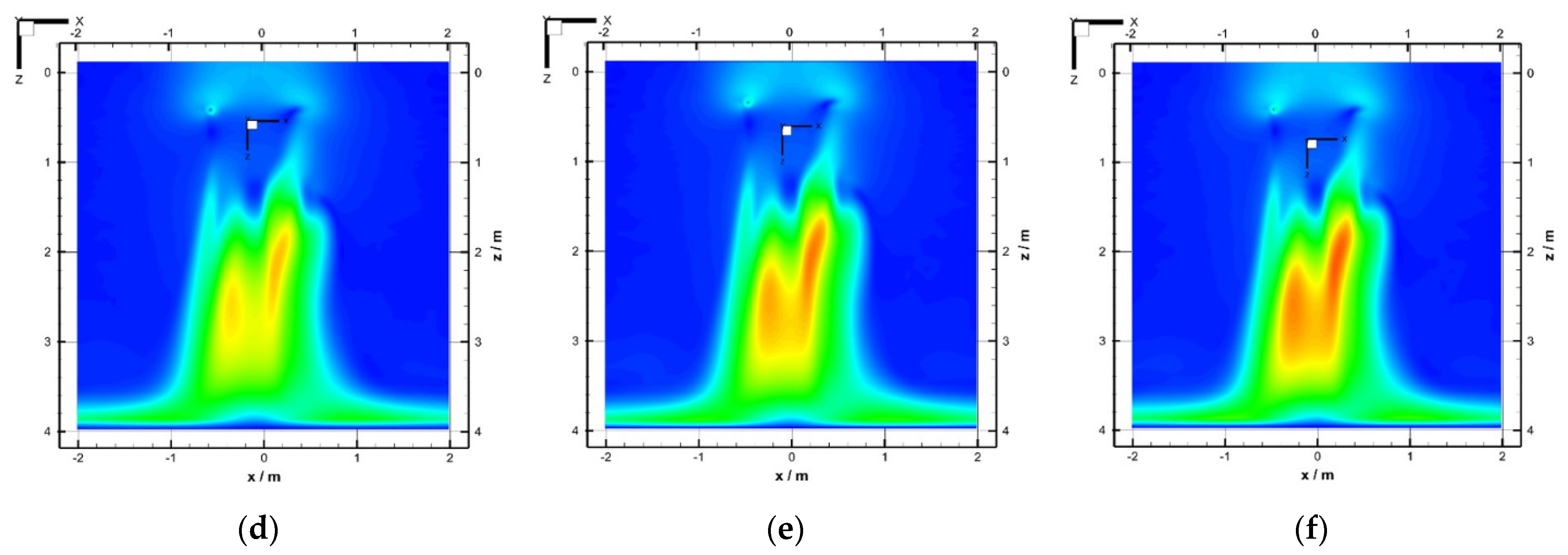

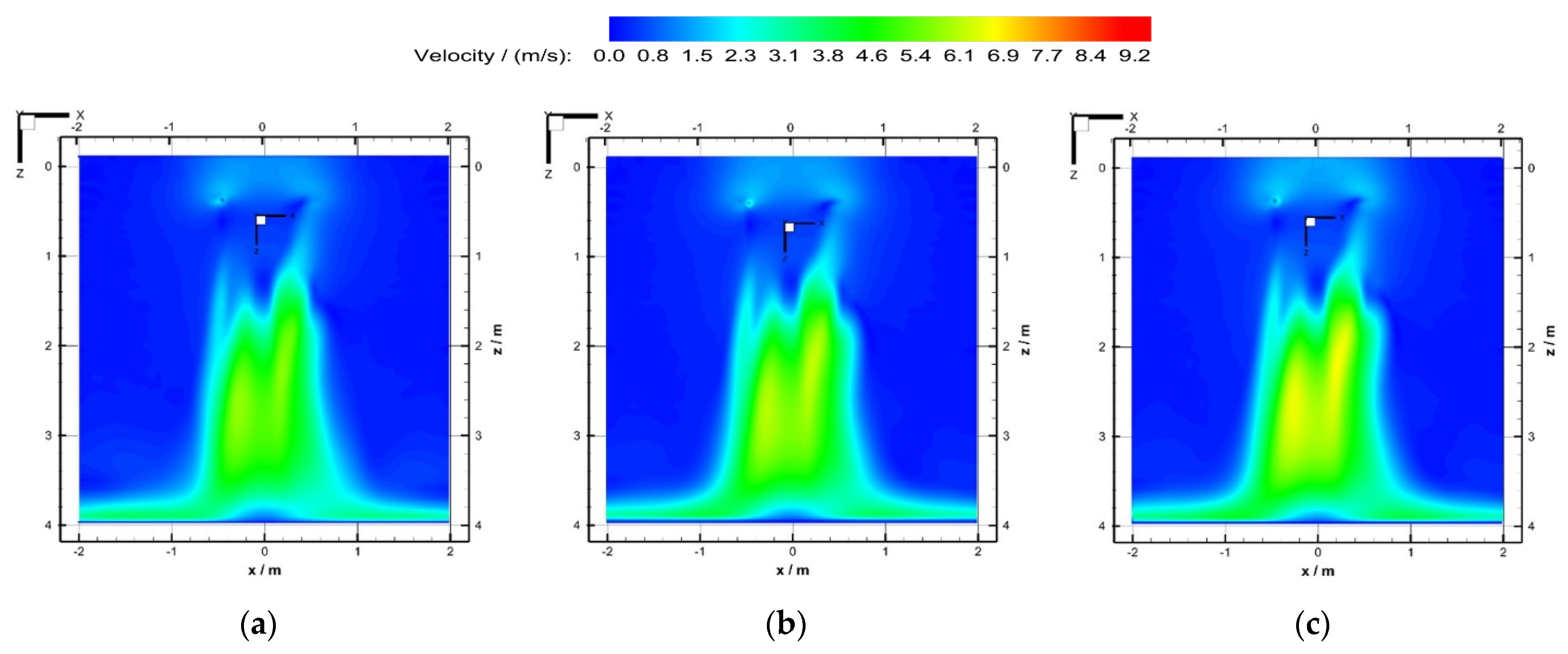

**Figure 6.**Velocity distribution of the ZOX planes of different pesticide load: (

**a**) 0 kg; (

**b**) 1 kg; (

**c**) 2 kg; (

**d**) 3 kg; (

**e**) 4 kg; (

**f**) 5 kg.

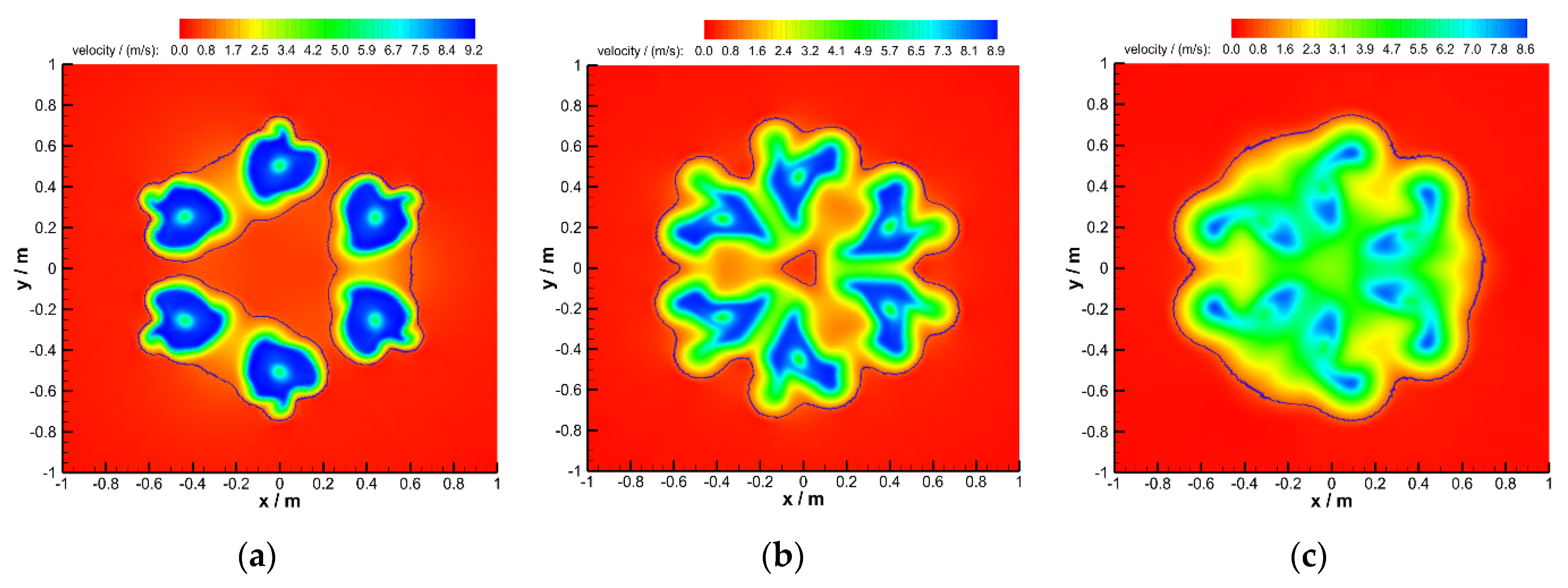

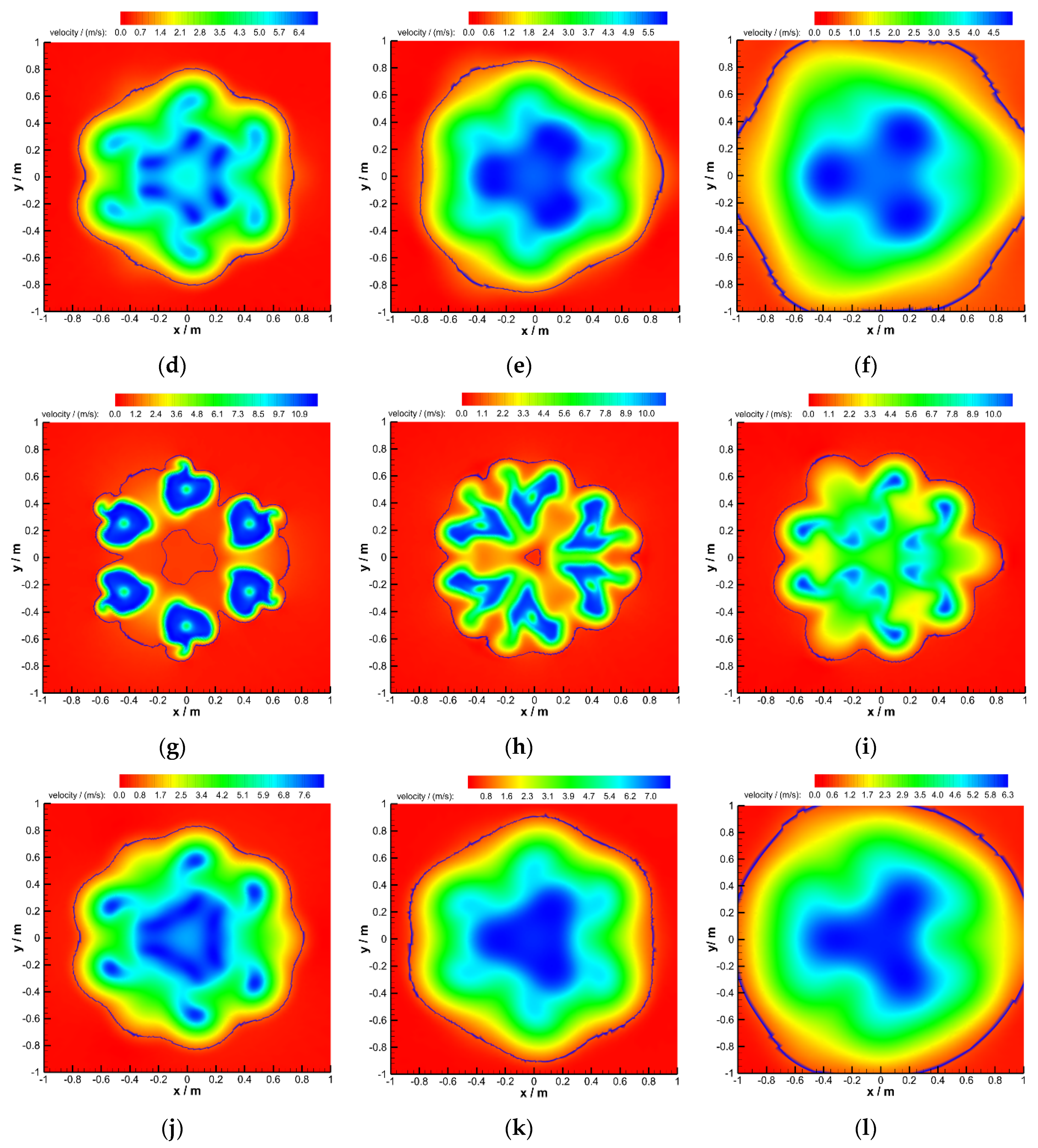

**Figure 7.**Velocity distribution of the XOY cross-sections for downwash airflow under different loads: (

**a**) Load of 0 kg at z = 0.926 m plane; (

**b**) Load of 0 kg at z = 1.426 m plane; (

**c**) Load of 0 kg at z = 1.926 m plane; (

**d**) Load of 0 kg at z = 2.426 m plane; (

**e**) Load of 0 kg at z = 2.926 m plane; (

**f**) Load of 0 kg at z = 3.426 m plane; (

**g**) Load of 4 kg at z = 0.926 m plane; (

**h**) Load of 4 kg at z = 1.426 m plane; (

**i**) Load of 4 kg at z = 1.926 m plane; (

**j**) Load of 4 kg at z = 2.426 m plane; (

**k**) Load of 4 kg at z = 2.926 m plane; (

**l**) Load of 4 kg at z = 3.426 m plane.

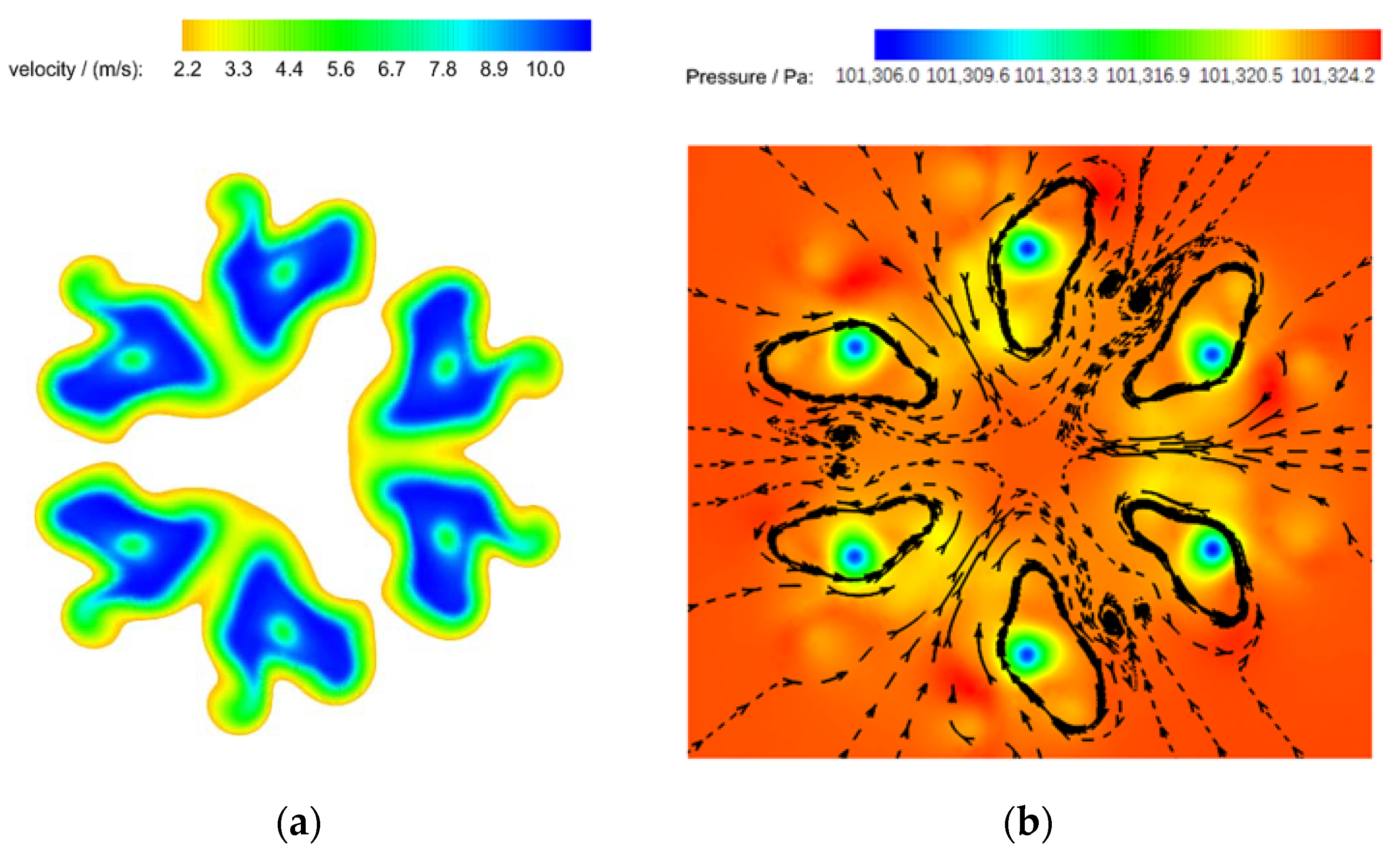

**Figure 8.**Cloud map of lateral flow characteristics for 3 kg load working condition at different heights: (

**a**) Velocity distribution at z = 1.426 m; (

**b**) Streamline diagram on the background of pressure at z = 0.926 m.

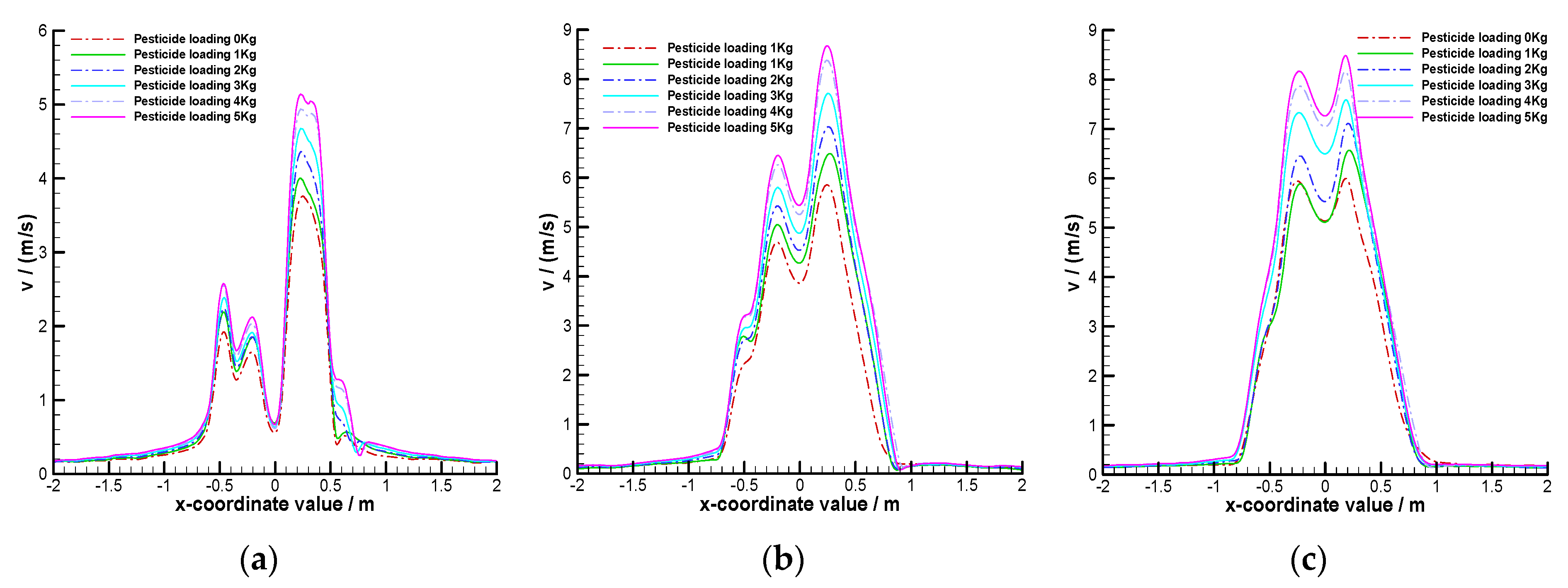

**Figure 9.**Velocity distribution of the xoz plane (adjacent rotors) at various heights: (

**a**) z = 1.426 m; (

**b**) z = 1.926 m; (

**c**) z = 2.426 m.

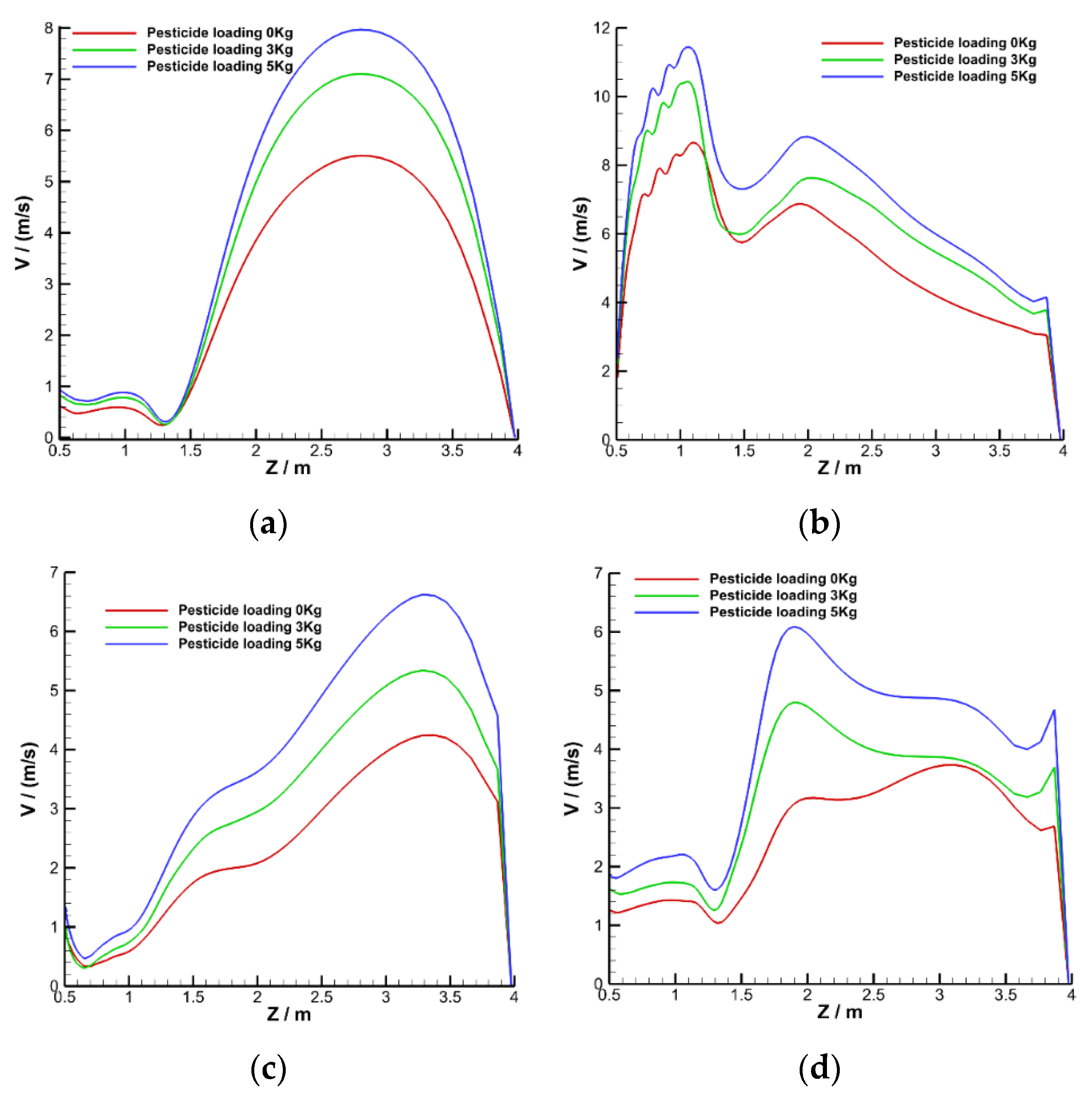

**Figure 10.**Velocity distribution at various longitudinal line under the different loads: (
