Review

Review of Role of Surgery with Electroporation in Melanoma: Chemotherapy, Immunotherapy, and Gene Delivery

by
M. Usman Ahmad
1,*,
Allyson Walsh
2 and
Amanda Kirane
1
1
Department of Surgery, Stanford University, Stanford, CA 94305, USA
2
Moores Cancer Center, University of California San Diego Health, San Diego, CA 92103, USA
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2024, 13(13), 3828; https://doi.org/10.3390/jcm13133828
Submission received: 2 June 2024 / Revised: 21 June 2024 / Accepted: 27 June 2024 / Published: 29 June 2024
(This article belongs to the Special Issue Clinical Advances in Melanoma)
Browse Figures
Versions Notes

Abstract

:
Electroporation with chemotherapy (ECT) is currently offered as a treatment in Europe for locoregional or metastatic melanoma with cutaneous lesions. However, the role of surgery and other forms of electroporation in melanoma requires further evaluation. Two reviewers used two databases to conduct a literature search and review, and 51 publications related to electroporation with chemotherapy, immunotherapy, or gene delivery were found. ECT appears to be effective in reducing tumor burden for surgical resection, replacing surgical intervention with evidence of complete regression in some lesions, and inducing both local and systemic immune effects. These immune effects are pronounced when ECT is combined with immunotherapy, with a statistically significant improvement in overall survival (OS). Other forms of electroporation, such as those using calcium chloride, an IL-12 plasmid, and vaccination, require further study. However, IL-12 plasmid electroporation may be inferior to ECT based on the evidence available. Furthermore, irradiation of the tumor prior to ECT treatment is negatively correlated with local response. Access to ECT is restricted in the US and requires further evaluation. More randomized controlled trials of ECT and electroporation treatment in locoregional melanoma are recommended.

1. Introduction

In 2020, 325 thousand individuals were diagnosed with melanoma globally, with the number of new cases expected increase to 510 thousand per year by 2040 [1]. Mortality was highest in Australia, Europe, North America, and Northern Europe [1]. In the United States (US), the incidence of melanoma by stage is 82.1% for local disease, 10.4% for regional disease, and 3.7% for distant disease, with the remainder unstaged [2]. The five-year survival rates are 93.4%, 52.5%, and 16.9% for these patients, respectively [2]. In a Danish cohort, the incidence was similar, but the 10-year survival rates were reported by stage, with melanoma-specific deaths at 1.4–5.7% in Stage I, 13.6–28.5% in Stage II, 13–58.6% in Stage III, and 44.5% in Stage IV at 10 years [3]. These calculations were done in a modern cohort in a well-defined system showing a higher rate of mortality than derived from US data. This finding is supported by a second, modern, German cohort with melanoma-specific death up to 10% in Stage I and 35% in Stage II at 10 years, providing additional recent evidence of a worse-than-expected survival at earlier stages [4]. Overall, this points to a need for improved management of earlier-stage melanoma (Stage I–III) despite improved modern treatment inventions for locoregional melanoma.
Current treatment options for locoregional melanoma include surgery, systemic therapies before or after surgery, intralesional treatment with virus (T-VEC) or immunotherapy, isolated limb perfusion, local ablation with laser treatment, imiquimod, and radiation [5,6,7]. Adjuvant therapy for surgically resectable disease is currently approved by the US FDA for Stage II or greater melanoma with immunotherapy [8]. Neoadjuvant or pre-surgical treatment is recommended by NCCN guidelines for Stage III and above melanoma [6,9]. Neoadjuvant treatment with chemotherapy, immunotherapy, or radiation is considered to improve outcomes for several other cancers including breast, colon, pancreas, lung, gastric, and gastro-esophageal cancers [10,11,12,13,14,15]. However, evidence is evolving on the benefits of neoadjuvant therapy for melanoma [8,16].
Electroporation is a technique used to improve the permeability of cells via the application of electric fields to transfer DNA or genes and improve the effectiveness of systemic treatment [17]. Mechanistically, electroporation can be delivered to induce reversible and irreversible effects on the cell membranes, allowing for pore formation. Reversible electroporation (RE) allows for intracellular delivery of chemotherapy, immunotherapy, or gene transfer, as depicted in Figure 1A [17,18,19]. RE increases the permeability of cells to various chemotherapy types but has the largest effect (5000-fold) on bleomycin delivery, allowing for much lower doses than are required as a stand-alone agent [20]. Irreversible electroporation (IRE) utilizes different field parameters to induce a non-reversible change that immediately leads to cell death, as shown in Figure 1B [19]. There are also various other stimulation parameters that have been shown to improve immune cell infiltration and macrophage polarization in tumor models, as shown in Figure 1C [21]. Electrochemotherapy (ECT) is a technique utilized with systemic chemotherapy in addition to local electroporation for tumors in order to improve therapy efficacy. The specifications of treatment by tumor size, chemotherapy dose, and follow-up have been standardized since 2006 and were updated in 2018 and published as the European Standard Operating Procedures for Electrochemotherapy (ESOPE) [22]. This has been evaluated in melanoma for Stage III/IV disease, showing dramatic effects on local tumor control with an overall response rate of 77.6–81.5% [23,24,25]. However, only the European Society for Medical Oncology (ESMO) currently lists ECT as a potential treatment for locoregional melanoma, while the US and Australian guidelines do not yet have an application for the treatment modality [7]. Furthermore, electroporation may enhance the effects of local tumor responses when used with gene transfer, immunotherapy, and vaccines, and may have distant or abscopal effects, which may have significant systemic effects [17,26,27].
There is a continued increase in the clinical use of electroporation and/or ECT for advanced melanoma patients, with a validated need for more aggressive treatment for locoregional melanoma at risk of recurrence and progression. This review will summarize all published clinical data on the use of electroporation techniques on melanoma in order to determine its potential as a treatment tool for locoregional disease in the setting of surgical downstaging or surgical alternatives.

2. Methods

A literature search was conducted for case reports, clinical trials, and observational/retrospective reviews using PubMed and Embase for all languages in January 2024. Two reviewers searched for any articles containing the terms “melanoma” AND “electroporation”. Inclusion criteria included any human trial on melanoma using any type of electroporation. Exclusion criteria included conference abstract-only results, studies where only Stage IV melanoma patients were included, missing publications, and review articles or meta-analyses. Our review is focused on patients where surgery offers survival or therapeutic benefit, thus studies with only Stage IV patients were excluded. However, due to the valuable data from studies where both Stage III and Stage IV patients were included, these publications were not excluded and are further detailed in separate tables. The search strategy with the inclusion and exclusion criteria are summarized in an adapted PRISMA flow diagram in Figure 2 [28].

3. Results

Overall, 1401 records were screened with only 51 meeting the inclusion criteria.

3.1. Electrochemotherapy

3.1.1. Stage III Melanoma

In Stage III melanoma, 14 case reports, clinical trials, and investigator-initiated studies evaluated ECT on Stage I–III melanoma, with 93% of studies using bleomycin and 50% of studies downstaging or debulking the tumor for locoregional treatment. The overall response (OR) rates ranged from 53–100%, and the complete response (CR) rates ranged from 75–100%, as depicted in Table 1 [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. When evaluating publications including any surgery (biopsy or downstaging), there were four studies with five patients allowing for downstaging for surgical resection, confirmation of increased cytotoxic T-cell infiltration, and proof of tumor cell destruction. Rols et al. examined the effect of intravenous bleomycin dosed at 10 mg/m2 with four pulses of electroporation at 1000 V/cm under general anesthesia or neuroleptanalgesia, achieving a partial response (PR) considered at 50% tumor reduction and an OR in 90% of patients [29]. Rodriguez-Cuevas et al. used calculated doses of intralesional bleomycin and altered the parameters of stimulation to six pulses at 1300 V/cm and a frequency of 1 Hz under lidocaine injection on an outpatient basis, achieving a similar OR but improved CR rate of 23% when compared to Rols et al. [30]. Kubota et al. utilized 0.1 units of intralesional bleomycin per 1 mm of lesion with eight pulses of 100 microseconds at 1000 V/cm in perineal melanoma, resulting in a CR to the tumor and no recurrence for 2.5 years, avoiding the need for surgery [31]. Snoj et al. performed four sessions of ECT on extensive locoregional melanoma using intravenous bleomycin at 15,000 IU/m2 with eight pulses of 1300 V/cm over 100 microseconds, resulting in the regression of nodules and no systemic metastases for 9 months [33]. Quaglino et al. utilized 15 mg/m2 of intravenous bleomycin with square-wave pulses ranging from 1–5000 hertz for 20 min under general anesthesia with a CR rate of 58% [34]. In a follow-up study, the immune response was examined utilizing biopsies under the same treatment parameters, and results showed increased CD8 infiltration and lower (<10%) or negative FoxP3 staining in patients that did not develop visceral metastases [35]. Mozzillo et al. performed downstaging of a cheek melanoma on a patient using ECT with two treatments of eight to twelve pulses with 15,000 IU/m2 of intravenous bleomycin, allowing for conservative resection of the tumor (3.5 cm to 1.3 cm, no residual melanoma) [36]. Kendler et al. utilized intralesional bleomycin with the Cliniporator device over five treatments for two melanoma patients; both patients proceeded with stable disease (SD) at 6 weeks, but eventual progression was observed [37]. Carrera et al. conducted ECT in two patients with desmoplastic melanoma of the nose not amenable to surgery using intravenous bleomycin and up to two courses of treatment, eliciting CRs in both patients [38]. Bigi et al. utilized 15,000 IU/m2 of intravenous bleomycin with eight pulses of 1000 V/cm over 100 microseconds for 20 min, with CR of melanoma confirmed with biopsy [39]. Gallagher et al. downstaged tumors for resection and completed ECT using intravenous bleomycin and the Cliniporator device on two patients; patient 1 showed considerable debulking and response after failing pembrolizumab and T-VEC; patient 2, who did not respond to nivolumab, ipilimumab, or T-VEC prior ECT, showed tumor response after ECT was conducted [40]. Saad et al. utilized ECT for a patient not amenable to surgery or other systemic therapies after locoregional recurrence in the foot, and this resulted in a CR and no recurrence for 18 months [41]. In a case series of anorectal melanoma, Farricha et al. utilized intravenous bleomycin and 1000 V/cm, avoiding a morbid surgical procedure; along with local control, 62.5% were alive at 2 years and 50% had no evidence of disease [42]. Snoj et al. conducted cisplatin-based ECT on a patient with anorectal melanoma, allowing for sphincter preserving resection with no local recurrence at 14 months with the addition of radiation [32]. Overall, there appear to be differences in the route of administration of bleomycin (intralesional or intravenous) and stimulation parameters that may affect the local tumor response with CR rates varying from 9% to 58% between studies. Due to the location and complexity of some lesions, it should also be noted that the procedure may need to be conducted under general anesthesia, regional anesthesia, or local anesthesia, as indicated. The complexity of this technique requires multidisciplinary collaboration of expertise for solid tumor disease. Several case reports have also highlighted the value of surgical downstaging that ECT can offer in order to improve patient quality of life and outcome with locally progressive melanoma. This allows a patient to receive a significant benefit in cosmesis, function, morbidity, and potentially mortality. In addition, in certain cases, ECT may offer a tolerable, safe, and effective alternative to unproven treatments only available in clinical trials for some Stage I–III patients with unresponsive or unresectable disease. This is based on cases reported in patients who received available approved therapies, including systemic targeted therapy, immunotherapy, and oncolytic virus treatment, and achieved subsequent resolution after ECT treatment.

3.1.2. Stage III/IV Melanoma

In Stage III/IV melanoma, 22 case reports, clinical trials, and investigator-initiated studies evaluated ECT on Stage III/IV melanoma, with most using bleomycin, and 77% replacing surgery for locoregional treatment, achieving OR rates ranging from 50–100%, as depicted in Table 2 [36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57]. When comparing ECT to chemotherapy, there were three publications with 41 patients with a CR rate of 72–74% and 13–26%, and an OR rate of 78% and 38%, respectively. Heller et al. conducted ECT with intralesional bleomycin under local anesthesia with 99-microsecond pulses at 1300 V/cm at 1 hertz, with 90.9% of patients achieving a CR with confirmation of complete necrosis on biopsy [43]. Byrne et al. utilized local infiltration with bleomycin under local anesthesia with 100-microsecond pulses ranging between 560–1500 V, resulting in a CR rate of 72% compared to a CR rate of 26% using bleomycin alone [46]. Gandy et al. also used intralesional bleomycin with 100-microsecond pulses at 4 hertz at 600 V/cm, resulting in a 74% CR rate compared to a 13% CR rate with bleomycin alone [47]. Campana et al. evaluated patients using both intravenous or intralesional bleomycin with two electroporation parameters and found that 50% achieved a CR across multiple tumor types. There did not appear to be a difference based on the route of bleomycin administration [48]. Campana et al. also evaluated a series of melanoma tumors under the same parameters (n = 85), with 48% achieving a CR, which was associated with increasing electrode applications (p = 0.041) and cycles of treatment (p = 0.005) [49]. Caracò et al. treated melanoma patients with intravenous bleomycin at 15,000 IU/m2 using ESOPE, with 48.4% of patients achieving a CR and 21.7% being disease-free at 27.5 months after one session [50]. Gerlini et al. conducted ECT with intravenous bleomycin using Cliniporator specifications and found large shifts in HLA-DR+ cells and dendritic cells over 2 weeks post-treatment, proposing a mechanism for localized and abscopal responses [51]. Caracò et al. evaluated a second cohort of patients (n = 34) receiving ECT using intravenous bleomycin under ESOPE guidelines, and found that 48.3% achieved a CR [52]. Kreuter et al. evaluated a multicenter cohort of patients receiving ECT with intravenous bleomycin under ESOPE guidelines, and 20% of patients had a CR, which was the largest amongst tumor types [53]. Mir-Bonafé et al. evaluated patients treated with intravenous bleomycin under ESOPE ECT, with 27% achieving a CR and 49% experiencing disease stability [54]. Campana et al. evaluated another cohort using ECT with ESOPE guidelines and a lesion-based choice of intravenous or intralesional bleomycin, with 50% achieving a CR and a median overall survival (OS) of 34.6 months [55]. Di Gennaro et al. conducted ECT with intravenous bleomycin under standard protocol, achieving a 60% CR rate, with CD3+ cells increasing from day 0 to day 14 (65.33 vs. 84.38, p < 0.01) [56]. Kunte et al. evaluated a multi-institutional cohort of melanoma patients treated with ECT under ESOPE guidelines, using either intravenous or intralesional bleomycin, and found that 58% achieved a CR, with radiation negatively correlating with the response [57]. Al-Hadithy examined a cohort of patients in the UK undergoing ECT under ESOPE guidelines and intravenous bleomycin and found that 47% achieved a CR [58]. Rotunno et al. evaluated an Italian cohort with ECT conducted with intravenous or intralesional bleomycin under ESOPE guidelines and found that 58% achieved a CR, with previous radiation identified as a negative predictor of response [59]. Borgognoni et al. evaluated patients undergoing ECT with intravenous bleomycin and the Cliniporator device, finding CR rates of 61.3% for <3 cm lesions compared to 31.8% for >3 cm lesions [60]. Clover et al. evaluated a multi-national cohort of patients undergoing ECT under ESOPE guidelines, using intravenous or intralesional bleomycin, which achieved a 65% CR rate, with radiation again showing a negative correlation with response [61]. Simioni et al. evaluated ECT with intravenous bleomycin under ESOPE guidelines, which achieved a 69.2% CR rate for melanoma [62]. Campana et al. used a similar procedure for ECT on another cohort, achieving a 47% CR rate, preserving quality of life during treatment [63]. Zietek et al. reviewed patients at a single center with ECT using intravenous bleomycin and achieved 100% PR [64]. Serša et al. conducted two studies using ECT with intravenous cisplatin, comparing ECT to chemotherapy alone, with a 68% vs. 19% CR rate in the larger trial [44,45]. Several comparative trials have examined the benefit of using ECT vs. chemotherapy alone, with substantial differences in patient outcomes and local tumor resolution reported. This data highlights the significant value that electroporation provides, even in the case of using much older, generic chemotherapy such as bleomycin or cisplatin. CR of the local tumor is subject to various other factors such as tumor size, electric field, concentration of intralesional or intravenous chemotherapy, number of ECT cycles, and previous irradiation of the tumor. Overall, CR seems to improve with increased electroporation of the tumor cells to improve drug delivery with repeated cycles; however, this effect seems to be inhibited when the tumor is irradiated prior to ECT. Increased drug permeability seems to be the central factor in achieving a CR; however, the finding of a negative correlation to response with previous irradiation requires further study, the mechanism of which is currently unknown. In addition, ECT appears to have an immunologic effect on the tumor, confirmed by biopsy and analysis of tissue throughout the treatment course. Both lymphocytic and myeloid infiltration of the tumor increase after ECT treatment, showing a profound and complex change in the pro-inflammatory tumor micro-environment, which appears to allow adaptations in adaptive and innate immunity.

3.2. Electrochemotherapy and Immunotherapy or Other Adjuvants

3.2.1. Stage III Melanoma

In Stage III melanoma, four case reports and investigator-initiated studies evaluated ECT with adjuvants as definitive locoregional treatment, with CR rates of 80–100%, as depicted in Table 3 [65,66,67,68]. Only two case reports evaluated modern immunotherapy, e.g., nivolumab or ipilimumab, with a CR rate of 100% in both patients. Gehl et al. reported a patient with melanoma on a clinical trial receiving low-dose interleukin-2 and ECT with intravenous bleomycin, which resulted in nine nodules on the patient showing CR [65]. Hribernik et al. evaluated ECT using bleomycin or cisplatin in combination with interferon alpha, which resulted in a 100% CR rate with cisplatin and a 66% CR rate with bleomycin [66]. Quaresmini reported a case of nodular melanoma treated initially with intravenous bleomycin ECT, which resulted in recurrence. Subsequent treatment with nivolumab showed no response, but combination therapy induced spontaneous regression, along with immune-related adverse events; the patient is disease-free [67]. Morgese et al. reported the case of a patient with lentigo melanoma of the scalp with locoregional progression after resection and pembrolizumab; the patient received intravenous bleomycin ECT and ipilimumab, which resulted in complete regression of disease [68]. Overall, the sample sizes in combination therapy using ECT and immunotherapy are too small for reliable interpretation of effects on a heterogeneous patient population. However, the aforementioned reports provide evidence of the significant potential for improved patient responses, which warrants larger randomized controlled trials. This effect may be due to the fact that previous studies have shown a shift in the tumor immune microenvironment with ECT alone, which may improve the efficacy of currently available immunotherapies.

3.2.2. Stage III/IV Melanoma

In Stage III/IV melanoma, five investigator-initiated studies and clinical trials evaluated ECT with adjuvants, with 80% of modern trials utilizing ECT as definitive locoregional treatment, with an ORR/OR of 40–77.8%, as depicted in Table 4 [69,70,71,72,73]. Plesnicar et al. evaluated five patients with ECT in combination with chemoimmunotherapy, reporting a 40% PR rate [69]. Serša et al. evaluated the effect of chemoimmunotherapy without and with electroporation in nine patients, reporting an 11% CR rate in both groups, with a 22% vs. 48% OR rate, and 4 vs. 21 weeks to progression [70]. Mozzillo et al. evaluated ECT with bleomycin and ipilimumab, reporting a 27% CR rate locally, an immune-related disease control rate (irDCR) of 60%, and an 86.2% survival rate at 12 months [71]. irDCR was defined as the sum of complete response, partial response, and stable disease, according to radiologic criteria at up to 3 months [71]. Heppt examined patients undergoing treatment with intravenous bleomycin and immunotherapy with ipilimumab or pembrolizumab, which resulted in a CR rate of 15.2% locally and a systemic response rate of 22.6% [72]. Campana et al. evaluated 130 patients and compared ECT with pembrolizumab vs. pembrolizumab alone, showing a benefit of combination therapy on OS RR 2.02 (95% CI 1.01–4.03, p = 0.046) [73]. The OS difference of ECT vs. pembrolizumab was not described in the results [73]. Earlier reports using combination immunotherapy with ECT had small sample sizes, inconsistent treatment regimens, and variable outcomes. However, these studies do show the potential of the additive benefit of immunotherapy in patients receiving ECT, with an improvement in systemic response. This effect of adding immunotherapy to ECT was more pronounced in the larger trial with Campana et al., involving 130 patients randomized to multiple treatment arms. They showed significant improvements in survival when using combination therapy when compared to using immunotherapy alone. Given the lack of current treatment options, the ease of use, affordability, efficacy, and low rate of adverse events, combination ECT + immunotherapy appears to be a safe and effective treatment option for patients requiring additional therapy and may be considered earlier in treatment.

3.3. Electroporation and Calcium

In Stage III/IV melanoma, two clinical trials evaluated electroporation with calcium chloride vs. ECT with no statistically significant differences between treatment groups on treatment response as depicted in Table 5 [74,75]. Overall, the option to use calcium chloride instead of chemotherapy is attractive due to the potential of adverse events with traditional chemotherapy. Unfortunately, although the results are promising in showing non-inferiority in trials, the sample sizes are too small to provide enough evidence for conclusive decision-making for alternatives to chemotherapy in ECT. Further study is required.

3.4. Electroporation and Gene Delivery/Vaccine

In Stage III/IV melanoma, four clinical trials evaluated electroporation of IL-12 plasmids or melanoma antigens as depicted in Table 6 [76,77,78,79]. The OR/ORR did not appear to improve when treated with EP + IL-12 vs. EP + IL-12 + pembrolizumab across three clinical trials (53–64% vs. 48%) [76,77,78]. Electroporated vaccination with the melanoma antigen, pINGmuTyr, was conducted in a Phase I trial to assess the appropriate dose and response, and they found that measurements of CD8 tumor-infiltrating lymphocytes improved most in the 1.5 mg dosage group [79]. Local infiltration of immune cells of melanoma was assessed in three published trials using an electroporated IL-12 plasmid. Theoretically, IL-12 should produce a localized pro-inflammatory immune response, thereby allowing both localized and systemic responses due to changes in innate and subsequently adaptive immunity. Unfortunately, in Daud et al., the CR rate of injected lesions was 9%, which is much lower than the rate seen in ECT trials [76]. In Greaney et al., the CR rate was not reported by patient or by lesion, but there was a shift in immune cell infiltration, with increased CD3+ cells. However, PD-1+ cells decreased systemically, indicating a paradoxical change in local and systemic immune responses [77]. Given the low rates of CR in the previous study, it is likely that IL-12 alone did not induce as significant of an immune effect as ECT treatment. When combined with immunotherapy, IL-12 electroporation showed an ORR of 48% compared to 77.8% in the ECT + pembrolizumab trial, which shows the trajectory of paradoxical reaction in the local and systemic immune compartments [78]. When comparing rates of effectiveness against ECT treatment, IL-12 electroporation appears to be inferior. However, these results are limited by sample size. The study by Yuan et al. on electroporated antigen vaccination appears to be interesting but requires further study in order to determine its ability to improve treatment and survival in melanoma patients [79].

3.5. Ongoing Clinical Trials

Only two clinical trials are currently active or in progress comparing different ECT regimens and adjuvant pembrolizumab in Stage III/IV patients, as shown in Table 7. Unfortunately, at this time, planned clinical studies are limited to only Stage III/IV patients with small sample sizes. The largest potential benefit may be in early intervention for locoregional patients, where a localized stimulatory immune effect of ECT + immunotherapy may offer a better chance of reducing recurrence and improving OS. More trials for locoregional melanoma with combination therapy should be pursued in appropriately selected patients in order to continue providing evidence of the substantial potential improvement in cancer treatment.

4. Discussion

Due to recurrence and metastasis in locoregional melanoma, targeted adjuvant systemic therapy is already considered after surgical resection, including modern immunotherapy drugs. However, the field of ECT in melanoma has not been broadly applied to treatment globally despite promising results and low rates of adverse events. In the largest trial with Stage III melanoma using bleomycin ECT, eight of fifteen patients had a localized response associated with increased expression of CD8 lymphocytes [35]. Furthermore, in the largest trial of Stage III/IV patients using bleomycin-based ECT, the local tumor control rate was 78% at 1 year, 68% at 2 years, and 62% at 3 years [63]. In addition, health-related quality of life was similar to that of the general population in this cohort, highlighting the limited adverse events and patient discomfort due to treatment. Mechanistically, in a Stage III/IV melanoma population undergoing bleomycin-based ECT, Gerlini et al. highlighted the increase in CD1c+ dermal dendritic cells (dDCs) during treatment; day 0 (5.63%); day 7 (8.34%); day 14 (16.11%); p < 0.05 and p < 0.001 [51]. This effect may point to an additive benefit of bleomycin ECT in stimulating the immune response when combined with modern immunotherapy. Although not included in this review due to the exclusion criteria, the potential abscopal effect was pronounced in a patient case with Stage IV acral melanoma. The treatment involved using a combination of surgery, temozolomide, and ECT with bleomycin and calcium, and the patient’s lesions and lymph node metastases completely regressed, with pronounced vitiligo and recurrence at 17 months [80]. Patient reactions such as these are typically reserved for situations where immunotherapy is used, highlighting the local and systemic immune effect that ECT may have without using adjuvant immunotherapies. In addition, it is important to note that multiple trials show a negative correlation of local response with previous irradiation to the tumor, which should be addressed in future trial designs. The causal relationship of poor response after irradiation requires further investigation.
Combination treatments using ECT have not been evaluated extensively in Stage I-III melanoma, although there are case reports and small series with promising results. In a Phase II trial for Stage III/IV melanoma comparing bleomycin-based ECT + pembrolizumab vs. pembrolizumab, there was a significant improvement in local PFS (5.76 RR, CI 2.41–13.77, p < 0.001), systemic PFS (1.06 RR, CI 1.07–3.60, p = 0.030), and OS (2.02 RR, CI 1.01–4.03, p = 0.046) [73]. Interestingly, the dose of bleomycin may be reduced in ECT without reducing effectiveness [24]. In some settings chemotherapy using bleomycin has been replaced with calcium chloride. However, although there was no significant difference in local response, the studies have been too small to correlate clinically [74,75]. Given the possibility of reducing systemic adverse events and improving survival in Stage III/IV melanoma patients using a combination of ECT with bleomycin and immunotherapy, further study is warranted in randomized controlled trials with high-risk locoregional patients.
The use of electroporation in gene delivery has been an ongoing concept for several decades in the scientific community and is currently being studied for the treatment of melanoma in clinical trials. Three trials have been published showing the potential clinical efficacy of electroporated intra-tumoral delivery of IL-12 plasmids. IL-12 may be related to immune-stimulating effects of T and NK cells [77]. In a Phase II trial evaluating the combination of IL-12 electroporation with pembrolizumab in immunologically cold tumors, transcriptional analysis of the biopsies showed increased CD8 TILs (p = 0.027) and PD-L1 expression (p = 0.016) when comparing pre- to post-treatment [78]. Median OS was not reached in this study at 19.6 months and may need to exceed 36 months in order to show comparable value to the ECT + pembrolizumab trial [73,78]. Other electroporation techniques studied clinically in melanoma include a Phase I trial of vaccination using a melanoma tumor antigen. At this time, the dose-finding trial did find an increase in TILs, with median OS not reached at 40.9 months [79]. Importantly, this trial does have Stage II patients, which may affect the OS results. Compared to ECT, IL-12 electroporation appears to show inferior localized and systemic immune effects; however, due to a lack of comparative randomized trials, a conclusive recommendation of inferiority cannot be given.
At this time, only two clinical trials are registered using electroporation or ECT in melanoma, with an emphasis on extrapolating differences in chemotherapy regimens and combination treatments with pembrolizumab. Given the potential benefit of combination therapy on local response, systemic response, and survival, more studies are warranted. Electroporation and combination therapy appear to hold potential as a low-risk, high-benefit option for Stage II-III melanoma patients with a higher risk of recurrence. The choice of agent should reflect modern regimens and balance local and systemic toxicity.

5. Conclusions

Electroporation of chemotherapy using bleomycin shows profound effectiveness in reducing local tumor burden, allowing for lesions to be surgically resectable in locoregional melanoma. However, in some cases, the tumor is eliminated, precluding the need for surgery for these patients. In addition, when combined with pembrolizumab, ECT with bleomycin shows an improvement in OS compared to immunotherapy alone, showing a current use case for patients who may need adjuvant treatment with a low rate of adverse effects. Access to ECT is restricted in the US and requires further evaluation. Importantly, radiation may reduce the effectiveness of ECT. Other therapies such as electroporation of calcium, IL-12 plasmids, and tumor antigens require further study.

6. Future Directions

ECT with bleomycin should be evaluated extensively in locoregional melanoma in combination with other treatments due to its low side effect profile, ease of application, low cost, and potential ability to improve the effectiveness of modern immunotherapies. Other forms of electroporated therapy also require further study in larger populations.

Author Contributions

Conceptualization, M.U.A. and A.K.; methodology, M.U.A.; data curation, M.U.A. and A.W.; writing—original draft preparation/review/editing, all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Participants in the clinical studies included in this review provided informed consent for their involvement in the research. The original studies from which data were sourced obtained ethical approval from appropriate authorities available in each published article.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors have no reported conflicts of interest.

References

  1. Arnold, M.; Singh, D.; Laversanne, M.; Vignat, J.; Vaccarella, S.; Meheus, F.; Cust, A.E.; de Vries, E.; Whiteman, D.C.; Bray, F. Global Burden of Cutaneous Melanoma in 2020 and Projections to 2040. JAMA Dermatol. 2022, 158, 495. [Google Scholar] [CrossRef] [PubMed]
  2. Merrill, R.; Bateman, S. Conditional Melanoma Cancer Survival in the United States. Cancers 2016, 8, 20. [Google Scholar] [CrossRef] [PubMed]
  3. Helvind, N.M.; Brinch-Møller Weitemeyer, M.; Chakera, A.H.; Hendel, H.W.; Ellebæk, E.; Svane, I.M.; Kjærskov, M.W.; Bojesen, S.; Skyum, H.; Petersen, S.K.; et al. Stage-Specific Risk of Recurrence and Death From Melanoma in Denmark, 2008–2021. JAMA Dermatol. 2023, 159, 1213. [Google Scholar] [CrossRef] [PubMed]
  4. Garbe, C.; Keim, U.; Amaral, T.; Berking, C.; Eigentler, T.K.; Flatz, L.; Gesierich, A.; Leiter, U.; Stadler, R.; Sunderkötter, C.; et al. Prognosis of Patients With Primary Melanoma Stage I and II According to American Joint Committee on Cancer Version 8 Validated in Two Independent Cohorts: Implications for Adjuvant Treatment. J. Clin. Oncol. 2022, 40, 3741–3749. [Google Scholar] [CrossRef] [PubMed]
  5. Cancer Council Australia. Clinical Practice Guidelines for the Diagnosis and Management of Melanoma. Available online: https://app.magicapp.org/#/guideline/Lkk3pL (accessed on 19 May 2024).
  6. Swetter, S.M.; Johnson, D.; Albertini, M.R.; Barker, C.A.; Batani, S.; Baumgartner, J.; Bhatia, S.; Bichakjian, C.; Boland, G.; Chandra, S.; et al. NCCN Guidelines Version 2.2024 Melanoma: Cuteneous. 2024. Available online: https://www.nccn.org/professionals/physician_gls/pdf/cutaneous_melanoma.pdf (accessed on 19 May 2024).
  7. Michielin, O.; van Akkooi, A.; Lorigan, P.; Ascierto, P.A.; Dummer, R.; Robert, C.; Arance, A.; Blank, C.U.; Chiarion Sileni, V.; Donia, M.; et al. ESMO Consensus Conference Recommendations on the Management of Locoregional Melanoma: Under the Auspices of the ESMO Guidelines Committee. Ann. Oncol. 2020, 31, 1449–1461. [Google Scholar] [CrossRef] [PubMed]
  8. Luke, J.J.; Ascierto, P.A.; Khattak, M.A.; de la Cruz Merino, L.; Del Vecchio, M.; Rutkowski, P.; Spagnolo, F.; Mackiewicz, J.; Chiarion-Sileni, V.; Kirkwood, J.M.; et al. Pembrolizumab Versus Placebo as Adjuvant Therapy in Resected Stage IIB or IIC Melanoma: Final Analysis of Distant Metastasis-Free Survival in the Phase III KEYNOTE-716 Study. J. Clin. Oncol. 2024, 42, 1619–1624. [Google Scholar] [CrossRef] [PubMed]
  9. Patel, S.P.; Othus, M.; Chen, Y.; Wright, G.P.; Yost, K.J.; Hyngstrom, J.R.; Hu-Lieskovan, S.; Lao, C.D.; Fecher, L.A.; Truong, T.-G.; et al. Neoadjuvant–Adjuvant or Adjuvant-Only Pembrolizumab in Advanced Melanoma. N. Engl. J. Med. 2023, 388, 813–823. [Google Scholar] [CrossRef] [PubMed]
  10. Simillis, C.; Khatri, A.; Dai, N.; Afxentiou, T.; Jephcott, C.; Smith, S.; Jadon, R.; Papamichael, D.; Khan, J.; Powar, M.P.; et al. A Systematic Review and Network Meta-Analysis of Randomised Controlled Trials Comparing Neoadjuvant Treatment Strategies for Stage II and III Rectal Cancer. Crit. Rev. Oncol. Hematol. 2023, 183, 103927. [Google Scholar] [CrossRef] [PubMed]
  11. Ling, Q.; Huang, S.-T.; Yu, T.-H.; Liu, H.-L.; Zhao, L.-Y.; Chen, X.-L.; Liu, K.; Chen, X.-Z.; Yang, K.; Hu, J.-K.; et al. Optimal Timing of Surgery for Gastric Cancer after Neoadjuvant Chemotherapy: A Systematic Review and Meta-Analysis. World J. Surg. Oncol. 2023, 21, 377. [Google Scholar] [CrossRef]
  12. Yang, B.; Chen, K.; Liu, W.; Long, D.; Wang, Y.; Liu, X.; Ma, Y.; Tian, X.; Yang, Y. The Benefits of Neoadjuvant Therapy for Patients with Resectable Pancreatic Cancer: An Updated Systematic Review and Meta-Analysis. Clin. Exp. Med. 2023, 23, 3159–3169. [Google Scholar] [CrossRef]
  13. Wu, Y.; Verma, V.; Gay, C.M.; Chen, Y.; Liang, F.; Lin, Q.; Wang, J.; Zhang, W.; Hui, Z.; Zhao, M.; et al. Neoadjuvant Immunotherapy for Advanced, Resectable Non–Small Cell Lung Cancer: A Systematic Review and Meta-analysis. Cancer 2023, 129, 1969–1985. [Google Scholar] [CrossRef]
  14. van den Ende, N.S.; Nguyen, A.H.; Jager, A.; Kok, M.; Debets, R.; van Deurzen, C.H.M. Triple-Negative Breast Cancer and Predictive Markers of Response to Neoadjuvant Chemotherapy: A Systematic Review. Int. J. Mol. Sci. 2023, 24, 2969. [Google Scholar] [CrossRef] [PubMed]
  15. Ahmad, M.U.; Javadi, C.; Poultsides, G.A. Neoadjuvant Treatment Strategies for Resectable Proximal Gastric, Gastroesophageal Junction and Distal Esophageal Cancer. Cancers 2022, 14, 1755. [Google Scholar] [CrossRef] [PubMed]
  16. Gorry, C.; McCullagh, L.; O’Donnell, H.; Barrett, S.; Schmitz, S.; Barry, M.; Curtin, K.; Beausang, E.; Barry, R.; Coyne, I. Neoadjuvant Treatment for Stage III and IV Cutaneous Melanoma. Cochrane Database Syst. Rev. 2023, 2023, CD012974. [Google Scholar] [CrossRef]
  17. Justesen, T.F.; Orhan, A.; Raskov, H.; Nolsoe, C.; Gögenur, I. Electroporation and Immunotherapy—Unleashing the Abscopal Effect. Cancers 2022, 14, 2876. [Google Scholar] [CrossRef] [PubMed]
  18. Gong, X.; Chen, Z.; Hu, J.J.; Liu, C. Advances of Electroporation-Related Therapies and the Synergy with Immunotherapy in Cancer Treatment. Vaccines 2022, 10, 1942. [Google Scholar] [CrossRef] [PubMed]
  19. Geboers, B.; Scheffer, H.J.; Graybill, P.M.; Ruarus, A.H.; Nieuwenhuizen, S.; Puijk, R.S.; Van Den Tol, P.M.; Davalos, R.V.; Rubinsky, B.; De Gruijl, T.D.; et al. High-Voltage Electrical Pulses in Oncology: Irreversible Electroporation, Electrochemotherapy, Gene Electrotransfer, Electrofusion, and Electroimmunotherapy. Radiology 2020, 295, 254–272. [Google Scholar] [CrossRef] [PubMed]
  20. Miklavčič, D.; Mali, B.; Kos, B.; Heller, R.; Serša, G. Electrochemotherapy: From the Drawing Board into Medical Practice. Biomed. Eng. Online 2014, 13, 29. [Google Scholar] [CrossRef] [PubMed]
  21. Das, R.; Langou, S.; Le, T.T.; Prasad, P.; Lin, F.; Nguyen, T.D. Electrical Stimulation for Immune Modulation in Cancer Treatments. Front. Bioeng. Biotechnol. 2022, 9, 1–18. [Google Scholar] [CrossRef]
  22. Gehl, J.; Sersa, G.; Matthiessen, L.W.; Muir, T.; Soden, D.; Occhini, A.; Quaglino, P.; Curatolo, P.; Campana, L.G.; Kunte, C.; et al. Updated Standard Operating Procedures for Electrochemotherapy of Cutaneous Tumours and Skin Metastases. Acta Oncol. 2018, 57, 874–882. [Google Scholar] [CrossRef]
  23. Ferioli, M.; Lancellotta, V.; Perrone, A.M.; Arcelli, A.; Galuppi, A.; Strigari, L.; Buwenge, M.; De Terlizzi, F.; Cammelli, S.; Iezzi, R.; et al. Electrochemotherapy of Skin Metastases from Malignant Melanoma: A PRISMA-Compliant Systematic Review. Clin. Exp. Metastasis 2022, 39, 743–755. [Google Scholar] [CrossRef] [PubMed]
  24. Bastrup, F.A.; Vissing, M.; Gehl, J. Electrochemotherapy with Intravenous Bleomycin for Patients with Cutaneous Malignancies, across Tumour Histology: A Systematic Review. Acta Oncol. 2022, 61, 1093–1104. [Google Scholar] [CrossRef] [PubMed]
  25. Petrelli, F.; Ghidini, A.; Simioni, A.; Campana, L.G. Impact of Electrochemotherapy in Metastatic Cutaneous Melanoma: A Contemporary Systematic Review and Meta-Analysis. Acta Oncol. 2022, 61, 533–544. [Google Scholar] [CrossRef] [PubMed]
  26. Hadzialjevic, B.; Omerzel, M.; Trotovsek, B.; Cemazar, M.; Jesenko, T.; Sersa, G.; Djokic, M. Electrochemotherapy Combined with Immunotherapy—A Promising Potential in the Treatment of Cancer. Front. Immunol. 2024, 14, 1–9. [Google Scholar] [CrossRef] [PubMed]
  27. Cucu, C.I.; Giurcăneanu, C.; Popa, L.G.; Orzan, O.A.; Beiu, C.; Holban, A.M.; Grumezescu, A.M.; Matei, B.M.; Popescu, M.N.; Căruntu, C.; et al. Electrochemotherapy and Other Clinical Applications of Electroporation for the Targeted Therapy of Metastatic Melanoma. Materials 2021, 14, 3985. [Google Scholar] [CrossRef] [PubMed]
  28. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 Statement: An Updated Guideline for Reporting Systematic Reviews. BMJ 2021, 372, n71. [Google Scholar] [CrossRef]
  29. Rols, M.P.; Bachaud, J.M.; Giraud, P.; Chevreau, C.; Roché, H.; Teissié, J. Electrochemotherapy of Cutaneous Metastases in Malignant Melanoma. Melanoma Res. 2000, 10, 468–474. [Google Scholar] [CrossRef] [PubMed]
  30. Rodríguez-Cuevas, S.; Barroso-Bravo, S.; Almanza-Estrada, J.; Cristóbal-Martínez, L.; González-Rodríguez, E. Electrochemotherapy in Primary and Metastatic Skin Tumors: Phase II Trial Using Intralesional Bleomycin. Arch. Med. Res. 2001, 32, 273–276. [Google Scholar] [CrossRef] [PubMed]
  31. Kubota, Y.; Tomita, Y.; Tsukigi, M.; Kurachi, H.; Motoyama, T.; Mir, L.M. A Case of Perineal Malignant Melanoma Successfully Treated with Electrochemotherapy. Melanoma Res. 2005, 15, 133–134. [Google Scholar] [CrossRef]
  32. Snoj, M.; Rudolf, Z.; Cemazar, M.; Jancar, B.; Sersa, G. Successful Sphincter-Saving Treatment of Anorectal Malignant Melanoma with Electrochemotherapy, Local Excision and Adjuvant Brachytherapy. Anticancer Drugs 2005, 16, 345–348. [Google Scholar] [CrossRef]
  33. Snoj, M.; Cemazar, M.; Kolar, B.S.; Sersa, G. Effective Treatment of Multiple Unresectable Skin Melanoma Metastases by Electrochemotherapy. Croat. Med. J. 2007, 48, 391–395. [Google Scholar] [PubMed]
  34. Quaglino, P.; Mortera, C.; Osella-Abate, S.; Barberis, M.; Illengo, M.; Rissone, M.; Savoia, P.; Bernengo, M.G. Electrochemotherapy with Intravenous Bleomycin in the Local Treatment of Skin Melanoma Metastases. Ann. Surg. Oncol. 2008, 15, 2215–2222. [Google Scholar] [CrossRef] [PubMed]
  35. Quaglino, P.; Osella-Abate, S.; Marenco, F.; Nardò, T.; Gado, C.; Novelli, M.; Savoia, P.; Bernengo, M.G. FoxP3 Expression on Melanoma Cells Is Related to Early Visceral Spreading in Melanoma Patients Treated by Electrochemotherapy. Pigment. Cell Melanoma Res. 2011, 24, 734–736. [Google Scholar] [CrossRef] [PubMed]
  36. Mozzillo, N.; Caracò, C.; Mori, S.; Di Monta, G.; Botti, G.; Ascierto, P.A.; Caracò, C.; Aloj, L. Use of Neoadjuvant Electrochemotherapy to Treat a Large Metastatic Lesion of the Cheek in a Patient with Melanoma. J. Transl. Med. 2012, 10, 131. [Google Scholar] [CrossRef] [PubMed]
  37. Kendler, M.; Micheluzzi, M.; Wetzig, T.; Simon, J.C. Electrochemotherapy under Tumescent Local Anesthesia for the Treatment of Cutaneous Metastases. Dermatol. Surg. 2013, 39, 1023–1032. [Google Scholar] [CrossRef] [PubMed]
  38. Carrera, C.; Bennassar, A.; Ishioka, P.; Dalle, S.; Vilalta, A.; Fuertes, I.; Alos, L.; Thomas, L.; Puig, S.; Malvehy, J. Desmoplastic Melanoma on the Nose: Electrochemotherapy as an Alternative Treatment to Local Advanced Disease. J. Eur. Acad. Dermatol. Venereol. 2014, 28, 424–432. [Google Scholar] [CrossRef] [PubMed]
  39. Bigi, L.; Galdo, G.; Cesinaro, A.M.; Vaschieri, C.; Marconi, A.; Pincelli, C.; Fantini, F. Electrochemotherapy Induces Apoptotic Death in Melanoma Metastases: A Histologic and Immunohistochemical Investigation. Clin. Cosmet. Investig. Dermatol. 2016, 9, 451–459. [Google Scholar] [CrossRef] [PubMed]
  40. Gallagher, M.; Chin, K.Y.; MacKenzie-Ross, A. Bleomycin Electrochemotherapy for the Management of Locally Advanced Metastatic Melanoma: Two Notable Clinical Cases Potentially Indicating a Greater Therapeutic Role in the Era of Targeted and Immuno-Therapy. JPRAS Open 2020, 26, 43–48. [Google Scholar] [CrossRef] [PubMed]
  41. Saad, M.; Matteucci, P. The Use of Electrochemotherapy (ECT) in the Management of Malignant Melanoma in the Clinically Frail Patient: A Case Report. Eur. J. Plast. Surg. 2020, 43, 855–858. [Google Scholar] [CrossRef]
  42. Farricha, V.; Quaglino, P.; Brizio, M.; de Terlizzi, F.; Bartolo, J.; Carvalhal, S.; Caracò, C.; Di Monta, G. Safety and Efficacy of Electrochemotherapy in a Series of Patients with Nonmetastasized Primary or Recurrent Anorectal Malignant Melanoma. Melanoma Res. 2021, 31, 76–80. [Google Scholar] [CrossRef]
  43. Heller, R.; Jaroszeski, M.J.; Reintgen, D.S.; Puleo, C.A.; DeConti, R.C.; Gilbert, R.A.; Glass, L.F. Treatment of Cutaneous and Subcutaneous Tumors with Electrochemotherapy Using Intralesional Bleomycin. Cancer 1998, 83, 148–157. [Google Scholar] [CrossRef]
  44. Serša, G.; Štabuc, B.; Čemažar, M.; Jančar, B.; Miklavčič, D.; Rudolf, Z. Electrochemotherapy with Cisplatin: Potentiation of Local Cisplatin Antitumour Effectiveness by Application of Electric Pulses in Cancer Patients. Eur. J. Cancer 1998, 34, 1213–1218. [Google Scholar] [CrossRef] [PubMed]
  45. Serša, G.; Štabuc, B.; Čemažar, M.; Miklavčič, D.; Rudolf, Z. Electrochemotherapy with Cisplatin: Clinical Experience in Malignant Melanoma Patients. Clin. Cancer Res. 2000, 6, 863–867. [Google Scholar] [PubMed]
  46. Byrne, C.M.; Thompson, J.F.; Johnston, H.; Hersey, P.; Quinn, M.J.; Michael Hughes, T.; McCarthy, W.H. Treatment of Metastatic Melanoma Using Electroporation Therapy with Bleomycin (Electrochemotherapy). Melanoma Res. 2005, 15, 45–51. [Google Scholar] [CrossRef] [PubMed]
  47. Gaudy, C.; Richard, M.-A.; Folchetti, G.; Bonerandi, J.J.; Grob, J.-J. Randomized Controlled Study of Electrochemotherapy in the Local Treatment of Skin Metastases of Melanoma. J. Cutan. Med. Surg. 2006, 10, 115–121. [Google Scholar] [CrossRef] [PubMed]
  48. Campana, L.G.; Mocellin, S.; Basso, M.; Puccetti, O.; De Salvo, G.L.; Chiarion-Sileni, V.; Vecchiato, A.; Corti, L.; Rossi, C.R.; Nitti, D. Bleomycin-Based Electrochemotherapy: Clinical Outcome from a Single Institution’s Experience with 52 Patients. Ann. Surg. Oncol. 2009, 16, 191–199. [Google Scholar] [CrossRef] [PubMed]
  49. Campana, L.G.; Valpione, S.; Mocellin, S.; Sundararajan, R.; Granziera, E.; Sartore, L.; Chiarion-Sileni, V.; Rossi, C.R. Electrochemotherapy for Disseminated Superficial Metastases from Malignant Melanoma. Br. J. Surg. 2012, 99, 821–830. [Google Scholar] [CrossRef]
  50. Caracò, C.; Mozzillo, N.; Marone, U.; Simeone, E.; Benedetto, L.; Di Monta, G.; Di Cecilia, M.L.; Botti, G.; Ascierto, P.A. Long-Lasting Response to Electrochemotherapy in Melanoma Patients with Cutaneous Metastasis. BMC Cancer 2013, 13, 564. [Google Scholar] [CrossRef]
  51. Gerlini, G.; Sestini, S.; Di Gennaro, P.; Urso, C.; Pimpinelli, N.; Borgognoni, L. Dendritic Cells Recruitment in Melanoma Metastasis Treated by Electrochemotherapy. Clin. Exp. Metastasis 2013, 30, 37–45. [Google Scholar] [CrossRef]
  52. Caracò, C.; Marone, U.; Simeone, E.; Grimaldi, A.M.; Botti, G.; Del Giudice, M.; Ascierto, P.A.; Mozzillo, N. Electrochemotherapy in Melanoma Patients: A Single Institution Experience. Melanoma Manag. 2015, 2, 127–132. [Google Scholar] [CrossRef]
  53. Kreuter, A.; Van Eijk, T.; Lehmann, P.; Fischer, M.; Horn, T.; Assaf, C.; Schley, G.; Herbst, R.; Kellner, I.; Weisbrich, C.; et al. Electrochemotherapy in Advanced Skin Tumors and Cutaneous Metastases—A Retrospective Multicenter Analysis. JDDG—J. Ger. Soc. Dermatol. 2015, 13, 308–316. [Google Scholar] [CrossRef] [PubMed]
  54. Mir-Bonafé, J.M.; Vilalta, A.; Alarcón, I.; Carrera, C.; Puig, S.; Malvehy, J.; Rull, R.; Bennàssar, A. Electrochemotherapy in the Treatment of Melanoma Skin Metastases: A Report on 31 Cases. Actas Dermosifiliogr. 2015, 106, 285–291. [Google Scholar] [CrossRef]
  55. Campana, L.G.; Testori, A.; Curatolo, P.; Quaglino, P.; Mocellin, S.; Framarini, M.; Borgognoni, L.; Ascierto, P.A.; Mozzillo, N.; Guida, M.; et al. Treatment Efficacy with Electrochemotherapy: A Multi-Institutional Prospective Observational Study on 376 Patients with Superficial Tumors. Eur. J. Surg. Oncol. 2016, 42, 1914–1923. [Google Scholar] [CrossRef] [PubMed]
  56. Di Gennaro, P.; Gerlini, G.; Urso, C.; Sestini, S.; Brandani, P.; Pimpinelli, N.; Borgognoni, L. CD4+FOXP3+ T Regulatory Cells Decrease and CD3+CD8+ T Cells Recruitment in TILs from Melanoma Metastases after Electrochemotherapy. Clin. Exp. Metastasis 2016, 33, 787–798. [Google Scholar] [CrossRef] [PubMed]
  57. Kunte, C.; Letulé, V.; Gehl, J.; Dahlstroem, K.; Curatolo, P.; Rotunno, R.; Muir, T.; Occhini, A.; Bertino, G.; Powell, B.; et al. Electrochemotherapy in the Treatment of Metastatic Malignant Melanoma: A Prospective Cohort Study by InspECT. Br. J. Dermatol. 2017, 176, 1475–1485. [Google Scholar] [CrossRef] [PubMed]
  58. Al-Hadithy, N.; Dehnel, A.; George, A.; Kisiel, R.; Lunt, C.; Stone, C. Patient Reported Outcomes in Prospective Cohort Study of Electrochemotherapy. Int. J. Surg. 2018, 52, 110–119. [Google Scholar] [CrossRef] [PubMed]
  59. Rotunno, R.; Campana, L.G.; Quaglino, P.; de Terlizzi, F.; Kunte, C.; Odili, J.; Gehl, J.; Ribero, S.; Liew, S.H.; Marconato, R.; et al. Electrochemotherapy of Unresectable Cutaneous Tumours with Reduced Dosages of Intravenous Bleomycin: Analysis of 57 Patients from the International Network for Sharing Practices of Electrochemotherapy Registry. J. Eur. Acad. Dermatol. Venereol. 2018, 32, 1147–1154. [Google Scholar] [CrossRef] [PubMed]
  60. Borgognoni, L.; Pescitelli, L.; Gerlini, G.; Brandani, P.; Gelli, R.; Giannotti, V.; Bellucci, F.; Sestini, S. Efficacy of Electrochemotherapy in the Treatment of Cutaneous Melanoma Metastases and Rare Non-Melanoma Skin Cancer. Anticancer Res. 2020, 40, 6485–6492. [Google Scholar] [CrossRef] [PubMed]
  61. Clover, A.J.P.; de Terlizzi, F.; Bertino, G.; Curatolo, P.; Odili, J.; Campana, L.G.; Kunte, C.; Muir, T.; Brizio, M.; Sersa, G.; et al. Electrochemotherapy in the Treatment of Cutaneous Malignancy: Outcomes and Subgroup Analysis from the Cumulative Results from the Pan-European International Network for Sharing Practice in Electrochemotherapy Database for 2482 Lesions in 987 Patients (2008–2019). Eur. J. Cancer 2020, 138, 30–40. [Google Scholar] [CrossRef]
  62. Simioni, A.; Valpione, S.; Granziera, E.; Rossi, C.R.; Cavallin, F.; Spina, R.; Sieni, E.; Aliberti, C.; Stramare, R.; Campana, L.G. Ablation of Soft Tissue Tumours by Long Needle Variable Electrode-Geometry Electrochemotherapy: Final Report from a Single-Arm, Single-Centre Phase-2 Study. Sci. Rep. 2020, 10, 2291. [Google Scholar] [CrossRef]
  63. Campana, L.G.; Quaglino, P.; de Terlizzi, F.; Mascherini, M.; Brizio, M.; Spina, R.; Bertino, G.; Kunte, C.; Odili, J.; Matteucci, P.; et al. Health-Related Quality of Life Trajectories in Melanoma Patients after Electrochemotherapy: Real-World Insights from the InspECT Register. J. Eur. Acad. Dermatol. Venereol. 2022, 36, 2352–2363. [Google Scholar] [CrossRef] [PubMed]
  64. Zietek, M.; Nowacki, M.; Wierzbicki, J.; Maciejczyk, A.; Pawlak, E.; Matkowski, R. An Analysis of Clinical Effectiveness of Electrochemotherapy in the Treatment of Advanced Metastatic Malignant Melanoma Performed in the Eastern Part of Central Europe: A Single-Centre Experience. Postep. Dermatol. I Alergol. 2022, 39, 559–564. [Google Scholar] [CrossRef] [PubMed]
  65. Gehl, J.; Geertsen, P.F. Efficient Palliation of Haemorrhaging Malignant Melanoma Skin Metastases by Electrochemotherapy. Melanoma Res. 2000, 10, 585–589. [Google Scholar] [CrossRef]
  66. Hribernik, A.; Cemazar, M.; Sersa, G.; Bosnjak, M.; Snoj, M. Effectiveness of Electrochemotherapy after IFN-α Adjuvant Therapy of Melanoma Patients. Radiol. Oncol. 2016, 50, 21–27. [Google Scholar] [CrossRef]
  67. Quaresmini, D.; Di Lauro, A.; Fucci, L.; Strippoli, S.; De Risi, I.; Sciacovelli, A.M.; Albano, A.; Achille, G.; Montepara, M.; Russo, S.; et al. Electrochemotherapy as a Trigger to Overcome Primary Resistance to Anti-PD-1 Treatment: A Case Report of Melanoma of the Scalp. Front. Oncol. 2021, 11, 742666. [Google Scholar] [CrossRef] [PubMed]
  68. Morgese, F.; De Feudis, F.; Balercia, P.; Berardi, R. Potential Dual Synergy between Electrochemotherapy and Sequence of Immunotherapies in Metastatic Melanoma: A Case Report. Mol. Clin. Oncol. 2023, 18, 8. [Google Scholar] [CrossRef]
  69. Plesnicar, A.; Sersa, G.; Vodovnik, l.; Jancar, J.; Zaletel-Kragelj, L.; Plesnicar, S. Electric Treatment of Human Melanoma Skin Lesions with Low Level Direct Electric Current: An Assessment of Clinical Experience Following a Preliminary Study in Five Patients. Eur. J. Surg. Acta Chir. Suppl. 1994, 574, 45–49. [Google Scholar]
  70. Serša, G.; Štabuc, B.; Čemažar, M.; Miklavčič, D.; Rudolf, Z. Electrochemotherapy with Cisplatin: The Systemic Antitumour Effectiveness of Cisplatin Can Be Potentiated Locally by the Application of Electric Pulses in the Treatment of Malignant Melanoma Skin Metastases. Melanoma Res. 2000, 10, 381–385. [Google Scholar] [CrossRef]
  71. Mozzillo, N.; Simeone, E.; Benedetto, L.; Curvietto, M.; Giannarelli, D.; Gentilcore, G.; Camerlingo, R.; Capone, M.; Madonna, G.; Festino, L.; et al. Assessing a Novel Immuno-Oncology-Based Combination Therapy: Ipilimumab plus Electrochemotherapy. Oncoimmunology 2015, 4, e1008842. [Google Scholar] [CrossRef]
  72. Heppt, M.V.; Eigentler, T.K.; Kähler, K.C.; Herbst, R.A.; Göppner, D.; Gambichler, T.; Ulrich, J.; Dippel, E.; Loquai, C.; Schell, B.; et al. Immune Checkpoint Blockade with Concurrent Electrochemotherapy in Advanced Melanoma: A Retrospective Multicenter Analysis. Cancer Immunol. Immunother. 2016, 65, 951–959. [Google Scholar] [CrossRef]
  73. Campana, L.G.; Peric, B.; Mascherini, M.; Spina, R.; Kunte, C.; Kis, E.; Rozsa, P.; Quaglino, P.; Jones, R.P.; Clover, A.J.P.; et al. Combination of Pembrolizumab with Electrochemotherapy in Cutaneous Metastases from Melanoma: A Comparative Retrospective Study from the Inspect and Slovenian Cancer Registry. Cancers 2021, 13, 4289. [Google Scholar] [CrossRef] [PubMed]
  74. Falk, H.; Matthiessen, L.W.; Wooler, G.; Gehl, J. Calcium Electroporation for Treatment of Cutaneous Metastases; a Randomized Double-Blinded Phase II Study, Comparing the Effect of Calcium Electroporation with Electrochemotherapy. Acta Oncol. 2018, 57, 311–319. [Google Scholar] [CrossRef] [PubMed]
  75. Ágoston, D.; Baltás, E.; Ócsai, H.; Rátkai, S.; Lázár, P.G.; Korom, I.; Varga, E.; Németh, I.B.; Viharosné, É.D.R.; Gehl, J.; et al. Evaluation of Calcium Electroporation for the Treatment of Cutaneous Metastases: A Double Blinded Randomised Controlled Phase II Trial. Cancers 2020, 12, 179. [Google Scholar] [CrossRef] [PubMed]
  76. Daud, A.I.; DeConti, R.C.; Andrews, S.; Urbas, P.; Riker, A.I.; Sondak, V.K.; Munster, P.N.; Sullivan, D.M.; Ugen, K.E.; Messina, J.L.; et al. Phase I Trial of Interleukin-12 Plasmid Electroporation in Patients with Metastatic Melanoma. J. Clin. Oncol. 2008, 26, 5896–5903. [Google Scholar] [CrossRef] [PubMed]
  77. Greaney, S.K.; Algazi, A.P.; Tsai, K.K.; Takamura, K.T.; Chen, L.; Twitty, C.G.; Zhang, L.; Paciorek, A.; Pierce, R.H.; Le, M.H.; et al. Intratumoral Plasmid IL12 Electroporation Therapy in Patients with Advanced Melanoma Induces Systemic and Intratumoral T-Cell Responses. Cancer Immunol. Res. 2020, 8, 246–254. [Google Scholar] [CrossRef] [PubMed]
  78. Algazi, A.P.; Twitty, C.G.; Tsai, K.K.; Le, M.; Pierce, R.; Browning, E.; Hermiz, R.; Canton, D.A.; Bannavong, D.; Oglesby, A.; et al. Phase II Trial of IL-12 Plasmid Transfection and PD-1 Blockade in Immunologically Quiescent Melanoma. Clin. Cancer Res. 2020, 26, 2827–2837. [Google Scholar] [CrossRef] [PubMed]
  79. Yuan, J.; Ku, G.Y.; Adamow, M.; Mu, Z.; Tandon, S.; Hannaman, D.; Chapman, P.; Schwartz, G.; Carvajal, R.; Panageas, K.S.; et al. Immunologic Responses to Xenogeneic Tyrosinase DNA Vaccine Administered by Electroporation in Patients with Malignant Melanoma. J. Immunother. Cancer 2013, 1, 20. [Google Scholar] [CrossRef]
  80. Falk, H.; Lambaa, S.; Johannesen, H.H.; Wooler, G.; Venzo, A.; Gehl, J. Electrochemotherapy and Calcium Electroporation Inducing a Systemic Immune Response with Local and Distant Remission of Tumors in a Patient with Malignant Melanoma–A Case Report. Acta Oncol. 2017, 56, 1126–1131. [Google Scholar] [CrossRef]
Jcm 13 03828 g001

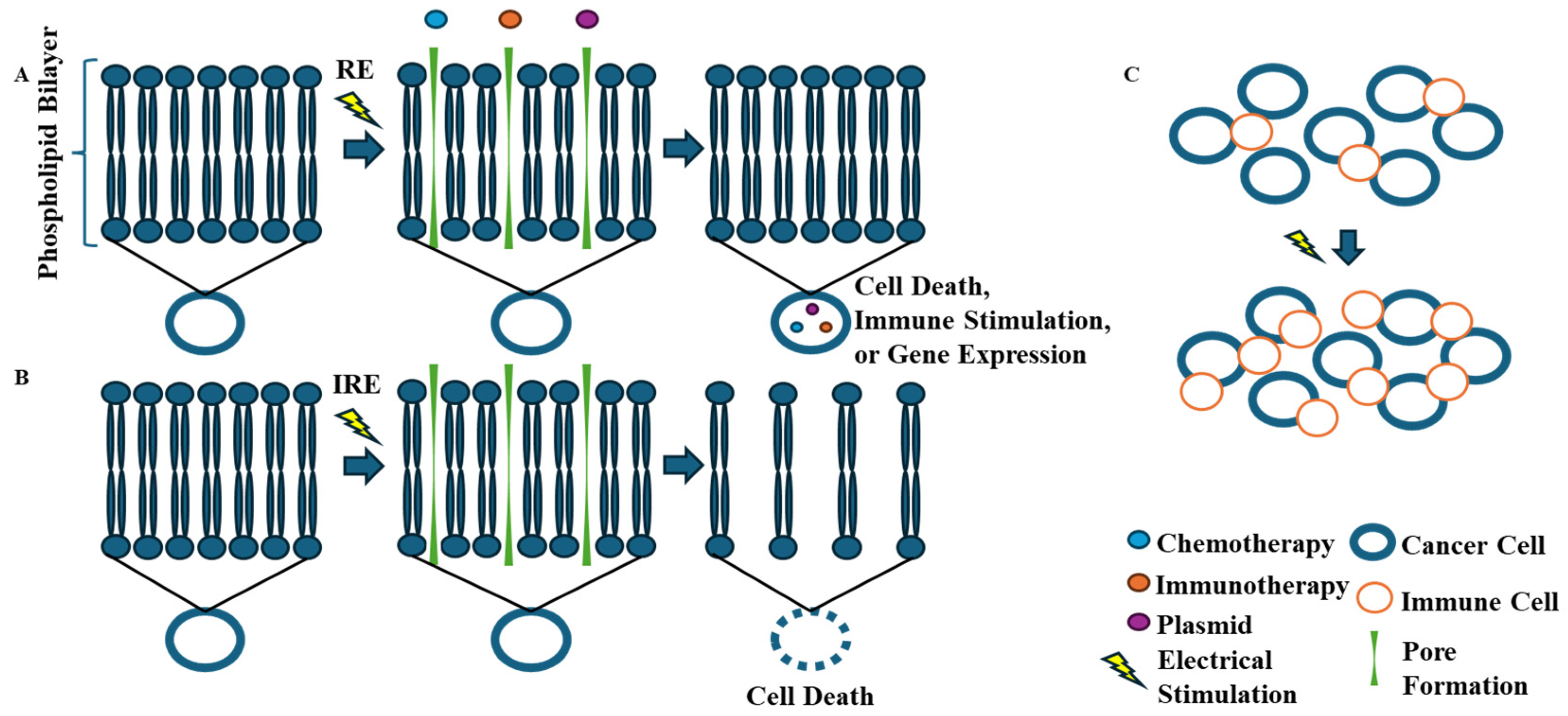

Figure 1. Mechanism of electroporation. (A) Reversible electroporation (RE) induces reversible change in cell membrane allowing for improved drug delivery or plasmid transfer. (B) Irreversible electroporation (IRE) induces non-reversible pore formation which leads to immediate cell death. (C) Other electrical fields and stimulation parameters also induce localized effects in tumor microenvironment such as immune cell stimulation and polarization.
Figure 1. Mechanism of electroporation. (A) Reversible electroporation (RE) induces reversible change in cell membrane allowing for improved drug delivery or plasmid transfer. (B) Irreversible electroporation (IRE) induces non-reversible pore formation which leads to immediate cell death. (C) Other electrical fields and stimulation parameters also induce localized effects in tumor microenvironment such as immune cell stimulation and polarization.
Jcm 13 03828 g001
Jcm 13 03828 g002

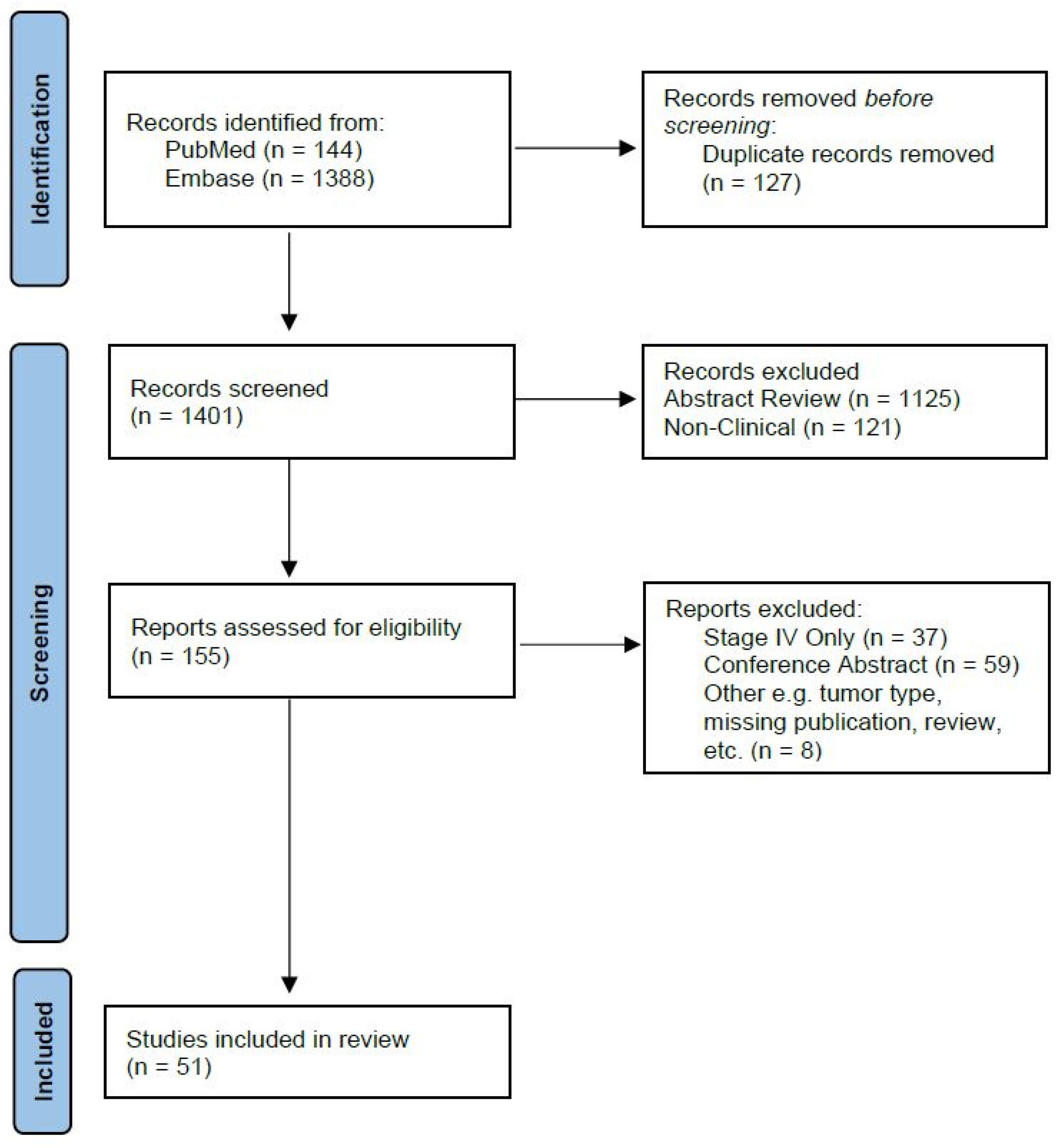

Figure 2. Adapted PRISMA flow diagram of search strategy including inclusion and exclusion criteria.
Figure 2. Adapted PRISMA flow diagram of search strategy including inclusion and exclusion criteria.
Jcm 13 03828 g002
Table 1. Electrochemotherapy in Stage III melanoma.
Table 1. Electrochemotherapy in Stage III melanoma.
AuthorYearTypeTreatmentDrugTiming of Surgery# PatientsStageOutcomeMetric
Rols2000IISECTBleomycinMixed4Stage IIIOR90%
Rodríguez-Cuevas2001Phase IIECTBleomycin_2Stage IIIOR84.50%
Kubota2005Case ReportECTBleomycinAfter1Stage IIIRFS2.5 years
Snoj2007Case ReportECTBleomycin_1Stage IIILPFS9 months
Quaglino2008Phase IIECTBleomycin_14Stage IIIOR93%
Quaglino2011Phase IIECTBleomycin_15Stage IIIOR53%
Mozzillo2012Case ReportECTBleomycinAfter1Stage IIIOR100%
Kendler2013Phase IIECTBleomycinMixed2Stage IIISD100%
Carrera2014Case SeriesECTBleomycin_2Stage II/IIICR100%
Bigi2016Phase IIECTBleomycinAfter2Stage IIIOR100%
Gallagher2020Case ReportECTBleomycinMixed2Stage IIICR100%
Saad2020Case ReportECTBleomycin_1Stage IIIOR100%
Farricha2021Phase IIECTBleomycin_8Stage IIICR75%
Snoj2005Case ReportECTCisplatinAfter1Stage IIIRFS14 months
ECT = electrochemotherapy; IIS = investigator-initiated studies; OR = overall response; CR = complete response; RFS = recurrence-free survival; LPFS = local progression-free survival; SD = stable disease.
Table 2. Electrochemotherapy in Stage III/IV melanoma.
Table 2. Electrochemotherapy in Stage III/IV melanoma.
AuthorYearTypeTreatmentDrugTiming of Surgery# PatientsStageOutcomeMetric
Heller1998IISECTBleomycinAfter12Stage III/IVCR89%
Byrne2005Phase IIECT vs. CTBleomycinMixed19Stage III/IVCR72% vs. 26%
Gaudy2006IISECT vs. CTBleomycin_12Stage III/IVCR74% vs. 13%
Campana2009Phase IIECTBleomycin_34Stage III/IVOR96% (all tumors)
Campana2012Phase IIECTBleomycin_85Stage III/IVOR94%
Caracò2013Phase IIECTBleomycin_60Stage III/IVOR87%
Gerlini2013Phase IIECTBleomycinAfter9Stage III/IVOR100%
Caracò2015Phase IIECTBleomycin_34Stage III/IVPR38%
Kreuter2015Phase IIECTBleomycin_20Stage III/IVOR50%
Mir-Bonafé2015Case SeriesECTBleomycin_31Stage III/IVOR72%
Campana2016Phase IIECTBleomycinBefore211Stage III/IVCR38%
Di Gennaro2016Phase IIECTBleomycinAfter10Stage III/IVCR60%
Kunte 2017Phase IIECTBleomycin_151Stage III/IVCR34%
Al-Hadithy2018Phase IIECTBleomycin_26Stage III/IVCR65%
Rotunno2018Phase IIECTBleomycin_22Stage III/IVCR58%
Borgognoni2020Phase IIECTBleomycin_44Stage III/IVOR (< 3 cm)84%
Clover2020Phase IIECTBleomycin_283Stage III/IVOR82%
Simioni2020Phase IIECTBleomycin_13Stage III/IVLPFS62%
Campana2022Phase IIECTBleomycin_378Stage III/IVCR47%
Zietek2022Phase IIECTBleomycin_5Stage III/IVPR100%
Serša1998IISECTCisplatin_2Stage III/IVCR100%
Serša2000Phase IIECT vs. CTCisplatin_10Stage III/IVOR78% vs. 38%
IIS = investigator-initiated studies; ECT = electrochemotherapy; CT = chemotherapy; OR = overall response; CR = complete response; PR = partial response; LPFS = local progression-free survival.
Table 3. Electrochemotherapy with adjuvants in Stage III melanoma.
Table 3. Electrochemotherapy with adjuvants in Stage III melanoma.
AuthorYearTypeTreatmentDrugTiming of Surgery# PatientsStageOutcomeMetric
Gehl2000Phase IIECT + IIL-2_1Stage IIICR100%
Hribernik2016IISECT + IFNBleomycin or Cisplatin + Interferon-a_5Stage I-IIICR80%
Quaresmini2021Case ReportECT + IBleomycin + Nivolumab_1Stage IIICR100%
Morgese2023Case ReportECT + IBleomycin + Ipilimumab_1Stage IIICR100%
IIS = investigator-initiated studies; ECT = electrochemotherapy; I = immunotherapy; IFN = interferon; CR = complete response.
Table 4. Electrochemotherapy with adjuvants in Stage III/IV melanoma.
Table 4. Electrochemotherapy with adjuvants in Stage III/IV melanoma.
AuthorYearTypeTreatmentDrugTiming of Surgery# PatientsStageOutcomeMetric
Plesnicar1994IISECT + IHLI + Lomustine + Vinblastine + Bleomycin + Cisplatin +/− TamoxifenBefore5Stage III/IVOR40%
Serša2000IISECT + ICisplatin + Vinblastine + Lomustine + Interferon-a2b_9Stage III/IVOR48% vs. 22%
Mozzillo2015Phase IIECT + IBleomycin + Ipilimumab_15Stage III/IVORR local67%
Heppt2016Phase IIECT + IBleomycin + Ipilimumab or Nivolumab or Pembrolizumab_33Stage III/IVORR67%
Campana2021Phase IIECT vs. ECT + I vs. IBleomycin + Pembrolizumab_130Stage III/IVOR80.5% vs. 77.8% vs. 38.6%
IIS = investigator-initiated studies; ECT = electrochemotherapy; I = immunotherapy; HLI = human leukocyte interferon; OR = overall response; ORR = overall response rate.
Table 5. Electroporation with calcium in Stage III/IV melanoma.
Table 5. Electroporation with calcium in Stage III/IV melanoma.
AuthorYearTypeTreatmentDrugTiming of Surgery# PatientsStageOutcomeMetric
Falk2018Phase IIEP + Calcium vs. ECTCalcium Chloride or Bleomycin_1Stage IIICR100% vs. 100%
Ágoston2020Phase IIEP + Calcium vs. ECTCalcium Chloride or Bleomycin_6Stage III/IVCR (all tumors)22% vs. 40%
ECT = electrochemotherapy; EP = electroporation; CR = complete response.
Table 6. Electroporation with IL-12 plasmid/vaccine in Stage III/IV melanoma.
Table 6. Electroporation with IL-12 plasmid/vaccine in Stage III/IV melanoma.
AuthorYearTypeTreatmentDrugTiming of Surgery# PatientsStageOutcomeMetric
Daud2008Phase IEP + IL-12IL-12 plasmidAfter24Stage III/IVOR53%
Greaney2020Phase IIEP + IL-12IL-12 plasmid_28Stage III/IVOR64%
Algazi2020Phase IIEP + IL-12 + IIL-12 plasmid + Pembrolizumab_23Stage III/IVORR48%
Yuan 2013Phase IEP + VaccinepINGmuTyr_24Stage II/III/IVCD8 TILs40% in 1.5 mg group
EP = electroporation; I = immunotherapy; OR = overall response; ORR = overall response rate; TILs = tumor-infiltrating lymphocytes.
Table 7. Active clinical trials.
Table 7. Active clinical trials.
NameNCTCountrynDesignType
_NCT06388252Slovenia15ECT + bleomycin vs. ECT + cisplatinStage III/IV
_NCT03448666Italy53ECT + bleomycin + pembrolizumabStage III/IV
ECT = electrochemotherapy.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ahmad, M.U.; Walsh, A.; Kirane, A. Review of Role of Surgery with Electroporation in Melanoma: Chemotherapy, Immunotherapy, and Gene Delivery. J. Clin. Med. 2024, 13, 3828. https://doi.org/10.3390/jcm13133828

AMA Style

Ahmad MU, Walsh A, Kirane A. Review of Role of Surgery with Electroporation in Melanoma: Chemotherapy, Immunotherapy, and Gene Delivery. Journal of Clinical Medicine. 2024; 13(13):3828. https://doi.org/10.3390/jcm13133828

Chicago/Turabian Style

Ahmad, M. Usman, Allyson Walsh, and Amanda Kirane. 2024. "Review of Role of Surgery with Electroporation in Melanoma: Chemotherapy, Immunotherapy, and Gene Delivery" Journal of Clinical Medicine 13, no. 13: 3828. https://doi.org/10.3390/jcm13133828

APA Style

Ahmad, M. U., Walsh, A., & Kirane, A. (2024). Review of Role of Surgery with Electroporation in Melanoma: Chemotherapy, Immunotherapy, and Gene Delivery. Journal of Clinical Medicine, 13(13), 3828. https://doi.org/10.3390/jcm13133828

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
