Cardiovascular/Stroke Risk Stratification in Diabetic Foot Infection Patients Using Deep Learning-Based Artificial Intelligence: An Investigative Study

Narendra N. Khanna
Mahesh A. Maindarkar
Vijay Viswanathan
Anudeep Puvvula
Sudip Paul
Mrinalini Bhagawati
Puneet Ahluwalia
Zoltan Ruzsa
Aditya Sharma
Raghu Kolluri
Padukone R. Krishnan
Inder M. Singh
John R. Laird
Mostafa Fatemi
Azra Alizad
Surinder K. Dhanjil
Luca Saba
Antonella Balestrieri
Gavino Faa
Kosmas I. Paraskevas
Durga Prasanna Misra
Vikas Agarwal
Aman Sharma
Jagjit S. Teji
Mustafa Al-Maini
Andrew Nicolaides
Vijay Rathore
Subbaram Naidu
Kiera Liblik
Amer M. Johri
Monika Turk
David W. Sobel
Martin Miner
Klaudija Viskovic
George Tsoulfas
Athanasios D. Protogerou
Sophie Mavrogeni
George D. Kitas
Mostafa M. Fouda
Mannudeep K. Kalra
34 and
Jasjit S. Suri
add Show full author list remove Hide full author list
Department of Cardiology, Indraprastha APOLLO Hospitals, New Delhi 110001, India
Stroke Monitoring and Diagnostic Division, AtheroPoint™, Roseville, CA 95661, USA
Department of Biomedical Engineering, North Eastern Hill University, Shillong 793022, India
MV Diabetes Centre, Royapuram, Chennai 600013, India
Annu’s Hospitals for Skin and Diabetes, Nellore 524101, India
Max Institute of Cancer Care, Max Super Specialty Hospital, New Delhi 110017, India
Invasive Cardiology Division, Faculty of Medicine, University of Szeged, 6720 Szeged, Hungary
Division of Cardiovascular Medicine, University of Virginia, Charlottesville, VA 22904, USA
Ohio Health Heart and Vascular, Columbus, OH 43214, USA
Neurology Department, Fortis Hospital, Bangalore 560076, India
Heart and Vascular Institute, Adventist Health St. Helena, St Helena, CA 94574, USA
Department of Physiology & Biomedical Engineering, Mayo Clinic College of Medicine and Science, Rochester, MN 55905, USA
Department of Radiology, Mayo Clinic College of Medicine and Science, Rochester, MN 55905, USA
Department of Radiology, Azienda Ospedaliero Universitaria, 40138 Cagliari, Italy
Cardiovascular Prevention and Research Unit, Department of Pathophysiology, National & Kapodistrian University of Athens, 15772 Athens, Greece
Department of Pathology, Azienda Ospedaliero Universitaria, 09124 Cagliari, Italy
Department of Vascular Surgery, Central Clinic of Athens, 15772 Athens, Greece
Department of Immunology, SGPGIMS, Lucknow 226014, India
Ann and Robert H. Lurie Children’s Hospital of Chicago, Chicago, IL 60611, USA
Allergy, Clinical Immunology and Rheumatology Institute, Toronto, ON L4Z 4C4, Canada
Vascular Screening and Diagnostic Centre, University of Nicosia Medical School, Egkomi 2408, Cyprus
AtheroPoint™, Roseville, CA 95661, USA
Electrical Engineering Department, University of Minnesota, Duluth, MN 55812, USA
Department of Medicine, Division of Cardiology, Queen’s University, Kingston, ON K7L 3N6, Canada
The Hanse-Wissenschaftskolleg Institute for Advanced Study, 27753 Delmenhorst, Germany
Rheumatology Unit, National Kapodistrian University of Athens, 15772 Athens, Greece
Men’s Health Centre, Miriam Hospital Providence, Providence, RI 02906, USA
Department of Radiology and Ultrasound, University Hospital for Infectious Diseases, 10000 Zagreb, Croatia
Department of Surgery, Aristoteleion University of Thessaloniki, 54124 Thessaloniki, Greece
Cardiology Clinic, Onassis Cardiac Surgery Centre, 17674 Athens, Greece
Academic Affairs, Dudley Group NHS Foundation Trust, Dudley DY1 2HQ, UK
Arthritis Research UK Epidemiology Unit, Manchester University, Manchester M13 9PL, UK
Department of Electrical and Computer Engineering, Idaho State University, Pocatello, ID 83209, USA
Department of Radiology, Harvard Medical School, Boston, MA 02115, USA
Author to whom correspondence should be addressed.
J. Clin. Med. 2022, 11(22), 6844;
Submission received: 10 October 2022 / Revised: 15 November 2022 / Accepted: 16 November 2022 / Published: 19 November 2022


A diabetic foot infection (DFI) is among the most serious, incurable, and costly to treat conditions. The presence of a DFI renders machine learning (ML) systems extremely nonlinear, posing difficulties in CVD/stroke risk stratification. In addition, there is a limited number of well-explained ML paradigms due to comorbidity, sample size limits, and weak scientific and clinical validation methodologies. Deep neural networks (DNN) are potent machines for learning that generalize nonlinear situations. The objective of this article is to propose a novel investigation of deep learning (DL) solutions for predicting CVD/stroke risk in DFI patients. The Preferred Reporting Items for Systematic reviews and Meta-Analyses (PRISMA) search strategy was used for the selection of 207 studies. We hypothesize that a DFI is responsible for increased morbidity and mortality due to the worsening of atherosclerotic disease and affecting coronary artery disease (CAD). Since surrogate biomarkers for CAD, such as carotid artery disease, can be used for monitoring CVD, we can thus use a DL-based model, namely, Long Short-Term Memory (LSTM) and Recurrent Neural Networks (RNN) for CVD/stroke risk prediction in DFI patients, which combines covariates such as office and laboratory-based biomarkers, carotid ultrasound image phenotype (CUSIP) lesions, along with the DFI severity. We confirmed the viability of CVD/stroke risk stratification in the DFI patients. Strong designs were found in the research of the DL architectures for CVD/stroke risk stratification. Finally, we analyzed the AI bias and proposed strategies for the early diagnosis of CVD/stroke in DFI patients. Since DFI patients have an aggressive atherosclerotic disease, leading to prominent CVD/stroke risk, we, therefore, conclude that the DL paradigm is very effective for predicting the risk of CVD/stroke in DFI patients.

1. Introduction

Foot ulcers are the leading cause of morbidity and amputation in people with diabetes. These complications also contribute to significant healthcare expenditure, as indicated by the fact that 20 to 40% of healthcare resources are spent on diabetic feet associated with diabetes [1,2]. As per the World Health Organization (WHO), diabetic foot syndrome (DFS) is described as “ulceration of the foot (distally from the ankle and including the ankle) linked with neuropathy and various grades of ischemia and infection” [3]. It is a severe long-term complication of diabetes mellitus (DM) that can lead to disability, amputations, cardiovascular diseases, and a lower quality of life [4,5].
In the United States, approximately 73,000 lower-extremity amputations are carried out each year due to diabetes [6]. Foot ulceration is the primary and sole factor that causes 80% of these complications [7,8]. The existence of foot ulceration is believed to be a significant risk factor for morbidity, death, and disability. This notion is confirmed by the fact that the diabetic condition is responsible for approximately 80% of nontraumatic amputations and that 85% of these amputations are preceded by foot ulceration [9]. It is thought that 15% of diabetics will get an ulcer on one of their lower limbs at some point during their disease [10]. A connection between a diabetic foot infection (DFI) and cardiovascular disease (CVD) has been discovered by several investigations [11,12,13]. DFI is an indicator of diabetes, and when active and uncontrolled, raises the risk of CVD [14,15,16].
The greatest risk factors for coronary heart disease (CHD) and diabetes include obesity, high blood pressure, and high blood cholesterol [17,18]. The diabetic foot ulcer (DFU) disease also causes inflammatory reactions, which can contribute to the development of atherosclerosis, promoting coronary artery disease (CAD), and the worsening of CVD [19,20,21,22,23]. Multiple studies relate more advanced stages of a DFI to more severe forms of atherosclerotic cardiovascular disease (ASCVD) [15,23,24,25]. As a result, a DFI contributes to the development of CVD. It is essential to understand the connection between a DFI and CVD to reduce the risk of heart attacks, cardiovascular events (CVE), and stroke [9,26].
The development of calcifications and hemorrhagic formation characteristics, as seen in a DFI, increases the risk of CVD [27,28]. Foot wound imaging is an essential procedure in examining a DFI [29]. It is essential to use foot imaging to monitor changes in a DFI to provide an accurate assessment of the prevalence of diabetics [30]. It is suggested that coronary imaging be performed to determine the risk of developing CVD [23]. In addition, imaging of the coronary arteries is necessary to identify plaque in CAD [31,32]. Intravenous ultrasonography (IVUS) and optical coherence tomography (OCT) are two examples of effective imaging technologies that can be used to diagnose coronary plaque [33,34,35]. Since surrogate markers are well established for CAD, such as carotid artery imaging and its quantification, thus, there is a need for (i) accurate and computerized carotid plaque load assessment, (ii) effective detection of atherosclerotic disease in DFI patients and (iii) CVD risk stratification. All three aspects are essential to prevent DFI-driven CVD from becoming severe. Hence, there is a need for the automated and early assessment of a diabetic foot infection (DFI) and CVD severity in patients to avoid morbidity and mortality.
Artificial intelligence (AI) has fundamentally altered the dynamics of the healthcare sector [36]. Machine Learning (ML) and Deep Learning (DL) algorithms have been implemented in a variety of medical applications [37,38]. AI-based technologies are data-driven, which means they make decisions based on information in databases, and have been used to diagnose diabetes [39,40], liver [41], thyroid [42], and skin cancer [43], just to name a few. Regarding CVD, the results show that there are nonlinear connections between the input predictors and the cardiovascular outcomes [44,45]. In contrast to the statistical risk estimation techniques currently in use [44,46], ML-based algorithms may use intricate quasi-relationships among several risk predictors (or attributes) that are input simultaneously.
DL algorithms extract characteristics directly from the input data to generate predictions. Some examples include the characterization of carotid wall tissue, the segmentation of pictures, and the stratification of CVD risk [47,48]. It has also been established that DL algorithms with convolution neural networks (CNNs) extract features, which can then be used to train and test an ML classifier to obtain a final classification [49,50]. Recently, images of the DFI foot wound have been utilized to predict the severity of the disease. It has been demonstrated that algorithms based on ML and DL can accurately predict a DFI [29,30]. Because of this, it is conceivable for AI-based solutions to allow the analysis of image-based diabetic foot inputs [51]. This is made possible by eliminating the demand for human intervention. Several applications of carotid ultrasonography that use AI-based algorithms have shown a lot of promise [52,53,54]. Thus, it means that these AI-based methods could be used to evaluate a patient’s risk and treat both DFI and CVD disorders concurrently.
The usage of alternative imaging for the visualization of CAD helps in the categorization of DFI patients into appropriate CVD risk categories [55,56,57]. This is because CAD is easier to see with surrogate imaging. Thus, to gain a more in-depth insight into the pathophysiology of diabetes, diabetes foot ulcer, and cardiovascular disease, this study focuses on the use of low-cost carotid artery and diabetic foot ultrasound imaging. Using techniques such as ML and DL, it is possible to identify patients who are at significant risk of developing CVD complications [58]. To best analyze the above study, we have adopted the search strategy and the distributions.

2. Search Strategy Using PRISMA Model

The Preferred Reporting Items for Systematic reviews and Meta-Analyses (PRISMA) model (Figure 1) is used as the basis for the search method. PubMed, IEEE, and Google Scholar are three databases that are used to search for and screen relevant papers. These databases are searched with keywords such as “diabetic foot ulcer”, “diabetic foot disease”, “diabetic foot infection”, “diabetes”, “CVD”, “diabetic foot ulcer and CVD”, “diabetic foot ulcer and coronary artery disease”, “diabetic foot imaging”, “diabetes and carotid imaging”, “artificial intelligence”, “artificial intelligence and CVD”, “machine learning and CVD”, “deep learning and CVD”, “classifiers and CVD/stroke risk stratification”, and “atherosclerotic plaque tissue classification”. There was a total of 324 papers located on PubMed, and there were 548 articles initially selected from Google Scholar and IEEE. To narrow the list down to just 872 articles, sophisticated criteria such as time and relevancy were utilized. After considering whether or not to include them in this evaluation, a total of 140 articles were narrowed down to the articles that made the final list. The following are the three criteria that were used to exclude studies: (i) studies that did not relate in any way to our study objective, (ii) papers that did not contain useful information, and (iii) studies that contained insufficient data in the studies. Following the elimination of 422, 103, and 140 investigations (respectively denoted with the letters E1, E2, and E3), a final pool of 207 studies was chosen for the final analysis out of a total of 450 studies. Figure 2 depicts the comprehensive screening procedure for the selection of the research paper.

Statistical Distribution

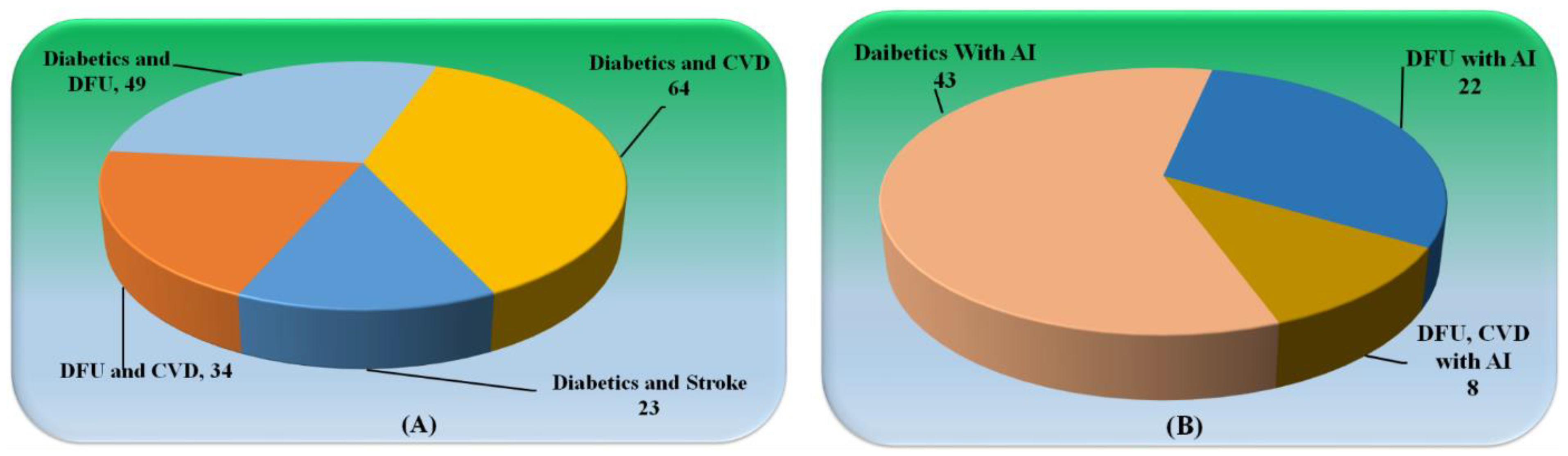

Figure 2a shows the studies related to (i) diabetes and DFU, (ii) diabetes and CVD, (iii) DFU and CVD, and diabetes and stroke. A number of the articles explain the role of diabetics leading to the development of CVD in a patient. Figure 2b shows the distribution of studies of AI with (i) Diabetics, (ii) DFU, and (iii) DFU and CVD. Each study had an examination utilizing a feasibility analysis, which was followed by a cross-check using scientific validation to guarantee that it came as close as possible to meeting our goals.

3. Pathobiological Mechanisms of Diabetes, CVD, and Diabetic Foot

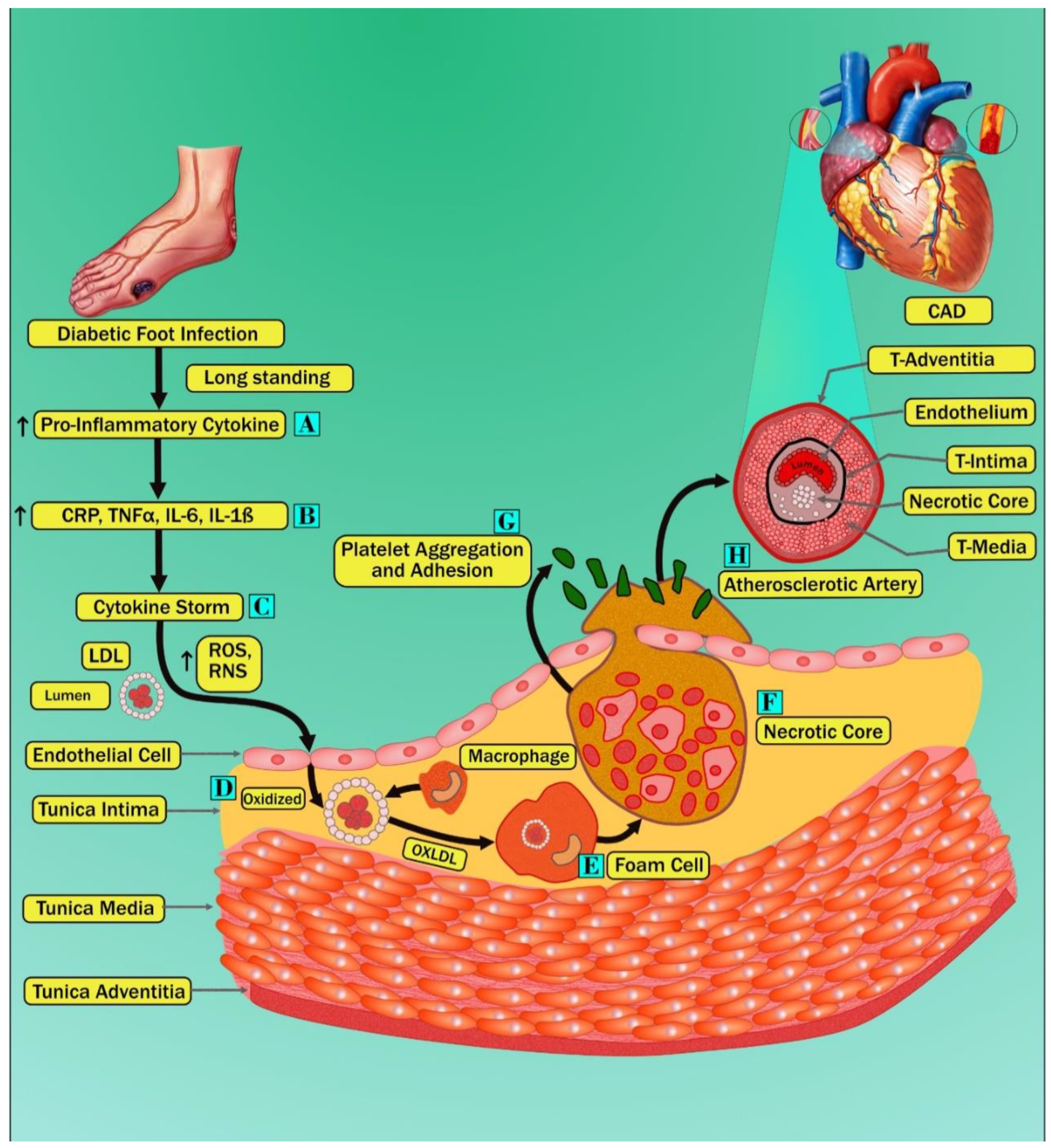

Figure 3 shows the biological link between diabetes mellitus and CVD. The survival rate of diabetic patients is lower than that of nondiabetic patients [59]. In the context of CVD, many studies showed that diabetes patients had 2–4 folds increased morbidity and mortality rates than patients without diabetes mellitus (DM) [60]. In addition, DM patients suffering from a foot infection have increased morbidity and mortality rates due to CVD about twice as much compared to patients with DM without a foot disease. A paper published by Pinto et al. [61] demonstrated an increased risk of CVD morbidity and mortality in DM patients who experienced amputation due to a foot infection compared to DM patients without a foot disease. Furthermore, in this study, authors also mentioned that patients suffering from a DFI have higher levels of serum cholesterol, serum triglycerides, and microalbuminuria or proteinuria, which are considered CV risk factors, compared with DM patients without a foot infection [62,63,64]. Another recent five-year follow-up study showed an increased risk of cerebrovascular events in DM patients with a foot disease compared to DM patients without a foot disease [25]. The published works [62,63,64] demonstrate that patients with a DFI are more prone to increased mortality and morbidity due to CVD than diabetic patients without a foot disease. We, thus, hypothesize that longstanding nonhealing ulcers in diabetes patients result in the activation of cytokine production, which further damages the heart (stage A of Figure 3). Interestingly, supporting our hypothesis, Jeffocate et al. [65], in their recent article, specified that patients with a DFI are more prone to developing an inflammatory cascade of increased levels of proinflammatory cytokines such as interleukin-1beta (IL-1β) and tumor necrosis factor-alpha (TNF- α), compared with diabetic patients without foot diseases. Additionally, Weigelt et al. [66] also showed that a DFI is responsible for the increase in circulation of acute phase cytokines such as interleukin 6 (IL6) and C-reactive protein (CRP). The above evidence demonstrated that immune activation in chronic nonhealing wounds is the key source of developing CV risk factors in patients with DM (stage A of Figure 3). These increased proinflammatory cytokines due to immune activation can trigger intracellular and extracellular reactive oxygen species (ROS). Furthermore, (stage C of Figure 3) results in damage to endothelial cells and causes the opening of inter endothelial junctions in a blood vessel [67]. Thus, this damage in the endothelium layer results in the penetration of native low-density lipoprotein (LDL) particles inside the tunica intimal layer, and this process is known as transcytosis [68]. Oxidative stress due to increased levels of ROS results in the formation of oxidized LDL (OxLDL), formed by the peroxidation of phospholipid molecules on the surface of LDL particles (Stage D of Figure 3). This process is known as lipid peroxidation [69]. Due to the presence of cellular and humoral innate immunity, OxLDL is taken by the macrophage, and this triggers the accumulation of many OxLDL inside the macrophage, resulting in the development of foam cells (stage E of Figure 3) [70,71]. Excess accumulation of foam cells increases the intake of more cholesterol, causing apoptosis and necrosis and progressing to the formation of the necrotic core (stage F of Figure 3) [72,73]. These attract the aggregation and adhesion of platelets, resulting in the development of atherosclerotic plaque (stage G and H of Figure 3) [74].
The endogenous and exogenous metabolic disruptions concerning glucose metabolism and their respective molecular repercussions contribute to an elevated risk of cardiovascular disease in patients with diabetes. The revelation of the cardiovascular outcome trial (CVOT) data and the discovery of certain unexpected advantages of major adverse cardiovascular events (MACE) in these trials highlight that higher levels might have both direct and indirect impacts. The metabolic balance is severely thrown off by normal glucose levels, which exacerbates risk factors for cardiovascular disease.
In addition to these endogenous sources of abnormality, the process of glucose metabolism, and exposure to external substances, such as those found in advanced glycation end products (AGEs), may be amplified by factors in nutrition as well as in the environment, leading to the activation of proatherogenic processes. Although a plethora of research has exposed the deleterious effects of glucose on extra and intracellular characteristics, their long-term unfavorable effects, such as on glycation and epigenetic variables and metabolic memory [75,76], have also been suggested to play crucial roles in CVD in diabetes mellitus. Moreover, diabetes mellitus on the disturbance of lipid/lipoprotein metabolic activities, in addition to their unique and independent effects, also interrelate with all these glucose-driven processes. This is because the glycation of lipids and lipoproteins could alter those species’ function and, through receptor for advanced glycation endproducts (RAGE)-dependent mechanisms, may mediate and exacerbate cellular perturbation [76,77]. As a result, diabetes mellitus is associated with an increased risk of immediate and long-term effects triggered by glucose.
As altered gene expression patterns and signaling pathways combine with immune cells, blood vessel cells malfunction, increasing the risk of vascular and cardiovascular disease in patients with certain metabolic abnormalities [26].

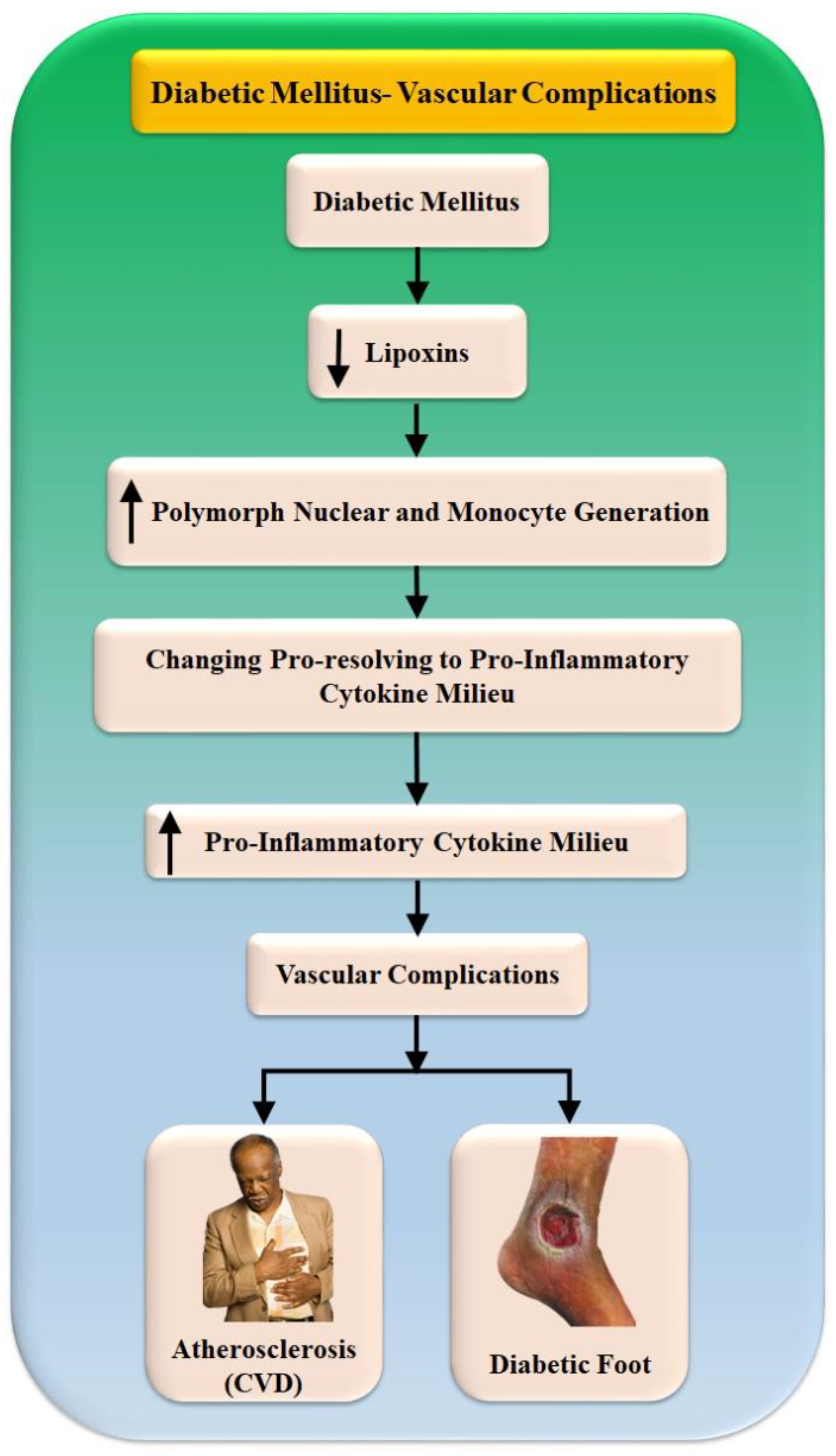

Vascular Complications in Diabetes Mellitus

Vascular abnormalities in diabetes are caused by a state of chronic hyperglycemia [78]. These difficulties can develop in large blood arteries, characterized by diabetic macroangiopathy, and in small blood vessels, characterized by diabetic microangiopathy [78]. Such vascular irregularities are due to the irrevocable glycation of proteins that occurs nonenzymatically, as well as changes in the cellular redox potential. Elevation in oxidative stress and the condition of inflammation lead to the development of endothelial dysfunction and a state of increased hypercoagulability.
The resolution of inflammation is hampered in diabetic patients, which correlates to the increased levels of TNF-, IL-6, and other proinflammatory cytokines in these patients, as well as to the development and progression of nephropathy and atherosclerosis, and other complications of diabetes [79]. Recent research has demonstrated that proresolving lipid mediators, such as lipoxins, resolvins, and protectins, play a significant role in the resolution of inflammation [22]. These mediators work by suppressing polymorphonuclear and monocyte recruitment and protecting cells from damage, transforming the cytokine environment from proinflammatory to proresolving (Figure 4). As a result, these proresolution lipid mediators have significant therapeutic potential in diabetic renal and cardiovascular disorders [21,80]. The inefficient metabolites of magnification lipid mediators in muscle and adipose tissue contribute to the persistence of chronic inflammation in obesity [81]. This suggests that these lipids could be used to treat insulin resistance, diabetes, and the problems that come with these conditions [82]. Table 1 represents various studies that link DFI and CVD relations.

4. ML/DL-Based CVD/Stroke Risk Assessment in Diabetics Foot Ulcer Patients

There is evidence that ML/DL is being used in every industry, including medical imaging [47,88,89]. Deep neural networks (DNNs), a subset of DL, are designed to function like the human brain and have been shown to have several applications [36,90,91,92]. DL makes automatic feature extraction, classification, and segmentation possible via the power of convolution, max-pooling, and various channel maps such as spatial and temporal attention [93,94,95,96]. Multiple publications have detailed the use of AI in the diagnosis and prognosis of CVD [97,98,99] and the forecasting of lesions due to a DFI [51,100,101,102,103,104]. Furthermore, DL has played a crucial role in DFI identification during the presence of comorbidities, including diabetes [105], Parkinson’s disease (PD) [106,107,108,109,110], rheumatoid arthritis [111], and pneumonia [91,112]. In addition to CVD and diabetes,, the presence of such comorbidities in patients profoundly impacts the nonlinear dynamics [113]. As a result, the importance of DL is growing in identifying moderate and high-risk patients with CVD/stroke risk [114,115,116]. Considering this, for superior CVD/stroke risk, an improved set of biomarkers for DFI severity is needed.
Section 4.1 explains the ML/DL-based architecture for evaluating the risk of CVD/stroke in DFI patients. CUSIP quantification using DL which includes the design of wall segmentation using UNet, UNet+, UNet++, and UNet3P, one of the most advanced paradigms, will be discussed in Section 4.2. Furthermore, DL for DFI lesion segmentation and quantification is discussed in Section 4.3. Section 4.4 discussed the challenges in imaging modalities models for CVD risk stratification in DFI patients.

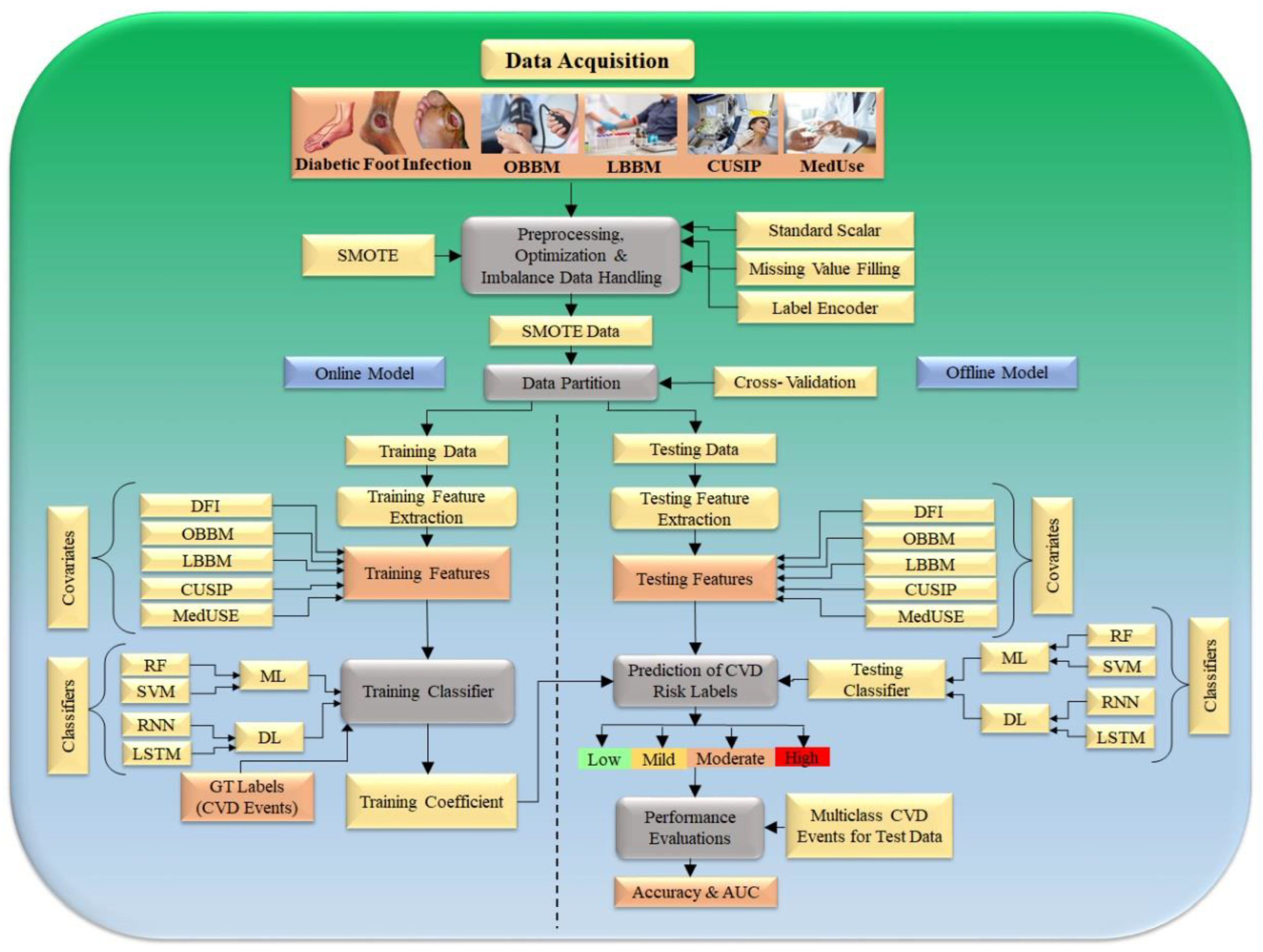

4.1. ML/DL-Based Architecture for Evaluating the Risk of CVD/Stroke in DFI Patients

ML techniques were developed for superior segmentation and classification [97,99,114,117,118]. Despite that, it lacked automated feature extraction. In contrast, ML/DL is a powerful framework because it can create automated features by utilizing the underlying knowledge base. It also provides an improved training paradigm in which the nonlinearity between variables and the gold standard can be dynamically adjusted. These two aspects combine to make ML/DL a powerful framework [97,99,114,117,118]. Separating data into training and testing sets is a fundamental tenet of AI algorithms. Our team has already experimented with several DL use cases [119,120,121]. As a result, we arrange our data so that the classes are balanced or if augmentation is needed. Data preparation and the selection of an appropriate cross-validation strategy are two of the most crucial factors to think about before dividing a dataset.
The first step, “data preparation or preprocessing”, works in tandem with the second step, “data partition”. Step three generates offline training using training data, and step four estimates the risk of coronary artery disease or cardiovascular disease on the test data (see Figure 5). Two basic procedures make up data preparation or preprocessing: (i) normalizing the data using a typical scalar paradigm that translates the features (risk factors) between 0 and 1, and (ii) augmenting the data using a SMOTE model [95,96]. It has been seen that several algorithms use “PCA-based pooling” which is an established unstructured statistical attribute selection technique as part of the data preparation in the ML area and has been well adapted by our group [34,122].
The second step of the system is responsible for data partitioning; here, the training and testing sets are created with a K10 cross-validation methodology that uses 90% training and 10% testing data. The third step of the architecture is a model generator, where risk variables and the CAS serve as inputs to deep learning classifiers, such as recurrent neural network (RNN) and long short-term memory (LSTM), which generate the offline coefficients. Part four is a prediction paradigm, where the produced model is used to change the test datasets to predict the CAD risk. Keep in mind that the CV is a multimodal paradigm, thus, we will get the predicted CAD value for all the 10 combinations in a cyclic sequence, making sure that no two combinations overlap and that no test data are included in the training set [99,123,124].
One important thing to remember is that the learning algorithm’s embedded feature optimization is a prerequisite [99,125]. The online system is enhanced with a performance component, which calculates accuracy considering the known reference values for the test dataset. The right side below also shows the performance evaluation should the cohort be used using cross-validation protocol, which consists of the computing accuracy, sensitivity, specificity, precision, recall, and p-value as conducted in several of our applications [34,39,122]. Table 2 represents various studies used for DFI and CVD prediction. The predictive output labels are either heart failure (cardiovascular events) or stroke (cerebrovascular events) and can be categorized into four parts, such as low, mild, moderate, and high. [126].

4.1.1. CVD Risk Stratification Using ML-Based Classifiers

An ML-based classifier’s purpose is to sort the data it receives into one of several predetermined categories or labels [133]. In the case of a task involving the prediction of CVD or stroke events, for instance, applying the input features to the trained classifier results in a prediction of either the “event” or “no-event” category. The ML-based classifier in this work assigns each patient to either the low-risk or high-risk category, depending on which risk profile they fit into. Meanwhile, we mentioned the fact that the purpose of this study was to devise an ML system that was both effective and economical; therefore, an RF classifier was included in the ML system to perform the risk stratification on the patients [134]. Various studies effectively show the ML-based plaque risk stratification using a Random Forest (RF) classifier. Jamithkar et al proposed (shown in Figure 6) an RF-based ML algorithm that, compared to other ML-based algorithms, has been shown to have a higher predictive capacity [135,136]. As a result, the RF classifier was chosen for the risk stratification of the patients [137].

4.1.2. CVD Risk Stratification Using DL Classifiers

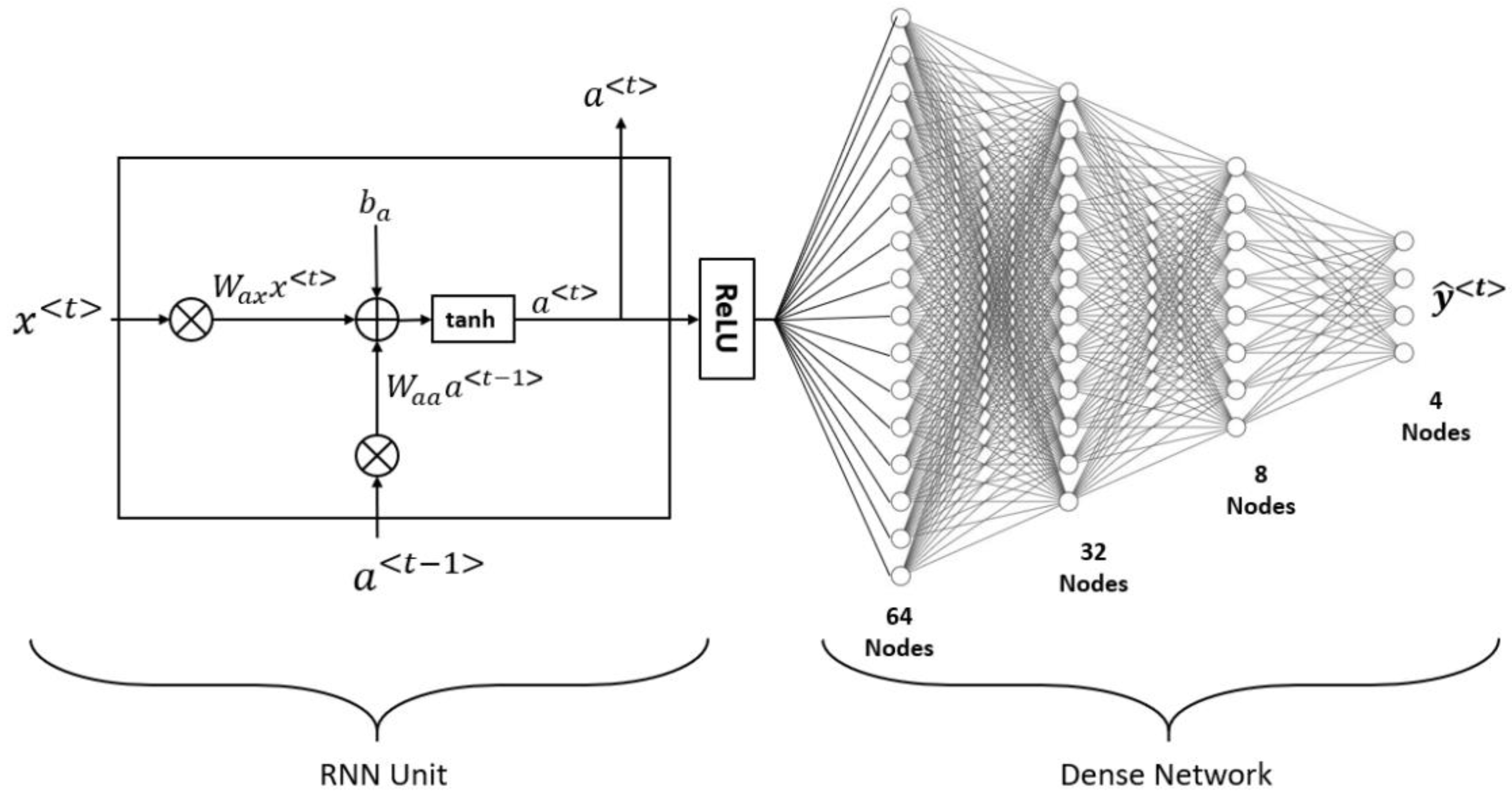

Recurrent Neural Network (RNN) Classifier: A study by Rumelhart et al. [138] explained the concept of a subtype of neural network known as an RNN. Using RNNs to approximate nonlinear unknown dynamical systems is a robust architecture [139,140]. Two of the biggest difficulties in training an RNN are the vanishing gradients problem, which has a direct influence on the stability of the model, and (ii) the difficult optimization target [141]. Figure 7 depicts the suggested hybrid design, which consists of a single RNN unit activated with ReLU and four dense layers layered on top of it. There are 64, 32, and 8 nodes, respectively, in the ReLU-activated intermediate dense layers. There are four softmax-activated nodes in the output layer. A complete model is trained to determine a patient’s atherosclerotic risk category based on their input characteristics. Training the model occurred with the help of the loss function categorical cross-entropy loss (CEL) and the optimizer Adaptive Moment Estimation (ADAM). Figure 7 provides a high-level view of an RNN’s structure.

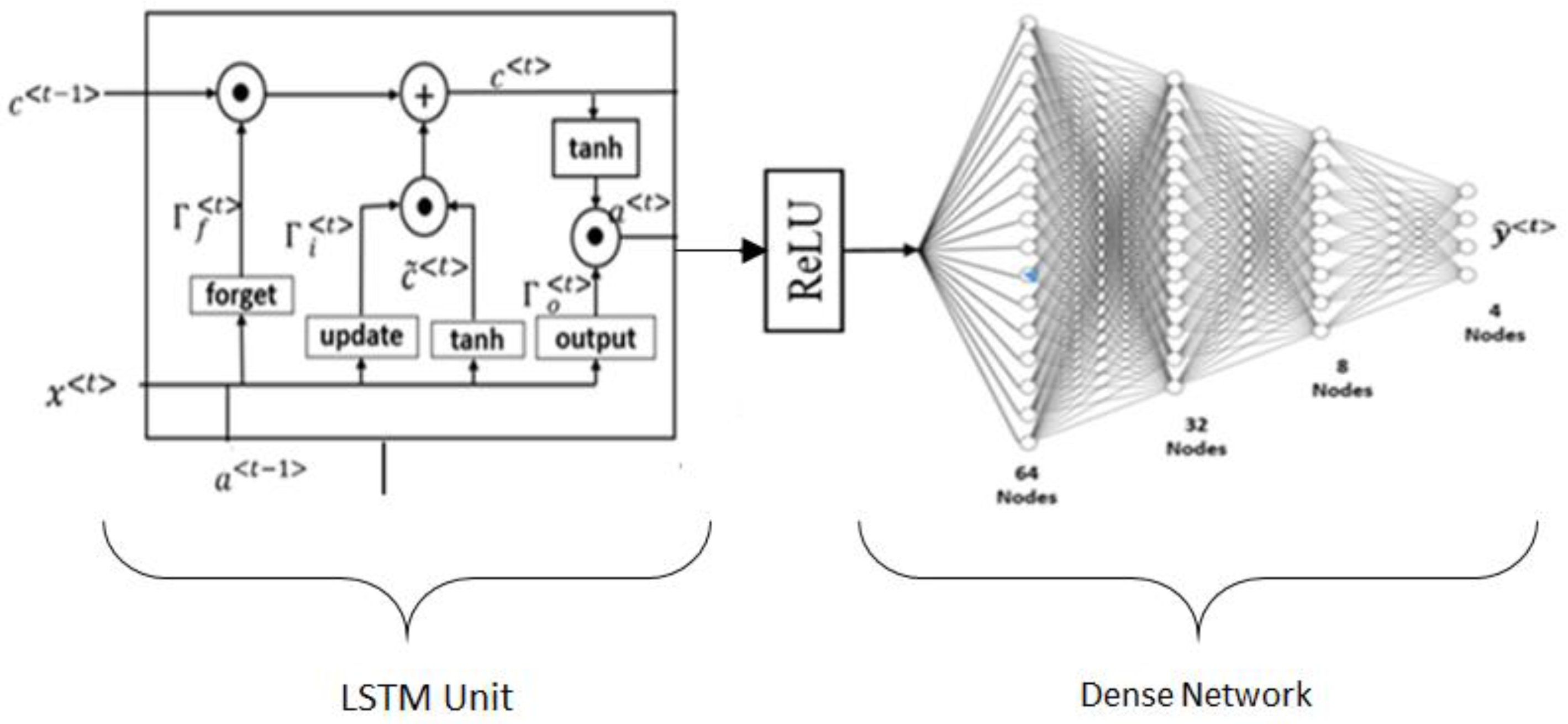

LSTM classifier: Long-term short memory (LSTM) is one of the types of DL algorithms that can be used to predict the likelihood of developing CVD or a stroke [96]. The issue of long-term dependency is specifically designed to create an LSTM as shown in Figure 8. They do not have to put in a lot of effort to learn how to remember things for extended periods because it is nearly part of their routine. The structure of an RNN always takes the form of a series of modules of the neural network that are repeated. In basic RNNs, this repeating module would frequently produce the same results as a single tanh layer. One of the most important characteristics of an LSTM is its capacity to perform analysis on multiple varieties of data points, such as a single observation. This design incorporates four primary elements, namely, cells, update gates, output gates, and null gates. The design is based on a single component called a cell. The values are stored in the cell at random intervals, and the flow of information or features into and out of the cell is controlled by three gates [142,143,144]. The LSTM consists of four fully connected layers that are fully coupled to one another and stacked on top of one another. When it comes to creating long-term linkages in data, an LSTM performs better than other methods [145].
The dropout strategy is difficult to implement, which makes it difficult to prevent overfitting in LSTMs, which is a common problem with these models. Dropout is a regularization method that works by leaving out the input and recurrent links to LSTM units during the activation and weight-updating steps of training a network. The behavior of an LSTM after being subjected to a variety of random weight initializations is, as a result, quite comparable to that of a feed-forward neural network. Instead, they chose initialization with a small amount of weight [96].

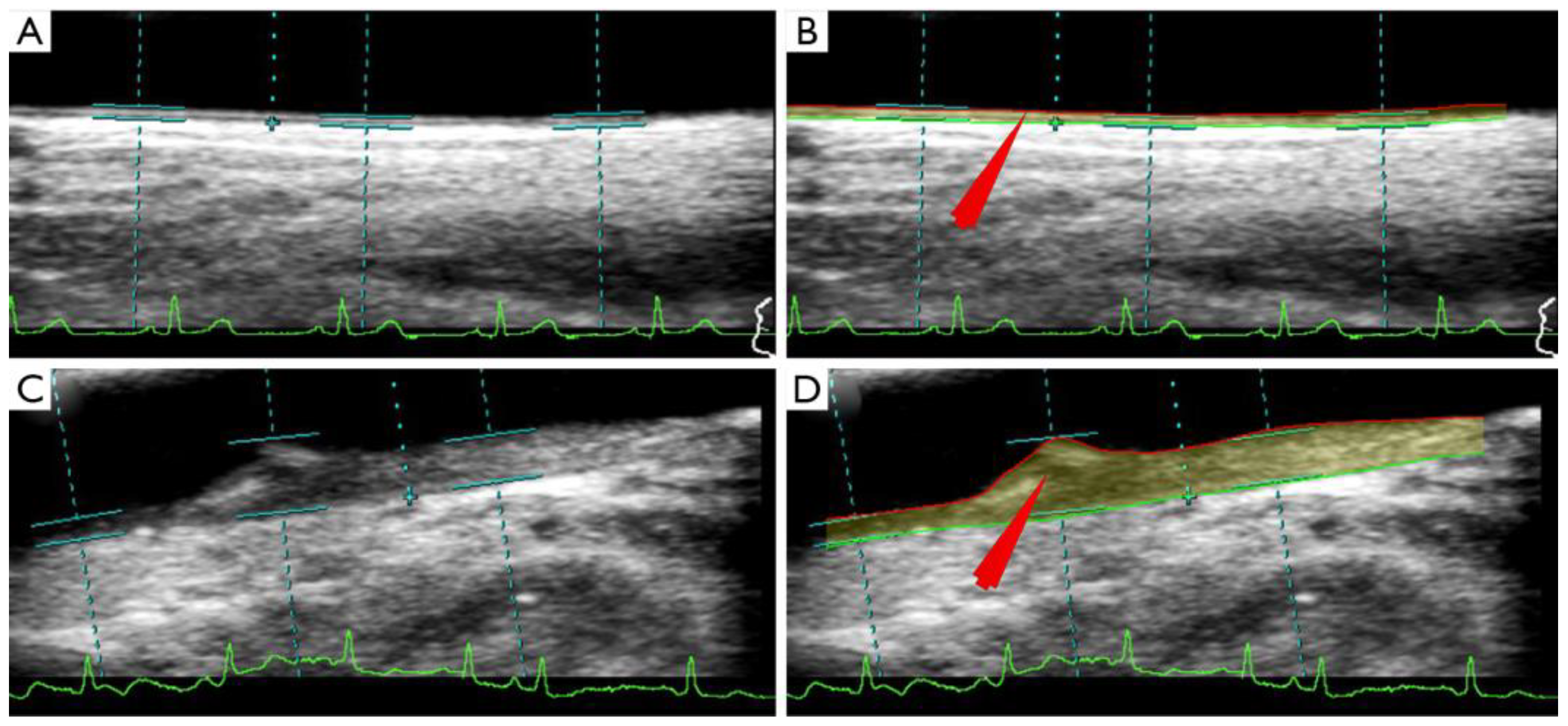

4.2. CUSIP Quantification Using UNet Architectures: UNet, UNet+, UNet++, UNet3P

Since the morphology of the plaque has variability, one needs out-of-the-box techniques which use knowledge-based systems for CUSIP measurements [31]. Such knowledge-based systems evolve a training program that can undergo nonlinear adjustment, as was previously demonstrated in the context of CVD risk stratification [97,98,137,146,147]. The image-based phenotypes that are generated from carotid ultrasound scans are regarded to be CUSIP [67,148]. These phenotypes include total plaque area, average and maximum carotid intima-media thickness (cIMT), intima-media thickness variability (IMTV), geometric total plaque area (gTPA), morphological total plaque area (mTPA), and lumen diameter (LD) [149,150,151] (AtheroEdge™ 3.0, AtheroPoint™, Roseville, CA, USA). This CUSIP is then used to improve the ML algorithm results shown in Figure 9. The segmentation of the carotid wall is helpful in the process of identifying the presence of plaque buildup [152,153,154]. The GT is an important component in the design of ML-based CVD risk stratification. This GT can be a CAD indicator, such as a CT score derived from the CT imaging. CT scoring can also be estimated using a DL framework or one can use plaque tissue characterization using optical coherence tomography (OCT) [155]. The paper by Suri et al. [156] discusses the CT-based scoring system. One can also use an IVUS-based solution for detecting CAD lesions [33,157,158].

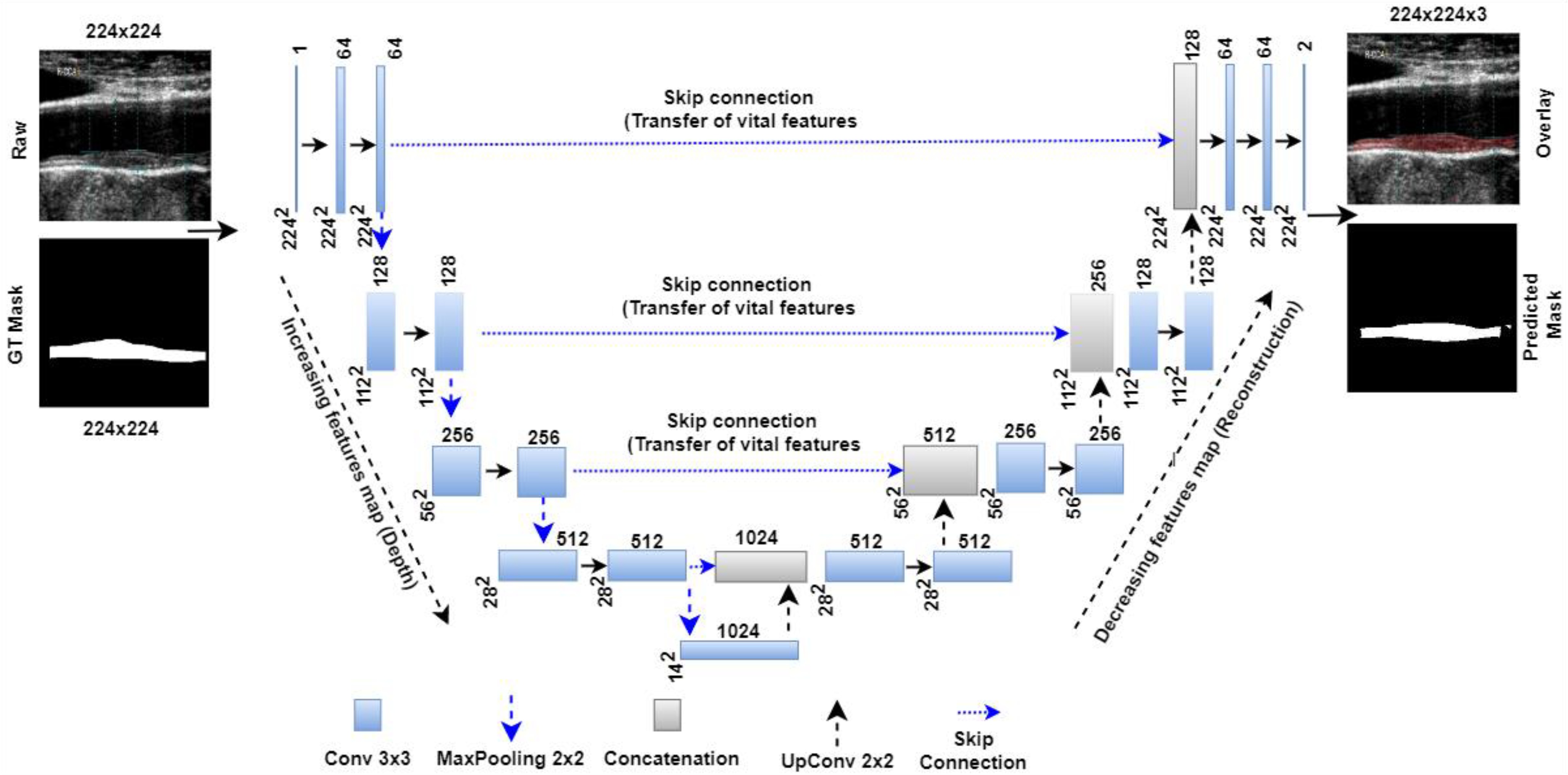

Jain et al. [121] have proposed the UNet model for the segmentation of atherosclerotic plaque as shown in Figure 10. The model represents a four-layer DL-based UNet design consisting of four encoders and four decoders on each side of the U-shaped network. The encoder takes down samples while the decoder takes up samples. Each UNet encoder stage has a 2D-convolution, ReLU, and MaxPooling layer. Each decoder stage includes a stack of up-convolution-2D, depth-concatenation, 2D-convolution, ReLU, and MaxPooling layers. Encoder stage one receives a 224 × 224 grayscale US carotid scan. Stage one had 64 convolution filters, and each subsequent stage doubled that number. Each stage has 128, 256, and 512 filters. Each decoder stage halves the number of filters, such as 512, 256, 128, and 64, which are the bottom numerals in the illustration. The bridge network connects the encoder and decoder units. The bridge network has 3 × 1024 filters. Bridge network features can be concatenated to the last encoder stage after downsampling from the first upsampling level. Each encoder stage’s spatial features are sent to the decoder through a skip connection. These functionalities are added to the decoder or bridge network layers. After the final decoder step, the plaque region and backdrop are identified using the softmax classifier layer (pink). An ADAM optimizer reduced plaque segmentation cross-entropy loss.
Deep learning has been improved by the addition of two models that operate independently of each other, a technique known as hybrid deep learning (HDL) [32,160,161,162]. As a result, an SDL-based UNet architecture can be used to create an HDL-based UNet, which may result in improved performance. In addition, given the arrangement of the convolution layer configuration, one can leverage the parallelization notion to increase the HDL designs’ overall performance. The UNet advanced algorithms, such as UNet++ and UNet3P, are shown in Appendix A.

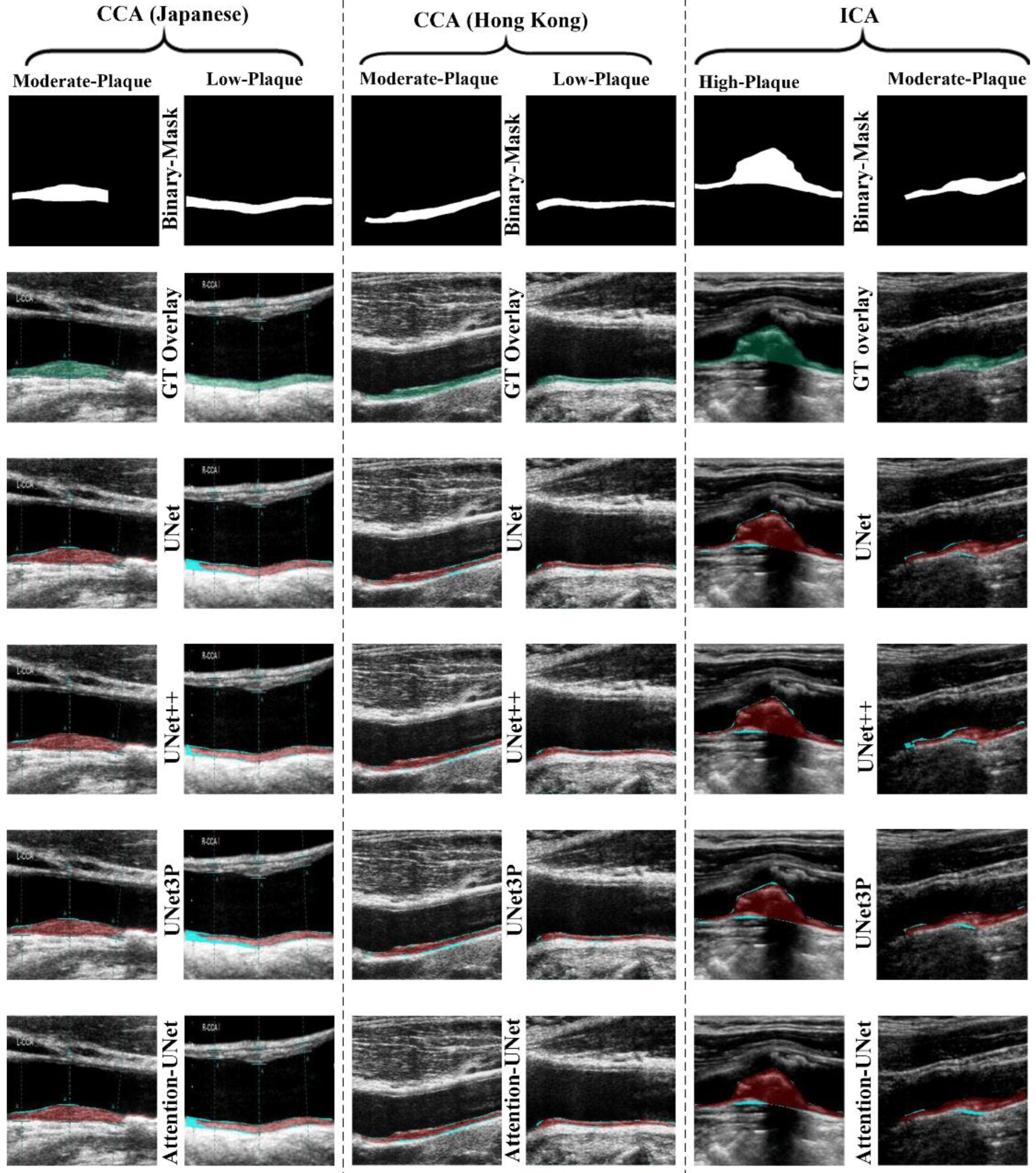

Jain et al. [121] show the role of UNet on two sets of carotid artery scans taken from Japanese and Hong Kong databases and in an unseen AI framework, which allows training on dataset A and testing on dataset B. The UNet model was trained on 330 Japanese DB photos and then evaluated on 300 Hong Kong DB images in the first experiment, referred to as “Unseen AI-1 (Tr: JAP, Te: HK)” [96]. Figure 11 shows the visualization of the carotid data. The UNet training model’s nine classification parameters considered were as follows: (i) the reliability coefficient (CC); (ii) the area under the curve (AUC); (iii) the accuracy; (iv) the sensitivity; (v) the specificity; (vi) the precision; (vii) Mathew’s correlation coefficient; (viii) the dice similarity coefficient (DSC); and (ix) the Jaccard index (JI). The mean values of the nine classification parameters for the 300 images in the HK DB are 0.8, 0.87, 98.55, 95.41, 98.64, 67.82, 79.29, 78.38, and 65.42 [121].

4.3. Deep Learning for Diabetic Foot Ulcer Lesion Segmentation and Its Quantification

Multiple investigations utilizing a variety of imaging techniques have demonstrated DL’s effectiveness in detecting DFI lesions [163,164,165]. In reality, DL has been tried out for lesion detection in several different settings, including (i) the common carotid artery [111,119,166], (ii) the coronary artery [33,167,168], (iii) the brain tumor [169,170,171], (iv) skin cancer [43,122], and (v) CT-based pulmonary imaging [172,173]. The DFI typically has amorphous shapes and permeable boundaries. The skin around a DFI might seem different at different phases, such as redness to callus formation, blistering, granulation, sloughing, bleeding, and scaly skin [174]. The skin around a DFI is crucial because it reveals whether or not the DFI is healing, and it is also a potential extension area [175,176]. Ischemia, inflammation, aberrant pressure, maceration from exudates, and other conditions all raise the likelihood of fragile skin. Similarly, if the skin around the DFI looks healthy, the wound is healing well. The medical imaging of diabetes-related foot ulcers remains complicated [164]. For the representation, we use a smartphone-captured foot image for the modality. However, CT/MRI/Xray images can be used for the imaging modality of foot ulcers [100].
To improve the process of extracting significant features that are connected to the classification of a DFI, a novel model of a deep CNN-based architecture has been proposed by Alzubaidi et al. [51]. The Directed Acyclic Graph (DAG) principle served as the inspiration for its structure during the design process. When employing these kinds of networks, two major concerns must be addressed. For certain uses, a network that consists of a limited number of different layers and has a straightforward structure is adequate. Furthermore, DFI categorization requires a network that has a more intricate structure to retrieve more information to differentiate between typical and abnormal classes. This not only contributes to an increase in the number of details that can be learned but also to an improvement in the correctness of that learning. Figure 12 illustrates the overall process that our classification follows.
The color, consistency, and discharge of the surrounding skin are all analyzed, and the area is palpated for signs of warmth, swelling, and soreness. Inflammation, usually caused by a wound infection, is indicated by the presence of redness. Black discoloration may indicate ischemia. If something is white and wet, it is because of maceration, but if it is white and dry, it is usually because of increased pressure. Understanding that skin tones affect how things look is crucial. Sometimes, skin lesions that show up red or brown on white appear black or purple. Darker skin colors may hide even mild cases of redness. The process of segmentation is designed by first extracting texture features and color variables from small patches of wound images, and then using ML algorithms to identify the patches of skin as either normal or aberrant [177,178,179,180].

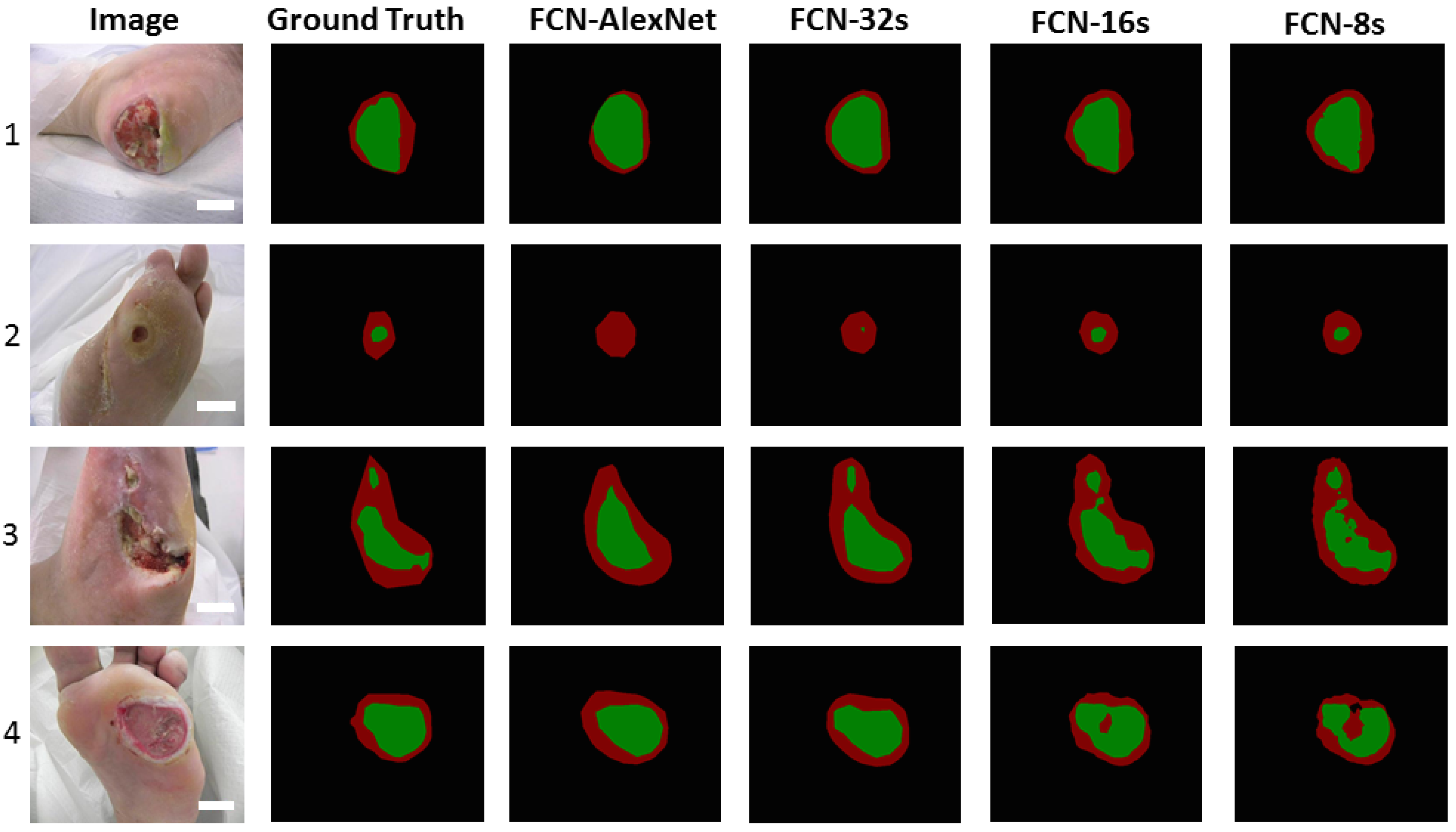

Here, we focus on an image-based DFI lesion segmentation and its quantification that extracts features (covariates) during the DL paradigm. In DL, manual delineations of DFI lesions are challenging and are also vital for the design of offline DL training models. Figure 13 shows a few instances in which FCN-AlexNet and FCN-32s models can detect the small DFI and distinct surrounding skin or detect a very small part of them. Hyperparameter adjustment during training is a crucial part of DL for achieving optimal system performance. To avoid overfitting and ensure generalization, it is necessary to optimize (i) the learning rate, (ii) the number of epochs, (iii) the batch size, (iv) the normalization of batches, and (v) the addition of dropout layers. As a corollary, the ideal DL architecture necessitates the use of many biomarker sets, each with its unique collection of data, on a big data platform that guarantees a multiresolution platform for speedy implementation [94]. To guarantee faster performance, such pretrained models can benefit from transfer learning when used for DFI lesion segmentation [120,180,181,182,183].

4.4. Challenges in CVD Risk Stratification on DFI Patients

Despite the availability of a wide range of diagnostic imaging techniques for the examination of diabetes-related foot problems, it is still difficult to differentiate between neuroarthropathy and osteomyelitis. The early and precise diagnosis of diabetic foot problems can assist in lowering the prevalence of infection-related comorbidities, the requirement for hospitalization, the length of hospitalization, and the prevalence of major limb amputations.
The main procedures that are used at this time for the examination of diabetes-related foot problems include traditional radiography, computerized tomography, nuclear medicine scintigraphy, magnetic resonance imaging, ultrasound, and positron emission tomography [184,185]. On the other hand, each one of these modalities cannot provide enough information by itself; therefore, a multimodal approach is required to arrive at an accurate diagnosis [186].
Therefore, we hypothesize that DL models can execute specific tasks, such as automated disease diagnosis, with more precision and efficiency than ML models, and that they serve as a second level of validation on the diagnosis. Models that have been trained using DL can be used for a broad variety of challenges, such as differential diagnosis, enhancements to image acquisition, and picture-based quantification.
The AI models have some challenges: (i) The data size must be large. If the data size is not big enough, SMOTE should be used during training to make it bigger. (ii) GT should be evaluated correctly for CVD risk, such as CAD in the training model. (iii) Optimization must be performed during the training of the CVD design. (iv) The correct CUSIP should be found by using UNET with attention channel maps. (v) All biomarkers, such as OBBM, LBBM, CUSIP, MedUSE, and DFI Severity, must be collected in the right way. (vi) DFI Severity DL system should give the risk appropriate and be validated by the Diabetologist or even surgeons dealing with foot amputations. (vii) Strong ML or DL models, such as XGBOOST, RNN, and LSTM, must be taken into account. (viii) If the ML models are not strong, one can switch to ML or DL ensemble models.

5. Discussion

5.1. Principal Findings

This is the first study to investigate the risk factors and gold standards for CVD and stroke in DFI patients based on their symptoms. The findings highlight the importance of selecting CVD and stroke risk-assessment approaches for DFI patients, especially those at high risk for CVD and stroke. Diagnosing a heart issue in a patient with a DFI is aided by surrogate carotid artery imaging. It has become clear from our research that ultrasound-based imaging techniques are the most practical for carotid atherosclerotic imaging. Furthermore, under the DFI framework, AI-based algorithms are the best option for the risk stratification of CVD/stroke.
A DFI is widely considered harmful to the brain and the heart. The review shows how a DFI worsens CVD and stroke in a progressive chain of events. We propose an approach to employing AI to aid in the diagnosis of CVD/stroke risk stratification in the DFI framework. Therefore, we can employ gold standards, such as coronary artery CT scores or coronary IVUS plaque burden, for superior AI training-based design for offline model generation, which can then be used for transforming the test patient features for CVD/stroke risk prediction. Using an AI-based model, we can effectively monitor these patients and prevent any CVD-related adverse long-term effects. Thus, for the DFI framework, ML and DL models can help provide a more precise assessment of the risk of CVD and stroke. The model could be taught so that it operates automatically and quickly. This is a game-changer for modern healthcare systems, particularly in identifying CVD and stroke risks in DFI patients. Clinicians can use the AI models’ vascular and cerebrovascular data-based results to better counsel DFI patients and advise them on their CVD/stroke risk stratification.

5.2. Benchmarking

An analysis of the available data reveals that a DFI and CVD have been connected in a few studies using OBBM, LBBM, and MedUSE. In the study, AI’s role in identifying combined CVD/stroke and a DFI has only been briefly mentioned. The AI model is only utilized by selecting a few articles within the DFI framework to describe the severity of CVD.
Parthiban et al. [127] explained the role of classifiers that can be helpful in the early diagnosis of the diabetic patient’s susceptibility to developing heart disease. The patients can then be warned to adjust the way they live as a result. Diabetic individuals will be less likely to develop heart disease, leading to lower mortality rates and, therefore, less overall healthcare costs. An SVMs classifier was explored that used a cross-validation protocol and showed an accuracy of 83.32%. Therefore, the use of this SVM model for the categorization of the diabetic dataset is something that may be advocated.
Jelinek et al. [128] focused on automatically identifying severe diabetic neuropathy using a brand-novel algorithm called Glioblastoma Multiforme (GBML). The study evaluated the specificity and sensitivity of the findings using GBML and compared the results against other ML methods. The patient size was 242. The uses K5 CV protocol. The GBML test for identifying acute diabetic neuropathy reached the highest degree of performance, with a sensitivity of 0.98 and a specificity of 0.89.
Zarkogianni et al. [129] carried out a study into the application of cutting-edge ML methods, the bilinear model, and ensemble learning to produce CVD risk scores for a population with type 2 diabetes. The utilization of a subsampling learning strategy resulted in the production of several primary models based on Hybrid Wavelet Neural Networks (HWNN) and self-organizing maps (SOM). The independently trained primary models’ results were combined using DL and the results were then compared with one another. The models were evaluated using information taken from the medical records of 560 T2DM patients. The best discrimination performance achieved an area under the curve (AUC) of up to 71.48%.
Segar et al. [131] proposed an innovative risk prediction tool, WATCH-DM, which was tested on a well-phenotyped clinical study of patients with type 2 diabetes and cardiovascular disease or risk factors, but no history of heart failure at baseline. It identified patients who face a heart failure risk of up to 20% in the next five years. Since the data needed to calculate the WATCH-DM risk score are collected during the routine clinical care of patients with type 2 diabetes, therefore, integrating the WATCH-DM risk score into electronic health record systems or mobile health applications will provide a powerful tool for clinical practice. The advantage of WATCH-DM is that it does not require a particular cardiovascular biomarker or supplementary imaging examination. More research needs to be done to determine whether or not the WATCH-DM can be effective compared to other therapeutic options that are now accessible, such as sodium-glucose transport proteins (SGLT2i).
Aggarwal et al. [116] demonstrated diabetes mellitus (DM) causes hyperglycemia. Type 1 and type 2 diabetes are insulin-deficiency and insulin-resistance conditions. It can induce atherosclerosis, stroke, and MI. Neurodegeneration and autonomic dysfunction are also present. Autonomic balance regulates nonlinear physiological factors. The data size of 526 was produced from ECG data to evaluate 13 regressive HRV parameters and test ANN. With these inputs, an ANN design (13:7:1), at a 0.01 learning rate, achieved 86.3% classification accuracy. SVM differentiated diabetic and controlled individuals with an accuracy of 90.5%. Nonlinear HRV parameters reveal different changes owing to diabetes, so they can be combined with ML algorithms to construct a noninvasive, low-cost real-time diabetes prognosis system.
Derevitskii et al. [115] proposed that DM is among the most frequent forms of diabetes, also known as chronic diabetes. This particular form of diabetes is among the healthcare industry’s most pressing concerns today. This disease is linked to several other conditions that simultaneously raise the risk of CVD and premature impairment. Patients diagnosed with type 2 diabetes have an elevated risk of various problems. In the case of patients such as these, medical doctors required methods that were more realistic for estimating the potential for future difficulties.
Karhu et al. [86] explained that the role of diabetes is extremely common in individuals who have already been diagnosed with CVD or chronic heart failure, and it is associated with a large increase in the likelihood of unfavorable outcomes. However, the persistently poor outcomes of people with diabetes mellitus highlight the importance of diabetes-specific systematic reviews and novel therapeutics aimed at specific pathophysiological requirements such as diabetic vascular and heart disease.
Schuett et al. [87] proposed that diabetes is prevalent in individuals who have already been diagnosed with CVD or chronic heart failure. It is essential to provide holistic care that focuses on lowering overall cardiovascular risk by employing various prevention methods to significantly cut the risk of cardiovascular events, progress to CHF, and mortality. However, the continually poor results of individuals with DM emphasize the importance of a diabetes-specific systematic review. Innovative therapeutics for particular pathophysiological conditions require an assessment of diabetic vascular and heart disease. To the best of our knowledge, no AI study has ever been able to provide us with information that is both clear and helpful regarding the CVD and stroke risk classification of DFI patients. The benchmarking analysis for the studies listed in Table 3 is presented below.

5.3. Special Note on Casual Relationship between DFI and CVD

DFIs are vascular complications of diabetes mellitus associated with high mortality and morbidity. A few authors discovered a higher prevalence of major, previous, and new-onset cardiovascular and cerebrovascular events in diabetic patients with foot ulcers than in those without these complications [23,52,187,188]. This is consistent with diabetes’ complicated interplay of factors with inflammatory metabolic diseases and their effects on the cardiovascular system, which could explain the increased morbidity and mortality levels in diabetic patients with amputations [189]. Inflammatory markers, such as IL-6 plasma levels and resisting, in diabetic participants validated the pathogenic issue of the “adipovascular” axis, which may add to the cardiovascular risk in type 2 diabetics. This “adipovascular axis” could be linked to the cause of foot ulcers in people with diabetes through microvascular and inflammatory mechanisms [2].

5.4. A Short Note on the Effect of COVID-19 on DFI Patients

COVID-19 has been shown to have affected several organs of the human body, such as the brain and heart [190]. A DFI causes more disability and death than any other diabetes condition. DFIs that do not heal despite treatment are the primary cause of hospitalization, amputation, disability, and mortality among people with diabetes [191]. People with diabetes, especially those with extensive foot ulcers, present significant issues in the face of a global pandemic such as COVID-19 [192]. To face the COVID-19 outbreak, the traditional diabetic foot treatment routine is no longer appropriate. Various studies have commented on a novel procedure for treating a patient with a DFI in the setting of the worldwide COVID-19 pandemic [188,193,194]. DFIs were classified as (i) mild (having no wound or tiny wound, no infection, and stable condition), (ii) moderate (having complex and refractory infection wound), or (iii) severe (having dry gangrene, sore in the injury, body temperature, and sepsis symptoms) [195]. Patients with generalized diabetic foot issues can receive treatment at home with the help of telemedicine. This allows clinicians to instruct patients and encourage them to do a selfexamination of the foot, how to change wound dressings, and administer medications [192]. Patients with severe problems are referred to the hospital’s outpatient clinic for treatment following a positive COVID-19 screening. Patients with a severe DFI who have been diagnosed or suspect that they have a COVID-19 infection require immediate isolation and ongoing quarantine. Patients with a low or mild DFI will be discharged to continue their care at home under telemedicine monitoring and physician supervision, while patients with a critical DFI will be admitted to the hospital following a COVID-19 screening [196]. During their hospital stay, patients with a DFI in a serious condition will receive a variety of treatments, ranging from rest and medication to debridement and local dilatation, and even amputation [197].

5.5. A Short Note on Bias in Deep Learning Systems for CVD/Stroke Risk, DFI, CUSIP Measurements

Bias was unnoticed in early computer-aided diagnosis systems [198]. Recently, the role of bias estimation in AI models has quickly emerged. Several factors are important, such as the sample size used in the training model design step of the DL algorithms, which is very important to consider. Furthermore, there is bias in AI due to several factors, including (i) a lack of clinical testing of AI techniques, (ii) scientific validation, (iii) failing to meet the gold standard, (iv) comorbidities, (v) a lack of big data configuration, (vi) failing to perceive the proper disease severity ratio, and (vii) variabilities in CVD [199]. As a consequence of this, when DFI-associated CVD symptoms (or risk variables) are investigated as inputs to an AI model, it is essential that the AI model be stable, accurate, and have a small amount of AI bias [152,156,173,200,201]. It is possible to observe that the database contains patient characteristics that are particular to a given region. Because of this, the model can produce false positive or negative results for other places, which would make the algorithm biased [185,202].

5.6. Work Flow for CVD Risk Stratification for DFI Patients

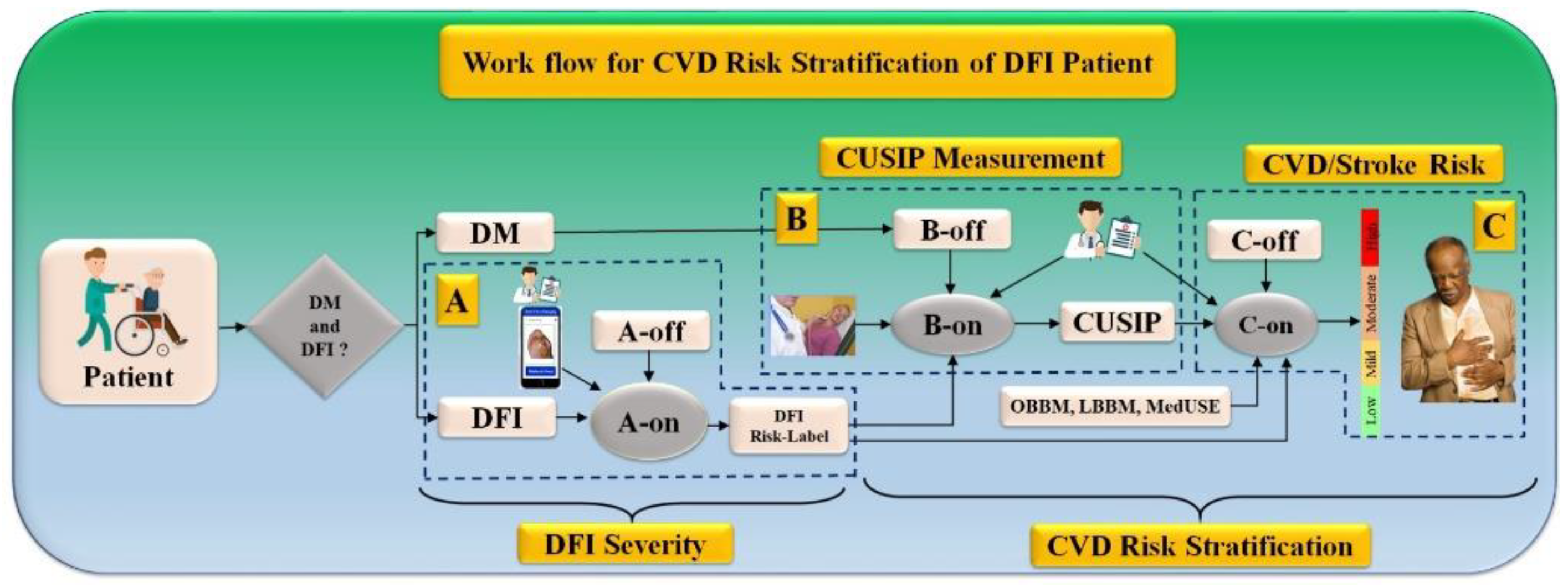

The workflow of the CVD/stroke risk stratification of DFI/DM patients can be seen in Figure 14. The pipeline consists of three major systems, labeled A, B, and C. System A consists of a DFI severity estimation given the patient’s condition if the patient has a DFI. This DFI is an online system called A-on. System B consists of the CUSIP measurements which is also an online AI-based system, called B-on. The final system C is also an online system, such as a machine or deep learning system, for CVD/stroke risk stratification labeled as C-on. Note that all three online AI-based systems are supervised and, hence, must be executed by the trained offline systems called A-off, B-off, and C-off. Note that the A-on system accepts real camera phone images of the DFI whose DFI severity needs to be estimated using the A-off system. The output of the A-on system is the DFI severity. The B-on system accepts the surrogate imaging of CAD, so-called carotid imaging, along with the B-off trained system leading to the CUSIP measurements. Finally, the C-on system is triggered by taking the inputs of online laboratory-based biomarkers, such as LBBM, OBBM, CUSIP, MedUSE, and DFI-severity, and the C-off trained system to estimate the CVD/stroke risk stratified system.
The main feature of the model is cost-effectiveness. The imaging device used for diabetic foot infection image capturing is a smartphone. CUSIP is used for the carotid artery scan. There is no necessity for extra devices.

5.7. Strengths, Weakness, and Extensions

The presented research article explains the various essential aspects of risk stratification for CVD and stroke patients with a DFI disease. Because of its improved nonlinear adjustment between the variables and the gold standard, DL provides better training and more accurate risk prediction. Additionally, the system gives it thorough predictors, such as OBBM, LBBM, CUSIP, MedUSE, and DFI as covariates, in addition to providing an estimation of the lesion size based on the wound scans of the diabetic foot. The role of an LSTM or RNN, an extremely effective strategy for creating the DL system for predicting the risk of CVD and stroke, was given. In conclusion, the DL system is generalized, and this generalization can be changed by including additional covariates and comorbidities, such as diabetes, rheumatoid arthritis, renal disease, coronary artery disease, etc.
While DL brings some benefits to the system, one must always ensure that the system is optimized to take advantage of these benefits. In addition, the DL system needs a solid gold standard for (a) lesion annotations and (b) CVD/stroke gold standard collection in cohorts. Both of these steps take a significant amount of time, and they also have associated costs. Last, but not least, as was said before, deep learning systems are vulnerable to artificial intelligence bias because of their overperformance in terms of accuracy and lack of interpretability.
When it comes to the design of extensions, ensemble-based methodologies allow for the creation of superior DL systems. Big data are an option that could be considered to strengthen the DL system by using a larger sample size and more data sources. If only a few participants are in the cohort, the DL system can be improved by incorporating augmentation designs. One can also integrate the conventional image-processing models with advanced DL models for superior feature extraction [5]. Furthermore, as part of the extension, one can learn about ulcers using multimodality imaging [203]. Another important component is to monitor the CVD/stroke risk with the changing DFI lesions. This can incorporate tools for image registration [204]. Last, but not least, the DL system needs to be updated with the latest round of pruning so that smaller training storage models [205] and evolutionary approaches [206] can be used.

6. Conclusions

This in-depth study brought to light the significance of CVD and stroke risk predictions for people with a DFI living in a diabetic environment. Additionally, we demonstrated how a DFI combined with hypertension can lead to strokes in both the vascular and cerebral systems. This review focused on how a DFI may contribute to the already complex nature of CVD and stroke. Therefore, it is essential to classify DFI patients’ risk of CVD and stroke. Carotid screening is a noninvasive, reduced alternative to traditional imaging that can be used to monitor people with a DFI for CVD and stroke. The low-cost B-mode ultrasonography will also help to describe the plaque tissue in patients with a DFI, which can improve the estimation of the risk of CVD and stroke. The severity of the DFI can be diagnosed and quantified using wound scan pictures of foot lesions. This information can then be used as a covariate in the DL design process.
An artificial intelligence-based model for predicting the risk of CVD and stroke in DFI patients was described using the AI framework. Because of this, we have discussed the function of an AI-based model that, based on the DFI risk profile of the patient, can reliably categorize patients diagnosed into risk groups for CVD and stroke. Finally, we explore the function that AI plays in this setting as well as the engagement of a DFI in the CVD/stroke paradigm.

Author Contributions

Conceptualization, J.S.S., M.M. (Mahesh Maindarkar), M.A.-M. and. S.P.; Methodology and software, J.S.S., M.M. (Mahesh Maindarkar), L.S., M.B. and M.T. Validation, A.M.J., M.T., V.V., P.A., I.M.S., G.F. and N.N.K., Investigation, K.V., J.R.L., K.I.P., I.M.S., M.T., S.M., M.M. (Martin Miner), G.T., D.W.S., K.L. and J.S.S.; Resources, S.P.; Data curation, M.M. (Mahesh Maindarkar), L.S., S.P., G.D.K. and J.S.S.; Writing—original draft preparation, S.P., M.M. (Mahesh Maindarkar), L.S., M.A.M., P.R.K., M.K.K., D.W.S., M.M.F., S.N. and J.S.S.; Writing—review and editing, S.P., A.P., M.M. (Mahesh Maindarkar), L.S., M.T., I.M.S., A.B., V.A., P.R.K. and J.S.S. Visualization, D.P.M., A.A., S.K.D., K.V., R.K., J.S.T., A.S. (Aditya Sharma), G.T., Z.R., A.D.P., A.N. and J.S.S.; Supervision, S.M., A.S. (Ajit Saxena), V.R., V.A., M.F. and J.S.S.; Project administration, S.P., N.N.K., J.S.T. and J.S.S. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Suri and Maindarkar is with AtheroPoint™ LLC, Roseville, CA, USA, which does cardiovascular and stroke imaging.

Data Availability Statement

No data availability.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. UNet+ and UNet++, and UNet3P Architecture

The UNet+ and UNet++ designs are depicted below in Figure 10 and Figure A1, respectively [207]. Both of these networks are enhanced variations of the UNet’s architecture. In each of these architectural designs, the links between the encoder and decoder stages are handled by something called a “dense skip network (DSN)”. The UpConv layer is the first in the DSN, which is then proceeded by concatenation and two levels of convolution. The output of the subsequent encoder stage is passed through the UpConv layer and into the concatenation layer, where it is merged with the output of the same encoder level. Both UNet+ and UNet++ have the same quantity of DSNs at every stage of the encoding and decoding process. It is important to note that, in the case of the UNet+ architecture, each DSN is only connected to its previous skip network output, as shown in Figure 10, whereas in the case of the UNet++ architecture, every DSN is linked to all prior DSNs in the same phase via avoiding network outputs, as shown in Figure A1. Figure 10 shows the UNet+ architecture, and Figure A1 shows the UNet++ architecture.
The UNet3P network is yet another iteration of the original UNet protocol. This model presents a novel approach to full-scale skip connection that improves upon the utility of multiscale features. High-level definition of feature maps generated from multiscale features is combined with lower-level specifics of the region of interest to use these full-scale skip connections. A lack of interconnectivity between features on
Figure A1. UNet++ Architecture.
Figure A1. UNet++ Architecture.
Jcm 11 06844 g0a1
Different scales are a weakness shared by UNet, UNet+, and UNet++. Therefore, UNet3P takes advantage of the multiscale features by incorporating lower-scale characteristics from the transmitter side with high-scale characteristics from the decoder side. In the UNet3P architecture, Decoder Stage 1 combines the characteristics map from Encoder Phase 1 (same scale), Decoder Phases 2, 3, and 4, and the bridge connection (large-scale). The characteristics map from Encoder Step 1, Encoder Stage 2, Decoder Stages 3, 4, and the bridge are combined in Decoder Stage 2 (large scale). The information from the first two stages of the encoder (at a lower scale), the third stage of the encoder (at the same scale), the fourth stage of the decoder, and the bridge are combined in the third stage of the decoder (large scale). Stage 4 of the decoder combines the information from stages 1–3 of the encoder (smaller scale), stage 4 of the encoder (same scale), and the bridge. The UNet3P architecture is depicted as a block diagram in Figure A2.
Figure A2. UNet++ Architecture.
Figure A2. UNet++ Architecture.
Jcm 11 06844 g0a2


  1. Apelqvist, J.; Bakker, K.; van Houtum, W.H.; Schaper, N.C.; International Working Group on the Diabetic Foot (IWGDF) Editorial Board. Practical guidelines on the management and prevention of the diabetic foot: Based upon the International Consensus on the Diabetic Foot (2007) Prepared by the International Working Group on the Diabetic Foot. Diabetes/Metab. Res. Rev. 2008, 24, S181–S187. [Google Scholar]
  2. Boulton, A.J.; Vileikyte, L.; Ragnarson-Tennvall, G.; Apelqvist, J. The global burden of diabetic foot disease. Lancet 2005, 366, 1719–1724. [Google Scholar] [CrossRef]
  3. Wang, C.-J.; Ko, J.-Y.; Kuo, Y.-R.; Yang, Y.-J. Molecular changes in diabetic foot ulcers. Diabetes Res. Clin. Pract. 2011, 94, 105–110. [Google Scholar] [CrossRef]
  4. ElTanboly, A.; Shalaby, A.; Mahmoud, A.; Ghazal, M.; Switala, A.; Taher, F.; Suri, J.S.; Keynton, R.; El-Baz, A. Computer Aided Diagnosis System for Early Detection of Diabetic Retinopathy Using OCT Images. In Big Data in Multimodal Medical Imaging; CRC Press: Boca Raton, FL, USA, 2019; pp. 281–299. [Google Scholar]
  5. El-Baz, A.; Gimel’Farb, G.; Suri, J.S. Stochastic Modeling for Medical Image Analysis; CRC Press: Boca Raton, FL, USA, 2015. [Google Scholar]
  6. Centers for Disease Control and Prevention. National Diabetes Fact Sheet: National Estimates and General Information on Diabetes and Prediabetes in the United States; US Department of Health Human Services, Centres for Disease Control Prevention: Atlanta, GA, UA, 2022; Volume 201, pp. 2568–2569.
  7. American Diabetes Association. Consensus Development Conference on Diabetic Foot Wound Care: 7–8 April 1999, Boston, Massachusetts. Diabetes Care 1999, 22, 1354–1360. [Google Scholar] [CrossRef] [PubMed]
  8. E Pecoraro, R.; E Reiber, G.; Burgess, E.M. Pathways to Diabetic Limb Amputation: Basis for Prevention. Diabetes Care 1990, 13, 513–521. [Google Scholar] [CrossRef] [PubMed]
  9. Khanolkar, M.; Bain, S.; Stephens, J. The diabetic foot. QJM An. Int. J. Med. 2008, 101, 685–695. [Google Scholar] [CrossRef] [PubMed]
  10. Reiber, G. Epidemiology of foot ulcers and amputations in the diabetic foot. Diabet. Foot 2001, 71, 73–82. [Google Scholar]
  11. Bertoluci, M.C.; Rocha, V.Z. Cardiovascular risk assessment in patients with diabetes. Diabetol. Metab. Syndr. 2017, 9, 25. [Google Scholar] [CrossRef] [Green Version]
  12. Islam, S.M.S.; Ahmed, S.; Uddin, R.; Siddiqui, M.U.; Malekahmadi, M.; Al Mamun, A.; Alizadehsani, R.; Khosravi, A.; Nahavandi, S. Cardiovascular diseases risk prediction in patients with diabetes: Posthoc analysis from a matched case-control study in Bangladesh. J. Diabetes Metab. Disord. 2021, 20, 417–425. [Google Scholar] [CrossRef]
  13. Domingueti, C.P.; Dusse, L.M.S.A.; Carvalho, M.d.G.; de Sousa, L.P.; Gomes, K.B.; Fernandes, A.P. Diabetes mellitus: The linkage between oxidative stress, inflammation, hypercoagulability and vascular complications. J. Diabetes Its Complicat. 2016, 30, 738–745. [Google Scholar] [CrossRef]
  14. Brownrigg, J.R.W.; Davey, J.; Holt, P.J.; Davis, W.A.; Thompson, M.M.; Ray, K.K.; Hinchliffe, R.J. The association of ulceration of the foot with cardiovascular and all-cause mortality in patients with diabetes: A meta-analysis. Diabetologia 2012, 55, 2906–2912. [Google Scholar] [CrossRef] [Green Version]
  15. Dietrich, I.; Braga, G.A.; De Melo, F.G.; Silva, A.C.C.D.C.S. The Diabetic Foot as a Proxy for Cardiovascular Events and Mortality Review. Curr. Atheroscler. Rep. 2017, 19, 44. [Google Scholar] [CrossRef] [PubMed]
  16. Tuttolomondo, A.; Maida, C.; Pinto, A. Diabetic Foot Syndrome as a Possible Cardiovascular Marker in Diabetic Patients. J. Diabetes Res. 2015, 2015, 268390. [Google Scholar] [CrossRef] [Green Version]
  17. Most, A.S.; A Ruocco, N.; Gewirtz, H. Effect of a reduction in blood viscosity on maximal myocardial oxygen delivery distal to a moderate coronary stenosis. Circulation 1986, 74, 1085–1092. [Google Scholar] [CrossRef] [Green Version]
  18. Munjral, S.; Ahluwalia, P.; Jamthikar, A.D.; Puvvula, A.; Saba, L.; Faa, G.; Singh, I.M.; Chadha, P.S.; Turk, M.; Johri, A.M.; et al. Nutrition, atherosclerosis, arterial imaging, cardiovascular risk stratification, and manifestations in COVID-19 framework: A narrative review. Front. Biosci. 2021, 26, 1312. [Google Scholar] [CrossRef]
  19. Munjral, S.; Maindarkar, M.; Ahluwalia, P.; Puvvula, A.; Jamthikar, A.; Jujaray, T.; Suri, N.; Paul, S.; Pathak, R.; Saba, L. Cardiovascular Risk Stratification in Diabetic Retinopathy via Atherosclerotic Pathway in COVID-19/Non-COVID-19 Frameworks Using Artificial Intelligence Paradigm: A Narrative Review. Diagnostics 2022, 12, 1234. [Google Scholar] [CrossRef] [PubMed]
  20. Balasubramanian, G.V.; Chockalingam, N.; Naemi, R. The Role of Cutaneous Microcirculatory Responses in Tissue Injury, Inflammation and Repair at the Foot in Diabetes. Front. Bioeng. Biotechnol. 2021, 28, 814. [Google Scholar] [CrossRef]
  21. Maskrey, B.H.; Megson, I.L.; Whitfield, P.D.; Rossi, A.G. Mechanisms of resolution of inflammation: A focus on cardio-vascular disease. Arterioscler. Thromb. Vasc. Biol. 2011, 31, 1001–1006. [Google Scholar] [CrossRef] [Green Version]
  22. Bolla, A.M.; Loretelli, C.; Montefusco, L.; Finzi, G.; Abdi, R.; Ben Nasr, M.; Lunati, M.E.; Pastore, I.; Bonventre, J.V.; Nebuloni, M.; et al. Inflammation and vascular dysfunction: The negative synergistic combination of diabetes and COVID-19. Diabetes/Metab. Res. Rev. 2022, 38, e3565. [Google Scholar] [CrossRef]
  23. Meloni, M.; Bellia, A.; Giurato, L.; Lauro, D.; Uccioli, L. Below-the-ankle arterial disease: A new marker of coronary artery disease in patients with diabetes and foot ulcers. Acta Diabetol. 2022, 59, 1331–1338. [Google Scholar] [CrossRef]
  24. Mishra, S.C.; Chhatbar, K.C.; Kashikar, A.; Mehndiratta, A. Diabetic foot. BMJ 2017, 359. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Pinto, A.; Tuttolomondo, A.; Di Raimondo, D.; Fernandez, P.; La Placa, S.; Di Gati, M.; Licata, G. Cardiovascular risk profile and morbidity in subjects affected by type 2 diabetes mellitus with and without diabetic foot. Metabolism 2008, 57, 676–682. [Google Scholar] [CrossRef] [PubMed]
  26. Tuttolomondo, A.; Del Cuore, A.; La Malfa, A.; Casuccio, A.; Daidone, M.; Maida, C.D.; Di Raimondo, D.; Di Chiara, T.; Puleo, M.G.; Norrito, R.; et al. Assessment of heart rate variability (HRV) in subjects with type 2 diabetes mellitus with and without diabetic foot: Correlations with endothelial dysfunction indices and markers of adipo-inflammatory dysfunction. Cardiovasc. Diabetol. 2021, 20, 142. [Google Scholar] [CrossRef] [PubMed]
  27. Al-Rubeaan, K.; al Derwish, M.; Ouizi, S.; Youssef, A.M.; Subhani, S.N.; Ibrahim, H.M.; Alamri, B.N. Diabetic foot com-plications and their risk factors from a large retrospective cohort study. PLoS ONE 2015, 10, e0124446. [Google Scholar] [CrossRef] [PubMed]
  28. Feleke, Y.; Mengistu, Y.; Enquselassie, F. Diabetic infections: Clinical and bacteriological study at Tikur Anbessa Specialized University Hospital, Addis Ababa, Ethiopia. Ethiop. Med. J. 2007, 45, 171–179. [Google Scholar] [PubMed]
  29. Anaya-Isaza, A.; Zequera-Diaz, M. Fourier transform-based data augmentation in deep learning for diabetic foot ther-mograph classification. Biocybern. Biomed. Eng. 2022, 42, 437–452. [Google Scholar] [CrossRef]
  30. Goyal, M.; Reeves, N.D.; Davison, A.K.; Rajbhandari, S.; Spragg, J.; Yap, M.H. DFUNet: Convolutional Neural Networks for Diabetic Foot Ulcer Classification. IEEE Trans. Emerg. Top. Comput. Intell. 2018, 4, 728–739. [Google Scholar] [CrossRef] [Green Version]
  31. Saba, L.; Jain, P.K.; Suri, H.S.; Ikeda, N.; Araki, T.; Singh, B.K.; Nicolaides, A.; Shafique, S.; Gupta, A.; Laird, J.R.; et al. Plaque Tissue Morphology-Based Stroke Risk Stratification Using Carotid Ultrasound: A Polling-Based PCA Learning Paradigm. J. Med. Syst. 2017, 41, 98. [Google Scholar] [CrossRef] [PubMed]
  32. Jain, P.K.; Sharma, N.; Giannopoulos, A.A.; Saba, L.; Nicolaides, A.; Suri, J.S. Hybrid deep learning segmentation models for atherosclerotic plaque in internal carotid artery B-mode ultrasound. Comput. Biol. Med. 2021, 136, 104721. [Google Scholar] [CrossRef] [PubMed]
  33. Banchhor, S.K.; Londhe, N.D.; Araki, T.; Saba, L.; Radeva, P.; Laird, J.R.; Suri, J.S. Wall-based measurement features provides an improved IVUS coronary artery risk assessment when fused with plaque texture-based features during machine learning paradigm. Comput. Biol. Med. 2017, 91, 198–212. [Google Scholar] [CrossRef]
  34. Araki, T.; Ikeda, N.; Shukla, D.; Jain, P.K.; Londhe, N.D.; Shrivastava, V.K.; Banchhor, S.K.; Saba, L.; Nicolaides, A.; Shafique, S. PCA-based polling strategy in machine learning framework for coronary artery disease risk assessment in intra-vascular ultrasound: A link between carotid and coronary grayscale plaque morphology. Comput. Methods Programs Biomed. 2016, 128, 137–158. [Google Scholar] [CrossRef] [PubMed]
  35. Johri, A.M.; Chitty, D.W.; Matangi, M.; Malik, P.; Mousavi, P.; Day, A.; Gravett, M.; Simpson, C. Can Carotid Bulb Plaque Assessment Rule Out Significant Coronary Artery Disease? A Comparison of Plaque Quantification by Two- and Three-Dimensional Ultrasound. J. Am. Soc. Echocardiogr. 2013, 26, 86–95. [Google Scholar] [CrossRef] [PubMed]
  36. Saba, L.; Biswas, M.; Kuppili, V.; Godia, E.C.; Suri, H.S.; Edla, D.R.; Omerzu, T.; Laird, J.R.; Khanna, N.N.; Mavrogeni, S.; et al. The present and future of deep learning in radiology. Eur. J. Radiol. 2019, 114, 14–24. [Google Scholar] [CrossRef] [PubMed]
  37. Ayman, J.S.S.; El-Baz, S. Machine Learning in Medicine—Chapman & Hall/CRC Healthcare Informatics Series; CRC Press: Boca Raton, FL, USA, 2021. [Google Scholar]
  38. El-Baz, A.; Suri, J.S. Big Data in Multimodal Medical Imaging; CRC Press: Boca Raton, FL, USA, 2019. [Google Scholar]
  39. Maniruzzaman; Kumar, N.; Abedin, M.; Islam, S.; Suri, H.S.; El-Baz, A.S.; Suri, J.S. Comparative approaches for classification of diabetes mellitus data: Machine learning paradigm. Comput. Methods Programs Biomed. 2017, 152, 23–34. [Google Scholar] [CrossRef] [PubMed]
  40. Maniruzzaman; Rahman, J.; Hasan, A.M.; Suri, H.S.; Abedin, M.; El-Baz, A.; Suri, J.S. Accurate Diabetes Risk Stratification Using Machine Learning: Role of Missing Value and Outliers. J. Med. Syst. 2018, 42, 92. [Google Scholar] [CrossRef] [Green Version]
  41. Kuppili, V.; Biswas, M.; Sreekumar, A.; Suri, H.S.; Saba, L.; Edla, D.R.; Marinhoe, R.T.; Sanches, J.; Suri, J.S. Extreme Learning Machine Framework for Risk Stratification of Fatty Liver Disease Using Ultrasound Tissue Characterization. J. Med. Syst. 2017, 41, 152. [Google Scholar] [CrossRef]
  42. Acharya, U.R.; Faust, O.; Sree, S.V.; Molinari, F.; Suri, J.S. ThyroScreen system: High resolution ultrasound thyroid image characterization into benign and malignant classes using novel combination of texture and discrete wavelet transform. Comput. Methods Programs Biomed. 2011, 107, 233–241. [Google Scholar] [CrossRef]
  43. Shrivastava, V.K.; Londhe, N.D.; Sonawane, R.S.; Suri, J.S. A novel and robust Bayesian approach for segmentation of psoriasis lesions and its risk stratification. Comput. Methods Programs Biomed. 2017, 150, 9–22. [Google Scholar] [CrossRef]
  44. Goldstein, B.A.; Navar, A.M.; Carter, R.E. Moving beyond regression techniques in cardiovascular risk prediction: Ap-plying machine learning to address analytic challenges. Eur. Heart J. 2016, 38, 1805–1814. [Google Scholar] [CrossRef] [Green Version]
  45. Khanna, N.N.; Maindarkar, M.; Puvvula, A.; Paul, S.; Bhagawati, M.; Ahluwalia, P.; Ruzsa, Z.; Sharma, A.; Munjral, S.; Kolluri, R. Vascular Implications of COVID-19: Role of Radiological Imaging, Artificial Intelligence, and Tissue Characterization: A Special Report. J. Cardiovasc. Dev. Dis. 2022, 9, 268. [Google Scholar] [CrossRef]
  46. Ming, C.; Viassolo, V.; Probst-Hensch, N.; Chappuis, P.O.; Dinov, I.D.; Katapodi, M.C. Machine learning techniques for personalized breast cancer risk prediction: Comparison with the BCRAT and BOADICEA models. Breast Cancer Res. 2019, 21, 75. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Biswas, M.; Kuppili, V.; Saba, L.; Edla, D.R.; Suri, H.S.; Cuadrado-Godia, E.; Laird, J.; Marinhoe, R.; Sanches, J.; Nicolaides, A. State-of-the-art review on deep learning in medical imaging. Front. Biosci. 2019, 24, 392–426. [Google Scholar]
  48. Khanna, N.N.; Maindarkar, M.; Saxena, A.; Ahluwalia, P.; Paul, S.; Srivastava, S.K.; Cuadrado-Godia, E.; Sharma, A.; Omerzu, T.; Saba, L.; et al. Cardiovascular/Stroke Risk Assessment in Patients with Erectile Dysfunction—A Role of Carotid Wall Arterial Imaging and Plaque Tissue Characterization Using Artificial Intelligence Paradigm: A Narrative Review. Diagnostics 2022, 12, 1249. [Google Scholar] [CrossRef] [PubMed]
  49. Chalakkal, R.; Hafiz, F.; Abdulla, W.; Swain, A. An efficient framework for automated screening of Clinically Significant Macular Edema. Comput. Biol. Med. 2020, 130, 104128. [Google Scholar] [CrossRef]
  50. Karbhari, Y.; Basu, A.; Geem, Z.W.; Han, G.-T.; Sarkar, R. Generation of Synthetic Chest X-ray Images and Detection of COVID-19: A Deep Learning Based Approach. Diagnostics 2021, 11, 895. [Google Scholar] [CrossRef]
  51. Alzubaidi, L.; Fadhel, M.A.; Oleiwi, S.R.; Al-Shamma, O.; Zhang, J. DFU_QUTNet: Diabetic foot ulcer classification using novel deep convolutional neural network. Multimed. Tools Appl. 2019, 79, 15655–15677. [Google Scholar] [CrossRef]
  52. Khanna, N.N.; Jamthikar, A.D.; Gupta, D.; Nicolaides, A.; Araki, T.; Saba, L.; Cuadrado-Godia, E.; Sharma, A.; Omerzu, T.; Suri, H.S.; et al. Performance evaluation of 10-year ultrasound image-based stroke/cardiovascular (CV) risk calculator by comparing against ten conventional CV risk calculators: A diabetic study. Comput. Biol. Med. 2019, 105, 125–143. [Google Scholar] [CrossRef]
  53. Molinari, F.; Liboni, W.; Giustetto, P.; Badalamenti, S.; Suri, J.S. Automatic Computer-Based Tracings (Act) in Longitudinal 2-D Ultrasound Images using Different Scanners. J. Mech. Med. Biol. 2009, 9, 481–505. [Google Scholar] [CrossRef]
  54. Suri, J.S.; Paul, S.; Maindarkar, M.A.; Puvvula, A.; Saxena, S.; Saba, L.; Turk, M.; Laird, J.R.; Khanna, N.N.; Viskovic, K.; et al. Cardiovascular/Stroke Risk Stratification in Parkinson’s Disease Patients Using Atherosclerosis Pathway and Artificial Intelligence Paradigm: A Systematic Review. Metabolites 2022, 12, 312. [Google Scholar] [CrossRef]
  55. Bruder, O.; Wagner, A.; Jensen, C.J.; Schneider, S.; Ong, P.; Kispert, E.-M.; Nassenstein, K.; Schlosser, T.; Sabin, G.V.; Sechtem, U.; et al. Myocardial Scar Visualized by Cardiovascular Magnetic Resonance Imaging Predicts Major Adverse Events in Patients With Hypertrophic Cardiomyopathy. J. Am. Coll. Cardiol. 2010, 56, 875–887. [Google Scholar] [CrossRef] [Green Version]
  56. Erbel, R.; Möhlenkamp, S.; Moebus, S.; Schmermund, A.; Lehmann, N.; Stang, A.; Dragano, N.; Grönemeyer, D.; Seibel, R.; Kälsch, H.; et al. Coronary Risk Stratification, Discrimination, and Reclassification Improvement Based on Quantification of Subclinical Coronary Atherosclerosis: The Heinz Nixdorf Recall Study. J. Am. Coll. Cardiol. 2010, 56, 1397–1406. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Qiu, L.; Li, Y.; Yang, C.; Mao, X.; Mai, L.; Zhu, L.; Xie, W. Influence of Foot Ulceration on All-Cause and Cardiovascular Mortality in Diabetic Patients: A Case-Control Study. J. Wound Ostomy Cont. Nurs. 2022, 49, 175–179. [Google Scholar] [CrossRef]
  58. Huang, J.; Li, W.; Wei, S.; Zhou, X.; Nong, Y.; Sun, J.; Zhai, Z.; Lu, W. Associations of Estimated Glomerular Filtration Rate with All-Cause Mortality and Cardiovascular Mortality in Patients with Diabetic Foot Osteomyelitis. Int. J. Gen. Med. 2021, 14, 4499–4509. [Google Scholar] [CrossRef]
  59. Yahagi, K.; Kolodgie, F.D.; Lutter, C.; Mori, H.; Romero, M.E.; Finn, A.V.; Virmani, R. Pathology of Human Coronary and Carotid Artery Atherosclerosis and Vascular Calcification in Diabetes Mellitus. Arter. Thromb. Vasc. Biol. 2017, 37, 191–204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. García-Malpartida, K.; Mármol, R.; Jover, A.; Gómez-Martínez, M.J.; Solá-Izquierdo, E.; Victor, V.M.; Rocha, M.; Sanmiguel, D.; Hernández-Mijares, A. Relationship between erectile dysfunction and silent myocardial ischemia in type 2 diabetic pa-tients with no known macrovascular complications. J. Sex. Med. 2011, 8, 2606–2616. [Google Scholar] [CrossRef] [PubMed]
  61. Pinto, A.; Tuttolomondo, A.; Di Raimondo, D.; La Placa, S.; Di Sciacca, R.; Fernandez, P.; Di Gati, M.; Raffa, A.; Licata, G. Ischemic stroke in patients with diabetic foot. Int. Angiol. 2007, 26, 266. [Google Scholar]
  62. Roper, N.A.; Bilous, R.W.; Kelly, W.F.; Unwin, N.C.; Connolly, V.M. Excess mortality in a population with diabetes and the impact of material deprivation: Longitudinal, population based study. BMJ 2001, 322, 1389–1393. [Google Scholar] [CrossRef] [Green Version]
  63. Kannel, W.B. Elevated systolic blood pressure as a cardiovascular risk factor. Am. J. Cardiol. 2000, 85, 251–255. [Google Scholar] [CrossRef]
  64. Rana, J.; Nieuwdorp, M.; Jukema, J.; Kastelein, J. Cardiovascular metabolic syndrome–an interplay of, obesity, inflamma-tion, diabetes and coronary heart disease. Diabetes Obes. Metab. 2007, 9, 218–232. [Google Scholar] [CrossRef]
  65. Jeffcoate, W.J.; Game, F.; Cavanagh, P.R. The role of proinflammatory cytokines in the cause of neuropathic osteoar-thropathy (acute Charcot foot) in diabetes. Lancet 2005, 366, 2058–2061. [Google Scholar] [CrossRef]
  66. Weigelt, C.; Rose, B.; Poschen, U.; Ziegler, D.; Friese, G.; Kempf, K.; Koenig, W.; Martin, S.; Herder, C. Immune Mediators in Patients With Acute Diabetic Foot Syndrome. Diabetes Care 2009, 32, 1491–1496. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Yang, D.; Elner, S.G.; Bian, Z.-M.; Till, G.O.; Petty, H.R.; Elner, V.M. Pro-inflammatory cytokines increase reactive oxygen species through mitochondria and NADPH oxidase in cultured RPE cells. Exp. Eye Res. 2007, 85, 462–472. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Ghaffari, S.; Jang, E.; Nabi, F.N.; Sanwal, R.; Khosraviani, N.; Wang, C.; Steinberg, B.E.; Goldenberg, N.M.; Ikeda, J.; Lee, W.L. Endothelial HMGB1 Is a Critical Regulator of LDL Transcytosis via an SREBP2–SR-BI Axis. Arter. Thromb. Vasc. Biol. 2020, 41, 200–216. [Google Scholar] [CrossRef]
  69. Moore, K.J.; Sheedy, F.J.; Fisher, E.A. Macrophages in atherosclerosis: A dynamic balance. Nat. Rev. Immunol. 2013, 13, 709–721. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Yu, X.-H.; Fu, Y.-C.; Zhang, D.-W.; Yin, K.; Tang, C.-K. Foam cells in atherosclerosis. Clin. Chim. Acta 2013, 424, 245–252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Palinski, W.; E Rosenfeld, M.; Ylä-Herttuala, S.; Gurtner, G.C.; Socher, S.S.; Butler, S.W.; Parthasarathy, S.; E Carew, T.; Steinberg, D.; Witztum, J.L. Low density lipoprotein undergoes oxidative modification in vivo. Proc. Natl. Acad. Sci. USA 1989, 86, 1372–1376. [Google Scholar] [CrossRef] [Green Version]
  72. Small, D.M. George Lyman Duff memorial lecture. Progression and regression of atherosclerotic lesions. Insights from lipid physical biochemistry. Arter. Off. J. Am. Heart Assoc. Inc. 1988, 8, 103–129. [Google Scholar] [CrossRef] [Green Version]
  73. Atherogenesis, A.O. Apoptosis and plaque destabilization in atherosclerosis: The role of macrophage apoptosis induced by cholesterol. Cell Death Differ. 2004, 11, S12–S16. [Google Scholar]
  74. Maiolino, G.; Rossitto, G.; Caielli, P.; Bisogni, V.; Rossi, G.P.; Calò, L.A. The Role of Oxidized Low-Density Lipoproteins in Atherosclerosis: The Myths and the Facts. Mediat. Inflamm. 2013, 2013, 714653. [Google Scholar] [CrossRef] [Green Version]
  75. Reddy, M.A.; Zhang, E.; Natarajan, R. Epigenetic mechanisms in diabetic complications and metabolic memory. Diabetologia 2014, 58, 443–455. [Google Scholar] [CrossRef] [Green Version]
  76. Yamagishi, S.-I.; Matsui, T. Role of hyperglycemia-induced advanced glycation end product (AGE) accumulation in atherosclerosis. Ann. Vasc. Dis. 2018, 67, ra-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Suzuki, K.; Nakagawa, K.; Miyazawa, T. Augmentation of blood lipid glycation and lipid oxidation in diabetic patients. Clin. Chem. Lab. Med. (CCLM) 2014, 52, 47–52. [Google Scholar] [CrossRef] [PubMed]
  78. Nor, N.A.M.; Budin, S.B.; Zainalabidin, S.; Jalil, J.; Sapian, S.; Jubaidi, F.F.; Anuar, N.N.M. The Role of Pol-yphenol in Modulating Associated Genes in Diabetes-Induced Vascular Disorders. Int. J. Mol. Sci. 2022, 23, 6396. [Google Scholar]
  79. Barbu, E.; Popescu, M.-R.; Popescu, A.-C.; Balanescu, S.-M. Inflammation as A precursor of atherothrombosis, diabetes and early vascular aging. Int. J. Mol. Sci. 2022, 23, 963. [Google Scholar] [CrossRef]
  80. Börgeson, E.; Godson, C. Resolution of inflammation: Therapeutic potential of pro-resolving lipids in type 2 diabetes mellitus and associated renal complications. Front. Immunol. 2012, 3, 318. [Google Scholar] [CrossRef] [Green Version]
  81. Ngcobo, S.R.; Nkambule, B.B.; Nyambuya, T.M.; Mokgalaboni, K.; Ntsethe, A.; Mxinwa, V.; Ziqubu, K.; Ntamo, Y.; Nyawo, T.A.; Dludla, P.V. Activated monocytes as a therapeutic target to attenuate vascular inflammation and lower cardiovascular disease-risk in patients with type 2 diabetes: A systematic review of preclinical and clinical studies. Biomed. Pharmacother. 2021, 146, 112579. [Google Scholar] [CrossRef]
  82. White, P.J.; Arita, M.; Taguchi, R.; Kang, J.X.; Marette, A. Transgenic Restoration of Long-Chain n-3 Fatty Acids in Insulin Target Tissues Improves Resolution Capacity and Alleviates Obesity-Linked Inflammation and Insulin Resistance in High-Fat–Fed Mice. Diabetes 2010, 59, 3066–3073. [Google Scholar] [CrossRef] [Green Version]
  83. Matheus, A.S.D.M.; Tannus, L.R.M.; Cobas, R.A.; Palma, C.C.S.; Negrato, C.A.; Gomes, M.D.B. Impact of Diabetes on Cardiovascular Disease: An Update. Int. J. Hypertens. 2013, 2013, 653789. [Google Scholar] [CrossRef] [Green Version]
  84. Petrie, J.; Guzik, T.J.; Touyz, R.M. Diabetes, Hypertension, and Cardiovascular Disease: Clinical Insights and Vascular Mechanisms. Can. J. Cardiol. 2017, 34, 575–584. [Google Scholar] [CrossRef] [Green Version]
  85. Serhiyenko, V.A.; Serhiyenko, A.A. Cardiac autonomic neuropathy: Risk factors, diagnosis and treatment. World J. Diabetes 2018, 9, 1. [Google Scholar] [CrossRef]
  86. Karhu, T.; Myllymaa, S.; Nikkonen, S.; Mazzotti, D.R.; Kulkas, A.; Töyräs, J.; Leppänen, T. Diabetes and cardiovascular diseases are associated with the worsening of intermittent hypoxaemia. J. Sleep Res. 2021, 31, e13441. [Google Scholar] [CrossRef] [PubMed]
  87. Schuett, K.; Forst, T.; Birkenfeld, A.L.; Zirlik, A.; Müller-Wieland, D.; Marx, N. Diabetes mellitus and the heart. Exp. Clin. Endocrinol. Diabetes 2022, 130, S123–S126. [Google Scholar] [CrossRef] [PubMed]
  88. Winston, P.H. Artificial Intelligence; Addison-Wesley Longman Publishing Co., Inc.: Boston, MA, USA, 1992. [Google Scholar]
  89. Ramesh, A.; Kambhampati, C.; Monson, J.R.; Drew, P. Artificial intelligence in medicine. Ann. R. Coll. Surg. Engl. 2004, 86, 334. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  90. Nillmani; Jain, P.K.; Sharma, N.; Kalra, M.K.; Viskovic, K.; Saba, L.; Suri, J.S. Four Types of Multiclass Frameworks for Pneumonia Classification and Its Validation in X-ray Scans Using Seven Types of Deep Learning Artificial Intelligence Models. Diagnostics 2022, 12, 652. [Google Scholar] [CrossRef] [PubMed]
  91. Saba, L.; Agarwal, M.; Patrick, A.; Puvvula, A.; Gupta, S.K.; Carriero, A.; Laird, J.R.; Kitas, G.D.; Johri, A.M.; Balestrieri, A.; et al. Six artificial intelligence paradigms for tissue characterisation and classification of non-COVID-19 pneumonia against COVID-19 pneumonia in computed tomography lungs. Int. J. Comput. Assist. Radiol. Surg. 2021, 16, 423–434. [Google Scholar] [CrossRef]
  92. Biswas, M.; Kuppili, V.; Saba, L.; Edla, D.R.; Suri, H.S.; Sharma, A.; Cuadrado-Godia, E.; Laird, J.R.; Nicolaides, A.; Suri, J.S. Deep learning fully convolution network for lumen characterization in diabetic patients using carotid ultrasound: A tool for stroke risk. Med. Biol. Eng. Comput. 2018, 57, 543–564. [Google Scholar] [CrossRef]
  93. Hesamian, M.H.; Jia, W.; He, X.; Kennedy, P. Deep Learning Techniques for Medical Image Segmentation: Achievements and Challenges. J. Digit. Imaging 2019, 32, 582–596. [Google Scholar] [CrossRef] [Green Version]
  94. Fourcade, A.; Khonsari, R. Deep learning in medical image analysis: A third eye for doctors. J. Stomatol. Oral Maxillofac. Surg. 2019, 120, 279–288. [Google Scholar] [CrossRef]
  95. Konstantonis, G.; Singh, K.V.; Sfikakis, P.P.; Jamthikar, A.D.; Kitas, G.D.; Gupta, S.K.; Saba, L.; Verrou, K.; Khanna, N.N.; Ruzsa, Z. Cardiovascular disease detection using machine learning and carotid/femoral arterial imaging frameworks in rheumatoid arthritis patients. Rheumatol. Int. 2022, 42, 215–239. [Google Scholar] [CrossRef]
  96. Johri, A.M.; Singh, K.V.; Mantella, L.E.; Saba, L.; Sharma, A.; Laird, J.R.; Utkarsh, K.; Singh, I.M.; Gupta, S.; Kalra, M.S. Deep learning artificial intelligence framework for multiclass coronary artery disease prediction using combination of conventional risk factors, carotid ultrasound, and intraplaque neovascularization. Comput. Biol. Med. 2022, 150, 106018. [Google Scholar] [CrossRef]
  97. Jamthikar, A.D.; Gupta, D.; Mantella, L.E.; Saba, L.; Laird, J.R.; Johri, A.M.; Suri, J.S. Multiclass machine learning vs. conventional calculators for stroke/CVD risk assessment using carotid plaque predictors with coronary angiography scores as gold standard: A 500 participants study. Int. J. Cardiovasc. Imaging 2020, 37, 1171–1187. [Google Scholar] [CrossRef] [PubMed]
  98. Jamthikar, A.; Gupta, D.; Khanna, N.N.; Saba, L.; Laird, J.R.; Suri, J.S. Cardiovascular/stroke risk prevention: A new machine learning framework integrating carotid ultrasound image-based phenotypes and its harmonics with conventional risk factors. Indian Heart J. 2020, 72, 258–264. [Google Scholar] [CrossRef] [PubMed]
  99. Jamthikar, A.D.; Gupta, D.; Johri, A.M.; Mantella, L.E.; Saba, L.; Kolluri, R.; Sharma, A.M.; Viswanathan, V.; Nicolaides, A.; Suri, J.S. Low-Cost Office-Based Cardiovascular Risk Stratification Using Machine Learning and Focused Carotid Ultrasound in an Asian-Indian Cohort. J. Med. Syst. 2020, 44, 208. [Google Scholar] [CrossRef] [PubMed]
  100. Khandakar, A.; Chowdhury, M.E.; Reaz, M.B.I.; Ali, S.H.; Hasan, A.; Kiranyaz, S.; Rahman, T.; Alfkey, R.; Bakar, A.A.A.; Malik, R.A. A machine learning model for early detection of diabetic foot using thermogram images. Comput. Biol. Med. 2021, 137, 104838. [Google Scholar] [CrossRef] [PubMed]
  101. Dinh, A.; Miertschin, S.; Young, A.; Mohanty, S.D. A data-driven approach to predicting diabetes and cardiovascular disease with machine learning. BMC Med. Inform. Decis. Mak. 2019, 19, 211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  102. Kim, H.; Lim, D.; Kim, Y. Classification and Prediction on the Effects of Nutritional Intake on Overweight/Obesity, Dyslipidemia, Hypertension and Type 2 Diabetes Mellitus Using Deep Learning Model: 4–7th Korea National Health and Nutrition Examination Survey. Int. J. Environ. Res. Public Health 2021, 18, 5597. [Google Scholar] [CrossRef]
  103. Longato, E.; Fadini, G.P.; Sparacino, G.; Avogaro, A.; Tramontan, L.; Di Camillo, B. A Deep Learning Approach to Predict Diabetes’ Cardiovascular Complications From Administrative Claims. IEEE J. Biomed. Health Inform. 2021, 25, 3608–3617. [Google Scholar] [CrossRef]
  104. Goyal, M.; Yap, M.H.; Reeves, N.D.; Rajbhandari, S.; Spragg, J. Fully convolutional networks for diabetic foot ulcer seg-mentation. In Proceedings of the 2017 IEEE International conference on Systems, Man, and Cybernetics (SMC), Banff, AB, Canada, 5–8 October 2017; IEEE: Piscataway, NJ, USA; pp. 618–623. [Google Scholar]
  105. Viswanathan, V.; Puvvula, A.; Jamthikar, A.D.; Saba, L.; Johri, A.M.; Kotsis, V.; Khanna, N.N.; Dhanjil, S.K.; Majhail, M.; Misra, D.P.; et al. Bidirectional link between diabetes mellitus and coronavirus disease 2019 leading to cardiovascular disease: A narrative review. World J. Diabetes 2021, 12, 215–237. [Google Scholar] [CrossRef]
  106. Moore, S.T.; MacDougall, H.G.; Ondo, W.G. Ambulatory monitoring of freezing of gait in Parkinson’s disease. J. Neurosci. Methods 2008, 167, 340–348. [Google Scholar] [CrossRef]
  107. Mandal, I.; Sairam, N. New machine-learning algorithms for prediction of Parkinson’s disease. Int. J. Syst. Sci. 2012, 45, 647–666. [Google Scholar] [CrossRef]
  108. Sriram, T.V.; Rao, M.V.; Narayana, G.S.; Kaladhar, D.; Vital, T.P.R. Intelligent Parkinson disease prediction using machine learning algorithms. Int. J. Eng. Innov. Technol. (IJEIT) 2013, 3, 1568–1572. [Google Scholar]
  109. Pereira, C.R.; Pereira, D.R.; da Silva, F.A.; Hook, C.; Weber, S.A.; Pereira, L.A.; Papa, J.P. A Step Towards the Automated Diagnosis of Parkinson’s Disease: Analyzing Handwriting Movements. In Proceedings of the 2015 IEEE 28th International Symposium on Computer-Based Medical Systems, Ribeirão Preto, Brazil, 22–25 June 2015; IEEE: Piscataway, NJ, USA; pp. 171–176. [Google Scholar]
  110. Adams, W.R. High-accuracy detection of early Parkinson’s Disease using multiple characteristics of finger movement while typing. PLoS ONE 2017, 12, e0188226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Jamthikar, A.D.; Gupta, D.; Puvvula, A.; Johri, A.M.; Khanna, N.N.; Saba, L.; Mavrogeni, S.; Laird, J.R.; Pareek, G.; Miner, M.; et al. Cardiovascular risk assessment in patients with rheumatoid arthritis using carotid ultrasound B-mode imaging. Rheumatol. Int. 2020, 40, 1921–1939. [Google Scholar] [CrossRef] [PubMed]
  112. Nillmani; Sharma, N.; Saba, L.; Khanna, N.N.; Kalra, M.K.; Fouda, M.M.; Suri, J.S. Segmentation-Based Classification Deep Learning Model Embedded with Explainable AI for COVID-19 Detection in Chest X-ray Scans. Diagnostics 2022, 12, 2132. [Google Scholar] [CrossRef] [PubMed]
  113. Viswanathan, V.; Jamthikar, A.; Gupta, D.; Shanu, N.; Puvvula, A.; Khanna, N.N.; Saba, L.; Omerzum, T.; Viskovic, K.; Mavrogeni, S. Low-cost preventive screening using carotid ultrasound in patients with diabetes. Front. Biosci. Landark 2020, 25, 1132–1171. [Google Scholar]
  114. Jamthikar, A.; Gupta, D.; Saba, L.; Khanna, N.N.; Viskovic, K.; Mavrogeni, S.; Laird, J.R.; Sattar, N.; Johri, A.M.; Pareek, G. Artificial intelligence framework for predictive cardiovascular and stroke risk assessment models: A narrative review of in-tegrated approaches using carotid ultrasound. Comput. Biol. Med. 2020, 12, 404–418. [Google Scholar] [CrossRef]
  115. Derevitskii, I.V.; Kovalchuk, S.V. Machine Learning-Based Predictive Modeling of Complications of Chronic Diabetes. Procedia Comput. Sci. 2020, 178, 274–283. [Google Scholar] [CrossRef]
  116. Aggarwal, Y.; Das, J.; Mazumder, P.M.; Kumar, R.; Sinha, R.K. Heart rate variability features from nonlinear cardiac dynamics in identification of diabetes using artificial neural network and support vector machine. Biocybern. Biomed. Eng. 2020, 40, 1002–1009. [Google Scholar] [CrossRef]
  117. Suri, J.S.; Maindarkar, M.A.; Paul, S.; Ahluwalia, P.; Bhagawati, M.; Saba, L.; Faa, G.; Saxena, S.; Singh, I.M.; Chadha, P.S.; et al. Deep Learning Paradigm for Cardiovascular Disease/Stroke Risk Stratification in Parkinson’s Disease Affected by COVID-19: A Narrative Review. Diagnostics 2022, 12, 1543. [Google Scholar] [CrossRef]
  118. Biswas, M.; Saba, L.; Omerzu, T.; Johri, A.M.; Khanna, N.N.; Viskovic, K.; Mavrogeni, S.; Laird, J.R.; Pareek, G.; Miner, M.; et al. A Review on Joint Carotid Intima-Media Thickness and Plaque Area Measurement in Ultrasound for Cardiovascular/Stroke Risk Monitoring: Artificial Intelligence Framework. J. Digit. Imaging 2021, 34, 581–604. [Google Scholar] [CrossRef]
  119. Jain, P.K.; Sharma, N.; Saba, L.; Paraskevas, K.I.; Kalra, M.K.; Johri, A.; Nicolaides, A.N.; Suri, J.S. Automated deep learning-based paradigm for high-risk plaque detection in B-mode common carotid ultrasound scans: An asymptomatic Jap-anese cohort study. Int. Angiol. A J. Int. Union Angiol. 2021, 41, 9–23. [Google Scholar] [CrossRef] [PubMed]
  120. Sanagala, S.S.; Nicolaides, A.; Gupta, S.K.; Koppula, V.K.; Saba, L.; Agarwal, S.; Johri, A.M.; Kalra, M.S.; Suri, J.S. Ten Fast Transfer Learning Models for Carotid Ultrasound Plaque Tissue Characterization in Augmentation Framework Embedded with Heatmaps for Stroke Risk Stratification. Diagnostics 2021, 11, 2109. [Google Scholar] [CrossRef] [PubMed]
  121. Jain, P.K.; Sharma, N.; Saba, L.; Paraskevas, K.I.; Kalra, M.K.; Johri, A.; Laird, J.R.; Nicolaides, A.N.; Suri, J.S. Unseen artificial intelligence—Deep learning paradigm for segmentation of low atherosclerotic plaque in carotid ultrasound: A multi-center cardiovascular study. Diagnostics 2021, 11, 2257. [Google Scholar] [CrossRef] [PubMed]
  122. Shrivastava, V.; Londhe, N.D.; Sonawane, R.; Suri, J.S. Reliable and accurate psoriasis disease classification in dermatology images using comprehensive feature space in machine learning paradigm. Expert Syst. Appl. 2015, 42, 6184–6195. [Google Scholar] [CrossRef]
  123. Teji, J.S.; Jain, S.; Gupta, S.K.; Suri, J.S. NeoAI 1.0: Machine learning-based paradigm for prediction of neonatal and infant risk of death. Comput. Biol. Med. 2022, 147, 105639. [Google Scholar] [CrossRef] [PubMed]
  124. Jamthikar, A.; Gupta, D.; Johri, A.M.; Mantella, L.E.; Saba, L.; Suri, J.S. A machine learning framework for risk prediction of multi-label cardiovascular events based on focused carotid plaque B-Mode ultrasound: A Canadian study. Comput. Biol. Med. 2021, 140, 105102. [Google Scholar] [CrossRef]
  125. Acharya, U.R.; Faust, O.; Alvin, A.G.; Krishnamurthi, G.; Seabra, J.; Sanches, J.; Suri, J.S. Understanding symptomatology of atherosclerotic plaque by image-based tissue characterization. Comput. Methods Programs Biomed. 2013, 110, 66–75. [Google Scholar] [CrossRef]
  126. Suri, J.S.; Puvvula, A.; Majhail, M.; Biswas, M.; Jamthikar, A.D.; Saba, L.; Faa, G.; Singh, I.M.; Oberleitner, R.; Turk, M. In-tegration of cardiovascular risk assessment with COVID-19 using artificial intelligence. Rev. Cardiovasc. Med. 2020, 21, 541–560. [Google Scholar]
  127. Parthiban, G.; Srivatsa, S.K. Applying Machine Learning Methods in Diagnosing Heart Disease for Diabetic Patients. Int. J. Appl. Inf. Syst. 2012, 3, 25–30. [Google Scholar] [CrossRef]
  128. Jelinek, H.F.; Cornforth, D.J.; Kelarev, A.V. Machine Learning Methods for Automated Detection of Severe Diabetic Neuropathy. J. Diabet. Complicat. Med. 2016, 1, 1–7. [Google Scholar] [CrossRef] [Green Version]
  129. Zarkogianni, K.; Athanasiou, M.; Thanopoulou, A.C.; Nikita, K.S. Comparison of Machine Learning Approaches Toward Assessing the Risk of Developing Cardiovascular Disease as a Long-Term Diabetes Complication. IEEE J. Biomed. Health Inform. 2017, 22, 1637–1647. [Google Scholar] [CrossRef] [PubMed]
  130. Basu, S.; Raghavan, S.; Wexler, D.J.; Berkowitz, S.A. Characteristics Associated With Decreased or Increased Mortality Risk From Glycemic Therapy Among Patients With Type 2 Diabetes and High Cardiovascular Risk: Machine Learning Analysis of the ACCORD Trial. Diabetes Care 2017, 41, 604–612. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  131. Segar, M.W.; Vaduganathan, M.; Patel, K.V.; McGuire, D.K.; Butler, J.; Fonarow, G.C.; Basit, M.; Kannan, V.; Grodin, J.L.; Everett, B.; et al. Machine Learning to Predict the Risk of Incident Heart Failure Hospitalization Among Patients With Diabetes: The WATCH-DM Risk Score. Diabetes Care 2019, 42, 2298–2306. [Google Scholar] [CrossRef]
  132. Hossain, M.E.; Uddin, S.; Khan, A. Network analytics and machine learning for predictive risk modelling of cardiovas-cular disease in patients with type 2 diabetes. Expert Syst. Appl. 2021, 164, 113918. [Google Scholar] [CrossRef]
  133. Tseng, P.-Y.; Chen, Y.-T.; Wang, C.-H.; Chiu, K.-M.; Peng, Y.-S.; Hsu, S.-P.; Chen, K.-L.; Yang, C.-Y.; Lee, O.K.-S. Prediction of the development of acute kidney injury following cardiac surgery by machine learning. Crit. Care 2020, 24, 478. [Google Scholar] [CrossRef] [PubMed]
  134. Ho, T.K. Random decision forests. In Proceedings of the 3rd International Conference on Document Analysis and Recognition, Montreal, QC, Canada, 14–16 August 1995; IEEE: Piscataway, NJ, USA, 1995; Volume 1, pp. 278–282. [Google Scholar]
  135. Dimitriadis, S.I.; Liparas, D.; Dni, A. How random is the random forest? Random forest algorithm on the service of structural imaging biomarkers for Alzheimer’s disease: From Alzheimer’s disease neuroimaging initiative (ADNI) database. Neural Regen. Res. 2018, 13, 962–970. [Google Scholar] [CrossRef]
  136. Robinson, R.L.M.; Palczewska, A.; Palczewski, J.; Kidley, N. Comparison of the predictive performance and in-terpretability of random forest and linear models on benchmark data sets. J. Chem. Inf. Model. 2017, 57, 1773–1792. [Google Scholar] [CrossRef]
  137. Jamthikar, A.; Gupta, D.; Khanna, N.N.; Saba, L.; Araki, T.; Viskovic, K.; Suri, H.S.; Gupta, A.; Mavrogeni, S.; Turk, M.; et al. A low-cost machine learning-based cardiovascular/stroke risk assessment system: Integration of conventional factors with image phenotypes. Cardiovasc. Diagn. Ther. 2019, 9, 420–430. [Google Scholar] [CrossRef] [Green Version]
  138. Rumelhart, D.E.; Hinton, G.E.; Williams, R.J. Learning Internal Representations by Error Propagation; California Univ San Diego La Jolla Inst for Cognitive Science: La Jolla, CA, USA, 1985. [Google Scholar]
  139. Durstewitz, D. A state space approach for piecewise-linear recurrent neural networks for identifying computational dynamics from neural measurements. PLOS Comput. Biol. 2017, 13, e1005542. [Google Scholar] [CrossRef]
  140. Razaghi, H.S.; Paninski, L. Filtering normalizing flows. In Proceedings of the Bayesian Deep Learning Workshop at NeurIPS, Vancouver, BC, Canada, 13 December 2019. [Google Scholar]
  141. Bengio, Y.; Simard, P.; Frasconi, P. Learning long-term dependencies with gradient descent is difficult. IEEE Trans. Neural Netw. 1994, 5, 157–166. [Google Scholar] [CrossRef]
  142. Amin, J.; Sharif, M.; Raza, M.; Saba, T.; Sial, R.; Shad, S.A. Brain tumor detection: A long short-term memory (LSTM)-based learning model. Neural Comput. Appl. 2019, 32, 15965–15973. [Google Scholar] [CrossRef]
  143. An, Y.; Tang, K.; Wang, J. Time-Aware Multi-Type Data Fusion Representation Learning Framework for Risk Prediction of Cardiovascular Diseases. IEEE/ACM Trans. Comput. Biol. Bioinform. 2021. [Google Scholar] [CrossRef] [PubMed]
  144. Tan, L.; Yu, K.; Bashir, A.K.; Cheng, X.; Ming, F.; Zhao, L.; Zhou, X. Toward real-time and efficient cardiovascular monitoring for COVID-19 patients by 5G-enabled wearable medical devices: A deep learning approach. Neural Comput. Appl. 2021, 4, 1–14. [Google Scholar] [CrossRef] [PubMed]
  145. Priyanga, P.; Pattankar, V.V.; Sridevi, S. A hybrid recurrent neural network - logistic chaos-based whale optimization framework for heart disease prediction with electronic health records. Comput. Intell. 2020, 37, 315–343. [Google Scholar] [CrossRef]
  146. Jamthikar, A.; Gupta, D.; Saba, L.; Khanna, N.N.; Araki, T.; Viskovic, K.; Mavrogeni, S.; Laird, J.R.; Pareek, G.; Miner, M.; et al. Cardiovascular/stroke risk predictive calculators: A comparison between statistical and machine learning models. Cardiovasc. Diagn. Ther. 2020, 10, 919–938. [Google Scholar] [CrossRef]
  147. Brindisino, F.; Pennella, D.; Giovannico, G.; Rossettini, G.; Heick, J.D.; Maselli, F. Low back pain and calf pain in a recreational runner masking peripheral artery disease: A case report. Physiother. Theory Pract. 2021, 37, 1146–1157. [Google Scholar] [CrossRef]
  148. Ikeda, N.; Gupta, A.; Dey, N.; Bose, S.; Shafique, S.; Arak, T.; Godia, E.C.; Saba, L.; Laird, J.R.; Nicolaides, A.; et al. Improved Correlation between Carotid and Coronary Atherosclerosis SYNTAX Score Using Automated Ultrasound Carotid Bulb Plaque IMT Measurement. Ultrasound Med. Biol. 2015, 41, 1247–1262. [Google Scholar] [CrossRef]
  149. Sanches, J.M.; Laine, A.F.; Suri, J.S. Ultrasound Imaging; Springer: Berlin/Heidelberg, Germany, 2012. [Google Scholar]
  150. Khaksar, G.M.; Nunes, A.; Ferreira, H.; Serranho, P.; Bernardes, R. Texture analysis and its applications in biomedical imaging: A survey. IEEE Rev. Biomed. Eng. 2021, 15, 222–246. [Google Scholar]
  151. Sree, A.O.; Vinitha, S.; Molinari Filippo, L.; Nicolaide Andrew Suri Jasjit, S. An accurate and generalized approach to plaque characterization in 346 carotid ultrasound scans. IEEE Trans. Instrum. Meas. 2011, 61, 1045–1053. [Google Scholar]
  152. Sudeep, P.; Palanisamy, P.; Rajan, J.; Baradaran, H.; Saba, L.; Gupta, A.; Suri, J.S. Speckle reduction in medical ultrasound images using an unbiased non-local means method. Biomed. Signal Process. Control 2016, 28, 1–8. [Google Scholar] [CrossRef]
  153. Pewowaruk, R.J.; Tedla, Y.; Korcarz, C.E.; Tattersall, M.C.; Stein, J.H.; Chesler, N.C.; Gepner, A.D. Carotid Artery Stiffening With Aging: Structural Versus Load-Dependent Mechanisms in MESA (the Multi-Ethnic Study of Atherosclerosis). Hypertension 2022, 79, 150–158. [Google Scholar] [CrossRef] [PubMed]
  154. El-Baz, A.S.; Acharya, R.; Mirmehdi, M.; Suri, J.S. Multi Modality State-of-the-Art Medical Image Segmentation and Registration Methodologies; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
  155. Boi, A.; Jamthikar, A.D.; Saba, L.; Gupta, D.; Sharma, A.; Loi, B.; Laird, J.R.; Khanna, N.N.; Suri, J.S. A Survey on Coronary Atherosclerotic Plaque Tissue Characterization in Intravascular Optical Coherence Tomography. Curr. Atheroscler. Rep. 2018, 20, 33. [Google Scholar] [CrossRef] [PubMed]
  156. Suri, J.S.; Bhagawati, M.; Paul, S.; Protogeron, A.; Sfikakis, P.P.; Kitas, G.D.; Khanna, N.N.; Ruzsa, Z.; Sharma, A.M.; Saxena, S.; et al. Understanding the bias in machine learning systems for cardiovascular disease risk assessment: The first of its kind review. Comput. Biol. Med. 2022, 142, 105204. [Google Scholar] [CrossRef] [PubMed]
  157. Banchhor, S.K.; Araki, T.; Londhe, N.D.; Ikeda, N.; Radeva, P.; Elbaz, A.; Saba, L.; Nicolaides, A.; Shafique, S.; Laird, J.R.; et al. Five multiresolution-based calcium volume measurement techniques from coronary IVUS videos: A comparative approach. Comput. Methods Programs Biomed. 2016, 134, 237–258. [Google Scholar] [CrossRef]
  158. Banchhor, S.K.; Londhe, N.D.; Saba, L.; Radeva, P.; Laird, J.R.; Suri, J.S. Relationship between automated coronary calcium volumes and a set of manual coronary lumen volume, vessel volume and atheroma volume in japanese diabetic cohort. J. Clin. Diagn. Res. JCDR 2017, 11, TC09. [Google Scholar] [CrossRef]
  159. Pai Ramdas, G.; Vyas, V. Implications of ethnicity in subclinical atherosclerosis in underserved populations: Inadequacy of coronary risk score models. J. Am. Coll. Cardiol. 2022, 80, 230–232. [Google Scholar]
  160. Jena, B.; Saxena, S.; Nayak, G.K.; Saba, L.; Sharma, N.; Suri, J.S. Artificial intelligence-based hybrid deep learning models for image classification: The first narrative review. Comput. Biol. Med. 2021, 137, 104803. [Google Scholar] [CrossRef]
  161. Skandha, S.S.; Nicolaides, A.; Gupta, S.K.; Koppula, V.K.; Saba, L.; Johri, A.M.; Kalra, M.S.; Suri, J.S. A hybrid deep learning paradigm for carotid plaque tissue characterization and its validation in multicenter cohorts using a supercomputer framework. Comput. Biol. Med. 2021, 141, 105131. [Google Scholar] [CrossRef]
  162. Suri, J.; Agarwal, S.; Pathak, R.; Ketireddy, V.; Columbu, M.; Saba, L.; Gupta, S.; Faa, G.; Singh, I.; Turk, M.; et al. COVLIAS 1.0: Lung Segmentation in COVID-19 Computed Tomography Scans Using Hybrid Deep Learning Artificial Intelligence Models. Diagnostics 2021, 11, 1405. [Google Scholar] [CrossRef]
  163. Muñoz, P.; Rodríguez, R.; Montalvo, N. Automatic segmentation of diabetic foot ulcer from mask region-based convolu-tional neural networks. J. Biomed. Res. Clin. Investig. 2020, 1, 1006. [Google Scholar]
  164. Wang, L.; Pedersen, P.C.; Strong, D.M.; Tulu, B.; Agu, E.; Ignotz, R.; He, Q. An automatic assessment system of diabetic foot ulcers based on wound area determination, color segmentation, and healing score evaluation. J. Diabetes Sci. Tech-Nology 2016, 10, 421–428. [Google Scholar] [CrossRef] [PubMed]
  165. Jawahar, M.; Anbarasi, L.J.; Jasmine, S.G.; Narendra, M. Diabetic foot ulcer segmentation using color space models. In Proceedings of the 2020 5th International Conference on Communication and Electronics Systems (ICCES), Coimbatore, India, 10–12 June 2020; IEEE: Piscataway, NJ, USA; pp. 742–747. [Google Scholar]
  166. Saba, L.; Sanagala, S.S.; Gupta, S.K.; Koppula, V.K.; Johri, A.M.; Sharma, A.M.; Kolluri, R.; Bhatt, D.L.; Nicolaides, A.; Suri, J.S. Ultrasound-based internal carotid artery plaque characterization using deep learning paradigm on a supercomputer: A cardiovascular disease/stroke risk assessment system. Int. J. Cardiovasc. Imaging 2021, 37, 1511–1528. [Google Scholar] [CrossRef] [PubMed]
  167. Araki, T.; Ikeda, N.; Dey, N.; Chakraborty, S.; Saba, L.; Kumar, D.; Godia, E.C.; Jiang, X.; Gupta, A.; Radeva, P.; et al. A comparative approach of four different image registration techniques for quantitative assessment of coronary artery calcium lesions using intravascular ultrasound. Comput. Methods Programs Biomed. 2015, 118, 158–172. [Google Scholar] [CrossRef] [PubMed]
  168. Murgia, A.; Balestrieri, A.; Crivelli, P.; Suri, J.S.; Conti, M.; Cademartiri, F.; Saba, L. Cardiac computed tomography radi-omics: An emerging tool for the non-invasive assessment of coronary atherosclerosis. Cardiovasc. Diagn. Ther. 2020, 10, 2005. [Google Scholar] [CrossRef]
  169. Saba, L.; Sanfilippo, R.; Porcu, M.; Lucatelli, P.; Montisci, R.; Zaccagna, F.; Suri, J.S.; Anzidei, M.; Wintermark, M. Relationship between white matter hyperintensities volume and the circle of Willis configurations in patients with carotid artery pathology. Eur. J. Radiol. 2017, 89, 111–116. [Google Scholar] [CrossRef]
  170. Tandel, G.S.; Balestrieri, A.; Jujaray, T.; Khanna, N.N.; Saba, L.; Suri, J.S. Multiclass magnetic resonance imaging brain tumor classification using artificial intelligence paradigm. Comput. Biol. Med. 2020, 122, 103804. [Google Scholar] [CrossRef]
  171. Das, S.; Nayak, G.; Saba, L.; Kalra, M.; Suri, J.S.; Saxena, S. An artificial intelligence framework and its bias for brain tumor segmentation: A narrative review. Comput. Biol. Med. 2022, 143, 105273. [Google Scholar] [CrossRef]
  172. Cau, R.; Pacielli, A.; Fatemeh, H.; Vaudano, P.; Arru, C.; Crivelli, P.; Stranieri, G.; Suri, J.S.; Mannelli, L.; Conti, M. Complications in COVID-19 patients: Characteristics of pulmonary embolism. Clin. Imaging 2021, 77, 244–249. [Google Scholar] [CrossRef]
  173. Suri, J.S.; Agarwal, S.; Carriero, A.; Paschè, A.; Danna, P.S.; Columbu, M.; Saba, L.; Viskovic, K.; Mehmedović, A.; Agarwal, S. COVLIAS 1.0 vs. MedSeg: Artificial Intelligence-Based Comparative Study for Automated COVID-19 Computed Tomog-raphy Lung Segmentation in Italian and Croatian Cohorts. Diagnostics 2021, 11, 2367. [Google Scholar] [CrossRef]
  174. Lipsky, B.A.; Berendt, A.R.; Deery, H.G.; Embil, J.M.; Joseph, W.S.; Karchmer, A.W.; LeFrock, J.L.; Lew, D.P.; Mader, J.T.; Norden, C. Diagnosis and treatment of diabetic foot infections. Clin. Infect. Dis. 2004, 1, 885–910. [Google Scholar] [CrossRef]
  175. Steed, D.L.; Donohoe, D.; Webster, M.W.; Lindsley, L. Effect of extensive debridement and treatment on the healing of diabetic foot ulcers. Diabetic Ulcer Study Group. J. Am. Coll. Surg. 1996, 183, 61–64. [Google Scholar] [PubMed]
  176. Rajbhandari, S.M.; Harris, N.D.; Sutton, M.; Lockett, C.; Eaton, S.; Gadour, M.; Tesfaye, S.; Ward, J.D. Digital imaging: An accurate and easy method of measuring foot ulcers. Diabet. Med. 1999, 16, 339–342. [Google Scholar] [CrossRef] [PubMed]
  177. Kolesnik, M.; Fexa, A. Multi-dimensional Color Histograms for Segmentation of Wounds in Images. In International Conference Image Analysis and Recognition; Springer: Berlin/Heidelberg, Germany, 2005; pp. 1014–1022. [Google Scholar]
  178. Kolesnik, M.; Fexa, A. How robust is the SVM wound segmentation? In Proceedings of the 7th Nordic Signal. Processing Symposium-NORSIG, Piscataway, NJ, USA, 7–9 June 2006; IEEE: Piscataway, NJ, USA; pp. 50–53. [Google Scholar]
  179. Papazoglou, E.S.; Zubkov, L.; Mao, X.; Neidrauer, M.; Rannou, N.; Weingarten, M.S. Image analysis of chronic wounds for determining the surface area. Wound Repair Regen. 2010, 18, 349–358. [Google Scholar] [CrossRef]
  180. Veredas, F.; Mesa, H.; Morente, L. Binary tissue classification on wound images with neural networks and bayesian clas-sifiers. IEEE Trans. Med. Imaging 2009, 29, 410–427. [Google Scholar] [CrossRef] [PubMed]
  181. Alzubaidi, L.; Fadhel, M.A.; Al-Shamma, O.; Zhang, J.; Santamaría, J.; Duan, Y.; Oleiwi, S.R. Towards a better under-standing of transfer learning for medical imaging: A case study. Appl. Sci. 2020, 10, 4523. [Google Scholar] [CrossRef]
  182. Sarp, S.; Kuzlu, M.; Wilson, E.; Cali, U.; Guler, O. The Enlightening Role of Explainable Artificial Intelligence in Chronic Wound Classification. Electronics 2021, 10, 1406. [Google Scholar] [CrossRef]
  183. Agarwal, M.; Saba, L.; Gupta, S.K.; Johri, A.M.; Khanna, N.N.; Mavrogeni, S.; Laird, J.R.; Pareek, G.; Miner, M.; Sfikakis, P.P. Wilson disease tissue classification and characterization using seven artificial intelligence models embedded with 3D opti-mization paradigm on a weak training brain magnetic resonance imaging datasets: A supercomputer application. Med. Biol. Eng. Comput. 2021, 59, 511–533. [Google Scholar] [CrossRef]
  184. Jo, T.; Nho, K.; Saykin, A.J. Deep Learning in Alzheimer’s Disease: Diagnostic Classification and Prognostic Prediction Using Neuroimaging Data. Front. Aging Neurosci. 2019, 11, 220. [Google Scholar] [CrossRef] [Green Version]
  185. Hanna, S.; Hansen, L.; Heinrich, M.P. Learning a Metric for Multimodal Medical Image Registration without Supervision Based on Cycle Constraints. Sensors 2022, 3, 1107. [Google Scholar]
  186. Saba, L.; Sanagala, S.S.; Gupta, S.K.; Koppula, V.K.; Johri, A.M.; Khanna, N.N.; Mavrogeni, S.; Laird, J.R.; Pareek, G.; Miner, M. Multimodality carotid plaque tissue characterization and classification in the artificial intelligence paradigm: A nar-rative review for stroke application. Ann. Transl. Med. 2021, 9. [Google Scholar] [CrossRef]
  187. Retnakaran, R.; Shah, B.R. Role of Type 2 Diabetes in Determining Retinal, Renal, and Cardiovascular Outcomes in Women With Previous Gestational Diabetes Mellitus. Diabetes Care 2016, 40, 101–108. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  188. Atri, A.; Kocherlakota, C.M.; Dasgupta, R. Managing diabetic foot in times of COVID-19: Time to put the best ‘foot’forward. Int. J. Diabetes Dev. Ctries. 2020, 40, 321–328. [Google Scholar] [CrossRef] [PubMed]
  189. Apelqvist, J. Diagnostics and treatment of the diabetic foot. Endocrine 2012, 41, 384–397. [Google Scholar] [CrossRef] [PubMed]
  190. Suri, J.S.; Puvvula, A.; Biswas, M.; Majhail, M.; Saba, L.; Faa, G.; Singh, I.M.; Oberleitner, R.; Turk, M.; Chadha, P.S. COVID-19 pathways for brain and heart injury in comorbidity patients: A role of medical imaging and artificial intelligence-based COVID severity classification: A review. Comput. Biol. 2020, 124, 103960. [Google Scholar] [CrossRef] [PubMed]
  191. Shin, L.; Bowling, F.L.; Armstrong, D.G.; Boulton, A.J. Saving the Diabetic Foot During the COVID-19 Pandemic: A Tale of Two Cities. Diabetes Care 2020, 43, 1704–1709. [Google Scholar] [CrossRef]
  192. Kelahmetoglu, O.; Camlı, M.F.; Kirazoglu, A.; Erbayat, Y.; Asgarzade, S.; Durgun, U.; Mehdizade, T.; Yeniocak, A.; Yildiz, K.; Ergun, S.S.; et al. Recommendations for management of diabetic foot ulcers during COVID-19 outbreak. Int. Wound J. 2020, 17, 1424–1427. [Google Scholar] [CrossRef] [PubMed]
  193. Jaly, I.; Iyengar, K.; Bahl, S.; Hughes, T.; Vaishya, R. Redefining diabetic foot disease management service during COVID-19 pandemic. Diabetes Metab. Syndr. Clin. Res. Rev. 2020, 14, 833–838. [Google Scholar] [CrossRef]
  194. Boulton, A. Diabetic Foot Disease during the COVID-19 Pandemic. Medicina 2021, 57, 97. [Google Scholar] [CrossRef]
  195. Tao, F.; Tang, X.; Tao, H.; Luo, Y.; Cao, H.; Xiang, W.; Zhao, Y.; Jin, L. Surgical treatment of diabetic foot ulcers during the COVID-19 pandemic in China. J. Diabetes Its Complicat. 2020, 34, 107622. [Google Scholar] [CrossRef]
  196. Urbančič-Rovan, V. Diabetic Foot Care Before and During the COVID-19 Epidemic: What Really Matters? Diabetes Care 2020, 44, e27–e28. [Google Scholar] [CrossRef]
  197. Mariet, A.S.; Benzenine, E.; Bouillet, B.; Vergès, B.; Quantin, C.; Petit, J.M. Impact of the COVID-19 Epidemic on hospi-talization for diabetic foot ulcers during lockdown: A French nationwide population-based study. Diabet. Med. 2021, 38, e14577. [Google Scholar] [CrossRef] [PubMed]
  198. Suri, J.S.; Rangayyan, R.M. Breast Imaging, Mammography, and Computer-Aided Diagnosis of Breast Cancer; SPIE: Bellingham, WA, USA, 2006. [Google Scholar]
  199. Acharya, U.R.; Joseph, K.P.; Kannathal, N.; Lim, C.M.; Suri, J.S. Heart rate variability: A review. Med. Biol. Eng. Comput. 2006, 44, 1031–1051. [Google Scholar] [CrossRef] [PubMed]
  200. Paul, S.; Maindarkar, M.; Saxena, S.; Saba, L.; Turk, M.; Kalra, M.; Krishnan, P.R.; Suri, J.S. Bias Investigation in Artificial Intelligence Systems for Early Detection of Parkinson’sDisease: A Narrative Review. Diagnostics 2022, 12, 166. [Google Scholar] [CrossRef] [PubMed]
  201. Suri, J.S.; Agarwal, S.; Jena, B.; Saxena, S.; El-Baz, A.; Agarwal, V.; Kalra, M.K.; Saba, L.; Viskovic, K.; Fatemi, M.; et al. Five Strategies for Bias Estimation in Artificial Intelligence-based Hybrid Deep Learning for Acute Respiratory Distress Syn-drome COVID-19 Lung Infected Patients using AP(ai)Bias 2.0: A Systematic Review. IEEE Trans. Instrum. Meas. 2022, 27, 140–148. [Google Scholar]
  202. Murray, C.J.; Lopez, A.D. Alternative projections of mortality and disability by cause 1990–2020: Global Burden of Disease Study. Lancet 1997, 349, 1498–1504. [Google Scholar] [CrossRef]
  203. Saba, L.; Sanfilippo, R.; Sannia, S.; Anzidei, M.; Montisci, R.; Mallarini, G.; Suri, J.S. Association Between Carotid Artery Plaque Volume, Composition, and Ulceration: A Retrospective Assessment With MDCT. Am. J. Roentgenol. 2012, 199, 151–156. [Google Scholar] [CrossRef]
  204. Khalifa, F.; Beache, G.M.; Gimel’farb, G.; Suri, J.S.; El-Baz, A. State-of-the-Art Medical Image; Springer: Mountain View, CA, USA, 2011. [Google Scholar]
  205. Agarwal, M.; Agarwal, S.; Saba, L.; Chabert, G.L.; Gupta, S.; Carriero, A.; Pasche, A.; Danna, P.; Mehmedovic, A.; Faa, G.; et al. Eight pruning deep learning models for low storage and high-speed COVID-19 computed tomography lung segmentation and heatmap-based lesion localization: A multicenter study using COVLIAS 2.0. Comput. Biol. Med. 2022, 146, 105571. [Google Scholar] [CrossRef]
  206. Acharya, U.R.; Mookiah, M.R.K.; Sree, S.V.; Yanti, R.; Martis, R.; Saba, L.; Molinari, F.; Guerriero, S.; Suri, J.S. Evolutionary algorithm-based classifier parameter tuning for automatic ovarian cancer tissue characterization and classification. Ultraschall Med. -Eur. J. Ultrasound 2014, 35, 237–245. [Google Scholar]
  207. Zhou, R.; Guo, F.; Azarpazhooh, M.R.; Hashemi, S.; Cheng, X.; Spence, J.D.; Ding, M.; Fenster, A. Deep Learning-Based Measurement of Total Plaque Area in B-Mode Ultrasound Images. IEEE J. Biomed. Health Inform. 2021, 25, 2967–2977. [Google Scholar] [CrossRef]
Figure 1. PRISMA model for selection of studies.
Figure 1. PRISMA model for selection of studies.
Jcm 11 06844 g001
Figure 2. (A) Studies related to Diabetics with CVD, Stroke, and DFU. (B) Studies explaining the role of AI in Diabetics with DFU and CVD.
Figure 2. (A) Studies related to Diabetics with CVD, Stroke, and DFU. (B) Studies explaining the role of AI in Diabetics with DFU and CVD.
Jcm 11 06844 g002
Figure 3. Pathobiological mechanisms of diabetes mellitus, cardiovascular disease, and diabetic foot are shown by different stages marked as A–H.
Figure 3. Pathobiological mechanisms of diabetes mellitus, cardiovascular disease, and diabetic foot are shown by different stages marked as A–H.
Jcm 11 06844 g003
Figure 4. Vascular complications due to diabetes mellitus.
Figure 4. Vascular complications due to diabetes mellitus.
Jcm 11 06844 g004
Figure 5. Hybrid model to predict the severity of CVD/Stroke in DFI framework (Courtesy of AtheroPoint™, Roseville, CA, USA permission granted).
Figure 5. Hybrid model to predict the severity of CVD/Stroke in DFI framework (Courtesy of AtheroPoint™, Roseville, CA, USA permission granted).
Jcm 11 06844 g005
Figure 6. CVD risk stratification is based on an automated AtheroRisk-ML Integrated system. Row 1 (A,B) is low risk, and Row 2 (C,D) is High Risk [137].
Figure 6. CVD risk stratification is based on an automated AtheroRisk-ML Integrated system. Row 1 (A,B) is low risk, and Row 2 (C,D) is High Risk [137].
Jcm 11 06844 g006
Figure 7. The overall architecture for RNN.
Figure 7. The overall architecture for RNN.
Jcm 11 06844 g007
Figure 8. The basic model of LSTM architecture.
Figure 8. The basic model of LSTM architecture.
Jcm 11 06844 g008
Figure 9. (A) CTAD is a potential surrogate marker for COAD, shown using an IVUS-based vascular cross-sectional scan. (B) B-mode carotid longitudinal imaging system using linear ultrasound [159].
Figure 9. (A) CTAD is a potential surrogate marker for COAD, shown using an IVUS-based vascular cross-sectional scan. (B) B-mode carotid longitudinal imaging system using linear ultrasound [159].
Jcm 11 06844 g009
Figure 10. UNet model for segmentation of the wall of an atherosclerotic plaque [121].
Figure 10. UNet model for segmentation of the wall of an atherosclerotic plaque [121].
Jcm 11 06844 g010
Figure 11. Visualizations of the Japanese, Hong Kong, and United Kingdom (ICA) databases were segmented using UNet, UNet++, UNet3P, and Attention-UNet models [96].
Figure 11. Visualizations of the Japanese, Hong Kong, and United Kingdom (ICA) databases were segmented using UNet, UNet++, UNet3P, and Attention-UNet models [96].
Jcm 11 06844 g011
Figure 12. CNN-based model for DFI predication [51].
Figure 12. CNN-based model for DFI predication [51].
Jcm 11 06844 g012
Figure 13. Four different FCN models (columns 3–6) and the gold standard (column 2) demonstrate the segmentation of the DFI area (green) from the skin (red) around it [51].
Figure 13. Four different FCN models (columns 3–6) and the gold standard (column 2) demonstrate the segmentation of the DFI area (green) from the skin (red) around it [51].
Jcm 11 06844 g013
Figure 14. The overall architecture of CVD screening on DM and DFI patients. A-on: Online DL-based FDI severity system, A-off: Offline DL-based FDI severity system, B-on: Online DL-based Carotid wall quantification system, B-off: Offline DL-based Carotid wall quantification system, C-on: Online ML-based CVD Risk Assessment system, C-off: Offline ML-based CVD risk assessment system, DM: Diabetes Mellitus, DFI: Diabetic foot infection, CUISP: Carotid ultrasound image phenotype.
Figure 14. The overall architecture of CVD screening on DM and DFI patients. A-on: Online DL-based FDI severity system, A-off: Offline DL-based FDI severity system, B-on: Online DL-based Carotid wall quantification system, B-off: Offline DL-based Carotid wall quantification system, C-on: Online ML-based CVD Risk Assessment system, C-off: Offline ML-based CVD risk assessment system, DM: Diabetes Mellitus, DFI: Diabetic foot infection, CUISP: Carotid ultrasound image phenotype.
Jcm 11 06844 g014
Table 1. Relationship between the diabetic foot, diabetic syndrome, and cardiovascular disease.
Table 1. Relationship between the diabetic foot, diabetic syndrome, and cardiovascular disease.
1Feleke et al.
[28] (2007)
DFI and CVDLBBM, OBBM2818DFI Infections led to morbidity, with the combined effect of CVD leading to mortality. Following diabetic foot ulcers came TB, skin and subcutaneous infections, and pneumonia.NR
2Brownrigg et al. [14] (2012)DFI with CVD risk of mortality LBBM3619DFI patients have a higher risk of all-cause mortality than other diabetics. CVD contributes to this risk.NR
3Matheus et al.
[83] (2013)
Diabetes and CVDLBBMNRDiabetes prevention is the most effective way to lower CVD risk. Traditional, changeable heart disease risk factors are still essential for diabetes people.NR
4Tuttolomondo et al. [16] (2015)DFS as a Cardiovascular MarkerLBBMNRIn addition to peripheral sensory neuropathy, deformity, and trauma, other risk factors, including calluses, edema, and peripheral vascular disease, have been identified as etiological contributors to the formation of diabetic foot ulcers.NR
5Domingueti et al. [13] (2015) Diabetes and CVDLBBMNRVascular problems in type 1 and type 2 diabetes are closely linked to endothelial dysfunction, hypercoagulability, inflammation, and the poor resolution of inflammation.NR
6Al-Rubeaan et al. [27] (2015)DFI and CVDLBBMNRNeuropathy and PVD are major risk factors for diabetic foot problems. Diabetic retinopathy is a major independent risk factor for diabetic foot issues. CVD risk factors are common among diabetics, and primary and secondary prevention strategies are essential to reduce morbidity and expense from this chronic condition.NR
7Bertoluci et al.
[11] (2017)
Diabetes and CVDLBBMNRCVD risk is increased 2- to 4-fold in people with type 2 diabetes, however, due to the disease’s extreme variability, the two conditions cannot be regarded as risk equivalents. To tailor care to each patient, risk assessment is essential. NR
8Dietrich et al.
[15] (2017)
DFI as a Predictor of CVD and MortalityLBBMNRDFS is linked to CVD and death. DFI’s connection with renal failure and retinopathy indicates the evolution of micro- and macrovasculopathy, neuropathy, chronic inflammation, and lipotoxicity.NR
9Mishra et al.
[24] (2017)
DFI and CVDLBBMNRPatients diagnosed with DFI have an increased risk of death from any cause compared to other diabetics. The risk is increased by cardiovascular disease.NR
10Petrie et al.
[84] (2018)
Diabetes and vascular complicationLBBMNRDiabetes and hypertension increase the possibility of CVD. Oxidative stress, inflammation, and fibrosis, which cause microvascular and macrovascular problems of diabetes, also cause vascular modification.NR
11Serhiyenko et al. [85] (2018)Cardiac autonomic neuropathy in diabetes LBBMNRCAN is a frequent, undiagnosed consequence of DM that increases CV morbidity and mortality. As cardiac denervation could be prevented and partially reversed in early disease stages, DM patients should be screened for it.Yes
12Shariful et al.
[12] (2020)
Diabetes and CVDLBBM1262Diabetes increased CVD risk at an early age. To reduce future CVD risks, diabetics must reduce cigarette usage and improve BP control.NR
13Balasubramanian et al. [20]
DFI and MicrocirculationLBBMNRMicrocirculation plays a crucial function in tissue injury and inflammation homeostasis and resistance. Furthermore, the latest evidence supports the disruption of microcirculation as the weak link in the sequence of events that leads to DFI.NR
14Karhu et al.
[86] (2022)
Diabetes and CVDLBBM2535Intermittent hypoxia is worse in people with preexisting CVD, and diabetes and CVD accelerate IH deterioration. Intermittent hypoxia is a pathophysiological hallmark of sleep anemia that increases the risk for severe health consequences. Patients with diabetes or CVD should receive additional attention for sleep anemia screening and follow-up monitoring.NR
15Schuett et al.
[87] (2022)
Diabetes and CVDLBBMNRDiabetes and hypertension trigger CVD. Oxidative stress, inflammation, and fibrosis promote microvascular and macrovascular diabetic complications.NR
16Qiu et al.
[57] (2022)
DFI and CVDLBBM423The development of a diabetic foot ulcer was associated with a considerably greater death risk from all causes as well as from cardiovascular disease compared to that of a control group of those who had diabetes mellitus but did not have DFI.NR
SN: serial number, RELATION Diabetic Foot and CVD, ME: method of evaluation, PS: patient size, OE: outcome, TRE: Treatment, NR: not reported, CVD: Cardiovascular disease, DFI: Diabetic Foot Ulcer, DFS: Diabetic Foot Syndrome, DM: Diabetic Mellitus, CAN: Cardio Autonomic Neuropathy, LB: Lab-base, OB-Office base, TB: Tuberculosis, PAD: Peripheral Arterial Disease.
Table 2. Studies show the role of AI in the diagnosis, and prediction of, DM, DFI, and CVD.
Table 2. Studies show the role of AI in the diagnosis, and prediction of, DM, DFI, and CVD.
1Parthiban et al. [127] (2012)LBBM341DM, CVD, and AICVDSVMNBML74.230.730.79NRNRNR
2Jelinek et al. [128] (2016)OBBM, LBBM88DM, CVD, and AICVDSVMRFML81.000.890.910.89NRNR
3Zarkogianni et al. [129] (2017)OBBM, LBBM560DM, CVD, and AICVDSVMNBML76.340.870.790.76NRNR
4Basu et al. [130] (2018)OBBM, LBBM2529DM, CVD, and AIDeathPCAKNN, DTML84.340.8430.87NR0.760.843
5Dinh et al. [101]
OBBM, LBBM131DM, CVD, and AIDM, CVDXGBoostRFML84.100.810.780.73NRNR
6Segar et al. [131] (2019)OBBM, LBBM319DM, CVD, and AIHeart Failure LDARFML76.000.7780.76NR0.790.778
7Aggarwal et al. [116] (2020)OBBM, LBBM 526DM, CVD, and AICVDSVMANNML86.000.863NR0.810.71NR
8Derevitskii et al. [115] (2020)OBBM, LBBM 8139DM, CVD, and AIStroke, DM XGBoostNBML84.530.870.910.86NRNR
10Hossain et al.
[132] (2021)
11Longato et al.
[103] (2021)
OBBM, LBBM24676DM, CVD, and AICVDSVMCNNDL79.810.760.84NR0.79NR
13Hyerim et al.
[102] (2022)
14Goyal et al. [30] (2020)OBBM, LBBM7136DFI and AIDiabetic foot InfectionNRCNNDL91.210.930.840.89NRNR
15Alzubaidi et al. [51] (2020)OBBM, LBBM754DFI and AIDFIKNNDNNDL93.040.910.870.830.94NR
16Khandekar et al. [100] (2021) LBBM (IR)202DFI and AIDiabetic foot6
17Isaza et al. [29] (2021)OBBM, LBBM146DFI, CVD, and AIDFIPCACNNDL88.240.840.860.79NRNR
SN: serial number, IC: input covariates, DS: data size, REL: Relation, PRE: Prediction, ClassTy: Classifier type, OBBM: Office base biomarker, LBBM: Lab base biomarker, FE: feature extraction, TOC: Type of classifier, ACC: Percentage accuracy, SEN: Sensitivity, SPE: Specificity, MCC: Mathew coefficient correlation, AUC: Area under curve, DL: Deep learning, ML: Machine Learning, CNN: Convolution neural network, DFI: Diabetic Foot Infection, DNN: Deep neural network, RF: Random forest, SVM: Support vector machine, DT: Decision tree, LR: Logistic Regression, US: Ultrasound, NR: not reported.
Table 3. Comparing the proposed review against previous reviews on joint DFI and CVD.
Table 3. Comparing the proposed review against previous reviews on joint DFI and CVD.
1Parthiban et al. [127] 2012
2Jelinek et al. [128] 2016
3Zarkogianni et al. [129] 2017
4Segar et al. [131] 2019
5Dinh et al. [101]2019
6Aggarwal et al. [116] 2020
7Derevitskii et al. [115] 2020
8Karhu et al. [86]2022
9Schuett et al. [87]2022
10Hossain et al. [132] 2021
11Longato et al. [103] 2021
12Hyerim et al. [102] 2021
13Maindarkar et al. (proposed)2022
DFIa: Diabetic foot Infection, DMb: Diabetic Melliuties, CVDc: Cardiovascular diseases, WId: Wound Imaging, CIe: Carotid Imaging AIf: Artificial Intelligence, RSg: Risk Stratification, ClassTYh: Type of Classifier, ACCk: Accuracy, AUCl: Area under curve, SENm: Sensitivity, SPEn: Specificity.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Khanna, N.N.; Maindarkar, M.A.; Viswanathan, V.; Puvvula, A.; Paul, S.; Bhagawati, M.; Ahluwalia, P.; Ruzsa, Z.; Sharma, A.; Kolluri, R.; et al. Cardiovascular/Stroke Risk Stratification in Diabetic Foot Infection Patients Using Deep Learning-Based Artificial Intelligence: An Investigative Study. J. Clin. Med. 2022, 11, 6844.

AMA Style

Khanna NN, Maindarkar MA, Viswanathan V, Puvvula A, Paul S, Bhagawati M, Ahluwalia P, Ruzsa Z, Sharma A, Kolluri R, et al. Cardiovascular/Stroke Risk Stratification in Diabetic Foot Infection Patients Using Deep Learning-Based Artificial Intelligence: An Investigative Study. Journal of Clinical Medicine. 2022; 11(22):6844.

Chicago/Turabian Style

Khanna, Narendra N., Mahesh A. Maindarkar, Vijay Viswanathan, Anudeep Puvvula, Sudip Paul, Mrinalini Bhagawati, Puneet Ahluwalia, Zoltan Ruzsa, Aditya Sharma, Raghu Kolluri, and et al. 2022. "Cardiovascular/Stroke Risk Stratification in Diabetic Foot Infection Patients Using Deep Learning-Based Artificial Intelligence: An Investigative Study" Journal of Clinical Medicine 11, no. 22: 6844.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
