Review

Endoscopic Papillary Abnormalities and Stone Recognition (EPSR) during Flexible Ureteroscopy: A Comprehensive Review

1
Department of Urology, La Croix du Sud Clinic-RGDS, UroSud, 52 bis Chemin de Ribaute, Boite 301, 31130 Quint Fonsegrives, France
2
French Urological Association (AFU), La Maison de l’Urologie, 11 rue Viète, 31017 Paris, France
3
Department of Urology, Comprehensive Cancer Center, Medical University of Vienna, 1090 Vienna, Austria
4
Department of Urology, CHU Pellegrin, 33300 Bordeaux, France
5
Department of Urology, Saint Louis Hospital, Denis Diderot University, 75010 Paris, France
*
Author to whom correspondence should be addressed.
Academic Editor: Marco Roscigno
J. Clin. Med. 2021, 10(13), 2888; https://doi.org/10.3390/jcm10132888
Received: 15 May 2021 / Revised: 18 June 2021 / Accepted: 26 June 2021 / Published: 29 June 2021
(This article belongs to the Special Issue Recent Advances in Understanding and Managing Urolithiasis)

Abstract

Introduction: The increasing efficiency of the different lasers and the improved performance of endoscopic devices have led to smaller stone fragments that impact the accuracy of microscopic evaluation (morphological and infrared). Before the stone destruction, the urologist has the opportunity to analyze the stone and the papillary abnormalities endoscopically (endoscopic papillary recognition (EPR) and endoscopic stone recognition (ESR)). Our objective was to evaluate the value for those endoscopic descriptions. Methods: The MEDLINE and EMBASE databases were searched in February 2021 for studies on endoscopic papillary recognition and endoscopic stone recognition. Results: If the ESR provided information concerning the main crystallization process, EPR provided information concerning the origin of the lithogenesis and its severity. Despite many actual limitations, those complementary descriptions could support the preventive care of the stone formers in improving the diagnosis of the lithogenesis mechanism and in identifying high-risk stone formers. Conclusion: Until the development of an Artificial Intelligence recognition, the endourologist has to learn EPSR to minimize the distortion effect of the new lasers on the stone analysis and to improve care efficiency of the stone formers patients.
Keywords: papilla abnormalities; endoscopy; stone; kidney papilla abnormalities; endoscopy; stone; kidney

1. Introduction

The number of endoscopic treatments of urinary stones increases all over the world.
As previously demonstrated by Daudon et al. [1,2,3,4,5], the morpho-constitutional stone analysis plays a major role in identifying its etiology and thus consider its risk of recurrence. The increasing efficiency of lasers in “dusting” and “popcorning” modes [6,7,8,9] and the improved performance of endoscopic devices led to smaller stone fragments, which reduce the accuracy of the microscopic study (morphological and infrared) by the lack of components representativeness (48.6% of the stones have a mixed composition [10])). Moreover, Keller et al. [8,9] have demonstrated that laser-based Thulium fiber changed in stone composition in the infrared spectra that resulted in insufficient information of stone powder examination (Figure 1).
Since Randall’s works [11] in the 1930s, it is known that papillary calculi resulted from subepithelial lesions [12,13,14,15,16,17]. The advent quality of images with flexible retrograde ureteroscopy has allowed the in vivo description of papillary abnormalities [18,19,20,21] that can be related to various lithogenesis mechanisms [22,23,24,25,26,27,28].
Before the destruction of the stone, the urologist has the opportunity to hold a key role in stone prevention by recognizing the papillary abnormalities (endoscopic papillary recognition (EPR)) and the stone’s type (endoscopic stone recognition (ESR)).
The aim of this review was to report the current literature on endoscopic stone and papillary descriptions in order to help the urologist to improve the management of stone disease.

2. Methods

2.1. Search Strategy

The systematic review was conducted according to the preferred reporting items for systematic reviews and meta-analyses (PRISMA) extension statement. The PubMed, Cochrane library, and Embase databases were searched to identify reports published until February 2021 on endoscopic recognition of papillary abnormalities and stones by retrograde flexible ureteroscopy.
The following search terms were used: “endoscopy”, “stone”, “kidney”, and “papilla”. Manual searches of reference lists of relevant articles were also performed to identify additional studies. The primary outcome of interest was to assess the value of endoscopic description of papillary abnormalities and kidney stones in improving the diagnosis and the preventive care of stone formers.
Two investigators performed the initial screening based on the titles and abstracts of the articles to identify eligible and ineligible reports. Reasons for exclusion were noted. Potentially relevant reports were subjected to a full-text review, and the relevance of the reports was confirmed after the data extraction process. Disagreements were resolved via consensus with the co-authors and consultation of the senior author.

2.2. Inclusion and Exclusion Criteria

Studies were included if they included patients with urinary stones (participants) who had undergone flexible ureteroscopy with ESR or EPR (intervention) or another endoscopy procedure (comparison) to assess the effect of therapy on OS and AEs (outcome).
We excluded letters, editorials, meeting abstracts, replies from authors, case reports, and articles not published in English. References of all papers included were scanned for additional studies of interest. There was no time limitation for included studies.

2.3. Data Extraction

Two investigators independently extracted the following information from the included articles: first author’s name, publication year, the period of patient recruitment, number of patients, type of treatment, study design, and study funding and/or support. All discrepancies regarding data extraction were resolved by consensus with the co-authors or by discussion with the senior author.

3. Results

3.1. Study Selection and Characteristics

After a bibliographic search and the removal of duplicates, a total of 54 articles were screened.
After full text assessment, a total of 17 publications met the inclusion criteria (Figure 2 and Table 1).

3.2. Evidence Synthesis

Obviously, good vision represents an important condition to perform EPR-ESR. Although main papillary abnormalities could be observed with fiberoptic devices, poor image quality [34] may alter the ability of accurate diagnosis such as “intratubular plugging”. For that reason, the use of digital flexible ureteroscopes has been found to be of utmost importance to provide a better diagnosis. The percutaneous approach was generally inaccurate for EPR because of the incomplete exploration of the calices with a rigid nephroscope and its impaired vision due to bleeding and local inflammatory conditions.

3.3. Endoscopic Papillary Recognition (EPR)

Through the 15 studies and 1 review that met the inclusion criteria, and according to the three pathways for kidney stone formation (overgrowth on interstitial plaque, crystal deposits in renal tubules, and free solution crystallization) described by Coe et al. [14], the observation of the papillary abnormalities has the aim to determine the origin of the lithogenesis and to evaluate its severity and risk of recurrence. Because of the recent concepts of EPR and classification/grading system, no recurrence rate data according to the different endoscopic papillary abnormalities has been found in the literature at this time. Although the relation between recurrence rate and observed endoscopic abnormalities has not been clearly demonstrated yet, Strohmaier et al. [29] showed that the extent of Randall plaques (RP) was correlated with the number of calcium oxalate stone episodes (p = 0.012). Moreover, Ciudin et al. [35] showed that the number of papillae tip attenuation >43 HU on unenhanced abdominal CT images were correlated with stone recurrence.
EPR should be the first step during flexible ureteroscopy in view of assessing all the calyces and the papillae before impairing the vision by blood or stone dust and to avoid misleading traumatic thermal laser induced lesions that may be caused mainly by direct shot of the laser beam on the papillae. The appearance of one papilla is not accurate enough to predict the type and the severity of the disease, and a papillary abnormality could be also explained by the appearance of neighboring papillae. Almeras et al. [25] reported a mean duration of 81.4 s (range: 48–149; median 64) in exploring the entire kidney. A scoring system [20] and a classification [21] have been proposed to standardize the descriptions and store the data. As previously described and such as their quantification, the multifactorial aspect of the abnormalities needs to be described: the presence or not of calculi (anchored or intraductal) and their types, the description of the papillary lesions (that may be a cause or a consequence of the lithogenesis or stone growth), and the description of the presence of deposits (Randall’s plaques, intratubular deposits, etc.).
The prevalence of RP described during ureteroscopy in stone formers is high, ranging from 83% to 91% [19,25]. Their prevalence was impacted by the lithogenesis type: decreased in case of struvite and less present in case of intraductal crystallization [22,25,26] and CP stones [25,27]. Papilla’s percent surface area occupied by RP in stone formers differed significantly from that in non-stone formers (p < 0.0001) and was correlated with the number of stones [30]. Wang et al. [31] demonstrated that low-plaque Calcium Oxalate stone formers tended to be obese (50% vs. 10%; p = 0.03) and had a history of urinary tract infection (34% vs. 0%; p = 0.04).
The observation of “erosions” or “pits” at the tip of the papilla and the presence of anchored COM stones were also frequent (55.7% and 18.2%, respectively) and correlated with the amount of Randall’s plaques (Figure 3) [23,24,25]. They resulted from a dietary cause (especially low fluid intake) in most cases [36,37,38,39].
The description of intrapapillary or intraductal crystallization (Bellini plug origin) (Figure 4) was less common (15.9%) but was correlated with calcium phosphate stones (especially IVa2) and with a higher incidence of hypocitraturia (55.6%) and hypercalciuria (33%) [25]. Intraductal crystallization was related with different etiologies such as distal tubular acidosis [5] with the threat of impaired kidney function secondary to interstitial fibrosis that surrounds the Bellini ducts [17].
Nonetheless, some difficulties were reported to determine if some stones were “Randall’s Plaque-anchored” or “plug-anchored”. It has been suggested to remove the anchored stone with a basket to examine the papilla and note the presence of plugs beneath (Figure 5) [25].
The microscopic analysis of an anchored stone should also complete EPR in becoming the best method to provide a reliable analysis of the entire stone and a chance to examine the nucleus that represents one of the primary steps of kidney stone formation.
Assigned to its ability to identify the origin of crystallization (intratubular or on PR) [5,13,14,17,21,25] and the amount of the abnormalities that may predict the risk of recurrence [20,21,25], EPR is a way to understand the origin of lithogenesis to elucidate its mechanism and to improve high risk etiology diagnosis.

3.4. Endoscopic Stone Recognition

Only one study met the inclusion criteria for ESR. Today, 48.6% of the stones are reported to have a mixed composition (Figure 6). If the outer layers represent the most recent crystallization, they may differ from the inner part of the stone and the nucleus (Figure 7). Laser fragmentation or dusting make the “history of the stone growth” vanish and modify the proportions of fragments microscopically analyzed [8,9]. Consequently, a loss of information may arise such as a decrease in diagnosis capacities. Therefore, ESR is proposed as a useful tool to prevent the loss of information due to stone destruction.
ESR should describe the external layer (surface) of all the stones during the same procedure, including the small papillary anchored stones that represent the first steps of crystallization. The final report should also mention the polymorphism of kidney stones in case of various aspects described during the same procedure in order not to ignore a potential lithogenesis mechanism. The internal part and center of the main stone have then to be examined. To optimize the inner description, Estrade et al. [10] recommended a stone transection in two parts using Holmium laser with the following settings: frequency, 5 Hz; energy, 1.2–1.4 J; power, 6–7 W; short pulse length; fiber diameter, 230 or 270 μm. For an experienced endourologist, the concordance between the endoscopic description and the microscopic analysis was 86.1% (COM), 85% (COD), 91% (UA), 79% (CP), 65% (Brushite), 75% (Struvite), and 100% (Cystine).
The endourologist becomes the only witness able to recognize the entire stone’s aspect and the papillary abnormalities owing to his skills and his endoscopic devices. Using and reporting ESR, he also obtains the opportunity to rectify the results of the microscopic analysis according to his endoscopic descriptions.

4. Discussion

In the last century, eating habits have changed with an increased intake of salt, animal proteins, and refined sugar and a decreased intake of vegetables [39]. That consequently implied a change in stone composition and a prevalence increased [40]. These changes are especially concerning COM (subtype Ia [1]) that are mostly correlated with the prevalence of RP [19,25], low fluid intake [37], and the evolution of dietary habits [40,41,42].
As previously demonstrated by Daudon et al. [1,2,3,4,5], the morpho-constitutional stone analysis plays a major role in identifying the etiology of the stone disease and thus in stone recurrence. The increasing efficiency of lasers in “dusting” and “popcorning” modes [6,7,8,9] decreases the size of stone fragments and the accuracy of the microscopic study (morphological and infrared), thus impairing the etiologic investigation’s results. This lack of data may be balanced by EPR-ESR [10,18,20,25] and the papillary anchored stones analysis.
However, some limitations are still debated. First, the literature addressing the endoscopic papilla and stone recognition is poor and most of the published studies were from a single institution and had a small cohort.
As the endoscopic interpretations of the papillary abnormalities are only based on endourologist descriptions, their reliability, especially concerning the type of deposits (RP, plugs) and the origin of the crystallization (RP anchored, intraductal origin), remain a potential limitation and a potential interpretation bias [10,18,19,20,21,25,28].
The main problem in recognizing papillary abnormalities and stones composition is the very large array of descriptions and entities [20,21,25]. Thus, the learning curve for EPR and ESR is long and difficult, it has been shown that a perfect recognition of the stone was obtained in only 40.7% of the cases for urologist in training who benefited from nine specific teaching classes [43]. Nevertheless, the concordance between expert endoscopic description and microscopic analysis was much better with 86.1% (COM), 85% (COD), 91% (UA), 79% (CP), 65% (Brushite), 75% (Struvite), and 100% (Cystine) [10]. Although learning this specific skill might be time-consuming, training is certainly the key until the development of recognition models created by artificial intelligence (AI). In vitro, automatic detection of kidney stones composition from digital stone pictures has been described with a prediction of 94% (UA), 90% (COM), 86% (Struvite), 75% (Cystine), and 71% (Brushite) [44]. AI is about to be applied to in vivo validated endoscopic pictures, but stone morphological laser changes and heterogenous vision quality may hamper its development. AI will also be used to simplify EPR. Indeed, the efficacy of deep learning to segment the renal papilla, plaque, and plugs has already been described 46].
The backbone of ESR and EPR remains the recognition, which is based on a good intraoperative vision. Therefore, some variables have to be considered, such as fiberoptic devices that do not have high-definition vision quality [34], single-use and reusable digital ureteroscopes that do not seem to be equivalent in term of color, brightness, and definition [45,46,47]; and PCNL that cannot allow a complete exploration of the papillae. Today and for those reasons, the best way to proceed EPR and ESR is the use of digital flexible ureteroscopes.
Recently, it has been shown that lasers impacted the infrared analysis regarding stone composition [8,9]. Moreover, recognition could be biased by the dusting settings (high frequency and long pulse) that might change the surface appearance (Figure 8) especially due to a carbonization effect (Figure 9) (mainly described with Thulium Fiber Laser).
To limit these biases, an initial transection of the stone has been proposed but remains difficult, time consuming, and provides more fragments to treat. Therefore, the use of the fragmentation setting might help to properly assess the internal layers and the use of dusting should be used only after the complete description [8,9].
Although it represents the origin of crystallization, stone analysis and ESR often miss the nucleus structure analysis due to stone destruction. Hence, the additional EPR analysis could provide essential information regarding the lithogenesis mechanism and avoid misdiagnosis of high-risk diseases like distal tubular acidosis. Although it is still under evaluation, the intensity and the amount of the papillary abnormalities may also have a prognostic value regarding stone recurrence.
Combining these complementary methods should be gathered in a single process of endoscopic papilla and stone recognition (EPSR). It could support the preventive care of the stone formers in improving the diagnosis of the lithogenesis mechanism and in identifying the high-risk stone formers.
In this way, the urologist should play a key role in lithiasis prevention and stone formers’ care improvement.

5. Conclusions

The morpho-constitutional stone analysis plays a major role in identifying the etiology of the stone disease. The increasing efficiency of the lasers decreases the fragments’ size and their representativeness, induces laser-based changes in composition, and thus decreases the accuracy of the microscopic study.
The urologist has the opportunity to play a key role in stone prevention by recognizing the papillary abnormalities (endoscopic papillary recognition (EPR)) and the stone type before dusting or fragmentation (endoscopic stone recognition (ESR)). EPR and ESR should be gathered in a single process of endoscopic papilla and stone recognition (EPSR). Until the development of an AI recognition, the endourologist has to learn EPSR to minimize the distortion effect of the new lasers on the stone analysis and to improve care efficiency of the stone formers patients.

Author Contributions

C.A.: literature search, data analysis, and drafting. B.P.: critical review and drafting; V.E.: literature search, data analysis, and critical review. P.M.: critical review and drafting. All authors have read and agreed to the published version of the manuscript.

Funding

No source of funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Conflicts of Interest

C Almeras: member of the lithiasis committee of the French Urology Association; B Pradere: no disclosure regarding this study; V Estrade: member of the lithiasis committee of the French Urology Association; P Meria: member of the lithiasis committee of the French Urology Association.

Abbreviations

AIArtificial Intelligence
CACarbapatite
CODCalcium Oxalate dihydrate
COMCalcium Oxalate monohydrate
CaOxCalcium Oxalate
CPCalcium Phosphate
EPREndoscopic Papilla Recognition
EPSREndoscopic Papilla and Stone Recognition
ESREndoscopic Stone Recognition
RPRandall’s plaque
PICOPopulation: Intervention, Comparator, Outcome
PRISMAPreferred Reporting Items for Systematic Reviews and Meta-Analysis
TFLThulium Fiber Laser
UAUric Acid

References

  1. Corrales, M.; Doizi, S.; Barghouthy, Y.; Traxer, O.; Daudon, M. Classification of Stones According to Michel Daudon: A Narrative Review. Eur. Urol. Focus 2021, 7, 13–21. [Google Scholar] [CrossRef] [PubMed]
  2. Daudon, M.; Jungers, P.; Bazin, D.; Williams, J.C., Jr. Recurrence rates of urinary calculi according to stone composition and morphology. Urolithiasis 2018, 46, 459–470. [Google Scholar] [CrossRef]
  3. Cloutier, J.; Villa, L.; Traxer, O.; Daudon, M. Kidney stone analysis: “Give me your stone, I will tell you who you are!”. World J. Urol. 2015, 33, 157–169. [Google Scholar] [CrossRef]
  4. Daudon, M.; Dessombz, A.; Frochot, V.; Letavernier, E.; Haymann, J.-P.; Jungers, P.; Bazin, D. Comprehensive morpho-constitutional analysis of urinary stones improves etiological diagnosis and therapeutic strategy of nephrolithiasis. Comptes Rendus Chim. 2016, 19, 1470–1491. [Google Scholar] [CrossRef]
  5. Dessombz, A.; Letavernier, E.; Haymann, J.-P.; Bazin, D.; Daudon, M. Calcium Phosphate Stone Morphology Can Reliably Predict Distal Renal Tubular Acidosis. J. Urol. 2015, 193, 1564–1569. [Google Scholar] [CrossRef] [PubMed]
  6. Emiliani, E.; Talso, M.; Cho, S.-Y.; Baghdadi, M.; Mahmoud, S.; Pinheiro, H.; Traxer, O. Optimal Settings for the Noncontact Holmium: YAG Stone Fragmentation Popcorn Technique. J. Urol. 2017, 198, 702–706. [Google Scholar] [CrossRef]
  7. Doizi, S.; Keller, E.X.; De Coninck, V.; Traxer, O. Dusting technique for lithotripsy: What does it mean? Nat. Rev. Urol. 2018, 15, 653–654. [Google Scholar] [CrossRef]
  8. Keller, E.X.; De Coninck, V.; Audouin, M.; Doizi, S.; Bazin, D.; Daudon, M.; Traxer, O. Fragments and dust after Holmium laser lithotripsy with or without “Moses technology”: How are they different? J. Biophotonics 2018, 12, e201800227. [Google Scholar] [CrossRef]
  9. Keller, E.X.; De Coninck, V.; Doizi, S.; Daudon, M.; Traxer, O. Thulium fiber laser: Ready to dust all urinary stone composition types? World J. Urol. 2021, 39, 1693–1698. [Google Scholar] [CrossRef]
  10. Estrade, V.; De Senneville, B.D.; Meria, P.; Almeras, C.; Bladou, F.; Bernhard, J.; Robert, G.; Traxer, O.; Daudon, M. Toward improved endoscopic examination of urinary stones: A concordance study between endoscopic digital pictures vs microscopy. BJU Int. 2020. [Google Scholar] [CrossRef] [PubMed]
  11. Randall, A. The origin and growth of renal calculi. Ann. Surg. 1937, 105, 1009–1027. [Google Scholar] [CrossRef]
  12. Daudon, M.; Bazin, D.; Letavernier, E. Randall’s plaque as the origin of calcium oxalate kidney stones. Urolithiasis 2014, 43 (Suppl. 1), 5–11. [Google Scholar] [CrossRef]
  13. Williams, J.C., Jr.; Borofsky, M.S.; Bledsoe, S.B.; Evan, A.P.; Coe, F.L.; Worcester, E.M.; Lingeman, J.E. Papillary ductal plugging is a mechanism for early stone retention in brushite stone disease. J. Urol. 2018, 199, 186–192. [Google Scholar] [CrossRef] [PubMed]
  14. Coe, F.L.; Evan, A.P.; Worcester, E.M.; Lingeman, J.E. Three pathways for human kidney stone formation. Urol. Res. 2010, 38, 147–160. [Google Scholar] [CrossRef] [PubMed]
  15. Evan, A.; Lingeman, J.; Coe, F.L.; Worcester, E. Randall’s plaque: Pathogenesis and role in calcium oxalate nephrolithiasis. Kidney Int. 2006, 69, 1313–1318. [Google Scholar] [CrossRef]
  16. Evan, A.P.; Lingeman, J.E.; Coe, F.L.; Parks, J.H.; Bledsoe, S.B.; Shao, Y.; Sommer, A.J.; Paterson, R.F.; Kuo, R.L.; Grynpas, M. Randall’s plaque of patients with nephrolithiasis begins in basement mem-branes of thin loops of Henle. J. Clin. Investig. 2003, 111, 607–616. [Google Scholar] [CrossRef]
  17. Evan, A.; Lingeman, J.; Coe, F.; Shao, Y.; Miller, N.; Matlaga, B.; Phillips, C.; Sommer, A.; Worcester, E. Renal histopathology of stone-forming patients with distal renal tubular acidosis. Kidney Int. 2007, 71, 795–801. [Google Scholar] [CrossRef] [PubMed]
  18. Low, R.K.; Stoller, M.L. Endoscopic mapping of renal papillae for Randall’s plaques in patients with urinary stone dis-ease. J. Urol. 1997, 158, 2062–2064. [Google Scholar] [CrossRef]
  19. Matlaga, B.R.; Williams, J.; Kim, S.C.; Kuo, R.L.; Evan, A.P.; Bledsoe, S.B.; Coe, F.L.; Worcester, E.M.; Munch, L.C.; Lingeman, J.E. Endoscopic Evidence of Calculus Attachment to Randall’s Plaque. J. Urol. 2006, 175, 1720–1724. [Google Scholar] [CrossRef]
  20. Borofsky, M.S.; Paonessa, J.E.; Evan, A.P.; Williams, J.C.; Coe, F.L.; Worcester, E.M.; Lingeman, J.E. A proposed grading system to standardize the description of renal papil-lary appearance at the time of endoscopy in patients with nephrolithiasis. J. Endourol. 2016, 30, 122–127. [Google Scholar] [CrossRef]
  21. Almeras, C.; Daudon, M.; Ploussard, G.; Gautier, J.R.; Traxer, O.; Meria, P. Endoscopic description of renal papillary abnormalities in stone disease by flexible ureteroscopy: A proposed classification of severity and type. World J. Urol. 2016, 34, 1575–1582. [Google Scholar] [CrossRef] [PubMed]
  22. Jaeger, C.D.; Rule, A.D.; Mehta, R.A.; Vaughan, L.E.; Vrtiska, T.J.; Holmes, D.R.; McCollough, C.M.; Ziegelmann, M.J.; Hernandez, L.P.H.; Lieske, J.C.; et al. Endoscopic and Pathologic Characterization of Papillary Architecture in Struvite Stone Formers. Urology 2016, 90, 39–44. [Google Scholar] [CrossRef]
  23. Cohen, A.J.; Borofsky, M.S.; Anderson, B.B.; Dauw, C.A.; Gillen, D.L.; Gerber, G.S.; Worcester, E.M.; Coe, F.L.; Lingeman, J.E. Endoscopic Evidence That Randall’s Plaque is Associated with Surface Erosion of the Renal Papilla. J. Endourol. 2017, 31, 85–90. [Google Scholar] [CrossRef] [PubMed]
  24. Borofsky, M.S.; Williams, J.C., Jr.; Dauw, C.A.; Cohen, A.; Evan, A.C.; Coe, F.L.; Worcester, E.M.; Lingeman, J.E.; Coe, F. Association between Randall’s Plaque Stone Anchors and Renal Papillary Pits. J. Endourol. 2019, 33, 337–342. [Google Scholar] [CrossRef] [PubMed]
  25. Almeras, C.; Daudon, M.; Estrade, V.; Gautier, J.R.; Traxer, O.; Meria, P. Classification of the renal papillary abnormalities by flexible ureteroscopy: Evaluation of the 2016 version and update. World J. Urol. 2021, 39, 177–185. [Google Scholar] [CrossRef] [PubMed]
  26. Pless, M.S.; Williams, J.C.; Andreassen, K.H.; Jung, H.; Osther, S.S.; Christensen, D.R.; Osther, P.J.S. Endoscopic observations as a tool to define underlying pathology in kidney stone formers. World J. Urol. 2019, 37, 2207–2215. [Google Scholar] [CrossRef] [PubMed]
  27. Darves-Bornoz, A.L.; Marien, T.; Thomas, J.; Fiscus, G.; Brock, J.; Clayton, D.B.; Miller, N.L. Renal Papillary Mapping and Quantification of Randall’s Plaque in Pediatric Calcium Oxalate Stone Formers. J. Endourol. 2019, 33, 863–867. [Google Scholar] [CrossRef]
  28. Arroyo, X.S.; Freixedas, F.G.; Quetglas, J.L.B.; Garcia, J.G.; Ayala, E.P. Relationship of endoscopic lesions of the renal papilla with type of renal stone and 24 h urine analysis. BMC Urol. 2020, 20, 1–6. [Google Scholar] [CrossRef]
  29. Strohmaier, W.L.; Hörmann, M.; Schubert, G. Papillary calcifications: A new prognostic factor in idiopathic calcium oxalate urolithiasis. Urolithiasis 2013, 41, 475–479. [Google Scholar] [CrossRef]
  30. Kim, S.C.; Coe, F.L.; Tinmouth, W.W.; Kuo, R.L.; Paterson, R.F.; Parks, J.H.; Munch, L.C.; Evan, A.P.; Lingeman, J.E. Stone formation is proportional to papillary surface coverage by randall’s plaque. J. Urol. 2005, 173, 117–119. [Google Scholar] [CrossRef]
  31. Wang, X.; Krambeck, A.E.; Williams, J.C.; Tang, X.; Rule, A.D.; Zhao, F.; Bergstralh, E.; Haskic, Z.; Edeh, S.; Holmes, D.R.; et al. Distinguishing Characteristics of Idiopathic Calcium Oxalate Kidney Stone Formers with Low Amounts of Randall’s Plaque. Clin. J. Am. Soc. Nephrol. 2014, 9, 1757–1763. [Google Scholar] [CrossRef] [PubMed]
  32. Fernandez, K.; Korinek, M.; Camp, J.; Lieske, J.; Holmes, D. Automatic detection of calcium phosphate deposit plugs at the terminal ends of kidney tubules. Healthc. Technol. Lett. 2019, 6, 271–274. [Google Scholar] [CrossRef] [PubMed]
  33. Marien, T.P.; Miller, N.L. Advanced ureteroscopy for stone disease: Characteristics of renal papillae in kidney stone formers. Minerva Urol. Nefrol. 2016, 68, 496–515. [Google Scholar]
  34. Keller, E.X.; Doizi, S.; Villa, L.; Traxer, O. Which flexible ureteroscope is the best for upper tract urothelial carcinoma treatment? World J. Urol. 2019, 37, 2325–2333. [Google Scholar] [CrossRef] [PubMed]
  35. Ciudin, A.; Luque, M.P.; Salvador, R.; Diaconu, M.G.; Franco, A.; Constantin, V.; Alvarez-Vijande, R.; Nicolau, C.; Alcaraz, A. Abdominal Computed Tomography—A New Tool for Predicting Recurrent Stone Disease. J. Endourol. 2013, 27, 965–969. [Google Scholar] [CrossRef]
  36. Kuo, R.L.; Lingeman, J.E.; Evan, A.P.; Paterson, R.F.; Parks, J.H.; Bledsoe, S.B.; Munch, L.C.; Coe, F.L. Urine calcium and volume predict coverage of renal papilla by Randall’s plaque. Kidney Int. 2003, 64, 2150–2154. [Google Scholar] [CrossRef]
  37. Coe, F.L.; Worcester, F.L.C.E.M.; Evan, A.P. Idiopathic hypercalciuria and formation of calcium renal stones. Nat. Rev. Nephrol. 2016, 12, 519–533. [Google Scholar] [CrossRef]
  38. Bouderlique, E.; Tang, E.; Perez, J.; Coudert, A.; Bazin, D.; Verpont, M.-C.; Duranton, C.; Rubera, I.; Haymann, J.-P.; Leftheriotis, G.; et al. Vitamin D and Calcium Supplementation Accelerates Randall’s Plaque Formation in a Murine Model. Am. J. Pathol. 2019, 189, 2171–2180. [Google Scholar] [CrossRef]
  39. Siener, R.; Hesse, A. Fluid intake and epidemiology of urolithiasis. Eur. J. Clin. Nutr. 2003, 57, S47–S51. [Google Scholar] [CrossRef]
  40. Kittanamongkolchai, W.; Vaughan, L.E.; Enders, F.T.; Dhondup, T.; Mehta, R.A.; Krambeck, A.E.; McCollough, C.H.; Vrtiska, T.J.; Lieske, J.C.; Rule, A.D. The Changing Incidence and Presentation of Urinary Stones Over 3 Decades. Mayo Clin. Proc. 2018, 93, 291–299. [Google Scholar] [CrossRef]
  41. Robertson, W.; Peacock, M. The Pattern of Urinary Stone Disease in Leeds and in the United Kingdom in Relation to Animal Protein Intake during the Period 1960–1980. Urol. Int. 1982, 37, 394–399. [Google Scholar] [CrossRef] [PubMed]
  42. Siener, R. The Effect of Different Diets on Urine Composition and the Risk of Calcium Oxalate Crystallisation in Healthy Subjects. Eur. Urol. 2002, 42, 289–296. [Google Scholar] [CrossRef]
  43. Bergot, C.; Robert, G.; Bernhard, J.C.; Ferrière, J.-M.; Bensadoun, H.; Capon, G.; Estrade, V. The basis of endoscopic stones recognition, a prospective monocentric study [Article in French]. Prog. Urol. 2019, 29, 312–317. [Google Scholar] [CrossRef] [PubMed]
  44. Black, K.M.; Law, H.; Aldoukhi, A.; Deng, J.; Ghani, K.R. Deep learning computer vision algorithm for detecting kidney stone composition. BJU Int. 2020, 125, 920–924. [Google Scholar] [CrossRef] [PubMed]
  45. Marchini, G.S.; Batagello, C.A.; Monga, M.; Torricelli, F.C.M.; Vicentini, F.C.; Danilovic, A.; Srougi, M.; Nahas, W.C.; Mazzucchi, E. In Vitro Evaluation of Single-Use Digital Flexible Ureteroscopes: A Practical Comparison for a Patient-Centered Approach. J. Endourol. 2018, 32, 184–191. [Google Scholar] [CrossRef]
  46. Dragos, L.B.; Somani, B.; Keller, E.X.; De Coninck, V.M.J.; Herrero, M.R.-M.; Kamphuis, G.M.; Bres-Niewada, E.; Sener, E.T.; Doizi, S.; Wiseman, O.J.; et al. Characteristics of current digital single-use flexible ureteroscopes versus their reusable counterparts: An in-vitro comparative analysis. Transl. Androl. Urol. 2019, 8 (Suppl. 4), S359–S370. [Google Scholar] [CrossRef] [PubMed]
  47. Patil, A.; Agrawal, S.; Singh, A.; Ganpule, A.; Sabnis, R.; Desai, M. A Single-Center Prospective Comparative Study of Two Single-Use Flexible Ureteroscopes: LithoVue (Boston Scientific, USA) and Uscope PU3022a (Zhuhai Pusen, China). J. Endourol. 2021, 35, 274–278. [Google Scholar] [CrossRef]
Figure 1. Residual “dust” after laser treatment using dusting parameters.
Figure 1. Residual “dust” after laser treatment using dusting parameters.
Jcm 10 02888 g001

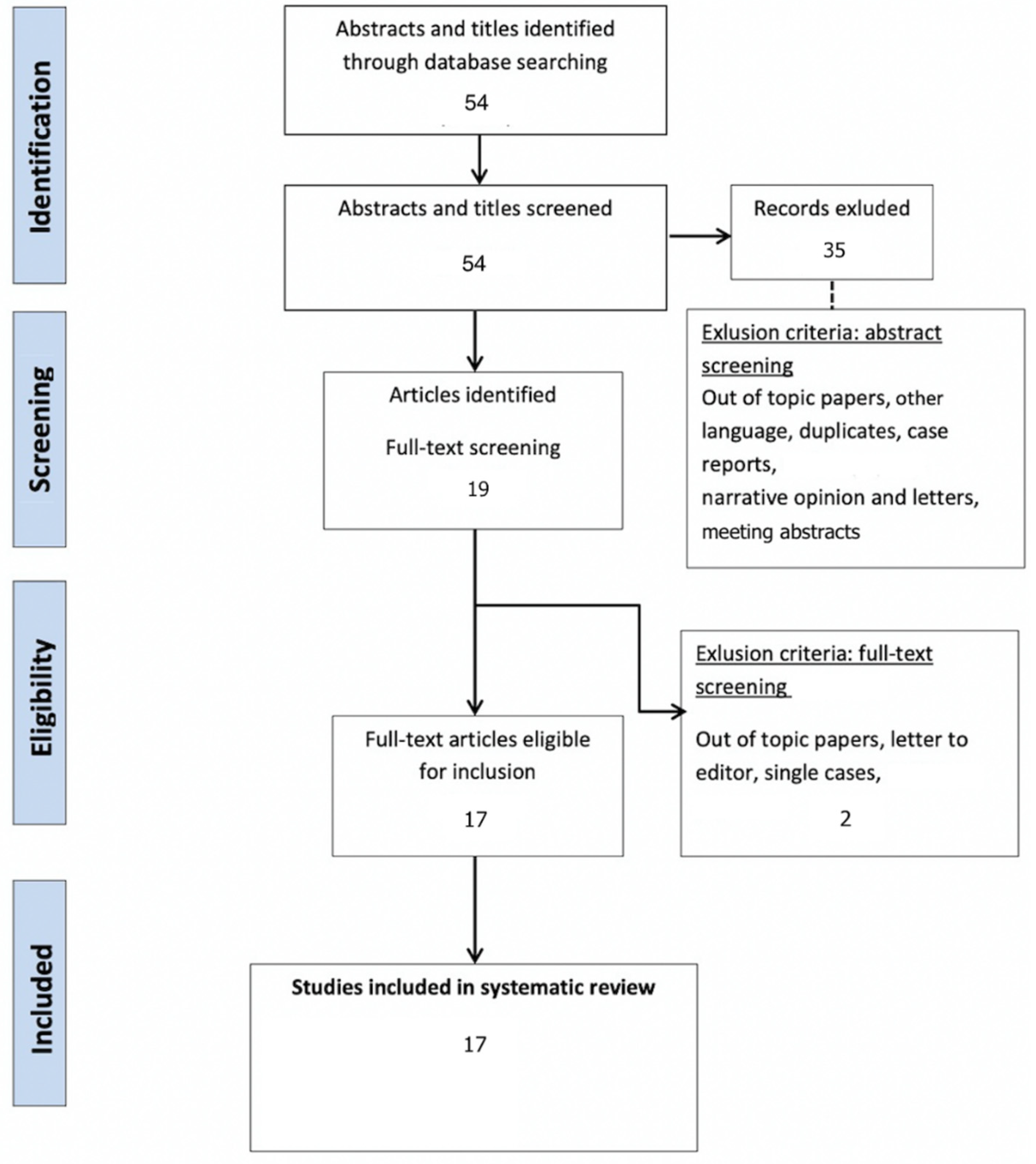

Figure 2. Systematic review PRISMA flow diagram.
Figure 2. Systematic review PRISMA flow diagram.
Jcm 10 02888 g002
Figure 3. Lithogenesis on Randall’s Plaques (RP). (A) Papilla with RP. (B) Papilla with anchored stones and erosion secondary to RP. 1—RP originate from the basement membranes of thin loops of Henle, spread with CA in the surrounding interstitium, and may erode the epithelium. Their aspect is a not well delineated infiltrate of the papilla. 2—Erosion or pit, that is the footprint of a previous anchored stone drop off. 3—Typical COM anchored stones, owing to the small size of the COM crystals that are the first able to combine with the plaques.
Figure 3. Lithogenesis on Randall’s Plaques (RP). (A) Papilla with RP. (B) Papilla with anchored stones and erosion secondary to RP. 1—RP originate from the basement membranes of thin loops of Henle, spread with CA in the surrounding interstitium, and may erode the epithelium. Their aspect is a not well delineated infiltrate of the papilla. 2—Erosion or pit, that is the footprint of a previous anchored stone drop off. 3—Typical COM anchored stones, owing to the small size of the COM crystals that are the first able to combine with the plaques.
Jcm 10 02888 g003
Figure 4. Endoscopic aspects of intratubular crystallization. Their aspect is based on very thin, small, and well-delineated deposits. (A) Intraductal Bellini plugs, located in the central part of the papilla. (B) Intraductal crystallization, with the presence of small stones in the Bellini ducts. (C) Intraductal crystallization and intense peripheric intraductal plugging (that may begin in the loop of Henle), with the development of nephrocalcinosis.
Figure 4. Endoscopic aspects of intratubular crystallization. Their aspect is based on very thin, small, and well-delineated deposits. (A) Intraductal Bellini plugs, located in the central part of the papilla. (B) Intraductal crystallization, with the presence of small stones in the Bellini ducts. (C) Intraductal crystallization and intense peripheric intraductal plugging (that may begin in the loop of Henle), with the development of nephrocalcinosis.
Jcm 10 02888 g004
Figure 5. Bed observation of a removed anchored stone may reveal the presence of tubular plugs. (A) Observation before anchored stone retrieval. (B) Bed observation after anchored stone retrieval (shown by the black arrow).
Figure 5. Bed observation of a removed anchored stone may reveal the presence of tubular plugs. (A) Observation before anchored stone retrieval. (B) Bed observation after anchored stone retrieval (shown by the black arrow).
Jcm 10 02888 g005
Figure 6. Example of a stone with a pure outer COD aspect (A) and during Laser treatment (B) the emergence of a central COM part (shown by the black arrow). After treatment, and notably, dusting of the outer part, the remaining fragments (presumably COM) will be extracted for analysis and may underestimate the whole composition of the stone in case ESR was not performed.
Figure 6. Example of a stone with a pure outer COD aspect (A) and during Laser treatment (B) the emergence of a central COM part (shown by the black arrow). After treatment, and notably, dusting of the outer part, the remaining fragments (presumably COM) will be extracted for analysis and may underestimate the whole composition of the stone in case ESR was not performed.
Jcm 10 02888 g006
Figure 7. Examples of ESR. (A1) Typical COM stone with a smooth or mammillary dark-brown surface. In this case, papillary anchored with a RP. (A2) Typical transection aspect of a pure COM stone with a radiating organization of layers starting from a nucleus. (B) Typical COM (subtype Id [1]) stone with a pale brown-yellowish budding surface. (C) Typical COD stone with a yellow light spiculated surface (aggregated crystals with sharp angles and edges). (D) Typical UA (subtype IIIa [1]) stone with a homogeneous smooth orange surface, and after transection a concentric organization of the layers around a well-defined nucleus. (E) Typical Cystine stone with a bumpy or rough light brown yellow surface with a waxy aspect.
Figure 7. Examples of ESR. (A1) Typical COM stone with a smooth or mammillary dark-brown surface. In this case, papillary anchored with a RP. (A2) Typical transection aspect of a pure COM stone with a radiating organization of layers starting from a nucleus. (B) Typical COM (subtype Id [1]) stone with a pale brown-yellowish budding surface. (C) Typical COD stone with a yellow light spiculated surface (aggregated crystals with sharp angles and edges). (D) Typical UA (subtype IIIa [1]) stone with a homogeneous smooth orange surface, and after transection a concentric organization of the layers around a well-defined nucleus. (E) Typical Cystine stone with a bumpy or rough light brown yellow surface with a waxy aspect.
Jcm 10 02888 g007
Figure 8. Stone morphological laser-induced changes. Example of a pure COM stone. (A1) After dusting settings use: Loss of the typical radiating organization of the internal layers aspect. (A2) After fragmentation settings use: visualization of the typical radiating organization of the internal layers. (B) Pure fragmentation in progress aspect: respect of the internal structure.
Figure 8. Stone morphological laser-induced changes. Example of a pure COM stone. (A1) After dusting settings use: Loss of the typical radiating organization of the internal layers aspect. (A2) After fragmentation settings use: visualization of the typical radiating organization of the internal layers. (B) Pure fragmentation in progress aspect: respect of the internal structure.
Jcm 10 02888 g008
Figure 9. Stone morphological laser-induced changes. Carbonization (shown by the black arrow) during TFL treatment, which can be misleading for ESR.
Figure 9. Stone morphological laser-induced changes. Carbonization (shown by the black arrow) during TFL treatment, which can be misleading for ESR.
Jcm 10 02888 g009
Table 1. Identified and selected publications on ESR and EPR.
Table 1. Identified and selected publications on ESR and EPR.
TypeSubjectNumberYear
Low [18]EPRRP571997
Darves-Bornoz [27]EPRRP in pediatric stone formers82019
Strohmaier [29]EPRRP and number of stone episodes1002013
Kim [30]EPRRP and number of stones172005
Wang [31]EPRLow RP and CaOx stone formers422014
Matlaga [19]EPRAnchored stone and RP232006
Borofsky [20]EPRGrading Score3422016
Almeras [21]EPRClassification1642016
Jaeger [22]EPRStruvite1192016
Cohen [23]EPRScore use and correlation RP/pitting762019
Borofsky [24]EPRAnchored stone/pitting282019
Almeras [25]EPRClassification use and correlations RP, stones, …882021
Pless [26]EPRScore use462019
Sabaté [28]EPRDescription412020
Fernandez [32]EPRCP plugs detection by AI2002019
Estrade [10]ESRCorrelation endoscopy/microscopy3992020
Marien [33]EPRReview132016
ESR: endoscopic stone recognition; EPR: endoscopic papillary recognition; AI: artificial intelligence.
