Chemical Absorption of CO

_{2}Enhanced by Nanoparticles Using a Membrane Contactor: Modeling and SimulationDepartment of Chemical & Petroleum Engineering, UAE University, Al-Ain 15551, UAE

Received: 6 October 2019 / Accepted: 8 November 2019 / Published: 11 November 2019

## Abstract

**:**

In the present work, membrane resistance was estimated and analyzed, and the results showed that total membrane resistance increased sharply when membrane pores were wetted. For further study, a two-dimensional (2D) mathematical model was developed to predict the chemical absorption of CO

_{2}in aqueous methyldiethanolamine (MDEA)-based carbon nanotubes (CNTs) in a hollow fiber membrane (HFM) contactor. The membrane was divided into wet and dry regions, and equations were developed and solved using finite element method in COSMOL. The results revealed that the existence of solid nanoparticles enhanced CO_{2}removal rate. The variables with more significant influence were liquid flow rate and concentration of nanoparticles. Furthermore, there was a good match between experimental and modeling results, with the modeling estimates almost coinciding with experimental data. Solvent enhanced by solid nanoparticles significantly improved the separation performance of the membrane contactor. There was around 20% increase in CO_{2}removal when 0.5 wt% CNT was added to 5 wt% aqueous MDEA.Keywords:

gas absorption; CO_{2}capture; nanofluid; MDEA; membrane wetting; carbon nanotubes (CNTs); global warming

## 1. Introduction

Gas–liquid hollow fiber membrane (HFM) contactors have attracted the attention of many researchers due to their high interfacial area per unit volume compared to conventional absorption processes. In HFM contactors, mass transfer occurs without dispersion of phases. Shell and tube HFM contactors are employed for the capture of gas impurities, such as CO

_{2}and H_{2}S, from natural gas and flue gas. The drawbacks of conventional absorption processes, such as the dispersion of phases, can be avoided in HFM contactors. The disadvantages of packed and tray contactor columns, such as emulsion formation, flooding at high gas flow rates, and weeping at low gas flow rates, can also be avoided in HFM contactors [1,2,3,4,5]. The solvents used in CO_{2}absorption and employed by both conventional packed bed columns and membrane contactors are aqueous alkanolamine absorbents. These are the most commonly used absorbents in CO_{2}absorption processes, such as CO_{2}detention from natural gas, flue gas, and biofuels. Despite the advantages of high absorption performance of alkanolamines, they can cause membrane degradation if used in HFM contactors, corrosion problems if used in industrial gas absorbers, and high-energy consumption during solvent regeneration and circulation. Consequently, researchers have continued to look for better absorbents. Ionic liquid is one of the choices proposed and has been used for CO_{2}capture in HFM contactors [6,7,8]. Another alternative is solid nanoparticles dispersed in water (nanofluids), which also makes for an environmentally friendly substitute absorbent. Distilled water has been found to be enhanced by solid nanoparticles, such as carbon nanotubes (CNTs) and silicon oxide (SiO_{2}) nanoparticles [9,10,11,12]. In [13], the process of using water-based nanoparticles as solvents was modeled considering diffusion in the radial and axial directions under dry-mode conditions (nonwetting). In [14], CO_{2}was found to be absorbed by water that had been enhanced by nanoparticles, such as aluminum oxide, titanium oxide, and silica, in the concentration range of 0.05–0.2 wt%. In the study, the removal of CO_{2}from a gas mixture of CO_{2}/N_{2}using nanofluids (metal oxide in distilled water) in a membrane liquid–gas contacting module was examined. Metal oxide nanoparticles, namely, aluminum oxide (Al_{2}O_{3}), titanium dioxide (TiO_{2}), and silicon dioxide (SiO_{2}), in the concentration range of 0.01–0.2 wt% were experimentally investigated. In [15], a numerical model was established to represent the process of capturing CO_{2}from a gas mixture using HMC in distilled water enhanced by carbon nanotubes and nanosilica, mainly at high nanofluid absorbent flow rate. Another study on CO_{2}absorption mechanisms for advancements in the use of nanofluids as absorbent in gas–liquid HFM contactors indicated that absorption of CO_{2}using nanofluids as absorbent was a challenging method for acid gas removal from gas mixtures [16]. CO_{2}absorption from gas mixtures in nanofluids (silica in distilled water) in bubble column absorption has also been investigated [17].In the area of modeling and simulation of nanofluids, a 2D numerical model was developed for the study of CO

_{2}gas capture from a gas mixture in a HFM contactor, with water-based nanofluids used as the liquid absorbent [13,18]. The nanofluids that were composed of 0.05 wt% silica nanoparticles were found to enhance separation by around 15%, while a 30% increase was shown using nanofluids composed of distilled water-based CNTs [18]. In [19], a model describing the absorption of CO_{2}from a gas mixture in a water-based CNT inside a HFM contactor revealed that absorption of CO_{2}was enhanced using solid nanoparticles in water-based solvent. In [20], nanoparticles, such as SiO_{2}, Al_{2}O_{3}, CNT, and Fe_{3}O_{4}, were dispersed in distilled water at different concentrations (0.02, 0.05, and 0.1 wt%) and in methyldiethanolamine (MDEA) and diethanolamine (DEA) at concentration of 0.02 wt% to form nanofluids. The prepared nanofluids were used in direct contact with pure CO_{2}in a closed vessel at high operating pressures (20, 30, and 40 bar) and a fixed operating temperature of 308 K. In [21], the absorption mechanism of CO_{2}in the presence of nanoparticles compared to fresh water were clarified. In [22], holdups of solid nanoparticles, such as CNT, Fe_{3}O_{4}, Al_{2}O_{3}, and SiO_{2}, in purified water were used as absorbents for CO_{2}in a pilot HFM contactor. In [23], the effect of nanofluids composed of solid nanoparticles on the mass diffusion rate of CO_{2}absorption were considered. Experiments and modeling of the process performance of CO_{2}capture from gas mixtures using flat sheet membrane contactors were investigated in [24]. In [25], a model of CO_{2}removal from natural gas in HFM contactors was developed and solved using COMSOL software package version 5.4 (Comsol AB, Stockholm, Sweden). The model was comprehensive, taking into account momentum, energy, and mass transport, and the model predictions were within the range of the experimental data. An earlier review looked at the absorption of CO_{2}in membrane contactors [26]. Absorption of CO_{2}from the gas mixture of air/CO_{2}in gas–liquid HFM contactors via nanofluids comprising silica nanoparticles and carbon nanotubes were experimental investigated in [27]. Experimental and theoretical studies have also been performed for the absorption of CO_{2}in a lab-scale reactor using nanofluids composed of carbon nanotubes. Nanosize Al_{2}O_{3}particles were used, with water and methanol acting as the base fluids [10,28].In the present work, a comprehensive 2D mathematical model was developed and solved to study the chemical absorption of CO

_{2}from CO_{2}/N_{2}gas mixture in aqueous MDEA-based CNT inside a HFM contactor, with the model considering partial wetting. As resistance is mainly located in the liquid phase around solid nanoparticles [18], the membrane module was modeled as five subdivisions: two in the tube side (solid-free region and dense phase), two in the membrane (wetted and dry), and one in the shell side (gas phase). The system governing the material balance equations were numerically solved using the finite element method in COMSOL Multiphysics version 5.4. The model predictions were validated with experimental data available in the literature. CO_{2}concentration profile was investigated in dry and wetted membrane modes. The effect of operating conditions, such as gas flow rate, liquid flow rate, absorbent size, and concentration, on percentage removal of CO_{2}was studied.## 2. Mass Transfer Resistance in HFM Contactor

The overall mass transfer resistance ($1/{k}_{G}$) in a gas–liquid HFM contactor based on the film theory involves three main resistances in series: liquid phase resistance ($1/{k}_{l}$), membrane resistance ($1/{k}_{m}$), and resistance of the gas phase boundary layer ($1/{k}_{g}$). Accordingly, the overall mass transfer resistance in a HFM contactor is expressed as follows:
where ${k}_{g}$ is the mass transfer coefficient in the gas side (m/s); ${k}_{m}$ is the mass transfer coefficient in the membrane side (m/s); ${k}_{l}$ is the mass transfer coefficient of the liquid phase; ${d}_{i}$, ${d}_{o}$, and ${d}_{lm}$ are the HFM’s inner, outer, and logarithmic mean diameters, respectively; and $m$ is the dimensionless distribution coefficient at the gas–liquid interface. The mass transfer coefficients ${k}_{g}$ and ${k}_{l}$ are based on flow conditions and geometry of the HFM contactor [29].

$$\frac{1}{{k}_{G}}=\frac{{d}_{o}}{{k}_{g}{d}_{i}}+\frac{{d}_{o}}{{k}_{m}{d}_{lm}}+\frac{1}{m{k}_{l}}$$

The mass transfer resistance of membrane ($1/{k}_{m}$) consists of two resistances: dry membrane resistance ($1/{k}_{mg}$) and wetted membrane resistance ($1/{k}_{mw}$), calculated as follows:
where $y$ is the fraction length of membrane pores filled with solvents; ${k}_{mg}$ and ${k}_{mw}$ are the mass transfer coefficient in gas- and liquid-filled pores, respectively; and $\epsilon $, $\delta $, and τ are the membrane porosity, membrane thickness, and membrane tortuosity, respectively. The liquid mass transfer coefficient is determined using the following relationship:
where $Sh$ is the Sherwood number, and $Gz$ is the Gratz number determined as follows:

$$\frac{1}{{k}_{mg}}=\frac{\delta \text{}\tau}{{D}_{og\text{}}\epsilon}$$

$$\frac{1}{{k}_{mg}}=\frac{\delta \text{}\tau}{{D}_{og\text{}}\epsilon}$$

$$\frac{1}{{k}_{m}}=\frac{1-y}{{k}_{mg}}+\frac{y}{{k}_{mw}}$$

$$Sh=\sqrt[3]{{3.57}^{3}+{1.62}^{3}\text{}Gz}$$

$$Sh={k}_{l}{d}_{i}/{D}_{l}$$

And

$$Gz=\frac{{V}_{l}{d}_{i}^{2}}{L\text{}{D}_{l}}$$

The diffusion coefficient of CO

_{2}in the liquid phase is determined by the following relationship [30]:
$${D}_{l}\left({\mathrm{m}}^{2}/\mathrm{s}\right)=2.35\times {10}^{-6}exp\left(-\frac{2119}{T}\right)$$

The diffusion coefficient of CO
where $\varphi $ is the solid volume fraction, and Re is the Reynolds number of the nanosized particles (Brownian motion):
where $k$ is the Boltzmann constant ($1.38\times {10}^{-23}\text{}J/K$), $T$ is the temperature in K, $\rho $ is the liquid density, ${d}_{p}$ is the particle diameter, ${\rho}_{p}$ is the particle density, and $\mu $ is the viscosity of the liquid.

_{2}in the dense liquid film around the nanoparticles is expressed as per Equation (9) [31]:
$${D}_{n}={D}_{l}\left(1+640R{e}^{1.7}S{c}^{1/3}\varphi \right)$$

$$Re={\left(\frac{18\text{}k\text{}T\rho}{\pi {d}_{p}{\rho}_{p}{\mu}^{2}}\right)}^{0.5}$$

The Schmidt number ${S}_{c}$ is
The mass transfer coefficient in the gas phase, i.e., the gas stream flowing in the shell side, is determined by [32]:
where $S{h}_{s}$, $R{e}_{s}$, and $S{c}_{s}$ are the Sherwood number, Reynolds number, and Schmidt number in the shell side, respectively: $S{h}_{s}={k}_{g}{d}_{s}/{D}_{g}$, $R{e}_{s}={\rho}_{g}{v}_{s}{d}_{s}/{\mu}_{g}$, $S{c}_{s}={\mu}_{g}/{\rho}_{g}{D}_{g}$.

$$Sc=\frac{\mu}{\rho D}$$

$$S{h}_{s}=0.34R{e}_{s}^{0.67}S{c}_{s}^{0.33}$$

The diffusivity in the gas phase (${D}_{g}$) is determined using the Chapman–Enskog equation for gas mixture: ${D}_{g}\text{}\left({\mathrm{m}}^{2}/\mathrm{s}\right)=1.855\times {10}^{-5}$. The density of the CO

_{2}/N_{2}gas mixture was 343 $\mathrm{kg}/{\mathrm{m}}^{3}$, and the viscosity was $1.65\times {10}^{-4}$ Pa·s. The resistances in series were therefore found to be $5.65\times {10}^{4}$, $2.67\times {10}^{3}$, $5.16\times {10}^{6}$, and 165 s/m for the resistances of liquid in the tube side, dry membrane, wetted membrane, and the gas stream in the shell side, respectively. The membrane resistance of the wetted pores was the highest, followed by the liquid phase in the tube side.## 3. Mathematical Model

The mathematical model developed in the present work describes the CO

_{2}concentration profile in a partially wetted HFM contactor, where CO_{2}is absorbed in aqueous MDEA-based CNT. The membrane contactor comprises three fragments: tube, membrane, and shell section. The tube side, where the absorbent nanofluid passes through, is divided into two subregions: solid-free zone and dense phase. The gas mixture is transported in the shell side counter-currently with the solvent flow direction (Figure 1a). Figure 1b is the subdivision of the membrane module used to develop the mathematical model equations [28]. CO_{2}in the gas phase diffuses through the membrane pores to the nanofluids in the tube side. The ability of N_{2}to dissolve in aqueous MDEA solvents is insignificant relative to CO_{2}; subsequently, part of the CO_{2}dissolved in the liquid nanofluid is adsorbed on the surface of the solid nanoparticles, and the other portion reacts with MDEA (Figure 1c). The model considers two main mechanisms that generally take place in the presence of nanofluids: the Brownian motion (random motion of particles suspended in a fluid) and the grazing effect [33,34,35]. The presence of solid nanoparticles in nanofluid enhances the gas absorption due to the adsorption of diffusing gas in the dispersed solid particles. Hence, the gas concentration in the liquid phase near the interface decreases, leading to an increase in the concentration gradient and therefore the absorption rate [16]. Brownian movement increases the velocity near the solid nanoparticle. Microconvection is formed and mass flux dissemination develops, hence altering the diffusion constant [5]. The grazing effect takes place in CO_{2}adsorption at the gas–liquid interface in the presence of solid nanoparticles [36].The reaction between acid gases (CO

_{2}) and MDEA has been cited in many articles [3,11,12,37]. There is no hydrogen atom attached to the nitrogen atom in the tertiary amine (MDEA). Hence, CO_{2}first dissolves in the water available with the aqueous alkanolamine to form a bicarbonate ion. It can then react with the amine [38]:
$$C{O}_{2}+{H}_{2}O+{R}_{3}N\to {R}_{3}N{H}^{+}+HC{O}_{3}^{-}$$

The reaction rate of CO

_{2}is
$${r}_{C{O}_{2}}=-k{C}_{C{O}_{2}}{C}_{MDEA}$$

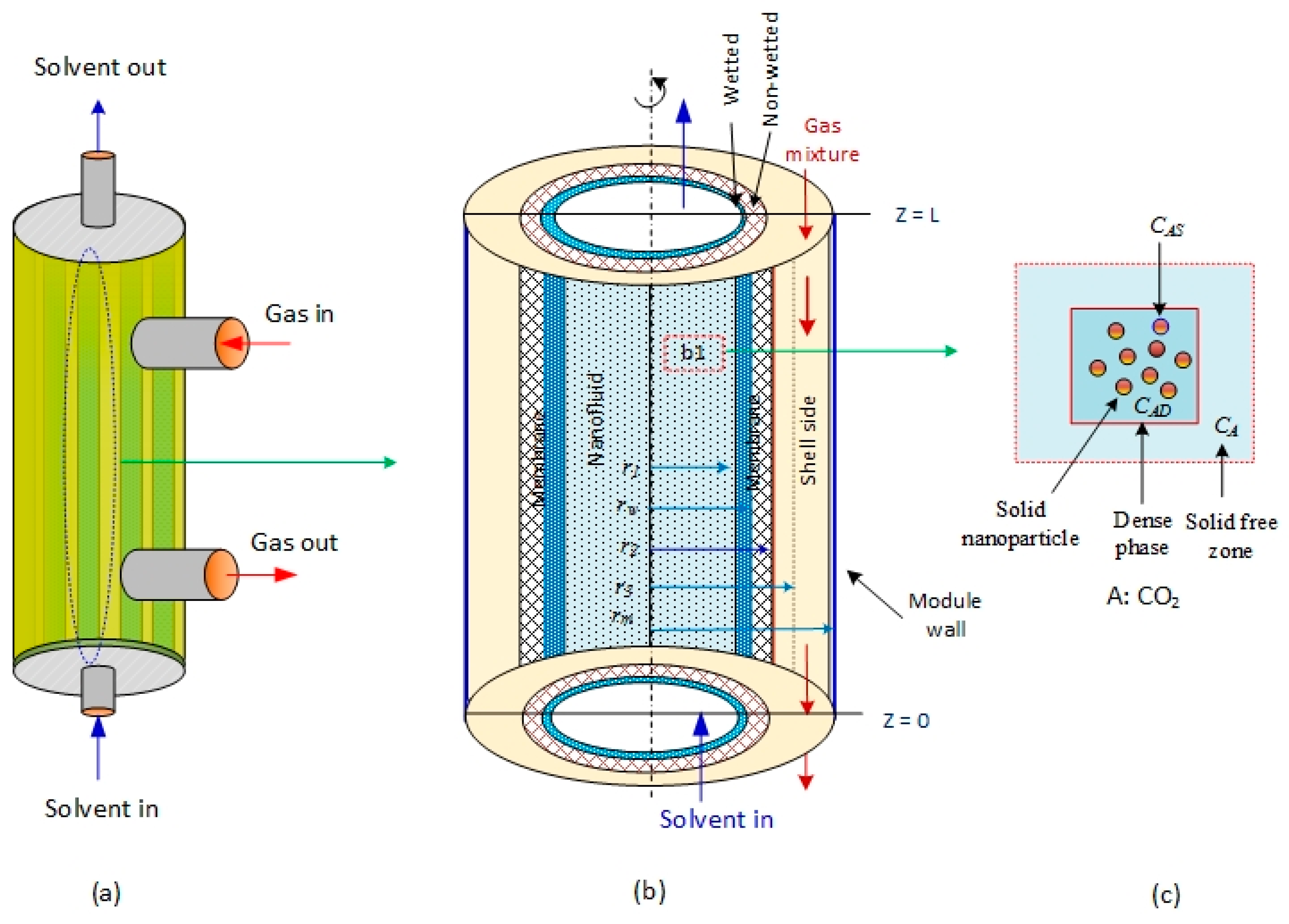

Based on Happel’s free surface [39], laminar gas flow surrounds the membrane tubes. At the Happel’s fictional radius ($r={r}_{3}$), symmetry is considered. The following assumptions were considered in the model development: steady state operation, constant solvent properties, ideal gas, and nanoparticles as homogeneous. The mathematical equations that describe the system behavior were developed for the tube side (solid nanoparticles and liquid), microporous membrane (wetted and dry), and shell side (flow of gas stream). Accordingly, the model equations for the CO

_{2}diffusion path in the tube, membrane, and shell regions are described in the following subsections.#### 3.1. Tube Lumen $\left(0\le r\le {r}_{1}\right)$

The flow of nanofluids (CNT, water, MDEA) in the tube lumen side and the depletion of CO

_{2}in the lumen side of the membrane take place by absorption of CO_{2}in water and by the adsorption of CO_{2}on the surface of the nanoparticles and the reaction with aqueous MDEA. Considering the membrane’s partly moisturized section, Equation (15) represents the CO_{2}concentration profile in the solid-free zone (${C}_{C{O}_{2}}$) with dimensionless radius and length:
$$\frac{{D}_{l}}{{R}^{2}}\left[\frac{{\partial}^{2}{C}_{C{O}_{2}}}{\partial {\phi}^{2}}+\frac{1}{\phi}\frac{\partial {C}_{C{O}_{2}}}{\partial \phi}\right]+\frac{{D}_{l}}{{L}^{2}}\frac{{\partial}^{2}{C}_{C{O}_{2}}}{\partial {\psi}^{2}}-\frac{{u}_{{z}_{t}}}{L}\frac{\partial {C}_{C{O}_{2}}}{\partial \psi}={r}_{C{O}_{2}}$$

The concentration of CO

_{2}in the dense phase (${C}_{C{O}_{2},D}$) is
$$\frac{{D}_{n}}{{R}^{2}}\left[\frac{{\partial}^{2}{C}_{C{O}_{2},D}}{\partial {\phi}^{2}}+\frac{1}{\phi}\frac{\partial {C}_{C{O}_{2},D}}{\partial \phi}\right]+\frac{{D}_{n}}{{L}^{2}}\frac{{\partial}^{2}{C}_{C{O}_{2},D}}{\partial {\psi}^{2}}-\frac{{u}_{{z}_{t}}}{L}\frac{\partial {C}_{C{O}_{2},D}}{\partial \psi}={R}_{d}+{r}_{C{O}_{2}}$$

The dimensionless parameters are symbolized by $\psi =z/L$, $\phi =r/{r}_{3}$.

In Equation (15), ${D}_{l}$ is the diffusion coefficient of the CO
where ${k}_{p}$ is the solid–liquid mass transfer coefficient ($\mathrm{m}/\mathrm{s})$, ${a}_{p}$ is the solid–liquid interfacial area (${\mathrm{m}}^{2}/{\mathrm{m}}^{3})$, ${C}_{C{O}_{2},D}$ is the solute concentration in the suspension ($\mathrm{mol}/{\mathrm{m}}^{3}$), ${C}_{C{O}_{2},S}$ is the solute concentration at the interface of the particles ($\mathrm{mol}/{\mathrm{m}}^{3}$).

_{2}in the solid-free zone in the tube lumen, ${D}_{n}$ is the diffusion coefficient of CO_{2}in the dense solid phase, ${C}_{C{O}_{2},D}$ is the CO_{2}concentration in the dense phase, L is the length of the membrane, and R is the radius of the hollow fiber. The adsorption rate, ${R}_{d}$, is as follows:
$${R}_{d}={k}_{p}{a}_{p}\left({C}_{C{O}_{2},D}-{C}_{C{O}_{2},S}\right)$$

The adsorbed amount of CO
where ${v}_{zt}$ is the velocity in the tube side. The ${k}_{p}$ value is estimated from Equation (19). The following correlation is used for mass transfer for flow past single spheres [32]:

_{2}on the solid nanoparticles per unit mass of particles, $q\text{}\left(\frac{\mathrm{mol}}{\mathrm{kg}}\right),$ can be given by
$$\varphi {\rho}_{p}\frac{{v}_{zt}}{L}\frac{\partial q}{\partial \phi}={k}_{p}{a}_{p}\left({C}_{C{O}_{2},D}-{C}_{C{O}_{2},S}\right)$$

$$Sh=2+0.552R{e}^{0.5}S{c}^{0.33}$$

The value of $Sh$ was found to be 2.08, hence

$$Sh=\frac{{k}_{p}{d}_{p}}{{D}_{CO}{}_{2}}=2.08$$

Then, the ${k}_{p}$ value is determined as follows:
where ${D}_{C{O}_{2}}$ is the CO
where $q\text{}\left(\frac{\mathrm{mol}}{\mathrm{kg}}\right)$ is the adsorbed amount of CO

$${k}_{p}=2.08\times {D}_{C{O}_{2}}/{d}_{p}$$

_{2}diffusivity in the solid-free zone. The adsorption of the CO_{2}onto the surface of nanoparticles ($q$) is described by the Langmuir isotherm equation as follows:
$$q={q}_{m}\frac{{k}_{d}\text{}{C}_{C{O}_{2},s}}{1+{k}_{d}\text{}{C}_{C{O}_{2},s}}$$

_{2}on solid surface per unit mass of particle, ${q}_{m}$ is the highest quantity of adsorbed gas solute, and ${k}_{d}\text{}\left({\mathrm{m}}^{3}/\mathrm{mol}\right)$ is the Langmuir coefficient. The velocity distribution inside the tube (${v}_{zt}$) is assumed to follow Newtonian laminar flow as per Equation (23).
$${v}_{zt}=2{v}_{zt,avg}\left(1-{\left(\frac{r}{{r}_{1}}\right)}^{2}\right)$$

The appropriate boundary conditions are as follows:

$$\mathrm{inlet}\text{}\mathrm{of}\text{}\mathrm{liquid},\text{}z=0,\text{}{C}_{C{O}_{2}}={C}_{C{O}_{2},D}=0\text{}\left(\mathrm{fresh}\text{}\mathrm{solvent}\right)$$

$$\mathrm{exit}\text{}\mathrm{of}\text{}\mathrm{liquid},\text{}z=L,\text{}\frac{\partial {C}_{C{O}_{2}}}{\partial \psi}=\frac{\partial {C}_{C{O}_{2},D}}{\partial \psi}=0\text{}\left(\mathrm{convective}\text{}\mathrm{flux}\right)$$

$$\mathrm{tube}\text{}\mathrm{center},\text{}r=0,\text{}\frac{\partial {C}_{C{O}_{2}}}{\partial \phi}=\frac{\partial {C}_{C{O}_{2}D}}{\partial \phi}=0\text{}\left(\mathrm{axial}\text{}\mathrm{symmetry}\right)$$

$$\mathrm{inner}\text{}\mathrm{radius}:\text{}r={r}_{1},\text{}{C}_{C{O}_{2}}={C}_{C{O}_{2},wm}\text{}\left(\mathrm{wetted}\text{}\mathrm{membrane}\right)$$

#### 3.2. Membrane $\left({r}_{1}\le r\le {r}_{2}\right)$

#### 3.2.1. Wetted Membrane Section (${r}_{1}\le r\le {r}_{w})$

The steady-state material balance for the transport of CO
where ${C}_{C{O}_{2},wm}$ is the concentration of CO

_{2}is inside the wetted portion of the membrane (there is reaction but no convective term), and diffusion takes place in the wetted membrane. The CO_{2}transport in the wetted membrane portion is described by Equation (28):
$$\frac{{D}_{C{O}_{2,}wm}}{{R}^{2}}\left[\frac{{\partial}^{2}{C}_{C{O}_{2},wm}}{\partial {\phi}^{2}}+\frac{1}{\phi}\frac{\partial {C}_{C{O}_{2},wm}}{\partial \phi}\right]+\frac{{D}_{C{O}_{2},wm}}{{L}^{2}}\frac{{\partial}^{2}{C}_{C{O}_{2},wm}}{\partial \psi}=\u03f5{R}_{C{O}_{2}}$$

_{2}in the wetted portion of the membrane segment. The diffusivity of CO_{2}in the wetted membrane section is determined as follows: ${D}_{C{O}_{2},wm}={D}_{l\text{}}\epsilon /\tau $.The appropriate boundary conditions in wetted membrane (wm) zone are as follows:

$$\mathrm{tube}\text{\u2013}\mathrm{wetted}\text{}\mathrm{membrane}\text{}\mathrm{interface},\text{}r={r}_{1},\text{}{C}_{C{O}_{2},wm}={C}_{C{O}_{2}}$$

$$\mathrm{wetted}\text{\u2013}\mathrm{dry}\text{}\mathrm{membrane}\text{}\mathrm{interface},\text{}r={r}_{2},\text{}{C}_{C{O}_{2},wm}=m\text{}{C}_{C{O}_{2},m}$$

$$\mathrm{hollow}\text{}\mathrm{fiber}\text{}\mathrm{membrane}\text{}\mathrm{at}\text{}\mathrm{z}\text{}=\text{}0,\text{}\frac{\partial {C}_{C{O}_{2},wm}}{\partial \psi}=0$$

$$\mathrm{hollow}\text{}\mathrm{fiber}\text{}\mathrm{membrane}\text{}\mathrm{at}\text{}\mathrm{z}\text{}=\text{}\mathrm{L},\text{}\frac{\partial {C}_{C{O}_{2},wm}}{\partial \psi}=0$$

#### 3.2.2. Dry Section of the Membrane (${r}_{w}\le r\le {r}_{2})$

The CO

_{2}concentration in the dry part of the membrane, where there is no reaction and no convective term and only diffusion takes place, is calculated as follows:
$$\frac{{D}_{m}}{{R}^{2}}\left[\frac{{\partial}^{2}{C}_{C{O}_{2},m}}{\partial {\phi}^{2}}+\frac{1}{\phi}\frac{\partial {C}_{C{O}_{2},m}}{\partial \phi}\right]+\frac{{D}_{m}}{{L}^{2}}\frac{{\partial}^{2}{C}_{C{O}_{2},m}}{\partial \psi}=0$$

The arbitrary boundary conditions are as follows:

$$\mathrm{wetted}\text{\u2013}\mathrm{dry}\text{}\mathrm{membrane}\text{}\mathrm{interface},\text{}r={r}_{w},\text{}{C}_{C{O}_{2},m}={C}_{C{O}_{2},wm}/m$$

$$\mathrm{membrane}\text{\u2013}\mathrm{shell}\text{}\mathrm{interface},\text{}r={r}_{2},\text{}{C}_{C{O}_{2},m}={C}_{C{O}_{2},g}$$

$$\mathrm{membrane}\text{}\mathrm{bottom}\text{}\mathrm{edge},\text{}z=0,\text{}\frac{\partial {C}_{C{O}_{2},m}}{\partial \psi}=0$$

$$\mathrm{membrane}\text{}\mathrm{top}\text{}\mathrm{edge},\text{}z=L,\text{}\frac{\partial {C}_{C{O}_{2},m}}{\partial \psi}=0$$

The diffusivity of CO

_{2}in the nonwetted membrane section is ${D}_{m}={D}_{g}\epsilon /\tau $, where $\epsilon $ and $\tau $ are the porosity and tortuosity of the membrane, respectively.#### 3.3. Shell Side $\left({r}_{2}\le r\le {r}_{3}\right)$

The material balance of the CO

_{2}in the shell side (${C}_{C{O}_{2},g}$), bounded between the membrane’s outer skin layer and Happel’s free surface model at steady state, is as follows:
$$\frac{{D}_{g}}{{R}^{2}}\left[\frac{{\partial}^{2}{C}_{C{O}_{2},g}}{\partial {\phi}^{2}}+\frac{1}{\phi}\frac{\partial {C}_{C{O}_{2},g}}{\partial \phi}\right]+\frac{{D}_{g}}{{L}^{2}}\frac{{\partial}^{2}{C}_{C{O}_{2},g}}{\partial {\psi}^{2}}-\frac{{v}_{zs}}{L}\frac{\partial {C}_{C{O}_{2},g}}{\partial \psi}=0$$

The arbitrary boundary conditions are

$$\mathrm{gas}\text{}\mathrm{inlet}\text{}\mathrm{side},\text{}z=L,\text{}{C}_{C{O}_{2},g}={C}_{C{O}_{2},0}\text{}\left(\mathrm{inlet}\text{}{\mathrm{CO}}_{2}\text{}\mathrm{concentration}\right)$$

$$\mathrm{gas}\text{}\mathrm{exit}\text{}\mathrm{side},\text{}z=0,\text{}\frac{\partial {C}_{C{O}_{2},g}}{\partial \psi}=0\text{}\left(\mathrm{convective}\text{}\mathrm{flux}\right)$$

$$\mathrm{free}\text{}\mathrm{surface},\text{}r={r}_{3},\text{}\frac{\partial {C}_{C{O}_{2},g}}{\partial \psi}=0\text{}\left(\mathrm{symmetry}\right)$$

$$\mathrm{shell}\text{\u2013}\mathrm{membrane}\text{}\mathrm{interface},\text{}r={r}_{2}\text{}{C}_{C{O}_{2},g}={C}_{C{O}_{2},m}$$

The axial velocity in the shell side is expressed by Happel’s free surface model [39]:

$${v}_{zs}=2{V}_{zs,avg}\left[1-{\left(\frac{{r}_{2}}{{r}_{3}}\right)}^{2}\right]\frac{\left({\left(\frac{r}{{r}_{3}}\right)}^{2}-{\left(\frac{{r}_{2}}{{r}_{3}}\right)}^{2}+2\mathrm{ln}\left(\frac{{r}_{2}}{r}\right)\right)}{\left(3+{\left(\frac{{r}_{2}}{{r}_{3}}\right)}^{4}-4{\left(\frac{{r}_{2}}{{r}_{3}}\right)}^{2}+4\mathrm{ln}\left(\frac{{r}_{2}}{{r}_{3}}\right)\right)}$$

Table 1 lists the parameters used in the numerical solution of the model equations. COSMOL Multiphysics 5.4 was employed to solve the set of partial differential equations.

The properties of the solid CNT are listed in Table 2.

## 4. Results and Discussion

Analysis of the mass transfer resistance in the HFM contactor (liquid, membrane, and gas phases) revealed that wetting of membrane pores by the absorbent liquid led to a high increase in the total membrane resistance and hence decreased the percentage removal of CO

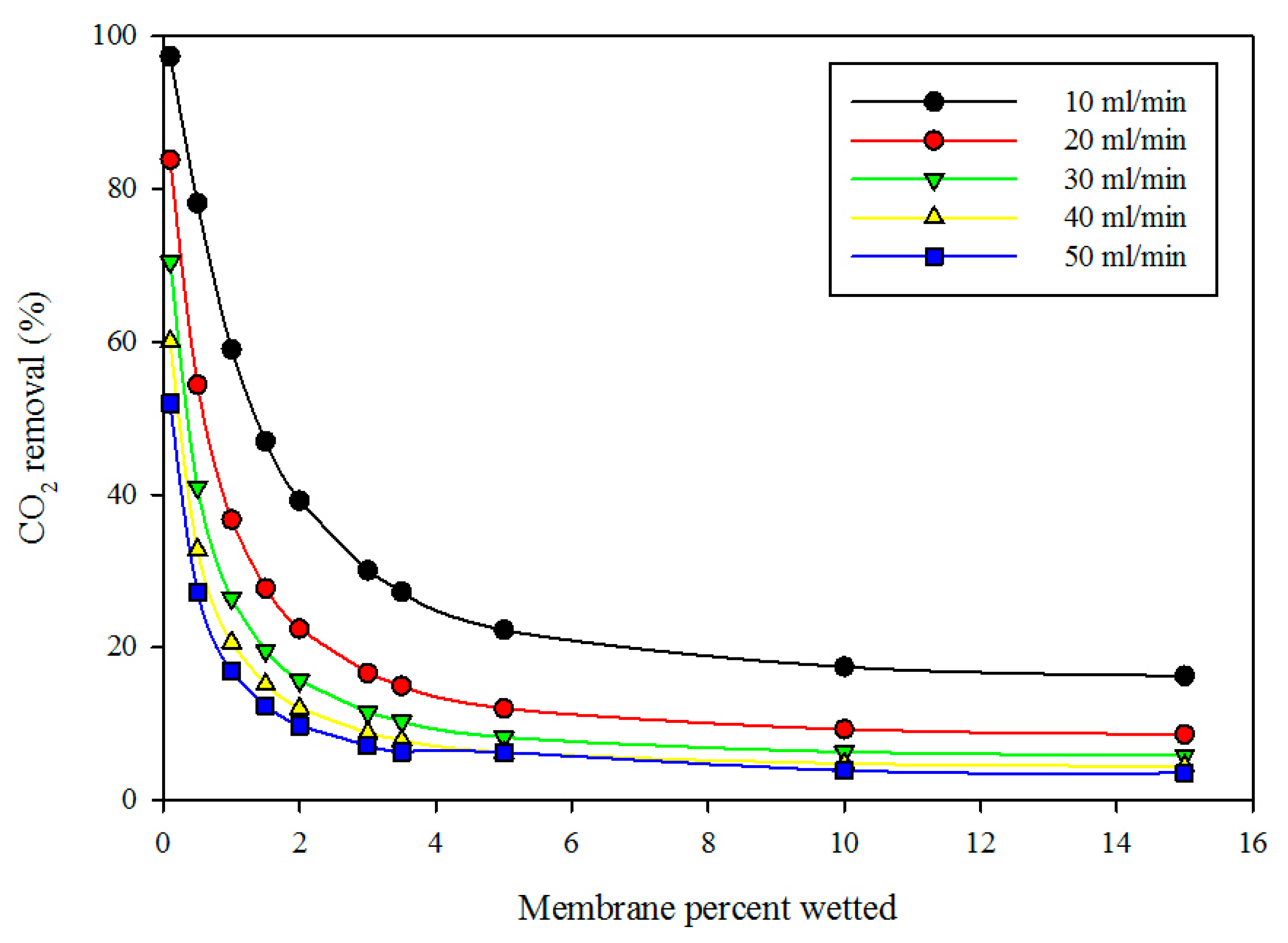

_{2}. This can be attributed to the presence of stationary liquid in the wetted piece of the membrane pores, which consequently caused a delay in the CO_{2}transport in the membrane holes. Accordingly, the concentration of the CO_{2}at the membrane–liquid interface decreased, and the CO_{2}removal efficiency also decreased [44]. In the absorbent liquid nanofluid stream in the tube lumen, the liquid–solid mass transfer resistance was low due to the nanosize of the solid nanoparticle; hence, the mass transfer resistance was concentrated in the solid-free liquid region [22].In order to check the accuracy of the developed mathematical model, the model was validated with our published experimental data obtained for CO
where $n$ is the sum of the investigated data points, and ${E}_{i}^{2}$ is the square of the error between predicted results from the model and experimental data point. The relative error (${E}_{i})$ was measured as per Equation (45):
where ${y}_{exp}$ and ${y}_{mod}$ are the experimental and model prediction data points, respectively. The value of the RMSE for the system of aqueous 5 wt% MDEA/water was around 0.01, while it was 0.007 for CNT/MDEA/water. Results revealed that the CO

_{2}absorption from a gas mixture consisting of CO_{2}/N_{2}in aqueous alkanolamine solution with and without solid nanoparticles of carbon nanotubes dispersed in the aqueous MDEA [40]. The model predictions (solid line) for both amine-free aqueous solution (5 wt% MDEA, with the balance being water) and aqueous amine solution with carbon nanotubes (5 wt% MDEA, 0.5 wt% CNT, with the balance being water) are depicted in Figure 2. There was an excellent match between the experimental and simulation results, confirming the promising predictions of the developed model. The deviation of the predicted results from the experimental data was measured using the root mean square error (RMSE) as follows:
$$\mathrm{RMSE}={\left(\frac{\sum {E}_{i}^{2}}{n}\right)}^{0.5}$$

$${E}_{i}=\frac{{y}_{exp}-{y}_{mod}}{{y}_{exp}}$$

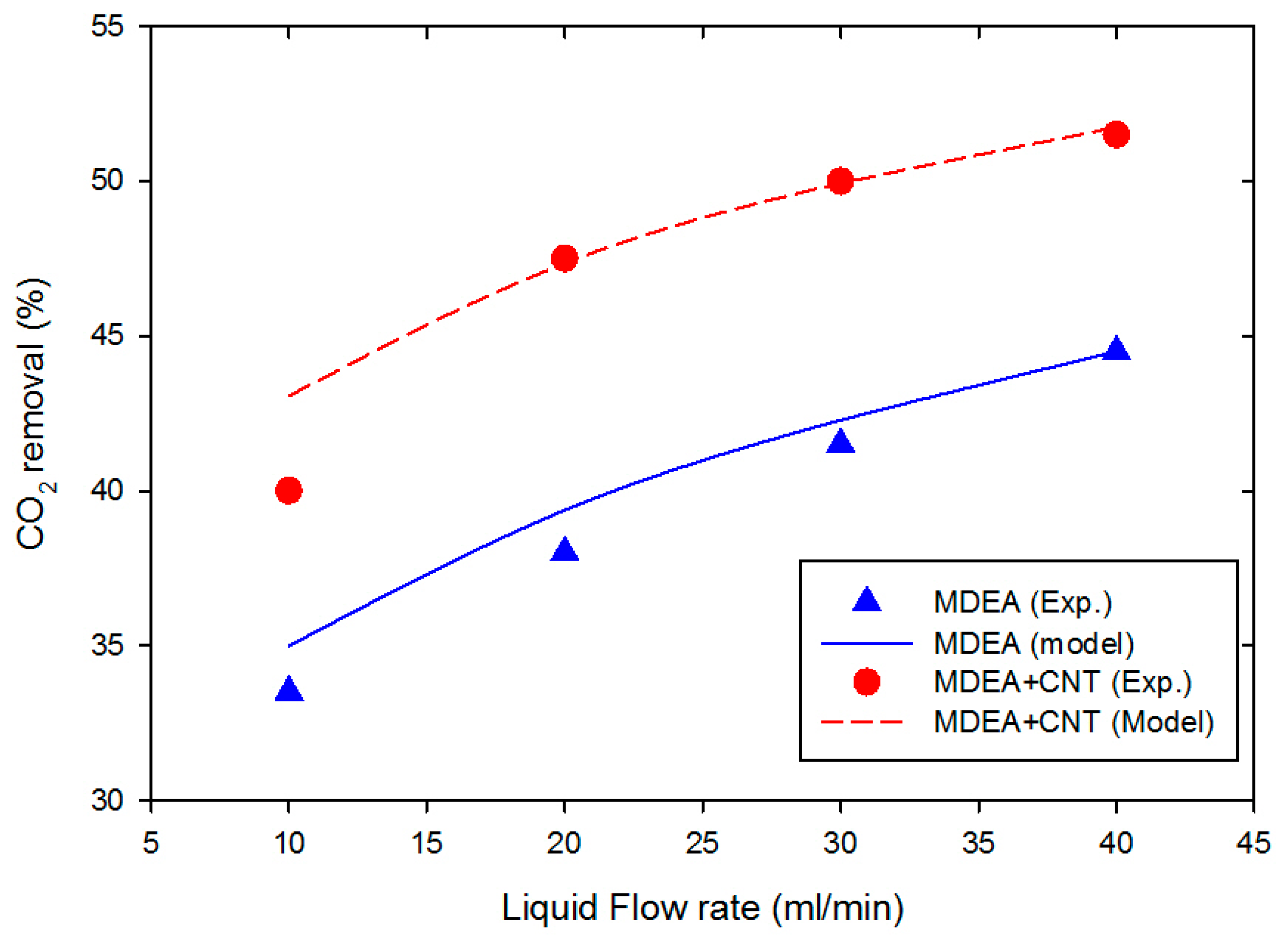

_{2}removal rate increased when liquid flow rate increased. This can be attributed to the fact that the thickness of the liquid boundary layer decreased with the increase in liquid flow rate, and the decrease in the liquid boundary layer in the hollow fiber increased the CO_{2}diffusion rate into the absorbents. Consequently, the liquid–gas border was kept at low CO_{2}concentration (high concentration gradient), which improved the percentage removal of CO_{2}.At constant liquid flow rate, the effect of flow rate of gas (GFR) on the percentage removal of CO

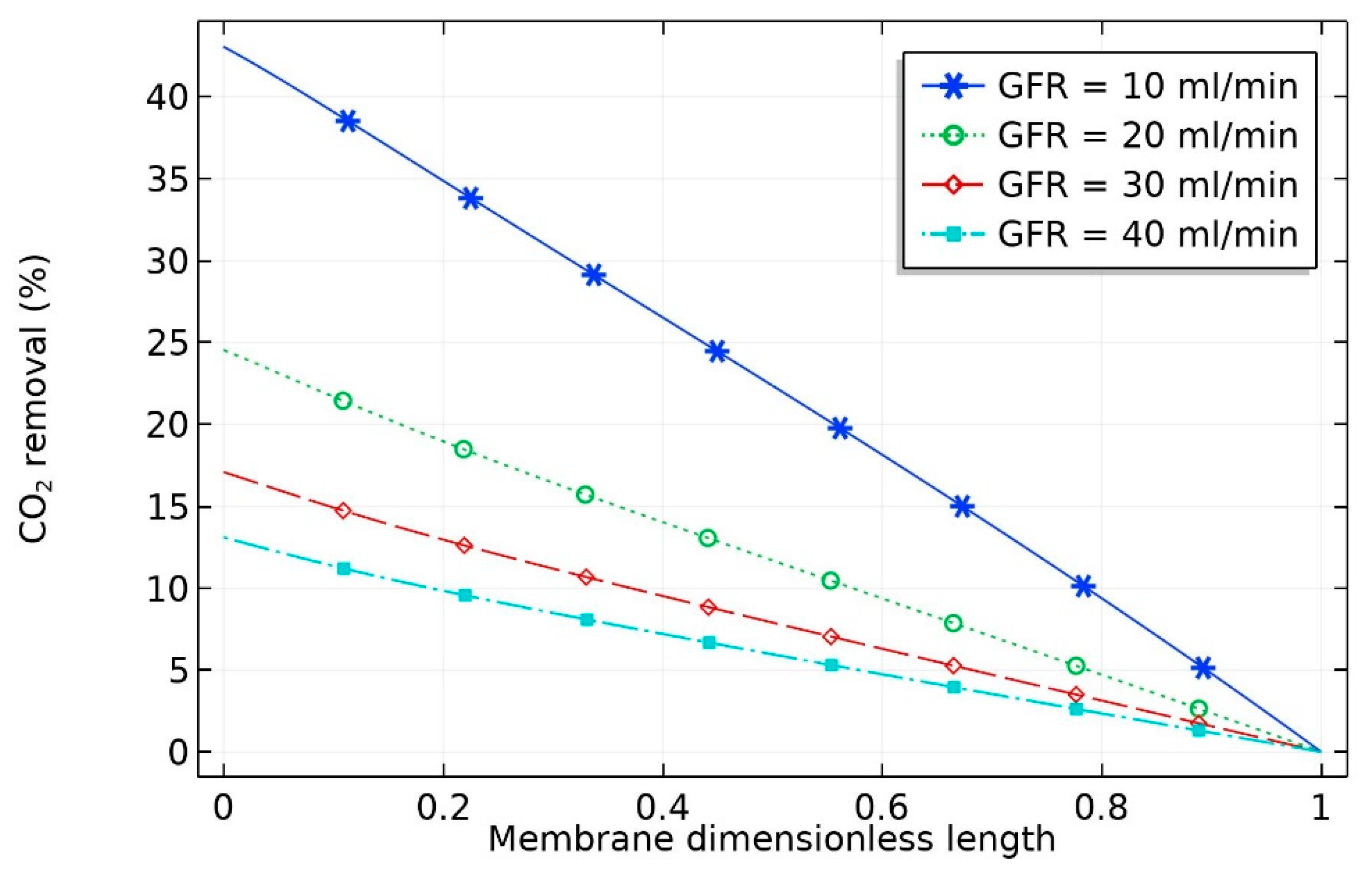

_{2}is depicted in Figure 3. It can be seen that the percentage removal at a fixed liquid flow rate was not evenly spaced; rather, as expected, the percentage removal of carbon dioxide decreased at high gas flow rates. With the increase in gas volumetric flow rate from 10 to 20 mL/min, a sharp decrease in percentage removal of CO_{2}from 45 to 25% occurred. This can be attributed to the decrease in the residence time of the gas stream in the shell side of the hollow fiber membrane, which negatively influenced the effectiveness of CO_{2}separation in the membrane contactor. The percentage removal of CO_{2}($\eta $) can be obtained as per Equation (46):
$$\eta =\frac{{C}_{in}{Q}_{in}-{C}_{out}{Q}_{out}}{{C}_{in}{Q}_{in}}\times 100$$

The influence of feed flow rate of gas on CO
where ${J}_{C{O}_{2}}$ is the CO

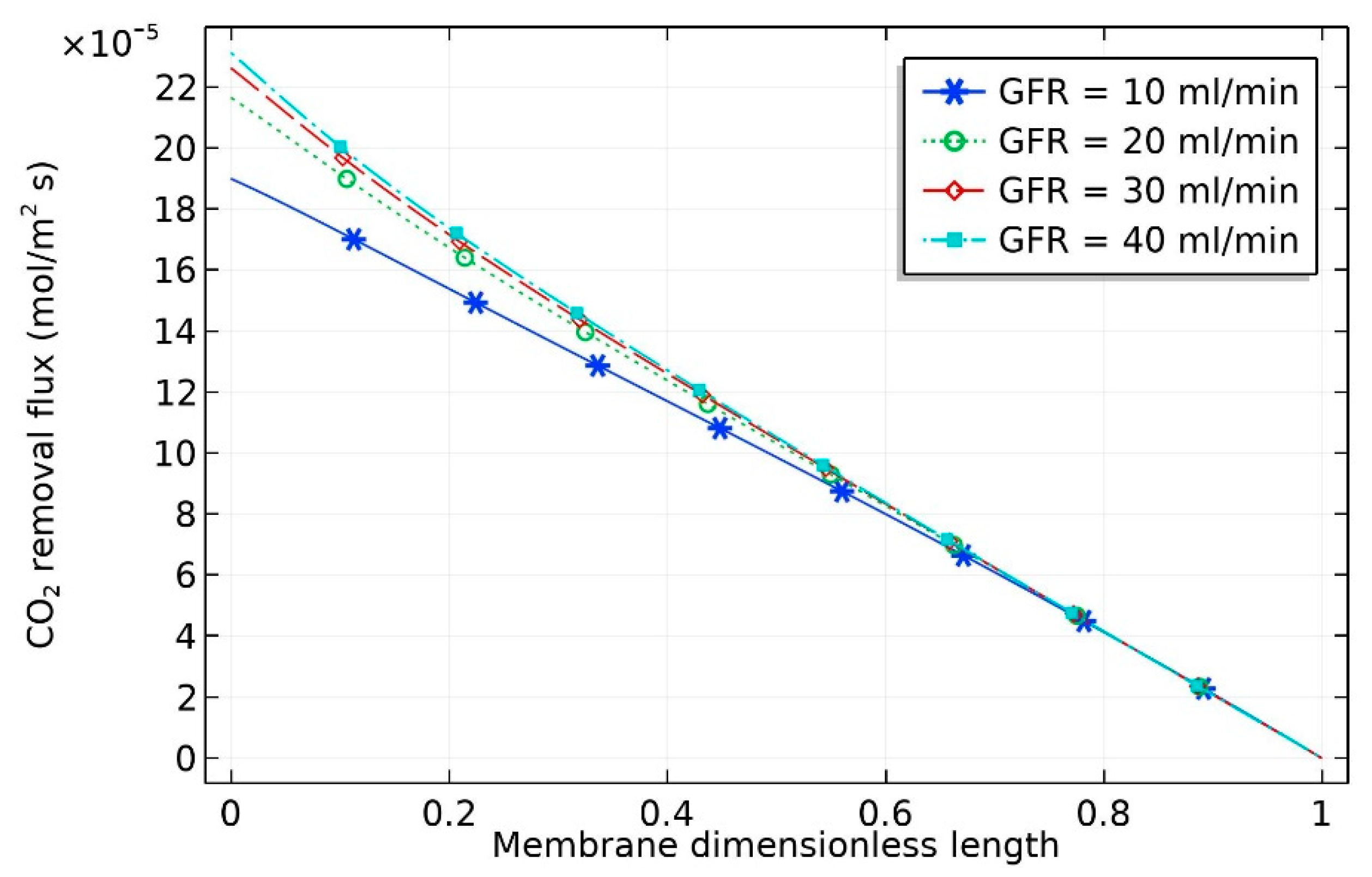

_{2}removal flux is shown in Figure 4. Increasing gas velocity improved the gas mass transfer coefficient and hence increased the CO_{2}withdrawal flux [24]. This can be attributed to the fact that the gas mass transfer coefficient is directly related to the gas velocity [18]. The CO_{2}removal flux, which is used to indicate the process efficiency, can be estimated by the following equation:
$${J}_{C{O}_{2}}\left(\frac{\mathrm{mol}}{{\mathrm{m}}^{2}\xb7\mathrm{s}}\right)=\frac{\left({y}_{C{O}_{2},in}{Q}_{in}-{y}_{C{O}_{2},out}\text{}{Q}_{out}\right)\times 273.15\times 1000}{22.4\times {T}_{g}\times {A}_{T}}$$

_{2}removal flux; ${y}_{C{O}_{2},in}$ and ${y}_{C{O}_{2},out}$ are the inlet and exit CO_{2}mole fraction, respectively; ${Q}_{in}$ and ${Q}_{out}$ (m^{3}/s) represent the inlet and exit volumetric flow rate of gas in the gas phase, respectively; ${T}_{g}\text{}\left(\mathrm{K}\right)$ is the real gas temperature; and ${A}_{T}\text{}\left({\mathrm{m}}^{2}\right)$ represents the membrane area at the liquid–gas interface.As can be seen from the figure, there was a significant increase in CO

_{2}removal flux when the liquid flow rate increased from 10 to 20 mol/min, with the removal flux increasing from $1.9\times {10}^{-4}$ to $2.2\times {10}^{-4}$ mol/m^{2}·s. By contrast, the increase in molar flux was insignificant when the liquid flow rate increased from 20 to 40 mL/min. This can be attributed to the drop in the CO_{2}concentration gradient with increasing liquid flow rate. The crosswise contour of CO_{2}concentration in the HFM contactor is predicted in Figure 5. The inlet liquid and gas flow rates were both fixed at 10 ml/min. The feed stream contained 20 vol% CO_{2}in the CO_{2}/N_{2}gas mixture. The inlet nanofluid contained dispersed CNT in aqueous MDEA solution (5 wt% MDEA, 0.5 wt% CNT, with the balance being water). The diagram reveals that there was a drop in the CO_{2}volume in the inlet gas stream. It dropped downward in the shell side of the membrane from 20 to around 5 vol%.Figure 6 is the surface plot of the CO

_{2}volume at high gas flow rate (30 mL/min) and fixed liquid flow rate (10 mL/min). As expected, the higher the gas velocity, the lower was the CO_{2}removal rate [36]. In this case, the percentage removal of CO_{2}dropped from 90% (GFR = 10 mL/min) to around 60% (GFR = 30 mol/min).Figure 7 displays the effect of membrane wetting on the percentage removal of CO

_{2}at variable gas volumetric flow rates and fixed liquid flow rate (10 mL/min). The diagram reveals that the percentage wetting of membrane had a significant impact on the percentage removal of CO_{2}. As the wetted membrane portion increased, the percentage removal of CO_{2}decreased. This can be attributed to the fact that the membrane resistance increased with membrane wetting because the diffusion coefficient of gas in the wetted membrane (liquid-filled pores) was much lower than the CO_{2}diffusion in the dry membrane (gas-filled pores). At fixed membrane wetting, as the gas flow rate increased, the percentage removal of CO_{2}decreased. This can be attributed to the fact that, as the gas flow rate increased, the gas residence time in the membrane shell side decreased, thereby reducing the chance of gas molecules to come into direct contact with liquid at the gas-liquid interface.The effect of nanoparticle volume fraction on the solvent is depicted in Figure 8. The diagram reveals that the percentage removal of CO

_{2}increased with solid nanoparticles, which can be attributed to the grazing effect (increase in the amount of CO_{2}adsorbed into the surface of the CNT). The increase would be limited by obtaining a homogeneous solvent, but this is not achievable for high CNT concentration [36].## 5. Conclusions

The present work aimed to study the chemical absorption process of CO

_{2}from CO_{2}/N_{2}gas mixture in aqueous MDEA-based CNT in a HFM contactor. The membrane resistance was studied, and the results showed that wetted membrane pores significantly increased the membrane resistance. A steady-state 2D mathematical model was developed considering partially wetted membrane. The effect of gas flow rate, liquid flow rate, nanoparticle volume fraction, and membrane wetting on CO_{2}removal rate and CO_{2}removal flux was investigated. The tube side was modeled as a solid-free zone and a dense phase, while the shell side was modeled as a single gas phase. The model governing the equations were solved using finite element method built in COSMOL Multiphysics version 5.4. The predicted results revealed that the existence of solid nanoparticles enhanced the CO_{2}removal rate. The present model offered a good basis to explore the performance of CO_{2}capture in the presence of nanoparticles in reactive solvent (MDEA). The CO_{2}removal rate increased with solid concentration. The simulation results revealed that liquid flow rate and concentration of nanoparticles had a strong impact on the CO_{2}absorption and hence the CO_{2}removal efficiency and removal flux. The model predictions and the experimental data were compared and found to be in good agreement.## Funding

This research was funded by United Arab Emirates University, UAE, UPAR grant number 31N374.

## Acknowledgments

The author acknowledged the financial support provided by UAEU.

## Conflicts of Interest

The authors declare no conflict of interest.

## References

- Gabelman, A.; Hwang, S.T. Hollow fiber membrane contactors. J. Membr. Sci.
**1999**, 159, 61–106. [Google Scholar] [CrossRef] - Iversen, S.B.; Bhatia, V.K.; Dam-Johansen, K.; Jonsson, G. Characterization of microporous membranes for use in membrane contactors. J. Membr. Sci.
**1997**, 130, 205–217. [Google Scholar] [CrossRef] - Yan, S.P.; Fang, M.X.; Zhang, W.F.; Wang, S.Y.; Xu, Z.K.; Luo, Z.Y.; Cen, K.F. Experimental study on the separation of CO
_{2}from flue gas using hollow fiber membrane contactors without wetting. Fuel Process. Technol.**2007**, 88, 501–511. [Google Scholar] [CrossRef] - Keshavarz, P.; Fathikalajahi, J.; Ayatollahi, S. Analysis of CO
_{2}separation and simulation of a partially wetted hollow fiber membrane contactor. J. Hazard. Mater.**2008**, 152, 1237–1247. [Google Scholar] [CrossRef] [PubMed] - Xuan, Y. Conception for enhanced mass transport in binary nanofluids. Heat Mass Transf. Waerme Und Stoffuebertragung
**2009**, 46, 277–279. [Google Scholar] [CrossRef] - Qazi, S.; Gómez-Coma, L.; Albo, J.; Druon-Bocquet, S.; Irabien, A.; Sanchez-Marcano, J. CO
_{2}capture in a hollow fiber membrane contactor coupled with ionic liquid: Influence of membrane wetting and process parameters. Sep. Purif. Technol.**2020**, 233, 115986. [Google Scholar] [CrossRef] - Albo, J.; Luis, P.; Irabien, A. Carbon dioxide capture from flue gases using a cross-flow membrane contactor and the ionic liquid 1-ethyl-3-methylimidazolium ethylsulfate. Ind. Eng. Chem. Res.
**2010**, 49, 11045–11051. [Google Scholar] [CrossRef] - Taylor, P.; Albo, J.; Luis, P.; Irabien, A. Absorption of coal combustion flue gases in ionic liquids using different membrane contactors Absorption of coal combustion fl ue gases in ionic liquids using different membrane contactors. Desalin. Water Treat.
**2011**, 27, 54–59. [Google Scholar] - Alper, E.; Wichtendahl, B.; Deckwer, W.-D. Gas absorption mechanism in catalytic slurry reactors. Chem. Eng. Sci.
**1980**, 35, 217–222. [Google Scholar] [CrossRef] - Torres Pineda, I.; Lee, J.W.; Jung, I.; Kang, Y.T. CO
_{2}absorption enhancement by methanol-based Al2O3 and SiO2 nanofluids in a tray column absorber. Int. J. Refrig.**2012**, 35, 1402–1409. [Google Scholar] [CrossRef] - Hedayat, M.; Soltanieh, M.; Mousavi, S.A. Simultaneous separation of H
_{2}S and CO_{2}from natural gas by hollow fiber membrane contactor using mixture of alkanolamines. J. Membr. Sci.**2011**, 377, 191–197. [Google Scholar] [CrossRef] - Sohrabi, M.R.; Marjani, A.; Moradi, S.; Davallo, M.; Shirazian, S. Mathematical modeling and numerical simulation of CO
_{2}transport through hollow-fiber membranes. Appl. Math. Model.**2011**, 35, 174–188. [Google Scholar] [CrossRef] - Rezakazemi, M.; Darabi, M.; Soroush, E.; Mesbah, M.; Dai, Z.; Usman, M.; Hillestad, M.; Deng, L.; Ghasem, N.; Al-Marzouqi, M.; et al. CO
_{2}absorption enhancement by water-based nanofluids of CNT and SiO2 using hollow-fiber membrane contactor. Sep. Purif. Technol.**2019**, 210, 920–926. [Google Scholar] [CrossRef] - Mohammaddoost, H.; Azari, A.; Ansarpour, M.; Osfouri, S. Experimental investigation of CO
_{2}removal from N2 by metal oxide nanofluids in a hollow fiber membrane contactor. Int. J. Greenh. Gas. Control.**2018**, 69, 60–71. [Google Scholar] [CrossRef] - Hajilary, N.; Rezakazemi, M. CFD modeling of CO
_{2}capture by water-based nanofluids using hollow fiber membrane contactor. Int. J. Greenh. Gas. Control.**2018**, 77, 88–95. [Google Scholar] [CrossRef] - Zhang, Z.; Cai, J.; Chen, F.; Li, H.; Zhang, W.; Qi, W. Progress in enhancement of CO
_{2}absorption by nanofluids: A mini review of mechanisms and current status. Renew. Energy**2018**, 118, 527–535. [Google Scholar] [CrossRef] - Darvanjooghi, M.H.K.; Esfahany, M.N.; Esmaeili-Faraj, S.H. Investigation of the effects of nanoparticle size on CO
_{2}absorption by silica-water nanofluid. Sep. Purif. Technol.**2018**, 195, 208–215. [Google Scholar] [CrossRef] - Darabi, M.; Rahimi, M.; Molaei Dehkordi, A. Gas absorption enhancement in hollow fiber membrane contactors using nanofluids: Modeling and simulation. Chem. Eng. Process. Process. Intensif.
**2017**, 119, 7–15. [Google Scholar] [CrossRef] - Koronaki, I.P.; Nitsas, M.T.; Vallianos, C.A. Enhancement of carbon dioxide absorption using carbon nanotubes—A numerical approach. Appl. Therm. Eng.
**2016**, 99, 1246–1253. [Google Scholar] [CrossRef] - Rahmatmand, B.; Keshavarz, P.; Ayatollahi, S. Study of Absorption Enhancement of CO
_{2}by SiO_{2}, Al2O_{3}, CNT, and Fe_{3}O_{4}Nanoparticles in Water and Amine Solutions. J. Chem. Eng. Data**2016**, 61, 1378–1387. [Google Scholar] [CrossRef] - Haghtalab, A.; Mohammadi, M.; Fakhroueian, Z. Absorption and solubility measurement of CO
_{2}in water-based ZnO and SiO2 nanofluids. Fluid Phase Equilibria**2015**, 392, 33–42. [Google Scholar] [CrossRef] - Peyravi, A.; Keshavarz, P.; Mowla, D. Experimental Investigation on the Absorption Enhancement of CO
_{2}by Various Nanofluids in Hollow Fiber Membrane Contactors. Energy Fuels**2015**, 29, 8135–8142. [Google Scholar] [CrossRef] - Kim, J.H.; Jung, C.W.; Kang, Y.T. Mass transfer enhancement during CO
_{2}absorption process in methanol/Al2O3 nanofluids. Int. J. Heat Mass Transf.**2014**, 76, 484–491. [Google Scholar] [CrossRef] - Ghasem, N.; Al-Marzouqi, M. Modeling and experimental study of carbon dioxide absorption in a flat sheet membrane contactor. J. Membr. Sci. Res.
**2017**, 3, 57–63. [Google Scholar] - Ghasem, N.; Al-Marzouqi, M.; Abdul Rahim, N. Modeling of CO
_{2}absorption in a membrane contactor considering solvent evaporation. Sep. Purif. Technol.**2013**, 110, 1–10. [Google Scholar] [CrossRef] - Zhang, Z.E.; Yan, Y.F.; Zhang, L.; Ju, S.X.; Yan, Y.F.; Zhang, L.; Ju, S.X. Hollow Fiber Membrane Contactor Absorption of CO
_{2}From the Flue Gas: Review and Perspective. Glob. Nest J.**2014**, 16, 354–373. [Google Scholar] - Golkhar, A.; Keshavarz, P.; Mowla, D. Investigation of CO
_{2}removal by silica and CNT nanofluids in microporous hollow fiber membrane contactors. J. Membr. Sci.**2013**, 433, 17–24. [Google Scholar] [CrossRef] - Lu, S.; Xing, M.; Sun, Y.; Dong, X. Experimental and Theoretical Studies of CO
_{2}Absorption Enhancement by Nano-Al2O3 and Carbon Nanotube Particles. Chin. J. Chem. Eng.**2013**, 21, 983–990. [Google Scholar] [CrossRef] - Mosadegh-Sedghi, S.; Félix, S.; Mendes, A. Determination of CO
_{2}Absorption Kinetics in Amino Acid Salts Solutions Using Membrane Contactors. Int. J. Membr. Sci. Technol.**2017**, 4, 8–18. [Google Scholar] - Versteeg, G.F.; van Swaaij, W.P.M. On the kinetics between CO
_{2}and alkanolamines both in aqueous and non-aqueous solutions-II. Tertiary amines. Chem. Eng. Sci.**1988**, 43, 587–591. [Google Scholar] [CrossRef] - Villeneuve, K.; Albarracin Zaidiza, D.; Roizard, D.; Rode, S.; Nagy, E.; Feczkó, T.; Koroknai, B. Enhancement of oxygen mass transfer rate in the presence of nanosized particles. Chem. Eng. Sci.
**2007**, 62, 7391–7398. [Google Scholar] - Geankoplis, C.J. Transport. Processes and Separation Process Principle, 4th ed.; Prentice Hall: Upper Saddle River, NJ, USA, 2003; ISBN 978-0131013674. [Google Scholar]
- Kars, R.L.; Best, R.J.; Drinkenburg, A.A.H. The sorption of propane in slurries of active carbon in water. Chem. Eng. J.
**1979**, 17, 201–210. [Google Scholar] [CrossRef] - Kluytmans, J.H.J.; van Wachem, B.G.M.; Kuster, B.F.M.; Schouten, J.C. Mass transfer in sparged and stirred reactors: Influence of carbon particles and electrolyte. Chem. Eng. Sci.
**2003**, 58, 4719–4728. [Google Scholar] [CrossRef] - Brilman, D.W.F.; Van Swaaij, W.P.M.; Versteeg, G.F. A one-dimensional instationary heterogeneous mass transfer model for gas absorption in multiphase systems. Chem. Eng. Process. Process. Intensif.
**1998**, 37, 471–488. [Google Scholar] [CrossRef] - Ghasem, N. Modeling and Simulation of CO
_{2}Absorption Enhancement in Hollow-Fiber Membrane Contactors using CNT–Water-Based Nanofluids. J. Membr. Sci. Res.**2019**, 5, 295–302. [Google Scholar] - Fu, D.; Zhang, P.; Mi, C. Effects of concentration and viscosity on the absorption of CO
_{2}in [N1111][Gly] promoted MDEA (methyldiethanolamine) aqueous solution. Energy**2016**, 101, 288–295. [Google Scholar] [CrossRef] - Ko, J.J.; Li, M.H. Kinetics of absorption of carbon dioxide into solutions of N-methyldiethanolamine + water. Chem. Eng. Sci.
**2000**, 55, 4139–4147. [Google Scholar] [CrossRef] - Happel, J. Viscous flow relative to arrays of cylinders. Aiche J.
**1959**, 5, 174–177. [Google Scholar] [CrossRef] - Rehman, Z.U.; Ghasem, N.; Al-Marzouqi, M.; Abdullatif, N. Enhancement of Carbon Dioxide Absorption using Nanofluids in Hollow Fiber Membrane Contactor. Chin. J. Chem. Eng.
**2019**, in press. [Google Scholar] [CrossRef] - Versteeg, G.F.; van Swaal, W.P.M. Solubility and Diffusivity of Acid Gases (CO
_{2}, N_{2}O) in Aqueous Alkanolamine Solutions. J. Chem. Eng. Data**1988**, 33, 29–34. [Google Scholar] [CrossRef] - Cussler, E.L. Diffusion Mass Transfer in Fluid Systems, 3rd ed.; Cambridge University: New York, NY, USA, 2009; ISBN 9780521871211. [Google Scholar]
- Wang, R.; Li, D.F.; Liang, D.T. Modeling of CO
_{2}capture by three typical amine solutions in hollow fiber membrane contactors. Chem. Eng. Process. Process. Intensif.**2004**, 43, 849–856. [Google Scholar] [CrossRef] - Zhang, H.-Y.; Wang, R.; Liang, D.T.; Tay, J.H. Theoretical and experimental studies of membrane wetting in the membrane gas–liquid contacting process for CO
_{2}absorption. J. Membr. Sci.**2008**, 308, 162–170. [Google Scholar] [CrossRef]

**Figure 1.**Schematic of the membrane module subdivisions and nanoparticles used in the development of the mathematical model: (

**a**) membrane module, (

**b**) segment used in modeling, and (

**c**) enlargement of box b1 in nanofluid. C

_{A}, C

_{As}, and C

_{AD}are the CO

_{2}concentrations in the solid-free zone, near the solid surface of nanoparticles, and in the dense phase, respectively.

**Figure 2.**Comparison of developed model predictions (present model) with experimental data [40] for aqueous methyldiethanolamine (MDEA) solution (5 wt%, 0% carbon nanotubes (CNT), with the balance being water) and after adding CNT (5 wt% MDEA, 0.5 wt% CNT, with the balance being water). Gas and liquid flow rates, 10 ml/min; wetting, 0.2%; atmospheric pressure and lab temperature, 25 °C.

**Figure 3.**Effect of inlet gas volumetric flow rate (GFR) on the percentage removal of CO

_{2}at a fixed liquid flow rate (10 mL/min) and solvent composition (0.5 wt% CNT, 5 wt% MDEA, and 20 vol% CO

_{2}).

**Figure 4.**Effect of inlet GFR on the percentage removal of CO

_{2}in the hollow fiber membrane (HFM) contactor system (0.5 wt% CNT, 5 wt% MDEA, 20 vol% CO

_{2}).

**Figure 5.**Surface plot diagram of the CO

_{2}volume percentage through the HMC at equal inlet gas and liquid flow rates (10 mL/min), nanofluid composition (0.5 wt% CNT, 5 wt% MDEA, with the balance being water), and feed gas composition (20 vol% CO

_{2}). Arrows represent convective flux.

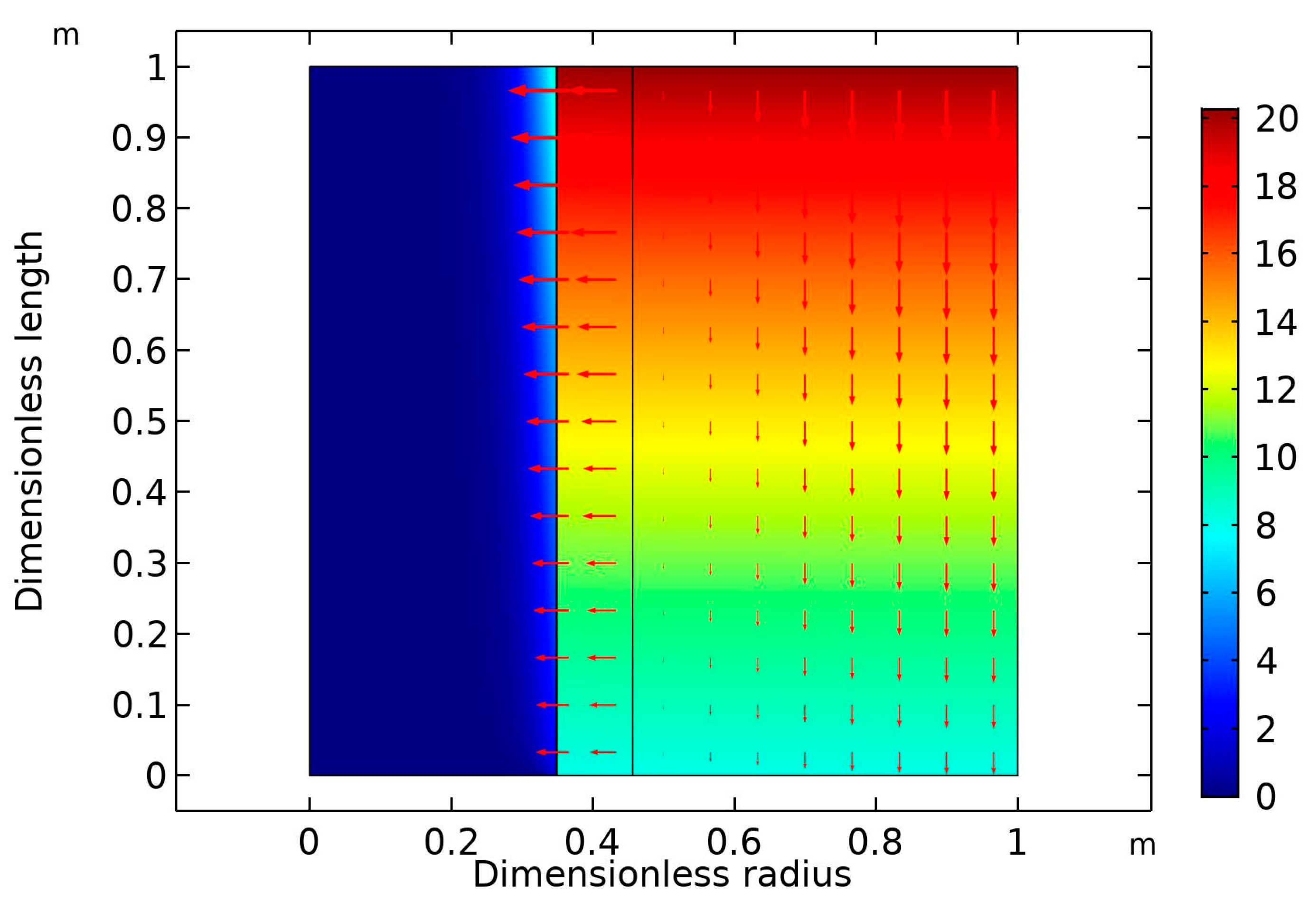

**Figure 6.**Surface plot of the CO

_{2}volume percentage through the membrane separation process at constant gas and liquid flow rates (30 and 10 mL/min, respectively), nanofluid composition (0.5 wt% CNT), and liquid and gas feed composition (5 wt% MDEA, 20 vol% CO

_{2}). Arrows represent convective flux.

**Figure 7.**Model predictions of the effect of wetted membrane percentage on the percentage removal of CO

_{2}at variable gas flow rate and fixed liquid flow rate (10 mL/min).

**Figure 8.**Effect of CNT volume fraction on the percentage removal of CO

_{2}. Liquid and gas flow rates were both 10 mL/min. The solvent contained variable volume fraction of CNT, 5 wt% MDEA, with the balance being water. The feed gas contained 20 vol% CO

_{2}, with the balance being N

_{2}.

**Table 1.**Characteristics of polyvinylidene fluoride (PVDF) membrane module and operating parameters.

Parameter | Value | Reference |
---|---|---|

Fiber inner radius (m) | $2.1\times {10}^{-4}$ | [40] |

Fiber outer radius (m) | $5.5\times {10}^{-4}$ | [40] |

Module diameter (m) | $0.08$ | [40] |

Module length (m) | $0.21$ | [40] |

Total number of fibers | 11 | [40] |

${D}_{l}\text{}\left({\mathrm{m}}^{2}/\mathrm{s}\right)$ | $2.35\times {10}^{-6}{e}^{\frac{-2199}{T}}$ | [41] |

${D}_{C{O}_{2},g\text{}}\left({\mathrm{m}}^{2}/\mathrm{s}\right)$ | $1.855\times {10}^{-5}$ | [42] |

${D}_{C{O}_{2},m}\text{}\left({\mathrm{m}}^{2}/\mathrm{s}\right)$ | ${D}_{C{O}_{2},g}\epsilon /\tau $ | Estimated |

${D}_{C{O}_{2},wm}\text{}\left({\mathrm{m}}^{2}/\mathrm{s}\right)$ | $0.5{D}_{l}$ | Estimated |

$m=1/H$ | $H=2.82\times {10}^{6}\mathrm{exp}\left(\frac{-2044}{T}\right)/RT$ | [41] |

Porosity, ε | 0.46 | [40] |

Tortuosity, τ | $\left(2-\epsilon \right)/\u03f5$ | [24] |

$k\text{}({\mathrm{m}}^{3}/\left(\mathrm{kmol}\xb7\mathrm{s}\right)$ | $8.741\times {10}^{12}\mathrm{exp}\left(-\frac{8625}{T}\right)$ | [43] |

Morphology | Tubular | References |
---|---|---|

Particle density, ${\rho}_{p}$ | 2200 kg/m^{3} | [40] |

Particle diameter, $dp$ | 8 nm | [40] |

Liquid-solid mass transfer coefficient, ${k}_{p}$ | 2.6 × 10^{−3} m/s | [28] |

Maximum adsorbed, ${q}_{m}$ | 29.45 mol/kg | [18] |

Specific surface area, ${a}_{p}$ | ${S}_{p\text{}\times \text{}}{\rho}_{p}$ [1/m] | Estimated |

Isotherm constant, Langmuir, ${k}_{d}$ | 0.49 m^{3}/kmol | [18] |

CNT weight percent, wt% | 0.5% | [40] |

Solid surface area, ${S}_{p}$ | 500 m^{2}/g | [18] |

© 2019 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
