Membranes 2019, 9(10), 123; https://doi.org/10.3390/membranes9100123

Article
Fabrication and Evaluation of Trimethylmethoxysilane (TMMOS)-Derived Membranes for Gas Separation
1
Department of Chemical System Engineering, The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-8556, Japan
2
Department of Chemical Engineering, Virginia Tech, Blacksburg, VA 24061, USA
3
College of Chemical Engineering, Fuzhou University, Fuzhou 350116, China
*
Correspondence: [email protected]; Tel.: +81-3-5841-0712
Current address: Department of Applied Chemistry, Faculty of Engineering, Kyushu University, 744 Motooka, Nishi-ku, Fukuoka 819-0395, Japan.
Received: 1 August 2019 / Accepted: 12 September 2019 / Published: 20 September 2019

Abstract

:
Gas separation membranes were fabricated with varying trimethylmethoxysilane (TMMOS)/tetraethoxy orthosilicate (TEOS) ratios by a chemical vapor deposition (CVD) method at 650 °C and atmospheric pressure. The membrane had a high H2 permeance of 8.3 × 10−7 mol m−2 s−1 Pa−1 with H2/CH4 selectivity of 140 and H2/C2H6 selectivity of 180 at 300 °C. Fourier transform infrared (FTIR) measurements indicated existence of methyl groups at high preparation temperature (650 °C), which led to a higher hydrothermal stability of the TMMOS-derived membranes than of a pure TEOS-derived membrane. Temperature-dependence measurements of the permeance of various gas species were used to establish a permeation mechanism. It was found that smaller species (He, H2, and Ne) followed a solid-state diffusion model while larger species (N2, CO2, and CH4) followed a gas translational diffusion model.
Keywords:
silica-based membrane; hydrogen separation; CVD; pore size control; trimethylmethoxisilane; separation mechanism

1. Introduction

Hydrogen selective membranes have an important role in hydrogen production. They are used not only for separating hydrogen from other gases but also for promoting efficient production in membrane reactors [1,2]. Silica membranes have gathered much attention for hydrogen purification because of high separation performance, high thermal and chemical resistance, and especially low material costs compared to palladium membranes. About 30 years ago, Okubo and Inoue [3] and the group of Gavalas [4] almost simultaneously reported the first silica membranes formed by deposition of tetraethoxy orthosilicate (TEOS) on porous glass supports (Vycor). In 2005, Nomura et al. [5] reported that a silica membrane prepared by a counter diffusion chemical vapor deposition method exhibited H2 permeance over 10−7 mol m−2 s−1 Pa−1 with a H2/N2 selectivity over 1000. In 2008, Nagano et al. [6] reported a silica membrane with H2 permeance over 10−7 mol m−2 s−1 Pa−1 and a H2/N2 selectivity over 10,000 at 500 °C, which is the most hydrogen selective silica membrane previously reported. However, the H2 permeance of silica membranes is about a tenth of those of palladium membranes (Pd membrane: about 10−6 mol m−2 s−1 Pa−1, silica membrane: about 10−7 mol m−2 s−1 Pa−1) [7]. Ahn et al. [8] reported that in membrane reactors, permeance is more important than selectivity when selectivity is above 100. Therefore, high H2 permeance with moderate selectivity is useful for applications.
It is known that amorphous silica membranes have a large number of solubility sites formed by 3-dimensional Si-O-Si networks, and small species such as helium, neon, and H2 permeate through the silica by hopping between those sites [9,10]. Designing solubility sites has been widely researched to control permeance and selectivity in both sol-gel and chemical vapor deposition (CVD) methods.
Using the sol-gel method, the group of Tsuru has studied the modification of solubility sites by using silica precursors with organic bridging groups of different sizes (≡Si-CH2-Si≡ [11,12], ≡Si-(CH2)2-Si≡ [13,14], ≡Si-O-Si≡ [15], ≡Si-CH=CH-Si≡ [16], ≡Si-C≡C-Si≡ [16]). They found that permeance increased with the increase of the number of methyl groups and carbon bonds (permeance order: ≡Si-(CH2)2-Si≡ derived > ≡Si-CH2-Si≡ derived [11], ≡Si-(CH2)2-Si≡ derived > ≡Si-O-Si≡ derived [15] and ≡Si-C≡C-Si≡ derived > ≡Si-CH=CH-Si≡ derived > ≡Si-(CH2)2-Si≡ derived membrane [16]).
Using the CVD method, the groups of Nakao and Nomura have studied various types of organosilane precursors variously substituted with methyl [17,18], dimethyl [18], trimethyl [18], phenyl [17], diphenyl [19], triphenyl [20], and propyl [17] groups. The general trend was that with increasing numbers of organic groups on the silica precursor the silica network size was enlarged and the permeance increased but the selectivity decreased. Zhang et al. [20] reported that triphenylmethoxysilane-derived silica membrane showed over 10−6 mol m−2 s−1 Pa−1 of H2 permeance at 300 °C.
In this study we investigate the effect of the methyl group on the silica structure and stability of the membrane. Nomura et al. [18] and Nagasawa et al. [21] had previously used trimethylmethoxisilane (TMMOS), but they used oxidants to eliminate the methyl groups with formation of Si-O-Si networks. Here, oxidants are not used in order to retain the methyl groups, and silica membranes are prepared using mixtures of TEOS and TMMOS by the CVD method. The chemical structures and vapor pressures of these precursors are shown in Figure 1.
The originality of this paper resides in the in-depth characterization of the trimethylmethoxysilane membrane by physical techniques such as infrared spectroscopy and dynamic methods such as permeance measurements. This gives information about the structure of the membrane and the mechanism of permeance.

2. Materials and Methods

2.1. Preparation of Membranes

The membranes consisted of three layers, a commercial α-alumina support, a γ-alumina intermediate layer, and a top-most silica layer. The preparation steps are described below. The boehmite sols were synthesized by hydrolysis of aluminum alkoxides and acid peptization. Two different sizes of sols (80 and 40 nm) were prepared. A quantity of 61.3 g (0.3 mol) of aluminum isopropoxide (Aldrich, >98%, Tokyo, Japan) was dissolved in 50 mL of water and stirred for 24 h at 98 °C. Then, nitric acid was slowly added (80 nm; H+/Al = 0.025, 40 nm; H+/Al = 0.070) and mixed for 24 h at 98 °C to induce peptization (oligomerization). After that, a solution of polyvinyl alcohol (obtained by dissolving 0.7 g of polyvinyl alcohol (Polyscience, M.W. = ~78,000) in 20 mL of water and mixing for 3 h at 98 °C) was added to control the viscosity and keep the boehmite colloidal sols stable. Finally, water was added to adjust the total volume to 200 mL and the mixture was stirred for 3 h at 70 °C. Formation of target sizes of boehmite sols was confirmed by a dynamic light scattering analyzer (LB-550, Horiba, Kyoto, Japan). In preparation for the deposition of the intermediate layers, a 3-cm length of porous α-alumina (I.D. = 4 mm, O.D. = 6 mm, average pore size = 60 nm, supplied from Noritake Co., Japan) was connected on both ends to 20 cm length of non-porous alumina tubes (I.D. = 4 mm, O.D. = 6 mm supplied from Sakaguchi E.H Voc Co., Kyoto, Japan) with glass seals. The glass seals were made by joining the tubes with glass paste and then melting them in a vertical oven at 1000 °C. To deposit the intermediate layer, the prepared tube was dipped into suspensions of the prepared boehmite sol for 10 s with the outside surface wrapped with Teflon tape. Then, the deposited sol was dried for 4–6 h and calcined at 650 °C for 3 h. This procedure was carried out twice, first using the 80-nm sol, and then using the 40-nm sol. This procedure followed a previous study of Gu and Oyama to prepare graded structures [22]. The topmost silica layers were placed on top of the intermediate layer by chemical vapor deposition (CVD). Precursors for the membrane layer (various siloxanes) were vaporized in inert gas and were thermally decomposed on top of the porous substrate to place a thin silicious film on the outer surface. The apparatus is shown in Figure 2.
Trimethylmethoxysilane (TMMOS, Aldrich, >99%, Japan) and tetraethoxy orthosilicate (TEOS, Aldrich, >99%, Tokyo, Japan) were used as silica precursors. The TEOS and TMMOS were delivered to the membrane support by Ar at respective flow rates of 6 cm3 min−1 and 3 cm3 min−1. All flow rates used in this study were under normal conditions (25 °C, 1 atm). A flow of 20 cm3 min−1 of Ar was supplied inside the membrane as a dilution gas and 29 cm−3 min−1 of Ar was supplied outside the membrane as a balance gas to equalize the pressures. The CVD temperature was set to 650 °C. The molar flow rates of the two precursors were calculated by using the ideal gas law and the Antoine equation (Equation (1)).
log 10 p   [ atm ] = A B T [ K ] + C
The Antoine parameters of TEOS and TMMOS were obtained from the literature [23]. Table 1 shows a summary of the CVD conditions. The membranes were prepared with different percentages of TMMOS (0% (pure TEOS), 25%, 30%, 35%) which was calculated from the flow rates as follows.
TMMOS   Percentage   [ % ] = TMMOS   [ mol s ] TMMO   [ mol s ] + TEOS   [ mol s ] × 100
The molar ratios of the two precursors were controlled by changing the bubbler temperature of TEOS. Because of the large difference in vapor pressure of the two precursors (TEOS: 0.025 atm, TMMOS: 0.15 atm at 25 °C), the TEOS was heated to various temperatures (85–98 °C) with a mantle heater while the TMMOS was cooled to 3 °C with chilled water. During CVD, the permeances of H2 and nitrogen were measured every 15 min by interrupting the synthesis and flushing the synthesis gases. The CVD was stopped when there was no change in H2/N2 selectivity.

2.2. Characterizations

The cross-sections of the membranes were examined with a scanning electron microscope (SEM, S-900, Hitachi, Tokyo, Japan). For the SEM measurements the surfaces of the membranes were lightly coated with platinum by ion sputtering (E-1030, Hitachi, Tokyo, Japan).
Functional groups in the membranes were measured with a Fourier transform infrared spectrometer (FTIR, FT/IR 6100, MCT detector, JASCO, Tokyo, Japan). Samples for FTIR measurement were prepared by deposition of silica precursors on alumina discs at the same conditions as used for the CVD. The alumina discs were prepared as follows. First, alumina powder was obtained by calcining the 40-nm boehmite sol (the sol used for the topmost intermediate layer) for 3 h at 650 °C. Then, 25 mg of the alumina powder was ground and pressed to a 1-cm diameter disc at 40 MPa. This pressure was sufficient to form self-standing disks that were porous enough for gas access to the interior.
In situ FTIR measurements were carried out as shown in Figure 3. The self-supporting KBr disk of diameter 1 cm (50 mg) was prepared and was placed in the middle of the IR cell. Then, TEOS and TMMOS were delivered into the cell at the same conditions with that of the membrane preparation. A flow of 6 cm3 min−1 of dilution Ar and 15 cm3 min−1 of balance Ar were supplied at the same time. IR spectra were collected in the absorbance mode at 650 °C every 5 min.

2.3. Permeance Measurements

Various gases of different sizes and masses (He, Ne, H2, CO2, N2, CH4, and C2H6) were used to probe the permeance properties of the membrane at different conditions. The flow rate of permeate gas was measured directly with a film gas flow meter (GF1010, GL Science, Tokyo, Japan) in the case of large flow rates or with micro gas chromatography (Micro GC, TCD, Agilent 490, GL Science, Tokyo, Japan, using a molecular sieve 5A column for N2 and a Porapak Q column for CO2, CH4, and C2H6) in the case of small flow rates. Calibrated peak areas could be converted to compositions, and from the total flow rate of a purge stream the flow rate of the individual gases could be obtained. The membrane effective area A was calculated from the following equation (Equation (3)).
A = π L ( r 1 r 2 ) ln ( r 1 r 2 )
where L is the length of the membrane, r1 is the outer diameter and r2 is the inner diameter. Permeance and selectivity were calculated by using Equations (4) and (5).
P ¯ i = F i A p i
α i , j = P ¯ i P ¯ j
where F is molar flow rate, P ¯ i is the permeance of gas species i, Δpi is the partial pressure difference for species i on both sides of the membrane.
The permeance of each gas was measured at 200–600 °C. The measurement order was 600, 400, 200, 300, and 500 °C. The obtention of smooth curves was evidence that the membrane was stable in the course of the measurements.

2.4. Hydrothermal Stability Tests

Silica membranes are damaged by water vapor at high temperature and H2 permeance drops-off upon exposure to levels above 10% H2O [24,25,26]. It is known that under hydrothermal condition, the formation and condensation of silanol groups are catalyzed by water and Si–O–Si bonds are formed which result in the densification of silica network and a decrease of H2 permeance [26]. In addition, the γ-alumina intermediate layers may be sintered by water, which results in enlarging the sizes of defects and increasing permeance [27]. To test the hydrothermal stability of the membranes, they were exposed to 6.6 μmol s−1 (flow rates: 10 cm3 min−1, water content: 16 mol%) of water vapor atmosphere at 650 °C for 96 h. The water was delivered using a bubbler heated to 56 °C using a flow of Ar of 10 cm3 min−1. At the same time, 15.7 cm3 min−1 of Ar was introduced outside the membrane as balance gas.

3. Results and Discussion

3.1. Fabrication of TMMOS-Derived Membranes

In order to investigate the effect of methyl groups on the permeation properties of the silica membranes, the permeance properties of H2 and N2 were measured for membranes prepared with different molar contents of TMMOS (0–35%). Figure 4 shows the H2 and N2 permeances and H2/N2 selectivity as a function of CVD time. It can be seen that as a function of time in all cases the permeance of both H2 and N2 drop rapidly initially, and then level off. As the TMMOS content increased, the permeances of H2 and N2 increase, while the H2/N2 selectivity decreases. For the sample with 35% TMMOS the H2 permeance reached 1.1 × 10−6 mol m−2 s−1 Pa−1 and the H2/N2 selectivity was 53.
Figure 5 shows a plot of H2/N2 selectivity versus H2 permeance for membranes from previous studies prepared by CVD. Compared with previous materials, the TMMOS membranes exhibited comparable performances and a high TMMOS ratio showed high H2 permeance but low H2/N2 selectivity. This result indicates that TMMOS enlarged the silica network size.
In previous studies [7,10], silica membranes prepared by the CVD method showed H2 permeance of the order of 10−7 mol m−2 s−1 Pa−1. In this study, the membrane prepared with 35% TMMOS showed H2 permeance of the order of 10−6 mol m−2 s−1 Pa−1. This value is comparable with that of palladium membranes.
Figure 6 shows the single gas permeation results for a number of gas species of different sizes (He, Ne, H2, CO2, N2, CH4, and C2H6) at 300 °C. For the light gases (He, Ne, H2), the permeance order was TMMS 35% > 30% > 25% > 0%. However, for the relatively large gases (CO2, N2, CH4) the permeance order depended on the membrane. The order was P ¯ N 2 > P ¯ C O 2 > P ¯ C H 4 in TMMOS 0%, P ¯ C H 4 > P ¯ N 2 P ¯ C O 2 in 25% and 30%, P ¯ C O 2 > P ¯ N 2 > P ¯ C H 4 in 35%. It is considered that the permeance order follows the molecular masses (CO2 > N2 > CH4) when pore sizes are large but follows molecular sizes (CO2 < N2 < CH4) when pore sizes are small, so there is a molecular sieving effect. The relatively large gases are considered to permeate through a few defects [10]. The results can be rationalized as follows. In the membrane prepared with 0% TMMOS, the pore sizes of the defects were larger than the kinetic diameter of CO2 (0.33 nm) but smaller than that of CH4 (0.38 nm). Therefore, N2 (0.36 nm) could permeate more easily than CO2 because of its small mass but CH4 was blocked by its size. In the membranes prepared with 25% and 30% TMMOS, some defects were larger than CH4 and it could permeate readily. However, others were smaller than N2 and there were effects of both mass and size for CO2, N2, and CH4 permeance in those membranes. In the membrane prepared with 35% TMMOS, the defect sizes were small and the permeance order followed the molecular size because of molecular sieving.

3.2. Characterization

3.2.1. SEM Images

Figure 7 shows the cross-sectional images of the membranes. The γ-alumina intermediate layers have a porous structure, as can be discerned from the presence of particles, while the silica layers are dense, as can be deduced from the smooth surfaces formed. The silica layer was clearly observed in the pure TEOS-derived membrane. On the other hands, silica layers were formed inside the intermediate layer and could not be observed clearly in the TMMOS-derived membranes. The silica layers of the various TMMOS-derived membranes (Figure 7b–d) were much thinner than that of the pure TEOS-derived membrane (Figure 7a). The thicknesses of the TMMOS-derived membranes were approximately 30 nm while that of the pure TEOS membrane was approximately 120 nm. These results indicate that the functional methyl groups in TMMOS inhibit the deposition of silica in the membrane layer.

3.2.2. FTIR Measurements

Figure 8 shows the result of FTIR measurements. The peaks at around 1070 cm−1 were assigned to Si–O–Si bonds [28]. TMMOS-derived membranes showed much weaker Si–O–Si peak intensities than the pure TEOS-derived membrane because the presence of the TMMOS caused more disorder and heterogeneity. The peaks around 1260 cm−1 were from the symmetric bending vibrations of Si-(CH3)3 bonds [29] and the signal at 840 cm−1 was also from Si-(CH3)3 [30]. The peaks around 2980 cm−1 and 2920 cm−1 were due to asymmetric and symmetric C–H stretching vibrations [31]. The TMMOS-derived membranes showed methyl group derived peaks, which were not observed in the pure TEOS-derived membrane. It was reported that methyl groups which are attached to silicon decompose at around 450–600 °C in a He atmosphere from TGA (thermogravimetric analysis) [32]. However, here the C–H peaks were observed even though higher preparation temperatures (650 °C) were used.
In situ FTIR measurements were conducted to provide more detailed information about the silica structure and to verify the presence of methyl groups. Figure 9 shows the IR spectra after 30 min deposition. A feature at 2840 cm−1 was assigned to CH stretching vibrations and a signal at 1190 cm−1 was assigned to a Si–O–C stretching mode of the methoxy groups [33]. As shown in Figure 9, the peaks derived from methyl groups decreased with increasing TMMOS content. It should be noted that the molar flow rates of TMMOS were the same in each sample, indicating that methyl groups were easily decomposed at high TMMOS ratios. The peaks around 1000–1200 cm−1 were from Si–O–Si but the peaks differ with the structures; those around 1070 cm−1 were due to Si–O–Si ring structures and those close to 1125 cm−1 were due to Si–O–Si cage structures [29,34]. In TMMOS-derived membranes, a lower TMMOS ratio showed more cage peaks and less ring peaks. This might be caused by the difference in the decomposition of the methyl groups.

3.3. Diffusion Mechanism Analysis

To investigate the structure of the membranes, a determination of the gas diffusion mechanism was conducted. The permeance of various gas species (He, Ne, H2, CO2, N2, and CH4) at various temperatures (200–600 °C) were used for obtaining the information. Polymath software was used for the calculations.
1 P ¯ s i l i c a   l a y e r = 1 P ¯ b e f o r e   C V D 1 P ¯ a f t e r   C V D
Silica membranes generally have a dense silica structure with a few defects. Generally, the order of permeance in the membranes was P ¯ He > P ¯ H2 > P ¯ Ne, which does not follow mass or size. Based on such results, Oyama and coworkers [9,10] suggested that the diffusion mechanism of small molecules (He, Ne, H2) occurs by a solid-state diffusion process where the permeating species jump between solubility sites (Equation (7)).
P ¯ SS = d 2 h 2 6 L ( 1 2 π m k T ) 3 2 ( σ h 2 8 π 2 I k T ) N S N A 1 ( e h ν * / 2 k T e h ν * / 2 k T ) 2 e E SS R T
In this equation d is the distance between solubility sites, h is the Planck’s constant, m is the weight of a diffusing species, k is Boltzmann’s constant, T is the absolute temperature, σ is the symmetry number, I is the moment of inertia, NS is the number of available solubility site per unit volume, NA is Avogadro’s number, ν* is a vibrational frequency, ∆ESS is the activation energy to jump between solubility sites.
Large species cannot permeate through the dense silica layer and permeate through defects by gas translational diffusion [10] (Equation (8)).
P ¯ GT = C M R T e E p R T    where    C = ε 3 τ L ( d p d i ) 3 d p 2 8 π
where M is the molecular weight of diffusing gas, R is the gas constant, T is the absolute temperature, Ep is the activation energy to overcome the diffusion barrier, τ is tortuosity, L is the thickness of the membrane, dp is pore diameter, di is the kinetic diameter of the diffusing gas.
Figure 10 shows the permeances of He, Ne, H2 at 200–600 °C and fitting results obtained by the solid-state diffusion model (Equation (5)). The points are the experimental data and the curves are the fitting result. The parameters in the model were the number of solubility sites Ns, the vibrational frequency ν*, and the activation energy ∆ESS. Notice that the values of thickness L were obtained from the SEM image (0%: 120 nm, 25–35%: 30 nm) and the jump distance d is given by a function of Ns as reported in a previous study [9] (Equation (9)).
d   [ n m ] = a N s + b ( N s ) 2 + c ( N s ) 3 + d ( N s ) 4
where a = 0.84649, b = −1.74523 × 10−29, c = 5.60055 × 10−58, d = −7.66678 × 10−87.
Table 2 shows the calculated values of Ns, ν*, ∆ESS, d, and regression coefficient R2. The order in Ns is inversely related to the order of molecular size (Ns He > Ns Ne > Ns H2) because smaller molecules fit into more solubility sites. The order of ν* is inversely related to the order of the molecular mass (ν* H2 > ν* He > ν*Ne) because lighter molecules vibrate more rapidly. It should be noted that the values of Ns were of the order 1026 site m−3, which is physically realistic since the inverse cube root is of the order of 10−9 m which is a reasonable distance between the solubility sites. Similarly, the order of ν* was 1012 s−1, which is realistic for molecular vibrations. Similar values were obtained in previous studies of silica membranes [9,28]. Nevertheless, the activation energy of He in the TMMOS 35% membrane was negative which indicates a different physical process for that membrane.
Among the four membranes, the order of Ns decreased in the order of TMMOS content (NS,0% > NS,25% > NS,30% > NS,35%). This result can be explained from the increasingly large silica network size. Large silica network size means sparse solubility sites, which means a small number of solubility sites per unit volume. The order of ∆ESS decreased in the order of the TMMOS ratio (∆ESS,0% > ∆ESS,25% > ∆ESS,30% > ∆ESS,35%). These results also suggest that adding TMMOS resulted in the enlargement of the silica network size. The TMMOS-derived membranes showed larger vibrational frequency than the pure TEOS-derived membrane.

Diffusion Mechanism Analysis of Large Molecules (CO2, N2, CH4)

Figure 11 shows the permeance data of CO2, N2, CH4 at 200–600 °C (points) and the fitting results by the gas translational diffusion model (curves). The parameters were the constant C and the activation energy Ep. Table 3 shows the calculated values of C, Ep, and the regression coefficient R2. The order of Ep increased in the order of the TMMOS content except for the pure TEOS-derived membrane (Ep,35% > Ep,30% > Ep, 25%).

3.4. Hydrothermal Stability Test

Figure 12 shows the changes of permeance and selectivity as a function of water vapor exposure time. For each membrane the H2 and nitrogen permeance was stable after 96 h of exposure. The percentages of reduction in Figure 12 were calculated from the expression (initial-final)/initial permeance. The TMMOS-derived membranes showed a smaller decrease of H2 permeance than the pure TEOS-derived membrane, indicating that the TMMOS-derived membranes exhibited higher hydrothermal stability. It was reported that silicon carbide (Si–C) and silicon oxycarbide (Si–O–C) showed high hydrophobic properties which resulted in high hydrothermal stability [35,36]. Therefore, the methyl groups in TMMOS might have repelled water vapor. The TMMOS 25% membrane showed the highest hydrothermal stability because of the largest amount of methyl groups as indicated by the IR measurements in Figure 9. The permeance of nitrogen increased in the TMMOS-derived membranes because of the sintering of the γ-alumina intermediate layer by the steam, which lead to enlargement of the size of defects [27]. From the SEM images, the silica layers were formed inside the intermediate layer in the TMMOS-derived membranes and the intermediate layers might be have been easier to be damaged by steam.

4. Conclusions

Silica membranes obtained using a mixture of TEOS and TMMOS were prepared successfully with different molar percentages of TMMOS, 0% (pure TEOS), 25%, 30%, 35%. The TMMOS-derived membranes showed high H2 permeance and moderate H2/N2 selectivity. Especially, a TMMOS 35% membrane showed a permeance for H2 of 10−6 mol m−2 s−1 Pa−1 at 650 °C. This value was about 10-times higher than that of the silica membranes and close to that of palladium membranes. Fitting results for small gases (He, Ne, H2) suggested that addition of TMMOS resulted in the enlargement of the silica network size. From SEM images, the thickness of the TMMOS-derived membranes (30 nm) was thinner than that of the TEOS-derived membrane (120 nm). It is considered that TMMOS inhibited the deposition of silica precursors and led to the formation of a thin silica layer. Large silica network size and thin layers of TMMOS-derived membranes contributed to the high permeance. FTIR measurements confirmed the presence of methyl groups in the TMMOS-derived membrane which lead to the enhanced hydrothermal stability because of their hydrophobic nature.

Author Contributions

Y.M. carried out the research and wrote the initial draft; S.-J.A. developed the infrared method, researched the prior work, and corrected the figures; A.T. and R.K. helped to direct the research and analyze the results; S.T.O. planned the work, obtained the funding, and edited the manuscript.

Funding

This research was supported by the Japan Science and Technology Agency under the CREST program, Grant Number JPMJCR16P2.

Acknowledgments

The authors are grateful for the technical assistance of Takashi Sugawara.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gallucci, F.; Fernandez, E.; Corengia, P.; Annaland, M.S. Recent advances on membranes and membrane reactors for hydrogen production. Chem. Eng. Sci. 2013, 92, 40–66. [Google Scholar] [CrossRef]
  2. Chaubey, R.; Sahu, S.; James, O.O.; Maity, S. A review on development of industrial processes and emerging techniques for production of hydrogen from renewable and sustainable sources. Renew. Sustain. Energy Rev. 2013, 23, 443–462. [Google Scholar] [CrossRef]
  3. Okubo, T.; Inoue, H. Single gas permeation through porous glass modified with tetraethoxysilane. AIChE J. 1989, 35, 845–848. [Google Scholar] [CrossRef]
  4. Gavalas, G.R.; Megiris, C.E.; Nam, S.W. Deposition of H2-permselective SiO2-films. Chem. Eng. Sci. 1989, 44, 1829–1835. [Google Scholar] [CrossRef]
  5. Nomura, M.; Ono, K.; Gopalakrishnan, S.; Sugawara, T.; Nakao, S. Preparation of a stable silica membrane by a counter diffusion chemical vapor deposition method. J. Membr. Sci. 2005, 251, 151–158. [Google Scholar] [CrossRef]
  6. Nagano, T.; Fujisaki, S.; Sato, K.; Hataya, K.; Iwamoto, Y.; Nomura, M.; Nakao, S. Relationship between the mesoporous intermediate layer structure and the gas permeation property of an amorphous silica membrane synthesized by counter diffusion chemical vapor deposition. J. Amer. Chem. Soc. 2008, 91, 71–76. [Google Scholar] [CrossRef]
  7. Khatib, S.J.; Oyama, S.T. Silica membranes for hydrogen separation prepared by chemical vapor deposition (CVD). Sep. Purif. Technol. 2013, 111, 20–42. [Google Scholar] [CrossRef]
  8. Ahn, S.J.; Yun, G.N.; Takagaki, A.; Kikuchi, R.; Oyama, S.T. Effects of pressure contact time, permeance, and selectivity in membrane reactors: The case of the dehydrogenation of ethane. Sep. Purif. Technol. 2018, 194, 197–206. [Google Scholar] [CrossRef]
  9. Oyama, S.T.; Lee, D.; Hacarlioglu, P.; Saraf, R.F. Theory of hydrogen permeability in nonporous silica membranes. J. Membr. Sci. 2004, 244, 45–53. [Google Scholar] [CrossRef]
  10. Oyama, S.T.; Yamada, M.; Sugawara, T.; Takagaki, A.; Kikuchi, R. Review on mechanisms of gas permeation through inorganic membranes. J. Jpn. Pet. Inst. 2011, 54, 298–309. [Google Scholar] [CrossRef]
  11. Kanezashi, M.; Kawano, M.; Yoshioka, T.; Tsuru, T. Organic-inorganic hybrid silica membranes with controlled silica network size for propylene/propane separation. Ind. Eng. Chem. Res. 2012, 51, 944–953. [Google Scholar] [CrossRef]
  12. Kanezashi, M.; Shazwani, W.N.; Yoshioka, T.; Tsuru, T. Separation of propylene/propane binary mixtures by bis(triethoxysilyl)methane(BTESM)-derived silica membranes fabricated at different calcination temperatures. J. Membr. Sci. 2012, 415–416, 478–485. [Google Scholar] [CrossRef]
  13. Kanezashi, M.; Yada, K.; Yoshioka, T.; Tsuru, T. Organic-inorganic hybrid silica membranes with controlled silica network size: Preparation and gas permeation characteristics. J. Membr. Sci. 2010, 348, 310–318. [Google Scholar] [CrossRef]
  14. Kanezashi, M.; Kawano, M.; Yoshioka, T.; Tsuru, T. Design of silica networks for development of highly permeable hydrogen separation membranes with hydrothermal stability. J. Am. Chem. Soc. 2008, 131, 414–415. [Google Scholar] [CrossRef] [PubMed]
  15. Lee, H.R.; Shibata, T.; Kanezashi, M.; Mizuno, T.; Ohshita, J.; Tsuru, T. Pore-size-controlled silica membranes with disiloxane alkoxides for gas separation. J. Membr. Sci. 2011, 383, 152–158. [Google Scholar] [CrossRef]
  16. Xu, R.; Ibrahim, S.M.; Kanezashi, M.; Yoshioka, T.; Ito, K.; Ohshita, J.; Tsuru, T. New insights into the microstructure-separation properties of organosilica membranes with ethane ethylene, and acethylene bridges. ACS. Appl. Mater. Inter. 2014, 6, 9357–9364. [Google Scholar] [CrossRef] [PubMed]
  17. Nomura, M.; Nishi, Y.; Sakanishi, T.; Utsumi, K.; Nakamura, R. Preparation of thin LiSiO membranes by using a CVD method. Energy Procedia 2013, 37, 1012–1019. [Google Scholar] [CrossRef]
  18. Nomura, M.; Nagayo, T.; Monma, K. Pore size control of a molecular sieve silica membrane prepared by a counter diffusion CVD method. J. Chem. Eng. Jpn. 2007, 40, 1235–1241. [Google Scholar] [CrossRef]
  19. Ohta, Y.; Akamatsu, K.; Sugawara, T.; Miyoshi, A.; Nakao, S. Development of pore-size-controlled silica membranes for gas separation by chemical vapor deposition. J. Membr. Sci. 2008, 315, 93–99. [Google Scholar] [CrossRef]
  20. Zhang, X.; Yamada, H.; Saito, T.; Kai, T.; Murakami, K.; Nakashima, M.; Ohshita, J.; Akamatsu, K.; Nakao, S. Development of hydrogen-selective triphenylmethoxysilane-derived silica membranes with tailored pore size by chemical vapor deposition. J. Membr. Sci. 2016, 499, 28–35. [Google Scholar] [CrossRef]
  21. Nagasawa, H.; Minamizawa, T.; Kanezashi, M.; Yoshioka, T.; Tsuru, T. Microporous organosilica membranes for gas separation prepared via PECVD using different O/Si ratio precursors. J. Membr. Sci. 2015, 489, 11–19. [Google Scholar] [CrossRef]
  22. Gu, Y.; Oyama, S.T. Ultrathin, hydrogen-selective silica membranes deposited on alumina-graded structures prepared from size-controlled boehmite sols. J. Membr. Sci. 2007, 306, 216–227. [Google Scholar] [CrossRef]
  23. Stull, D.R. Vapor pressure of pure substances. Organic and inorganic compounds. Ind. Eng. Chem. 1947, 39, 517–540. [Google Scholar] [CrossRef]
  24. Sea, B.K.; Soewito, E.; Watanabe, M.; Kusakabe, K.; Morooka, S.; Kim, S.S. Hydrogen recovery from a H2–H2O–HBr mixture utilizing silica-based membranes at elevated temperatures. 1. Preparation of H2O- and H2-selective membranes. Ind. End. Chem. Res. 1998, 37, 2502–2508. [Google Scholar] [CrossRef]
  25. Asaeda, M.; Yamasaki, S. Separation of inorganic/organic gas mixtures by porous silica membranes. Sep. Purif. Technol. 2001, 25, 151–159. [Google Scholar] [CrossRef]
  26. Gu, Y.; Hacarlioglu, P.; Oyama, S.T. Hydrothermally stable silica–alumina composite membranes for hydrogen separation. J. Membr. Sci. 2008, 310, 28–37. [Google Scholar] [CrossRef]
  27. Nagano, T.; Sato, K. Degradation mechanism of an H2-permselective amorphous silica membrane. J. Mater. Sci. 2014, 49, 4115–5120. [Google Scholar] [CrossRef]
  28. Milella, A.; Palumbo, F.; Delattre, J.L.; Fracassi, F.; d’Agostino, R. Deposition and characterization of dielectric thin films from allyltrimethylsilane glow dischanges. Plasma Process. Polym. 2007, 4, 425–432. [Google Scholar] [CrossRef]
  29. Benitez, F.; Martinez, E.; Esteve, J. Improvement of hardness in plasma polymerized hexamethyldisiloxane coatings by silica-like surface modification. Thin Solid Films 2000, 377–378, 109–114. [Google Scholar] [CrossRef]
  30. Ngamou, P.H.T.; Overbeek, J.P.; Kreiter, R.; van Veen, H.M.; Vente, J.F.; Wienk, I.M.; Cuperus, P.F.; Creatore, M. Plasma deposited hybrid silica membranes with a controlled retention of organic bridges. J. Mater. Chem. A 2013, 1, 5567–5576. [Google Scholar] [CrossRef]
  31. Walkiewicz-Pietrzykowska, A.; Cotrino, J.; Gonzalez-Elipe, A.R. Deposition of thin films of SiOxCyH in a surfatron microwave plasma reactor with hexamethyldisiloxane as precursor. Chem. Vap. Depos. 2005, 11, 317–323. [Google Scholar] [CrossRef]
  32. Li, G.; Kanezashi, M.; Tsuru, T. Preparation of organic-inorganic hybrid silica membranes using organoalkosilanes: The effect of pendent groups. J. Membr. Sci. 2011, 379, 287–295. [Google Scholar] [CrossRef]
  33. Shioya, Y.; Ohdaira, T.; Suzuki, R.; Seino, Y.; Omote, K. Effect of UV anneal on plasma CVD low-k film. J. Non-Cryst. Solids 2008, 354, 2973–2982. [Google Scholar] [CrossRef]
  34. Liu, H.; Zheng, S. Polyurethane Networks Nanoreinforced by Polyhedral Oligomeric Silsesquioxane. Macromol. Rapid. Commun. 2005, 26, 196–200. [Google Scholar] [CrossRef]
  35. Sea, B.K.; Ando, K.; Kusakabe, K.; Morooka, S. Separation of hydrogen from steam using a Si-C based membrane formed by chemical vapor deposition of triisopropylsilane. J. Membr. Sci. 2004, 146, 105–117. [Google Scholar]
  36. Ciora, R.J.; Fayyaz, B.; Liu, P.K.T.; Suwanmethanond, V.; Mallada, R.; Sahimi, M.; Tsotsis, T.T. Preparation and reactive applications of nanoporous silicon carbide membranes. Chem. Eng. Sci. 2004, 59, 4957–4965. [Google Scholar] [CrossRef]

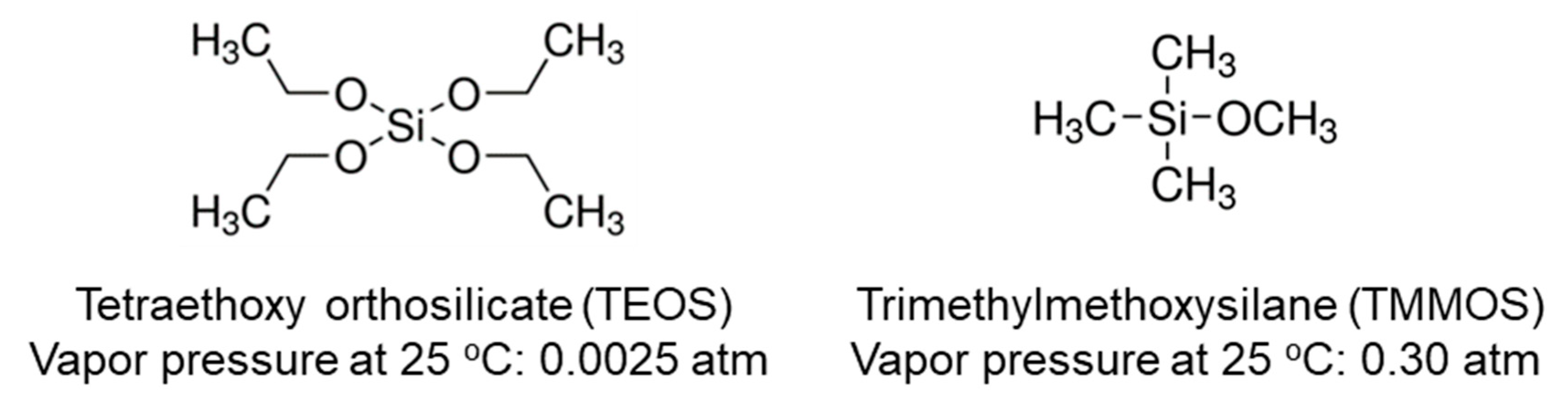

Figure 1. Chemical structures and vapor pressures of tetraethoxy orthosilicate (TEOS) and trimethylmethoxysilane (TMMOS).
Figure 1. Chemical structures and vapor pressures of tetraethoxy orthosilicate (TEOS) and trimethylmethoxysilane (TMMOS).
Membranes 09 00123 g001

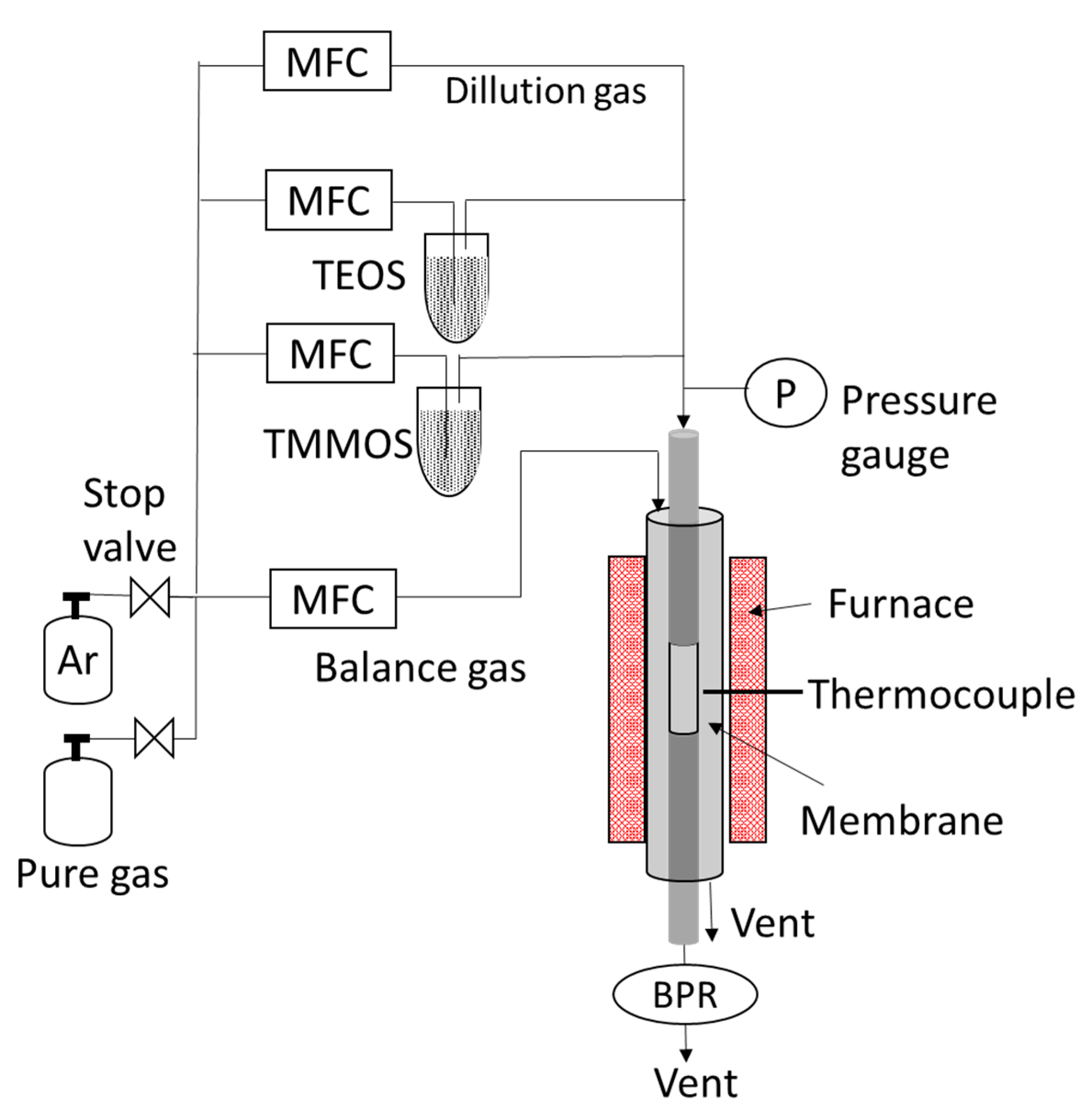

Figure 2. Schematic of the chemical vapor deposition apparatus for membrane fabrications.
Figure 2. Schematic of the chemical vapor deposition apparatus for membrane fabrications.
Membranes 09 00123 g002

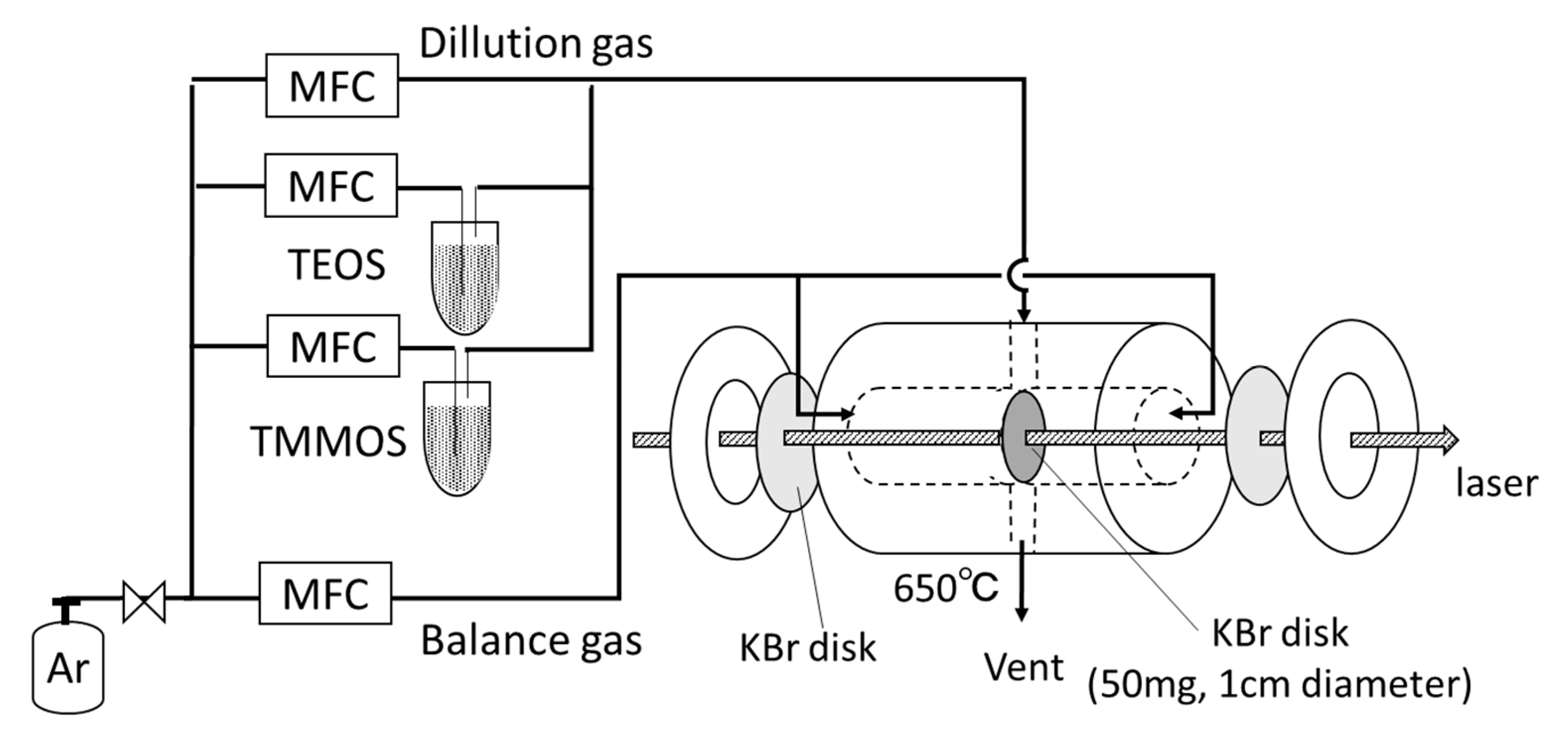

Figure 3. In situ FTIR measurement apparatus.
Figure 3. In situ FTIR measurement apparatus.
Membranes 09 00123 g003
Figure 4. Chemical vapor deposition (CVD) results H2 and N2 permeance and H2/N2 selectivity as a function of CVD time (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, and (d) TMMOS 35%.
Figure 4. Chemical vapor deposition (CVD) results H2 and N2 permeance and H2/N2 selectivity as a function of CVD time (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, and (d) TMMOS 35%.
Membranes 09 00123 g004
Figure 5. Comparison of H2/N2 selectivity versus H2 permeance for membranes prepared using different precursors. ×: This study; open symbols: membranes prepared by the sol-gel method; closed symbols: membranes prepared by CVD. The present study was at 650 °C, sol-gel derived permeances were measured at 200 °C, DPhDMOS and TPhMOS were measured at 300 °C, TEOS and TMOS [5] were measured at 600 °C, others were measured at 500 °C (TEOS: tetraethoxyorthosilicate, TMOS: tetramethoxyorthosilicate, MTMOS: methyltrimethoxyorthsilicate, DMDMOS: dimethyldimethoxysilane, TMMOS: trimethymethoxysilane, PrTMOS: propyltrimethoxysilane, PhTMOS: phenyltrimethoxysilane, DPhDMOS, diphenyldimethoxysilane, TPhMOS: triphenylmethoxysilane, BTESM: bis(triethoxysilyl)methane, BTESE: bis(triethoxysilyl)ethane, BTESEthy: bis(triethoxysilyl)ethylene, BTESA: bis(triethoxysilyl)acetylene, HEDS: hexaethoxydisiloxane).
Figure 5. Comparison of H2/N2 selectivity versus H2 permeance for membranes prepared using different precursors. ×: This study; open symbols: membranes prepared by the sol-gel method; closed symbols: membranes prepared by CVD. The present study was at 650 °C, sol-gel derived permeances were measured at 200 °C, DPhDMOS and TPhMOS were measured at 300 °C, TEOS and TMOS [5] were measured at 600 °C, others were measured at 500 °C (TEOS: tetraethoxyorthosilicate, TMOS: tetramethoxyorthosilicate, MTMOS: methyltrimethoxyorthsilicate, DMDMOS: dimethyldimethoxysilane, TMMOS: trimethymethoxysilane, PrTMOS: propyltrimethoxysilane, PhTMOS: phenyltrimethoxysilane, DPhDMOS, diphenyldimethoxysilane, TPhMOS: triphenylmethoxysilane, BTESM: bis(triethoxysilyl)methane, BTESE: bis(triethoxysilyl)ethane, BTESEthy: bis(triethoxysilyl)ethylene, BTESA: bis(triethoxysilyl)acetylene, HEDS: hexaethoxydisiloxane).
Membranes 09 00123 g005

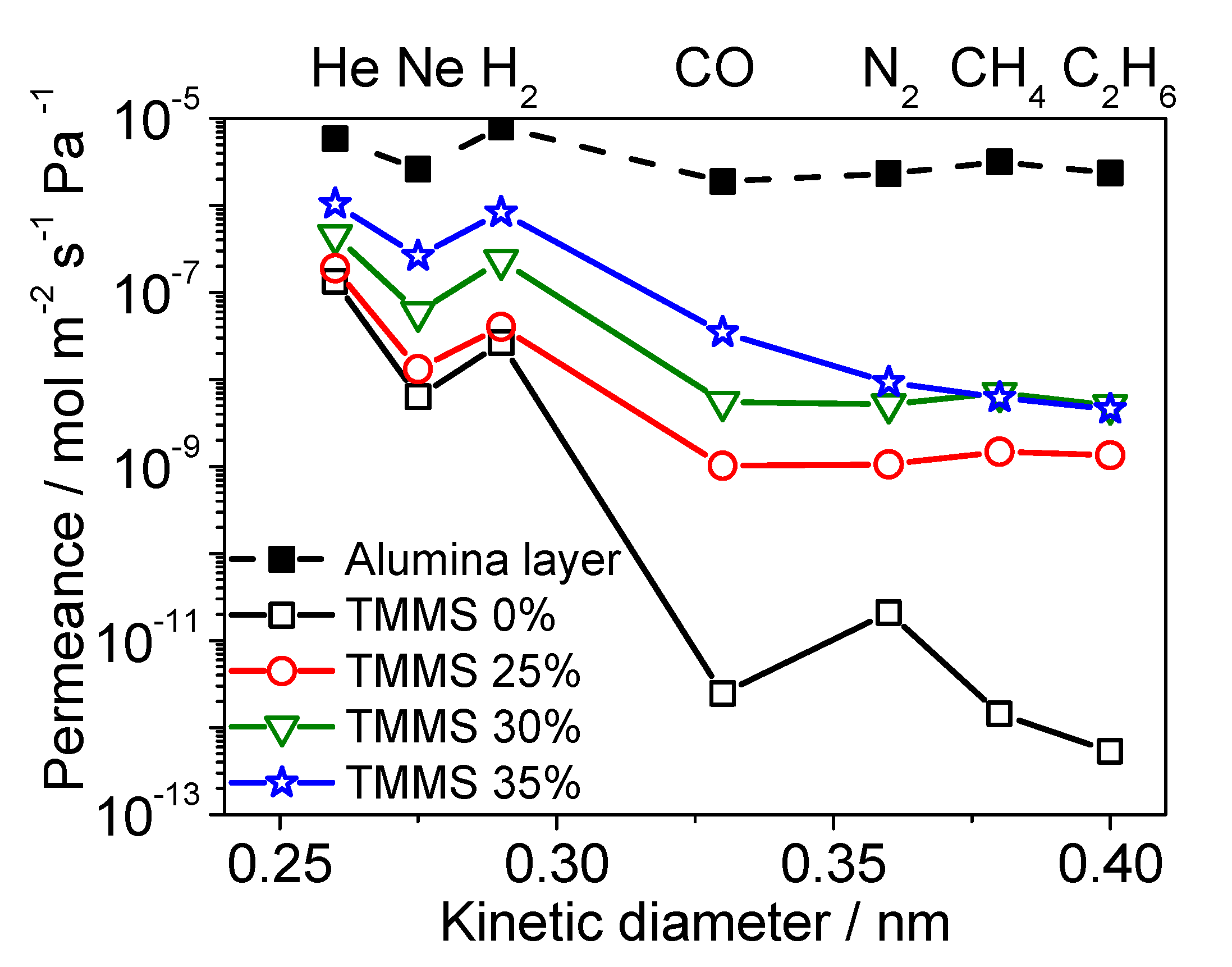

Figure 6. Gas permeation properties at 300 °C (permeance versus kinetic diameter of gas species (He, Ne, H2, CO2, N2, CH4, C2H6)).
Figure 6. Gas permeation properties at 300 °C (permeance versus kinetic diameter of gas species (He, Ne, H2, CO2, N2, CH4, C2H6)).
Membranes 09 00123 g006

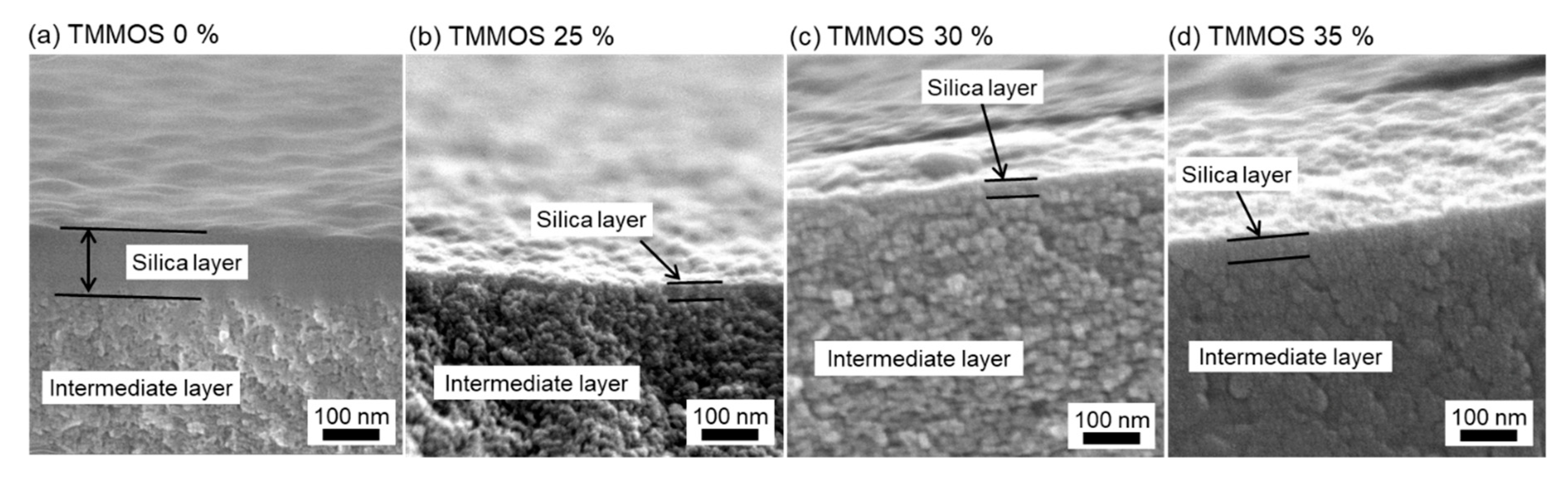

Figure 7. Scanning electron microscope (SEM) images of cross section of membranes (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, and (d) TMMOS 35%.
Figure 7. Scanning electron microscope (SEM) images of cross section of membranes (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, and (d) TMMOS 35%.
Membranes 09 00123 g007

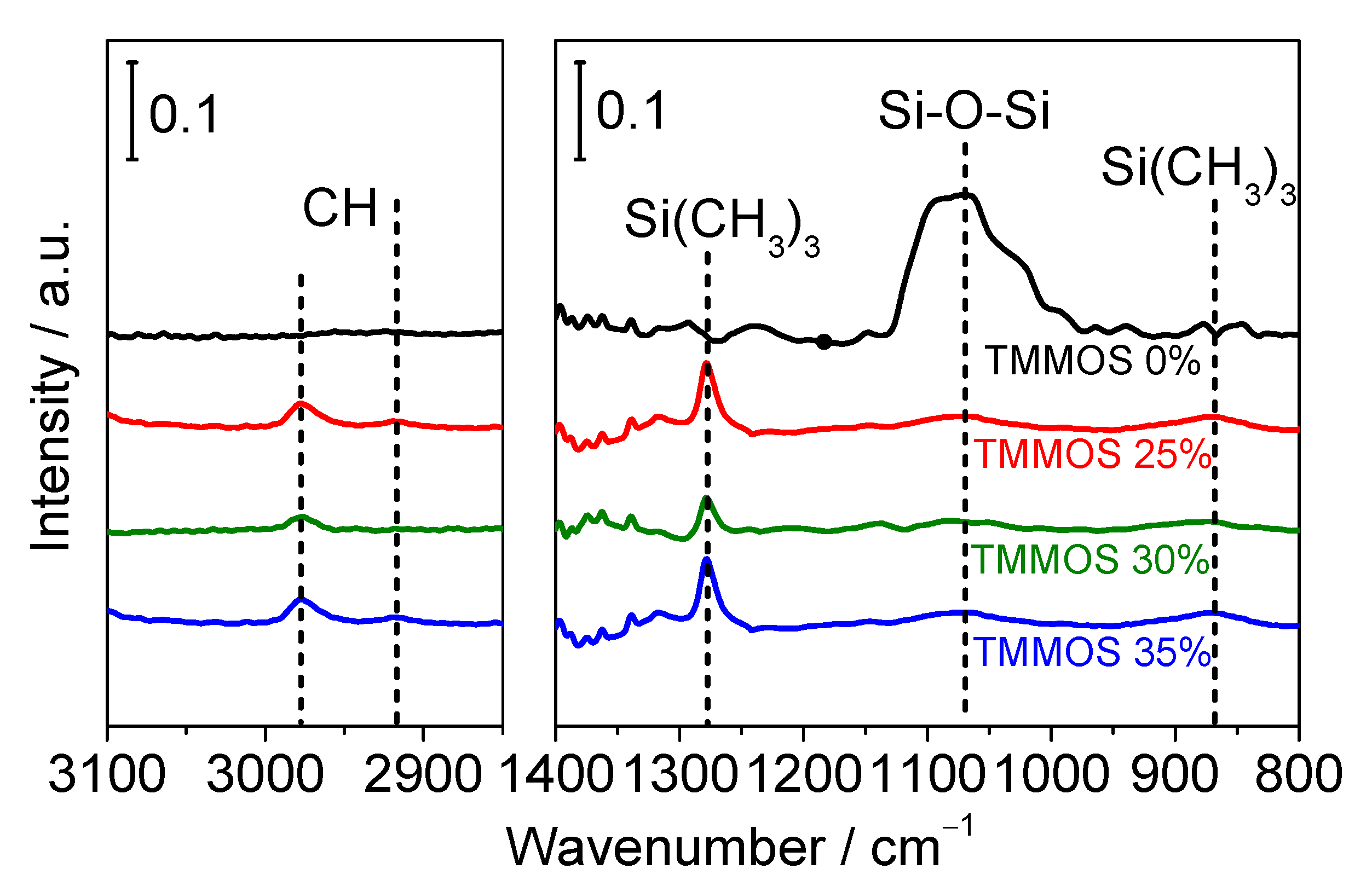

Figure 8. Infrared (IR) spectra (backgrounds were substrated).
Figure 8. Infrared (IR) spectra (backgrounds were substrated).
Membranes 09 00123 g008

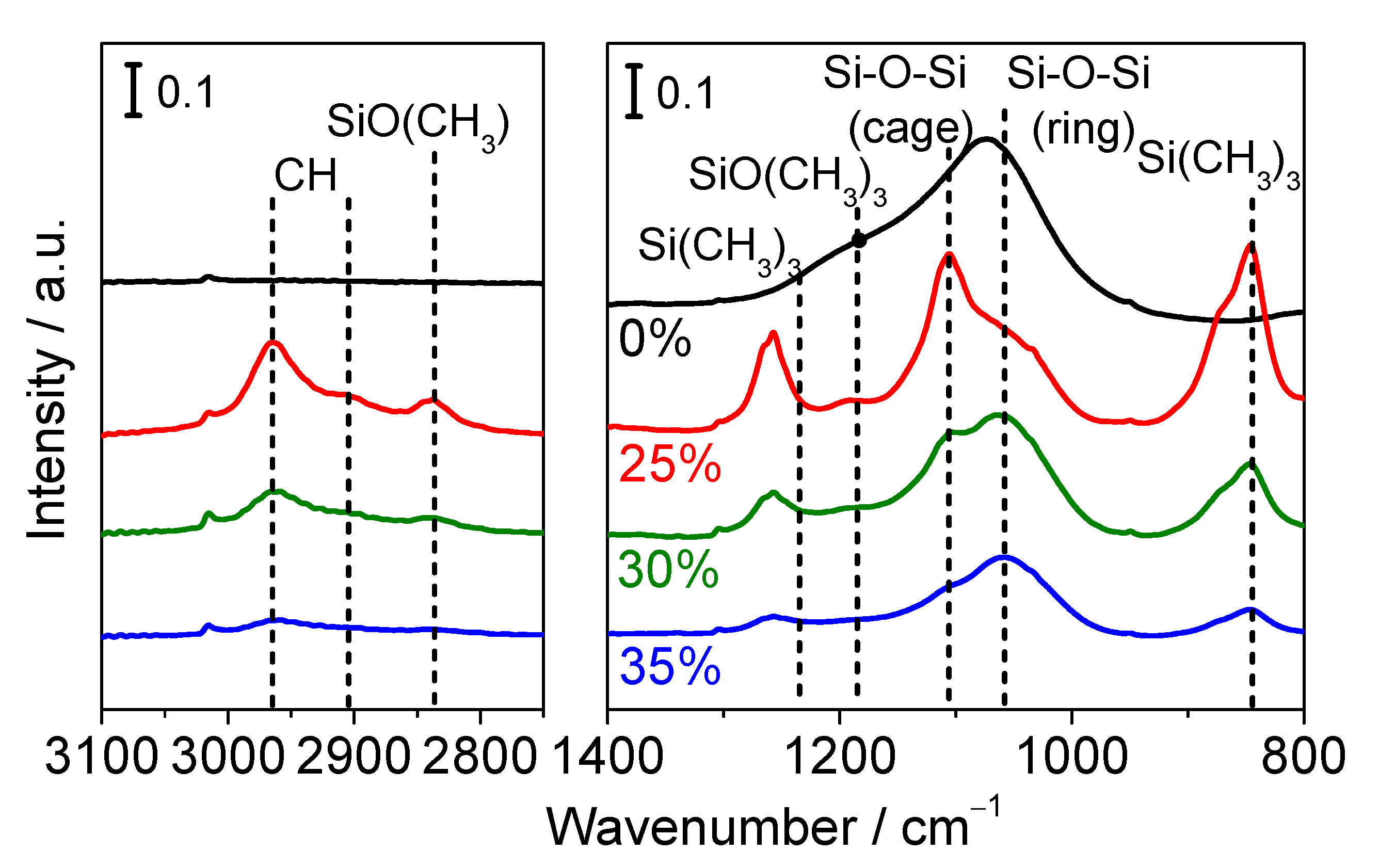

Figure 9. In situ Fourier transform infrared (FTIR) spectra (after 30 min deposition).
Figure 9. In situ Fourier transform infrared (FTIR) spectra (after 30 min deposition).
Membranes 09 00123 g009

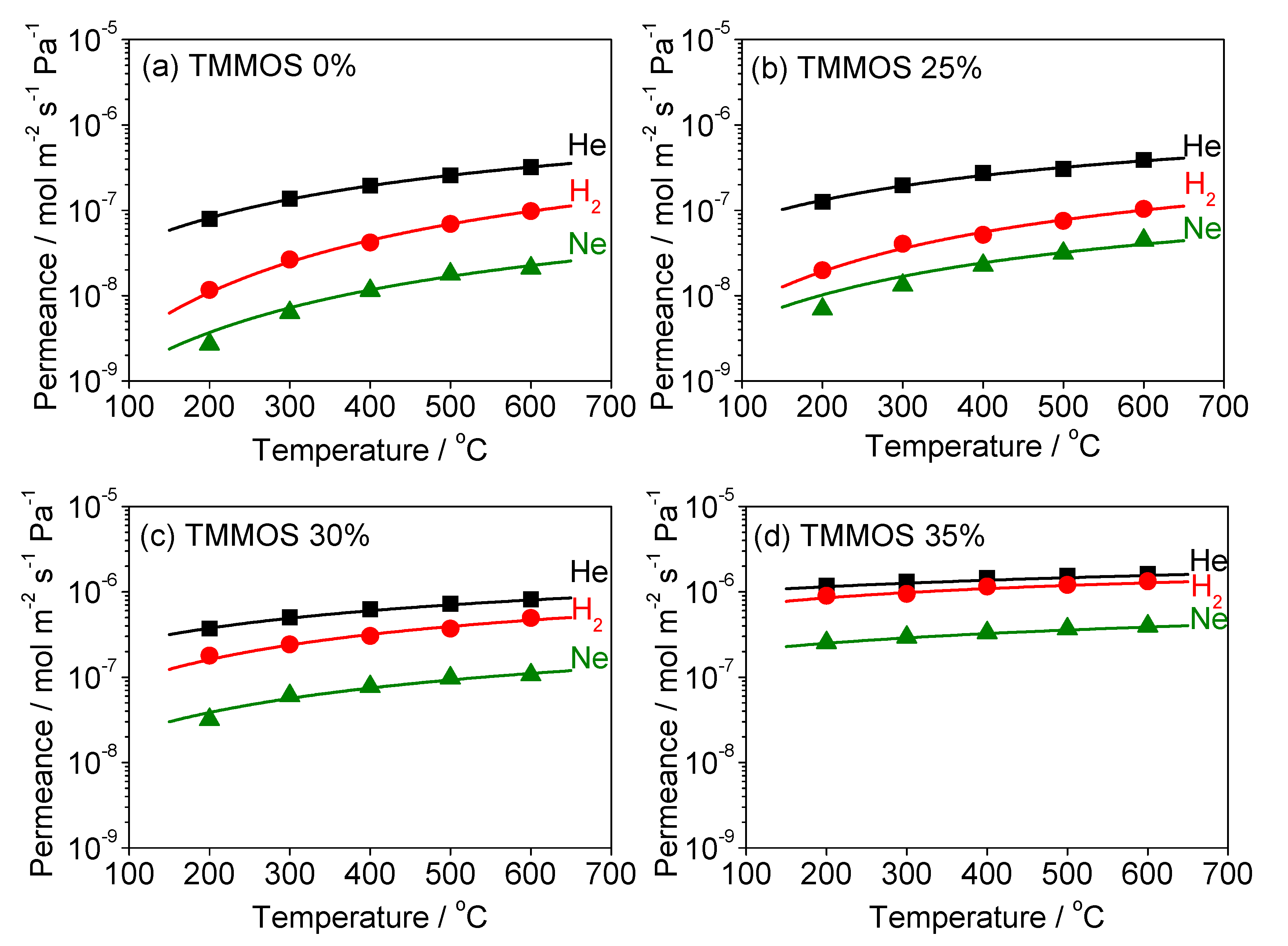

Figure 10. Fitting results by the solid-state diffusion model (permeance versus temperature, points are the experimental data and lines are the fitting results, black: He, red: H2, green: Ne, (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, (d) TMMOS 35%).
Figure 10. Fitting results by the solid-state diffusion model (permeance versus temperature, points are the experimental data and lines are the fitting results, black: He, red: H2, green: Ne, (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, (d) TMMOS 35%).
Membranes 09 00123 g010

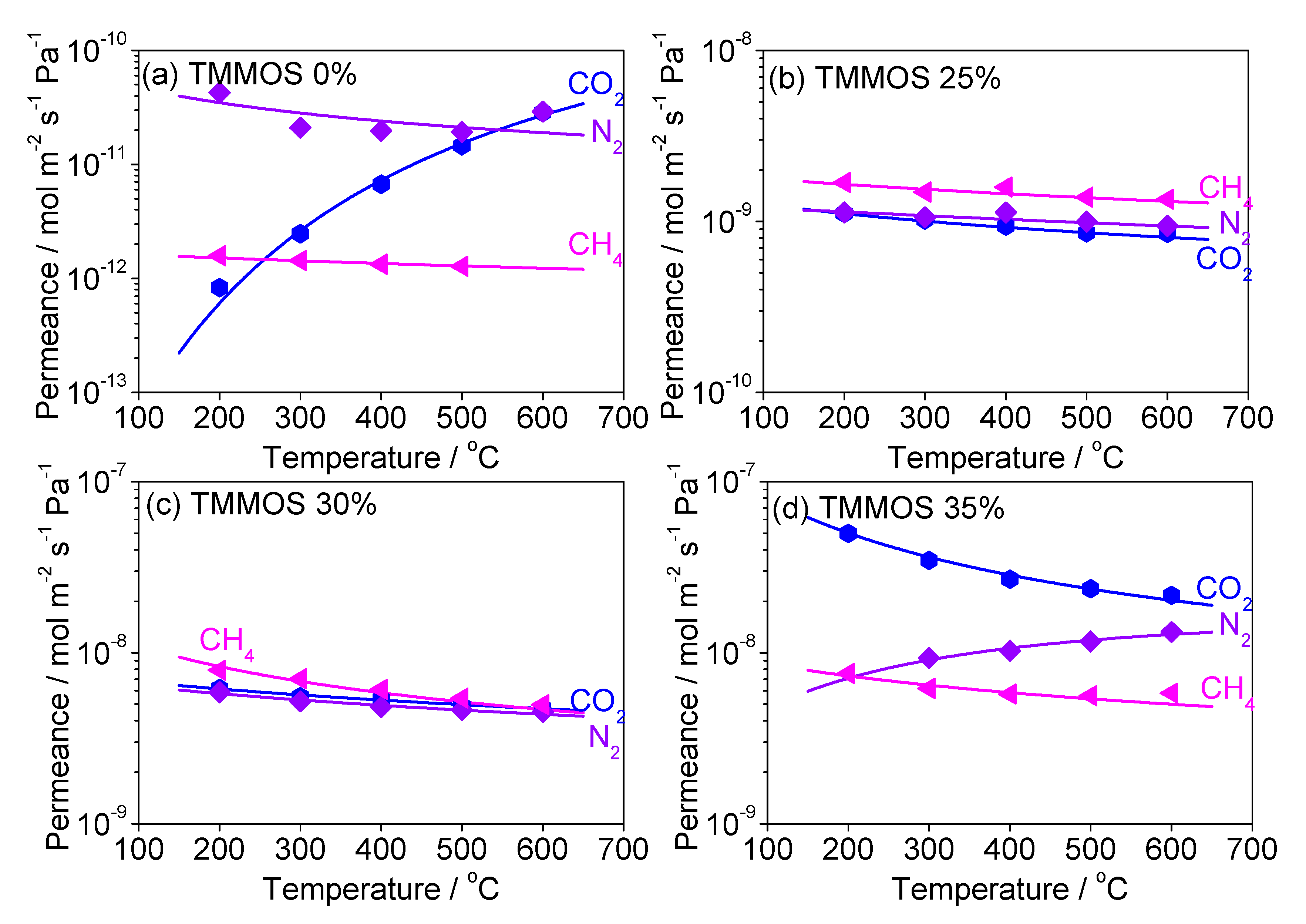

Figure 11. Fitting results by the gas translational diffusion model points are the experimental data and curves (open points were not used for fitting), blue: CO2, violet: N2, pink: CH4, (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, (d) TMMOS 35%).
Figure 11. Fitting results by the gas translational diffusion model points are the experimental data and curves (open points were not used for fitting), blue: CO2, violet: N2, pink: CH4, (a) TMMOS 0%, (b) TMMOS 25%, (c) TMMOS 30%, (d) TMMOS 35%).
Membranes 09 00123 g011

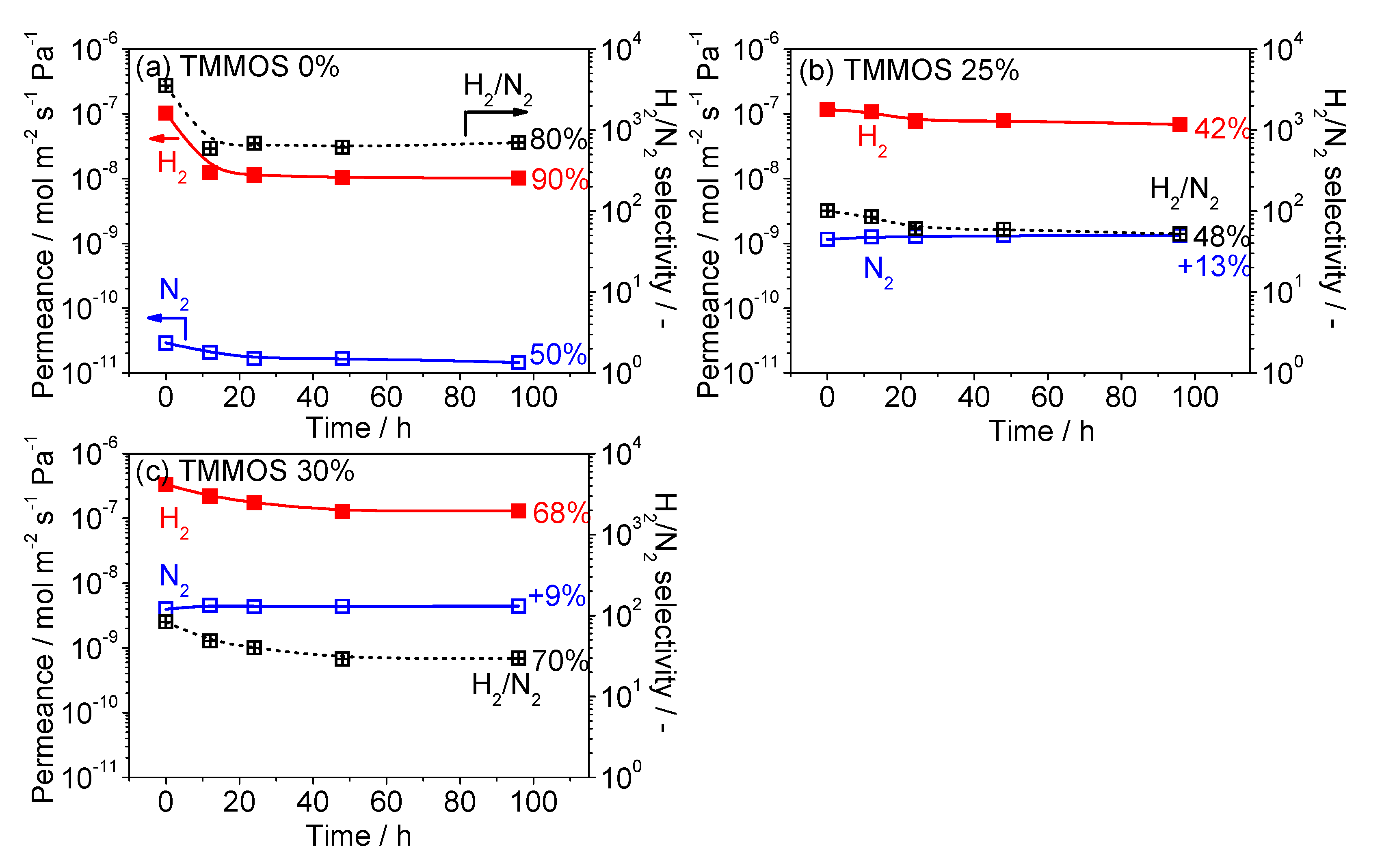

Figure 12. Hydrothermal stability test (permeance versus exposure time) at 16 mol% H2O vapor and 650 °C for 96 h, the percentages are calculated by (initial value − final value)/(initial value). (a) TMMOS 0%, (b) TMMOS 25%, and (c) TMMOS 30%.
Figure 12. Hydrothermal stability test (permeance versus exposure time) at 16 mol% H2O vapor and 650 °C for 96 h, the percentages are calculated by (initial value − final value)/(initial value). (a) TMMOS 0%, (b) TMMOS 25%, and (c) TMMOS 30%.
Membranes 09 00123 g012
Table 1. Conditions of chemical vapor deposition for membrane fabrication.
Table 1. Conditions of chemical vapor deposition for membrane fabrication.
MembraneBubbler Temperature (°C)Volumetric Flow Rates of Ar Carrier (cm3 min−1)Molar Flow Rates (μmol s−1)
TEOSTMMOSTEOSTMMOSTEOSTMMOS
TMMOS 0%90-6-0.26-
TMMOS 25%983630.350.12
TMMOS 30%903630.260.12
TMMOS 35%853630.210.12
Table 2. Fitting parameter values of the solid-state diffusion model.
Table 2. Fitting parameter values of the solid-state diffusion model.
TMMOS PercentageGasNs (Site m−3)ν* (s−1)ESS (kJ mol−1)d (nm)R2
0%He4.26 × 10262.81 × 10129.130.8391.00
Ne3.34 × 10262.16 × 101212.850.8410.980
H22.52 × 10263.21 × 101217.190.8420.998
25%He3.13 × 10265.37 × 10126.330.8410.986
Ne2.40 × 10263.57 × 10129.040.8420.947
H21.84 × 10267.51 × 101212.350.8430.987
30%He1.95 × 10263.48 × 10123.830.8430.998
Ne1.89 × 10262.30 × 10126.380.8430.970
H21.73 × 10264.76 × 10127.440.8430.970
35%He1.57 × 10262.94 × 1012−0.080.8440.995
Ne1.43 × 10261.54 × 10121.120.8441.00
H20.87 × 10263.02 × 10121.860.8450.952
Table 3. Fitting parameter values of the gas translational diffusion model.
Table 3. Fitting parameter values of the gas translational diffusion model.
TMMOS RatioGasCEp (kJ mol−1)R2
0%CO26.17 × 10−835.20.993
N21.90 × 10−10−2.570.400
CH41.49 × 10−110.8300.907
25%CO21.06 × 10−512.00.985
N25.23 × 10−617.30.978
CH44.12 × 10−617.20.983
30%CO21.54 × 10−59.350.999
N26.84 × 10−611.90.983
CH49.23 × 10−612.00.956
35%CO21.70 × 10−55.280.982
N21.12 × 10−56.480.982
CH41.13 × 10−56.190.917

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
