Membranes 2016, 6(2), 31; https://doi.org/10.3390/membranes6020031

Article
Preparation and Characterization of Facilitated Transport Membranes Composed of Chitosan-Styrene and Chitosan-Acrylonitrile Copolymers Modified by Methylimidazolium Based Ionic Liquids for CO2 Separation from CH4 and N2
1
Nanotechnology and Biotechnology Department, Nizhny Novgorod State Technical University n.a. R.E. Alekseev, 24 Minina str., Nizhny Novgorod 603950, Russia
2
Department of Macromolecular Compounds and Colloid Chemistry, Lobachevsky State University of Nizhny Novgorod, 23 Gagarin av., Nizhny Novgorod 603950, Russia
3
Institute for Problems in Mechanical Engineering, Russian Academy of Sciences, 85 Belinskogo str., Nizhny Novgorod 603024, Russia
4
Research Institute for Medicines (iMed.UL), Faculty of Pharmacy, Universidade de Lisboa, Av. Prof. Gama Pinto, Lisboa 1649-003, Portugal
*
Author to whom correspondence should be addressed.
Academic Editor: Isabel Coelhoso
Received: 29 February 2016 / Accepted: 3 June 2016 / Published: 9 June 2016

Abstract

:
CO2 separation was found to be facilitated by transport membranes based on novel chitosan (CS)–poly(styrene) (PS) and chitosan (CS)–poly(acrylonitrile) (PAN) copolymer matrices doped with methylimidazolium based ionic liquids: [bmim][BF4], [bmim][PF6], and [bmim][Tf2N] (IL). CS plays the role of biodegradable film former and selectivity promoter. Copolymers were prepared implementing the latest achievements in radical copolymerization with chosen monomers, which enabled the achievement of outstanding mechanical strength values for the CS-based membranes (75–104 MPa for CS-PAN and 69–75 MPa for CS-PS). Ionic liquid (IL) doping affected the surface and mechanical properties of the membranes as well as the gas separation properties. The highest CO2 permeability 400 Barrers belongs to CS-b-PS/[bmim][BF4]. The highest selectivity α (CO2/N2) = 15.5 was achieved for CS-b-PAN/[bmim][BF4]. The operational temperature of the membranes is under 220 °C.
Keywords:
facilitated transport membranes; chitosan; modification; ionic liquid; copolymer; gas separation; atomic force microscopy (AFM)

1. Introduction

Chitosan (CS), poly[β(1→4)-2-amino-2-deoxy-d-glucopyranose], is a linear amino polysaccharide obtained by the deacetylation of chitin, an abundant natural polymer found in fungal cell membranes and in the exoskeleton of invertebrate species (crustaceans). Some of the most attractive features of these materials are their biodegradability, biocompatibility, flocculation [1], and non-toxicity while forming clear films with impressive thermal properties [1,2,3,4,5,6,7]. Natural selection over the course of millions of years has created a membrane as the perfect tool for the separation of substances in living organisms, however, direct use of biological membranes in the laboratory and industrial processes is currently impossible, mostly due to their low mechanical strength [8,9]. In spite of the fact that CS is a promising matrix for carbon dioxide and other acidic gas separation from flue gases through the amino group in its repeating unit, it has not found widespread use in gas separation thus far. One of the main challenges is the formation of materials with low physical-mechanical properties and low stability due to the hydrophilic character of the surface and the pH sensitivity of CS, which is ill-suited as a component for gas separation modules [2,9]. Moreover, despite the selectivity for CO2 separation achieved by CS, it has low permeation caused by the high crystallinity of this polymer [10]. Thus, judicious selection of efficient and appropriate modifications is needed to fully explore potential gas separation capabilities.
CS properties can be further improved mainly using two approaches: direct CS chemical and/or physical modification, and formation of composite membranes; however, in some cases, both methods are used simultaneously [7,10,11,12,13,14,15]. A notable change in CS gas separation properties was achieved by moistening the original CS membranes [11,12,13]. Grulke and El-Azzami have shown that the permeation and separation of gases is enhanced significantly for water-swollen CS membranes due to reaction mechanism between CO2, amino groups, and water plasticizing properties [11]. The maximum CO2 permeability was 482 Barrers at a selectivity of α(CO2/H2) = 43, whereas a selectivity of α(CO2/N2) = 250 was obtained for swollen membranes at 110 °C and 1.5 atm feed pressure. Ito et al. demonstrated a new approach by separation of CO2/N2 in humidified feed gas [11]. The CO2 permeability was up to 100 Barrers with selectivity up to 100 at a feed pressure of 3.5 atm. Bae et al. discovered that maintaining water in chitosan membranes gives higher CO2 permeability and selectivity, even at higher temperatures [13]. The permeation of pure CO2 and N2 through wet CS membranes at 20 and 30 °C for a feed pressure up to 20 atm showed CO2 permeability under 1 Barrer with selectivity up to 37. In comparison to water-swollen CS membranes, Grulke and El-Azzami also modified CS by blending with solutions containing arginine salt solutions for obtaining gas separation membranes [14]. Arginine salt–CS membranes achieved high CO2 transport properties at operating temperatures and pressures suitable for industrial applications such as fuel cell processes and flue gas purification, and exhibited carbon dioxide transport properties about three times more favorable than those for swollen CS membranes.
Crosslinking presents another well-established method of CS modification for gas separation application [15]. Crosslinked CS membranes were prepared by Shude Xiao and co-workers from interfacial crosslinking of CS membranes in trimesoyl chloride (TMC)/hexane [16]. The membrane developed showed a CO2 permeability of ~163 Barrers and an optimized selectivity for CO2/N2 of approximately 42. Beyond this technology, composite gas separation membranes containing CS layers with good separation properties have been developed by different research groups; Kouketsu et al. prepared a poly(amidoamine) dendrimer composite membrane containing a CS gutter layer [17]. The membrane showed very promising results with a selectivity as high as 400 for CO2/N2 mixtures, and a CO2 permeance of 0.12 × 10−5 GPU. Shen and co-workers obtained the carboxymethyl CS/polyethyleneimine sandwich membranes with polysulfone ultrafiltration membranes as a support layer for the separation of CO2/N2 mixtures [18]. The dry membranes showed a high permeance of CO2 of 2.1 GPU and the ideal selectivity for the CO2/N2 mixture of about 33. Shen et al. fabricated a facilitated transport mixed matrix membrane based on polyvinyl amine and CS as the polymer matrix, and coated this material on to a porous polysulfone support, graphene oxide (GO), grafted with hyperbranched polyethylenimine (HPEI-GO) which was added as a nanofiller [19]. It was shown that CO2 transport through the membrane occurs mainly by an assisted facilitated transport mechanism by a solution-diffusion mechanism. The highest CO2 permeance (36 GPU) was achieved with 2 wt % HPEI-GO membranes, and CO2/N2 selectivity reached 107 in 3 wt % HPEI-GO membranes. Furthermore, Assis and Hotchkiss studied CO2/O2 permeability through the CS film modified by a thin hydrophobic silicon coating [20] which resulted in 0.4 Barrer CO2 permeation through the membrane. Bai et al. obtained a CS-acetic acid and CS-polymer complex gas separation membrane, in which the CS-acetic acid complex membrane showed high permselectivities for oxygen and carbon dioxide [21]. Complex membranes with synthetic polymers such as polyvinyl alcohol, polyacrylamide, and polyvinylpyrrolidone were also studied for CO2 separation. In comparison with that of CS-acetic acid complex membrane permeation, CS-polymer complex membranes permeation increased, while selectivity slightly decreased.
Through an intensive search for new methods of CO2 sorption, a novel class of materials referred to as ionic liquids (IL) was discovered to display efficient CO2 selective capture [22,23,24,25,26]. ILs are cation/anion pairs with a melting point below 100 °C [22], and their unique properties make them promising modifiers for gas separation membranes that enable CO2 separation levels not possible with pristine or conventional materials. Owing to these properties, ILs have attracted much attention in recent gas separation research [7,27,28,29,30,31]. Albo and coworkers made a great contribution to the gas separation properties study of the systems containing IL [27,28,29]. In these works it was shown that the IL might be used as the solvent in the cross-flow and parallel membrane contactors for CO2 as well as SO2 separation providing a high efficiency of the process. CS-based membranes were also modified by introduction of ILs. Casado-Coterillo prepared and tested novel mixed matrix membranes composed of IL/CS, ETS-10/CS, and ETS-10/IL/CS for CO2 and N2 permeation applications [7]. Three-component membranes showed the highest solubility selectivity for CO2/N2, displaying values of 38.48.
CS has already been tested in pervaporation for dehydration of solvents, such as ethanol, isopropanol, tetrahydrofuran, and acetone, with high separation performance in terms of selectivity and water flux, as well as for gas separation [32,33,34]. Similar approaches for CS modification are used in pervaporation membrane development [35,36,37,38,39]. Likewise, attention has been given to materials based on CS copolymers with synthetic monomers [40,41], while they have not found a proper study for gas separation. At the same time, copolymerization with vinyl monomers is one of the most promising approaches to modify CS thanks to their facile implementation which may be applied to a wide range of monomers, with notable influence on mechanical properties, solubility, thermal properties, and other important characteristics [42,43,44]. In the past decade, it has been seen that CS copolymerization with acrylonitrile (AN) [45,46,47,48] and styrene (S) [49,50,51] provides significant advantages in the obtained physiochemical properties. Moreover AN and S are large-capacity monomers and there polymerized properties are well studied. Copolymerization with AN and S would provide a stable polymer matrix resistant to mechanical and thermal influence. However, it is likely, the level of the free volume in such a matrix would not be high as a result of high crystallinity, and as a consequence, low permeation ability is expected. In order to increase the free volume and adsorption capacity of CO2 it is proposed to dope original copolymer with ILs. We used a commercially available IL based on the cation 1-butyl-3-methylimidazolium ([bmim]) with three different anions: tetrafluoroborate ([BF4]), hexafluorophosphate ([PF6]) and bis((trifluoromethyl)sulfonyl) imide ([Tf2N]). It is known that the nature of the cation does not significantly affect the sorption properties of the ionic liquid, while the anion plays a major role [52]. Therefore the cation was chosen arbitrarily. The literature shows that ILs containing the acetate anion possess a high degree of absorption for CO2 across a wide range of temperatures and applied pressures [53,54]. Due to the preparation technique of the membranes in this work, acetate ions already exist in the polymer matrix. A range of anions including [BF4], [PF6], [Tf2N] with medium sorption capacity and various anion radius and intensities of molecular interaction with water were chosen with the aim of comparison with the literature data.
The scope of the present work is focused on the preparation and gas separation study of facilitated transport membranes based on CS graft and block copolymers with poly(acrylonitrile) (PAN) and poly(styrene) (PS) doped with IL. IL doping into CS matrix leads to the decrease in crystallinity of the biopolymer, and consequently results in an increase in permeation without the loss of selectivity [7,55,56,57].

2. Results and Discussion

2.1. Structural Properties

Fourier transform infrared spectroscopy analysis (FTIR) of the copolymer samples in comparison to pure CS were used to support the successful modification of CS. FTIR spectra of the copolymers, purified by homopolymer extraction, are presented in Figure 1.
The FTIR spectra of chitosan/poly(acrylonitrile) (CS-PAN) copolymers arise from the frequencies of the C N functional group (2241 cm−1) [58], while the chitosan/poly(styrene) (CS-PS) copolymers FTIR spectra shows bands corresponding to the stretching vibrations of the benzene ring (1570 cm−1) [59]; these findings support CS-PAN and CS-PS copolymer formation. The CS main bands were also detected in copolymer spectra, and the absorption bands at 1151–1180 cm−1 were assigned to the anti-symmetric stretching of a C–O–C bridge. A peak at 2918–2925 cm−1 corresponds to a symmetric –CH2 stretching vibration, and the signal at 1377–1384 cm−1 was assigned to a methyl stretch of the amine group. Peaks at 1633–1652 cm−1 and 1540–1590 cm−1 correspond to C=O stretches (amide I) and NH stretching (amide II), respectively [60,61].

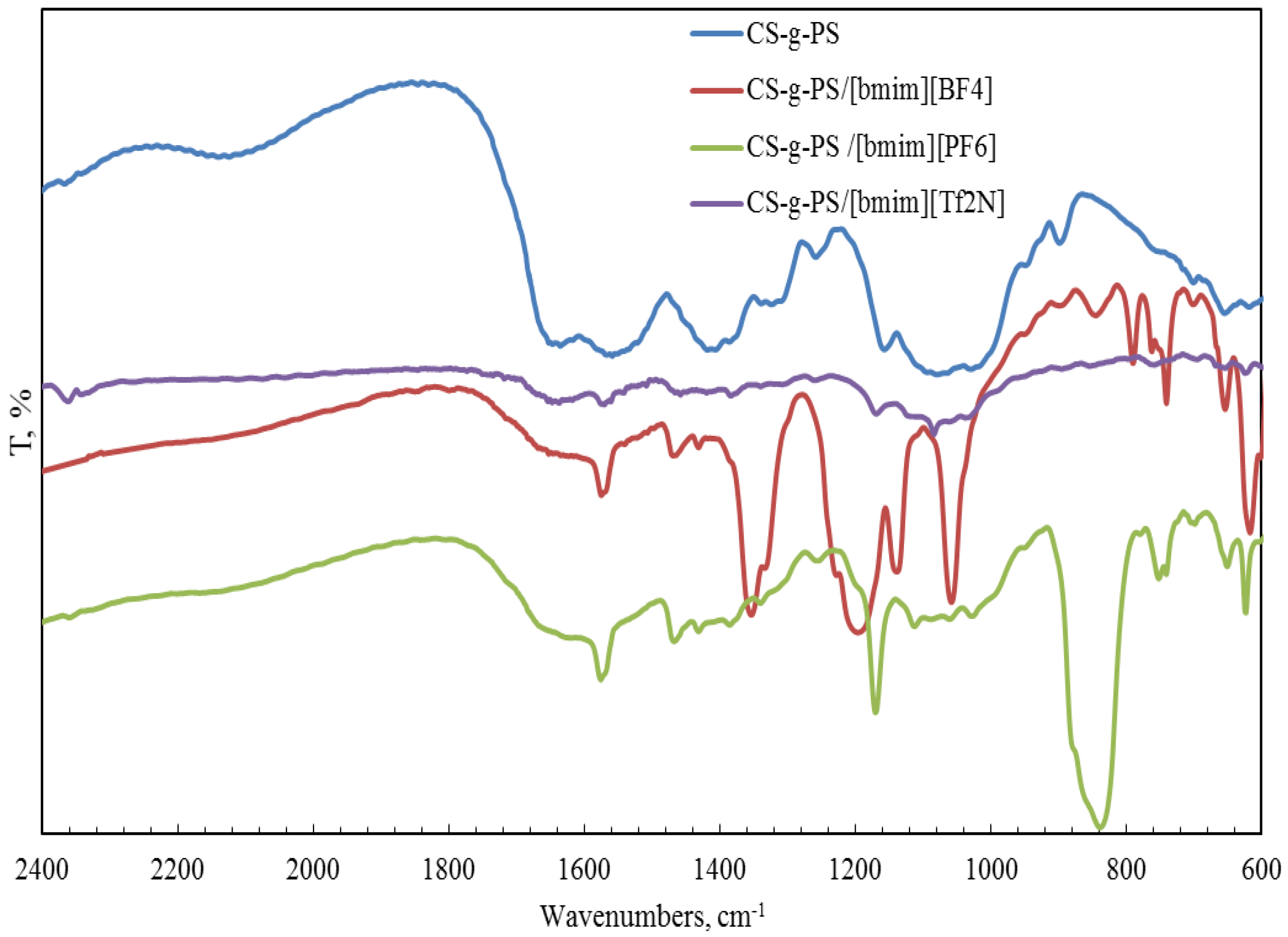

FTIR spectroscopy was also used for the characterization of a copolymer–ionic liquid interaction. The obtained spectra of chitosan block copolymer with poly(acrylonitrile) (CS-b-PAN) doped with ionic liquids (IL), chitosan graft copolymer with poly(acrylonitrile) (CS-g-PAN) doped with IL, chitosan block copolymer with poly(styrene) (CS-b-PS) doped with IL, and chitosan graft copolymer with poly(styrene) (CS-g-PS) doped with IL are shown in Figure 2, Figure 3, Figure 4 and Figure 5.
In the CH stretching region, the characteristic aliphatic symmetric CH stretching band is observed at 2878 cm−1, whereas the asymmetric aliphatic bands appear at 2939 and 2970 cm−1. The CH stretching bands of the [bmim] ring appear at 3132 cm−1 with a shoulder around 3105 cm−1 and at 3160 cm−1. For CS-PAN, incorporation of all three ILs resulted in shifts of the peaks vass(C–O–C) on the order of 2–7 cm−1, and peak shifts of v (C N) from 2–5 cm−1. In all cases, three types of ionic liquids based on cations [bmim] are built into the structure of our samples.

2.2. Surface Properties

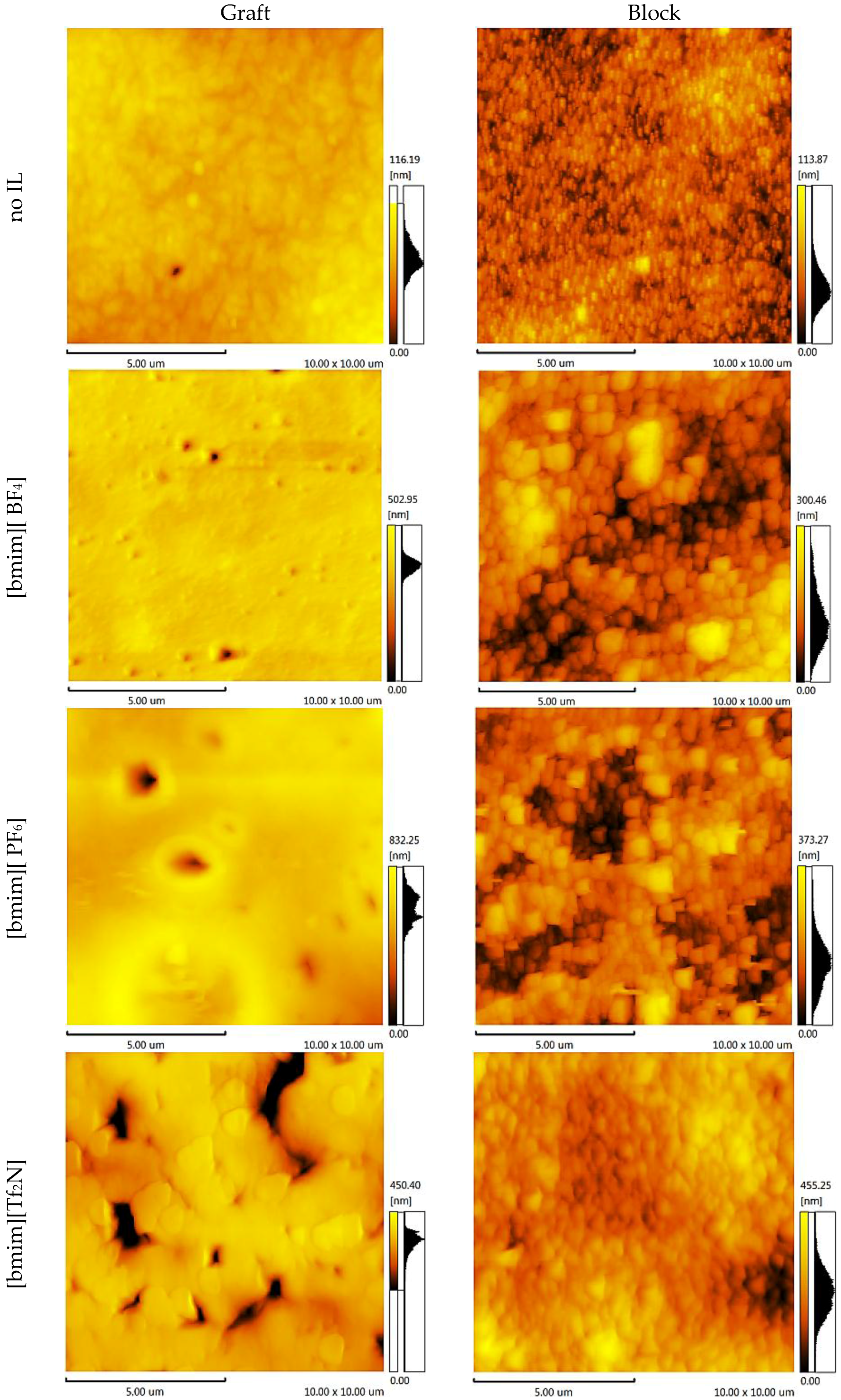

Knowing the membrane surface topography and the structural units’ statistical distribution enables the simulation of the gas separation process through the polymer membrane. To elucidate these properties, atomic force microscopy topology analysis (AFM) was conducted. The AFM images of the CS-PAN and CS-PS copolymers are shown in Figure 6 and Figure 7, respectively. Two important components of the surface roughness parameters were determined: mean roughness (Ra, the mean value of the surface relative to the center plane), and the mean difference between the highest peaks and lowest valleys (Rz). The results are shown in Table 1.
From the results of the microscopy analysis, it can be concluded that the pure copolymers possess nodular microstructures, wherein nodules are observed as bright high peaks. The CS-g-PS has the most densely-packed surface structure. The detailed analysis of the membrane surface AFM profiles leads to the conclusion that there are no pores, thus membranes are non-porous.
Despite IL doping yielding a different influence on CS-PAN and CS-PS copolymer surfaces, generally, the incorporation of the ionic liquids in the copolymer matrix causes the formation of an explicit macro-relief, thus, the nodular structure remains in those samples at the micro level. The specific impact of [bmim][BF4] and [bmim][PF6] on the surface structure is more pronounced for CS-PAN then for CS-PS. This is likely related to the fact that PAN polymer chain mobility is higher than PS. For the same reason, block copolymers are more resistant to the effects of IL doping in comparison to graft copolymers. The IL [bmim][Tf2N] has the greatest influence on the copolymer structure due to the more sterically demanding anion. The nodule surface structure may be related to a particular orientation of macrochain fragments when forming a film. Similar macro-chains twist, forming areas of various chemical natures. The effects of the monomer units’ polarity and the IL hydrophilic/hydrophobic properties on IL distribution between macromolecular chains are far from trivial and should not be ignored.
The observed microstructure is formed due to the specific orientation of macromolecular chains in film formation. To determine the packing trend of copolymers, the surface chemical nature was investigated by wettability measurements. It is known that CS is hydrophilic and has good wettability of polar solvents, at the same time opposite properties are peculiar for the synthetic macrochain fragments. Since CS swells in water, CH2I2, which does not interact with copolymer matrices, was selected as test liquid to obtain adequate data.
The sample’s surface has good wettability with CH2I2, a relatively nonpolar liquid: cosθ = 0.807 in the case of CS-b-PAN and cosθ = 0.724 in the case of CS-g-PAN; cosθ = 0.699 in CS-b-PS and; cosθ = 0.755 for CS-g-PS. Since the surface has good wettability with nonpolar liquid, it can be concluded that the observed micro-relief is formed by orienting the synthetic polymer fragments to the surface and within the scope of the CS film.
Furthermore, to determine the compatibility of copolymers with ILs the wettability of membranes with ILs was studied. It was found that all copolymers liquophilic for ILs, and wettability increases in the following order: [bmim][BF4] < [bmim][PF6] < [bmim][TF2N] in all cases.

2.3. Thermal Properties

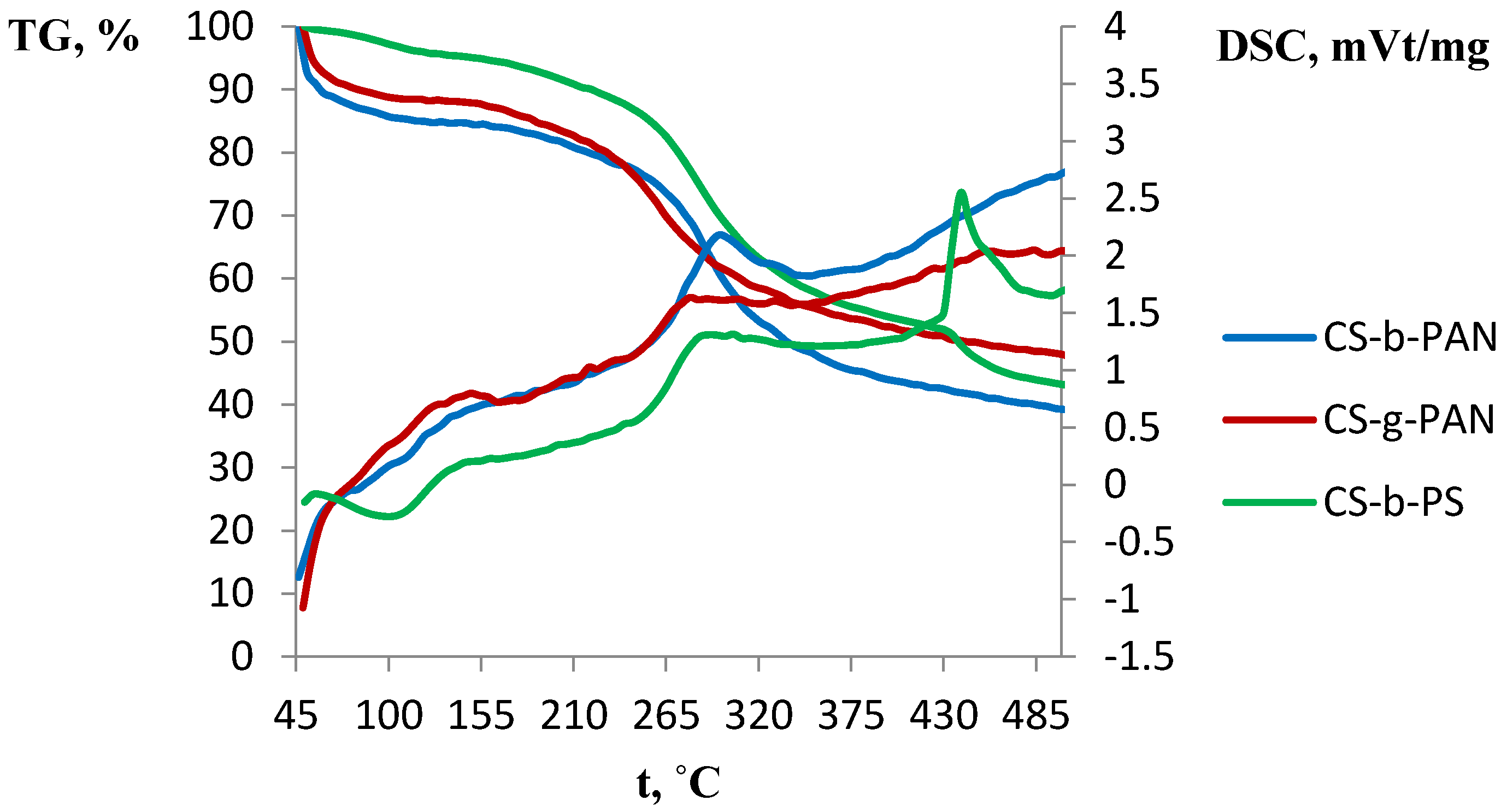

A number of industrial gas separation processes are carried out at elevated temperatures, thus it is necessary to study the membrane material’s thermal properties. The thermal properties of the obtained films are shown in the gravimetric analysis (TGA) and differential scanning calorimetry (DSC) diagrams presented in Figure 8 and Figure 9, respectively. To describe thermal properties of the obtained materials, original copolymers and those doped with IL were studied. The major weight loss for CS-PAN (Figure 8) occurs at a temperature between 220 and 380 °C. This weight loss is due to the decomposition of the polymer matrix as supported by the presence of a sharp peak in the DSC curve.
This effect is more explicit for the graft copolymer than for the block copolymer, due to the higher stability of the block copolymer matrix as a result of its structure. Similar effects were observed for the surface properties of copolymers, as well as for the mechanical properties. It should be noted that copolymers typically have lower decomposition temperature than pure CS (280 °C) [7]. Here, it is seen that a significant impact of PAN incorporation occurs in which decomposition according to the literature starts at 220–230 °C [62]. Conversely, a different behavior is observed for the copolymer with PS (Figure 8). The TGA curve for this copolymer has two regions of weight loss: 220–420 °C and 420–490 °C. This likely indicates PS decomposition (pure PS decomposes at 260 °C) [62] followed by CS decomposition. The DSC curve shape of the copolymers doped with IL differs significantly from the corresponding curve for the original copolymer (Figure 9). Additional mass-spectrometry analysis following the thermal gravimetric analysis and differential scanning calorimetry showed that the ionic liquids boil noticeably above the decomposition temperature. Decomposition of fluorinated ILs occur in the range of 311–350 °C, wherein HF, CH3F, and C4H9F were observed as decomposition products.

2.4. Mechanical Properties

The influence of IL doping on the mechanical properties of the copolymers was investigated by tension elongation measurement. The results are presented in Table 2.
Better mechanical properties of CS-PAN copolymers in comparison to CS-PS copolymers are expected as PAN has greater tensile strength than PS [63]. It was also predicted that ILs will serve as a plasticizer for CS due to mutual solubility [53], however, a lack of elongation growth with the decrease in tensile strength indicates the opposite relationship. It should be noted that the IL with [Tf2N] anion yields an adverse effect on the CS-PAN mechanical properties, while for the CS-PS, augmentation is observed. In general, physiomechanical properties of block copolymers are more resistant to changes, which correlate to the aforementioned hypotheses.

2.5. Gas Separation Properties

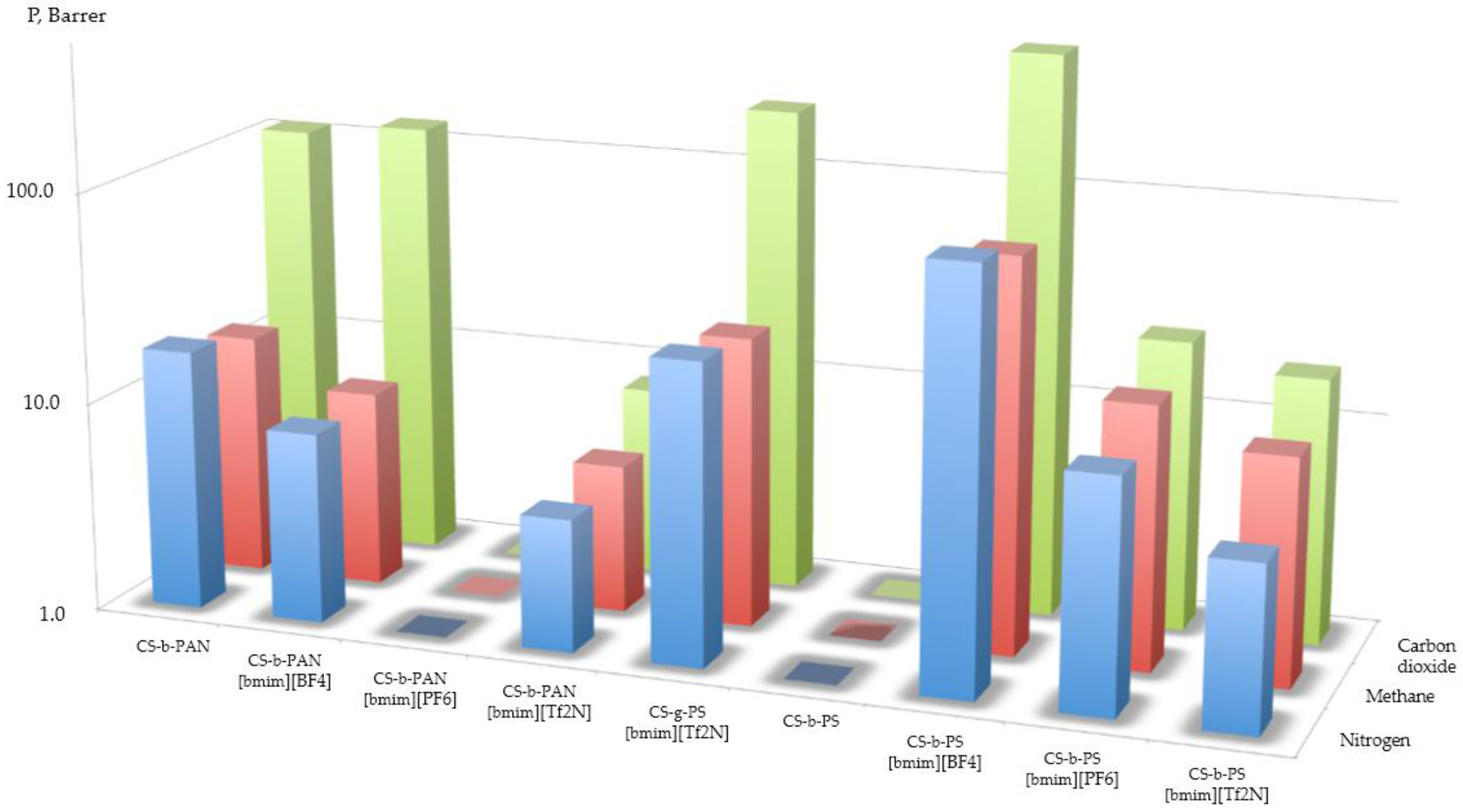

For the investigation of gas separation properties, gas combinations such as carbon dioxide and methane were chosen because of their potential application for removal of acidic gases at the essential stage of natural gas and biogas treatment. In addition, the separation of carbon dioxide and nitrogen was investigated owing to the importance of this process to the capture of carbon dioxide from power plant flue gases [64]. Among the traditional methods commercially available for acidic gas separation, the most common methods include absorption by physical and chemical adsorbents (e.g., amine solutions, carbonates), cryogenic distillation, membrane separation, and catalytic oxidation [65]. In general, all these methods have a specific field of application limited by the sorption capacity, regeneration, and stability to high pressures. The novel trend in gas stream treatment, however, is judicious selection of enhanced solvents for aggressive gases based on sorption of CO2 using IL-based hybrid materials [26,30,31,66,67,68,69,70].
In the present work, relatively high mechanical strain, thermal stability, and chemical stability achieved by copolymerization are presented. These properties naturally lend themselves to testing of these materials as gas separation membranes. Carbon dioxide has two polar bonds C=O, nitrogen as a simple non-polar gas, and methane as a hydrocarbon, non-polar gas, were chosen for permeability measurements. Pure nitrogen was used as a test gas to detect changes in membrane structure before and after carbon dioxide permeability.
The aforementioned examples of separation by materials doped with IL were promising for carbon dioxide separation; unfortunately, some of the synthesized copolymers were unable to be used in permeability tests. With the exception of CS-g-PST doped by [bmim][Tf2N], all graft copolymers were destroyed under increased pressure. The values of the obtained permeability coefficients for these experiments are presented in Figure 10, and the obtained results are compared with data discussed in the introduction [11,12,13,14,15,16,17,18]. The selectivity values presented in Table 3 are roughly the same for carbon dioxide/methane and carbon dioxide/nitrogen systems. As shown here, only block-copolymers which were doped with IL were permeable for carbon dioxide, methane, and nitrogen gases lower permeability in the current experiments. The most permeable film was made of CS-b-PS with [bmim][PF6]. This observation leads us to conclude that the permeability data has a correlation with data obtained from AFM measurements presented in Figure 6 and Figure 7. For CS-b-PAN doped by IL, the permeability and selectivity were increased in the following order [bmim][Tf2N] < [no IL] < [bmim][BF4]. For CS-b-PS, the permeability and selectivity increases in the order of the following IL: [bmim][Tf2N] < [bmim][PF6] < [bmim][BF4]. This is evidence that the value of solubility of carbon dioxide is affected vice versa to the permeability of mass-transfer mechanism.
We suggest that the CO2 facilitated transport mechanism in obtained membranes occurs in two steps, but mostly through the IL ions, and macromolecular fragments with protonated amino group and acetate anion, due to the presence of acetic acid in the reaction medium, that appears to be a result of Coulombic interaction. The CO2 sorption by the IL is suggested to be the first step of the proposed facilitated transport mechanism. Obtained membranes were found to be non-porous membranes by means of AFM, as mentioned above. Thus, it is necessary to provide a target gas sorption by the membrane material for separation of it from the smaller molecules, such as N2. In our case, the presence of IL in the matrix of the membrane copes with this problem. Both the nature of the cation and anion impact the dissolution of CO2, however the anion nature is known to be the dominating factor because of the Lewis acid–base type interaction where the anion acts as a Lewis base, and CO2 as a Lewis acid. Brennecke et al. found that the solubilities of CO2 in the ILs are in the order of the anions: [BF4] ≈ [PF6] < [Tf2N] [71]. It should be noted that the system of ions with adsorbed carbon dioxide molecules is not absolutely rigid, but rather flexible due to the mobility of macromolecular chains. Berne et al. proposed that molecular dynamics simulation shows the introduction of CO2 occurring in the positions above and below the imidazolium rings, or close to the long alkyl chains on the rings [72]. The diffusion coefficient calculations performed by Berne et al. showed that CO2 mobility is higher than [bmim]+ and [PF6], thus, CO2 molecules diffuse through the fluid network formed by IL ions, acetate anion, and protonated amino groups of CS—the facilitated transport mechanism in the gas separation membrane is thereby proposed to occur by such a process. Thus, further sorbed gas travels through the ion grid formed by the protonated amino group, acetate anion and IL ions, that appears to be a result of Coulombic interaction. Facilitated transport of carbon dioxide is also promoted by the macromolecular chain mobility due to the pressure difference in the experimental unit. The described mechanism may be also called facilitated transport with fixed site carrier, and similar cases have been described in the literature [11].
The structure of this membrane shows micro-reliefs which better facilitate gas separation. In the case of copolymers with [bmim][Tf2N], higher density is apparent which also correlates with the observed permeability data. The fact that copolymers without any IL are found to be impermeable leads us to conclude that facilitated transport through the membrane is realized with the assistance of the IL inside the membrane, and the state of it is influenced by the transmembrane transport. The relatively small values of selectivity (ratio of permeability coefficients) suggest the presence of a non-solution-diffusion mechanism. For the carbon dioxide, reactively methane is a fast impurity, but nitrogen is a slow impurity for methane. Usually, membrane gas separation separates gas flow for fast impurities [73], but also there are some techniques, which allow separation of faster impurities from the target gas flow [74,75]. Herein, we can conclude that the obtained membranes, despite the low separation ability, have potential utility for special applications (gases high separation for semiconductor need etc.), moreover, a facile approach to the synthesis of a wide range of CS copolymers has been presented.

3. Materials and Methods

3.1. Materials

CS (“Bioprogress” corp., Shchyolkovo, Moscow region, Russia) with molecular weight 1.05 × 105 and deacetylation degree 80% was used without further purification. Acrylonitrile monomer was obtained from ”Saratovorgsintez” (LUKIOL PJSC Subsidiary, Saratov, Russia) and was purified by drying with NaOH, followed by distillation. Styrene (99%, Sigma-Aldrich, St. Louis, MO, USA) was used after distillation. Solvents of acetone, tetrahydrofuran, dimethylformamide, and acetic acid (Sigma-Aldrich, St. Louis, MO, USA) were used after distillation.

3.2. Copolymer Synthesis

Graft copolymers CS-g-PAN and CS-g-PS were obtained in 1.5% water-acetic acid polysaccharide solutions with 1.2% acetic acid content. The quantity of monomer in the reaction medium was 0.62 mol/L. The copolymerization technique was developed and characterized by Baranov, et al. [58]. Block copolymer synthesis for CS-b-PAN and CS-b-PS was performed according to published procedures [59,76]. The reaction medium consisted of 3% water-acetic acid polysaccharide solutions with 6% acetic acid content, ascorbic acid, and hydrogen peroxide in the ratio [C6H8O6]:[H2O2] = 1:1, [CS link]:[H2O2] = 100 (for acrylonitrile) and 50 (for styrene), and synthetic monomer content concentration of acrylonitrile was 0.152 mol/L, styrene, 0.087 mol/L.

3.3. Fourier-Transform Infrared Spectroscopy Analysis

Copolymers were obtained after Soxhlet extraction for 48 h, and characterization performed by FTIR spectroscopy of the corresponding samples on a FTIR spectrometer (IRrafinity-1 (Shimadzu, Kioto, Japan)) at ambient temperature. A minimum of 30 scans was signal-averaged with a resolution of 4 cm−1 at the 4000–400 cm−1 range. All other parameters were not controlled and corresponded to the testing characteristics established by the manufacturer. The sample measurements were carried out in film samples treated in a potassium bromide matrix. Samples for FTIR were prepared by cooperative pressing of copolymers and dehydrated KBr powder at pressure 100 MPa under vacuum at 25 °C.

3.4. IL Doping

IL: [bmim][BF4], bmim][PF6], and [bmim][Tf2N] were purchased (Sigma-Aldrich) and used without further purification for doping CS matrices. For the IL doping, 25 mL of the reaction media after copolymer synthesis was placed into a two-neck round-bottom flask equipped with stirrer. The estimated amount of IL (10% from polymer mass in reaction media) was added into the flask dropwise under argon atmosphere. The process was carried out for two hours under stirring and ambient temperature.

3.5. Membrane Preparation

Membranes were prepared by casting solutions onto poly(ethylene terephthalate) films in a laboratory dryer. The initial thickness of the cast film was adjusted using an applicator-casting knife. Evaporation was conducted at room temperature and 1 atmosphere for 2–3 days, followed by desiccation under vacuum for 3 h at room temperature. After desiccation, the materials were characterized and used for gas permeation experiments.

3.6. Atomic Force Microscopy Topology Analysis

The topography of membrane surfaces was determined by atomic force microscopy (AFM). Atomic force microscope Shimadzu SPM-9700 (Japan) with scanner 30 μm was used in the force modulation mode. As a tip, commercially available silicon tip POINTPROBE FMR-20 S/N-71814F8L882 (Nano World Innovative Technologies, Matterhorn, Switzerland) was used with spring stiffness 1.3 N/m and the radius of the curve of the tip typically not more than 8 nm and guaranteed to be not more than 12 nm. The length of the tip was 15 μm. Scan sizes were 10 × 10 μm2 and 30 × 30 μm2. The surface characterization was carried out at ambient temperature. The samples were cleaned of dust with ethanol before measurement, and then affixed to the center of the sample holder using two-sided carbon tape (SPI Supplies Division of STRUCTURE PROBE Inc., West Chester, PA, USA). After image acquisition, the arithmetic average roughness height (Ra), was obtained by a program in the AFM image processing toolbox (SPM Online, Version 4.02, Shimadzu, Kyoto, Japan). The accuracies of obtained values were equal to 0.01 nm for average roughness Ra.
The cantilever with a curvature radius of tip not more than 8 nm was used for the observation of a topographic map to minimize the error introduced by the cantilever due to the narrowing of profile recesses.
Two important components of the surface roughness parameters were determined, including mean roughness (Ra, the mean value of the surface relative to the center plane) and the mean difference between the highest peaks and lowest valleys (Rz) using software SPM Manager ver. 4.02 (Shimadzu, Japan).

3.7. Study of the Surface Chemical Nature

The samples’ surface chemical nature was investigated by membrane wettability with test liquid (diiodomethane) using the contact angle (cosθ) measurement method. A drop of the test liquid was applied on the sample surface. The drop’s diameter (d) and height (h) determination was conducted after the drop reached its equilibrium state. The cosine of the contact angle was calculated according to the formula:
cos θ = ( d 2 ) 2 h 2 ( d 2 ) 2 + h 2

3.8. Tension Elongation Measurement

The membranes’ mechanical properties—breaking strength (σ), MPa, and relative elongation (ε), %—were determined on a Z005 tensile machine (ZWICK, Ennepetal, Germany) at a tension rate of 50 mm/min.

3.9. Thermogravimetric Analysis

For thermal gravimetric analysis (TGA) and differential scanning calorimetry (DSC) measurements, samples between 5 and 8 mg were placed in open alumina pans and experiments were conducted using an STA 449 F1 Jupiter (NETSCH, Selb, Germany) thermal analyzer. The thermograms were recorded in the range of 50–1500 °C and with a ramping rate of 10 °C/min in an atmosphere of argon.

3.10. Gas Permeation Tests

The single gas permeability coefficients of nitrogen, carbon dioxide, and methane through the obtained membranes were measured by the apparatus proposed by Crespo et al. [30,77,78] at 25–26 °C. Permeability coefficients (P) (1 Barrer = 3.348·10−16 mol·m·m−2·s−1·Pa−1) were calculated according to the method proposed in [30,77,78], but were improved by the experimental set-up by automatization of the permeability measurement process, and by further calculations through the use of programming logic controller (Unitronix, Airport City, Israel). The errors of permeability measurements were less than 10%. Ideal selectivity (α) for pairs of gases was calculated as a ratio of its permeability coefficients.

4. Conclusions

Novel gas separation facilitated transport membranes were prepared by doping methylimidazolium based ionic liquids into original polymer matrices synthesized by graft and block copolymerization of CS with styrene and acrylonitrile. IL doping affected the surface and mechanical properties of the membranes as well as the gas separation properties. By means of atomic force microscopy, it was found that the obtained membranes were non-porous with well-developed surface organized at the macro and micro level. Despite the fact that the original copolymers show high values of mechanical strength, not all membranes were suitable for gas separation testes due to a sharp decline in mechanical properties with the addition of IL; however, we took the risk for the sake of gain in selectivity and permeability. The CO2 facilitated transport with the fix carrier mechanism was proposed based on the results of the gas permeability study, the copolymer structure, surface and mechanical properties, as well as literature analysis. Investigation of the thermal properties of the obtained membranes shows a permissible operating temperature up to 220 °C before polymer decomposition occurs. The membranes prepared exhibit potential utility in specialized applications such as high purification of gases, despite the low separation capacity. The synthetic protocols presented within this manuscript additionally provide a versatile approach to the efficient preparation of CS copolymers bearing diverse functionality.

Acknowledgments

This work was financially supported by the Russian Science Foundation, project 15-19-10057. Authors are thankful to Elena V. Korotkova, deputy director of “Saratovorgsintez” for supplying acrylonitrile. Authors are inordinately grateful to Rami Batrice from Georgetown University for his assistance in the improvement of the scientific style of the manuscript.

Author Contributions

Syntheses were performed by Ksenia V. Otvagina, the characterization were performed by Tatyana S. Sazanova (AFM), Anton N. Petukhov (FTIR), Alexandr A. Moskvichev (TGA, DSC), Ksenia V. Otvagina (tension elongation, contact angle measurements), and the obtained data were analyzed with help of Carlos A. M. Afonso, Ilya V. Vorotyntsev and Alla E. Mochalova, Ilya V. Vorotyntsev, Anton N. Petukhov; Andrey V. Vorotyntsev designed the gas permeation experiments. Ksenia V. Otvagina and Ilya V. Vorotyntsev wrote the manuscript. Carlos A. M. Afonso and Ilya V. Vorotyntsev supervised the work. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
CS
chitosan
PS
poly(styrene)
PAN
poly(acrylonitrile)
AN
acrylonitrile
S
styrene
IL
ionic liquid
FTIR
Fourier-transform infrared spectroscopy
AFM
atomic force micrsocopy
TGA
thermal gravimetric analysis
DSC
differential scanning calorimetry
TMC
trimesoyl chloride
PAMMAM
poly(amidoamine)
[bmim][BF4]
1-butyl-3-methylimidazolium tetrafluoroborate
[bmim][PF6]
1-butyl-3-methylimidazolium hexafluorophosphate
[bmim][Tf2N]
1-butyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide

References

  1. Izvozchikova, V.; Pastukhova, N.; Ryabov, S.; Semchikov, Y.; Smirnova, L.; Mochalova, A. Flocculation Power of Chitosan and Its Derivatives in Mixtures with Anionic Flocculants. Russ. J. Appl. Chem. 2003, 76, 1784–1786. [Google Scholar] [CrossRef]
  2. Younes, I.; Rinaudo, M. Chitin and Chitosan Preparation from Marine Sources. Structure, Properties and Applications. Mar. Drugs 2015, 13, 1133–1174. [Google Scholar] [CrossRef] [PubMed]
  3. Hamed, I.; Özogul, F.; Regenstin, J.M. Industrial applications of crustacean by-products (chitin, 1 chitosan, and chitooligosaccharides): A review. Trends Food Sci. Tech. 2016, 48, 40–50. [Google Scholar] [CrossRef]
  4. Rinaudo, M. Chitin and chitosan: Properties and applications. Prog. Polym. Sci. 2006, 31, 603–632. [Google Scholar] [CrossRef]
  5. Dutta, P.K.; Dutta, J.; Tripathi, V.S. Chitin and chitosan: Chemistry, properties and applications. JSIR 2004, 63, 20–31. [Google Scholar]
  6. Xu, D.; Hein, S.; Wang, K. Chitosan membrane in separation applications. Mater. Sci. Technol. Ser. 2008, 24, 1076–1087. [Google Scholar] [CrossRef]
  7. Casado-Coterillo, C.; López-Guerrero, M.M.; Irabien, Á. Synthesis and characterization of ETS-10/acetate-based ionic liquid/chitosan mixed matrix membranes for CO2/N2 permeation. Membranes 2014, 4, 287–301. [Google Scholar] [CrossRef] [PubMed]
  8. Shaposhnik, V.A. Membrane methods for separation of substances. ISSEP 1999, 9, 27–32. [Google Scholar]
  9. Freitas, F.; Alves, V.D.; Reis, M.A.; Crespo, J.G.; Coelhoso, I.M. Microbial polysaccharide-based membranes: Current and future applications. J. Appl. Polym. Sci. 2013, 131. [Google Scholar] [CrossRef]
  10. Chakrabarty, T.; Kumar, M.; Vinod, K. Chitosan Based Membranes for Separation, Pervaporation and Fuel Cell Applications: Recent Developments. In Biopolymers; Elnashar, M., Ed.; INTECH Open Access Publisher: Rijeka, Croatia, 2010; pp. 201–226. [Google Scholar]
  11. El-Azzami, L.A.; Grulke, E.A. Carbon dioxide separation from hydrogen and nitrogen by fixed facilitated transport in swollen chitosan membranes. JMS 2008, 323, 225–234. [Google Scholar] [CrossRef]
  12. Ito, A.; Sato, M.; Anma, T. Permeability of CO2 through chitosan membrane swollen by water vapor in feed gas. Angew. Makromol. Chem. 1997, 248, 85–94. [Google Scholar] [CrossRef]
  13. Bae, S.Y.; Lee, K.H.; Yi, S.C.; Kim, H.T.; Kim, Y.H.; Kumazawa, H. CO2, N2 gas sorption and permeation behavior of chitosanmembrane. Korean J. Chem. Eng. 1998, 15, 223–226. [Google Scholar] [CrossRef]
  14. El-Azzami, L.A.; Grulke, E.A. Carbon dioxide separation from hydrogen and nitrogen. Facilitated transport in arginine salt–chitosan membranes. JMS 2009, 328, 15–22. [Google Scholar] [CrossRef]
  15. Liao, C.-T.; Ho, M.-H. The fabrication of biomimetic chitosan scaffolds by using SBF treatment with different crosslinking agents. Membranes 2011, 1, 3–12. [Google Scholar] [CrossRef] [PubMed]
  16. Xiao, S.; Feng, X.; Huang, R.Y.M. Trimesoyl chloride crosslinked chitosan membranes for CO2/N2 separation and pervaporation dehydration of isopropanol. JMS 2007, 306, 36–46. [Google Scholar] [CrossRef]
  17. Kouketsu, T.; Duan, S.; Kai, T.; Kazama, S.; Yamada, K. PAMAM dendrimer composite membrane for CO2 separation: Formation of a chitosan gutter layer. JMS 2007, 287, 51–59. [Google Scholar] [CrossRef]
  18. Shen, J.-N.; Yu, C.-C.; Zeng, G.-N.; van der Bruggen, B. Preparation of a facilitated transport membrane composed of carboxymethyl chitosan and polyethylenimine for CO2/N2 separation. Int. J. Mol. Sci. 2013, 14, 3621–3638. [Google Scholar] [CrossRef] [PubMed]
  19. Shen, Y.; Wang, H.; Liu, J.; Zhang, Y. Enhanced Performance of a Novel Polyvinyl Amine/Chitosan/Graphene Oxide Mixed Matrix Membrane for CO2 Capture. ACS Sustain. Chem. Eng. 2015, 3, 1819–1829. [Google Scholar] [CrossRef]
  20. Assis, O.B.G.; Hotchkiss, J.H. Surface hydrophobic modification of chitosan thin films by hexamethyldisilazane plasma deposition: Effects on water vapour, CO2 and O2 permeabilities. Packag. Technol. Sci. 2007, 20, 293–297. [Google Scholar] [CrossRef]
  21. Bai, R.-K.; Huang, M.-Y.; Jiang, Y.-Y. Selective permeabilities of chitosan-acetic acid complex membrane and chitosan-polymer complex membranes for oxygen and carbon dioxide. Polym. Bull. 1988, 20. [Google Scholar] [CrossRef]
  22. Mecerreyes, D. Applications of Ionic Liquids in Polymer Science and Technology; Springer: Berlin, Germany; Heidelberg, Germany, 2015; pp. 1–387. [Google Scholar]
  23. Babamohammadi, S.; Shamiri, A.; Aroua, M.K. A review of CO2 capture by absorption in ionic liquid-based solvents. Rev. Chem. Eng. 2015, 31, 383–412. [Google Scholar] [CrossRef]
  24. Soliman, S.M. Theoretical studies on interaction between CO2 gas and imidazolium-type organic ionic liquid using DFT and natural bond orbital calculations. Asian J. Chem. 2016, 28, 116–120. [Google Scholar] [CrossRef]
  25. Izgorodina, E.I.; Hodgson, J.L.; Weis, D.C.; Pas, S.J.; Macfarlane, D.R. Physical absorption of CO2 in protic and aprotic ionic liquids: A interaction perspective. J. Phys. Chem. B 2015, 119, 11748–11759. [Google Scholar] [CrossRef] [PubMed]
  26. Li, X.; Zhang, L.; Zheng, Y.; Zheng, C. Effect of SO2 on CO2 absorption in flue gas by ionic liquid 1-ethyl-3-methylimidazolium Acetate. Ind. Eng. Chem. Res. 2015, 54, 8569–8578. [Google Scholar] [CrossRef]
  27. Albo, J.; Luis, P.; Irabien, A. Carbon Dioxide Capture from Flue Gases Using a Cross-Flow Membrane Contactor and the Ionic Liquid 1-Ethyl-3-methylimidazolium Ethylsulfate. Ind. Eng. Chem. Res. 2010, 49, 11045–11051. [Google Scholar] [CrossRef]
  28. Albo, J.; Luis, P.; Irabien, A. Absorption of coal combustion flue gases in ionic liquids using different membrane contactors. Desalination Water Treat. 2011, 27, 54–59. [Google Scholar] [CrossRef]
  29. Albo, J.; Irabien, A. Non-dispersive absorption of CO2 in parallel and cross-flow membrane modules using EMISE. J. Chem. Technol. Biotechnol. 2012, 87, 1502–1507. [Google Scholar] [CrossRef]
  30. Couto, R.; Neves, L.; Simões, P.; Coelhoso, I. Supported ionic liquid membranes and Ion-Jelly® membranes with [BMIM][DCA]: Comparison of its performance for CO2 separation. Membranes 2015, 5, 13–21. [Google Scholar] [CrossRef] [PubMed]
  31. Akhmetshina, A.I.; Davletbaeva, I.M.; Grebenschikova, E.S.; Sazanova, T.S.; Petukhov, A.N.; Atlaskin, A.A.; Razov, E.N.; Zaripov, I.I.; Martins, C.F.; Neves, L.A.; et al. The effect of microporous polymeric support modification on surface and gas transport properties of supported ionic liquid membranes. Membranes 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  32. Chapman, P.D.; Oliveira, T.; Livingston, A.G.; Li, K. Membranes for the dehydration of solvents by pervaporation. JMS 2008, 318, 5–37. [Google Scholar] [CrossRef]
  33. Shao, P.; Huang, R.Y.M. Polymeric membrane pervaporation. JMS 2007, 287, 162–179. [Google Scholar] [CrossRef]
  34. Bolto, B.; Hoang, M.; Xie, Z. A review of membrane selection for the dehydration of aqueous ethanol by pervaporation. Chem. Eng. Process. 2011, 50, 227–235. [Google Scholar] [CrossRef]
  35. Pratiwi, M.A.; Sudrajat, R.W.; Sutanti, S.; Susanto, H. Preparation of chitosan-alginate/PES pervaporation membranes for bioethanol dehydration. Adv. Mat. Res. 2015, 1123, 182–186. [Google Scholar] [CrossRef]
  36. Han, Y.-J.; Wang, K.-H.; Lai, J.-Y.; Liu, Y.-L. Hydrophilic chitosan-modified polybenzoimidazole membranes for pervaporation dehydration of isopropanol aqueous solutions. JMS 2014, 463, 17–23. [Google Scholar] [CrossRef]
  37. Zhang, Q.G.; Hu, W.W.; Zhu, A.M.; Liu, Q.L. UV-crosslinked chitosan/polyvinylpyrrolidone blended membranes for pervaporation. RSC Adv. 2013, 3, 1855–1861. [Google Scholar] [CrossRef]
  38. Shen, J.; Chu, Y.; Ruan, H.; Wu, L.; Gao, C.; Bruggen, B.V. Pervaporation of benzene/cyclohexane mixtures through mixed matrix membranes of chitosan and Ag+/carbon nanotubes. JMS 2014, 462, 160–169. [Google Scholar] [CrossRef]
  39. Casado-Coterillo, C.; Andrés, F.; Téllez, C.; Coronas, J.; Irabien, Á. Synthesis and characterization of ETS-10/chitosan nanocomposite membranes for pervaporation. Sep. Sci. Tech. 2014, 49, 1903–1909. [Google Scholar] [CrossRef]
  40. Sajjan, A.M.; Premakshi, H.G.; Kariduraganavar, M.Y. Synthesis and characterization of GTMAC grafted chitosan membranes for the dehydration of low water content isopropanol by pervaporation. J. Ind. Eng. Chem. 2015, 25, 151–161. [Google Scholar] [CrossRef]
  41. Varghese, J.G.; Kittur, A.A.; Rachipudi, P.S.; Kariduraganavar, M.Y. Synthesis, characterization and pervaporation performance of chitosan-g-polyaniline membranes for the dehydration of isopropanol. JMS 2010, 364, 111–121. [Google Scholar] [CrossRef]
  42. Prashanth, K.V.H.; Tharanathan, R.N. Studies on graft copolymerization of chitosan with synthetic monomers. Carb. Pol. 2003, 54, 343–351. [Google Scholar] [CrossRef]
  43. Jayakumar, R.; Prabaharan, M.; Reis, R.L.; Mano, J.F. Graft copolymerized chitosan—Present status and applications. Carb Pol. 2005, 62, 142–158. [Google Scholar] [CrossRef][Green Version]
  44. Kalia, S.; Sabaa, M.W. Polysaccharide Based Graft Copolymers; Springer: Berlin, Germany; Heidelberg, Germany, 2013; pp. 1–353. [Google Scholar]
  45. Lv, P.; Bin, Y.; Li, Y.; Chen, R.; Wang, X.; Zhao, B. Studies on graft copolymerization of chitosan with acrylonitrile by the redox system. Polymer 2009, 50, 5675–5680. [Google Scholar] [CrossRef]
  46. Singh, V.; Tripathi, D.N.; Tiwari, A.; Sanghi, R. Microwave promoted synthesis of chitosan-graft-poly(acrylonitrile). J. App. Pol. Sci. 2005, 95, 820–825. [Google Scholar] [CrossRef]
  47. Thakur, V.K.; Thakur, M.K. Recent advances in graft copolymerization and applications of chitosan: A review. ACS Sustain. Chem. Eng. 2014, 2, 2637–2652. [Google Scholar] [CrossRef]
  48. Sadeghi, M.; Mohammadinasab, E.; Shafiei, F.; Mirdarikvande, S.; Sadeghi, H. Modification of chitosan radiation-induced graft copolymerization of acrylonitrile onto chitosan. J. Biol. Environ. Sci. 2014, 4, 227–232. [Google Scholar]
  49. Sharma, A.K.; Mishra, A.K. Microwave assisted synthesis of chitosan-graft-styrene for efficient Cr(VI) removal. Adv. Mat. Lett. 2010, 1, 59–66. [Google Scholar] [CrossRef]
  50. Liu, P.; Zhai, M.; Wu, J. Study on radiation-induced grafting of styrene onto chitin and chitosan. Rad. Phys. Chem. 2001, 61, 149–153. [Google Scholar] [CrossRef]
  51. Garcia-Valdez, O.; Ramirez-Wong, D.G.; Saldivar-Guerra, E.; Luna-Barcenas, G. Grafting of chitosan with styrene and maleic anhydride via nitroxide-mediated radical polymerization in supercritical carbon dioxide. Macromol. Chem. Phys. 2013, 214, 1396–1404. [Google Scholar] [CrossRef]
  52. Huang, J.; Rüther, T. Why are Ionic Liquids Attractive for CO2 Absorption? An Overview. Aust. J. Chem. 2009, 62, 298. [Google Scholar] [CrossRef]
  53. Xie, H.; Zhang, S.; Li, S. Chitin and chitosan dissolved in ionic liquids as reversible sorbents of CO2. Green Chem. 2006, 8, 630–633. [Google Scholar] [CrossRef]
  54. Albo, J.; Tsuru, T. Thin Ionic Liquid Membranes Based on Inorganic Supports with Different Pore Sizes. Ind. Eng. Chem. Res. 2014, 53, 8045–8056. [Google Scholar] [CrossRef]
  55. Santos, E.; Albo, J.; Irabien, A. Acetate based Supported Ionic Liquid Membranes (SILMs) for CO2 separation: Influence of the temperature. J. Membr. Sci. 2014, 452, 277–283. [Google Scholar] [CrossRef]
  56. Sun, J.; Wang, J.; Cheng, W.; Zhang, J.; Li, X.; Zhang, S.; Sheb, Y. Chitosan functionalized ionic liquid as a recyclable biopolymer-supported catalyst for cycloaddition of CO2. Green Chem. 2012, 14, 654–660. [Google Scholar] [CrossRef]
  57. Muzzarelli, R.A.A. Biomedical exploitation of chitin and chitosan via mechano-chemical disassembly, electrospinning, dissolutionin imidazoliumiIonic liquids, and supercritical drying. Mar. Drugs 2011, 9, 1510–1533. [Google Scholar] [CrossRef] [PubMed]
  58. Baranov, I.A.; Andriyanova, N.A.; Mochalova, A.E.; Sibirkin, A.A.; Baten’kin, M.A.; Smirnova, L.A. Grafting polymerization of acrylonitrile and methyl acrylate on chitosan in the presence of cobalt (III) complexes. Polym. Sci. Ser. B 2012, 54, 167–174. [Google Scholar] [CrossRef]
  59. Mochalova, A.E.; Kruglova, E.N.; Yunin, P.A.; Apryatina, K.V.; Smirnova, O.N.; Smirnova, L.A. Graft and block copolymers of chitosan with vinyl monomers: Synthesis, structure, and properties. Polym. Sci. Ser. B 2015, 57, 93–105. [Google Scholar] [CrossRef]
  60. Rumengan, I.; Suryanto, E.; Modaso, R.; Wullur, S.; Tallei, T.; Limbong, D. Structural Characteristics of Chitin y Chitosan Isolated from the Biomass of Cultivated Rotifer, Brachionus rotundiformis. Int. J. Fish. Aquat. Sci. 2014, 3, 12–18. [Google Scholar]
  61. Ramya, R.; Sudha, P.N.; Mahalakshmi, J. Preparation and characterization of chitosan binary blend. Int. J. Sci. Res. Publ. 2012, 2, 1–9. [Google Scholar]
  62. Beyler, C.L.; Hirschler, M.M. Thermal decomposition of polymers. In SFPE Handbook of Fire Protection Engineering; Beyler, C., Ed.; Springer: New York, NY, USA, 2002; Volume 2, pp. 110–131. [Google Scholar]
  63. Mark, J.E. Polymer Data Handbook; Oxford University Press: New York, NY, USA, 2009; pp. 1–1250. [Google Scholar]
  64. Powel, C.E.; QIao, G.G. Polymeric CO2/N2 gas separation membranes for the capture of carbon dioxide from power plant flue gases. JMS 2006, 279, 1–49. [Google Scholar] [CrossRef]
  65. Kohl, A.L.; Nielsen, L.B. Gas Purification, 5th ed.; Gulf Professional Publishing: Houston, TX, USA, 1997; pp. 154–196. [Google Scholar]
  66. Dai, Z.; Noble, R.D.; Gin, D.L.; Zhang, X.; Deng, L. Combination of ionic liquids with membrane technology: A new approach for CO2 separation. J. Membr. Sci. 2016, 497, 1–20. [Google Scholar] [CrossRef]
  67. Bazhenov, S.; Ramdin, M.; Volkov, A.; Volkov, V.; Vlugt, T.J.H.; Loos, T.W. CO2 Solubility in Biodegradable Hydroxylammonium-Based Ionic Liquids. J. Chem. Eng. Data 2014, 59, 703–708. [Google Scholar] [CrossRef]
  68. Hanioka, S.; Maruyama, T.; Sotani, T.; Teramoto, M.; Matsuyama, H.; Nakashima, K.; Hanaki, M.; Kubota, F.; Goto, M. CO2 separation facilitated by task-specific ionic liquids using a supported liquid membrane. J. Membr. Sci. 2008, 314, 1–4. [Google Scholar] [CrossRef]
  69. Noble, R.D.; Gin, D.L. Perspective on ionic liquids and ionic liquid membranes. J. Membr. Sci. 2011, 369, 1–4. [Google Scholar] [CrossRef]
  70. Davletbaeva, I.M.; Emelina, O.Y.; Vorotyntsev, I.V.; Davletbaev, R.S.; Grebennikova, E.S.; Petukhov, A.N.; Akhmetshina, A.I.; Sazanova, T.S.; Loskutov, V.V. Synthesis and properties of novel polyurethanes based on amino ethers of boric acid for gas separation membranes. RSC Adv. 2015, 5, 65674–65683. [Google Scholar] [CrossRef]
  71. Aki, S.N.V.K.; Mellein, B.R.; Saurer, E.M.; Brennecke, J.F. High-Pressure Phase Behavior of Carbon Dioxide with Imidazolium-Based Ionic Liquids. J. Phys. Chem. B 2004, 108, 20355–20365. [Google Scholar] [CrossRef]
  72. Huang, X.; Margulis, C.J.; Li, Y.; Berne, B.J. Why Is the Partial Molar Volume of CO2 So Small When Dissolved in a Room Temperature Ionic Liquid? Structure and Dynamics of CO2 Dissolved in [bmim+] [PF6]. J. Am. Chem. Soc. 2005, 127, 17842–17851. [Google Scholar] [CrossRef] [PubMed]
  73. Drozdov, P.N.; Kirillov, Y.P.; Kolotilov, E.Y.; Vorotyntsev, I.V. High purification of gases in radial membrane element. Desalination 2002, 146, 249–254. [Google Scholar] [CrossRef]
  74. Vorotyntsev, V.M.; Drozdov, P.N.; Vorotyntsev, I.V.; Murav’ev, D.V. Fine gas purification to remove slightly penetrating impurities using a membrane module with a feed reservoir. Dokl. Chem. 2006, 411, 243–245. [Google Scholar] [CrossRef]
  75. Vorotyntsev, V.M.; Drozdov, P.N.; Vorotyntsev, I.V.; Belyaev, E.S. Deep gas cleaning of highly permeating impurities using a membrane module with a feed tank. Pet. Chem. 2011, 51, 595–600. [Google Scholar] [CrossRef]
  76. Fedoseeva, E.N.; Smirnova, L.A.; Sorokina, M.A.; Pastukhov, M.O. Radical degradation of chitosan under the action of a redox system. Russ. J. App. Chem. 2006, 79, 845–849. [Google Scholar] [CrossRef]
  77. Neves, L.A.; Crespo, J.G.; Coelhoso, I.M. Gas permeation studies in supported ionic liquid membranes. J. Membr. Sci. 2010, 357, 160–170. [Google Scholar] [CrossRef]
  78. Neves, L.A.; Afonso, C.; Coelhoso, I.M.; Crespo, J.G. Integrated CO2 capture and enzymatic bioconvension in supported ionic liquid membranes. Sep. Purif. Technol. 2012, 97, 34–41. [Google Scholar] [CrossRef]

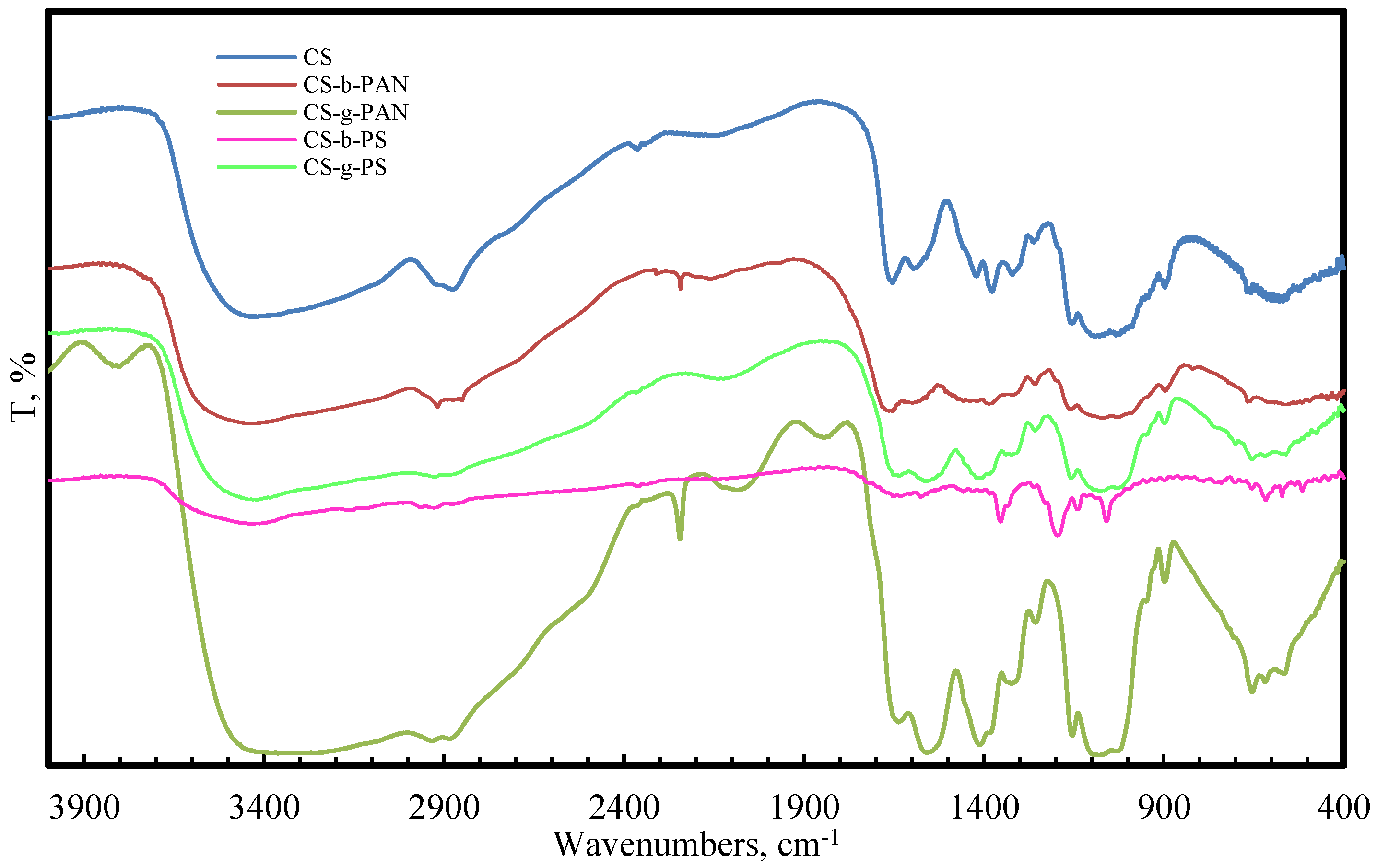

Figure 1. FTIR spectra of pure CS, CS-PAN copolymers, and CS-PS copolymers.
Figure 1. FTIR spectra of pure CS, CS-PAN copolymers, and CS-PS copolymers.
Membranes 06 00031 g001

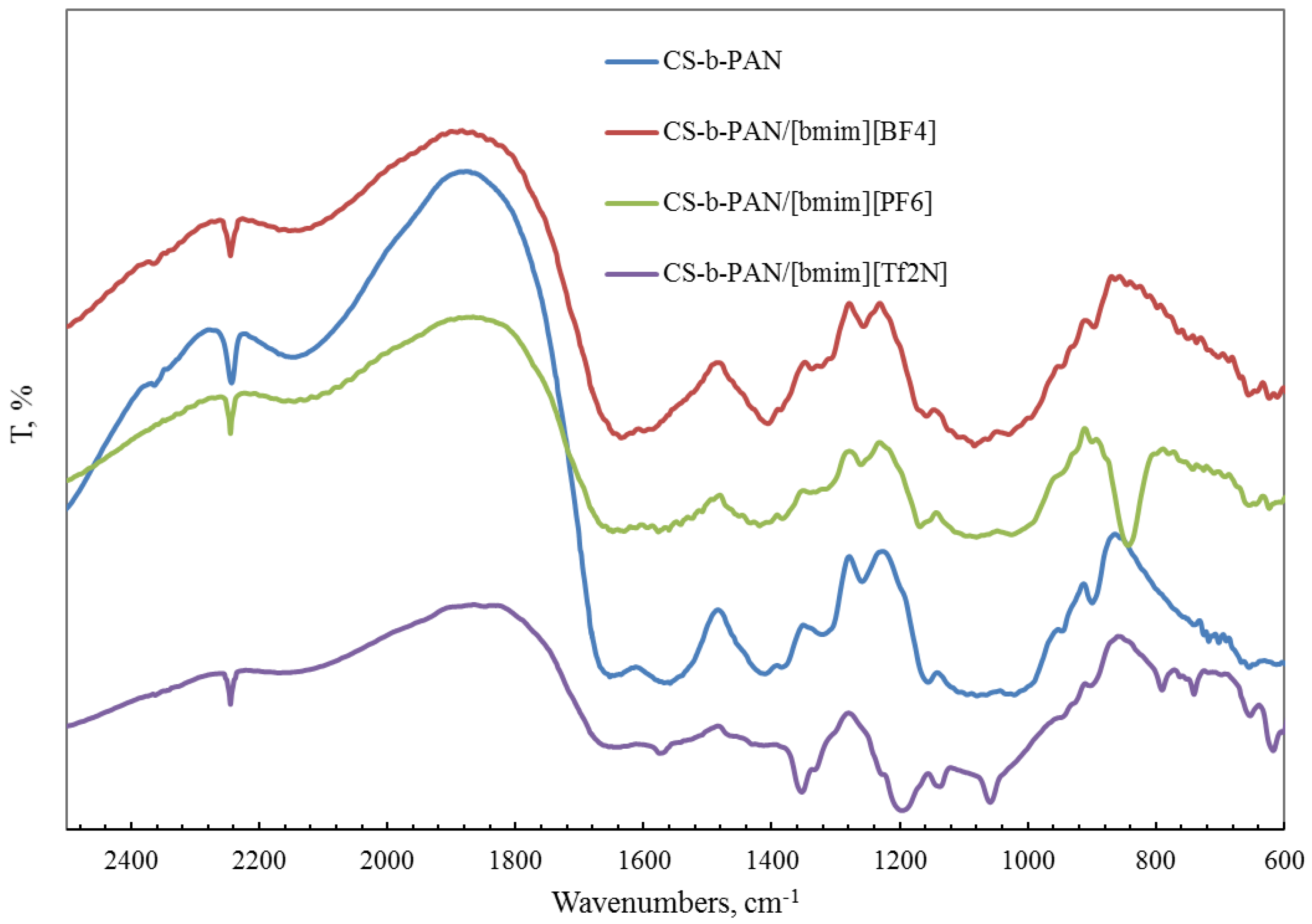

Figure 2. FTIR spectra of pure CS-b-PAN copolymer and CS-b-PAN copolymers doped with IL.
Figure 2. FTIR spectra of pure CS-b-PAN copolymer and CS-b-PAN copolymers doped with IL.
Membranes 06 00031 g002

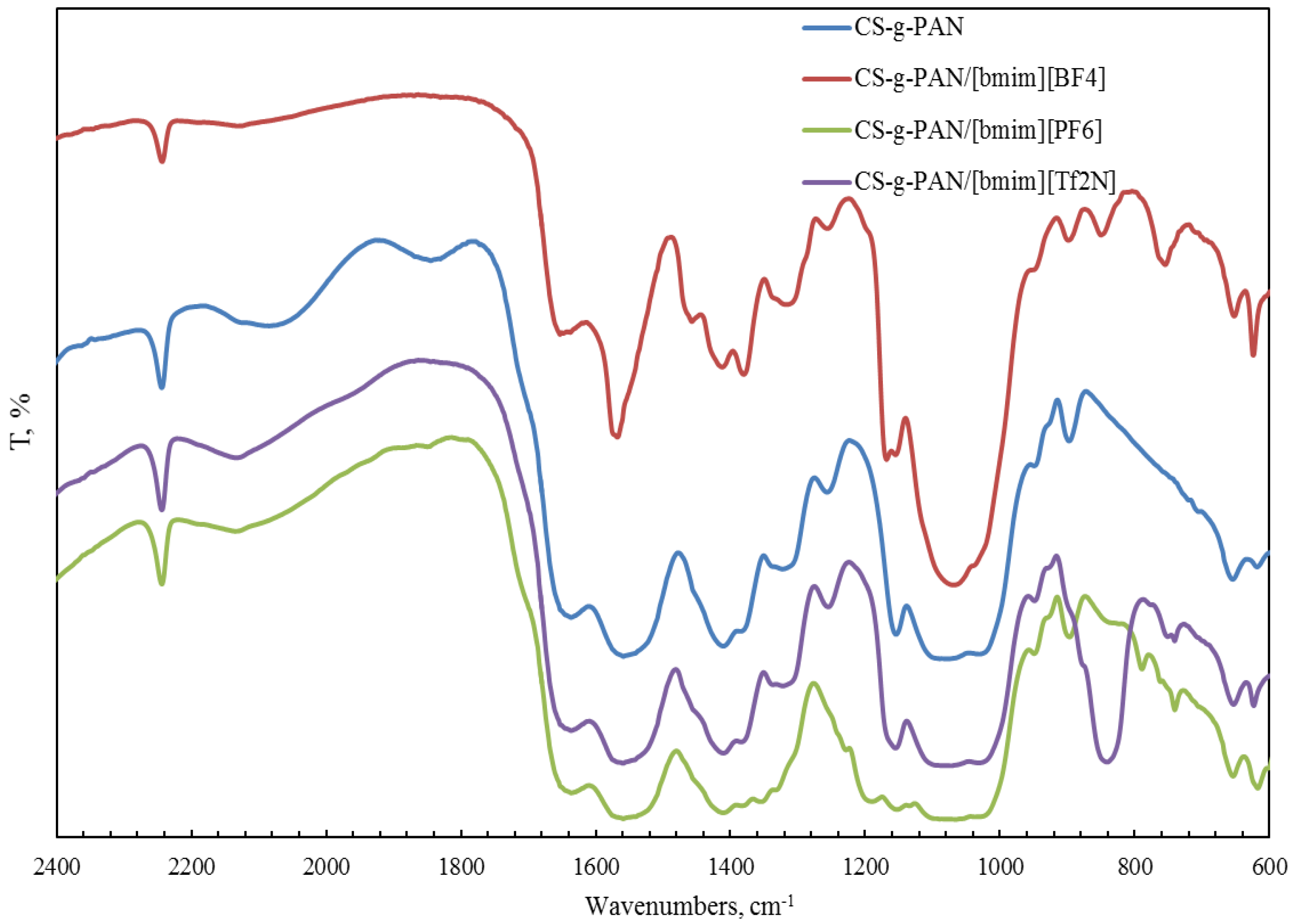

Figure 3. FTIR spectra of pure CS-g-PAN copolymer and CS-g-PAN copolymers doped with IL.
Figure 3. FTIR spectra of pure CS-g-PAN copolymer and CS-g-PAN copolymers doped with IL.
Membranes 06 00031 g003

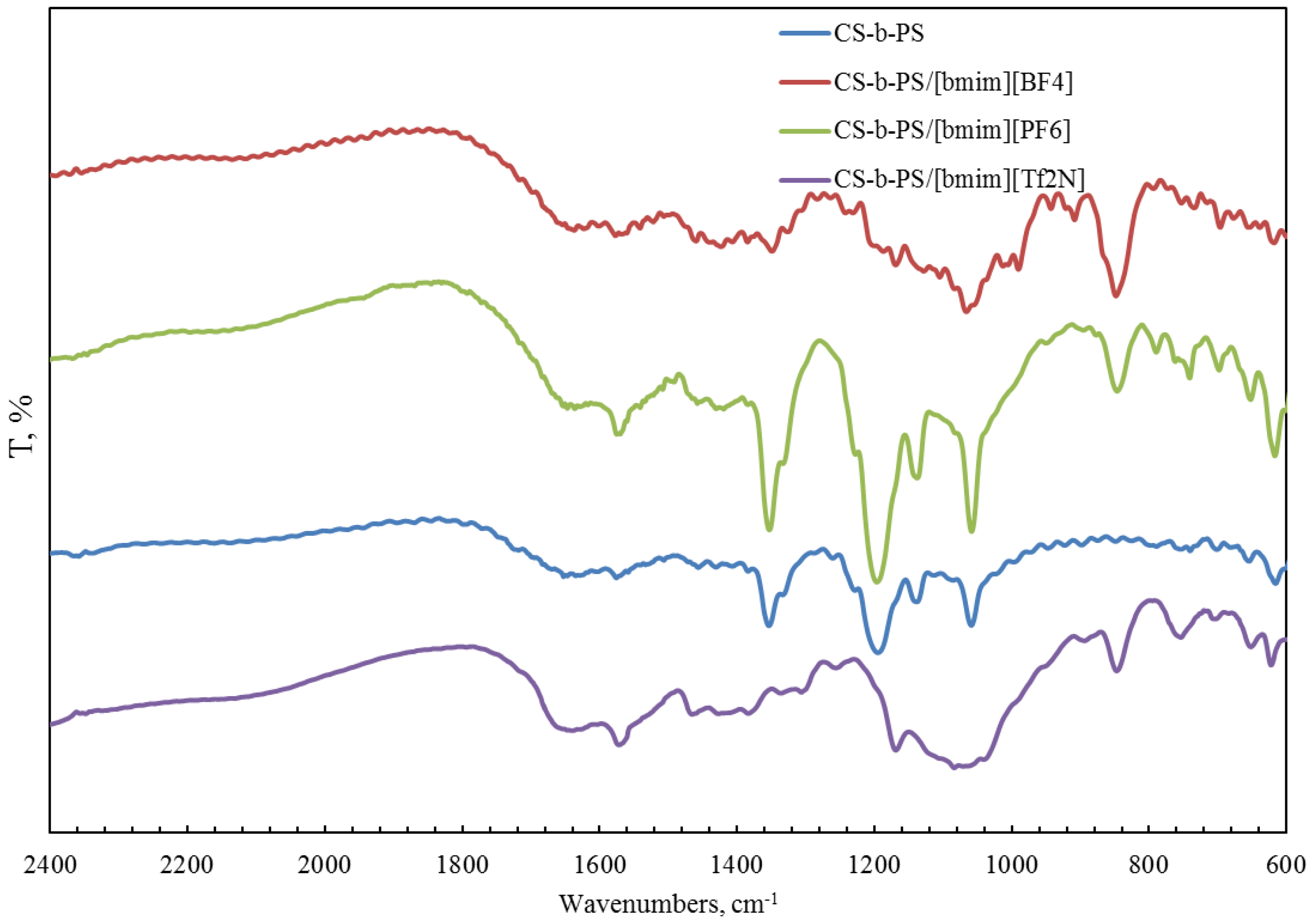

Figure 4. FTIR spectra of pure CS-b-PS copolymer and CS-b-PS copolymers doped with IL.
Figure 4. FTIR spectra of pure CS-b-PS copolymer and CS-b-PS copolymers doped with IL.
Membranes 06 00031 g004
Figure 5. FTIR spectra of pure CS-g-PS copolymer and CS-g-PS copolymers doped with IL.
Figure 5. FTIR spectra of pure CS-g-PS copolymer and CS-g-PS copolymers doped with IL.
Membranes 06 00031 g005
Figure 6. AFM images of the CS-PAN copolymers.
Figure 6. AFM images of the CS-PAN copolymers.
Membranes 06 00031 g006
Figure 7. AFM images of the CS-PS copolymers.
Figure 7. AFM images of the CS-PS copolymers.
Membranes 06 00031 g007
Figure 8. DSC and TGA curves of CS-g-PAN, CS-b-PAN, and CS-b-PS copolymers.
Figure 8. DSC and TGA curves of CS-g-PAN, CS-b-PAN, and CS-b-PS copolymers.
Membranes 06 00031 g008
Figure 9. DSC and TGA curves of CS-b-PAN, CS-b-PAN/[bmim][BF4], CS-b-PAN/[bmim][PF6], and CS-b-PAN/[bmim][Tf2N] copolymers.
Figure 9. DSC and TGA curves of CS-b-PAN, CS-b-PAN/[bmim][BF4], CS-b-PAN/[bmim][PF6], and CS-b-PAN/[bmim][Tf2N] copolymers.
Membranes 06 00031 g009
Figure 10. The permeability coefficients.
Figure 10. The permeability coefficients.
Membranes 06 00031 g010
Table 1. The surface roughness parameters.
Table 1. The surface roughness parameters.
ILCS-PANCS-PS
GraftBlockGraftBlock
Ra, nmRz, nmRa, nmRz, nmRa, nmRz, nmRa, nmRz, nm
no16.0388.0613.1160.148.2245.579.8153.29
[bmim] [BF4]106.07470.577.8035.1219.80230.6941.36149.08
[bmim] [PF6]112.28325.7223.2986.9772.03393.6042.34168.30
[bmim] [Tf2N]228.53546.18141.58707.6555.33435.0850.27233.43
Table 2. The mechanical properties of the obtained materials.
Table 2. The mechanical properties of the obtained materials.
ILCS-PANCS-PS
GraftBlockGraftBlock
σ, MPaε, %σ, MPaε, %σ, MPaε, %σ, MPaε, %
no75.571.49104.292.8068.840.4375.152.06
[bmim] [BF4]12.710.7478.912.308.360.3142.542.03
[bmim] [PF6]28.291.4180.192.376.620.3953.192.36
[bmim] [Tf2N]17.350.7968.972.3918.961.0659.722.36
Table 3. The selectivity of the obtained materials.
Table 3. The selectivity of the obtained materials.
ILCS-b-PANCS-g-PSCS-b-PS
CO2/CH4CO2/N2CO2/CH4CO2/N2CO2/CH4CO2/N2
no7.86.3n/cn/cn/cn/c
[bmim] [BF4]14.615.5n/cn/c6.24.8
[bmim] [PF6]n/c *n/cn/cn/c1.31.9
[bmim] [Tf2N]1.61.98.67.61.53.0
* n/c—not calculated.
Back to TopTop
