Article

Hybrid Membranes Based on Track-Etched Membranes and Nanofiber Layer for Water–Oil Separation and Membrane Distillation of Low-Level Liquid Radioactive Wastes and Salt Solutions

by
Arman B. Yeszhanov
1,
Aigerim Kh. Shakayeva
1,
Maxim V. Zdorovets
1,
Daryn B. Borgekov
1,
Artem L. Kozlovskiy
1,
Pavel V. Kharkin
1,
Dmitriy A. Zheltov
1,
Marina V. Krasnopyorova
1,
Olgun Güven
2 and
Ilya V. Korolkov
1,*
1
The Institute of Nuclear Physics, Ibragimov str. 1, Almaty 050032, Kazakhstan
2
Department of Chemistry, Hacettepe University, Beytepe, Ankara 06800, Turkey
*
Author to whom correspondence should be addressed.
Membranes 2025, 15(7), 202; https://doi.org/10.3390/membranes15070202
Submission received: 26 March 2025 / Revised: 22 April 2025 / Accepted: 27 April 2025 / Published: 4 July 2025
(This article belongs to the Section Membrane Applications for Water Treatment)
Browse Figures
Versions Notes

Abstract

In this work, hybrid membranes were fabricated by depositing polyvinyl chloride (PVC) fibers onto PET track-etched membranes (TeMs) using the electrospinning technique. The resulting structures exhibited enhanced hydrophobicity, with contact angles reaching 155°, making them suitable for applications in both water–oil mixture separation and membrane distillation processes involving low-level liquid radioactive waste (LLLRW), saline solutions, and natural water sources. The use of hybrids of TeMs and nanofiber membranes has significantly increased productivity compared to TeMs only, while maintaining a high degree of purification. Permeate obtained after MD of LLLRW and river water was analyzed by conductometry and the atomic emission spectroscopy (for Sr, Cs, Al, Mo, Co, Sb, Ca, Fe, Mg, K, and Na). The activity of radioisotopes (for 124Sb, 65Zn, 60Co, 57Co, 137Cs, and 134Cs) was evaluated by gamma-ray spectroscopy. In most cases, the degree of rejection was between 95 and 100% with a water flux of up to 17.3 kg/m2·h. These membranes were also tested in the separation of cetane–water emulsion with productivity up to 47.3 L/m2·min at vacuum pressure of 700 mbar and 15.2 L/m2·min at vacuum pressure of 900 mbar.

1. Introduction

Membrane technologies cover increasingly large areas of application for water purification from salts, separation of water–oil emulsions, and various chemical industry applications. There is also an increasing number of publications on the use of membrane technologies for radionuclide removal [1,2,3,4,5,6,7,8] because of the growth in nuclear energy production due to the high global demand for energy. Despite its reliability and stability, nuclear energy production is associated with significant issues, primarily the formation of various byproducts from nuclear reactions. Low-level liquid radioactive waste (LLLRW) may originate from various sources, including radioisotope production for medical purposes, routine operations at nuclear facilities, activities at nuclear industry sites, and incidents involving anthropogenic radiation releases [1,2,3,4,5,9].
LLLRW can cause irreparable harm to the environment by contaminating water bodies, such as groundwater, rivers, and oceans, which can negatively impact human health. When radionuclides enter the human body, they can lead to various cancers and even death. Therefore, the issue of purifying water from radionuclides is crucial and important not only for the nuclear industry, but also globally [6,7,8,10].
Today, various methods are used to address the challenges of cleaning liquid radioactive waste, including thermal [11,12,13], sorption [14,15,16], and membrane techniques [17,18,19,20]. Thermal methods, such as evaporation and drying, are effective but require large amounts of heat, which is a significant drawback. Sorption purification methods, such as adsorption and ion exchange, are also commonly used. However, membrane processes are considered the most promising for the purification of LLLRW. Techniques like ultrafiltration (UF), microfiltration (MF), nanofiltration (NF), forward osmosis (FO), and reverse osmosis (RO) are often employed [21,22,23,24,25,26,27,28,29,30]. Over the past decade, interest in membrane distillation (MD) has grown due to its high degree of decontamination and rejection. Unlike other separation methods, MD offers several advantages: it does not require excess heat, achieves a high degree of purification for non-volatile components, and operates at low pressures [19,20,31,32,33,34,35].
MD is a thermally driven separation process that exploits the difference in vapor pressure across a hydrophobic, microporous membrane. One side of the membrane is in contact with a heated aqueous feed solution, while the other side is maintained at a lower temperature (depending on the MD configuration). The temperature difference across the membrane induces a vapor pressure gradient, which acts as the driving force for water vapor to move through the membrane pores. Owing to the hydrophobic characteristics of the membrane, it selectively allows only the vapor phase to pass, effectively preventing liquid water from entering the pores. Consequently, substances with low volatility, such as salts, heavy metals, and radioactive elements, remain in the feed solution [36,37].
Membrane distillation (MD) can be implemented in various designs, including direct contact (DCMD), air gap (AGMD), vacuum (VMD), and sweeping gas (SGMD) configurations [38,39,40,41,42]. Among these, DCMD is the most widely used due to its simplicity and compact design, typically achieving water fluxes of 10–25 kg/m2·h at feed temperatures of 60–80 °C. AGMD and VMD, while more complex, can offer higher fluxes (up to 30–40 kg/m2·h) and improved energy efficiency due to reduced heat loss and enhanced vapor transfer, respectively. SGMD is less common but can be advantageous in certain industrial applications requiring continuous gas sweeping and lower heat conductivity across the membrane.
In membrane distillation, hydrophobic polymer-based membranes are typically employed. Materials such as poly(vinylidene fluoride) (PVDF), polytetrafluoroethylene (PTFE), polypropylene (PP), and polyethylene (PE) are widely used, offering contact angles in the range of 110° to 140° and porosity values generally between 60% and 80% [31,43,44]. These membranes provide high thermal and chemical stability, but their relatively thick structures (typically 100–200 μm) can limit vapor flux and increase thermal resistance.
Track-etched membranes (TeMs) based on poly(ethylene terephthalate) (PET) have also been studied for MD applications, especially in the context of LLLRW purification [19,20]. PET TeMs are characterized by precisely defined cylindrical pores (with diameters ranging from 100 nm to over 2 μm), narrow pore size distribution, high pore density (106–109 pores/cm2), and small thickness (6–23 μm), which together provide excellent size-selectivity and low mass transfer resistance [45,46,47,48,49,50,51]. However, their native hydrophilicity and low surface roughness often require surface modification to enable stable vapor-phase transport in MD.
Contaminant buildup on the membrane can lead to pore wetting and a decline in permeate flux. Additionally, PET TeMs have insufficient hydrophobic characteristics and need modification for effective use in MD. Various methods for hydrophobizing PET TeMs have been previously investigated, including UV-graft polymerization, covalent bonding of fluoro- and chlorosilanes, and the immobilization of silica nanoparticles on the surface [19,20,52,53,54]. To further increase hydrophobicity and reduce pore wetting, the concept of hybrid membranes, which incorporate both hydrophilic and hydrophobic components, has been investigated [55,56].
There are several methods for fabricating hydrophobic membranes, including chemical vapor deposition, electrospray, phase inversion, sol–gel method, and electrospinning [57,58,59]. Among these, electrospinning has been widely recognized as an effective technique for membrane production and surface modification due to its versatility and scalability. Electrospun membranes typically exhibit high porosity (up to 80–90%), small and tunable fiber diameters ranging from 100 nm to 2 μm, and large surface area-to-volume ratios, which contribute to improved vapor transport and enhanced hydrophobicity (contact angles often exceeding 140°) [58,59]. In membrane distillation (MD), nanofibrous membranes produced via electrospinning have demonstrated high salt rejection (>99.9%) and water fluxes ranging from 1.83 to 78 kg/m2·h, depending on feed composition and membrane architecture [4,5,36]. Previously published studies on the treatment of LLLRW using modified PET TeMs have reported decontamination factors above 1700 for 137Cs and more than 85 for 60Co [19,20]. However, the relatively low intrinsic permeability of PET-based TeMs—typically below 2 kg/m2·h—necessitates the use of electrospun coatings or hybrid structures to enhance water flux without compromising selectivity.
This work presents, for the first time, the results of obtaining hybrid PET TeMs with poly(vinyl chloride) (PVC) fibers on their surfaces using the electrospinning method for the purification of model salt solutions; in addition, real water purification was also performed for river water, as well as LLLRW. The obtained hydrophobic hybrid membranes with a high water contact angle (CA) were also tested in the separation of water–oil emulsions. Low water fluxes of TeMs were overcome by increasing the pore diameter of TeMs in the range of 1159 ± 27–2494 ± 81 nm, with the prevention of hydrophobic properties (up to 155°) using PVC fibers.

2. Materials and Methods

2.1. Materials

PET film was obtained from Mitsubishi Polyester Film (Wiesbaden, Germany). High molecular weight poly(vinyl chloride) (PVC) (Sigma-Aldrich, Zwolle, The Netherlands), along with tetrahydrofuran (THF) (Sigma-Aldrich, St. Louis, MO, USA) and dimethylformamide (DMF) (Sigma-Aldrich, Darmstadt, Germany), were used in the experiments. Analytical grade sodium chloride was used in the experiments, and all solutions were prepared using deionized water with a resistivity of 18.2 MΩ·cm.

2.2. Preparation of TeMs

PET track-etched membranes (TeMs) were fabricated by irradiation PET films with krypton ions at an average energy of 1.75 MeV per nucleon and a fluence of 1 × 106 ions/cm2 using the DC-60 cyclotron (Astana, Kazakhstan). Subsequent chemical etching was performed in a 2.2 M NaOH solution at 85 °C. Upon completion of etching, the membranes were rinsed with acetic acid, followed by deionized water, and then air-dried and stored at ambient conditions.

2.3. Preparation of Hybrid Membranes by Electrospinning

Preparation of hybrid membranes was carried out by applying PVC nanofibers by electrospinning using a tabletop installation for electrospinning CY-ES30K-H (Zhengzhou CY Scientific Instrument Co, Zhengzhou, China). First, a polymer solution was prepared in tetrahydrofuran and N,N-dimethylformamide with a 1:1 (v/v) ratio with various concentrations between 10–17%. Electrospinning parameters: voltage (from 8 kV to 15 kV), the feed rate of PVC solutions (from 0.3 to 1 mL/h), and the distance between the needle and the collector remained constant at 15 cm.

2.4. Methods of Characterization of the Membrane

Fourier-transform infrared (FTIR) spectra were obtained using an InfraLUM FT-08 spectrometer (Lumex, Saint Petersburg, Russia) equipped with an ATR accessory (PIKE, Madison, WI, USA), operating in the 400–4000 cm−1 range with 25 scans and a resolution of 2 cm−1. The pore diameter of the TeMs was determined by the gas flow rate technique under a pressure of 20 kPa.
The surface morphology and elemental composition of the TeMs were examined using a Hitachi TM 3030 scanning electron microscope coupled with a Bruker XFlash MIN SVE EDX system (Bremen, Germany), operated at an accelerating voltage of 15 kV. Morphological and compositional data were averaged over three independent measurements.
Contact angle (CA) measurements were conducted at room temperature by the static drop method, using a digital microscope with 1000× magnification. A 15 µL droplet was placed at five distinct locations on each sample to ensure reproducibility.
Thermogravimetric analysis (TGA) was performed using a Themys ONE analyzer (Setaram, Caluire, France) over a temperature range of 0 to 800 °C under an argon atmosphere, with a constant heating rate of 10 °C/min.
The interfacial adhesion strength between electrospun PVC nanofiber layers and PET TeMs was quantitatively assessed using a progressive load scratch test on the equipment UNITEST-750 (Paltro, Bangalore, India). A spherical indenter was used to apply increasing normal force across a 10 mm stroke length. The effective contact width was 1 mm, resulting in a contact area of A = 1 × 10−5 m2. The maximum tractional force prior to delamination was considered as the critical force Fcr, and adhesion strength was calculated as: δadh = Fcr/A. Five measurements were performed. The applied normal load increased from 2 to 6–7 N at a constant loading rate of 0.1 N/s.

2.5. Testing of Hybrid Membranes in the Separation of Water–Oil Emulsions

Membrane samples with a surface area of 0.001256 m2 were tested under reduced pressure conditions ranging from 900 to 700 mbar using a VACSTAR Control vacuum pump (IKA, Staufen im Breisgau, Germany). Filtration experiments were carried out using a setup previously described in [60]. Water–cetane emulsions were prepared at a volume ratio of 1:100 by high-speed mixing with an Ultra-Turrax T18 disperser (IKA, Staufen im Breisgau, Germany) operating at 24,000 rpm for 1 min.

2.6. Membrane Distillation

Membrane distillation experiments were carried out in a direct contact membrane distillation (DCMD) setup, the configuration of which has been described in detail in previous studies [61,62]. Permeate flux was determined gravimetrically. The feed solutions included sodium chloride solutions with concentrations ranging from 7.5 to 30 g/L, as well as samples of low-level liquid radioactive waste (LLLRW) sourced from the WWR-K research reactor (Almaty, Kazakhstan). Salt rejection efficiency was assessed based on conductivity measurements using a Hanna Instruments HI2030-01 conductometer (Woonsocket, RI, USA).
To analyze the elemental composition of the feed and permeate solutions in the cases of LLLRW and river water, an OPTIMA-8000 ICP-OES system (PerkinElmer, Waltham, MA, USA) (spectral range 165–900 nm; resolution < 0.009 nm at 200 nm) was employed. Gamma-ray spectroscopy was performed using a Canberra GM1520 system (Canberra Industries, Meriden, CT, USA) equipped with a germanium semiconductor detector, covering an energy range of 25–3000 keV, to quantify the activity of selected radionuclides.

3. Results and Discussion

3.1. Preparation and Characterization of Membranes

Hybrid membranes with hydrophobic properties were obtained by PVC fiber deposition on PET TeMs from both sides using the electrospinning method. A mixture of THF and DMF with a 1:1 ratio (by volume) is most often used as a PVC solvent for electrospinning application (other solvent ratios, as well as DMA, pure DMF, and THF, can also be used) [63]. The voltage and feed rate of the polymer solution were optimized to obtain polymer fibers: 0.5 mL/h and 12 kV; the distance from the needle tip to the collimator was kept constant at 15 cm. The effect of PVC concentration (10–17%) on the hydrophobic properties of the resulting membranes was investigated by measuring CA, since the CA is one of the key parameters that affects the success of the use of membranes in the separation of water–oil emulsions, especially in MD. The photographs of water droplets are presented in Figure 1.
With increasing PVC concentration, hydrophobicity increases. CA of initial PET TeMs is 55°, as well as for PET TeMs-PVC; 104°, 105°, 145°, 155° were obtained with the concentrations of 10%, 12%, 15%, 17%, respectively. The CA of PVC fiber obtained under different conditions can be 135–152° [64,65], which is comparable to the obtained results.
The thickness of the obtained membrane was controlled using an electronic thickness gauge. The thickness of the TeMs obtained by applying PVC on both sides of PET TeMs did not significantly change with the polymer concentration and amounted to 35 ± 7 µm, that is, considering that the thickness of the initial PET TeMs is 10 ± 1 µm, each side of the membrane was applied with a layer of PVC fibers as thick as 12.5 µm. The thickness of the layer was controlled by the time of fiber application. The surface density of PVC nanofibers deposited on the PET TeMs was also controlled and maintained at an average value of 2.58 ± 0.48 mg/cm2.

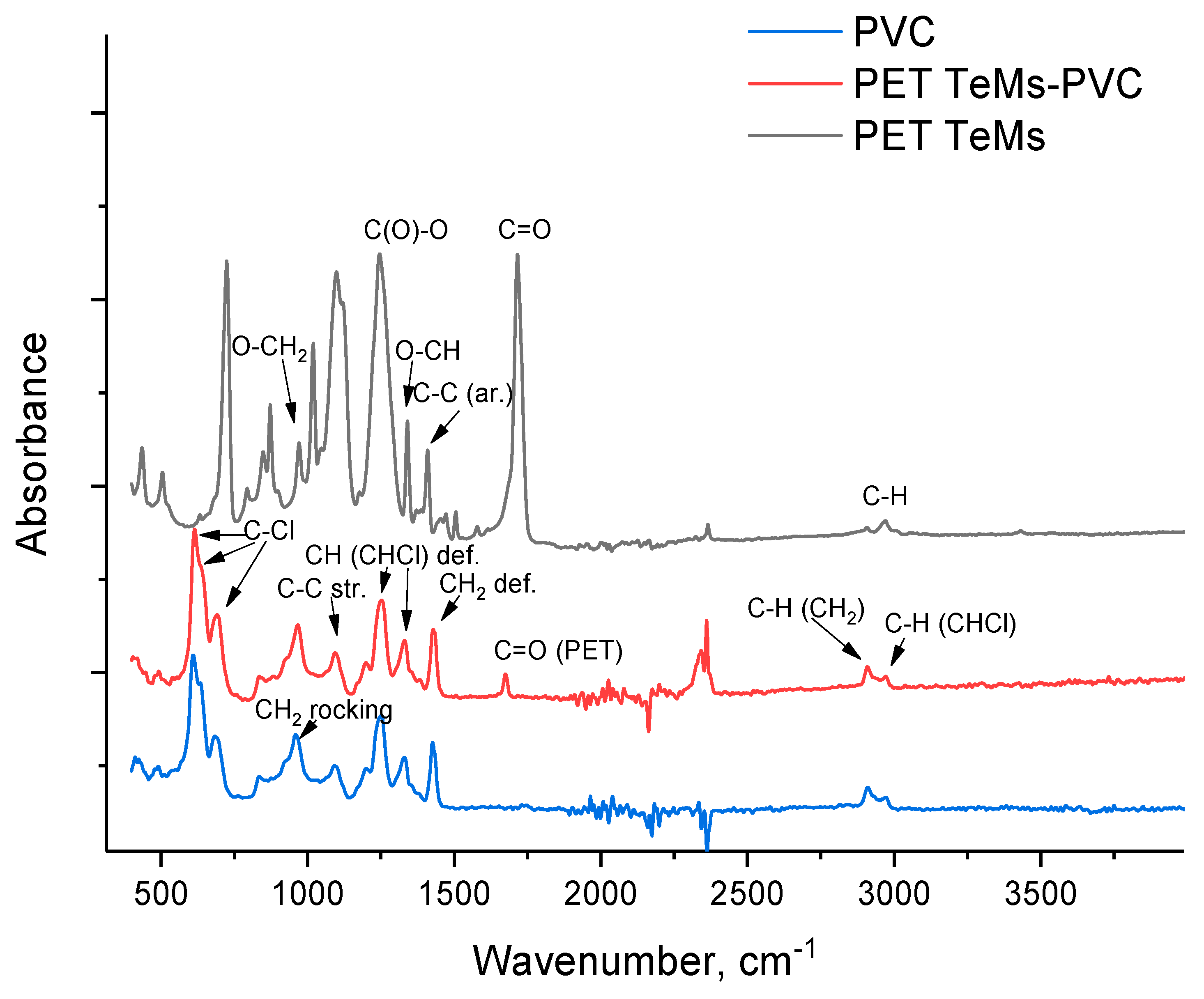

To determine the functional groups before and after modification, FTIR spectra were recorded (Figure 2). The original PET TeMs shows characteristic absorption bands at 2970 cm−1 (benzene ring, C-H), 1410, 1430, 1616, 1470 cm−1 (aromatic vibrations of the carbon skeleton), 2912 cm−1 (aliphatic C-H), 1713 cm−1 (C=O), 970 cm−1 (O-CH2), 1340 cm−1 (O-CH), and 1238 cm−1 (C(O)-O). Electrospinning of PVC nanofibers on PET TeMs leads to the appearance of peaks characteristic of PVC only (2972, 2909, 1675, 1430, 1333, 1255, 1198, 1092, 966, 692, 610 cm−1) [66], and only peak at 1715 cm−1 related to PET are presented because the spectra were taken from the surface using an ATR attachment, and PVC fibers covered the surface of the membrane and other PET peaks are overlapped by PVC.
In this way, PVC fibers were electrospun onto PET TeMs with three different pore diameters (1159 ± 27, 1727 ± 73, and 2494 ± 81 nm). SEM images of the surface of the original PET TeMs were presented in Figure 3.
Figure 4 presents SEM images of the hybrid membranes, clearly illustrating the formation of electrospun fibers on the surface of the PET track-etched membranes (PET TeMs). The fiber morphology varies depending on the concentration of polyvinyl chloride (PVC) used in the electrospinning solution. At a PVC concentration of 12%, relatively fine fibers with an average diameter of approximately 0.25 μm were formed. Increasing concentration to 15% resulted in thicker fibers with an average diameter of around 0.47 μm. At the highest concentration tested, 17%, the fibers reached an average diameter of 0.71 μm. This trend suggests that higher PVC concentrations lead to increased fiber thickness during electrospinning.
Figure 5 presents a cross-sectional view of the membrane obtained by electrospinning a 15% PVC solution. The image clearly illustrates a layer of randomly oriented PVC nanofibers deposited on the surface of the PET substrate. The fibrous mat exhibits a typical non-woven structure, with fibers forming an interconnected porous network. Between the electrospun layers, the PET TeMs structure with vertically aligned cylindrical pores is visible.
Elemental analysis of PVC fibers on the surface of PET TeMs made by SEM EDX showed the following results: atomic content (C) = 87.4%, (Cl) = 8.6%, (O) = 4.1%. This composition is not the same as that of PVC, so there is some residual effect coming from the PET layer. The mechanical properties of the membranes were also evaluated, and they did not differ from the original PET TeMs, and were equal to 260 kPa for membranes with a pore diameter of 1727 nm, 281 kPa for 1159 nm, and 213 kPa for 2494 nm.

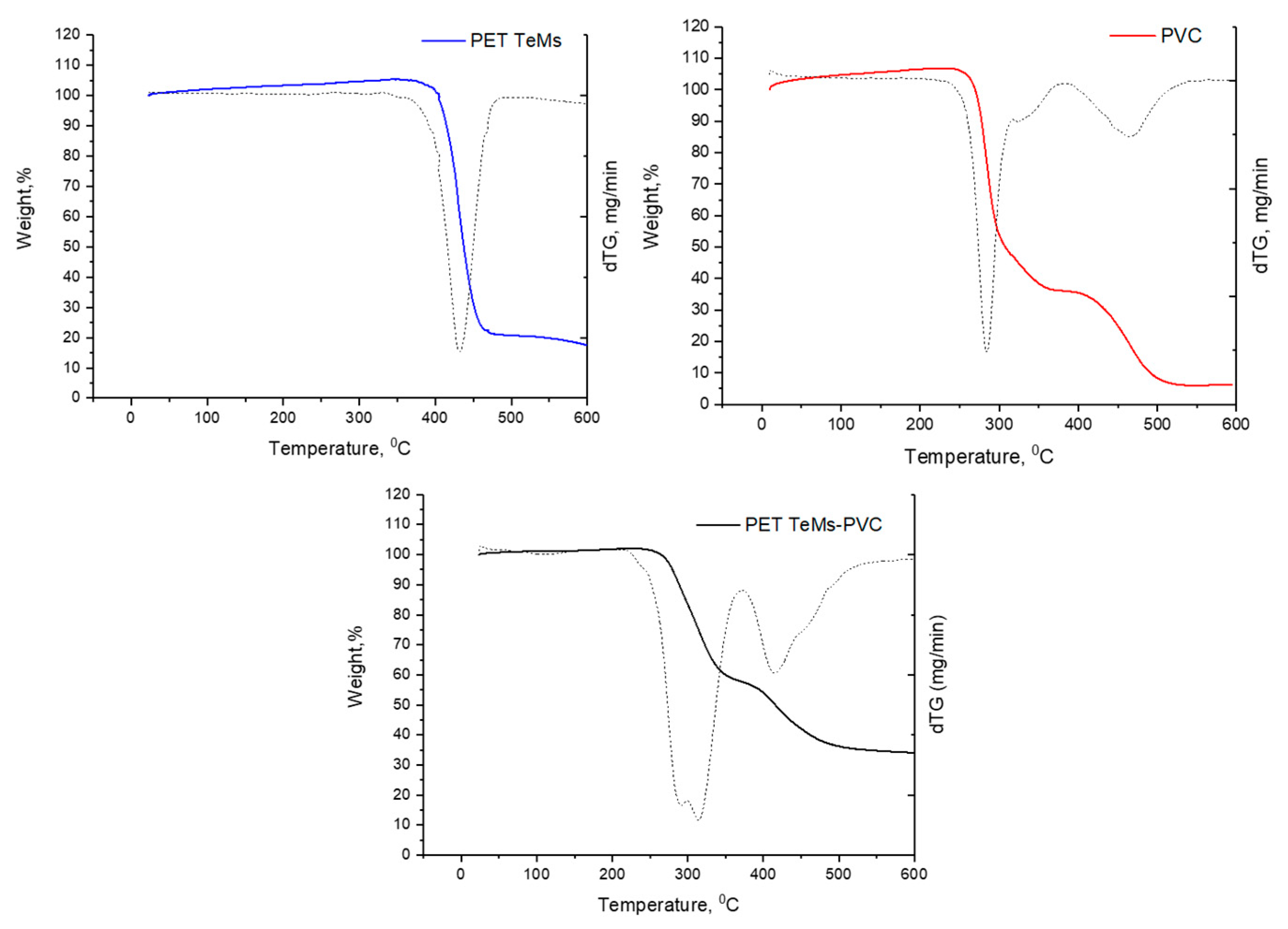

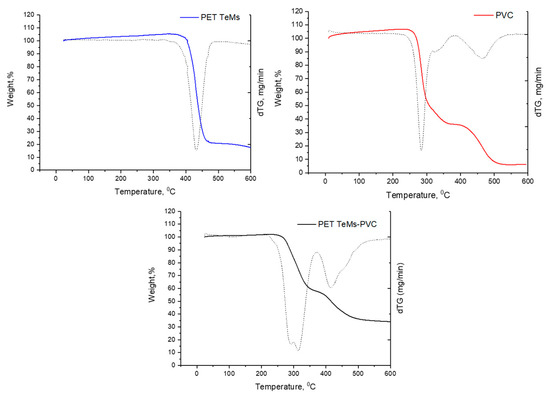

TGA curves of PET TeMs, pure PVC, and PET TeMs-PVC are presented in Figure 6. TGA curve of PET TeMs is characterized by one main peak at 432 °C, and weight loss was 84%. Dehydrochlorination of PVC occurred at 210–350 °C. Further weight loss is associated with cyclization of conjugated polyene chains to form aromatic compounds in the temperature range 350–500 °C [67]. TGA curve of PET TeMs-PVC is also characterized by two main peaks of mass loss at 299 °C (43.6%) and at 417 °C (23%). Also, it should be noted that the slight weight increase observed between room temperature and 200 °C is not attributed to gas adsorption on the membrane surface. Instead, this phenomenon is most likely caused by buoyancy-related artifacts inherent to TGA. During the initial heating phase, the aerodynamic drag generated by the gas flow within the furnace can result in an apparent mass gain. This effect has been discussed in the literature and is considered a common source of experimental deviation in TGA measurements [68,69]. This interpretation is further supported by the absence of any corresponding changes in heat flow, as no thermal events were detected in the DTA signal.
The interfacial adhesion between electrospun PVC nanofiber layers and PET TeMs was evaluated using progressive load scratch testing. The resulting average Fcr is around 1.1 N, and δadh is 110 ± 6 kPa. These values indicate a moderate level of physical adhesion between the electrospun PVC nanofibers and the PET TeMs. Such adhesion is sufficient to ensure mechanical stability under mild operating conditions, but may not withstand more aggressive environments without additional surface treatment or binding agents. Thus, in membrane-based water treatment processes such as MD or filtration, these types of membranes are typically recommended for use under operating pressures not exceeding 1 bar. In MD, the typical transmembrane pressure can be 1–2 bar (but does not usually exceed 1 bar). The observed adhesion strength is of the same order of magnitude, suggesting that the electrospun PVC fibers are unlikely to delaminate or detach under such conditions. Therefore, the PET TeMs–PVC exhibit adequate adhesion performance for use in water purification by MD.

3.2. Testing of Hybrid Membranes in the Separation of Water–Oil Mixtures

Hydrophobic properties of hybrid PET TeMs-PVC membranes (with 15% PVC) make them suitable for use in the separation of water–oil emulsions by filtration and in the MD process. The data obtained on the separation of the cetane–water emulsion is shown in Table 1. The corresponding time of passage of cetane at a pressure of 900, 800, 700 mbar for PET TeMs coated with PVC (15%). The degree of purification was 99–99.5%.
An increase in membrane pore size and applied pressure leads to higher productivity while maintaining stable separation efficiency. As a result, the developed membranes demonstrate effective performance in the separation of water–oil emulsions. The dependence of the performance of the separation of water–oil emulsions on pore diameter in 10 cycles is shown in Figure 7. It should be noted that the efficiency decreases with the cycle, but only slightly for membranes with 1159 nm pores (3.1%), while for 1727 nm and 2494 nm membranes, the decrease was 16.7% and 24.6%, respectively. This reduction in flux can be attributed to the fact that membranes with larger pores allow a greater volume of emulsion to pass through per unit time, which increases the exposure of pore walls to oil droplets. This facilitates more rapid fouling and partial pore wetting.

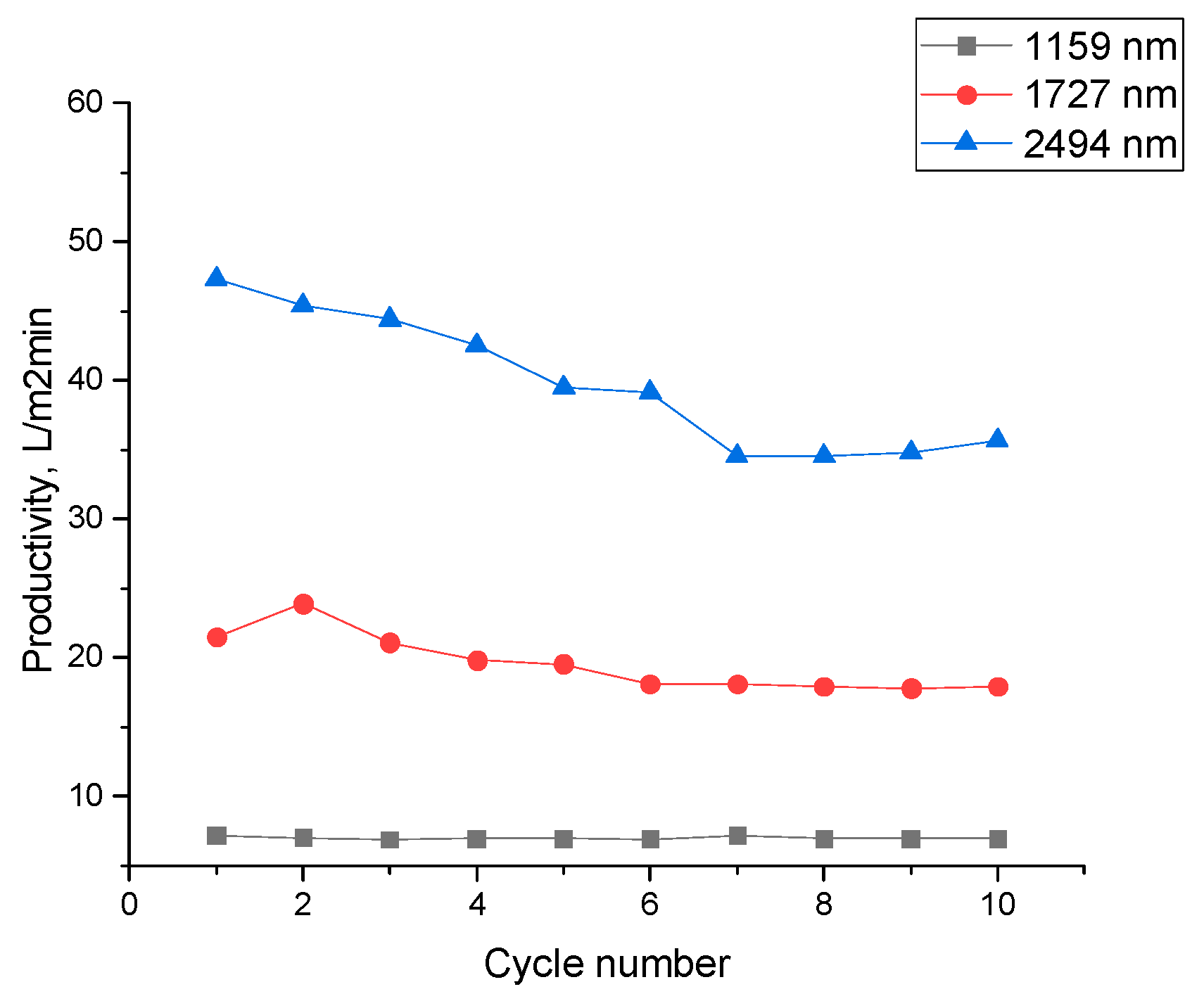

Flux recovery was calculated after 10 filtration cycles using the method described in [70]. Following membrane cleaning, the flux recovery was 96% for PET TeMs-PVC with 1159 nm pores, 94% for 1727 nm pores, and 91% for 2494 nm pores.
Several studies have investigated membrane technologies for separating oil–water emulsions, addressing aspects such as selectivity, fouling resistance, and productivity. For instance, Zhang et al. utilized polycarbonate (PC) TeMs modified with PDDA/PSS polyelectrolyte multilayers to treat emulsions stabilized by surfactants, including cetyltrimethylammonium bromide (CTAB) and sodium dodecyl sulfate (SDS). While the separation degree exceeded 99.98%, the flux was relatively low (24 L·m−2·h−1), limiting their industrial applicability despite excellent rejection performance [71]. Banat et al. developed a superhydrophobic PVDF membrane designed for water–oil emulsions (n-heptane–water system) using Span-80 as an emulsifier. Their membrane demonstrated a separation efficiency above 95%, with a moderate flux around 150 L·m−2·h−1, though a decline was observed over long-term operation [72]. Yang et al. used a porous poly(phenylene sulfide) (PPS) membrane for separating both surfactant-free and stabilized water–oil emulsions, achieving a separation degree of over 99.7%, with water content in the permeate reduced to below 300 ppm [73]. A more recent study by Wu et al. introduced a smart wood-based membrane functionalized with photoswitchable polymers for surfactant-stabilized diesel–water and oil–water emulsions. Their system demonstrated both ultra-high separation efficiency (>99.99%) and exceptional fluxes up to 4392 L·m−2·h−1 [74]. In comparison, PET TeMs-PVC composite membranes developed in our study were specifically tested on cetane–water emulsions. The membrane with the largest pore size (2494 ± 81 nm) achieved a maximum flux of 47.3 L·m⁻2·min⁻1 (2838 L·m−2·h−1) at 700 mbar vacuum pressure.

3.3. Testing of Hybrid Membranes in Membrane Distillation

PET TeMs-PVC membranes containing 15% PVC and different pore sizes of 1159 ± 27 nm, 1727 ± 73 nm, and 2494 ± 81 nm were evaluated in DCMD for the treatment of model saline solutions, river water, and low-level liquid radioactive waste (LLLRW). The design and configuration of the experimental setup are detailed in our earlier publication [75]. The influence of membrane pore size and sodium chloride concentration on water flux and salt rejection was investigated, with the corresponding results summarized in Table 2.
Results show a decrease in water flux with increasing salt concentration. It can be due to the fact that salt concentration influences the feed solution’s vapor pressure. Water flux for the solution of NaCl with a concentration of 7.5 g/L is 16.60 kg/m2·h (for membranes with pore diameters of 2494 ± 81 nm), and is 12.51 kg/m2·h for 30 g/L. The degree of rejection is mainly dependent on pore diameter. Increasing the pore diameter from 1159 nm to 2494 nm led to a slight decrease in salt rejection from 98.67 to 95.64% (for 30 g/L NaCl).
When benchmarked against commercial PTFE membranes, such as those studied by Zhang et al., similar trends were observed: PTFE membranes with larger pores achieved higher fluxes (up to ~26 kg/m2·h) [76]. In a more recent study, Hegde C. et al. demonstrated that hybrid PTFE-based membranes achieved salt rejection of 99% and productivity around 2726 kg/m2·h in direct contact MD with high energy efficiency (up to 67.3%), further supporting the relevance of pore design and material composition in MD membrane performance [77]. Additionally, Liu et al. emphasized the importance of addressing concentration polarization and fouling, both of which may affect membrane performance, particularly under long-term operation or higher salinity conditions [78]. Gonzalez et al. presented insights into sustainable and energy-efficient MD configurations using PTFE/PVDF membranes, achieving >99% rejection and improved performance through system-level innovations [79]. Furthermore, Arslan et al. demonstrated that nanoparticle-enhanced PVDF membranes achieved superior heat and mass transfer efficiency (up to 2.0 L/m2·h) and resistance to wetting and fouling, suggesting potential for further performance optimization in MD systems [80]. Taken together, the PET TeMs-PVC membranes evaluated here demonstrate competitive performance relative to commercial and advanced membranes.
High water fluxes while maintaining a degree of purification make these types of membranes quite promising for practical use. Testing of real solutions was carried out by using LLLRW samples obtained from the Research Nuclear Reactor WWR-K (Almaty, Kazakhstan) and river water. Water from rivers was collected and purified without any pretreatment. There is a slight decrease in water fluxes in comparison with model NaCl solutions, probably due to the multicomponent composition of water from the river, including biological pollutants that can lead to membrane fouling. The elemental composition of water before and after purification was studied using the method of ICP-OES. Results are presented in Table 3. For all elements, a sharp decrease in concentrations is observed after water treatment, with a high degree of purification. Cation concentrations are lower than the maximum permissible concentrations for drinking water.
The next stage of the research was the treatment of water that contains radioisotopes. In our previous studies [19,20] on TeMs with small pore diameters, despite the high degrees of purification achieved, the performance of the membranes needed to be improved. Therefore, the membranes obtained in this work may be of greater practical importance from this point of view. LLLRW contains ions and radioisotopes presented in Table 4 and Table 5.
Activity of radioisotopes 124Sb, 65Zn, 60Co, 57Co, 137Cs, and 134Cs before and after treatment was monitored by a Gamma Ray Spectrometer. It is seen from Table 5 that PET TeMs-PVC with pore diameters of 1159 ± 27 nm and 2494 ± 81 nm can clean water from radioisotopes with a high degree of purification. According to the hygienic standards for ensuring radiation safety in the Republic of Kazakhstan, purified water does not exceed the content of radioisotopes for drinking water (data presented in Table 5). However, the use of PET TeMs-PVC with a pore diameter of 2494 ± 81 nm leads to an excess of 60Co content.
Comparing the results obtained on the use of a PET-TeMs covered with PVC fibers in MD with those previously published using nanofiber membranes [81] and TeMs [19,71,75], it can be argued that hybrid membranes are significantly superior to hydrophobic TeMs in water fluxes since the hybrid structure of the membrane allows us to significantly increase the pore size of TeMs. Specifically, the PET-TeMs-PVC membranes demonstrated water fluxes of up to 16.6 kg/m2·h and salt rejection reaching 99.1% at a NaCl concentration of 15 g/L. In contrast, conventional hydrophobized TeMs typically show lower water fluxes in the range of 5–10 kg/m2·h under similar conditions, with slightly reduced salt rejection values around 95–98% [19,71,75]. Electrospun nanofiber membranes made of different polymers and structures achieve water fluxes from 1.83 to 78 kg/m2·h with a salt rejection degree ranging around 99.9% [81]. Thus, the incorporation of nanofiber layers and the development of hybrid TeMs markedly improve membrane performance relative to conventional hydrophobized TeMs.

4. Conclusions

In this study, hybrid membranes were successfully fabricated by electrospinning PVC fibers onto PET TeMs, resulting in a significant improvement in hydrophobicity (contact angle up to 155°) and the enhancement of membrane performance in both membrane distillation and oil–water separation. The hybrid membranes demonstrated high water fluxes (up to 17.3 kg/m2·h for MD and 47.3 L/m2·min for oil–water separation) while maintaining excellent rejection rates (>98%). The integration of electrospun PVC nanofibers on both sides of TeMs allowed us to overcome the common limitation of low permeability associated with TeMs without compromising selectivity.
The results clearly demonstrate how these hybrid membranes offer a promising route for addressing the challenges of treating complex liquid mixtures, including LLLRW and water–oil emulsions. Importantly, the membranes showed stable operation during multi-cycle tests and effectively removed both radionuclides and conventional inorganic contaminants. However, several limitations remain. Despite the promising fluxes, long-term performance under real industrial conditions, including membrane fouling, mechanical integrity under prolonged use, and cleaning efficiency, require further investigation. Additionally, scale-up and module integration for full-scale deployment have not yet been addressed. Future research will focus on further tuning the fiber morphology and membrane architecture to enhance antifouling and anti-wetting properties, exploring other polymer–fiber combinations, and integrating functional additives (e.g., nanoparticles) to impart additional selectivity or photocatalytic self-cleaning properties.

Author Contributions

Conceptualization, I.V.K. and M.V.Z.; Methodology, A.B.Y., A.K.S. and P.V.K.; Validation, D.B.B. and A.L.K.; Investigation, A.B.Y., A.K.S., D.A.Z. and M.V.K.; Data curation, D.B.B., A.L.K., P.V.K. and M.V.K.; Writing—original draft, I.V.K. and A.B.Y.; Writing—review and editing, M.V.Z. and O.G.; Supervision, M.V.Z. and O.G.; Project administration, M.V.Z.; Funding acquisition, M.V.Z. All authors have read and agreed to the published version of the manuscript.

Funding

The work was carried out with the financial support of the Ministry of Science and Higher Education of the Republic of Kazakhstan (program #BR20280986) and partially by grant No AP14869096.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed at the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.
