# Modelling and Comparative Analysis of Different Methods of Liquid Membrane Separations

^{*}

## Abstract

**:**

## 1. Introduction

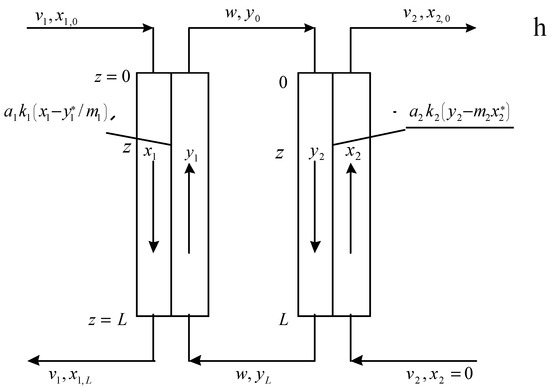

## 2. Modelling of Continuous Versions of Extraction-Stripping Separation

^{3}; ${y}_{1}$ is the concentration of the passing component in the organic phase (extractant phase) in the extraction column, g/mL or g/cm

^{3}; ${x}_{2}$ is the concentration of the passing component in the aqueous stripping phase (acceptor or extract phase) in the stripping column, g/mL or g/cm

^{3}; ${y}_{2}$ is the concentration of the passing component in the organic phase in the stripping column, g/mL or g/cm

^{3}; ${a}_{1}$ and ${a}_{2}$ are the specific areas of phase contact in the extraction and stripping columns, respectively, cm

^{−1}; ${k}_{1}$ and ${k}_{2}$ are mass-transfer coefficients in the extraction and stripping columns, respectively, cm/s; ${v}_{1}$ and ${v}_{2}$ are specific flow rates of the aqueous phases in the extraction and stripping columns, respectively, cm/s; w is the specific flow rate of the organic phase in the extraction and stripping columns (in the extraction column, it is the extract phase; in the stripping column, it is the feed or the raffinate phase), cm/s; ${m}_{1}=\frac{{y}^{*}}{{x}_{1}^{*}}=constant$ and ${m}_{2}={y}^{*}/{x}_{2}^{*}=constant$ are the equilibrium distribution coefficients in the extraction and stripping columns, respectively; and z is the co-ordinate along the phase contact surface, cm ($0\le z\le L$).

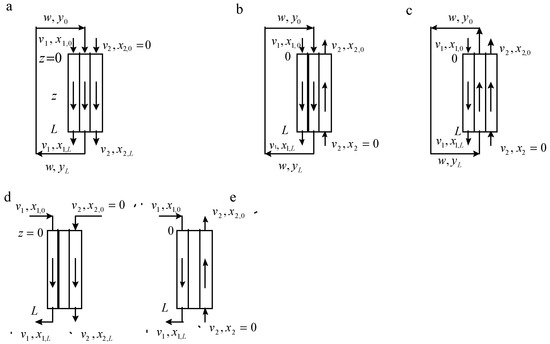

**,**${x}_{2}$, and y are the concentrations of the passing component in the donor and acceptor phases and in the liquid membrane, respectively, and the symbol * stands for equilibrium conditions; and z is the co-ordinate over the phase contact surface ($0\le z\le L$). As mentioned above, the equilibrium distribution coefficients are assumed to be constant (${m}_{1}={y}^{*}/{x}_{1}^{*}$ and ${m}_{2}={y}^{*}/{x}_{2}^{*}$). The boundary conditions for Equations (1)–(17) are shown in Figure 2 and Figure 3. By solving these equations, the outlet concentration in the raffinate can be established as follows:

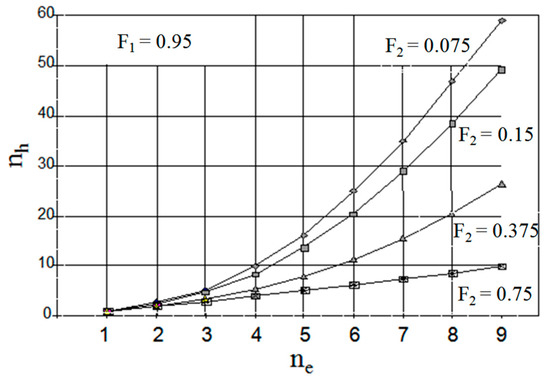

## 3. Modelling of Staged Versions of Extraction-Stripping Separation

_{1}/m

_{2}.

_{1}and V

_{2}are the volumes of cells; and v

_{1}, v

_{2}, and w are the volumetric flow rates.

_{1}) and stripping (v

_{2}) aqueous phases, as well as the circulating membrane phase (w), was measured, and samples of the aqueous phases were taken from each mixer-settler. The equilibrium distribution coefficients (m

_{1}= m

_{2}= 0.73) were determined in shake experiments. The results of the experiments, as well as the calculated theoretical concentrations, are given in Table 1 and Table 2.

_{1,n}) was calculated by Equations (22) and (25). The concentrations in all stripping and extraction stages were determined from material balance equations. The results in Table 1 and Table 2 demonstrate, in general, a satisfactory agreement between the prediction of mathematical modeling and the experiment, and confirm the advantages of the staged version of supported liquid membranes over the conventional extraction-stripping separation.

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Lazarova, Z.; Boyadzhiev, L. Liquid film pertraction—A liquid membrane preconcentration technique. Talanta
**1992**, 39, 931–935. [Google Scholar] [CrossRef] [PubMed] - Boyadshiev, L. The three-phase liquid extraction or the liquid membranes. Isot. Isot. Environ. Health Stud.
**1984**, 20, 345–352. [Google Scholar] [CrossRef] - Boyadzhiev, L.; Atanassova, I. Recovery of L-lysine from dilute water solutions by liquid pertraction. Biotechnol. Bioeng.
**1991**, 38, 1059–1064. [Google Scholar] [CrossRef] [PubMed] - Admawi, H.K.; Mohammed, A.A. A comprehensive review of emulsion liquid membrane for toxic contaminants removal: An overview on emulsion stability and extraction efficiency. J. Environ. Chem. Eng.
**2023**, 11, 109936. [Google Scholar] [CrossRef] - Zamouche, M.; Tahraoui, H.; Laggoun, Z.; Mechati, S.; Chemchmi, R.; Kanjal, M.I.; Amrane, A.; Hadadi, A.; Mouni, L. Optimization and prediction of stability of emulsified liquid membrane (ELM): Artificial neural network. Processes
**2023**, 11, 364. [Google Scholar] [CrossRef] - Karmakar, R.; Singh, P.; Datta, A.; Sen, K. Emulsion liquid membrane in the selective extraction of Dy. Chem. Eng. Res. Des.
**2022**, 187, 497–506. [Google Scholar] [CrossRef] - Khan, H.W.; Elgharbawy, A.A.M.; Bustam, M.A.; Goto, M.; Moniruzzaman, M. Ionic liquid-based green emulsion liquid membrane for the extraction of the poorly soluble drug ibuprofen. Molecules
**2023**, 28, 2345. [Google Scholar] [CrossRef] - Wang, D.; Wang, Q.; Zhang, X.; Liu, T.; Zhang, H. Conversion of waste oil from oil refinery into emulsion liquid membrane for removal of phenol: Stability evaluation, modeling and optimization. Membranes
**2022**, 12, 1202. [Google Scholar] [CrossRef] - Zhu, G.; Wang, Y.; Huang, Q.; Zhang, R.; Chen, D.; Wang, S.; Yang, X. Emulsion liquid membrane for simultaneous extraction and separation of copper from nickel in ammoniacal solutions. Miner. Eng.
**2022**, 188, 107849. [Google Scholar] [CrossRef] - Naim, M.M.; Moneer, A.A.; El-Shafei, A.A.; Elewa, M.M. Automated prototype for desalination by emulsion liquid membrane technique. Desalin. Water Treat.
**2017**, 73, 164–174. [Google Scholar] [CrossRef] - Kohli, H.P.; Gupta, S.; Chakraborty, M. Extraction of Ethylparaben by emulsion liquid membrane: Statistical analysis of operating parameters. Colloids Surf. A Physicochem. Eng. Asp.
**2018**, 539, 371–381. [Google Scholar] [CrossRef] - León, G.; Gómez, E.; Miguel, B.; Hidalgo, A.M.; Gómez, M.; Murcia, M.D.; Guzmá, M.A. Feasibility of adsorption kinetic models to study carrier-mediated transport of heavy metal ions in emulsion liquid membranes. Membranes
**2022**, 12, 66. [Google Scholar] [CrossRef] [PubMed] - Ahmad, A.L.; Shafie, Z.M.; Zaulkiflee, N.D.; Pang, W.Y. Preliminary Study of emulsion liquid membrane formulation on acetaminophen removal from the aqueous phase. Membranes
**2019**, 9, 133. [Google Scholar] [CrossRef] [PubMed] - Seifollahi, Z.; Rahbar-Kelishami, A. Diclofenac extraction from aqueous solution by an emulsion liquid membrane: Parameter study and optimization using the response surface methodology. J. Mol. Liq.
**2017**, 231, 1–10. [Google Scholar] [CrossRef] - Rzelewska-Piekut, M.; Regel-Rosocka, M. Liquid membranes for separation of metal ions from wastewaters. Phys. Sci. Rev.
**2021**, 20210049. [Google Scholar] [CrossRef] - Ried, W. Membrane-Supported Liquid-Liquid Extraction—Where do we stand today? ChemBioEng Rev.
**2021**, 8, 6–14. [Google Scholar] [CrossRef] - Amini, M.; Rahbar-Kelishami, A.; Alipour, M.; Vahidi, O. Supported liquid membrane in metal ion separation: An overview. J. Membr. Sci. Res.
**2018**, 4, 121–135. [Google Scholar] - Farah, M.; Giralt, J.; Stüber, F.; Font, J.; Fabregat, A.; Fortuny, A. Supported liquid membranes for the removal of pharmaceuticals from aqueous solutions. J. Water Process Eng.
**2022**, 49, 103170. [Google Scholar] [CrossRef] - Pilli, S.R.; Ali, W.; Motana, S.; Khan, M.E.; Rajesh, Y.; Khan, A.U.; Bashiri, A.H.; Zakri, W. Novel-supported ionic liquid membranes for an effective removal of pentachlorophenol from wastewater. J. Mol. Liq.
**2023**, 380, 121629. [Google Scholar] [CrossRef] - Li, L.; Yu, B.; Davis, K.; King, A.; Dal-Cin, M.; Nicalek, A.; Du, N. Separation of neodymium(III) and lanthanum(III) via a flat sheet-supported liquid membrane with different extractant-acid systems. Membranes
**2022**, 12, 1197. [Google Scholar] [CrossRef] - León, G.; Hidalgo, A.M.; Miguel, B.; Guzmán, M.A. Pertraction of Co(II) through novel ultrasound prepared supported liquid membranes containing D2EHPA. Optimization and transport parameters. Membranes
**2020**, 10, 436. [Google Scholar] [CrossRef] [PubMed] - Alemrajabi, M.; Ricknell, J.; Samak, S.; Varela, R.R.; Martinez, J.; Hedman, F.; Forsberg, K.; Rasmuson, A.C. Separation of rare-earth elements using supported liquid membrane extraction in pilot scale. Ind. Eng. Chem. Res.
**2022**, 61, 18475–18491. [Google Scholar] [CrossRef] - Zante, G.; Boltoeva, M.; Masmoudi, A.; Barillon, R.; Trébouet, D. Supported ionic liquid and polymer inclusion membranes for metal separation. Sep. Purif. Rev.
**2022**, 51, 100–116. [Google Scholar] [CrossRef] - Jean, E.; Villemin, D.; Hlaibi, M.; Lebrun, L. Heavy metal ions extraction using new supported liquid membranes containing ionic liquid as carrier. Sep. Purif. Technol.
**2018**, 201, 1–9. [Google Scholar] [CrossRef] - Chen, Z.; He, Q.; Deng, X.; Peng, J.; Du, K.; Sun, Y. Engineering solid nanochannels with macrocyclic host–guest chemistry for stimuli responses and molecular separations. Chem. Commun.
**2023**, 59, 1907–1916. [Google Scholar] [CrossRef] - Li, R.; Lin, Q.; Li, S.; Sun, Y.; Liu, Y. MXenes functionalized with macrocyclic hosts: From molecular design to applications. ChemPlusChem
**2023**, 88, e202200423. [Google Scholar] [CrossRef] - Kostanyan, A.E.; Belova, V.V.; Voshkin, A.A. Three- and multi-phase extraction as a tool for the implementation of liquid membrane separation methods in practice. Membranes
**2022**, 12, 926. [Google Scholar] [CrossRef] - Kostanyan, A.E. Comparison between various schemes of three-phase extraction: Mass transfer between two liquid phases through an exchange medium. Theor. Found. Chem. Eng.
**1999**, 33, 584–592. [Google Scholar] - Kostanyan, A.E.; Safiulina, A.M.; Tananaev, I.T.; Myasoedov, B.F. Multiphase extraction: Design of single-and multistage separation using liquid pseudomembranes. Dokl. Chem.
**2005**, 404, 203–205. [Google Scholar] [CrossRef] - Kostanyan, A.E.; Safiulina, A.M.; Tananaev, I.G. Linear models of three-phase extraction processes. Theor. Found. Chem. Eng.
**2007**, 41, 755–759. [Google Scholar] [CrossRef] - Belova, V.V.; Kostanyan, A.E.; Zakhodyaeva, Y.A.; Kholkin, A.I.; Logutenko, O.A. On the application of bulk-supported liquid membrane techniques in hydrometallurgy. Hydrometallurgy
**2014**, 150, 144–152. [Google Scholar] [CrossRef] - Kostanian, A.E. Staged versions of liquid membrane extraction processes. Solvent Extr. Ion Exch.
**2013**, 31, 297–305. [Google Scholar] [CrossRef] - Kostanyan, A.E. On the application of liquid-membrane principle in a system of mixing-settling extractors. Theor. Found. Chem. Eng.
**2008**, 42, 718–723. [Google Scholar] [CrossRef]

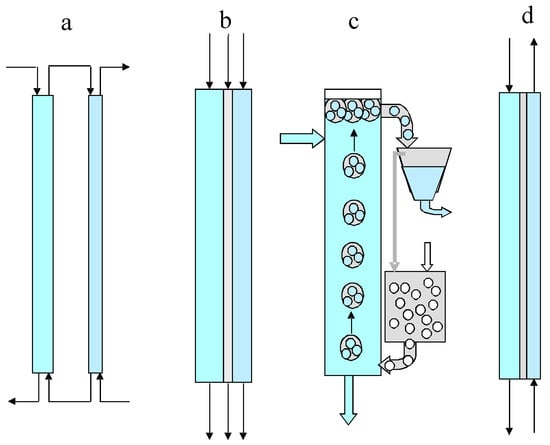

**Figure 1.**Schematic diagrams of extraction-stripping separation processes: a—conventional conjugated extraction-stripping; b—film pertraction; c—emulsion membranes; and d—supported liquid membranes.

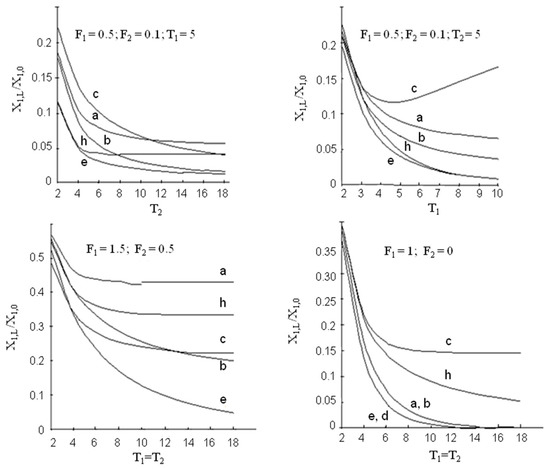

**Figure 4.**Comparison between efficiency of continuous schemes of extraction-stripping separation technique.

**Table 1.**Theoretical and experimental concentrations in the mixer-settlers operating in the supported liquid membrane mode (scheme (e)).

Number of Stages | x_{1} (%)Experiment | x_{1} (%)Theory | x_{2} (%)Experiment | x_{2} (%)Theory |
---|---|---|---|---|

v_{1} = 1.12 L/h, x_{1,0} = 4.8%, v_{2} = 2.36 L/h, w = 3.0 L/h | ||||

1 | 3.49 | 3.00 | 2.00 | 2.04 |

2 | 2.20 | 1.78 | 1.36 | 1.18 |

3 | 1.27 | 1.01 | 0.72 | 0.61 |

4 | 0.70 | 0.50 | 0.26 | 0.24 |

v_{1} = 1.48 L/h, x_{1,0} = 4.7%, v_{2} = 2.64 L/h, w = 6.0 L/h | ||||

1 | 2.94 | 2.96 | 2.44 | 2.37 |

2 | 1.83 | 1.79 | 1.40 | 1.40 |

3 | 0.98 | 1.00 | 0.74 | 0.74 |

4 | 0.49 | 0.47 | 0.23 | 0.30 |

v_{1} = 1.15 L/h, x_{1,0} = 4.8%, v_{2} = 2.16 L/h, w = 10.0 L/h | ||||

1 | 2.77 | 2.72 | 2.34 | 2.40 |

2 | 1.56 | 1.48 | 1.28 | 0.29 |

3 | 0.76 | 0.74 | 0.62 | 0.63 |

4 | 0.34 | 0.30 | 0.23 | 0.23 |

**Table 2.**Theoretical and experimental concentrations in the mixer-settlers operating in the conventional extraction-stripping mode (scheme (Figure 5h)).

Number of Stages | v_{1} = 1.15 L/h, x_{1,0} = 4.8%, v_{2} = 2.16 L/h, w = 10.0 L/h | |||
---|---|---|---|---|

x_{1} (%)Experiment | x_{1} (%)Theory | x_{2} (%)Experiment | x_{2} (%)Theory | |

1 | 1.84 | 1.86 | 1.83 | 1.85 |

2 | 1.43 | 1.40 | 1.81 | 1.82 |

3 | 1.37 | 1.33 | 1.71 | 1.71 |

4 | 1.36 | 1.32 | 1.40 | 1.32 |
