Evaluation of Electrospun Self-Supporting Paper-Like Fibrous Membranes as Oil Sorbents

by
Adele Folino
1,
Claudia Triolo
2,
Beatrix Petrovičová
2,
Fabiolo Pantò
3,
Demetrio A. Zema
1,* and
Saveria Santangelo
2,*
1
Department of Agriculture, Mediterranean University of Reggio Calabria, Località Feo di Vito, I-89122 Reggio Calabria, Italy
2
Department of Civil, Energy, Environmental and Materials Engineering (DICEAM), Mediterranean University, Località Feo di Vito, I-89122 Reggio Calabria, Italy
3
Institute of Advanced Technologies for Energy (ITAE), Italian National Research Council (CNR), I-98126 Messina, Italy
*
Authors to whom correspondence should be addressed.
Membranes 2021, 11(7), 515; https://doi.org/10.3390/membranes11070515
Submission received: 22 June 2021 / Revised: 2 July 2021 / Accepted: 6 July 2021 / Published: 8 July 2021
(This article belongs to the Special Issue Advanced Membranes for Energy and Environment: Synthesis and Characterization)
Browse Figures
Review Reports Versions Notes

Abstract

:
Presently, adsorption/absorption is one of the most efficient and cost-effective methods to clean oil spill up. In this work, self-supporting paper-like fibrous membranes were prepared via electrospinning and carbonisation at different temperatures (500, 650 or 800 °C) by using polyacrylonitrile/polymethylmethacrylate blends with a different mass ratio of the two polymers (1:0, 6:1 or 2:1). After morphological and microstructural characterisation, the as-produced membranes were evaluated as sorbents by immersion in vegetable (sunflower seed or olive) and mineral (motor) oil or in 1:4 (v:v) oil/water mixture. Nitrogen-rich membrane carbonised at the lowest temperature behaves differently from the others, whose sorption capacity by immersion in oil, despite the great number of sorbent and oil properties involved, is mainly controlled by the fraction of micropores. The encapsulation of water nanodroplets by the oil occurring during the immersion in oil/water mixture causes the oil-from-water separation ability to show an opposite behaviour compared to the sorption capacity. Overall, among the investigated membranes, the support produced with 2:1 mass ratio of the polymers and carbonisation at 650 °C exhibits the best performance both in terms of sorption capacity (73.5, 54.8 and 12.5 g g−1 for olive, sunflower seed and motor oil, respectively) and oil-from-water separation ability (74, 69 and 16 for olive, sunflower seed and motor oil, respectively).

1. Introduction

Contamination by mineral and vegetable oils represents a serious environmental concern and a critical health hazard for ecosystems’ life in soils, freshwater and seawater [1,2,3]. Organic compounds, such as polyphenols, hinder the treatment of water streams in the traditional depuration plants, due to the resistance of these molecules to biodegradation [4]. Clean-up treatments for oil spills are based on mechanical, chemical and biological methods [5,6,7,8,9,10,11,12]. Most of them are complex and expensive and show a low depuration efficiency [9,12,13]. Adsorption/absorption seems to be the most effective and low-cost process for the spill remediation purpose [10]. Natural [14] and synthetic polymer-based [6,15,16,17,18,19,20,21,22,23,24] fibrous membranes show good water purification and oil sorption capacity, buoyancy and resistance to rot and mildew [25,26]. Chemically inert polymer-based fibrous membranes with large surface areas and hierarchical porosity, which are beneficial for liquid sorption [27,28], can be easily produced via electrospinning, a cost-effective and scalable top-down technique [10,19,29,30,31,32,33,34,35,36,37,38,39]. Compared to the low-cost melt-blown membranes [40], the electrospun supports show greater re-usability in filtration applications. Several polymers, such as polystyrene [10], polyimide [27] and polyvinylpyrrolidone [41], have been evaluated for the production of sorbent membranes.
Presently, due to new environmental protection policies, the development of materials with high and efficient sorption capacity is attracting renewed attention [42,43,44]. Although polyacrylonitrile (PAN) is among the polymers most frequently chosen for the production of electrospun fibrous membranes [31], few studies have reported the use of PAN-derived membranes for oil recovery (Table S1), focusing mainly on mineral oils [5,29,45]. Usually, to increase the surface area and porosity of the sorbent and improve its sorption performance, after synthesis, the membranes are treated with harsh chemicals [46,47,48], which are dangerous for human health and the conservation of ecosystems.
This paper deals with the preparation and evaluation as oil sorbents of self-supporting paper-like PAN-derived fibrous membranes. To limit the environmental impact, prevent heavy harmful effects on human health and improve the sustainability of the sorbent production process, the increase in the surface area of sorbent and porosity is achieved by incorporating a porogen (polymethylmethacrylate, PMMA) in the spinnable solution [46,47,48] and the as-carbonised membranes are evaluated as sorbents of both mineral (motor) and vegetable (sunflower seed or olive) oils. The effect of the variation of the carbonisation temperature (500, 650 or 800 °C) and PAN/PMMA mass ratio (1:0, 6:1 or 2:1) on the oil recovery efficiency and oil-from-water separation ability is investigated. Although the great number of sorbent and oil properties involved usually hinders finding general trends easily, the main factors controlling the oil recovery efficiency and oil from water separation ability of the investigated membranes are identified.

2. Materials and Methods

2.1. Preparation of the Self-Supporting Paper-Like Fibrous Membranes

Sigma Aldrich supplied N,N-dimethylformamide (DMF, HCON(CH3)2, anhydrous: 99.8%, CAS No. 68-12-2), polyacrylonitrile ((C3H3N)n, purity: 99.9%, average molecular weight: 150,000 g mol−1, CAS No. 25014-41-9) and polymethylmethacrylate ([CH2C(CH3)(CO2CH3)]n, average molecular weight: 350,000 g mol−1, CAS No. 9011-14-7). All materials were used without further purification.
The sorbent membranes (Figure 1) were produced following the procedure illustrated in detail in a previous work [49]. As sketched in Figure S1, it consisted of: (1) the preparation of the spinnable solution; (2) electrospinning; (3) the oxidative treatment of the as-spun membrane (stabilisation); and (4) subsequent annealing in inert atmosphere (carbonisation). Table 1 reports the composition of the polymer solution and the stabilisation and carbonisation conditions.
The spinnable solution was prepared by dissolving polymer(s) in DMF. Electrospinning was carried out in air (relative humidity: 40%) at a temperature of 20 ± 1 °C by means of a CH-01 Electro-spinner 2.0 (Linari Engineering s.r.l., Florence, Italy). The PAN/DMF and PAN/PMMA/DMF solutions were fed at volumetric rates of 1.41 mL h−1 and 1.00 mL h−1, respectively. In the former case, the applied voltage was 17.2 kV; in the latter, it was 15.0 kV. The collection distance was kept constant at 11 cm. Stabilisation was carried in static air; carbonisation was operated at flow of 100 cc min−1 N2. Further details can be found in the Supplementary Materials.

2.2. Characterisation of the Produced Membranes

After thermal processing, the produced membranes were analysed using scanning electron microscopy (SEM), micro-Raman spectroscopy (MRS), X-ray diffraction (XRD) and Brunauer–Emmmett–Teller (BET) analysis. Their texture and morphology was investigated by SEM. Lower magnification SEM images were acquired using a Phenom Pro-X (Deben, Suffolk, UK) scanning electron microscope, endowed with Fibermetric software for the automated measurements of the NF diameters. A FEI S-FEG XL30 microscope (Philips, Eindhoven, The Netherlands) was used to acquire higher magnification images. The carbonisation of the membranes was ascertained using MRS. Raman scattering excited by a solid-state laser operating at 2.33 eV (532 nm) was measured by using a NTEGRA–Spectra SPM spectrometer (NT-MDT LLC, Moscow, Russia), equipped with MS3504i 350 mm monochromator and ANDOR Idus CCD (Oxford Instruments, Belfast, UK). The scattered light from the sample was collected by a Mitutoyo 0.75 numerical aperture 100× objective. The use of a very low laser power (250 μW at the sample surface) prevented local heating of the samples and annealing effects. A D2 Phaser diffractometer (Bruker, Karlsruhe, Germany), equipped with a Ni β-filtered Cu-Kα radiation source (λ = 0.1541 nm), was used to record XRD patterns. The specific surface area was determined from N2 adsorption/desorption isotherms at 77 K using Tristar II 3020 apparatus (Micromeritics, Norcross, GA, USA) and the instrumental software (version 1.03). Porosity distribution was determined by applying BET and Barrett–Joyner–Halenda (BJH) analyses. Before measurements, samples were pretreated (150 °C, 4 h, N2) to remove adsorbed foreign species.

2.3. Contact Angle Measurements

To investigate the hydrophilicity/hydrophobicity of the membranes, a water drop was released on the sorbent surface and the contact angle was measured from images caught at the optical microscope using the experimental setup purposely assembled (Figure S2).

2.4. Liquid Adsorption Tests

The liquid adsorption capacity of the produced sorbents was evaluated via two tests: (1) immersion tests (in a single liquid, oil or water); and (2) spill tests (to evaluate the oil recovery efficiency from an oil/water mixture and the selectivity towards oil adsorption). For this purpose, distilled water (control liquid), vegetal (olive and sunflower seed) and mineral (motor) oils were investigated. Their main specifics are reported in Table S2.

2.4.1. Immersion Tests

Immersion tests were carried out following the procedure illustrated in Figure S3. Sorbent, preliminarily weighed, was immersed in a glass beaker containing liquid (oil or water). After about 5 min of sorption, the sorbent was drained for 3 min, to remove the residual liquid droplet (although less than 1 min was enough to ensure the removal of excess of droplets). As usual [40], the sorption capacity, that is the liquid recovery efficiency, RL (g g−1), of the membrane was determined via Equation (1):
R L = M L M 0
where ML (g) indicates the mass of adsorbed liquid, obtained by difference, M − M0, between the masses of the liquid-saturated sorbent after drainage (M) and of the dry sorbent (M0). After the adsorption test, the oil was removed from the sorbent by washing in organic solvent (diethyl-ether).

2.4.2. Spill Tests

Figure S4 illustrates the procedure of spill tests. About 5 mL of vegetal or mineral oil were added to 20 mL of water (to obtain a thin oil layer over the water), in order to simulate an accidental oil spill. After weighing (M0), sorbent was placed in the mixture of oil–water for 5 min and subsequently drained for 3 min to remove the residual liquid droplet (Figure S4), as in the immersion tests. After weighing (M), the drained sorbent was placed in a thermostatic chamber at 60 °C for the slow removal of water. After weight stabilisation, it was weighed again (M1). As in Wu et al. [50], the oil recovery efficiency, RO, was calculated using Equation (1) with the mass of recovered oil, evaluated as M1 − M0. The mass of water recovered was estimated as the difference between the masses of the sorbent before and after drying (M − M1); the corresponding recovery efficiency RW, was calculated via Equation (1). Finally, following Piperopoulos et al. [42], the oil-to-water selectivity of the sorbent (SO/W) was evaluated by normalising the oil-to water-recovery efficiency, namely:
S O / W = R O R W

3. Results and Discussion

3.1. Effect of the Thermal Treatments

Stabilisation in-air of as-spun membranes converts PAN to an infusible stable ladder polymer [51,52]. This happens through the cyclisation of nitrile groups (C≡N) and cross-linking of the chain molecules in the form of –C=N–C=N–, which limits volatilisation and maximises the carbon yield, and at the same time prevents melting during the subsequent step at higher temperature. The evolution of water vapour accompanies these chemical reactions. In the present case, regardless of the composition of the spinnable solution, stabilisation produced an average mass loss of 11.4 ± 1.7 wt%.
During carbonisation, the dehydrogenation and condensation of cyclic structures occur between 400 and 500 °C [53]. At carbonisation temperature (TC) ≥ 600 °C, graphite-like domains, with preferential alignment of the (002)-planes parallel to the NF axis, form on the lateral surfaces [52], while non-carbonised components are selectively removed from the NFs [51,53] under the form of volatile compounds, such as HCN, N2, NH3, CO and CO2, with consequent changes in the surface chemistry (including polarity) and morphology of the NFs (pores and beads). The carbonisation of the PAN-based membranes was accompanied by a mass loss roughly proportional to TC (Figure S5a), while during the carbonisation of the PAN/PMMA-derived membranes at 650 °C, the mass loss was roughly proportional to the relative amount of PMMA (Figure S5b), which completely degrades below this temperature via homolytic scission of the chain, side group scission and depolymerisation [54].

3.2. Physico-Chemical Properties of the Sorbent Membranes

3.2.1. Morphology and Texture of the NFs

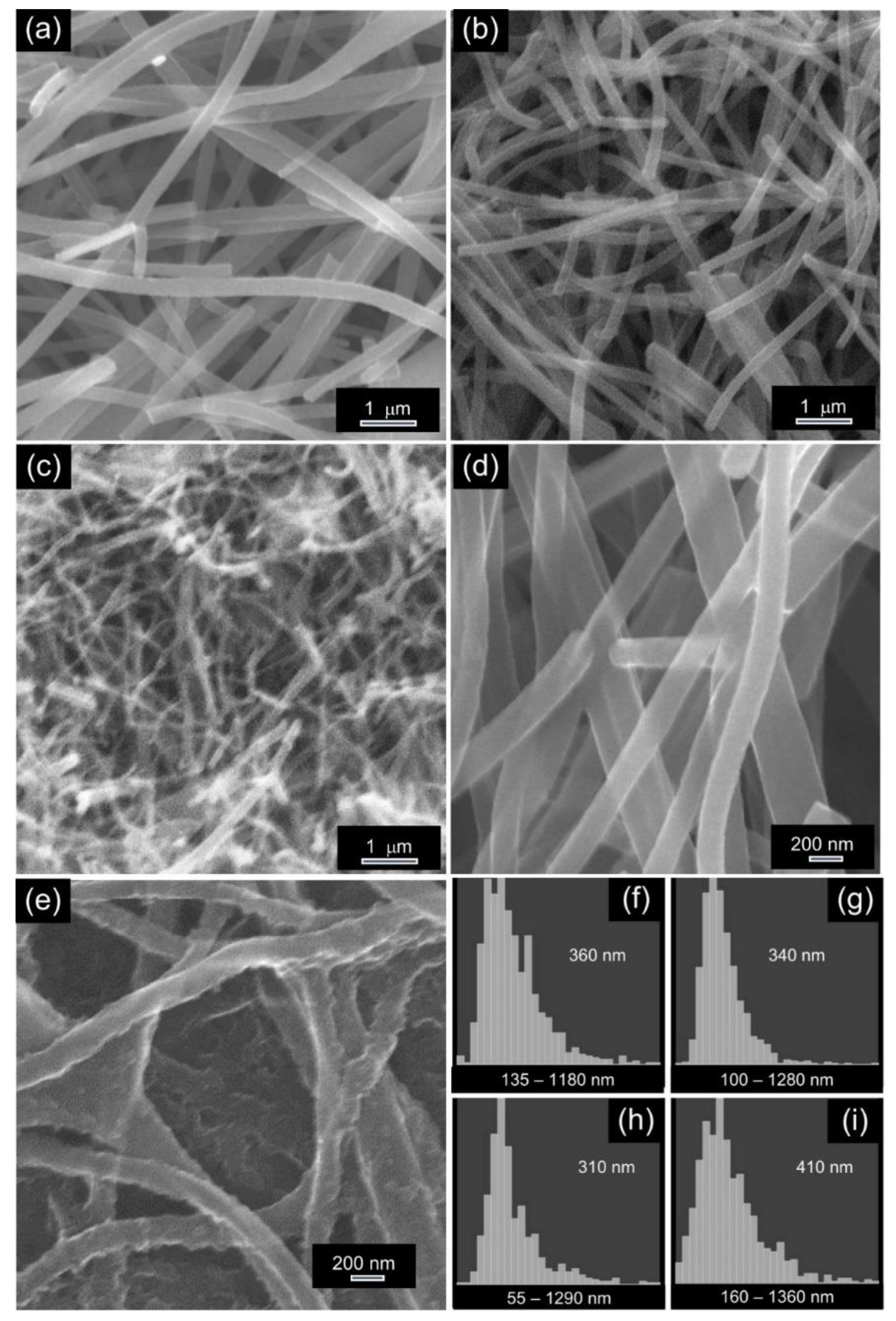

The morphology of the thermally processed membranes was assessed via SEM analysis. Regardless of their preparation conditions, the membranes exhibited a non-woven fibrous morphology and were characterised by a great spatial homogeneity (Figure 1f). In the PAN-based membranes (Figure 2a,b,d), NFs were smooth; on the contrary, in the PMMA/PAN-derived membranes (Figure 2c,e), the surface looked rough, particularly for lower PMMA content (Figure 2e). Moreover, the coalescence of some NFs generated macropores (Figure 2e).
Figure 2f−i shows the distribution of the NF diameters, automatically calculated by the image analysis software. As expected [52], with increasing TC (from 500 to 800 °C), the diameter of the PAN-based NFs slightly shrunk (the distribution centre value decreased from 360 to 310 nm). The blend-derived NFs, carbonised at the same TC (650 °C), had larger diameters, in agreement with the literature reports [55]. The diameter increase was due to the generation of a relatively large volume of volatile products from PMMA degradation/gasification during the PAN carbonisation, which counteracted the NF contraction [43].

3.2.2. Porosity

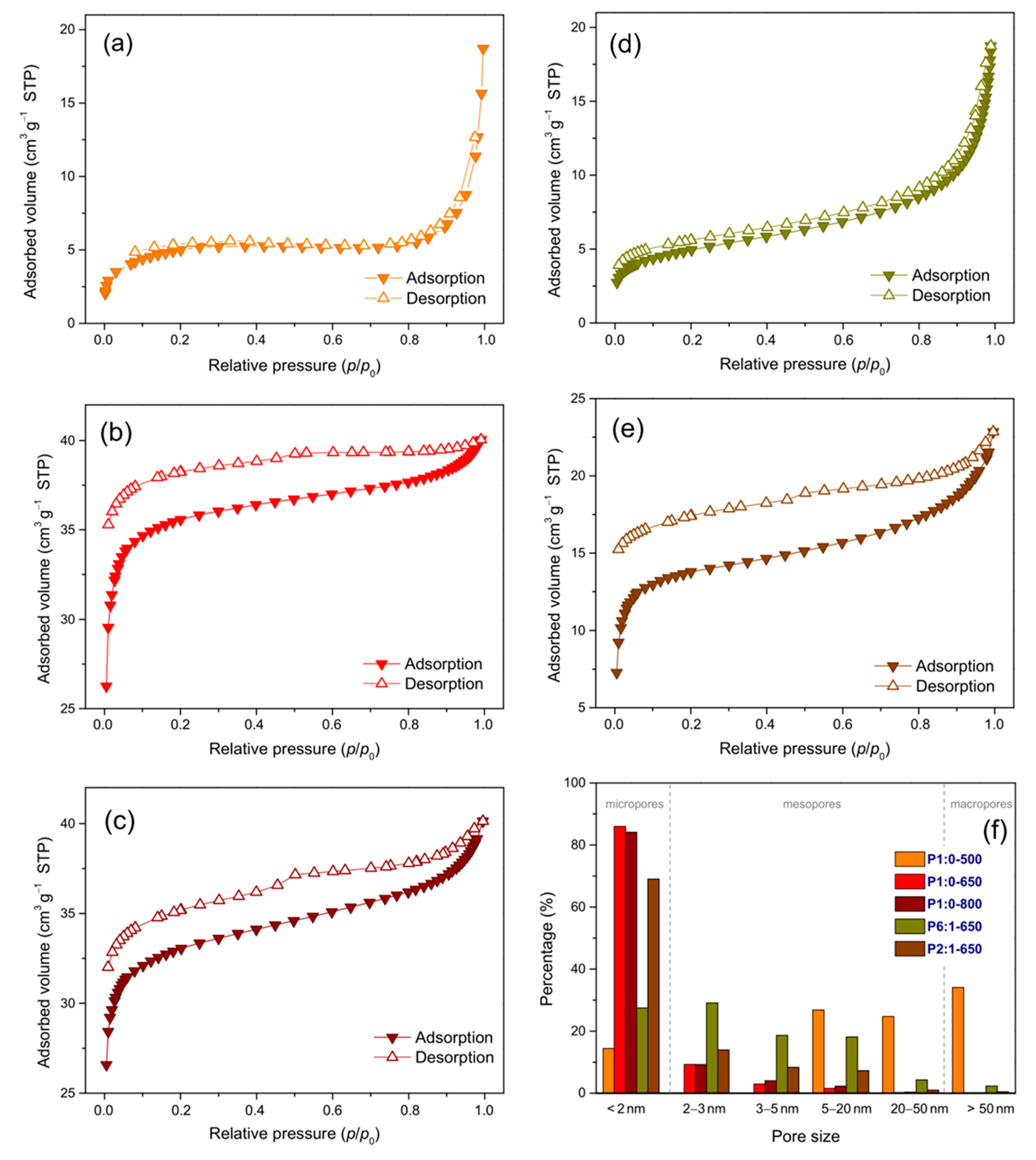

Figure 3 shows the N2 adsorption/desorption isotherms of the NFs and the pore size distributions. The isotherms of membrane P1:0-500 (Figure 3a) were different from those of the membranes carbonised at higher TC; they were featured by a steep slope at higher relative pressures, as typical of the presence of mesopores (2−50 nm) and macropores (>50 nm) [56].
Actually, the membrane carbonised at 500 °C had the smallest fraction of micropores (<2 nm, see fmicro in Table 2). At higher TC, the selective removal of non-carbonised components from the NFs as volatile species [51,53] led to a remarkable increase in fmicro. In addition, in the membranes P1:0-650 (Figure 3b) and P1:0-800 (Figure 3c), the hysteresis occurred until relatively low relative pressures pointed at the formation of ultramicropores (<0.7 nm, non-quantifiable by nitrogen, [57]). The isotherms of the blend-derived membranes were different from each other (Figure 3d,e). Membrane P6:1-650 had greatly smaller surface area (ST) and micropore volume (Vmicro) compared to the blend-derived membrane carbonised at the same TC (Table 2), hinting at a hindrance to the formation of open porosity; with increasing PMMA content of the blend, ST and Vmicro increased, and the occurrence of hysteresis (Figure 3e) pointed at the formation of ultramicropores as in membranes P1:0-650 and P1:0-800.

3.2.3. Amorphous Nature of the NFs

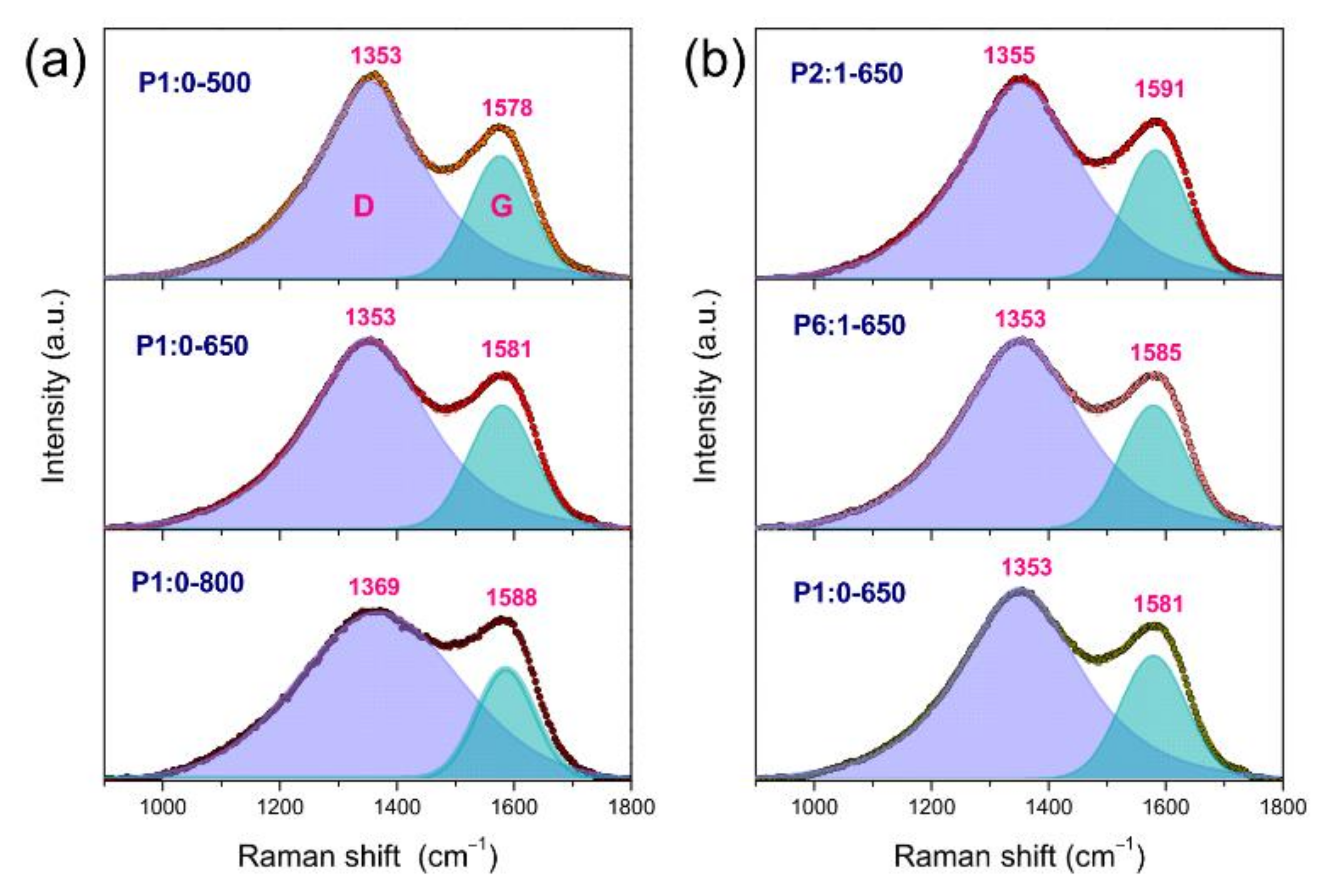

Figure 4 displays the micro-Raman spectra of the membranes. The detection of the broad D- and G-bands (at 1346 and 1580 cm−1, respectively), typical of highly disordered graphitic nanocarbons [59], confirmed the polymer carbonisation, as well as the amorphous nature of the formed NFs. Graphitisation takes place only over 2500 °C [52]; at lower TC, graphite-like domains are formed [53], but the entanglement of PAN molecules in the electrospun NFs limits the development of crystals during carbonisation, resulting in low graphitic mole fraction [60]. The selective removal of the non-carbonised components from the NFs as volatile compounds [51,53] causes the composition of the polymer-based NFs to change [51,52].
As is known [49,58,61], the frequency position of the G-band (ωG) is sensitive to the presence of heteroatoms in the graphite-like lattice, while the D/G intensity ratio (ID/IG) is affected by the average size of the graphite-like domains (LC). In nitrogen-rich carbon NFs, the G-band downshifts [49], while in oxygen-functionalised carbons, it upshifts as an effect of the electron transfer from the π-states to the oxygen atoms [62]. Hence, the spectra were fitted in order to monitor the changes produced by the variation of TC and PMMA amount. Following the most recent trends on the analysis of Raman spectra of amorphous nanocarbons [63], Gaussian–Lorentzian lineshapes were used to reproduce the spectra. The main results obtained are reported in Table S3. The increase in TC from 500 to 800 °C caused only a very slight increase in LC (from 2.75 to 2.89 nm). This finding, in agreement with the literature reports [51,52] and the indications emerging from the XRD analysis (Figure S6), reflected the small change of the graphitic mole fraction taking place in this TC range [60]. ωG changed to a larger extent (from 1578 to 1588 cm−1), reflecting the decrease (increase) in nitrogen (oxygen) content in the NFs [64]. The increase in PMMA amount was also accompanied by a small LC increase (from 2.84 to 3.01 nm); the upshift of the G-band (from 1581 to 1591 cm−1) signalled the increase in the oxygen content of the NFs [62].

3.3. Sorption Performance of the Membranes

3.3.1. Water Immersion Tests

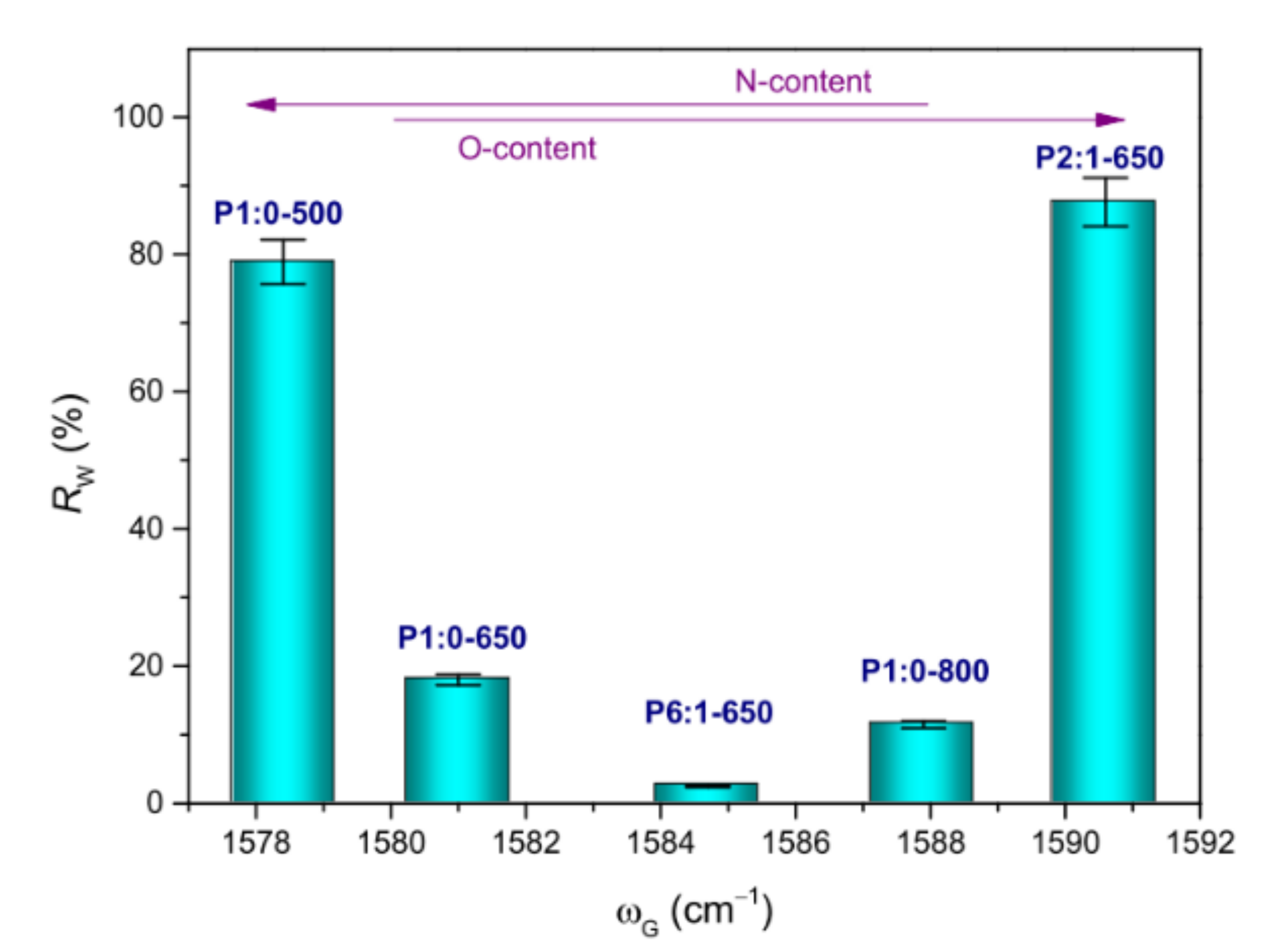

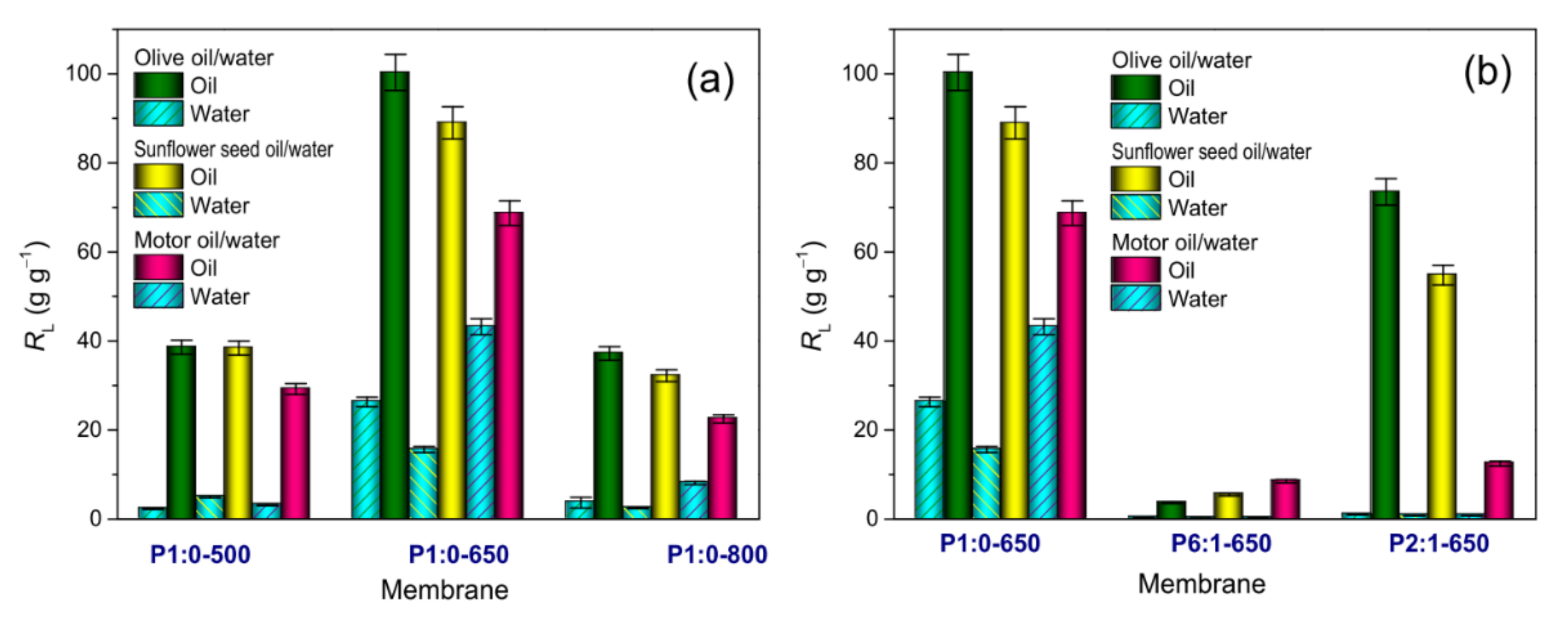

Figure 5 displays the liquid (water or oil) recovery efficiencies measured in immersion tests, while the numerical values are reported in Table S4. Among the PAN-based membranes, the highest water recovery efficiency (RW) pertained to P1:0-500 that exhibited a hydrophilic nature. Water drop was immediately adsorbed on this membrane (Figure S7a–c). The increase in TC caused the membranes to become hydrophobic (Figures S7d–f and S8 and Video S1). In the membrane P1:0-650, the measured water contact angle was 135° (Figure S9), in agreement with the literature [44,65]. A significant decrease in RW (from 78.9 g g−1 in membrane P1:0-500 to 11.5 g g−1 in P1:0-800) accompanied these changes (Figure 5a). At TC = 650 °C (Figure 5b), RW varied non-monotonically with the PMMA content of the blend, increasing in the order P6:1-650 (2.5 g g−1) < P1:0-650 (18.0 g g−1) < P2:1-650 (87.6 g g−1).
As is well known [49,65,66,67], the presence of (nitrogen- and/or oxygen-containing) functional species on the material surface can noticeably increase its wettability in the presence of polar liquids. Actually, RW was found to increase as the G-band downshifted or upshifted, signalling the changes in nitrogen and oxygen contents in the graphite-like carbon network (Figure 6).

3.3.2. Oil Immersion Tests

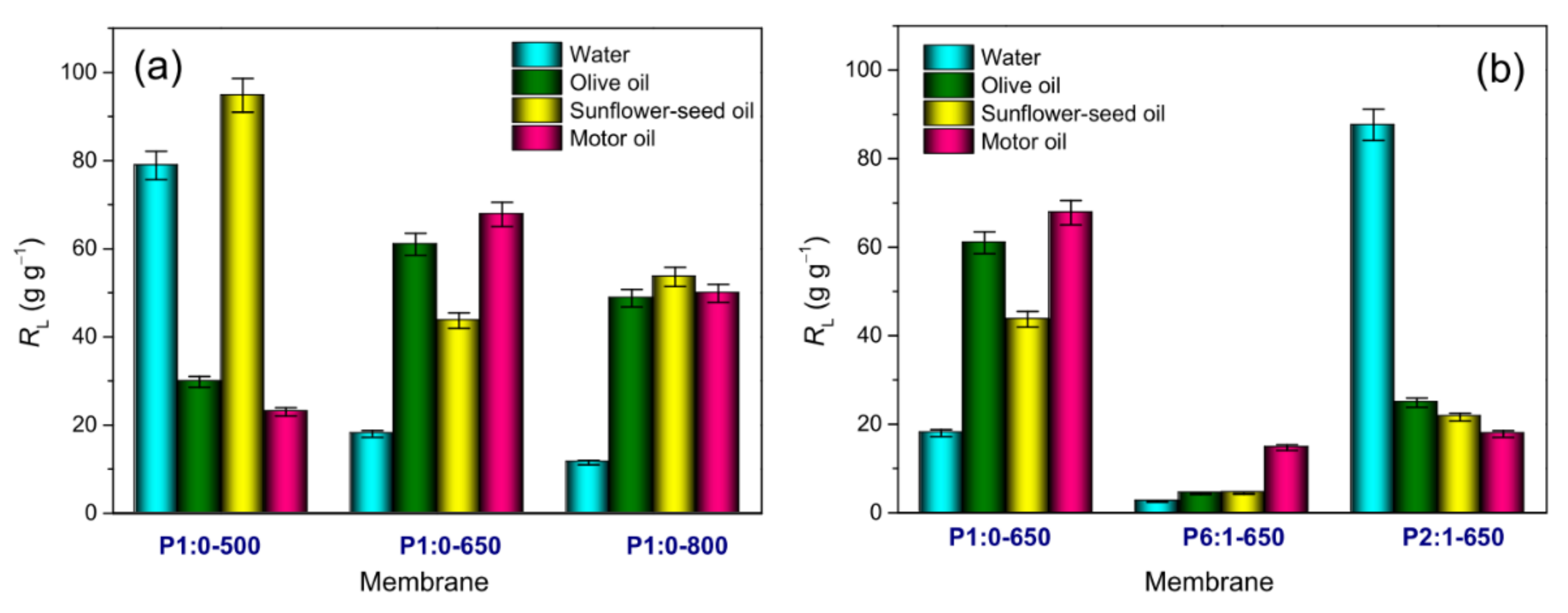

Figure 5 displays the oil recovery efficiencies (RO) measured in immersion tests, while the numerical values of RO are reported in Table S4. Two different kinds of oils were tested: motor oil (MO) and vegetable oils (VOs), namely olive oil (OO) and sunflower seed oil (SFO). Their main specifics are reported in Table S2. MO is typically composed (up to 73–80% w/w) of aliphatic hydrocarbons (primarily alkanes and cycloalkanes with one to six rings), 11–15% mono-aromatic hydrocarbons, 2–5% di-aromatic hydrocarbons and 4–8% poly-aromatic hydrocarbons [68]. Triglycerides are the main components (95–98%) of VOs [69]. Triglycerides are composed of fatty acids [70], which, according to their saturation level, are classified into saturated, mono- and poly-unsaturated fatty acids. The fatty acid composition of triglycerides in vegetable oils noticeably varies, and this variability determines different oil physical and chemical properties. The fatty acid chain length may slightly influence the polarity of oils. Minor components (less than 5%) are also present in vegetable oils, such as glycerolipids, phospholipids, and non-glycerolipids, including sterols, tocopherols/tocotrienols, free fatty acids, vitamins, pigments, proteins and phenolic compounds [71,72]. Most of these minor components have a polar character [73,74].
Generally, since hydrophobic surfaces are oleophilic (i.e., these surfaces show a stronger affinity to oils compared to water), they are preferred for oil absorption [43]. Accordingly, among the PAN-based membranes, P1:0-650 showed the highest RO values for OO and MO (Figure 5a).
The capacity of adsorbing MO shown by this membrane was comparable to the value reported by Liu et al. [29] for macroporous carbon NFs (67.8 g g−1 against 64.0 g g−1 for the latter). This capacity was greater than the value measured by Matripragada et al. [43] for carbon NFs with internal porous structures (44.9 g g−1). The blend-derived membranes exhibited RO values (Figure 5b) always lower for the PAN-based membrane carbonised at the same temperature (4.4–42.8 g g−1 against 43.7–67.8 g g−1, respectively).
However, as is known [10,29,42], the chemical and physical properties of the oils also influence the adsorbing capacity of the membrane. Although VOs are classified as non-polar liquids, their polarity can be slightly influenced by the length of fatty acid chains and by the presence of minor components with polar character [73,74]. Generally, higher surface tension characterizes polar substances compared to their non-polar counterparts.

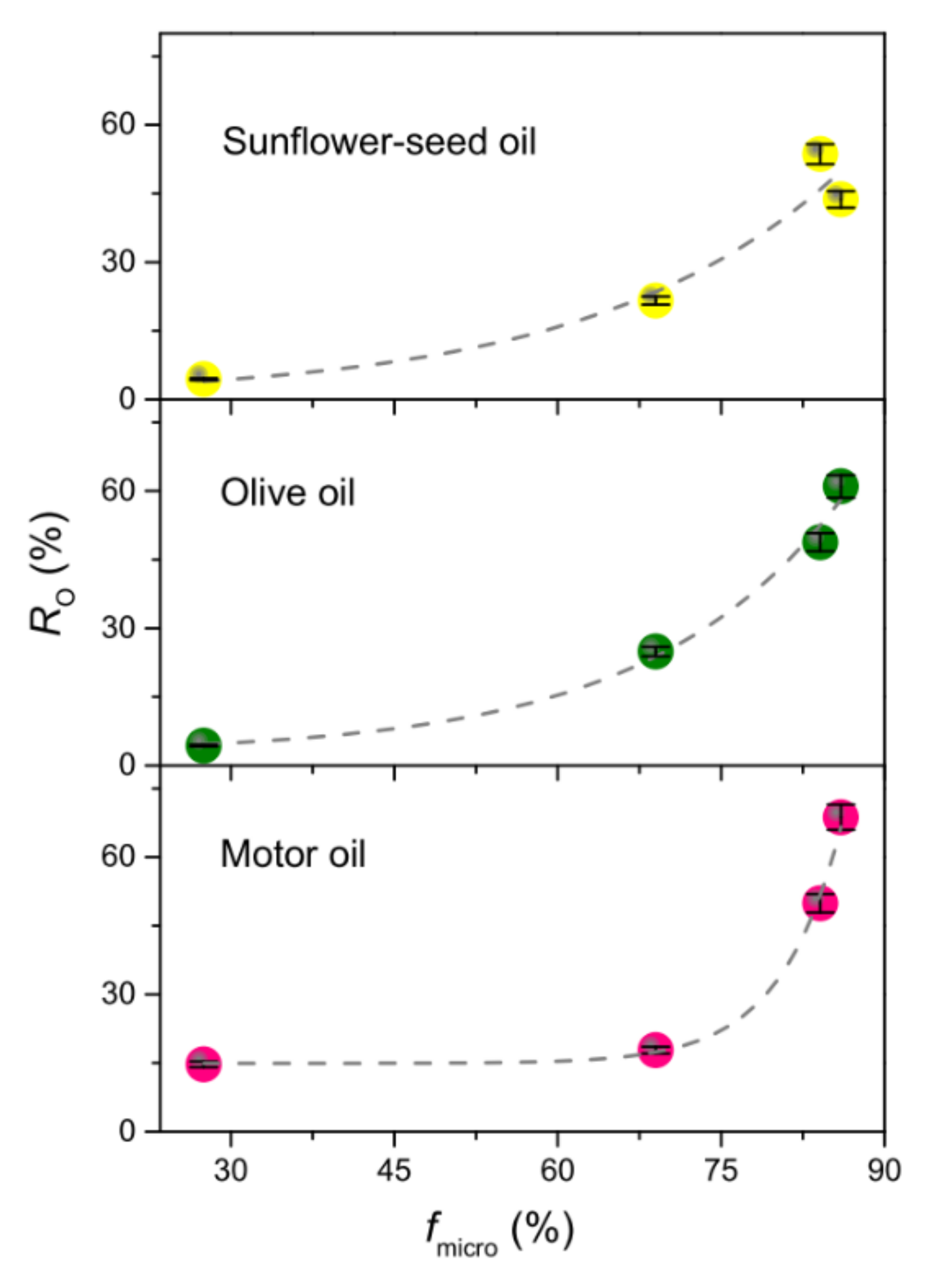

A good correlation was found between RO measured for the membrane P1:0-500, containing ~21 wt% nitrogen and being rich in polar surface-groups [49], and the oil surface tension (Figure S10): the higher surface tension of the oil, the higher RO.
For the remaining membranes, RO was found to fairly correlate with the fraction of micropores (Figure 7), whose presence is known to be beneficial for capillary action to transport liquids [44,65]. In fact, for any oil, the higher fmicro, the higher RO. The small differences observed were understood as the effect of the competition occurring between viscosity and surface tension [50]. On one hand, high viscosity can increase the sorption capacity by improving the adherence of oil onto the sorbent surface; on the other hand, it can hinder sorption, inhibiting the oil penetration into the smaller pores and inner parts of the sorbent. Low values of surface tension favour the oil penetration/trapping into the sorbent. The viscosity of the considered oils increases in the order SFO < OO << MO, while surface tension varies in the order MO < OO < SFO (Table S2). The lower viscosity of VOs allowed for their adsorption into the parts of the sorbent, where the oil droplets have to deform to larger extents to penetrate, resulting in higher RO compared to MO in membranes with smaller fmicro. Conversely, the lower surface tension and higher viscosity of MO favoured its penetration and trapping into the sorbent due to the improved adherence to its surface, which accounted for the higher RO compared to VOs measured for this oil in the presence of higher fmicro.

3.3.3. Spill Tests and Oil/Water Selectivity

Table S5 reports the numerical values of recovery efficiencies measured in the spill tests. Among the tested membranes, P1:0-650 showed the highest RO values for any type of oil (reaching 100.3 g g−1 for OO, Figure 8a). In the case of MO, its recovery efficiency was five-fold and over the value reported by Alassod et al. [16] for the lower cost polypropylene melt blown non-woven membranes (68.7 g g−1 against 13.3 g g−1). Compared to the latter, the blend-derived membranes were always less efficient in recovering oil (Figure 8b).

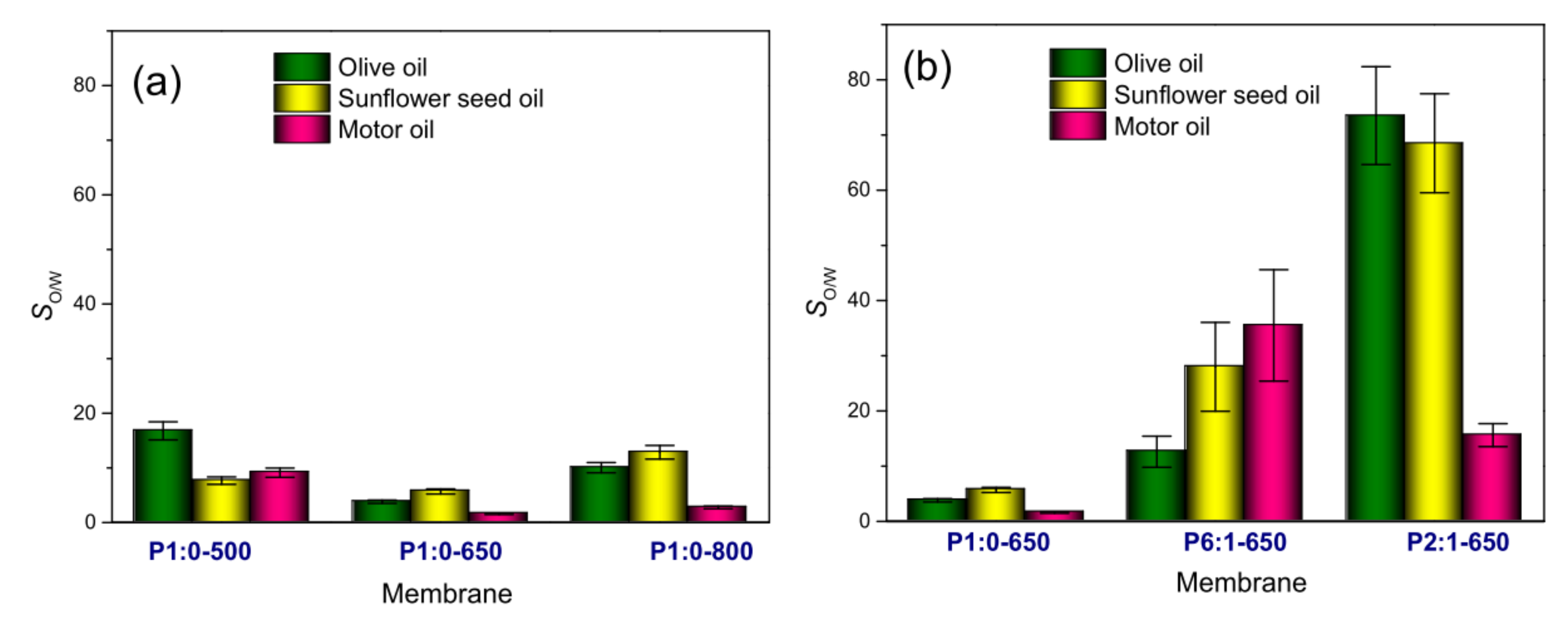

As shown in Figure 8, in the spill tests, water was also recovered together with oil. The proportionality between the recovered water and recovered oil (Figure S11) strongly pointed at the encapsulation of water nanodroplets by oil, which could be an effect of the (mixing and) interaction between the two liquids during the immersion of the membrane in the bi-phasic mixture [75] (Figure S12).

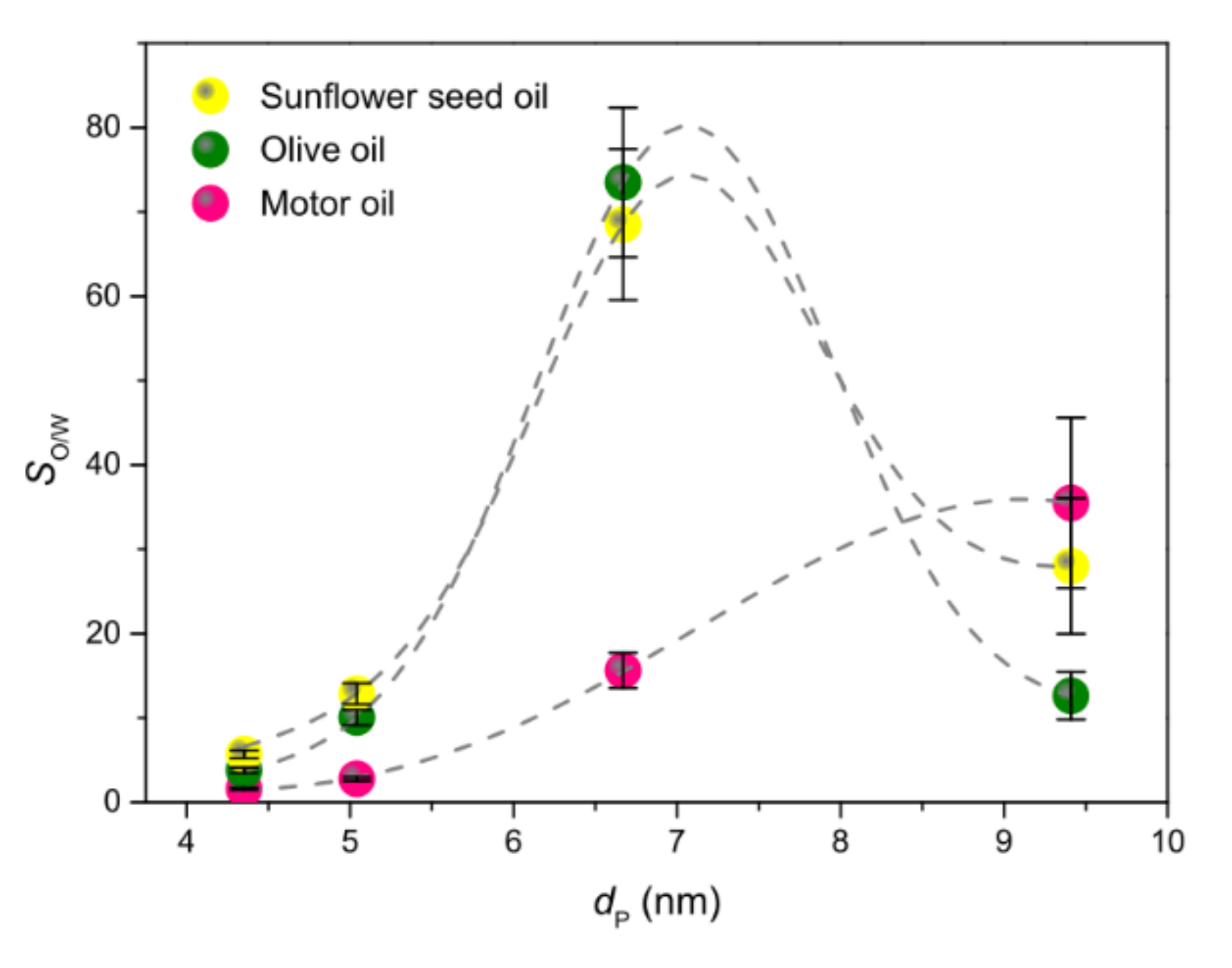

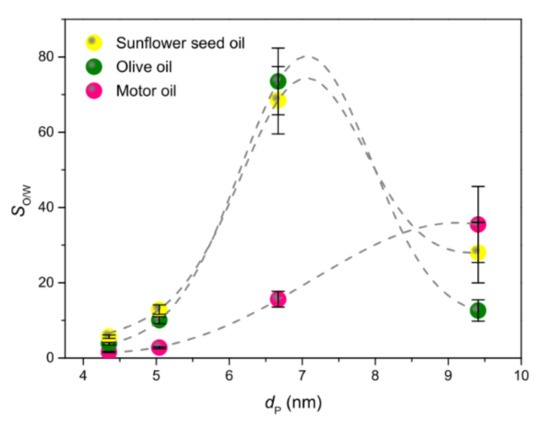

By following Piperopoulos et al. [42], the oil/water selectivity (SO/W) of all membranes was evaluated via Equation (2). The results obtained are displayed in Figure 9 and reported in Table S5. The water uptake accompanying the adsorption of VOs proceeded at a lower rate compared to MO (Figure S11), which resulted in higher SO/W.
Due to the many factors involved, finding general trends for SO/W is a very difficult task. In the case of membrane P1:0-500, the strength of capillary force, as monitored by the ratio of surface tension to mass density of the oil (Figure S13a), played a key role in the competition between the two liquids for the adsorption: the higher the capillary force, the lower SO/W. For the other membranes (Figure 10), SO/W appeared to be mainly controlled by the average pore size (dP). However, the details of the SO/W dependence on dP were different: a monotonical increase with dP was observed for MO, while the curves of VOs peaked around an optimal dP value. This finding indicated that also, the oil properties matter, as is obvious. In membranes P1:0-650 and P1:0-800, featured by smaller dP and higher fmicro (Table 2), SO/W was found to decline with increasing oil viscosity (Figure S13b). The higher oil-from-water separation ability pertained to membranes P6:1-650 and P2:1-650, featured by larger dP. Overall, among the investigated membranes, P2:1-650 looked to be the best performing in terms of both oil sorption capacity (73.5, 54.8 and 12.5 g g−1 for olive, sunflower seed and motor oil, respectively) and oil-from-water separation ability (74, 69 and 16 for olive, sunflower seed and motor oil, respectively).

4. Conclusions

Self-supporting paper-like PAN/PMMA-derived fibrous membranes were prepared via electrospinning. The as-carbonised membranes were evaluated as oil sorbents without carrying out any post-synthesis treatment with harsh chemicals. The effect of the variation of the carbonisation temperature (500–800 °C) and PAN/PMMA mass ratio (1:0–2:1) on the pore size distributions, microstructural properties, oil recovery efficiency and oil-from-water separation ability of the membranes was investigated. In spite of the great number of (sorbent and oil) properties involved, for all the membranes except those carbonised at the lowest temperature, the fraction of micropores was found to chiefly control the oil recovery efficiency in immersion tests, whereas the oil-from-water separation ability in spill tests was mainly dependent on the average pore size.
Thanks to the scalability of the electrospinning and the availability of commercial machineries able to produce fibre sheets up to 300–600 m2 large (depending on the sheet thickness), this laboratory-scale study provides a new perspective towards the sustainable manufacture of fibre sorbents on an industrial scale.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/membranes11070515/s1, Figure S1. Sketch of the synthesis procedure, Figure S2. Experimental setup to measure the water contact angle., Figure S3. sketch of the procedure for the liquid recovery efficiency estimation by immersion, Figure S4. sketch of the procedure the recovery efficiency in the case of the bi-phasic liquid, Figure S5. mass loss during carbonisation, Figure S6. XRD patterns of PAN-derived membranes, Figure S7. spread of a drop of water and oil over membrane, Figure S8. a water drop over membrane P1:0-650 and immersion of the membrane in water, Figure S9. water droplet contact angle measurement, Table S4. liquid recovery efficiencies measured in immersion tests. Table S5. liquid recovery efficiencies and oil/water selectivity measured in spill tests. Figure S10. relation between recovery efficiency and oil surface tension in adsorption tests, Figure S11. plots of water- vs. oil-recovery efficiency, Figure S12. image of the membrane immersion in the bi-phasic oil/water mixture in the spill tests, Figure S13. dependence of the oil/water selectivity on the strength of capillary action and oil viscosity, Table S1. main characteristics and results reported in the studies on PAN membranes used as oil sorbents, Table S2. main physical properties of the tested liquids, Table S3. results of MRS and XRD analyses, Table S4. Recovery efficiencies measured in tests of immersion in water, olive oil and sun-flower seed oil and motor oil, Table S5. Water and oil recovery efficiencies, Video S1. membrane hydrophocity. References [4,29,45,76,77,78,79] are cited in the supplementary materials.

Author Contributions

Conceptualization, S.S. and D.A.Z.; methodology, validation and formal analysis A.F., B.P., C.T. and F.P.; data curation, S.S., A.F. and C.T.; writing—original draft preparation, review and editing, S.S.; visualization, S.S.; supervision, S.S. and D.A.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable. The study did not involve humans or animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding authors upon reasonable request.

Acknowledgments

We thankfully acknowledge Mariangela Longhi for porosimetry measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, H.; Wang, C.; Zou, S.; Wei, Z.; Tong, Z. Simple, reversible emulsion system switched by pH on the basis of chitosan without any hydrophobic modification. Langmuir 2012, 28, 11017–11024. [Google Scholar] [CrossRef]
  2. Reddy, C.M.; Eglinton, T.I.; Hounshell, A.; White, H.K.; Xu, L.; Gaines, R.B.; Frysinger, G.S. The West Falmouth oil spill after thirty years: The persistence of petroleum hydrocarbons in marsh sediments. Environ. Sci. Technol. 2002, 36, 4754–4760. [Google Scholar] [CrossRef] [PubMed]
  3. Doshi, B.; Sillanpää, M.; Kalliola, S. A review of bio-based materials for oil spill treatment. Water Res. 2018, 135, 262–277. [Google Scholar] [CrossRef] [PubMed]
  4. Tai, M.H.; Tan, B.Y.L.; Juay, J.; Sun, D.D.; Leckie, J.O. A self-assembled superhydrophobic electrospun carbon-silica nanofiber sponge for selective removal and recovery of oils and organic solvents. Chem. Eur. J. 2015, 21, 5395–5402. [Google Scholar] [CrossRef] [PubMed]
  5. Choi, H.-M.; Moreau, J.P. Oil sorption behavior of various sorbents studied by sorption capacity measurement and environmental scanning electron microscopy. Microsc. Res. Tech. 1993, 25, 447–455. [Google Scholar] [CrossRef]
  6. Deschamps, G.; Caruel, H.; Borredon, M.E.; Bonnin, C.; Vignoles, C. Oil removal from water by selective sorption on hydrophobic cotton fibers. 1. Study of sorption properties and comparison with other cotton fiber-based sorbents. Environ. Sci. Technol. 2003, 37, 1013–1015. [Google Scholar] [CrossRef]
  7. Zahid, M.A.; Halligan, J.E.; Johnson, R.F. Oil slick removal using matrices of polypropylene filaments. Ind. Eng. Chem. Process Des. Dev. 1972, 11, 550–555. [Google Scholar] [CrossRef]
  8. Dourou, M.; Kancelista, A.; Juszczyk, P.; Sarris, D.; Bellou, S.; Triantaphyllidou, I.E.; Rywinska, A.; Papanikolaou, S.; Aggelis, G. Bioconversion of olive mill wastewater into high-added value products. J. Clean. Prod. 2016, 139, 957–969. [Google Scholar] [CrossRef]
  9. Komnitsas, K.; Zaharaki, D. Pre-treatment of olive mill wastewaters at laboratory and mill scale and subsequent use in agriculture: Legislative framework and proposed soil quality indicators. Resour. Conserv. Recycl. 2012, 69, 82–89. [Google Scholar] [CrossRef]
  10. Lin, J.; Shang, Y.; Ding, B.; Yang, J.; Yu, J.; Al-Deyab, S.S. Nanoporous polystyrene fibers for oil spill cleanup. Mar. Pollut. Bull. 2012, 64, 347–352. [Google Scholar] [CrossRef]
  11. Cerisuelo, A.; Castelló, L.; Moset, V.; Martínez, M.; Hernández, P.; Piquer, O.; Gómez, E.; Gasa, J.; Lainez, M. The inclusion of ensiled citrus pulp in diets for growing pigs: Effects on voluntary intake, growth performance, gut microbiology and meat quality. Livest. Sci. 2010, 134, 180–182. [Google Scholar] [CrossRef]
  12. Calabrò, P.S.; Fòlino, A.; Tamburino, V.; Zappia, G.; Zema, D.A. Increasing the tolerance to polyphenols of the anaerobic digestion of olive wastewater through microbial adaptation. Biosyst. Eng. 2018, 172, 19–28. [Google Scholar] [CrossRef]
  13. Gómez, A.; Zubizarreta, J.; Rodrigues, M.; Dopazo, C.; Fueyo, N. An estimation of the energy potential of agro-industrial residues in Spain. Resour. Conserv. Recycl. 2010, 54, 972–984. [Google Scholar] [CrossRef]
  14. Sharma, P.R.; Sharma, S.K.; Lindström, T.; Hsiao, B.S. Nanocellulose-enabled membranes for water purification: Perspectives. Adv. Sustain. Syst. 2020, 4, 1900114. [Google Scholar] [CrossRef]
  15. Ceylan, D.; Dogu, S.; Karacik, B.; Yakan, S.D.; Okay, O.S.; Okay, O. Evaluation of butyl rubber as sorbent material for the removal of oil and polycyclic aromatic hydrocarbons from seawater. Environ. Sci. Technol. 2009, 43, 3846–3852. [Google Scholar] [CrossRef] [PubMed]
  16. Alassod, A.; Abedalwafa, M.A.; Xu, G. Evaluation of polypropylene melt blown nonwoven as the interceptor for oil. Environ. Technol. 2020, 2784–2796. [Google Scholar] [CrossRef]
  17. Hyung-Mln, C.; Cloud, R.M. Natural sorbents in oil spill cleanup. Environ. Sci. Technol. 1992, 26, 772–776. [Google Scholar]
  18. Radetić, M.M.; Jocić, D.M.; Jovančić, P.M.; Petrović, Z.L.; Thomas, H.F. Recycled wool-based nonwoven material as an oil sorbent. Environ. Sci. Technol. 2003, 37, 1008–1012. [Google Scholar] [CrossRef] [PubMed]
  19. Zhu, H.; Qiu, S.; Jiang, W.; Wu, D.; Zhang, C. Evaluation of electrospun polyvinyl chloride/polystyrene fibers as sorbent materials for oil spill cleanup. Environ. Sci. Technol. 2011, 45, 4527–4531. [Google Scholar] [CrossRef]
  20. Wang, X.; Yu, J.; Sun, G.; Ding, B. Electrospun nanofibrous materials: A versatile medium for effective oil/water separation. Mater. Today 2016, 19, 403–414. [Google Scholar] [CrossRef]
  21. Jiang, Z.; Tijing, L.D.; Amarjargal, A.; Park, C.H.; An, K.J.; Shon, H.K.; Kim, C.S. Removal of oil from water using magnetic bicomponent composite nanofibers fabricated by electrospinning. Compos. Part B Eng. 2015, 77, 311–318. [Google Scholar] [CrossRef]
  22. Ge, J.; Zhao, H.Y.; Zhu, H.W.; Huang, J.; Shi, L.A.; Yu, S.H. Advanced sorbents for oil-spill cleanup: Recent advances and future perspectives. Adv. Mater. 2016, 28, 10459–10490. [Google Scholar] [CrossRef]
  23. Sarbatly, R.; Krishnaiah, D.; Kamin, Z. A review of polymer nanofibres by electrospinning and their application in oil–water separation for cleaning up marine oil spills. Mar. Pollut. Bull. 2016, 106, 8–16. [Google Scholar] [CrossRef]
  24. Ding, B.; Yu, J. Electrospun Nanofibers for Energy and Environmental Applications; Ding, B., Jianyong, Y., Eds.; Springer: Berlin/Heidelberg, Germany, 2014; ISBN 978-3-642-54159-9. [Google Scholar]
  25. Bhardwaj, N.; Bhaskarwar, A.N. A review on sorbent devices for oil-spill control. Environ. Pollut. 2018, 243, 1758–1771. [Google Scholar] [CrossRef]
  26. Hadji, E.M.; Fu, B.; Abebe, A.; Bilal, H.M.; Wang, J. Sponge-based materials for oil spill cleanups: A review. Front. Chem. Sci. Eng. 2020, 14, 749–762. [Google Scholar] [CrossRef]
  27. Tian, L.; Zhang, C.; He, X.; Guo, Y.; Qiao, M.; Gu, J.; Zhang, Q. Novel reusable porous polyimide fibers for hot-oil adsorption. J. Hazard. Mater. 2017, 340, 67–76. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, J.; Zhang, F.; Song, J.; Liu, L.; Si, Y.; Yu, J.; Ding, B. Electrospun flexible nanofibrous membranes for oil/water separation. J. Mater. Chem. A 2019, 7, 20075–20102. [Google Scholar] [CrossRef]
  29. Liu, H.; Cao, C.-Y.; Wei, F.-F.; Huang, P.-P.; Sun, Y.-B.; Jiang, L.; Song, W.-G. Flexible macroporous carbon nanofiber film with high oil adsorption capacity. J. Mater. Chem. A 2014, 2, 3557–3562. [Google Scholar] [CrossRef]
  30. Brettmann, B.K.; Tsang, S.; Forward, K.M.; Rutledge, G.C.; Myerson, A.S.; Trout, B.L. Free surface electrospinning of fibers containing microparticles. Langmuir 2012, 28, 9714–9721. [Google Scholar] [CrossRef]
  31. Santangelo, S. Electrospun nanomaterials for energy applications: Recent advances. Appl. Sci. 2019, 9, 1049. [Google Scholar] [CrossRef] [Green Version]
  32. Qi, D.; Kang, X.; Chen, L.; Zhang, Y.; Wei, H.; Gu, Z. Electrospun polymer nanofibers as a solid-phase extraction sorbent for the determination of trace pollutants in environmental water. Anal. Bioanal. Chem. 2008, 390, 929–938. [Google Scholar] [CrossRef]
  33. Greiner, A.; Wendorff, J.H. Electrospinning: A fascinating method for the preparation of ultrathin fibers. Angew. Chem. Int. Ed. 2007, 46, 5670–5703. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, K.H.; Kim, H.Y.; La, Y.M.; Lee, D.R.; Sung, N.H. Influence of a mixing solvent with tetrahydrofuran and N,N-dimethylformamide on electrospun poly(vinyl chloride) nonwoven mats. J. Polym. Sci. Part B Polym. Phys. 2002, 40, 2259–2268. [Google Scholar] [CrossRef]
  35. Zhang, M.; Uchaker, E.; Hu, S.; Zhang, Q.; Wang, T.; Cao, G.; Li, J. CoO-carbon nanofiber networks prepared by electrospinning as binder-free anode materials for lithium-ion batteries with enhanced properties. Nanoscale 2013, 5, 12342–12349. [Google Scholar] [CrossRef] [PubMed]
  36. Han, J.; Chen, T.X.; Branford-White, C.J.; Zhu, L.M. Electrospun shikonin-loaded PCL/PTMC composite fiber mats with potential biomedical applications. Int. J. Pharm. 2009, 382, 215–221. [Google Scholar] [CrossRef]
  37. McCann, J.T.; Li, D.; Xia, Y. Electrospinning of nanofibers with core-sheath, hollow, or porous structures. J. Mater. Chem. 2005, 15, 735–738. [Google Scholar] [CrossRef]
  38. Zussman, E.; Yarin, A.L.; Bazilevsky, A.V.; Avrahami, R.; Feldman, M. Electrospun polyacrylonitrile/poly(methyl methacrylate)-derived turbostratic carbon micro-/nanotubes. Adv. Mater. 2006, 18, 348–353. [Google Scholar] [CrossRef]
  39. Li, D.; Xia, Y. Electrospinning of nanofibers: Reinventing the wheel? Adv. Mater. 2004, 16, 1151–1170. [Google Scholar] [CrossRef]
  40. Karabulut, F. Melt-Blown Fibres vs Electrospun Nanofibres as Filtration Media. Available online: https://www.innovationintextiles.com/uploads/12280/MB-vs.-NF-White-Paper.pdf (accessed on 22 June 2021).
  41. Hu, L.; Zhang, S.; Zhang, Y.; Li, B. A flexible nanofiber-based membrane with superhydrophobic pinning properties. J. Colloid Interface Sci. 2016, 472, 167–172. [Google Scholar] [CrossRef] [PubMed]
  42. Piperopoulos, E.; Calabrese, L.; Mastronardo, E.; Proverbio, E.; Milone, C. Sustainable reuse of char waste for oil spill recovery foams. Water Air Soil Pollut. 2020, 231, 293. [Google Scholar] [CrossRef]
  43. Mantripragada, S.; Gbewonyo, S.; Deng, D.; Zhang, L. Oil absorption capability of electrospun carbon nanofibrous membranes having porous and hollow nanostructures. Mater. Lett. 2020, 262, 127069. [Google Scholar] [CrossRef]
  44. Karki, H.P.; Kafle, L.; Ojha, D.P.; Song, J.H.; Kim, H.J. Three-dimensional nanoporous polyacrylonitrile-based carbon scaffold for effective separation of oil from oil/water emulsion. Polymer 2018, 153, 597–606. [Google Scholar] [CrossRef]
  45. Yuan, J.; Gao, R.; Wang, Y.; Cao, W.; Yun, Y.; Dong, B.; Dou, J. A novel hydrophobic adsorbent of electrospun SiO2@MUF/PAN nanofibrous membrane and its adsorption behaviour for oil and organic solvents. J. Mater. Sci. 2018, 53, 16357–16370. [Google Scholar] [CrossRef]
  46. Liu, C.K.; Feng, Y.; He, H.J.; Zhang, J.; Sun, R.J.; Chen, M.Y. Effect of carbonization temperature on properties of aligned electrospun polyacrylonitrile carbon nanofibers. Mater. Des. 2015, 85, 483–486. [Google Scholar] [CrossRef]
  47. Chen, Y.; Yuan, X.; Yang, C.; Lian, Y.; Razzaq, A.A.; Shah, R.; Guo, J.; Zhao, X.; Peng, Y.; Deng, Z. γ-Fe2O3 nanoparticles embedded in porous carbon fibers as binder-free anodes for high-performance lithium and sodium ion batteries. J. Alloys Compd. 2019, 777, 127–134. [Google Scholar] [CrossRef]
  48. Yarova, S.; Jones, D.; Jaouen, F.; Cavaliere, S. Strategies to hierarchical porosity in carbon nanofiber webs for electrochemical applications. Surfaces 2019, 2, 159–176. [Google Scholar] [CrossRef] [Green Version]
  49. Belaustegui, Y.; Zorita, S.; Fernández-Carretero, F.; García-Luis, A.; Pantò, F.; Stelitano, S.; Frontera, P.; Antonucci, P.; Santangelo, S. Electro-spun graphene-enriched carbon fibres with high nitrogen-contents for electrochemical water desalination. Desalination 2018, 428, 40–49. [Google Scholar] [CrossRef]
  50. Wu, J.; Wang, N.; Wang, L.; Dong, H.; Zhao, Y.; Jiang, L. Electrospun porous structure fibrous film with high oil adsorption capacity. ACS Appl. Mater. Interfaces 2012, 4, 3207–3212. [Google Scholar] [CrossRef]
  51. Rahaman, M.S.A.; Ismail, A.F.; Mustafa, A. A review of heat treatment on polyacrylonitrile fiber. Polym. Degrad. Stab. 2007, 92, 1421–1432. [Google Scholar] [CrossRef] [Green Version]
  52. Schierholz, R.; Kröger, D.; Kröger, K.; Weinrich, H.; Gehring, M.; Tempel, H.; Kungl, H.; Cde, J.M.; Eichel, R.U.-A. The carbonization of polyacrylonitrile-derived electrospun carbon nanofibers studied by in situ transmission electron microscopy. RSC Adv. 2019, 9, 6267–6277. [Google Scholar] [CrossRef] [Green Version]
  53. Janus, R.; Natkański, P.; Wach, A.; Drozdek, M.; Piwowarska, Z.; Cool, P.; Kuśtrowski, P. Thermal transformation of polyacrylonitrile deposited on SBA-15 type silica: Effect on adsorption capacity of methyl-ethyl ketone vapor. J. Therm. Anal. Calorim. 2012, 110, 119–125. [Google Scholar] [CrossRef] [Green Version]
  54. Ferriol, M.; Gentilhomme, A.; Cochez, M.; Oget, N.; Mieloszynski, J.L. Thermal degradation of poly(methyl methacrylate) (PMMA): Modelling of DTG and TG curves. Polym. Degrad. Stab. 2003, 79, 271–281. [Google Scholar] [CrossRef]
  55. Zhou, Z.; Liu, T.; Khan, A.U.; Liu, G. Block copolymer–based porous carbon fibers. Sci. Adv. 2019, 5, eaau6852. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Thommes, M. Physical adsorption characterization of nanoporous materials. Chem. Ing. Tech. 2010, 82, 1059–1073. [Google Scholar] [CrossRef]
  57. Matei Ghimbeu, C.; Górka, J.; Simone, V.; Simonin, L.; Martinet, S.; Vix-Guterl, C. Insights on the Na+ ion storage mechanism in hard carbon: Discrimination between the porosity, surface functional groups and defects. Nano Energy 2018, 44, 327–335. [Google Scholar] [CrossRef]
  58. Lowell, S.; Shields, J.E. Powder Surface Area and Porosity (Vol. 2), 3rd ed.; Chapman & Hall Ltd., Ed.; Springer Science & Business Media: London, UK, 2013. [Google Scholar]
  59. Ferrari, A.; Robertson, J. Interpretation of Raman spectra of disordered and amorphous carbon. Phys. Rev. B Condens. Matter Mater. Phys. 2000, 61, 14095–14107. [Google Scholar] [CrossRef] [Green Version]
  60. Wang, Y.; Serrano, S.; Santiago-Avilés, J.J. Raman characterization of carbon nanofibers prepared using electrospinning. Synth. Met. 2003, 138, 423–427. [Google Scholar] [CrossRef]
  61. Malara, A.; Leonardi, S.G.; Bonavita, A.; Fazio, E.; Stelitano, S.; Neri, G.; Neri, F.; Santangelo, S. Origin of the different behavior of some platinum decorated nanocarbons towards the electrochemical oxidation of hydrogen peroxide. Mater. Chem. Phys. 2016, 184, 269–278. [Google Scholar] [CrossRef]
  62. Santangelo, S. Controlled surface functionalization of carbon nanotubes by nitric acid vapors generated from sub-azeotropic solution. Surf. Interface Anal. 2016, 48, 17–25. [Google Scholar] [CrossRef]
  63. Tagliaferro, A.; Rovere, M.; Padovano, E.; Bartoli, M.; Giorcelli, M. Introducing the novel mixed gaussian-lorentzian lineshape in the analysis of the raman signal of biochar. Nanomaterials 2020, 10, 1748. [Google Scholar] [CrossRef] [PubMed]
  64. Pantò, F.; Fan, Y.; Stelitano, S.; Fazio, E.; Patanè, S.; Frontera, P.; Antonucci, P.; Pinna, N.; Santangelo, S. Are electrospun fibrous membranes relevant electrode materials for Li-ion batteries? The case of the C/Ge/GeO2 composite fibers. Adv. Funct. Mater. 2018, 28, 1800938. [Google Scholar] [CrossRef]
  65. Zhao, J.; Lai, H.; Lyu, Z.; Jiang, Y.; Xie, K.; Wang, X.; Wu, Q.; Yang, L.; Jin, Z.; Ma, Y.; et al. Hydrophilic hierarchical nitrogen-doped carbon nanocages for ultrahigh supercapacitive performance. Adv. Mater. 2015, 27, 3541–3545. [Google Scholar] [CrossRef] [PubMed]
  66. Xu, X.; Pan, L.; Liu, Y.; Lu, T.; Sun, Z. Enhanced capacitive deionization performance of graphene by nitrogen doping. J. Colloid Interface Sci. 2015, 445, 143–150. [Google Scholar] [CrossRef]
  67. Kumar, K.V.; Preuss, K.; Guo, Z.X.; Titirici, M.M. Understanding the hydrophilicity and water adsorption behavior of nanoporous nitrogen-doped carbons. J. Phys. Chem. C 2016, 120, 18167–18179. [Google Scholar] [CrossRef]
  68. Vazquez-Duhalt, R. Environmental impact of used motor oil. Sci. Total Environ. 1989, 79, 1–23. [Google Scholar] [CrossRef]
  69. Yara-Varón, E.; Li, Y.; Balcells, M.; Canela-Garayoa, R.; Fabiano-Tixier, A.S.; Chemat, F. Vegetable oils as alternative solvents for green oleo-extraction, purification and formulation of food and natural products. Molecules 2017, 22, 1474. [Google Scholar] [CrossRef]
  70. Fabiszewska, A.U.; Białecka-Florjańczyk, E. Factors influencing synthesis of extracellular lipases by Yarrowia lipolytica in medium containing vegetable oils. J. Microbiol. Biotechnol. Food Sci. 2015, 4, 231–237. [Google Scholar] [CrossRef] [Green Version]
  71. Aluyor, E.O.; Ozigagu, C.E.; Oboh, O.I.; Aluyor, P. Chromatographic analysis of vegetable oils: A review. Sci. Res. Essay 2009, 4, 191–197. [Google Scholar]
  72. Chen, B.; Mcclements, D.J.; Decker, E.A. Minor components in food oils: A critical review of their roles on lipid oxidation chemistry in bulk oils and emulsions. Crit. Rev. Food Sci. Nutr. 2011, 51, 901–916. [Google Scholar] [CrossRef]
  73. Purcaro, G.; Barp, L.; Beccaria, M.; Conte, L.S. Characterisation of minor components in vegetable oil by comprehensive gas chromatography with dual detection. Food Chem. 2016, 212, 730–738. [Google Scholar] [CrossRef]
  74. Kamal-Eldin, A. Minor components of fats and oils. In Bailey’s Industrial Oil and Fat Products; Wiley: Hoboken, NJ, USA, 2005. [Google Scholar]
  75. Shin, C.; Chase, G.G. Water-in-oil coalescence in micro-nanofiber composite filters. AIChE J. 2004, 50, 343–350. [Google Scholar] [CrossRef]
  76. Bognitzki, M.; Czado, W.; Frese, T.; Schaper, A.; Hellwig, M.; Steinhart, M.; Greiner, A.; Wendorff, J.H. Nanostructured Fibers via Electrospinning. Adv. Mater. 2001, 13, 70–72. [Google Scholar] [CrossRef]
  77. Esteban, B.; Riba, J.R.; Baquero, G.; Puig, R.; Rius, A. Characterization of the surface tension of vegetable oils to be used as fuel in diesel engines. Fuel 2012, 102, 231–238. [Google Scholar] [CrossRef]
  78. Diamante, L.M.; Lan, T. Absolute Viscosities of Vegetable Oils at Different Temperatures and Shear Rate Range of 64.5 to 4835 s−1. J. Food Process. 2014, 2014, 234583. [Google Scholar] [CrossRef] [Green Version]
  79. Qiao, Y.; Zhao, L.; Li, P.; Sun, H.; Li, S. Electrospun polystyrene/polyacrylonitrile fiber with high oil sorption capacity. J. Reinf. Plast. Compos. 2014, 33, 1849–1858. [Google Scholar] [CrossRef]
Membranes 11 00515 g001 550

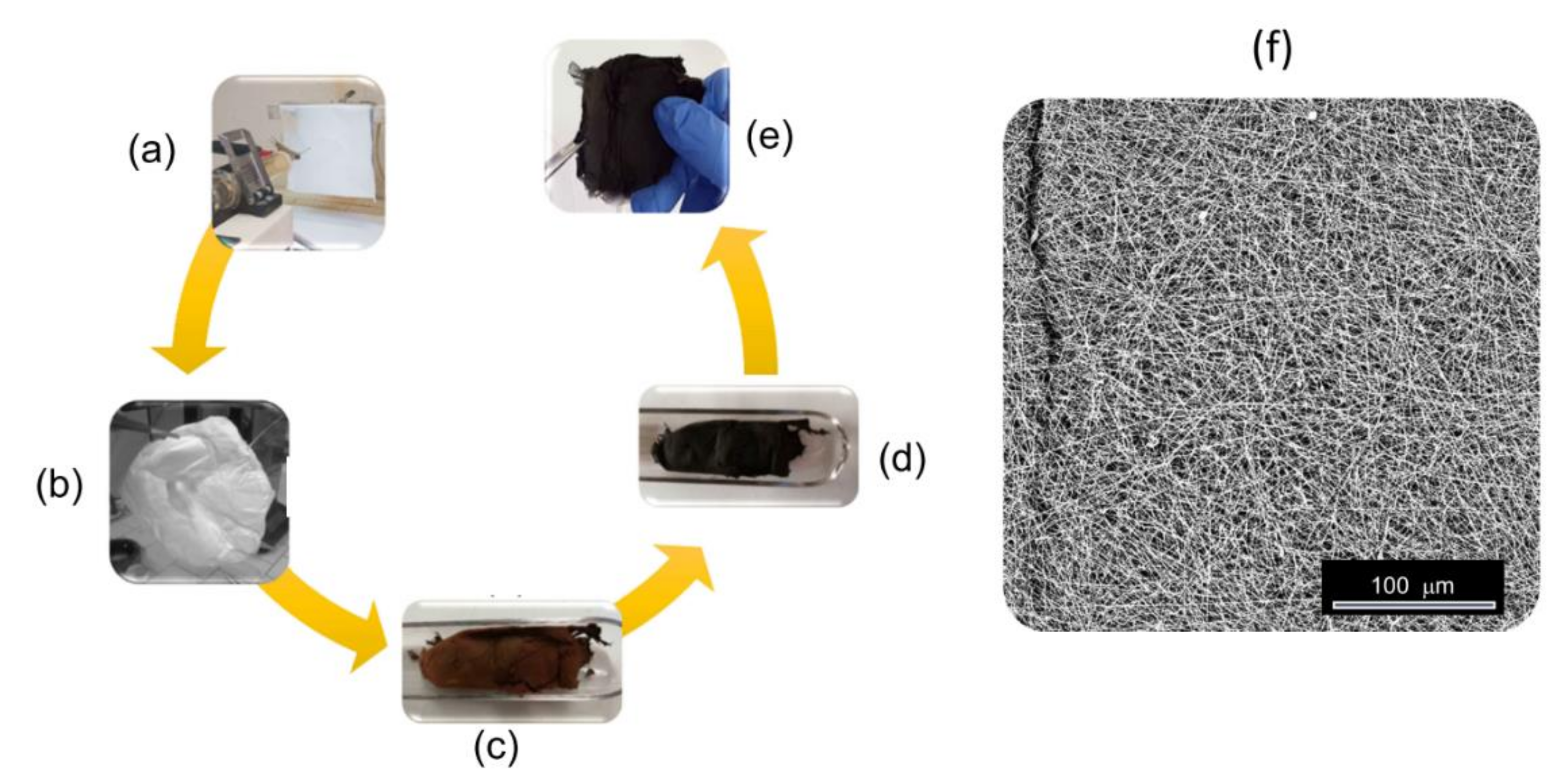

Figure 1. Process for the production of the sorbent membranes: (a) as-spun membrane after (b) peeling from the collector, (c) stabilisation and (d) carbonisation, (e) as-obtained self-supporting paper-like membrane and (f) its fibrous microstructure as evidenced by SEM.
Figure 1. Process for the production of the sorbent membranes: (a) as-spun membrane after (b) peeling from the collector, (c) stabilisation and (d) carbonisation, (e) as-obtained self-supporting paper-like membrane and (f) its fibrous microstructure as evidenced by SEM.
Membranes 11 00515 g001
Membranes 11 00515 g002 550
Figure 2. (a–e) Morphology of the fibrous membranes and (f–i) distributions of the fibre diameters. The shown SEM images refer to membranes (a) P1:0-500, (b,d) P1:0-800, (c) P2:1-650 and (e) P6:1-650. Histograms refer to samples (f) P1:0-500, (g) P1:0-650, (h) P1:0-800 and (i) P2:1-650 (the diameter distribution centre value is reported).
Figure 2. (a–e) Morphology of the fibrous membranes and (f–i) distributions of the fibre diameters. The shown SEM images refer to membranes (a) P1:0-500, (b,d) P1:0-800, (c) P2:1-650 and (e) P6:1-650. Histograms refer to samples (f) P1:0-500, (g) P1:0-650, (h) P1:0-800 and (i) P2:1-650 (the diameter distribution centre value is reported).
Membranes 11 00515 g002
Membranes 11 00515 g003 550
Figure 3. Nitrogen sorption isotherms of membranes (a) P1:0-500, (b) P1:0-650, (c) P1:0-800, (d) P6:1-650 and (e) P2:1-650, and (f) pore size distributions.
Figure 3. Nitrogen sorption isotherms of membranes (a) P1:0-500, (b) P1:0-650, (c) P1:0-800, (d) P6:1-650 and (e) P2:1-650, and (f) pore size distributions.
Membranes 11 00515 g003
Membranes 11 00515 g004 550
Figure 4. Micro-Raman spectra of (a) PAN-based membranes carbonised at different temperatures and (b) PAN/PMMA-derived membranes with different amount of PMMA carbonised at 650 °C.
Figure 4. Micro-Raman spectra of (a) PAN-based membranes carbonised at different temperatures and (b) PAN/PMMA-derived membranes with different amount of PMMA carbonised at 650 °C.
Membranes 11 00515 g004
Membranes 11 00515 g005 550
Figure 5. Liquid recovery efficiencies (RL) measured in immersion tests: effect of (a) the carbonisation temperature of PAN-derived membranes and (b) PAN:PMMA mass ratio of PAN/PMMA-derived membranes carbonised at 650 °C. For an easier comparison, in the two plots, the same vertical scale is used.
Figure 5. Liquid recovery efficiencies (RL) measured in immersion tests: effect of (a) the carbonisation temperature of PAN-derived membranes and (b) PAN:PMMA mass ratio of PAN/PMMA-derived membranes carbonised at 650 °C. For an easier comparison, in the two plots, the same vertical scale is used.
Membranes 11 00515 g005
Membranes 11 00515 g006 550
Figure 6. Water recovery efficiency (RW) as a function of the G-band frequency position (ωG).
Figure 6. Water recovery efficiency (RW) as a function of the G-band frequency position (ωG).
Membranes 11 00515 g006
Membranes 11 00515 g007 550
Figure 7. Oil recovery efficiency (RO) as a function of the micropore fraction (fmicro).
Figure 7. Oil recovery efficiency (RO) as a function of the micropore fraction (fmicro).
Membranes 11 00515 g007
Membranes 11 00515 g008 550
Figure 8. Liquid recovery efficiencies (RL) measured in spill tests: effect of (a) the carbonisation temperature of PAN-derived membranes, and (b) PAN:PMMA mass ratio of blend-derived membranes carbonised at 650 °C. For an easier comparison, in the two plots, the same vertical scale is used.
Figure 8. Liquid recovery efficiencies (RL) measured in spill tests: effect of (a) the carbonisation temperature of PAN-derived membranes, and (b) PAN:PMMA mass ratio of blend-derived membranes carbonised at 650 °C. For an easier comparison, in the two plots, the same vertical scale is used.
Membranes 11 00515 g008
Membranes 11 00515 g009 550
Figure 9. Oil/water selectivity (SO/W): effect of (a) the carbonisation temperature of PAN-derived membranes, and (b) PAN:PMMA mass ratio of blend-derived membranes carbonised at 650 °C. For an easier comparison, in the two plots, the same vertical scale is used.
Figure 9. Oil/water selectivity (SO/W): effect of (a) the carbonisation temperature of PAN-derived membranes, and (b) PAN:PMMA mass ratio of blend-derived membranes carbonised at 650 °C. For an easier comparison, in the two plots, the same vertical scale is used.
Membranes 11 00515 g009
Membranes 11 00515 g010 550
Figure 10. Oil/water selectivity (SO/W) as function of the average pore size (dP). Lines are drawn to guide the eye.
Figure 10. Oil/water selectivity (SO/W) as function of the average pore size (dP). Lines are drawn to guide the eye.
Membranes 11 00515 g010
Table
Table 1. Polymer(s) in the spinnable solution and post-electrospinning treatment conditions (TS and TC denote stabilisation and carbonisation temperatures, respectively; tS and tC indicate the duration of the processes). Temperature increasing rate was 5 °C min−1. Both the treatments were followed by uncontrolled cooling down to room temperature (RT).
Table 1. Polymer(s) in the spinnable solution and post-electrospinning treatment conditions (TS and TC denote stabilisation and carbonisation temperatures, respectively; tS and tC indicate the duration of the processes). Temperature increasing rate was 5 °C min−1. Both the treatments were followed by uncontrolled cooling down to room temperature (RT).
Sample
Code		Polymer(s) in the Spinnable SolutionPost-Electrospinning Heat Treatments
PAN:PMMAPAN + PMMA (wt%) TS (°C)/tS (h)TC (°C)/tC (h)
P1:0-5001:06.5280/3500/3
P1:0-650650/3
P1:0-800800/3
P6:1-6506:1650/3
P2:1-6502:1
Table
Table 2. Specific surface area (ST), specific micropore surface area (Smicro), specific micropore volume (Vmicro) and average pore size (dP) estimated by BET analysis. The fractions of micro-, meso- and macro-pores are also reported (fmicro, fmeso and fmacro, respectively).
Table 2. Specific surface area (ST), specific micropore surface area (Smicro), specific micropore volume (Vmicro) and average pore size (dP) estimated by BET analysis. The fractions of micro-, meso- and macro-pores are also reported (fmicro, fmeso and fmacro, respectively).
Sample CodeST
(m2 g−1)		Smicro
(m2 g−1)		Vmicro
(mm3 g−1)		fmicro
(%)		fmeso
(%)		fmacro
(%)		dP
(nm)
P1:0-50020.3 ± 0.12.92.5714.451.534.14.37
P1:0-650139.7 ± 0.9120.146.4186.013.90.14.35
P1:0-800128.8 ± 0.6108.342.1384.115.80.15.04
P6:1-65017.5 ± 0.14.82.0827.570.22.39.41
P2:1-65053.3 ± 0.236.814.0569.030.50.56.67
Note: in the presence of hysteresis, the adsorption isotherm that corresponds to more stable thermodynamic conditions [58] was utilised to evaluate the membrane porosity.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Folino, A.; Triolo, C.; Petrovičová, B.; Pantò, F.; Zema, D.A.; Santangelo, S. Evaluation of Electrospun Self-Supporting Paper-Like Fibrous Membranes as Oil Sorbents. Membranes 2021, 11, 515. https://doi.org/10.3390/membranes11070515

AMA Style

Folino A, Triolo C, Petrovičová B, Pantò F, Zema DA, Santangelo S. Evaluation of Electrospun Self-Supporting Paper-Like Fibrous Membranes as Oil Sorbents. Membranes. 2021; 11(7):515. https://doi.org/10.3390/membranes11070515

Chicago/Turabian Style

Folino, Adele, Claudia Triolo, Beatrix Petrovičová, Fabiolo Pantò, Demetrio A. Zema, and Saveria Santangelo. 2021. "Evaluation of Electrospun Self-Supporting Paper-Like Fibrous Membranes as Oil Sorbents" Membranes 11, no. 7: 515. https://doi.org/10.3390/membranes11070515

APA Style

Folino, A., Triolo, C., Petrovičová, B., Pantò, F., Zema, D. A., & Santangelo, S. (2021). Evaluation of Electrospun Self-Supporting Paper-Like Fibrous Membranes as Oil Sorbents. Membranes, 11(7), 515. https://doi.org/10.3390/membranes11070515

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
