A Chimeric Vaccine against Porcine Circovirus Type 2: Meta-Analysis of Comparative Clinical Trials
1
EAH-Consulting, 52064 Aachen, Germany
2
CHESS, 2820 Bonheiden, Belgium
3
Zoetis, Parsippany, NJ 07054, USA
*
Author to whom correspondence should be addressed.
Vaccines 2023, 11(3), 584; https://doi.org/10.3390/vaccines11030584
Submission received: 31 January 2023
/
Revised: 23 February 2023
/
Accepted: 24 February 2023
/
Published: 3 March 2023
(This article belongs to the Special Issue Swine Vaccines and Vaccinology)
Abstract
:This meta-analysis compared the efficacy of a chimeric vaccine against porcine circovirus type 2 (PCV2) containing the genotypes PCV2a+b (Fostera® Gold PCV MH [FOS-G]), with commonly used vaccines being derived from genotype PCV2a, considering the following parameters: average daily gain (ADG), mortality and market classification as full value and cull. Data from seven hitherto unpublished comparative US field trials with FOS-G (two experimental challenges and five natural environmental studies) were provided by the manufacturer. A complementary literature review revealed a Korean study, which was considered separately in meta-analysis. Competitors were Circumvent® PCV-M (CV) and Ingelvac Circoflex® + Ingelvac Mycoflex® (IC + IM) in the US, and Porcilis® (POR) in Republic of Korea. Heterogeneity between experimental and environmental challenge studies in the US was not significant, justifying a combined analysis. Over the entire feeding period, ADG (11 comparisons), mortality (12 comparisons) and market classification were not significantly different between FOS-G and its competitor in the US setting. In the Korean study, however, ADG was higher in pigs vaccinated with FOS-G compared to POR, whereas mortality was not significantly different.
1. Introduction
Porcine circovirus type 2 (PCV2) is recognized as one of the most important pathogens of the pig population worldwide [1]. In contrast to its non-pathogenic variant PCV1, PCV2 causes a disease complex which was previously described as wasting syndrome [2]. Apart from this, also called post-weaning multi-systemic wasting syndrome, many PCV2-associated clinical conditions, such as respiratory syndrome, congenital tremors, enteritis, dermatitis, nephropathy and reproductive issues, were later grouped as porcine circovirus-associated diseases in North America. The clinical manifestations vary widely from subclinical infections to severe, deadly porcine circovirus-associated disease. It may be a sporadic individual animal diagnosis, but also manifest as severe herd problem [3].
PCV2 is divided into eight genotypes, including the previously described genotypes PCV2a to PCV2f and the new genotypes PCV2g and PCV2h [4]. Three genotypes (PCV2a, PCV2b, and PCV2d) have been shown to exhibit worldwide distribution. Since the discovery of PCV2, two major changes in prevalence (“genotype shifts”) have been observed: in the mid-2000s, the initially prevalent PCV2a genotype was replaced by the PCV2b genotype, associated with a purported increase in virulence [5]. A new PCV2d genotype has been identified a decade ago and has become a challenge and serious economic problem in pig production systems all over the world [4]. Because of its close similarity to PCV2b, this genotype was initially referred to as PCV2b mutant [6].
In 2006, the first commercial vaccines became available in North America, leading to a decrease in morbidity and improved production efficacy, being the single highest-selling prophylactic agents in porcine husbandry. These and all other PCV2 vaccines launched until 2018 were derived from genotype PCV2a [1]. A meta-analysis published in 2011 found a significant effect of PCV2 vaccination on average daily gain (ADG) in all production phases, without statistically significant differences between the vaccines considered in their analysis (Circovac® (Merial, Duluth, GA, USA), Circumvent® PCV (Intervet/Schering-Plough, Kenilworth, NJ, USA), Ingelvac Circoflex® (Boehringer Ingelheim Vetmedica, St. Joseph, MO, USA), Suvaxyn® PCV2 (Fort Dodge Animal Health, Fort Dodge, IA, USA)) [7]. A mixed treatment comparison was published in 2014 and the authors concluded that Fostera® PCV MH (Zoetis, Parsippany-Troy Hills, NJ, USA) had the lowest probability to be ranked best, compared to the three other vaccines included (Circumvent® PCV (Merck Animal Health, Madison, NJ, USA), Ingelvac Circoflex®, and Ingelvac Circovac®) [8]. The analysis and its conclusion were, however, not undisputable [9].
In 2018 a new vaccine was launched in the United States (US), including two genotypes: PCV2a and PCV2b (Fostera® Gold PCV2 MH, Zoetis; in the following, referred to as FOS-G), thereby accounting for the observed shift of genotypes and the similarity between PCV2b and PCV2d. Recently, FOS-G was also introduced into the Asian market.
Zoetis has conducted a series of field trials in the US, investigating the efficacy of the new vaccine under experimental and environmental infection conditions. Results have not been published in journals yet.
The aim of the present study was to evaluate the comparative effectiveness of FOS-G, using meta-analytic techniques. Our hypothesis was that FOS-G is as effective as other commonly used vaccines against PCV2.
2. Materials and Methods
2.1. Data Source and Data Collection
Results from the completed US field trials had not been published in scientific journals yet. The data were provided by Zoetis and were generated from previously conducted research projects. The various studies followed established standards for animal care and their use, including animal care and use committee approval at contract research organizations; following Pork Quality Assurance guidelines at customer sites as well as being conducted with swine at facilities operated under routine management practices in accordance with 7 U.S.C. 54; or were performed in accordance with the Guide for the Care and Use of Agricultural Animals in Research and Teaching.
Although the primary aim was to conduct a meta-analysis of results from hitherto unpublished studies, structured literature searches were conducted in PubMed and CAB Abstracts in order to identify other relevant studies. Search terms for PubMed were: (“circovirus”[MeSH Terms] OR “circovirus”[All Fields] OR (“porcine”[All Fields] AND “circovirus”[All Fields]) OR “porcine circovirus”[All Fields]) AND (“vaccines”[MeSH Terms] OR “vaccines”[All Fields] OR “vaccine”[All Fields]), and search terms used in CAB Abstract database were: circovirus AND porcine AND vaccine. Search years were 2015 until day of last search (1 April 2022). Additionally, the open internet (Google and Google Scholar) and websites of manufacturers of PCV2 vaccines were searched (Boehringer Ingelheim, Merck, MSD, Pharmgate, and Zoetis) for any eligible study.
Studies were defined as eligible which reported the efficacy of FOS-G compared to other PCV2 vaccines. The location was not restricted to the US. Both environmental infection studies, i.e., with natural exposure to PCV2, and experimental challenge studies qualified for inclusion.
A template for data collection was developed a priori in order to compile the following information: report number or reference; study location; type of challenge (experimental versus environmental); competitor vaccine; as well as the following outcome data: ADG; mortality; and market classification as full value or cull.
2.1.1. Average Daily Gain
Effect size for ADG was the raw mean difference between FOS-G and competitor, being the most intuitive outcome. ADG was analyzed for the entire feeding period, i.e., from allocation to end of finisher (overall ADG), as well as separately for the nursery and finisher period. ADG was calculated for all remaining pigs at the end of each period. If not reported in the paper, the sample sizes for the nursery and finisher periods were estimated from the number of enrolled pigs and the number of dead and removals per period.
2.1.2. Mortality
Effect size for mortality was the risk ratio between FOS-G and competitor vaccines. Similarly to the ADG, the risk of death was calculated over the entire feeding period (overall mortality), as well as for the nursery and finisher periods, considering the number of pigs present at the start of each period as a denominator in the risk calculation. For the analysis over the entire feeding period and nursery period, this was the number of enrolled pigs; for the finisher period, it was the number of pigs still alive after nursery. Removals were counted as deaths if not sold on the market.
2.1.3. Market Classification as Full Value or Cull
Effect size for both market classifications was the risk ratio between FOS-G and competitor. The percentage of full value pigs was calculated from all enrolled pigs, whereas the percentage of culls was calculated from all pigs marketed.
2.2. Statistical Analyses
2.2.1. Sequence of Analyses
Because of the presence of a Korean study being conducted in a pork production setting different from the US, the following sequence of analyses was defined: in primary analysis, heterogeneity between experimental and environmental US field trials was estimated. In case of no significant heterogeneity between the two subgroups, a combined analysis was run to estimate the overall outcome for the US setting. This combined outcome was compared with the overall outcome of the non-US comparisons by determining the heterogeneity between the two groups. In secondary analyses, subgroup analyses were used to evaluate if outcomes were different when considering the three competitors separately.
2.2.2. Meta-Analysis
A meta-analysis was conducted using the statistical software CMA (Version 2.2, Biostat, Englewood, NJ, USA). For the combined analyses of subgroups, a mixed effect model was used as generally recommended. Heterogeneity between subgroups was quantified using the Q-test for heterogeneity, thereby testing the null hypothesis that all subgroups reveal the same effect. For each summary effect size, the Z statistic and corresponding p-value was used to determine if differences between FOS-G and competitor vaccines were statistically significant. To evaluate heterogeneity among studies (rather than subgroups), the I-squared statistic was used, which estimates the percentage of total variation across studies due to true heterogeneity rather than chance, thereby not being sensitive to the number of studies included [10]. I-squared values of 25%, 50% and 75% can be considered to be low, moderate and high heterogeneity, respectively [11]. Statistical significance was declared based on two-tailed tests at p < 0.05, except for the Q-test of heterogeneity, where a significance level of p < 0.10 is recommended to account for its low sensitivity [12].
A potential publication or selection bias was evaluated by creating a funnel plot of the log risk ratio versus standard error [13] for the parameter with the highest number of comparisons included. The trim and fill approach [14] was used, firstly, to assess the presence of any asymmetry (indicating bias) and, secondly, to provide the best estimate of unbiased outcome by recalculating the effect size until the tunnel plot was symmetric.
3. Results
3.1. Data Collection
Zoetis provided the final reports of seven field trials (16PRGBIO-01-01, 17PPTBIO-01-01, 17PPTBIO-01-02, 18PPTBIO-01-03, 18PPTBIO-01-04, 18PPTBIO-01-07, 18PPTBIO-01-08), which had not been published in journals at the time of our study. All trials were conducted in the US. Two studies used an experimental challenge protocol, whereas viral challenge was natural (environmental) in the remaining five studies. Competitors were Circumvent® PCV-M (CV) and Ingelvac Circoflex® + Ingelvac Mycoflex® (IC + IM). Although the primary aim of all trials was to compare the efficacy against PCV2, all pigs in field trials were simultaneously vaccinated against Mycoplasma hyopneumoniae, as FOS-G and CV were combination products with antigens against both pathogens, and IC was mixed with IM (in accordance with its license in the US).
PubMed and CAB Abstract searches produced 375 and 466 references, respectively. In both databases, the same article has been identified reporting the comparative efficacy of FOS-G versus Porcilis® PCV M Hyo (POR (MSD Animal Health, Boxmeer, Netherlands)) in naturally infected Korean pigs [15].
The comprehensive Google search, using numerous different search terms, as well as the search of manufacturers’ websites, revealed three brochures, sponsored by Zoetis and reporting parts of the results from three out of the seven provided field trials: 16PRGBIO-01-01 [16,17,18], 17PPTBIO-01-01 and 17PPTBIO-01-02 [17].
Accordingly, the seven US field trials provided by Zoetis, as well as the published Korean study, were eligible for meta-analysis. One of the seven US studies allowed the consideration of six comparisons (three study arms for FOS-G and two competitors) and the Korean study was the basis for two comparisons (two study arms for FOS-G and one competitor).
Because the field trials had not been published in peer-reviewed journals yet, a brief overview of the studies is given in Table 1 (experimental challenge studies) and Table 2 (environmental infection studies), presenting the outcomes as relevant for our meta-analyses. For reasons of completeness, relevant outcomes of the Korean study were included in Table 2 as well. Two experimental challenge studies (16PRGBIO01 and 18PPTBIO-01-03), as well as the Korean study, included a control arm (no vaccine). As the aim of this study was to investigate the chimeric vaccine’s comparative efficacy, these control arms were not considered in our analyses.
3.2. Meta-Analysis
3.2.1. Average Daily Gain
Over the entire feeding period, the impact on ADG was not significantly different between FOS-G and competitors in US field trials, neither in the subgroup of experimental nor environmental challenge studies. No significant heterogeneity was observed between the two subgroups, thus allowing a combined analysis, resulting in a similar ADG between FOS-G and competitor (mean difference 0.96 g/day; p = 0.60). In the two comparisons of the Korean study, however, ADG was significantly higher in pigs vaccinated with FOS-G compared to those vaccinated with POR (mean difference 7.74 g/day; p < 0.001). In secondary analysis, no significant heterogeneity (p = 0.46) in outcome was found between the two competitors in US field studies (IC + IM and CV), whereas heterogeneity was significant (p = 0.01) if estimated for the three subgroups of competitor (IC + IM, CV, POR).
In the nursery period, ADG was significantly higher in US environmental infection studies. As heterogeneity was not significant between the subgroups of experimental and environmental challenge studies, a combined analysis was justified. Over all US studies, ADG was significantly higher (mean difference 2.46 g/day; p = 0.02) in pigs vaccinated with FOS-G versus competitor vaccines. The same applies to the two comparisons from the Korean study (mean difference 5.42 g/day; p = 0.049), resulting in no relevant heterogeneity between the studies of different origin. When analyzing the outcomes separately for the three vaccines, ADG was numerically higher in all comparisons and statistical significance was reached in the comparison versus CV and POR. In the finisher period, there were no significant differences in the US field trials between FOS-G and competitor vaccines, in any subgroup nor in the combined analysis. In the Korean study, ADG was significantly higher in pigs vaccinated with FOS-G compared to those vaccinated with POR (Table 3).
3.2.2. Mortality
In the US field trials, mortality was not significantly different between FOS-G and competitors, neither in combined analysis (RR = 1.03; p = 0.70) nor in any of the subgroup analyses. This was true for all periods analyzed (overall, nursery, finisher). Although the overall risk of mortality was numerically lower over the entire feeding and finisher period in pigs vaccinated with FOS-G in the Korean study, results were not statistically significant (combined analysis: RR = 0.60; p = 0.39). No significant heterogeneity between subgroups could be found (Table 3).
3.2.3. Market Classification
Only US field trials reported the percentage of pigs reaching full market value or being classified as cull. No significant differences were found between pigs vaccinated with FOS-G or competitor, neither in experimental nor environmental challenge studies. The same applied to the combined analyses, where the relative risk to be classified as full market or cull was 1.00 (p = 1.00) and 0.88 (p = 0.20), respectively, for pigs vaccinated with FOS-G. Again, no differences were observed when analyzing the outcome separately for the two competitors. No significant heterogeneity was observed in any subgroup analysis (Table 4).
3.2.4. Publication and Selection Bias
The risk of publication or selection bias was estimated by creating a funnel plot for overall mortality, which was the parameter with the highest number of comparisons included. The trim and fill approach was run twice, once for the US field studies and once for all studies (US field trials and Korean study). A small asymmetry was estimated to the left (US field studies only) or to the right (all studies). When imputing one study in each analysis to make the funnel plots symmetric, the point estimates changed marginally, recognizable only at the second decimal place (Figure 1), which is indicative for a negligible publication or selection bias.
4. Discussion
We aimed to estimate the comparative efficacy of the chimeric vaccine FOS-G. Although the primary aim of our study was to estimate overall effect sizes from hitherto unpublished US field trials, other published studies could not be ignored for an unbiased assessment. Therefore, a literature review was performed, which revealed one study conducted in the Republic of Korea.
Our hypothesis was that FOS-G is similarly effective as other commonly used PCV2-vaccines. To our knowledge, this is the first meta-analysis considering FOS-G. Previous meta- or mixed-treatment analyses included the predecessor vaccine of FOS-G, namely Fostera® PCV MH, and therefore results cannot be compared, especially as the inclusion of a second strain of PCV2, i.e., PCV2a + b, was intended to improve the efficacy of FOS-G compared to the previous vaccine.
The outcomes of our analysis confirmed our hypothesis. We can rationally state that FOS-G is at least as effective as competitor vaccines with respect to ADG and mortality, which can be regarded as key aspects of profitability in pork production [19]. No relevant differences were found for the market classification of pigs.
In the Korean study, pigs vaccinated with FOS-G had a significantly higher ADG compared to POR in all feeding periods. However, further evidence is needed to clarify if the better ADG observed in the Korean setting can be extrapolated to other countries and other pork production systems. The significantly higher ADG in the nursery period of the US field trials must be interpreted with caution, as the only study reporting a better ADG with the competitor vaccine had outcomes recorded for the overall feeding period only. Accordingly, results from this trial were missing for the nursery and finisher periods. Regardless, we can rationally state that FOS-G is at least as effective as the competitor vaccines used in the studies.
In secondary subgroup analysis, the impact of the competitor on differences versus FOS-G was evaluated (CV or IC + IM in US field trials and POR in Korean comparisons). In most analyses, the comparative efficacy of FOS-G was not significantly different from CV and IC + IM. It cannot be concluded from our analyses if the better outcome of ADG versus POR in all feeding periods or versus CV in the nursery period is attributable to the vaccine. Both vaccines, CV and POR, are different preparations of the same core vaccine, which are—with the exception of the Republic of Korea—not distributed in the same countries [20]. Further studies are warranted in this respect.
Results from our study cannot be extrapolated to competitor vaccines, which were not included in this meta-analysis. It should be noted, however, that CV and IC + IM were ranked highest regarding the improvement in ADG in the previous mixed treatment comparison of PCV2 vaccines [8].
As fundamental differences could not be ruled out between experimental challenges and environmental infections within the US field studies, the heterogeneity between the two groups had to be determined before the US field trials could be analyzed, combined or pooled in subgroup analyses, evaluating the impact of individual competitors. In all primary analyses, heterogeneity between experimental and environmental challenge studies was not statistically significant, even when applying a higher level of p > 0.10, as recommended to account for the low sensitivity of the Q-test for heterogeneity [12]. Therefore, we considered the combined analysis and pooling of environmental and experimental challenge US studies in secondary subgroup analysis as justified.
The US field studies and the two Korean comparisons were analyzed separately, thereby accounting for the different pork production systems and competitors. We abstained from calculating an overall effect size (including all studies), thereby following the recommendations in case of substantial dispersion [21].
Heterogeneity between studies (within groups) was estimated by I-squared statistics. The percentage of heterogeneity between studies that could not be explained by chance was zero in 24 of 40 different tests (the overall analysis of the two Korean comparisons also represented the subgroup of the competitor POR and was not counted twice) and no test revealed a high heterogeneity (≥75%). The missing or low to moderate heterogeneity might be regarded as an unexpected finding, as it also applied to combined analyses, but can be explained by the fact that our meta-analyses considered mean differences or risk ratios rather than absolute values, thereby adjusting for different baseline values, as also reported in previous meta-analysis [7].
Previous meta- or mixed-treatment analyses [7,8] included only naturally infected pigs. With the additional consideration of experimental challenge studies, we did not only increase the number of comparisons and thus statistical power, but also evaluated the comparative efficacy of the chimeric vaccine FOS-G in case of high infection pressure.
Two of the US field trials, as well as the Korean study, included a control group (unvaccinated pigs). We have not considered negative controlled trials in our meta-analyses, as a significant effect of FOS-G compared to no vaccination could be expected, being mandatory for licensing.
Our study has limitations. First, the results of the field trials conducted in the US had not been published in peer-reviewed journals at the time of study but were provided by the manufacturer of the chimeric vaccine (Zoetis). Accordingly, the source of data poses a risk of selection bias. In order to address this risk, the trim and fill approach [14] was used to estimate any asymmetry that indicates a systematic bias within the US trials. For reasons of completeness, the trim and fill approach was run a second time, also including the Korean study. The analyses were run for the overall mortality, as it was the parameter with the highest numbers of competitors. The approach revealed a minor asymmetry of one study in both analyses. When imputing the assumed missing study, the change in point estimate was marginally, i.e., not recognizable at the first decimal place. Therefore, we can rationally conclude that a publication or selection bias is of no concern.
The literature search was not a systematic review in its strictest sense. However, we performed a very comprehensive search, including PubMed and CAB abstracts, as well as the open internet and Google Scholar. Additionally, the trim and fill approach could not find a relevant publication bias. Although the method cannot determine if studies are actually missing, it can reveal a systematic bias in the used sample of studies. In other words, if the studies included in a meta-analysis are a random subset of all relevant studies, the failure to include missing studies will have no systematic impact on the effect size and the publication or selection bias is of no concern. Therefore, we believe that our approach can be regarded as a useful compromise to prevent a substantial time lag between a search and ultimate publication of the results, which has been described as a common drawback of systematic reviews [22].
The number of comparisons included in the analyses of market classification was small, thus limiting the transferability of results. Additionally, the definition of culls differed between studies. We used, however, the relative risk between the two vaccines (FOS-G and competitor) rather than absolute values, thereby adjusting for different base line values and reducing the impact of varying definitions. Additionally, the results of the analyses of full value pigs were very uniform. Therefore, we believe that our conclusions are still valid.
A further limitation relates to the dosage regimens used in the studies. While FOS-G, CV and POR are licensed for single use (2 mL at ≥3 weeks of age) and a two-dose regimen (1 dose of 1 mL at ≥3 days of age and another 1 mL 3 weeks later), IC + IM is licensed for single use at ≥3 weeks of age only. In the US field studies and the Korean studies, different dosage regimens were used for FOS-G. We did not analyze the impact of the different dosage regimens of FOS-G, as the number of comparisons in each subgroup did not qualify for meta-analyses. Further studies are needed to evaluate potential differences with different dosage regimens.
We conclude that FOS-G is at least as effective as the competitor vaccines included in this meta-analysis when considering the impact on ADG and is similarly effective with respect to the other production parameters considered. Our results are robust, as shown in different subgroup analyses, while lacking a relevant risk of publication or selection bias.
5. Conclusions
The chimeric vaccine against PCV2, Fostera® Gold PCV MH, includes two genotypes (PCV2a+b), in order to adjust for shifts in genotype observed in recent years. In meta-analysis, Fostera® Gold PCV MH was shown to be at least as effective as the competitor vaccines, and results were robust and valid for different levels of infection pressure.
Author Contributions
All authors have contributed substantially to the work reported. Conceptualization, M.A.M., B.P.N. and I.V.V.; methodology, B.P.N. and I.V.V.; software analysis, B.P.N.; validation, B.P.N. and I.V.V.; formal analysis, B.P.N.; data curation, B.P.N.; writing—original draft preparation, B.P.N.; writing—review and editing, M.A.M. and I.V.V.; supervision, M.A.M. All authors have read and agreed to the published version of the manuscript.
Funding
This study was supported by an unrestricted grant from Zoetis.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data supporting the conclusions of this work are included within the article. The original data will not be shared as these are the property of the study sponsor.
Conflicts of Interest
At the time the study was conducted, B.P.N. and I.V.V. were paid external consultants to Zoetis. M.A.M. is an employee of Zoetis.
References
- Karuppannan, A.K.; Opriessnig, T. Porcine circovirus type 2 (PCV2) vaccines in the context of current molecular epidemiology. Viruses 2017, 9, 99. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Meehan, B.M.; Mcneilly, F.; Todd, D.; Kennedy, S.; Jewhurst, V.A.; Ellis, J.A.; Hassard, L.E.; Clark, E.G.; Haines, D.M.; Allan, G.M. Characterization of novel circovirus DNAs associated with wasting syndromes in pigs. J. Gen. Virol. 1998, 79, 2171–2179. [Google Scholar] [CrossRef] [PubMed]
- Opriessnig, T.; Meng, X.J.; Halbur, P.G. Porcine Circovirus Type 2-associated disease: Update on current terminology, clinical manifestations, pathogenesis, diagnosis, and intervention strategies. J. Vet. Diagn. Investig. 2007, 19, 591–615. [Google Scholar] [CrossRef] [PubMed]
- Link, E.K.; Eddicks, M.; Nan, L.; Ritzmann, M.; Sutter, G.; Fux, R. Discriminating the eight genotypes of the Porcine Circovirus Type 2 with TaqMan-based real-time PCR. Virol. J. 2021, 18, 70. [Google Scholar] [CrossRef] [PubMed]
- Franzo, G.; Cortey, M.; Segalés, J.; Hughes, J.; Drigo, M. Phylodynamic analysis of porcine circovirus type 2 reveals global waves of emerging genotypes and the circulation of recombinant forms. Mol. Phylogenet. Evol. 2016, 100, 269–280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Xiao, C.; Halbur, P.G.; Opriessnig, T. Complete genome sequence of a novel porcine circovirus type 2b variant present in cases of vaccine failures in the United States. J. Virol. 2012, 86, 12469. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kristensen, C.S.; Baadsgaard, N.P.; Toft, N.A. Meta-analysis comparing the effect of PCV2 vaccines on average daily weight gain and mortality rate in pigs from weaning to slaughter. Prev. Vet. Med. 2011, 98, 250–258. [Google Scholar] [CrossRef] [PubMed]
- Da Silva, N.; Carriquiry, A.; O’Neill, K.; Opriessnig, T.; O’Connor, A.M. Mixed treatment comparison meta-analysis of porcine circovirus type 2 (PCV2) vaccines used in piglets. Prev. Vet. Med. 2014, 117, 413–424. [Google Scholar] [CrossRef] [PubMed]
- Allison, J.R.D.; Nitzel, G.P.; Taylor, L.P. Meta-analysis of porcine circovirus type 2 (PCV2) vaccines. Prev. Vet. Med. 2015, 119, 93. [Google Scholar] [CrossRef] [PubMed]
- Borenstein, M.; Hedges, L.V.; Higgins, J.P.R.H. Subgroup analyses. In Introduction to Meta Analysis; John and Wiley and Sons: West Sussex, UK, 2009; pp. 149–186. [Google Scholar]
- Higgins, J.P.T.; Thompson, S.G.; Deeks, J.J.; Altman, D.G. Measuring inconsistency in meta-analyses. Br. Med. J. 2003, 327, 557–560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Fletcher, J. What is heterogeneity and is it important. Br. Med. J. 2007, 334, 94–96. [Google Scholar] [CrossRef] [PubMed]
- Sterne, J.A.C.; Egger, M.; Smith, G.D. Systematic reviews in health care: Investigating and dealing with publication and other biases in meta-analysis. Br. Med. J. 2001, 323, 101–105. [Google Scholar] [CrossRef] [PubMed]
- Duval, S.; Tweedie, R. Trim and fill: A simple funnel-plot-based method of testing and adjusting for publication bias in meta-analysis. Biometrics 2000, 56, 455–463. [Google Scholar] [CrossRef] [PubMed]
- Um, H.; Yang, S.; Oh, T.; Park, K.; Cho, H.; Suh, J.; Min, K.D.; Chae, C. Comparative evaluation of growth performance between bivalent and trivalent vaccines containing porcine circovirus type 2 (PCV2) and Mycoplasma hyopneumoniae in a herd with subclinical PCV2d infection and enzootic pneumonia. Vaccines 2021, 9, 450. [Google Scholar] [CrossRef] [PubMed]
- Zoetis. Large Field Trial Showed Fostera Gold PCV MH was Effective against Prevalent PCV2d Genotype. Available online: https://pighealthtoday.com/?s=Fostera+gold&x=0&y=0 (accessed on 1 April 2022).
- Zoetis. Two-Dose Fostera Gold PCV MH Regimen Yields Performance Advantages. Available online: https://pighealthtoday.com/two-dose-fostera-gold-pcv-mh-regimen-yields-performance-advantages/ (accessed on 1 April 2022).
- Zoetis. Field Studies Demonstrate Safety of Fostera Gold PCV MH Vaccine. Available online: https://pighealthtoday.com/mobile/article/?id=7058 (accessed on 1 April 2022).
- Holtkamp, D.J.; Kliebenstein, J.B.; Neumann, E.J.; Zimmerman, J.J.; Rotto, H.F.; Yoder, T.K.; Wang, C.; Yeske, P.E.; Mowrer, C.L.; Haley, C.A. Assessment of the economic impact of porcine reproductive and respiratory syndrome virus on United States pork producers. J. Swine Health Prod. 2013, 21, 72–84. [Google Scholar]
- Chae, C. Commercial porcine circovirus type 2 vaccines: Efficacy and clinical application. Vet. J. 2012, 194, 151–157. [Google Scholar] [CrossRef] [PubMed]
- Borenstein, M.; Hedges, L.V.; Higgins, J.P.R.H. Criticisms of meta-analysis. In Introduction to Meta-Analysis; John and Wiley and Sons: West Sussex, UK, 2009; pp. 377–387. [Google Scholar]
- Beller, E.M.; Chen, J.K.H.; Wang, U.L.H. Are systematic reviews up-to-date at the time of publication. Syst. Rev. 2013, 2, 36. [Google Scholar] [CrossRef] [PubMed] [Green Version]

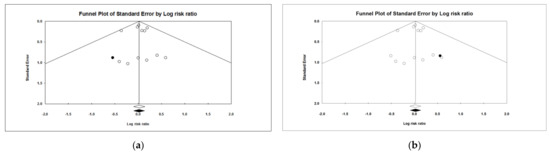

Figure 1.
Funnel plot for assessing publication/selection bias, displaying the log risk ratio of overall mortality (from allocation to end of finisher) between Fostera® Gold PCV MH and comparator (x-axis) by standard error (y-axis). The vertical line represents the overall effect size estimate. Without bias, the number of studies at both sides of the vertical line is expected to be equal. The “trim and fill” funnel plots display the observed (open circles) and the imputed study (filled circle), as well as the observed (open diamond) and imputed point estimate (filled diamond). (a): Funnel plot for US field studies only. (b) Funnel plot for all studies (US field studies and Korean studies).

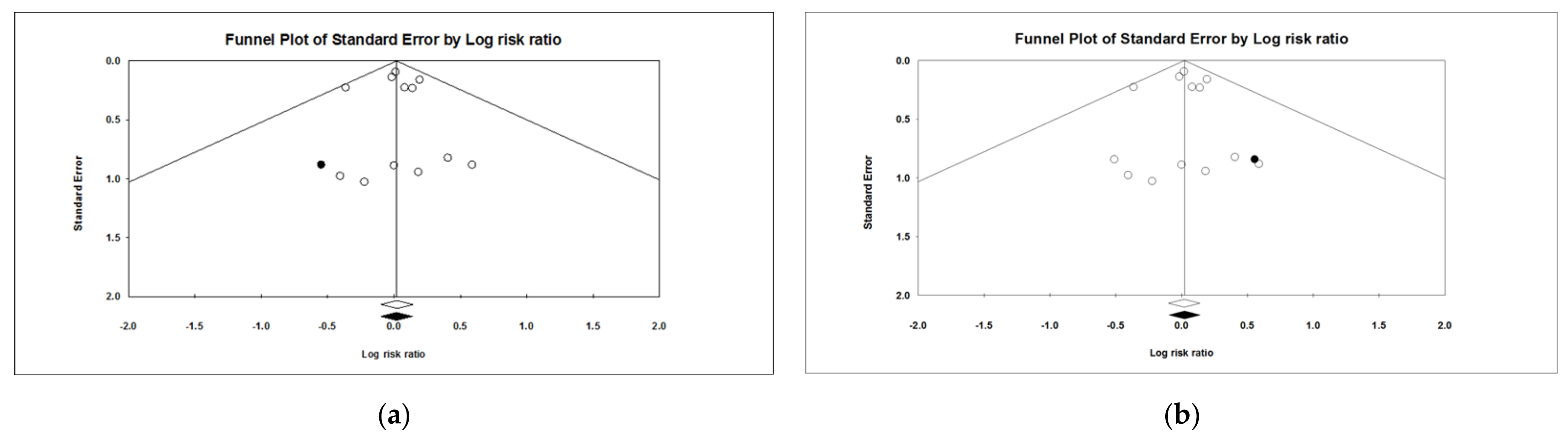

Figure 1.
Funnel plot for assessing publication/selection bias, displaying the log risk ratio of overall mortality (from allocation to end of finisher) between Fostera® Gold PCV MH and comparator (x-axis) by standard error (y-axis). The vertical line represents the overall effect size estimate. Without bias, the number of studies at both sides of the vertical line is expected to be equal. The “trim and fill” funnel plots display the observed (open circles) and the imputed study (filled circle), as well as the observed (open diamond) and imputed point estimate (filled diamond). (a): Funnel plot for US field studies only. (b) Funnel plot for all studies (US field studies and Korean studies).
Table 1.
Overview of outcome data that were included in meta-analysis and have been derived from hitherto unpublished US field trials, considering an experimental challenge model with porcine circovirus type 2.
Table 1.
Overview of outcome data that were included in meta-analysis and have been derived from hitherto unpublished US field trials, considering an experimental challenge model with porcine circovirus type 2.
| Average Daily Gain | Mortality | Full Value | Culls | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall | Nursery | Finisher | Overall | Nursery | Finisher | |||||||||||
| Vaccine (Doses) | N 1 | Mean (SD) | N 1 | Mean (SD) | N 1 | Mean (SD) | N 2 | Dead | N 2 | Dead | N 2 | Dead | N 3 | Full Value | N 3 | Culls |
| Study: 16PRGBIO-01-01 (US) | ||||||||||||||||
| FOS-G (D1) | 77 | 731.64 (70.31) | 97 | 454.05 (61.69) | 72 | 993.37 (86.18) | 110 | 9 | NR | NR | NR | NR | ||||
| FOS-G (D2a) | 83 | 695.36 (91.63) | 104 | 434.54 (77.56) | 81 | 936.21 (121.56) | 110 | 4 | NR | NR | NR | NR | ||||
| FOS-G (D2b) | 83 | 722.12 (59.87) | 98 | 452.68 (60.78) | 79 | 980.21 (97.07) | 110 | 6 | NR | NR | NR | NR | ||||
| CV (D2a) | 80 | 709.42 (65.77) | 103 | 441.35 (64.86) | 80 | 962.07 (92.53) | 110 | 5 | NR | NR | NR | NR | ||||
| IC + IM (D1) | 80 | 713.95 (71.67) | 102 | 444.07 (68.49) | 79 | 961.16 (108.86) | 110 | 6 | NR | NR | NR | NR | ||||
| Study: 18PPTBIO-01-03 (US) | ||||||||||||||||
| FOS-G (D1) | 697 | 793.79 (72.57) | NR | NR | 750 | 39 | NR | NR | 750 | 692 | 711 | 4 | ||||
| IC + IM (D1) | 703 | 802.86 (72.57) | NR | NR | 750 | 36 | NR | NR | 750 | 698 | 714 | 0 | ||||
FOS-G = Fostera® Gold PCV MH (Zoetis); CV = Circumvent® PCV-M (Merck Animal Health); IC + IM = Ingelvac Circoflex® + Ingelvac Mycoflex® (Boehringer Ingelheim Animal Health). D1 = 1 dose of 2 mL vaccine at 3 weeks of age; D2a = 2 doses of 1 mL vaccine each at 3 days of age and 3 weeks later; D2b = 2 doses of 1 mL vaccine each at 3 and 6 weeks of age; NR = not reported. 1 number of pigs considered for the calculation of average daily gain; 2 number of pigs enrolled; 3 number of pigs marketed.
Table 2.
Overview of outcome data that were included in meta-analysis and have been derived from hitherto unpublished US field trials and a Korean study, considering natural infection with porcine circovirus type 2.
Table 2.
Overview of outcome data that were included in meta-analysis and have been derived from hitherto unpublished US field trials and a Korean study, considering natural infection with porcine circovirus type 2.
| Average Daily Gain (g/day) | Mortality | Full Value | Culls | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall | Nursery | Finisher | Overall | Nursery | Finisher | |||||||||||
| Vaccine (Doses) | N 1 | Mean (SD) | N 1 | Mean (SD) | N 1 | Mean (SD) | N 2 | Dead | N 2 | Dead | N 2 | Dead | N 3 | Full Value | N 3 | Culls |
| Study: 17PPTBIO-01-01 (US) | ||||||||||||||||
| FOS-G (D2b) | 582 | 736.63 (77.11) | 596 | 369.22 (77.11) | 579 | 904.01 (99.79) | 618 | 31 | 618 | 19 | 599 | 12 | 618 | 578 | 581 | 3 |
| CV (D2b) | 556 | 734.82 (81.65) | 574 | 369.68 (81.65) | 547 | 900.83 (104.33) | 623 | 45 | 623 | 26 | 597 | 19 | 623 | 565 | 571 | 6 |
| Study: 17PPTBIO-01-02 (US) | ||||||||||||||||
| FOS-G (D1) | 1262 | 752.96 (81.65) | 1296 | 353.80 (68.04) | 1257 | 920.79 (99.79) | 1322 | 39 | 1322 | 12 | 1310 | 27 | 1322 | 588 | 1261 | 82 |
| CV (D1) | 1267 | 757.50 (81.65) | 1307 | 353.80 (72.57) | 1265 | 925.33 (99.79) | 1324 | 34 | 1324 | 12 | 1312 | 22 | 1324 | 611 | 1268 | 93 |
| Study: 18PPTBIO-01-04 (US) | ||||||||||||||||
| FOS-G (D1) | 1064 | 698.53 (91.63) | 1145 | 392.81 (85.28) | 1064 | 845.04 (119.29) | 1172 | 96 | 1172 | 27 | 1145 | 69 | 1172 | 1022 | 1042 | 20 |
| IC + IM (D1) | 1072 | 696.72 (98.88) | 1137 | 387.82 (88.00) | 1072 | 845.04 (126.10) | 1177 | 98 | 1177 | 41 | 1136 | 57 | 1177 | 1014 | 1042 | 28 |
| Study: 18PPTBIO-01-07 (US) | ||||||||||||||||
| FOS-G (D2b) | NR | NR | NR | 2775 | 211 | NR | NR | NR | 2443 | 61 | ||||||
| CV (D2b) | NR | NR | NR | 2774 | 207 | NR | NR | NR | 2428 | 66 | ||||||
| Study: 18PPTBIO-01-08 (US) | ||||||||||||||||
| FOS-G (D2b) | 923 | 799.68 (18.14) | 994 | 300.28 (22.68) | 923 | 979.31 (23.59) | 1042 | 85 | NR | NR | 1042 | 938 | 940 | 2 | ||
| CV (D2b) | 850 | 796.51 (19.50) | 902 | 297.56 (29.03) | 850 | 974.77 (22.23) | 937 | 63 | NR | NR | 937 | 857 | 858 | 1 | ||
| Um et al., 2021 (Republic of Korea) [15] | ||||||||||||||||
| FOS-G (D1) | 117 | 656.06 (11.85) | 119 | 399.90 (25.44) | 117 | 775.62 (20.65) | 120 | 3 | 120 | 1 | 119 | 2 | NR | NR | ||
| FOS-G (D2b) | 117 | 654.74 (11.38) | 119 | 401.89 (24.05) | 117 | 772.73 (18.45) | 120 | 3 | 120 | 1 | 119 | 2 | NR | NR | ||
| POR (D1) | 115 | 647.65 (14.17) | 119 | 395.51 (24.20) | 115 | 765.23 (22.73) | 120 | 5 | 120 | 1 | 119 | 4 | NR | NR | ||
FOS-G = Fostera® Gold PCV MH (Zoetis); CV = Circumvent® PCV-M (Merck Animal Health); IC + IM = Ingelvac Circoflex® + Ingelvac Mycoflex® (Boehringer Ingelheim Animal Health). D1 = 1 dose of 2 mL vaccine at 3 weeks of age; D2b = 2 doses of 1 mL vaccine each at 3 and 6 weeks of age; NR = not reported. 1 number of pigs considered for the calculation of average daily gain; 2 number of pigs enrolled; 3 number of pigs marketed.
Table 3.
Results of meta-analyses, evaluating the comparative efficacy of Fostera® Gold PCV MH (FOS-G, Zoetis) on average daily gain and mortality in US field trials and a Korean study.
Table 3.
Results of meta-analyses, evaluating the comparative efficacy of Fostera® Gold PCV MH (FOS-G, Zoetis) on average daily gain and mortality in US field trials and a Korean study.
| Average Daily Gain, g/day | Mortality | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Analysis | n | Mean Difference | p-Value | I2, % | p-Value between * | n | Risk Ratio | p-Value | I2, % | p-Value between * |
| Overall (from allocation until end of finisher) | ||||||||||
| Primary analysis (1st subgroup and combined analysis) | ||||||||||
| Experimental challenge (US) | 7 | −0.616 | 0.914 | 22.99 | 0.770 | 7 | 1.098 | 0.629 | 0.00 | 0.710 |
| Environmental challenge (US) | 4 | 1.136 | 0.551 | 43.45 | 5 | 1.017 | 0.808 | 8.90 | ||
| Combined | 11 | 0.960 | 0.595 | 45.19 | 0.003 | 12 | 1.026 | 0.695 | 0.00 | 0.370 |
| Um et al., 2021 (Republic of Korea) [15] | 2 | 7.735 | <0.001 | 0.00 | 2 | 0.600 | 0.391 | 0.00 | ||
| Secondary analysis (2nd subgroup analysis) | ||||||||||
| FOS-G versus IC + IM (US) | 5 | −2.406 | 0.579 | 35.18 | 0.461 † | 5 | 1.012 | 0.919 | 0.00 | 0.889 † |
| FOS-G versus CV (US) | 6 | 1.216 | 0.599 | 34.62 | 7 | 1.031 | 0.672 | 0.00 | ||
| FOS-G versus POR (Republic of Korea) | 2 | 7.735 | <0.001 | 0.00 | 0.010 ‡ | 2 | 0.600 | 0.391 | 0.00 | 0.663 ‡ |
| Nursery | ||||||||||
| Primary analysis (1st subgroup and combined analysis) | ||||||||||
| Experimental challenge (US) | 6 | 5.466 | 0.364 | 0.00 | 0.613 | NR | NA | |||
| Environmental challenge (US) | 4 | 2.373 | 0.020 | 0.00 | 3 | 0.738 | 0.075 | 0.00 | ||
| Combined | 10 | 2.459 | 0.015 | 0.00 | 0.313 | 3 | 0.738 | 0.075 | 0.00 | 0.805 |
| Um et al., 2021 (Republic of Korea) [15] | 2 | 5.423 | 0.049 | 0.00 | 2 | 1.000 | 1.000 | 0.00 | ||
| Secondary analysis (2nd subgroup analysis) | ||||||||||
| FOS-G versus IC + IM (US) | 4 | 4.848 | 0.147 | 0.00 | 0.454 † | 1 | 0.661 | 0.091 | NA | 0.531 † |
| FOS-G versus CV (US) | 6 | 2.221 | 0.035 | 0.00 | 2 | 0.820 | 0.406 | 0.00 | ||
| FOS-G versus POR (Republic of Korea) | 2 | 5.423 | 0.049 | 0.00 | 0.454 ‡ | 2 | 1.000 | 1.000 | 0.00 | 0.797 ‡ |
| Finisher | ||||||||||
| Primary analysis (1st subgroup and combined analysis) | ||||||||||
| Experimental challenge (US) | 6 | 11.932 | 0.249 | 0.00 | 0.334 | NR | NA | |||
| Environmental challenge (US) | 4 | 1.665 | 0.491 | 44.27 | 3 | 1.070 | 0.699 | 27.44 | ||
| Combined | 10 | 2.194 | 0.351 | 18.20 | 0.041 | 3 | 1.070 | 0.699 | 27.44 | 0.291 |
| Um et al., 2021 (Republic of Korea) [15] | 2 | 8.847 | <0.001 | 0.00 | 2 | 0.500 | 0.321 | 0.00 | ||
| Secondary analysis (2nd subgroup analysis) | ||||||||||
| FOS-G versus IC + IM (US) | 4 | 1.321 | 0.792 | 0.00 | 0.894 † | 1 | 1.201 | 0.293 | NA | 0.467 † |
| FOS-G versus CV (US) | 6 | 2.098 | 0.481 | 36.17 | 2 | 0.914 | 0.787 | 52.31 | ||
| FOS-G versus POR (Republic of Korea) | 2 | 8.847 | <0.001 | 0.00 | 0.134 ‡ | 2 | 0.500 | 0.321 | 0.00 | 0.399 ‡ |
FOS-G = Fostera® Gold PCV MH (Zoetis); IC + IM = Ingelvac Circoflex® + Ingelvac Mycoflex® (Boehringer Ingelheim Animal Health); CV = Circumvent® PCV-M (Merck Animal Health); POR = Porcilis® PCV M Hyo (MSD Animal Health); n = number of comparisons; NA = not applicable; NR = not reported. * estimates heterogeneity between subgroups; † heterogeneity between 2 subgroups of comparator; ‡ heterogeneity between three subgroups of comparator.
Table 4.
Results of meta-analyses, evaluating the comparative efficacy of Fostera® Gold PCV MH (FOS-G, Zoetis) on the relative risk of being classified as full market pigs or culls.
Table 4.
Results of meta-analyses, evaluating the comparative efficacy of Fostera® Gold PCV MH (FOS-G, Zoetis) on the relative risk of being classified as full market pigs or culls.
| Market Classification | Full Value | Culls | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| n | RR | p-Value | I2, % | p-Value between * | n | RR | p-Value | I2, % | p-Value between * | |
| Primary analysis (1st subgroup and combined analysis) | ||||||||||
| Experimental challenge | 1 | 0.991 | 0.552 | NA | 0.504 | 1 | 9.038 | 0.139 | NA | 0.116 |
| Environmental challenge | 4 | 1.004 | 0.736 | 47.17 | 5 | 0.867 | 0.166 | 0.00 | ||
| Combined | 5 | 0.999 | 0.885 | 36.44 | NA | 6 | 0.876 | 0.200 | 0.00 | NA |
| Secondary analysis (2nd subgroup analysis) | ||||||||||
| FOS-G versus IC + IM | 2 | 1.001 | 0.954 | 0.00 | 0.971 | 2 | 1.668 | 0.669 | 64.24 | 0.602 |
| FOS-G versus CV | 3 | 1.000 | 0.992 | 62.82 | 4 | 0.891 | 0.298 | 0.00 | ||
FOS-G = Fostera® Gold PCV MH (Zoetis); IC + IM = Ingelvac Circoflex® + Ingelvac Mycoflex® (Boehringer Ingelheim Animal Health); CV = Circumvent® PCV-M (Merck Animal Health); n = number of comparisons; RR = risk ratio; NA = not applicable. * estimates heterogeneity between subgroups.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Poulsen Nautrup, B.; Van Vlaenderen, I.; Mellencamp, M.A. A Chimeric Vaccine against Porcine Circovirus Type 2: Meta-Analysis of Comparative Clinical Trials. Vaccines 2023, 11, 584. https://doi.org/10.3390/vaccines11030584
AMA Style
Poulsen Nautrup B, Van Vlaenderen I, Mellencamp MA. A Chimeric Vaccine against Porcine Circovirus Type 2: Meta-Analysis of Comparative Clinical Trials. Vaccines. 2023; 11(3):584. https://doi.org/10.3390/vaccines11030584
Chicago/Turabian StylePoulsen Nautrup, Barbara, Ilse Van Vlaenderen, and Martha A. Mellencamp. 2023. "A Chimeric Vaccine against Porcine Circovirus Type 2: Meta-Analysis of Comparative Clinical Trials" Vaccines 11, no. 3: 584. https://doi.org/10.3390/vaccines11030584
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
