Antioxidants 2019, 8(4), 83; https://doi.org/10.3390/antiox8040083

Article
Ultrasonic Treatment Increases Extraction Rate of Common Bean (Phaseolus vulgaris L.) Antioxidants
Department of Food Science & Technology, School of Agriculture and Biology, Shanghai Jiao Tong University, Shanghai 200240, China
*
Authors to whom correspondence should be addressed.
Received: 3 March 2019 / Accepted: 27 March 2019 / Published: 1 April 2019

Abstract

:
The feasibility of improving the extraction rate of common bean antioxidants by ultrasonic treatment was investigated. Scanning electron microscopy (SEM) and spectrum Fourier transform infrared spectrophotometer (FT-IR) analysis revealed that ultrasonic treatment substantially altered the cellular structure of common bean seed, resulting in increased surface area, eroded cell walls, and greater exposure of cellulose and hemicellulose. The highest antioxidant activity was obtained at optimal extraction conditions (68 min, 55% acetone, 36:1 liquid to solid ratio, 30 ℃, and 480 W) which were optimized by response surface methodology. In terms of the extraction rate of common bean antioxidants, ultrasound-assisted extraction (UAE) exhibits about seven-fold higher extraction efficiency than conventional solvent extraction (CSE). In addition, 10 phenolic compounds in the common bean extracts were detected and quantified by high performance liquid chromatography (HPLC), including protocatechuic acid, catechin, chlorogenic acid, epicatechin, ferulic acid, coumarin, rutin, myricetin, cinnamic acid, and genistein. In summary, ultrasonic treatment is an ideal candidate methodology for improving the extraction rate of common bean antioxidants.
Keywords:
sonication; phenolic compounds; antioxidant properties; extraction optimization; Phaseolus vulgaris

1. Introduction

In recognition of the great importance of pulses for sustainable agriculture and human nutrition, Food and Agriculture Organization of the United Nations (FAO) officially proclaimed 2016 as “the International Year of Pulses”, aiming to draw attention to these important crops. Common beans (Phaseolus vulgaris L.) are the second most important bean species in the world after soybean [1]. Common bean seeds are mainly composed of carbohydrates, proteins, and dietary fiber, and are often also a good source of antioxidants [2]. Antioxidants of common beans show potential health benefits such as antitumor [3], anti-mutagenicity [4], antiproliferative [5], and antioxidant activities [6]. As a result of these health benefits and therapeutic effects, it is crucial to gain accurate information on the phenolic profile of antioxidants in common beans and the effect of extraction methods on phenolic level and composition [7].
The extraction of antioxidants from plants is most commonly carried out by conventional methods such as Soxhlet extraction and hydrodistillation based on different solvent extraction capabilities and the application of heat and/or shaking systems [8]. The most important drawbacks of conventional extraction methods are that they are time-consuming, consume high levels of solvents, and degrade thermally labile compounds [9]. As an alternative, ultrasound-assisted extraction (UAE) has been proposed as a replacement for such conventional extraction systems, since UAE can reduce extraction time, energy expenditure, solvent use, and instrument size, as well as allow room temperature extraction and offer ease of use [10,11]. In order to further expand the application of UAE, this study investigated the impact of ultrasonic treatment on the antioxidant properties of common beans.
Ultrasound-assisted extraction of antioxidants in common beans is influenced by several factors such as extraction solvent, extraction time, ultrasonic power, and solvent-to-solid ratio, which can be optimized to reduce process costs [12]. Response surface methodology (RSM) is a mathematical and statistical tool that can model various input factors to output responses, analyze the interactions between factors, and determine the optimal region of the factor levels [13]. Therefore, it is widely applied in the optimization and modeling of various bioactive compound extraction processes. They include the optimization of antioxidant phenolic compounds from brewer’s spent grain extraction conditions [14] and antioxidant compound from Maqui (Aristotelia chilensis [Mol] Stuntz) berries [15]. In addition, design of experiments (DOE) analysis is able to screen out the key factors that have a significant effect on the extraction process and provide a context for the RSM. Hence, in this study, we applied DOE/RSM to optimize the ultrasound-assisted extraction process of common bean antioxidants. We also made a comparison of extraction methods on antioxidant activity and phenolic composition in common bean extract. In addition, we investigated the ultrasound effect on common bean extract structures using scanning electron microscopy (SEM) and Fourier transform infrared spectrophotometry (FT-IR). This study should offer a valuable reference for choosing extraction methods to maximize antioxidants in grain legumes.

2. Materials and Methods

2.1. Material Preparation

Dried speckled kidney bean, a type of common bean (size, 1.03 ± 0.10 cm; weight, 0.81 ± 0.06 g; moisture content, 7.19 ± 0.35%) was purchased from Wal-Mart Stores in Kunming, Yunnan, China, and was produced in 2017. Prior to extraction, the dried beans were ground to fine powder using a laboratory-scale dry grinder (JYS-M01, Joyoung Co., Ltd., Jinan, China). The powder was sifted through a 40-mesh sieve to obtain kidney bean powder of particle size less than 500 μm and was stored at 4 ℃ and used within 1 month.

2.2. Ultrasonic-Assisted Extraction (UAE)

The ultrasonic treatment of common beans was performed in a tunable ultrasonic bath. The sample (0.5 g) and certain volume of extraction solvent were added to a 50 mL tube. Ultrasonic power, extraction time, and extraction temperature were controlled by the equipment panel. Here, the extraction solvent consisted of water and acetone in different ratios, and the detailed ratios, extraction time, extraction temperature, and ultrasonic power were based on experiment design charts. After extraction, the sample was centrifuged (10 min, 3000× g, 22 ± 1 ℃) and the supernatant was collected and stored at 4 ℃, and analyzed within 24 h.

2.3. Conventional Solvent Extraction (CSE)

In order to compare with UAE, CSE was carried out under the optimal extraction conditions obtained by response surface methodology. Samples (0.5 g) were extracted at 30 ℃ for 68 min, using 18 mL 50% acetone as solvents in an electric hot water bath (DK-S26, Jinghong Co., Shanghai, China). After extraction, the sample was centrifuged (10 min, 3000× g, 22 ± 1℃) and the supernatant was collected and stored at 4 ℃.

2.4. Design of Experiments (DOE)

A two-level factorial (default generators) design was applied to build the distribution matrix, which was generated by Minitab 17 software (Pennsylvania State University, Philadelphia, PA, USA). This design comprehensively examined the effects of ultrasonic time, extraction temperature, ultrasonic power, liquid-to-solid ratio, and acetone concentration on the common bean antioxidants and screened the key factors that have significant effects on the extraction process. The low and high levels were assigned as “−1” and “+1”, respectively, (Table 1) and the experiment matrix was shown in Table 2. All experiments were carried out in triplicate according to the experimental design, and the average antioxidant activities were considered as the responses, Y1 (ferric ion reducing antioxidant power (FRAP), μmol Fe (II)/g dry weight (DW)) and Y2 (2,2−diphenyl−1−picrylhydrazyl free radical scavenging activity (DPPH), μmol Trolox/g DW), respectively. The Pareto Chart of Standardized Effects was used to illustrate the main effect or interactive effect, which is considered to be statistically significant when its magnitude is larger than the other contrast column effects [16].

2.5. Response Surface Methodology (RSM)

Based on the DOE results, the extraction time (X1, 40-60-80 min), acetone concentration (X2, 40-50-60%), and liquid to solid ratio (X3, 30-35-40 mL/g) were selected as the major influential independent variables, and their related coded levels of independent variables were presented in Table 3. A 53 central composite design was used to evaluate the effects of the three independent variables on the extraction efficiency of antioxidants, which were reflected by two dependent responses Y1 and Y2.
Design Expert 8.0.6 Trial software (Sta-Ease, Minneapolis, MN, USA) was used for data regression analysis and estimation of regression equation coefficients. An empirical model was obtained by correlating the measured responses with independent variables using multiple regression analysis. The following equation was used to predict the second−order response function for the experiments.
Y = β 0 + i = 1 n β i X i + i = 1 j > 1 n 1 j = 2 n β ij X i X j + i = 1 n β ii X i 2 + ε
where Y is the measured responses, Xi and Xj are independent variables, and ε depicts error. β0, βi, βii, and βij are the intercept term, coefficients, quadratic coefficients, and coefficients of interaction effects, respectively.

2.6. Antioxidant Activity

The antioxidant activities of common bean extracts were evaluated by DPPH free radical scavenging activity (DPPH) assay and ferric-reducing antioxidant power (FRAP) assay according to our previously published work [17], and the results were expressed as micromole Trolox equivalent per gram of dry weight samples (μmol TE/g DW) and μmol Fe (II)/g DW.

2.7. High Performance Liquid Chromatography (HPLC) Analysis

The supernatant obtained under optimal extraction conditions was collected and lyophilized and then dissolved in methanol for HPLC analysis. Major phenolic compounds in the common bean extracts were identified and quantified using Shimadzu LC-20AR HPLC system (Shimadzu, Kyoto, Japan) equipped with a Shim-pack GIS C18 reversed phase column (4.6 × 250 mm, 5 μm, Shimadzu, Kyoto, Japan), a binary pump, and a diode array detector (SPD-M20A, Shimadzu, Kyoto, Japan). The mobile phase consists of solvent A (0.1% (v/v) formic acid in water) and solvent B (0.1% (v/v) formic acid in methanol). The analysis was performed by a gradient elution program: 0 min, 5% B (v/v); 3 min, 10% B (v/v); 13 min, 28% B (v/v); 23 min, 45% B (v/v); 38 min, 70% B (v/v); 43 min, 90% B (v/v); 48–63 min, 95% B (v/v). The sample injection volume was 20 μL, and the flow rate was set at 1.0 mL/min. Phenolic compounds were identified by comparison with the retention time and UV spectra of standards, and their contents were calculated based on the peak area under the maximum absorbance and calibration curve of the corresponding standard at 10–100 μg/mL. The results were expressed as mg/100g DW.

2.8. Characterization of Raw and Treated Common Beans

Prior to characterization, the treated common bean slurries were freeze-dried to maintain their original structures as much as possible. Afterward, the lyophilized samples were preserved in a desiccator at ambient temperature. An FEI Sirion 200 field-emission scanning electron microscope (FEI Co., Hillsboro, Oregon, USA) was used to observe the surface structures of raw and treated samples. A spectrum Fourier transform infrared spectrophotometer (FT-IR, Perkin Elmer Inc., Beaconsfield, Buckinghamshire, England) was applied to analyze the infrared signatures of the raw and treated common beans.

2.9. Statistical Analysis

All the measurements were performed in triplicate, and the results were expressed as mean standard deviation (SD), with p value less than 0.05 defined as statistical significance. The statistical software Design Expert 8.06 (Sta-Ease, Minneapolis, MN, USA), IBM SPSS Statistics 19 (IBM, New York, NY, USA), Minitab 17 software (Pennsylvania State University, Philadelphia, PA, USA), and Origin 8.5 (OriginLab, Hampton, MA, USA) were used for statistical analysis.

3. Results

3.1. Selection of Statistically Significant Effects Using 2k DOE Analysis

DOE technique offers a structured approach for generating a significance test of factor levels and providing a prediction model for response. Here, a two-level factorial (default generators) design was used to build the distribution matrix and the results are shown in Table 2, which were further used to generate the Pareto Chart of Standardized Effects (Figure 1a,b). If the extraction factor increases from level “−1” to “+1”, the response also increases to the value of the corresponding effect, meaning that the extraction factor shows the main effect. Figure 1 shows that the top three extraction factors, including extraction time, liquid-to-solid ratio, and acetone concentration, were statistically significant for the two responses and should be studied further. These results can be used for the optimization of the following extraction process by RSM.

3.2. Fitting the Model

Experimental modeling results for antioxidant activity (Table 4) show that FRAP and DPPH in common bean extracts varied from 41.1 to 70.1 μmol Fe(Ⅱ)/g DW and 30.3 to 51.7 μmol Trolox/g DW, respectively. The ANOVA results (Table 5) show that the model was highly significant (p < 0.0001) for FRAP and DPPH values. The lack of fit for both models was not significant (p > 0.05), which indicated that the established models fully explain the relationship between independent variables and responses. The R2 and adjusted R2 (Adj. R2) were close to 1, indicating a high degree of correlation between the predicted values and experimental values. Moreover, the predicted R2 (Pred R2) of each model was in reasonable agreement with the Adj. R2, indicating that the model predicts the response value very well. The Adeq Precision of each model is larger than 4, indicating that the model can be navigated in the design space. Furthermore, the coefficient of variance (CV) of each model was rather low (CV < 3%), which further supported the good adaptability of the model, thereby assuring better reproducibility. The resulting response surface 3D graph corresponding to each response is shown in Figure 2a–f.

3.3. Effects of Extraction Variables on Antioxidant Activity

ANOVA results showed significant linear (X1, X2, X3), quadratic (X2X3), and interactive ( X 1 2 , X 2 2 , X 3 2 ) effects on FRAP (Table 5). Based on the regression coefficient (β) values (Equation (2)), X2 showed a major effect, followed by X 2 2 , X1, X 3 2 , X 1 2 , X3, and X2X3. The linear effect of extraction time (X1), acetone concentration (X2), and liquid-to-solid ratio (X3) showed a highly significant (p < 0.0001) positive effect on FRAP; moreover, their quadratic terms ( X 1 2 , X 2 2 , X 3 2 ) exhibited a highly significant (p < 0.0001) negative effect on FRAP. The interaction between the acetone concentration and liquid-to-solid ratio (X2X3) revealed a significant (0.0024) negative effect on FRAP (Table 5).
DPPH radical scavenging activity is largely determined by X 2 2 , followed by X 3 2 , X2, X3, X1X2, X1X3, and X 1 2 (Equation (3)). The linear effect of acetone concentration (X2) and liquid-to-solid ratio (X3) showed a highly significant (p < 0.0001) positive effect on DPPH, and their quadratic terms ( X 2 2 , X 3 2 ) exhibited a highly significant (p < 0.0001) negative effect on DPPH; moreover, X 1 2 also had a significant (p = 0.0210) negative effect on DPPH. The interaction between the extraction time and acetone concentration (X1X2) had a significant (p = 0.0004) negative effect on DPPH. The interaction between the extraction time and liquid-to-solid ratio (X1X3) revealed a significant (p = 0.0421) positive effect on DPPH (Table 5).
The models for antioxidant activities (FRAP and DPPH) were estimated by RSM, taking into account only the significant terms, which were shown in Equations (2) and (3):
Y 1 = 69.42 + 4.56 X 1 + 7.19 X 2 + 3.29 X 3 2.33 X 2 X 3 3.50 X 1 2 4.97 X 2 2 3.89 X 3 2
Y 2 = 51.15 + 4.12 X 2 + 2.13 X 3 2.04 X 1 X 2 0.91 X 1 X 3 0.80 X 1 2 5.08 X 2 2 4.74 X 3 2
The non-significant values for lack of fit showed that the models were qualified with good prediction. In addition, the predicted R2 value (R2 = 0.9855 and 0.9875, respectively) fairly matched the adjusted R2 value (0.9725 and 0.9763, respectively) (Table 5).
In brief, acetone concentration (X2) and liquid-to-solid ratio (X3) revealed a positive effect for both responses. The interactive effects exhibited quite different patterns for the two responses (Y1 and Y2). Similar results were also obtained by others [18]. This may be attributed to the fact that the mechanism of the free radical reaction is different. Nevertheless, our results indicated that extraction time significantly influenced FRAP values, but had no significant effect on DPPH values.

3.4. Verification of the Predicted Optimal Extraction Conditions

In order to verify the reliability of the models, a single experiment was carried out under the modified optimal conditions: 68 min, 55% acetone, 36:1 liquid-to-solid ratio, 30 ℃, and 480 W. The experimental values for FRAP and DPPH were 75.2 μmol Fe(Ⅱ)/g DW and 50.9 μmol Trolox/g DW, which were well matched with the predicted values of 77.2 μmol Fe(Ⅱ)/g DW and 51.8 μmol Trolox/g DW with the coefficient of variance values of 2.68% and 1.84%, respectively.

3.5. Comparison of Extraction Methods on Antioxidant Activity and Phenolic Composition in Common Bean Extracts

Two extraction methods (UAE and CSE) were compared with regard to their extraction efficiency. These two extraction methods were performed under the same optimum extraction conditions obtained by central composite design (CCD) (68 min extraction time, 55% acetone, 36 mL/g, 30 °C).
In terms of extraction efficiency, UAE gave FRAP and DPPH values of 75.2 μmol Fe(Ⅱ)/g DW and 50.9 μmol Trolox/g DW, respectively, while CSE offered 9.87 μmol Fe(Ⅱ)/g DW (FRAP) and 7.76 μmol Trolox/g DW (DPPH), indicating that the UAE method yielded about eight-fold higher FRAP and about seven-fold higher DPPH than CSE method. Producing higher antioxidant activities through UAE can be attributed to the ultrasonic wave facilitating solvent penetration into the sample matrix and increasing the rates of mass transfer of antioxidants to the extraction solvent [19]. Similarly, in another study [20], UAE of antioxidants (phenolic compounds and anthocyanins) was compared with CSE, in terms of their respective efficiencies, concluding that the former provided a yield of about 2.5-fold higher total anthocyanin content and 3.2-fold higher total phenolic content than the latter. However, the antioxidant capacity of common beans using the whole seed was much lower than that in mung bean coats (178.28 μmol Trolox/g DW) obtained by ultrasound-assisted extraction in another study. As antioxidants mainly accumulate in seed coats, it is reasonable that it shows higher antioxidant capability. In addition, a similar conclusion was also obtained that UAE had higher extraction efficiency than CSE [21].
Ten polyphenolic antioxidant compounds in the extracts, including protocatechuic acid, catechin, chlorogenic acid, epicatechin, ferulic acid, coumarin, rutin, myricetin, cinnamic acid, and genistein, were detected and quantified by HPLC with standard curves. The chromatography of standards is shown in Figure 3. It is noteworthy that the contents of all phenolic compounds in the extracts obtained by UAE are higher than those obtained by CSE (Table 6), indicating that UAE has a higher extraction efficiency than CSE. A similar conclusion was also obtained by others [22]. Catechin and epicatechin recorded the two highest concentrations in UAE and CSE extracts, and the concentrations of catechin and epicatechin in UAE extracts were significantly higher than that in CSE extracts (Table 6). These levels were also higher than that in dark beans (Phaseolus vulgaris L.) [23]. In addition, compared to CSE, ultrasonic treatment also can significantly increase the chlorogenic acid, ferulic acid, cinnamic acid, genistein, and rutin levels, some of which were higher than that in other beans such as the concentration of ferulic acid (8.94 mg/100g DW) which obtained by UAE and was about ten-fold higher than that in dark beans (0.737 mg/100g DW) [24]. In addition, these phenolic compounds have also been detected in other common bean varieties and exhibit several health benefits [25]. Interestingly, the contents of chlorogenic acid (46.1 mg/100g DW) and ferulic acid (46.1 mg/100g DW) in common beans were significantly higher than those obtained by UAE in yellow soybean seeds (4.72–6.83 mg/100g DW and 1.42–5.82 mg/100g DW, respectively) [26]. Flavonoids such as catechin, epicatechin, rutin, myricetin, and genistein have shown significant biological activities including anti-bacterial, anti-tumor, and anti-inflammatory activities [25]. Phenolic acids such as protocatechuic acid, chlorogenic acid, ferulic acid, and cinnamic acid also exert several health benefits for oxidative stress-induced diseases via inhibiting lipid peroxidation, scavenging free radicals or chelating metal ions [27]. Therefore, the presence of phenolic compounds obtained under optimal UAE conditions makes it feasible for common beans to be a good source of functional food ingredients in industrial applications, especially in pharmaceuticals and nutraceuticals.

3.6. Effect of Ultrasonic Treatment on the Cellular Structure of Common Bean Seeds

Differences of the common bean slurries before and after ultrasonic treatment (Figure 4a) show enhanced dispersion. SEM showed that the surface morphology of the treated samples was significantly changed from that of the raw seeds (Figure 4b,c). In raw bean seeds, big aggregates were observed, which are starch granules surrounded by cotyledons and cell walls. However, few such aggregates were observed in treated beans, indicating that ultrasonication caused cell wall and cotyledon rupture. Ultrasonic treatment leads to a loose structure and erosion of the surface of common bean via cavitation that occurs near the surface [28]. This could result in more rapid and greater penetration of the solvent into the plant material. A similar conclusion was also obtained by others, who reported that ultrasound induces cavitation phenomena, has a mechanical mixing effect, and can cause structural changes in cellulose, such as increased surface area and decreased crystallinity [29,30].
In addition to the physical effects of ultrasound, the sonochemical effect is another important factor in the change of the physicochemical properties of common beans. The sonochemical effects originate from a series of complex free radical reactions in water. Initially, ultrasonication cleaves the O–H bonds of H2O molecules and produces hydroxyl and hydrogen radicals, which then excite a chain reaction. The chain reaction produces more free radicals or oxidizing species such as hydrogen peroxide, oxygen, and ozone [31]. The oxidizing species can erode the solid structure of lignin, cellulose, and hemicellulose, leading to more exposure of granules, which can be confirmed by the treatment changes in the infrared signature of common beans (Figure 5). In treated common beans, the absorption peak at 3270 cm−1 was enhanced, and it represented the stretching vibration of O–H and hydrogen bonds in phenolic and aliphatic structures [32]. The enhanced absorption at 2925 cm−1 represented the stretch vibrations of the C–H bond in the methylene of cellulose [30,33]. The intensity ratio of the peaks at 1632 and 1513 cm−1 change, which may be related to the demethylation of the syringyl structure of lignin [34]. The enhanced peak at 1145 cm−1 is the C–H signal in planar deformation of glucosyl group in lignin [35]. These results indicate that ultrasonic treatment causes partial decomposition of the lignin network structure. In addition, ultrasonic treatment significantly increased the intensity of the peak at 992 cm−1, which is assigned to C–O stretching and is likely the C–O bond of cellulose and hemicellulose [30]. This indicates that ultrasonic treatment breaks the lignin to a certain extent and releases more cellulose and hemicellulose on the surface of common beans, which can be helpful for increasing the release of antioxidants.

4. Conclusions

In this study, ultrasound-assisted extraction of common bean antioxidants was optimized by RSM. The optimal extraction parameters were determined, and the predicted values were close to the experimental values. The optimal UAE conditions for common bean antioxidants included an extraction time of 68 min, extraction solvent concentration of 55%, liquid-to-solid ratio of 36 mL/g, extraction temperature of 30 ℃, and ultrasonic power of 480 W. Under these optimal conditions, the maximum FRAP and DPPH values of common beans were 75.2 μmol Fe(Ⅱ)/g DW and 50.9 μmol Trolox/g DW, respectively.
Compared to conventional extraction methods, ultrasonic treatment significantly increases the extraction rate of antioxidants, which were further analyzed using HPLC, and 10 phenolic compounds were detected, including protocatechuic acid, catechin, chlorogenic acid, epicatechin, ferulic acid, coumarin, rutin, myricetin, cinnamic acid, and genistein. In addition, the effects of ultrasound on common bean structures were analyzed using SEM and FT-IR, finding that ultrasonic treatment led to a loose structure and erosion of the surface of common beans, which could result in more rapid and greater penetration of the solvent into the plant material.

Author Contributions

Conceptualization, R.-Y.G. and H.C.; funding acquisition, R.-Y.G. and H.C.; investigation, Q.-Q.Y., Y.-Y.G., and D.Z.; supervision, R.-Y.G.; writing — original draft, Q.-Q.Y.; writing — review & editing, R.-Y.G. and H.C.

Funding

This study was funded by Shanghai Agricultural Science and Technology Key Program (18391900600), the Shanghai Basic and Key Program (18TC1410800), Shanghai Pujiang Talent Plan (18PJ1404600), and Agri-X Interdisciplinary Fund of Shanghai Jiao Tong University (Agri-X2017004).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baptista, A.; Pinho, O.; Pinto, E.; Casal, S.; Mota, C.; Ferreira, I.M.P.L.V.O. Characterization of protein and fat composition of seeds from common beans (Phaseolus vulgaris L.), cowpea (Vigna unguiculata L. Walp) and Bambara groundnuts (Vigna subterranea L. Verdc) from Mozambique. J. Food Meas. Charact. 2016, 11, 442–450. [Google Scholar] [CrossRef]
  2. Jukanti, A.K.; Gaur, P.M.; Gowda, C.; Chibbar, R.N. Nutritional quality and health benefits of chickpea (Cicer arietinum L.): A review. Br. J. Nutr. 2012, 108, S11–S26. [Google Scholar] [CrossRef] [PubMed]
  3. Lee, Y.K.; Hwang, J.T.; Lee, M.S.; Kim, Y.M.; Park, O.J. Kidney bean husk extracts exert antitumor effect by inducing apoptosis involving AMP-activated protein kinase signaling pathway. In Natural Compounds and Their Role in Apoptotic Cell Signaling Pathways; Diederich, M., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 2009; pp. 484–488. [Google Scholar]
  4. Cardador-Martínez, A.; Castaño-Tostado, E.; Loarca-Piña, G. Antimutagenic activity of natural phenolic compounds present in the common bean (Phaseolus vulgaris) against aflatoxin B 1. Food Addit. Contam. 2002, 19, 62–69. [Google Scholar] [CrossRef] [PubMed]
  5. Xu, B.; Chang, S.K. Reduction of antiproliferative capacities, cell-based antioxidant capacities and phytochemical contents of common beans and soybeans upon thermal processing. Food Chem. 2011, 129, 974–981. [Google Scholar] [CrossRef]
  6. Beninger, C.W.; Hosfield, G.L. Antioxidant activity of extracts, condensed tannin fractions, and pure flavonoids from Phaseolus vulgaris L. seed coat color genotypes. J. Agric. Food Chem. 2003, 51, 7879–7883. [Google Scholar] [CrossRef]
  7. González-Centeno, M.R.; Knoerzer, K.; Sabarez, H.; Simal, S.; Rosselló, C.; Femenia, A. Effect of acoustic frequency and power density on the aqueous ultrasonic-assisted extraction of grape pomace (Vitis vinifera L.)—A response surface approach. Ultrason. Sonochem. 2014, 21, 2176–2184. [Google Scholar] [CrossRef]
  8. Gil-Chávez, G.J.; Villa, J.A.; Ayala-Zavala, J.F.; Heredia, J.B.; Sepulveda, D.; Yahia, E.M.; Gonzalez-Aguilar, G.A. Technologies for extraction and production of bioactive compounds to be used as nutraceuticals and food ingredients: An overview. Compr. Rev. Food Sci. Food Saf. 2013, 12, 5–23. [Google Scholar] [CrossRef]
  9. Zhang, Q.A.; Fan, X.H.; Li, T.; Zhang, Z.Q.; Liu, Y.K.; Li, X.P. Optimisation of ultrasound extraction for flavonoids from semen astragali complanati and its identification by HPLC-DAD-MS/MS. Int. J. Food Sci. Technol. 2013, 48, 1970–1976. [Google Scholar] [CrossRef]
  10. Yu, M.; Liu, H.; Yang, Y.; Shi, A.; Liu, L.; Hui, H.; Wang, Q. Optimisation for resveratrol accumulation during peanut germination with phenylalanine feeding & ultrasound-treatment using response surface methodology. Int. J. Food Sci. Technol. 2016, 51, 938–945. [Google Scholar]
  11. Kumari, B.; Tiwari, B.K.; Hossain, M.B.; Rai, D.K.; Brunton, N.P. Ultrasound-assisted extraction of polyphenols from potato peels: Profiling and kinetic modeling. Int. J. Food Sci. Technol. 2017, 52, 1432–1439. [Google Scholar] [CrossRef]
  12. Mishra, A.; Malik, A. Metal and dye removal using fungal consortium from mixed waste stream: Optimization and validation. Ecol. Eng. 2014, 69, 226–231. [Google Scholar] [CrossRef]
  13. Cheok, C.Y.; Chin, N.L.; Yusof, Y.A.; Talib, R.A.; Law, C.L. Optimization of total phenolic content extracted from Garcinia mangostana Linn. hull using response surface methodology versus artificial neural network. Ind. Crops Prod. 2012, 40, 247–253. [Google Scholar] [CrossRef]
  14. Carciochi, R.A.; Sologubik, C.A.; Fernandez, M.B.; Manrique, G.D.; D’Alessandro, L.G. Extraction of antioxidant phenolic compounds from brewer’s spent grain: Optimization and kinetics modeling. Antioxidants 2018, 7, 45. [Google Scholar] [CrossRef] [PubMed]
  15. Quispe-Fuentes, I.; Vega-Galvez, A.; Campos-Requena, V.H. Antioxidant compound extraction from Maqui (Aristotelia chilensis Mol Stuntz) berries: Optimization by response surface methodology. Antioxidants 2017, 6, 11. [Google Scholar] [CrossRef]
  16. Xiao, G.P.; Zhu, Z.K. Friction materials development by using DOE/RSM and artificial neural network. Tribol. Int. 2010, 43, 218–227. [Google Scholar] [CrossRef]
  17. Yang, Q.Q.; Cheng, L.; Long, Z.Y.; Li, H.B.; Gunaratne, A.; Gan, R.Y.; Corke, H. Comparison of the phenolic profiles of soaked and germinated peanut cultivars via UPLC-QTOF-MS. Antioxidants 2019, 8, 47. [Google Scholar] [CrossRef]
  18. Chen, S.S.; Zeng, Z.; Hu, N.; Bai, B.; Wang, H.L.; Suo, Y.R. Simultaneous optimization of the ultrasound-assisted extraction for phenolic compounds content and antioxidant activity of Lycium ruthenicum Murr. fruit using response surface methodology. Food Chem. 2018, 242, 1–8. [Google Scholar] [CrossRef]
  19. Avhad, D.N.; Rathod, V.K. Ultrasound assisted production of a fibrinolytic enzyme in a bioreactor. Ultrason. Sonochem. 2015, 22, 257–264. [Google Scholar] [CrossRef]
  20. He, B.; Zhang, L.L.; Yue, X.Y.; Liang, J.; Jiang, J.; Gao, X.L.; Yue, P.X. Optimization of ultrasound-assisted extraction of phenolic compounds and anthocyanins from blueberry (Vaccinium ashei) wine pomace. Food Chem. 2016, 204, 70–76. [Google Scholar] [CrossRef] [PubMed]
  21. Zhou, Y.; Zheng, J.; Gan, R.Y.; Zhou, T.; Xu, D.P.; Li, H.B. Optimization of ultrasound-assisted extraction of antioxidants from the mung bean coat. Molecules 2017, 22, 638. [Google Scholar] [CrossRef]
  22. Szydlowska-Czerniak, A.; Tulodziecka, A.; Karlovits, G.; Szlyk, E. Optimisation of ultrasound-assisted extraction of natural antioxidants from mustard seed cultivars. J. Sci. Food Agric. 2015, 95, 1445–1453. [Google Scholar] [CrossRef]
  23. Dueñas, M.; Sarmento, T.; Aguilera, Y.; Benitez, V.; Mollá, E.; Esteban, R.M.; Martín-Cabrejas, M.A. Impact of cooking and germination on phenolic composition and dietary fibre fractions in dark beans (Phaseolus vulgaris L.) and lentils (Lens culinaris L.). LWT-Food Sci. Technol. 2016, 66, 72–78. [Google Scholar] [CrossRef]
  24. López, A.; El-Naggar, T.; Dueñas, M.; Ortega, T.; Estrella, I.; Hernández, T.; Pilar Gómez-Serranillos, M.; Ma Palomino, O.; Emilia Carretero, M. Effect of cooking and germination on phenolic composition and biological properties of dark beans (Phaseolus vulgaris L.). Food Chem. 2013, 138, 547–555. [Google Scholar] [CrossRef]
  25. Yang, Q.Q.; Gan, R.Y.; Ge, Y.Y.; Zhang, D.; Corke, H. Polyphenols in common beans (Phaseolus vulgaris L.): Chemistry, analysis, and factors affecting composition. Compr. Rev. Food Sci. Food Saf. 2018, 17, 1518–1539. [Google Scholar] [CrossRef]
  26. Đurović, S.; Nikolić, B.; Luković, N.; Jovanović, J.; Stefanović, A.; Šekuljica, N.; Mijin, D.; Knežević-Jugović, Z. The impact of high-power ultrasound and microwave on the phenolic acid profile and antioxidant activity of the extract from yellow soybean seeds. Ind. Crops Prod. 2018, 122, 223–231. [Google Scholar] [CrossRef]
  27. Wang, Y.Z.; Fu, S.G.; Wang, S.Y.; Yang, D.J.; Wu, Y.H.S.; Chen, Y.C. Effects of a natural antioxidant, polyphenol-rich rosemary (Rosmarinus officinalis L.) extract, on lipid stability of plant-derived omega-3 fatty acid rich oil. LWT-Food Sci. Technol. 2018, 89, 210–216. [Google Scholar] [CrossRef]
  28. Ramic, M.; Vidovic, S.; Zekovic, Z.; Viadic, J.; Cvejin, A.; Pavlic, B. Modeling and optimization of ultrasound-assisted extraction of polyphenolic compounds from Aronia melanocarpa by-products from filter-tea factory. Ultrason. Sonochem. 2015, 23, 360–368. [Google Scholar] [CrossRef] [PubMed]
  29. Dranca, F.; Oroian, M. Total monomeric anthocyanin, total phenolic content and antioxidant activity of extracts from eggplant (Solanum melongena L.) peel using ultrasonic treatments. J. Food Process Eng. 2017, 40. [Google Scholar] [CrossRef]
  30. Shi, W.; Jia, J.; Gao, Y.; Zhao, Y. Influence of ultrasonic pretreatment on the yield of bio-oil prepared by thermo-chemical conversion of rice husk in hot-compressed water. Bioresour. Technol. 2013, 146, 355–362. [Google Scholar] [CrossRef] [PubMed]
  31. Adewuyi, Y.G. Sonochemistry in environmental remediation. 2. Heterogeneous sonophotocatalytic oxidation processes for the treatment of pollutants in water. Environ. Sci. Technol. 2005, 39, 8557–8570. [Google Scholar] [CrossRef] [PubMed]
  32. Li, M.F.; Sun, S.N.; Xu, F.; Sun, R.C. Ultrasound-enhanced extraction of lignin from bamboo (Neosinocalamus affinis): Characterization of the ethanol-soluble fractions. Ultrason. Sonochem. 2012, 19, 243–249. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, C.F.; Sun, R.C.; Zhang, A.P.; Ren, J.L. Preparation of sugarcane bagasse cellulosic phthalate using an ionic liquid as reaction medium. Carbohydr. Polym. 2007, 68, 17–25. [Google Scholar] [CrossRef]
  34. Sul’man, E.; Sul’man, M.; Prutenskaya, E. Effect of ultrasonic pretreatment on the composition of lignocellulosic material in biotechnological processes. Catal. Ind. 2011, 3, 28–33. [Google Scholar] [CrossRef]
  35. Sun, R.; Tomkinson, J. Comparative studies of ash-AQ and soda-AQ lignins from oil palm EFB fibre. Int. J. Polym. Mater. 2001, 48, 1–16. [Google Scholar] [CrossRef]
Figure 1. The main effects of ingredients on specified responses: (a) extraction factor effect on ferric−reducing antioxidant power (FRAP); (b) extraction factor effect on 2,2−diphenyl−1−picrylhydrazyl free radical scavenging activity (DPPH); A, extraction time; B, extraction temperature; C, ultrasonic power; D, liquid-to-solid ratio; E, acetone concentration.
Figure 1. The main effects of ingredients on specified responses: (a) extraction factor effect on ferric−reducing antioxidant power (FRAP); (b) extraction factor effect on 2,2−diphenyl−1−picrylhydrazyl free radical scavenging activity (DPPH); A, extraction time; B, extraction temperature; C, ultrasonic power; D, liquid-to-solid ratio; E, acetone concentration.
Antioxidants 08 00083 g001

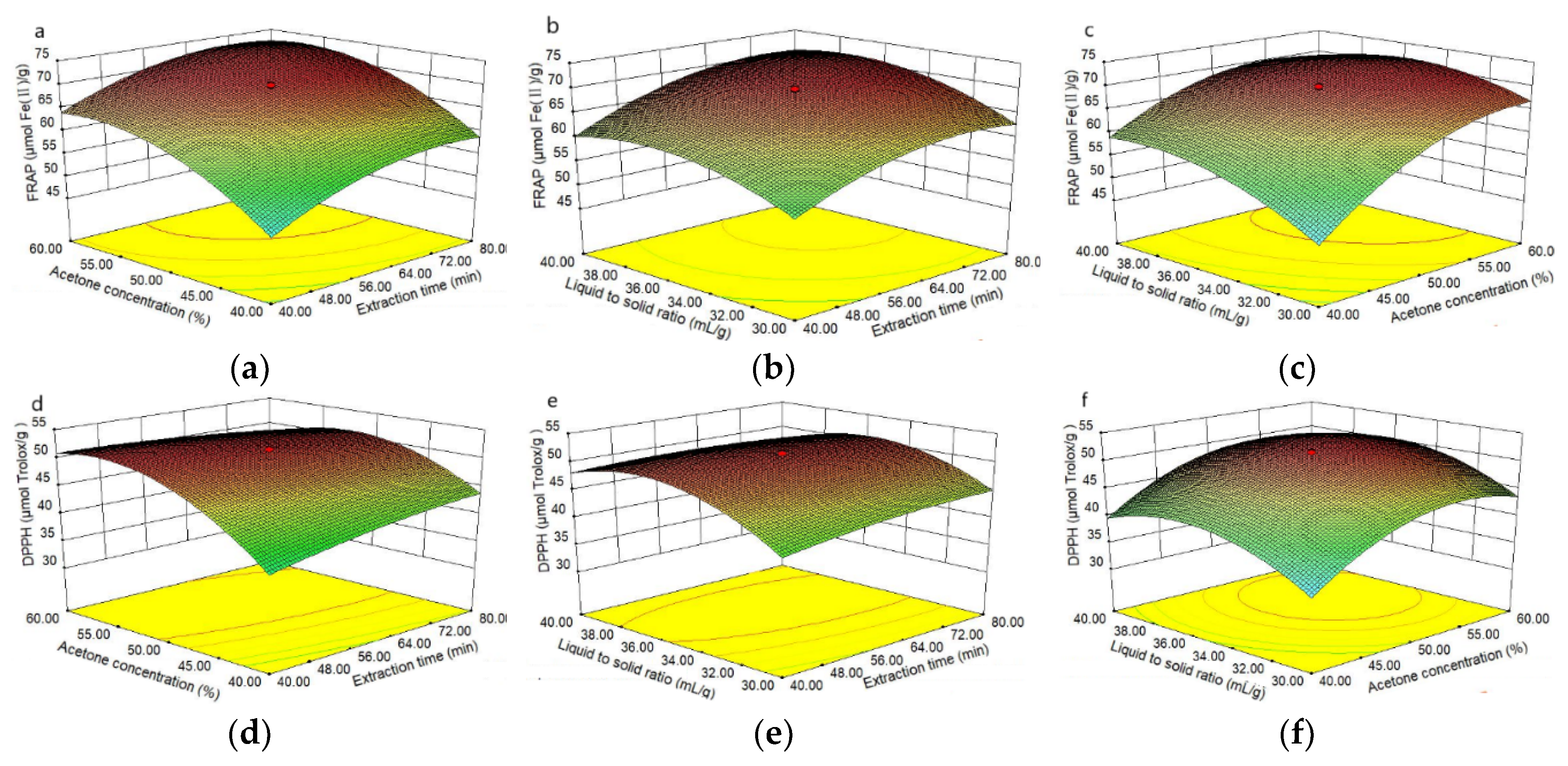

Figure 2. 3D response surface curve and corresponding contour plot showing the effects of independent variables of ultrasonic treatment on DPPH and FRAP. (a) Mutual effects of acetone concentration and extraction time on FRAP; (b) mutual effects of liquid-to-solid ratio and extraction time on FRAP; (c) mutual effects of acetone concentration and liquid-to-solid ratio on FRAP; (d) mutual effects of acetone concentration and extraction time on DPPH; (e) mutual effects of liquid-to-solid ratio and extraction time on DPPH; (f) mutual effects of acetone concentration and liquid-to-solid ratio on DPPH.
Figure 2. 3D response surface curve and corresponding contour plot showing the effects of independent variables of ultrasonic treatment on DPPH and FRAP. (a) Mutual effects of acetone concentration and extraction time on FRAP; (b) mutual effects of liquid-to-solid ratio and extraction time on FRAP; (c) mutual effects of acetone concentration and liquid-to-solid ratio on FRAP; (d) mutual effects of acetone concentration and extraction time on DPPH; (e) mutual effects of liquid-to-solid ratio and extraction time on DPPH; (f) mutual effects of acetone concentration and liquid-to-solid ratio on DPPH.
Antioxidants 08 00083 g002

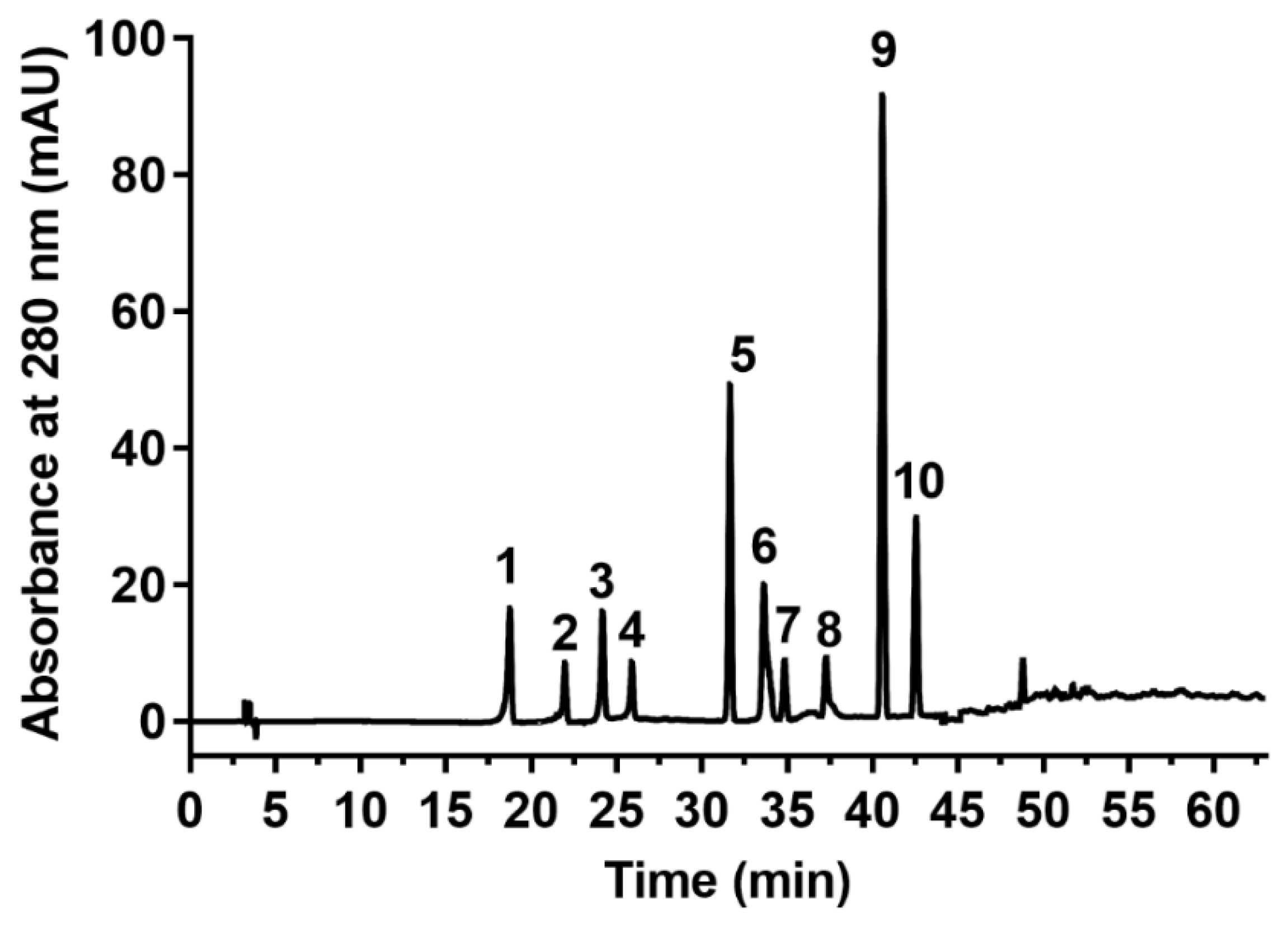

Figure 3. The chromatogram for the standards obtained by gradient elution on reversed phase C-18 column and Photo-Diode Array detector at 280 nm. Peak 1, protocatechuic acid; peak 2, catechin; peak 3, chlorogenic acid; peak 4, epicatechin; peak 5, ferulic acid; peak 6, coumarin; peak 7, rutin; peak 8, myricetin; peak 9, cinnamic acid; peak 10, genistein. mAU: miliabsorbance unit.
Figure 3. The chromatogram for the standards obtained by gradient elution on reversed phase C-18 column and Photo-Diode Array detector at 280 nm. Peak 1, protocatechuic acid; peak 2, catechin; peak 3, chlorogenic acid; peak 4, epicatechin; peak 5, ferulic acid; peak 6, coumarin; peak 7, rutin; peak 8, myricetin; peak 9, cinnamic acid; peak 10, genistein. mAU: miliabsorbance unit.
Antioxidants 08 00083 g003

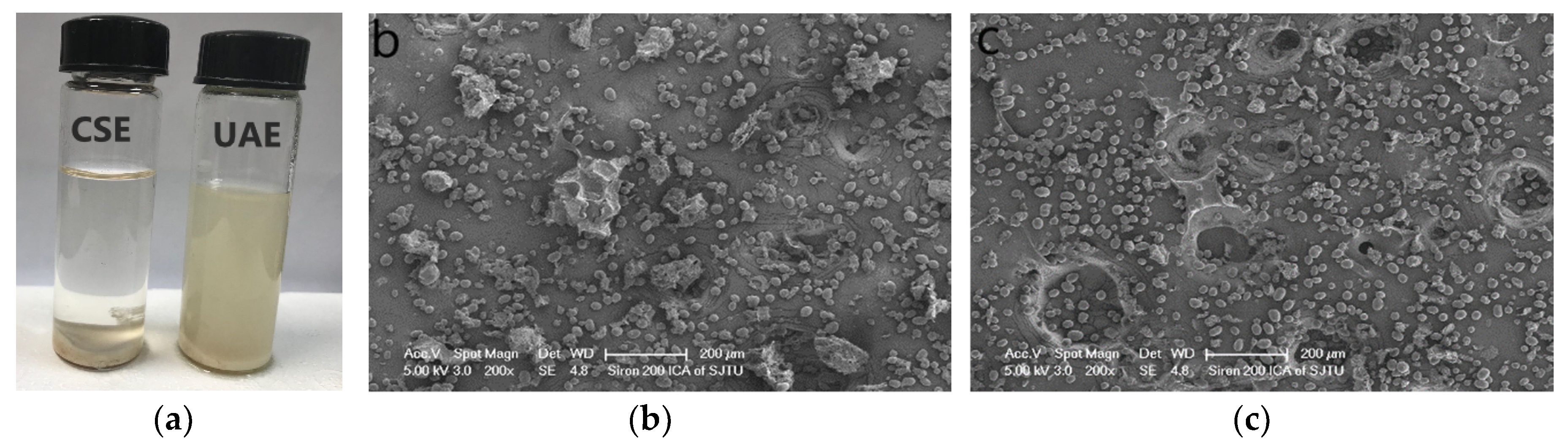

Figure 4. Picture and SEM images of the raw and treated common beans. (a) Picture of common beans in solvent before and after treatment; (b) raw common bean; (c) treated common bean.
Figure 4. Picture and SEM images of the raw and treated common beans. (a) Picture of common beans in solvent before and after treatment; (b) raw common bean; (c) treated common bean.
Antioxidants 08 00083 g004

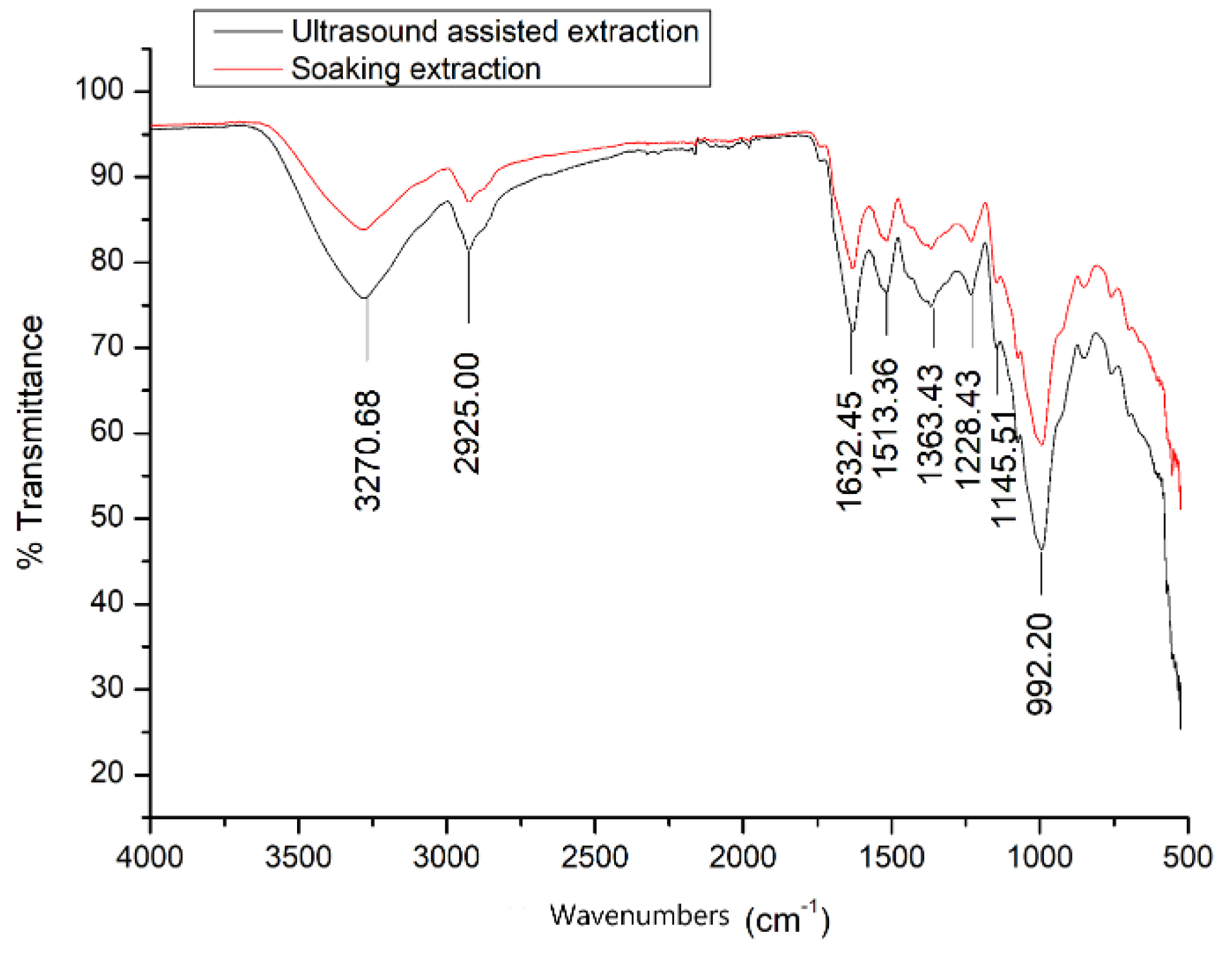

Figure 5. FT-IR spectra of the raw and treated common beans.
Figure 5. FT-IR spectra of the raw and treated common beans.
Antioxidants 08 00083 g005
Table 1. Experimental design factors and levels of design of experiments.
Table 1. Experimental design factors and levels of design of experiments.
LevelsA: Ultrasonic Time (min)B: Extraction Temperature (°C)C: Ultrasonic Power (W)D: Liquid to Solid Ratio (mL/g)E: Acetone Concentration (%)
−140304003040
180505604060
Table 2. Experimental design and results of design of experiments.
Table 2. Experimental design and results of design of experiments.
No.A (min)B (℃)C (W)D (mL/g)E (%)FRAP (μmol Fe2+/g DW)DPPH (μmol Trolox/g DW)
14030400306041.7 ± 0.2639.7 ± 0.26
28030400304032.5 ± 0.3427.9 ± 0.74
34030560406039.9 ± 0.9545.2 ± 0.87
48030560306043.1 ± 1.0040.4 ± 0.83
58050560304040.0 ± 0.5236.7 ± 0.90
64050560404035.4 ± 0.7832.6 ± 0.40
74050400304034.0 ± 0.4131.0 ± 0.79
88030560404042.9 ± 1.0039.0 ± 0.36
94030400404041.3 ± 0.3637.4 ± 0.20
104050400406042.7 ± 0.8537.0 ± 1.03
118050400306049.3 ± 1.1840.0 ± 0.69
124030560304027.6 ± 0.2621.5 ± 0.15
138030400406045.8 ± 0.9445.3 ± 0.92
148050400404044.8 ± 0.7939.5 ± 0.81
154050560306043.2 ± 0.8639.0 ± 0.38
168050560406049.7 ± 0.9543.3 ± 0.76
A, extraction time; B, extraction temperature; C, ultrasonic power; D, liquid to solid ratio; E, acetone concentration. FRAP: ferric ion reducing antioxidant power; DW: dry weight; DPPH: 2, 2−diphenyl−1−picrylhydrazyl free radical scavenging activity.
Table 3. Independent process variables with experimental ranges and levels of response surface methodology.
Table 3. Independent process variables with experimental ranges and levels of response surface methodology.
Independent VariableCode
−1.68 (–α)−10+1+1.68 (–α)
Extraction time (min)26.3640608093.64
Solvent concentration (%)33.1840506066.82
Liquid-to-solid ratio (mL/g)26.5930354043.41
Table 4. Experimental design with response of independent variables.
Table 4. Experimental design with response of independent variables.
NO. aIndependent Variables b Y1: FRAP (μmol Fe2+/g DW) Y2: DPPH (μmol Trolox/g DW)
X1 (min)X2 (%)X3 (mL/g) Experimental DataRSM Predicted Results Experimental Data cRSM Predicted Results
1−1−1−1 41.1 ± 2.65 c39.9 30.5 ± 0.8730.5
21−1−1 46.8 ± 2.5548.7 36.6 ± 0.8037.6
3−11−1 59.0 ± 2.5559.7 42.3 ± 0.7843.3
411−1 68.6 ± 1.1766.9 41.8 ± 1.1142.2
5−1−11 48.2 ± 0.1350.0 36.5 ± 0.6137.1
61−11 61.7 ± 1.8261.0 40.5 ± 0.2140.5
7−111 62.3 ± 1.0060.5 48.9 ± 0.2948.9
8111 68.6 ± 0.5370.0 43.2 ± 0.8844.2
9−α00 51.5 ± 0.4851.9 48.4 ± 0.3847.9
10α00 67.7 ± 2.6567.2 50.8 ± 0.8749.9
110−α0 44.3 ± 0.9543.3 30.3 ± 0.4929.9
120α0 66.6 ± 0.3267.5 44.7 ± 0.6243.7
1300−α 52.6 ± 2.6552.9 35.1 ± 0.8734.2
1400α 64.4 ± 2.4264.0 41.9 ± 0.1441.3
15000 69.8 ± 0.3669.5 51.5 ± 1.0651.2
16000 70.0 ± 1.0669.5 51.5 ± 0.6251.2
17000 69.9 ± 1.2169.5 51.7 ± 0.1451.2
18000 69.9 ± 0.1269.5 51.5 ± 0.1451.2
19000 70.1 ± 0.6469.5 51.5 ± 0.0151.2
20000 66.9 ± 0.2469.5 49.0 ± 0.5751.2
a Experimental conditions according to central composite design (CCD); b X1: Extraction time, X2: Acetone concentration, X3: liquid-to-solid ratio; c Experimental values: mean ± S.D. (n = 3).
Table 5. Results of ANOVA about central composite design a.
Table 5. Results of ANOVA about central composite design a.
VariablesFRAP DPPH
Sum of Squares bDf cMean Square dF-Value ep-Value f Sum of SquaresDfMean SquareF−Valuep-Value
Model1815.899201.7775.54<0.0001 971.389107.9387.95<0.0001
X11)284.181284.18106.39<0.0001 4.5014.503.660.0847
X22)706.371706.37264.45<0.0001 231.411231.41188.56<0.0001
X33)148.271148.2755.51<0.0001 61.99161.9950.51<0.0001
X1X21β2)1.2711.270.480.5058 33.21133.2127.060.0004
X1X31β3)2.4512.450.920.3605 6.6616.665.430.0421
X2X32β3)43.38143.3816.240.0024 0.4510.450.370.5578
X 1 2 11)176.141176.1465.94<0.0001 9.1919.197.490.0210
X 2 2 22)355.511355.51133.10<0.0001 371.381371.38302.62<0.0001
X 3 2 33)217.901217.9081.58<0.0001 324.351324.35264.29<0.0001
Lack of fit19.1653.832.540.1650 6.8051.361.240.4086
R20.9855 0.9875
Adj R20.9725 0.9763
Pred R20.9021 0.9378
Adeq Precision26.043 27.167
C.V. %2.68% 2.52%
a The results were obtained with Design Expert 8.0.6 software; b Sum of the squared differences between the average values and the overall mean; c Degrees of freedom; d Sum of squares divided by degree of freedom; e Test for comparing term variance with residual variance; f Probability of the observed F-value, p < 0.05 defined as significant.
Table 6. Phenolic profile of common bean extracts under optimal extraction condition.
Table 6. Phenolic profile of common bean extracts under optimal extraction condition.
No.CompoundRetention Time (min)Concentration (mg/100g DW)
UAE aCSE b
1Protocatechuic acid18.7177 ± 5.09170 ± 3.09
2Catechin22.0317 ± 6.06297 ± 6.13 *
3Chlorogenic acid24.246.1 ± 1.0541.0 ± 1.23 *
4Epicatechin25.9117 ± 3.12101 ± 3.13 *
5Ferulic acid31.68.94 ± 0.138.09 ± 0.15 *
6Coumarin33.610.2 ± 0.4710.1 ± 0.46
7Rutin34.819.7 ± 0.9515.8 ± 0.89 *
8Myricetin37.332.3 ± 1.1930.1 ± 1.25
9Cinnamic acid40.60.25 ± 0.220.21 ± 0.19 *
10Genistein42.54.74 ± 0.353.64 ± 0.36 *
* p < 0.05; a Ultrasound-assisted extraction; b Conventional solvent extraction.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
