Label-Free Quantitative Proteomic Analysis of Nitrogen Starvation in Arabidopsis Root Reveals New Aspects of H2S Signaling by Protein Persulfidation

by
Ana Jurado-Flores
,
Luis C. Romero
* and
Cecilia Gotor
*
Instituto de Bioquímica Vegetal y Fotosíntesis, Consejo Superior de Investigaciones Científicas and Universidad de Sevilla, 41092 Sevilla, Spain
*
Authors to whom correspondence should be addressed.
Antioxidants 2021, 10(4), 508; https://doi.org/10.3390/antiox10040508
Submission received: 2 March 2021 / Revised: 10 March 2021 / Accepted: 22 March 2021 / Published: 24 March 2021
(This article belongs to the Special Issue Plant and Human Sulfur Biology)
Browse Figures
Review Reports Versions Notes

Abstract

Hydrogen sulfide (H2S)-mediated signaling pathways regulate many physiological and pathophysiological processes in mammalian and plant systems. The molecular mechanism by which hydrogen sulfide exerts its action involves the posttranslational modification of cysteine residues to form a persulfidated thiol motif. We developed a comparative and label-free quantitative proteomic analysis approach for the detection of endogenous persulfidated proteins in N-starved Arabidopsis thaliana roots by using the tag-switch method. In this work, we identified 5214 unique proteins from root tissue that were persulfidated, 1674 of which were quantitatively analyzed and found to show altered persulfidation levels in vivo under N deprivation. These proteins represented almost 13% of the entire annotated proteome in Arabidopsis. Bioinformatic analysis revealed that persulfidated proteins were involved in a wide range of biological functions, regulating important processes such as primary metabolism, plant responses to stresses, growth and development, RNA translation and protein degradation. Quantitative mass spectrometry analysis allowed us to obtain a comprehensive view of hydrogen sulfide signaling via changes in the persulfidation levels of key protein targets involved in ubiquitin-dependent protein degradation and autophagy, among others.

Graphical Abstract

1. Introduction

Hydrogen sulfide (including neutral H2S and the anionic forms hydrosulfide, HS−, and sulfide, S2−) is a well-established gasotransmitter that acts as a signaling molecule in all living organisms in which it has been studied, including humans and mammals in general [1,2], plants [3,4] and bacteria [5,6]. H2S functions in many physiological and pathological diseases in humans, such as Parkinson’s, Huntington’s and Alzheimer’s neurodegenerative diseases [7]. In plant systems, the number of known physiological processes involving signaling and regulation by H2S has grown rapidly in the last few years, which include responses to stress processes such as metal, drought, salinity, hypoxia or developmental processes such as seed germination and root development [4,8,9].
Persulfidation of cysteine residues has been described as one of the molecular mechanisms by which H2S exerts its signaling function [10,11]. Persulfidation, also called S-sulfhydration, refers to the protein posttranslational modification in which the functional thiol (-SH) group of cysteine is replaced with persulfide (-SSH) via the action of sulfide or polysulfide molecules. Persulfide residues are more nucleophilic and acidic than the original thiols and affect protein function and localization [12,13]. Since the first description of persulfidation, the number of known proteins that can undergo persulfidation and the physiological processes shown to be regulated by this mechanism have increased rapidly [12,14,15,16]. Although persulfides are very reactive, the development of chemical-specific protocols to label persulfidated proteins, such as the tag-switch method, has allowed the identification of these proteins by mass spectrometry [17,18]. In plants, proteomic analysis has revealed that a significant number of proteins are susceptible to modification by persulfidation; therefore, a large number of metabolic and regulatory pathways are affected by this modification [15,19]. Two of the processes that have been studied in greater depth are abscisic acid (ABA)-regulated stomatal opening/closure and the self-eating intracellular degradation system of autophagy.
In guard cells, H2S enzymatically produced by L-CYSTEINE DESULFHYDRASE 1 (DES1) is required for ABA-dependent NO and H2O2 production and stomatal closure [20,21,22]. Recently, several key components of the ABA signaling pathway that regulate stomatal opening/closure have been described to be regulated by H2S-dependent posttranslational persulfidation, such as open stomata 1 (OST1)/SNF1-RELATED PROTEIN KINASE2.6 (SnRK2.6) [23], RESPIRATORY BURST OXIDASE HOMOLOG PROTEIN D (RBOHD) and DES1 itself [24]. In this process, ABA induces the cysteine desulfhydrase activity of DES1 to catalyze the release of H2S, which leads to the persulfidation of DES1 itself and sustainable H2S accumulation to drive the persulfidation of OST1 and RBOHD, increasing their kinase and NADPH oxidase activities, respectively.
The regulation of the autophagy process in plants by H2S has been widely studied through the characterization of the DES1 enzyme [25,26]. DES1 belongs to the pyridoxal 5’-phosphate-dependent O-acetylserine(thiol)lyase family in Arabidopsis and shows L-cysteine desulfhydrase activity, which catalyzes H2S production from cysteine in the cytosol [27]. The des1 null mutant line shows elevated ATG8 accumulation and a constitutive autophagy phenotype that can be restored by exogenous addition of H2S. Furthermore, exogenous addition of H2S can reverse the autophagy induced by C- or N- deprivation in wild-type plants [28,29]. Recently, the role of H2S in ABA-induced autophagy has been studied through the regulation of the activity of the cysteine protease ATG4 by regulating the persulfidation level of its catalytic Cys170 residue [30]. ATG4 persulfidation results in the inhibition of the protease activity of the enzyme to process the C-terminal end of ATG8, which is essential for autophagosome formation. Therefore, H2S acts as a repressor of autophagy processes under basal growth conditions by repressing ATG4 activity.
In the present work, we identified new target proteins of persulfidation related to N deprivation-induced autophagy by using the tag-switch method for the enrichment of persulfidated proteins and mass spectrometry identification with label-free quantitation.

2. Materials and Methods

2.1. Plant Ma Terial and Growth Conditions

Arabidopsis seeds were sown on MS solid medium containing 0.8% (w/v) agar and synchronized at 4 °C for 4 d. The plates were incubated vertically in a growth chamber under a long photoperiod regime as described [31]. For exposure to nitrogen deprivation conditions, one-week-old seedlings were transferred to the nitrogen-deficient MS solid medium for an additional 4 d of growth [29].

2.2. Immunoblot Analysis

Plant root material (100 mg) was ground in liquid nitrogen with 100–400 μL of extraction buffer (100 mM Tris-HCl, pH 7.5, 400 mM sucrose, 1 mM EDTA, 10 mg mL−1 sodium deoxycholate, 0.1 mM phenylmethylsulfonyl fluoride, 10 mg mL−1 pepstatin A and 4% [v/v] protease inhibitor cocktail [Roche]) using a mortar and pestle and was centrifuged at 500× g for 10 min to obtain the supernatant fraction as described previously [28]. The total amount of protein was determined using the Bradford described method [32]. For immunoblot analyses, 20 μg of root protein extract was electrophoresed on a 15% acrylamide gel before being transferred to a polyvinylidene fluoride membrane (Bio-Rad, Hercules, CA, USA) according to the manufacturer’s instructions. Anti-Cr-ATG8 [28] and secondary antibodies were diluted 1:2000 and 1:50,000, respectively, in PBS containing 0.1% Tween 20 (Sigma-Aldrich, St. Louis, MO, USA) and 5% milk powder. The ECL Select Western blotting Detection Reaction (GE Healthcare, Chicago, IL, USA) was used to detect proteins and for a protein loading control, the membrane before immunodetection was stained with Ponceau S (Sigma) to detect all protein bands.

2.3. Amino Acid Determination by UPLC-MS/MS

Approximately 100 mg of frozen plant tissue was homogenized in 1.5-mL Eppendorf tubes (Eppendorf, Hamburg, Germany) for 2 min at maximum speed with a Retsch ball mill (MM400; Retsch, Verder Scientific, Haan, Germany). The metabolites were extracted from each aliquot in 0.4 mL of 0.1 N HCl and 0.1% formic acid with shaking for 30 min at 4 °C in an Eppendorf ThermoMixer C. Samples were centrifuged for 15 min at 4700× g at 4 °C.
UHPLC separation of the amino acid sample was performed using the ExionLC™ UPLC system (Sciex, Framingham, MA, USA) with a reversed-phase column (100 mm × 4.6 mm × 100 Å particle, Kinetex XB-C18). The mobile phases were 0.1% formic acid in H2O (Buffer A, HPLC/LCMS grade) and 0.1% formic acid in acetonitrile (Buffer B, HPLC/LC-MS grade). A 5 µL sample was loaded per injection, and the gradient, applied at a flow rate of 600 µL min−1, was as follows: 3 min 100% A, 3 min linear gradient from 100% A to 80% A, 2 min linear gradient from 80% A to 50% A, 1 min hold at 50% A, 1 min linear gradient from 50% to 100% A, and hold at 100% A to re-equilibrate the column for 4 min (14 Q3 76.0 Da, DP 40.0 V, CE 17.0 V min total run time).
Mass spectra were acquired using a QTRAP 6500+ triple quadrupole (Sciex, Framingham, MA, USA) equipped with an electrospray ionization source operating in the positive ionization mode using an ion spray voltage of 4500 V. The other ESI parameters were as follows: curtain gas, 35 psi; collision gas, medium; temperature, 500 °C; nebulizer gas (GS1), 60 psi; and heater gas (GS2), 60 psi. Data were acquired with Analyst® 1.7 software in the multiple reaction monitoring (MRM) mode with a detection window of 60 s. The ionization adducts measured [M+H+] and optimized declustering potential (DP) and collision energy (CE) for each MRM transition were Cys [Q1 122.0 Da]; Met [Q1 150.1 Da, Q3 104.0 Da, DP 6.0 V, CE 15.0 V]; Gly [Q1 76.0 Da, Q3 30.0 Da, DP 6.0 V, CE 19.0 V]; Ala [Q1 90.0 Da, Q3 44.0 Da, DP 6.0 V, CE 17.0 V]; Ser [Q1 106.0 Da, Q3 60.0 Da, DP 6.0 V, CE 15.0 V]; Pro [Q1 116.0 Da, Q3 70.0 Da, DP 20.0 V, CE 21.0 V]; Val [Q1 118.0 Da, Q3 55.0 Da, DP 11.0 V, CE 27.0 V]; Thr [Q1 120.0 Da, Q3 103.0 Da, DP 105.0 V, CE 25.0 V]; Ile [Q1 132.0 Da, Q3 86.0 Da, DP 8.0 V, CE 13.0 V]; Leu [Q1 132.0 Da, Q3 86.0 Da, DP 8.0 V, CE 1.0 V]; Asp [Q1 134.0 Da, Q3 74.0 Da, DP 7.0 V, CE 19.0 V]; Lys [Q1 147.0 Da, Q3 84.0 Da, DP 15.0 V, CE 23.0 V]; Glu [Q1 148.0 Da, Q3 84.0 Da, DP 21.0 V, CE 21.0 V]; His [Q1 156.0 Da, Q3 110.0 Da, DP 16.0 V, CE 19.0 V]; Phe [Q1 166.0 Da, Q3 103.0 Da, DP 11.0 V, CE 37.0 V]; Arg [Q1 175.0 Da, Q3 70.0 Da, DP 40.0 V, CE 27.0 V]; Tyr [Q1 182.0 Da, Q3 165.0 Da, DP 20.0 V, CE 13.0 V]; Gln [Q1 146.9 Da, Q3 84.1 Da, DP 16.0 V, CE 23.0 V]; Trp [Q1 204.9 Da, Q3 145.9 Da, DP 6.0 V, CE 23.0 V]; Asn [Q1 132.9 Da, Q3 86.9 Da, DP 6.0 V, CE 13.0 V]. Data were processed with Sciex OS® software for peak integration and quantification.

2.4. Protein Persulfidation Enrichment by Tag-Switch Method

Plant root material (200 mg) was ground in liquid nitrogen with 400 µL of extraction buffer (50 mM Tris-HCl, pH 8.0, 1 mM EDTA, 1 mM phenylmethylsulfonyl fluoride and 4% [v/v] protease inhibitor cocktail [Roche]) using a mortar and pestle and was centrifuged at 500× g for 10 min to obtain the supernatant.
The tag-switch method was performed in 1 mg of protein extract as previously described [15]. The magnetic beads were removed, and the eluted proteins precipitated with TCA/acetone for mass spectrometry analysis and stored at −80 °C.

2.5. LC-MS/MS

The protein pellet obtained after the tag-switch labeling method was solubilized in digestion buffer containing 2% w/v sodium deoxycholate (SDC) in 100 mM Tris-HCl, pH 8.5, with 5 mM tris(2-carboxyethyl)phosphine (TCEP) and 30 mM 2-chloroacetamide (CAA). Trypsin and Lys-C were added at ratios of 1:50 and 1:100 (w/w), respectively. Digestion was performed overnight at 37 °C in a ThermoMixer C (Eppendorf, Germany) with shaking at 1000 rpm. SDC was removed via acid precipitation with trifluoroacetic acid (TFA). TFA was added until the pH reached 2, and the peptides were desalted using an Oasis HLB plate, dried and stored at −80 °C.
A total of 1000 ng of the tryptic peptide mixture was analyzed using an UltiMate 3000 high-performance liquid chromatography system (Thermo Fisher Scientific, Waltham, MA, USA) coupled online to a Q Exactive HF-x mass spectrometer (Thermo Fisher Scientific) via a nanoelectrospray source. Chromatography and tandem mass spectrometry conditions were as described [33].

2.6. Raw Data Processing and Analysis

All the raw files were analyzed by MaxQuant v1.6.17 software using the integrated Andromeda Search engine and were searched against the Arabidopsis thaliana UniProt Reference Proteome without isoforms (July 2020 release with 39,284 protein sequences). MaxQuant was used with the standard parameters (the “Label-Free Quantification” and “Match between runs” were selected with automatic values) except for the modifications: carbamidomethyl (C) was set as a variable modification together with oxidation (M), acetylation (Protein N-term), deamidation (N) and the other 4 that were manually set. In particular, we created Ciano-Biotin (addition of C(15) H(22) N(4) O(4) S), MethylTio (addition of C H(2) S), Sulfide (addition of S), and MSBT (addition of C(7) H(3) N S), which are all active only on cysteine residues [34]. The LFQ intensities found in ‘proteingroups.txt’ were filtered for reverse and potential contaminants, and the data were then analyzed in Perseus [35].
The mass spectrometry proteomics data have been deposited in the ProteomeXchange Consortium [36] via the PRIDE partner repository with the data set identifier PXD024061.

3. Results

3.1. Identification and Quantitative Comparison of the Persulfidation Patterns between Nitrogen-Sufficient and Nitrogen-Deprivation Conditions

Recently, it has been reported that the action of H2S in the regulation of the ABA-induced autophagic process is governed by the persulfidation of the cysteine protease ATG4a [30]. To assess whether additional target proteins are involved in the regulation and signaling of nonselective autophagy mediated by H2S, we used a label-free quantitative (LFQ) approach combined with the tag-switch method to measure protein persulfidation in root samples under nitrogen deprivation, a condition that has been extensively shown to induce autophagy in plants [29,37,38].
Protein samples from four biological replicates (independent pools) of root tissues from seedlings grown in sufficient nitrogen MS media (plus nitrogen samples, PN) or in N-deprived MS media (minus nitrogen samples, MN) were isolated and subjected to the tag-switch procedure (Figure 1A). The proteins eluted from streptavidin beads were digested, and the peptide solutions analyzed by liquid chromatography tandem mass spectrometry. To confirm that N deprivation treatment induced the autophagy process, we determined the ATG8/ATG8-PE protein levels in total protein extracts of the MN and PN samples before tag-switch labeling by immunoblotting; as expected, we detected a significant increase in these proteins after N deprivation (Figure 1B). Nitrogen deprivation blocks the incorporation of nitrogen into amino acids, decreasing the concentration of amino acids related with N-assimilation, such as glutamine (Gln), asparagine (Asn) or aspartate (Asp) [39]; therefore, to check the nutritional status of the samples, we determined the concentration of these amino acids and verified that the levels of Glu, Gln, Asp and Asn were indeed significantly reduced in N-deprived root samples (Figure S1).
A total of 5152 and 5057 proteins were identified as susceptible to persulfidation in the plus nitrogen samples (PN, Dataset S1) and in the minus nitrogen samples (MN, Dataset S2), respectively. Among these proteins, 4995 were common in both PN and MN samples, 157 were only present in PN samples and 62 were only present in MN samples (Figure 1C). In total, 5214 different proteins were identified as susceptible to persulfidation in root tissue (Dataset S3). The largest proteomic analysis of persulfidation in leaf tissue published to date [15] reported a total of 3147 proteins as susceptible to persulfidation in leaves, of which 2523 were present in both root and leaf tissues (Figure 1D). The difference in the number of proteins detected between root and leaf tissues was more closely related to the use of an extra high-resolution mass spectrometer in the case of root samples than to this tissue showing a higher level of persulfidation than leaf tissue.
Most of the persulfidated proteins identified in root tissues showed this posttranslational modification in both N-sufficient medium and in N-starved medium. We have previously observed that an alteration of the persulfidation level of some proteins can be induced, e.g., by treatment with the ABA hormone, which can result in changes in the function or enzymatic properties of these proteins, as shown for the ATG4 cysteine protease [30]. To identify specific target proteins that may be involved in H2S-dependent signaling during N deprivation responses, we compared the persulfidation levels of the identified proteins by label-free quantification.
The LFQ proteomic approach led to the identification and quantification of 1519 proteins that were differentially persulfidated in response to N deprivation compared to the sufficient nutrient control condition, with an FDR threshold of 0.05 (p < 0.05) (Figure 2A). The Pearson correlation coefficient values of all the replicates of each sample were >0.9, indicating a high degree of correlation among samples (Figure 2B).
For further functional analysis, we added 155 persulfidated proteins that were exclusively identified under sufficient conditions or in N-starved samples, for a total of 1674 proteins with differential levels of persulfidation (Dataset S4). Among these proteins, a group of 565 persulfidated proteins were only present or more persulfidated under N-starved conditions (Dataset S5), and 1109 were not present or showed reduced levels of persulfidation under N-starved conditions (Dataset S6). We have to state that the quantification was a relative comparison of minus N to plus N (MN/PN), i.e., a lower level of persulfidation in minus N equals a higher level of persulfidation in plus N.

3.2. Protein Persulfidation Have Impact on the Regulation of Protein Degradation and Autophagy Process

To assess the relevance of persulfidation on plant processes, we determined the subcellular location of the identified persulfidated proteins in roots, and the most represented compartments were the cytosol (20%), chloroplast (14%), ribosome (10%), Golgi apparatus, endoplasmic reticulum (ER) and cell wall (9%) (Figure 3A; Table S1).
The biological processes targeted by persulfidation were dissected by their assignment and Gene Ontology (GO) analysis using UniProt (Figure 3B). The processes most represented in the analysis belonged to cellular processes and metabolism, which might be biased by the fact that these processes include the most abundant proteins, which are preferentially detected by MS, as observed in other proteomic analyses [15,40]. The 5214 identified proteins were also analyzed based on their assigned functions and classified into 35 functional groups using the MapMan nomenclature developed for plant-specific pathways and processes [41] (Figure 3C). The most abundant set corresponded to the general PROTEIN group, which included 20% of the total identified proteins with 1060 elements involved in protein degradation (346 elements), protein synthesis (341 elements), protein posttranslational modification (146 elements), and protein targeting (117 elements). Among the proteins involved in degradation, most were related to the ubiquitin-dependent degradation pathway (168). Additionally, the protein degradation bin included proteins related to the autophagy process, several of which were key proteins (17) involved in this process, such as the serine/threonine kinase TARGET OF RAPAMYCIN (TOR), its effectors proteins REGULATORY-ASSOCIATED PROTEIN OF TOR 1 (RAPTOR 1) and LETHAL WITH SEC THIRTEEN PROTEIN 8 (LST8), and several autophagy-related (ATG) proteins, including ATG2, 3, 5, 7, 11, and 13 and the cysteine protease ATG4, which regulates autophagy by processing and deconjugating the ubiquitin-like protein ATG8 (Table S2) (Figure 4). In addition, up to 58 proteins in this bin were also related to endocytosis and the formation of the phagophore, including several transporters and vacuolar sorting proteins (Table S2).
MapMan classification of the differentially persulfidated proteins showed that the most abundant group corresponded to the general classification of PROTEIN with 309 elements (Figure 3C), of which 225 proteins showed reduced levels of persulfidation under N deprivation and only 88 showed increased levels of persulfidation (Table S3). The protein subgroup with degradation function, which had 101 elements, included several proteins involved in ubiquitin- and autophagy-dependent protein degradation containing nine E3-RING/U-BOX domain ligases, such as RGLG1 and RGLG5, with 2.7- and 0.5-fold increased persulfidation, respectively. These ligases negatively regulate drought stress responses by promoting the degradation of ABA-related PP2C phosphatases and MAPKKK18 [42,43]. The proteins involved in degradation pathways also included two E3-HECT domain ubiquitin ligases and three E3-SCF ubiquitin ligases, for example, MORE AXILLARY BRANCHES 2/ORESARA 9 (MAX2/ORE9) protein, which has been implicated in the regulation of important developmental and hormone processes [44,45,46] (Figure 5). In addition, the E2-like autophagy-related ATG3 protein, which catalyzes the conjugation of ATG8 and phosphatidylethanolamine, showed a 1.9-fold increase in persulfidation levels under N deprivation (Figure 4 and Figure 5).

3.3. Plant Hormone Signaling Components Are Targets of Persulfidation

Previous proteomic analyses performed in leaf tissue under nonstressed conditions have revealed that several proteins involved in the ABA signaling pathway are susceptible to persulfidation [15]. The new proteomic analysis performed in the present study showed a considerable number of root proteins involved in hormone metabolism (up to 101 elements, Figure 3C; Table S4), such as ABSCISIC-ALDEHYDE OXIDASE 2 and 3 (AAO2, AAO3, respectively). In addition, the analysis showed a significant number of proteins involved in hormone signaling (Table S4) including several ABA signaling components, such as the receptors PYRABACTIN RESISTANCE 1 (PYR1) and PYR1-LIKE 1 and 2 (PYL1, PYL2); downstream elements, such as PROTEIN PHOSPHATASE 2C 7 (HAB2); five SNF-related serine/threonine kinases (SnRK2.1, 2.2, 2.3, 2.4, 2.10); and jasmonic acid and brassinosteroid signaling, such as JAR1, COI1, EIN2, BRI1 or BSK1 [47,48]. In addition to the serine/threonine-protein kinases mentioned above, we also identified up to 240 proteins involved in signaling processes, which included 66 protein kinases with important regulatory functions, such as the mitogen-activated protein kinases MPK3 and MPK6; MPKK4/5; the SNF1-related protein kinase catalytic subunits alpha KIN10 and KIN11, which have also been identified as regulators of autophagy [49,50]; and the receptor-like protein kinases FERONIA and THESEUS 1.

3.4. Cellular Processes and Branched-Chain Amino Acid Biosynthesis Are Regulated by Persulfidation under N Deprivation

The classification overview by cell function showed an overrepresentation of proteins that were less persulfidated under N deprivation in the categories of protein synthesis (106 out of 115 differentially persulfidated proteins), amino acid activation (11 out of 12), regulation of transcription (69 proteins out of 78), RNA processing (24 out of 32), DNA synthesis (16 proteins out of 16) and RNA synthesis (8 out of 8) (Figure 6)
The overrepresentation test analysis performed with Database for Annotation, Visualization and Integrated Discovery (DAVID) showed 42 categories within the GO biological process classification with more than two-fold enrichment (FDR < 0.05). The proteins with a higher level of enrichment corresponded to the categories involved in branched-chain amino acid biosynthesis (8.6-fold), with more than 13 proteins, as well as aspartate, valine, leucine and isoleucine biosynthesis (Table S5). To reduce redundancy in the classification annotation, we performed functional annotation clustering to group similar annotations, and three groups with significant enrichment scores were generated (Table 1). The largest cluster, with five annotation processes, included branched-chain amino acid (BCAA) biosynthesis and the leucine, valine, isoleucine (BCAA amino acids) and aspartate amino acid biosynthesis pathways, which showed reduced levels of persulfidation in most of the enzymes involved in these pathways (Figure 7). Amino acid content analysis showed that under N deprivation, there were increases in valine, leucine and isoleucine concentrations, which suggests that a reduction in persulfidation may increase the enzyme activity of the BCAA pathway to redirect amino acid synthesis (Figure 7). A second cluster, with three annotation processes, included glycine and serine metabolism together with tetrahydrofolate interconversion. Finally, a third cluster comprised four annotations related to chitin and cell wall catabolism as well as polysaccharide and amino sugar metabolism. Within this cluster, the cell wall DUF642 protein, one of the proteins with the highest persulfidation change, with a more than 100-fold change in reduction under N deprivation, was included.

4. Discussion

The combination of the chemical selective tag-switch method to label and purify persulfidated proteins coupled to liquid chromatography-tandem mass spectrometry allowed us to identify 5214 proteins susceptible to persulfidation in Arabidopsis root samples. These proteins represented 13% of the entire annotated proteome of Arabidopsis, which includes 39,346 proteins (UniProt database) produced from 27,655 protein-coding genes [51]. Recently, a comprehensive and extensive proteomic study of 30 different Arabidopsis tissues using state-of-the-art mass spectrometry has reported a protein atlas that covers 18,210 proteins [52]; therefore, the 5214 persulfidated proteins detected in root tissue in the present study represent almost 30% of the technically detectable proteins by currently available mass spectrometry technology.
A previous proteomic study of persulfidation in Arabidopsis leaf tissue using the selective tag-switch method also reported the identification of 2015 persulfidated proteins, although a less-sensitive and lower-resolution mass spectrometry method was used [15]. The GO classification of biological functions of the identified persulfidated proteins in root and leaf tissue belonging to cellular and metabolic processes is biased by the fact that more abundant proteins are detected more favorably by MS with underrepresented protein evidence for low abundant transcripts [52,53]. This is a difficult problem to solve in high-throughput proteomic related with sensitivity due to the high dynamic range in abundance that range from millions of molecules for structural and housekeeping proteins to few ones per cell for transcription factor and signaling proteins [54]. In addition to primary and energy cellular metabolism, based on the assigned functions for plant-specific pathways and processes, almost one-fifth of the identified proteins were involved in cellular processes related to protein synthesis, ubiquitin-dependent degradation and autophagy and protein posttranslational modification. H2S/persulfidation has been widely linked to the autophagy process in plants by preventing ATG8 accumulation, acting as a repressor of autophagy under sufficient nutrient conditions [25,28,29]. Several proteins involved in the formation of the autophagosome core have been shown to be susceptible to persulfidation in leaves, such as ATG5, the E1-like protein ATG7 and the E2-like protein ATG3, which have essential cysteine residues for the formation of thioester intermediates [15]. In this work, we expanded the spectrum of persulfidated proteins involved not only in the formation of the autophagosome but also in the initial regulatory steps of autophagy, such as the negative regulator TOR kinase and its effectors RAPTOR and LST8, which are active under sufficient nutrient conditions to upregulate protein translation and suppress autophagy. Under nutrient deficiency (e.g., N deprivation used in this work), inactive TOR cannot phosphorylate ATG13 and allow ATG1 complex formation and the progression of autophagy. Other regulators upstream of TOR susceptible to persulfidation are the KIN10 and KIN11 catalytic subunits of SnRK1, which appears to act as a positive regulator upon nutrient starvation [49].
In the final steps of autophagosome formation, the cysteine protease ATG4 cleaves the C-terminal portion of ATG8 at a conserved Gly residue that is initially conjugated to the catalytic Cys of ATG7 to form a thioester bond ATG7~ATG8 intermediate. After a transthiolation reaction, ATG8 is sequentially transferred to the E2-like enzyme ATG3, generating a new thioester ATG3~ATG8 conjugate that is finally transferred from the Cys residue of ATG3 to phosphatidylethanolamine (PE) to be incorporated in the phagophore [55]. Quantitative analysis of the persulfidation level under N deprivation compared to that under sufficient nutrient conditions allowed us to observe only significant changes in the level of persulfidation of the conjugating enzyme ATG3. Although we did not investigate the effect of persulfidation on the ATG3 reaction mechanism, considering that persulfides are more nucleophilic and acidic than the corresponding thiol, we expect that persulfidation increases the affinity and transthiolation reaction between ATG3 and ATG7 [56,57]. This increased reactivity can shift the process, leading to increased ATG8-PE formation and autophagosome formation, as observed under N deprivation (this work) [29]. This is in contrast to recent studies on the regulation of H2S/persulfidation of ABA-dependent induced autophagy, in which hormone treatment induces a transient decrease in the level of persulfidation of the protease ATG4, leading to 5.2-fold less persulfidation after 3 h, resulting in activation of the processing activity of the protein to cleave the C-terminal portion of ATG8 to release the Gly residue for PE conjugation [30]. Although the nucleophilic nature of Cys is also a factor in the catalytic mechanism of cysteine proteases, molecular modeling shows that persulfidation of Cys170 of ATG4 causes conformational changes and intramolecular rearrangements of the catalytic site, which affect ATG8 substrate recognition [30]. Thus, the H2S-dependent molecular mechanism that regulates autophagy can be multiple and dependent on the physiological process that triggers it.
In addition to autophagy-related proteins, quantitative analysis also showed significant changes in the persulfidation level of ubiquitin-dependent proteasome degradation proteins. The most relevant and abundant group of proteins corresponded to several RING/Ubox and HECT domain E3 ubiquitin ligases with increased levels of persulfidation and three SCF domain E3 ligases with reduced levels of persulfidation when plants were subjected to N deprivation conditions. RING domain E3 ligases comprise a family with a domain signature of 46–60 residues, such as Cys-X2-Cys-X(9–39)-Cys-X(1–3)-His-X(2–3)-Cys/His-X2- Cys-X(4–48)-Cys-X2-Cys, where Cys and His are metal ligands that bind two zinc atoms and X is any amino acid [58]. E3 ubiquitin ligases act by bringing the targeted protein substrate close to thioesterified Ub~E2 so that ubiquitin is transferred from E2 to the substrate. Two of the identified persulfidated RING domain ligases are the RGLG1 and RGLG5 E3 proteins, which have been described to interact with the protein phosphatase PP2CA after ABA promotion to mediate ubiquitination and protein degradation of phosphatase [59]. In addition, RGLG1 has also been shown to regulate the protein level of PROTEIN KINASE KINASE KINASE 18 (MAPKKK18), which mediates the MAPK cascade and plays important roles in senescence, ABA signaling, and drought tolerance [43]. Both RGLG1 and RGLG5 contain a unique RING domain at the C-terminal end of the protein and two or four internal Cys residues, respectively. The coordination of cysteine residues to zinc in the RING domain protects them from oxidation, but internal Cys residues can be targets for persulfidation. This is the case in the E3 RING ligase PARKIN, where nitrosylation decreases its ubiquitination capacity but persulfidation increases its ubiquitination capacity [60]. Therefore, with these considerations, it can be hypothesized that the increase in persulfidation of RGLG1-5 E3 ligase proteins results in an increase in ubiquitination activity, leading to the transfer of Ub from E2 to the substrate and therefore its degradation by the proteasome.
Another component of the SCF (ASK-cullin-F-box) E3 ligase protein identified in this work is MAX2/ORE9, which reduces its persulfidation level by 30-fold via N deprivation. MAX2 belongs to the F-box leucine-rich protein family and is a central component in the strigolactone and karrikin signaling cascade [61]. MAX2 contains 24 Cys residues within its sequence, many of which are part of LRR domains; therefore, persulfidation of one or several of those Cys residues may result in conformational changes of the α/β horseshoe fold of the leucine-rich repeat.
Nitrogen nutrition is an essential factor for plant growth and productivity, as its deficiency results in a reduction in chlorophyll and Rubisco enzymatic activity and a marked decrease in photosynthesis [62,63]. Quantitative proteomic analysis of N-starved Arabidopsis seedlings revels altered abundances of 29 photosynthesis-related proteins functioning as components of the photosynthetic I and II complexes, the electron transport machinery and enzymes in the Calvin cycle, indicating reduced CO2 assimilation rates [64]. Moreover, the regulatory interaction between assimilatory nitrate and sulfate reduction is well established [65,66], so this proteomic analysis also finds significant alterations of relevant enzymes of the sulfur assimilation pathway, such as reduced levels of chloroplast sulfite reductase (SIR) and O-acetylserine(thiol)lyase B, which sequentially catalyze the reduction of sulfite to sulfide and its incorporation into O-acetylserine to form cysteine [67]. The level of cytosolic O-acetylserine(thiol)lyase A is also reduced under N deprivation, and it upregulates the level of mitochondrial ß-cyanoalanine synthase C1, which produces sulfide as a reaction product [64,68]. Therefore, alterations of the levels of these critical enzymes may result in specific adjustments of the level of H2S in the three compartments by reducing its level in the chloroplast and increasing its level in the cytosol and mitochondria [4]. We have observed that when faced with a nutritional or hormonal stimulus, the protein persulfidation pattern does not change in a single direction, increasing or decreasing, but rather changes occur in both directions (this work) [30]. This effect may be caused by temporal and localized (subcellular) concentration changes in the sulfurating agent that refine the stimulus response through changes in the persulfidation levels of target proteins, as observed for ATG4 in the ABA-induced autophagy response [30] and DES1, RBOHD and OST1 in ABA stomatal opening/closure [23,24].

5. Conclusions

The proteomic analysis performed in this work provides a list of proteins that are likely to be modified by cysteine persulfidation in plants and deepens the understanding of the regulatory role of hydrogen sulfide in essential processes in plants, such as autophagy, selective ubiquitin-dependent degradation of proteins and ABA hormonal regulation. Quantitative analysis of the protein persulfidation level under N deprivation indicates new protein targets involved in H2S-mediated intracellular signaling and metabolic readjustment that will have to be studied in greater depth.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/antiox10040508/s1, Figure S1. Amino acid determination of Glu, Gln, Asp and Asn in N-sufficient and N-deprived root samples. Table S1. Subcellular distribution of the persulfidated proteins in root tissue. Table S2. MapMan functional classification of the persulfidated proteins into the Protein group that belong to Ub-dependent degradation, autophagy and endocytosis, and phagophore formation classification. Table S3. Functional MapMan classification into the hormone metabolism bin of the total persulfidated proteins in roots. Table S4. MapMan functional classification of the significantly differentially persulfidated proteins (MN vs PN) into the Protein group. Table S5. Overrepresentation test of less persulfidated proteins in N-starved conditions. Dataset S1. Persulfidated protein identified in root tissue grown in sufficient nutrient media; Dataset S2. Persulfidated protein identified in root tissue grown in N-starved nutrient media; Dataset S3. Total persulfidated proteins identified in PN and MN root samples; Dataset S4. Significantly differentially abundant proteins in N-starved samples compared with sufficient nutrient samples (MN/PN). Dataset S5. Persulfidated proteins were only present or more persulfidated in N-starved conditions; Dataset S6. Persulfidated proteins were not present or shoed reduced level of persulfidation in N-starved condition.

Author Contributions

Conceptualization, L.C.R. and C.G.; formal analysis, A.J.-F.; investigation, A.J.-F. and L.C.R.; supervision, C.G.; writing—original draft, L.C.R.; writing—review and editing, C.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by the European Regional Development Fund through the Agencia Estatal de Investigación grant PID2019-109785GB-I00 and Junta de Andalucía grant P18-RT-3154 (to C.G.) and by EPIC-XS project number 823839, funded by the Horizon 2020 programme of the European Union (to L.C.R). A.J.-F. was supported by the Ministerio de Economia y Competitividad through the program of Formación de Personal Investigador.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The mass spectrometry proteomics data have been deposited in the ProteomeXchange Consortium via the PRIDE partner repository with the data set identifier PXD024061.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, R. Gasotransmitters: Growing pains and joys. Trends Biochem. Sci. 2014, 39, 227–232. [Google Scholar] [CrossRef] [PubMed]
  2. Kimura, H. Hydrogen Sulfide and Polysulfide Signaling. Antioxid. Redox Signal. 2017, 27, 619–621. [Google Scholar] [CrossRef]
  3. Aroca, A.; Gotor, C.; Bassham, D.C.; Romero, L.C. Hydrogen Sulfide: From a Toxic Molecule to a Key Molecule of Cell Life. Antioxidants 2020, 9, 621. [Google Scholar] [CrossRef] [PubMed]
  4. Gotor, C.; Garcia, I.; Aroca, A.; Laureano-Marin, A.M.; Arenas-Alfonseca, L.; Jurado-Flores, A.; Moreno, I.; Romero, L.C. Signaling by hydrogen sulfide and cyanide through post-translational modification. J. Exp. Bot. 2019, 70, 4251–4265. [Google Scholar] [CrossRef]
  5. Walsh, B.J.C.; Giedroc, D.P. H(2)S and reactive sulfur signaling at the host-bacterial pathogen interface. J. Biol. Chem. 2020, 295, 13150–13168. [Google Scholar] [CrossRef] [PubMed]
  6. Peng, H.; Zhang, Y.; Palmer, L.D.; Kehl-Fie, T.E.; Skaar, E.P.; Trinidad, J.C.; Giedroc, D.P. Hydrogen Sulfide and Reactive Sulfur Species Impact Proteome S-Sulfhydration and Global Virulence Regulation in Staphylococcus aureus. ACS Infect. Dis. 2017, 3, 744–755. [Google Scholar] [CrossRef]
  7. Paul, B.D.; Snyder, S.H. Gasotransmitter hydrogen sulfide signaling in neuronal health and disease. Biochem. Pharmacol. 2018, 149, 101–109. [Google Scholar] [CrossRef]
  8. Zhang, J.; Zhou, M.; Zhou, H.; Zhao, D.; Gotor, C.; Romero, L.C.; Shen, J.; Ge, Z.; Zhang, Z.; Shen, W.; et al. Hydrogen sulfide, a signaling molecule in plant stress responses. J. Integr. Plant Biol. 2021, 63, 146–160. [Google Scholar] [CrossRef]
  9. Gotor, C.; Laureano-Marín, A.M.; Arenas-Alfonseca, L.; Moreno, I.; Aroca, Á.; García, I.; Romero, L.C. Advances in Plant Sulfur Metabolism and Signaling. In Progress in Botany; Cánovas, F.M., Lüttge, U., Matyssek, R., Eds.; Springer: Cham, Swizerland, 2017; Volume 78, pp. 45–66. [Google Scholar] [CrossRef]
  10. Filipovic, M.R.; Zivanovic, J.; Alvarez, B.; Banerjee, R. Chemical Biology of H2S Signaling through Persulfidation. Chem. Rev. 2018, 118, 1253–1337. [Google Scholar] [CrossRef]
  11. Aroca, A.; Gotor, C.; Romero, L.C. Hydrogen Sulfide Signaling in Plants: Emerging Roles of Protein Persulfidation. Front. Plant Sci. 2018, 9, 1369. [Google Scholar] [CrossRef]
  12. Mustafa, A.K.; Gadalla, M.M.; Sen, N.; Kim, S.; Mu, W.; Gazi, S.K.; Barrow, R.K.; Yang, G.; Wang, R.; Snyder, S.H. H2S signals through protein S-sulfhydration. Sci. Signal. 2009, 2, ra72. [Google Scholar] [CrossRef]
  13. Aroca, A.; Schneider, M.; Scheibe, R.; Gotor, C.; Romero, L.C. Hydrogen Sulfide Regulates the Cytosolic/Nuclear Partitioning of Glyceraldehyde-3-Phosphate Dehydrogenase by Enhancing its Nuclear Localization. Plant Cell Physiol. 2017, 58, 983–992. [Google Scholar] [CrossRef]
  14. Doka, E.; Ida, T.; Dagnell, M.; Abiko, Y.; Luong, N.C.; Balog, N.; Takata, T.; Espinosa, B.; Nishimura, A.; Cheng, Q.; et al. Control of protein function through oxidation and reduction of persulfidated states. Sci. Adv. 2020, 6, eaax8358. [Google Scholar] [CrossRef] [PubMed]
  15. Aroca, A.; Benito, J.M.; Gotor, C.; Romero, L.C. Persulfidation proteome reveals the regulation of protein function by hydrogen sulfide in diverse biological processes in Arabidopsis. J. Exp. Bot. 2017, 68, 4915–4927. [Google Scholar] [CrossRef] [PubMed]
  16. Comas, F.; Latorre, J.; Ortega, F.; Rodriguez, M.A.; Kern, M.; Lluch, A.; Ricart, W.; Bluher, M.; Gotor, C.; Romero, L.C.; et al. Activation of endogenous H2S biosynthesis or supplementation with exogenous H2S enhances adipose tissue adipogenesis and preserves adipocyte physiology in humans. Antioxid. Redox Signal. 2021. [Google Scholar] [CrossRef]
  17. Zhang, D.; Macinkovic, I.; Devarie-Baez, N.O.; Pan, J.; Park, C.M.; Carroll, K.S.; Filipovic, M.R.; Xian, M. Detection of protein S-sulfhydration by a tag-switch technique. Angew. Chem. Int. Ed. Engl. 2014, 53, 575–581. [Google Scholar] [CrossRef] [PubMed]
  18. Zhao, D.; Zhang, J.; Zhou, M.; Zhou, H.; Gotor, C.; Romero, L.C.; Shen, J.; Yuan, X.; Xie, Y. Current approaches for detection of hydrogen sulfide and persulfidation in biological systems. Plant Physiol. Biochem. 2020, 155, 367–373. [Google Scholar] [CrossRef]
  19. Aroca, Á.; Serna, A.; Gotor, C.; Romero, L.C. S-Sulfhydration: A Cysteine Posttranslational Modification in Plant Systems. Plant Physiol. 2015, 168, 334–342. [Google Scholar] [CrossRef]
  20. Scuffi, D.; Álvarez, C.; Laspina, N.; Gotor, C.; Lamattina, L.; García-Mata, C. Hydrogen Sulfide Generated by l-Cysteine Desulfhydrase Acts Upstream of Nitric Oxide to Modulate Abscisic Acid-Dependent Stomatal Closure. Plant Physiol. 2014, 166, 2065–2076. [Google Scholar] [CrossRef]
  21. Scuffi, D.; Nietzel, T.; Di Fino, L.M.; Meyer, A.J.; Lamattina, L.; Schwarzländer, M.; Laxalt, A.M.; García-Mata, C. Hydrogen Sulfide Increases Production of NADPH Oxidase-Dependent Hydrogen Peroxide and Phospholipase D-Derived Phosphatidic Acid in Guard Cell Signaling. Plant Physiol. 2018, 176, 2532. [Google Scholar] [CrossRef]
  22. Zhang, J.; Zhou, M.; Ge, Z.; Shen, J.; Zhou, C.; Gotor, C.; Romero, L.C.; Duan, X.; Liu, X.; Wu, D.; et al. Abscisic acid-triggered guard cell l-cysteine desulfhydrase function and in situ hydrogen sulfide production contributes to heme oxygenase-modulated stomatal closure. Plant Cell Environ. 2020, 43, 624–636. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, S.; Jia, H.; Wang, X.; Shi, C.; Wang, X.; Ma, P.; Wang, J.; Ren, M.; Li, J. Hydrogen Sulfide Positively Regulates Abscisic Acid Signaling through Persulfidation of SnRK2.6 in Guard Cells. Mol. Plant 2020, 13, 732–744. [Google Scholar] [CrossRef]
  24. Shen, J.; Zhang, J.; Zhou, M.; Zhou, H.; Cui, B.; Gotor, C.; Romero, L.C.; Fu, L.; Yang, J.; Foyer, C.H.; et al. Persulfidation-based Modification of Cysteine Desulfhydrase and the NADPH Oxidase RBOHD Controls Guard Cell Abscisic Acid Signaling. Plant Cell 2020, 32, 1000–1017. [Google Scholar] [CrossRef]
  25. Gotor, C.; Garcia, I.; Crespo, J.L.; Romero, L.C. Sulfide as a signaling molecule in autophagy. Autophagy 2013, 9, 609–611. [Google Scholar] [CrossRef]
  26. Gotor, C.; Laureano-Marin, A.M.; Moreno, I.; Aroca, A.; Garcia, I.; Romero, L.C. Signaling in the plant cytosol: Cysteine or sulfide? Amino Acids 2015, 47, 2155–2164. [Google Scholar] [CrossRef]
  27. Alvarez, C.; Calo, L.; Romero, L.C.; Garcia, I.; Gotor, C. An O-acetylserine(thiol)lyase homolog with L-cysteine desulfhydrase activity regulates cysteine homeostasis in Arabidopsis. Plant Physiol. 2010, 152, 656–669. [Google Scholar] [CrossRef]
  28. Alvarez, C.; Garcia, I.; Moreno, I.; Perez-Perez, M.E.; Crespo, J.L.; Romero, L.C.; Gotor, C. Cysteine-generated sulfide in the cytosol negatively regulates autophagy and modulates the transcriptional profile in Arabidopsis. Plant Cell 2012, 24, 4621–4634. [Google Scholar] [CrossRef] [PubMed]
  29. Laureano-Marin, A.M.; Moreno, I.; Romero, L.C.; Gotor, C. Negative Regulation of Autophagy by Sulfide Is Independent of Reactive Oxygen Species. Plant Physiol. 2016, 171, 1378–1391. [Google Scholar] [CrossRef] [PubMed]
  30. Laureano-Marin, A.M.; Aroca, A.; Perez-Perez, M.E.; Yruela, I.; Jurado-Flores, A.; Moreno, I.; Crespo, J.L.; Romero, L.C.; Gotor, C. Abscisic Acid-Triggered Persulfidation of the Cys Protease ATG4 Mediates Regulation of Autophagy by Sulfide. Plant Cell 2020, 32, 3902–3920. [Google Scholar] [CrossRef]
  31. Bermudez, M.A.; Galmes, J.; Moreno, I.; Mullineaux, P.M.; Gotor, C.; Romero, L.C. Photosynthetic adaptation to length of day is dependent on S-sulfocysteine synthase activity in the thylakoid lumen. Plant Physiol. 2012, 160, 274–288. [Google Scholar] [CrossRef] [PubMed]
  32. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  33. Krstic, J.; Reinisch, I.; Schindlmaier, K.; Galhuber, M.; Berger, N.; Kupper, N.; Moyschewitz, E.; Auer, M.; Michenthaler, H.; Nössing, C.; et al. Fasting reverses drug-resistance in hepatocellular carcinoma through p53-dependent metabolic synergism. bioRxiv 2021. [Google Scholar] [CrossRef]
  34. Cox, J.; Mann, M. MaxQuant enables high peptide identification rates, individualized p.p.b.-range mass accuracies and proteome-wide protein quantification. Nat. Biotechnol. 2008, 26, 1367–1372. [Google Scholar] [CrossRef] [PubMed]
  35. Tyanova, S.; Temu, T.; Sinitcyn, P.; Carlson, A.; Hein, M.Y.; Geiger, T.; Mann, M.; Cox, J. The Perseus computational platform for comprehensive analysis of (prote)omics data. Nat. Methods 2016, 13, 731–740. [Google Scholar] [CrossRef]
  36. Vizcaino, J.A.; Deutsch, E.W.; Wang, R.; Csordas, A.; Reisinger, F.; Rios, D.; Dianes, J.A.; Sun, Z.; Farrah, T.; Bandeira, N.; et al. ProteomeXchange provides globally coordinated proteomics data submission and dissemination. Nat. Biotechnol. 2014, 32, 223–226. [Google Scholar] [CrossRef]
  37. Masclaux-Daubresse, C.; Chen, Q.; Havé, M. Regulation of nutrient recycling via autophagy. Curr. Opin. Plant Biol. 2017, 39, 8–17. [Google Scholar] [CrossRef]
  38. Klionsky, D.J.; Abdel-Aziz, A.K.; Abdelfatah, S.; Abdellatif, M.; Abdoli, A.; Abel, S.; Abeliovich, H.; Abildgaard, M.H.; Abudu, Y.P.; Acevedo-Arozena, A.; et al. Guidelines for the use and interpretation of assays for monitoring autophagy (4th edition). Autophagy 2021, 1–382. [Google Scholar] [CrossRef]
  39. Lam, H.M.; Coschigano, K.T.; Oliveira, I.C.; Melo-Oliveira, R.; Coruzzi, G.M. The Molecular-Genetics of Nitrogen Assimilation into Amino Acids in Higher Plants. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1996, 47, 569–593. [Google Scholar] [CrossRef]
  40. Huang, J.; Willems, P.; Wei, B.; Tian, C.; Ferreira, R.B.; Bodra, N.; Martínez Gache, S.A.; Wahni, K.; Liu, K.; Vertommen, D.; et al. Mining for protein S-sulfenylation in Arabidopsis uncovers redox-sensitive sites. Proc. Natl. Acad. Sci. USA 2019, 116, 21256–21261. [Google Scholar] [CrossRef]
  41. Klie, S.; Nikoloski, Z. The Choice between MapMan and Gene Ontology for Automated Gene Function Prediction in Plant Science. Front. Genet. 2012, 3, 115. [Google Scholar] [CrossRef]
  42. Belda-Palazon, B.; Julian, J.; Coego, A.; Wu, Q.; Zhang, X.; Batistic, O.; Alquraishi, S.A.; Kudla, J.; An, C.; Rodriguez, P.L. ABA inhibits myristoylation and induces shuttling of the RGLG1 E3 ligase to promote nuclear degradation of PP2CA. Plant J. 2019, 98, 813–825. [Google Scholar] [CrossRef]
  43. Yu, J.; Kang, L.; Li, Y.; Wu, C.; Zheng, C.; Liu, P.; Huang, J. RING finger protein RGLG1 and RGLG2 negatively modulate MAPKKK18 mediated drought stress tolerance in Arabidopsis. J. Integr. Plant Biol. 2020, 63, 484–493. [Google Scholar] [CrossRef] [PubMed]
  44. Hong, S.Y.; Botterweg-Paredes, E.; Doll, J.; Eguen, T.; Blaakmeer, A.; Matton, S.; Xie, Y.; Lunding, B.S.; Zentgraf, U.; Guan, C.; et al. Multi-level analysis of the interactions between REVOLUTA and MORE AXILLARY BRANCHES 2 in controlling plant development reveals parallel, independent and antagonistic functions. Development 2020, 147, dev183681. [Google Scholar] [CrossRef]
  45. Wang, L.; Wang, B.; Yu, H.; Guo, H.; Lin, T.; Kou, L.; Wang, A.; Shao, N.; Ma, H.; Xiong, G.; et al. Transcriptional regulation of strigolactone signalling in Arabidopsis. Nature 2020, 583, 277–281. [Google Scholar] [CrossRef]
  46. Bunsick, M.; Toh, S.; Wong, C.; Xu, Z.; Ly, G.; McErlean, C.S.P.; Pescetto, G.; Nemrish, K.E.; Sung, P.; Li, J.D.; et al. SMAX1-dependent seed germination bypasses GA signalling in Arabidopsis and Striga. Nat. Plants 2020, 6, 646–652. [Google Scholar] [CrossRef]
  47. Ruan, J.; Zhou, Y.; Zhou, M.; Yan, J.; Khurshid, M.; Weng, W.; Cheng, J.; Zhang, K. Jasmonic Acid Signaling Pathway in Plants. Int. J. Mol. Sci. 2019, 20, 2479. [Google Scholar] [CrossRef] [PubMed]
  48. Planas-Riverola, A.; Gupta, A.; Betegón-Putze, I.; Bosch, N.; Ibañes, M.; Caño-Delgado, A.I. Brassinosteroid signaling in plant development and adaptation to stress. Development 2019, 146, dev.151894. [Google Scholar] [CrossRef] [PubMed]
  49. Soto-Burgos, J.; Zhuang, X.; Jiang, L.; Bassham, D.C. Dynamics of Autophagosome Formation. Plant Physiol. 2018, 176, 219–229. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, P.; Mugume, Y.; Bassham, D.C. New advances in autophagy in plants: Regulation, selectivity and function. Semin. Cell Dev. Biol. 2018, 80, 113–122. [Google Scholar] [CrossRef]
  51. Cheng, C.Y.; Krishnakumar, V.; Chan, A.P.; Thibaud-Nissen, F.; Schobel, S.; Town, C.D. Araport11: A complete reannotation of the Arabidopsis thaliana reference genome. Plant J. 2017, 89, 789–804. [Google Scholar] [CrossRef]
  52. Mergner, J.; Frejno, M.; List, M.; Papacek, M.; Chen, X.; Chaudhary, A.; Samaras, P.; Richter, S.; Shikata, H.; Messerer, M.; et al. Mass-spectrometry-based draft of the Arabidopsis proteome. Nature 2020, 579, 409–414. [Google Scholar] [CrossRef] [PubMed]
  53. Wilhelm, M.; Schlegl, J.; Hahne, H.; Gholami, A.M.; Lieberenz, M.; Savitski, M.M.; Ziegler, E.; Butzmann, L.; Gessulat, S.; Marx, H.; et al. Mass-spectrometry-based draft of the human proteome. Nature 2014, 509, 582–587. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, M.; Weiss, M.; Simonovic, M.; Haertinger, G.; Schrimpf, S.P.; Hengartner, M.O.; von Mering, C. PaxDb, a database of protein abundance averages across all three domains of life. Mol. Cell. Proteom. 2012, 11, 492–500. [Google Scholar] [CrossRef]
  55. Marshall, R.S.; Vierstra, R.D. Autophagy: The Master of Bulk and Selective Recycling. Annu. Rev. Plant Biol. 2018, 69, 173–208. [Google Scholar] [CrossRef]
  56. Taherbhoy, A.M.; Tait, S.W.; Kaiser, S.E.; Williams, A.H.; Deng, A.; Nourse, A.; Hammel, M.; Kurinov, I.; Rock, C.O.; Green, D.R.; et al. Atg8 transfer from Atg7 to Atg3: A distinctive E1-E2 architecture and mechanism in the autophagy pathway. Mol. Cell 2011, 44, 451–461. [Google Scholar] [CrossRef] [PubMed]
  57. Benchoam, D.; Cuevasanta, E.; Moller, M.N.; Alvarez, B. Hydrogen Sulfide and Persulfides Oxidation by Biologically Relevant Oxidizing Species. Antioxidants 2019, 8, 48. [Google Scholar] [CrossRef] [PubMed]
  58. Deshaies, R.J.; Joazeiro, C.A. RING domain E3 ubiquitin ligases. Annu. Rev. Biochem. 2009, 78, 399–434. [Google Scholar] [CrossRef]
  59. Wu, Q.; Zhang, X.; Peirats-Llobet, M.; Belda-Palazon, B.; Wang, X.; Cui, S.; Yu, X.; Rodriguez, P.L.; An, C. Ubiquitin Ligases RGLG1 and RGLG5 Regulate Abscisic Acid Signaling by Controlling the Turnover of Phosphatase PP2CA. Plant Cell 2016, 28, 2178–2196. [Google Scholar] [CrossRef]
  60. Vandiver, M.S.; Paul, B.D.; Xu, R.; Karuppagounder, S.; Rao, F.; Snowman, A.M.; Ko, H.S.; Lee, Y.I.; Dawson, V.L.; Dawson, T.M.; et al. Sulfhydration mediates neuroprotective actions of parkin. Nat. Commun. 2013, 4, 1626. [Google Scholar] [CrossRef]
  61. Nelson, D.C.; Scaffidi, A.; Dun, E.A.; Waters, M.T.; Flematti, G.R.; Dixon, K.W.; Beveridge, C.A.; Ghisalberti, E.L.; Smith, S.M. F-box protein MAX2 has dual roles in karrikin and strigolactone signaling in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2011, 108, 8897–8902. [Google Scholar] [CrossRef]
  62. Makino, A.; Osmond, B. Effects of nitrogen nutrition on nitrogen partitioning between chloroplasts and mitochondria in pea and wheat. Plant Physiol. 1991, 96, 355–362. [Google Scholar] [CrossRef]
  63. Chen, Y.; Murchie, E.H.; Hubbart, S.; Horton, P.; Peng, S. Effects of season-dependent irradiance levels and nitrogen-deficiency on photosynthesis and photoinhibition in field-grown rice (Oryza sativa). Physiol. Plant. 2003, 117, 343–351. [Google Scholar] [CrossRef] [PubMed]
  64. Zhu, F.Y.; Chen, M.X.; Chan, W.L.; Yang, F.; Tian, Y.; Song, T.; Xie, L.J.; Zhou, Y.; Xiao, S.; Zhang, J.; et al. SWATH-MS quantitative proteomic investigation of nitrogen starvation in Arabidopsis reveals new aspects of plant nitrogen stress responses. J. Proteom. 2018, 187, 161–170. [Google Scholar] [CrossRef] [PubMed]
  65. Brunold, C.; Suter, M. Regulation of Sulfate Assimilation by Nitrogen Nutrition in the Duckweed Lemna minor L. Plant Physiol. 1984, 76, 579–583. [Google Scholar] [CrossRef]
  66. Takahashi, H.; Saito, K. Subcellular localization of spinach cysteine synthase isoforms and regulation of their gene expression by nitrogen and sulfur. Plant Physiol. 1996, 112, 273–280. [Google Scholar] [CrossRef]
  67. Takahashi, H.; Kopriva, S.; Giordano, M.; Saito, K.; Hell, R. Sulfur assimilation in photosynthetic organisms: Molecular functions and regulations of transporters and assimilatory enzymes. Annu. Rev. Plant Biol. 2011, 62, 157–184. [Google Scholar] [CrossRef] [PubMed]
  68. Romero, L.C.; Aroca, M.A.; Laureano-Marin, A.M.; Moreno, I.; Garcia, I.; Gotor, C. Cysteine and cysteine-related signaling pathways in Arabidopsis thaliana. Mol. Plant 2014, 7, 264–276. [Google Scholar] [CrossRef]
Antioxidants 10 00508 g001

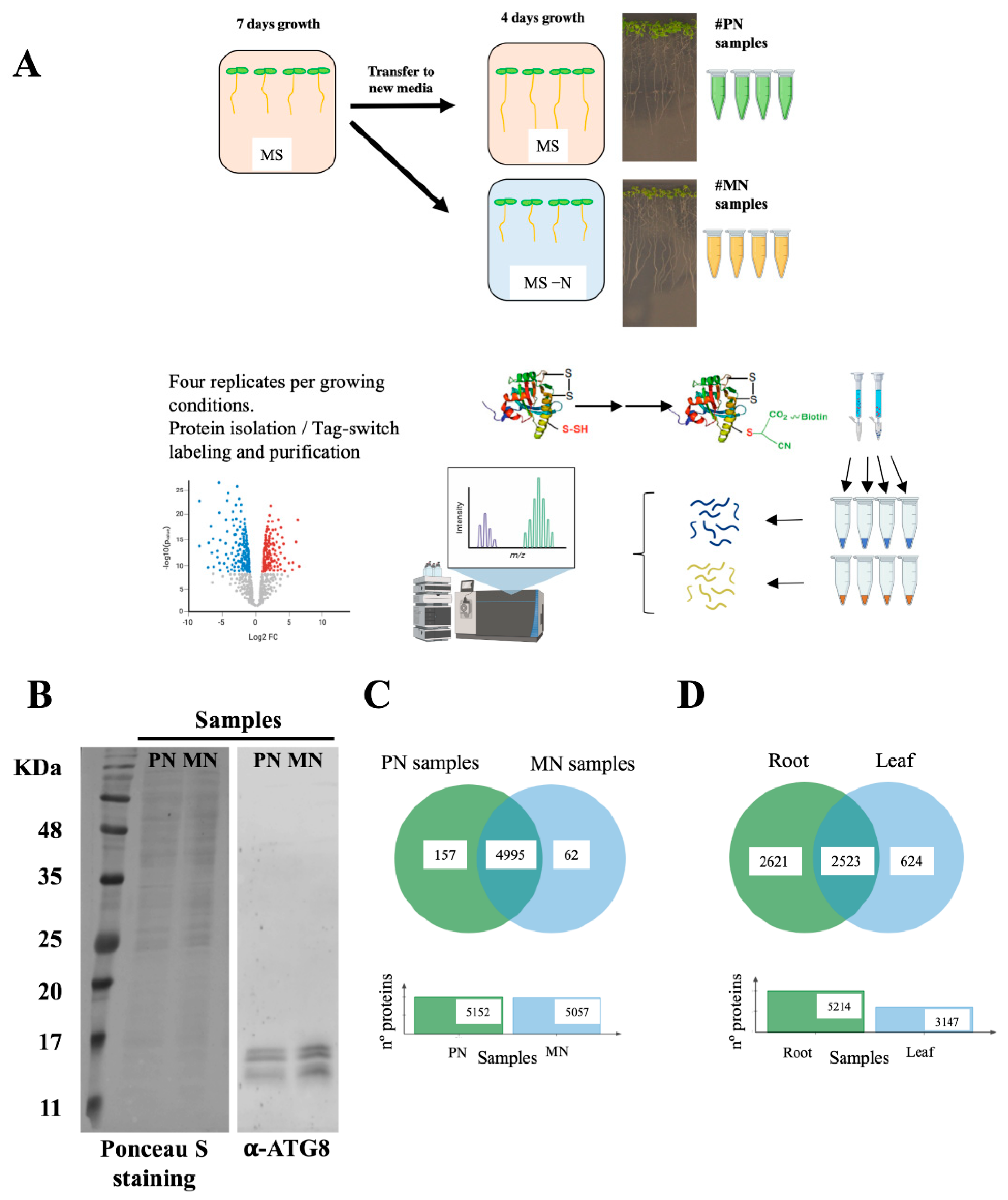

Figure 1. Proteomic analysis of protein persulfidation in response to N starvation in root tissue. (A) Workflow of the root sample preparation followed by tag-switch protein labeling with CN-biotin, protein purification, tryptic digestion and quantitative DIA analysis of eluted proteins. (B) Immunoblot analysis of ATG8 protein accumulation in roots. Total protein extracts from the PN and MN samples were subjected to immunoblot analysis with anti-ATG8. As a protein control, Ponceau S staining of the blot is shown. (C) Venn diagram showing the intersection of the persulfidated protein sets identified in the root samples grown in N-sufficient media (PN samples) and N-depleted media (MN samples). (D) Venn diagram showing the intersection of the persulfidated protein sets identified in root tissue and reported leaf tissue [15].
Figure 1. Proteomic analysis of protein persulfidation in response to N starvation in root tissue. (A) Workflow of the root sample preparation followed by tag-switch protein labeling with CN-biotin, protein purification, tryptic digestion and quantitative DIA analysis of eluted proteins. (B) Immunoblot analysis of ATG8 protein accumulation in roots. Total protein extracts from the PN and MN samples were subjected to immunoblot analysis with anti-ATG8. As a protein control, Ponceau S staining of the blot is shown. (C) Venn diagram showing the intersection of the persulfidated protein sets identified in the root samples grown in N-sufficient media (PN samples) and N-depleted media (MN samples). (D) Venn diagram showing the intersection of the persulfidated protein sets identified in root tissue and reported leaf tissue [15].
Antioxidants 10 00508 g001
Antioxidants 10 00508 g002

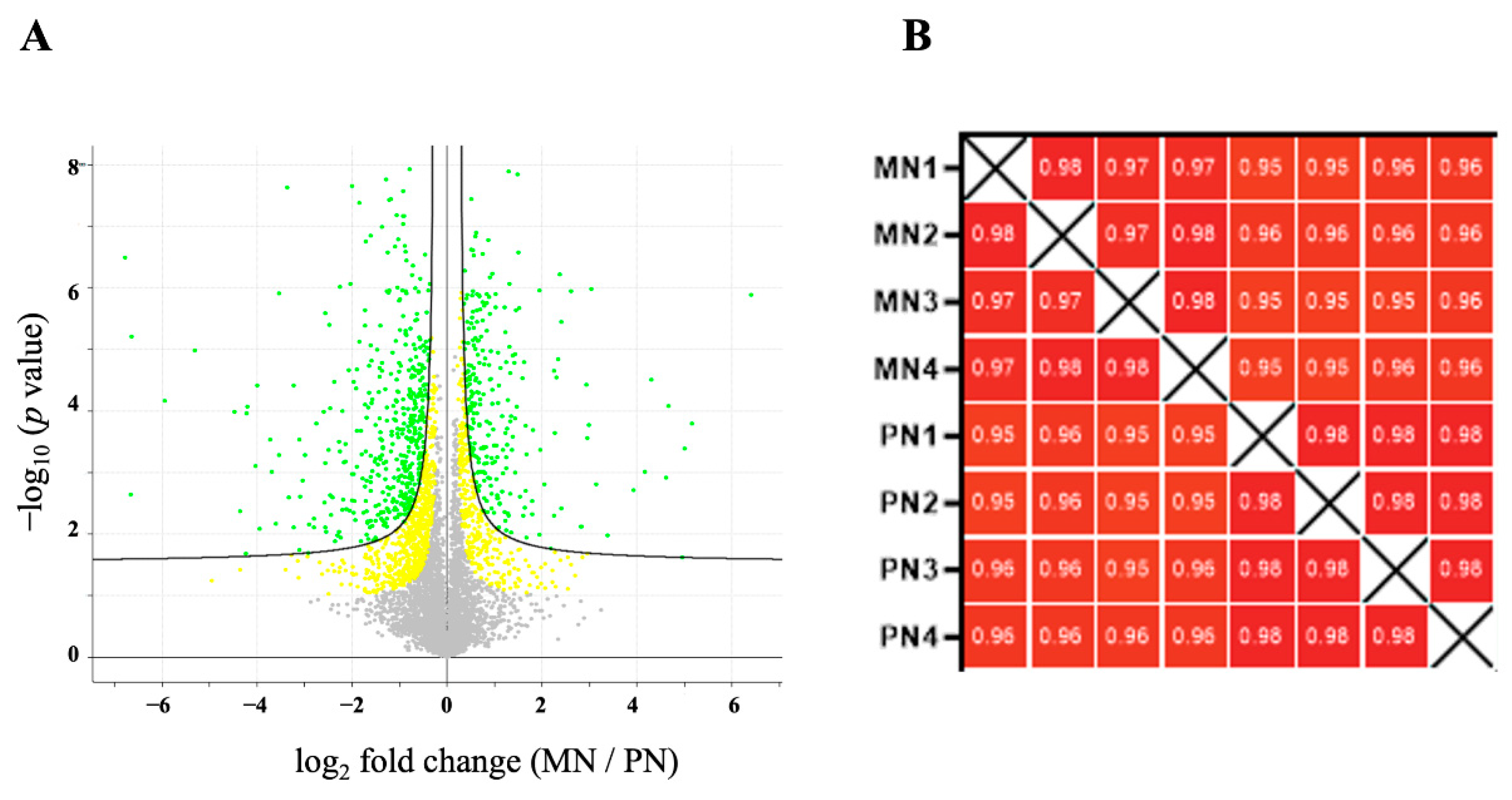

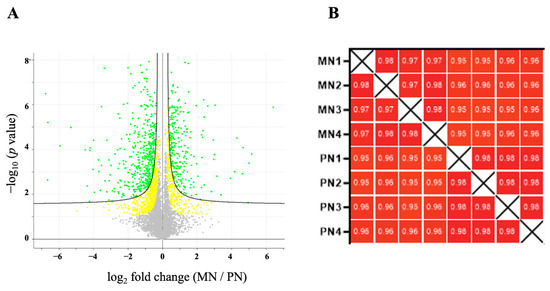

Figure 2. Quantification of the persulfidated proteins identified in root tissue grown in N-starved media compared to N-sufficient nutrient media. (A) Volcano plot illustrating significantly differentially abundant proteins. The −log10 (p value) is plotted as the log2 of the fold change between N-starved samples (MN) and N-sufficient samples (PN). Red dots represent protein with FDR < 0.01 and yellow dots FDR < 0.05. (B) Pearson correlation coefficients of the four independent N-starved (MN) and N-sufficient nutrient samples (PN).
Figure 2. Quantification of the persulfidated proteins identified in root tissue grown in N-starved media compared to N-sufficient nutrient media. (A) Volcano plot illustrating significantly differentially abundant proteins. The −log10 (p value) is plotted as the log2 of the fold change between N-starved samples (MN) and N-sufficient samples (PN). Red dots represent protein with FDR < 0.01 and yellow dots FDR < 0.05. (B) Pearson correlation coefficients of the four independent N-starved (MN) and N-sufficient nutrient samples (PN).
Antioxidants 10 00508 g002
Antioxidants 10 00508 g003

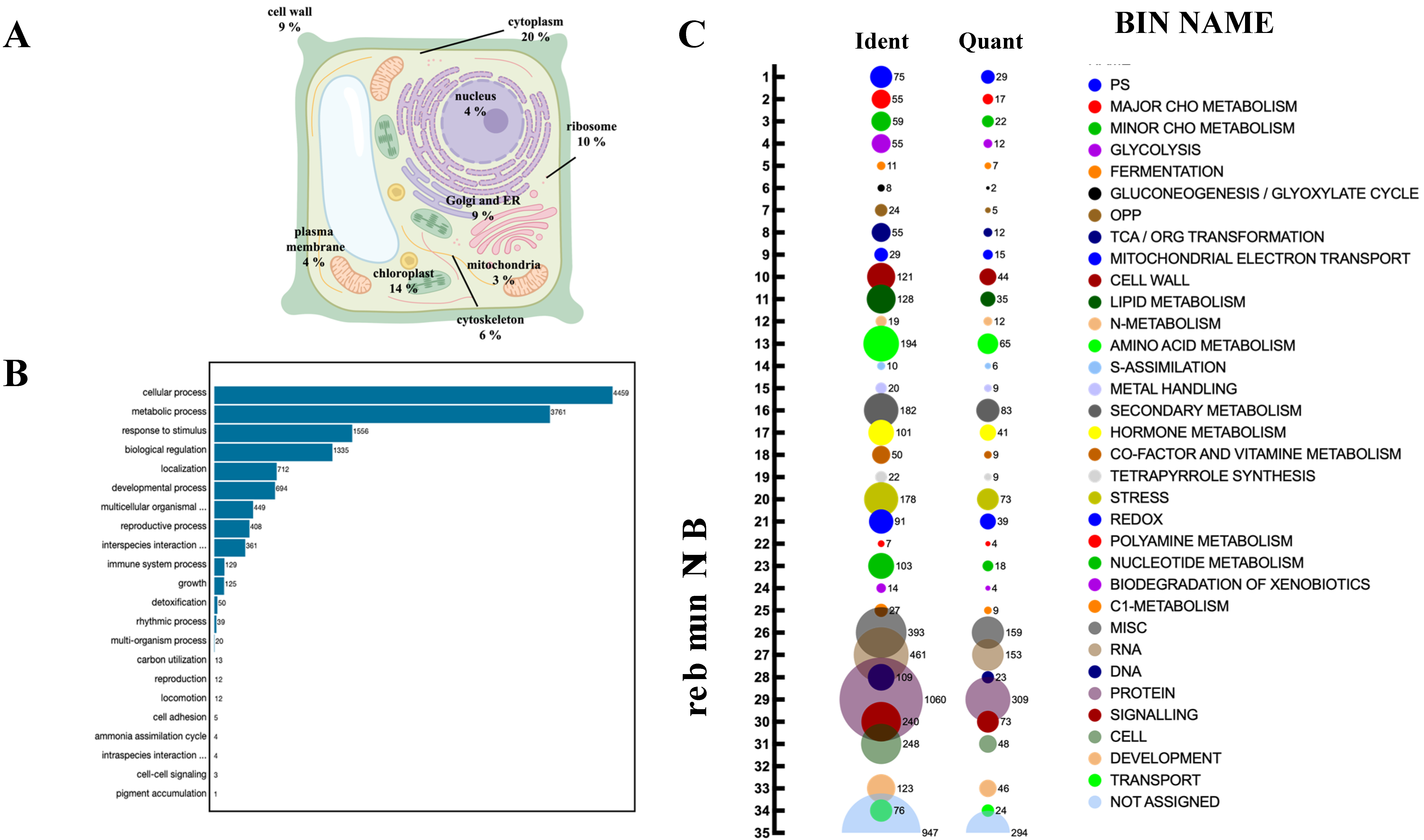

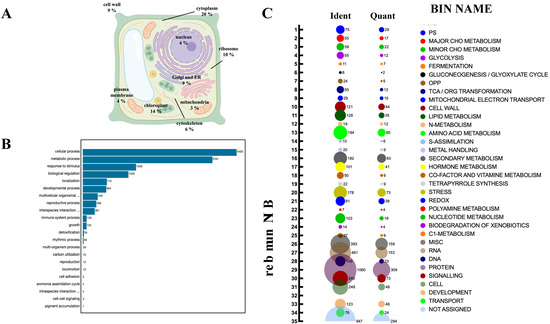

Figure 3. Subcellular localization and functional classification of the persulfidated proteins in root tissues. (A) Subcellular distribution of the persulfidated proteins classified by GO analysis (UniProt) as being related to cellular components. (B) GO classification (UniProt) of proteins related to biological processes. (C) Bubble plot of the functional classification of the identified (Ident) and quantified (Quant) proteins according to the plant-specific database MapMan.
Figure 3. Subcellular localization and functional classification of the persulfidated proteins in root tissues. (A) Subcellular distribution of the persulfidated proteins classified by GO analysis (UniProt) as being related to cellular components. (B) GO classification (UniProt) of proteins related to biological processes. (C) Bubble plot of the functional classification of the identified (Ident) and quantified (Quant) proteins according to the plant-specific database MapMan.
Antioxidants 10 00508 g003
Antioxidants 10 00508 g004

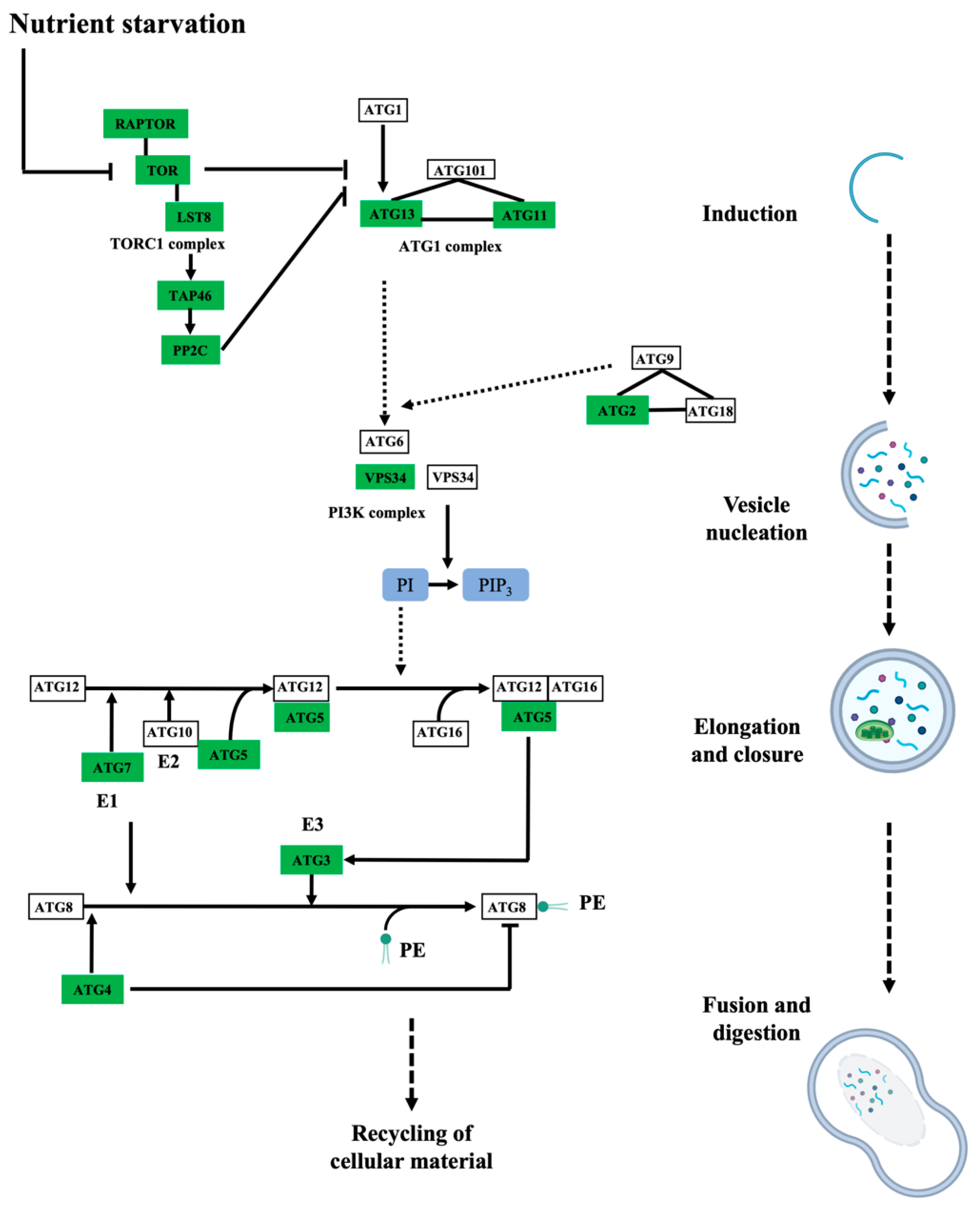

Figure 4. Persulfidated proteins identified in root tissues involved in autophagy. Simplified schematic drawing showing the persulfidated proteins identified as being involved in autophagy induction, vesicle nucleation, autophagosome elongation and closure, vacuole fusion and material digestion. The rectangular boxes represent the abbreviated name of the proteins involved in the autophagy pathway, and the green color of the boxes indicates proteins identified in this proteomic analysis. Adapted from the Kyoto Encyclopedia of Genes and Genomes (KEGG) Pathway database resource for pathway mapping.
Figure 4. Persulfidated proteins identified in root tissues involved in autophagy. Simplified schematic drawing showing the persulfidated proteins identified as being involved in autophagy induction, vesicle nucleation, autophagosome elongation and closure, vacuole fusion and material digestion. The rectangular boxes represent the abbreviated name of the proteins involved in the autophagy pathway, and the green color of the boxes indicates proteins identified in this proteomic analysis. Adapted from the Kyoto Encyclopedia of Genes and Genomes (KEGG) Pathway database resource for pathway mapping.
Antioxidants 10 00508 g004
Antioxidants 10 00508 g005

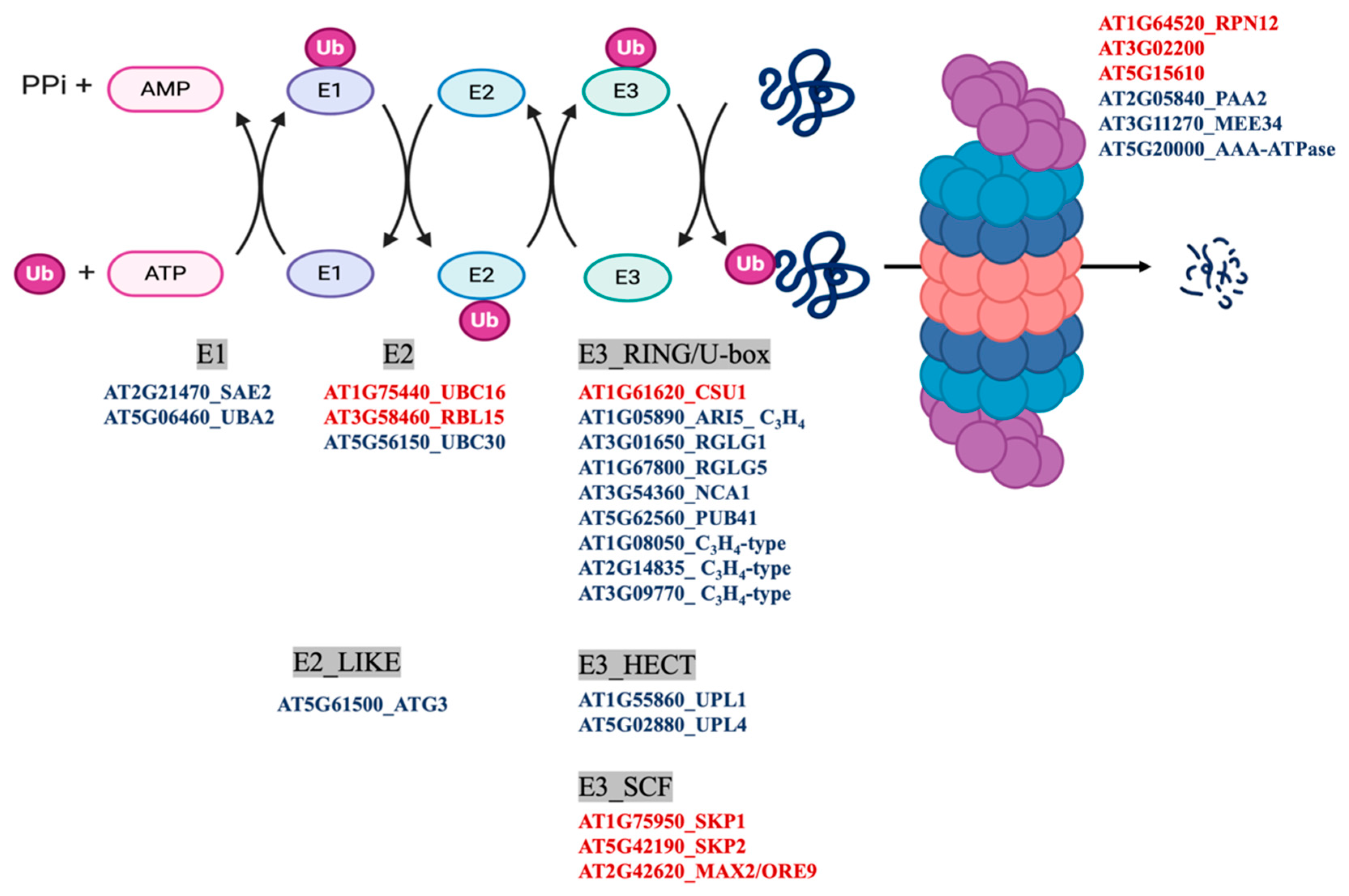

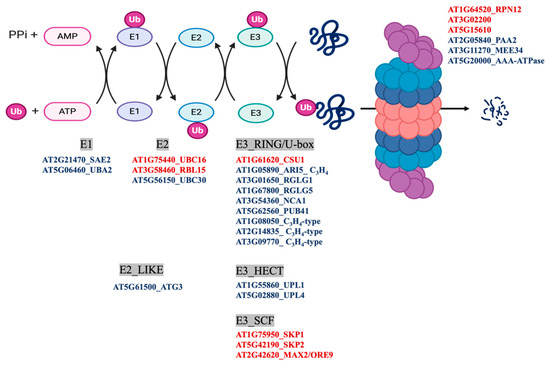

Figure 5. Ubiquitin- and autophagy-dependent degradation pathways. The scheme shows the differentially persulfidated proteins identified under N-starved growth conditions compared to sufficient N media. Red indicates proteins with reduced persulfidation in the N-starved sample, and blue indicates proteins with increased persulfidation levels.
Figure 5. Ubiquitin- and autophagy-dependent degradation pathways. The scheme shows the differentially persulfidated proteins identified under N-starved growth conditions compared to sufficient N media. Red indicates proteins with reduced persulfidation in the N-starved sample, and blue indicates proteins with increased persulfidation levels.
Antioxidants 10 00508 g005
Antioxidants 10 00508 g006

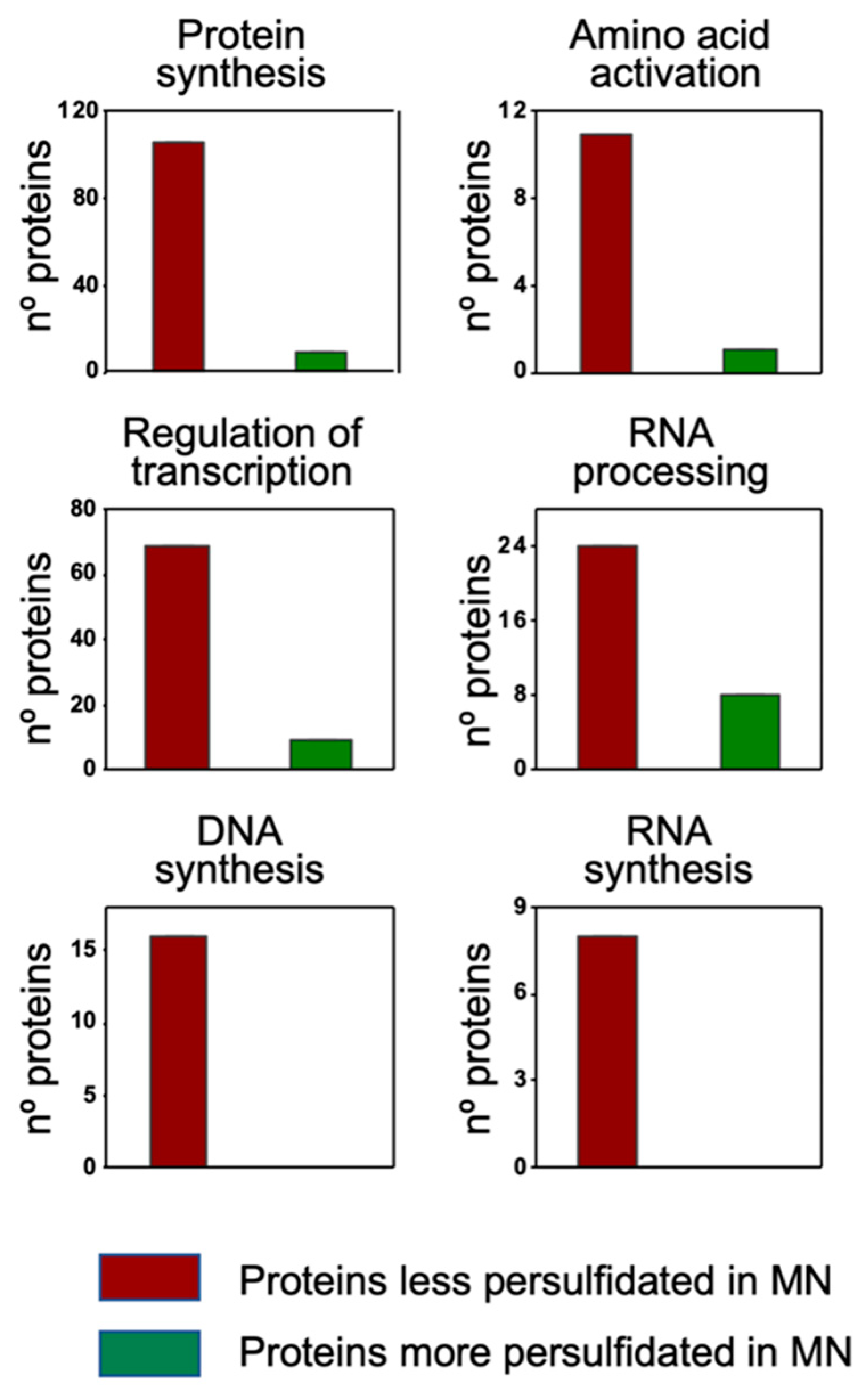

Figure 6. MapMan classification by Cell Function of the differentially persulfidated proteins in N-starvation (MN) medium compared to N-sufficient medium (PN). Adapted from the Cell_function overview_mapping image.
Figure 6. MapMan classification by Cell Function of the differentially persulfidated proteins in N-starvation (MN) medium compared to N-sufficient medium (PN). Adapted from the Cell_function overview_mapping image.
Antioxidants 10 00508 g006
Antioxidants 10 00508 g007

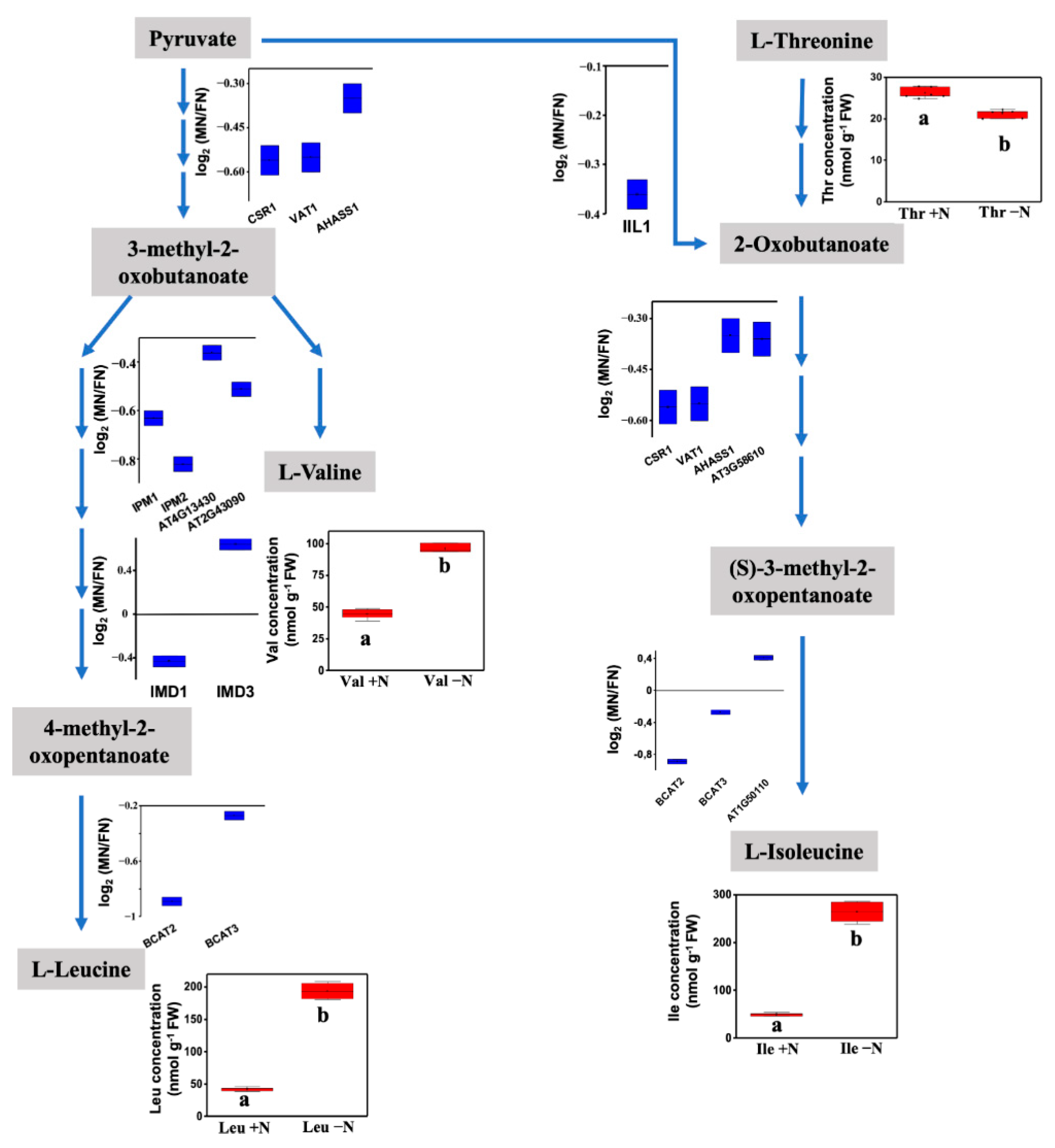

Figure 7. Schematic of branched-chain amino acid metabolism. The blue box plot shows the quantified (log2-fold change MN/PN) level of persulfidation of the enzymes involved in the process detected in N-starved samples compared with N-sufficient samples. The red box plot shows the amino acid concentration measured in N-deprived (-N) or N-sufficient samples (+N) (n = 4). Different letters below the bars indicate significant differences with p < 0.01 (One-way ANOVA, post-hoc Tukey adjustment).
Figure 7. Schematic of branched-chain amino acid metabolism. The blue box plot shows the quantified (log2-fold change MN/PN) level of persulfidation of the enzymes involved in the process detected in N-starved samples compared with N-sufficient samples. The red box plot shows the amino acid concentration measured in N-deprived (-N) or N-sufficient samples (+N) (n = 4). Different letters below the bars indicate significant differences with p < 0.01 (One-way ANOVA, post-hoc Tukey adjustment).
Antioxidants 10 00508 g007
Table 1. Functional annotation clustering of the differentially persulfidated proteins.
Table 1. Functional annotation clustering of the differentially persulfidated proteins.
Cluster 1. Enrichment Score: 5.8
TermCountp ValueFold EnrichmentBenjaminiFDR
GO:0009082~branched-chain amino acid biosynthetic process132.44 × 10−98.573.63 × 10−73.52 × 10−7
GO:0009098~leucine biosynthetic process131.08 × 10−87.791.32 × 10−61.28 × 10−6
GO:0009099~valine biosynthetic process101.12 × 10−67.757.89 × 10−57.64 × 10−5
GO:0009097~isoleucine biosynthetic process73.31 × 10−46.591.19 × 10−21.16 × 10−2
GO:0006532~aspartate biosynthetic process64.53 × 10−47.911.49 × 10−21.44 × 10−2
Cluster 2. Enrichment Score: 1.7
TermCountp ValueFold EnrichmentBenjaminiFDR
GO:0006544~glycine metabolic process40.0120557.532.31 × 10−12.24 × 10−1
GO:0035999~tetrahydrofolate interconversion50.0228064.393.73 × 10−13.61 × 10−1
GO:0006563~L-serine metabolic process40.0258005.864.02 × 10−13.89 × 10−1
Cluster 3. Enrichment Score: 1.2
TermCountp ValueFold EnrichmentBenjaminiFDR
GO:0006032~chitin catabolic process60.036893.164.75 × 10−14.61 × 10−1
GO:0016998~cell wall macromolecule catabolic process60.042933.045.38 × 10−15.21 × 10−1
GO:0000272~polysaccharide catabolic process50.059973.2966.64 × 10−16.43 × 10−1
GO:0006040~amino sugar metabolic process40.099703.519.50 × 10−19.21 × 10−1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jurado-Flores, A.; Romero, L.C.; Gotor, C. Label-Free Quantitative Proteomic Analysis of Nitrogen Starvation in Arabidopsis Root Reveals New Aspects of H2S Signaling by Protein Persulfidation. Antioxidants 2021, 10, 508. https://doi.org/10.3390/antiox10040508

AMA Style

Jurado-Flores A, Romero LC, Gotor C. Label-Free Quantitative Proteomic Analysis of Nitrogen Starvation in Arabidopsis Root Reveals New Aspects of H2S Signaling by Protein Persulfidation. Antioxidants. 2021; 10(4):508. https://doi.org/10.3390/antiox10040508

Chicago/Turabian Style

Jurado-Flores, Ana, Luis C. Romero, and Cecilia Gotor. 2021. "Label-Free Quantitative Proteomic Analysis of Nitrogen Starvation in Arabidopsis Root Reveals New Aspects of H2S Signaling by Protein Persulfidation" Antioxidants 10, no. 4: 508. https://doi.org/10.3390/antiox10040508

APA Style

Jurado-Flores, A., Romero, L. C., & Gotor, C. (2021). Label-Free Quantitative Proteomic Analysis of Nitrogen Starvation in Arabidopsis Root Reveals New Aspects of H2S Signaling by Protein Persulfidation. Antioxidants, 10(4), 508. https://doi.org/10.3390/antiox10040508

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
