Review

Natural Extracts That Stimulate Adipocyte Browning and Their Underlying Mechanisms

1
Department of Food Science and Nutrition, Pukyong National University, Nam-gu, Daeyeon Dong, Busan 608737, Korea
2
Department of Food and Nutrition, Yeungnam University, Gyeongsan, Gyeongbuk 38541, Korea
*
Authors to whom correspondence should be addressed.
Academic Editor: Serkos A. Haroutounian
Antioxidants 2021, 10(2), 308; https://doi.org/10.3390/antiox10020308
Received: 15 January 2021 / Revised: 5 February 2021 / Accepted: 12 February 2021 / Published: 17 February 2021
(This article belongs to the Special Issue Natural and Synthetic Antioxidants as Food Additives)

Abstract

Despite progress in understanding the developmental lineage and transcriptional factors regulating brown and beige adipocytes, the role of environmental modifiers, such as food components and natural extracts, remains to be elucidated. Furthermore, the undesirable pleiotropic effects produced by synthetic drugs targeting adipose tissue browning and thermogenesis necessitate research into alternative natural sources to combat obesity and related metabolic disorders. The current review, therefore, focused on the effects of various extracts from foods, plants, and marine products on adipose tissue browning and obesity. In particular, the recent findings of food components and marine products on adipose tissue browning will be discussed here.
Keywords: adipocyte browning; thermogenesis; edible dietary extracts; plant extracts; marine product extracts adipocyte browning; thermogenesis; edible dietary extracts; plant extracts; marine product extracts

1. Introduction

The World Health Organization estimated that 13% of the total adult population is currently obese, making it one of the most serious global health problems [1]. In addition, obesity is considered a primary factor contributing to the current epidemic of metabolic syndromes, including type 2 diabetes, hypertension, coronary artery diseases, brain disorders, and certain types of cancers [1]. Obesity results from adipocyte hypertrophy and hyperplasia caused by a severe energy imbalance between food intake and energy expenditure. Therefore, strategies aimed at reducing excess fat accumulation, especially in visceral regions, could ameliorate the current epidemic of metabolic disorders. Presently, the role of brown adipocytes in thermogenesis is a potential target for preventing obesity.
Owing to the discovery of beige subtypes, adipocytes can now be categorized into white, beige, or brown adipocytes (Figure 1). White adipocytes have the function of storing excess energy as triglycerides and low mitochondrial density, whereas brown adipocytes dissipate energy as heat by combustion of nutrients in ATP generation via uncoupling protein 1 (UCP1) [2]. On the contrary, beige adipocytes exhibit both white and brown adipocyte characteristics. Beige adipocytes show a low basal expression of thermogenesis-related genes that are highly upregulated after thermogenic stimulations, including cold exposure and hormonal stimulations [3,4]. Although it has been a decade since the discovery of beige adipocytes, the origin of these adipocytes is still ill-defined. It is assumed that beige adipocytes can transdifferentiate from mature white adipocytes, white or brown adipocyte precursor cells, or specific beige adipocyte precursor cells [2].
It has long been suggested that human adults have brown adipocytes to elevate energy expenditure. Notably, the adult human brown adipocytes, which are primarily composed of beige adipocytes [3] are considered as a potential pharmaceutical target to fight obesity and related metabolic disorders [5]. The molecular mechanisms of adipocyte browning were elucidated in many in vivo and in vitro models (Figure 2). The murine 3T3-L1 preadipocytes are the cell model optimized for antiobesity studies due to well-established cellular and molecular mechanisms of adipocyte differentiation. When catecholamines, such as epinephrine and norepinephrine, are released from terminal neurons, the β3-adrenergic receptor (β3-AR) acts on adipocytes, activating the signal transductions involved in inducing a brown-like phenotype and enhancing lipid catabolism [6,7]. First, binding to β3-AR upregulates intracellular cyclic adenosine monophosphate (cAMP) levels and protein kinase A (PKA) activity, promoting lipolysis through the activation of hormone-sensitive lipase (HSL), which is a rate-limiting enzyme for lipolysis [6,8]. Activated PKA also induces the phosphorylation of AMP-activated protein kinase (AMPK), consequently suppressing sterol regulatory element-binding protein 1c (SREBP-1c), fatty acid synthase (FAS), stearoyl-CoA desaturase 1 (SCD1), acetyl-CoA carboxylase (ACC) but activating carnitine palmitoyltransferase 1 (CPT1), and acyl-CoA oxidase (ACO) to reduce lipogenesis and enhance fatty acid β-oxidation [6,7]. In addition, peroxisome proliferator-activated receptor gamma (PPARγ), peroxisome proliferator-activated receptor gamma coactivator-1-alpha (PGC-1α), and UCP1 are known to be sequentially activated by β-adrenergic signals to induce the browning of white adipocytes [6,7].
Various clinical studies have attempted to target beige adipocyte differentiation and function to ameliorate obesity, although the occurrence of undesirable side effects has led to the discontinuation of many molecules. For instance, catecholamines can activate beige adipocytes through β3-adrenergic receptor signaling pathways. However, several adrenergic ligands induce unfavorable autonomic, bone, and cardiovascular effects over time [5,9]. Similarly, other factors, including certain bone morphogenetic proteins, fibroblast growth factor 21 (FGF21), VEGFα, and atrial/brain-type natriuretic peptides have demonstrated their ability to stimulate beige adipocyte activation [5,9,10]. However, targeting these factors may also produce undesirable pleiotropic effects when developed into drugs [5]. For instance, FGF21 mimetics were withdrawn after phase 1 clinical trials because of their side effects [9]. Nevertheless, several clinical trials have shown beneficial effects of adipocyte browning to elevate energy expenditure and decrease fat mass [5,11,12].
To achieve both safety and multifunctionality, many in vitro and in vivo studies have focused on finding food extracts or natural products for stimulating adipocyte browning (elevating beige adipocyte differentiation and functions) and combating obesity and related metabolic diseases [13,14,15,16,17]. Therefore, this review will offer a critical evaluation of current findings on the potential roles of food-, plant-, and seaweed-derived extracts in adipocyte browning and obesity. The review will also cover active compounds within natural extracts that stimulate adipocyte browning and their underlying mechanisms.

2. Edible Dietary Extracts That Stimulate Adipocyte Browning

Antiobesity properties and multiple target mechanisms of edible dietary extracts have been reported. Recently, adipocyte browning is considered as one of the pivotal underlying mechanisms of antiobesity activities of extracts from fruits, tea, and legumes (Table 1).

2.1. Berries

Red and black raspberry (Rubus coreanus Miquel) is rich in health-beneficial phytochemicals with antioxidant activities [18]. Among the various health benefits, the antiobesity activity of raspberry has been reported.
In high-fat diet (HFD)-induced obese mice supplemented with red raspberry extract for 10 weeks, the extract inhibited body weight gain and white adipose tissue (WAT) accumulation but activated thermogenic gene (Ucp1, Pgc1α, and CIDEA) expression in brown adipose tissue (BAT) [19]. In addition, adipogenic and mitochondria-related genes were upregulated in BAT of mice administrated with red raspberry extracts. Moreover, this extract induced brown adipogenesis and thermogenic gene expression in primary brown preadipocytes.
The activation of adipocyte browning by black raspberry has been reported in both in vitro and in vivo models [17]. While black raspberry extract suppressed white adipocyte differentiation in human mesenchymal cells, murine 3T3-L1 preadipocyte, and zebrafish, adipocyte browning was activated by upregulating beige adipocyte-specific markers, including UCP1, PGC1α, NRF1, CIDEA, and CPT1B. Similarly, the gene expression of beige-specific markers such as UCP1, PRDM16, PGC1α, and TBX1 was induced in inguinal WAT in cold-stressed mice fed with black raspberry extract for 2 weeks. Based on HPLC-MS/MS analysis, 4-hydroxybenzoic acid, ellagic acid, gallic acid, and salicylic acid were identified in black raspberry extract. Among them, ellagic acids in black raspberry responsible for adipocyte browning as demonstrated by the 3T3-L1 cell experiment.
Strawberry (Fragaria × ananassa) exhibits health-promoting and preventive activities against various diseases, including cancer, cardiovascular diseases, type 2 diabetes, and obesity [27]. Inhibition of lipid accumulation and induction of adipose browning by strawberry extract was demonstrated in 3T3-L1 cells [20]. Strawberry extract reduced intracellular lipid accumulation by downregulating adipogenic transcription factors such as PPARγ and C/EBPα. Meanwhile, BAT-specific genes (Pdk4 and Ucp1) were stimulated, suggesting adipocyte browning. Furthermore, strawberry extract elevated the levels of proteins related with mitochondrial biogenesis such as AMPKα, sirtuin 1, and PGC-1α [20]. Consistent with these gene and protein expression profiles, oxygen consumption rate and uncoupled respiration were also increased by strawberry.

2.2. Omija Fruit

Omija (Schisandra chinesis), a magnolia berry with five different distinct flavors (sourness, sweetness, bitterness, pungentness, and saltiness) showed antioxidant and anti-inflammatory activities [28]. The inhibitory effects of omija extract on obesity have been shown in 3T3-L1 cells and rats [21]. Since the adipogenic transcription factors of C/EBPβ, PPARγ, and C/EBPα were significantly decreased, omija extract treatment suppressed adipogenesis, and HFD-induced adipose tissue accumulation and body weight gain. Park et al. [22] showed that omija supplementation (500 mg/kg body weight) for 16 weeks reduced epididymal and visceral WAT but increased BAT in HFD-induced obese mice. Indirect calorimetry analysis also showed significant energy expenditure in omija-treated mice [22]. Consistent with these results, epididymal WAT exhibited beiging indicated by the expression of BAT-specific genes, such as Pparα, CIDEA, and cytochrome c oxidase subunit 8 B (COX8β). In addition, omija feeding improved hepatic steatosis, dyslipidemia, and glucose tolerance. These results suggest that omija extract helps to prevent obesity and metabolic disturbances by activating the browning of white adipocytes.

2.3. Green Tea

Green tea (Camellia sinensis), the second most popular consumed drinks in the world, showed potent antiobesity effects through the suppression of food intake, dietary fat bioavailability, adipogenesis, fat synthesis, together with accelerated fat oxidation, fecal lipid excretion, and energy expenditure by thermogenesis [29]. Neyrinck et al. [16] demonstrated the antiobesity activity of green tea extract by activating adipocyte browning. HFD-fed mice supplemented with 0.5% green tea leaf extract for 8 weeks had significantly lower body weight and white and brown adipocytes weights [16]. In addition, the levels of genes related to mitochondrial activity (Pgc1α and Cpt1b) and brown-specific markers (Ucp1, Prdm16, and CIDEA) were higher in the subcutaneous WAT of mice fed with green tea and HFD compared with mice fed with HFD [16]. Additionally, immunohistological analysis of UCP1 in the subcutaneous WAT of the green tea-supplemented mice showed a significantly higher staining area than that of untreated mice, confirming the browning of WAT.

2.4. Cinnamon

Cinnamon is a spice derived from the inner bark of trees from the genus Cinnamomum cassia belongs to the Lauraceae family. Cinnamon has been used as a culinary ingredient and traditional medicine due to its antioxidant, anti-inflammatory, antihyperglycemic, and antihyperlipidemic activities [30]. Recently, the stimulatory effect of cinnamon extract on the activation of BAT and the browning of WAT. Kwan et al. showed that the treatment of cinnamon extract elevated the gene expression of brown adipocyte markers (Cidea, Prdm16, Pgc, and Cpt-1) while reduced that of white adipocyte markers (Dpt and Igf) in 3T3-L1 adipocytes and WAT from db/db mice. In the same study, HFD-induced obese mice were fed with cinnamon extract exerted significantly lower body weight and elevated brown adipocyte marker genes such as Ucp1, Cidea, and Prdm16 in WAT. Another study showed that cinnamon extract stimulates thermogenesis in mice under cold exposure by the activation of brown adipose tissue [24]. While mice placed in cold environments reduced body temperature and energy expenditure, mice fed with cinnamon extract increased those by activation of BAT (upregulation of UCP1 and PGC-1α) and browning of WAT (upregulation of Ucp1, Ppargc1α, and Prdm16). The underlying mechanisms of cinnamon extract were determined as the activation of the AMPK/SIRT1 pathway [24].

2.5. Germinated Soybean Germ

Germination enhances phytochemicals’ health-promoting activities such as antioxidant and anti-inflammatory properties [31]. Kim et al. [25] reported that germinated soy germ extract prevents obesity through adipocyte browning in vitro and in vivo. In 3T3-L1 cells, germinated soybean germ treatment lowered accumulation of lipids and expression levels of genes involved in adipogenesis (C/EBPβ, PPARγ, and C/EBPα) and lipogenesis (SREPB1c, ACC, FAS, and SCD1) but elevated those of genes involved in lipolysis, β-oxidation, and thermogenesis. Consistent with the in vitro results, germinated soybean germ extract reduced body weight gain and adipose tissue accumulation in mice by inhibiting genes related to adipogenesis and lipogenesis. Germinated soybean germ extract also induced adipocyte browning by upregulating UCP1, CPT1, PGC-1α, and PPARα.

2.6. Ganoderma Tsugae

Ganoderma tsugae Murrill is an edible fungi in the family Ganodermataceae. It is also known as lingzhi or reishi and is a traditional Chinese medicinal mushroom used as a popular functional food worldwide [32]. Various pharmacologically active ingredients, such as polysaccharides, triterpenoids, nucleosides, proteins/peptides, organic germanium compounds, and other trace elements, have been isolated from G. tsugae extracts and characterized [32]. These active ingredients have demonstrated several therapeutic effects, including antioxidant, anti-inflammatory, antibacterial, antitumor, anti-HIV, blood pressure regulatory, hepatoprotective, and immunomodulatory, cardioprotective properties and can act as a nerve tonic [33,34,35].
In addition to these therapeutic effects, Tseng et al. [26] recently demonstrated that triterpenoid-rich G. tsugae ethanol extract (GTEE) could improve obesity by promoting intracellular metabolic flexibility and plasticity and inducing adipocyte browning. The data showed that low-dose GTEE (0.2 mg/mL) in 3T3-L1 cells induced adipogenesis and small lipid droplet formation and promoted intracellular lipid metabolism flux and flexibility [26]. It also induced the browning of 3T3-L1 adipocytes by upregulating UCP1, CIDEA, HSP60, and cytochrome c proteins while downregulating the NADH/NAD+ ratio and NADH content [26]. Furthermore, in vivo investigations of GTEE administration to male C57BL/6Narl HFD-fed mice upregulated UCP1 in the inguinal WAT to induce browning while reducing fasting blood glucose, triglyceride, and LDL cholesterol levels, thereby improving glucose intolerance and lipid dysfunction [26]. These effects of GTEE were accompanied with increased expression level of SIRT1 and threonine-172 phosphorylation of AMPK. This indicates GTEE as a prospective treatment strategy for obesity.

3. Plant Extracts That Stimulate Adipocyte Browning

Emerging research indicates that plant extracts can be important environmental regulators of WAT browning and energy homeostasis. Therefore, various in vitro and in vivo studies have investigated the effects of plant extracts on adipocyte metabolism and obesity (Table 2).

3.1. Panax Ginseng

Ginseng (Panax ginseng Mayer) of the Araliaceae family is a traditional medicinal herb registered in the Chinese classic oriental herbal dictionary as “shin-nong-bon-cho-kyung” with various pharmacological properties [36]. Depending on the processing method, ginseng can be classified into three types: white, red, and black [36,37]. Among these, black ginseng (BG), a ginseng product prepared by the steaming-and-drying process for nine times, exhibits more potent pharmacological and biological activity than either white or red ginseng [36,37,38]. This difference may be because of the conversion of ginsenosides from fresh ginseng into less polar forms during steaming [38]. To date, 19 types of ginsenosides (F4, Rb1, Rb2, Rc, Rd, Re, Rf, Rg1, Rg5, Rg6, Rh4, Rk1, Rk3, Rs4, Rs5, 20(R)-Rg3, 20(R)-Rs3, 20(S)-Rg3, and 20(S)-Rs3) have been identified in BG [37,38]. Previous studies have demonstrated that ginsenosides Rb1, Rb2, Rg1, and Rg3 exhibit antiobesity activity [39,40,41,42,43].
Park et al. [43] showed that BG and ginsenoside Rb1 exhibit antiobesity effects by inducing browning in 3T3-L1 adipocytes and primary white adipocytes (PWATs) through activation of the AMPK signaling cascade. BG (25, 50, and 100 μg/mL) and Rb1 (10, 20, and 40 μM) inhibited the early stages of adipogenesis in 3T3-L1 adipocytes and PWATs by lowering the expression levels of C/EBPα and SREBP-1c to reduce lipid accumulation [43]. In addition, BG and Rb1 have been shown to induce browning of 3T3-L1 adipocytes and PWATs through increased mitochondrial activity and expression of BAT-specific markers such as PRDM16, PGC-1α, PPARγ, and UCP1 [43]. However, this phenomenon was abolished in PWATs treated with the AMPK inhibitor dorsomorphin, suggesting that the browning and antiobesity effects of BG and Rb1 are mediated by activation of the AMPK signaling cascade [43].
Another study investigated the antiobesity activity of ginsenoside Rb2 [39]. Data showed that Rb2 (40 mg/kg/day) treatment resulted in lower body weight gain, enhanced insulin sensitivity, and elevated energy expenditure in diet-induced obese (DIO) mice [39]. Additionally, treating mice with Rb2 was shown to induce the activation of BAT and browning of WAT by reducing lipid droplet size, stimulating UCP1 staining, and upregulating thermogenic and mitochondrial gene expression [39]. The authors also reported that activation of the AMPK pathway is responsible for Rb2-mediated upregulation of browning gene expression [39]. Furthermore, in other studies, Lee et al. and Kim et al. [40,41] demonstrated that Rg1 and Rg3 exert anti-obesity effects by upregulating browning-related gene expression and mitochondrial biosynthesis through activation of the AMPK pathway.
These results suggest the potential for BG and ginsenosides to act as browning agents and exert anti-obesity effects, an area that may be explored in future studies. Further investigation is still needed to confirm whether Rb1, Rb2, Rg1, and Rg3, and other ginsenosides, contribute to the browning process.

3.2. Phyllostachys Pubescens and Scutellaria baicalensis

The leaves of Phyllostachys pubescens Mazel (bamboo), a plant of the family Poaceae commonly consumed as a tea, have various biological functions, such as being an antioxidant and anticoagulant [47]. The roots of Scutellaria baicalensis Georgi (Baikal skullcap), a plant of the family Lamiaceae, are widely used in traditional medicine, preventing inflammation, diuresis, and diarrhea [48].
In a recent study, a 2:1 (w:w) mixture of P. pubescens leaf extract and S. baicalensis root extract (BS21) was used to investigate its effects on adipogenesis and browning in vitro [49]. The results showed that BS21 treatment markedly reduced the accumulation and size of lipid droplets and the levels of leptin and adiponectin in 3T3-L1 adipocytes [49]. In addition, treatment with BS21 lowered the expression levels of white adipocyte markers (PPARγ, C/EBPα, and ap2) and lipogenic markers (SREBP1c and FAS), but increased the expression levels of β-oxidation proteins (CPT1 and p-ACC) [49]. Furthermore, BS21 treatment increased the expression of brown adipocyte marker proteins, such as UCP1, PRDM16, and PGC1α, and thermogenesis-related genes such as UCP2 in 3T3-L1 adipocytes, suggesting that BS21 induces adipocyte browning and thermogenesis [49]. These effects were mediated by activation of the AMPK signaling pathway, indicated by Western blot analysis [49]. According to UPLC analysis, chlorogenic acid, orientin, baicalin, wogonoside, baicalein, tricin, wogonin, and chrysin were identified in BS21, of which adipocyte differentiation and leptin level were markedly suppressed in all compounds except for wogonoside [49]. These results suggest that BS21 has antiobesity efficacy by inhibiting adipogenesis and lipogenesis and inducing fat oxidation and browning.

3.3. Humulus Japonicus

Humulus japonicus, also known as “Japanese hop”, is a perennial herb belonging to the Cannabaceae family and is ubiquitously found in Asian countries, including Korea, Japan, and China [50]. H. japonicus has long been used in traditional medicine to cure skin diseases, pulmonary tuberculosis, and hypertension [50]. Other biological effects of H. japonicus include antimutagenic, antibacterial, antiatheroma, antioxidant, antitumor, antimycobacterial, and anti-inflammatory effects [50,51,52,53,54].
A recent study has shown that H. japonicus aqueous extract (AH) can suppress obesity by stimulating thermogenesis and improving oxidative stress through a BAT-like phenotype in 3T3-L1 adipocytes [44]. Treatment with AH (20 and 100 μg/mL) upregulated the expression of BAT-specific markers, such as UCP1, PRDM16, and PGC-1α, in 3T3-L1 adipocytes, suggesting that AH stimulates thermogenesis and browning [44]. In addition, AH promoted fatty acid oxidation and lipolysis while notably inhibiting lipogenesis and lipid accumulation [44]. Oxidative stress could influence the development of obesity-related metabolic disorders [55]. AH also improved hydrogen peroxide-induced oxidative stress and markedly increased the expression level of the antioxidant enzymes SOD1, catalase, and GPx1 [44]. The antiobesity process of stimulating browning and lipid metabolism while reducing oxidative stress in WAT has been shown to involve activation of the AMPK and PPARδ signaling pathways [44]. However, more research into the stimulation of thermogenesis and induction of oxidative stress improvement by H. japonicus is needed using in vivo models of obesity.

3.4. Immature Citrus Reticulata

Ponkan (Citrus reticulata) is a commercial Mandarin cultivar belonging to the genus Citrus of the Rutaceae family [56]. Immature C. reticulata contains higher amounts of p-synephrine, nobiletin, and tangeretin than other citrus species, showing diverse biological activities [57].
In rodents, immature C. reticulata extract (ICRE) can exert positive effects on browning of WAT, thereby suppressing obesity and hepatic steatosis [45]. Administration of 1% ICRE for 11 weeks induced body weight loss in HFD-fed mice, accompanied by a decrease in visceral fat (epididymal, retroperitoneal, and mesenteric) weight and adipocyte size [45]. The administration of ICRE also markedly reduced hepatic steatosis, fasting blood glucose, insulin, and homeostatic model assessment for insulin resistance, serum triglyceride, and total cholesterol levels, suggesting that ICRE can improve HFD-induced fatty liver disease, insulin resistance, and dyslipidemia [45]. In particular, the administration of ICRE improved cold tolerance during cold exposure in HFD mice. These effects were associated with the increased expression level of thermogenic genes, such as UCP1, PRDM16, and NRF1, and beige adipocyte-selective markers, such as TEME26, CD137, and CIDEA, in inguinal WAT. These results suggest that ICRE has antiobesity efficacy by inducing BAT-like formation. However, more clarity is need on the possible molecular mechanisms involved in ICRE-induced adipocyte browning.

3.5. Glucoraphanin from Broccoli Seeds

Glucoraphanin, a precursor of sulforaphane, is an isothiocyanate derivative found in cruciferous vegetables of the family Brassicaceae, such as cauliflower, collard, and cabbage, and especially highly concentrated in broccoli seeds and sprouts [58]. When plant tissues and cells are destroyed by external stimuli, glucoraphanin is hydrolyzed by myrosinase to produce biologically activated sulforaphane [59]. Sulforaphane is a potent natural nuclear factor (erythroid-derived 2)-like 2 (Nrf2) inducer that has various pharmacological effects, such as antioxidant, anticancer, anti-aging, and anti-inflammatory effects [60].
It has recently been confirmed that glucoraphanin can induce browning of adipose tissue and reduce metabolic endotoxemia, thereby preventing metabolic disorders, such as obesity and type 2 diabetes [46]. In HFD-induced obese mice, administration of 0.3% glucoraphanin for 14 weeks reduced body weight gain and fat mass and increased energy expenditure. Glucoraphanin also increased the expression level of UCP1, a major browning marker, in inguinal and epididymal adipose depots and improved systemic glucose tolerance and insulin sensitivity. However, this phenomenon was abolished in homozygous NRF2-deficient (Nrf2–/–) mice, suggesting that the antiobesity and insulin-sensitizing effects of glucoraphanin are mediated by NRF2. Additionally, glucoraphanin downregulated plasma lipopolysaccharide levels and reduced the relative abundance of Desulfovibrionaceae bacteria, which are major producers of endotoxins in the gut microbiome. It also inhibited hepatic lipogenic gene expression, lipid peroxidation, M1-like macrophage accumulation, and inflammatory signaling pathways, suggesting that glucoraphanin relieves oxidative stress and inflammation caused by HFD.
Taken together, these findings indicate that glucoraphanin may be effective in preventing hepatic steatosis, insulin resistance, and chronic inflammation by promoting energy expenditure and suppressing gut-derived metabolic endotoxemia.

4. Marine Products That Induce Adipose Browning

Marine products have great attention due to their potential applications in functional foods and food additives because of their health-promoting properties, including antiobesity, antioxidant, anti-inflammatory, and anticancer effects [61]. Recent studies have revealed new roles of marine products in adipocyte browning and energy balance (Table 3).

4.1. Sargassum Serratifolium (C. Agardh)

Sargassum serratifolium, a marine brown alga, has been widely utilized as a food and traditional medicine in Asia. A study examined the roles of a meroterpenoid-rich fraction of an ethanolic extract of S. serratifolium (MES) in HFD-induced obesity and related metabolic syndrome C57BL/6J mice. MES administration notably decreased obesity and hepatic steatosis without altering food intake. The beneficial effects of MES are partially ascribed to increased lipid catabolic AMPK signaling pathways and highly elevated UCP1-positive cells in adipose tissue [14], indicative of MES-stimulated adipose tissue browning.
Chemical composition analysis revealed that MES contains a high level of meroterpenoids, including sargachromenol, sargaquinoic acid (SQA), and sargahydroquinoic acid (SHQA) as the most abundant compound [14]. When the direct effects of SHQA on adipocytes were tested in conditions simulating adipocyte browning, lipolysis, and mitochondrial number was increased, but ATP production decreased. The authors further examined uncoupled metabolic signaling and found that SHQA treatment significantly elevated UCP1-positive adipocytes and beige adipocyte markers [62]. The adipose browning effects of SHQA were related to the activation of PPARγ, PPARα, and AMPKα.
The browning effects of SQA were tested using 3T3-L1 adipocytes differentiated under probrowning conditions. SQA treatment stimulated the differentiation of white adipocytes into beige adipocytes and decreased lipid accumulation. SQA activated AMPK and upregulated genes associated with lipid catabolic pathways, including perilipin, carnitine palmitoyltransferase 1, and acyl-CoA synthetase long-chain family member 1 [13]. These findings confirm SHQA and SQA as active MES compounds that stimulate lipid catabolic signaling and facilitate white to beige adipocyte differentiation. Further studies are still required on the adipocyte browning effects of sargachromenol, the remaining major MES compound.
Table 3. Marine products to stimulate adipocyte browning.
Table 3. Marine products to stimulate adipocyte browning.
Extract
(Part/Solvent)
ModelConc.EffectsActive
Component
Ref.
Sargassum
Serratifolium
(whole/EtOH)
C57BL/6J mice30–120 mg/kg/day↑AMPK signaling pathway
↑UCP1-positive cells
↓lipogenesis
(↓SREBP1c, SCD-1, FAS)
↑lipolysis
(↑PLIN, CPT1, ACSL1)
↑mitochondria function
SHQA
SQA
[13,62]
Spirulina maxima
(whole/EtOH)
3T3-L1 cells50, 100 μg/mL↑lipid accumulation
↓adipogenesis
(↓C/EBPα, PPARγ, aP2)
↓lipogenesis
(↓SREBP1c, ACC, FAS, LPAATβ, Lipin1, DGAT1)
chlorophyll A
C-phycocyanin
[63]
ICR mice150, 450 mg/kg/day↑p-AMPK
↑adipose browning proteins
(↑PRDM16, PGC1α, UCP1)
Phaeodactylum
Tricornutum
(whole/ND)
C57BL/6J mice0.81, 1.62, 3.25 mg/kg/day↓body weight, organ weight, adipocyte size
↑blood metabolic profile
fucoxanthin[64]
3T3-L1 cells20, 40 μM↑UCP1
Nitzschia laevis
(whole/EtOH)
C57BL/6J mice10, 50 mg/kg/day↓body weight↑BAT cell number
↑thermogenesis
(↑UCP1)
ND[65]
Undaria pinnatifida
(whole/chloroform/
methanol)
Wistar rats and KK-Ay mice 0.5 and 2% in diet↓WAT weight
↑BAT weight
↑UCP1 only in WAT
fucoxanthin[66]
AMPK, AMP-activated protein kinase; UCP1, uncoupling protein 1; SREBP1c, sterol regulatory element-binding protein 1c; SCD1, stearoyl-CoA desaturase 1; FAS, fatty acid synthase; PLIN, perilipin; CPT1, carnitine palmitoyltransferase 1; ACSL1, acyl-CoA synthetase long-chain family member 1; SHQA, sargahydroquinoic acid; SQA, sargaquinoic acid; C/EBPα, CCAT/enhancer binding protein alpha; PPARγ, peroxisome proliferator-activator receptor gamma; aP2, adipocyte protein 2; ACC, acetyl-CoA carboxylase; LPAATβ, lysophosphatidic acid acyltransferase beta; DGAT1, diacylglycerol acyltransferase 1; PRDM16, PR domain zinc finger protein 16; PGC1α, peroxisome proliferator-activated receptor-gamma coactivator-1-alpha; BAT, brown adipose tissue. ND, not determined.

4.2. Spirulina Maxima

Spirulina maxima is a microalga that is abundant in essential nutrients and includes pigment proteins including chlorophyll a and C-phycocyanin [67,68]. Studies have reported that S. maxima exhibit antioxidant, anticancer, and neuroprotective effects [61] but its potential in obesity and adipose tissues is unclear. A recent study examined the ethanol extract of S. maxima on adipogenesis, lipogenesis, and browning using in vitro and in vivo mouse models [63]. The treatment of the extract decreased intracellular lipid accumulation in 3T3-L1 adipocytes, reduced protein expression levels of the adipogenic genes, including C/EBPα, PPARγ, and aP2, and the lipogenic genes, including SREBP1, ACC, FAS, LPAATβ, Lipin1, and DGAT1 [63]. When the extract was supplemented in HFD-fed male ICR mice, DIO was inhibited at both low and high concentrations (150 and 450 mg/kg, respectively). Furthermore, Spirulina ethanol extract-supplemented mice showed lower adipose tissue mass and blood lipid concentrations than HFD-fed mice. These characteristics are closely related to the activation of AMPK and the upregulation of adipose browning proteins, including PRDM16, PGC1α, and UCP1 [63]. When the index components (chlorophyll A and C-phycocyanin) of the ethanol extract were administered in 3T3-L1 and C3H10T1/2 cells, both compounds decreased the protein expression related to adipogenesis and lipogenesis. However, their effects on browning markers still need to be confirmed in future studies.

4.3. Phaeodactylum Tricornutum

Phaeodactylum tricornutum is a plentiful source of fucoxanthin, a marine carotenoid found in macroalgae, with health-promoting effects, including antiobesity effects. However, fucoxanthin is scarce and requires delicate extraction techniques, limiting the number of applied research studies to date [64]. In one such study, the antiobesity effects of a Phaeodactylum ethanol extract were tested using cell and animal models. In 3T3-L1 adipocytes treated with the extract, UCP1 protein levels were upregulated at 400 μg/mL. When applied to HFD-induced obese mice, the oral injections of Phaeodactylum extract (0.81, 1.62, and 3.25 mg/kg/day) reduced body weight, organ weight, and adipocyte size while ameliorating the blood metabolic profile [64]. In the same study, fucoxanthin treatment at 20 or 40 μM also upregulated the protein levels of UCP1 in adipocytes. When orally injected into the HFD mice, fucoxanthin (0.1 mg/kg/day) ameliorated DIO and metabolic profile. These findings suggest that fucoxanthin mediates the adipose browning and antiobesity effects of Phaeodactylum extract.

4.4. Nitzschia Laevis

The microalga Nitzschia laevis has been reported to contain polyphenols, polyunsaturated fatty acids, and fucoxanthin [65,69,70]. Nitzschia laevis extract has great potential as dietary supplement for various health-promoting effects, and its effects on obesity have also recently been confirmed. An ethanol extract of N. laevis (10 or 50 mg/kg/day) was administered orally to HFD-fed C57BL/6J mice, significantly decreasing body weight without altering food intake and lipid accumulation in the liver and WAT [65]. In addition, supplementation with N. laevis significantly elevated the number of BAT cells and the mRNA expression levels of UCP1. In the same study, N. laevis-fed mice maintained gut epithelium integrity and gut microbiota composition against HFD-induced complications. Although the focus of the study was largely on the effects of N. laevis on the composition of the gut microbiota’s role in antiobesity, an UCP1-induced thermogenic effect by N. laevis supplementation is still plausible. Further research into the roles of N. laevis supplementation in the browning of WAT and related signaling pathways are still required.

4.5. Undaria Pinnatifida

Undaria pinnatifida is one of the most consumed edible seaweed in Korea and Japan. A study examined the antiobesity effects of lipids from Undaria pinnatifida using male Wistar rats and female KK-Ay mice. When the animals were fed 2% Undaria lipids mixed with experimental diets, the weight of WAT was significantly reduced while the weight of BAT was greater than in that of control mice [66]. Nevertheless, there was no difference in UCP1 expression in BAT between groups, indicating that the reduction in WAT weight in Undaria lipids-fed mice may not be explained only through the UCP1-dependent thermogenic energy expenditure in BAT. Thus, the authors tested whether Undaria lipids affect thermogenic signaling in WAT of mice [66]. While there was little expression in the WAT of control mice, the protein levels of UCP1 markedly increased in WAT of Undaria lipids-fed mice in a concentration-dependent manner. However, UCP2 expression was reduced by Undaria lipid feeding compared to the control mice, suggesting that UCP1 signaling in WAT contributes to the significant decrease in fat mass in Undaria lipids-fed mice [66]. Fucoxanthin may be involved in the Undaria lipids-mediated antiobesity activity [64,66]. When dried powder of Undaria pinnatifida after removing carbohydrate and protein was extracted with chloroform/methanol (2:1, v/v), the powder contained 15% (w/w) lipids, of which fucoxanthin was quite abundant (9.6%) [66]. However, conflicting results also exist when fucoxanthin was treated in human adipocytes [71]. When human adipocytes were treated with fucoxanthin or fucoxanthinol because fucoxanthin is converted to fucoxanthinol in adipocytes of mice in 48–57 h [72], there were no apparent effects on oxygen consumption rate and the mRNA expression levels of genes related to adipocyte browning including UCP1 and PGC1α [71]. Therefore, further studies are necessary to determine the active components of Undaria lipids that stimulate adipocyte browning and antiobesity effects.

5. Conclusions

Natural extracts are of specific interest in the prevention and management of obesity. Accumulated evidence supports that natural extracts that stimulate adipocyte browning may help manage obesity through a variety of mechanisms. Figure 3 presents an overview of the cellular targets of natural extracts that induce adipocyte browning. The extracts from edible foods, plants, and marine products regulate lipid metabolisms, thermogenesis, and mitochondrial biogenesis.
Based on the studies covered by this review, many edible foods, plant extracts, and marine products have stimulated adipocyte browning and altered energy balance by regulating key molecules involved in adipogenesis, lipid catabolism, and mitochondrial functions. However, most of the data were derived from mouse-originated cells and animal models, with established higher temperature homeostasis than humans, contributing to a higher sensitivity to induce adipocyte browning. It should be noted that studies from cell models and animal models do not always correspond to each other possibly due to low bioaccessibility and bioavailability of many natural compounds. Therefore, it may be possible that natural extracts with little effects on adipocyte browning in animal studies may have better effects when directly treated in cell models. Additionally, we cannot assure that natural extracts directly regulate adipocyte metabolism based on animal studies because there are multiple tissues and hormones that are involved in adipocyte browning. Nevertheless, many natural extracts exhibited promising effects on thermogenesis and obesity. To further develop natural extracts as functional foods, clinical trials are necessary to confirm the efficacy and safety.

Author Contributions

Conceptualization, B.L. and C.Y.K.; writing—original draft preparation, M.-K.L., B.L., and C.Y.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a National Research Foundation of Korea grant (Grant No. NRF-2020R1A2C2006436).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Silvester, A.J.; Aseer, K.R.; Yun, J.W. Dietary polyphenols and their roles in fat browning. J. Nutr. Biochem. 2019, 64, 1–12. [Google Scholar] [CrossRef] [PubMed]
  2. Kaisanlahti, A.; Glumoff, T. Browning of white fat: Agents and implications for beige adipose tissue to type 2 diabetes. J. Physiol. Biochem. 2019, 75, 1–10. [Google Scholar] [CrossRef]
  3. Wu, J.; Boström, P.; Sparks, L.M.; Ye, L.; Choi, J.H.; Giang, A.-H.; Khandekar, M.; Virtanen, K.A.; Nuutila, P.; Schaart, G.; et al. Beige adipocytes are a distinct type of thermogenic fat cell in mouse and human. Cell 2012, 150, 366–376. [Google Scholar] [CrossRef]
  4. Wang, X.; Wahl, R. Responses of the insulin signaling pathways in the brown adipose tissue of rats following cold exposure. PLoS ONE 2014, 9, e99772. [Google Scholar] [CrossRef] [PubMed]
  5. Lizcano, F. The beige adipocyte as a therapy for metabolic diseases. Int. J. Mol. Sci. 2019, 20, 5058. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, S.; Pan, M.H.; Hung, W.L.; Tung, Y.C.; Ho, C.T. From white to beige adipocytes: Therapeutic potential of dietary molecules against obesity and their molecular mechanisms. Food Funct. 2019, 10, 1263–1279. [Google Scholar] [CrossRef] [PubMed]
  7. Wankhade, U.D.; Shen, M.; Yadav, H.; Thakali, K.M. Novel browning agents, mechanisms, and therapeutic potentials of brown adipose tissue. Biomed. Res. Int. 2016, 2016, 2365609. [Google Scholar] [CrossRef]
  8. Liu, D.; Bordicchia, M.; Zhang, C.; Fang, H.; Wei, W.; Li, J.L.; Guilherme, A.; Guntur, K.; Czech, M.P.; Collins, S. Activation of mtorc1 is essential for beta-adrenergic stimulation of adipose browning. J. Clin. Investig. 2016, 126, 1704–1716. [Google Scholar] [CrossRef]
  9. Kusminski, C.M.; Bickel, P.E.; Scherer, P.E. Targeting adipose tissue in the treatment of obesity-associated diabetes. Nat. Rev. Drug Discov. 2016, 15, 639–660. [Google Scholar] [CrossRef]
  10. Tseng, Y.-H.; Kokkotou, E.; Schulz, T.J.; Huang, T.L.; Winnay, J.N.; Taniguchi, C.M.; Tran, T.T.; Suzuki, R.; Espinoza, D.O.; Yamamoto, Y.; et al. New role of bone morphogenetic protein 7 in brown adipogenesis and energy expenditure. Nature 2008, 454, 1000–1004. [Google Scholar] [CrossRef]
  11. Yoneshiro, T.; Aita, S.; Matsushita, M.; Kayahara, T.; Kameya, T.; Kawai, Y.; Iwanaga, T.; Saito, M. Recruited brown adipose tissue as an antiobesity agent in humans. J. Clin. Investig. 2013, 123, 3404–3408. [Google Scholar] [CrossRef] [PubMed]
  12. Chondronikola, M.; Volpi, E.; Børsheim, E.; Porter, C.; Annamalai, P.; Enerbäck, S.; Lidell, M.E.; Saraf, M.K.; Labbe, S.M.; Hurren, N.M.; et al. Brown adipose tissue improves whole-body glucose homeostasis and insulin sensitivity in humans. Diabetes 2014, 63, 4089–4099. [Google Scholar] [CrossRef]
  13. Kwon, M.; Lee, B.; Lim, S.; Kim, H.-R. Effects of sargaquinoic acid in sargassum serratifolium on inducing brown adipocyte-like phenotype in mouse adipocytes in vitro. Planta Med. 2020, 86, 45–54. [Google Scholar] [CrossRef]
  14. Kwon, M.; Lim, S.-J.; Joung, E.-J.; Lee, B.; Oh, C.-W.; Kim, H.-R. Meroterpenoid-rich fraction of an ethanolic extract from sargassum serratifolium alleviates obesity and non-alcoholic fatty liver disease in high fat-fed c57bl/6j mice. J. Funct. Foods 2018, 47, 288–298. [Google Scholar] [CrossRef]
  15. Lanzi, C.R.; Perdicaro, D.J.; Landa, M.S.; Fontana, A.; Antoniolli, A.; Miatello, R.M.; Oteiza, P.I.; Prieto, M.A.V. Grape pomace extract induced beige cells in white adipose tissue from rats and in 3t3-l1 adipocytes. J. Nutr. Biochem. 2018, 56, 224–233. [Google Scholar] [CrossRef]
  16. Neyrinck, A.M.; Bindels, L.B.; Geurts, L.; Van Hul, M.; Cani, P.D.; Delzenne, N.M. A polyphenolic extract from green tea leaves activates fat browning in high-fat-diet-induced obese mice. J. Nutr. Biochem. 2017, 49, 15–21. [Google Scholar] [CrossRef]
  17. Park, W.Y.; Choe, S.-K.; Park, J.; Um, J.-Y. Black raspberry (rubus coreanus miquel) promotes browning of preadipocytes and iinguinal white adipose tissue in cold-induced mice. Nutrients 2019, 11, 2164. [Google Scholar] [CrossRef]
  18. Rao, A.V.; Snyder, D.M. Raspberries and human health: A review. J. Agric. Food Chem. 2010, 58, 3871–3883. [Google Scholar] [CrossRef] [PubMed]
  19. Jeong, M.; Kim, H.; Park, J.; Jung, Y.; Youn, D.; Lee, J.; Jin, J.; So, H.; Park, R.; Kim, S. Rubi fructus (rubus coreanus) activates the expression of thermogenic genes in vivo and in vitro. Int. J. Obes. 2015, 39, 456–464. [Google Scholar] [CrossRef]
  20. Forbes-Hernández, T.Y.; Cianciosi, D.; Ansary, J.; Mezzetti, B.; Bompadre, S.; Quiles, J.L.; Giampieri, F.; Battino, M. Strawberry (fragaria × ananassa cv. Romina) methanolic extract promotes browning in 3t3-l1 cells. Food Funct. 2020, 11, 297–304. [Google Scholar]
  21. Park, H.J.; Cho, J.-Y.; Kim, M.K.; Koh, P.-O.; Cho, K.-W.; Kim, C.H.; Lee, K.-S.; Chung, B.Y.; Kim, G.-S.; Cho, J.-H. Anti-obesity effect of schisandra chinensis in 3t3-l1 cells and high fat diet-induced obese rats. Food Chem. 2012, 134, 227–234. [Google Scholar] [CrossRef]
  22. Park, H.J.; Kim, H.-J.; Kim, S.R.; Choi, M.-S.; Jung, U.J. Omija fruit ethanol extract improves adiposity and related metabolic disturbances in mice fed a high-fat diet. J. Nutr. Biochem. 2017, 41, 137–141. [Google Scholar] [CrossRef]
  23. Kwan, H.Y.; Wu, J.; Su, T.; Chao, X.-J.; Liu, B.; Fu, X.; Chan, C.L.; Lau, R.H.Y.; Tse, A.K.W.; Han, Q.B. Cinnamon induces browning in subcutaneous adipocytes. Sci. Rep. 2017, 7, 1–12. [Google Scholar] [CrossRef]
  24. Li, X.; Lu, H.-Y.; Jiang, X.-W.; Yang, Y.; Xing, B.; Yao, D.; Wu, Q.; Xu, Z.-H.; Zhao, Q.-C. Cinnamomum cassia extract promotes thermogenesis during exposure to cold via activation of brown adipose tissue. J. Ethnopharmacol. 2021, 266, 113413. [Google Scholar] [CrossRef]
  25. Kim, H.-J.; Choi, E.-J.; Kim, H.S.; Choi, C.-W.; Choi, S.-W.; Kim, S.-L.; Seo, W.-D.; Do, S.H. Germinated soy germ extract ameliorates obesity through beige fat activation. Food Funct. 2019, 10, 836–848. [Google Scholar] [CrossRef]
  26. Tseng, H.H.; Yeh, W.C.; Tu, Y.C.; Yang, B.F.; Lai, Y.T.; Lee, H.K.; Yang, Y.C.; Huang, H.C.; Lee, Y.J.; Ou, C.C. Proteomic profiling of ganoderma tsugae ethanol extract-induced adipogenesis displaying browning features. FEBS Lett. 2018, 592, 1643–1666. [Google Scholar] [CrossRef] [PubMed]
  27. Giampieri, F.; Forbes-Hernandez, T.Y.; Gasparrini, M.; Alvarez-Suarez, J.M.; Afrin, S.; Bompadre, S.; Quiles, J.L.; Mezzetti, B.; Battino, M. Strawberry as a health promoter: An evidence based review. Food Funct. 2015, 6, 1386–1398. [Google Scholar] [CrossRef]
  28. Han, H.J.; Jung, U.J.; Kim, H.-J.; Cho, S.-J.; Kim, A.H.; Han, Y.; Choi, M.-S. Combined supplementation with grape pomace and omija fruit ethanol extracts dose-dependently improves body composition, plasma lipid profiles, inflammatory status, and antioxidant capacity in overweight and obese subjects. J. Med. Food 2016, 19, 170–180. [Google Scholar] [CrossRef]
  29. Huang, J.; Wang, Y.; Xie, Z.; Zhou, Y.; Zhang, Y.; Wan, X. The anti-obesity effects of green tea in human intervention and basic molecular studies. Eur. J. Clin. Nutr. 2014, 68, 1075–1087. [Google Scholar] [CrossRef]
  30. Singletary, K. Cinnamon: Update of potential health benefits. Nutr. Today 2019, 54, 42–52. [Google Scholar] [CrossRef]
  31. Gan, R.-Y.; Lui, W.-Y.; Wu, K.; Chan, C.-L.; Dai, S.-H.; Sui, Z.-Q.; Corke, H. Bioactive compounds and bioactivities of germinated edible seeds and sprouts: An updated review. Trends Food Sci. Technol. 2017, 59, 1–14. [Google Scholar] [CrossRef]
  32. Chin, S.K.; Law, C.; Supramaniam, C.; Cheng, P.-G.; Mujumdar, A. Convective drying of ganoderma tsugae murrill and effect of temperature on basidiospores. Dry. Technol. 2008, 26, 1524–1533. [Google Scholar] [CrossRef]
  33. Wasser, S.P. Medicinal mushrooms as a source of antitumor and immunomodulating polysaccharides. Appl. Microbiol. Biotechnol. 2002, 60, 258–274. [Google Scholar]
  34. Mau, J.-L.; Tsai, S.-Y.; Tseng, Y.-H.; Huang, S.-J. Antioxidant properties of hot water extracts from ganoderma tsugae murill. LWT-Food Sci. Technol. 2005, 38, 589–597. [Google Scholar] [CrossRef]
  35. Paterson, R.R. Ganoderma-a therapeutic fungal biofactory. Phytochemistry 2006, 67, 1985–2001. [Google Scholar] [CrossRef]
  36. Saba, E.; Jeon, B.R.; Jeong, D.H.; Lee, K.; Goo, Y.K.; Kim, S.H.; Sung, C.K.; Roh, S.S.; Kim, S.D.; Kim, H.K.; et al. Black ginseng extract ameliorates hypercholesterolemia in rats. J. Ginseng. Res. 2016, 40, 160–168. [Google Scholar] [CrossRef] [PubMed]
  37. Sun, B.S.; Gu, L.J.; Fang, Z.M.; Wang, C.Y.; Wang, Z.; Lee, M.R.; Li, Z.; Li, J.J.; Sung, C.K. Simultaneous quantification of 19 ginsenosides in black ginseng developed from panax ginseng by hplc-elsd. J. Pharm. Biomed. Anal. 2009, 50, 15–22. [Google Scholar] [CrossRef] [PubMed]
  38. Hu, J.N.; Liu, Z.; Wang, Z.; Li, X.D.; Zhang, L.X.; Li, W.; Wang, Y.P. Ameliorative effects and possible molecular mechanism of action of black ginseng (panax ginseng) on acetaminophen-mediated liver injury. Molecules 2017, 22, 664. [Google Scholar]
  39. Hong, Y.; Lin, Y.; Si, Q.; Yang, L.; Dong, W.; Gu, X. Ginsenoside rb2 alleviates obesity by activation of brown fat and induction of browning of white fat. Front. Endocrinol. 2019, 10, 153. [Google Scholar] [CrossRef]
  40. Kim, K.; Nam, K.H.; Yi, S.A.; Park, J.W.; Han, J.W.; Lee, J. Ginsenoside rg3 induces browning of 3t3-l1 adipocytes by activating ampk signaling. Nutrients 2020, 12, 427. [Google Scholar] [CrossRef]
  41. Lee, K.; Seo, Y.J.; Song, J.H.; Chei, S.; Lee, B.Y. Ginsenoside rg1 promotes browning by inducing ucp1 expression and mitochondrial activity in 3t3-l1 and subcutaneous white adipocytes. J. Ginseng. Res. 2019, 43, 589–599. [Google Scholar] [CrossRef] [PubMed]
  42. Mu, Q.; Fang, X.; Li, X.; Zhao, D.; Mo, F.; Jiang, G.; Yu, N.; Zhang, Y.; Guo, Y.; Fu, M.; et al. Ginsenoside rb1 promotes browning through regulation of ppargamma in 3t3-l1 adipocytes. Biochem. Biophys. Res. Commun. 2015, 466, 530–535. [Google Scholar] [CrossRef]
  43. Park, S.-J.; Park, M.; Sharma, A.; Kim, K.; Lee, H.-J. Black ginseng and ginsenoside rb1 promote browning by inducing ucp1 expression in 3t3-l1 and primary white adipocytes. Nutrients 2019, 11, 2747. [Google Scholar] [CrossRef] [PubMed]
  44. Jung, T.W.; Kim, H.C.; Shin, Y.K.; Min, H.; Cho, S.W.; Kim, Z.S.; Han, S.M.; Abd El-Aty, A.M.; Hacimuftuoglu, A.; Jeong, J.H. Humulus japonicus stimulates thermogenesis and ameliorates oxidative stress in mouse adipocytes. J. Mol. Endocrinol. 2019, 63, 1–9. [Google Scholar] [CrossRef] [PubMed]
  45. Chou, Y.-C.; Ho, C.-T.; Pan, M.-H. Immature citrus reticulata extract promotes browning of beige adipocytes in high-fat diet-induced c57bl/6 mice. J. Agric. Food Chem. 2018, 66, 9697–9703. [Google Scholar] [CrossRef] [PubMed]
  46. Nagata, N.; Xu, L.; Kohno, S.; Ushida, Y.; Aoki, Y.; Umeda, R.; Fuke, N.; Zhuge, F.; Ni, Y.; Nagashimada, M.; et al. Glucoraphanin ameliorates obesity and insulin resistance through adipose tissue browning and reduction of metabolic endotoxemia in mice. Diabetes 2017, 66, 1222–1236. [Google Scholar] [CrossRef]
  47. Cho, E.-A.; Kim, S.-Y.; Na, I.-H.; Kim, D.-C.; In, M.-J.; Chae, H.-J. Antioxidant and anticoagulant activities of water and ethanol extracts of phyllostachys pubescence leaf produced in geoje. J. Appl. Biol. Chem. 2010, 53, 170–173. [Google Scholar] [CrossRef]
  48. Yoon, S.B.; Lee, Y.J.; Park, S.K.; Kim, H.C.; Bae, H.; Kim, H.M.; Ko, S.G.; Choi, H.Y.; Oh, M.S.; Park, W. Anti-inflammatory effects of scutellaria baicalensis water extract on lps-activated raw 264.7 macrophages. J. Ethnopharmacol. 2009, 125, 286–290. [Google Scholar] [CrossRef]
  49. Sung, Y.Y.; Son, E.; Im, G.; Kim, D.S. Herbal combination of phyllostachys pubescens and scutellaria baicalensis inhibits adipogenesis and promotes browning via ampk activation in 3t3-l1 adipocytes. Plants 2020, 9, 1422. [Google Scholar] [CrossRef]
  50. Park, T.S.; Ryu, Y.K.; Park, H.Y.; Kim, J.Y.; Go, J.; Noh, J.R.; Kim, Y.H.; Hwang, J.H.; Choi, D.H.; Oh, W.K.; et al. Humulus japonicus inhibits the progression of alzheimer’s disease in a app/ps1 transgenic mouse model. Int. J. Mol. Med. 2017, 39, 21–30. [Google Scholar] [CrossRef] [PubMed]
  51. Lee, Y.-R.; Kim, K.-Y.; Lee, S.-H.; Kim, M.-Y.; Park, H.-J.; Jeong, H.-S. Antioxidant and antitumor activities of methanolic extracts from humulus japonicus. Korean J. Food Nutr. 2012, 25, 357–361. [Google Scholar] [CrossRef]
  52. Hong, M.-S.; Son, E.-S.; Lee, S.-J.; Lee, S.-K.; Lee, Y.-J.; Song, S.-D.; Cho, S.-N.; Barry, C.; Eum, S.-Y. Anti-mycobacterial effects of the extract of humulus japonicus. Korean J. Food Sci. Technol. 2014, 46, 94–99. [Google Scholar] [CrossRef]
  53. Sung, B.; Chung, J.W.; Bae, H.R.; Choi, J.S.; Kim, C.M.; Kim, N.D. Humulus japonicus extract exhibits antioxidative and anti-aging effects via modulation of the ampk-sirt1 pathway. Exp. Ther. Med. 2015, 9, 1819–1826. [Google Scholar] [CrossRef] [PubMed]
  54. Lim, H.; Noh, J.R.; Kim, Y.H.; Hwang, J.H.; Kim, K.S.; Choi, D.H.; Go, M.J.; Han, S.S.; Oh, W.K.; Lee, C.H. Anti-atherogenic effect of humulus japonicus in apolipoprotein e-deficient mice. Int. J. Mol. Med. 2016, 38, 1101–1110. [Google Scholar] [CrossRef]
  55. Roberts, C.K.; Sindhu, K.K. Oxidative stress and metabolic syndrome. Life Sci. 2009, 84, 705–712. [Google Scholar] [CrossRef]
  56. Dutt, M.; Vasconcellos, M.; Song, K.; Gmitter, F.; Grosser, J. In vitro production of autotetraploid ponkan mandarin (citrus reticulata blanco) using cell suspension cultures. Euphytica 2009, 173, 235–242. [Google Scholar] [CrossRef]
  57. Sun, Y.; Qiao, L.; Shen, Y.; Jiang, P.; Chen, J.; Ye, X. Phytochemical profile and antioxidant activity of physiological drop of citrus fruits. J. Food Sci. 2013, 78, C37–C42. [Google Scholar] [CrossRef]
  58. Lv, X.; Meng, G.; Li, W.; Fan, D.; Wang, X.; Espinoza-Pinochet, C.A.; Cespedes-Acuna, C.L. Sulforaphane and its antioxidative effects in broccoli seeds and sprouts of different cultivars. Food Chem. 2020, 316, 126216. [Google Scholar] [CrossRef]
  59. Garcia-Saldana, J.S.; Campas-Baypoli, O.N.; Lopez-Cervantes, J.; Sanchez-Machado, D.I.; Cantu-Soto, E.U.; Rodriguez-Ramirez, R. Microencapsulation of sulforaphane from broccoli seed extracts by gelatin/gum arabic and gelatin/pectin complexes. Food Chem. 2016, 201, 94–100. [Google Scholar] [CrossRef]
  60. Dinkova-Kostova, A.T.; Fahey, J.W.; Kostov, R.V.; Kensler, T.W. Keap1 and done? Targeting the nrf2 pathway with sulforaphane. Trends Food Sci. Technol. 2017, 69, 257–269. [Google Scholar] [CrossRef]
  61. Gómez-Zorita, S.; Trepiana, J.; González-Arceo, M.; Aguirre, L.; Milton-Laskibar, I.; González, M.; Eseberri, I.; Fernández-Quintela, A.; Portillo, M.P. Anti-obesity effects of microalgae. Int. J. Mol. Sci. 2020, 21, 41. [Google Scholar] [CrossRef]
  62. Kwon, M.; Lee, B.; Lim, S.-J.; Choi, J.S.; Kim, H.-R. Sargahydroquinoic acid, a major compound in sargassum serratifolium (c. Agardh) c. Agardh, widely activates lipid catabolic pathways, contributing to the formation of beige-like adipocytes. J. Funct. Foods 2019, 58, 355–366. [Google Scholar] [CrossRef]
  63. Seo, Y.-J.; Kim, K.-J.; Choi, J.; Koh, E.-J.; Lee, B.-Y. Spirulina maxima extract reduces obesity through suppression of adipogenesis and activation of browning in 3t3-l1 cells and high-fat diet-induced obese mice. Nutrients 2018, 10, 712. [Google Scholar] [CrossRef] [PubMed]
  64. Koo, S.Y.; Hwang, J.-H.; Yang, S.-H.; Um, J.-I.; Hong, K.W.; Kang, K.; Pan, C.-H.; Hwang, K.T.; Kim, S.M. Anti-obesity effect of standardized extract of microalga phaeodactylum tricornutum containing fucoxanthin. Mar. Drugs 2019, 17, 311. [Google Scholar] [CrossRef]
  65. Guo, B.; Liu, B.; Wei, H.; Cheng, K.-W.; Chen, F. Extract of the microalga nitzschia laevis prevents high-fat-diet-induced obesity in mice by modulating the composition of gut microbiota. Mol. Nutr. Food Res. 2019, 63, 1800808. [Google Scholar] [CrossRef]
  66. Maeda, H.; Hosokawa, M.; Sashima, T.; Funayama, K.; Miyashita, K. Fucoxanthin from edible seaweed, undaria pinnatifida, shows antiobesity effect through ucp1 expression in white adipose tissues. Biochem. Biophys. Res. Commun. 2005, 332, 392–397. [Google Scholar] [CrossRef] [PubMed]
  67. Abd El-Baky, H.H.; El-Baroty, G.S. Characterization and bioactivity of phycocyanin isolated from spirulina maxima grown under salt stress. Food Funct. 2012, 3, 381–388. [Google Scholar] [CrossRef] [PubMed]
  68. Choi, W.Y.; Lee, H.Y. Enhancement of chlorophyll a production from marine spirulina maxima by an optimized ultrasonic extraction process. Appl. Sci. 2018, 8, 26. [Google Scholar] [CrossRef]
  69. Guo, B.; Liu, B.; Yang, B.; Sun, P.; Lu, X.; Liu, J.; Chen, F. Screening of diatom strains and characterization of cyclotella cryptica as a potential fucoxanthin producer. Mar. Drugs 2016, 14, 125. [Google Scholar] [CrossRef]
  70. Wen, Z.-Y.; Chen, F. Production potential of eicosapentaenoic acid by the diatom nitzschia laevis. Biotechnol. Lett. 2000, 22, 727–733. [Google Scholar] [CrossRef]
  71. Rebello, C.J.; Greenway, F.L.; Johnson, W.D.; Ribnicky, D.; Poulev, A.; Stadler, K.; Coulter, A.A. Fucoxanthin and its metabolite fucoxanthinol do not induce browning in human adipocytes. J. Agric. Food Chem. 2017, 65, 10915–10924. [Google Scholar] [CrossRef] [PubMed]
  72. Maeda, H.; Hosokawa, M.; Sashima, T.; Takahashi, N.; Kawada, T.; Miyashita, K. Fucoxanthin and its metabolite, fucoxanthinol, suppress adipocyte differentiation in 3t3-l1 cells. Int. J. Mol. Med. 2006, 18, 147–152. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Characteristics of adipocytes. The figure represents distinct characteristics of white, beige, and brown adipocytes. UCP1, uncoupling protein 1; LD, lipid droplet.
Figure 1. Characteristics of adipocytes. The figure represents distinct characteristics of white, beige, and brown adipocytes. UCP1, uncoupling protein 1; LD, lipid droplet.
Antioxidants 10 00308 g001

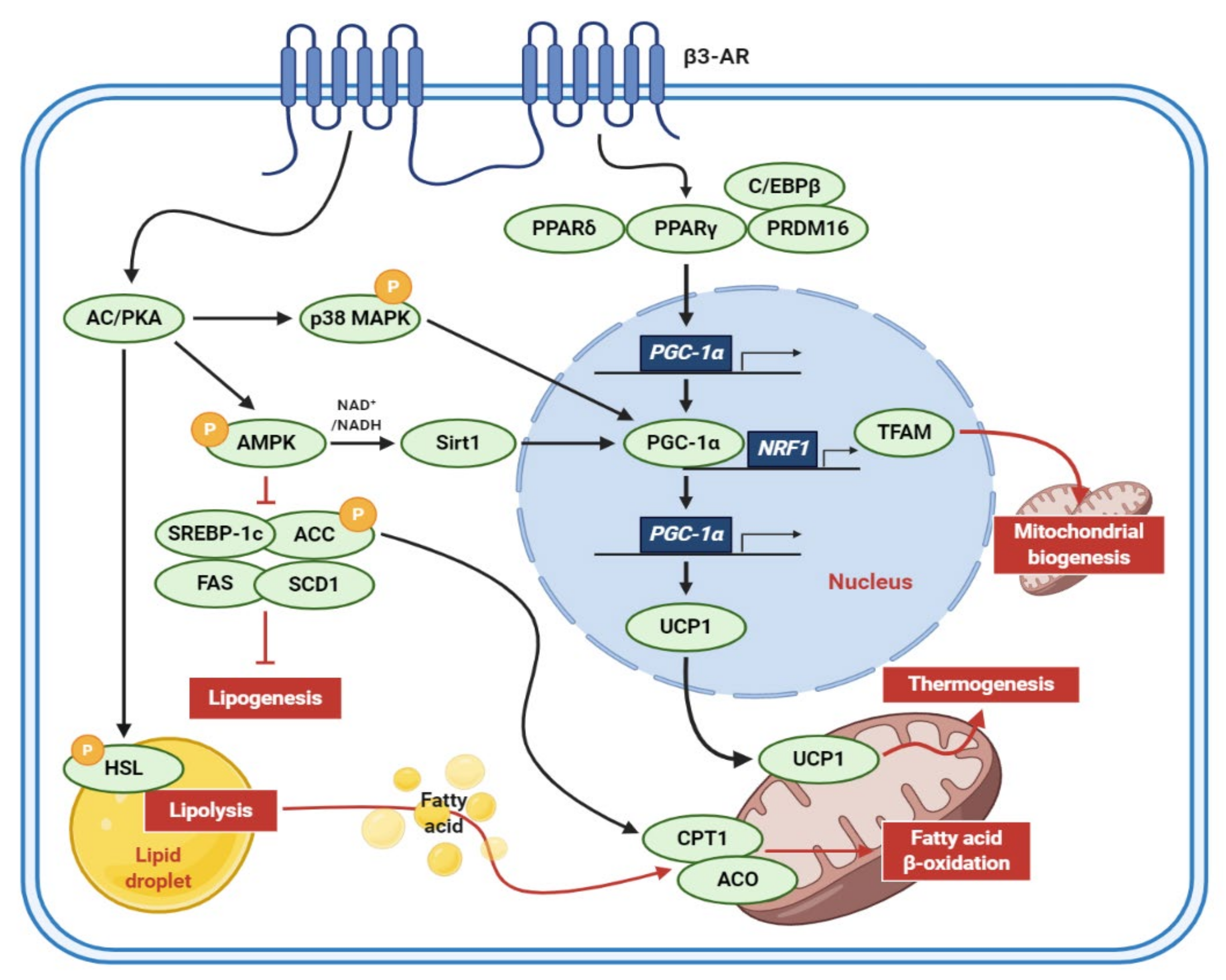

Figure 2. Molecular mechanisms of adipocyte browning. When stimulated by the catecholamines released from terminal neurons, β3-AR triggers the activation of signal transductions related to lipid catabolism and the browning of adipocytes. β3-AR, β3-adrenergic receptors; AC, adenylyl cyclase; PKA, protein kinase A; MAPK, mitogen-activated protein kinase; AMPK, AMP-activated protein kinase; NADH, nicotinamide adenine dinucleotide; Sirt1, sirtuin 1; SREBP-1c, sterol regulatory element-binding protein 1c; ACC, acetyl-CoA carboxylase; FAS, fatty acid synthase; SCD1, stearoyl-CoA desaturase 1; HSL, hormone-sensitive lipase; C/EBP, CCAAT/enhancer-binding protein; PPAR, peroxisome proliferator-activated receptor; PRDM16, PR/SET domain 16; PGC-1α, peroxisome proliferator-activated receptor-gamma coactivator-1-alpha; NRF1, nuclear respiratory factor 1-encoding gene; TFAM, mitochondrial transcription factor A; UCP1, uncoupling protein 1; CPT1, carnitine palmitoyltransferase 1; ACO, acyl-CoA oxidase.
Figure 2. Molecular mechanisms of adipocyte browning. When stimulated by the catecholamines released from terminal neurons, β3-AR triggers the activation of signal transductions related to lipid catabolism and the browning of adipocytes. β3-AR, β3-adrenergic receptors; AC, adenylyl cyclase; PKA, protein kinase A; MAPK, mitogen-activated protein kinase; AMPK, AMP-activated protein kinase; NADH, nicotinamide adenine dinucleotide; Sirt1, sirtuin 1; SREBP-1c, sterol regulatory element-binding protein 1c; ACC, acetyl-CoA carboxylase; FAS, fatty acid synthase; SCD1, stearoyl-CoA desaturase 1; HSL, hormone-sensitive lipase; C/EBP, CCAAT/enhancer-binding protein; PPAR, peroxisome proliferator-activated receptor; PRDM16, PR/SET domain 16; PGC-1α, peroxisome proliferator-activated receptor-gamma coactivator-1-alpha; NRF1, nuclear respiratory factor 1-encoding gene; TFAM, mitochondrial transcription factor A; UCP1, uncoupling protein 1; CPT1, carnitine palmitoyltransferase 1; ACO, acyl-CoA oxidase.
Antioxidants 10 00308 g002

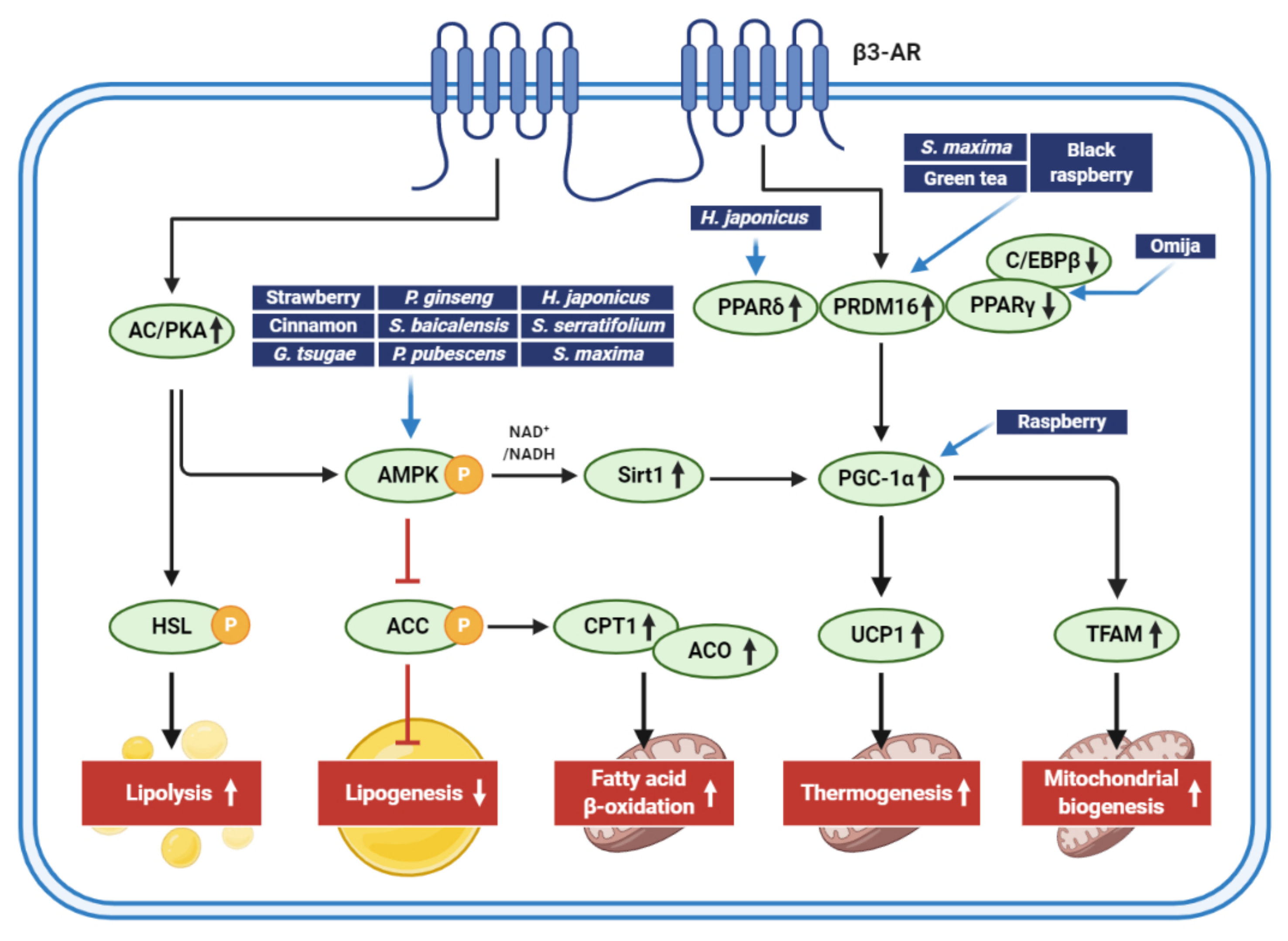

Figure 3. Signaling pathways regulated by extracts isolated from edible foods, plants, and marine products for adipocyte browning and antiobesity activities. The figure shows major pathways inducing lipid catabolism and mitochondrial functions that aid in weight loss. Although key molecules regulated by edible foods, plant extracts, and marine products for adipocyte browning and antiobesity effects are shown here, it should be noted that many extracts can, directly and indirectly, control multiple signaling pathways that regulate energy balance.
Figure 3. Signaling pathways regulated by extracts isolated from edible foods, plants, and marine products for adipocyte browning and antiobesity activities. The figure shows major pathways inducing lipid catabolism and mitochondrial functions that aid in weight loss. Although key molecules regulated by edible foods, plant extracts, and marine products for adipocyte browning and antiobesity effects are shown here, it should be noted that many extracts can, directly and indirectly, control multiple signaling pathways that regulate energy balance.
Antioxidants 10 00308 g003
Table 1. Stimulatory effects of edible extracts on adipocyte browning.
Table 1. Stimulatory effects of edible extracts on adipocyte browning.
Extract
(Part/Solvent)
ModelConc.EffectsActive
Component
Ref.
Red raspberry
(fruit/hot water)
C57BL/6J mice100 mg/kg/day↓obesity
(↓body/ WAT weights)
↑thermogenesis
(↑ucp1, pgc1α, Cidea)
ellagic acid[19]
↑mitochondrial biogenesis
(↑Sirt3, Nrf1)
Primary brown preadipocytes100 μg/mL↑mitochondrial activity
↑brown adipogenesis
(ap2, adiponectin, resistin)
↑thermogenesis
(↑ucp1, pgc1α, Cidea)
↑p-AMPK, p-ACC
Black raspberry
(fruit/hot water)
hMSCs5–10 μg/mL↓adipogenesisellagic acid[17]
zebrafish100 μg/mL(↓PPARγ, C/EBPα)
3T3-L1 cells5–10 μg/mL↓adipogenesis
(↓PPARγ, C/EBPα)
↑thermogenesis
(↑UCP1, PGC1α)
↑mitochondrial function
(↑CIDEA, Nrf1, CPT1B)
C57BL/6J mice100 mg/kg/day↑thermogenesis
(↑body temperature in cold-exposure, ↑UCP1, PGC1α, PRDM16, TBX1)
Strawberry
(fruit/80% MeOH)
3T3-L1 cells5–10 μg/mL↓adipogenesis
(↓PPARγ, C/EBPα, resistin)
↑thermogenesis
(↑UCP1, PDK4)
↑mitochondrial biogenesis
(↑AMPK, Sirt1, PGC1α)
ND[20]
Omija fruit
(fruit/50% EtOH)
3T3-L1 cells
Sprague–Dawley rats
20, 150 μg/mL
5, 200 mg/kg/day
↓adipogenesis
(↓C/EBPβ, PPARγ, C/EBPα)
↓obesity
(↓body/ WAT weights)
ND[21]
C57BL/6J mice500 mg/kg/day↓WAT /↑BAT weights
↑energy expenditure
↑thermogenesis
(↑Pparα, Cidea, and COX8β.)
ND[22]
Green Tea
(leaf/water)
C57BL/6J mice0.5%↓obesity
(↓body/ WAT/ BAT weights)
↑brown-specific markers (↑Ucp1, Prdm16, and CIDEA)
↑mitochondrial activity
(↑Pgc1α and Cpt1B)
Catechin
EGCG
[16]
Cinnamon
(bark/70–80% EtOH)
3T3-L1 cells80 μg/mL↑brown-specific markers (↑Cidea, Prdm16, Pgc, Cpt-1 and ↑PRDM16), cAMP
↓white adipocyte markers
(↓Dpt and Igf)
Catechin
Quercetin
Icariin
Chlorogenic acid
Protocatechuic acid
asculetin
[23]
ex vivo adipocytes isolated from db/db mice80 μg/mL↑brown-specific markers (↑Ucp-1, Cidea, Prdm16 and ↑UCP1)
C57BL/6J mice fed with high fat diet500 mg/kg/day↑brown-specific markers (↑Ucp-1, Cidea, Prdm16 and ↑UCP1)
↓white adipocyte markers
(↓Dpt)
Kunming mice 90, 180, 360 mg/kg/day↑thermogenesis
(↑body temperature in cold-exposure, ↑Ucp1, Ppargc1 α, Prdm16 in BAT)
↑energy expenditure
(↑VO2 and VCO2)
Uncoupling ATP production, AMPK-SIRT1 pathway in BAT
Cinnamaldehyde
Cinnamic acid
2-methoxycinnamaldehyde
coumarin
[24]
Geminated soy germ(germ/EtOH)3T3-L1 cells0.1–10 μg/mL↓adipogenesis, lipogenesis
↑Lipolysis, β-oxidation
Soya saponin Ab[25]
C57BL/6J mice1 mg/kg↓obesity
(↓body/ WAT weights)
↑thermogenesis
↑mitochondrial biogenesis
Ganoderma tsugae
(fruiting body/EtOH)
3T3-L1 cells0.2 mg/mL↑small lipid droplets formation
↑intracellular lipid metabolism flux/flexibility
↑UCP1, Cidea, HSP60, cyto c
↓NADH/NAD+ ratio, NADH content
Triterpenoid[26]
C57BL/6Narl150, 300 mg/kg/day↑WAT browning
(↑UCP1)↓glucose/lipid disorders
↑SIRT1, p-AMPK
hMSCs, human mesenchymal stem cells; WAT, white adipose tissue; BAT, brown adipose tissue; UCP1, uncoupling protein-1; PGC-1α, peroxisome proliferator-activated receptor-gamma coactivator-1-alpha; CIDEA, cell-death-inducing DFFA-like effector-a; Sirt3, sirtuin 3; NRF1, nuclear respiratory factor 1; p-AMPK, phosphorylated AMP-activated protein kinase; p-ACC, phosphorylated acetyl-CoA carboxylase; PPARγ, peroxisome proliferator-activator receptor gamma; C/EBPα, CCAT/enhancer-binding protein alpha; PRDM16, PR domain zinc finger protein 16; TBX1, t-box protein 1; PDK4, pyruvate dehydrogenase lipoamide kinase isozyme 4; COX8β, cytochrome c oxidase subunit 8B; EGCG, epigallocatechin gallate; cAMP, cyclic AMP; CPT-1, carnitine palmitoyltransferase; Dpt, dermatopontin; Igf, insulin-like growth factor; HSP60, heat shock protein 60; cyto c, cytochrome c; NADH, nicotinamide adenine dinucleotide; ND, not determined.
Table 2. Plant extracts to induce adipocyte browning.
Table 2. Plant extracts to induce adipocyte browning.
Extract
(Part/Solvent)
ModelConc.EffectsActive
Component
Ref.
Panax ginseng
(root and leaf/ND)
3T3-L1 cells25–100 μg/mL↓adipogenesis
(↓C/EBPα, SREBP1-c)
↑mitochondrial activity
↑brown-adipocyte-specific markers
(↑UCP1, PRDM16, PGC-1 α)
↑p-AMPK
Gensenoside Rb1
Rb2
Rg1
Rg3
[39,40,41,42,43]
primary white adipocytes
Phyllostachys pubescens
and
Scutellaria baicalensis
(root and leaf/70% EtOH)
3T3-L1 cells60–480 μg/mL↓adipogenesis
(↓PPARγ, C/EBPα)
↓lipogenesis
(↓SREBP-1c, FAS)
↑fatty acid oxidation, lipolysis
(↑p-ACC, CPT1)
↑BAT markers
(↑UCP1, PRDM16, PGC1α)
↑thermogenesis
(↑UCP2)
↑p-AMPK
Chlorogenic acid
Orientin
Isoorientin
Baicalin
Wogonoside
Baicalein
Tricin
Wogonin
Chrysin
[26]
Humulus japonicas
(leaf/water)
3T3-L1 cells20, 100 μg/mL↑thermogenesis, browning
(↑UCP1, PRDM16, PGC-1 α)
↑fatty acid oxidation, lipolysis
↓lipogenesis, lipid accumulation
↓oxidative stress/↑SOD1, catalase, GPx1
↑AMPK/PPARδ signaling pathway
ND[44]
Immature
Citrus reticulate
(fruit/hot water)
C57BL/6
mice
1%↓body/visceral fat weights, adipocyte size
↓fatty livers, insulin resistance, dyslipidemia
↑cold tolerance in cold exposure
↑thermogenesis
(↑UCP1, PRDM16, NRF1)
↑beige adipocyte-selective markers
(↑TEME26, CD137, Cidea)
Synephrine
Narirutin
Hesperidin
Nobiletin
tangeretin
[45]
Broccoli Seeds
(sprout/water)
C57BL/6JSlc mice0.3%↓body weight gain, fat mass
↑energy expenditure
↑major browning marker
(↑UCP1)
↓insulin resistance, glucose tolerance
↓plasma lipopolysaccharide
↓relative abundance of Desulfovibrionaceae bacteria
↓oxidative stress, inflammation
Glucoraphanin[46]
C/EBPα, CCAT/enhancer binding protein alpha; SREBP1-c, sterol regulatory element-binding protein 1; UCP1, uncoupling protein 1; PRDM16, PR domain zinc finger protein 16; PGC-1α, peroxisome proliferator-activated receptor gamma coactivator-1-alpha; p-AMPK, phosphorylated AMP-activated protein kinase; CIDEA, cell-death-inducing DFFA-like effector-A; HSP60, heat shock protein 60; cyto c, cytochrome c; NADH, nicotinamide adenine dinucleotide; WAT, white adipose tissue; Sirt1, sirtuin 1; SOD1, superoxide dismutase 1; GPx1, glutathione peroxidase 1; PPARδ, peroxisome proliferator-activated receptor delta; NRF1, nuclear respiratory factor 1; TEME26, transmembrane protein 26; CD137, cluster of differentiation 137; FAS, fatty acid synthase; p-ACC, phosphorylated acetyl-CoA carboxylase; CPT-1, carnitine palmitoyltransferase; BAT, brown adipose tissue; ND, not determined.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
