Article

Long-Term PDE-5A Inhibition Improves Myofilament Function in Left and Right Ventricular Cardiomyocytes through Partially Different Mechanisms in Diabetic Rat Hearts

1
Division of Clinical Physiology, Department of Cardiology, Faculty of Medicine, University of Debrecen, 4032 Debrecen, Hungary
2
Doctoral School of Pharmaceutical Sciences, University of Debrecen, 4032 Debrecen, Hungary
3
HAS-UD Vascular Biology and Myocardial Pathophysiology Research Group, Hungarian Academy of Sciences, 4032 Debrecen, Hungary
4
Heart and Vascular Center, Semmelweis University, 1122 Budapest, Hungary
*
Author to whom correspondence should be addressed.
These authors contributed equally to the work.
Antioxidants 2021, 10(11), 1776; https://doi.org/10.3390/antiox10111776
Submission received: 1 October 2021 / Revised: 28 October 2021 / Accepted: 4 November 2021 / Published: 6 November 2021
(This article belongs to the Special Issue Pharmacology of Antioxidants)

Abstract

:
Heart failure with preserved ejection fraction (HFpEF) and right ventricular (RV) dysfunction are frequent complications of diabetic cardiomyopathy. Here we aimed to characterize RV and left ventricular (LV) remodeling and its prevention by vardenafil (a long-acting phosphodiesterase-5A (PDE-5A) inhibitor) administration in a diabetic HFpEF model. Zucker Diabetic Fatty (ZDF) and control, ZDF Lean (Lean) male rats received 10 mg/kg vardenafil (ZDF + Vard; Lean + Vard) per os, on a daily basis for a period of 25 weeks. In vitro force measurements, biochemical and histochemical assays were employed to assess cardiomyocyte function and signaling. Vardenafil treatment increased cyclic guanosine monophosphate (cGMP) levels and decreased 3-nitrotyrosine (3-NT) levels in the left and right ventricles of ZDF animals, but not in Lean animals. Cardiomyocyte passive tension (Fpassive) was higher in LV and RV cardiomyocytes of ZDF rats than in those receiving preventive vardenafil treatment. Levels of overall titin phosphorylation did not differ in the four experimental groups. Maximal Ca2+-activated force (Fmax) of LV and RV cardiomyocytes were preserved in ZDF animals. Ca2+-sensitivity of isometric force production (pCa50) was significantly higher in LV (but not in RV) cardiomyocytes of ZDF rats than in their counterparts in the Lean or Lean + Vard groups. In accordance, the phosphorylation levels of cardiac troponin I (cTnI) and myosin binding protein-C (cMyBP-C) were lower in LV (but not in RV) cardiomyocytes of ZDF animals than in their counterparts of the Lean or Lean + Vard groups. Vardenafil treatment normalized pCa50 values in LV cardiomyocytes, and it decreased pCa50 below control levels in RV cardiomyocytes in the ZDF + Vard group. Our data illustrate partially overlapping myofilament protein alterations for LV and RV cardiomyocytes in diabetic rat hearts upon long-term PDE-5A inhibition. While uniform patterns in cGMP, 3-NT and Fpassive levels predict identical effects of vardenafil therapy for the diastolic function in both ventricles, the uneven cTnI, cMyBP-C phosphorylation levels and pCa50 values implicate different responses for the systolic function.

Graphical Abstract

1. Introduction

The prevalence of metabolic disorders such as obesity and type 2 diabetes mellitus (T2DM) and the burden of heart failure (HF) increase worldwide [1]. T2DM is complicated by diabetic cardiomyopathy presenting with left ventricular (LV) diastolic dysfunction: i.e., increased LV stiffness with elevated end-diastolic pressure and impaired LV filling [2]. Of note, LV diastolic dysfunction is also a hallmark of HF with preserved LV ejection fraction (HFpEF), a type of HF with poor therapeutic responses for conventional HF medications [3].
Worsening right ventricular (RV) performance is a common, and poor prognostic feature of HFpEF with a hypothetical RV cardiomyocyte dysfunction [4,5]. Moreover, metabolic syndrome may also present with biventricular dysfunction and HFpEF. Interestingly, diabetic and hypertensive patients first develop signs of subclinical RV diastolic dysfunction and thereafter systolic impairment [6,7,8]. As a matter of fact, the prognostic significance of declining RV function appears to be higher than that of LV performance in HFpEF patients [9]. Moreover, RV dilatation and dysfunction are more severe, and exercise capacity is worse in obese HFpEF patients than those in non-obese HFpEF patients, hence suggesting an obesity-related HFpEF subtype [10].
Nitro-oxidative stress is thought to downregulate the nitric oxide (NO)/soluble guanylyl cyclase (sGC)/cyclic guanosine monophosphate (cGMP)/protein kinase G (PKG) signaling pathway in metabolic models of HFpEF [11,12]. Oxidative stress also increases the expression of phosphodiesterase (PDE) 5, a negative regulator of the PKG pathway driving the breakdown of cGMP in the failing heart [13]. Therefore, pharmacological inhibition of PDE-5 has been considered as a promising therapeutic target in HFpEF [14]. The application of PDE-5A inhibitor sildenafil, however, was not effective either for the left [15] or the right heart [16] in the RELAX trial. In contrast, both cardiomyocyte protein alterations and LV diastolic dysfunction could be prevented by a chronic PDE-5A inhibitory therapy in animal models of HFpEF [17,18]. Nevertheless, the effects of preventive PDE-5A inhibitory therapy on RV cardiomyocyte function and signaling remain obscure.
Here we aimed to compare the functions and compositions of LV and RV cardiomyocytes in a diabetic rat model of HFpEF. We found mechanical and molecular differences between RV and LV cardiomyocytes, as well as distinct responses for long-term PDE-5A inhibitory therapy.

2. Materials and Methods

2.1. Animal Model

All animal care and experimental procedures involved in this work conformed strictly to the EU Directive 2010/63/EU of the European Parliament and the Guide for the Care and Use of Laboratory Animals used by the US National Institutes of Health (NIH Publication No. 85–23, revised 1996). The experimental protocol was approved by the institutional ethics committee of the Semmelweis University (permission number: PE/EA/418-4/2020).
Male 7-week-old Zucker diabetic fatty (ZDF) rats were studied. ZDF diabetic (fa/fa) and control Lean (+/?) rats (Charles River, Sulzfeld, Germany) were randomized into four groups: vehicle-treated controls (Lean; n = 8), vardenafil-treated controls (Lean + Vard; n = 7), vehicle-treated diabetic (ZDF; n = 7), and vardenafil-treated diabetic rats (ZDF + Vard; n = 8) [18]. Animals were fed with Purina #5008 diet (Charles River) and drank tap water ad libitum. Daily per os drug treatment [10 mg/kg body weight (BW) vardenafil dissolved in 0.01 M/L citrate buffer] or vehicle (0.01 M/L citrate buffer) administration via drinking water was initiated at the age of 7 weeks and continued until the end of the experimental period. Functional and biochemical measurements were performed. Hearts were excised, the left (LV) and right ventricle (RV) were dissected in cold saline solution on ice, placed in sterile cryovials, and immediately shock-frozen in liquid nitrogen at the age of 32 weeks. LV and RV tissue samples were thereafter stored at −80 °C.

2.2. Mechanical Measurements in Permeabilized Myocyte-Sized Preparations

Isometric force measurements were performed as previously described [19]. Deep-frozen LV and RV samples from all the four experimental groups were mechanically disrupted in isolating solution (ISO; 1 mM MgCl2, 100 mM KCl, 2 mM EGTA, 4 mM ATP, 10 mM imidazole; pH 7.0, 0.5 mM phenylmethylsulfonyl fluoride, 40 μM leupeptin and 10 μM E-64, all from Sigma-Aldrich, St. Louis, MO, USA) using a tissue homogenizer at 4 °C. Mechanically isolated cardiomyocytes were then subjected to incubation in ISO completed with 0.5% (v/v) Triton X-100 detergent (Sigma–Aldrich, St. Louis, MO, USA) for 5 min, which eliminated all membrane structures. Isolated and permeabilized single cardiomyocytes were attached with silicone adhesive (DAP 100% all-purpose silicone sealant; Baltimore, MD, USA) between two stainless insect needles, linked to a very sensitive force transducer (SensoNor, Horten, Norway) and an electromagnetic motor (Aurora Scientific Inc., Aurora, ON, Canada) in ISO at 15 °C. After adjustment of the sarcomere length to 2.3 μm, force measurements were performed by transferring the cells from relaxing solution (10 mM N,N-Bis (2-hydroxyethyl)-2-aminoethanesulfonic acid, 37.11 mM KCl, 6.41 mM MgCl2, 7 mM EGTA, 6.94 mM ATP, 15 mM creatine phosphate; pH 7.2 all from Sigma-Aldrich, St. Louis, MO, USA) to activating solution (same content as relaxing solution, supplemented with Ca2+-EGTA) in the presence of protease inhibitors: 0.5 mM phenylmethylsulfonyl fluoride, 40 μM leupeptin and 10 μM E-64. Ca2+ concentrations were expressed in pCa units calculated as follows: -lg[Ca2+]. The pCa of the activating and relaxing solutions was 4.75 and 9.0, respectively. Solutions with intermediate [Ca2+] were prepared by mixing relaxing and activating solutions (pCa 5.4–7.0). Ca2+-activated force (Factive) values at intermediate [Ca2+] were normalized to maximal Ca2+-activated force (Fmax; at pCa 4.75) and then fitted to a modified Hill-equation (Origin 6.0, Microcal Software, Northampton, MA, USA), generating a sigmoid curve to define the Ca2+-sensitivity of the contractile system (pCa50). Ca2+-independent passive tension (Fpassive) of isolated cardiomyocytes was measured by shortening the cells to 80% of their initial lengths for 8 s in relaxing solution after a quick release–restretch maneuver (30 ms). Original forces of every individual cell were normalized to cardiomyocyte cross sectional-area, calculated by the width and height of the corresponding cardiomyocyte. Force values are expressed in kN/m2.

2.3. SDS-PAGE and Western Immunoblot Analysis

Frozen LV and RV samples were thawed and permeabilized as described above. Myocardial samples were thereafter homogenized in sample buffer (containing 8 M urea, 2 M thiourea, 3% (w/v) sodium dodecyl sulfate (SDS), 75 mM DTT, 50 mM Tris-HCl, pH 6.8, 10% (v/v) glycerol, bromophenol blue, 40 µM leupeptin and 10 µM E-64) for 45 min. Protein amounts of supernatants were determined after centrifugation (16,000× g for 5 min at 24 °C), using a dot-blot technique with bovine serum albumin (BSA) standard and the concentration of samples was adjusted to a final concentration of 2 mg/mL. Agarose-strengthened 2% SDS-polyacrilamide gels were used to separate N2B titin. Total phosphorylation status of titin protein was assessed by Pro-Q® Diamond phosphoprotein staining (Invitrogen, Molecular Probes, Eugene, OR, USA) according to the manufacturer’s protocol, while total amount of protein was stained by Coomassie blue (Reanal, Budapest, Hungary).
Western immunoblot analyses were applied to assess site-specific phosphorylation levels of myofilament proteins. Separation of cardiac troponin I (cTnI) and cardiac myosin binding protein-C (cMyBP-C) was carried out in 4% and 12% polyacrilamide gels, respectively. After polyacrilamide gel electrophoresis and protein blotting procedure, membranes were blocked with 2% BSA diluted in PBS containing 0.1% (v/v) Tween 20 (PBST) for 30 min. Next, cTnI phosphorylation-sensitive antibodies were used to determine the levels of protein phosphorylation at protein kinase A (PKA)- and protein kinase C (PKC)-specific cTnI (Ser-23/24 (1:1000), Ser-43 (1:500) and Thr-143 (1:500), Abcam, Cambridge, UK) and PKA-specific cMyBP-C Ser-282 (1:500, Enzo Life Science, Farmingdale, NY, USA) phosphorylation sites. The signal was detected with a peroxidase-conjugated anti-rabbit IgG secondary antibody (1:300, Sigma-Aldrich, St. Louis, MO, USA) on nitrocellulose membranes. Total amount of proteins was visualized with super sensitive membrane stain (UD-GenoMed, Debrecen, Hungary). Signals were detected with an MF-ChemiBIS 3.2 gel documentation system (DNR Bio-Imaging Systems, Ltd., Jerusalem, Israel). Enhanced chemiluminescence (ECL) signals of site-specific phosphorylation of cTnI and cMyBP-C were normalized to corresponding Western immunoblot stains. Samples were typically loaded at least in duplicates (from n = 4–6 different rat hearts for each group) during at least 4 independent runs for a given protein assay. All original scans and the number of Western immunoblot observations (Table S1) are detailed in the Supplementary material.

2.4. Histology and Immunohistochemistry

Sections of the myocardial tissue samples (5 μm thick, both LV and RV) were deparaffinized and stained for 3-nitrotyrosine (3-NT) or cGMP in immunohistochemistry assays according to previous examinations [18,20].
Immunohistochemistry for 3-NT was performed to assess the presence of nitro-oxidative stress in our model groups. After deparaffinization and blocking, LV and RV sections were incubated in the presence of 3-NT primary antibody (1:80, #10189540, Cayman Chemical, Ann Arbor, MI, USA) at 4 °C overnight, and thereafter secondary antibodies were applied (#MP-7401, ImmPRESS™ HRP peroxidase conjugated-anti-Rabbit IgG, Polymer Detection Kit, Vector Laboratories, Burlingame, CA, USA) for 30 min at room temperature. Black colored nickel-cobalt-enhanced 3,3’-diaminobenzidine (DAB, 6 min, room temperature, Vector Laboratories, Burlingame, CA, USA) was used for the development.
For the determination of myocardial cGMP levels, LV and RV sections were deparaffinized and following antigen retrieval (in citric acid buffer) and blocking, sections were probed with an anti-cGMP antibody (1:200, #ab12416, Abcam, Cambridge, UK). After washing, slides were incubated in the presence of secondary anti-rabbit antibody (Biogenex SuperSensitive Link HK-9R Kit, BioGenex, San Ramon, CA, USA) and developed using Fast Red (Dako, Glostrup, Denmark).
Images of five identical areas of each section (free wall of LV and RV) were taken using a light microscope at 200× (3-NT) or 400× (cGMP) magnifications (Zeiss AxioImager.A1 coupled with Zeiss AxioCAm MRc5 CCD camera, Carl Zeiss, Jena, Germany). 3-NT and cGMP positive areas were determined by color (dark grey and red) thresholding with the ImageJ software (National Institutes of Health, Bethesda, MD, USA) by an independent investigator. The percentages of positively stained tissue areas to total areas (fractional area) were calculated.

2.5. Data Analysis and Statistics

Ca2+-evoked contractures of myocyte-sized preparations were recorded with a custom-built LABVIEW Data Acquisition platform and analyzed with LabVIEW analyzing software (National Instruments, Austin, TX, USA). Signal intensities of protein bands were quantified by using the ImageJ image processing program (National Institutes of Health, Bethesda, MD, USA) and Magic Plot (Magicplot Systems, Saint Petersburg, Russia) software. Statistical significance was tested by analysis of variance (ANOVA followed by Bonferroni’s post hoc test) by GraphPad Prism 6.0 (GraphPad Software Inc., San Diego, CA, USA) software to evaluate the results. Values are given as mean ± SEM. Statistical significance was accepted at p < 0.05.

3. Results

3.1. Vardenafil Prevented the Reduction of Tissue cGMP Levels and the Increase in 3-NT Generation in ZDF Hearts

cGMP levels and the extent of nitro-oxidative stress were tested by immunohistochemistry. cGMP specific staining intensity was less in both LV and RV tissue samples of ZDF hearts than in those of the Lean or Lean + Vard groups (Figure 1A,B). Conversely, levels of 3-NT were higher in LV and RV tissue samples of ZDF animals than in those of the Lean or Lean + Vard groups (Figure 1C,D). Vardenafil treatment effectively opposed the above alterations in both ventricles of ZDF animals (Figure 1A–D).

3.2. PDE-5A Inhibition Prevented the Increase in Passive Tension (Fpassive) in LV and RV Cardiomyocytes in ZDF Animals

Fpassive was significantly higher in both LV and RV cardiomyocytes of the untreated ZDF group than in those of the control groups. Additionally, the increase in Fpassive seen in the ZDF group was prevented by facilitating the cGMP-PKG pathway by PDE-5A inhibition, while vardenafil was without effects in both LV and RV cardiomyocytes in the Lean group (Figure 2A,B).
Titin phosphorylation was tested by a phosphoprotein staining assay. The overall phosphorylation level of titin was similar in all groups and for both ventricles, independent of disease or vardenafil treatment (Figure 2C,D).

3.3. Ca2+-Sensitivity of Force Production Showed Interventricular Differences in ZDF Rats

Ca2+-activated force generation (Factive) was tested in permeabilized LV and RV cardiomyocytes at different Ca2+ concentrations (pCa: 4.75–7.0. Maximal Ca2+-activated force (Fmax at pCa 4.75) was similar in all groups for both ventricles, independent of disease or vardenafil treatment (Figure 3A,B). However, Ca2+-sensitivity of isometric force production (pCa50) of LV cardiomyocytes was significantly higher in ZDF rats than in Lean animals, and this difference was reverted by vardenafil treatment (Figure 3C,E). In contrast, the differences in the means of pCa50 values of RV cardiomyocytes did not reach statistical significance among the Lean, Lean + Vard, and untreated ZDF groups. Nevertheless, long-lasting PDE-5A inhibition significantly reduced pCa50 of RV cardiomyocytes in the ZDF + Vard group (Figure 3D,F).

3.4. Interventricular Differences of Myofilament Protein Phosphorylations

To elucidate the molecular mechanisms leading to altered pCa50 values of LV and RV cardiomyocytes in ZDF rats, site-specific phosphorylation studies were performed in myofilament proteins. These assays revealed cTnI hypophosphorylation at Ser-22/23, Ser-43 and Thr-144 phosphosites in LV cardiomyocytes of the untreated ZDF group. Hypophosphorylation of cTnI was prevented at the above cTnI phosphosites by vardenafil treatment in LV cardiomyocytes in the ZDF + Vard group (Figure 4A,C,E). Moreover, vardenafil also increased cTnI phosphorylation in the Lean + Vard group, although the difference between the Lean and Lean + Vard groups reached statistical significance only for the Thr-144 phosphosite (Figure 4E).
RV levels of cTnI phosphorylation at Ser-22/23, Ser-43 and Thr-144 sites were similar in the ZDF and Lean groups (Figure 4B,D,F). Moreover, PDE-5A inhibition did not affect cTnI phosphorylation at Ser-22/23 in the RV of the Lean + Vard and ZDF + Vard groups (Figure 4B). Surprisingly, cTnI hyperphosphorylation was observed at the Ser-43 and Thr-144 sites in the RV of ZDF rats after vardenafil treatment (Figure 4D,F). cTnI phosphorylation was not affected by vardenafil treatment at the Ser-43 and Thr-144 phosphosites in the Lean + Vard group (Figure 4D,F).
cMyBP-C hypophosphorylation was observed at the Ser-282 phosphosite in LV cardiomyocytes of ZDF rats. PDE-5A inhibition prevented cMyBP-C hypophosphorylation at the Ser-282 phosphosite in LV cardiomyocytes in ZDF + Vard group (Figure 5A). No significant differences were observed in cMyBP-C phosphorylation at the Ser-282 site in RV cardiomyocytes in the four experimental groups (Figure 5B).

4. Discussion

Results of this study demonstrate uniform increases in Fpassive and chamber specific alterations in Ca2+-sensitivity of force production (pCa50) of left and right ventricular cardiomyocytes of ZDF animals. Distinct myofilament protein phosphorylation patterns of Lean and ZDF hearts in the absence and presence of chronic preventive PDE-5A inhibition helped to explain these differences.
The RV is thought to be more vulnerable to hemodynamic and nitro-oxidative stress than the LV during the progression of heart failure [21]. Nevertheless, despite the faster progression of RV to failure than that of LV, RV remodeling is considered to be highly reversible [22]. The above considerations implicate distinct adaptive mechanisms to control RV and LV remodeling when presumably both ventricles are exposed to high levels of hemodynamic and nitro-oxidative stress [9,21].
A characteristic elevation in cardiomyocyte Fpassive of endomyocardial biopsies of HFpEF patients or ZDF rats provides a plausible link between cardiomyocyte mechanics and LV diastolic dysfunction [18,23]. This stiffening of cardiomyocytes in HFpEF has been repeatedly linked to hypophosphorylation of the giant sarcomeric protein, titin [12,24]. In vitro incubations of permeabilized cardiomyocytes in the presence of protein kinase A (PKA) [25] or PKG [26] increased titin phosphorylation and reduced passive stiffness in human cardiomyocytes. Likewise, stiffening of RV cardiomyocytes could be prevented by enhancing the cGMP-PKG signaling pathway by in vivo vardenafil treatment as demonstrated here and for the LV before [18]. However, the overall phosphorylation level of titin was apparently not affected in the vardenafil treated experimental groups in this study. One reason behind this discrepancy might be that titin possesses a number of phosphosites across its elastic regions [24]. Consequently, multiple protein kinases and phosphatases can act on titin’s elasticity with potential complementary effects on its overall phosphorylation level [27]. Alternatively, oxidative post-translational titin modifications [24] can also explain a constant titin phosphorylation level upon chronic vardenafil administrations. Indeed, results of this study verified that the 3-NT level (a marker of nitro-oxidative stress) can be mitigated by PDE-5A inhibition not only for the LV but also for the RV in ZDF animals [18].
Fmax was not affected in LV or RV cardiomyocytes of ZDF rats, although T2DM has been formerly associated with RV systolic dysfunction in HFpEF [28,29]. pCa50 was increased in LV cardiomyocytes, but it remained unchanged in RV cardiomyocytes in ZDF animals. Nevertheless, unlike in Lean controls, pCa50 was effectively decreased in cardiomyocytes of both ventricles by vardenafil treatments in ZDF rats. Similarly, LV and RV cGMP levels were elevated by long-term vardenafil treatment in ZDF animals, but not in Lean controls. These data suggest a more significant role for PDE-5A in the presence of diabetic cardiomyopathy than in its absence, and thus they are consistent with an elevated myocardial expression of PDE-5E in both ventricles during oxidative stress and heart failure [13].
pCa50 is known to be regulated by myofilament protein (i.e., cTnI and cMyBP-C) phosphorylation at multiple phosphosites. For example, hypophosphorylation of cTnI at the Ser-22/23 sites results in an increase in pCa50 in human systolic HF [30]. Likewise, in an experimental HFpEF model, LV cardiomyocytes of aged hypertensive dogs showed increased pCa50, which was associated with hypophosphorylation of cTnI at Ser-22/23. The Ser-22/23 residues of cTnI can be targeted by PKA or PKG [31]. In this study, cTnI hypophosphorylation at Ser-22/23 of LV cardiomyocytes could be prevented by the enhancement of the cGMP-PKG pathway by long-term PDE 5A inhibition (vardenafil therapy) in vivo. Therefore, the PDE-5A inhibition evoked increase in cGMP level (with or without parallel changes in cyclic adenosine monophosphate (cAMP) level) was effective to oppose cTnI hypophosphorylation at Ser-22/23 in LV cardiomyocytes [32]. As a matter of fact, Ser-22/23, Ser-43/45 and Thr-144 phosphosites are also all potential substrates for certain PKC isoforms [33]. In contrast to phosphorylation of Ser-22/23, phosphorylation of Ser-43/45 is expected to decrease Fmax. Former studies demonstrated that PKCα-mediated hyperphosphorylation of cTnI at Ser-43/45 leads to a reduction in Fmax and pCa50 of LV cardiomyocytes from failing hearts of rodents [34,35] and humans [36]. In contrast, cTnI phosphorylation at its Thr-144 site alone might have little effect on Fmax or pCa50 [37]. An interaction between PKC mediated cTnI phosphorylation and vardenafil administration might be attributed to a potential link between cGMP-PKG signaling and cardiomyocyte redox balance. In fact, oxidative stress-dependent substrate preferences have been reported for PKCδ that involved the Ser-22/23 and Thr-144 phosphosites of cTnI [30]. Furthermore, H2O2 as a mimic of oxidative stress also affected PKC-mediated myofilament phosphorylation and Ca2+-sensitivity of force production in the rat [38]. While the involvement of the above mechanisms in our present study is not entirely clear, their end-results in cTnI and cMyBP-C phosphorylations showed clear differences for the LV and RV. In particular, phosphorylation levels of RV cardiomyocytes at cTnI at Ser-43 and at Thr-144 were not changed in the ZDF group, but they were increased beyond control levels following vardenafil treatment, thus contrasting LV cardiomyocytes.
Phosphorylation of cMyBP-C was shown to be cardioprotective against ischemic injury [39], and phosphorylation of cMyBP-C at Ser-282 might have a unique regulatory role in maintaining normal sarcomere contractility and structure [40]. Ser-282 of cMyBP-C is a substrate for PKA and Ca2+/calmodulin-activated kinase II (CaMKII) [40], being downregulated in the failing human heart [41]. Here we report cMyBP-C hypophosphorylation at its Ser-282 site in LV cardiomyocytes of HFpEF rats, which could be prevented by PDE-5A inhibition with vardenafil [42]. Interestingly, phosphorylation of cMyBP-C at Ser-282 remained unchanged in the RV, independent of disease or treatment.

5. Conclusions

In previous studies, our group reported cell-to-cell [43], regional [44] and interventricular [45] heterogeneity of phosphorylation and function of regulatory myofilament proteinssuch as cTnI and cMyBP-Cin different HFrEF models. Here we extend the above observations for a rodent model of HFpEF with diabetic cardiomyopathy. Accordingly, while we cannot exclude potential interplays between multiple kinases and redox signaling pathways, our data implicate distinct baseline signaling intensities for the two ventricles in ZDF rats. In general, cardiomyocyte responses to vardenafil treatments were consistent with an effective cGMP-PKG signaling mechanism in diabetic animals for both ventricles. Moreover, our pCa50 and myofilament phosphorylation data implicated distinct pharmacological responses and potentially divergent consequences on the systolic functions of the RV and the LV by long-lasting PDE-5A inhibition. Conversely, our data also suggested that boosting the cGMP-PKG signaling pathway might prevent LV and RV diastolic dysfunction in a uniform fashion during diabetic cardiomyopathy and/or HFpEF.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/antiox10111776/s1, Table S1: the number of Western immunoblot observations for each experimental group.

Author Contributions

Conceptualization, B.B., Á.K., T.R., A.T., B.M. and Z.P.; methodology, B.B., L.M., B.A.B., A.O. and C.M.; validation, A.T., T.R. and Z.P.; formal analysis, B.B., H.G. and L.M.; investigation, B.B., L.M.,C.M., B.A.B., A.O. and A.T.; resources, T.R., A.T. and Z.P.; data curation, B.B. and H.G.; writing—original draft preparation, Á.K. and Z.P.; writing—review and editing, B.M., A.T. and Z.P.; visualization, B.B. and H.G.; supervision, Z.P.; project administration, B.B. and C.M.; funding acquisition, T.R., A.T. and Z.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the GINOP-2.3.2-15-2016-00043 project. The project was co-financed by the European Union and the European Regional Development Fund. This work was also supported by project No. TKP2020-IKA-04 and TKP2020-NKA-04 from the National Research, Development and Innovation Fund of Hungary, under the 2020-4.1.1-TKP2020 funding scheme. Project no. K 132623 (to AT) and K 134939 (to TR) have been implemented with the support provided from the National Research, Development and Innovation Fund of Hungary, financed under the K_19 and K_20 funding scheme, respectively. The research group (AT, ZP) is supported by the Hungarian Academy of Sciences. Project no. NVKP_16-1–2016-0017 (’National Heart Program’) has been implemented with the support provided from the National Research, Development and Innovation Fund of Hungary, financed under the NVKP_16 funding scheme. The research was financed by the Thematic Excellence Programme (2020-4.1.1.-TKP2020) of the Ministry for Innovation and Technology in Hungary, within the framework of the Therapeutic Development and Bioimaging thematic programmes of Semmelweis University.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the institutional Ethics Committee of the Semmelweis University (permission number: PE/EA/418-4/2020).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and supplementary materials.

Acknowledgments

The authors would like to thank all the peer reviewers and editors for their opinions and suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jia, G.; Hill, M.A.; Sowers, J.R. Diabetic Cardiomyopathy: An Update of Mechanisms Contributing to This Clinical Entity. Circ. Res. 2018, 122, 624–638. [Google Scholar] [CrossRef] [PubMed]
  2. Papp, Z.; Radovits, T.; Paulus, W.J.; Hamdani, N.; Seferović, P.M. Molecular and pathophysiological links between heart failure with preserved ejection fraction and type 2 diabetes mellitus. Eur. J. Heart Fail. 2018, 20, 1649–1652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Paulus, W.J. Unfolding Discoveries in Heart Failure. N. Engl. J. Med. 2020, 382, 679–682. [Google Scholar] [CrossRef]
  4. Mohammed, S.F.; Hussain, I.; AbouEzzeddine, O.F.; Takahama, H.; Kwon, S.H.; Forfia, P.; Roger, V.L.; Redfield, M.M. Right ventricular function in heart failure with preserved ejection fraction: A community-based study. Circulation 2014, 130, 2310–2320. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Melenovsky, V.; Hwang, S.J.; Lin, G.; Redfield, M.M.; Borlaug, B.A. Right heart dysfunction in heart failure with preserved ejection fraction. Eur. Heart J. 2014, 35, 3452–3462. [Google Scholar] [CrossRef] [Green Version]
  6. Borlaug, B.A.; Kane, G.C.; Melenovsky, V.; Olson, T.P. Abnormal right ventricular-pulmonary artery coupling with exercise in heart failure with preserved ejection fraction. Eur. Heart J. 2016, 37, 3293–3302. [Google Scholar] [CrossRef] [Green Version]
  7. Reddy, Y.N.V.; Obokata, M.; Wiley, B.; Koepp, K.E.; Jorgenson, C.C.; Egbe, A.; Melenovsky, V.; Carter, R.E.; Borlaug, B.A. The haemodynamic basis of lung congestion during exercise in heart failure with preserved ejection fraction. Eur. Heart J. 2019, 40, 3721–3730. [Google Scholar] [CrossRef] [PubMed]
  8. Berglund, F.; Piña, P.; Herrera, C.J. Right ventricle in heart failure with preserved ejection fraction. Heart 2020, 106, 1798–1804. [Google Scholar] [CrossRef]
  9. Obokata, M.; Reddy, Y.N.V.; Melenovsky, V.; Pislaru, S.; Borlaug, B.A. Deterioration in right ventricular structure and function over time in patients with heart failure and preserved ejection fraction. Eur. Heart J. 2019, 40, 689–697. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Obokata, M.; Reddy, Y.N.V.; Pislaru, S.V.; Melenovsky, V.; Borlaug, B.A. Evidence Supporting the Existence of a Distinct Obese Phenotype of Heart Failure With Preserved Ejection Fraction. Circulation 2017, 136, 6–19. [Google Scholar] [CrossRef]
  11. Schiattarella, G.G.; Altamirano, F.; Tong, D.; French, K.M.; Villalobos, E.; Kim, S.Y.; Luo, X.; Jiang, N.; May, H.I.; Wang, Z.V.; et al. Nitrosative stress drives heart failure with preserved ejection fraction. Nature 2019, 568, 351–356. [Google Scholar] [CrossRef] [PubMed]
  12. Paulus, W.J.; Tschöpe, C. A novel paradigm for heart failure with preserved ejection fraction: Comorbidities drive myocardial dysfunction and remodeling through coronary microvascular endothelial inflammation. J. Am. Coll. Cardiol. 2013, 62, 263–271. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Lu, Z.; Xu, X.; Hu, X.; Lee, S.; Traverse, J.H.; Zhu, G.; Fassett, J.; Tao, Y.; Zhang, P.; dos Remedios, C.; et al. Oxidative stress regulates left ventricular PDE5 expression in the failing heart. Circulation 2010, 121, 1474–1483. [Google Scholar] [CrossRef] [Green Version]
  14. Kovács, Á.; Alogna, A.; Post, H.; Hamdani, N. Is enhancing cGMP-PKG signalling a promising therapeutic target for heart failure with preserved ejection fraction? Neth. Heart J. 2016, 24, 268–274. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Redfield, M.M.; Chen, H.H.; Borlaug, B.A.; Semigran, M.J.; Lee, K.L.; Lewis, G.; LeWinter, M.M.; Rouleau, J.L.; Bull, D.A.; Mann, D.L.; et al. Effect of phosphodiesterase-5 inhibition on exercise capacity and clinical status in heart failure with preserved ejection fraction: A randomized clinical trial. JAMA 2013, 309, 1268–1277. [Google Scholar] [CrossRef]
  16. Hussain, I.; Mohammed, S.F.; Forfia, P.R.; Lewis, G.D.; Borlaug, B.A.; Gallup, D.S.; Redfield, M.M. Impaired Right Ventricular-Pulmonary Arterial Coupling and Effect of Sildenafil in Heart Failure With Preserved Ejection Fraction: An Ancillary Analysis From the Phosphodiesterase-5 Inhibition to Improve Clinical Status And Exercise Capacity in Diastolic Heart Failure (RELAX) Trial. Circ. Heart Fail. 2016, 9, e002729. [Google Scholar]
  17. Takimoto, E.; Champion, H.C.; Li, M.; Belardi, D.; Ren, S.; Rodriguez, E.R.; Bedja, D.; Gabrielson, K.L.; Wang, Y.; Kass, D.A. Chronic inhibition of cyclic GMP phosphodiesterase 5A prevents and reverses cardiac hypertrophy. Nat. Med. 2005, 11, 214–222. [Google Scholar] [CrossRef]
  18. Mátyás, C.; Németh, B.T.; Oláh, A.; Török, M.; Ruppert, M.; Kellermayer, D.; Barta, B.A.; Szabó, G.; Kökény, G.; Horváth, E.M.; et al. Prevention of the development of heart failure with preserved ejection fraction by the phosphodiesterase-5A inhibitor vardenafil in rats with type 2 diabetes. Eur. J. Heart Fail. 2017, 19, 326–336. [Google Scholar] [CrossRef]
  19. Papp, Z.; Szabó, A.; Barends, J.P.; Stienen, G.J. The mechanism of the force enhancement by MgADP under simulated ischaemic conditions in rat cardiac myocytes. J. Physiol. 2002, 543, 177–189. [Google Scholar] [CrossRef]
  20. Oláh, A.; Németh, B.T.; Mátyás, C.; Horváth, E.M.; Hidi, L.; Birtalan, E.; Kellermayer, D.; Ruppert, M.; Merkely, G.; Szabó, G.; et al. Cardiac effects of acute exhaustive exercise in a rat model. Int. J. Cardiol. 2015, 182, 258–266. [Google Scholar] [CrossRef] [Green Version]
  21. Reddy, S.; Bernstein, D. Molecular Mechanisms of Right Ventricular Failure. Circulation 2015, 132, 1734–1742. [Google Scholar] [CrossRef] [PubMed]
  22. Poels, E.M.; da Costa Martins, P.A.; van Empel, V.P. Adaptive capacity of the right ventricle: Why does it fail? Am. J. Physiol. Heart Circ. Physiol. 2015, 308, H803–H813. [Google Scholar] [CrossRef]
  23. Borbély, A.; van der Velden, J.; Papp, Z.; Bronzwaer, J.G.; Edes, I.; Stienen, G.J.; Paulus, W.J. Cardiomyocyte stiffness in diastolic heart failure. Circulation 2005, 111, 774–781. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Linke, W.A.; Hamdani, N. Gigantic business: Titin properties and function through thick and thin. Circ. Res. 2014, 114, 1052–1068. [Google Scholar] [CrossRef] [PubMed]
  25. Krüger, M.; Linke, W.A. Protein kinase-A phosphorylates titin in human heart muscle and reduces myofibrillar passive tension. J. Muscle Res. Cell Motil. 2006, 27, 435–444. [Google Scholar] [CrossRef] [PubMed]
  26. Krüger, M.; Kötter, S.; Grützner, A.; Lang, P.; Andresen, C.; Redfield, M.M.; Butt, E.; dos Remedios, C.G.; Linke, W.A. Protein kinase G modulates human myocardial passive stiffness by phosphorylation of the titin springs. Circ. Res. 2009, 104, 87–94. [Google Scholar] [CrossRef] [Green Version]
  27. Kötter, S.; Gout, L.; Von Frieling-Salewsky, M.; Müller, A.E.; Helling, S.; Marcus, K.; Dos Remedios, C.; Linke, W.A.; Krüger, M. Differential changes in titin domain phosphorylation increase myofilament stiffness in failing human hearts. Cardiovasc. Res. 2013, 99, 648–656. [Google Scholar] [CrossRef] [PubMed]
  28. Gorter, T.M.; Streng, K.W.; van Melle, J.P.; Rienstra, M.; Dickinson, M.G.; Lam, C.S.P.; Hummel, Y.M.; Voors, A.A.; Hoendermis, E.S.; van Veldhuisen, D.J. Diabetes Mellitus and Right Ventricular Dysfunction in Heart Failure With Preserved Ejection Fraction. Am. J. Cardiol. 2018, 121, 621–627. [Google Scholar] [CrossRef] [Green Version]
  29. Aslam, M.I.; Hahn, V.S.; Jani, V.; Hsu, S.; Sharma, K.; Kass, D.A. Reduced Right Ventricular Sarcomere Contractility in Heart Failure With Preserved Ejection Fraction and Severe Obesity. Circulation 2021, 143, 965–967. [Google Scholar] [CrossRef]
  30. Solaro, R.J.; Henze, M.; Kobayashi, T. Integration of troponin I phosphorylation with cardiac regulatory networks. Circ. Res. 2013, 112, 355–366. [Google Scholar] [CrossRef] [Green Version]
  31. Solaro, R.J. Multiplex kinase signaling modifies cardiac function at the level of sarcomeric proteins. J. Biol. Chem. 2008, 283, 26829–26833. [Google Scholar] [CrossRef] [Green Version]
  32. Nagendran, J.; Archer, S.L.; Soliman, D.; Gurtu, V.; Moudgil, R.; Haromy, A.; St Aubin, C.; Webster, L.; Rebeyka, I.M.; Ross, D.B.; et al. Phosphodiesterase type 5 is highly expressed in the hypertrophied human right ventricle, and acute inhibition of phosphodiesterase type 5 improves contractility. Circulation 2007, 116, 238–248. [Google Scholar] [CrossRef] [PubMed]
  33. Noland, T.A., Jr.; Guo, X.; Raynor, R.L.; Jideama, N.M.; Averyhart-Fullard, V.; Solaro, R.J.; Kuo, J.F. Cardiac troponin I mutants. Phosphorylation by protein kinases C and A and regulation of Ca(2+)-stimulated MgATPase of reconstituted actomyosin S-1. J. Biol. Chem. 1995, 270, 25445–25454. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Belin, R.J.; Sumandea, M.P.; Allen, E.J.; Schoenfelt, K.; Wang, H.; Solaro, R.J.; de Tombe, P.P. Augmented protein kinase C-alpha-induced myofilament protein phosphorylation contributes to myofilament dysfunction in experimental congestive heart failure. Circ. Res. 2007, 101, 195–204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Dong, X.; Sumandea, C.A.; Chen, Y.C.; Garcia-Cazarin, M.L.; Zhang, J.; Balke, C.W.; Sumandea, M.P.; Ge, Y. Augmented phosphorylation of cardiac troponin I in hypertensive heart failure. J. Biol. Chem. 2012, 287, 848–857. [Google Scholar] [CrossRef] [Green Version]
  36. Zhang, P.; Kirk, J.A.; Ji, W.; dos Remedios, C.G.; Kass, D.A.; Van Eyk, J.E.; Murphy, A.M. Multiple reaction monitoring to identify site-specific troponin I phosphorylated residues in the failing human heart. Circulation 2012, 126, 1828–1837. [Google Scholar] [CrossRef] [Green Version]
  37. Burkart, E.M.; Sumandea, M.P.; Kobayashi, T.; Nili, M.; Martin, A.F.; Homsher, E.; Solaro, R.J. Phosphorylation or glutamic acid substitution at protein kinase C sites on cardiac troponin I differentially depress myofilament tension and shortening velocity. J. Biol. Chem. 2003, 278, 11265–11272. [Google Scholar] [CrossRef] [Green Version]
  38. Avner, B.S.; Hinken, A.C.; Yuan, C.; Solaro, R.J. H2O2 alters rat cardiac sarcomere function and protein phosphorylation through redox signaling. Am. J. Physiol. Heart Circ. Physiol. 2010, 299, H723–H730. [Google Scholar] [CrossRef] [Green Version]
  39. Sadayappan, S.; Osinska, H.; Klevitsky, R.; Lorenz, J.N.; Sargent, M.; Molkentin, J.D.; Seidman, C.E.; Seidman, J.G.; Robbins, J. Cardiac myosin binding protein C phosphorylation is cardioprotective. Proc. Natl. Acad. Sci. USA 2006, 103, 16918–16923. [Google Scholar] [CrossRef] [Green Version]
  40. Sadayappan, S.; Gulick, J.; Osinska, H.; Barefield, D.; Cuello, F.; Avkiran, M.; Lasko, V.M.; Lorenz, J.N.; Maillet, M.; Martin, J.L.; et al. A critical function for Ser-282 in cardiac Myosin binding protein-C phosphorylation and cardiac function. Circ. Res. 2011, 109, 141–150. [Google Scholar] [CrossRef] [Green Version]
  41. Kooij, V.; Holewinski, R.J.; Murphy, A.M.; Van Eyk, J.E. Characterization of the cardiac myosin binding protein-C phosphoproteome in healthy and failing human hearts. J. Mol. Cell Cardiol. 2013, 60, 116–120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Hamdani, N.; Bishu, K.G.; von Frieling-Salewsky, M.; Redfield, M.M.; Linke, W.A. Deranged myofilament phosphorylation and function in experimental heart failure with preserved ejection fraction. Cardiovasc. Res. 2013, 97, 464–471. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Czuriga, D.; Tóth, A.; Pásztor, E.T.; Balogh, A.; Bodnár, A.; Nizsalóczki, E.; Lionetti, V.; Recchia, F.A.; Czuriga, I.; Edes, I.; et al. Cell-to-cell variability in troponin I phosphorylation in a porcine model of pacing-induced heart failure. Basic Res. Cardiol. 2012, 107, 244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Balogh, A.; Santer, D.; Pásztor, E.T.; Tóth, A.; Czuriga, D.; Podesser, B.K.; Trescher, K.; Jaquet, K.; Erdodi, F.; Edes, I.; et al. Myofilament protein carbonylation contributes to the contractile dysfunction in the infarcted LV region of mouse hearts. Cardiovasc. Res. 2014, 101, 108–119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Kovács, Á.; Herwig, M.; Budde, H.; Delalat, S.; Kolijn, D.; Bódi, B.; Hassoun, R.; Tangos, M.; Zhazykbayeva, S.; Balogh, Á.; et al. Interventricular Differences of Signaling Pathways-Mediated Regulation of Cardiomyocyte Function in Response to High Oxidative Stress in the Post-Ischemic Failing Rat Heart. Antioxidants 2021, 10, 964. [Google Scholar] [CrossRef]

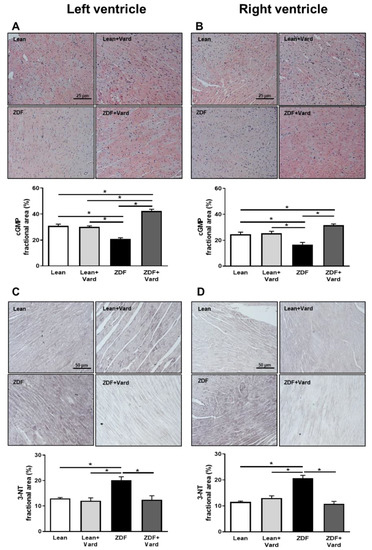

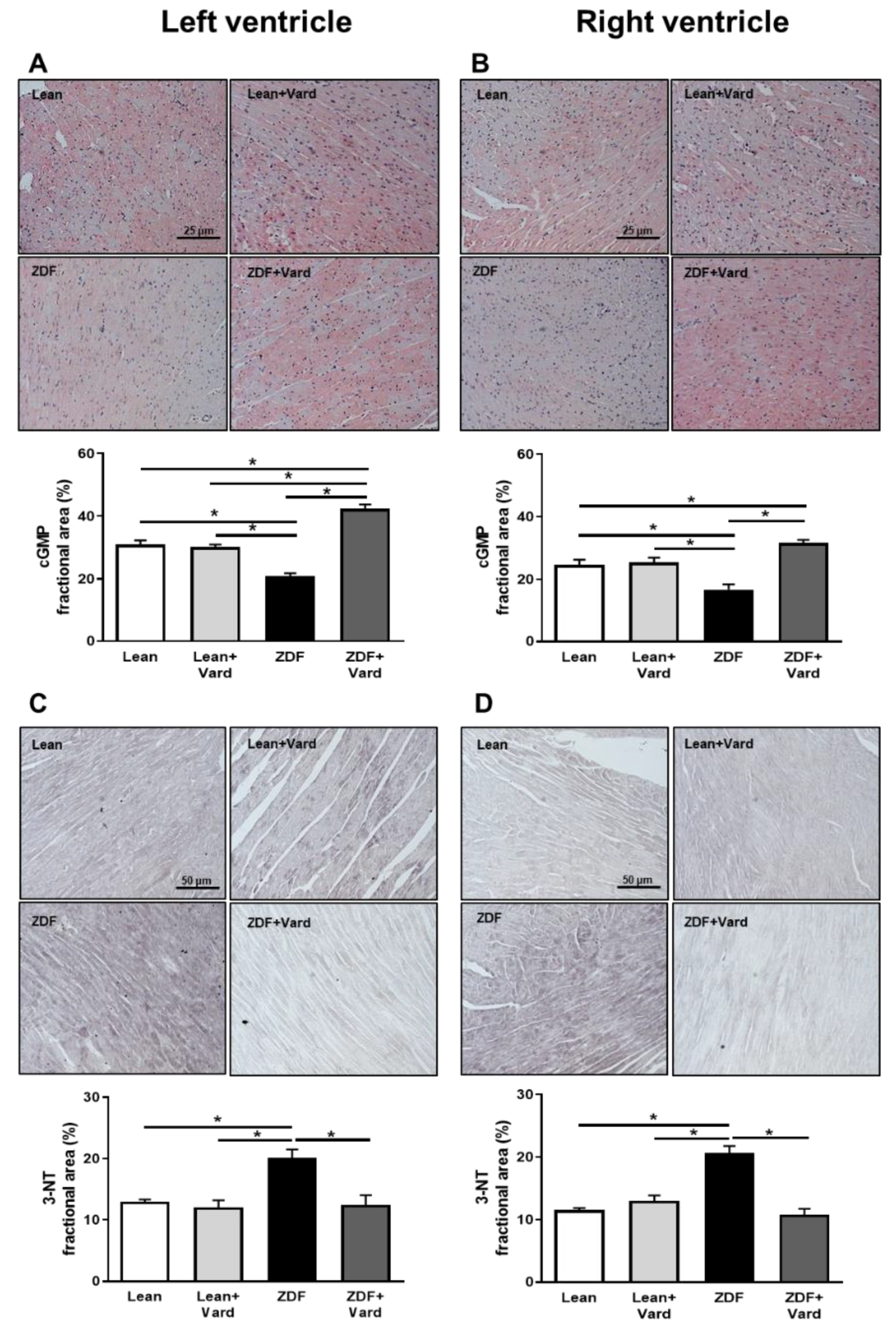

Figure 1. PDE-5A inhibition affected cGMP and 3-NT levels in the left and right ventricles of ZDF hearts. Representative immunohistochemical images of myocardial cGMP ((A,B), magnification: 400×) and 3-NT ((C,D), magnification: 200×) generation in LV (A,C) and RV (B,D) tissue sections for all experimental groups. Bar graphs show the results of quantitative evaluations for the cGMP assays (LVLean, 31 ± 1.3%; LVLean + Vard, 30. ± 0.8%; LVZDF, 20.8 ± 1%; LVZDF + Vard, 42.3 ± 1.4%; RVLean, 24.6 ± 1.6%; RVLean + Vard, 25.3 ± 1.5%; RVZDF, 16.7 ± 1.7%; RVZDF + Vard, 31.6 ± 1%; (A,B) bottom panels) and 3-NT assays (LVLean, 13 ± 0.3%; LVLean + Vard, 12 ± 1.2%; LVZDF, 20.1 ± 1.4; LVZDF + Vard, 12.4 ± 1.6%; RVLean, 11.5 ± 0.3%; RVLean + Vard, 12.9 ± 0.9%; RVZDF, 20.7 ± 1.1%; RVZDF + Vard, 10.8 ± 0.9%; (C,D) bottom panels). Values denote fractional areas (%) for all experimental groups. The number (n) of rat hearts involved were: Lean, 6–8; Lean + Vard, 4–7; ZDF, 6–8 and ZDF + Vard, 6–8. Data are given as mean ± SEM, * p < 0.05. cGMP: cyclic guanosine monophosphate; 3-NT: 3-nitrotyrosine.
Figure 1. PDE-5A inhibition affected cGMP and 3-NT levels in the left and right ventricles of ZDF hearts. Representative immunohistochemical images of myocardial cGMP ((A,B), magnification: 400×) and 3-NT ((C,D), magnification: 200×) generation in LV (A,C) and RV (B,D) tissue sections for all experimental groups. Bar graphs show the results of quantitative evaluations for the cGMP assays (LVLean, 31 ± 1.3%; LVLean + Vard, 30. ± 0.8%; LVZDF, 20.8 ± 1%; LVZDF + Vard, 42.3 ± 1.4%; RVLean, 24.6 ± 1.6%; RVLean + Vard, 25.3 ± 1.5%; RVZDF, 16.7 ± 1.7%; RVZDF + Vard, 31.6 ± 1%; (A,B) bottom panels) and 3-NT assays (LVLean, 13 ± 0.3%; LVLean + Vard, 12 ± 1.2%; LVZDF, 20.1 ± 1.4; LVZDF + Vard, 12.4 ± 1.6%; RVLean, 11.5 ± 0.3%; RVLean + Vard, 12.9 ± 0.9%; RVZDF, 20.7 ± 1.1%; RVZDF + Vard, 10.8 ± 0.9%; (C,D) bottom panels). Values denote fractional areas (%) for all experimental groups. The number (n) of rat hearts involved were: Lean, 6–8; Lean + Vard, 4–7; ZDF, 6–8 and ZDF + Vard, 6–8. Data are given as mean ± SEM, * p < 0.05. cGMP: cyclic guanosine monophosphate; 3-NT: 3-nitrotyrosine.
Antioxidants 10 01776 g001

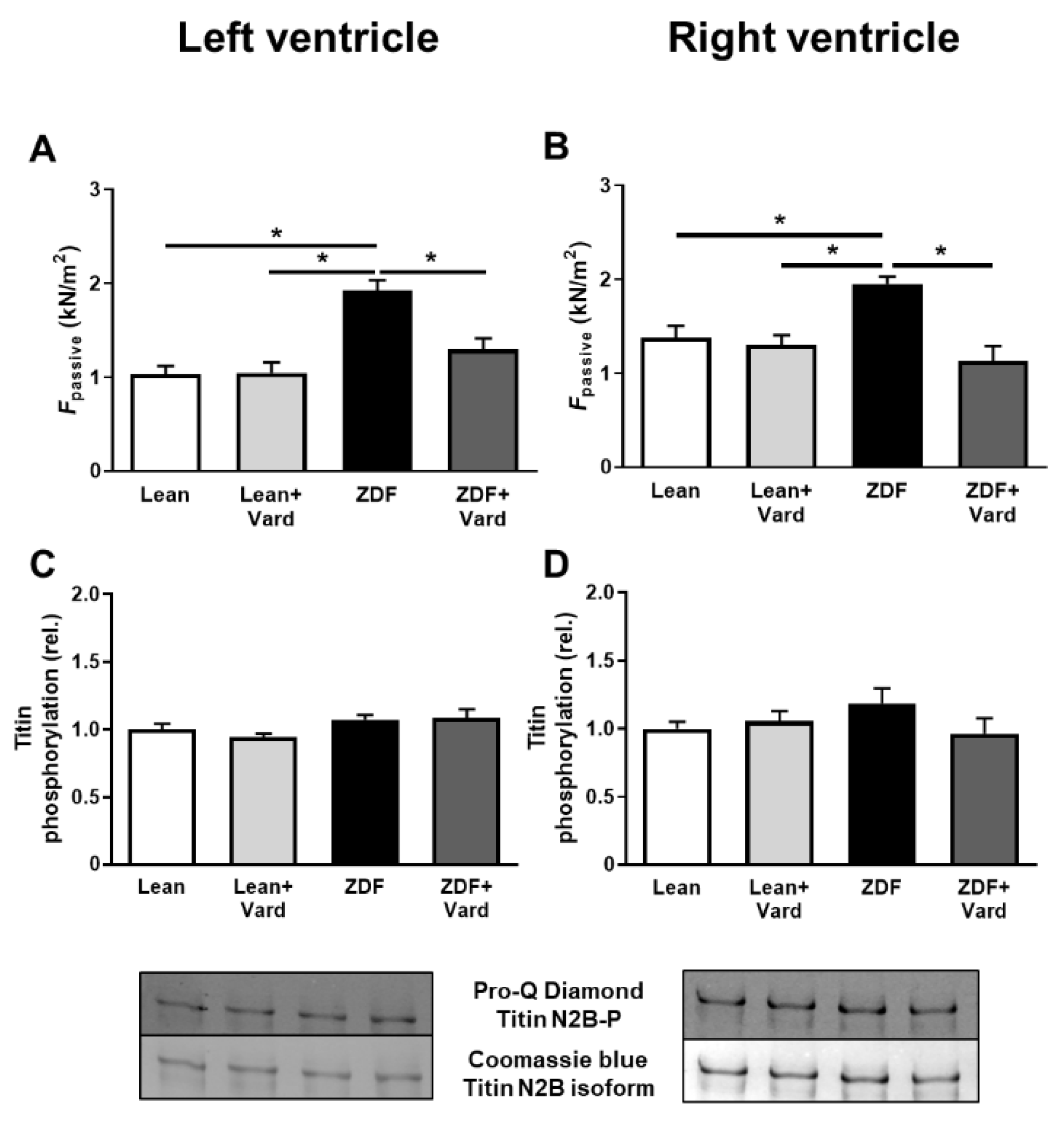

Figure 2. Cardiomyocyte passive tension (Fpassive) and titin protein phosphorylation in the left (A,C) and right (B,D) ventricles in the four experimental groups. Fpassive was measured at a sarcomere length of 2.3 μm (A,B) (n = 6–11 cardiomyocytes from at least three different hearts/groups). Overall phosphorylation level of the N2B titin isoform was assessed by Pro-Q® Diamond phosphoprotein staining. Titin amounts were visualized by Coomassie-blue staining (C,D). Fpassive values: LVLean, 1.03 ± 0.09 kN/m2; LVLean + Vard, 1.05 ± 0.11 kN/m2; LVZDF, 1.98 ±0.12 kN/m2; LVZDF + Vard, 1.30 ± 0.12 kN/m2; RVLean, 1.38 ± 0.12 kN/m2; RVLean + Vard, 1.29 ± 0.11 kN/m2; RVZDF, 1.95 ± 0.08 kN/m2, RVZDF + Vard, 1.13 ± 0.16 kN/m2). Overall titin phosphorylation levels: LVLean, 1.00 ± 0.04; LVLean + Vard, 0.94 ± 0.03; LVZDF, 1.07 ± 0.03; LVZDF + Vard, 1.09 ± 0.06; RVLean, 1.00 ± 0.05; RVLean + Vard, 1.05 ± 0.08; RVZDF, 1.19 ± 1.11; RVZDF + Vard, 0.96 ± 0.11; all in relative units. Data are given as mean ± SEM, * p < 0.05.
Figure 2. Cardiomyocyte passive tension (Fpassive) and titin protein phosphorylation in the left (A,C) and right (B,D) ventricles in the four experimental groups. Fpassive was measured at a sarcomere length of 2.3 μm (A,B) (n = 6–11 cardiomyocytes from at least three different hearts/groups). Overall phosphorylation level of the N2B titin isoform was assessed by Pro-Q® Diamond phosphoprotein staining. Titin amounts were visualized by Coomassie-blue staining (C,D). Fpassive values: LVLean, 1.03 ± 0.09 kN/m2; LVLean + Vard, 1.05 ± 0.11 kN/m2; LVZDF, 1.98 ±0.12 kN/m2; LVZDF + Vard, 1.30 ± 0.12 kN/m2; RVLean, 1.38 ± 0.12 kN/m2; RVLean + Vard, 1.29 ± 0.11 kN/m2; RVZDF, 1.95 ± 0.08 kN/m2, RVZDF + Vard, 1.13 ± 0.16 kN/m2). Overall titin phosphorylation levels: LVLean, 1.00 ± 0.04; LVLean + Vard, 0.94 ± 0.03; LVZDF, 1.07 ± 0.03; LVZDF + Vard, 1.09 ± 0.06; RVLean, 1.00 ± 0.05; RVLean + Vard, 1.05 ± 0.08; RVZDF, 1.19 ± 1.11; RVZDF + Vard, 0.96 ± 0.11; all in relative units. Data are given as mean ± SEM, * p < 0.05.
Antioxidants 10 01776 g002

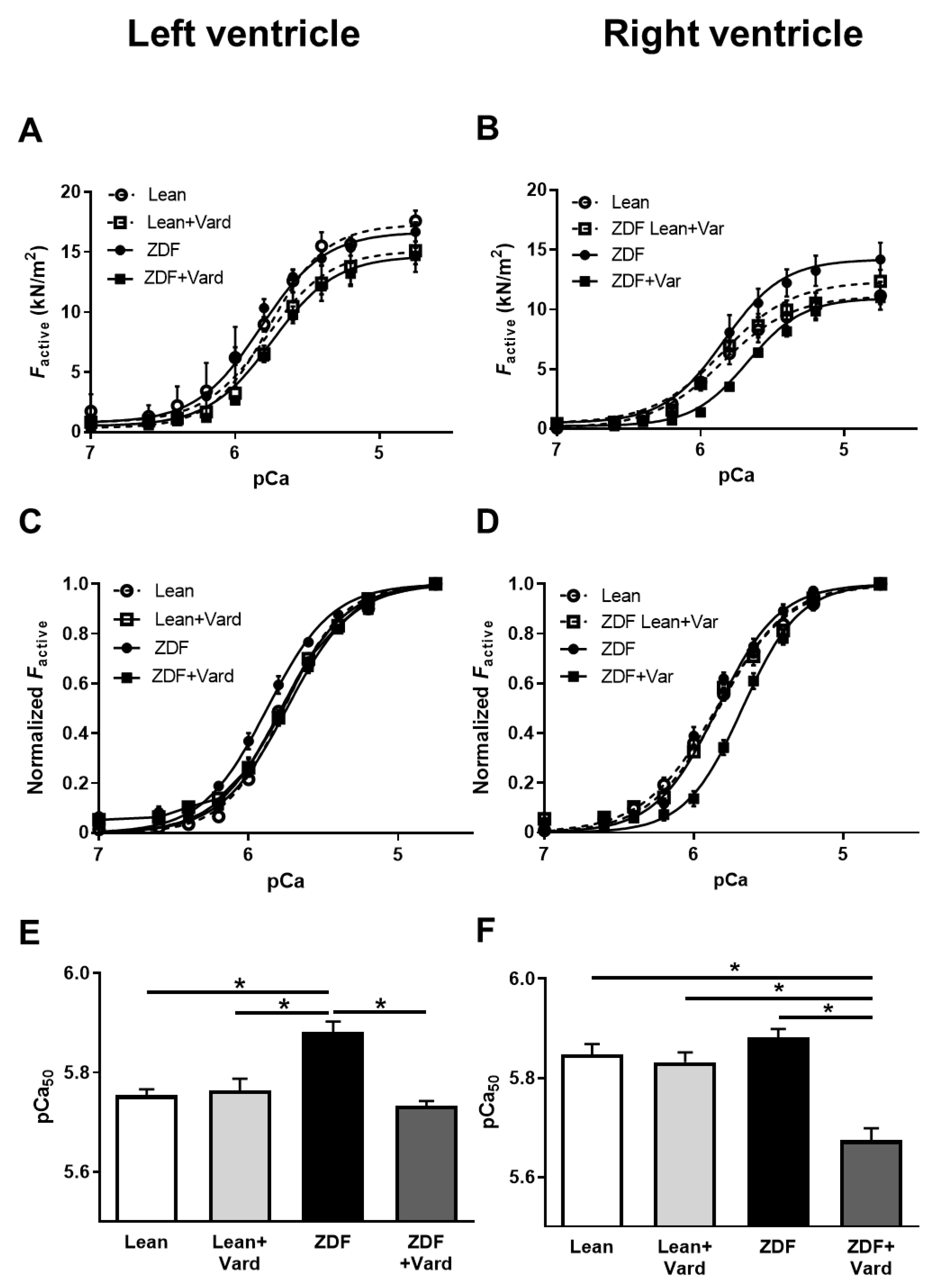

Figure 3. Ca2+-sensitivity of isometric force production (pCa50) in isolated, permeabilized left ventricular (A,C,E) and right ventricular (B,D,F) cardiomyocytes of rat hearts. Means of active force values (Factive) are given at different Ca2+ concentrations for the left (A) and right (B) ventricles from the Lean, Lean + Vard, ZDF, and ZDF + Vard groups. Average sarcomere length was set to 2.3 µm. Factive values at submaximal Ca2+ concentrations (pCa 5.4–7.0) were normalized to Fmax (pCa 4.75) to illustrate differences in pCa50 values (C,D). Bar graphs (E,F) show the results of statistical analyses on pCa50 values of the four experimental groups. Fmax (pCa 4.75): LVLean, 17.59 ± 0.85 kN/m2; LVLean + Vard, 15.11 ± 1.75 kN/m2; LVZDF, 16.67 ± 0.79 kN/m2; LVZDF + Vard, 14.68 ± 0.69 kN/m2; RVLean, 11.15 ± 1.17 kN/m2; RVLean + Vard, 12.36 ± 0.97 kN/m2; RVZDF, 14.20 ± 1.39 kN/m2; RVZDF + Vard, 10.96 ± 0.49 kN/m2. pCa50: LVLean, 5.76 ± 0.02; LVLean + Vard, 5.77 ± 0.02; LVZDF, 5.88 ± 0.02; LVZDF + Vard, 5.73 ± 0.01; RVLean, 5.85 ± 0.02; RVLean + Vard, 5.83 ± 0.02; RVZDF, 5.88 ± 0.01; RVZDF + Vard, 5.67 ± 0.03. pCa = −lg[Ca2+] where [Ca2+] is the molar concentration of Ca2+. Data are expressed as mean ± SEM, * p < 0.05; n = 6–11 cardiomyocytes from at least three different hearts.
Figure 3. Ca2+-sensitivity of isometric force production (pCa50) in isolated, permeabilized left ventricular (A,C,E) and right ventricular (B,D,F) cardiomyocytes of rat hearts. Means of active force values (Factive) are given at different Ca2+ concentrations for the left (A) and right (B) ventricles from the Lean, Lean + Vard, ZDF, and ZDF + Vard groups. Average sarcomere length was set to 2.3 µm. Factive values at submaximal Ca2+ concentrations (pCa 5.4–7.0) were normalized to Fmax (pCa 4.75) to illustrate differences in pCa50 values (C,D). Bar graphs (E,F) show the results of statistical analyses on pCa50 values of the four experimental groups. Fmax (pCa 4.75): LVLean, 17.59 ± 0.85 kN/m2; LVLean + Vard, 15.11 ± 1.75 kN/m2; LVZDF, 16.67 ± 0.79 kN/m2; LVZDF + Vard, 14.68 ± 0.69 kN/m2; RVLean, 11.15 ± 1.17 kN/m2; RVLean + Vard, 12.36 ± 0.97 kN/m2; RVZDF, 14.20 ± 1.39 kN/m2; RVZDF + Vard, 10.96 ± 0.49 kN/m2. pCa50: LVLean, 5.76 ± 0.02; LVLean + Vard, 5.77 ± 0.02; LVZDF, 5.88 ± 0.02; LVZDF + Vard, 5.73 ± 0.01; RVLean, 5.85 ± 0.02; RVLean + Vard, 5.83 ± 0.02; RVZDF, 5.88 ± 0.01; RVZDF + Vard, 5.67 ± 0.03. pCa = −lg[Ca2+] where [Ca2+] is the molar concentration of Ca2+. Data are expressed as mean ± SEM, * p < 0.05; n = 6–11 cardiomyocytes from at least three different hearts.
Antioxidants 10 01776 g003

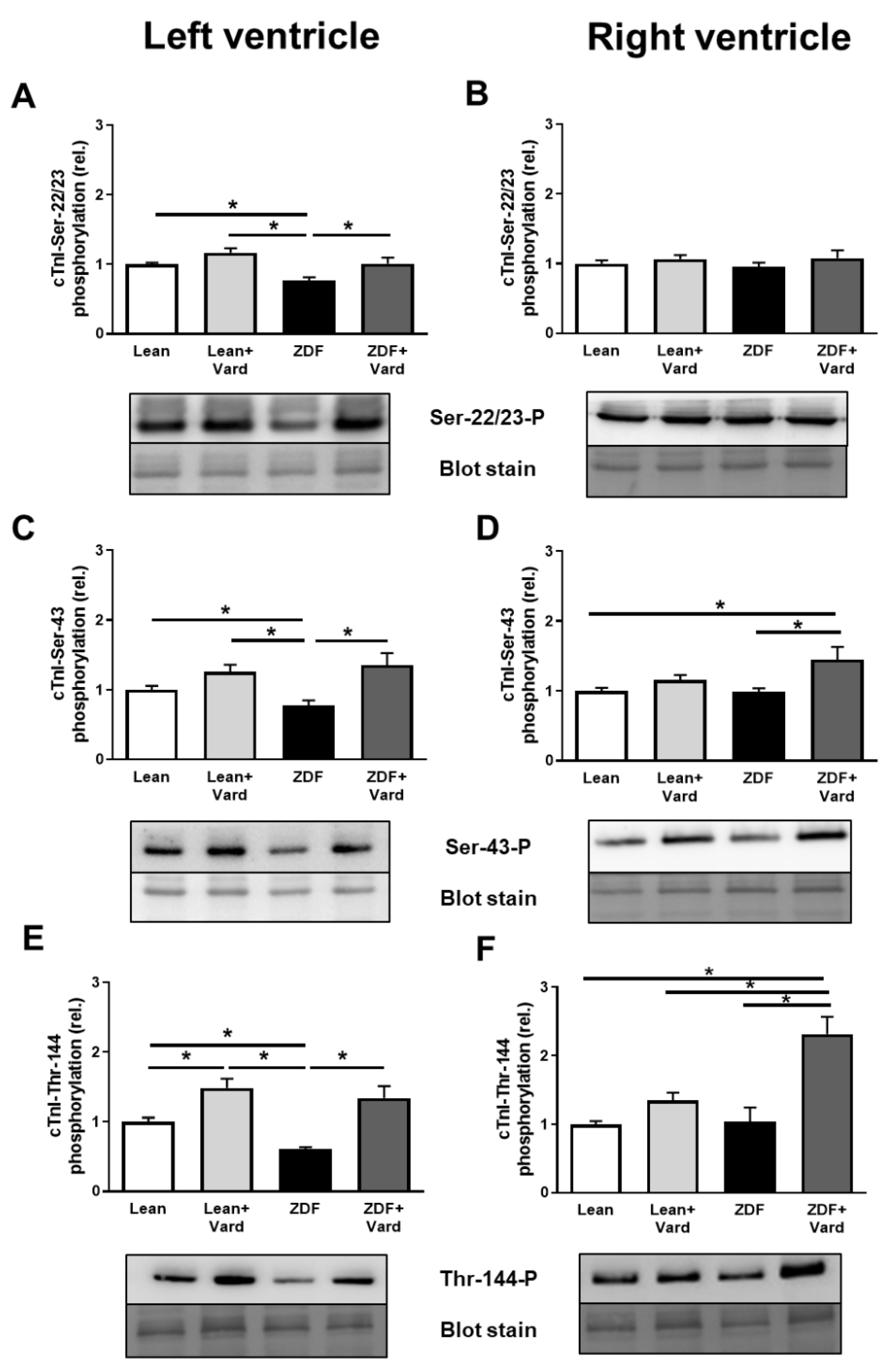

Figure 4. Results of site-specific phosphorylation assays for cTnI in the left (A,C,E) and right ventricles (B,D,F). Cardiac troponin-I (cTnI) phosphorylation levels at the Ser-22/23 (A,B), Ser-43 (C,D) and Thr-144 amino acid residues (E,F) were tested by Western immunoblotting in the Lean, Lean + Vard, ZDF, and ZDF + Vard groups for both ventricles. cTnI phosphorylation levels at Ser-22/23: LVLean, 1.00 ± 0.02; LVLean + Vard, 1.17 ± 0.06; LVZDF, 0.77 ± 0.04; LVZDF + Vard, 1.01 ± 0.09; RVLean, 1.00 ± 0.05; RVLean + Vard, 1.07 ± 0.06; RVZDF, 0.95 ± 0.07; RVZDF + Vard, 1.08 ± 0.11; at Ser-43: LVLean, 1.00 ± 0.06; LVLean + Vard, 1.26 ± 0.10; LVZDF, 0.77 ± 0.08; LVZDF + Vard, 1.35 ± 0.17; RVLean, 1.00 ± 0.04; RVLean + Vard, 1.16 ± 0.07; RVZDF, 0.98 ± 0.05; RVZDF + Vard, 1.45 ± 0.19; at Thr-144: LVLean, 1.00 ± 0.06; LVLean + Vard, 1.48 ± 0.13; LVZDF, 0.61 ± 0.03; LVZDF + Vard, 1.34 ± 0.17; RVLean, 1.00 ± 0.05; RVLean + Vard, 1.35 ± 0.12; RVZDF, 1.04 ± 0.21; RVZDF + Vard, 2.32 ± 0.25, all in relative units. Phosphorylation sites of cTnI were labelled with specific antibodies. Total protein amounts were assessed by a super sensitive blot stain. Bars represent means ± SEM (normalized to the mean of the Lean group as control), * p < 0.05, n = 9–15 independent determinations from at least four different hearts.
Figure 4. Results of site-specific phosphorylation assays for cTnI in the left (A,C,E) and right ventricles (B,D,F). Cardiac troponin-I (cTnI) phosphorylation levels at the Ser-22/23 (A,B), Ser-43 (C,D) and Thr-144 amino acid residues (E,F) were tested by Western immunoblotting in the Lean, Lean + Vard, ZDF, and ZDF + Vard groups for both ventricles. cTnI phosphorylation levels at Ser-22/23: LVLean, 1.00 ± 0.02; LVLean + Vard, 1.17 ± 0.06; LVZDF, 0.77 ± 0.04; LVZDF + Vard, 1.01 ± 0.09; RVLean, 1.00 ± 0.05; RVLean + Vard, 1.07 ± 0.06; RVZDF, 0.95 ± 0.07; RVZDF + Vard, 1.08 ± 0.11; at Ser-43: LVLean, 1.00 ± 0.06; LVLean + Vard, 1.26 ± 0.10; LVZDF, 0.77 ± 0.08; LVZDF + Vard, 1.35 ± 0.17; RVLean, 1.00 ± 0.04; RVLean + Vard, 1.16 ± 0.07; RVZDF, 0.98 ± 0.05; RVZDF + Vard, 1.45 ± 0.19; at Thr-144: LVLean, 1.00 ± 0.06; LVLean + Vard, 1.48 ± 0.13; LVZDF, 0.61 ± 0.03; LVZDF + Vard, 1.34 ± 0.17; RVLean, 1.00 ± 0.05; RVLean + Vard, 1.35 ± 0.12; RVZDF, 1.04 ± 0.21; RVZDF + Vard, 2.32 ± 0.25, all in relative units. Phosphorylation sites of cTnI were labelled with specific antibodies. Total protein amounts were assessed by a super sensitive blot stain. Bars represent means ± SEM (normalized to the mean of the Lean group as control), * p < 0.05, n = 9–15 independent determinations from at least four different hearts.
Antioxidants 10 01776 g004

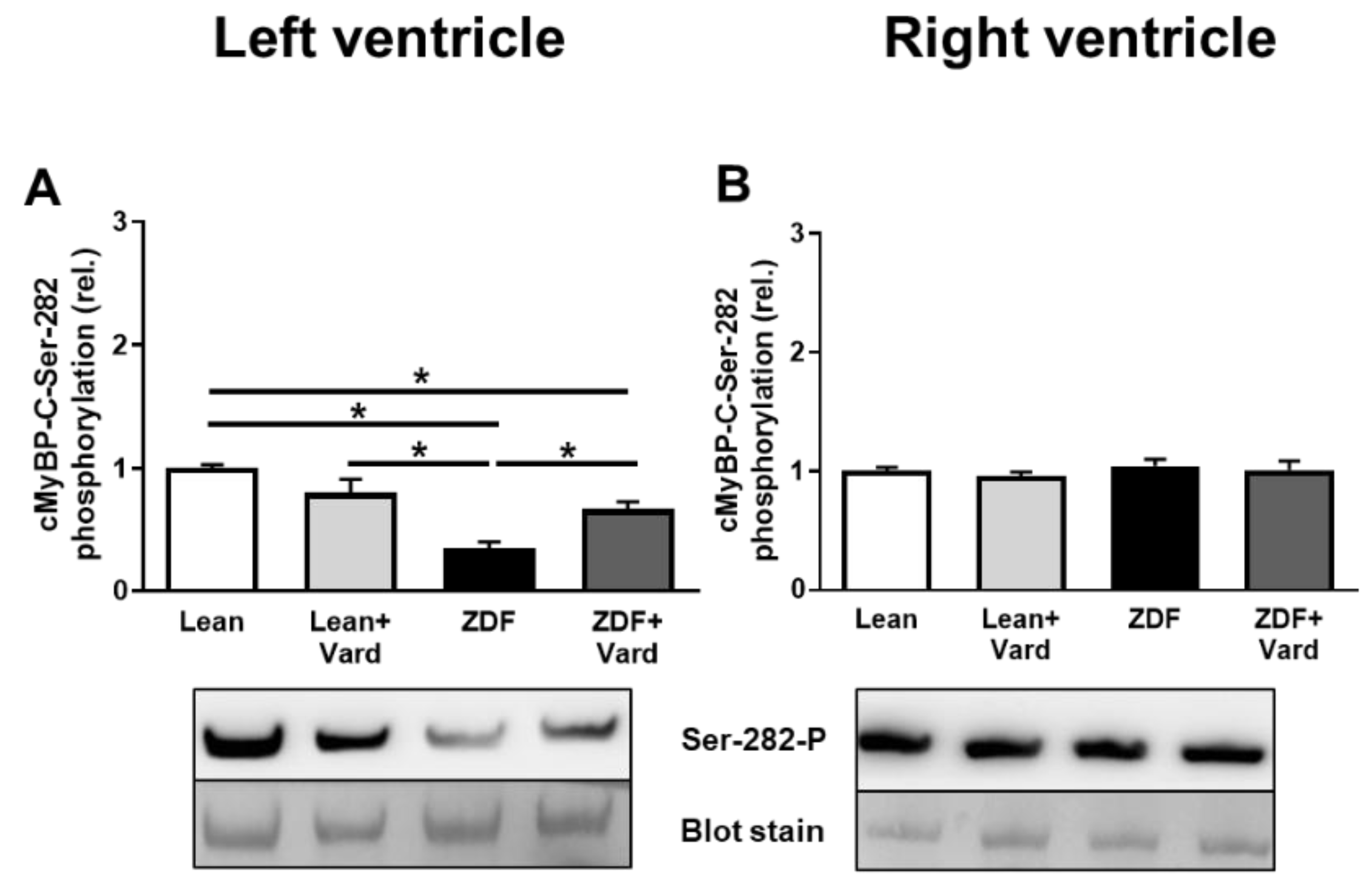

Figure 5. Phosphorylation level of cMyBP-C at the Ser-282 phosphosite in cardiomyocytes of left ventricles (A) and right ventricles (B) of the experimental groups. Phosphorylation levels of cMyBP-C were assayed by Pro-Q® Diamond phosphoprotein staining. The upper bands illustrate the phosphorylation status of cMyBP-C and the lower bands indicate the total protein amounts for representative membranes. cMyBP-C phosphorylation levels at the Ser-282 phosphosite: LVLean, 1.00 ± 0.03; LVLean + Vard, 0.80 ± 0.11; LVZDF, 0.35 ± 0.06; LVZDF + Vard, 0.67 ± 0.06; RVLean, 1.00 ± 0.03; RVLean + Vard, 0.96 ± 0.03; RVZDF, 1.05 ± 0.06; RVZDF + Vard, 1.01 ± 0.08, all in relative units. n = 8–10 independent determinations from at least four different heart samples. Values are given as mean ± SEM, * p < 0.05 vs. control (Lean) group.
Figure 5. Phosphorylation level of cMyBP-C at the Ser-282 phosphosite in cardiomyocytes of left ventricles (A) and right ventricles (B) of the experimental groups. Phosphorylation levels of cMyBP-C were assayed by Pro-Q® Diamond phosphoprotein staining. The upper bands illustrate the phosphorylation status of cMyBP-C and the lower bands indicate the total protein amounts for representative membranes. cMyBP-C phosphorylation levels at the Ser-282 phosphosite: LVLean, 1.00 ± 0.03; LVLean + Vard, 0.80 ± 0.11; LVZDF, 0.35 ± 0.06; LVZDF + Vard, 0.67 ± 0.06; RVLean, 1.00 ± 0.03; RVLean + Vard, 0.96 ± 0.03; RVZDF, 1.05 ± 0.06; RVZDF + Vard, 1.01 ± 0.08, all in relative units. n = 8–10 independent determinations from at least four different heart samples. Values are given as mean ± SEM, * p < 0.05 vs. control (Lean) group.
Antioxidants 10 01776 g005
