1. Introduction
Brain metastasis (BM) is the most common intracranial complication of systemic cancer [
1,
2]. Incidence of BM is increasing due to improved magnetic resonance imaging (MRI) surveillance and improved systemic therapy, increasing the demand for BM management strategies [
3,
4]. Improved intracranial control directly benefits quality of life, neurocognitive function and possibly overall survival (OS) [
1]. Earlier detection also means that management options need to balance durable intracranial control and treatment-related morbidity. As a result, focal therapy of metastatic brain disease using stereotactic radiosurgery (SRS), with or without surgery, and subsequent imaging surveillance is now established in clinical practice [
5,
6,
7].
Whilst SRS is historically the preferred radiation modality, there are concerns over potential morbidity. Stereotactic radiosurgery has been associated with inflammatory complications such as early pseudoprogression or late radiation necrosis which are more pronounced with larger-volume lesions or when co-prescribed with systemic therapies such as immunotherapy [
8,
9]. Hypofractionated radiotherapy (HFRT), delivered in 3–5 fractions, has the potential, through smaller doses per fraction, to minimize the risk of toxicity compared with single-fraction SRS whilst permitting the delivery of equivalent biologic doses [
10]. A study of 289 patients comparing SRS and HFRT to unresected BMs found significantly improved local control (89% vs. 80%,
p = 0.004) and reduced radiation necrosis (9% vs. 18%,
p = 0.01) in the HFRT group [
11].
This retrospective study aims to report the volumetric response and subsequent outcomes of unresected limited BM following treatment with HFRT to assess the efficacy of this emerging radiation delivery technique and guide clinical decision making.
2. Materials and Methods
2.1. Patient Selection
Patients diagnosed with unresected limited brain metastatic disease referred to radiation oncology at two university teaching hospitals between January 2014 and July 2020 were entered into an ethics-approved prospective register (ref. LNR/15/HAWKE/355). Limited metastatic brain disease was defined as 10 or fewer BMs [
12]. Patients with lesions deemed unsuitable for neurosurgical resection by multidisciplinary team (MDT) consensus due to BM number, size, location, or patient performance status were included in the cohort. Patients with leptomeningeal disease and lesions treated with prior radiation therapy, including WBRT, were excluded from analysis. All lesions in each patient received a uniform modality and dose of radiotherapy, hence small lesions <10 mm were treated with HFRT rather than SRS if there was a concurrent larger lesion being treated.
2.2. Baseline Characteristics
Baseline information collected included patient demographics; primary tumour histology, presence of extracranial disease and prior systemic therapy; the date of initial BM diagnosis and ECOG performance status at BM intervention.
Concurrent systemic therapy was defined as chemotherapy, immunotherapy, targeted therapy or a combination of these started within one month of commencement of HFRT.
2.3. HFRT Protocol
All patients were treated by one of two experienced specialist neuro-radiation oncologists (DTJ and MFB). Patients were immobilised in either an Orfit mask or a frameless Brainlab cranial mask fixation system, and computed tomography (CT) images were acquired with slice thickness of 1 mm. The diagnostic gadolinium-enhanced MRI was fused within the treatment planning system and rigid registration undertaken. Image fusion accuracy was assessed by comparing both normal tissue structures and metastases on CT with the MRI-defined structures.
HFRT was delivered using an intensity-modulated radiation therapy (IMRT) or a volumetric-modulated arc therapy (VMAT) technique on Varian Trilogy or Varian TrueBeam STX 6 MV linear accelerators. The standard dose fractionation prescription was 30 Gy in 5 fractions delivered in three fractions per week. An integrated boost approach to 25 Gy was utilised for margin expansion to optimise the dose wash around the high-dose region, with 30 Gy dosed to the 100% isodose and delivered to the gadolinium-enhanced lesion on the MRI (GTV), expanded by 2 mm (PTV30); and 25 Gy was delivered to that volume with an additional 3 mm margin (PTV25). Alternative regimens of 25 Gy in 5 fractions or 21 Gy in 3 fractions were utilised in target-overlapped dose-limiting structures or poor patient performance status. Dosage to the optic chiasm and brainstem were limited to 20 Gy and 25 Gy, respectively. Image guidance for each fraction involved cone beam CT.
2.4. Volumetric Assessment
Individual BM volumetric assessment (in cm3) was recorded at three timepoints: baseline pre-HFRT (GTV0); at one month following HFRT (GTV1); and at six-to-eight months post-HFRT (GTV7). This involved delineating the gadolinium-enhanced lesion within the radiation oncology planning system or in the diagnostic imaging PACS system. These time frames were selected as fixed points for post-treatment MRI surveillance, with patients receiving follow-up scans every three months after their initial one-month review. In the event of clinical deterioration, interval imaging was recommended to exclude the presence of progressive disease or treatment-related morbidity.
2.5. Study Endpoints
The primary endpoint was the median change in individual BM volume from GTV0 at one and seven months post-HFRT (GTV1 and GTV7). Volume reduction was calculated as a percentage of GTV0, with a negative value indicative of an increase in size. Secondary endpoints assessed were subsequent local failure, OS, cause of death and rate of radiation necrosis.
Any enhancement was assessed by consensus of the neuro-oncology MDT at the time of occurrence and classed into pseudoprogression, radiation necrosis or local failure after referral for MRI and positron emission tomography. Local failure was defined as a progressive increase in BM volume on two sequential MRI scans without a reduction in volume in subsequent scans and deemed not to be due to the effects of radiotherapy. If death occurred from an extracranial cause before subsequent MRI could show resolution, the event was recorded as unconfirmed. Local control in other patients was defined as being alive without progression or absence of progression on the last MRI or CT image prior to death. The toxicity outcomes recorded from treatment included either pseudoprogression (acute) or radiation necrosis (late), as above.
2.6. Statistical Analysis
Descriptive statistics illustrated the baseline features of the study cohort, tumour characteristics and the type of treatments received by patients. GTV0 was compared on a per-lesion basis to the post-treatment timepoints using a paired-sample t-test. Factors impacting change in BM volume at one and seven months post-HFRT were determined through linear regression modelling. Survival curves for study outcomes were generated using Kaplan–Meier analysis of total patient BM bulk data. The log-rank test evaluated univariate, and Cox regression analysis with stepwise variable selection evaluated independent predictors of survival and progression. A p-value of <0.05 was considered statistically significant. Statistical analyses were performed using IBM SPSS Version 26.
4. Discussion
This study demonstrates that the use of HFRT in the management of unresected, limited metastatic disease of the brain confers an early and durable volume reduction without significant risk of adverse events such as radiation necrosis. As there are minimal data to demonstrate the actuarial volume response following HFRT in unresected BMs, this study assists in decision making when considering SRS or HFRT for a larger-volume lesion.
The novelty of this study lies in its presentation of a large cohort of patients with unresected BMs treated with upfront HFRT by two experienced neuro-radiation oncologists working together across two linked cancer centres during a short temporal window from 2014–2020. Furthermore, no size or histopathologic exclusion criteria were applied, improving the generalisability of these findings.

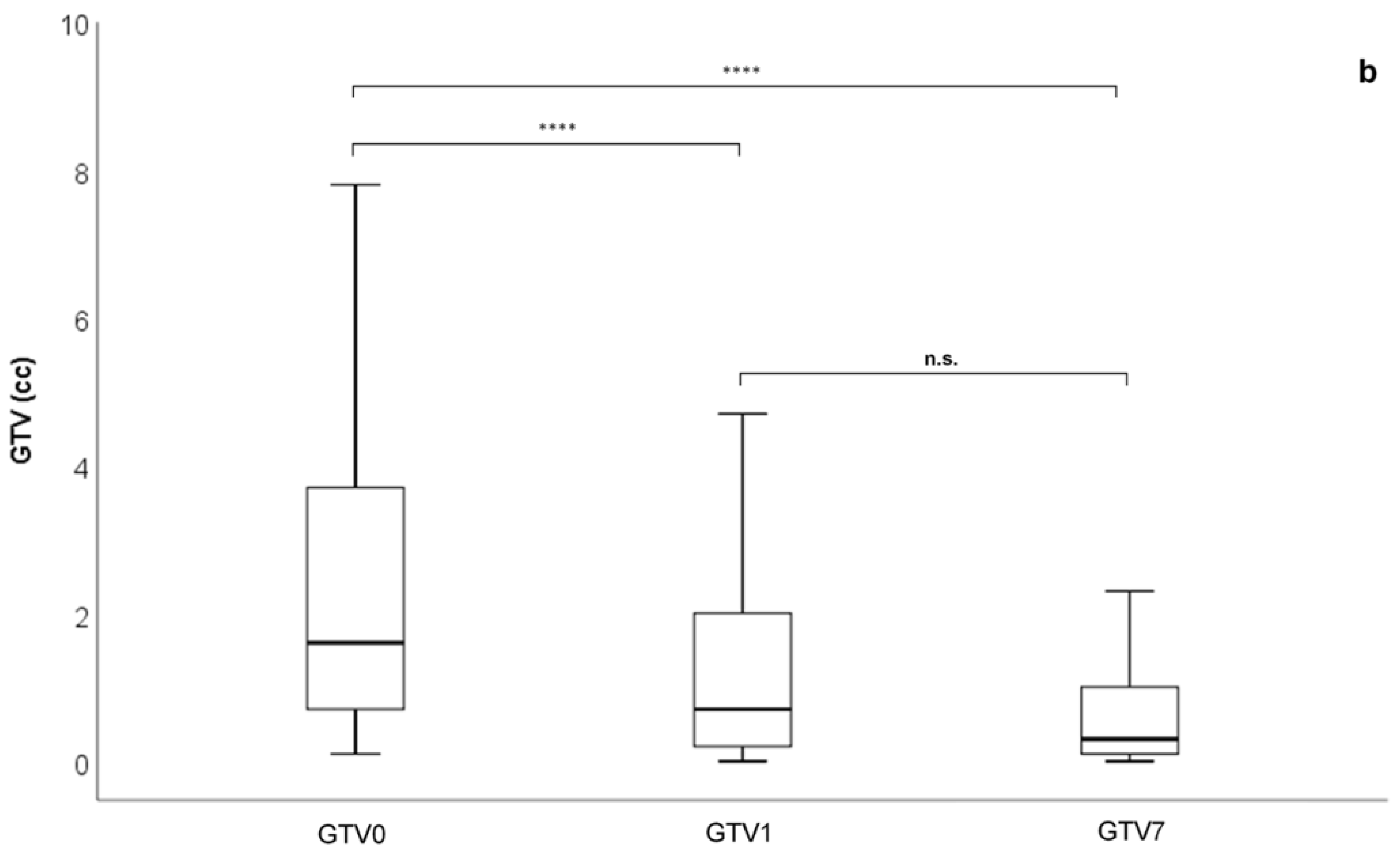

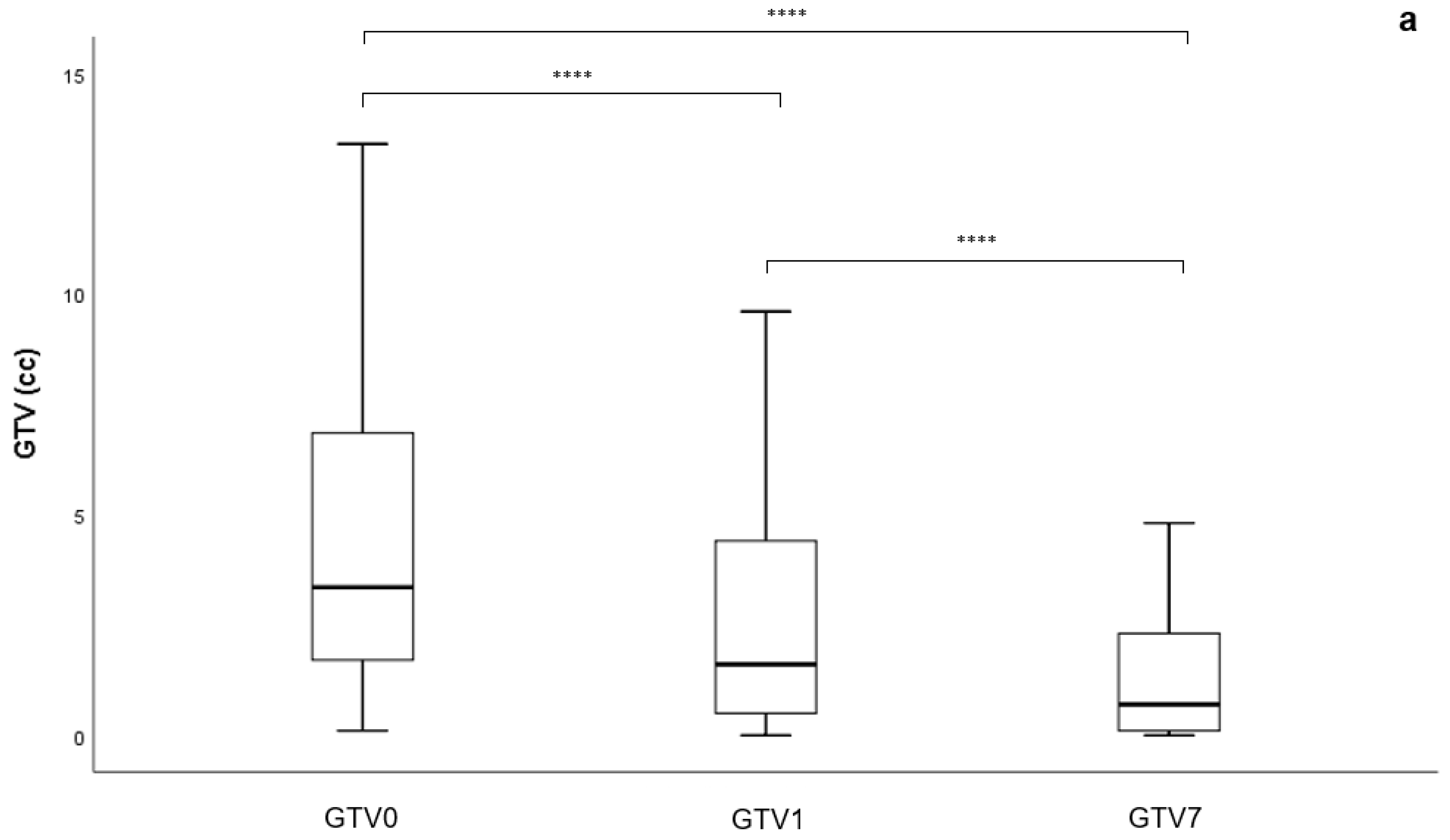

Among the 233 metastases included, the median pre-HFRT volume was 1.6 cm
3 (range 0.1–19.1 cm
3), which significantly fell to 0.7 cm
3 (48.5% reduction from baseline) one month post-HFRT and fell further in another six months to 0.3 cm
3 (80.6% reduction from baseline). On linear regression, no patient, treatment or tumour factors were correlated with an inferior volume response, demonstrating that HFRT is equally effective at achieving a volumetric response for most BMs irrespective of their initial size, site or histology. This differs from published SRS data, which describe differing outcomes depending on the histopathological primary [
13,
14].
The volumetric response greater than 80% to HFRT in this study is at least equivalent to published volumetric responses with SRS. Sharpton et al. found a 64% reduction in median volume after three months, and no subsequent volume response was documented [
14]. An analysis of 91 lesions treated with SRS alone by Diao et al. showed that the 60% volume reduction from baseline achieved one month post-SRS rebounded by 17% to a 43% reduction from baseline after 6 months [
9]. Only in the SRS + immunotherapy arm of Diao et al.’s study was a volume response rate of 80% achieved. In our study, only one-third of the cohort was managed with immunotherapy, and the use of systemic therapy was not associated with improved volumetric response, highlighting the potency of HFRT for BM volume reduction [
15].
Rates of transient pseudoprogression appear to be lower in HFRT compared to SRS, with this study finding that only 4.3% of patients experienced initial volume expansion, which resolved by the seven-months-post-HFRT assessment. Pseudoprogression following SRS is postulated to be due to the opening of the blood–brain barrier and the ingress of leukocytes to the treatment site, and it is believed to reflect the high-fraction dose of radiation to the target lesion [
8]. Cohorts treated with SRS experienced higher rates of pseudoprogression; the Bergen Criteria definition study of 348 SRS-treated metastases reported pseudoprogression rates of 14% [
8]. Furthermore, Sparacia et al. found pseudoprogression in 28% of 54 lesions treated with SRS, which resolved at 12 weeks [
16]. Minimising pseudoprogression reduces symptom load and quells the anxiety of patients in whom there may be uncertainty over relapse. Oncologists may also need to delay or alter systemic therapy approaches where pseudoprogression and relapse are indistinguishable, and increase corticosteroid requirements in cases of BM volume expansion, which may impact extracranial disease control [
8,
17].
Local control rates in this study were greater than 90%, though almost 13% of patients were unable to have response assessment. This is an accepted issue in reporting outcomes in advanced cancer complicated by BM, where there are the competing risks of intracranial and extracranial disease [
18]. Two retrospective comparative studies between HFRT and SRS have found that local control rates at 12 months for HFRT were 91% [
11] and 70% [
19], compared with 77% and 56%, respectively, in SRS, consistent with our study. Minniti et al., who reported 70% local control at 12 months, delivered a dose of HFRT with median BED12 of 47 Gy [
11], equivalent to our study.
Despite international guidelines recommending SRS for limited BM in most clinical circumstances [
20,
21], the biological advantages, efficacy and safety of hypofractionation of radiation doses are established [
22,
23]. Compared with SRS, fractionation improves radiosensitisation through re-oxygenation of hypoxic malignant cells – augmenting tumour shrinkage through oxidative stress [
24]. There is differing radiobiology between normal brain and tumour which can be optimised through HFRT over SRS. Since normal brain is a late-responder to radiation with a low α/β, and BM an early-responder with a high α/β, SRS is more likely than HFRT to damage normal tissue, leading to complications such as radiation necrosis [
25]. A HFRT approach with VMAT or IMRT, although treating more surrounding normal brain, may limit the injury to that tissue by allowing maximal recovery time between fractions [
26,
27]. In our study, radiation necrosis was reported in only 3.9% of metastases during the follow-up period. In Putz et al.’s comparison of HFRT (
n = 98) and SRS (
n = 92), a similar necrosis rate of 3.4% was found in the 12 months following HFRT, with a median BED12 of 52.4 Gy administered [
28]. Despite a lower median BED12 of 41.0 Gy being used for SRS, the rate of necrosis was significantly higher (14.8%,
p = 0.045 on multivariate analysis). Rates of necrosis following HRFT are typically <10% [
11,
19,
28,
29,
30], whilst SRS has been associated with necrosis in over 20% of patients in two studies, each over 250 metastases, by Minniti et al. [
11,
31]. Furthermore, a meta-analysis of 24 studies comparing SRS vs. HFRT on BMs 2–3 cm in diameter demonstrated significantly less radionecrosis in the HFRT group (23.1% vs. 7.3%,
p = 0.003), with no difference in LC (77.6% vs. 92.9%,
p = 0.18), further suggesting that a hypofractionated approach confers a lower risk of radiation toxicity without compromising efficacy [
32].

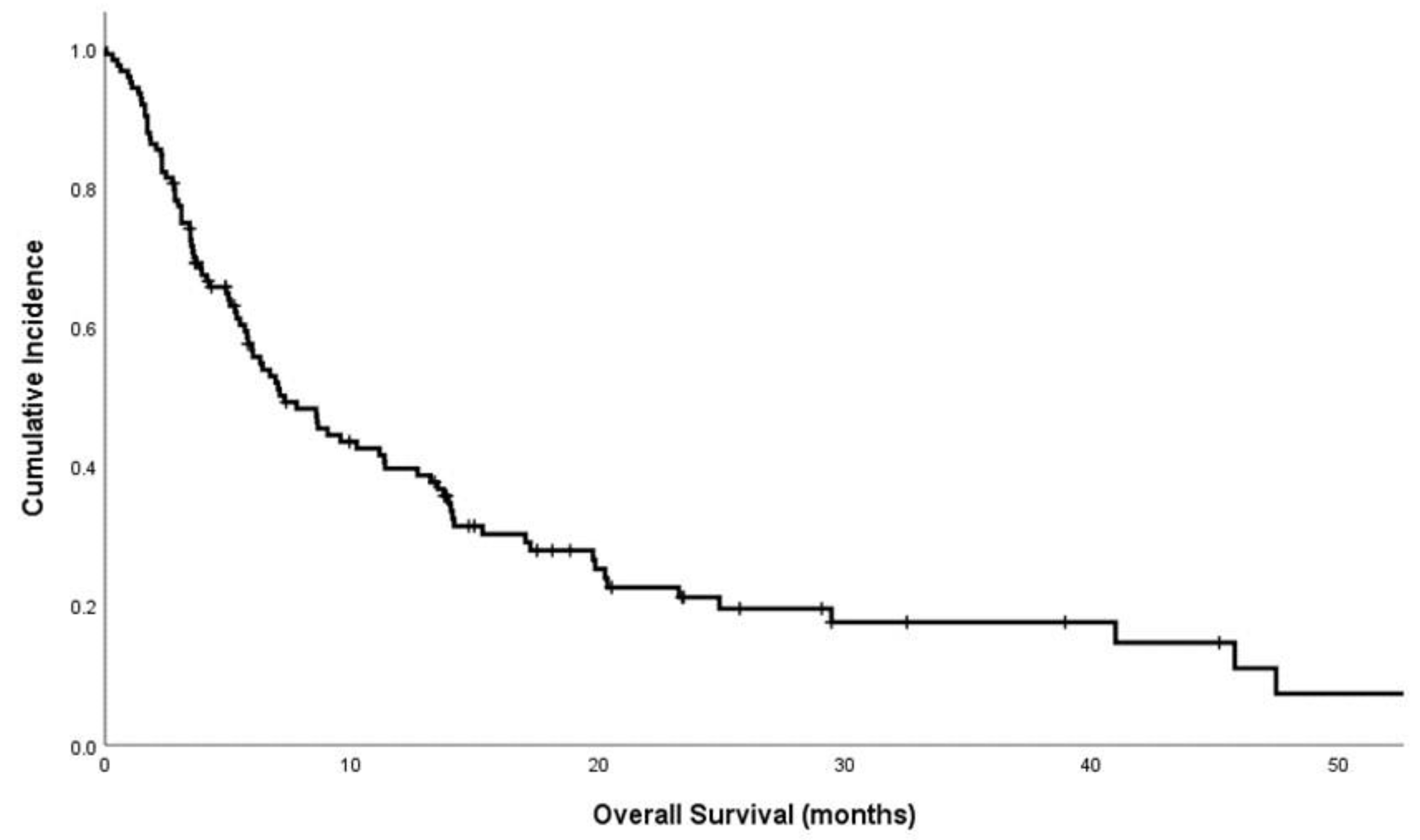

Overall survival in this study was 7.3 months, equivalent to other studies of HFRT in unresected BM: a summary of six cohorts by Murai et al., totalling 363 patients, demonstrated median OS post-HFRT of 3–15 months [
33]. The survival of 7.3 months ought to be considered with the fact that initial management for many patients is resection followed by adjuvant cavity radiotherapy [
34]. Only those with advanced extracranial disease, multiple lesions or co-morbidity are selected for non-operative management. Despite the range of benefits of HFRT over SRS, neither appear to confer superior survival, with several retrospective comparative studies of 90–190 patients finding no significant difference [
19,
35,
36,
37], which may be due to the competing risk of extracranial disease on OS. In our study, HFRT conferred a significant and consistent volumetric response which was independently predictive of superior OS.
Although the data demonstrate a role for HFRT in the management of BM, the logistical impact on departmental workload should be considered, with the benefit of low rates of necrosis, pseudoprogression and local failure being balanced against the increased number of patient attendances required for HFRT over SRS [
38] and an increased dose of radiation to normal brain tissue, especially where multiple small-volume BMs are being treated or multiple HFRT courses are required [
39]. Improved planning software and delivery techniques may mitigate these risks through improved dosimetry. Additionally, more data are required to prove whether three- and five-fraction regimens provide equivalent outcomes, reducing the logistical impact.
The interpretations from this study are principally limited by the retrospective audit design and the variability of extracranial disease influencing patient selection. There was extensive heterogeneity in the choice of systemic therapy, as patients were being managed by multiple medical oncologists for a range of primary subtypes during an era where immunotherapy and targeted therapies were evolving in clinical practice. Toxicity data are also limited, with an absence of dexamethasone data and diagnosis of late radiation necrosis being dependent upon the timing of the imaging and patient survival. Balancing these features is that all patients were treated uniformly with similar dosing regimens by only two radiation oncologists in units with established follow-up procedures.
