Abstract

Following a quantitative analysis of adequate feedstock, comprising 11 woody biomass species, four biochars were generated using a Kon-Tiki flame curtain kiln in the state of Aguascalientes, Mexico. Despite the high quality (certified by European Biochar Certificate), the biochars contain substantial quantities of hazardous substances, such as polycyclic aromatic hydrocarbons, polychlorinated dibenzo-p-dioxins and dibenzofurans, polychlorinated biphenyls, and heavy metals, which can induce adverse effects if wrongly applied to the environment. To assess the toxicity of biochars to non-target organisms, toxicity tests with four benthic and zooplanktonic invertebrate species, the ciliate Paramecium caudatum, the rotifer Lecane quadridentata, and the cladocerans Daphnia magna and Moina macrocopa were performed using biochar elutriates. In acute and chronic toxicity tests, no acute toxic effect to ciliates, but significant lethality to rotifers and cladocerans was detected. This lethal toxicity might be due to ingestion/digestion by enzymatic/mechanic processes of biochar by cladocerans and rotifers of toxic substances present in the biochar. No chronic toxicity was found where biochar elutriates were mixed with soil. These data indicate that it is instrumental to use toxicity tests to assess biochars’ toxicity to the environment, especially when applied close to sensitive habitats, and to stick closely to the quantitative set-point values.
Keywords: acute toxicity test; LC50; elutriate; interstitial water; hazardous substances; enzymatic/mechanic digestion acute toxicity test; LC50; elutriate; interstitial water; hazardous substances; enzymatic/mechanic digestion

1. Introduction

Within the last decade, research on the dark, fertile, charcoal-rich anthropogenic Terra preta soils of Amazonia [1,2] has stimulated the idea to sequester charcoal-like pyrogenic carbon obtained by thermochemical conversion of various biogenic materials, under the absence of oxygen, into soils. The so-called biochar (BC), adds several advantageous features if applied to soil, such as: (a) Greenhouse gas emissions reduction; (b) improvement of the physicochemical and microbial properties, as well as generation of agronomic win–win situations like generic soil fertility increases; and (c) absorption of pernicious substances and reduction of ecological threats, such as N leaching and soil-water remediation [3,4]. BC research sharply increased within the last ten years; however, BCs can be tremendously different produced from a broad range of different types of biomass and thus serve different purposes and trigger unwanted effects [5,6,7].
Within the last six years, considerable progress has been made with regard to standardization, pyrolysis techniques, quality, and sustainability control of BC. In 2012 the European Biochar Foundation established an accredited control system (ACS) for BC named European Biochar Certificate (EBC) that certifies the compliance with quality parameters and thresholds for contaminants, the use of accredited analytical methods and the sustainability of production [8]. Together with the United States (US) induced International Biochar Initiative (IBI) [9], EBC led to considerable improvements in BC quality and the sustainability of its production and hazard-free application for environmental safety, both in agriculture and livestock feed.
The certification under the EBC (as the US counterpart IBI) solicits, in addition to technology-related requirements (e.g., heat recovery, complete combustion of the pyrolysis gases, etc.), compliance with certain limit values of predefined physical and chemical parameters of the products. The physical parameters serve primarily to classify the coals affiliation or category (e.g., pyrolytic coal, hydrochar, BC, etc.) and quality (e.g., degree of inertization and recalcitrance (molar elemental ratios), surface area, density, storage capacity, etc.). The chemical parameters are used to determine the hazard potential of char-bounded contaminants (e.g., polycyclic aromatic hydrocarbons (PAHs), polychlorinated dibenzo-p-dioxins and furans (PCDD/Fs), fluorine, polychlorinated biphenyls (PCBs), and heavy metals). Heavy metals are either already contained in the feedstock or not and become concentrated by the thermochemical process. Aromatic and polychlorinated toxicants instead emerge during carbonation, reduction, and aromatization phases [8,10,11,12]. Potential contamination of soils when using BC in agriculture, as well as possible intoxications when used as animal feed, should be avoided as far as possible by adhering to the limit values specified by the current standard.
The hazard potential of BC is generally limited, as the hazardous substances contained in BC are strongly bound, due to the high adsorption potential caused by the porous structure and increased redox potential [7,13]. In addition aforementioned hazardous substances are very hydrophobic, exhibit low biological availability and are hardly metabolizable, as they are incorporated into the aromatic benzene ring skeleton [14,15]. The concentration of PAHs is strongly dependent on feedstock, temperature, and design of the pyrolysis unit [13]. However, even if the strong adsorption capacity of BCs limits the noxiousness, mineralization and metabolization processes propelled by microfauna could potentially trigger a bioavailable release of pollutants.
Oleszczuk et al. [16] state, that pollutants in BC can result in toxicity to organisms during environmental application of BC. When toxic potencies of BC were assessed by different methods, a significant correlation between concentrations of PAHs and toxicity was observed. Re-condensation of volatile organic compounds (VOCs) during pyrolysis can result in BC containing compounds that are bioavailable and phytotoxic [17]. Thus, even if the limit values defined according to an ACS, such as the EBC, are adhered to, residual risk remains that adverse effects result from the use of BC, especially when used in the vicinity of sensitive habitats, such as water bodies or nature reserves.
Concerning these arguments, the harmlessness (respectively the quality) of BC cannot be assessed solely by analyzing physicochemical parameters. Toxicity tests permit an evaluation of the degree to which a chemical substance has an adverse effect in live organisms, either acute or chronic [18]. We hypothesize that the aforementioned toxicological risk of BC used as a soil amendment can be proved with the help of aquatic invertebrate toxicity tests.
Toxicity testing in which live organisms, such as aquatic invertebrates, are exposed to contaminants under laboratory conditions, has become a powerful tool in the past years for organisms in marine, estuarine, and freshwater environments [19]. The purpose of toxicity testing is to obtain appropriate insight, which will acquaint decision makers and practitioners about the levels of toxicity and the associated risk created by anthropogenic activities in ecosystems [20]. Eco-toxicological tests provide a substantial tool to assess the toxicity potential of a complex mixture of toxicants typically found in BCs. The toxicity assessment of chemical cocktails and organic contaminants is a growing necessity since single dangerous substances are rarely existent in the environment of anthropogenic activities.
Aquatic invertebrates, especially rotifers, are mainly found in freshwater environments but also in moist soil, where they inhabit the thin films of water that are formed around soil particles, which is known as interstitial water [21]. Some aquatic invertebrates, instead of living in particle-free water, prefer to dwell in planktonic, periphytic, and benthic ecosystems, where food availability such as bacteria, eukaryotic cells, algae, and detritus are abundant. Pore or interstitial water in soils is the most bioavailable material for aquatic organisms, whereas fertilized eggs in parched environments become dormant, are able to overwinter, and survive drought unscathed for years [22,23,24]. This is why several aquatic invertebrate species are most likely adequate as a suitable bioassay approach to examine the toxicity potential of BC application in the soil, as invertebrates are ubiquitous and the soil is a continuously interacting and cross-biocoenotic ecotope.
Most common toxic substances tested with aquatic invertebrates, especially rotifers and cladocerans, comprise natural toxins, pesticides, and heavy metals [25]. The biota contamination by such elements deserves attention, because of cumulative effects within trophic networks [26]. Transportation of heavy metals through trophic networks often commences with the assimilation of these by bacteria and protists [27]. Various heavy metals and organic pollutants, such as antifouling agents, pesticides, PAHs, and PCBs, which are traceable in BCs, have shown reproducible biological responses when tested in rotifers [28]. However, apart from this work, no data obtained by standard acute toxicity tests is available on the susceptibility of aquatic invertebrate species to different toxicants detected in BCs.
Most of the acute toxicity tests with aquatic invertebrates measure mortality after an exposure period of 24 or 48 h. These tests have standardized protocols, approved, for example, by the American Society for Testing and Materials (ASTM). Perhaps the most accepted test worldwide is the 48 h acute test using Daphnia magna Strauss [29,30]. Although Mexico has embraced the D. magna test, this European cladoceran species has never been found in Mexican reservoirs nor terrestrial water bodies [31]. As the contamination of reservoirs involves deposition of pollutants in sediments [18,32], elutriates are an approximation to soil pore water, and as the idea of this study is to expose benthic species suited for living in sediments to BCs, it is expedient to work with elutriates.
The purpose of this contribution was to use acute and chronic toxicity tests [33] with the ciliate Paramecium caudatum, the rotifer Lecane quadridentata, and the cladocerans Daphnia magna and Moina macrocopa to assess toxicity of hazardous substances identified in four different BCs that have been generated using local feedstock in Aguascalientes, Mexico. First, the BCs were analyzed with regard to heavy metal, PAHs, PCDD/Fs, and PCBs levels. Afterwards, the toxic responsiveness of the invertebrates to the BC elutriates in a controlled laboratory test environment has been checked, to estimate lethal concentration where 50% and 10% of test animals die (LC50, LC10,) and define no observed effect concentration (NOEC) and lowest observed effect concentration (LOEC) values. Subsequently, the expected toxicity range due to the concentration of the four BCs in the environmental samples, using the equations obtained from the toxicity tests, was calculated. The present work shows that the application of a toxicological test using aquatic invertebrates could substantially increase BC application safety in and close to sensitive habitats.

2. Materials and Methods

2.1. Study Site, Feedstock, and Biochar Generation

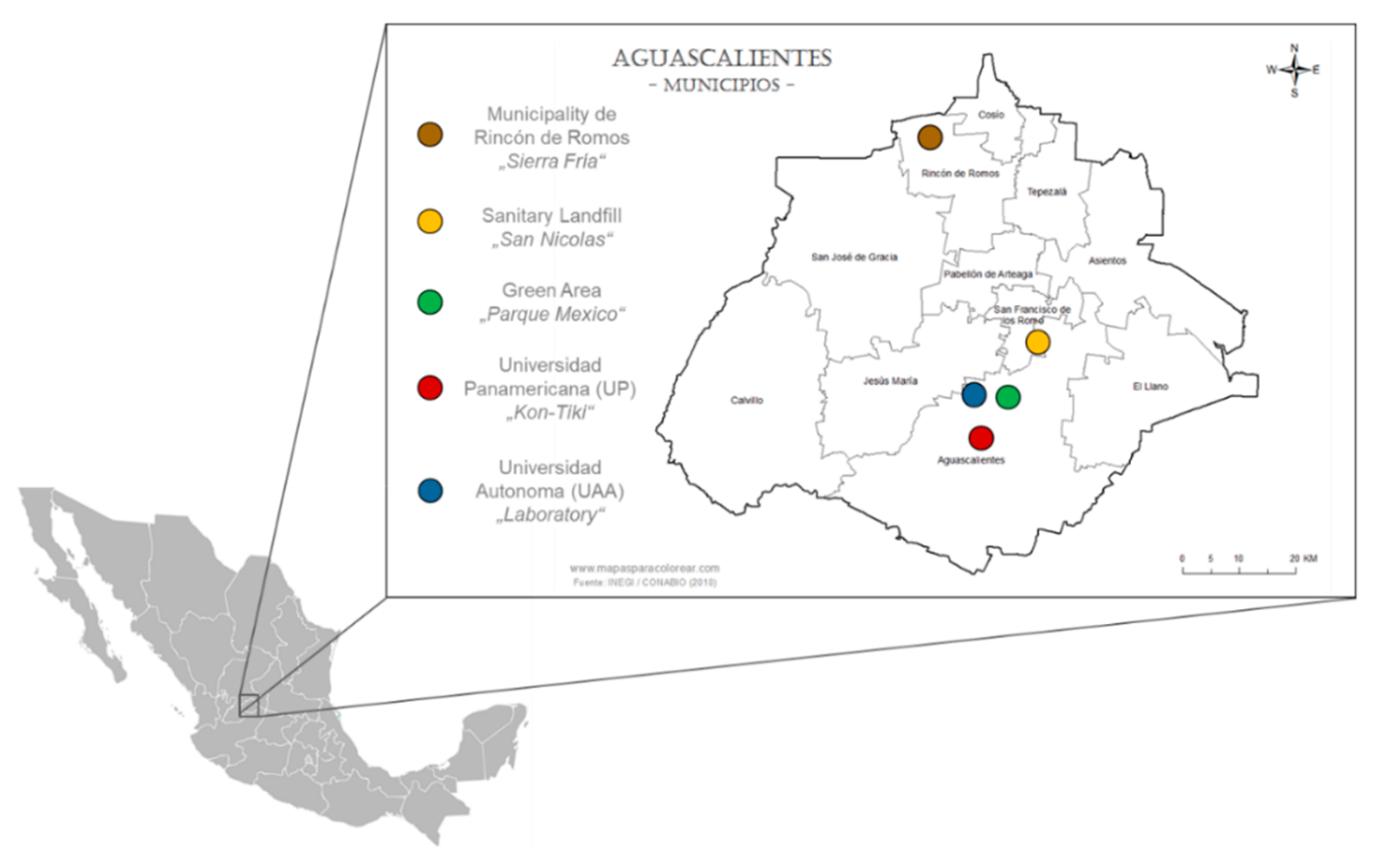

The state of Aguascalientes, Mexico ranges from 22°27’ to 21°38’ N and from 101°53’ to 102°52’ W (Figure 1) [34]. The state holds substantial untapped biomass potentials for BC generation, which could be of higher interest for the semi-desert state as BC addition to soil can increase water absorbance and water holding capacity (WHC) [35,36,37,38]. Data concerning quantity and woody species composition was acquired and analyzed from the municipal composting site and the sanitary landfill. Further samples were collected from forest residues in the northern municipality of Rincón de Romos. The total identified woody biomass potential totaled up to 233,000 tons of dry matter, encompassing 11 different wood species. The collected feedstocks were used to generate four different BCs. The pyrolysis process was conducted by the use of a locally assembled Kon-Tiki flame curtain kiln at Universidad Panamericana (UP). Pyrolysis temperature ranged from 600 to 680 °C at the surface of the blaze. Duration of pyrolysis ranged from 3.5 to 4.5 h. Figure 1 illustrates the study related locations within the state of Aguascalientes.
This study attempts to assess ways of biomass use for BC production under real conditions. Therefore, the collected feedstocks were not separated and distinguished into pure types, fractions, and species. This approach is substantiated because the feedstocks are found mixed-up in the forest and the collection centers and separation would be neither economically reasonable nor could a high-tech-based separation guarantee pure fractions.
Sample 1: Consisted of a mixture of 65% manchineel tree and 35% pine with average moisture of 8% for manchineel tree and 7% for pine. The branch diameter ranged from 0.5 to 8 cm for both types of wood. The collection took place in the forests of Rincón de Romos.
Sample 2: Was collected from the municipal composting site. It was a mixture of different species of wood, which were mainly branches. The following Table 1 illustrates the composition as the biomass was piled at the composting site. The branch diameter ranged from 0.5 to 10 cm for all types of branches. The average moisture was 18%.
Sample 3: Was collected from the municipal composting site and was a mixture of different species of wood, but was composed of much thicker trunks. The trunks were split into logs, with a diameter range from 4.5 to 12 cm in final size. Table 2 illustrates the composition of the biomass species and the percentage share applied in sample 3. The average moisture was 27%.
Sample 4: Was also collected from the municipal composting site. Its woody composition was similar to sample 2, but the feedstock of sample 4 was chopped to grain size 0.5 to 8 cm long and 0.5 to 2 cm thick. The average moisture measured 45%.

2.2. Biochar Analysis and Elutriate Preparation

The four BCs were sent to the Eurofins Umwelt Ost GmbH laboratory in Germany to assess the elementary composition, H/C and O/C molar ratios, specific inner surface, bulk density, ash and salt content, water content, and water holding capacity (WHC), as well as the content of ten different heavy metals, 16 PAHs (EPA 16 PAHs), PCDD/Fs, PCBs, and dl-PCBs according to the EBC guideline [39].
The BC elutriates were prepared for acute toxicity testing based on procedures described in the American Society for Testing and Materials Guide E 1391 [40] and US EPA-U.S. Army Corps of Engineers [41] with slight modifications (see also US EPA 823-B-01-002 [42]). After grinding BC to powder (grain size <1 mm), the BCs were mixed in a 1:4 (v/v) ratio of BC to EPA water in a beaker and placed on a rotary shaker table for 1 h, at a speed of 100 rpm. After shaking, the samples were centrifuged at 6000 rpm for 20 min. The aqueous fraction (elutriate sample) was pipetted and stored in jars at 20 ± 1 °C.

2.3. Toxicity Tests

We performed acute toxicity tests with each of the four BC elutriates using the ciliate Paramecium caudatum, the rotifer Lecane quadridentate, and two cladocerans: Daphnia magna and Moina macrocopa. In tests where acute toxicity was low or undetected, sublethal tests were conducted choosing parameters like growth inhibition in Lecane quadridentata, Moina macrocopa, and Paramecium caudatum. Finally, L. quadridentata and M. macrocopa were exposed to an elutriate generated from a soil–biochar mixture, to assess the acute toxicity if BC is mixed with soil.
During this additional test, only a 100% concentration of elutriate was applied. A common leptosol soil from Aguascalientes was used, mixed in volumetric ratio 8:1 with BC (Vsoil/VBC). This ratio was chosen based on the assumption of having a top soil with 10 cm thickness and the application of 30 tDM ha−1 (120 m³ ha−1) of BC to the soil with a specific bulk density of 250 kg m−3. This value refers to the maximum amount of BC that is allowed to be applied to acreage, for example, in Germany, predetermined by the German Fertilizer Application Ordinance (DüV) [43] and the German Federal Soil Protection Act (BBodSchG) [44]. As far as the authors know, México does not specify the application of BC in agriculture, which is the reason to refer to German thresholds. Based hereupon, 880 mL leptosol was mixed with 110 mL of BC in order to gain a representative mixture. Thereof 10 mL were used to prepare the elutriate, following the same protocol applied to prepare elutriates with the pure BC.

2.3.1. Paramecium caudatum 24 h Acute Toxicity Test

The ciliates were obtained from samples collected at the reservoir at the campus of the Autonomous University of Aguascalientes and identified through in vivo observation following the protocol by Dieckmann [45]. Selected P. caudatum specimens were cultivated in Petri dishes with Sonneborn medium [46]. The methodology employed in these toxicity tests was made according to Madoni [47]. Briefly, ten organisms were picked from the culture with a micropipette and individually inoculated into the 24-well polystyrene plate (Corning Costar Corporation, USA). Each well containing a total volume of 1.0 mL of EPA medium was diluted with five BC elutriate concentrations (6.25%, 12.5%, 25%, 50%, 100% plus one negative control with EPA medium [48]) from each of the four BCs and incubated for 24-h at 25 ± 1 °C in darkness. These dilutions were done in accordance with the Mexican Norm NMX-AA-087-SCFI [49]. The test was conducted with five replications for each BC. After 24 h period, the ciliates were counted to determine mortality.

2.3.2. Lecane quadridentata 48 h Acute Toxicity Test

We used Lecane quadridentata collected from Lake Chapala, Mexico [33]. These strains have been continuously cultured in EPA medium [48] for more than 20 years in our UAA laboratory and fed Nanochloris oculata (UTEX strain LB2194). Asexual eggs were collected and incubated at 25 °C in Petri dishes with EPA medium. EPA medium had pH 7.4–7.8 and its hardness was 80–100 mg L−1 CaCO3. Acute toxicity tests were conducted in 24-well polystyrene plates (Corning Costar Corporation, USA), following the protocol of Pérez-Legaspi and Rico-Martínez [33]. Briefly, ten 24 h old neonates were placed in each well containing a total volume of 1.0 mL of EPA medium diluted with five BC elutriate concentrations (as mentioned previously) and incubated for 48-h at 25 ± 1 °C in a 16:8 light:darkness cycle. These dilutions were done according to the Mexican Norm [49]. The test was conducted with five replications for each BC. After 48 h, the number of dead animals was recorded and the data analyzed statistically to establish significant differences between negative control (with EPA medium [48]) and elutriate samples.

2.3.3. Daphnia magna 48 h Acute Toxicity Test

We used the Daphnia magna acute toxicity protocol detailed in the Mexican Norm NMX-AA-087-SCFI [49]. Briefly, this technique consisted of 48 h exposure of 24 h old neonates of D. magna to a control and 5 different concentrations determined through a range toxicity test [50]. In the control, 10 neonates were placed in 100 mL of EPA medium in a 250 mL glass beaker [48]. The same was done for each replication except that, besides the EPA medium, the beakers contained the corresponding test concentration (as mentioned previously). Light intensity was kept between 400 to 1000 lux, as determined by an illuminometer (Kyoritan 140 Electrical Instruments), and temperature was kept at 20 ± 1 °C.

2.3.4. Moina macrocopa 48 h Acute Toxicity Test

We used the Daphnia magna acute toxicity protocol detailed in the Mexican Norm NMX-AA-087-SCFI [49]. The only difference was to substitute D. magna with M. macrocopa.

2.3.5. Paramecium caudatum Growth Inhibition Test

To assess the sublethal toxicity of the four BCs to Paramecium caudatum, we performed the protocol of Miyoshi et al. [51], with slight modifications. Briefly, this test starts with the placement of five P. caudatum organisms in a well of a 24-well polystyrene plate, with a negative control (EPA medium) and five dilutions of the biochar elutriate (100%, 50%, 25%, 12.5%, and 6.25%) in a final volume of 2 mL. We add Sonneborn medium [46] at 1 g L−1 at the start of the test. Then, the plate was placed in a bioclimatic chamber with a 16:8 light:darkness cycle at 25 °C for 96 h. At the end of the 96 h exposure time the total number of organisms was counted in each well to obtain the percentage of inhibition of the population applying the following formula:
% I = N c N t N c 100
with:
  • N = total number of P. caudatum organisms alive after 96-h
  • t = treatment
  • c = control

2.3.6. Chronic Five-Day Toxicity Tests (Growth Inhibition) with Lecane quadridentata

Since no lethal toxicity was found with the four BC:soil 1:8 mixes, and to assess the sublethal toxicity of the four BC:soil 1:8 blend elutriates, we performed the 5-day chronic toxicity tests with L. quadridentata using the protocol of Hernández-Flores and Rico-Martínez [52].

2.3.7. Chronic Seven-Day Toxicity Test (Growth Inhibition) with Moina macrocopa

Since no lethal toxicity was found with the four BC:soil elutriates, we used the protocol of the 7-day Chronic Test with the cladoceran Ceriodaphnia dubia [53] to assess the sublethal toxicity with slight modifications: (a) Instead of using C. dubia, we substituted this cladoceran with Moina macrocopa; (b) instead of using the yeast, cereal leaves, and tetramin (YCT) food we used the micro algae Pseudokirchneriella subcapitata to feed M. macrocopa.

2.4. Statistical Analysis for the 48h Acute Toxicity Test

Data were analyzed through ANOVA and Tukey HSD test (n = 5 replicates) to establish significant differences from controls to obtain NOEC and LOEC values. To determine r2 values (correlation coefficient) and to conduct regression to calculate LC50 and LC10 values with the corresponding toxicants, the software Statistica 7.0 (Stat-Soft Inc., Tulsa, OK, USA, 1993) was employed.

3. Results

3.1. Physical and Chemical Parameters of the Biochars

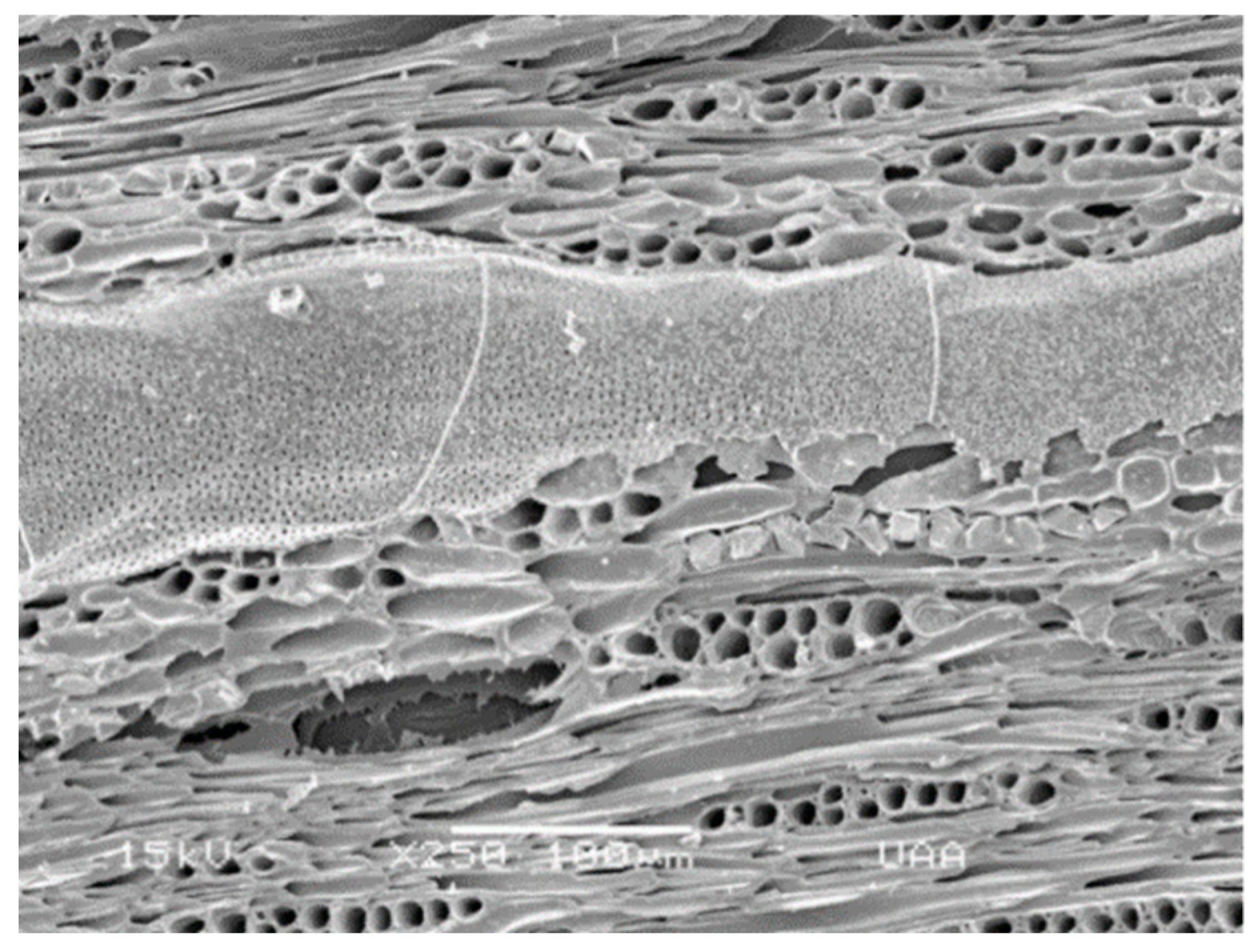

BC yields of the four samples ranged from 16%–30% ± 5% on a dry weight basis, which is in the same range as other biomass feedstocks and pyrolysis systems which operate at equal temperatures around 700 °C [54]. Cornelissen et al. [10] compared Kon-Tiki flame curtain kiln produced BC with traditional low-temperature kilns and retorts. With regard to their investigations, BC from traditional low-temperature kilns has been in the same order of magnitude, whereas the percental output ratio in contrast to low-temperature retort kilns (typically around 30%–40% on a dry weight basis) has been lower. The BC, as in the present case, corresponds to these insights.
The following interpretation of the BC characteristics is based on the values presented in Table 3. Water holding capacity (WHC) of the four BCs ranged from 165%–254% on dry matter basis, with the lowest value being for BC 3 and the highest value being for BC 4. Hence, all produced chars hold excellent properties to improve water holding capacity if added to the soil. Specific surface (based on Brunauer–Emmet–Teller [BET] theory) of the BCs were in the range of 54–305 m² g, which is in the same order of magnitude found in literature. Low BET values mean larger pores and thus less water is retained. As BET values increase, pores become smaller and water is better retained [55]. Surprisingly, the WHC of the four BCs was higher when BET values were low.
Total carbon content (TC) of the BCs were in the range of 78%–89% in dry matter, complying with the EBC threshold of >50% for both premium and basic quality. The lowest value being for the BC 4 with 78% and the highest value being for the BC 1 with 89%. H contents of the four sample BCs were 0.87%–1.82%, O contents were 1.1%–8.5%. Based on these values, H/C, O/C, and H/Corg ratios on molar basis were calculated with H/C of 0.13–0.28 and O/C of 0.01–0.08 as well as H/Corg ratios equivalent to H/C, whereby the high aromaticity and consequential high recalcitrance and inertia was confirmed, referring to the given threshold by the EBC. An electron micrograph of BC 1 is presented in Figure 2.
Compared to the EBC thresholds, all heavy metal contents indicated uncritical biomass feedstock, with values far below the limits. Only zinc and copper showed a slight presence, but still far below the thresholds.
The most relevant toxic compounds in BC are considered to be the PAH-16, as it is known that they are carcinogenic if entered in the food chain and can affect plant growth negatively. Values for the PAHs detected in each type of BC produced are presented in Table 4.
Concentrations in all BCs are far below the permitted EBC thresholds, both for PCDD/Fs and PCBs, but still contain substantial content to endanger living organisms. Table 5 shows the sum of PCDD/F and PCB values calculated based on the toxicity equivalency quotient (TEQ). The total analysis is illustrated in Table A1 attached to the Appendix A.

3.2. Paramecium caudatum 24 h Acute and Sublethal Toxicity Tests

No significant lethal or sublethal toxicity was found. In the lethal tests, no LC50 values could be determined as only one ciliate was dead in one BC elutriate. In the sublethal tests no growth inhibition was detected after 96 h in each biochar treatment with no dilution (elutriate at 100%) (Table 6).

3.3. Lecane quadridentata 48 h Acute and Sublethal Toxicity Tests

Lethal toxicity was detected when L. quadridentata was exposed to all four BC (Table 7). We observed many particles of BC in the stomach and digestive apparatus of L. quadridentata (Figure 3). We obtained LC50 value in the range of 8.3%–25.1% of effective concentration for Lecane quadridentata. The confidence limits (CL95%) were close to the LC50, and CV values were in the range of 3.8%–6.8% and are far below 25% as the maximum allowed threshold. Detected order of susceptibility: BC 3 > BC 4 > BC 1 > BC 2 (lowest to highest toxicity). No sublethal tests were conducted with L. quadridentata with the BC elutriates since all BC resulted in acute toxicity.

3.4. Daphnia magna 48 h Acute Toxicity Test

We observed many particles of BC in the digestive tract of D. magna (Figure 4). When we exposed D. magna to the four BC elutriates without dilution (100% sample) we found in BC 1, 4%, in BC 2, 20%, in BC 3, 44%, and in BC 4, 2% mortality (n = 5 in all cases). We decided not to conduct any more experiments with D. magna since this is an exotic species that has never been found in Mexican reservoirs, and we decided to substitute this cladoceran species with M. macrocopa.

3.5. Moina macrocopa 48 h Acute Toxicity Test

We observed the digestive tract of M. macrocopa completely filled with BC particles (Figure 5). Table 8 shows the results of the acute tests with M. macrocopa. Low lethal toxicity levels were found with this cladocerans species which allow one to calculate LC50 values only for two BC’s. We obtained LC50 value of effective concentration only for BC 1 and BC 2, with 134.87 and 306.33, respectively.
Due to the low levels of lethal toxicity found in BC 1 and BC 4, we decided to perform growth inhibition tests with this cladoceran species. Results of the sublethal growth inhibition tests are shown in Table 9. No sublethal toxicity was detected at the 100% (no dilution) elutriate sample for BC 1 and BC 4 where no EC50 values were calculated.

3.6. Soil–Biochar Mixture Elutriate Tests

No lethal or sublethal toxicity was found in the soil–biochar mixture experiments. Not a single animal was dead in the lethal tests with any of the two species used (M. macrocopa and L. quadridentata). In the sublethal tests, there was no significant difference among any treatment with the control in the chronic parameters used. Table 10 shows the growth inhibition sublethal tests with L. quadridentata, M. macrocopa, and P. caudatum.

4. Discussion

4.1. Toxicity of Biochar Elutriates to Aquatic Invertebrates

This experiment was conducted to investigate the toxicity on four aquatic invertebrate species exposed to four different BCs. We discovered that the respective BCs, despite complying with international certification standards such as the EBC, can induce adverse effects to non-target organisms in the form of acute toxicity, as was the case with Lecane quadridentata, Moina macrocopa, and Daphnia magna. The ciliate Paramecium caudatum, in contrast, did not show any chronic or lethal toxicity when exposed to the BCs.
Acute toxicity was only detected if the organisms were exposed to the pure BC elutriate. When the organisms were exposed to elutriate obtained from a BC–soil mixture in ratio 1:8, no chronic and no lethal effects to all tested species were observed. The results show that the application rates have a decisive influence on the soil biota. If users follow standards that regulate BC additions to the soil (e.g., BBodSchG), the potentially harmful effects on rotifers and cladocerans can be most widely diminished. Nonetheless, the compliant use of certified BC does not guarantee 100% safety, particularly near sensitive habitats or with regard to BC utilization in animal feed.
In the living environment, the toxicants are mixed, blended and, in many cases, occur at low concentrations that may be regarded as non-adverse. Mejía-Saavedra et al. [56] showed that one toxicant, even at no observable effective concentration (NOEC), can cause an increase in the toxicity of the other (synergistic effect). With regard to the present results, it remains unclear if a single hazardous substance evidenced in the BCs or the sum of hazardous substances is responsible for the detected toxicities in rotifers and cladocerans.
Based on the concentration of pollutants known to be hazardous to aquatic invertebrates (e.g., PAHs, PCDD/Fs, and heavy metals (especially zinc, copper, and manganese)) [16,33,56,57,58], the four BCs could be classified in their potential danger to each other in a direct comparison. The result was the following order and its toxicity potential: BC 3 < BC 2 < BC 1 < BC 4 (from low to high toxicity potential). Thus, BC 4 is expected to generate the potentially lowest LC50 values, causing the highest toxicity. BC 3 instead is expected to tendentially have the highest LC50 values, causing the lowest toxicity to the organisms. Interestingly the BC with the highest concentrations of hazardous substances, which undeniably was BC 4, did not provoke the highest toxicological impact on the organisms. Instead, BC 2, which is probably a “cleaner” and with regard to EBC thresholds (e.g., PAHs) an uncritical BC, had the lowest LC50 values both for L. quadridentata and M. macrocopa. The EBC analysis did not indicate a very particular high concentration of any specific contaminant for BC 2, nor for the other BCs, which could be an explanation for the incongruous order of toxicity.
This result is an indication that maybe there are synergistic responses among the entire mixture of hazardous substances and that this is the trigger producing the observed toxicity. Future research shall focus on the explanation of the witnessed digestion processes and the assessment of susceptibility of every single toxicant and the hazardous mixtures of toxic substances.
Summarized, Lecane quadridentata basically showed the highest susceptibility to the BCs, followed by Moina macrocopa and Daphnia magna.

4.2. Toxic Mechanism, Actuator, and Relevance to the Environment

Apparently, the mechanism of toxicity is the digestion of BC particles, whereby gastric juices liberate toxins, which are present in the BC. This mechanism is supported by the images of dead animals that show digestive tracts with abundant (in some cases) BC traces. As no feed was applied, the only particles contained in the elutriate and found in the digestive tract can arise from the BC. Another indicator, which subscribes the digestion hypothesis, is that ciliates did not absorb BC particles. In fact, ciliates did not experience any harm from the BCs.
Except for ciliates, the results show that rotifers and cladocerans, which habitat in intercellular soil water, are capable of digesting micro-particles of BC and thus release bounded and mobilize immobilized hazardous substances contained therein. Rotifers have an activity of phosphatases, ß-N-acetylhexosaminidases, and lipases [59]. In the case of D. magna, many digestive enzymes have been found: galactosidases, esterases, trypsin, and cellulases [60]. Based on the ingestion mechanism triggered by rotifers and cladocerans, potentially toxins could enter the food chain, accumulate biologically and, at higher concentrations, potentially provoke carcinogenic, mutagenic, or reprotoxic effects to higher organisms.
Naturally, PCDD/Fs and PAHs are generated during pyrogenic oxidation of hydrocarbon compounds and are ubiquitous and persistent pollutants in the environment [61,62]. Volcanic eruptions, as well as forest and vegetation fires, will release PCDD/Fs and PAHs on a natural basis [63], which will most likely degrade in the soil. But the man-made application of BC and associated toxins, in quantitative terms, is much higher and more frequent. Hence, naturally driven degradation process may take a long time until complete dissolution and will restrict, significantly, specific soil biota, as demonstrated within this study.
High concentrations of Zn and Cu (Table 3) could be an indication for increased zinc accumulation by the feedstock, as other sources of contamination can probably be excluded. As far as the authors know, there are rather no documentations known that indicate an increased zinc uptake by the used wood species. As mesquite is known for its tendency to accumulate heavy metals above average, in contrast to other trees, it was expected to find higher contents in BC 2 and BC 3, nevertheless this assumption was not confirmed by the present study.
Among the PAH-16 (Table 4) used as benchmarks by many environmental authorities in many countries, benzo (a) pyrene is considered to be the most crucial. Especially fodder producers require a maximum content of benzo (a) pyrene below 0.1 mg kg−1, no matter if the total PAH-16 content is below the maximum threshold of (<4 ± 2 mg kg−1). Concentrations of benzo (a) pyrene in all samples were below 0.1 mg kg−1. Even though BC 1, 2, and 3 (4.8 mg kg−1, 5.3 mg kg−1, 0.7 mg kg−1, respectively) qualify for EBC premium quality, BC 4 (8.3 mg kg−1) was only permissible for basic quality (<12 ± 4 mg kg−1). The highest content in all samples was shown by naphthalin in a range from 2.5–3.4 mg kg−1. This is probably explicable due to improved naphthalin emergence at high temperatures in pyrosynthesis above 700 °C. BC 4 additionally had an outlier in phenanthren content with 1.6 mg kg−1. Basically, PAHs in BC are very hydrophobic and hardly bio-accessible [7], but could potentially be liberated by the enzymatic and mechanistic processes.
PCDD/Fs and PCBs belong to the POP substances. They are (P) persistent (not biodegradable), (O) organic, and (P) pollutant. Furthermore, they belong to the CMR substances. Their human toxicological effects may; therefore, be (C) carcinogenic, (M) mutagenic, and (R) reprotoxic. Most of the toxicological effect is shown by disorders of the immune and nervous system, the respiratory tract, the thyroid gland and, for example, the digestive tract. Dioxins, furans, and biphenyls may be produced as undesirable by-products within combustion processes in the presence of chlorine and organic carbon, in particular at temperatures of 300–400 °C, whereas at a temperature level of 900 °C, the chlorine-based pollutants are destroyed. Concentrations in all BCs were far below the permitted EBC thresholds, both for PCDD/Fs and PCBs (c.p. Table A1); however, a there was a potential coherence between the toxicity potential of these POP substances and the detected mortality of rotifers and cladocerans.

5. Conclusions

The original hypothesis was proved by the experimental test results. BC, despite complying with international certification standards such as the EBC, can induce adverse effects to non-target organisms in the form of acute toxicity. The rotifer L. quadridentata showed substantial toxicological response to the four tested BCs, with LC50 values in the range of 8.3%–25.1% of effective concentration. Daphnia magna and M. macrocopa showed reduced lethal toxicity when compared with the rotifer. Only Paramecium caudatum did not show any negative response to the exposed BCs. If BC is applied soundly, adhering to the recommended limit masses, no serious adverse effects are to be expected. The present study provides a potential toxicity mechanism to benthic invertebrates when BC is applied to soil. As a result of this study, we recommend to not adhere only to the international certification thresholds concerning BC, but also consider country-specific rules of application meticulously, especially with regard to BC quantities.

Author Contributions

Conceptualization, F.F., R.R.-M., and P.B.; methodology, validation, and data curation, F.F. and R.R.-M.; writing, F.F. and R.R.-M; formal analysis and investigation, F.F., D.R.V., and G.E.S.-M.; editing and supervision, P.B. and R.R.-M.

Funding

This research did not receive any funding and was conducted on the financial means of the doctoral program of Universidad Autónoma de Aguascalientes.

Acknowledgments

We do thank Peter Heck—Institute for Applied Material Flow Management (IfaS)—for his institutional support in undertaking the present BC-related investigation. We do thank Universidad Panamericana for placing the Kon-Tiki Flame curtain kiln at the disposal of the present research.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Values for polychlorinated dibenzo-p-dioxins and dibenzofurans (PCDD/Fs), polychlorinated biphenyls (PCBs), and dl-PCBs in four BCs plus EBC threshold 6.
Table A1. Values for polychlorinated dibenzo-p-dioxins and dibenzofurans (PCDD/Fs), polychlorinated biphenyls (PCBs), and dl-PCBs in four BCs plus EBC threshold 6.
SubstanceUnitBC-1BC-2BC-3BC-4EBC
2,3,7,8-Tetrachlorodibenzo-p-dioxin ng kg−1 DM<0.1<0.1<0.1<0.1
1,2,3,7,8-Pentachlorodibenzo-p-dioxin ng kg−1 DM<0.15<0.15<0.15<0.15
1,2,3,4,7,8-Hexachlorodibenzo-p-dioxin ng kg−1 DM<0.15<0.15<0.15<0.15
1,2,3,6,7,8-Hexachlorodibenzo-p-dioxinng kg−1 DM<0.15<0.15<0.15<0.15
1,2,3,7,8,9-Hexachlorodibenzo-p-dioxin ng kg−1 DM<0.15<0.15<0.15<0.15
1,2,3,4,6,7,8,-Heptachlorodibenzo-p-dioxinng kg−1 DM0.570.390.250.55
Octachlorodibenzo-p-dioxinng kg−1 DM1.61.60.91.5
2,3,7,8-Tetrachlorodibenzofuranng kg−1 DM0.170.120.170.17
1,2,3,7,8-Pentachlorodibenzofuranng kg−1 DM<0.1<0.1<0.1<0.1
2,3,4,7,8-Pentachlorodibenzofuran ng kg−1 DM<0.1<0.1<0.1<0.1
1,2,3,4,7,8-Hexachlorodibenzofuranng kg−1 DM0.13<0.1<0.10.12
1,2,3,6,7,8-Hexachlorodibenzofuran ng kg−1 DM<0.1<0.1<0.1<0.1
1,2,3,7,8,9-Hexachlorodibenzofuranng kg−1 DM<0.1<0.1<0.1<0.1
2,3,4,6,7,8-Hexachlorodibenzofuranng kg−1 DM<0.1<0.1<0.1<0.1
1,2,3,4,6,7,8-Heptachlorodibenzofuranng kg−1 DM0.210.140.160.25
1,2,3,4,7,8,9-Heptachlorodibenzofuranng kg−1 DM<0.1<0.1<0.1<0.1
Octachlorodibenzofuranng kg−1 DM<0.20.2<0.20.2
Ʃ WHO(2005) PCDD(7)/F(10) (TEQ) [excl. LOQ]ng kg−1 DM0.040.020.020.04
Ʃ WHO(2005) PCDD(7)/F(10) (TEQ) [incl. LOQ]ng kg−1 DM0.400.390.390.4020
Ʃ WHO(2005) PCDD(7)/F(10) (TEQ) [incl. LOQ]ng kg−1 88%DM0.350.340.340.350.75
3,3’,4,4’-Tetrachlorobiphenylng kg−1 DM31.61.31.6
3,4,4’,5-Tetrachlorobiphenylng kg−1 DM<0.2<0.2<0.2<0.2
2,3,3’,4,4’-Pentachlorobiphenylng kg−1 DM136.56.47.5
2,3,4,4’,5-Pentachlorobiphenylng kg−1 DM29151418
2,3’,4,4’,5-Pentachlorobiphenylng kg−1 DM<3<3<3<3
2,3’,4,4’,5’-Pentachlorobiphenylng kg−1 DM<2<2<2<2
3,3’,4,4’,5-Pentachlorobiphenylng kg−1 DM<0.3<0.3<0.3<0.3
2,3,3’,4,4’,5-Hexachlorobiphenylng kg−1 DM4.22.3<22.4
2,3,3’,4,4’,5’-Hexachlorobiphenylng kg−1 DM<2<2<2<2
2,3’,4,4’,5,5’-Hexachlorobiphenylng kg−1 DM<2<2<2<2
3,3’,4,4’,5,5’-Hexachlorobiphenylng kg−1 DM<0.3<0.3<0.3<0.3
2,3,3’,4,4’,5,5’-Heptachlorobiphenylng kg−1 DM<3<3<3<3
Ʃ WHO(2005) PCB(12) (TEQ) [excl. LOQ]ng kg−1 DM0.001690.000870.000740.00100
Ʃ WHO(2005) PCB(12) (TEQ) [incl. LOQ]ng kg−1 DM0.041110.040290.040220.040420.35
Ʃ WHO(2005) PCB(12) (TEQ) [incl. LOQ]ng kg−1 88%DM0.036170.035460.035400.03557
Ʃ WHO(2005) PCDD(7)/F(10) + PCB (TEQ) [incl. LOQ]ng kg−1 DM0.438450.427130.430650.43693
Ʃ WHO(2005) PCDD(7)/F(10) + PCB(12) (TEQ) [incl. LOQ]ng kg−1 88%DM0.385830.375880.378970.384501.25
2,4,4’-Trichlorobiphenylµg kg−1 88%DM0.080<0.055<0.050<0.050
2,2’,5,5’-Tetrachlorobiphenylµg kg−1 88%DM0.1300.0750.0740.078
2,2’,4,5,5’-Pentachlorobiphenylµg kg−1 88%DM0.0820.0440.0470.047
2,2’,3,4,4’,5’-Hexachlorobiphenylµg kg−1 88%DM0.0500.0280.0260.031
2,2’,4,4’,5,5’-Hexachlorobiphenylµg kg−1 88%DM0.0540.030.0280.032
2,2’,3,4,4’,5,5’-Heptachlorobiphenylµg kg−1 88%DM<0.020<0.020<0.020<0.0020
Ʃ WHO(2005) Indicator PCB(6) [excl. LOQ]µg kg−1 88%DM0.4000.2300.0180.02410
6. Abbreviations: WHO(2005), values based on World Health Organization toxic equivalency factor from 2005; PCDD(7), 7 EBC required polychlorinated dibenzo-p-dioxins; PCDF(10), 10 EBC required polychlorinated dibenzofurans; TEQ, toxicity equivalency quotient; LOQ, limit of quantitation; PCB(12), 12 EBC required polychlorinated biphenyls; PCB(6), 6 EBC required indicator polychlorinated biphenyls; DM, dry matter.

References

  1. Glaser, B.; Haumaier, L.; Guggenberger, G.; Zech, W. The “Terra Preta” Phenomenon: A Model for Sustainable Agriculture in the Humid Tropics. Naturwissenschaften 2001, 88, 37–41. [Google Scholar] [CrossRef] [PubMed]
  2. Glaser, B.; Birk, J.J. State of the Scientific Knowledge on Properties and Genesis of Anthropogenic Dark Earths in Central Amazonia (Terra Preta de Índio). Geochim. Cosmochim. Acta. 2012, 82, 39–51. [Google Scholar] [CrossRef]
  3. Lehmann, J. Bio-Energy in the Black. Front. Ecol. Environ. 2007, 5, 381–387. [Google Scholar] [CrossRef]
  4. Laird, D.A.; Brown, R.C.; Amonette, J.E.; Lehmann, J. Review of the Pyrolysis Platform for Coproducing Bio-Oil and Biochar. Biofuels Bioprod. Biorifining 2009, 3, 547–562. [Google Scholar] [CrossRef]
  5. Schimmelpfennig, S.; Glaser, B. One Step Forward toward Characterization: Some Important Material Properties to Distinguish Biochars. J. Environ. Qual. 2012, 41, 1001–1013. [Google Scholar] [CrossRef] [PubMed]
  6. Glaser, B.; Wiedner, K.; Seelig, S.; Schmidt, H.P.; Gerber, H. Biochar Organic Fertilizers from Natural Resources as Substitute for Mineral Fertilizers. Agron. Sustain. Dev. 2015, 35, 667–678. [Google Scholar] [CrossRef]
  7. Bucheli, T.D.; Hilber, I.; Schmidt, H.-P. Polycyclic Aromatic Hydrocarbons and Polychlorinated Aromatic Compounds in Biochar. In Biochar for Environmental Management: Science and Technology; Lehmann, J., Joseph, S., Eds.; Routledge: London, UK, 2015; pp. 595–624. [Google Scholar]
  8. European Biochar Certificate. Guidelines for a Sustainable Production of Biochar. Eur. Biochar Found (EBC) Arbaz Switzerland 2013. [Google Scholar] [CrossRef]
  9. Ministerstvo Zemědělství. Standardized Product Definition and Product Testing Guidelines for Biochar That Is Used in Soil, v. 1.1. Int. Biochar Initiat., 2016. No. January 2011, 134. Available online: https://doi.org/http://www.biochar-international.org/characterizationstandard (accessed on 22 March 2019).
  10. Cornelissen, G.; Pandit, N.R.; Taylor, P.; Pandit, B.H.; Sparrevik, M.; Schmidt, H.P. Emissions and Char Quality of Flame-Curtain “Kon Tiki” Kilns for Farmer-Scale Charcoal/Biochar Production. PLoS ONE 2016, 11, e0154617. [Google Scholar] [CrossRef] [PubMed]
  11. Lyu, H.; He, Y.; Tang, J.; Hecker, M.; Liu, Q.; Jones, P.D.; Codling, G.; Giesy, J.P. Effect of Pyrolysis Temperature on Potential Toxicity of Biochar If Applied to the Environment. Environ. Pollut. 2016, 218, 1–7. [Google Scholar] [CrossRef]
  12. Hamid, R.; Liedtke, V.; Schwanninger, M.; Soja, G.; Dellantonio, A.; Ottner, F.; Zehetner, F.; Kloss, S.; Gerzabek, M.H. Characterization of Slow Pyrolysis Biochars: Effects of Feedstocks and Pyrolysis Temperature on Biochar Properties. J. Environ. Qual. 2012, 41, 990–1000. [Google Scholar] [CrossRef]
  13. Paz-Ferreiro, J.; Lu, H.; Fu, S.; Méndez, A.; Gascó, G. Use of Phytoremediation and Biochar to Remediate Heavy Metal Polluted Soils: A Review. Solid Earth 2014, 5, 65–75. [Google Scholar] [CrossRef]
  14. Beesley, L.; Moreno-Jiménez, E.; Gomez-Eyles, J.L. Effects of Biochar and Greenwaste Compost Amendments on Mobility, Bioavailability and Toxicity of Inorganic and Organic Contaminants in a Multi-Element Polluted Soil. Environ. Pollut. 2010, 158, 2282–2287. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, Z.; Naidu, R.; Bolan, N.S.; Megharaj, M.; Choppala, G.K. The Influence of Biochar and Black Carbon on Reduction and Bioavailability of Chromate in Soils. J. Environ. Qual. 2012, 41, 1175–1184. [Google Scholar] [CrossRef]
  16. Oleszczuk, P.; Jośko, I.; Kuśmierz, M. Biochar Properties Regarding to Contaminants Content and Ecotoxicological Assessment. J. Hazard. Mater. 2013, 260, 375–382. [Google Scholar] [CrossRef] [PubMed]
  17. Pranagal, J.; Kuśmierz, M.; Oleszczuk, P.; Ligęza, S.; Jośko, I.; Futa, B.; Wielgosz, E. Microbiological, Biochemical and Ecotoxicological Evaluation of Soils in the Area of Biochar Production in Relation to Polycyclic Aromatic Hydrocarbon Content. Geoderma 2013, 213, 502–511. [Google Scholar] [CrossRef]
  18. Rand, G.M.; Petrocelli, S.R. Fundamentals of Aquatic Toxicology: Methods and Applications, 5th ed.; Hemisphere Publ.: New York, NY, USA, 1989. [Google Scholar]
  19. Villamar, F.F. Bioensayo de Toxicidad (CL50) Del Dispersante de Petroleo BP 1100 WD, Con Fintoplancton Marino (Tetraselmis sp). Acta Oceanografica del Pacifico 1996, 8, 67–73. [Google Scholar]
  20. Snell, T.W.; Janssen, C.R. Microscale Toxicity Testing with Rotifers. In Microscale testing in Aquatic Toxicology; Wells, P.G., Lee, K.L., Blaise, C., Eds.; CRC Press: Boca Raton, FL, USA, 1998; pp. 409–421. [Google Scholar]
  21. Wallace, R.L.; Snell, T.W.; Ricci, C. Rotifera, Part 1: Biology, Ecology and Systematics. In Guides to the Identification of the Microinvertebrates of the Continental Waters of the World, 23; Segers, H., Dumont, H., Eds.; Kenobi Productions and Backhuys Academic Publishing: Ghent, Belgium, 2006; p. 299. [Google Scholar]
  22. Denekamp, N.Y.; Thorne, M.A.S.; Clark, M.S.; Kube, M.; Reinhardt, R.; Lubzens, E. Discovering Genes Associated with Dormancy in the Monogonont Rotifer Brachionus plicatilis. BMC Genom. 2009, 10, 108. [Google Scholar] [CrossRef] [PubMed]
  23. Denekamp, N.Y.; Suga, K.; Hagiwara, A.; Reinhardt, R.; Lubzens, E. A Role for Molecular Studies in Unveiling the Pathways for Formation of Rotifer Resting Eggs and Their Survival during Dormancy. In Dormancy and Resistance in Harsh Environments. Topics in Current Genetics; Lubzens, E., Cerda, J., Clark, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; Volume 21, 300p. [Google Scholar]
  24. Gilbert, J.J. Rotifera. In Fertilization, Development, and Parental Care. Reproductive Biology of Invertebrates; Oxford & IBH Publishing Corporation, PVT, Ltd.: Oxford, UK, 1989; pp. 179–199. [Google Scholar]
  25. Marcial, H.S.; Hagiwara, A.; Snell, T.W. Effect of Some Pesticides on Reproduction of Rotifer Brachionus plicatilis Müller. Hydrobiologia 2005, 546, 569–575. [Google Scholar] [CrossRef]
  26. Yaobin, Q.I. Estudos Sobre a Variação Temporal Da Composição de Macroalgas Marinhas Em Uma Baía Poluída—O Caso de Santos; Universidade de São Paulo: Litoral de São Paulo, Brazil, 1999. [Google Scholar]
  27. Fenchel, T. Ecology of Protozoa. The Biology of Free-Living Phagotrophic Protists; Brock, T.D., Ed.; Springer: Berlin, Germany, 1987. [Google Scholar] [CrossRef]
  28. Sakakura, Y.; Hagiwara, A.; Mark Welch, D.; Suga, K.; Tanaka, Y. Analysis of Expressed Sequence Tags of the Cyclically Parthenogenetic Rotifer Brachionus plicatilis. PLoS ONE 2007, 2, e671. [Google Scholar] [CrossRef]
  29. Hueck-Van Der Plas, E.H. Experiences with an Inventory of Ecological Tests Based on an Enquiry by the OECD Chemicals Group. In Tests for the Ecological Effects of Chemicals; Erich Schmidt Verlag: Berlin, Germany, 1978; pp. 63–73. [Google Scholar]
  30. Baudo, R. Ecotoxicological Testing with Daphnia. In Daphnia; Peters, R.H., de Bernardi, R., Eds.; Mem. Ist. Ital. Idrobiol.: Verbania, Italy, 1987; pp. 45, 461–482. [Google Scholar]
  31. Rico-Martínez, R.; Velázquez-Rojas, C.A.; Pérez-Legaspi, I.A.; Santos-Medrano, G.E. The Use of Aquatic Invertebrate Toxicity Tests and Invertebrate Enzyme Biomarkers to Assess Toxicity in the States of Aguascalientes and Jalisco, Mexico. In Biomonitors and Biomarkers as Indicators of Environmental Change; Butterworth, F.M., Gunatilake, A., Gonsebatt Bonaparte, M.E., Eds.; Plenum Press: New York, NY, USA, 2000; in press. [Google Scholar]
  32. Snell, T.W.; Dusenbery, D.; Dunn, L.; Walls, N. Biomarkers for Managing Water Resources; ERC 02-93; Georgia Institute of Technology, Envrionmental Resources Center, Publication: Atlanta, GE, USA, 1993. [Google Scholar]
  33. Pérez-Legaspi, I.A.; Rico-Martínez, R. Acute Toxicity Tests on Three Species of the Genus lecane (Rotifera: Monogononta). Hydrobiologia 2001, 446–447, 375–381. [Google Scholar] [CrossRef]
  34. INEGI. Estudio Hidrológico Del Estado de Aguascalientes; INEGI: Aguascalientes, Mexico, 1993. [Google Scholar]
  35. Cheng, C.H.; Lehmann, J.; Thies, J.E.; Burton, S.D.; Engelhard, M.H. Oxidation of Black Carbon by Biotic and Abiotic Processes. Org. Geochem. 2006, 37, 1477–1488. [Google Scholar] [CrossRef]
  36. Yang, H.; Yan, R.; Chen, H.; Lee, D.H.; Zheng, C. Characteristics of Hemicellulose, Cellulose and Lignin Pyrolysis. Fuel 2007, 86, 1781–1788. [Google Scholar] [CrossRef]
  37. Glaser, B.; Lehmann, J.; Zech, W. Ameliorating Physical and Chemical Properties of Highly Weathered Soils in the Tropics with Charcoal—A Review. Biol. Fertil. Soils 2002, 35, 219–230. [Google Scholar] [CrossRef]
  38. Joseph, S.; Downie, A.; Chan, K.Y.; Van Zwieten, L.; Meszaros, I. Agronomic Values of Greenwaste Biochar as a Soil Amendment. Aust. J. Soil Res. 2007, 45, 629–634. [Google Scholar]
  39. EBC. Guidelines for a Sustainable Production of Biochar. Eur. Biochar Found. 2016, 1–22. [Google Scholar] [CrossRef]
  40. ASTM. Standard Guide for Collection, Storage, Characterization, and Manipulation of Sediments for Toxicological Testings, E1391-94. In ASTM Standards on Environmental Sampling; American Society for Testing and Materials International: West Conshohocken, PA, USA, 1996. [Google Scholar]
  41. USEPA/USACE. Dredged Material Proposed for Discharge in Waters of the U.S. (Inland Testing Manual); USEPA/USACE: Washington, DC, USA, 1998.
  42. United States Environmental Protection Agency (EPA). Methods for Collection, Storage and Manipulation of Sediments for Chemical and Toxicological Analyses: Technical Manual; EPA 823-B-01-002; U.S. Environ. Prot. Agency, Off. Water: Washington, DC, USA, 2001; pp. 1–208.
  43. DÜV. Verordnung über Die Anwendung von Düngemitteln Nach Den Grundsätzen Der Guten Fachlichen Praxis Beim Düngen (Düngeverordnung—DÜV); DÜV: Bundesgesetzblatt I: Bonn, Germany, 2006; pp. 221–247. [Google Scholar]
  44. Bundesgesetzblatt. Gesetz Zum Schutz Vor Schädlichen Bodenveränderungen Und Zur Sanierung von Altlasten (Bundes-Bodenschutzgesetz); Bundesgesetzblatt I: Bonn, Germany, 2015; pp. 1–12. [Google Scholar]
  45. Dieckmann, J. An Improved Protargol Impregnation for Ciliates Yielding Reproducible Results. Eur. J. Protistol. 1995, 31, 372–382. [Google Scholar] [CrossRef]
  46. Sonneborn, T.M. Chapter 12 Methods in Paramecium Research. In Methods in Cell Biology; Academic Press: New York, New York, USA, 1970; pp. 241–339. [Google Scholar] [CrossRef]
  47. Madoni, P. The Acute Toxicity of Nickel to Freshwater Ciliates. Environ. Pollut. 2000, 109, 53–59. [Google Scholar] [CrossRef]
  48. USEPA. Technical Support Document for Water Quality-Based Toxic Control. Off. Water Enforc. 1991, 2, 335. [Google Scholar] [CrossRef]
  49. Secretaría de Economía. Norma Mexicana NMX-AA-087-SCFI-2010 Análisis de Agua-Evaluación de Toxicidad Aguda Con Daphnia Magna, Straus (Crustácea-Cladócera)-MÉTODO DE PRUEBA (Cancela a La NMX-AA-087-SCFI-1995); Secretaría de Economía: Cuauhtémoc, Mexico, 2010; p. 39.
  50. Cooney, J.D. Freshwater Tests. In Fundamentals of Aquatic Toxicology: Effects, Environmental Fate, and Risk Assessment; Rand, G.M., Petrocelli, S.R., Eds.; Washington Hemisphere Publishing Corporation: Washington, DC, USA, 1995; pp. 71–102. [Google Scholar]
  51. Miyoshi, N.; Kawano, T.; Tanaka, M.; Kadono, T.; Kosaka, T.; Kunimoto, M.; Takahashi, T.; Hosoya, H. Use of Paramecium Species in Bioassays for Environmental Risk Management: Determination of IC50 Values for Water Pollutants. J. Health Sci. 2003, 49, 429–435. [Google Scholar] [CrossRef][Green Version]
  52. Hernández-Flores, S.; Rico-Martínez, R. Study of the Effects of Pb and Hg Toxicity Using a Chronic Toxicity Reproductive 5-Day Test with the Freshwater Rotifer Lecane Quadridentata. Environ. Toxicol. 2006, 21, 533–540. [Google Scholar] [CrossRef]
  53. USEPA. Daphnid, Ceriodaphnia Dubia, Survival and Reproduction Test; Chronic Toxicity; No. Method 1002.0; USEPA: Washington, DC, USA, 2002.
  54. Boateng, A.; Garcia-Perez, M.; Masek, O.; Brown, R.; del Campo, B. Biochar Production Technology. In Biochar for Environmental Management: Science, Technology and Implementation; Lehman, J., Joseph, S., Eds.; Routledge: London, UK, 2015; pp. 63–87. [Google Scholar]
  55. Conte, P.; Schmidt, H.P. Soil-Water Interactions Unveiled by Fast Field Cycling NMR Relaxometry. eMagRes 2017, 6, 453–464. [Google Scholar] [CrossRef]
  56. Mejía-Saavedra, J.; Sánchez-Armass, S.; Santos-Medrano, G.E.; González-Amaro, R.; Razo-Soto, I.; Rico-Martínez, R.; Díaz-Barriga, F. Effect of Coexposure to DDT and Manganese on Freshwater Invertebrates: Pore Water from Contaminated Rivers and Laboratory Studies. Environ. Toxicol. Chem. 2005, 24, 2037–2044. [Google Scholar] [CrossRef] [PubMed]
  57. Santos-Medrano, G.E.; Ramírez-López, E.M.; Hernández-Flores, S.; Azuara-Medina, P.M.; Rico-Martínez, R. Determination of Toxicity Levels in the San Pedro River Watershed, Aguascalientes, Mexico. J. Environ. Sci. Health Part A 2007, 42, 1403–1410. [Google Scholar] [CrossRef] [PubMed]
  58. Torres Guzmán, F.; González, F.J.A.; Rico Martínez, R. Implementing Lecane Quadridentata Acute Toxicity Tests to Assess the Toxic Effects of Selected Metals (Al, Fe and Zn). Ecotoxicol. Environ. Saf. 2010, 73, 287–295. [Google Scholar] [CrossRef]
  59. Štrojsová, M.; Vrba, J. Direct Detection of Digestive Enzymes in Planktonic Rotifers Using Enzyme-Labelled Fluorescence (ELF). Mar. Freshw. Res. 2005, 56, 189–195. [Google Scholar] [CrossRef]
  60. De Coen, W.M.; Janssen, C.R. The Use of Biomarkers in Daphnia Magna Toxicity Testing: I. The Digestive Physiology of Daphnids Exposed to Toxic Stress. Hydrobiologia 1998, 367, 199–209. [Google Scholar] [CrossRef]
  61. Freddo, A.; Cai, C.; Reid, B.J. Environmental Contextualisation of Potential Toxic Elements and Polycyclic Aromatic Hydrocarbons in Biochar. Environ. Pollut. 2012, 171, 18–24. [Google Scholar] [CrossRef]
  62. Chen, M.; Soudek, P.; Xia, W.; Luo, F.; Song, J.; Dong, M. Characterization of Contaminants and Evaluation of the Suitability for Land Application of Maize and Sludge Biochars. Environ. Sci. Pollut. Res. 2014, 21, 8707–8717. [Google Scholar] [CrossRef]
  63. Kim, E.J.; Oh, J.E.; Chang, Y.S. Effects of Forest Fire on the Level and Distribution of PCDD/Fs and PAHs in Soil. Sci. Total Environ. 2003, 311, 177–189. [Google Scholar] [CrossRef]
Figure 1. Location of three feedstock sampling sites, pyrolysis, and the laboratory site in the state of Aguascalientes, Mexico. Brown dot: Municipality of Rincón de Romos—“Sierra Fria”; yellow dot: Sanitary Landfill—“San Nicolas”; green dot: Green Area—“Parque Mexico”; Red dot: Universidad Panamericana—“Kon-Tiki flame curtain kiln”; blue dot: Universidad Autónoma de Aguascalientes—“Laboratory”.
Figure 1. Location of three feedstock sampling sites, pyrolysis, and the laboratory site in the state of Aguascalientes, Mexico. Brown dot: Municipality of Rincón de Romos—“Sierra Fria”; yellow dot: Sanitary Landfill—“San Nicolas”; green dot: Green Area—“Parque Mexico”; Red dot: Universidad Panamericana—“Kon-Tiki flame curtain kiln”; blue dot: Universidad Autónoma de Aguascalientes—“Laboratory”.
Applsci 09 01706 g001
Figure 2. Structure of biochar (BC) 1 from manchineel tree and pine (60/40) mixed wood produced with Kon-Tiki flame curtain kiln in Aguascalientes. Electron micrograph: 15 kV zoom × 250, Universidad Autónoma de Aguascalientes, November 2017.
Figure 2. Structure of biochar (BC) 1 from manchineel tree and pine (60/40) mixed wood produced with Kon-Tiki flame curtain kiln in Aguascalientes. Electron micrograph: 15 kV zoom × 250, Universidad Autónoma de Aguascalientes, November 2017.
Applsci 09 01706 g002
Figure 3. Photograph of dead Lecane quadridentata. Digestive tract filled with BC particles as indicated by the arrows.
Figure 3. Photograph of dead Lecane quadridentata. Digestive tract filled with BC particles as indicated by the arrows.
Applsci 09 01706 g003
Figure 4. Photograph of dead Daphnia magna. Digestive tract filled with BC particles as indicated by the arrows.
Figure 4. Photograph of dead Daphnia magna. Digestive tract filled with BC particles as indicated by the arrows.
Applsci 09 01706 g004
Figure 5. Photograph of dead Moina Macrocopa. Digestive tract fully filled with BC particles as indicated by the arrows.
Figure 5. Photograph of dead Moina Macrocopa. Digestive tract fully filled with BC particles as indicated by the arrows.
Applsci 09 01706 g005
Table 1. Woody composition of sample 2, municipal composting.
Table 1. Woody composition of sample 2, municipal composting.
Timber Species
Common NameScientific NameContent (%)
Velvet MesquiteProsopis velutina18
Ash TreeFraxinus excelsiur16
Australian PineCasuarina equisetifolia15
EucalyptusEucalyptus spp.15
Ficus TreeFicus benjamina12
Peruvian Mastic TreeSchinus molle11
Pynion PinePinus cembroides8
BugambiliaBougainvillea spp.4
PalmFamily Arecaceae1
Table 2. Woody composition of sample 3, municipal composting.
Table 2. Woody composition of sample 3, municipal composting.
Tree Species
Colloquial NameScientific NameContent (%)
Velvet MesquiteProsopis velutina38
Ash TreeFraxinus excelsiur24
Manchineel TreeHippomane mancinella21
Australian PineCasuarina equisetifolia17
Table 3. Analyses of four BCs based on four different feedstocks generated with a Kon-Tiki flame curtain kiln in Aguascalientes, Mexico at Universidad Panamericana. Analyzed by an European Biochar Certificate (EBC) accredited laboratory following the EBC analytical methods and compared to the EBC thresholds for premium and basic BC quality 1.
Table 3. Analyses of four BCs based on four different feedstocks generated with a Kon-Tiki flame curtain kiln in Aguascalientes, Mexico at Universidad Panamericana. Analyzed by an European Biochar Certificate (EBC) accredited laboratory following the EBC analytical methods and compared to the EBC thresholds for premium and basic BC quality 1.
Biochar (BC) BC 1BC 2BC 3BC 4EBC Threshold
ParameterUnitFMaDMFMaDMFMaDMFMaDMPremiumBasic
Water holding capacity (WHC)mass-% 165.8 200.0 149.1 254.2
Bulk densitykg m−3385 504 567 368
Specific surface (by BET)m−2 g 305 140 280 54
Particle densityg cm−3 1.64 1.59 1.76 1.58
Total water contentmass-% 28.4 39.8 35.9 60.7
Ash content 550 °Cmass-% 8.6 128.7 14.5 11.4 17.7 5.1 13.1
Hydrogenmass-% 0.690.961.10 1.82 0.56 0.87 0.67 1.70
Total carbon (TC)mass-% 63.9 89.247.0 78.1 51.5 80.4 30.9 78.7 >50>50
Total inorganic carbon (TIC)mass-% 0.7 1.00.8 1.3 0.9 1.3 0.4 1.0
Nitrogenmass-% 0.220 0.30.39 40.66 0.5 0.79 0.46 1.17
Oxygenmass-% 0.81.15.18.5 3.35.23.17.9
Carbonate CO2mass-% 2.623.662.774.63.124.87 1.51 3.84
Organic carbonmass-% 63.288.246.276.8 50.679.1 30.5 77.7
H/C (molar ratio) 0.130.13 0.28 0.28 0.130.13 0.260.26<0.6 <0.6
H/Corg (molar ratio) 0.13 0.130.280.28 0.130.13 0.260.26<0.7 <0.7
O/C (molar ratio) 0.010.009 0.080.0820.05 0.050.080.08<0.4<0.4
pH value (CaCl2) 7.8 8.2 8.5 8.3 ≤10 ≤10
Electric conductivityµS cm−1336 566 617 580
Salt contentg kg−11.772.48 2.994.96 3.265.09 3.067.79
Salt contentg L−10.68 0.95 1.512.50 1.85 2.88 1.16
Phosphorousmg kg−1 470 1400 2300 7.79
Magnesiummg kg−1 1800 2500 2500 2.94
Calciummg kg−1 36,000 41,000 51,000 2300
Potassiummg kg−1 4000 11,000 9800 2900
Sodiummg kg−1 350 1000 910 32,000
Ironmg kg−1 460 760 830 12,000
Silicamg kg−1 6100 10,000 9200 1400
Sulfurmg kg−1 170 680 2100 1000
Arsenicmg kg−1 <0.8 <0.8 <0.8 <0.8 <13 <13
Leadmg kg−1 3 3 <2 3 <120 <150
Cadmiummg kg−1 <0.2 <0.2 <0.2 <0.2 <1.0 <1.5
Coppermg kg−1 7 13 15 37 <100 <100
Nickelmg kg−1 <1 1 <1 1 <30 <50
Mercurymg kg−1 <0.07 <0.07 <0.07 <0.07 <1.0 <1
Zincmg kg−1 61 28 21 53 <400 <400
Chromiummg kg−1 <1 1 <1 <1 < 0 <90
Boronmg kg−1 15 29 21 51
Manganesemg kg−1 560 350 360 460
Total PAH (EPA-16)mg kg−1 4.8 5.3 0.7 8.0<4<12
pH QW (source water pH 8.1) n.a.10.813.210.5
1 Abbreviations: aDM, absolute dry matter; FM, fresh matter; QW, quenched water; BET, Brunauer–Emmet–Teller method; EBC, European Biochar Certificate; PAH, polycyclic aromatic hydrocarbon; EPA, Environmental Protection Agency; n.a., not applicable.
Table 4. Values for the polycyclic aromatic hydrocarbons (PAHs) in four BCs 2.
Table 4. Values for the polycyclic aromatic hydrocarbons (PAHs) in four BCs 2.
Biochar (BC)BC 1BC 2BC 3BC 4
PAHmg kg−1mg kg−1mg kg−1mg kg−1
Naphtalin2.52.60.63.3
Acenaphthylen<0.1<0.1<0.1<0.1
Acenaphthen<0.1<0.1<0.1<0.1
Fluoren0.70.3<0.10.5
Phenanthren0.61.10.11.6
Anthracen0.10.3<0.10.3
Fluoranthen0.40.4<0.11.0
Pyren0.50.4<0.11.0
Benz(a)anthraren<0.10.1<0.10.1
Chrysen<0.10.1<0.10.2
Benzo(b)fluoranthen<0.1<0.1<0.1<0.1
Benzo(k)fluoranthen<0.1<0.1<0.1<0.1
Benzo(a)pyren<0.1<0.1<0.1<0.1
Indeno(1,2,3-cd)pyren<0.1<0.1<0.1<0.1
Dibenzo(a,h)anthracen<0.1<0.1<0.1<0.1
Benzo(g,h,i)perylen<0.1<0.1<0.1<0.1
Total PAH4.85.30.78.0
2 Toluol extraction, DIN EN 15527 (FR-JE02).
Table 5. Condensed values for the polychlorinated dibenzo-p-dioxins and dibenzofurans (PCDD/Fs), polychlorinated biphenyls (PCBs), and dl-PCBs in four BCs plus EBC threshold 3.
Table 5. Condensed values for the polychlorinated dibenzo-p-dioxins and dibenzofurans (PCDD/Fs), polychlorinated biphenyls (PCBs), and dl-PCBs in four BCs plus EBC threshold 3.
Sum of SubstancesUnitBC 1BC 2BC 3BC 4EBC
Ʃ WHO(2005) PCDD(7)/F(10) (TEQ) [incl. LOQ]ng kg−1 DM0.400.390.390.4020
Ʃ WHO(2005) PCDD(7)/F(10) (TEQ) [incl. LOQ]ng kg−1 88%DM0.350.340.340.350.75
Ʃ WHO(2005) PCB(12) (TEQ) [incl. LOQ]ng kg−1 DM0.0410.0400.0400.0400.35
Ʃ WHO(2005) PCDD(7)/F(10) + PCB(12) (TEQ) [incl. LOQ]ng kg−1 88%DM0.0360.0350.0350.0361.25
Ʃ WHO(2005) Indicator PCB(6) [excl. LOQ]µg kg−1 88%DM0.4000.2300.0180.02410
3 Abbreviations: WHO(2005), values based on World Health Organization toxic equivalency factor from 2005; PCDD(7), 7 EBC required polychlorinated dibenzo-p-dioxins; PCDF(10), 10 EBC required polychlorinated dibenzofurans; TEQ, toxicity equivalency quotient; LOQ, limit of quantitation; PCB(12), 12 EBC required polychlorinated biphenyls; PCB(6), 6 EBC required indicator polychlorinated biphenyls; DM, dry matter.
Table 6. Results of the growth inhibition tests with Paramecium caudatum. n = 5.
Table 6. Results of the growth inhibition tests with Paramecium caudatum. n = 5.
Treatment% Inhibition
Control0
Soil1.99
BC 12.65
BC 22.65
BC 30
BC 41.32
Table 7. Acute toxicity values of Lecane quadridentata to BCs 4.
Table 7. Acute toxicity values of Lecane quadridentata to BCs 4.
ParameterBC 1BC 2BC 3BC 4
LC1010.764.1613.3610.37
LC5019.958.3625.1420.36
NOEC25<6.256.25<6.25
LOEC506.2512.506.25
95% CL LC5012.36–32.215.92–11.8317.78–35.4815.85–20.40
CV3.85.76.56.8
0.38550.70010.68760.8110
4 Abbreviations correspond to the following: BC 1–4, Biochar 1 to 4; LC10, lethal concentration where 10% of animals die; LC50, lethal concentration where 50% of animals die; NOEC, no observed effect concentration; LOEC, lowest observed effect concentration; CV, coefficient of variation; 95% CL LC50, confidence limits for the LC50 values; r², correlation coefficient. LC, NOEC, LOEC, 95% CL, and CV are all in percentages of dilution of each elutriate.
Table 8. Acute toxicity values of Moina Macrocopa to BCs 5.
Table 8. Acute toxicity values of Moina Macrocopa to BCs 5.
ParameterBC 1BC 2BC 3BC 4
LC10NDNDNDND
LC50ND134.87306.33ND
NOECND5050ND
LOECND100100ND
95% CL LC50ND36.16–503.0337.59–2495.74ND
CVNDNDNDND
ND0.250.23ND
5 Abbreviations correspond to the following: BC 1–4, Biochar 1 to 4; LC10, lethal concentration where 10% of animals die; LC50, lethal concentration where 50% of animals die; NOEC, no observed effect concentration; LOEC, lowest observed effect concentration; CV, coefficient of variation; 95% CL LC50, confidence limits for the LC50 values; r², correlation coefficient. LC, NOEC, LOEC, 95% CL, and CV are all in percentages of dilution of each elutriate.
Table 9. Reproductive test with Moina macrocopa (7 days). n = 5.
Table 9. Reproductive test with Moina macrocopa (7 days). n = 5.
TreatmentMean Value r
Control0.408
BC 10.401
BC 40.401
Soil0.406
Table 10. Results of the growth inhibition and reproductive tests with Lecane quadridentata (Lecane), Moina macrocopa (Moina), and Paramecium caudatum (Paramecium) exposed to the BC:soil (1:8) elutriate. n = 5.
Table 10. Results of the growth inhibition and reproductive tests with Lecane quadridentata (Lecane), Moina macrocopa (Moina), and Paramecium caudatum (Paramecium) exposed to the BC:soil (1:8) elutriate. n = 5.
TreatmentLecane
Mean Value r
Moina
Mean Value r
Paramecium
% Inhibition
Control0.3710.4080
BC 1 + soil0.3560.4001.99
BC 2 + soil0.3580.4020.66
BC 3 + soil0.3560.4022.65
BC 4 + soil0.3590.4020.66
Soil0.3580.4061.32
Back to TopTop
