Multivariate Data Envelopment Analysis to Measure Airline Efficiency in European Airspace: A Network-Based Approach

Ramon Hermoso
M. Pilar Latorre
2 and
Margarita Martinez-Nuñez
Department of Computer Science and Systems Engineering, University of Zaragoza, 50009 Zaragoza, Spain
Department of Business & Administration, University of Zaragoza, 50009 Zaragoza, Spain
Department of Management Engineering, Business Administration and Statistics, Technical University of Madrid, 28040 Madrid, Spain
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(24), 5312;
Submission received: 24 October 2019 / Revised: 24 November 2019 / Accepted: 1 December 2019 / Published: 5 December 2019
(This article belongs to the Section Computing and Artificial Intelligence)


In this paper, data envelopment analysis (DEA) is applied to exhaustively examine the efficiency of the main airline companies in the European airspace by using novel input/output parameters: business management factors, network analysis metrics, as well as social media estimators. Furthermore, we also use network analysis to provide a better differentiation among efficiency values. Results indicate that user engagement, as well as the analysis of the position within the airspace-from an operative perspective, influence the efficiency of the airline companies, allowing a more comprehensive understanding of its functioning.

1. Introduction

As has occurred in many other business sectors, the airline industry has grown considerably as a consequence of the arrival of the internet, which has allowed multiple new opportunities, from online ticket purchase to real-time information updates for customers about flights or company functioning. The position of airlines in the virtual world of the internet is considered a key point to attract new customers and keep them faithful. Twitter accounts, Facebook pages, or YouTube channels, just to mention a few, are online media used for this purpose.
We can find in the literature many works assessing the efficiency of airlines [1,2,3,4,5,6,7,8,9,10]. Analysis of the efficiency of the airline industry has traditionally been carried out from an economic perspective, mainly using micro-and/or macro-economic estimates to assess the viability of a company, its business plan, its fleet optimization, or its route planning, just to mention a few [2,7,10,11,12,13,14]. Some authors focus on specific economic variables such as the cost or passenger revenue [2,15,16], while others analyze efficiency by taking into account other airline features, such as fleet or aircraft departures [17,18], and some even include variables such as network size [1,16] or aircraft manufacturers [19].
The maximum efficiency an institution can attain is determined by the heterogeneity of its [1,2,3,4,5,6,7,8,9,10] resources and the capabilities of its management [20]. Resource-based theory [21,22,23] has been widely adopted as the reference point for research into efficient production management within institutions as it can help explain why some firms consistently outperform others. Actually, only a few approaches include some other more heterogeneous aspects of study when considering how to evaluate the efficiency of an airline [1,24]. However, the emergence of new features able to describe the functioning and the position of an airline in the market—such as its relative presence on the internet or its development with regard to other companies—have brought about new opportunities to compare its behavior in the airline business. Designing new models to utilize those non-economic parameters in order to study efficiency has become an interesting topic to address. This paper attempts to add into the equation some important features not often included into the efficiency analysis of airlines, namely social media indicators or network analysis measures.
We propose a novel approach that addresses the aforementioned issues by using data envelopment analysis (DEA) techniques along with several variables relevant to the efficiency of an airline, such as business management factors, the position of the company in terms of network analysis, and social media indicators. We aim to compare how including the two latter factors in the analysis of efficiency may produce different results from relying on traditional economic variables. To the best of our knowledge, this is the first paper on this topic and should help to build a more holistic view of the airline industry.
The paper is organized as follows. In the next section, we motivate our work by reviewing some related work in the literature. In Section 3, we present the methodology we use to study efficiency throughout the paper. Section 4 sets out the data collected related to the European airlines we study. We present the results obtained in Section 5. Finally, we discuss the results, draw some conclusions, and sketch some future avenues for research in Section 6.

2. Background

Air transport contributed more than €110 billion to the European GDP(gross domestic product) in 2014, and airlines have usually been effective in improving productivity [25]. The efficiency of the internal management of institutions is a function of the costs and benefits of their activities [26]. Literature has plenty of examples of the use of DEA to measure efficiency in airlines (see Table 1). This technique has often been utilized to evaluate efficiency through the use of financial resource indicators, both at corporate and at market level [27]. However, there exist two main trends in which airlines have been evaluated in the last years, in terms of performance: economic and/or operative [28,29,30,31] and economic and/or environmental [7,14,32].
There have been a considerable number of studies measuring the efficiency of European institutions through DEA [14,33,34], between others. Barros and Peypoch [35] used DEA-CCR(Charnes–Cooper–Rhodes) and two-stage regression to analyze technical efficiency and concluded that airlines should consider managerial causes of inefficiency scores when developing strategies, whilst Lee and Worthington [36] employed a double bootstrapping DEA model to analyze the period following deregulation of the European airline industry and financial turmoil in the US airline industry. Another study [14] used network slacks-based measures to analyze how including aviation in the European Union Emission Trading Scheme has affected airline efficiency since 2008. Merkert and Williams [37] used two-stage DEA to measure the efficiency of 18 European public service obligation (PSO) airlines over two fiscal years and concluded that operators with a large number of PSO contracts appear to be more efficient than those with only a few such contracts.
There are also studies of European airlines that have used DEA to explore environmental factors [34]; these studies suggest that the average productivity of airlines, which take an environmentally sensitive approach to growth, is lower than that of airlines taking a more traditional approach. More recent research [33] has used network-based DEA and shows a dynamic component, since performance differed across types of airlines during the 2000s.
However, in the above works, although the methodology applied to obtain conclusions is based on DEA, and they have brought about some important advances in gaining a better understanding of the functioning of the airline industry, they have not addressed airlines in Europe as an ecosystem, where other factors may be considered. As an example, in [38], the authors present a review specific to European airlines and social media research, which concludes that new information and communication technology has had a profound impact on airlines’ delivery and consumption, increasing customer engagement, and loyalty in a technologically connected world [32,38,39,40,41,42]. With this in mind, in this paper, we add analysis of social media indicators to a DEA-based approach measurement of the efficiency of airlines.
To understand the functioning of a complex system, it is essential to analyze its structure [43]. There is some research which has used network analysis to study the development of the airline industry. For instance, Brueckner [44] presented a simple rule for the computation of airport congestion tolls, reflecting the internalization of congestion by analyzing a complex network formed by hub airports. Bagler [45] analyzed the Indian airport network (as a weighted network), concluding that it follows a small-world model and comparing it to the worldwide airport network. To the best of our knowledge, however, network analysis has not previously been used to estimate airline efficiency. In this paper, we propose to study the network formed by the airports in which the airlines operate. By analyzing such a network, we will be able to extract certain centrality measures that may provide useful information about the airline business positioning. As we will detail, these centrality scores will be incorporated into a DEA process as input variables.

3. Methodology

3.1. Data Envelopment Analysis (DEA)

DEA can be roughly defined as a non-parametric method of measuring the efficiency of a decision-making unit (DMU) with multiple inputs and/or multiple outputs. DEA is used to measure the relative productivity of a DMU by comparing it with other homogeneous units, transforming the same group of measurable positive inputs into the same types of measurable positive outputs. Charnes, Cooper, and Rhodes [49] introduced the DEA method to address the problem of efficiency measurement for DMUs with multiple inputs and multiple outputs in the absence of market prices.
They coined the expression ‘decision making units’ (DMU) to include non-market agencies such as schools, hospitals, and courts, which produce identifiable and measurable outputs from measurable inputs but generally lack market prices for outputs (and often for some inputs as well). Supposing that there are N firms, each producing m outputs from n inputs, firm t uses the input bundle to produce the output bundle. As noted above, measurement of average productivity requires the aggregation of inputs and outputs. Charnes et al. [49] proposed a minimization problem to obtain the efficiency score, assuming a constant returns scale (CRS). This represents the global technical efficiency of a DMU, known as the CCR (Charnes–Cooper–Rhodes) model. They assume that there are n DMUs to be evaluated. Each DMU consumes varying amounts of m different inputs to yield s different outputs. More in particular, DMU j consumes amount x i j of input i and produces amount y r j of output r . Equation (1) presents the multiplier CCR model in an output-oriented version displayed as a linear programming problem:
min q = i = 1 m ν i χ i o min q = i = 1 m ν i χ i o subject   to i = 1 m ν i χ i j r = 1 s μ r y r j 0 r = 1 s μ r y r j = 1 μ r , ν i ε > 0 ,
where ε   >   0 is an element defined to be a negligible positive real number, and μ , υ are the weight vectors of output variables. If the constraint j = 1 n λ j = 1 holds, then the model is called BCC (Banker–Charnes–Cooper) proposed by Banker et al. [50]. This model incorporates the property of variable returns to scale (VRS).

3.2. Bootstrapping DEA Technique

Data errors may severely affect the efficacy of DEA. The DEA method uses a sample for the efficiency analysis, so the specific differences that can be found in estimations may be only motivated by sampling noise to a great extent than precise deviation in efficiency scores of the units. In this paper, we use a bootstrapping approach to address to this problem. Bootstrapping, introduced by Efron [51], is based on the idea of re-sampling from an original sample to create replica datasets which we can use to make statistical inferences. The ‘smoothed bootstrap’ approach of Simar and Wilson [52,53] is used in this study. The theoretical foundations of this method are set out in [53].
The key assumption underlying this approach is that the known bootstrap distribution will mimic the original, unknown distribution provided that the known data generating process (DGP) is a consistent estimator of the unknown DGP. The most common approach is to estimate the original densities of the performance scores non-parametrically using kernel smoothing methods, combined with a reflection method [54]. If this approach is followed, the bootstrap process will generate values that mimic the distributions that would be generated from unobserved and unknown DGP [52,55]. This work uses the bootstrapping technique proposed by Martínez-Núñez and Pérez-Aguiar [56] which can be summarized as follows:
  • Calculate the DEA efficiency score { θ i ^ ; i = 1 , 2 , , n } with the original data ( x i , y i ) .
  • Use Kernel density estimation and the reflection method to generate a random sample { θ i * ; i = 1 , 2 , , n } with replacement from the original DEA efficiency score θ i ^ .
  • Generate θ i *   using:
    θ ˜ i * =   θ i * + h ε i * ,   i = 1 ,   2 , ,   n ,
    where ε i * is a random draw from a standard normal distribution and h is a control parameter.
  • Obtain θ i * * from
    θ i * * = θ ¯ * + θ ˜ i * θ ¯ * 1 + h 2 s * 2 ,   i = 1 ,   2 ,   ,   n .
  • Generate resampled pseudo-efficiencies γ i * using
    γ i * = { 2 θ i * * ,   i f   θ i * * < 1   θ i * * ,   i . o . c . .
  • Obtain a0 new data sample using ( x i * , y i ) = ( γ i * θ i ^ x i , y i ) .
  • Calculate the DEA efficiency score with { θ ^ i * ; i = 1 , 2 , , n } data, ( x i * , y i ) .
  • Repeat steps 2 to 7 B times to create a set with B efficiency estimates for each unit:
    θ ^ i , b * ; i = 1 ,   2 ,   ,   n ;   b = 1 , 2 , ,   B .
The bootstrap estimate of the DEA bias is obtained through
b i a s i = 1 B b = 1 B θ ^ i , b * θ ^ i ,   i = 1 , 2 , , n .
A bias corrected efficiency estimator is then obtained by defining
θ ˜ i = 2 θ i ^ 1 B b = 1 B θ ^ i , b * ,   i = 1 , 2 , ,   n .

3.3. Calculating Centrality Measures to Feature DEA

In this section, we intend to show how network analysis may be an important factor to consider when studying the efficiency of airline companies. We claim that using this kind of analysis allows additional relevant input properties to be included in the analysis of an organization’s efficiency. In particular, we are interested in studying how centrality measures affect efficiency in the airline industry. With that in mind, we propose to develop a network model extracting relationships among airlines in terms of common operations airports, as well as incorporating centrality measures such as degree and eigenvector centrality into DEA efficiency analysis.

3.3.1. Network Model

Network analysis focuses on the use of different metrics with sets of entities linked to one another in some way. First, we define the sorts of networks we examine in this paper—i.e., those generated from European airline companies and their relationships in the European airspace. Let G = ( V , E ) be a graph in which V represents the set of airlines and E stands for the set of links or connections between them. Let ( v i ,   v j ) E , with v i ,   v j   V , be an edge in G representing that airlines v i and v j operate in the same airport. For the purpose of this paper, we consider relationships to be bidirectional—that is, if there is ( v i , v j ) E , ( v j , v i ) E necessarily also exists. Thus, the graph G generated by the network is undirected.

3.3.2. Airline Analysis Using Centrality Network Metrics

There are many different metrics that make it possible to uncover some interesting individual behaviors and global properties in a network. We claim that in the domain we consider (airlines), centrality metrics are necessary to shed light on the importance of the position of an airline in the network generated. In other words, centrality metrics attempt to measure how well placed an airline is in relation to the other companies in the airspace—in this case, European airspace. The concept of centrality encapsulates micro measures that allow us to compare nodes and to say something about how a given node relates to the overall network [57,58]. Our hypothesis lies in finding out whether deep knowledge of the position of the airlines in the context of the overlying network generated from the relationships that emerge in the European airspace may bring about certain benefits when studying the efficiency. Let us now set out the different metrics we use to accomplish this task.
Degree centrality. The simplest way of measuring the position of a node in a network (henceforth we use the terms ‘node’ and ‘airline’ synonymously when referring to an entity in the network) is to consider the so-called degree centrality. This represents the number of links that a node has. Formally:
D C v i = d ( v i ) | V | 1 ,
where d ( v i ) denotes the degree of node v i in the network. This metric shows how well a firm is connected in terms of direct links. We can also provide an average degree centrality value as follows:
D C ¯ = 1 n v i d ( v i ) | V | 1 .
This value represents an average estimate for the number of relationships between the companies as a macro indicator of its presence in Europe.
Although degree centrality may be an important factor when analyzing an airspace network, it misses certain aspects that should be considered. While it captures the geographical distribution of an airline perfectly, it does not reflect the strength of its position within the network—i.e., the importance of the firm relative to the whole airline industry. In any case, it may be that an airline has relatively few relationships but lies in a critical location within the network. In other words, different airlines might yield different performances depending on the airports they operate in, even if the number of links they have remain the same. We use eigenvector centrality to overcome this issue.
Eigenvector centrality. Eigenvector centrality (we also use eigencentrality interchangeably throughout the paper), proposed by Bonacich [59], is able to represent the importance of a node in the network. Let E C ( G ) be the eigenvector centrality associated with a network: the crux is that the centrality of a node is proportional to the sum of the centrality of its neighbors. Formally:
E C v i = 1 λ j = 1 n A j , i E C v j ,
in which λ is a scalar called eigenvalue and A is an adjacency matrix representing the network. The Perron–Frobenius theorem from linear algebra guarantees that when we work with an undirected network, being a connected component—as occurs in our case—iterating over Equation (4) always converges on a fixed-point equivalent to:
λ   E C ( G ) = A T   E C ( G ) .
As our airlines’ network is undirected, then A = A T , so resulting in:
λ   E C ( G ) = A   E C ( G ) .
As a set of separate equations (with a i j being elements of the adjacency matrix A ), we obtain:
( a 11 a 12 a 1 n a 21 a 21 a 2 n a n 1 a n 2 a n n ) · ( x 1 x 2 x n ) = λ ( x 1 x 2 x n )
a 11 x 1 + a 12 x 2 + + a 1 n x n = λ x 1 a 21 x 1 + a 22 x 2 + + a 2 n x n = λ x 2   a n 1 x 1 + a n 2 x 2 + + a n n x n = λ x n .
To solve this set of equations, we need to find eigenvalue–eigenvector pairs ( λ , E C ( G ) ) . A matrix can have several eigenvalues (to find the eigenvalues of matrix A , we simply solve the determinant | A λ I | , where I stands for the identity matrix.), and, in turn, several associated eigenvectors. Again, following the Perron–Frobenius theorem, we choose the highest eigenvalue in order to assure positive values in the correspondent eigenvector (positive centrality scores). If we take λ ¯ as the highest eigenvalue in Equation (7) then, after bringing the right-side terms to the left-hand side, we have:
( ( a 11 λ ¯ ) a 12 a 1 n a 21 ( a 21 λ ¯ ) a 2 n a n 1 a n 2 ( a n n λ ¯ ) ) · ( x 1 x 2 x n ) = ( 0 0 0 ) .
Computing eigenvector centralities can be done in a reasonable time (it presents a complexity of O ( n 3 ) ).
In summary, eigenvector centrality allows us to calculate how important an airline is in the airspace being analyzed by taking into account the importance of the surrounding companies.

3.4. A Network-Based Approach to Refine DEA

As mentioned, DEA proves to be a rather good method to assess the efficiency of organizations. In particular, DEA outputs an efficiency frontier that may be used to determine a reference for efficiency performance. However, this efficiency frontier usually contains more than one unique efficient organization. In this paper, we adhere to the approach by Liu and Lu [60] to better discriminate between the efficiency of the efficient organizations involved in the DEA process. This approach transforms DEA output results (organizations’ efficiency) into a weighted directed network and then uses eigenvector centrality to rank the importance of each organization, so better distinguishing between efficient entities. Since we use a completely different domain of study, we have adapted Liu and Lu’s approach as follows in the next description.
Stage 1. Run DEA with the different proposed models to obtain the efficiency of the studied organizations.
Stage 2. For each model, benchmark the individual efficiencies of each airline with regards to the efficiency frontier (i.e., efficient airlines). This process outputs a lambda value of λ i , j if organization i is an exemplar of organization j, with λ i , j [ 0 , 1 ] . In other words, lambda values represent estimates to achieve target efficiency. A value of λ i , j = 0 means airline i is not a model of reference for airline j. If λ i , j > 0 , then there exists an endorsement relationship between airlines i and j. Note that λ i , j does not have to be confused with algebraic eigenvalues λ in Section 3.3.2. Since notation for both terms is accepted worldwide, we prefer not to change either of them.
Stage 3. We aggregate the lambda values resulting from each model for which we ran DEA, so obtaining a lambda matrix as follows:
( λ 11 λ 12 λ 1 m λ 21 λ 22 λ 2 m λ n 1 λ n 2 λ n m ) Model   1 + ( λ 11 λ 12 λ 1 m λ 21 λ 22 λ 2 m λ n 1 λ n 2 λ n m ) Model   2 + + ( λ 11 λ 12 λ 1 m λ 21 λ 22 λ 2 m λ n 1 λ n 2 λ n m ) Model   N = ( λ 11 λ 12 λ 1 m λ 21 λ 22 λ 2 m λ n 1 λ n 2 λ n m )
Stage 4. We use the aggregated lambda values from the previous step to generate a network in the following way:
Airlines are represented by network nodes.
A link between two nodes i and j, denoted as ( i , j ) , is created if there exists a lambda value λ i , j > 0 , which is, in turn, the weight of the link between the two nodes.
Stage 5. Calculate the eigenvector centrality for every node in the network. This step will return a ranking, from which a better discrimination of the efficiency of the airlines involved will be easily extracted.

4. Model Data

We have used data from 43 European airlines to demonstrate how DEA can be used to assess efficiency, and to offer additional data about European airlines’ competitiveness. Firstly, we collected information concerning the balance sheet for the year 2014 from the AMADEUS database ( edited by Bureau van Dijk. Secondly, data relating to the airlines’ operations was obtained from ( Data concerning social media networks was collected by trawling different web channels, such as YouTube, Twitter, and Facebook. It has been compulsory to normalize negative values due to the characteristics of the DEA model applied in this work.
This paper presents an incremental DEA multistage model whose main purpose is the measurement of efficiency at different layers from a strategic perspective. The comprehensive model integrating all layers is the so-called overall DEA model. Three layers are analyzed using DEA: business DEA layer, network DEA layer, and social media DEA layer. Each layer has several steps in which the variables presented in Table 2 are examined.

4.1. Input–Output Data for Bus-DEA Layer

Regarding inputs, in this study a combination of these companies’ economic and human resource data was collected; these inputs were used in previous works, among other purposes, to analyze the best practice frontier performance in companies. We selected the following variables: total assets in balance sheet in 2014 [36,61]; number of employees for year 2014 as a measure of human resources [7,19,24,32,36]; and number of destinations as an indicator of geographical diversification [4]. On the other hand, the selected outputs measuring performance of business management in European airlines are sales as the profitability measure supported in the literature in previous works by Cui, Banker, and Thore [28,62,63], and millions of passengers in 2014, as a quantum of the service’s users). The source of information was the AMADEUS database edited by Bureau van Dijk.

4.2. Input–Output Data for Net-DEA Layer

Besides traditional business management variables, we claim that other types of analysis may be used to include in DEA layers, in particular, when studying airlines. We adhere to the use of network analysis to obtain centrality measures, representing how well positioned each company is with regards to its competitors. With that in mind, we work on an airlines network built as detailed in Section 3. Over this network, we calculate degree and eigenvector centrality measures that we will use in the net-DEA layer.

4.3. Input–Output Data for SM-DEA (Social Media-DEA) Layer

The present boom of social media in almost all consumption areas and habits is unquestionable. Social networks contribute to strengthening relationships among and between airline organizations and individuals. To do so, interaction and engagement are the most important functions of social media regarding the management of airlines. Social media had an important effect on companies’ performance through a sustainable brand [38,42]. Given the increasing importance of social media in airlines, the necessary next step has to do with the integration of related indicators to assess the efficiency and performance of airlines.
We add to previous DEA layer inputs–outputs data that represent support for and acceptance of a company in social networks for the SM-DEA layer.
As Martínez-Núñez and Pérez-Aguiar [56] assert, Web 2.0 technologies are features with two types of variables—firstly, response levels: number of fans, followers, hits, comments, and tweets received; and secondly, company activity levels: comments, tweets, followings, responses, publications/posts, applications, events, surveys. We incorporate different features to the SM-DEA model as inputs: tweets/days, publication/days, and number of released videos as measure of activity level in social networks [56,64,65]. As outputs we use Twitter likes, Facebook likes, and views in YouTube channels as the user response.
The information on practice of Web 2.0 technologies is based on indicators of social media activity in 2014; the data were obtained directly from the Web 2.0 tools themselves.

4.4. Model Summary and Statistical Analysis

The variables selected in each step analyzed in the different layers are displayed in Table 2. This first approach presents an incremental DEA multistage model whose main purpose is the measurement of efficiency at different layers from a strategic perspective. The model is created from a resources and capabilities view. The starting point of this model is that the network development and its impact on organizations modify the way airlines manage their services. Several factors linked to the analysis of the types of network defined in the previous sections have been selected as efficiency components in order to corroborate this starting point. On the one hand, operational networks as physical resources are studied; on the other, the incorporation of social media networks and their relationships with the customer have also been evaluated. Social media estimates must be understood as intangible components that are measured in different intermediate homogeneous steps, thereby analyzing their influence on the airline sector efficiency.
Table 3 shows all the quantitative variables used and its descriptive statistics for the 43 European airlines analyzed.

5. Results

We first show the results obtained by using DEA with the different layers selected to analyze the efficiency of the airlines.
Then we use the approach adopted from Liu et Lu [60] (see Section 3.4) to rank airlines, sorted by their importance in a referential network created by benchmarking DEA outputs.

5.1. DEA Model

We propose an incremental multistage DEA model based on Martínez-Núñez and Pérez-Aguiar [56], starting with a basic layer model (the bus-DEA layer) where business management is measured according to the economic, human, and physical resources. Later, physical variables are incorporated into the operational network resource, building the net-DEA layer. Several variables from social media networks are then integrated to form the SM-DEA layer.
The effects and implications of each social media and operation network variables were analyzed and those most representative were selected to generate a holistic comprehensive model (the overall model). All layer models were created with an output orientation. This technique aims to maximize outputs with the same set of input values [66].

5.1.1. Bus-DEA Layer (Business-DEA)

The influence of business management data in the DEA assessment has been analyzed in steps 1 and 2. The efficiency of the various airline companies is shown in Table 4, which gives a descriptive analysis of the efficiency coefficients.
Step 1 analyses only the economic and human resources of these companies, understood as businesses where the special features of the air transport sector are not considered. The average efficiency is 0.4973 and 0.6477, depending on the DEA model orientation (CCR and BCC, respectively). This suggests that companies in this sector could improve their levels of activity in terms of revenue with the same levels of input use by 51% based on constant returns, and by 36% based on variable returns. Returns may seem low in this step, but one must bear in mind that this step lacks contextual variables linked to the air transport sector, such as passengers and destinations.
These contextual variables are incorporated into Step 2 where 14 airlines are globally efficient, all of them working at an optimal scale. There are 22 efficient firms in the BCC model, which means that eight of them are technically efficient but could scale their activity to achieve global efficiency. A high value (0.93) of scale efficiency versus pure technical efficiency is also noted. The standard deviation of efficiency scores in the two steps (both in CCR and BCC orientation) exceeds 0.20, except in scale step 2 (0.1108). This means that the global inefficiencies can be assigned to managerial or operational inefficiencies. In the light of the results and the analysis of previous works, step 2 appears to be the step that best fits a basic step based on variable returns and output orientation.
As a result of the deterministic nature of the DEA method, the analysis of efficiency estimates in the presence of sample variations through the bootstrapping DEA approach is the suitable next step in an efficiency analysis [53] for the following step. For each step, we present a table showing the bootstrapping DEA results, including the average of the bias-corrected efficiency scores, bias, standard deviation, and 95% confidence intervals (lower bound and upper bound) for the bias-corrected efficiency scores.

5.1.2. Net-DEA Layer (Network-DEA)

This kind of layer provides the efficiency score changes of all the airline companies when reassigning as input some operational resources variables that, at a network level, provide information on the European destination distribution of the airlines. Table 5 shows the original values and bootstrapped performance estimates of each step of the network-DEA layer. Therefore, the number of air routes of each airline and its strategic positioning with respect to other firms are also analyzed.
As is pointed out in Section 4.2, two selected metrics make it possible to discover some interesting individual behaviors and global properties of a network.
Fried et al. [67] indicates that bias-corrected efficiency is preferable to original efficiency estimates because the estimated bias is larger than the standard deviation in every case. Therefore, the analysis described hereafter takes into account the average bias-corrected efficiency scores. Conclusions concerning efficiency changes in steps can be deduced by analysis of the bootstrap confidence intervals. A two-unit increase in efficiency score can be observed and a three-unit increase in both average bias-corrected efficiency score and inefficient average bias-corrected efficiency DMUs—three points in Step 5 that incorporates the two network variables with respect to Step 3. However, there are no significant differences between Step 4 and Step 5, as they have the same number of efficient DMUs and less than one percentage point difference in the bootstrap median score.
The eigenvector centrality has been selected as the critical factor for operational resources network management, given the results of the net-DEA Llyer and according to the higher correlation of Step 4 in relation to Steps 3 and 5 (0.956 and 0.997 Spearman’s coefficient, respectively).

5.1.3. SM-DEA Layer (Social Media-DEA)

The results for the different steps of the SM-DEA layer calculated are shown in Table 6. A trend can be appreciated when associating the efficient airline firms with indicators of their involvement in social media networks.
The virtual network platforms analyzed in this work are public and external resources to the firms. These resources do not have shortage and any stakeholder can isolate one network from the others. Thereby, the use of one or another virtual network would not suggest any increment of efficiency. But this is not so. The results of the SM-DEA layer show an increase in average efficiency for companies that use Twitter (Step 7) versus the other platforms studied. There is an increase of six and nine efficient companies (respectively) with respect to Step 6 (Facebook) and Step 8 (YouTube). In addition, Step 7 (Twitter) has the lowest interval that does not overlap with the other two steps. Furthermore, Step 6 (Facebook) presents the highest average efficiency score of inefficient DMUs. The potential increasing output of incorporating at least the Facebook platform is 0.0875 and 0.0142 (average efficiency increase of Step 7 and Step 8 with respect to Step 6, respectively). That is, when a sector-average firm starts to participate in social media, the performance of its outputs enhances by this ratio.
The Facebook metrics have been selected as critical factors for new technological resources, given the results of the SM-DEA layer and according to the higher correlation of Step 6 in relation to Steps 7 and 8 (0.842 and 0.713 Spearman’s coefficients, respectively).

5.1.4. Overall Model

Specific input reallocation for each type of network (either physical or virtual) gives rise to an efficiency improvement in the overall model. The most efficient airlines combine different resources linked to networks in a way that gives rise to current, future, or potential competences that are interesting to analyze from a strategic point of view.
Analysis of the different steps indicates that the overall model (Step 9) obtains an increase in efficient enterprises of more than 18.5% and an improvement of more than 12% in the corrected average efficiency compared to Step 2. As pointed out in Table 7, the incorporation of factors linked to operational networks (Step 4)—understood as nodes with the potential for developing new business opportunities—generates an improvement in efficiency on the overall model. However, the efficiency improvement in social networks (Step 6) is much clearer, since the increase in the number of users and the social networks management generate valuable data and information with direct and positive implications for efficiency.
The comparison between Step 6 (social network layer) and Step 4 (network layer) indicates a clear efficiency increase in Step 6. Three firms have been incorporated into the efficient frontier and there is an improvement in the average efficiency of the inefficient firms of more than seven percentage points, without any overlap between intervals. Therefore, these results indicate that the influence of the direct effects of the physical networks on efficiency improvement is lower that the indirect effects linked to social networks, where user enrolment generates profit but without any direct compensation.

5.2. Discriminating Efficiencies by Ranking Centralities

Many methods of discriminating between DEA results have been proposed [68,69,70]. Liu and Lu [60] suggested a method that turns DEA results into a network for the second stage analysis, and uses the tools developed in the social network analysis community to further discriminate DEA results. At this point, and using the results previously presented in this section, we run the mechanism adapted from Liu and Lu [60]. Aggregated lambda values are presented in Appendix B. As follows from our adaptation of Liu and Lu’s model, we create a network based on the lambda values resulting from benchmarking the efficiencies obtained by the DEA analysis with the different proposed models. Then we calculated the eigenvector centrality of different companies in order better to discriminate efficiencies of DMUs. We present the ranking obtained in Table 8.
Results show that bigger companies, in terms of incomes or engagement in social media, are not the most efficient ones when sorted after applying the mechanism. This leads us to think whether the management strategy those big companies are following has been correctly designed. More recent companies, compared to the rulers of the market in the last 50 years (Turkish Airlines, KLM, or TAP), such as AirEuropa, Air Berlin, or SAS seem to better perform in the current market. Reasons might be very diverse: from a more specific passenger target to the decision of operating in a more local area or region.

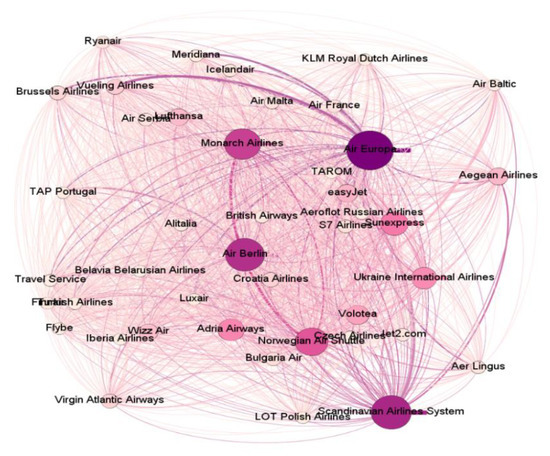

Figure 1 represents the weighted network of airlines by using their lambda values. Bigger nodes denote a higher efficiency score, while edges are determined by lambda values between two different companies.

5.3. Discussion on the Results

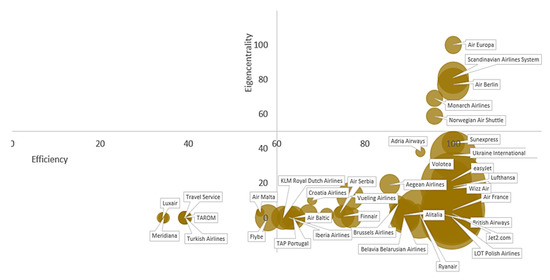

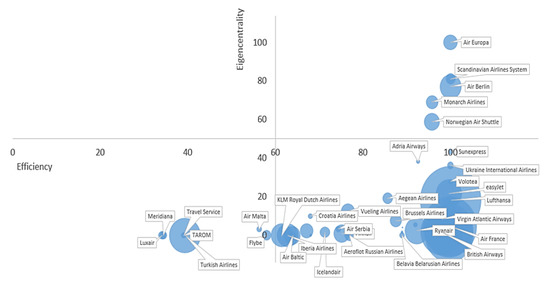

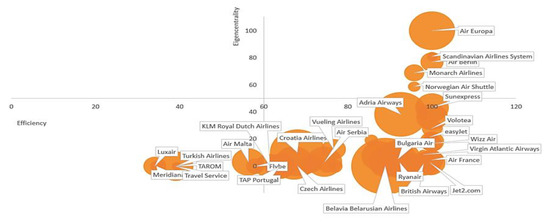

We illustrate our approach clearly, using a bubble chart to visualize the information so that the relationship between airline centrality and efficiency can be checked. We try to show how eigenvector centrality values influence the efficiency of airlines taken into account other factors (engagement, fleet size, and income). The following bubble charts combine efficiency (X axis) and the eigenvector centrality calculated as detailed in Section 3.3.2 (Y axis). The size of the bubbles is determined by engagement, (Figure 2), fleet number (Figure 3), and income (Figure 4).
The graph is divided into four quadrants. The first quadrant is the upper right-hand corner of the graph, where we see airlines with efficiency and eigencentrality values close to 1 (Air Europa, Scandinavian Air Lines, Air Berlin, Monarch Airlines, Norwegian Air)—that is, 10.6% of the sample. The second quadrant, in the lower right-hand corner, includes low values of eigencentrality and a range of efficiency between 0.5 and 1, and corresponds to 72.3% of the European airlines studied. The third quadrant, the lower left-hand corner, includes low values of both x and y (Luxair, Travel Service, Meridiana, TAROM, Turkish Airlines), and that corresponds to 17.2% of the sample. Finally, the fourth quadrant, the upper left-hand corner, includes high values of eigencentrality and low values of efficiency: we can observe that there is not one airline in this quadrant, which is consistent with benchmark’s definition. From a quality perspective, we can find three groups of airlines. The first group (first quadrant) corresponds to the group leaders: the majority are efficient and are the most referenced for the rest of the DMU (despite not having a big income and their fleet not being particularly large, nor even their engagement in social media). We might suggest that this type of airline chooses a segmentation market strategy and operates on the optimal scale. In other cases, companies cannot achieve their objectives (growth, profitability, market presence, social recognition, etc.) within their current activity and opt for another type of strategy: diversification. This is the situation of the second group (second quadrant, right side): efficient airlines with low values for eigencentrality (such as Air France or Lufthansa), large fleet, their own way of operating, and singular features.
In the third group, we find low values of eigencentrality, inefficient airlines, with low-medium income and fleet and with a reasonable value for engagement in social networks. These airlines should leverage their recognition and positioning in social media as an intangible value and improve the way they operate.
For further details on the results, please check Appendix A and Appendix B.

6. Conclusions

Formulating a strategy to compete in one or more countries is complex [71]. Nowadays, the network concept is largely used, being applied in multiple scenarios—IT, logistics or business, among others. Networks represent the ability to establish links and make exchanges, whether physical or in the form of information. The use of network (social or physical) knowledge and the benefit obtained is applied by the organizations, making a resource from the opportunities. The measures of centrality provide valuable information on the positioning of airlines in the European airspace, so providing a more complete benchmarking than the one used so far in DEA.
In this work, we calculate the efficiency scores for 43 selected European airlines from 2014, using an incremental DEA multistage model [56] whose main purpose is the measurement of efficiency at different layers from a strategic perspective. Following [36,55], the bootstrap method is also used to address problems caused by DEA models’ sensitivity to errors in the data. This suggests the importance of seeking mechanisms to coordinate corporate and competitive strategies—in this sense, including not only economic indicators, but also network and social media indicators, in DEA models, taking advantage of the amount of data available today. These should be considered key factors in making management decisions. This confirms similar findings in Duygun [33], which include intangible inputs related to customer satisfaction levels in a network DEA from the point of view of customer satisfaction, cost minimization, and an efficient route system. Airline organizations have identified the need to offer their customers a wide range of different social media platforms [38]. This work has found that not all airlines operate the different platforms with the same efficiency. Faber [72] identified that two channels (Facebook and Twitter) were most likely to be used by airline organizations; the results of this work show that the efficiency scores of the Twitter step surpass those of the Facebook step. These findings are similar to Zarrella [73], who suggested that the efforts involved in Twitter engagement pay off quickly and result in a great buzz.
Social media marketing initiatives should not only be measured in monetary units but should also investigate consumer intentions to engage in social media applications [74]. To identify social media marketing’s acceptance amongst consumers, measures like the frequency of website visits (i.e., traffic), the number of comments or ‘likes’ in a social network, or the number of replies on media-sharing websites can provide information on a social media application’s attractiveness [75]. DEA methodology allows the efficiency measurement of all these variables. As stated by Martínez-Núñez and Pérez-Aguiar [56], this work confirms that airlines can improve their efficiency by enhancing their social media management capabilities and incorporating Web 2.0 technologies into their business strategy. This work also finds that this new and digitalized communication is becoming increasingly influential in efficiency improvement versus analysis of the route network positioning factors.
As we have shown in the paper, we adhere (and adapt) the method used by Liu and Lu [60], using the eigenvector centrality for refining efficient DMUs. However, in that paper, the authors collect and aggregate lambda values from any possible combination of input/output parameters (in different stages), while, in our case, we only use the results from steps we consider relevant in our domain. We claim our choice is correct in most cases, since domains with many potential input/output parameters (such as the airline industry) might generate combinations not relevant or even counterproductive, in terms of the assessment of efficiency scores.
We prove that, to become and to remain successful, organizations have to accept that within the social media environment, consumer power is much stronger than their own [75]. Consequently, companies need to reconsider their strategic approach to social media marketing practices, showing willingness ‘to give up control of the message’ [76] as well as allowing consumers to provide criticism and constructive input. This concept becomes more understandable if this process is seen as a virtual network of relationships, where efficiency means knowing how to manage and recognize different user segments in different platforms simultaneously. Results also indicate that the influence of the direct effects of the physical networks on the efficiency improvement is lower than the indirect effects linked to social networks, where user enrolment generates profit but without any direct compensation.
As future research avenues, we plan to study the results from different perspectives, for example, a group-based analysis, focusing on the results obtained by airlines belonging to the same group (e.g., IAG is a holding company which emerged after the fusion of Iberia and British Airways, including Aer Lingus and Vueling). Results obtained from individual efficiencies compared to the cluster companies they belong to might yield interesting insights into the group development and the strategy it follows. The same study might be applied to airline alliances, such as Star Alliance, One World, or Sky Team. We also intend to study the value of social media on the efficiency calculation, but from a local perspective. That is, we are interested in determining whether local companies are relatively popular in the radius of action in which they operate, instead of comparing global estimates. For example, a company only operating in a single country does not need to attract users from foreign countries or, at least, not on the same level as multinational companies do.

Author Contributions

Conceptualization, R.H., M.P.L. and M.M.-N.; Methodology, R.H., M.P.L. and M.M.-N.; validation, R.H., M.P.L. and M.M.-N.; investigation, R.H., M.P.L. and M.M.-N.; data curation, R.H., M.P.L. and M.M.-N.; writing—original draft preparation, R.H., M.P.L. and M.M.-N.; writing—review and editing, R.H., M.P.L. and M.M.-N.


This research received no external funding.


This work has been supported by the project TIN2016-78011-C4-3-R and DGA-FSE, Government of Aragón (COSMOS Group and Group Reference CREVALOR: S42_17R) and co-financed with FEDER 2014-2020 “Construyendo Europa desde Aragón”.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. DEA efficiency scores with different steps.
Table A1. DEA efficiency scores with different steps.
Air Line CompanyBusiness ManagementNetwork ManagementOnline Social Network ManagementTOTAL
Model 1Model 2Model 3Model 4Model 5Model 6Model 7Model 8Model 9
(Basic)(Air-Line Basic)(Degree Net)(Eigencentrality Net)(Total Net)(Facebook SM)(Twitter SM)(YouTube SM)(Integral)
DMUNameOriginalBias- correcOriginalBias- correcOriginalBias- correcOriginalBias- correcOriginalBias- correcOriginalBias- correcOriginalBias- correcOriginalBias- correcOriginalBias- correc
A01Adria Airways0.62930.33131111111111111111
A02Aegean Airlines0.79390.61520.79390.75420.82220.762811110.79820.7759110.83080.796111
A03Aer Lingus0.54070.33740.55020.50990.55020.50960.62950.58820.62950.584311110.55020.51511
A04Aeroflot Russian Airlines0.79390.61520.79390.75420.79390.74810.79390.7310.79390.73410.79820.7759110.83080.79610.79820.766
A05Air Berlin111111111111111111
A06Air Europa111111111111111111
A07Air France0.99390.98771111111111111111
A08Air Malta0.41360.30280.49410.45050.49410.45170.52840.48840.52840.4910.72810.6894110.50560.46550.75360.7265
A09Air Serbia0.42420.24070.66820.63690.66820.6370.75750.72470.75750.72611110.77680.7311
A10Air Baltic0.56720.39660.61690.57470.61690.57410.79050.71960.79050.72430.63220.60470.79190.76620.63680.59870.83260.799
A12Belavia Belarusian Airlines0.00690.00111111111111111111
A13British Airways0.90720.8161111111111111111
A14Brussels Airlines0.76560.57880.76560.72090.78020.7237111111110.89210.847511
A15Bulgaria Air0.43670.27571111111111111111
A16Croatia Airlines0.42150.28320.5460.51790.5460.51890.60860.57890.60860.580311110.67120.641411
A17Czech Airlines0.42180.2830.5440.53290.5610.53390.62360.59390.62360.595311110.68620.656411
A21Iberia Airlines0.56720.32550.65590.61180.66650.58570.68260.62250.74820.68770.71880.69570.70860.69320.67360.63880.82610.7892
A24KLM Royal Dutch Airlines0.56720.32550.65590.61180.65590.60920.66250.62220.66250.61160.71880.69570.70860.69320.67360.63880.74890.7214
A25LOT Polish Airlines0.98470.96961111111111111111
A29Monarch Airlines0.79650.61861111111111111111
A30Norwegian Air Shuttle0.79650.61861111111111111111
A32S7 Airlines0.07580.0091111111111111111
A33Scandinavian Airlines System111111111111111111
A35TAP Portugal0.6430.38780.68380.62940.68380.6270.68380.63590.68380.63470.7170.68890.82510.79590.68380.64260.7170.6961
A37Travel Service0.23760.16380.30810.29450.30810.28830.30810.29090.3090.28990.51920.51110.39310.38730.6660.64520.51920.5108
A38Turkish Airlines0.26760.19380.33810.32450.33810.31830.33810.32090.3390.31990.54920.54110.42310.41730.6960.67520.54920.5419
A39Ukraine International Airlines111111111111111111
A40Virgin Atlantic Airways0.90570.8141111111111111111
A42Vueling Airlines0.76330.5610.77590.71080.77590.71250.77590.7060.77590.71060.78840.739111110.78840.7516
A43Wizz Air111111111111111111

Appendix B

Table A2. Benchmarking (lambda values) aggregated lambda values resulting from bootstrapping.
Table A2. Benchmarking (lambda values) aggregated lambda values resulting from bootstrapping.
Airline Company
A01Adria Airways80000.0300000000000000000.7000.2700
A02Aegean Airlines04001.89000000000000.070002.520.410.010000.07
A03Aer Lingus0.52021.432.6300000000.360000.440.7400000.410000.47
A04Aeroflot Russian Airlines01003.150000000000000004.080.570.010000.14
A05Air Berlin000900000000000000000000000
A06Air Europa000090000000000000000000000
A07Air France0000.25080000000000.7500000000000
A08Air Malta4.410.0800.020.9701000.0201.0200000.140.17000.450.7200000
A09Air Serbia3.910.18000.19003000000000.240.14000.790.5800000
A10Air Balt ic4.40.87000.690000000.1600000.19000.0511.36000.3400
A12Belavia Belarusian Airlines000000000000000000000010000
A13Brit ish Airways0000.1000080000000.360000000.540000
A14Brussels Airlines00003.17000050000000.050000.230.23000.240.070
A15Bulgaria Air00000.1500000800000000000.1000.7600
A16Croatia Airlines3.960.16000.28000000300000.160.16000.520.7400000
A17Czech Airlines3.960.16000.28000000300000.160.16000.520.7400000
A21Iberia Airlines0.48001.081.110.28000.120.43003.1800.040.3500.390.0700.0800.031.38000
A24KLM Royal Dutch Airlines0001.171.110.360000.28003.080.0500.3400.20.1400.0800.032.18000
A25LOT Polish Airlines0000000000000080.50000000.50000
A29Monarch Airlines0000.160.280000000000062000.56000000
A30Norwegian Air Shuttle0000.160.280000000000053000.56000000
A32S7 Airlines00000.0200000000000000800000.9700
A33Scandinavian Airlines System000000000000000000009000000
A35TAP Portugal0003.381.1200000000000.020.090000.2600.333.3500.450
A37Travel Service2.43000.020.9700.140.03000.181.560.040001.470.7200.140.630.26000.220.170
A38Turkish Airlines2.390001.0100.140.03000.181.560.040001.690.5100.140.640.26000.220.170
A39Ukraine International Airlines000000000000000000000090000
A40Virgin Atlantic Airways0000.8400000000000000000.16008000
A42Vueling Airlines0.02000.15.1100000000.3200000000.1800.310020.94
A43Wizz Air000000000000000000000000009


  1. Bauer, P. Decomposing TFP growth in the presence of cost inefficiency, nonconstant returns to scale, and technological progress. J. Product. Anal. 1990, 1, 287–299. [Google Scholar] [CrossRef]
  2. Good, D.H.; Nadiri, M.I.; Sickles, R.C. Efficiency and productivity growth comparisons of European and US Air carriers: A first look at the data. J. Product. Anal. 1993, 4, 115–125. [Google Scholar] [CrossRef] [Green Version]
  3. Baltagi, B.; Griffin, J.; Rich, D. Airline deregulation: The cost pieces of the puzzle. Int. Econ. Rev. 1995, 245–258. [Google Scholar] [CrossRef]
  4. Barbot, C.; Costa, Á.; Sochirca, E. Airlines performance in the new market context: A comparative productivity and efficiency analysis. J. Air Transp. Manag. 2008, 14, 270–274. [Google Scholar] [CrossRef] [Green Version]
  5. Charnes, A.; Gallegos, A.; Li, H. Robustly efficient parametric frontiers via Multiplicative DEA for domestic and international operations of the Latin American airline industry. Eur. J. Oper. Res. 1996, 88, 525–536. [Google Scholar] [CrossRef]
  6. Good, D.H.; Röller, L.H.; Sickles, R.C. Airline efficiency differences between Europe and the US: Implications for the pace of EC integration and domestic regulation. Eur. J. Oper. Res. 1995, 80, 508–518. [Google Scholar] [CrossRef]
  7. Arjomandi, A.; Seufert, J.H. An evaluation of the world’s major airlines’ technical and environmental performance. Econ. Model. 2014, 41, 1–12. [Google Scholar] [CrossRef] [Green Version]
  8. Tsionas, E.; Assaf, A.G.; Gillen, D.; Mattila, A.S. Modeling technical and service efficiency. Transp. Res. Part B Methodol. 2017, 96, 113–125. [Google Scholar] [CrossRef]
  9. Cui, Q. Investigating the airlines emission reduction through carbon trading under CNG2020 strategy via a Network Weak Disposability DEA. Energy 2019, 180, 763–771. [Google Scholar] [CrossRef]
  10. Yu, H.; Zhang, Y.; Zhang, A.; Wang, K.; Cui, Q. A comparative study of airline efficiency in China and India: A dynamic network DEA approach. Res. Transp. Econ. 2019. [Google Scholar] [CrossRef] [Green Version]
  11. Lozano, S.; Gutiérrez, E. Efficiency Analysis and Target Setting of Spanish Airports. Netw. Spat. Econ. 2011, 11, 139–157. [Google Scholar] [CrossRef]
  12. Figueiredo, S.; Gomes, J.; Paula, A.; Baptista, C.; de Mello, S.; Angulo, L. Evaluation of Brazilian airlines nonradial efficiencies and targets using an alternative DEA approach. Int. Trans. Oper. Res. 2016, 23, 669–689. [Google Scholar] [CrossRef]
  13. Choi, K.; Lee, D.; Olson, D.L. Service quality and productivity in the US airline industry: A service quality-adjusted DEA model. Serv. Bus. 2013, 9, 137–160. [Google Scholar] [CrossRef]
  14. Li, Y.; Wang, Y.; Cui, Q. Has airline efficiency affected by the inclusion of aviation into European Union Emission Trading Scheme? Evidences from 22 airlines during 2008–2012. Energy 2016, 96, 8–22. [Google Scholar] [CrossRef]
  15. Koka, B.R.; Prescott, J.E. Strategic Alliances as Social Capital: A Multidimensional View. Strateg. Manag. J. 2002, 23, 795–816. [Google Scholar] [CrossRef]
  16. Barros, C.; Leach, S. Analyzing the performance of the English FA Premier League with an econometric frontier model. J. Sports Econom. 2006, 7, 391–407. [Google Scholar] [CrossRef]
  17. Sjögren, S.; Söderberg, M. Productivity of airline carriers and its relation to deregulation, privatisation and membership in strategic alliances. Transp. Res. Part E Logist. Transp. Rev. 2011, 47, 228–237. [Google Scholar] [CrossRef]
  18. Greer, M. Is it the labor unions’ fault? Dissecting the causes of the impaired technical efficiencies of the legacy carriers in the United States. Transp. Res. Part A Policy Pract. 2009, 43, 779–789. [Google Scholar] [CrossRef]
  19. Merkert, R.; Hensher, D. The Impact of Strategic Management and Fleet Planning on Airline efficiency. Transp. Res. Part A Policy Pract. 2011, 45, 689–695. [Google Scholar] [CrossRef]
  20. Taymaz, E. Are small firms really less productive? Small Bus. Econ. 2005, 25, 429–445. [Google Scholar] [CrossRef]
  21. Barney, J. Firm Resources and Sustained Competitive Advantage. J. Manag. 1991, 17, 99–120. [Google Scholar] [CrossRef]
  22. Barney, J. Resource-based theories of competitive advantage: A ten-year retrospective on the resource-based view. J. Manag. 2001, 27, 643–650. [Google Scholar] [CrossRef]
  23. Mellroth, P.; Karlsson, J.; Steiner, H. A scavenger function for a Drosophila peptidoglycan recognition protein. J. Biol. Chem. 2003, 278, 7059–7064. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Barros, C.; Liang, Q.; Peypoch, N. The technical efficiency of US Airlines. Transp. Res. Part A Policy Pract. 2013, 50, 139–148. [Google Scholar] [CrossRef]
  25. Union, I. Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions. A New Skills Agenda for Europe. Brussels, Belgium, 2014. Available online: (accessed on 24 September 2017).
  26. Davis, H.S. The Measurement of Productive Efficiency. Ind. Study Econ. Prog. 2018, 16–35. [Google Scholar] [CrossRef]
  27. Liu, J.; Lu, L.; Lu, W.; Lin, B. A survey of DEA applications. Omega 2013, 41, 893–902. [Google Scholar] [CrossRef]
  28. Cui, Q.; Li, Y. Evaluating energy efficiency for airlines: An application of VFB-DEA. J. Air Transp. Manag. 2015, 44, 34–41. [Google Scholar] [CrossRef]
  29. Greer, M.R. Nothing focuses the mind on productivity quite like the fear of liquidation: Changes in airline productivity in the United States, 2000–2004. Transp. Res. Part A Policy Pract. 2008, 42, 414–426. [Google Scholar] [CrossRef]
  30. Mallikarjun, S. Efficiency of US airlines: A strategic operating model. J. Air Transp. Manag. 2015, 43, 46–56. [Google Scholar] [CrossRef]
  31. Oum, T.H.; Pathomsiri, S.; Yoshida, Y. Limitations of DEA-based approach and alternative methods in the measurement and comparison of social efficiency across firms in different transport modes: An empirical study in Japan. Transp. Res. Part E Logist. Transp. Rev. 2013, 57, 16–26. [Google Scholar] [CrossRef]
  32. Chang, Y.-T.; Park, H.; Jeong, J.; Lee, J. Evaluating economic and environmental efficiency of global airlines: A SBM-DEA approach. Transp. Res. Part D Transp. Environ. 2014, 27, 46–50. [Google Scholar] [CrossRef]
  33. Duygun, M.; Prior, D.; Shaban, M.; Tortosa-Ausina, E. Disentangling the European airlines efficiency puzzle: A network data envelopment analysis approach. Omega 2015, 60, 2–14. [Google Scholar] [CrossRef]
  34. Scotti, D.; Volta, N. An empirical assessment of the co2-sensitive productivity of European airlines from 2000 to 2010. Transp. Res. Part D Transp. Environ. 2015, 37, 137–149. [Google Scholar] [CrossRef]
  35. Barros, C.P.; Peypoch, N. An evaluation of European airlines’ operational performance. Int. J. Prod. Econ. 2009, 122, 525–533. [Google Scholar] [CrossRef]
  36. Lee, B.L.; Worthington, A.C. Technical efficiency of mainstream airlines and low-cost carriers: New evidence using bootstrap data envelopment analysis truncated regression. J. Air Transp. Manag. 2014, 38, 15–20. [Google Scholar] [CrossRef] [Green Version]
  37. Merkert, R.; Williams, G. Determinants of European PSO airline efficiency—Evidence from a semi-parametric approach. J. Air Transp. Manag. 2013, 29, 11–16. [Google Scholar] [CrossRef]
  38. Knoblich, S.; Martin, A.; Nash, R.; Stansbie, P. Keys to Success in Social Media Marketing (SMM)—Prospects for the German Airline Industry. Tour. Hosp. Res. 2015, 1–18. [Google Scholar] [CrossRef] [Green Version]
  39. Felix, R.; Rauschnabel, P.A.; Hinsch, C. Elements of strategic social media marketing: A holistic framework. J. Bus. Res. 2016. [Google Scholar] [CrossRef]
  40. Hudson, S.; Roth, M.S.; Madden, T.J.; Hudson, R. The effects of social media on emotions, brand relationship quality, and word of mouth: An empirical study of music festival attendees. Tour. Manag. 2015, 47, 68–76. [Google Scholar] [CrossRef]
  41. Jucaityt, I.; Mašinskien, J. Peculiarities of social media integration into marketing communication. Procedia-Soc. Behav. Sci. 2014, 156, 490–495. [Google Scholar] [CrossRef] [Green Version]
  42. Lee, Y.-K.; Park, J.-W. Impact of a sustainable brand on improving business performance of airport enterprises: The case of Incheon International Airport. J. Air Transp. Manag. 2016, 53, 46–53. [Google Scholar] [CrossRef]
  43. Estrada, E.; Gómez-Gardeñes, J. Network bipartivity and the transportation efficiency of European passenger airlines. Phys. D Nonlinear Phenom. 2016, 323, 57–63. [Google Scholar] [CrossRef] [Green Version]
  44. Brueckner, J.K. Internalization of airport congestion: A network analysis. Int. J. Ind. Organ. 2005, 23, 599–614. [Google Scholar] [CrossRef] [Green Version]
  45. Bagler, G. Analysis of the airport network of India as a complex weighted network. Phys. A Stat. Mech. Its Appl. 2008, 387, 2972–2980. [Google Scholar] [CrossRef] [Green Version]
  46. Jain, R.K.; Natarajan, R. A DEA study of airlines in India. Asia Pac. Manag. Rev. 2015, 20, 285–292. [Google Scholar] [CrossRef]
  47. Wanke, P.; Barros, C.P. Efficiency in Latin American airlines: A two-stage approach combining Virtual Frontier Dynamic DEA and Simplex Regression. J. Air Transp. Manag. 2016, 54, 93–103. [Google Scholar] [CrossRef]
  48. Omrani, H.; Soltanzadeh, E. Journal of Air Transport Management Dynamic DEA models with network structure: An application for Iranian airlines. J. Air Transp. Manag. 2016, 57, 52–61. [Google Scholar] [CrossRef]
  49. Charnes, A.; Cooper, W.; Rhodes, E. Measuring the efficiency of decision making units. Eur. J. Oper. Res. 1978, 2, 429–444. [Google Scholar] [CrossRef]
  50. Banker, R.D.; Charnes, A.; Cooper, W.W. Some Models for Estimating Technical and Scale Inefficiencies in Data Envelopment Analysis. Manag. Sci. 1984, 30, 1078–1092. [Google Scholar] [CrossRef] [Green Version]
  51. Efron, B. Bootstrap Methods: Another Look at the Jackknife; Springer: New York, NY, USA, 1992. [Google Scholar]
  52. Simar, L.; Wilson, P. A general methodology for bootstrapping in non-parametric frontier models. J. Appl. Stat. 2000, 27, 779–802. [Google Scholar] [CrossRef]
  53. Simar, L.; Wilson, P. Sensitivity Analysis of Efficiency Scores: How to Bootstrap in Nonparametric Frontier Models. Manag. Sci. 1998. [Google Scholar] [CrossRef] [Green Version]
  54. Silverman, B.; Young, G. The bootstrap: To smooth or not to smooth? Biometrika 1987, 74, 469–479. [Google Scholar] [CrossRef]
  55. Simar, L.; Wilson, P. Statistical inference in nonparametric frontier models: The state of the art. J. Product. Anal. 2000, 13, 49–78. [Google Scholar]
  56. Martínez-Núñez, M.; Pérez-Aguiar, W.S. Efficiency analysis of information technology and online social networks management: An integrated DEA-model assessment. Inf. Manag. 2014, 51, 712–725. [Google Scholar] [CrossRef] [Green Version]
  57. Freeman, L.C. A Set of Measures of Centrality Based on Betweenness. Sociometry 1977, 40, 35–41. [Google Scholar] [CrossRef]
  58. Jackson, M.O. Social and Economic Networks; Princeton University Press: Princeton, NJ, USA, 2008. [Google Scholar]
  59. Bonacich, P. Power and Centrality: A Family of Measures. Am. J. Sociol. 1987, 92, 1170–1182. [Google Scholar] [CrossRef]
  60. Liu, J.; Lu, W. A network-based approach for increasing discrimination in data envelopment analysis. J. Oper. Res. Soc. 2009, 60, 1502–1510. [Google Scholar] [CrossRef]
  61. Sigala, M. The information and communication technologies productivity impact on the UK hotel sector. Int. J. Oper. Prod. Manag. 2003, 23, 1224–1245. [Google Scholar] [CrossRef]
  62. Banker, R.; Morey, R. Efficiency analysis for exogenously fixed inputs and outputs. Oper. Res. 1986, 34, 513–521. [Google Scholar] [CrossRef]
  63. Thore, S.; Kozmetsky, G.; Phillips, F. DEA of financial statements data: The US computer industry. J. Product. Anal. 1994, 5, 229–248. [Google Scholar] [CrossRef]
  64. Groza, M.D.; Pronschinske, M. Attracting Facebook fans: The importance of authenticity and engagement as a social networking strategy for professional sport teams. Sport Mark. Q. 2012, 21, 221–231. [Google Scholar]
  65. Stavros, C.; Meng, M.D.; Westberg, K.; Farrelly, F. Understanding fan motivation for interacting on social media. Sport Manag. Rev. 2014, 17, 455–469. [Google Scholar] [CrossRef]
  66. Cooper, W.; Seiford, L.; Tone, K. Introduction to Data Envelopment Analysis and Its Uses: With DEA-Solver Software and References; Springer Science & Business Media: New York, NY, USA, 2006. [Google Scholar]
  67. Fried, H.; Schmidt, S.; Yaisawarng, S. Incorporating the operating environment into a nonparametric measure of technical efficiency. J. Product. Anal. 1999, 12, 249–267. [Google Scholar] [CrossRef]
  68. Angulo-Meza, L.; Lins, M. Review of methods for increasing discrimination in data envelopment analysis. Ann. Oper. Res. 2002, 225–242. [Google Scholar] [CrossRef]
  69. Adler, N.; Friedman, L.; Sinuany-Stern, Z. Review of ranking methods in the data envelopment analysis context. Eur. J. Oper. Res. 2002, 249–265. [Google Scholar] [CrossRef]
  70. Lu, W.; Lo, S. An interactive benchmark model ranking performers—Application to financial holding companies. Math. Comput. Model. 2009, 49, 172–179. [Google Scholar] [CrossRef]
  71. Helfat, C.; Peteraf, M. The dynamic resource-based view: Capability lifecycles. Strateg. Manag. J. 2003, 24, 997–1010. [Google Scholar] [CrossRef]
  72. Faber, M. Social Media bei Airlines, TOUROM-Studie. Kastellaun, Frankfurt, Germany, 2011. [Google Scholar]
  73. Zarrella, D. The Social Media Marketing Book; O’Reilly Media Inc.: Sebastopol, CA, USA, 2009. [Google Scholar]
  74. Hoffman, D.; Fodor, M. Can you measure the ROI of your social media marketing? MIT Sloan Manag. Rev. 2010, 52, 41. [Google Scholar]
  75. Latorre-Martínez, M.P.; Iñíguez-Berrozpe, T.; Plumed-Lasarte, M. Image-focused social media for a market analysis of tourism consumption. Int. J. Technol. Manag. 2014, 64, 17–30. [Google Scholar] [CrossRef]
  76. Kietzmann, J.; Hermkens, K.; McCarthy, I.; Silvestre, B. Social media? Get serious! Understanding the functional building blocks of social media. Bus. Horiz. 2011, 54, 241–251. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Airline lambda-based network displayed by eigenvector centrality (darker and bigger nodes represent greater efficiency).
Figure 1. Airline lambda-based network displayed by eigenvector centrality (darker and bigger nodes represent greater efficiency).
Applsci 09 05312 g001
Figure 2. Bubble chart representing efficiency vs. eigencentrality. Node size denotes engagement for the company in social media.
Figure 2. Bubble chart representing efficiency vs. eigencentrality. Node size denotes engagement for the company in social media.
Applsci 09 05312 g002
Figure 3. Bubble chart representing efficiency vs. eigencentrality. Node size denotes airline fleet volume.
Figure 3. Bubble chart representing efficiency vs. eigencentrality. Node size denotes airline fleet volume.
Applsci 09 05312 g003
Figure 4. Bubble chart representing efficiency vs. eigencentrality. Node size denotes airline total incomes.
Figure 4. Bubble chart representing efficiency vs. eigencentrality. Node size denotes airline total incomes.
Applsci 09 05312 g004
Table 1. Summary of literature related to DEA (data envelopment analysis) in the airline industry. BCC: Banker–Charnes–Cooper. CCR: Charnes–Cooper–Rhodes. EBIT: Earnings before interest and tax.
Table 1. Summary of literature related to DEA (data envelopment analysis) in the airline industry. BCC: Banker–Charnes–Cooper. CCR: Charnes–Cooper–Rhodes. EBIT: Earnings before interest and tax.
Barbot et al. [4]DEA-BCC and TFP index14 US airlinesNumber of coresAvailable seat-kilometers
EmployeesPassenger service
Fleet Revenue
Greer [29]DEA-CCR and two-stage regression8 US airlinesLaborSeat-miles
Fleet-wide passenger seating capacity
Barros and Peypoch [35]DEA-CCR and two-stage regressionEuropean airlinesEmployeesRevenue per passenger km
Operational costEBIT
Planes(Euros million)
Merkert and Hensher [19]Standard DEA and bootstrapped Tobit58 international airlinesAvailable tonne kilometersRevenue passenger kilometers
RegressionFull-time equivalent workersRevenue tonne kilometers
Arjomandi and Seufert [7]Bootstrapped DEA48 international airlinesNumber of full-time equivalent employeesTonne kilometers available (TKA)
Total number of flying hours divided by average daily revenue hoursCO2-e emission
Chang et al. [32]Slacks-based measure (SBM), DEA27 international airlinesRevenue ton kilometers RTK Revenue passenger kilometers
The number of employeesProfits
Lee and Worthington [36]Bootstrapped DEA and bootstrapped42 US and European airlinesThe average number of employeesTonne kilometers available (TKA)
Truncated regressionTotal assets in US dollars
Kilometers flown
Jain and Natarajan [46]Variable returns to scale12 airlines in IndiaTotal available ton kilometersPassenger revenue kilometers performed
VRS model of DEAOperating cost
Cui and Li [28]Virtual frontier11 airlines from Asia, America, Europe, and OceaniaNumber of employeesRevenue tonne kilometers
Capital stockPassenger revenue kilometers
Tons of aviation keroseneTotal business income
Benevolent DEA cross-efficiency model (VFB-DEA) CO2 emissions decrease index
Duygun et al. [33]Additive efficiency decomposition of the overall DEA efficiency in the two sub-technologies87 airlines from 23 European countriesFleet dataRevenue tonne kilometers
Personnel data
Financial data
Wanke and Barros [47]Virtual frontier dynamic range adjusted model19 Latin American airlinesNumber of employees Number of domestic, world, and Latin and Caribbean flights
Simplex regression
Omrani & Sotanzadeh [48]Relational dynamic Network DEA (DNDEA)8 airlinesNumber of employeesPassenger-kilometer performed
Passenger-kilometer carried
Figueiredo [12]Classical DEA and nonradial efficiency measure based on vector concepts20 Brazilian airlines per year (average)Fleet capacityPassenger-kilometer carried
Tonne kilometers carried
Cui [9]A network weak disposability DEA28 airlines Number of employees (NE) and aviation kerosene (AK)Available seat kilometers (ASK)
Available seat kilometers (ASK) and fleet size (FS)Revenue passenger kilometers (RPK)
Revenue passenger kilometers (RPK) and sales costsTotal revenue (TR)
Wang [10]Grey model GM (1,1) and data envelopment analysis (DEA) window model16 major Asia airlinesFleetRevenue passenger kilometers (RPKs)
Total assets
Operating expensesAvailable Seat Kilometers (ASKs)
Table 2. Variables selected for each DEA layer model.
Table 2. Variables selected for each DEA layer model.
Business Management
Network Management
Social Media Network Management
(Overall Model)
Step 1Step 2Step 3Step 4Step 5Step 6Step 7Step 8Step 9
(Basic)(Airline Basic)(Degree Net)(Eigenc. Net)(Total Net)(FB)(Twitter)(YouTube)(Overall)
Number of employees
Total assets
Number of videos
Millions of passengers 2014
Likes Twitter
Likes Facebook
Table 3. Statistical summary of the variables in different DEA layer models.
Table 3. Statistical summary of the variables in different DEA layer models.
Business Management
AverageTotalStd. Devn.Range
Number Employees11,825.95508,516.0025,382.25117,889.00
Total assets13,702,935.81589,226,239.7744,264,015.18208,781,412.00
Sales 114,455.454,921,584.31296,460.591,388,115.46
Millons passengers’ 1421.19911.0627.55104.80
Network Management
AverageTotalStd. Devn.Range
Online Social Network Management
TwitterAverageTotalStd. Devn.Range
FacebookAverageTotalStd. Devn.Range
YouTubeAverageTotalStd. Devn.Range
Number of Videos162.686995.30336.932149.00
Table 4. Original DEA efficiency coefficients (steps 1 and 2). DMU: decision-making unit.
Table 4. Original DEA efficiency coefficients (steps 1 and 2). DMU: decision-making unit.
Step 1Step 2Step 1Step 2Step 1Step 2
Number efficient DMUs414922414
% efficient DMUs9.3032.5520.9351.169.3032.55
Average efficiency0.49730.74130.64770.78930.76790.9345
Standard deviation0.26740.26360.30430.24750.26570.1108
Table 5. Original and bootstrapped DEA efficiency coefficients of net-DEA models.
Table 5. Original and bootstrapped DEA efficiency coefficients of net-DEA models.
EstimateNetwork Model
Step 3Step 4Step 5
(Degree Net)(Eigencent. Net)(Total Net)
Number efficient DMUs222424
% efficient DMUs51.1655.8155.81
Original average efficiency score0.79180.82610.8324
Average bias-corrected efficiency score0.77120.80810.8141
Standard deviation0.01030.00900.0092
Average efficiency score of inefficient DMUs corrected0.53150.56570.5792
Bootstrap median0.77790.81480.8204
Lower bound0.71720.75890.7663
Upper bound0.79270.82670.8331
Table 6. Original and bootstrapped DEA efficiency coefficients of SM (Social Media)-DEA steps.
Table 6. Original and bootstrapped DEA efficiency coefficients of SM (Social Media)-DEA steps.
EstimateSocial Media
Network Management
Step 6Step 7Step 8
Number efficient DMUs273324
% efficient DMUs62.7976.7455.81
Original average efficiency score0.87380.89830.8474
Average bias-corrected efficiency score0.86450.89500.8328
Standard deviation0.00460.00170.0073
Average efficiency score of inefficient DMUs corrected0.63590.54840.6217
Bootstrap median0.86900.89590.8382
Lower bound0.82790.88490.7852
Upper bound0.87400.89850.8478
Table 7. Original and bootstrapped DEA efficiency coefficients of overall steps.
Table 7. Original and bootstrapped DEA efficiency coefficients of overall steps.
EstimateIncremental Model
Business Step 2Network Step 4Social Media Step 6Overall Step 9
Number efficient DMUs22242730
% efficient DMUs51.1655.8162.7969.77
Original average efficiency score0.78930.82610.87380.9017
Average bias-corrected efficiency score0.77140.80810.86450.8949
Standard deviation0.00900.00900.00460.0034
Average efficiency score of inefficient DMUs corrected0.53180.56570.63590.6523
Bootstrap median0.77710.81480.86900.8978
Lower bound0.72000.75890.82790.8685
Upper bound0.79000.82670.87400.9019
Table 8. Ranking of DMUs by their eigenvector centrality.
Table 8. Ranking of DMUs by their eigenvector centrality.
1Air Europa1.00023Jet2.com0.024
2Scandinavian Airlines System0.81124Ryanair0.024
3Air Berlin0.77025Aer Lingus0.023
4Monarch Airlines0.69026Alitalia0.016
5Norwegian Air Shuttle0.58827British Airways0.016
7Adria Airways0.38229Finnair0.008
8Ukraine International Airlines0.36230Aeroflot Russian Airlines0
9Volotea0.27931Air Baltic0
10easyJet0.21532Belavia Belarusian Airlines0
11Aegean Airlines0.19233Czech Airlines0
13Wizz Air0.16935Iberia Airlines0
14Vueling Airlines0.12536KLM Royal Dutch Airlines0
15Croatia Airlines0.10037LOT Polish Airlines0
16Virgin Atlantic Airways0.08538Luxair0
17Brussels Airlines0.07639Meridiana0
18Bulgaria Air0.05440TAP Portugal0
19Air France0.04641TAROM0
20S7 Airlines0.04042Travel Service0
21Air Malta0.03243Turkish Airlines0
22Air Serbia0.032

Share and Cite

MDPI and ACS Style

Hermoso, R.; Latorre, M.P.; Martinez-Nuñez, M. Multivariate Data Envelopment Analysis to Measure Airline Efficiency in European Airspace: A Network-Based Approach. Appl. Sci. 2019, 9, 5312.

AMA Style

Hermoso R, Latorre MP, Martinez-Nuñez M. Multivariate Data Envelopment Analysis to Measure Airline Efficiency in European Airspace: A Network-Based Approach. Applied Sciences. 2019; 9(24):5312.

Chicago/Turabian Style

Hermoso, Ramon, M. Pilar Latorre, and Margarita Martinez-Nuñez. 2019. "Multivariate Data Envelopment Analysis to Measure Airline Efficiency in European Airspace: A Network-Based Approach" Applied Sciences 9, no. 24: 5312.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
