Evaluation of Composite Wire Ropes Using Unsaturated Magnetic Excitation and Reconstruction Image with Super-Resolution

1,2
and
1,2,*
1
Electrical Engineering College, Henan University of Science and Technology, Luoyang 471023, China
2
Power Electronics Device and System Engineering Laboratory of Henan, Henan University of Science and Technology, Luoyang 471023, China
*
Author to whom correspondence should be addressed.
Received: 2 March 2018 / Revised: 27 April 2018 / Accepted: 9 May 2018 / Published: 11 May 2018
(This article belongs to the Section Mechanical Engineering)
Full-Text   |   PDF [4867 KB, uploaded 11 May 2018]   |

Abstract

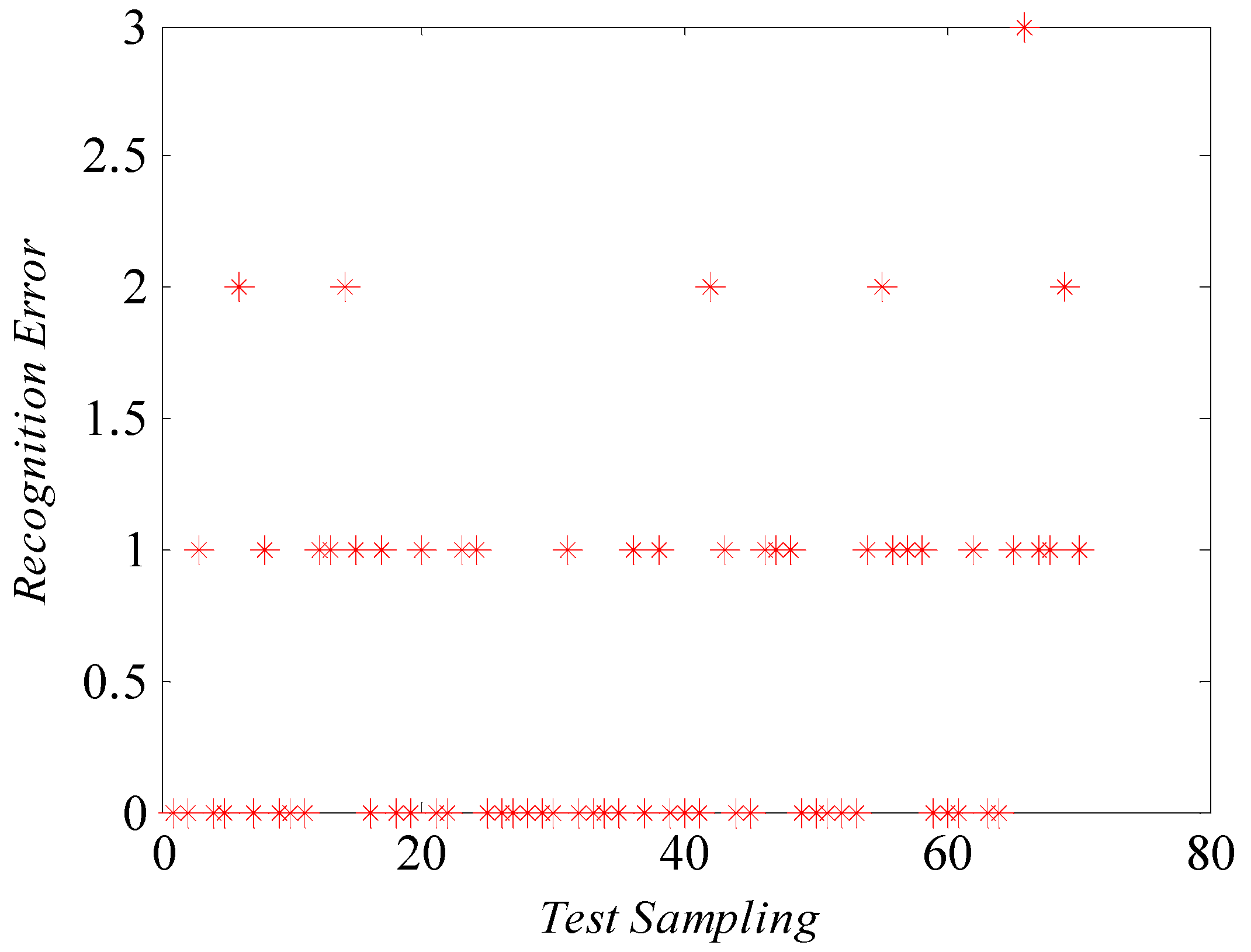

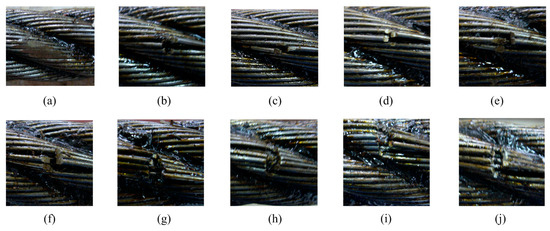

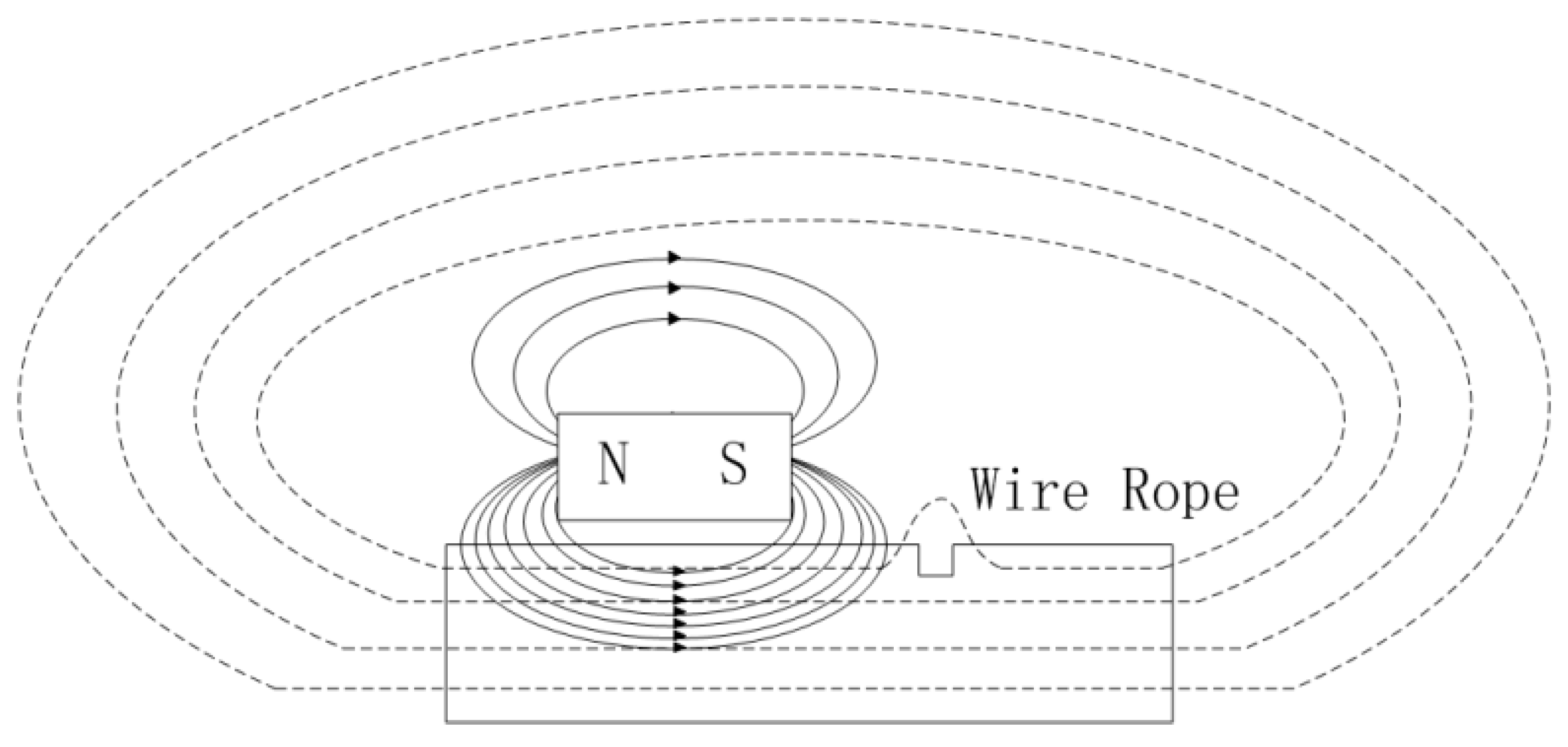

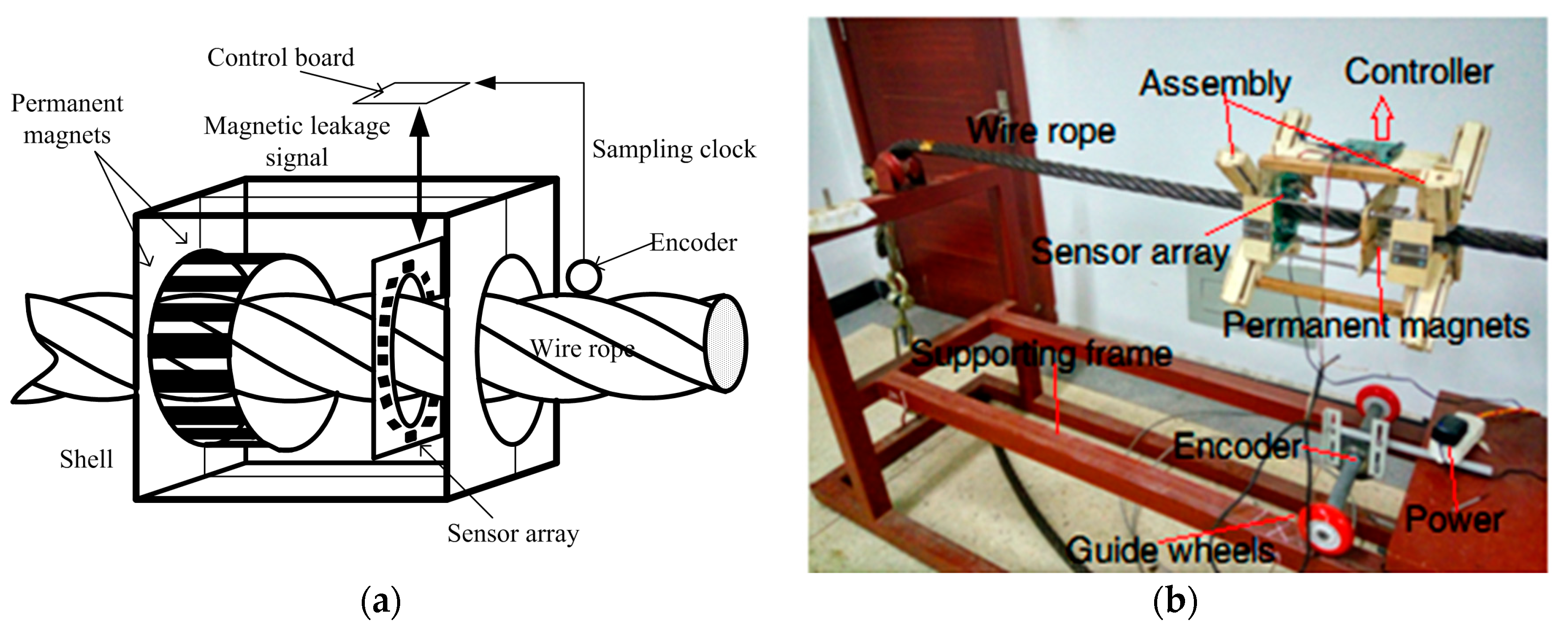

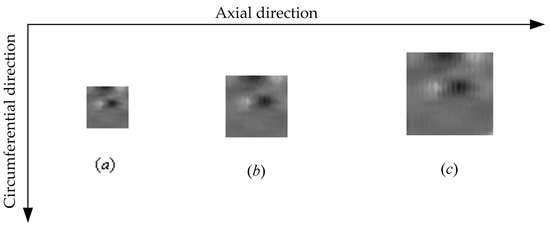

Estimating the exact residual lifetime of wire rope involves the security of industry manufacturing, mining, tourism, and so on. In this paper, a novel testing technology was developed based on unsaturated magnetic excitation, and a fabricating prototype overcame the shortcomings of traditional detection equipment in terms of volume, sensibility, reliability, and weight. Massive artificial discontinuities were applied to examine the effectiveness of this new technology with a giant magneto resistance(GMR) sensor array, which included types of small gaps, curling wires, wide fractures, and abrasion. A resolution enhancement method, which was adopted for multiframe images, was proposed for promoting magnetic flux leakage images of a few sensors. Characteristic vectors of statistics and geometry were extracted, then we applied a radial basis function neural network to achieve a quantitative recognition rate of 91.43% with one wire-limiting error. Experimental results showed that the new device can detect defects in various types of wire rope and prolong the service life with high lift-off distance and high reliability, and the system could provide useful options to evaluate the lifetime of wire rope. View Full-Text
Keywords: wire rope; nondestructive; magnetic flux leakage; super-resolution; quantitative recognition wire rope; nondestructive; magnetic flux leakage; super-resolution; quantitative recognition
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
