Noise Attenuation Based on Wave Vector Characteristics

1,*, 2 and 3
Key Laboratory of Marine Reservoir Evolution and Hydrocarbon Accumulation Mechanism, Ministry of Education, China University of Geosciences, Beijing 100083, China
School of Geophysics and Information Technology, China University of Geosciences, Beijing 100083, China
Department of Geosciences, The University of Tulsa, Tulsa, OK 74104, USA
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(5), 672;
Received: 15 March 2018 / Revised: 17 April 2018 / Accepted: 17 April 2018 / Published: 26 April 2018
(This article belongs to the Section Acoustics and Vibrations)
PDF [9052 KB, uploaded 3 May 2018]


Polarization filtering has been widely used to enhance signal-to-noise ratios for multicomponent seismic data. Polarization filters routinely depend on the ellipticity and directionality of spatial particle motions. However, factors such as noise and formation heterogeneity often make the polarization characteristics of body waves hard to distinguish. Here, we introduce a technique in the time domain for the separation of valid body waves and noise based on wave vector characteristics. First, we characterise the ground-roll polarization by the median wave vectors derived in large-scale moving time windows. For the suppression of ground roll, we fit the particle trajectory of ground roll by the least square method using all components simultaneously. Second, we apply three-stage smoothing to the ground-roll-removed multicomponent records. In each stage, we use mean or median vectors derived in small-scale moving-time or moving-trace windows to attenuate random noise and other non-ground-roll related coherent noise. The filter in the proposed method is not devised according to ellipticity and directionality. Instead, we use the wave vector decomposition to distinguish between noise and valid signals. Synthetic data and field data examples confirm that the proposed method can effectively suppress noise without damaging the high and low frequencies of a valid signal. View Full-Text
Keywords: seismic wave; wave separation; polarization filtering; three-component; noise attenuation; vector seismic wave; wave separation; polarization filtering; three-component; noise attenuation; vector

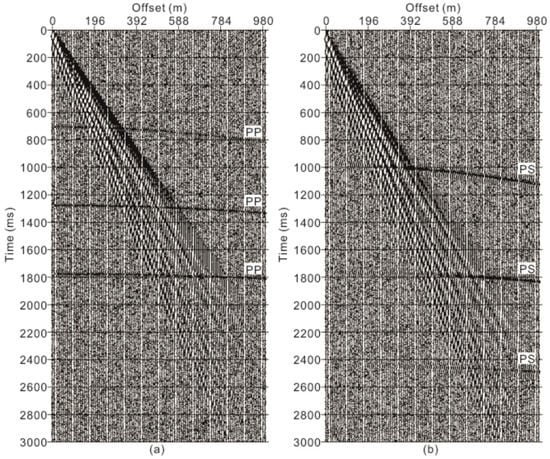

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
