Appl. Sci. 2018, 8(3), 340;

An Integrated Open Approach to Capturing Systematic Knowledge for Manufacturing Process Innovation Based on Collective Intelligence
Key Laboratory of Road Construction Technology and Equipment of MOE, School of Construction Machinery, Chang’an University, Xi’an 710064, China
School of Mechanical Engineering, Northwestern Polytechnical University, Xi’an 710072, China
School of Mechanical Engineering, Xi’an Jiaotong University, Xi’an 710049, China
Author to whom correspondence should be addressed.
Received: 3 February 2018 / Accepted: 22 February 2018 / Published: 27 February 2018


Process innovation plays a vital role in the manufacture realization of increasingly complex new products, especially in the context of sustainable development and cleaner production. Knowledge-based innovation design can inspire designers’ creative thinking; however, the existing scattered knowledge has not yet been properly captured and organized according to Computer-Aided Process Innovation (CAPI). Therefore, this paper proposes an integrated approach to tackle this non-trivial issue. By analyzing the design process of CAPI and technical features of open innovation, a novel holistic paradigm of process innovation knowledge capture based on collective intelligence (PIKC-CI) is constructed from the perspective of the knowledge life cycle. Then, a multi-source innovation knowledge fusion algorithm based on semantic elements reconfiguration is applied to form new public knowledge. To ensure the credibility and orderliness of innovation knowledge refinement, a collaborative editing strategy based on knowledge lock and knowledge–social trust degree is explored. Finally, a knowledge management system MPI-OKCS integrating the proposed techniques is implemented into the pre-built CAPI general platform, and a welding process innovation example is provided to illustrate the feasibility of the proposed approach. It is expected that our work would lay the foundation for the future knowledge-inspired CAPI and smart process planning.
manufacturing process innovation; computer-aided innovation; open innovation; collective intelligence; knowledge management; knowledge-based engineering

1. Introduction

In today’s rapidly changing market landscape, regardless of any product industry, technological innovation has been regarded as an important factor for manufacturing enterprises to ensure future competitive advantage. As a basic form of technological innovation, manufacturing process innovation is the key guarantee for the R & D final realization of new products [1,2,3], especially in the field of complex equipment, such as aircraft, aerospace, automobile, construction machinery, and so on [4,5,6,7]. Because the structure of the world economy has undergone significant changes, with demand for energy saving and environmental protection becoming increasingly urgent [8,9,10], developing countries need to transform and upgrade their manufacturing industries with process innovation to reduce energy consumption and achieve sustainable development; developed countries, accordingly, are trying to guide and accelerate the global return of manufacturing industries by means of process innovation [11,12].
However, manufacturing enterprises have long encountered a variety of problems in the implementation of process innovation. These problems are mainly manifested in the difficulty of innovation, the poor effect, and the low success rate [13,14]. Generally speaking, the new manufacturing process technologies—especially sustainable process technologies—often entail long-term, complex, experimental, and higher-risk development efforts [15,16,17]. Industrial innovation survey data shows that the lack of technical staff and relevant innovation knowledge is one of the prime reasons for the termination or failure of innovation activities [3,13,18]. In fact, manufacturing process innovation is a cross-industry and interdisciplinary type of complex system engineering, which requires not only domain experts with multidisciplinary knowledge, but also technical or management personnel of manufacturing sites with process know-how [14,19]. Nevertheless, the empirical knowledge existing in these scattered owners has not yet been effectively organized according to innovation design procedure and cannot currently be applied to Computer-Aided Process Innovation (CAPI) [3,20].
It is recognized that reasonable and efficient innovation knowledge capture is the foundation for the effective innovation knowledge application, and it is regarded as one of the core requirements for smart innovation engineering of the Future Industry 4.0 [21,22,23,24]. Although several pre-research works exist in process innovation knowledge management and CAPI framework [2,3,25], there is still a lack of an integrated approach to effectively capturing systematic process innovation knowledge under the open innovation paradigm. The open process innovation knowledge capture is, essentially, a process of effective combination of knowledge owners’ collective intelligence [20,26]. It will be able to match the characteristics of process innovation knowledge and make full use of the wisdom of multidisciplinary and multi-sectoral personnel, so as to meet the needs of CAPI-oriented knowledge organization.
Consequently, our goal in this research work is to construct an open knowledge capture approach, which can obtain structured, formalized, and systematic innovation knowledge from open environments and thus support manufacturing process problem-solving. By building an open knowledge–social community and considering multi-type knowledge organization and evolution in the process of knowledge-inspired innovation design, a novel holistic paradigm of process innovation knowledge capture based on collective intelligence (PIKC-CI) and the corresponding knowledge processing approach are explored. Accordingly, an open knowledge capture system for manufacturing process innovation (MPI-OKCS) is constructed in this paper, in order to implement the proposed method for practical application.
The remainder of this paper is organized as follows. In Section 2, some related works about innovation-oriented knowledge capture and CAPI are reviewed. Section 3 presents the overall paradigm of PIKC-CI. Section 4 shows the detailed procedure of the proposed PIKC-CI method, mainly including multi-source knowledge fusion and collaborative knowledge refinement. Then, a prototype system MPI-OKCS is implemented in Section 5 and further studied, with a case application of welding process innovation knowledge capture by using the mentioned method. The last section concludes this paper with some implications for future research.

2. Literature Review

2.1. Innovation-Oriented Knowledge Capture and Management

As is commonly recognized, knowledge is an essential asset for organizations and plays a crucial role in innovation; from another perspective, innovation can be regarded as the knowledge-based creation and the knowledge-based outcome [27,28]. To focus this study, related research has been conducted in previous contributions to innovation knowledge management and knowledge-based innovative design. Esterhuizen et al. [29] explored how knowledge conversion can grow innovation capability maturity, and provided a framework for the use of knowledge creation processes as a vehicle to improve innovation. By exploring the complex relationships between knowledge management and innovation, Xu et al. [30] proposed an integrated approach to knowledge management for innovation, and developed a corresponding distributed prototype system. Bosch-Mauchand et al. [31] presented a novel approach to support the assessment of manufacturing process performance based on knowledge management integration. To effectively support systematic manufacturing process innovation, Wang et al. [32] presented an approach to principle innovation knowledge extraction from process patents.
In the knowledge-based economy, it is difficult for a single person or enterprise to have all the knowledge needed to achieve innovation. In the engineering field, open innovation is defined as the use of purposeful knowledge transfer in order to accelerate internal innovation and expand the application markets of external innovation [33,34]. Open innovation has recently become a new model of technological innovation because of its ability to combine internal and external collective intelligence [35,36]. Besides, the latest Web 2.0 technologies lay more emphasis on online collaboration and information sharing between users, and provide a technical basis for open knowledge capture and management. By combining open innovation strategy and Web 2.0 technologies, Hüsig and Kohn [37] introduced a new form of Computer-Aided Innovation (CAI)—“Open CAI 2.0”.

2.2. Computer-Aided Process Innovation

Firstly proposed by J.A. Schumpeter from the perspective of economic development [38], process innovation received attention from both academic research and industry [19,20,39]. He believed that process innovation and product innovation constitute the technological innovation system of enterprises. The technological developments of information and communication technology (ICT) and innovation theory have provided a more structured knowledge-driven environment for technicians and market decision-makers [40,41,42]. Computer-based applications, such as CAD/CAE/CAPP/CAM, help users to achieve better solutions and hence to introduce better products, processes, and services to the diversified markets [17,43,44]. Meanwhile, the combination of innovation theory and ICT to support technological innovation has become a new research category known as CAI [40]. However, from a practical point of view, most of the current methods or tools of innovative design are more suited for product innovation than process innovation; sometimes they not only do not enhance the process innovation ability of manufacturing enterprises, but also even have some negative effects on production efficiency [39,45]. It is necessary for us to realize that process innovation and product innovation are quite different. In general, the process of process innovation covers a wider technical field, involves more participants, and suffers more realistic constraints. Actually, the traditional computer aided tools of the manufacturing process (e.g., CAPP/CAM) mainly focus on improving the efficiency and standardization of process design and management [23,43,46], rather than creating or improving process methods, and therefore cannot systematically enhance the development level of the manufacturing process in enterprises [2,3,15].
In recent years, some domain research endeavors have been carried out into specific types of manufacturing process innovation by using the Theory of Inventive Problem Solving (TRIZ) [42] and knowledge-based engineering [23]. Cakir and Cilsal [47] introduced a TRIZ-alike matrix-based access system and established a knowledge database for various contradictions of chip removal process. Duflou and D’hondt [48] applied TRIZ principles of physical conflict, resolving to improve the performance of single point incremental forming. By focusing on the semiconductor industry, Sheu et al. [49] developed a suitable contradiction matrix and corresponding inventive principles for that particular industry based on chemical–mechanical processing patents. With the development of CAI and the requirements of manufacturing process problem-solving, the basic concept and framework for CAPI were presented by Geng, Tian, and Wang [2,3,25,50], with some specific application cases being used to illustrate the feasibility of structured/systematic process innovation design [20,32,51].

2.3. Summary

In summary, much research has been done regarding aspects of innovation design theory and methods, and innovation knowledge modeling and management; however, very little work has addressed systematic knowledge-driven process innovation design and CAPI. It’s gratifying that the existing research results have shown the feasibility of structured process innovation with the computer-aided method.
Currently, CAI is developing towards a knowledge-driven, open, and systematic direction. As a branch of CAI, CAPI is more focused on solving manufacturing process problems, improving process methodologies, fostering whole process innovation design cycles, and even enhancing the overall manufacturing innovation capability of enterprises. Manufacturing process innovation knowledge, which exists in the entire lifecycle of process innovation, is used to support the correct implementation of process innovation activities, and to produce new process knowledge [2]. Obviously, the formalized knowledge capture and management is crucial to systematic CAPI, especially under the open innovation paradigm. Thus, this paper will mainly explore CAPI-oriented open innovation knowledge capture based on collective intelligence.

3. An Overall Paradigm for Innovation Knowledge Capture Based on Collective Intelligence

From the systems thinking perspective, the innovation realization of CAPI is essentially the process of capturing and applying process innovation knowledge to solve specific process problems with the support of innovation theories, methods, and tools. Problem solving is a complex intellectual activity based on high-order cognition, and innovative problem solving is considered to be the process of overcoming at least one obstacle that impedes the achievement of the desired goal [52]. Thus the problem-solving of process innovation actually mainly includes analysis and formulation of process problems, process conflict extraction and resolution, detailed design of process innovation schemes, and evaluation and optimization of the scheme. The innovation design procedure can be basically divided into four stages, as illustrated in Figure 1, and each stage needs the support from the corresponding type of innovation knowledge. According to the role of knowledge in manufacturing process innovation design, we divide innovation knowledge into several types, such as Process Contradiction Matrix, Manufacturing Scientific Effect, Innovative Scheme Instance, and so on [25]. The above types of knowledge are required to be explicit, structured and formalized descriptions, so as to stimulate the creative thinking of the process designers and facilitate the implementation of knowledge-inspired innovative design in the computer support environment. Although the designers and experts in the manufacturing field have strong process problem-solving experience and rich manufacturing knowledge, this discrete and unstructured knowledge cannot be directly and efficiently applied to innovation design, nor is it conducive to knowledge capture and accumulation in manufacturing enterprises. Thereby, we need to explore an approach that can contact appropriate knowledge holders and make full use of their collective intelligence to participate in knowledge capture activities.
From the practical point of view of collective intelligence, the effect of knowledge capture and accumulation based on community is better than that based on the company's organization structure, because it can better share and focus the knowledge topics; knowledge refinement based on peer collaboration is better than that based on expert-centered editing, because it can narrow the distance between knowledge [26,53]. Thus, a novel manufacturing process innovation knowledge capture paradigm based on collective intelligence is proposed, just as shown in Figure 1. In an open knowledge–social community, personal knowledge can be gradually transformed into public innovation knowledge through knowledge–social activities among participants. The procedure of knowledge capture basically includes three main steps: knowledge contribution (KC), knowledge fusion (KF), and knowledge refinement (KR). Firstly, knowledge topics can be published according to the requirements of current manufacturing process innovation. Then interested users are gathered into a group through knowledge–social relationships. In the knowledge–social community, they discuss the topics and manifest their knowledge using knowledge templates from the viewpoint of individual specialty and experience. Then, the knowledge capture system will integrate this personal knowledge into the public knowledge fusion units under the semantic constraints of domain ontology. Thus, the knowledge fusion units will be iteratively edited and refined into formalized and systematic knowledge by refinement group. Subsequently, the captured process innovation knowledge can be effectively applied in the stage of innovation design.

4. The Proposed PIKC-CI Method

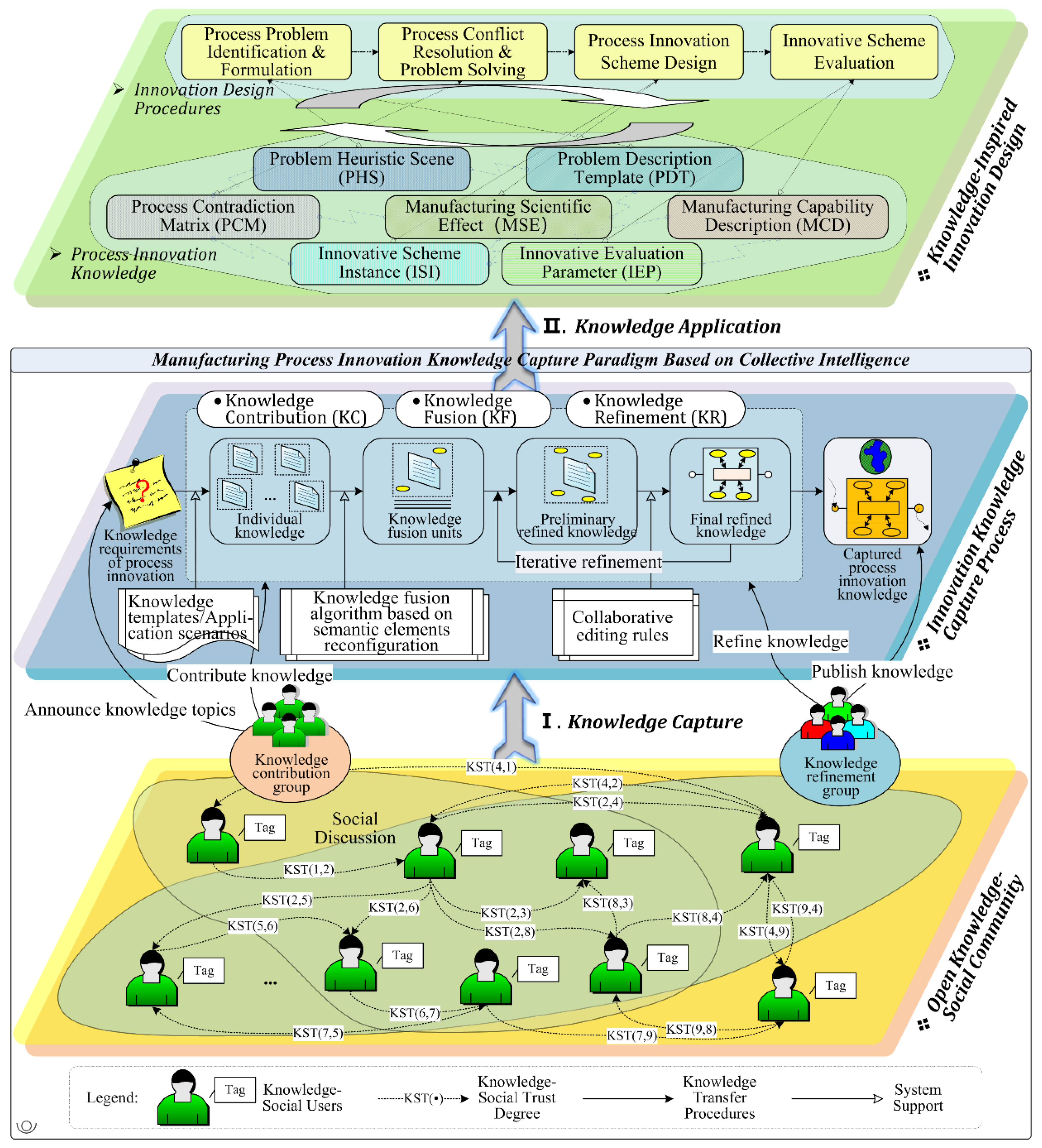

As revealed in Figure 1, we know that several knowledge activities, KC, KF and KR, are all needed for the integrated PIKC-CI method. Among them, multi-source knowledge fusion and collaborative knowledge refinement are the crux of the efficient innovation knowledge capture. In this section, the detailed approaches for multi-source innovation knowledge fusion, based on semantic elements reconfiguration, and collaborative innovation knowledge refinement, based on knowledge–social trust degree, are successively explored from the perspective of knowledge processing and transfer.

4.1. Multi-Source Innovation Knowledge Fusion Based on Semantic Elements Reconfiguration

For the convenience of detailed elaboration, this sub-section first presents the relevant definitions for process innovation knowledge and its fusion process.
Definition 1.
Manufacturing process innovation-oriented knowledge network is a set of spatial knowledge structure, formally represented as
P I K Ω = { K N , C T R , U }
where K N is a set of multi-type process innovation knowledge units, C T R is a set of knowledge contextual relevance for specific process innovation scenarios, and U is a set of social-wiki users involved in knowledge capture.

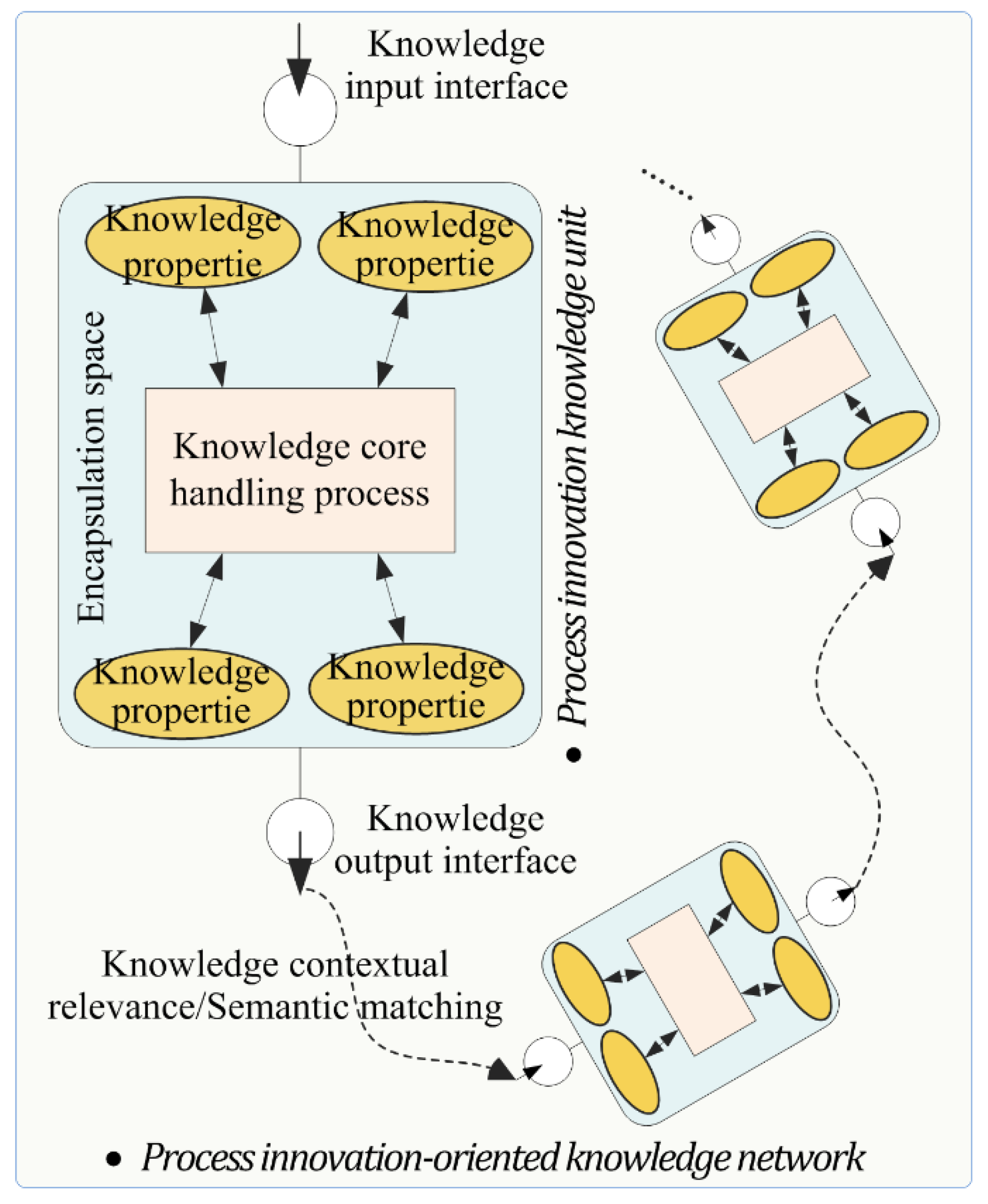

The hierarchical structure of the process innovation-oriented knowledge network is shown in Figure 2 and formally defined as follows.
Definition 2.
Process innovation knowledge unit is a local capability unit that has the ability to solve certain types of process problems and deliver information. It is defined as
K N = < P , I I , I O , E , U >
where P is a set of knowledge properties, I I and I O represent the sets of knowledge input interface and knowledge output interface, respectively. E stands for an encapsulation space for complete knowledge units. Several types of innovation knowledge, Π K N = { P H S , P D T , P C M , M S E , I S I , I E P , M C D } , are basically used in the innovation design process. Among them, P H S is the Problem Heuristic Scene, P D T is the Problem Description Template, P C M is the Process Contradiction Matrix, M S E is the Manufacturing Scientific Effect, I S I is the Innovative Scheme Instance, I E P is the Innovative Evaluation Parameter, and M C D is the Manufacturing Capability Description.
Definition 3.
Knowledge contextual relevance of manufacturing process innovation is further denoted by
C T R = { k n , k , r , k , u | k n K N , k , r , k O , u U }
where k ,   r ,   k are ontological entities defined in process innovation domain ontology O , and r is a contextual relationship between k and k .
Definition 4.
Domain ontology O consists of a series of concepts and relationships that represent domain knowledge models. It is defined as
O : = ( C , R , R , I C )
where C and R are a set of classes and a set of relations, respectively; R C × C represents a set of relationships between classes, which can be denoted as a set of triples { c , r , c | c , c C , r R } ; and I C is a power set of instance sets of a class c C .
The knowledge elements of process innovation knowledge are generally expressed in terms of domain terms or natural language descriptions. For example, process conflict parameters can be expressed as process parameters and their deformation, while process innovation principles can be expressed in natural language form. A knowledge element of natural language descriptions is composed of one or more propositions; a proposition is a complete semantic unit that contains terminology and predicate terms.
Definition 5.
Process innovation knowledge element represents a complete and indivisible knowledge unit in knowledge space P I K Ω . It is defined as
K e = { Σ , Λ , Θ }
where Σ = { t 1 , t 2 , t i , t n } , t i ( i = 1 , 2 , , n ) is terminology, and Λ = { p 1 , p 2 , p j , p m } , p j ( j = 1 , 2 , m ) is the predicate term. Θ = Σ Λ = { t 1 , t 2 , t i , t n } { p 1 , p 2 , p j , p m } denotes the logical plus operation of sets Σ and Λ .
Thus, several general characteristics of knowledge elements can be introduced from Definition 5: (1) knowledge elements have a certain structure and constitute the smallest controllable unit of process innovation knowledge; (2) knowledge elements are logically complete and capable of expressing facts, principles, methods, and so on; (3) new knowledge can be generated by semantically correlating multi-sourced knowledge elements.
Definition 6.
Natural language description D and its composition proposition P i of process innovation knowledge element can be further represented as
D P i ( i = 1 , 2 , , n ) , P i ( t i j ) ( p i j )   ( i = 1 , 2 , , n ; j = 1 , 2 , m )
where t i j ( i = 1 , 2 , , n ; j = 1 , 2 , m ) is terminology of proposition, and p i j ( i = 1 , 2 , , n ; j = 1 , 2 , m ) is the predicate of proposition.
Knowledge fusion is a process of forming new knowledge, with the help of multi-source knowledge interaction and support. For terminology fusion, the terminology specification and terminology conflict resolution of the fusion process are based on domain ontology and semantic relationships. For knowledge element sets of natural language description, we can deconstruct them as subject–predicate–object (SPO) logical form triples and then reconfigure semantic elements through co-reference relationship identification under the domain ontology constraints.

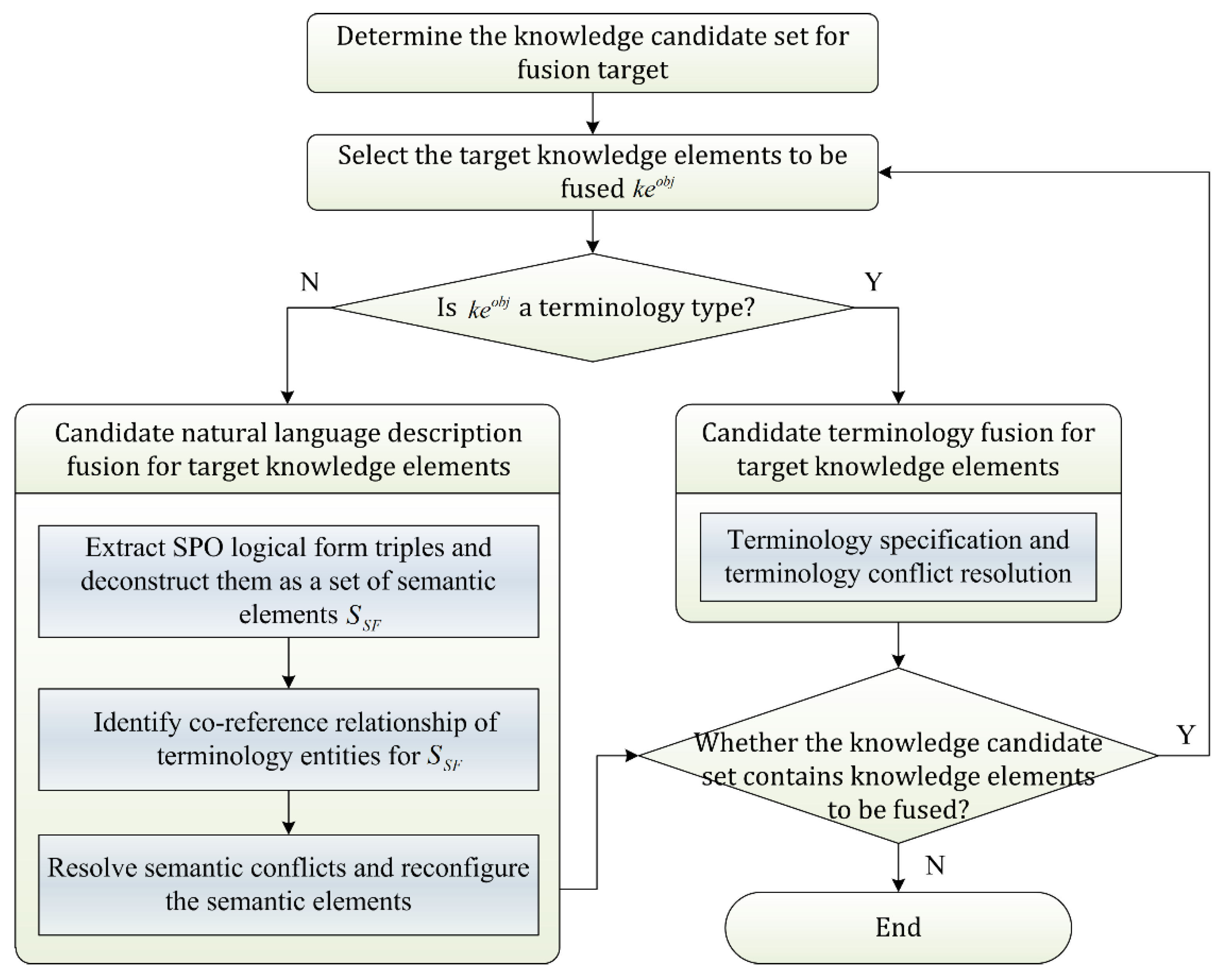

The algorithm flow of knowledge fusion for process innovation knowledge is represented in Figure 3, and the specific process is given as follows:
Step 1. Determine the knowledge candidate set for fusion target of knowledge unit K N k c n d and knowledge contextual relevance C T R t c n d .
K N k c n d = { < P k , I I k , I O k , E k , u k > | k = 1 , 2 , , n } , C T R t c n d = { k n t , k t , r t , k t , u t | t = 1 , 2 , , m } ,
where n and m are the number of knowledge unit candidates and the number of knowledge contextual relevance candidates in the fusion process, respectively.
Step 2. Select the target knowledge elements of knowledge candidate set K e o b j , and judge whether it is a terminology type. If so, then go to Step 3, otherwise turn to Step 4.
Step 3. Standardize the candidate terminology set and perform logical plus operation based on domain ontology. If completed, turn to step 7.
For two knowledge elements K e i ,   K e j in fusion process, if there are terminology items t i K e i ,   t j K e j and terminology conflict t i × t j , those conflicts will be resolved according to the following rules:
When the terminologies have similar meanings but different expressions, we can map terminology items t i ,   t j into the terminology set logic tree T of domain ontology, and the result can be denoted by R . If T ( t i ) T ( t j ) , then R = t j ; if T ( t i ) T ( t j ) , then R = t i ; if T ( t i ) = T ( t j ) , then R = t i   or   t j .
When the terminology items have contrary logic, conflict resolution will depend on collective intelligence.
Step 4. Execute semantic and grammatical analysis for the candidate natural language descriptions, and extract SPO logical form triples by using semantic linguistic tool NLPWin [54], which provides deep syntactic and partial semantic analysis of text, then deconstruct them as a set of semantic elements S S F .
Step 5. Identify co-reference relationship of terminology entities for S S F . Terminology entities refer to the terms or phrases that are defined by the domain ontology, such as the manufacturing resources, processing objects, process methods, and so on.
Step 6. Perform the logical plus operation for deconstructed natural language descriptions of the candidate set, and reconfigure the semantic elements of S S F . If completed, go to step 7.
For two knowledge elements K e i and K e j in fusion process, if there are semantic items ( t i p i ) K e i ,   ( t j p j ) K e j and semantic conflict ( t i p i ) ( t j p j ) , those conflicts will be resolved according to the following rules:
When concrete manifestation of semantic conflict is terminology conflict, those conflicts can be resolved according to Step 3.
When predicate items have similar meanings but different expressions, we denote the usage frequency of predicate terms p i ,   p j by f i and f j , respectively. Similarly, the fusion result is denoted by R . If f i f j , then R = p j ; if f i f j , then R = p j ; if f i = f j , then R = p i   or   p j .
When predicate items have contrary logic, conflicts resolution will depend on collective intelligence.
Step 7. Judge whether the candidate knowledge sets K N k c n d and C T R t c n d still contain knowledge elements that need to be fused. If so, return to Step 2, otherwise end this algorithm.

4.2. Collaborative Innovation Knowledge Refinement Based on Knowledge–Social Trust Degree

Innovation knowledge fusion unit contains the wisdom of the participants’ individual knowledge, yet to some extent it is rough or inaccurate and needs to be refined further by experts and authorities. Knowledge refinement is a collaborative editing process of preliminary knowledge by group members with a high knowledge–social trust degree (KST). In order to rapidly capture process innovation knowledge and ensure the credibility and orderliness of the knowledge refinement procedure, we regulate group members’ knowledge behavior by applying a collaborative editing mechanism.

4.2.1. Credible Groups Construction

In the process of innovation knowledge capturing, knowledge–social members give comments and evaluations on other members’ knowledge activities and establish social trust relationships among them. Here, the participants’ knowledge–social trust degree in a knowledge community is measured by two aspects: individual trust (KSTind) and community trust (KSTcom).
Definition 7.
KSTind is used to describe the trust level established on knowledge interaction between one user and another user. Suppose there are individuals d i and d j in the knowledge–social community, d i and d j had n 1 times knowledge–social activities which has an interactive type of P h . Let j u d d j ( d i ) [ 0 , 1 ] be an interactive evaluation of d j toward d i in a knowledge–social activity. Assuming that d j has given m 1 times negative comment on d i , the KSTind of d j toward d i can be computed as:
K S T i n d ( d j , d i ) = t = 1 n 1 r i g h t ( P h ) × j u d d j ( d i ) n 1 × ( n 1 m 1 n 1 ) 1 n 1 m 1
where r i g h t ( P h ) [ 0 , 1 ] is weight coefficient of interactive type. This formula introduces the weight concept of knowledge interaction and considers the influence of malicious interaction on subjective trust, which makes the calculation more reliable.
Definition 8.
KSTcom indicates the overall trust and reliability of users in the knowledge–social community, given by all members of the community in which the individual resides. The KSTcom calculation depends on the following two factors: (1) the common evaluation for someone's knowledge–social behavior from all members of knowledge community; (2) the number of knowledge communities in which this individual resides. Suppose there is an individual d i V in multiple knowledge communities V 1 , V 2 , , V e . Assuming that d i has been evaluated by g members of knowledge communities V 1 , V 2 , , V e , we can obtain the KSTcom of d i .
K S T c o m ( d i ) = 1 g × d j V 1 V 2 V e j i [ K S T i n d ( d j , d i ) 1 | V d j | × ( K S T c o m ( d j ) ) ] ,
where V is the knowledge community set, and | V d j | is the number of knowledge communities V 1 , V 2 , , V e in which the individual d j resides. Considering the extensive influence of community participants, the number of communities is introduced as a factor in KSTcom calculation. If a participant has identities in multiple knowledge communities, the influence from his evaluation will be more than the one from only one community. In the process of knowledge refinement, the credibility of knowledge refined by participants with multiple identities will certainly be higher than that refined by the user with single community identity.
Suppose there are t members in a group G , the degrees of group knowledge-social trust K S T c o m ( d i ) ,   K S T c o m ( d j ) have not been determined. The specific procedures of credible groups construction based on KST are summarized as follows:
Step 1. Compute individual knowledge–social trust degree K S T i n d ( d j , d i ) for t members of group G by using Formula (8).
Step 2. Initialize community knowledge–social trust degree for each group member i , K S T c o m ( d i ) = k ( 0 , 1 ] .
Step 3. Calculate temporary community knowledge–social trust degree K S T c o m ( d i ) ¯ of each group member by applying Formula (9):
K S T c o m ( d i ) ¯ = 1 g × d j V 1 V 2 V e j i [ K S T i n d ( d j , d i ) 1 | V d j | × ( K S T c o m ( d j ) ) ]
Step 4. Judge whether the KSTcom satisfies accuracy error according to the following formula:
| K S T c o m ( d i ) ¯ K S T c o m ( d i ) | < Δ
where Δ is the setting accuracy error value. If so, go to Step 5; otherwise let K S T c o m ( d i ) = K S T c o m ( d i ) ¯ for each knowledge–social member, and return to Step 3.
Step 5. Structure the KSTcom set of knowledge–social members, K S T c o m = { K S T c o m ( d i ) | i V } . Select the members with higher KST to join the knowledge refinement group based on the following basic criterion:
K S T c o m ( d i ) ξ
where ξ is the knowledge–social trust threshold, which can be set based on the requirements of innovation knowledge refinement.

4.2.2. Procedure of Collaborative Knowledge Refinement

Knowledge refinement process requires collective participation of knowledge–social users, and refinement results should include ideas from knowledge refinement members as much as possible. In an open knowledge–social community, members of credible knowledge group have the permission of the corresponding knowledge editing and refinement. The procedure of collaborative process innovation knowledge refinement is displayed in Figure 4. Firstly, managers propose knowledge refinement requirements and build refinement groups according to the knowledge to be refined. Then group members discuss original knowledge object K 0 , publish their suggestions for revision and post their attitudes toward the views of others. A suitable member u 1 will be selected as the knowledge editor to perform refinement transaction. Thus, a temporary knowledge version K 1 1 is formed by the first-round editor u 1 . When knowledge editing of this round is completed, the members make an editorial comment on version K 1 1 again and carry out the procedure of knowledge refinement. Then repeat the above process until the knowledge is fully refined. As shown in Figure 4, through the gradual refinement for original knowledge object K 0 by editors u 1 u n , multiple temporary versions may have been correspondingly formed as knowledge versions K 1 1 K 1 n . When the latest temporary version K 1 n reach the refinement requirements, it will be saved as the refinement result of this time K 1 . In addition, with the knowledge application in manufacturing process innovation design, the new requirement of knowledge refinement will still be put forward.
While accessing any knowledge elements of collaborative editing, group members can take the following actions: view and edit the existing knowledge. Because multiple users may execute transactions simultaneously in the refinement process and the transactions are atomic, knowledge element modification for different transactions should be mutually exclusive. Here, a lock-based knowledge collaborative editing and refinement solution is adopted to enable concurrent access to workflows for multiple knowledge editors, and its specific rules are shown in Table 1. Knowledge locks, in this study, basically consist of two types: read locks and write locks. The editor who owns the write lock has editing permission for the locked region, while the read lock owner is only allowed to read knowledge content. To avoid redundant effort and to prevent editors from destroying each other’s work, the write locks are exclusive in this research.

5. Case Study

5.1. The Implementation of MPI-OKCS

Based on the proposed approach, this sub-section implements a prototype management system MPI-OKCS for open capturing systematic process innovation knowledge. It is integrated as a submodule into the pre-built general platform of CAPI system piPioneer, which contains the basic tools needed for the knowledge management system.

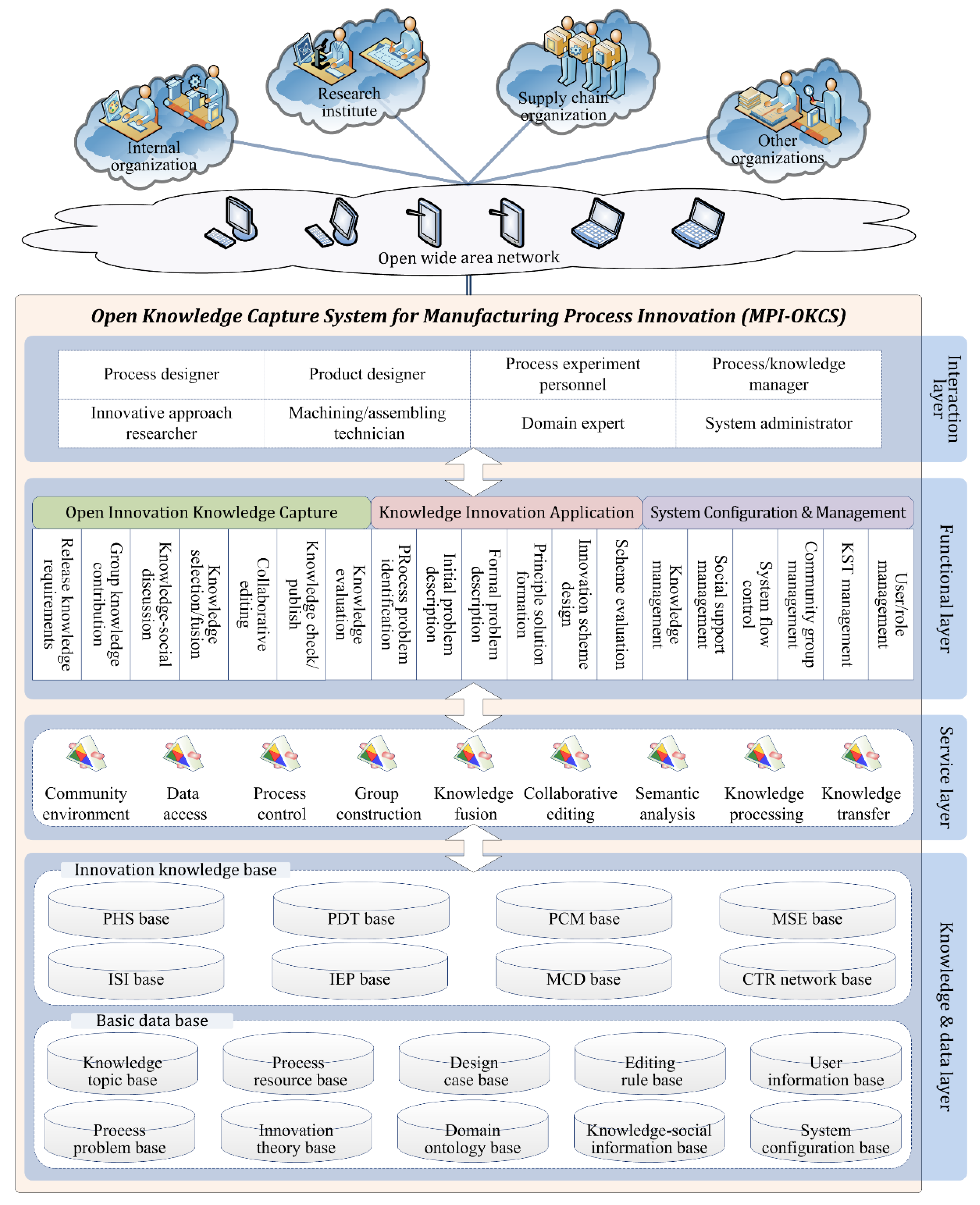

The MPI-OKCS has a 4-layer-architecture, as illustrated in Figure 5. The knowledge & data layer stores the basic data of the innovation system, knowledge–social information of the community, and captured process innovation knowledge. The service layer supports access to the knowledge and data layer, and provides various system background services of knowledge capturing process. The functional layer provides the functional components required for the system business logic of the three main modules, namely, knowledge capture, knowledge application, and system management. The interaction layer provides a visual man–machine interface for users from different departments and dispersed geographic locations, so that they can participate in the innovation knowledge processing activities of the corresponding roles in an open environment.
To facilitate the implementation process, we have invited seven domain experts from the Institute of CAPP & Manufacturing Engineering Software at NWPU (Xi’an, China) and the Department of Mechanical Design at CHD (Xi’an, China) to participate in innovation knowledge refinement. All graduate students from the above two departments were allowed to contribute their innovation knowledge. Additionally, about 20 engineers from the R & D department of Sinomach Changlin Company Limited (Changzhou, China) have contributed their individual process knowledge to the system.

5.2. An Illustrative Example of Welding Process Innovation Knowledge Capture and Application

Welding technology is widely used in the manufacture of aerospace vehicles, electronic precision instruments, pressure vessels and so on. With the complexity and diversification of product requirements, the specific process issues to be solved in welding technology are also increasing. In the following, we take welding process innovation as an example to illustrate the concrete process of open innovation knowledge capture.

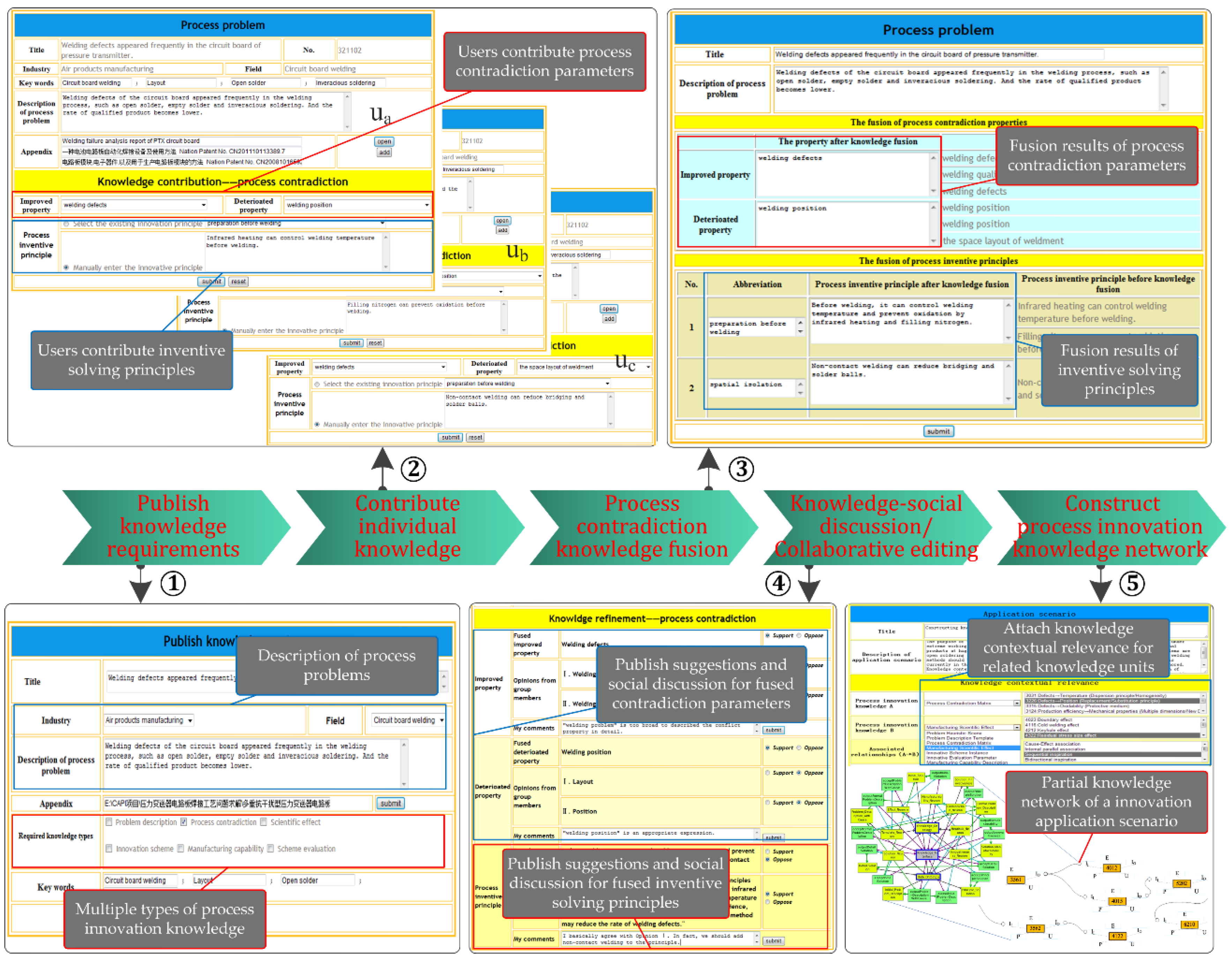

Figure 6 presents the procedures of knowledge capture for the circuit board welding process problem-solving of an electronic device. Firstly, the system publishes knowledge topics and problem-solving requirements, then notifies the related knowledge–social users. According to the situation of process problem solving, multiple types of innovation knowledge can be included: PCM, MSE, ISI, et al. Here, the knowledge type of process contradiction is selected as required in this round of knowledge capturing (as shown in Part 1 of Figure 6).
Those interested users are formed into the knowledge contribution group, then they discuss the knowledge topics and exchange views, and contribute their individual knowledge according to the corresponding knowledge templates. In Part 2, three members u a ,   u b   and   u c have respectively contributed their process contradiction knowledge, which contain contradiction parameters and corresponding inventive solving principles. Three pairs of process contradiction parameters are as follows: Pa = <welding defects → welding position>, Pb = <welding quality → welding position> and Pc = <welding defects → the space layout of weldment>. And three natural language descriptions of inventive solving principles are as follows: Da = {Infrared heating can control welding temperature before welding}, Db = {Filling nitrogen can prevent oxidation before welding}, and Dc = {Non-contact welding can reduce bridging and solder balls}.
Subsequently, the above process contradiction knowledge is further fused together, as illustrated in Part 3 of Figure 6. According to the relationships of process terms ontology, three process parameters to be improved are fused into a result for the strengthening process parameter, welding defects. Similarly, the fusion result of the weakening process parameter, welding position, is obtained. Thus, the fused process contradiction parameters can be expressed as PF = <welding defects → welding position>. Meanwhile, the system will extract the logical form triples of three innovation principle descriptions. From the extraction results in Figure 7, Pa and Pb have the specific semantic association, and they can form a fused semantic graph. Furthermore, with the support of process resources and knowledge of the general platform piPioneer, a fusion result of innovation principle descriptions can be formed using the semantic elements reconfiguration method. The fusion results are described as follows: DF = {By combining the use of infrared heating and filling nitrogen before welding, the welding temperature can be effectively controlled and the oxidation can be prevented}. Figure 7 shows the fusion process of process innovation principle descriptions.
In a knowledge–social community, the preliminary fused process contradiction knowledge will be transferred to the credible knowledge refinement group formed with high KST members. Refinement members can publish revision suggestions and have a chance to get the write lock. Through knowledge–social discussion and multiple rounds of collaborative editing, the refined welding process contradiction knowledge for this knowledge topic/problem-solving is captured. In the same way, the capture procedures of other knowledge types are basically consistent with process contradiction.
Parts 1–4 of Figure 6 give the description for innovation knowledge capture of PCM type. Similarly, other types of process innovation knowledge units can also be captured by this way. When the number of process innovation knowledge units is sufficient, knowledge contextual relevance can be attached to the related units to form a specific knowledge network, which has a certain problem-solving ability in the semantic environment. Based on the published application scenario, knowledge–social users can contribute their individual knowledge contextual relevance by selecting knowledge types, knowledge entries, and the corresponding associated relationships, as shown in Part 5 of Figure 6. Correspondingly, innovation knowledge network construction for a specific innovation application scenario needs not only a large number of multi-type knowledge units, but also the new round of knowledge–social members’ collaborative editing based on collective intelligence. In this case study, after about six months of open knowledge capture and welding knowledge accumulation in the pre-research stage, an innovation knowledge network for problem solving of circuit board welding was built in the MPI-OKCS. Part 5 of Figure 6 gives a partial knowledge network for the above innovation application scenario, which currently contains 223 refined knowledge units. Among them, a welding process contradiction matrix is captured, as illustrated in Figure A1 and Table A1 and Table A2. With the aid of the innovation application module of piPioneer, the captured innovation knowledge units and knowledge networks have played an effective role in inspiring the process problem-solving for development of a new-type pressure sensor.

6. Conclusions and Implications

Manufacturing process innovation has been recognized as a key factor for reducing production costs, improving product quality, and enhancing sustainable competitive edge. Nevertheless, in the implementation of knowledge-driven CAPI, an important challenge that must be faced is how to effectively capture the structured, formalized, and associated innovation knowledge from empirical knowledge owners. In this paper, we have presented an integrated approach for processing innovation knowledge capture based on collective intelligence. Some of the main contributions of this research are listed below:
  • By considering the multi-type knowledge organization in innovation design and building a knowledge–social community, a novel holistic knowledge capture paradigm of PIKC-CI is proposed, which can realize the transformation from individual empirical knowledge to public refined knowledge in an open environment.
  • Based on the domain ontology constraints, a multi-source process innovation knowledge fusion algorithm based on semantic elements reconfiguration is raised, with the corresponding semantic conflict resolution rules. This algorithm can effectively support preliminary automatic fusion for the contributed knowledge.
  • A collaborative editing strategy based on knowledge lock and KST is applied to the iterative refinement of process innovation knowledge, which ensures that refined knowledge embraces the collective intelligence of knowledge–social users.
Potential future studies related to this work are as follows. Firstly, in addition to the current static knowledge network for specific application scenarios, we are interested in studying how to construct the innovation problem-oriented dynamic knowledge network. Secondly, we will expand our approach to the automatic knowledge capture from problem-solving schemes of the process planning system, and manufacturing process-related text of the cloud manufacturing platform. Moreover, from the perspective of knowledge application, it is worth exploring how to realize just-in-time knowledge recommendations for innovation design life cycle.


This work was supported by the Fundamental Research Funds for the Central Universities of China (Grant Nos. 310825171004 and 310825173314). In addition, G.W. would also like to express special gratitude to CAPP team of NWPU for their support in CAPI project research.

Author Contributions

G.W., X.T., and J.G. conceived this study; G.W. and Y.H. drafted the manuscript and improved the knowledge processing algorithms; G.H. and M.Z. proofread and revised the content of the original manuscript. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
CAPIcomputer-aided process innovation
CAMcomputer-aided manufacturing
CAPPcomputer-aided process planning
CADcomputer-aided design
CAEcomputer-aided engineering
CAIcomputer-aided innovation
ICTinformation and communication technology
KCknowledge contribution
KFknowledge fusion
KRknowledge refinement
TRIZthe theory of inventive problem solving
PIKC-CIprocess innovation knowledge capture based on collective intelligence
PHSproblem heuristic scene
PDTproblem description template
PCM process contradiction matrix
MSEmanufacturing scientific effect
ISIinnovative scheme instance
IEPinnovative evaluation parameter
MCDmanufacturing capability description
KSTknowledge–social trust degree
MPI-OKCSopen knowledge capture system for manufacturing process innovation

Appendix A

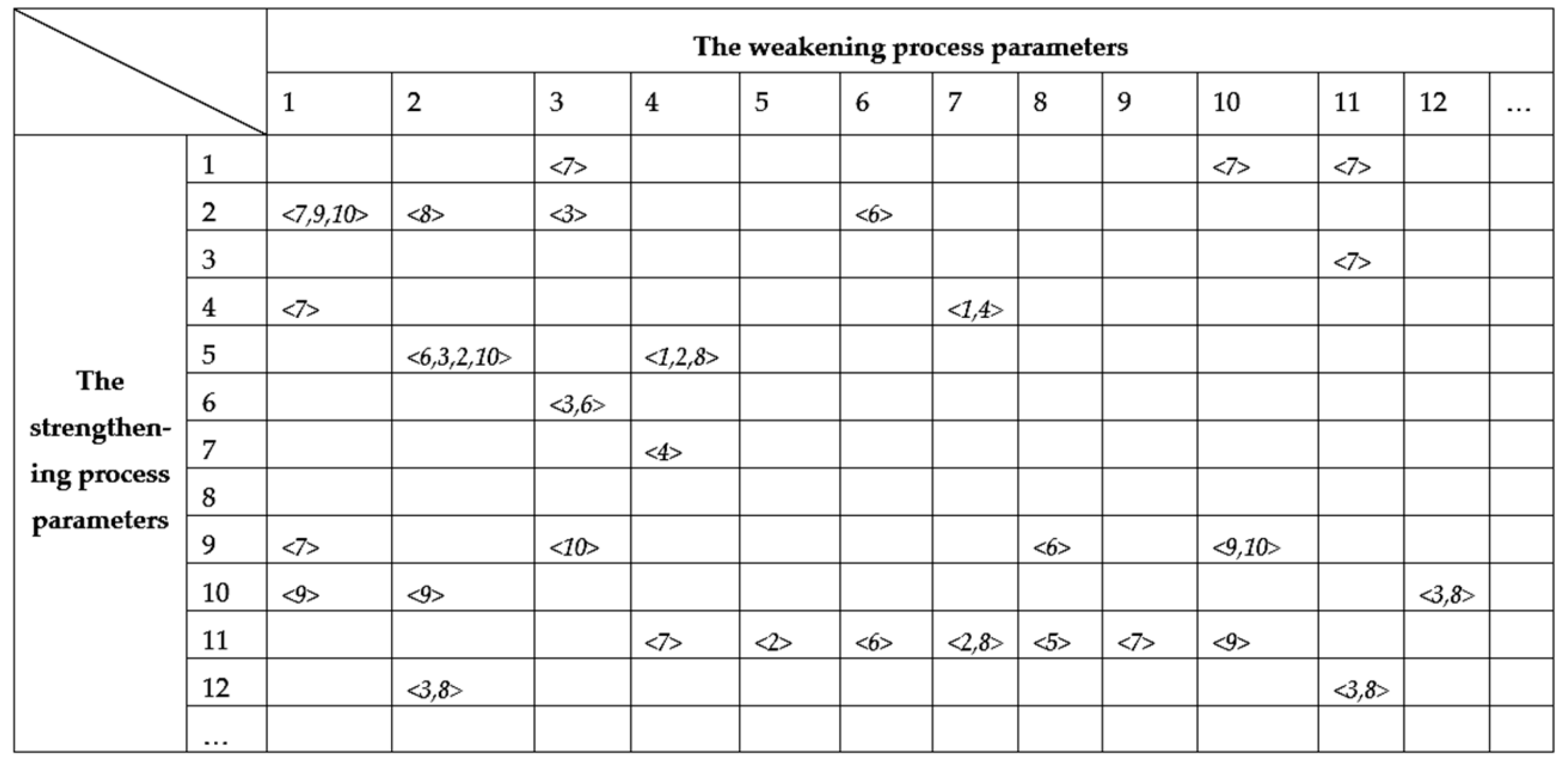

Figure A1. Welding process contradiction matrix.
Figure A1. Welding process contradiction matrix.
Applsci 08 00340 g0a1
Table A1. Contradiction parameters of welding process.
Table A1. Contradiction parameters of welding process.
1MaterialPhysical and chemical properties of materials
2Mechanical propertiesStress, pressure, tensile strength etc.
3ThicknessThickness range of different materials can be welded
4StrengthMechanical strength after welding
5ShapeBreak/joint form, welding wire size, weld shape/aspect ratio, arc spacing etc.
6Welding positionButt contact, angular contact, lap joint, downward welding, vertical, horizontal and inverted welding, constraint degree
7TemperaturePreheat temperature, heat treatment temperature, cooling temperature, temperature distribution etc.
8PowerWelding current, arc voltage, power supply
9SpeedWelding speed, wire feed speed, wire melting speed, cooling rate etc.
10OxidabilityHeat input, weld/base metal oxidation
11Welding defectsAppearance defects, surface defects, cracks, incomplete penetration, not fusion etc.
12Production efficiencyWelding utilization, product efficiency
Table A2. Contradiction solving principles of welding process.
Table A2. Contradiction solving principles of welding process.
1Separation/detachment/compromisea. Divide objects into separate parts; b. Make the object detachable; c. Increase the object segmentation.
2Preparation before weldinga. The choice and treatment of the crevasses form; b. Pre-calculation processing.
3Change one-dimension to multi-dimension (new dimension)a. The material motion in the form of point, one-dimensional, two-dimensional, three-dimensional spatial distribution or conversion; b. Replacing single layer structure with multi-layer structure; c. Incline, side, or invert the object; d. To the opposite or adjacent surface of a specified surface.
4Heat treatmenta. Normalizing; b. Quenching; c. Tempering; d. Annealing.
5Turn the harm into benefita. Use harmful factors (especially the harmful effects of the medium) to gain beneficial effects; b. Harmful factors can be eliminated by a combination of harmful factors and one or more other harmful factors; c. Improve the extent of the operation of the harmful factors in order to achieve a state of harmless.
6Substitution/replacement principlea. Using two or more welding methods instead of a single welding method; b. The new welding consumables and solder are used to replace the old ones; c. The quantitative and faintness factors, fixed and variable parameters, irregular and regular state are converted into each other in welding; d. Using high energy density energy.
7Welding material selectiona. Select stainless steel consumables according to ASME specifications; b. Select welding consumables by application or composition.
8Dispersion principle (homogeneity)a. The welding consumables should be of the same material (or of the similar mechanical properties) when welding a given object. B. Distract the stress of the stress concentration part.
9Setting media protectiona. Replacing the normal environment with an inert environment; b. Introduction of a mixture or additive; c. Welding process in vacuum environment.
10Composite/hybrid principlea. Transfer from the same material to the mixture; b. Substitute a composition for a similar substance.


  1. Neugebauer, R. Energy-Efficient Product and Process Innovations in Production Engineering. CIRP J. Manuf. Sci. Technol. 2011, 4, 127–128. [Google Scholar] [CrossRef]
  2. Wang, G.; Tian, X.; Geng, J.; Guo, B. A Process Innovation Knowledge Management Framework and Its Application. Adv. Mater. Res. 2013, 655–657, 2299–2306. [Google Scholar] [CrossRef]
  3. Geng, J.; Tian, X.; Jia, X.; Liu, S.; Zhang, Z. Review for computer aided methods of manufacturing process innovation. Comput. Integr. Manuf. Syst. 2016, 22, 2778–2790. [Google Scholar]
  4. Jafari, M.; Zarghami, H.R. Effect of TRIZ on enhancing employees’ creativity and innovation. Aircraft Eng. Aerosp. Technol. 2017, 89, 853–861. [Google Scholar] [CrossRef]
  5. Sun, X.; Shehab, E.; Mehnen, J. Knowledge modelling for laser beam welding in the aircraft industry. Int. J. Adv. Manuf. Technol. 2012, 66, 763–774. [Google Scholar] [CrossRef]
  6. Wang, C.N.; Huang, Y.F.; Le, T.N.; Ta, T.T. An innovative approach to enhancing the sustainable development of Japanese automobile suppliers. Sustainability 2016, 8, 420. [Google Scholar] [CrossRef]
  7. Yi, P.X.; Huang, M.; Guo, L.J.; Shi, T.L. Dual recycling channel decision in retailer oriented closed-loop supply chain for construction machinery remanufacturing. J. Clean. Prod. 2016, 137, 1393–1405. [Google Scholar] [CrossRef]
  8. Kang, D.; Lee, D.H. Energy and environment efficiency of industry and its productivity effect. J. Clean. Prod. 2016, 135, 184–193. [Google Scholar] [CrossRef]
  9. May, G.; Stahl, B.; Taisch, M.; Kiritsis, D. Energy management in manufacturing: From literature review to a conceptual framework. J. Clean. Prod. 2017, 167, 1464–1489. [Google Scholar] [CrossRef]
  10. Kobayashi, H. A systematic approach to eco-innovative product design based on life cycle planning. Adv. Eng. Inform. 2006, 20, 113–125. [Google Scholar] [CrossRef]
  11. U.S. President’s Council of Advisors on Science and Technology. Report to the President on Capturing Domestic Competitive Advantage in Advanced Manufacturing; U.S. President’s Council of Advisors on Science and Technology: Washington, DC, USA, 2012.
  12. Ramos, T.B.; Martins, I.P.; Martinho, A.P.; Douglas, C.H.; Painho, M.; Caeiro, S. An open participatory conceptual framework to support State of the Environment and Sustainability Reports. J. Clean. Prod. 2014, 64, 158–172. [Google Scholar] [CrossRef]
  13. Alvarado, A. Problems in the implementation process of advanced manufacturing technologies. Int. J. Adv. Manuf. Technol. 2013, 64, 123–131. [Google Scholar]
  14. Hollen, R.M.A.; Van den Bosch, F.A.J.; Volberda, H.W. The Role of Management Innovation in Enabling Technological Process Innovation: An Inter-Organizational Perspective. Eur. Manag. Rev. 2013, 10, 35–50. [Google Scholar] [CrossRef]
  15. Mani, M.; Madan, J.; Lee, J.H.; Lyons, K.W.; Gupta, S.K. Sustainability characterisation for manufacturing processes. Int. J. Prod. Res. 2014, 52, 5895–5912. [Google Scholar] [CrossRef]
  16. Shin, S.J.; Kim, D.B.; Shao, G.; Brodsky, A.; Lechevalier, D. Developing a decision support system for improving sustainability performance of manufacturing processes. J. Intell. Manuf. 2017, 28, 1421–1440. [Google Scholar] [CrossRef]
  17. Främling, K.; Holmström, J.; Loukkola, J.; Nyman, J.; Kaustell, A. Sustainable PLM through Intelligent Products. Eng. Appl. Artif. Intell. 2013, 26, 789–799. [Google Scholar] [CrossRef]
  18. Liu, L.; Jiang, Z.; Song, B. A novel two-stage method for acquiring engineering-oriented empirical tacit knowledge. Int. J. Prod. Res. 2014, 52, 5997–6018. [Google Scholar] [CrossRef]
  19. Stadler, C. Process Innovation and Integration in Process-Oriented Settings: The Case of the Oil Industry. J. Prod. Innov. Manag. 2011, 28, 44–62. [Google Scholar] [CrossRef]
  20. Wang, G.; Tian, X.; Hu, Y.; Evans, R.D.; Tian, M.; Wang, R. Manufacturing Process Innovation-Oriented Knowledge Evaluation Using MCDM and Fuzzy Linguistic Computing in an Open Innovation Environment. Sustainability 2017, 9, 1630. [Google Scholar] [CrossRef]
  21. Alexander, A.T.; Childe, S.J. Innovation: A knowledge transfer perspective. Prod. Plan. Control 2013, 24, 208–225. [Google Scholar] [CrossRef]
  22. Gao, J.; Bernard, A. An overview of knowledge sharing in new product development. Int. J. Adv. Manuf. Technol. 2017, 94, 1545–1550. [Google Scholar] [CrossRef]
  23. Leo Kumar, S.P. Knowledge-based expert system in manufacturing planning: State-of-the-art review. Int. J. Prod. Res. 2018, 1–25. [Google Scholar] [CrossRef]
  24. Waris, M.M.; Sanin, C.; Szczerbicki, E. Smart Innovation Engineering: Toward Intelligent Industries of the Future. Cybern. Syst. 2018, 1–16. [Google Scholar] [CrossRef]
  25. Wang, G.; Tian, X.; Geng, J.; Guo, B. A knowledge accumulation approach based on bilayer social wiki network for computer-aided process innovation. Int. J. Prod. Res. 2015, 53, 2365–2382. [Google Scholar] [CrossRef]
  26. Woolley, A.W.; Chabris, C.F.; Pentland, A.; Hashmi, N.; Malone, T.W. Evidence for a collective intelligence factor in the performance of human groups. Science 2010, 330, 686–688. [Google Scholar] [CrossRef] [PubMed]
  27. Denkena, B.; Shpitalni, M.; Kowalski, P.; Molcho, G.; Zipori, Y. Knowledge Management in Process Planning. CIRP Ann. Manuf. Technol. 2007, 56, 175–180. [Google Scholar] [CrossRef]
  28. Quintane, E.; Mitch Casselman, R.; Sebastian Reiche, B.; Nylund, P.A. Innovation as a knowledge-based outcome. J. Knowl. Manag. 2011, 15, 928–947. [Google Scholar] [CrossRef]
  29. Esterhuizen, D.; Schutte, C.S.L.; du Toit, A.S.A. Knowledge creation processes as critical enablers for innovation. Int. J. Inf. Manag. 2012, 32, 354–364. [Google Scholar] [CrossRef]
  30. Xu, J.; Houssin, R.; Caillaud, E.; Gardoni, M. Fostering continuous innovation in design with an integrated knowledge management approach. Comput. Ind. 2011, 62, 423–436. [Google Scholar] [CrossRef]
  31. Bosch-Mauchand, M.; Belkadi, F.; Bricogne, M.; Eynard, B. Knowledge-based assessment of manufacturing process performance: Integration of product lifecycle management and value-chain simulation approaches. Int. J. Comput. Integr. Manuf. 2013, 26, 453–473. [Google Scholar] [CrossRef]
  32. Wang, G.; Tian, X.; Geng, J.; Evans, R.; Che, S. Extraction of Principle Knowledge from Process Patents for Manufacturing Process Innovation. Proc. CIRP 2016, 56, 193–198. [Google Scholar] [CrossRef]
  33. Van de Vrande, V.; de Jong, J.P.J.; Vanhaverbeke, W.; de Rochemont, M. Open innovation in SMEs: Trends, motives and management challenges. Technovation 2009, 29, 423–437. [Google Scholar] [CrossRef]
  34. Huizingh, E.K.R.E. Open innovation: State of the art and future perspectives. Technovation 2011, 31, 2–9. [Google Scholar] [CrossRef]
  35. Carbone, F.; Contreras, J.; Hernández, J.Z.; Gomez-Perez, J.M. Open Innovation in an Enterprise 3.0 Framework: Three Case Studies. Expert Syst. Appl. 2012, 39, 8929–8939. [Google Scholar] [CrossRef]
  36. Cappa, F.; Del Sette, F.; Hayes, D.; Rosso, F. How to deliver open sustainable innovation: An integrated approach for a sustainable marketable product. Sustainability 2016, 8, 1341. [Google Scholar] [CrossRef]
  37. Hüsig, S.; Kohn, S. “Open CAI 2.0”—Computer Aided Innovation in the era of open innovation and Web 2.0. Comput. Ind. 2011, 62, 407–413. [Google Scholar] [CrossRef]
  38. Schumpeter, J.A. The Theory of Economic Development; Harvard University Press: Cambridge, MA, USA, 1934. [Google Scholar]
  39. Ayhan, M.B.; Öztemel, E.; Aydin, M.E.; Yue, Y. A quantitative approach for measuring process innovation: A case study in a manufacturing company. Int. J. Prod. Res. 2013, 51, 3463–3475. [Google Scholar] [CrossRef]
  40. Leon, N.; Cho, S.K. Computer aided innovation. Comput. Ind. 2009, 60, 537–538. [Google Scholar] [CrossRef]
  41. Kiritsis, D.; Koukias, A.; Nadoveza, D. ICT supported lifecycle thinking and information integration for sustainable manufacturing. Int. J. Sustain. Manuf. 2014, 3, 229–249. [Google Scholar] [CrossRef]
  42. Ilevbare, I.M.; Probert, D.; Phaal, R. A review of TRIZ, and its benefits and challenges in practice. Technovation 2013, 33, 30–37. [Google Scholar] [CrossRef]
  43. Xu, X.; Wang, L.; Newman, S.T. Computer-aided process planning—A critical review of recent developments and future trends. Int. J. Comput. Integr. Manuf. 2011, 24, 1–31. [Google Scholar] [CrossRef]
  44. Lukic, D.; Milosevic, M.; Antic, A.; Borojevic, S.; Ficko, M. Multi-criteria selection of manufacturing processes in the conceptual process planning. Adv. Prod. Eng. Manag. 2017, 12, 151–162. [Google Scholar] [CrossRef]
  45. Raymond, L.; Bergeron, F.; Croteau, A.-M. Innovation capability and performance of manufacturing SMEs: The paradoxical effect of IT integration. J. Organ. Comput. Electron. Commer. 2013, 23, 249–272. [Google Scholar] [CrossRef][Green Version]
  46. Yusof, Y.; Latif, K. Survey on computer-aided process planning. Int. J. Adv. Manuf. Technol. 2014, 75, 77–89. [Google Scholar] [CrossRef][Green Version]
  47. Cakir, M.C.; Cilsal, O.O. Implementation of a contradiction-based approach to DFM. Int. J. Comput. Integr. Manuf. 2008, 21, 839–847. [Google Scholar] [CrossRef]
  48. Duflou, J.R.; D’hondt, J. Applying TRIZ for systematic manufacturing process innovation: The single point incremental forming case. Proc. Eng. 2011, 9, 528–537. [Google Scholar] [CrossRef]
  49. Sheu, D.D.; Chen, C.-H.; Yu, P.-Y. Invention principles and contradiction matrix for semiconductor manufacturing industry: Chemical mechanical polishing. J. Intell. Manuf. 2012, 23, 1637–1648. [Google Scholar] [CrossRef]
  50. Geng, J.; Tian, X. Knowledge-Based Computer Aided Process Innovation Method. Adv. Mater. Res. 2010, 97–101, 3299–3302. [Google Scholar] [CrossRef]
  51. Guo, B.; Geng, J.; Wang, G. Knowledge Fusion Method of Process Contradiction Units for Process Innovation. Proc. Eng. 2015, 131, 816–822. [Google Scholar] [CrossRef]
  52. Duran-Novoa, R.; Leon-Rovira, N.; Aguayo-Tellez, H.; Said, D. Inventive problem solving based on dialectical negation, using evolutionary algorithms and TRIZ heuristics. Comput. Ind. 2011, 62, 437–445. [Google Scholar] [CrossRef]
  53. Lykourentzou, I.; Papadaki, K.; Vergados, D.J.; Polemi, D.; Loumos, V. CorpWiki: A self-regulating wiki to promote corporate collective intelligence through expert peer matching. Inf. Sci. 2010, 180, 18–38. [Google Scholar] [CrossRef]
  54. Heidorn, G. Intelligent Writing Assistance. In Handbook of Natural Language Processing; CRC Press: Boca Raton, FL, USA, 2000; pp. 181–207. [Google Scholar]
Figure 1. A novel process innovation knowledge capture paradigm based on collective intelligence.
Figure 1. A novel process innovation knowledge capture paradigm based on collective intelligence.
Applsci 08 00340 g001
Figure 2. Schematic diagram of process innovation-oriented knowledge network.
Figure 2. Schematic diagram of process innovation-oriented knowledge network.
Applsci 08 00340 g002
Figure 3. Algorithm flow of process innovation knowledge fusion based on semantic elements reconfiguration.
Figure 3. Algorithm flow of process innovation knowledge fusion based on semantic elements reconfiguration.
Applsci 08 00340 g003
Figure 4. Procedure of collaborative knowledge refinement in an open knowledge–social community.
Figure 4. Procedure of collaborative knowledge refinement in an open knowledge–social community.
Applsci 08 00340 g004
Figure 5. The system architecture of MPI-OKCS.
Figure 5. The system architecture of MPI-OKCS.
Applsci 08 00340 g005
Figure 6. An instance of welding process innovation knowledge capture process. Part 1: Publish knowledge requirements; Part 2: Contribute individual knowledge; Part 3: Process contradiction knowledge fusion; Part 4: Knowledge-social discussion/Collaborative editing; Part 5: Construct process innovation knowledge network.
Figure 6. An instance of welding process innovation knowledge capture process. Part 1: Publish knowledge requirements; Part 2: Contribute individual knowledge; Part 3: Process contradiction knowledge fusion; Part 4: Knowledge-social discussion/Collaborative editing; Part 5: Construct process innovation knowledge network.
Applsci 08 00340 g006
Figure 7. A fusion example of process innovation principle descriptions.
Figure 7. A fusion example of process innovation principle descriptions.
Applsci 08 00340 g007
Table 1. Rules for lock-based knowledge collaborative editing and refinement (adapted from [25]).
Table 1. Rules for lock-based knowledge collaborative editing and refinement (adapted from [25]).
Rule 1The read locks are compatible with each other. More than one read locks can be placed on one knowledge object at the same time. Group members of knowledge refinement are allowed to hold read lock of the corresponding knowledge objects.
Rule 2The write locks are mutually exclusive with each other for a locked region. This means that only one write lock can be placed on the same knowledge object at a certain moment, and for a knowledge element only one editor may hold the write lock.
Rule 3After participants publish their comments and exchange views on the knowledge object to be refined, members who obtained a positive evaluation of more than a certain level can apply to be the refinement editor.
Rule 4If a knowledge element has been locked, the write lock requests will be put forward. Meanwhile, notifications are sent to the owners of write locks whenever the latter form queues in front of certain knowledge objects. Specifically, a system timer process, which sends time-stamped notifications to the owners of write locks, can be employed to prevent the starvation of other editing operations whenever there are editing operations waiting for more than a certain time to access certain objects.
Rule 5Group managers have the permission to grant write locks to a suitable group member at all times.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
