Energy Trading with Electric Vehicles in Smart Campus Parking Lots

by
Mohamed A. Ahmed
1,2,* and
Young-Chon Kim
3,*
1
Department of Electronic Engineering, Universidad Técnica Federico Santa María, Valparaíso 2390123, Chile
2
Department of Communications and Electronics, Higher Institute of Engineering & Technology–King Marriott, Alexandria 23713, Egypt
3
Department of Computer Engineering and Smart Grid Research Center, Chonbuk National University, Jeonju 54896, Korea
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2018, 8(10), 1749; https://doi.org/10.3390/app8101749
Submission received: 7 September 2018 / Revised: 24 September 2018 / Accepted: 25 September 2018 / Published: 27 September 2018
(This article belongs to the Special Issue Electric Vehicle Charging)

Abstract

:
Energy trading with electric vehicles provides opportunities to eliminate the high peak demand for electric vehicle charging while providing cost saving and profits for all participants. This work aims to design a framework for local energy trading with electric vehicles in smart parking lots where electric vehicles are able to exchange energy through buying and selling prices. The proposed architecture consists of four layers: the parking energy layer, data acquisition layer, communication network layer, and market layer. Electric vehicles are classified into three different types: seller electric vehicles (SEVs) with an excess of energy in the battery, buyer electric vehicles (BEVs) with lack of energy in the battery, and idle electric vehicles (IEVs). The parking lot control center (PLCC) plays a major role in collecting all available offer/demand information among parked electric vehicles. We propose a market mechanism based on the Knapsack Algorithm (KPA) to maximize the PLCC profit. Two cases are considered: electric vehicles as energy sellers and the PLCC as an energy buyer, and electric vehicles as energy buyers and the PLCC as an energy seller. A realistic parking pattern of a parking lot on a university campus is considered as a case study. Different scenarios are investigated with respect to the number of electric vehicles and amount of energy trading. The proposed market mechanism outperforms the conventional scheme in view of costs and profits.

1. Introduction

The grid integration of electric vehicles represents a unique and complex problem for the distribution power system. This is due to the fact that electric vehicles act as loads while charging, energy storage systems during the idle state, and distributed energy sources while discharging. Different schemes have been considered in order to coordinate the charging/discharging process of electric vehicles including grid control using incentives and time-varying prices supported by the grid operator [1]. In South Korea, Korea Electric Power Corporation (KEPCO) is the sole electric power provider. The current process of energy transactions in KEPCO prohibits direct energy trading between prosumers and consumers. Therefore, all energy transactions among consumers and prosumers must go through KEPCO [2]. As the penetration rate and the grid integration of renewable energy sources (RES) such as photovoltaic, energy storage systems, and electric vehicles are continuously increasing, more and more energy consumers are becoming energy prosumers. Energy prosumers are able to generate part of their usage energy locally using RES while sharing the surplus energy with other consumers [3]. Considering RES and the surplus energy of prosumers, the excess energy of prosumers can support the power grid during peak hours. However, there is a need for a new market model that enables energy trading between consumers and prosumers in the electric distribution system [4]. The new market model should provide various promising advantages in the distribution power systems including improved system efficiency, reduced system operation costs, and deferral of systems upgrade. However, the realization of the new market model will require a reliable communication network to support the real-time information exchange among electric vehicles. Considering the increasing number of electric vehicles, the system should be scalable to handle a large number of energy transactions among electric vehicles as well as maintain security and privacy for end user data.
Peer-to-peer energy trading is a new energy trading arrangement between consumers and prosumers in the distribution power system. The authors in Ref. [5] presented a survey on energy trading in the smart grid in view of enabling technologies, required frameworks, and desired outcomes. The authors highlighted the key enabling technologies that are required for energy trading including an energy storage system, renewable generation, electric vehicles, and communication. In Ref. [6], the authors provided a review of existing peer-to-peer energy trading projects. Some of the energy trading projects have focused on building business models and platforms to support energy trading among members. Examples of these projects are those done by Vandebron, Picl, and the Sonnen Community. Other projects have targeted the information and communication technologies (ICT) for energy trading such as the PeerEnergyCloud project and the Smart Watts project.
With respect to electric vehicles, the authors in Ref. [7] presented a novel energy trading method between two sets of electric vehicles. The first set includes drivers who can complete their daily activity with an excess of energy in their batteries. The second set includes drivers who need intermediate charging to complete their daily activities. Considering the grid price and vehicles’ mobility, an aggregator is considered to determine the trading price, and vehicles with excess energy are allocated with vehicles that need to be charged at the same time and in the same area. The authors in Ref. [8] proposed three representative market models for peer-to-peer energy trading in a community microgrid with photovoltaic systems. The three market models are bill sharing, mid-market rate, and the auction-based pricing strategy.
Energy trading with electric vehicles is expected to play an important role in the future distribution power system supported by individual charging stations in home garages, public/private parking lots, and fast charging stations. This work focuses on energy trading with electric vehicles in smart parking lots. Smart parking lots are smart places that are capable of supporting both parking and charging services for electric vehicles during their parking time for a price [9]. With respect to the electric vehicle owner, the main objective is to charge an electric vehicle as quickly as possible considering a low charging cost without considering the status of other electric vehicles nor the electricity price or grid condition. On the contrary, the main objective of retailers and the parking lot operator is to maximize the net profit. Thus, market mechanisms are different based on actors (parking lot operator, retailers, customers, etc.) and the scale of the electric vehicle system (home, parking lots, fast charging stations, etc.). The desired outcome of buying energy from another electric vehicle rather than the main power grid may include economic benefits for owners such as cost minimization. However, there are many operational benefits for utilities such as reduced dependence on the power grid, decreased transmission losses, improved system efficiency, and balance between energy demand and supply [10].
Most of the previous research has focused on the grid integration of electric vehicles and how to mitigate the impact of electric vehicle charging on the distribution power system; however, this work focuses on energy trading with electric vehicles in smart parking lots. During parking time, owners of electric vehicles can invest their batteries in energy trading with the parking lot operator or other electric vehicles by selling the surplus energy in their battery. During the on-peak period, the parking lot operator can get power from electric vehicles at a lower price compared with the grid wholesale price. Also, the owners of electric vehicles can charge their electric vehicles at a low price during off-peak time and resell it at a higher price during the on-peak period. There is a need for a new framework for energy trading between electric vehicles and the parking lot operator to facilitate the new parking lot market operation. The main contributions of this work are:
  • A framework for energy trading with electric vehicles in smart parking lots is designed.
  • A four-layered architecture for energy trading in smart parking lots is proposed. It consists of a parking energy layer, a data acquisition layer, a communication network layer, and a market layer.
  • A market mechanism based on the Knapsack Algorithm is proposed to maximize the profit of the parking lot operator.
  • A real case study with a realistic parking pattern of a parking lot on a university campus is considered.
This paper is structured as follows. We propose a four-layered architecture for energy trading with electric vehicles in smart parking lots in Section 2. In Section 3, we develop a market mechanism for energy trading based on the Knapsack Algorithm (KPA). Section 4 provides the performance evaluation of a real case study of a university campus. Finally, Section 5 concludes the paper and gives directions for future work.

2. Proposed System Architecture for Energy Trading in a Smart Parking Lot

Smart parking is considered to be a typical cyber and physical system. In order to manage the grid integration of electric vehicles and minimize the impact of charging/discharging on the power grid, reliable communication and data exchange among electric vehicles, charging stations and distribution power system are needed. Based on the smart grid reference architecture [11] and the framework for cyber-physical system [12], we propose a four-layered architecture for energy trading in a smart parking lot, as shown in Figure 1. The proposed architecture consists of a parking energy layer, a data acquisition layer, a communication network layer, and a market layer.

2.1. Parking Energy Layer

The parking energy layer includes the distribution power system, transformers, feeders, and charging stations. The distribution power system delivers electric power to charging stations at parking lots in residential, commercial, and industrial areas. Electric vehicles are connected to the distribution power system to charge/discharge their batteries through charging stations. There are three basic types of charging stations: slow charging, moderate charging, and fast charging.

2.2. Data Acquistion Layer

The data acquisition layer is responsible for collecting data from different electric vehicle subsystem through sensor nodes and monitoring devices. Based on the application requirement, slow/fast data acquisition modules are used. Taken the electric vehicle battery as an example, there are a variety of sensor nodes that are used for monitoring the battery status, such as voltage, current, and temperature.

2.3. Communication Network Layer

Information and communication technologies aim to support and manage the energy transfer between electric vehicles and the power grid. The communication network layer enables real-time data exchange between different components in the electric vehicle system. The communication infrastructure consists of communication devices, wired/wireless communication connections, routers, switches, servers, etc.

2.4. Market Layer

The market Layer represents the business view of the smart parking lot. It consists of two parts: the wholesale market and the retail market. The main participants in the market domain are selling vehicles, buying vehicles, the parking lot operator (PLO) and the distribution system operator (DSO). The main processes of the market layer include bidding, decision, energy exchange, and settlement.

3. Proposed Market Mechanism

There are two main parts that are needed in order to enable energy trading in a smart parking lot: a physical energy network and a virtual energy market platform [13]. The physical energy network is required for energy transfer among electric vehicles and the parking lot operator, while the virtual energy market platform is needed to enable a local energy market for energy selling and buying. Communication networks are used to exchange information among different components of the smart parking lot. Figure 2 shows an overview of the proposed energy trading system in a smart parking lot. The main components are input data, collecting bids, auction, declare and notification, energy exchange, and settlement.
We assume that each charging station is capable of collecting information regarding the vehicles’ arrival time, departure time, and participation in the energy trading market. The parking lot control center monitors the status of all charging stations and coordinates the charging (parking lot-to-vehicles (PL2V)) and discharging (vehicles-to-parking lot (V2PL)) operations of each station. Different wired/wireless communication technologies could be used for communication between the parking lot control center (PLCC) and charging stations. Table 1 shows an overview of the proposed energy trading in a smart parking lot.
Figure 3 shows the system model of a smart parking lot. The PLCC is responsible for managing the charging of parked electric vehicles based on their status data (arrival time, departure time, state of charge (SOC)). We classified electric vehicles into three different types: seller electric vehicles (SEVs) with an excess of energy in the battery, buyer electric vehicles (BEVs) with lack of energy in the battery, and idle electric vehicles (IEVs).
  • Seller electric vehicles (SEVs) denoted SEVi, i = 1, 2, …, N. SEVs have extra power and represent energy providers.
  • Buyer electric vehicles (BEVs) denoted BEVj, j = 1, 2, …, K. BEVs demand power for charging and represent energy consumers.
  • Idle electric vehicles (IEVs) do not participate in any energy trading activities.
In this work, the market mechanism for the smart parking lot was implemented based on the Knapsack Algorithm (KPA) [14] and deployed in the PLCC. The main objective of the PLCC is to coordinate the energy trading among SEVs, BEVs, and PLCC. Each SEV can submit an energy request RSEVi for selling energy at time t. RSEVi is represented by (SEVID, SEVSA, SEVSP) where SEVID, SEVSA, SEVSP are the vehicle identification, the amount of energy to be exchanged, and the suggested price of energy, respectively. Also, BEVs request the amount of energy for charging from the PLCC. Each BEV can submit an energy demand request (RBEVj) at time t. RBEVj is represented by (BEVID, BEVBA, BEVBP) where BEVID, BEVBA, BEVBP are the vehicle identification, the amount of demand energy for charging, and the offered price of energy, respectively. The PLCC gathers all offer/demand requests and selects a set of electric vehicles to trade with. The main objective of PLCC is to maximize the total profit as given in Equation (1). The PLCC aims to maximize energy selling to charging vehicles and minimize purchasing/buying energy from discharging vehicles while respecting vehicles’ requirements.
Maximize   PROFIT PLCC   t = 1 T i = 1 N j = 1 K ( B A j t × B P j t × x j t S A i t × S P i t × x i t )
where
B A j t Buying amount of energy by BEVj at time t
B P j t Buying price by BEVj at time t
x j t Allocation index for BEVj at time t
S A i t Selling amount of energy by SEVi at time t
S P i t Selling price by SEVi at time t
x i t Allocation index for SEVi at time t
TNumber of auction time interval
NNumber of SEVs
KNumber of BEVs
The main objective of PLCC is to maximize its profits (PROFITPLCC) by selling/buying energy to/from electric vehicles as well as the power grid, as given in Equation (2).
P R O F I T P L C C = t = 0 T ( Re v e n u e P L C C , t C O S T P L C C , t )
where
RevenuePLCC,tTotal revenue earned by PLCC
COSTPLCC,tTotal cost paid by the PLCC
TNumber of scheduling intervals per day
The total revenue of PLCC (RevenuePLCC,t) includes selling energy to the grid as well as selling energy for charging EVs, as given in Equation (3).
Re v e n u e P L C C , t = Re v e n u e S T G , t + Re v e n u e S T V , t
Re v e n u e S T G , t = P S T G , t × p S T G , t × Δ t
Re v e n u e S T V , t = Δ t × i = 1 K P S T V , i , t × p S T V , i , t
where
RevenueSTG,tRevenue earned by providing power from SEVs to the grid (selling to grid)
RevenueSTV,tRevenue earned by supporting power to charging BEVs (selling to BEVs)
PSTG,tPower sold to the grid in kW
pSTG,tElectricity price in money unit per kWh
ΔtLength of scheduling interval
KNumber of BEVs
PSTV,i,tPower used to charge BEVi in kW
pSTV,i,tElectricity price in money unit per kWh
The total cost of PLCC (COSTPLCC,t) includes buying energy from the grid as well as buying energy from SEVs, as given in Equation (6).
C O S T P L C C , t = C O S T B F G , t + C O S T B F V , t
C O S T B F G , t = P B F G , t × p B F G , t × Δ t
C O S T B F V , t = Δ t × i = 1 N P B F V , i , t × p B F V , i , t
where
COSTBFG,tCost of energy purchased from the grid
COSTBFV,tCost of energy purchased from SEVs
PBFG,tPower bought from the grid in kW
pBFG,tElectricity price in money units per kWh
ΔtLength of scheduling interval
NNumber of SEVs
PBFV,i,Discharge power from SEVi in kW
pBFV,iElectricity price in money unit per kWh

4. Simulation Results

This section evaluates the performance of the proposed market mechanism for campus parking lots at Chonbuk National University, Jeonju Campus, South Korea. The market mechanism was evaluated from the PLCC perspective. There are 8 parking lots distributed around the campus (CBNU-PL1~CBNU-PL8), as shown in Figure 4.

4.1. Electric Vehicle Model

Real data for vehicles’ arrivals and departures were collected on a weekday (Tuesday 15 May 2018) from 6:00 a.m. until 18:30 p.m. at the parking lot of engineering building 2–7 (CBNU-PL3), as shown in Figure 5. CBNU-PL3 serves faculty members, employees, and students. The arrival and departure times were based on working hours and student class schedules.
Different brands for electric vehicles in South Korea were considered based on Ref. [15]. The specifications of electric vehicles are given in Table 2. The amount of selling/buying energy of each vehicle was considered to be 50 percentage of the battery capacity.
Table 3 shows the electric vehicle charging tariff by KEPCO. The electric vehicle charging tariff is different based on the time period (off-peak, mid-peak and on-peak) and the season (summer, spring, fall and winter) [14]. We assumed that selling/buying prices were randomly selected based on KEPCO electric vehicle charging tariff in the range of [50, 200] KRW.
Different scenarios were considered for energy trading with respect to the load profile of engineering building 2–7 shown in Figure 6, and the minimum and maximum power consumption given in Table 4. These scenarios were as follows: (a) Scenario (1)—a standalone parking lot with 10 charging stations and energy trading of 50 kWh, (b) Scenario (2)—two parking lots with 20 charging stations and energy trading of 100 kWh, (c) Scenario (3)—four parking lots with 40 charging stations and energy trading of 200 kWh, and (d) Scenario (4)—eight parking lots with 80 charging stations and energy trading of 400 kWh. Table 5 shows a list of the simulation scenarios. We assumed that the excess energy from electric vehicles could support the peak demand of university buildings. The feeding of excess power from electric vehicles to the grid was not considered in this work.

4.2. Standalone Parking Lot: Electric Vehicles as Sellers and the PLCC as a Buyer

All vehicles in case (1) were considered to be selling vehicles. The energy bought from SEVs could be used to support the load demand of engineering building 2–7 or used to charge other electric vehicles. Considering a local demand of 50 kWh, the PLCC selected a set of electric vehicles to satisfy the local demand, as given in Algorithm 1. Table 6 and Table 7 compare the proposed energy trading mechanism using the Knapsack Algorithm (KPA) with the first-come-first-serve (FCFS) scheme. In the FCFS scheme, the PLCC selects electric vehicles that request selling first. In KPA, the PLCC sorts the revenue in an ascending order in order to minimize the cost of buying energy from SEVs. The PLCC selects a set of electric vehicles with lower selling prices to trade with. The simulation results of Figure 7 show that the proposed energy trading mechanism based on KPA outperforms the FCFS scheme with a reduction in costs of about 47%. For a single parking lot with 10 electric vehicles as sellers, the average parking lot costs would be about 4334 KRW and 2508 KRW for FCFS and KPA, respectively.
Algorithm 1. Market Mechanism for Discharging-Seller Vehicles (SEVs)
Input:W—Peak Demand, SA—Selling Amount, SP—Selling Price
Output: Total Profits, Total Selling Energy, Number of Served EVs
1: Compute Profit
2: Sort Profit in ascending order
3:  for i = 1 to N do
4:    x[i] = 0
5:  end for
6:  weight = 0
7:  for i = 1 to N
8:     if weight + SA[i] ≤ W then
9:     x[i] = 1
10:    weight = weight + w[i]
11:    else
12:    x[i] = (W − weight)/w[i]
13:    Weight = W
14:    break
15:    end if
16:  end for

4.3. Standalone Parking Lot: Electric Vehicles as Buyers and the PLCC as a Seller

All vehicles in Case (2) were considered to be buying vehicles. Each vehicle requests the amount of buying energy that is required for charging and the buying price that vehicle owner is willing to pay. In order to maximize the PLCC profit from buying vehicles, the PLCC sorts profit in a descending order, as shown in Algorithm 2. Table 8 and Table 9 compare the proposed energy trading mechanism using KPA with the FCFS scheme. In KPA, the PLCC selects a set of electric vehicles with higher buying prices to trade with. Figure 8 compares the total profits of the proposed energy trading mechanism based on the KPA and FCFS schemes. The proposed energy trading mechanism based on KPA outperforming the FCFS scheme with a profit increase of about 44%. For a single parking lot with 10 electric vehicles as buyers, the average parking lot profits would be about 4334 KRW and 5964 KRW for FCFS and KPA, respectively.
Algorithm 2. Market Mechanism for Charging-Buyer Vehicles (BEVs)
Input:W—Peak Demand, BABuying Amount, BP—Buying Price
Output: Total Profits, Total Buying Energy, Number of Served EVs
1: Compute Profit
2: Sort Profit in descending order
3:  for j = 1 to K do
4:    x[j] = 0
5:  end for
6:  weight = 0
7:  for j = 1 to k
8:     if weight + BA[j] ≤ W then
9:     x[j] = 1
10:    weight = weight + w[j]
11:    else
12:    x[j] = (W − weight)/w[j]
13:    Weight = W
14:    break
15:    end if
16:  end for

4.4. Multiple Parking Lots

We investigated the impact on costs and profits for multiple parking lots with respect to the number of electric vehicles and the amount of energy trading. Four scenarios were considered as given in Table 5. Figure 9 shows the average parking lot costs with different numbers of selling vehicles (10, 20, 40 and 80) for the four considered scenarios. The results show that the market mechanism using KPA decreases the costs compared with the FCFS scheme. in Scenario 4, with 80 electric vehicles, the average parking lot costs are about 17,410 KRW with a cost reduction of about 46.6% compared with 32,622 KRW in the case of FCFS, as shown in Figure 10.
Figure 11 shows the average parking lot profits with different numbers of buying vehicles (10, 20, 40 and 80). The market mechanism using KPA increases the profits compared with the FCFS scheme. The average parking lot profits are about 47,990 KRW with a profit increase of about 32% compared with 32,622 KRW in the case of FCFS with 80 electric vehicles, as shown in Figure 12.

5. Conclusions

We proposed a framework for energy trading in a smart parking lot. The proposed architecture consists of four layers: a parking energy layer, a data acquisition layer, a communication network layer, and a market layer. Electric vehicles were classified into three different types: seller vehicles, buyer vehicles, and idle vehicles. Based on the battery status, each vehicle decides its role for buying/selling energy from/to the PLCC. We developed a market mechanism for the PLCC based on the Knapsack Algorithm. We considered a real case study with a realistic parking pattern of a parking lot on a university campus. The simulation results showed that our proposed market mechanism can achieve better performance and cost saving for all participants including selling vehicles, buying vehicles, and the parking lot operator.

Author Contributions

Both authors contributed equally to this work.

Funding

This work was supported by research funds of Chonbuk National University in 2017 and the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT and Future Planning (2017-004868).

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

SEVsSeller electric vehicles
BEVsBuyer electric vehicles
IEVsIdle electric vehicles
PLCCParking lot control center
KPAKnapsack Algorithm
KEPCOKorea Electric Power Corporation
RESRenewable energy sources
ICTInformation and communication technologies
EVElectric vehicle
EVCSElectric vehicle charging station
IEDIntelligent electronic device
PLOParking lot operator
DSODistribution system operator
PL2VParking lot-to-vehicles
V2PLVehicles to-parking lot
TOUTime of use
RTPReal-time price
SOCstate of charge
B A j t Buying amount of energy by BEVj at time t
B P j t Buying price by BEVj at time t
x j t Allocation index for BEVj at time t
S A i t Selling amount of energy by SEVi at time t
S P i t Selling price by SEVi at time t
x i t Allocation index for SEVi at time t
TNumber of auction time interval
NNumber of SEVs
KNumber of BEVs
RevenuePLCC,tTotal revenue earned by PLCC
COSTPLCC,tTotal cost paid by the PLCC
RevenueSTG,tRevenue earned by providing power from SEVs to the grid
RevenueSTV,tRevenue earned by supporting power to BEVs charging
PSTG,tPower sold to the grid in kW
pSTG,tElectricity price in money unit per kWh
ΔtLength of scheduling interval
PSTV,i,tPower used to charge BEVi in kW
pSTV,i,tElectricity price in money unit per kWh
COSTBFG,tCost of energy purchased from grid
COSTBFV,tCost of energy purchased from SEVs
PBFG,tPower bought from grid in kW
pBFG,tElectricity price in money unit per kWh
PBFV,i,Discharge power from SEVi in kW
pBFV,i,Electricity price in money unit per kWh
CBNUChonbuk National University
PLParking lot
FCFSFirst-come-first-serve

References

  1. Shuai, W.; Maille, P.; Pelov, A. Charging Electric Vehicles in the Smart City: A Survey of Economy-Driven Approaches. IEEE Trans. Intell. Transp. Syst. 2016, 17, 2089–2106. [Google Scholar] [CrossRef]
  2. Park, L.; Lee, S.; Chang, H. A Sustainable Home Energy Prosumer-Chain Methodology with Energy Tags over the Blockchain. Sustainability 2018, 10, 658. [Google Scholar] [CrossRef]
  3. Bayram, I.S.; Shakir, M.Z.; Abdallah, M.; Qaraqe, K. A Survey on Energy Trading in Smart Grid. In Proceedings of the 2014 IEEE Global Conference on Signal and Information Processing (GlobalSIP), Atlanta, GA, USA, 3–5 December 2014; pp. 258–262. [Google Scholar]
  4. Khorasany, M.; Mishra, Y.; Ledwich, G. Peer-to-peer market clearing framework for DERs using knapsack approximation algorithm. In Proceedings of the 2017 IEEE PES Innovative Smart Grid Technologies Conference Europe (ISGT-Europe), Torino, Italy, 26–29 September 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 1–6. [Google Scholar]
  5. Jogunola, O.; Ikpehai, A.; Anoh, K.; Adebisi, B.; Hammoudeh, M.; Gacanin, H.; Harris, G. Comparative Analysis of P2P Architectures for Energy Trading and Sharing. Energies 2017, 11, 62. [Google Scholar] [CrossRef]
  6. Zhang, C.; Wu, J.; Long, C.; Cheng, M. Review of Existing Peer-to-Peer Energy Trading Projects. Energy Procedia 2017, 105, 2563–2568. [Google Scholar] [CrossRef]
  7. Alvaro-Hermana, R.; Fraile-Ardanuy, J.; Zufiria, P.J.; Knapen, L.; Janssens, D. Peer to Peer Energy Trading with Electric Vehicles. IEEE Intell. Transp. Syst. Mag. 2016, 8, 33–44. [Google Scholar] [CrossRef] [Green Version]
  8. Long, C.; Wu, J.; Zhang, C.; Thomas, L.; Cheng, M.; Jenkins, N. Peer-to-peer energy trading in a community microgrid. In Proceedings of the 2017 IEEE Power & Energy Society General Meeting, Chicago, IL, USA, 16–20 July 2017; IEEE: New York, NY, USA, 2017; pp. 1–5. [Google Scholar]
  9. Babic, J.; Carvalho, A.; Ketter, W.; Podobnik, V. Evaluating Policies for Parking Lots Handling Electric Vehicles. IEEE Access 2018, 6, 944–961. [Google Scholar] [CrossRef]
  10. Jogunola, O.; Ikpehai, A.; Anoh, K.; Adebisi, B.; Hammoudeh, M.; Son, S.-Y.; Harris, G. State-of-the-Art and Prospects for Peer-to-Peer Transaction-Based Energy System. Energies 2017, 10, 2106. [Google Scholar] [CrossRef]
  11. Smart Grid Reference Architecture, CEN-CENELEC-ETSI Smart Grid Coordination Group, November 2012. Available online: https://ec.europa.eu/energy/sites/ener/files/documents/xpert_group1_reference_architecture.pdf (accessed on 1 August 2018).
  12. Framework for Cyber-Physical Systems. 2016. Available online: https://s3.amazonaws.com/nist-sgcps/cpspwg/files/pwgglobal/CPS_PWG_Framework_for_Cyber_Physical_Systems_Release_1_0Final.pdf (accessed on 1 August 2018).
  13. Mengelkamp, E.; Gärttner, J.; Rock, K.; Kessler, S.; Orsini, L.; Weinhardt, C. Designing microgrid energy markets: A case study: The Brooklyn Microgrid. Appl. Energy 2018, 210, 870–880. [Google Scholar] [CrossRef]
  14. Martello, S.; Toth, P. Knapsack Problems: Algorithms and Computer Implementations; John Wiley & Amp; Sons, Inc.: New York, NY, USA, 1990; ISBN 0-471-92420-2. [Google Scholar]
  15. Vehicle Fuel Economy and CO2 Emisssions: Data and Analyses. Available online: www.energy.or.kr (accessed on 1 August 2018).
  16. Electric Vehicle Charging Tariff. Available online: http.www.kepco.co.kr (accessed on 1 August 2018).

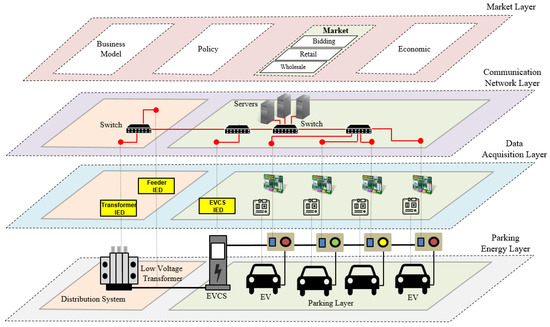

Figure 1. Proposed system architecture for energy trading in smart parking lots. EV: electric vehicle; EVCS: electric vehicle charging station; IED: intelligent electronic device.
Figure 1. Proposed system architecture for energy trading in smart parking lots. EV: electric vehicle; EVCS: electric vehicle charging station; IED: intelligent electronic device.
Applsci 08 01749 g001

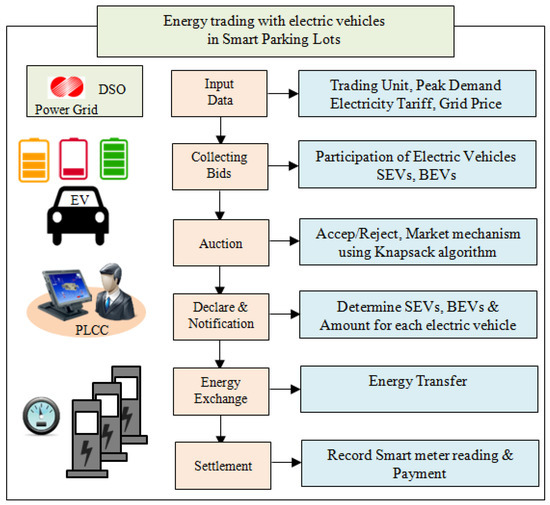

Figure 2. Overview of the proposed energy trading system in a smart parking lot. SEV: seller electric vehicle; BEV: buyer electric vehicle; DSO: distribution system operator; PLCC: parking lot control center.
Figure 2. Overview of the proposed energy trading system in a smart parking lot. SEV: seller electric vehicle; BEV: buyer electric vehicle; DSO: distribution system operator; PLCC: parking lot control center.
Applsci 08 01749 g002

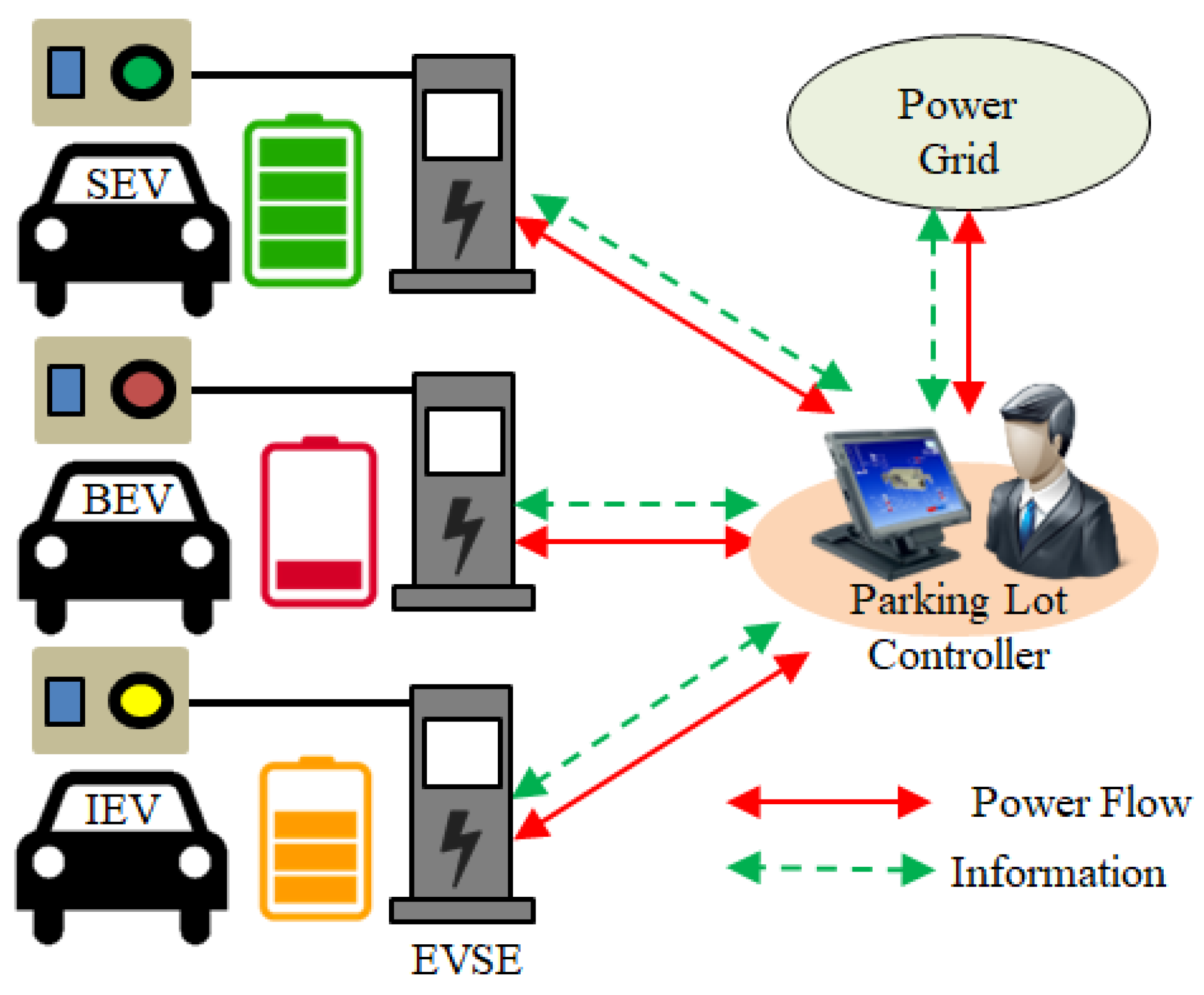

Figure 3. System model for energy trading in a smart parking lot.
Figure 3. System model for energy trading in a smart parking lot.
Applsci 08 01749 g003

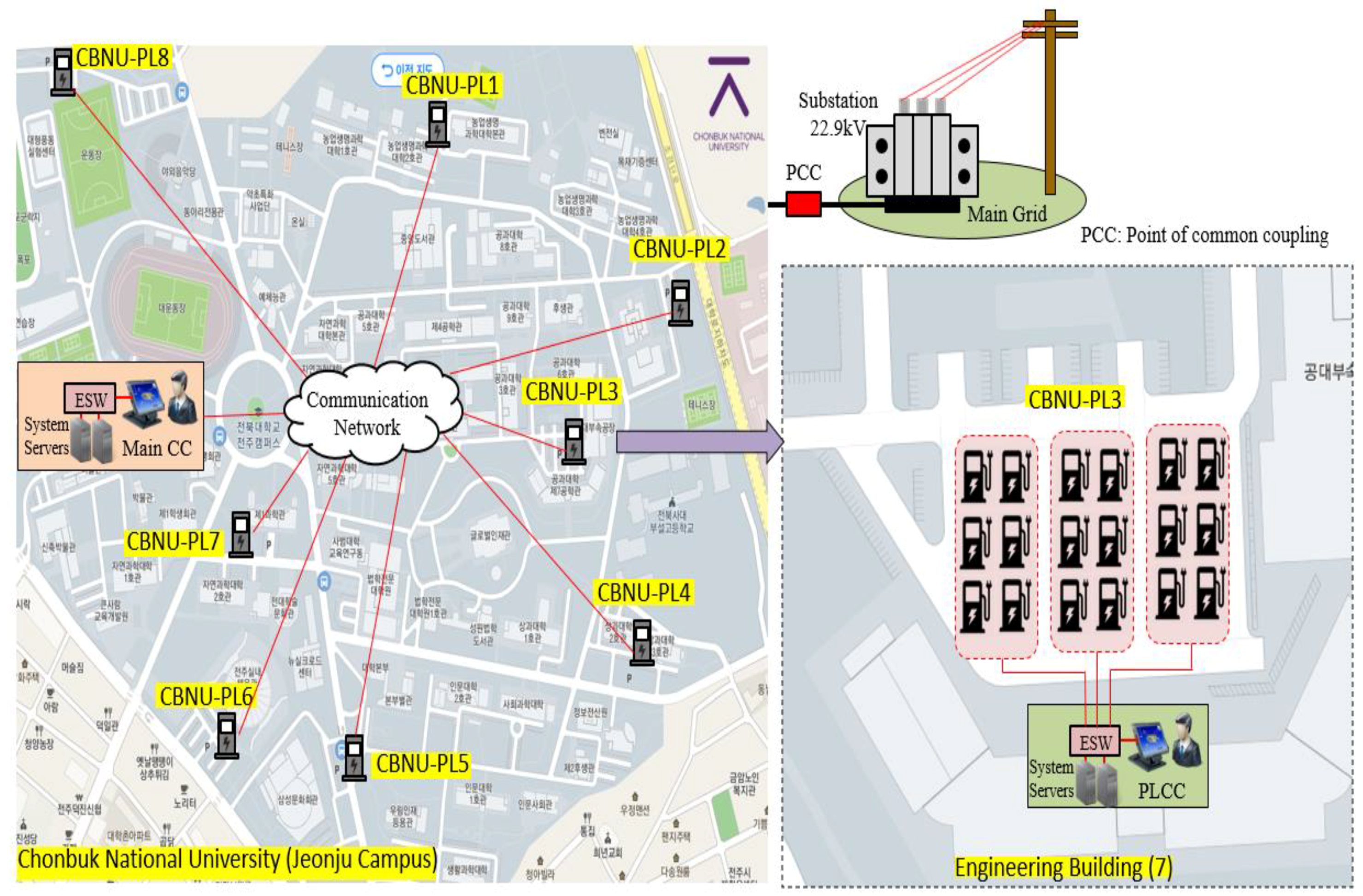

Figure 4. Campus parking lots at Chonbuk National University, Jeonju Campus, South Korea.
Figure 4. Campus parking lots at Chonbuk National University, Jeonju Campus, South Korea.
Applsci 08 01749 g004

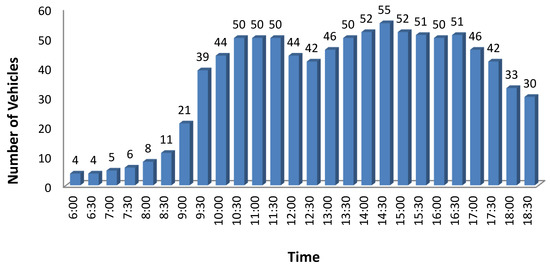

Figure 5. Typical parking utilization during weekdays (CBNU-PL3), 15 May 2018.
Figure 5. Typical parking utilization during weekdays (CBNU-PL3), 15 May 2018.
Applsci 08 01749 g005

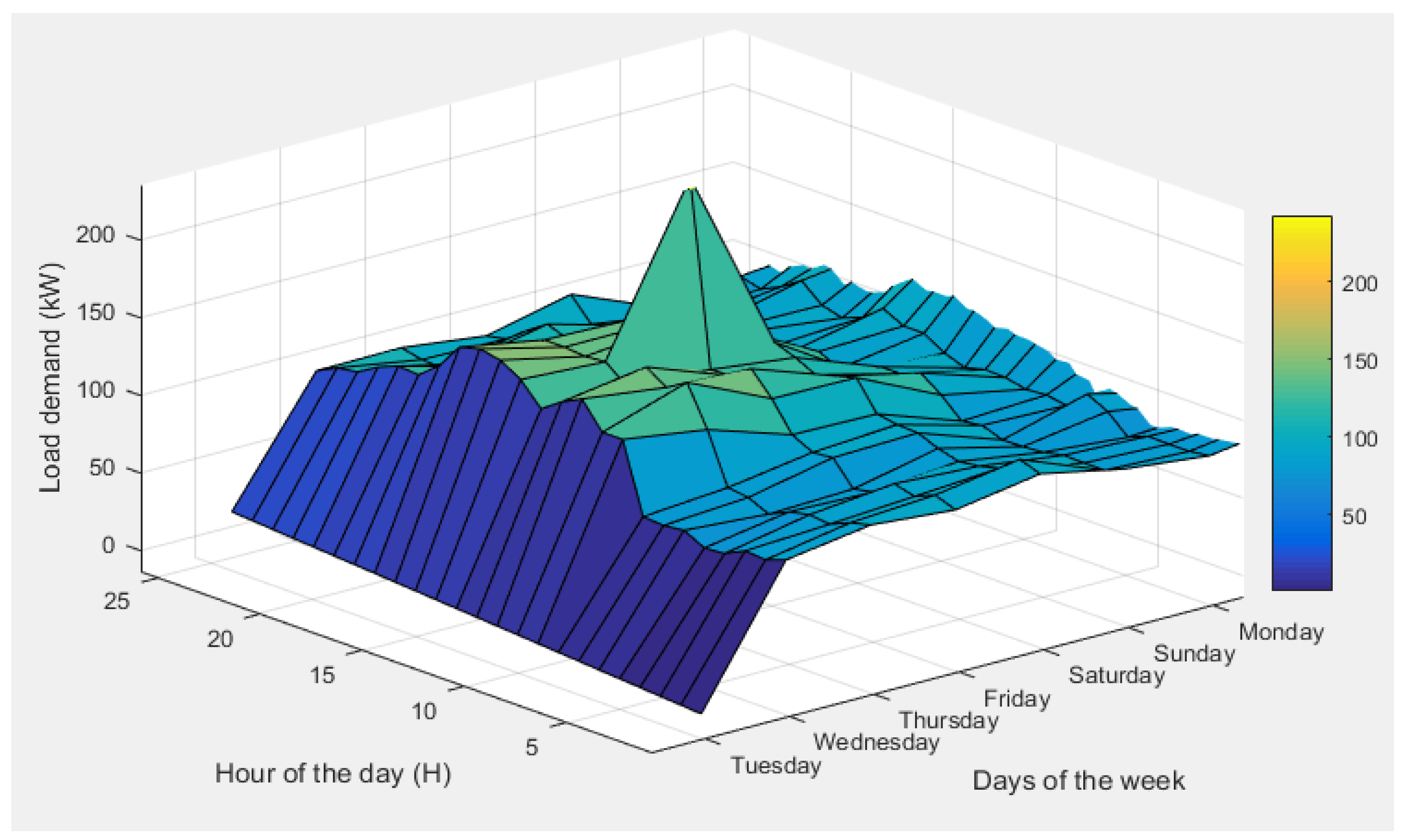

Figure 6. Load profile of engineering building 2–7 from 8 May 2018 to 14 May 2018.
Figure 6. Load profile of engineering building 2–7 from 8 May 2018 to 14 May 2018.
Applsci 08 01749 g006

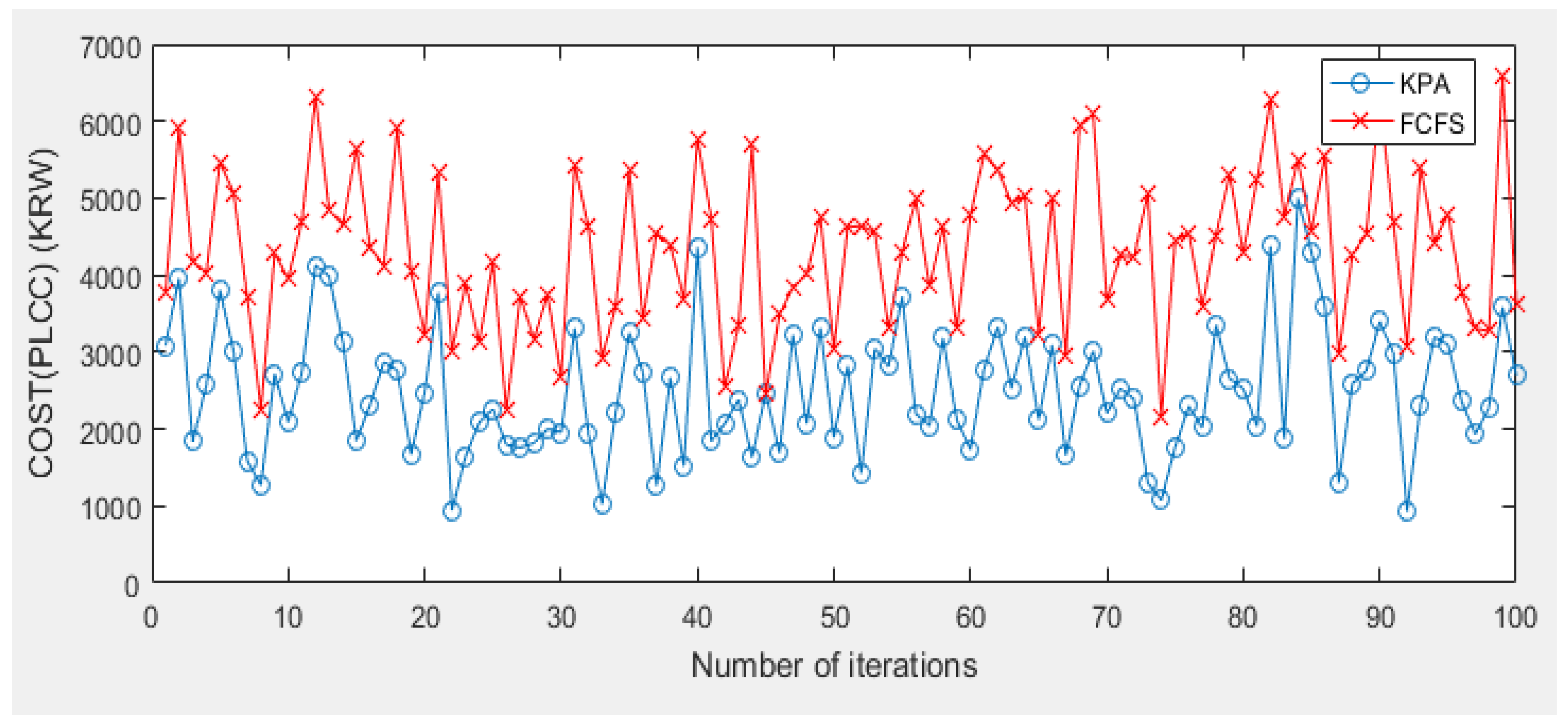

Figure 7. Results of the total COST for PLCC in Case (1): demand 50 kW, 10 EVs.
Figure 7. Results of the total COST for PLCC in Case (1): demand 50 kW, 10 EVs.
Applsci 08 01749 g007

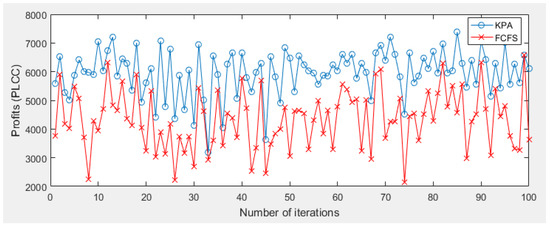

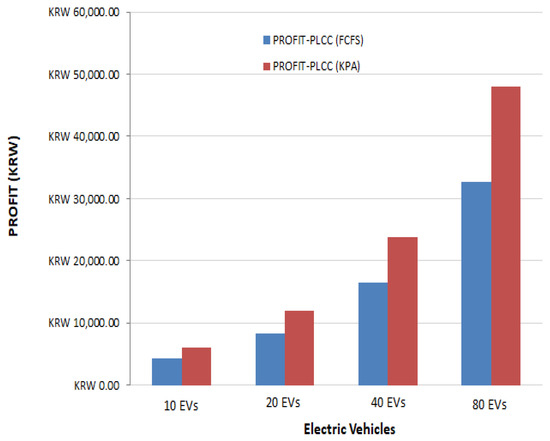

Figure 8. Results of total PROFIT for PLCC in Case (2): demand 50 kW, 10 EVs.
Figure 8. Results of total PROFIT for PLCC in Case (2): demand 50 kW, 10 EVs.
Applsci 08 01749 g008

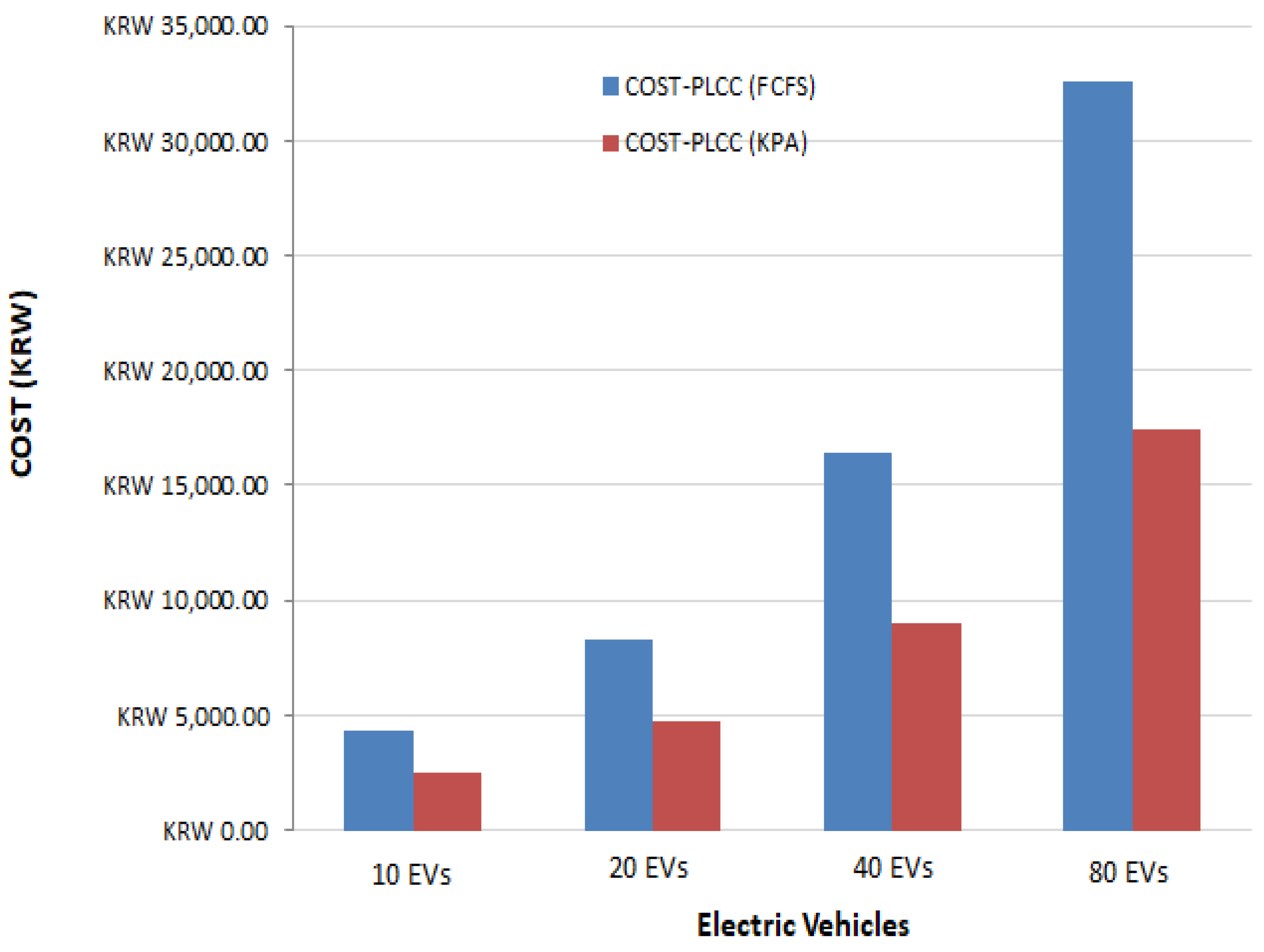

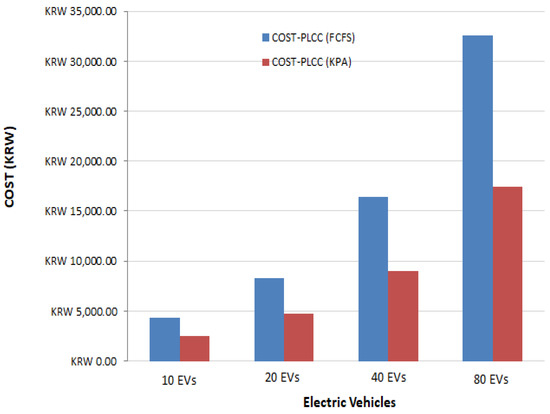

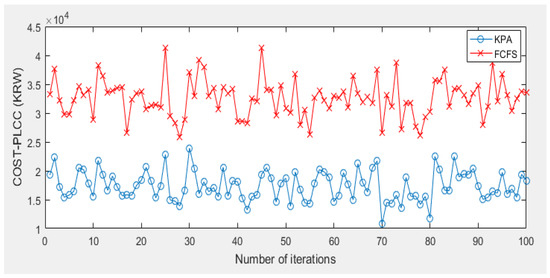

Figure 9. Average parking lot costs with different numbers of selling vehicles.
Figure 9. Average parking lot costs with different numbers of selling vehicles.
Applsci 08 01749 g009

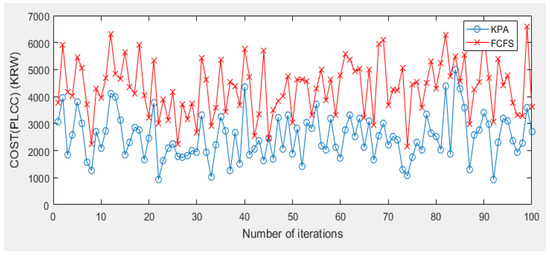

Figure 10. Results of total COST for the PLCC in Case (7): demand 400 kW, 80 EVs.
Figure 10. Results of total COST for the PLCC in Case (7): demand 400 kW, 80 EVs.
Applsci 08 01749 g010
Figure 11. Average parking lot profits for different numbers of buying vehicles.
Figure 11. Average parking lot profits for different numbers of buying vehicles.
Applsci 08 01749 g011

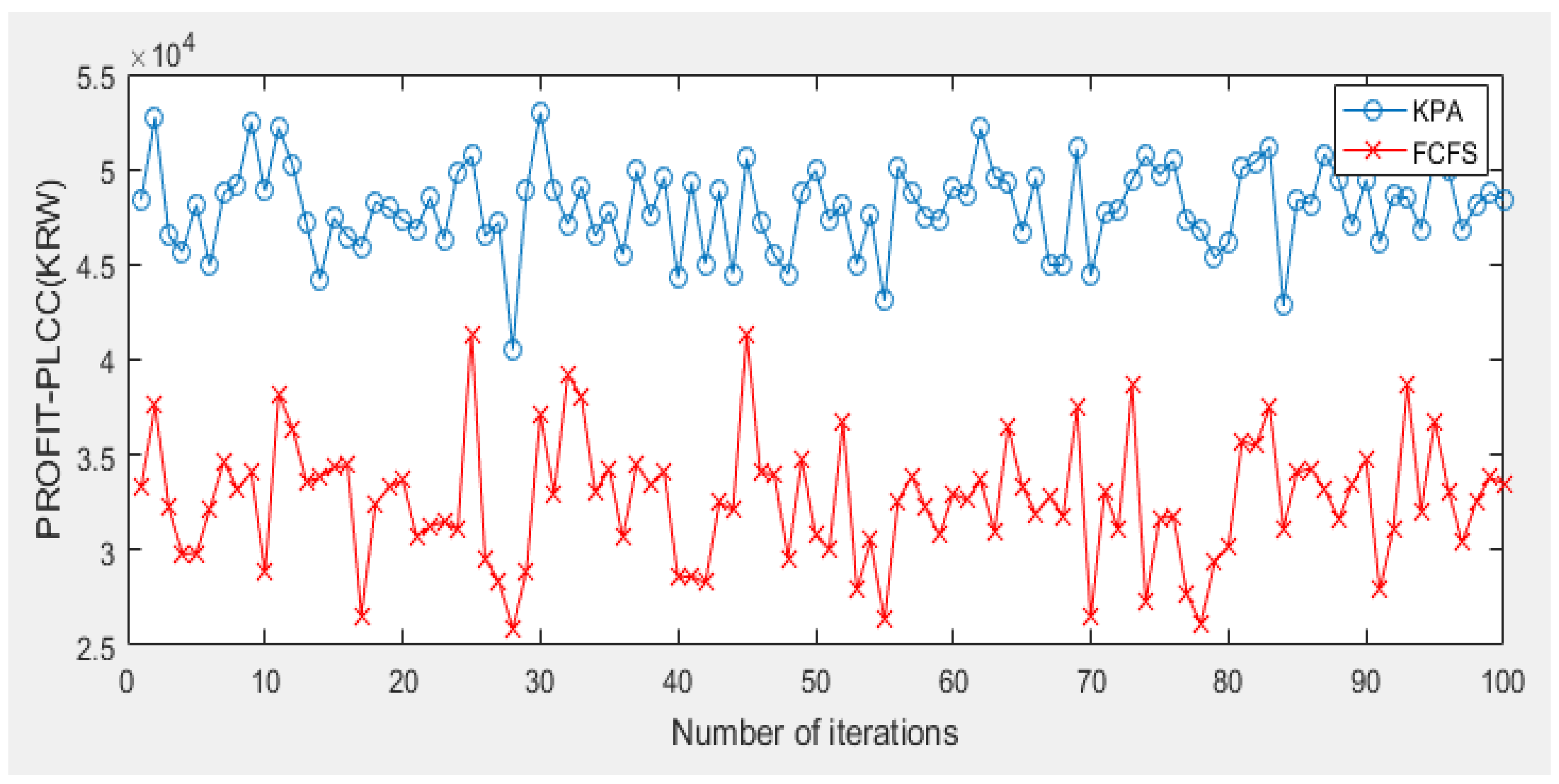

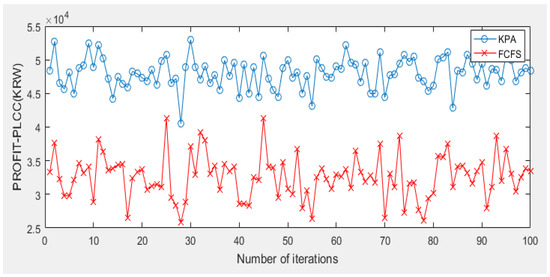

Figure 12. Results of total PROFIT for the PLCC in Case (8): demand 400 kW, 80 EVs.
Figure 12. Results of total PROFIT for the PLCC in Case (8): demand 400 kW, 80 EVs.
Applsci 08 01749 g012
Table 1. Overview of proposed smart parking lot characteristics.
Table 1. Overview of proposed smart parking lot characteristics.
Characteristic
Smart Parking LotPL2V and V2PL
Energy Trading ObjectiveProfit maximization for PLCC
ScaleSingle parking lot, multiple parking lots
Control TypeCentralized solution, decentralized solution
Price ModelTime of use (TOU), real-time price (RTP)
PLCC: parking lot control center; PL2V: Parking Lot-to-Vehicles; V2PL: Vehicles-to-Parking Lot.
Table 2. Electric vehicle specification.
Table 2. Electric vehicle specification.
Vehicle ModelBattery CapacityFuel Economy (Km/kWh)Release Year
SOUL27 kWh5.02014
LEAF24 kWh5.22014
SM3 Z.E.22 kWh4.42013
BMW i318 kWh5.92014
RAY16 kWh5.02012
Table 3. Electric vehicle charging tariff [16].
Table 3. Electric vehicle charging tariff [16].
TimeClassificationEnergy Charge (KRW/kWh)
SummerSpring/FallWinter
Off-PeakLow voltage57.658.780.7
Mid-Peak145.370.5128.2
On-Peak232.575.4190.8
Table 4. Power consumption of engineering building 2–7 (8 May 2018~14 May 2018).
Table 4. Power consumption of engineering building 2–7 (8 May 2018~14 May 2018).
DayPower Consumption (kW)
MinMax
Tuesday75152
Wednesday77.8144.6
Thursday79.7243
Friday72.6131.1
Saturday78102.5
Sunday74.7101.8
Monday77.8150.5
Table 5. Simulation scenarios.
Table 5. Simulation scenarios.
Number of Parking LotsCaseDemand
Scenario (1)Single PL
10 Charging Stations
Case (1): SEVs
Case (2): BEVs
50 kWh
Scenario (2)2-PLs
20 Charging Stations
Case (3): SEVs
Case (4): BEVs
100 kWh
Scenario (3)4-PLs
40 Charging Stations
Case (5): SEVs
Case (6): BEVs
200 kWh
Scenario (4)8-PLs
80 Charging Stations
Case (7): SEVs
Case (8): BEVs
400 kWh
Table 6. Case (1) with the first-come-first-serve (FCFS) scheme for electric vehicles as sellers and the PLCC as a buyer.
Table 6. Case (1) with the first-come-first-serve (FCFS) scheme for electric vehicles as sellers and the PLCC as a buyer.
Seller Vehicles FCFS
Amount (kWh)Price (KRW/kWh) x i t Amount (kWh)EV’s Revenue
(KRW)
OPEX
KRW/kWh
COSTPLCC
Seller Profit
(KRW)
SEV11281112972516456
SEV21260112720516204
SEV391711915393871152
SEV48146181168344824
SEV5111890.81917013871314
SEV695900000
SEV71216600000
SEV813.519000000
SEV988500000
SEV101219300000
Total106.5 50610021503950
Table 7. Case (1) with the Knapsack Algorithm (KPA) scheme for electric vehicles as sellers and the PLCC as a buyer.
Table 7. Case (1) with the Knapsack Algorithm (KPA) scheme for electric vehicles as sellers and the PLCC as a buyer.
Seller Vehicles Proposed KPA
Amount (kWh)Price (KRW/kWh) x i t Amount (kWh)EVs Revenue
(KRW)
OPEX
KRW/kWh
COSTPLCC
Seller Profit
(KRW)
SEV695919531387144
SEV21260112720516204
SEV988518680344336
SEV11281112972516456
SEV48146181168344824
SEV391710.11117143128
SEV71216600000
SEV51118900000
SEV101219300000
SEV813.519000000
Total106.5 50424221502092
Table 8. Case (2) with FCFS for electric vehicles as buyers and the PLCC as a seller.
Table 8. Case (2) with FCFS for electric vehicles as buyers and the PLCC as a seller.
Buyer Vehicles FCFS
Amount (kWh)Price (KRW/kWh) x j t Amount (kWh)Revenue
(KRW)
OPEX
KRW/kWh
PLCC Profit
(KRW)
BEV11281112972516456
BEV21260112720516204
BEV391711915393871152
BEV48146181168344824
BEV5111890.81917013871314
BEV695900000
BEV71216600000
BEV813.519000000
BEV988500000
BEV101219300000
Total106.5 50610021503950
Table 9. Case (2) with KPA scheme for electric vehicles as buyers and the PLCC as a seller.
Table 9. Case (2) with KPA scheme for electric vehicles as buyers and the PLCC as a seller.
Buyer Vehicles Proposed FNS
Amount (kWh)Price (KRW/kWh) x j t Amount (kWh)Revenue
(KRW)
OPEX
KRW/kWh
PLCC Profit
(KRW)
BEV813.5190113.52565580.51984
BEV101219311223165161800
BEV51118911120794731606
BEV71216611219925161476
BEV391710.161.525664.5192
BEV4814600000
BEV1128100000
BEV988500000
BEV2126000000
BEV695900000
Total106.5 50920821507058

Share and Cite

MDPI and ACS Style

Ahmed, M.A.; Kim, Y.-C. Energy Trading with Electric Vehicles in Smart Campus Parking Lots. Appl. Sci. 2018, 8, 1749. https://doi.org/10.3390/app8101749

AMA Style

Ahmed MA, Kim Y-C. Energy Trading with Electric Vehicles in Smart Campus Parking Lots. Applied Sciences. 2018; 8(10):1749. https://doi.org/10.3390/app8101749

Chicago/Turabian Style

Ahmed, Mohamed A., and Young-Chon Kim. 2018. "Energy Trading with Electric Vehicles in Smart Campus Parking Lots" Applied Sciences 8, no. 10: 1749. https://doi.org/10.3390/app8101749

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
