# Simulation of Underwater Explosions Initiated by High-Pressure Gas Bubbles of Various Initial Shapes

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Models and Methods

#### 2.1. Governing Equations of the Flow Field

#### 2.2. Gas–Water Interface Treatment

- (I)
- On one side of the interface, an adjacent point closest to the interface is selected. Then, a corresponding point on the other side of the interface is found that has a minimum dot product of the normal vectors. Then, a pair of Riemann points is constructed.
- (II)
- Use the parameter values (density, normal velocity, pressure) of the Riemann points on both sides of the interface to construct a Riemann problem. Then, an Approximate Riemann Problem Solver (ARPS) [39,40] is used to predict the interface values such as the density and the pressure. This ARPS is developed based on a double-shock characteristics structure, which can achieve a second-order accuracy in solving the gas–water Riemann problem [39]. Then, the predicted interface values (pressure, normal velocity and entropy) are taken to replace the values of the adjacent point on the real fluid side.
- (III)
- The above processes (I) and (II) are repeated until all the adjacent points on one side of the interface are re-defined. Then, the values at these adjacent points are extrapolated to the other side of the interface where the “ghost points” are distributed, by iteratively solving the following extrapolation equation [26]:$$\frac{\partial I}{\partial t}\pm ({n}_{x}\frac{\partial I}{\partial x}+{n}_{y}\frac{\partial I}{\partial y}+{n}_{z}\frac{\partial I}{\partial z})=0.$$
- (IV)
- Advancement of the flow field for one time step for both sides of the interface, so that two sets of the solutions to the Euler equations are obtained.
- (V)
- Advancement of the location of the interface for one time step by solving the level-set equation:$$\frac{\partial \varphi}{\partial t}+u\frac{\partial \varphi}{\partial x}+v\frac{\partial \varphi}{\partial y}+w\frac{\partial \varphi}{\partial z}=0.$$This level-set method has proved to be capable of capturing the multi-medium interface successfully and also the interaction between a shock wave and the interface [33]. However, when the simulation proceeds, the level-set function $\varphi $ tends to be distorted, and thus cannot maintain the property as a signed distance function. Therefore, a re-initialization process is needed [41], which is performed after every time step in the present study. After locating the new position of the interface, we use the updated level-set function to determine which solution obtained in process (IV) should be chosen.
- (VI)
- Proceed to the next time step.

#### 2.3. Initial and Boundary Conditions

## 3. Results and Discussion

#### 3.1. Scenario 1 (Sphere)

#### 3.2. Scenario 2 (Cylinder)

#### 3.3. Scenario 3 (Cuboidal)

#### 3.4. Scenario 4 (Bullet-Like)

## 4. Conclusions

## Supplementary Materials

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A

- Scenario 1 (Sphere): $\varphi =0.1-\sqrt{{x}^{2}+{y}^{2}+{z}^{2}}$.
- Scenario 2 (Cylinder):
$d=\sqrt{{x}^{2}+{y}^{2}+{z}^{2}}$ z $\varphi $ $d\ge 0.1$ $-0.067\le z<0.067$ $\varphi =0.1-d$ $d<0.1$ $z\ge 0.067$ $\varphi =0.067-z$ $d<0.1$ $z<-0.067$ $\varphi =z+0.067$ $d\ge 0.1$ $z\ge 0.067$ $\varphi =-\sqrt{{(\sqrt{{x}^{2}+{y}^{2}}-0.1)}^{2}+{(z-0.067)}^{2}}$ $d\ge 0.1$ $z<-0.067$ $\varphi =-\sqrt{{(\sqrt{{x}^{2}+{y}^{2}}-0.1)}^{2}+{(z+0.067)}^{2}}$ $d<0.1$ $-0.067\le z<0.067$ $\varphi $ = $\mathrm{min}\left\{|d-0.1|,|z-0.067|,|z+0.067|\right\}$ - Scenario 3 (Cuboidal):
$\mathit{x}$ $\mathit{y}$ $\mathit{z}$ $\mathit{\varphi}$ $x<-0.1$ $y<-0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-(-0.1))}^{2}+{(z-0.052)}^{2}}$ $x<-0.1$ $y\ge 0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-0.1)}^{2}+{(z-0.052)}^{2}}$ $x\ge 0.1$ $y<-0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-(-0.1))}^{2}+{(z-0.052)}^{2}}$ $x\ge 0.1$ $y\ge 0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-0.1)}^{2}+{(z-0.052)}^{2}}$ $x<-0.1$ $y<-0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-(-0.1))}^{2}+{(z-(-0.052))}^{2}}$ $x<-0.1$ $y\ge 0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-0.1)}^{2}+{(z-(-0.052))}^{2}}$ $x\ge 0.1$ $y<-0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-(-0.1))}^{2}+{(z-(-0.052))}^{2}}$ $x\ge 0.1$ $y\ge 0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-0.1)}^{2}+{(z-(-0.052))}^{2}}$ $x<-0.1$ $y<-0.1$ $-0.052\le z<0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-(-0.1))}^{2}}$ $x<-0.1$ $y\ge 0.1$ $-0.052\le z<0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-0.1)}^{2}}$ $x\ge 0.1$ $y<-0.1$ $-0.052\le z<0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-(-0.1))}^{2}}$ $x\ge 0.1$ $y\ge 0.1$ $-0.052\le z<0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-0.1)}^{2}}$ $-0.1\le x<0.1$ $y<-0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-0.052)}^{2}}$ $-0.1\le x<0.1$ $y\ge 0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-0.052)}^{2}}$ $x<-0.1$ $-0.1\le y<0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-0.052)}^{2}}$ $x\ge 0.1$ $-0.1\le y<0.1$ $z\ge 0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-0.052)}^{2}}$ $-0.1\le x<0.1$ $y<-0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-(-0.052))}^{2}}$ $-0.1\le x<0.1$ $y\ge 0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-(-0.052))}^{2}}$ $x<-0.1$ $-0.1\le y<0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-(-0.1))}^{2}+{(y-(-0.052))}^{2}}$ $x\ge 0.1$ $-0.1\le y<0.1$ $z<-0.052$ $\varphi $ = $-\sqrt{{(x-0.1)}^{2}+{(y-(-0.052))}^{2}}$ $x<-0.1$ $-0.1\le y<0.1$ $-0.052\le z<0.052$ $\varphi $ = $x-(-0.1)$ $x\ge 0.1$ $-0.1\le y<0.1$ $-0.052\le z<0.052$ $\varphi $ = $0.1-x$ $-0.1\le x<0.1$ $y<-0.1$ $-0.052\le z<0.052$ $\varphi $ = $y-(-0.1)$ $-0.1\le x<0.1$ $y\ge 0.1$ $-0.052\le z<0.052$ $\varphi $ = $0.1-y$ $-0.1\le x<0.1$ $-0.1\le y<0.1$ $z<-0.052$ $\varphi $ = $z-(-0.052)$ $-0.1\le x<0.1$ $-0.1\le y<0.1$ $z\ge 0.052$ $\varphi $ = $0.052-z$ $-0.1\le x<0.1$ $-0.1\le y<0.1$ $-0.052\le z<0.052$ $\varphi $ = $\mathrm{min}\left\{\right|x-0.1|,|y-0.1|,|z-0.052|,$ $|x+0.1|,|y+0.1|,|z-(-0.052)|\}$ - Scenario 4 (Bullet-like):
x $d=\sqrt{{y}^{2}+{z}^{2}}$ $\varphi $ $x<-0.071$ $d<-x-0.071$ $\varphi =-\sqrt{{(x+0.071)}^{2}+{d}^{2}}$ ($d\ge -x-0.071$) .AND. ($d\ge x+0.071$) .AND. ($d<-x+0.271$) $\varphi =-0.71d+0.71(x+0.071)$ ($d\ge -x-0.271$) .AND. ($d\ge x+0.071$) $\varphi =-\sqrt{{(d-0.171)}^{2}+{(x-0.1)}^{2}}$ ($d\ge 0.171$) .AND. ($d<x+0.071$) $\varphi =-\sqrt{{(d-0.171)}^{2}+{(x-0.1)}^{2}}$ $x\ge 0.1$ $0.1\le d<0.171$ $\varphi =-\sqrt{{(x-0.1)}^{2}}$ $d\ge -x+0.2$ $d<0.1$ $\varphi =-\sqrt{{(d-0.1)}^{2}+{(x-0.1)}^{2}}$ $d<-x+0.2$ $d<x$ $\varphi =0.71d-0.71x$ $x<0.1$ ($d<x+0.071)$ .AND. ($d\ge x$) $\varphi $ = $\mathrm{min}\left\{\right|x-0.1|,|0.71d-0.71(x+0.071)|,$ $|0.71d-0.71x|\}$

## References

- Plesset, M.S.; Prosperetti, A. Bubble dynamics and cavitation. Annu. Rev. Fluid Mech.
**1977**, 9, 145–185. [Google Scholar] [CrossRef] - Brennen, C.E. Cavitation and Bubble Dynamics; Oxford University Press: New York, NY, USA, 1995. [Google Scholar]
- Klaseboer, E.; Hung, K.C.; Wang, C.; Wang, C.W.; Khoo, B.C.; Boyce, P.; Debono, S.; Charlier, H. Experimental and numerical investigation of the dynamics of an underwater explosion bubble near a resilient/rigid structure. J. Fluid Mech.
**2005**, 537, 387–413. [Google Scholar] [CrossRef] - Cole, R.H. Underwater Explosions; Princeton University Press: Princeton, NJ, USA, 1948. [Google Scholar]
- Kirkwood, J.G.; Bethe, H.A. Progress Report on “The Pressure Wave Produced by an Underwater Explosion” I; Technical Report No. 588; Office of Scientific Research and Development: Washington, DC, USA, 1942.
- Taylor, G.I. The vertical motion of a spherical bubble and the pressure surrounding it. In The Scientific Papers of G.I. Taylor.; Cambridge University Press: New York, NY, USA, 1963; Volume 3, pp. 320–336. [Google Scholar]
- Holt, M. Underwater explosions. Annu. Rev. Fluid Mech.
**1977**, 9, 187–214. [Google Scholar] [CrossRef] - Plesset, M.; Mitchell, T. On the stability of the spherical shape of a vapor cavity in a liquid. Q. Appl. Math.
**1956**, 13, 419–430. [Google Scholar] [CrossRef] - Zhang, A.; Zeng, L.; Cheng, X.; Wang, S.; Chen, Y. The evaluation method of total damage to ship in underwater explosion. Appl. Ocean Res.
**2011**, 33, 240–251. [Google Scholar] [CrossRef] - Schiffer, A.; Tagarielli, V. Underwater blast loading of water-backed sandwich plates with elastic cores: Theoretical modelling and simulations. Int. J. Impact Eng.
**2017**, 102, 62–73. [Google Scholar] [CrossRef] - USDOE. United States Nuclear Tests, July 1945 through September 1992; Technical Report; U.S. Department of Energy: Washington, DC, USA, 1994.
- Vogel, A.; Lauterborn, W.; Timm, R. Optical and acoustic investigations of the dynamics of laser-produced cavitation bubbles near a solid boundary. J. Fluid Mech.
**1989**, 206, 299–338. [Google Scholar] [CrossRef] - Tomita, Y.; Shima, A. Mechanisms of impulsive pressure generation and damage pit formation by bubble collapse. J. Fluid Mech.
**1986**, 169, 535–564. [Google Scholar] [CrossRef] - Kira, A.; Fujita, M.; Itoh, S. Underwater explosion of spherical explosives. J. Mater. Process. Technol.
**1999**, 85, 64–68. [Google Scholar] [CrossRef] - Brett, J.M.; Yiannakopoulos, G.; van der Schaaf, P.J. Time-resolved measurement of the deformation of submerged cylinders subjected to loading from a nearby explosion. Int. J. Impact Eng.
**2000**, 24, 875–890. [Google Scholar] [CrossRef] - Li, J.; Rong, J.L. Experimental and numerical investigation of the dynamic response of structures subjected to underwater explosion. Eur. J. Mech. B Fluids
**2012**, 32, 59–69. [Google Scholar] [CrossRef] - Cui, P.; Zhang, A.M.; Wang, S.P. Small-charge underwater explosion bubble experiments under various boundary conditions. Phys. Fluids
**2016**, 28, 283. [Google Scholar] [CrossRef] - Sedov, L.I. Unsteady motions of compressible fluids. Appl. Math. Mech.
**1945**, 9, 293–311. [Google Scholar] - Taylor, G. The formation of a blast wave by a very intense explosion. I. Theoretical discussion. Proc. R. Soc. Lond. Ser. A
**1950**, 201, 175–186. [Google Scholar] [CrossRef] - Brett, J.M. Numerical Modelling of Shock Wave and Pressure Pulse Generation by Underwater Explosions; Technical Report DSTO-TR-0677; Maritime Platforms Division, Aeronautical and Maritime Research Laboratory: Melbourne, Australia, 1998.
- Van Aanhold, J.E.; Meijer, G.J.; Lemmen, P.P.M. Underwater shock response analysis of a floating vessel. Shock Vib.
**1998**, 5, 53–59. [Google Scholar] [CrossRef] - Liu, M.B.; Liu, G.R.; Lam, K.Y.; Zong, Z. Smoothed particle hydrodynamics for numerical simulation of underwater explosion. Comput. Mech.
**2003**, 30, 106–118. [Google Scholar] [CrossRef] - Zhang, A.M.; Yang, W.S.; Yao, X.L. Numerical simulation of underwater contact explosion. Appl. Ocean Res.
**2012**, 34, 10–20. [Google Scholar] - Zhang, Z.; Wang, L.; Silberschmidt, V.V. Damage response of steel plate to underwater explosion: Effect of shaped charge liner. Int. J. Impact Eng.
**2017**, 103, 38–49. [Google Scholar] [CrossRef] - Shukla, R.K.; Pantano, C.; Freund, J.B. An interface capturing method for the simulation of multi-phase compressible flows. J. Comput. Phys.
**2010**, 229, 7411–7439. [Google Scholar] [CrossRef] - Fedkiw, R.P.; Aslam, T.; Merriman, B.; Osher, S. A non-oscillatory Eulerian approach to interfaces in multimaterial flows (the ghost fluid method). J. Comput. Phys.
**1999**, 152, 457–492. [Google Scholar] [CrossRef] - Osher, S.; Sethian, J.A. Fronts propagating with curvature-dependent speed: Algorithms based on Hamilton-Jacobi formulations. J. Comput. Phys.
**1988**, 79, 12–49. [Google Scholar] [CrossRef] - Osher, S.; Fedkiw, R. Level Set Methods and Dynamic Implicit Surfaces; Springer: New York, NY, USA, 2003. [Google Scholar]
- Sethian, J.A. Level Set Methods and Fast Marching Methods: Evolving Interfaces in Computational Geometry, Fluid Mechanics, Computer Vision, And Materials Science; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
- Fedkiw, R.P.; Marquina, A.; Merriman, B. An isobaric fix for the overheating problem in multimaterial compressible flows. J. Comput. Phys.
**1999**, 148, 545–578. [Google Scholar] [CrossRef] - Caiden, R.; Fedkiw, R.P.; Anderson, C. A numerical method for two-phase flow consisting of separate compressible and incompressible regions. J. Comput. Phys.
**2001**, 166, 1–27. [Google Scholar] [CrossRef] - Liu, T.; Khoo, B.; Yeo, K. Ghost fluid method for strong shock impacting on material interface. J. Comput. Phys.
**2003**, 190, 651–681. [Google Scholar] [CrossRef] - Liu, T.; Khoo, B.; Wang, C. The ghost fluid method for compressible gas–water simulation. J. Comput. Phys.
**2005**, 204, 193–221. [Google Scholar] [CrossRef] - Wang, C.W.; Liu, T.G.; Khoo, B.C. A real ghost fluid method for the simulation of multimedium compressible flow. SIAM J. Sci. Comput.
**2006**, 28, 278–302. [Google Scholar] [CrossRef] - Xu, L.; Liu, T. Accuracies and conservation errors of various ghost fluid methods for multi-medium Riemann problem. J. Comput. Phys.
**2011**, 230, 4975–4990. [Google Scholar] [CrossRef] - Li, Y.H. Equation of state of water and sea water. J. Geophys. Res.
**1967**, 72, 2665–2678. [Google Scholar] [CrossRef] - Harten, A. High resolution schemes for hyperbolic conservation laws. J. Comput. Phys.
**1983**, 49, 357–393. [Google Scholar] [CrossRef] - Sweby, P.K. High resolution schemes using flux limiters for hyperbolic conservation laws. SIAM J. Numer. Anal.
**1984**, 21, 995–1011. [Google Scholar] [CrossRef] - Liu, T.; Khoo, B.; Yeo, K. The simulation of compressible multi-medium flow. I. A new methodology with test applications to 1D gas–gas and gas–water cases. Comput. Fluids
**2001**, 30, 291–314. [Google Scholar] [CrossRef] - Liu, T.; Khoo, B.; Yeo, K. The simulation of compressible multi-medium flow: II. Applications to 2D underwater shock refraction. Comput. Fluids
**2001**, 30, 315–337. [Google Scholar] [CrossRef] - Sussman, M.; Smereka, P.; Osher, S. A level set approach for computing solutions to incompressible two-phase flow. J. Comput. Phys.
**1994**, 114, 146–159. [Google Scholar] [CrossRef] - Shu, C.W. Essentially non-oscillatory and weighted essentially non-oscillatory schemes for hyperbolic conservation laws. In Advanced Numerical Approximation of Nonlinear Hyperbolic Equations: Lectures Given at the 2nd Session of the Centro Internazionale Matematico Estivo (C.I.M.E.) Held in Cetraro, Italy, 23–28 June 1997; Springer: Berlin/Heidelberg, Germany, 1998; pp. 325–432. [Google Scholar]
- Wang, C.; Tang, H.; Liu, T. An adaptive ghost fluid finite volume method for compressible gas–water simulations. J. Comput. Phys.
**2008**, 227, 6385–6409. [Google Scholar] [CrossRef] - Ding, Y.; Yang, L.; Yuan, L. A finite difference real ghost fluid method on moving meshes with corner-transport upwind interpolation. Comput. Fluids
**2011**, 49, 247–257. [Google Scholar] [CrossRef] - Courant, R.; Friedrichs, K.; Lewy, H. On the partial difference equations of mathematical physics. IBM J. Res. Dev.
**1967**, 11, 215–234. [Google Scholar] [CrossRef] - Xu, L.; Liu, T. Modified ghost fluid method as applied to fluid-plate interaction. Adv. Appl. Math. Mech.
**2014**, 6, 24–48. [Google Scholar] [CrossRef] - Wardlaw, A. Underwater Explosion Test Cases; Technical Report IHTR2069; Office of Naval Research: Arlington, VA, USA, 1998. [Google Scholar]

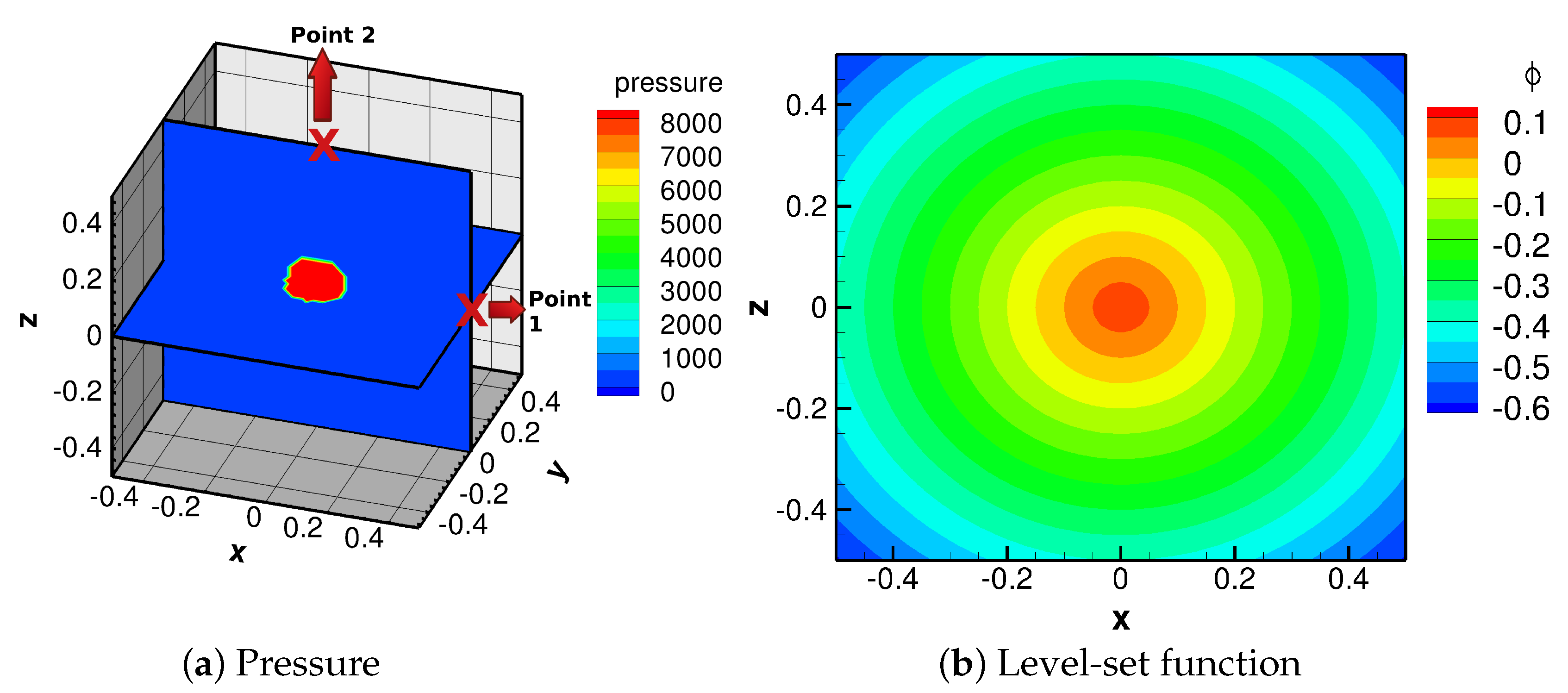

**Figure 1.**The initial setup of the underwater explosion (UNDEX) simulation with a high-pressure gas bubble in a spherical shape. (

**a**) the initial distribution of the pressure, shown in a slice plot (surfaces $y=0$ and $z=0$). Two recording points, Point 1 with the position (0.5, 0.0, 0.0) and Point 2 (0.0, 0.0, 0.5) were placed at the boundaries of the computational domain; (

**b**) a 2-D plot of the initial level-set function $\varphi $ in the x–z surface ($y=0$).

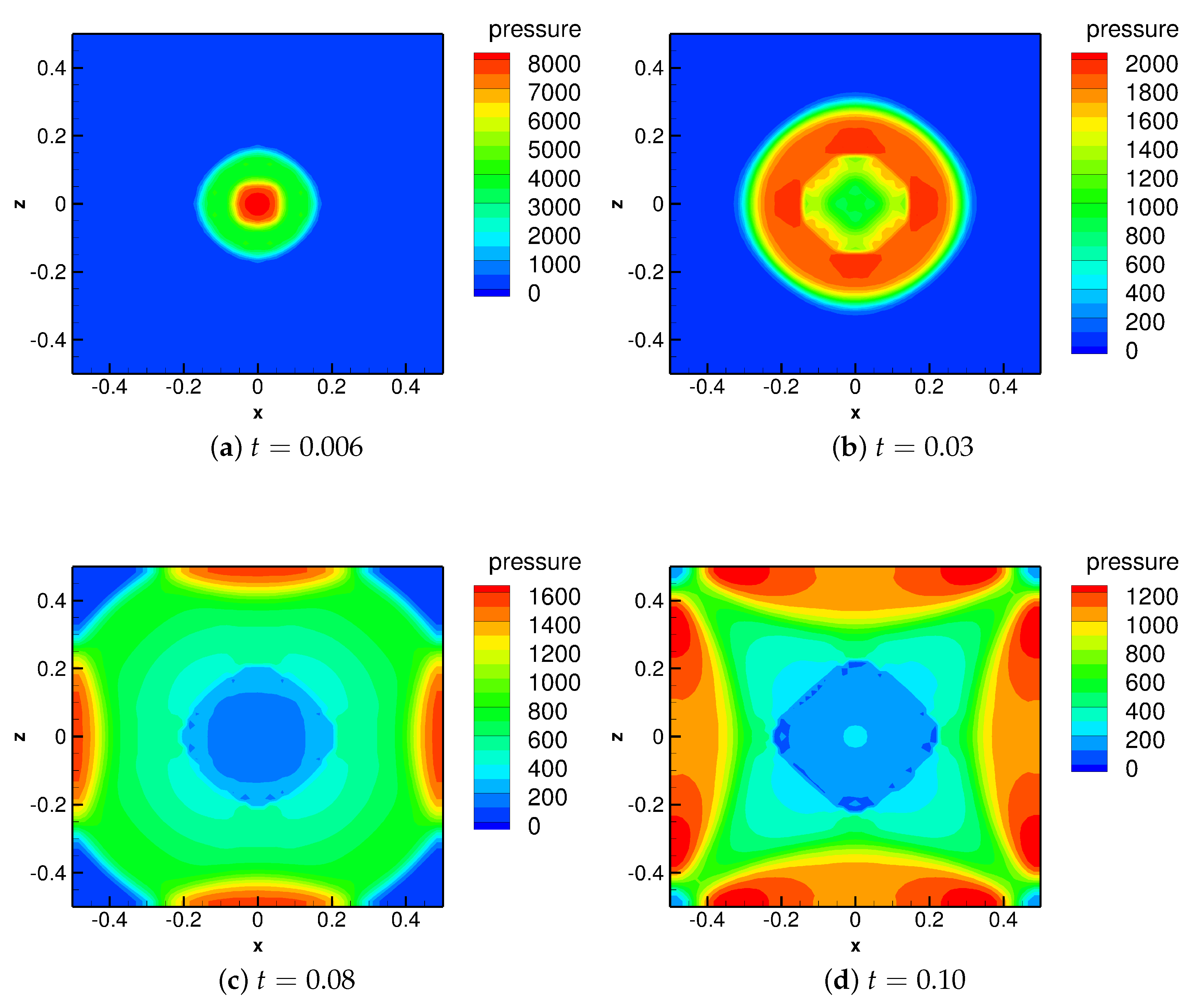

**Figure 2.**The temporal evolution of the pressure field for an initially spherical bubble in slice plots ($y=0.0$). Note that the range of the legend in each figure is different for a better display.

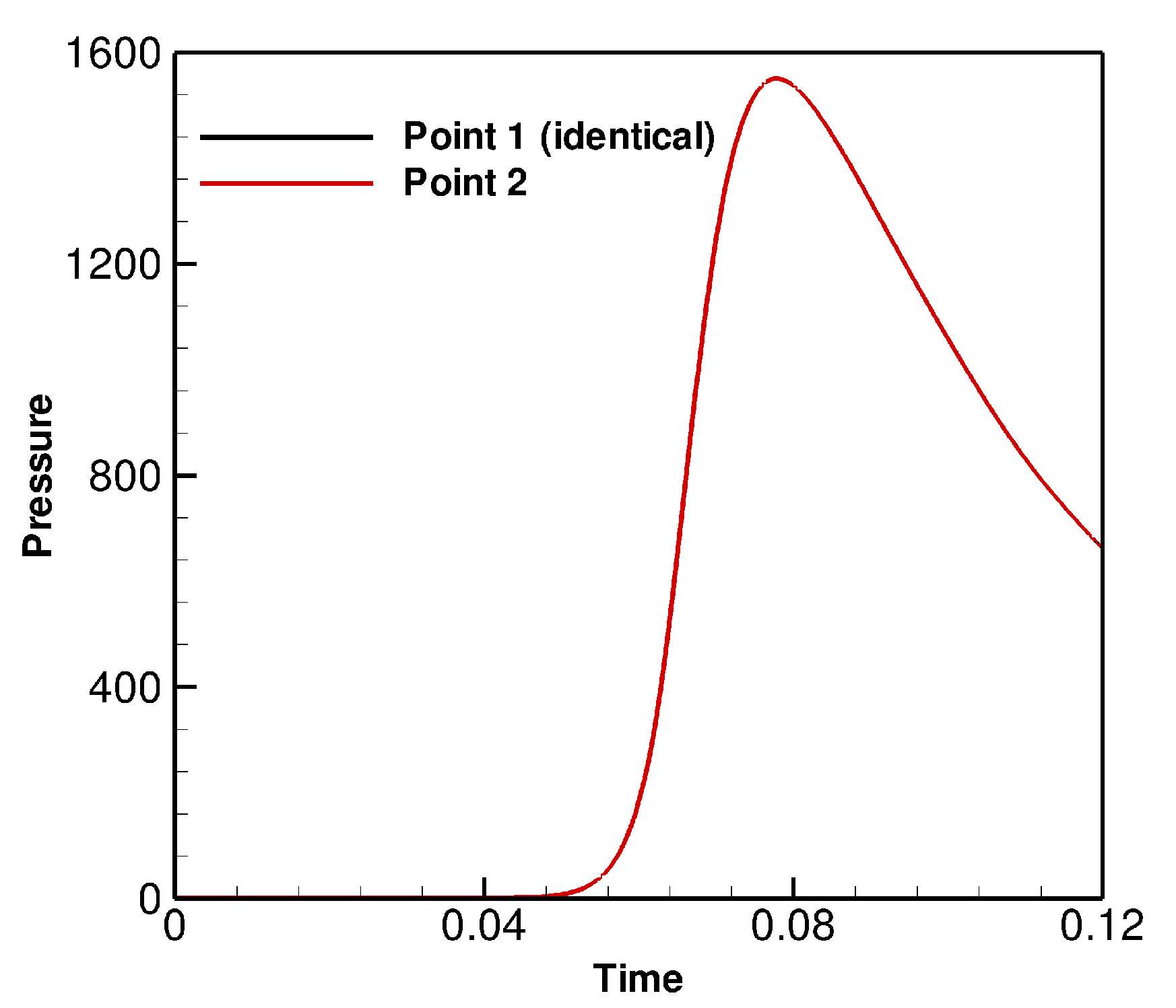

**Figure 3.**The pressure history recorded at the boundaries of the computational domain for an initially spherical bubble (Scenario 1). Point 1 is located at the position (0.5, 0.0, 0.0), and the position of Point 2 is (0.0, 0.0, 0.5).

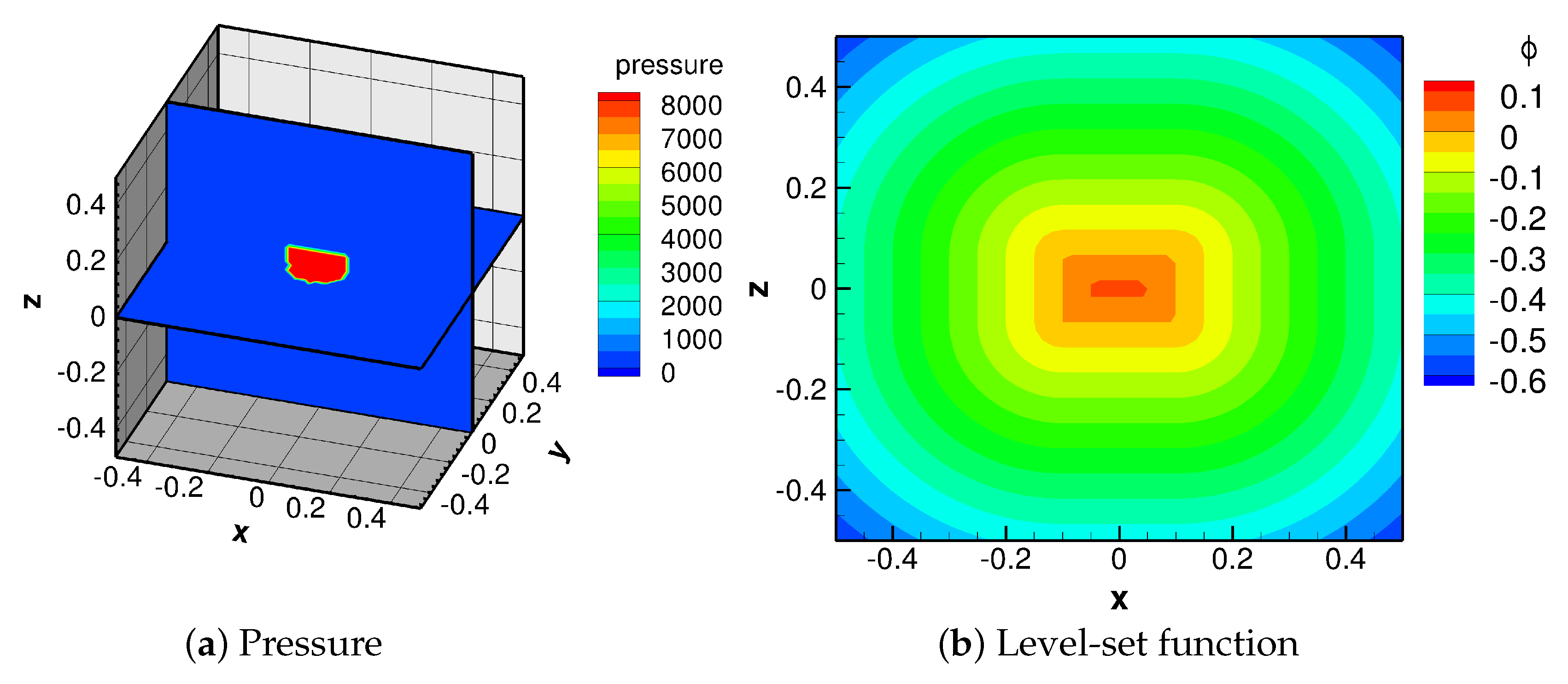

**Figure 4.**The initial setup of the UNDEX simulation with a high-pressure gas bubble of a cylindrical shape. The configurations of the figure are similar to Figure 1.

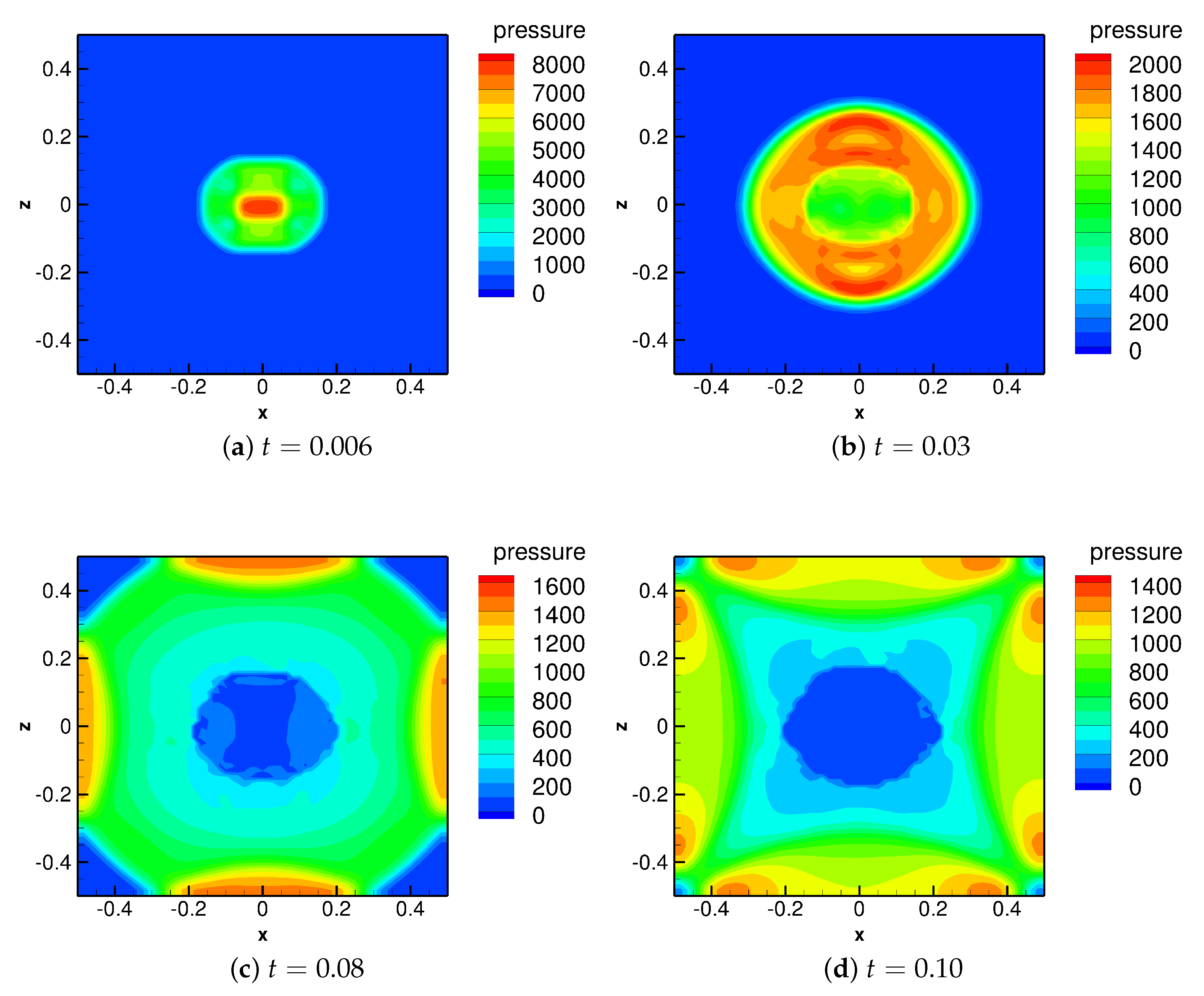

**Figure 5.**The temporal evolution of the pressure field for an initially cylindrical bubble in slice plots ($y=0.0$). Note that the range of the legend in each figure is different for a better display.

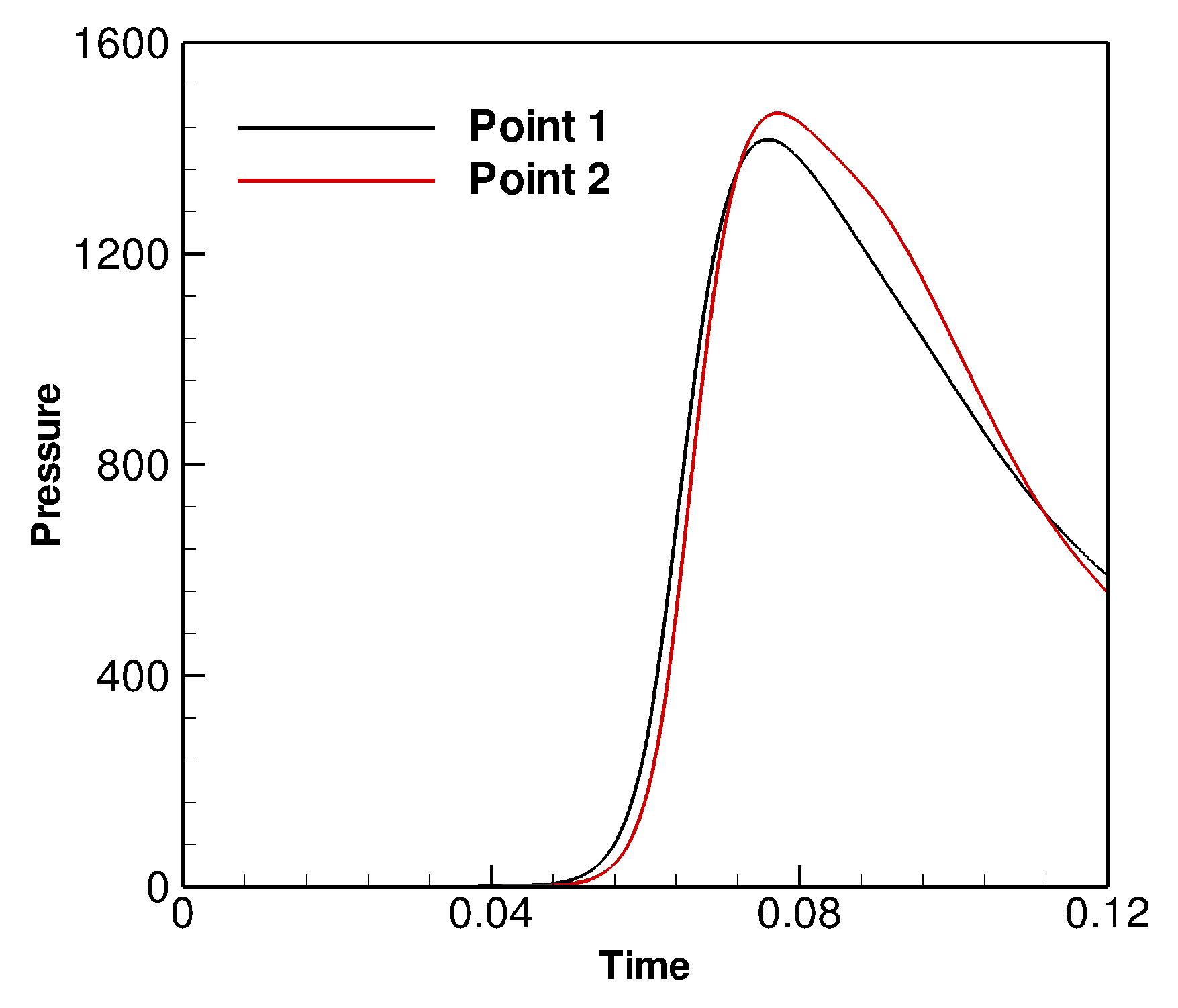

**Figure 6.**The pressure history recorded at the boundaries of the computational domain for an initially cylindrical bubble (Scenario 2).

**Figure 7.**The initial setup of the UNDEX simulation with a high-pressure gas bubble in a cuboidal shape. The configurations of the figure are similar to Figure 1.

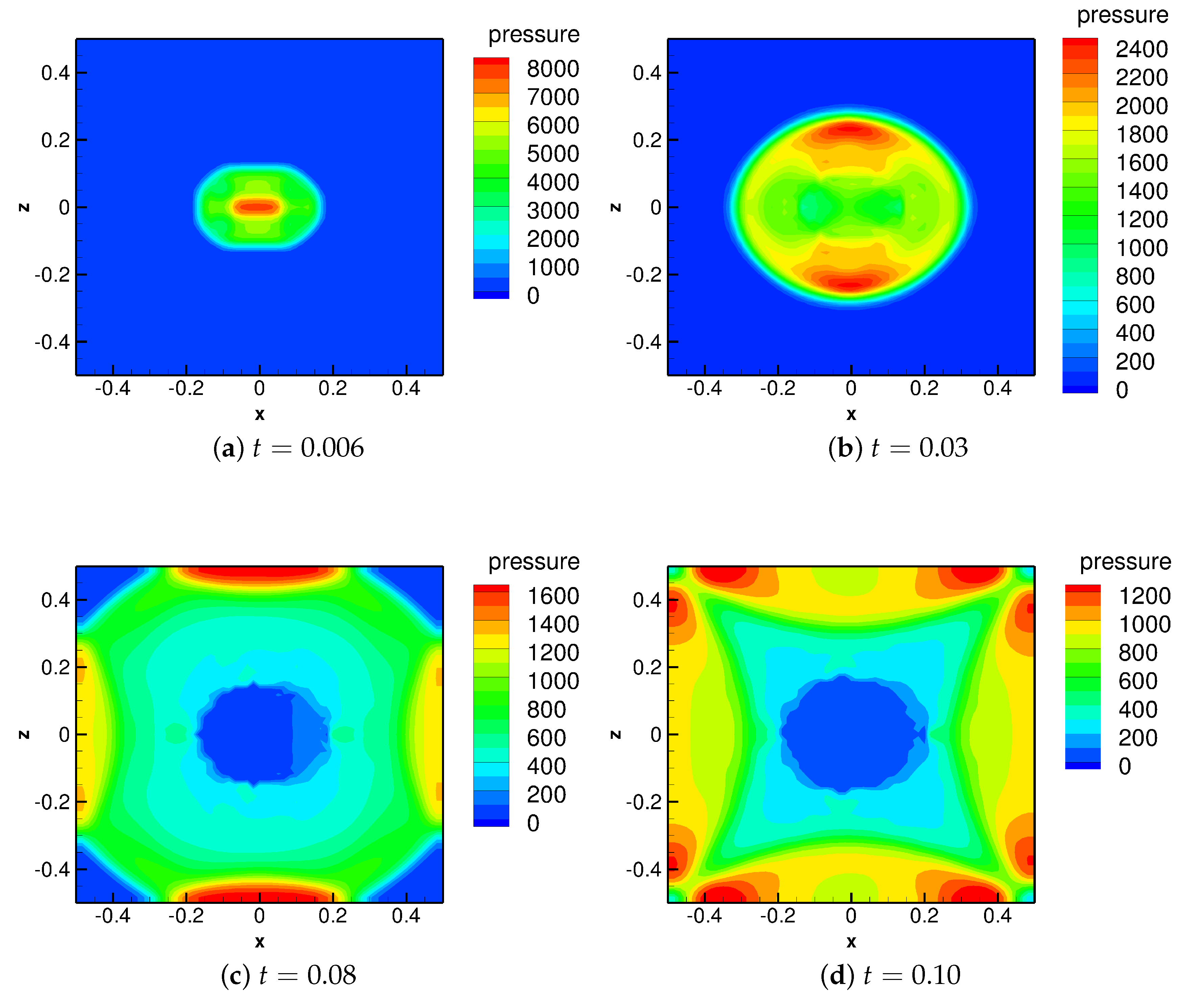

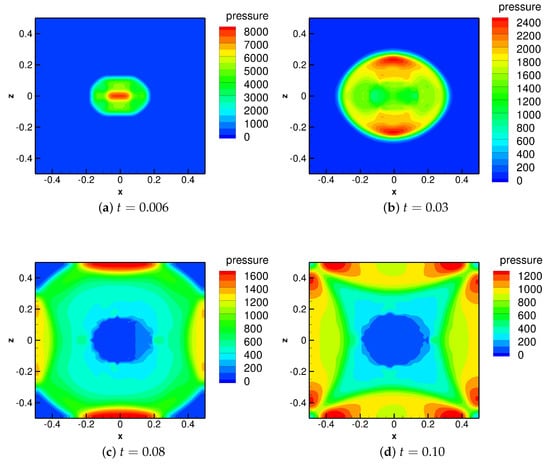

**Figure 8.**The temporal evolution of the pressure field for an initially cuboidal bubble in slice plots ($y=0.0$).

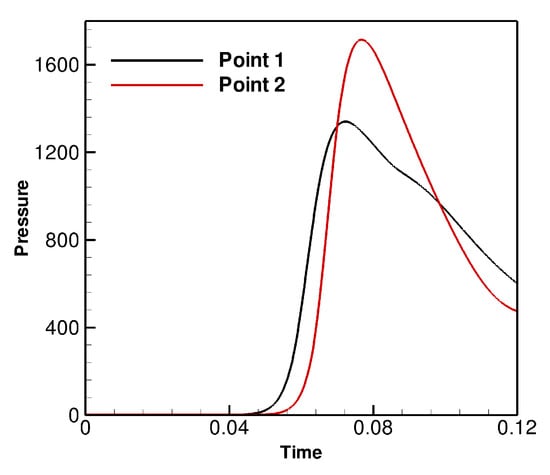

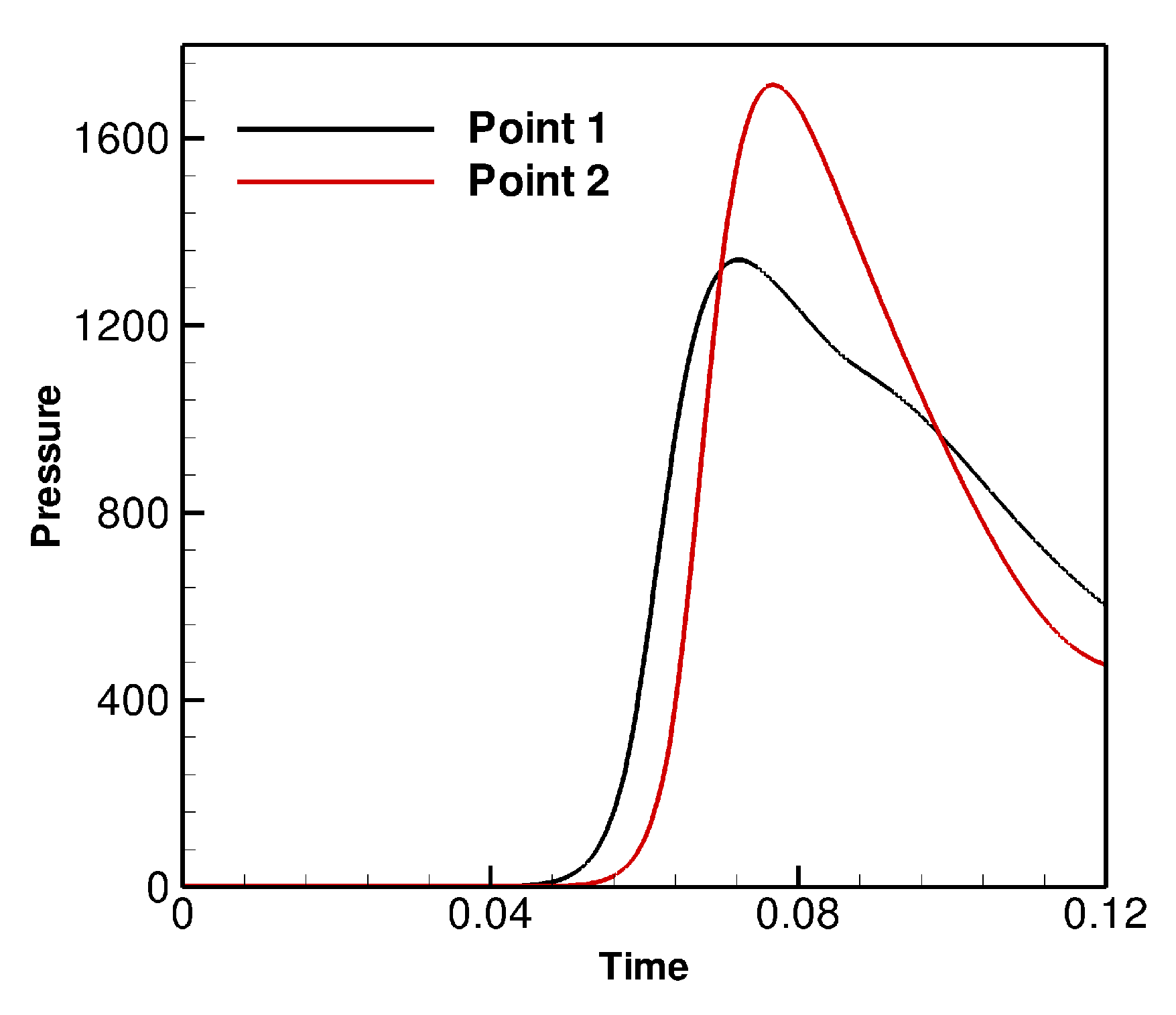

**Figure 9.**The pressure history recorded at the boundaries of the computational domain for an initially cuboid-shaped bubble (Scenario 3).

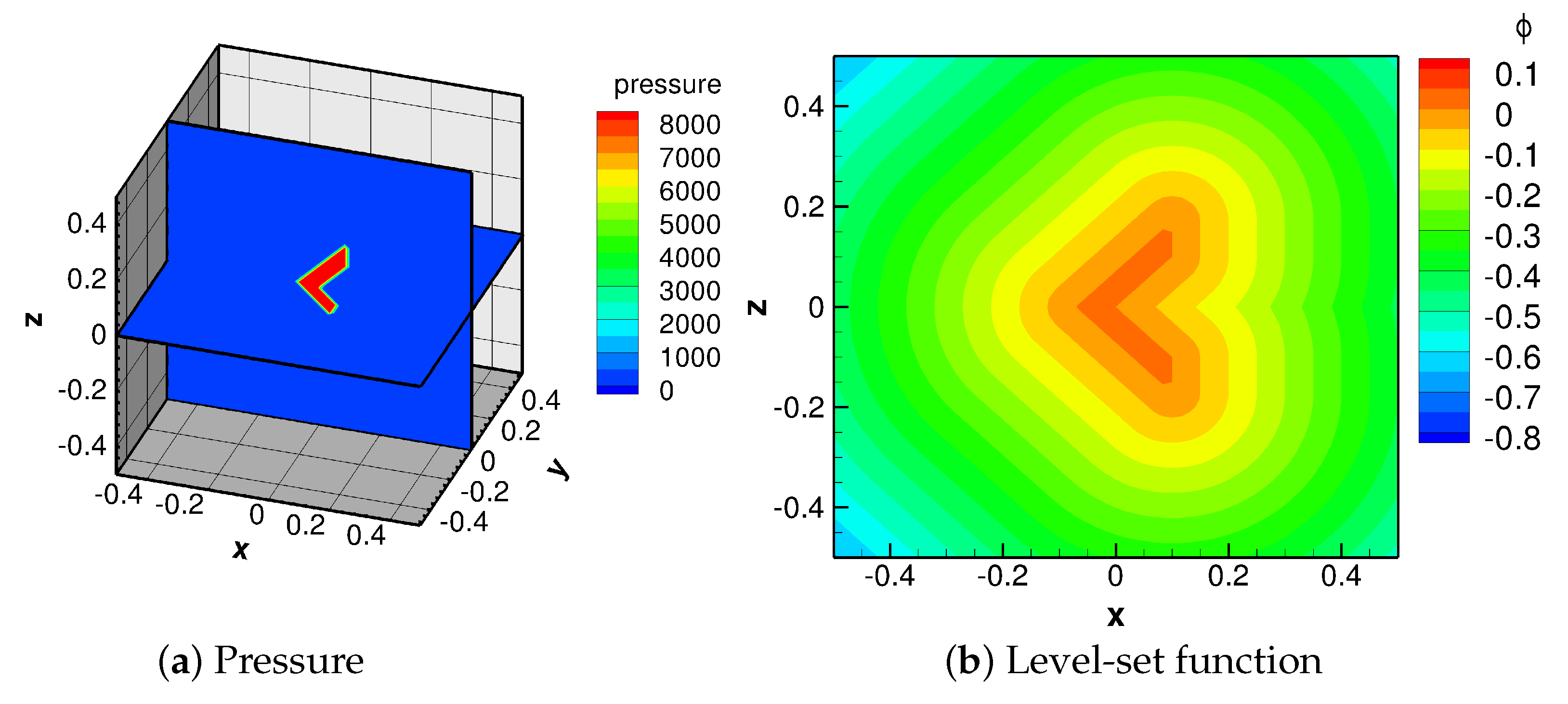

**Figure 10.**The initial setup of the UNDEX simulation with a high-pressure gas bubble in a bullet-like shape. The configurations of the figure are similar to Figure 1.

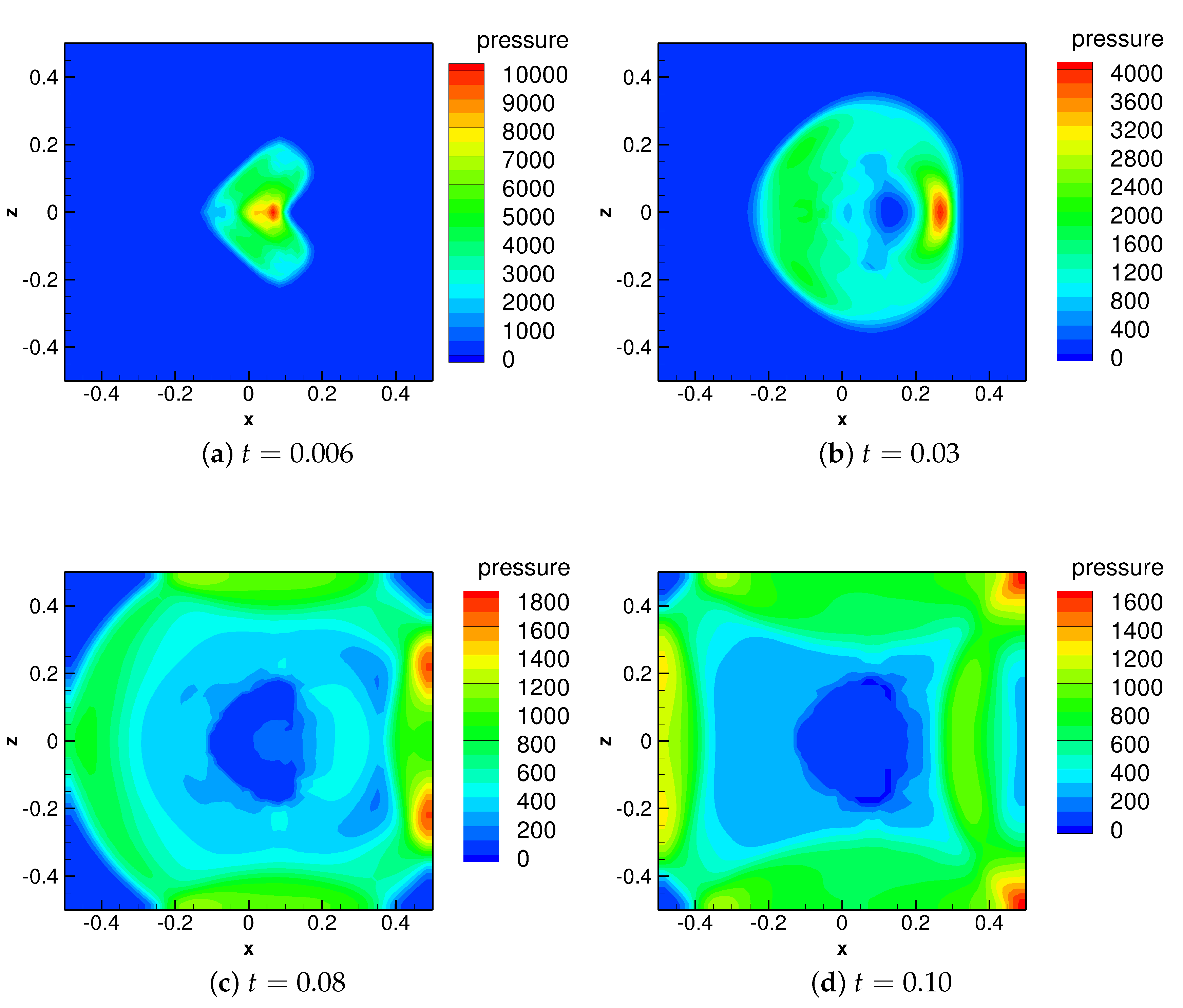

**Figure 11.**The temporal evolution of the pressure field for an initially bullet-like bubble in slice plots ($y=0.0$). Note that in (

**a**,

**b**), the maximum value of the legend is 10,000 and 4000, respectively.

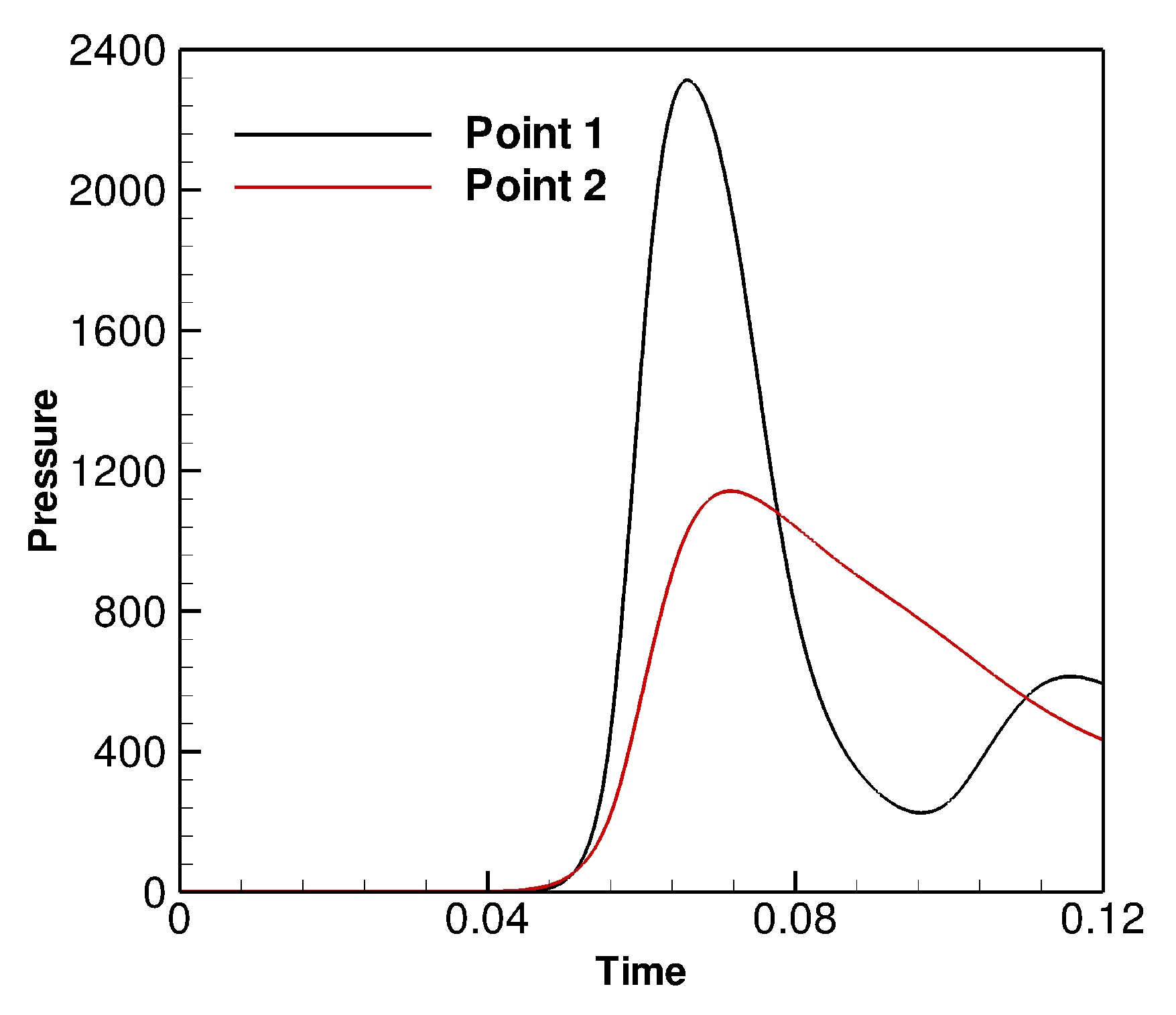

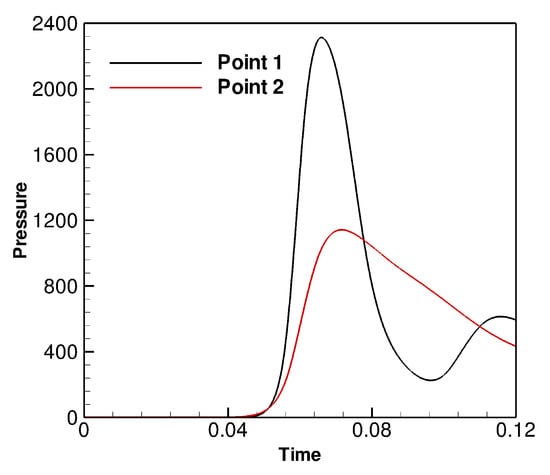

**Figure 12.**The pressure history recorded at the boundaries of the computational domain for an initially bullet-like bubble (Scenario 4).
