Next Article in Journal
Coupled Effect of Expansion Ratio and Blade Loading on the Aerodynamics of a High-Pressure Gas Turbine
Next Article in Special Issue
A Comparative Study of Additively Manufactured Thin Wall and Block Structure with Al-6.3%Cu Alloy Using Cold Metal Transfer Process
Previous Article in Journal
Interactive Rhythm Learning System by Combining Tablet Computers and Robots
Previous Article in Special Issue
Research of a Multi-Frequency Waveform Control Method on Double-Wire MIG Arc Welding
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Appl. Sci. 2017, 7(3), 261;

The Effect of EN Ratio and Current on Microstructural and Mechanical Properties of Weld Joined by AC-GMAW on Square Groove Butt Joints

Department of Mechanical Engineering, KAIST 291, Daehak-ro, Yuseong-gu, Daejeon 34141, Korea
Author to whom correspondence should be addressed.
Academic Editor: Hai-Lung Tsai
Received: 24 January 2017 / Accepted: 3 March 2017 / Published: 7 March 2017
(This article belongs to the Special Issue Gas Metal Arc Welding)
Full-Text   |   PDF [6593 KB, uploaded 7 March 2017]   |

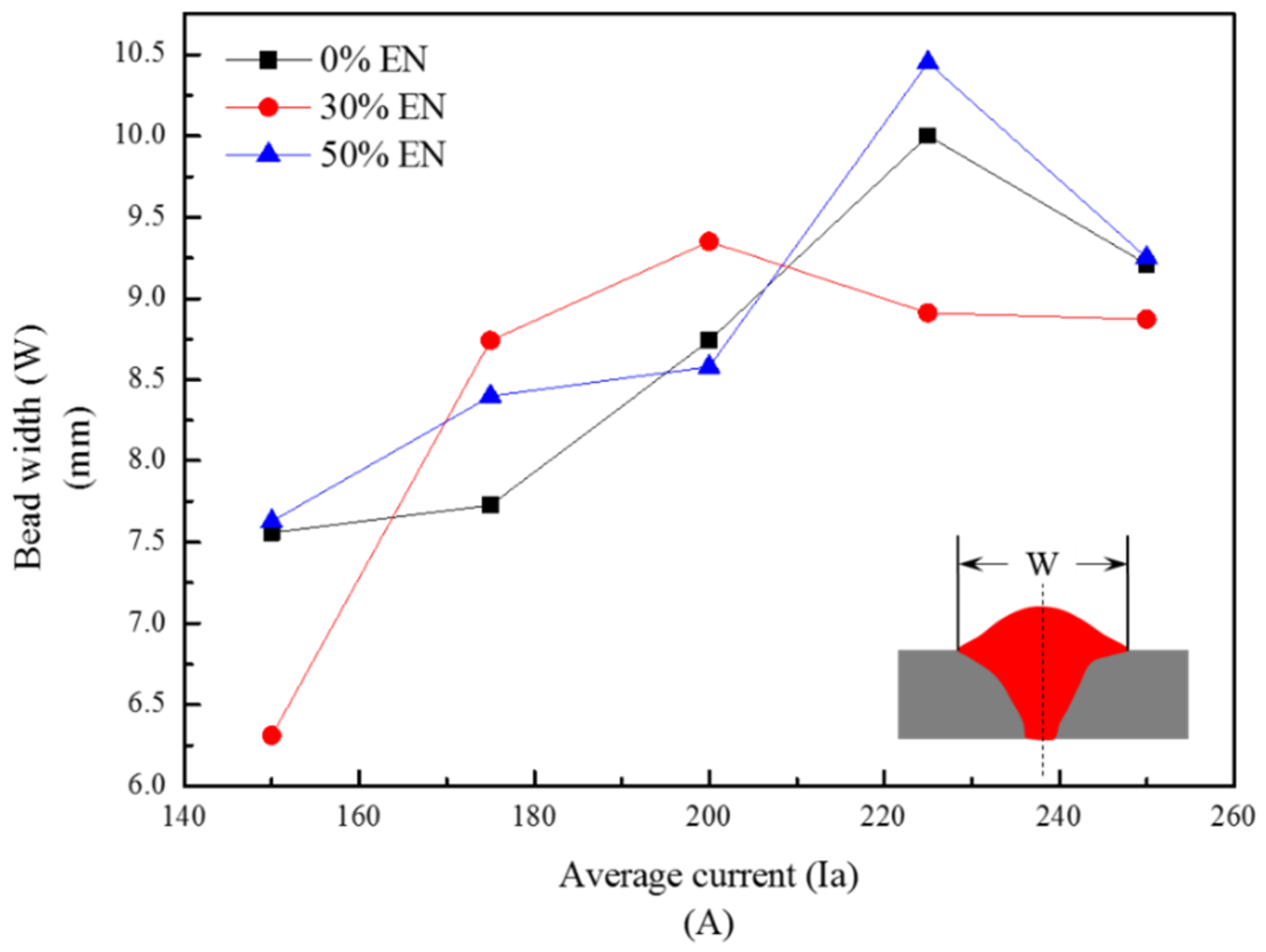

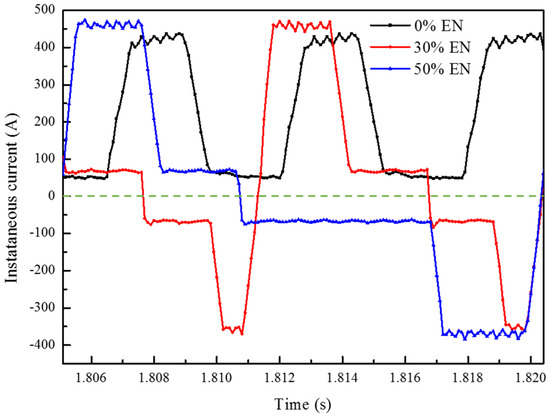

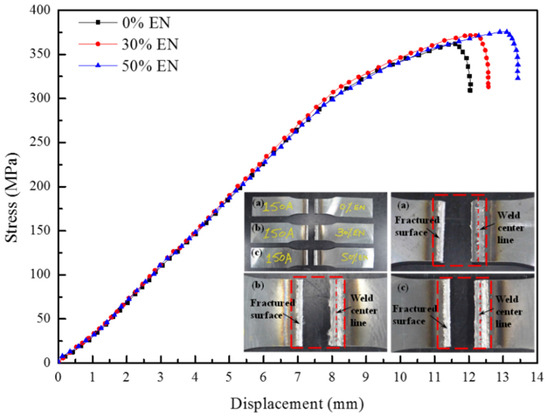

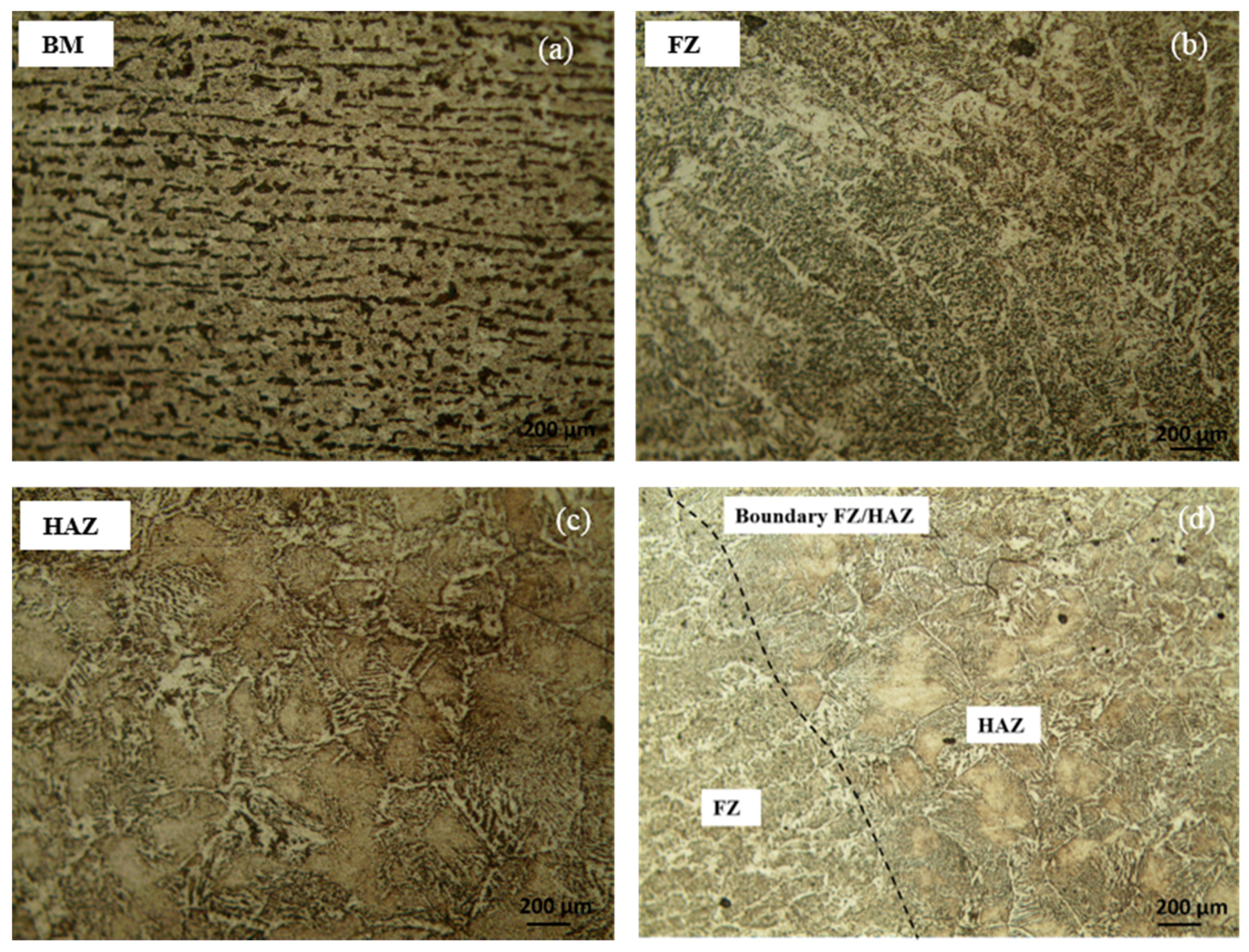

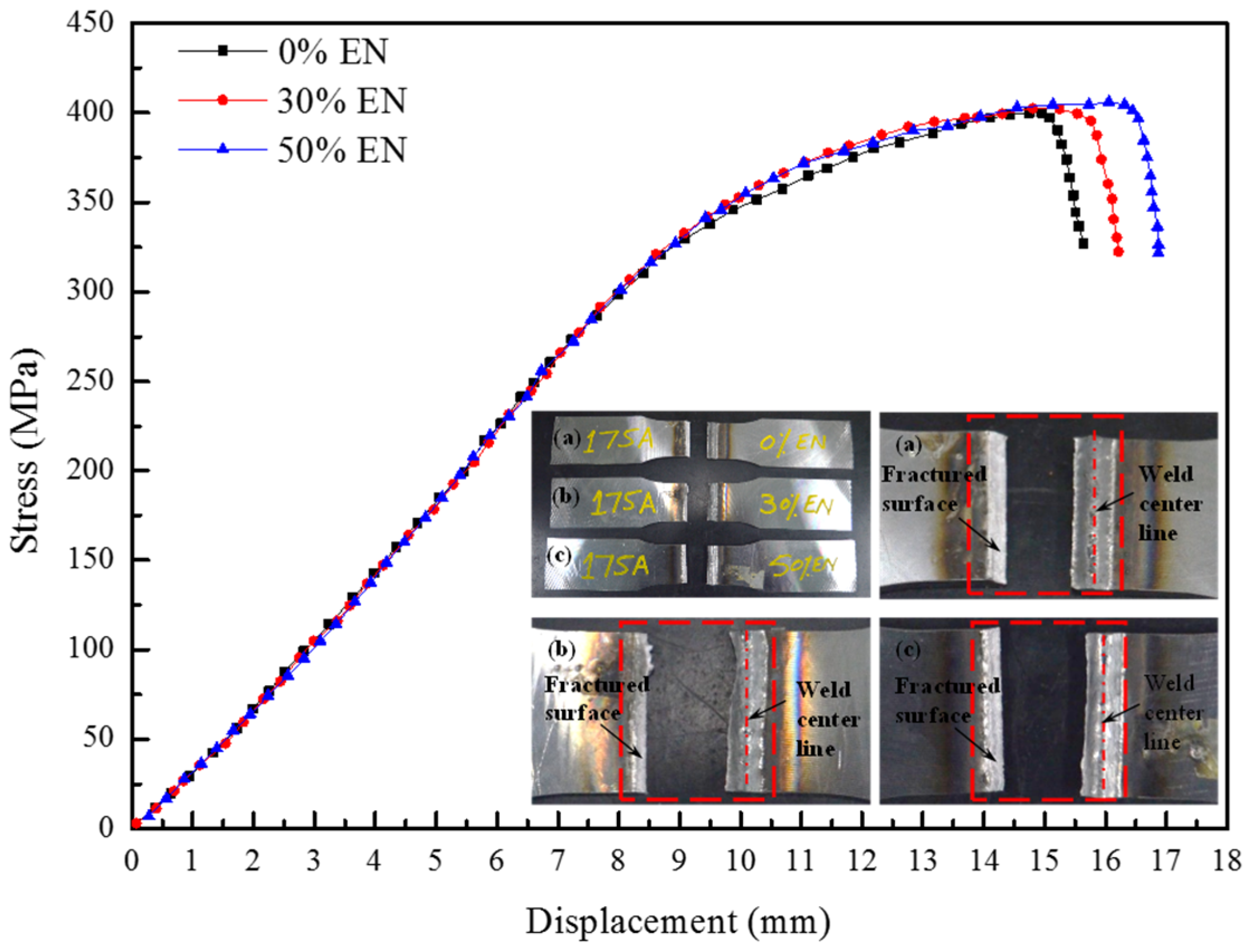

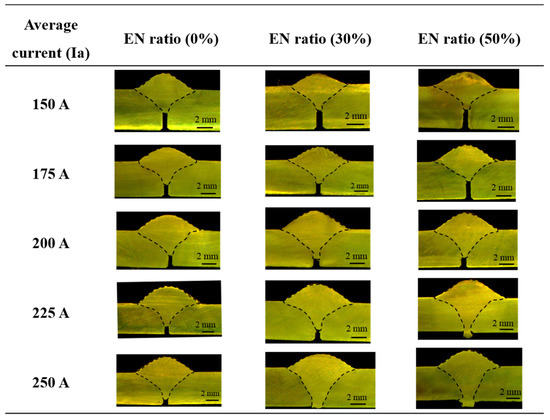

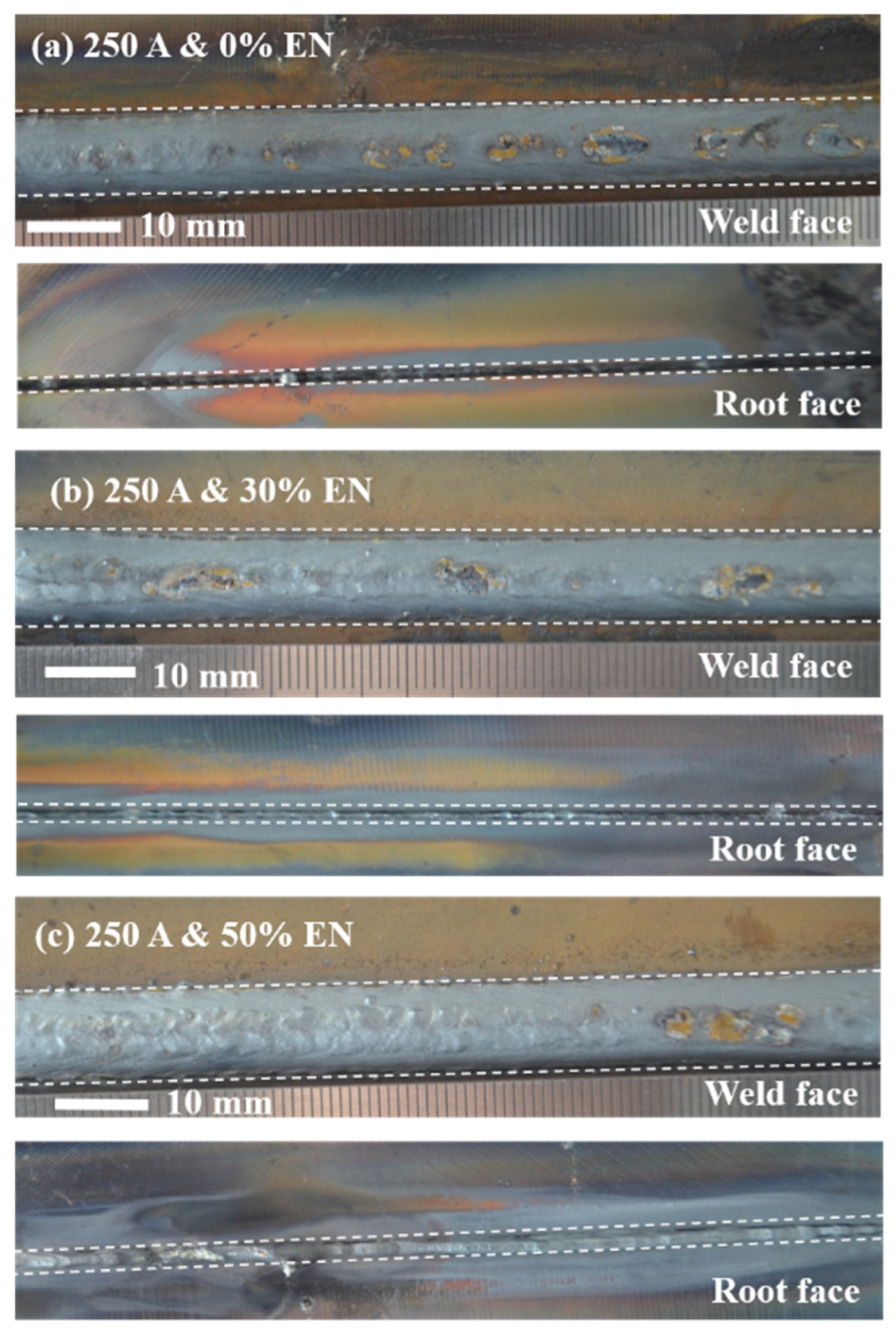

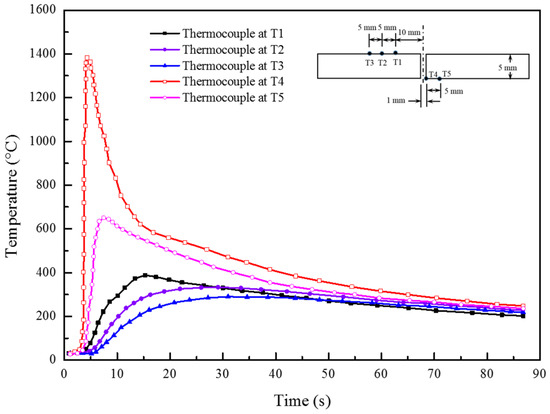

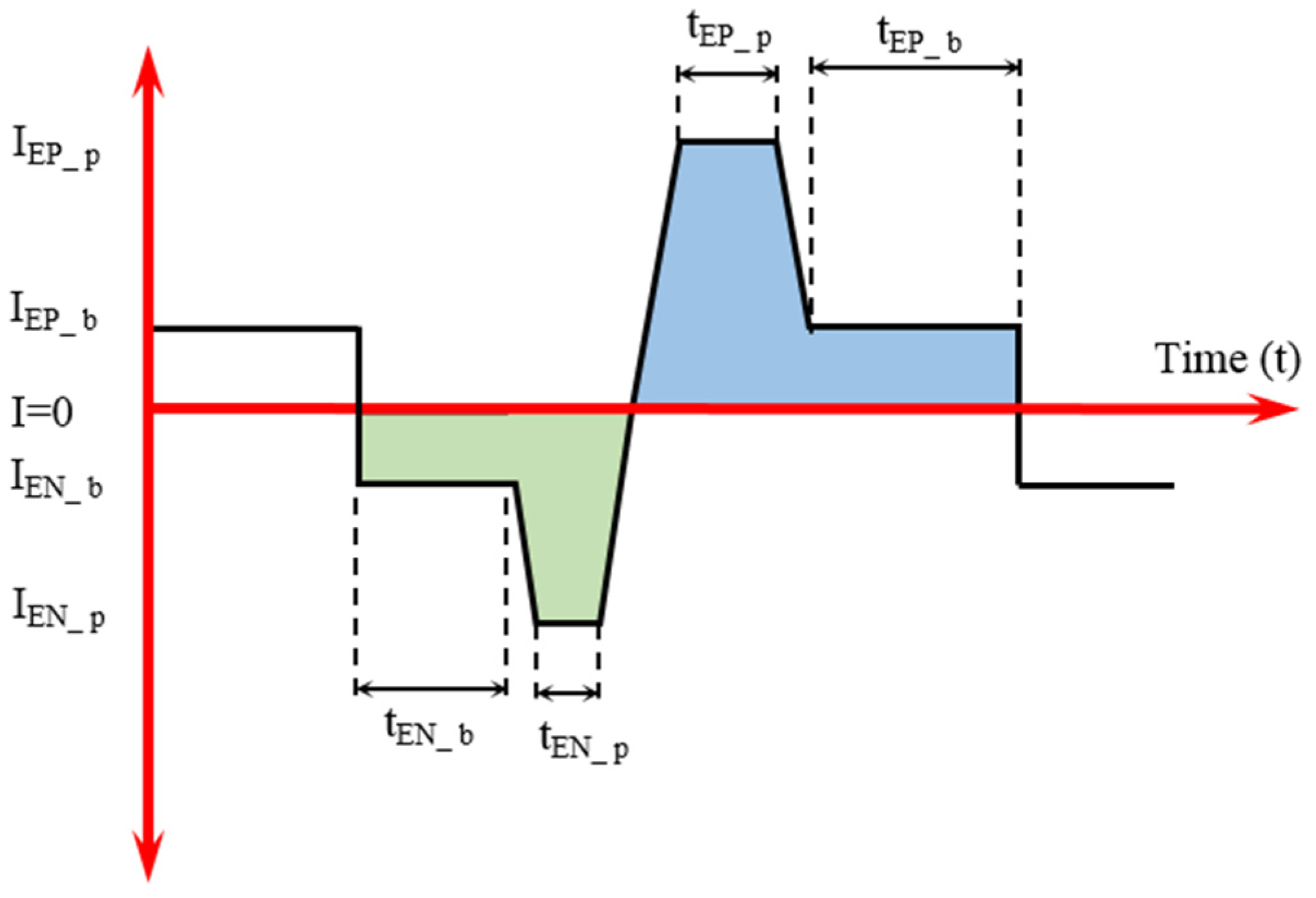

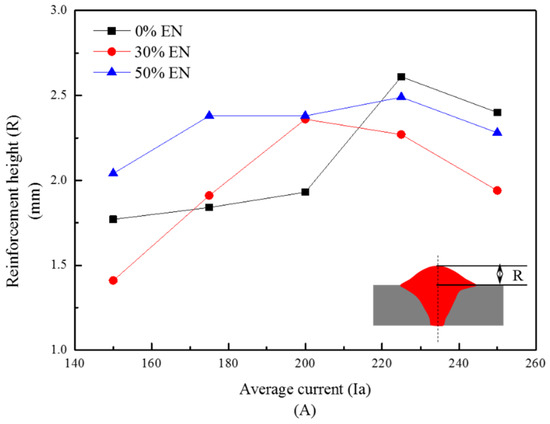

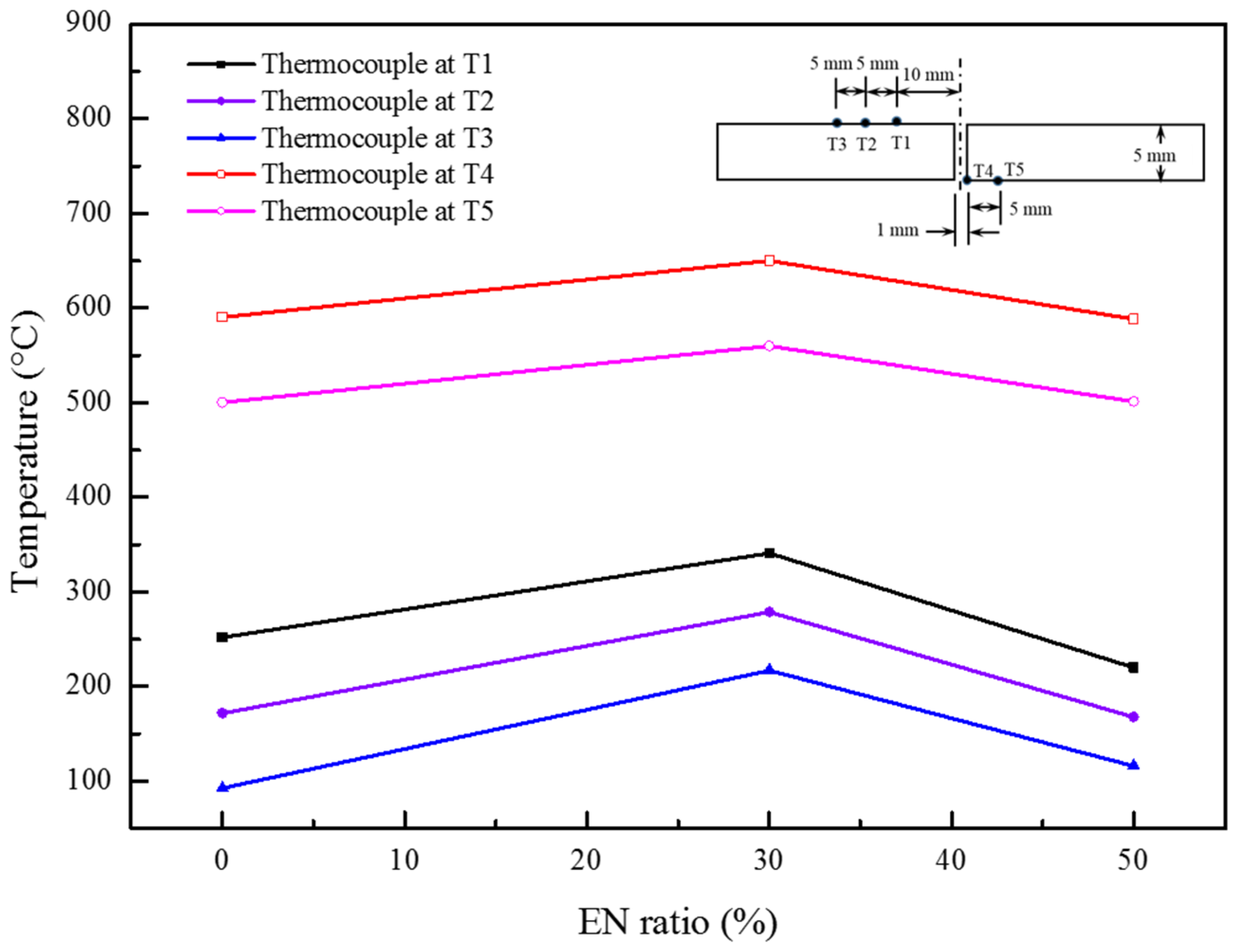

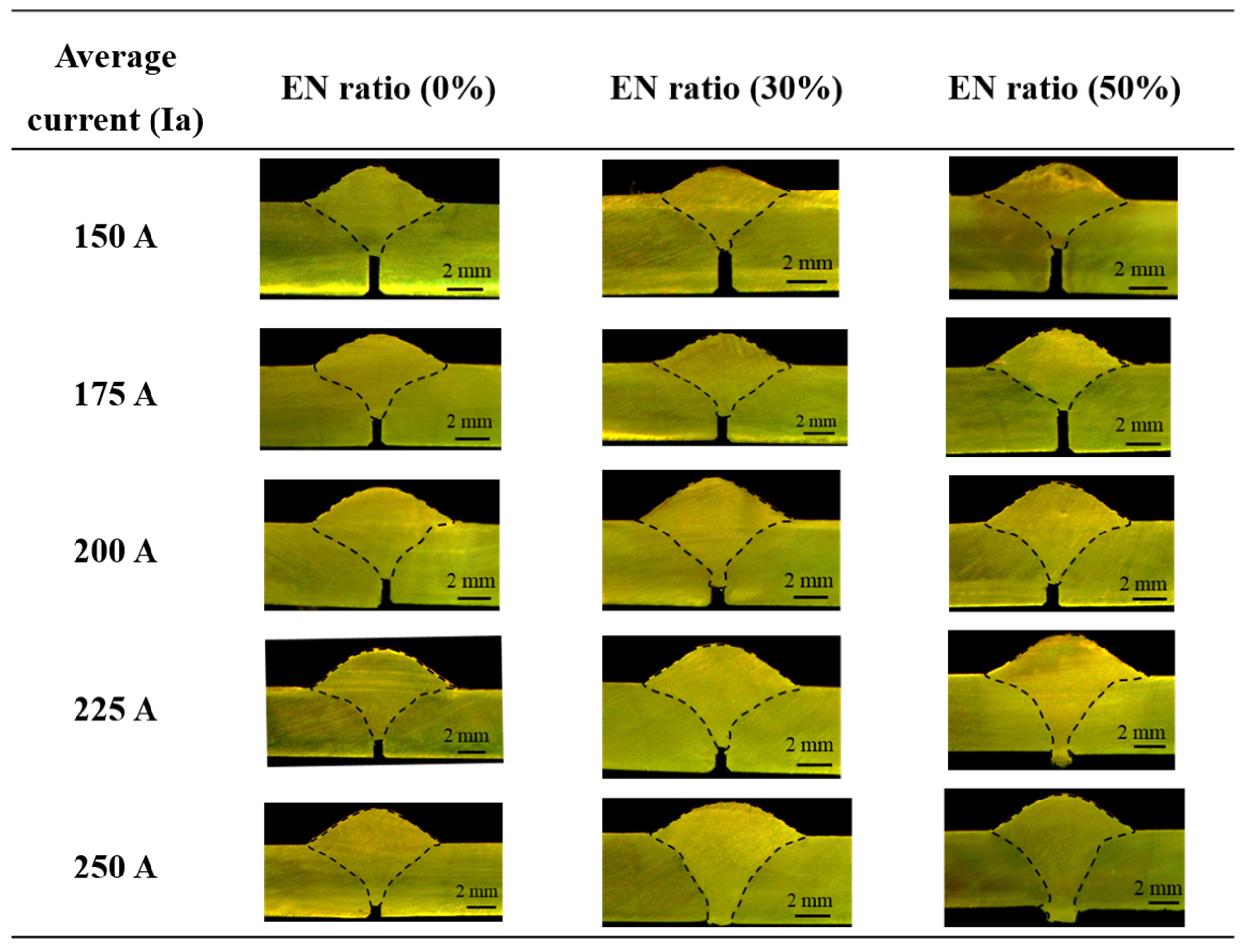

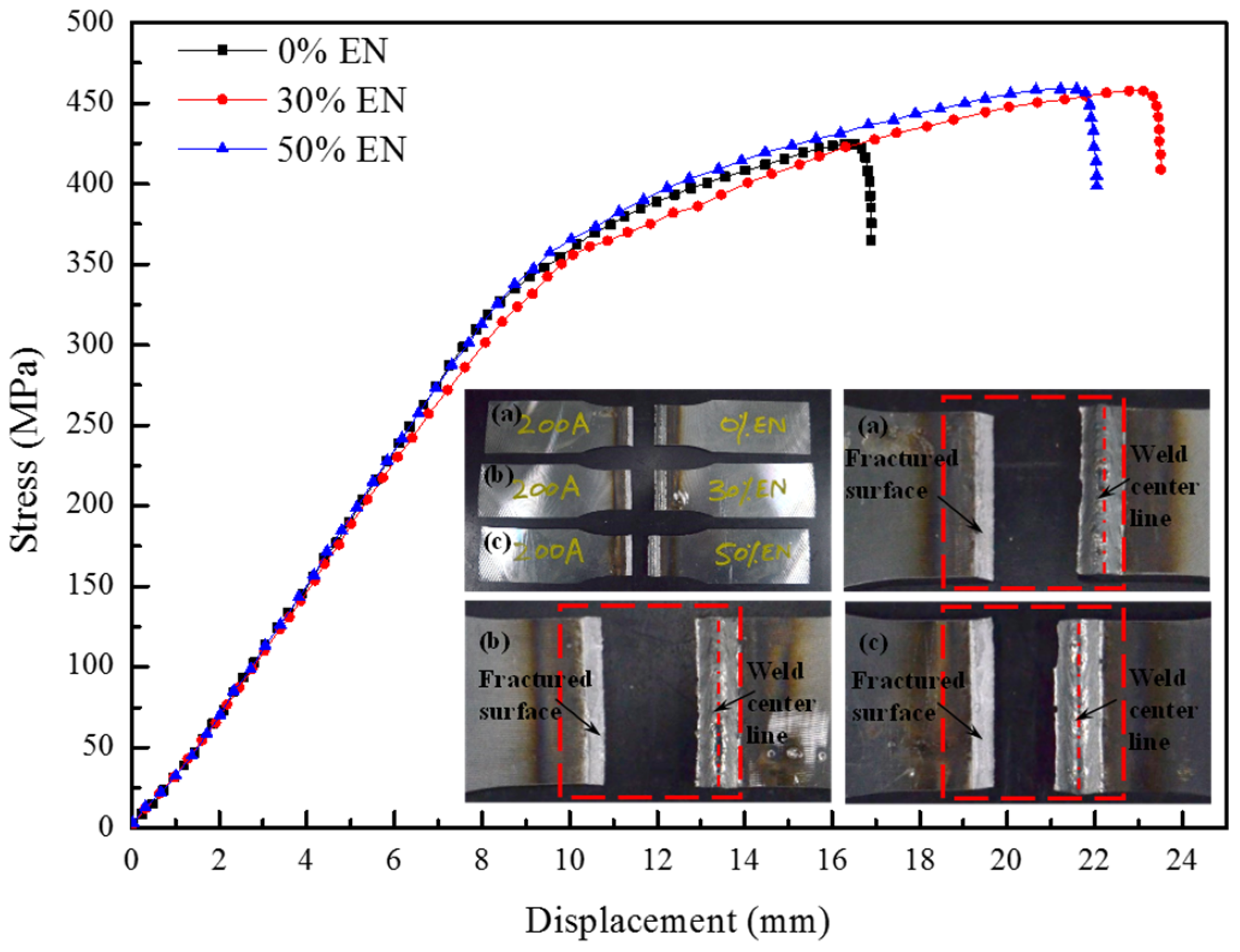

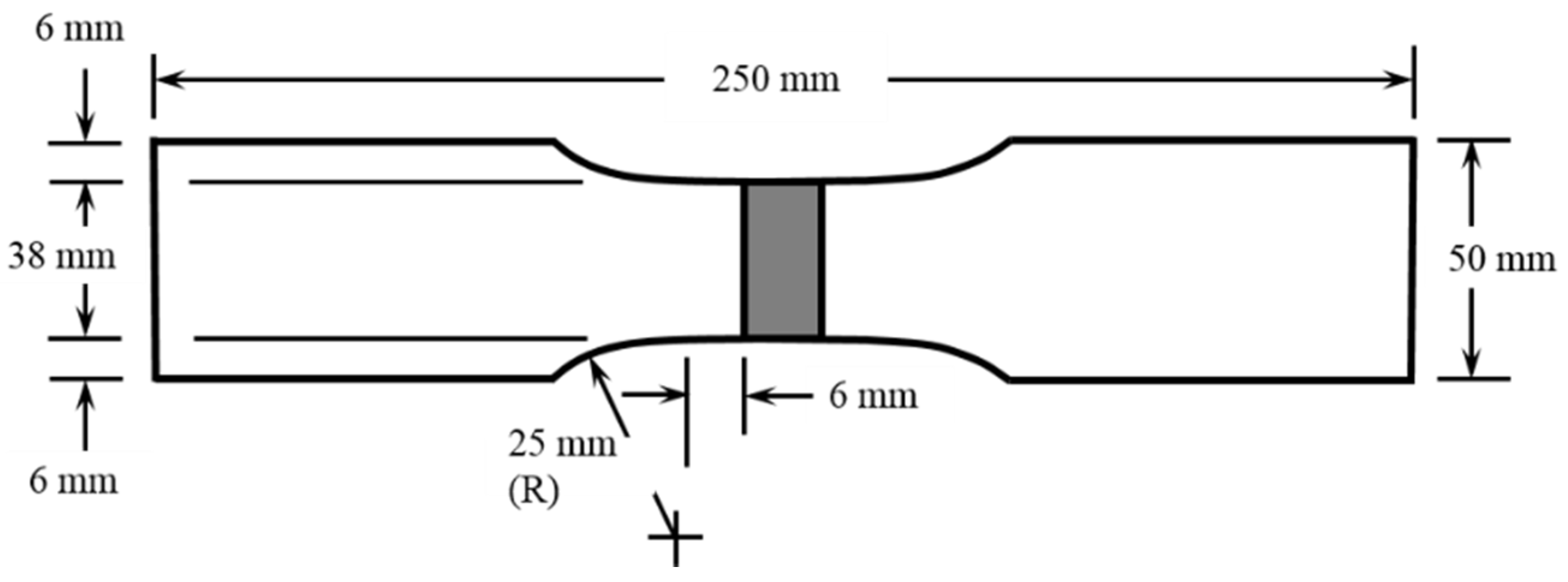

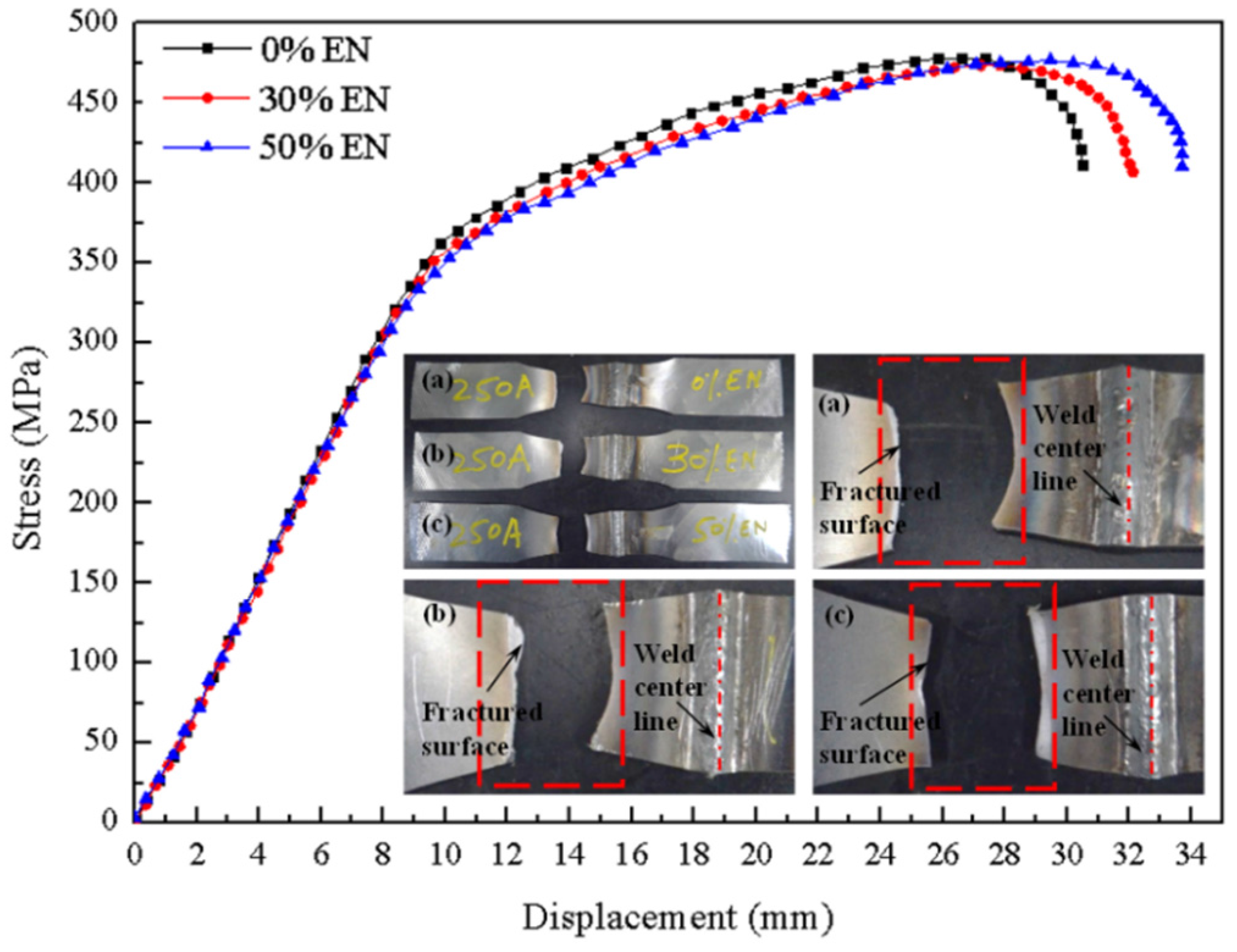

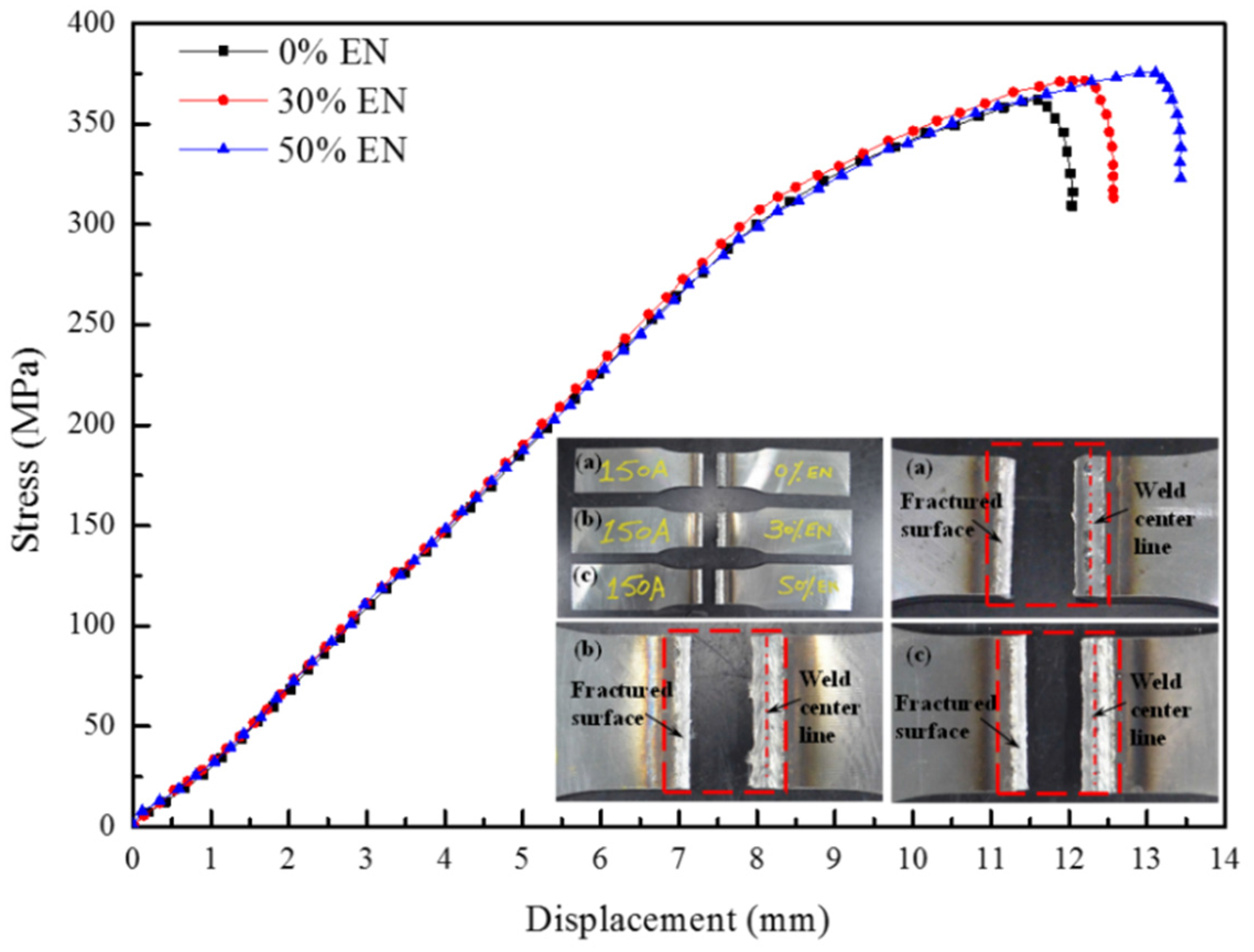

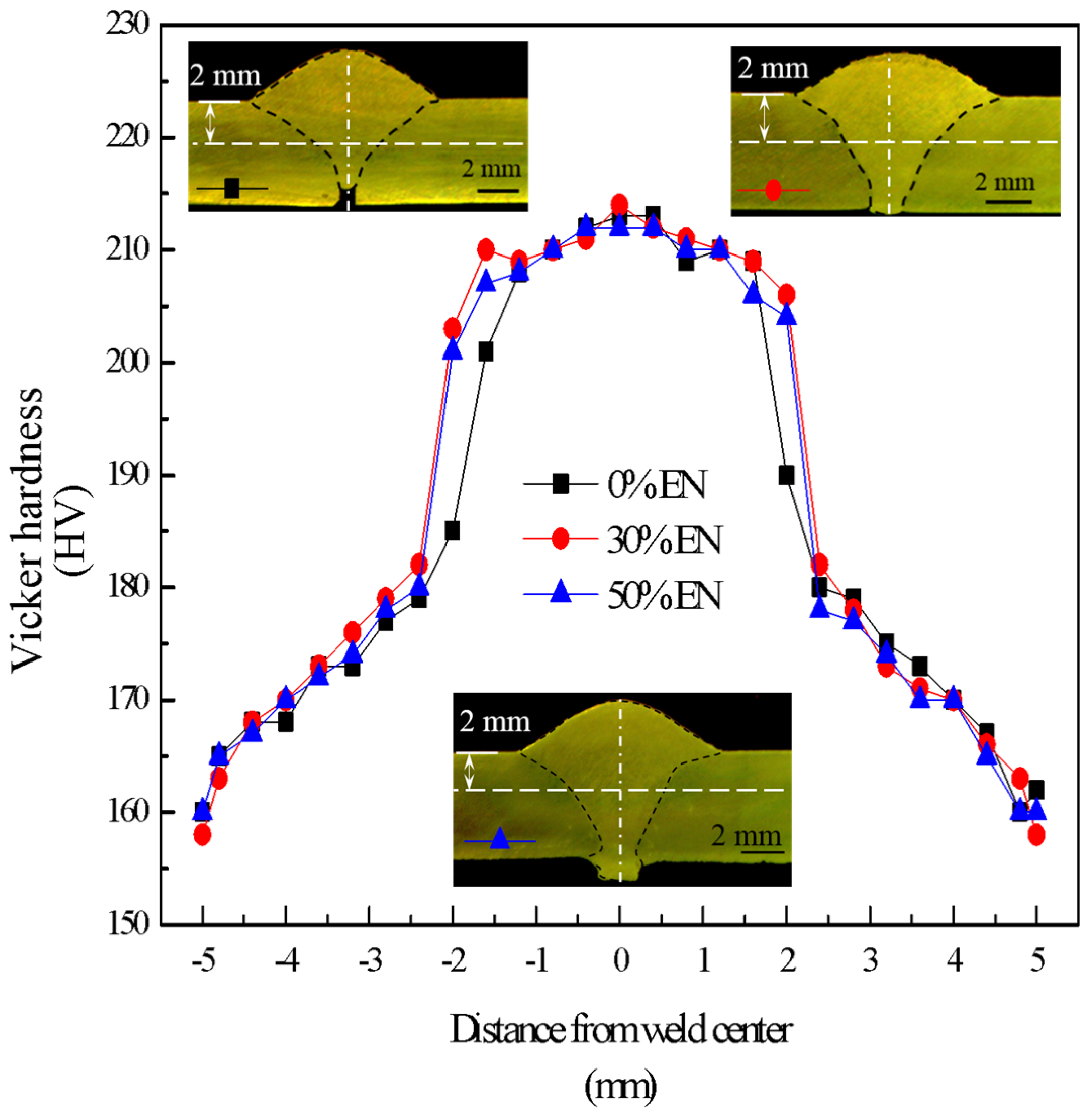

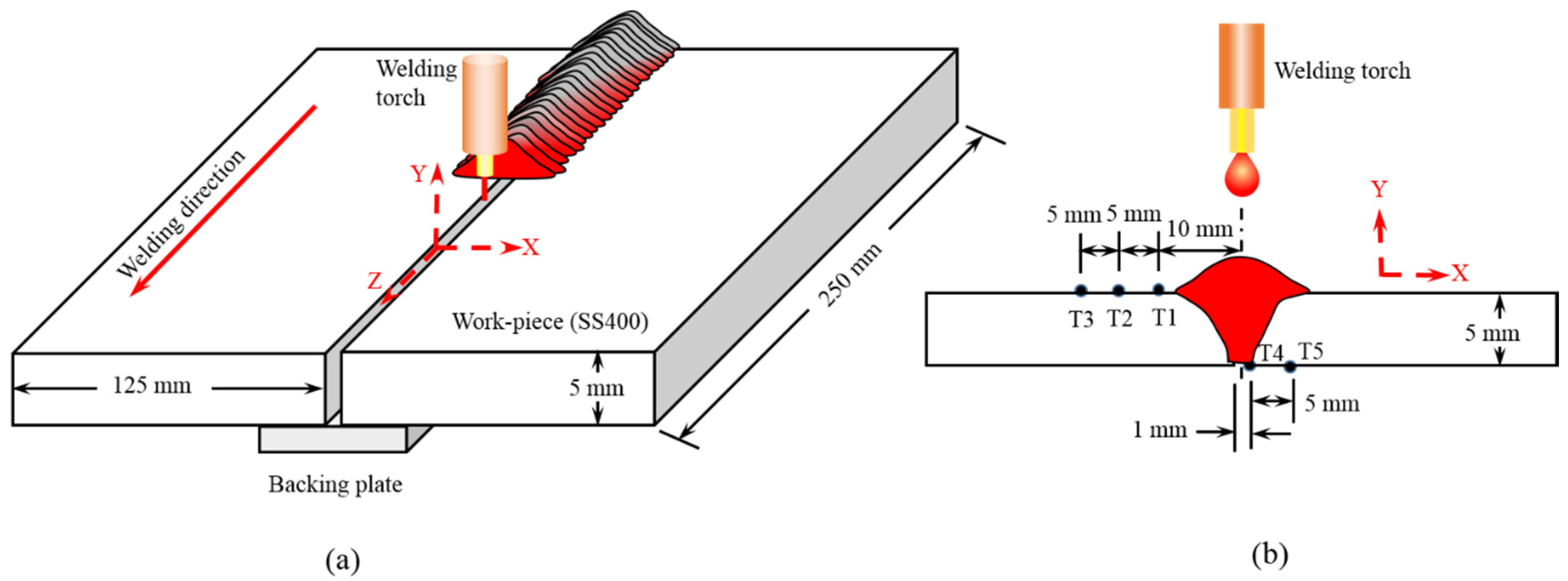

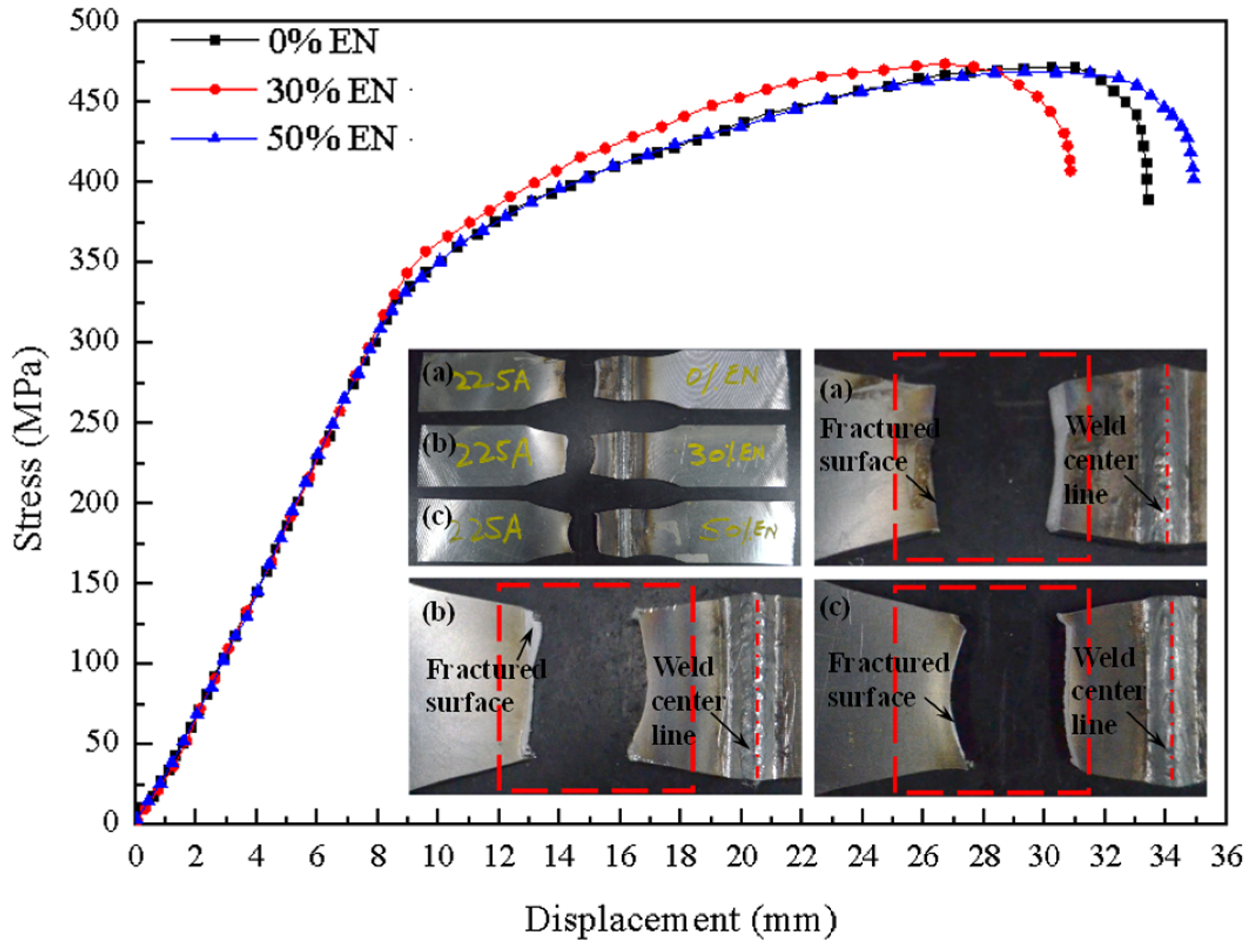

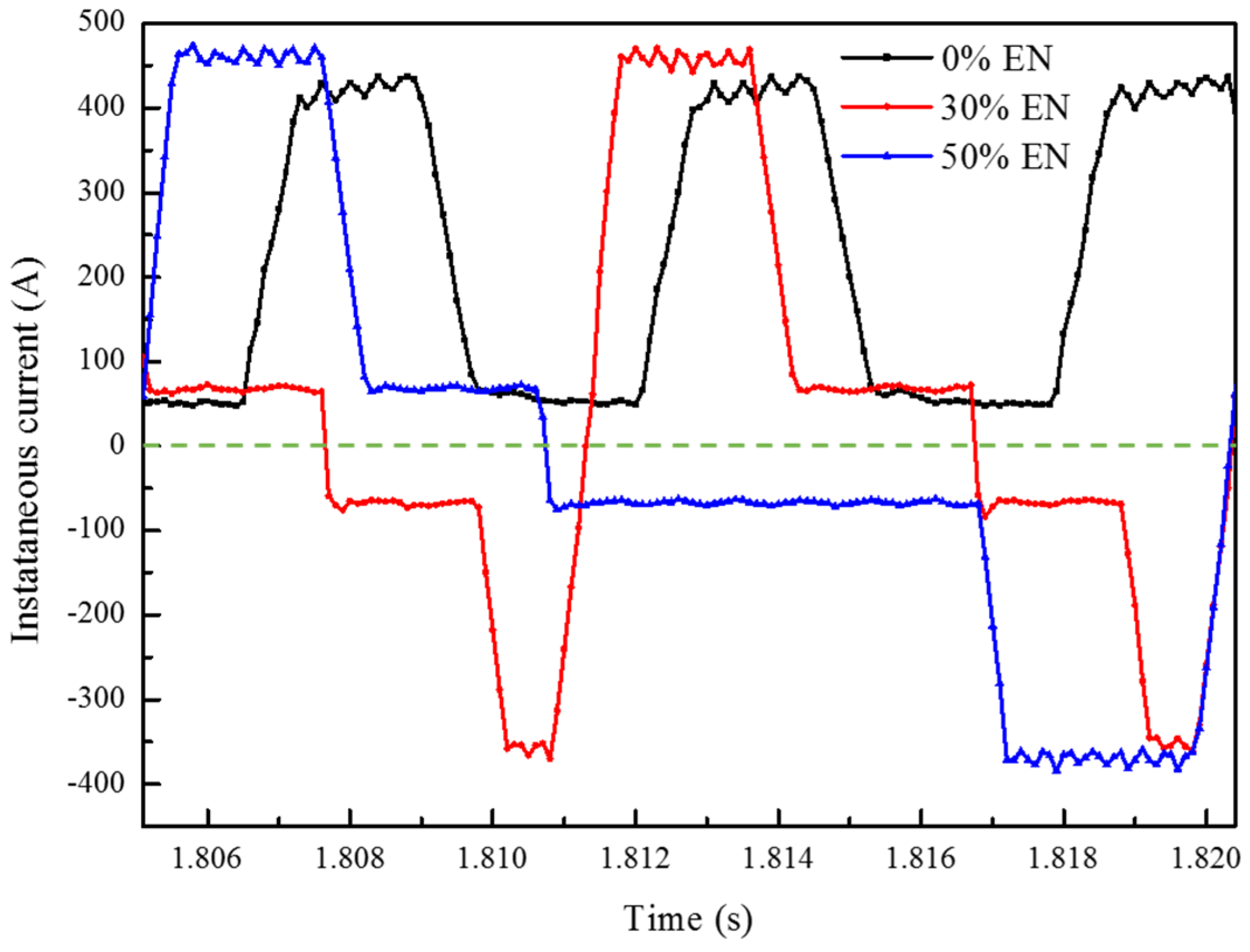

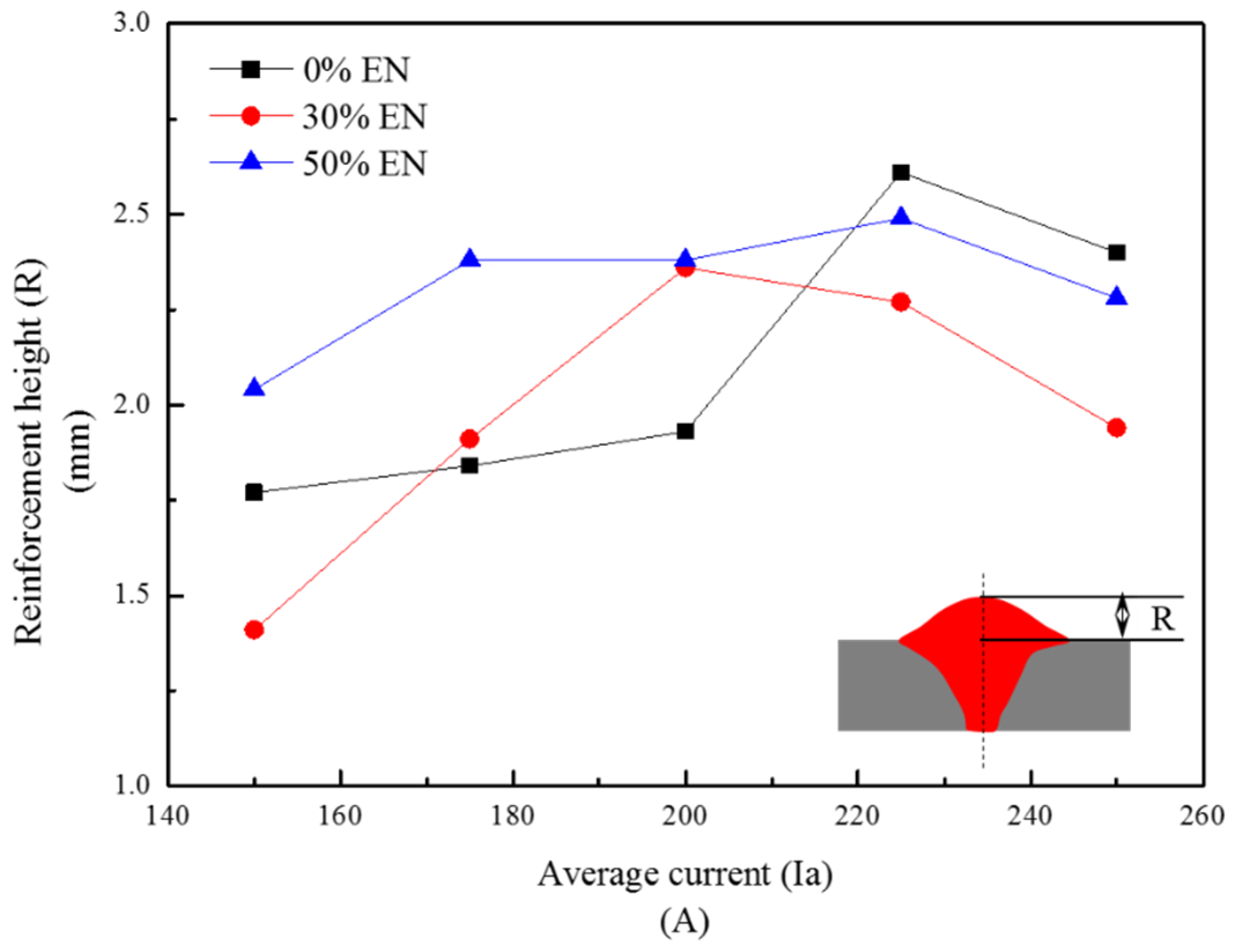

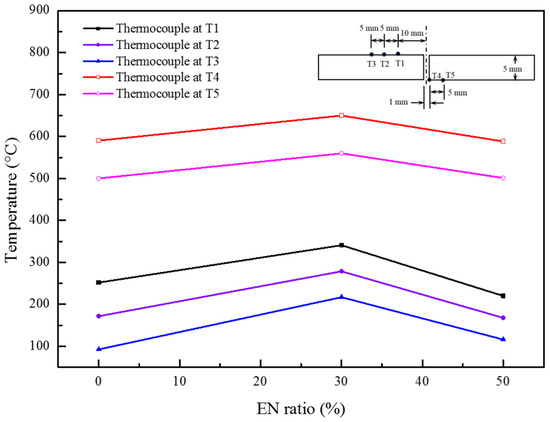

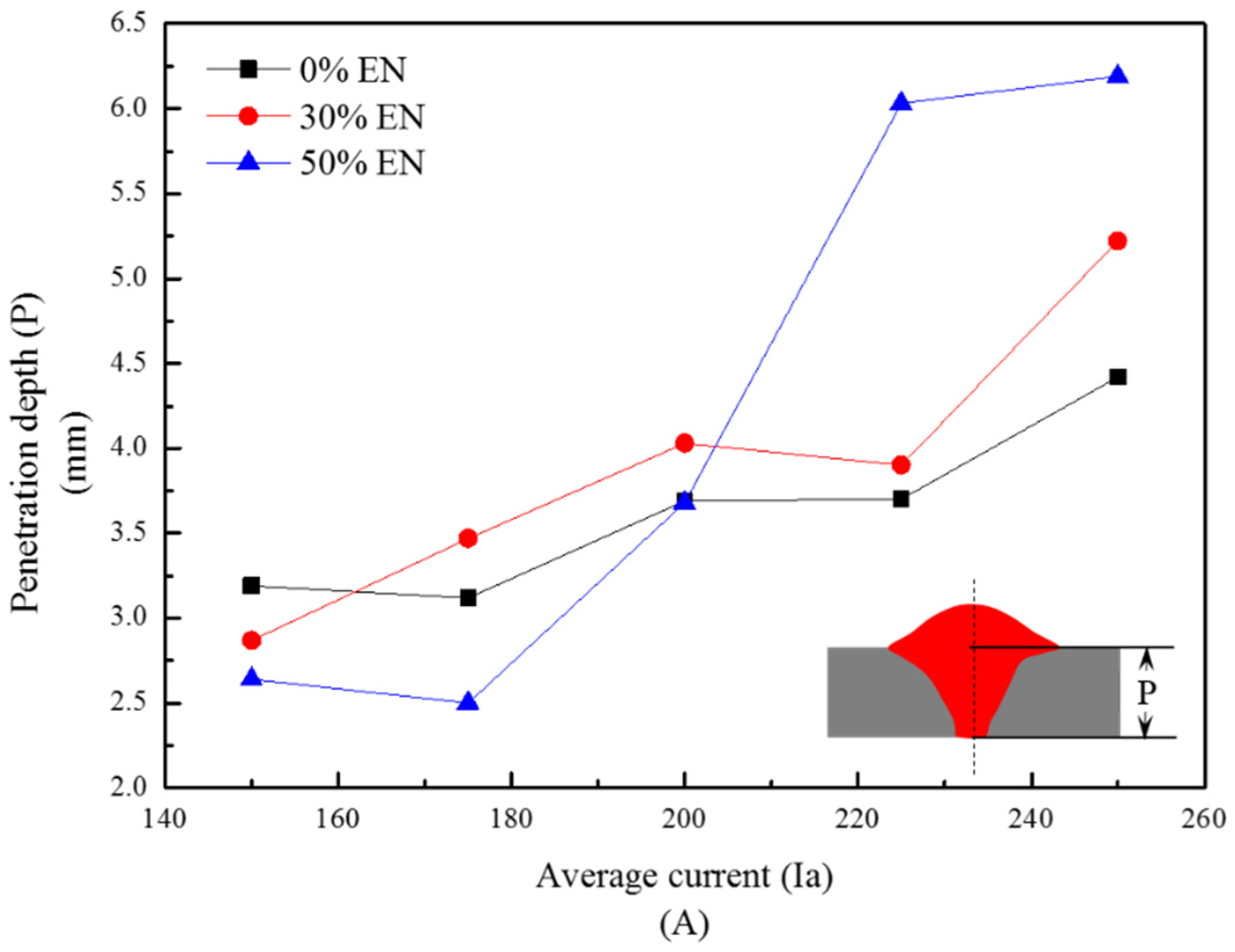

In the present work, the effect of welding current and electrode negative (EN) ratio on microstructure and mechanical properties of square groove butt joint produced by alternating current gas metal arc welding (AC-GMAW) process has been investigated. The experiments were conducted using different combination of welding current ranging from 150 A to 250 A with three distinct EN ratios i.e., 0%, 30% and 50% on 5 mm thick steel plates at a constant joint gap of 1 mm and welding speed of 10 mm/s. The effect of current and EN ratio on welding soundness was evaluated through optical microscopy, tensile tests and micro-hardness mapping. The results revealed that, at higher values of currents, an increase in EN ratio resulted an increase in penetration depth. It was found that at a current of 250 A and a 50% EN ratio, the deep penetration was obtained. Tensile test results showed that the tensile strength properties improved with increasing current. Furthermore, the micro-hardness distribution was not strikingly affected by changing the EN ratio. View Full-Text
Keywords: AC-GMAW; EN ratio; thick plate; mechanical properties AC-GMAW; EN ratio; thick plate; mechanical properties

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ikram, A.; Chung, H. The Effect of EN Ratio and Current on Microstructural and Mechanical Properties of Weld Joined by AC-GMAW on Square Groove Butt Joints. Appl. Sci. 2017, 7, 261.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
