# An Unsupervised Method of Change Detection in Multi-Temporal PolSAR Data Using a Test Statistic and an Improved K&I Algorithm

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. The Model of PolSAR Data

#### 2.2. The Proposed Method

#### Test Statistic for the Equality of Two Covariance Matrices

#### 2.3. Improved K&I

#### 2.4. The Proposed Method

#### 2.5. Evaluation Criterion

## 3. Results and Discussion

#### 3.1. Study Area and Background

#### 3.3.1. Change Detection Based on the Images from 2011, 2015, and 2016

#### 3.3.2. Change Detection Based on the 2015 and 2016 Images

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Singh, A. Review article digital change detection techniques using remotely-sensed data. Int. J. Remote Sens.
**1989**, 10, 989–1003. [Google Scholar] [CrossRef] - Bruzzone, L.; Bovolo, F. A novel framework for the design of change-detection systems for very-high-resolution Remote Sensing Images. Proc. IEEE
**2013**, 101, 609–630. [Google Scholar] [CrossRef] - Anaya, J.A.; Colditz, R.R.; Valencia, G.M. Land Cover Mapping of a Tropical Region by Integrating Multi-Year Data into an Annual Time Series. Remote Sens.
**2015**, 7, 16274–16292. [Google Scholar] [CrossRef][Green Version] - Zhao, J.Q.; Yang, J.; Li, P.X.; Liu, M.Y.; Shi, Y.M. An Unsupervised Change Detection Based on Test Statistic and KI from Multi-temporal and Full Polarimetric SAR Images. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2016**, XLI-B7, 611–615. [Google Scholar] [CrossRef] - Conradsen, K.; Nielsen, A.A.; Sehou, J.; Skriver, H. A test statistic in the complex Wishart distribution and its application to change detection in polarimetric SAR data. IEEE Trans. Geosci. Remote Sens.
**2003**, 41, 4–19. [Google Scholar] [CrossRef] - Zhao, L.; Yang, J.; Li, P.; Zhang, L. Seasonal inundation monitoring and vegetation pattern mapping of the Erguna floodplain by means of a RADARSAT-2 fully polarimetric time series. Remote Sens. Environ.
**2014**, 152, 426–440. [Google Scholar] [CrossRef] - Celik, T. Unsupervised change detection in satellite images using principal component analysis and k-means clustering. IEEE Geosci. Remote Sens. Lett.
**2009**, 6, 772–776. [Google Scholar] [CrossRef] - Lu, Z.; Kwoun, O.-I. Radarsat-1 and ERS InSAR analysis over southeastern coastal Louisiana: Implications for mapping water-level changes beneath swamp forests. IEEE Trans. Geosci. Remote Sens.
**2008**, 46, 2167–2184. [Google Scholar] [CrossRef] - Akbari, V.; Anfinsen, S.N.; Doulgeris, A.P.; Eltoft, T.; Moser, G.; Serpico, S.B. Polarimetric SAR Change Detection With the Complex Hotelling—Lawley Trace Statistic. IEEE Trans. Geosci. Remote Sens.
**2016**, 54, 3953–3966. [Google Scholar] [CrossRef] - Caves, R.; Quegan, S. Segmentation based change detection in ERS-1 SAR images. In Proceedings of the 1994 International Geosci. and Remote Sensing Symposium, IGARSS’94 Surface and Atmospheric Remote Sensing: Technologies, Data Analysis and Interpretation, New York, NY, USA, 9 December 1994; pp. 2149–2151. [Google Scholar]
- Hachicha, S.; Chaabane, F. On the SAR change detection review and optimal decision. Int. J. Remote Sens.
**2014**, 35, 1693–1714. [Google Scholar] [CrossRef] - Bovolo, F.; Bruzzone, L. The time variable in data fusion: A change detection perspective. IEEE Geosci. Remote Sens. Mag.
**2015**, 3, 8–26. [Google Scholar] [CrossRef] - Rignot, E.J.; van Zyl, J.J. Change detection techniques for ERS-1 SAR data. IEEE Trans. Geosci. Remote Sens.
**1993**, 31, 896–906. [Google Scholar] [CrossRef] - Bazi, Y.; Bruzzone, L.; Melgani, F. An unsupervised approach based on the generalized Gaussian model to automatic change detection in multitemporal SAR images. IEEE Trans. Geosci. Remote Sens.
**2005**, 43, 874–887. [Google Scholar] [CrossRef] - Moser, G.; Serpico, S.B. Generalized minimum-error thresholding for unsupervised change detection from SAR amplitude imagery. IEEE Trans. Geosci. Remote Sens.
**2006**, 44, 2972–2982. [Google Scholar] [CrossRef] - Sumaiya, M.; Kumari, R.S.S. Logarithmic Mean-Based Thresholding for SAR Image Change Detection. IEEE Geosci. Remote Sens. Lett.
**2016**, 13, 1726–1728. [Google Scholar] [CrossRef] - Liu, M.; Zhang, H.; Wang, C.; Wu, F. Change detection of multilook polarimetric SAR images using heterogeneous clutter models. IEEE Trans. Geosci. Remote Sens.
**2014**, 52, 7483–7494. [Google Scholar] - Zhao, J.; Yang, J.; Lu, Z.; Li, P.; Liu, W.; Yang, L. A Novel Method of Change Detection in Bi-Temporal PolSAR Data Using a Joint—Classification Classifier Based on a Similarity Measure. Remote Sens.
**2017**, 9, 846. [Google Scholar] [CrossRef] - Liu, W.; Yang, J.; Zhao, J.; Yang, L. A Novel Method of Unsupervised Change Detection Using Multi-Temporal PolSAR Images. Remote Sens.
**2017**, 9, 1135. [Google Scholar] [CrossRef] - Brown, L.G. A survey of image registration techniques. ACM Comput. Surv. (CSUR)
**1992**, 24, 325–376. [Google Scholar] [CrossRef] - Inglada, J.; Giros, A. On the possibility of automatic multisensor image registration. IEEE Trans. Geosci. Remote Sens.
**2004**, 42, 2104–2120. [Google Scholar] [CrossRef] - Lee, J.-S.; Pottier, E. Polarimetric Radar Imaging: From Basics to Applications; CRC Press: Boca Raton, FL, USA, 2009. [Google Scholar]
- Alberga, V. Similarity measures of remotely sensed multi-sensor images for change detection applications. Remote Sens.
**2009**, 1, 122–143. [Google Scholar] [CrossRef] - Alonso-González, A.; López-Martínez, C.; Salembier, P. PolSAR time series processing with binary partition trees. IEEE Trans. Geosci. Remote Sens.
**2014**, 52, 3553–3567. [Google Scholar] [CrossRef] - Lang, F.; Yang, J.; Li, D.; Zhao, L.; Shi, L. Polarimetric SAR image segmentation using statistical region merging. IEEE Geosci. Remote Sens. Lett.
**2014**, 11, 509–513. [Google Scholar] [CrossRef] - Yang, W.; Yang, X.; Yan, T.; Song, H.; Xia, G.-S. Region-Based Change Detection for Polarimetric SAR Images Using Wishart Mixture Models. IEEE Trans. Geosci. Remote Sens.
**2016**, 54, 6746–6756. [Google Scholar] [CrossRef] - Lu, D.; Mausel, P.; Brondizio, E.; Moran, E. Change detection techniques. Int. J. Remote Sens.
**2004**, 25, 2365–2401. [Google Scholar] [CrossRef] - Qiu, B.; Prinet, V.; Perrier, E.; Monga, O. Multi-block PCA method for image change detection. In Proceedings of the 2003 12th International Conference on Image Analysis and Processing, Mantova, Italy, 17–19 September 2003; pp. 385–390. [Google Scholar]
- Yousif, O.; Ban, Y. Improving urban change detection from multitemporal SAR images using PCA-NLM. IEEE Trans. Geosci. Remote Sens.
**2013**, 51, 2032–2041. [Google Scholar] [CrossRef] - Carincotte, C.; Derrode, S.; Bourennane, S. Unsupervised change detection on SAR images using fuzzy hidden Markov chains. IEEE Trans. Geosci. Remote Sens.
**2006**, 44, 432–441. [Google Scholar] [CrossRef] - Bouyahia, Z.; Benyoussef, L.; Derrode, S. Change detection in synthetic aperture radar images with a sliding hidden Markov chain model. J. Appl. Remote Sens.
**2008**, 2, 023526. [Google Scholar][Green Version] - Inglada, J.; Mercier, G. A new statistical similarity measure for change detection in multitemporal SAR images and its extension to multiscale change analysis. IEEE Trans. Geosci. Remote Sens.
**2007**, 45, 1432–1445. [Google Scholar] [CrossRef] - Gao, G.; Liu, L.; Zhao, L.; Shi, G.; Kuang, G. An adaptive and fast CFAR algorithm based on automatic censoring for target detection in high-resolution SAR images. IEEE Trans. Geosci. Remote Sens.
**2009**, 47, 1685–1697. [Google Scholar] [CrossRef] - Jung, C.H.; Song, W.Y.; Rho, S.H.; Kim, J.; Park, J.T.; Kwag, Y.K. Double-step fast CFAR scheme for multiple target detection in high resolution SAR images. In Proceedings of the 2010 IEEE Radar Conference, Washington, DC, USA, 10–14 May 2010; pp. 1172–1175. [Google Scholar]
- Otsu, N. A threshold selection method from gray-level histograms. Automatica
**1975**, 11, 23–27. [Google Scholar] [CrossRef] - Kapur, J.N.; Sahoo, P.K.; Wong, A.K. A new method for gray-level picture thresholding using the entropy of the histogram. Comput. Vis. Graph. Image Process.
**1985**, 29, 273–285. [Google Scholar] [CrossRef] - Kittler, J.; Illingworth, J. Minimum error thresholding. Pattern Recognit.
**1986**, 19, 41–47. [Google Scholar] [CrossRef] - Sharifi, K.; Leon-Garcia, A. Estimation of shape parameter for generalized Gaussian distributions in subband decompositions of video. IEEE Trans. Circuits Syst. Video Technol.
**1995**, 5, 52–56. [Google Scholar] [CrossRef] - Lee, J.S.; Jurkevich, L.; Dewaele, P.; Wambacq, P.; Oosterlinck, A. Speckle filtering of synthetic aperture radar images: A review. Remote Sens. Rev.
**1994**, 8, 313–340. [Google Scholar] [CrossRef] - Pham, M.T.; Mercier, G.; Michel, J. Change detection between SAR images using a pointwise approach and graph theory. IEEE Trans. Geosci. Remote Sens.
**2016**, 54, 2020–2032. [Google Scholar] [CrossRef] - Stehman, S.V. Selecting and interpreting measures of thematic classification accuracy. Remote Sens. Environ.
**1997**, 62, 77–89. [Google Scholar] [CrossRef]

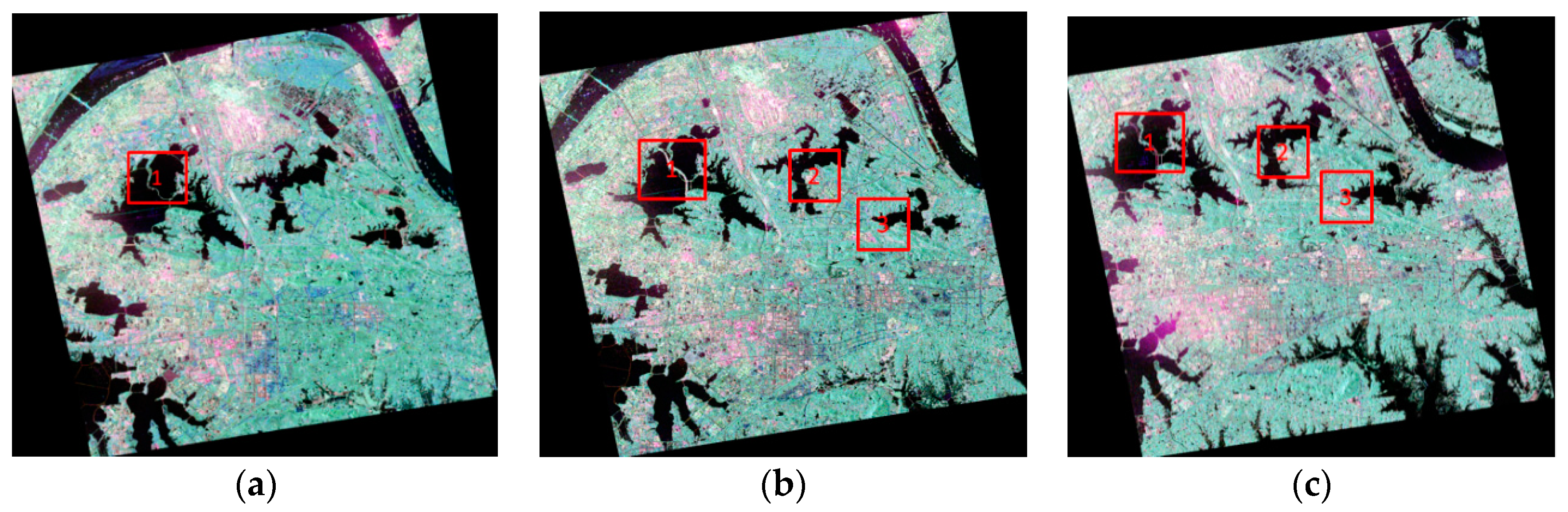

**Figure 3.**RADARSAT-2 PolSAR images acquired on (

**a**) 7 December 2011, (

**b**) 25 June 2015, and (

**c**) 6 July 2016.

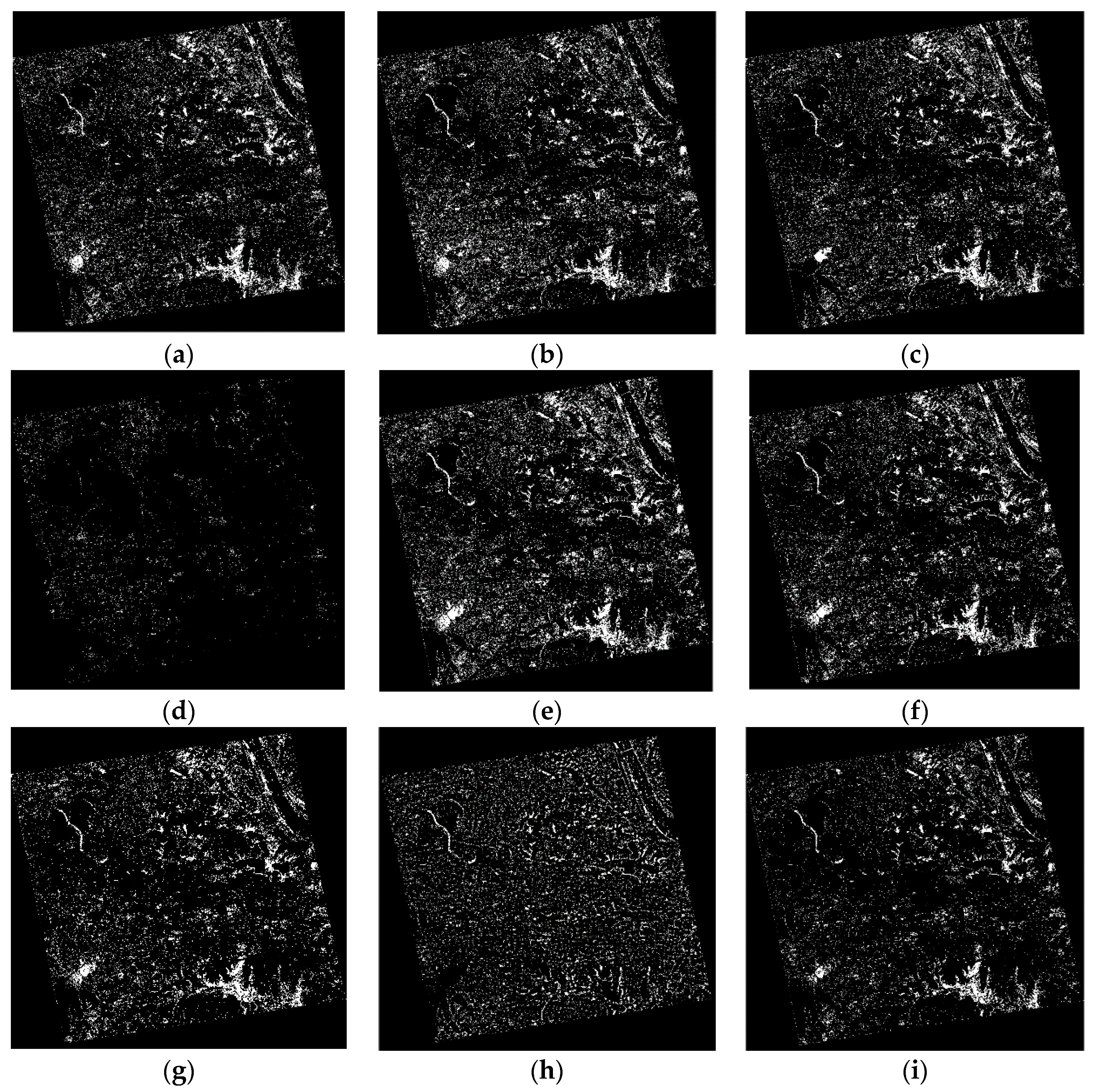

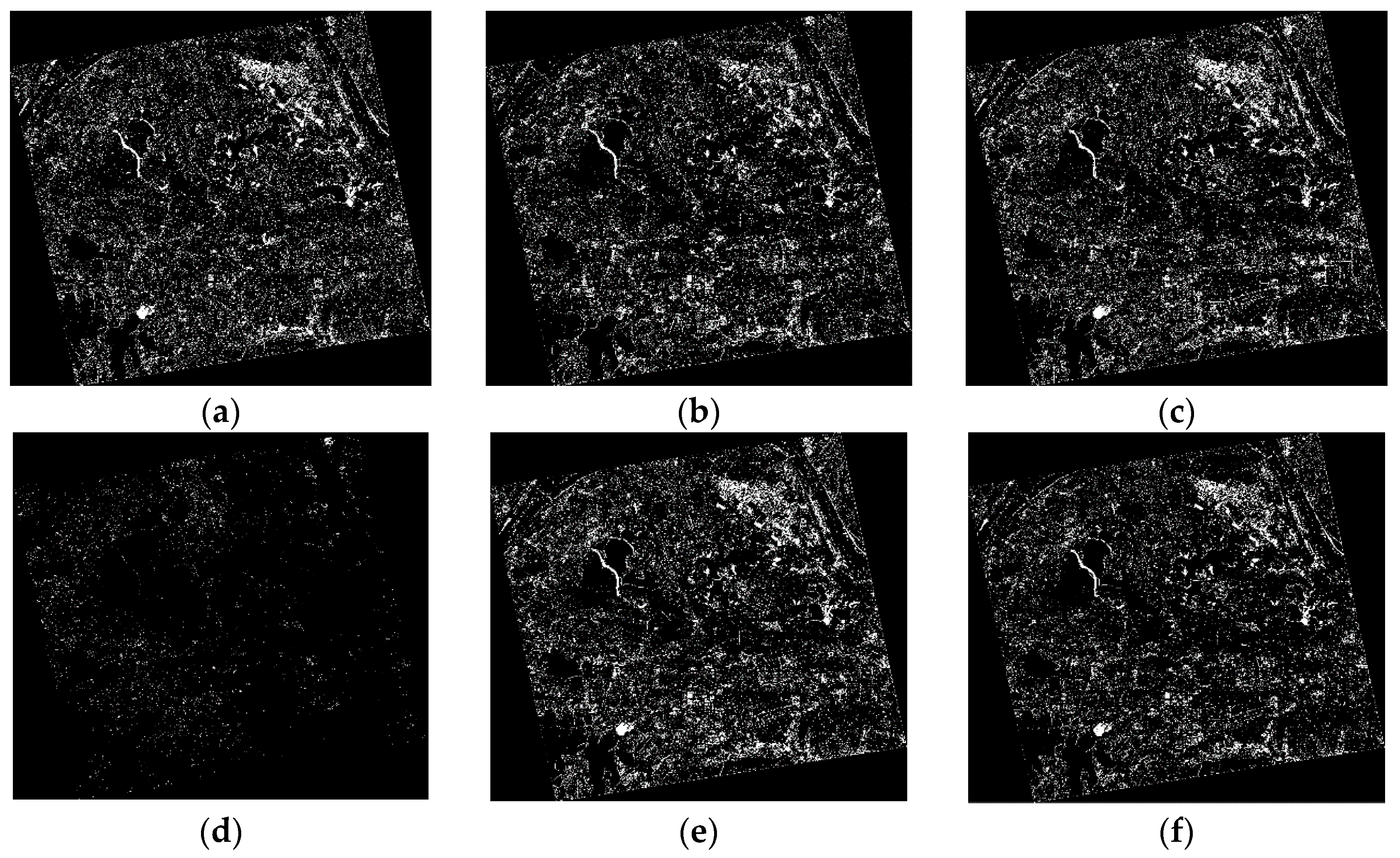

**Figure 4.**Change detection maps of full frame between 2011 and 2015 based on the following: (

**a**) log-ratio (HH) and improved K&I; (

**b**) log-ratio (HV) and improved K&I; (

**c**) log-ratio (VV) and improved K&I; (

**d**) CVA and improved K&I; (

**e**) test statistic with 5% significance level; (

**f**) test statistic with 1% significance level; (

**g**) test statistic and K&I; (

**h**) test statistic and CFAR; (

**i**) test statistic and improved K&I (the proposed method).

**Figure 5.**Change detection maps of full frame between 2015 and 2016 based on the following: (

**a**) log-ratio (HH) and improved K&I; (

**b**) log-ratio (HV) and improved K&I; (

**c**) log-ratio (VV) and improved K&I; (

**d**) CVA and improved K&I; (

**e**) test statistic with 5% significance level; (

**f**) test statistic with 1% significance level; (

**g**) test statistic and K&I; (

**h**) test Statistic and CFAR; (

**i**) test statistic and improved K&I (the proposed method).

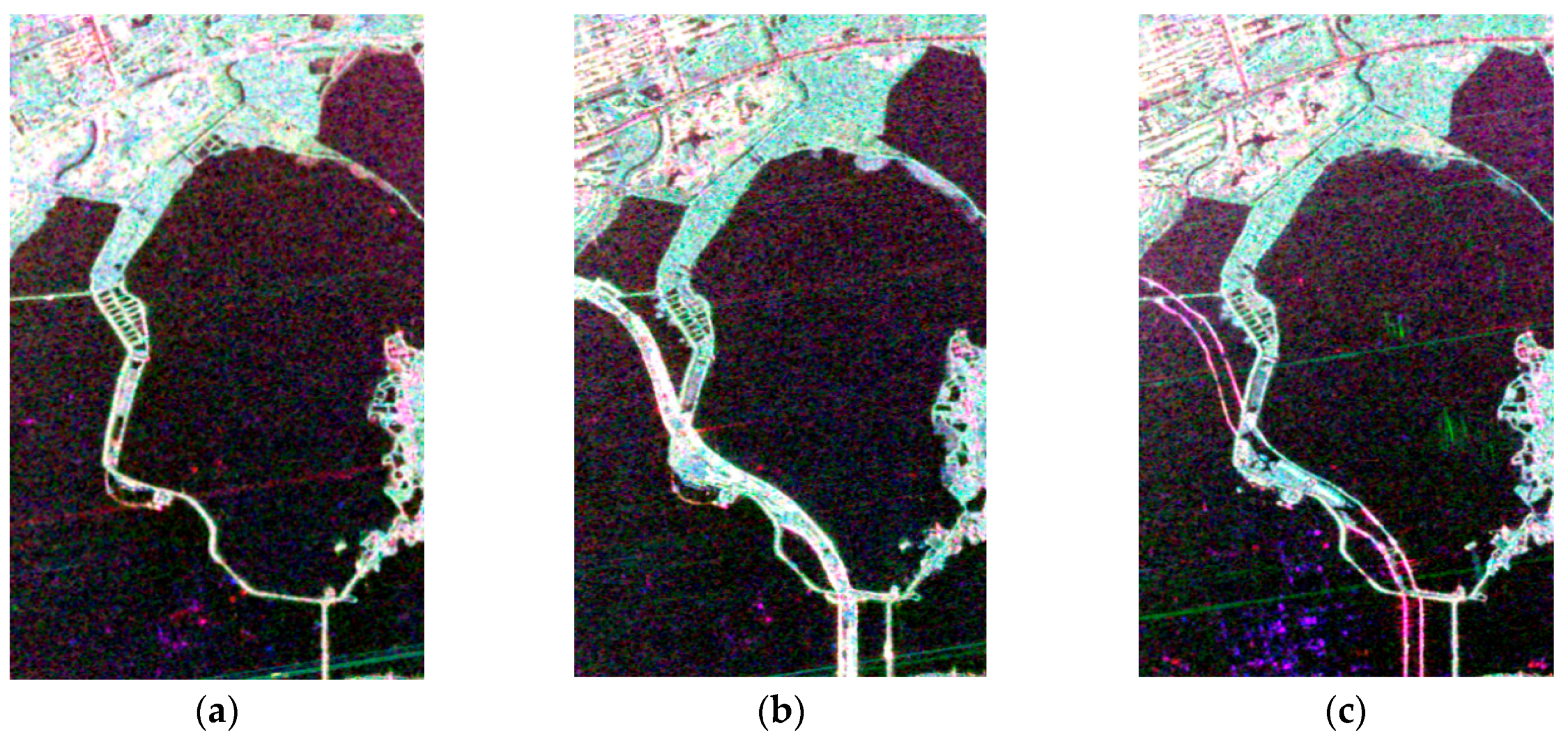

**Figure 6.**RADARSAT-2 PolSAR images of Region 1 indicated in Figure 3, acquired on (

**a**) 7 December 2011, (

**b**) 25 June 2015, and (

**c**) 6 July 2016.

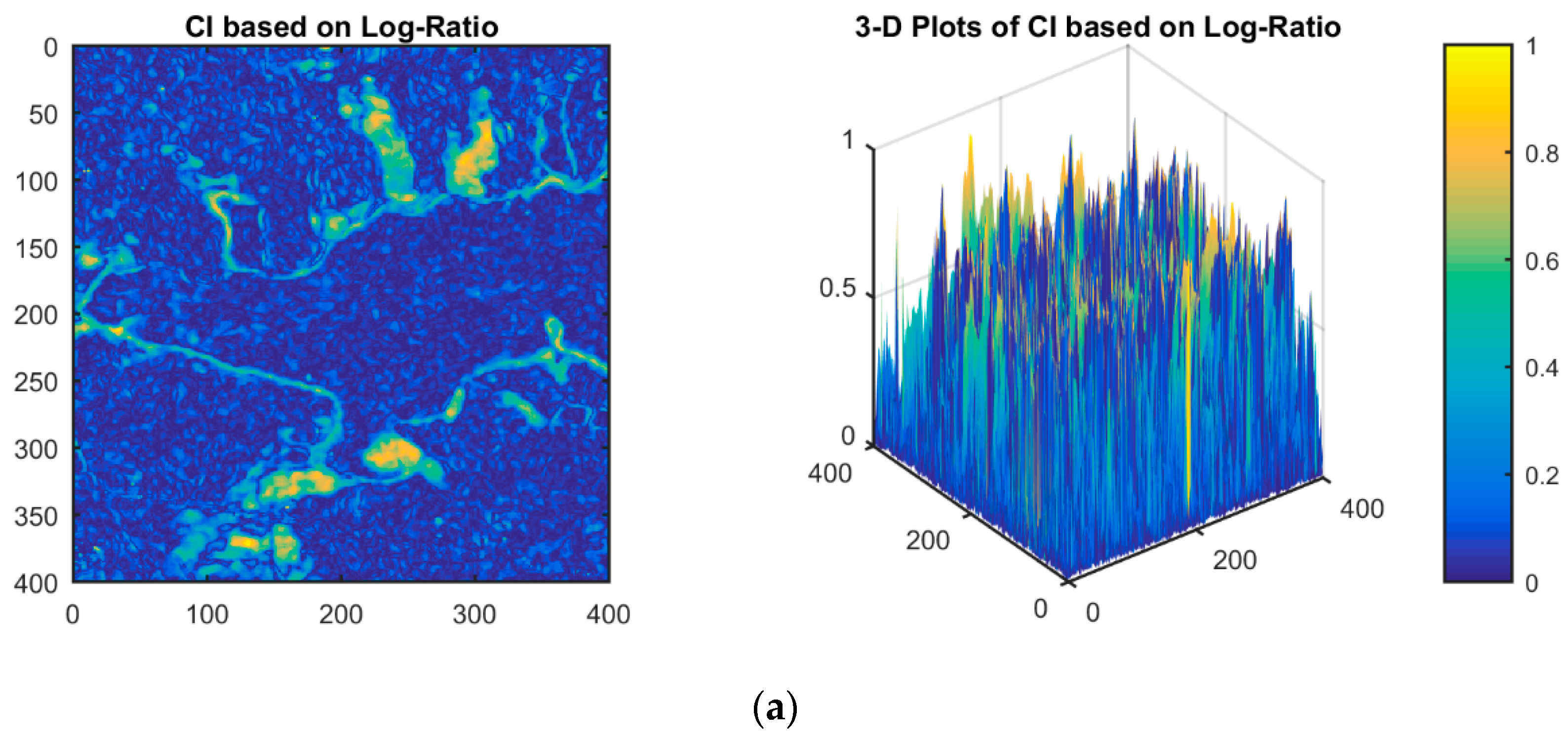

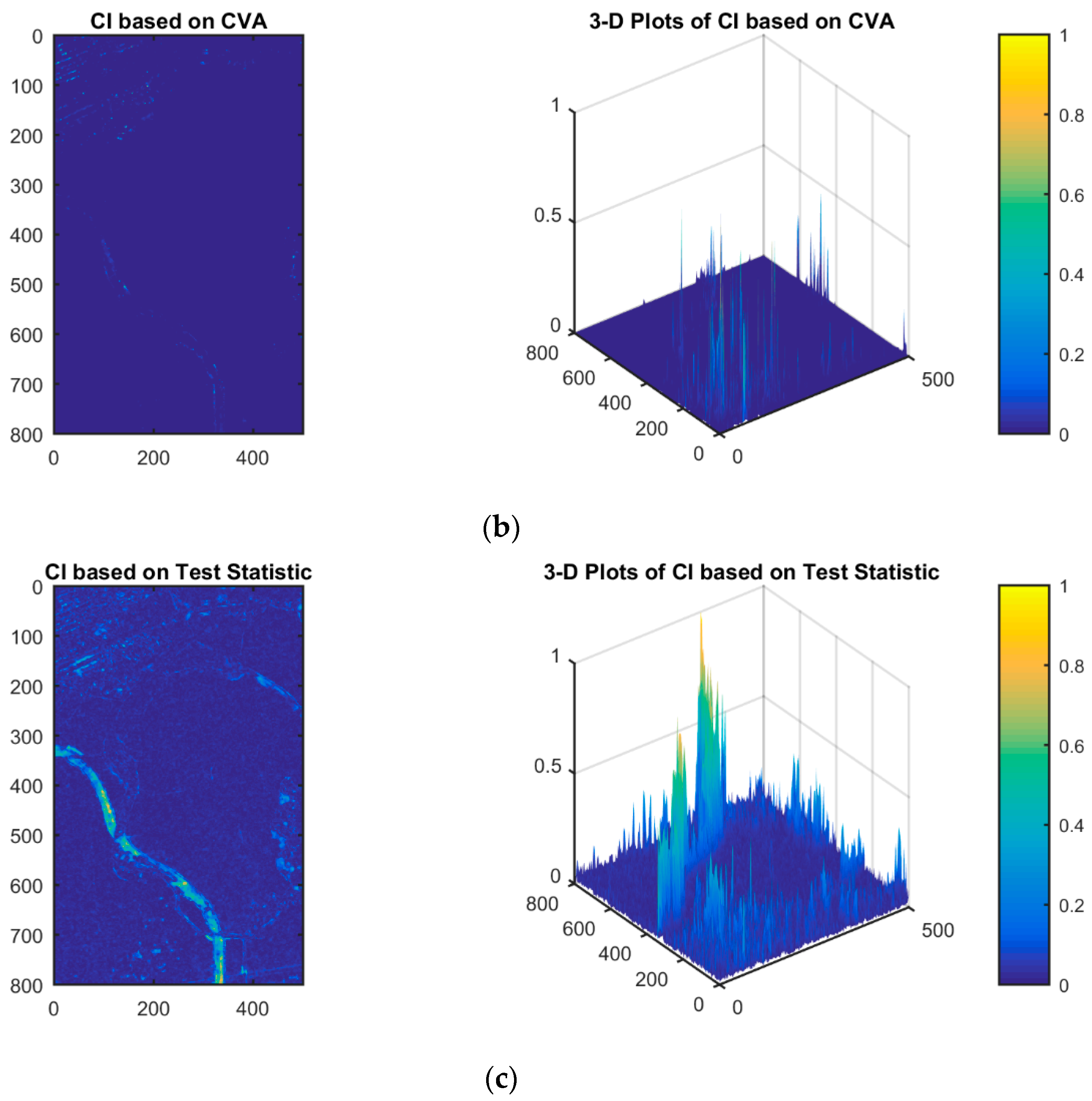

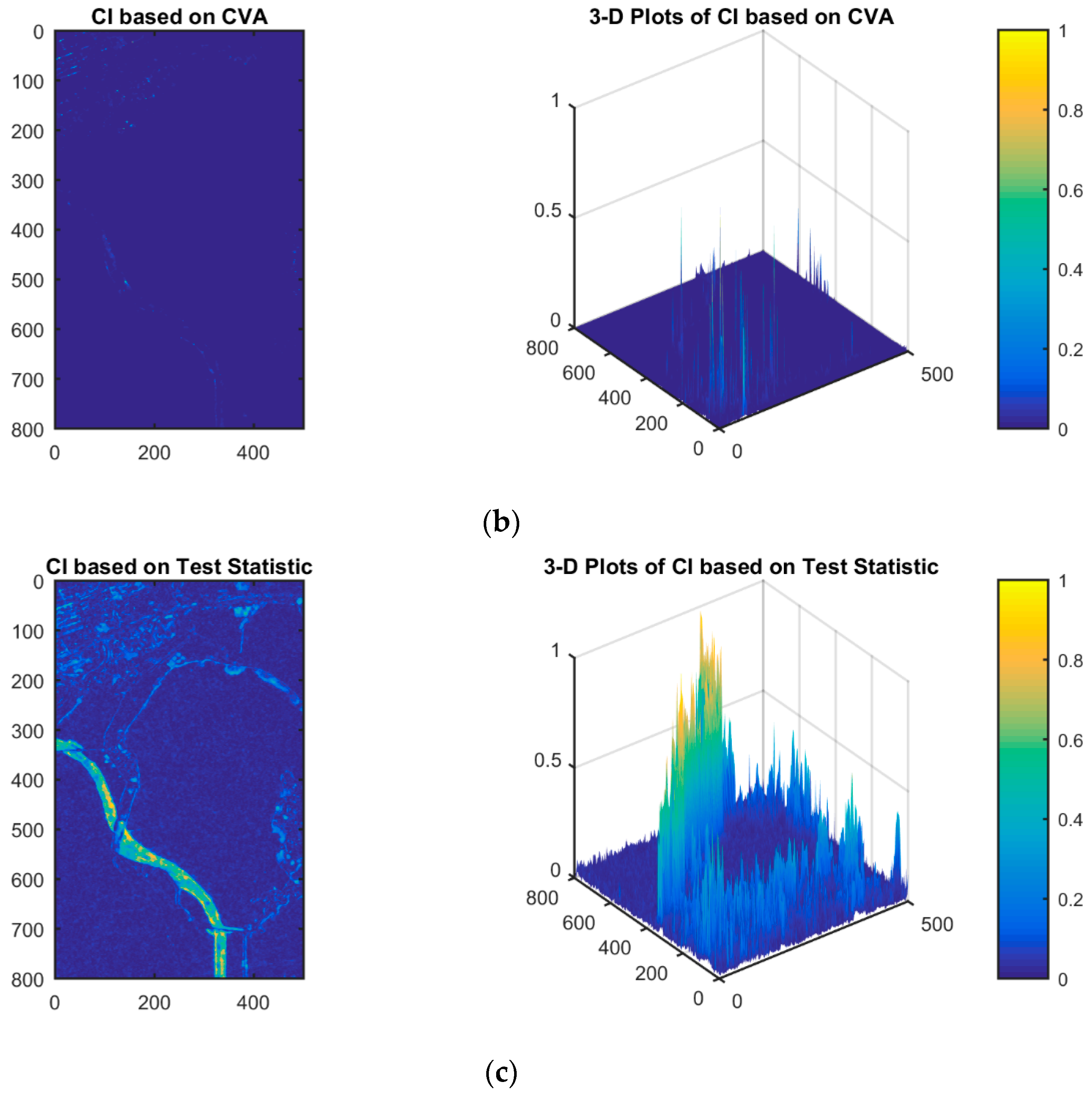

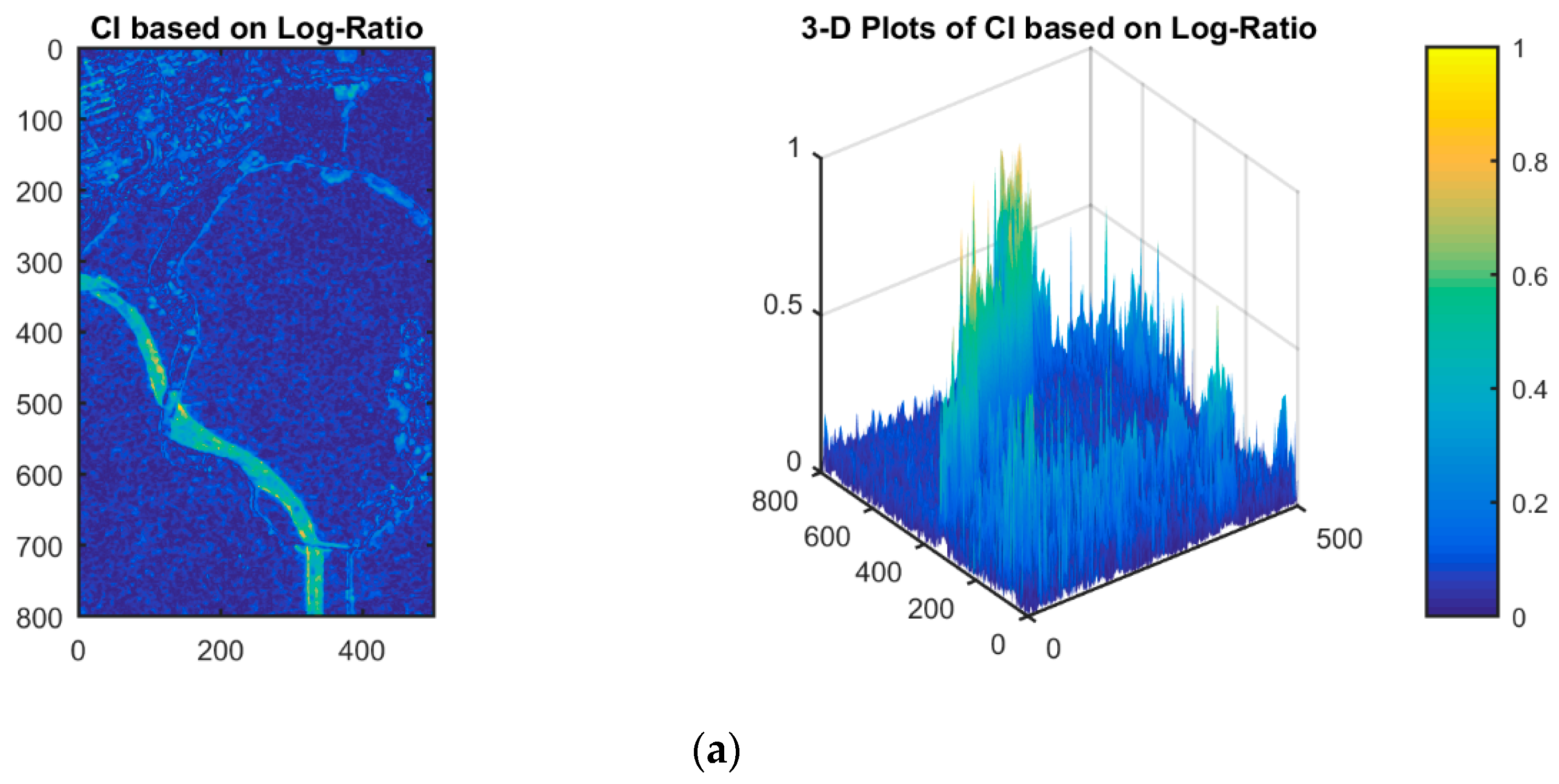

**Figure 7.**CI maps and 3-D plots of Region 1 based on (

**a**) log-ratio (HH), (

**b**) CVA, and (

**c**) test statistics for the different dates of 7 December 2011 and 25 June 2015.

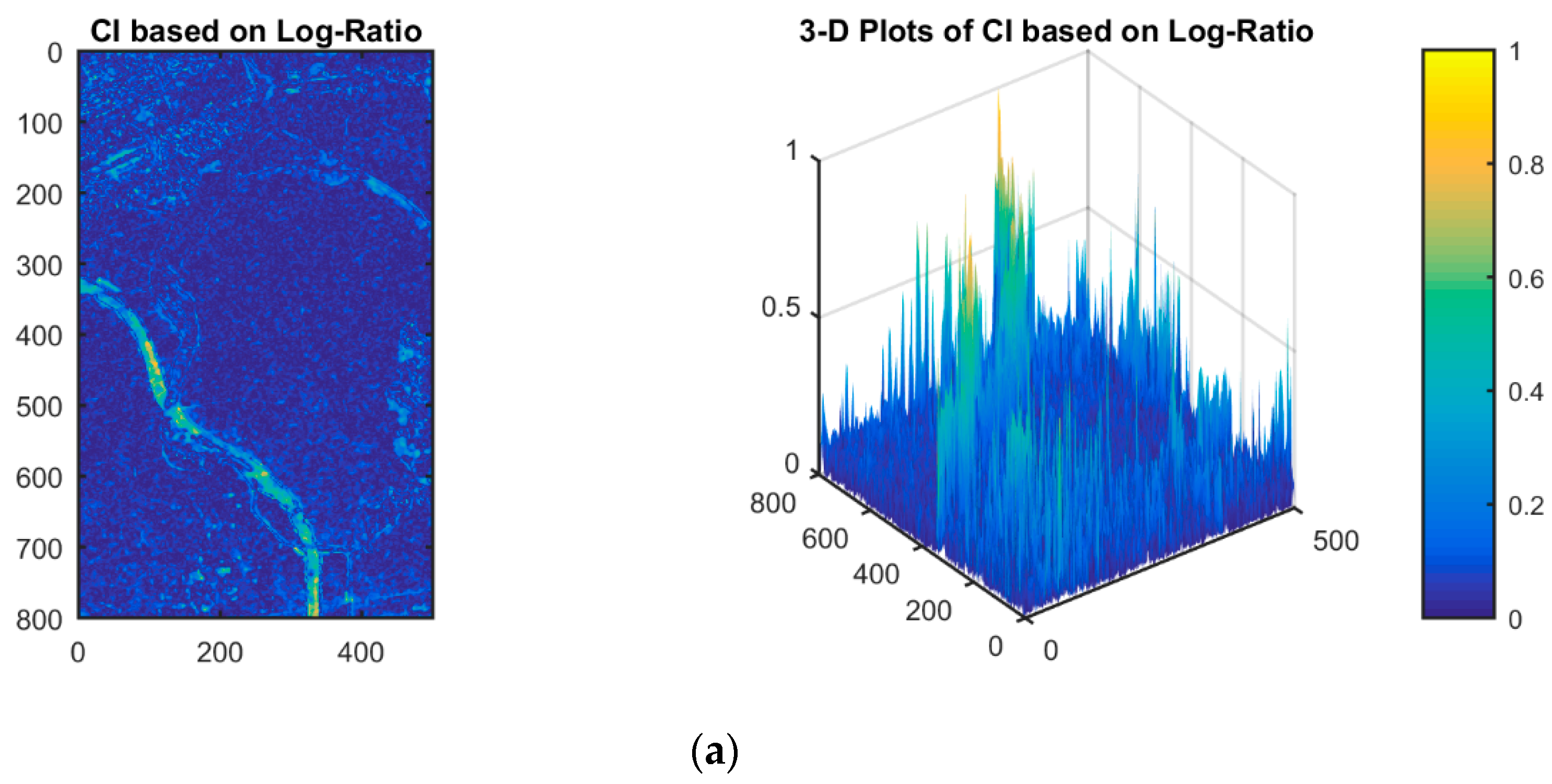

**Figure 8.**CI maps and 3-D plots of Region 1 based on (

**a**) log-ratio (HH), (

**b**) CVA, and (

**c**) test statistics for the different dates of 25 June 2015 and 6 July 2016.

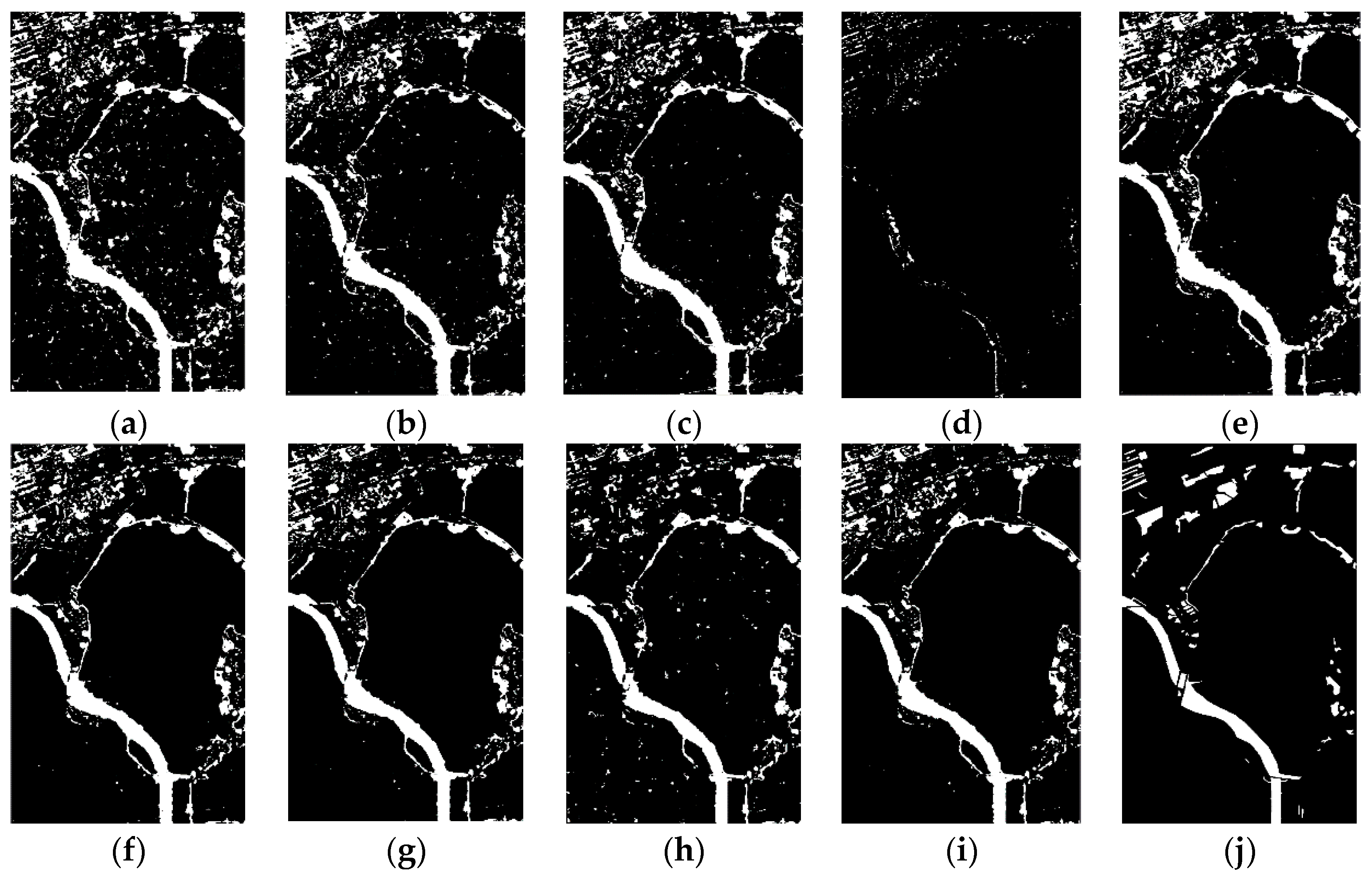

**Figure 9.**Change detection results in Region 1 between 7 December 2011 and 25 June 2015 based on the following: (

**a**) log-ratio (HH) and improved K&I; (

**b**) log-ratio (HV) and improved K&I; (

**c**) log-ratio (VV) and improved K&I; (

**d**) CVA and improved K&I; (

**e**) test statistic with 5% significance level; (

**f**) test statistic with 1% significance level; (

**g**) test statistic and K&I; (

**h**) test statistic and CFAR; (

**i**) test statistic and improved K&I (the proposed method); (

**j**) Ground reference (white denotes the change and black denotes the non-change).

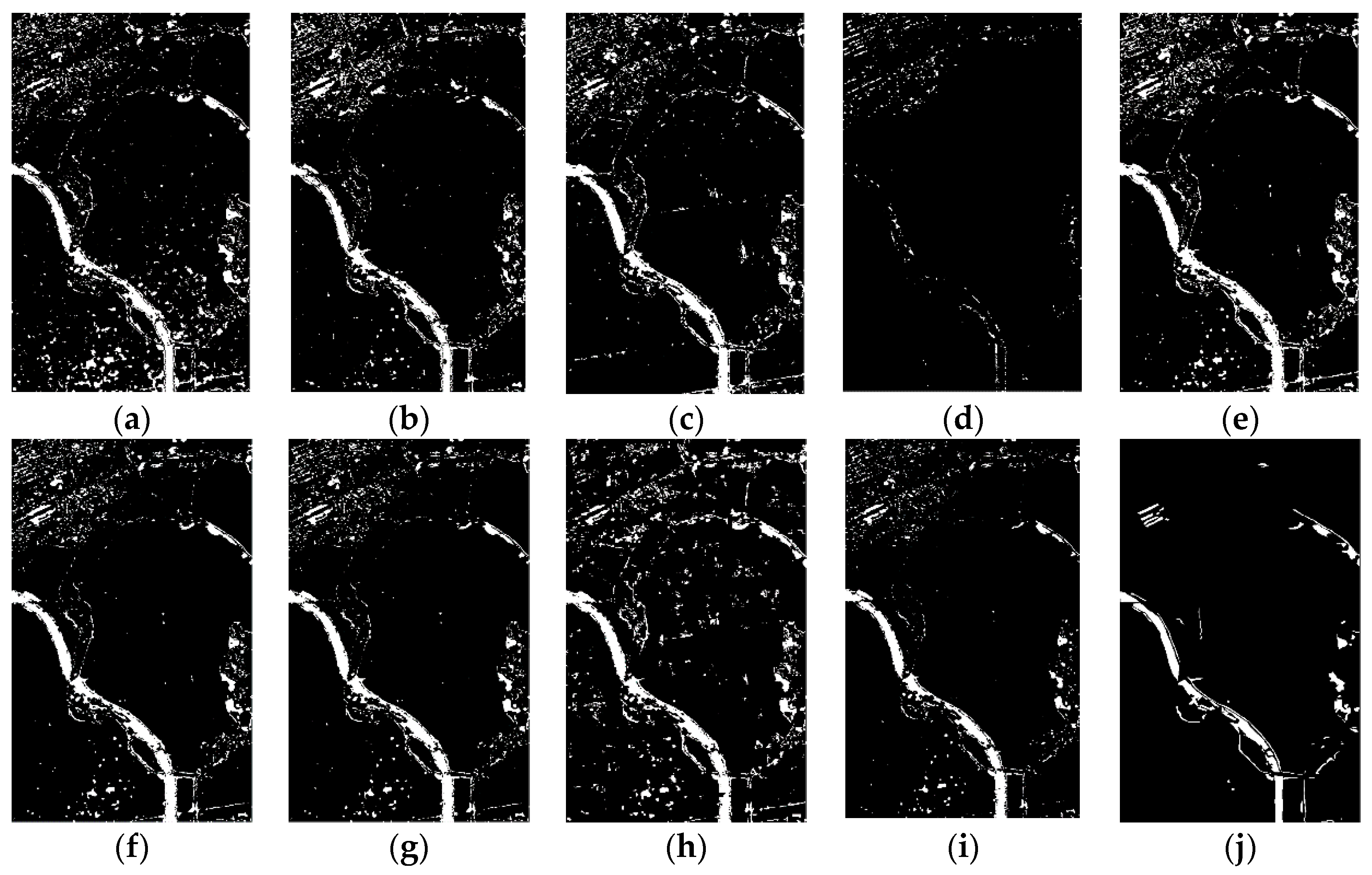

**Figure 10.**Change detection results in Region 1 between 25 June 2015 and 6 July 2016 based on the following: (

**a**) log-ratio (HH) and improved K&I; (

**b**) log-ratio (HV) and improved K&I; (

**c**) log-ratio (VV) and improved K&I; (

**d**) CVA and improved K&I; (

**e**) test statistic with 5% significance level; (

**f**) test statistic with 1% significance level; (

**g**) test statistic and K&I; (

**h**) test statistic and CFAR; (

**i**) test statistic and improved K&I (the proposed method); (

**j**) Ground reference (white denotes the change and black denotes the non-change).

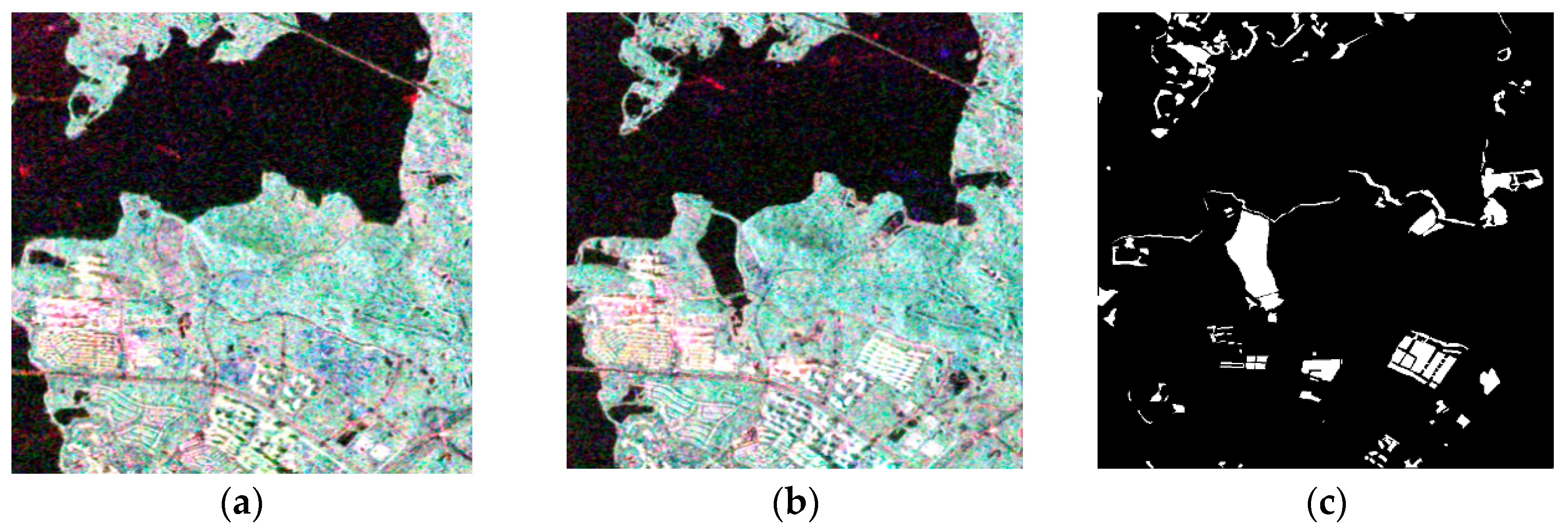

**Figure 11.**RADARSAT-2 PolSAR images of Region 2 indicated in Figure 3, acquired on (

**a**) 25 June 2015 and (

**b**) 6 July 2016; (

**c**) The ground reference map (white denotes change and black denotes non-change).

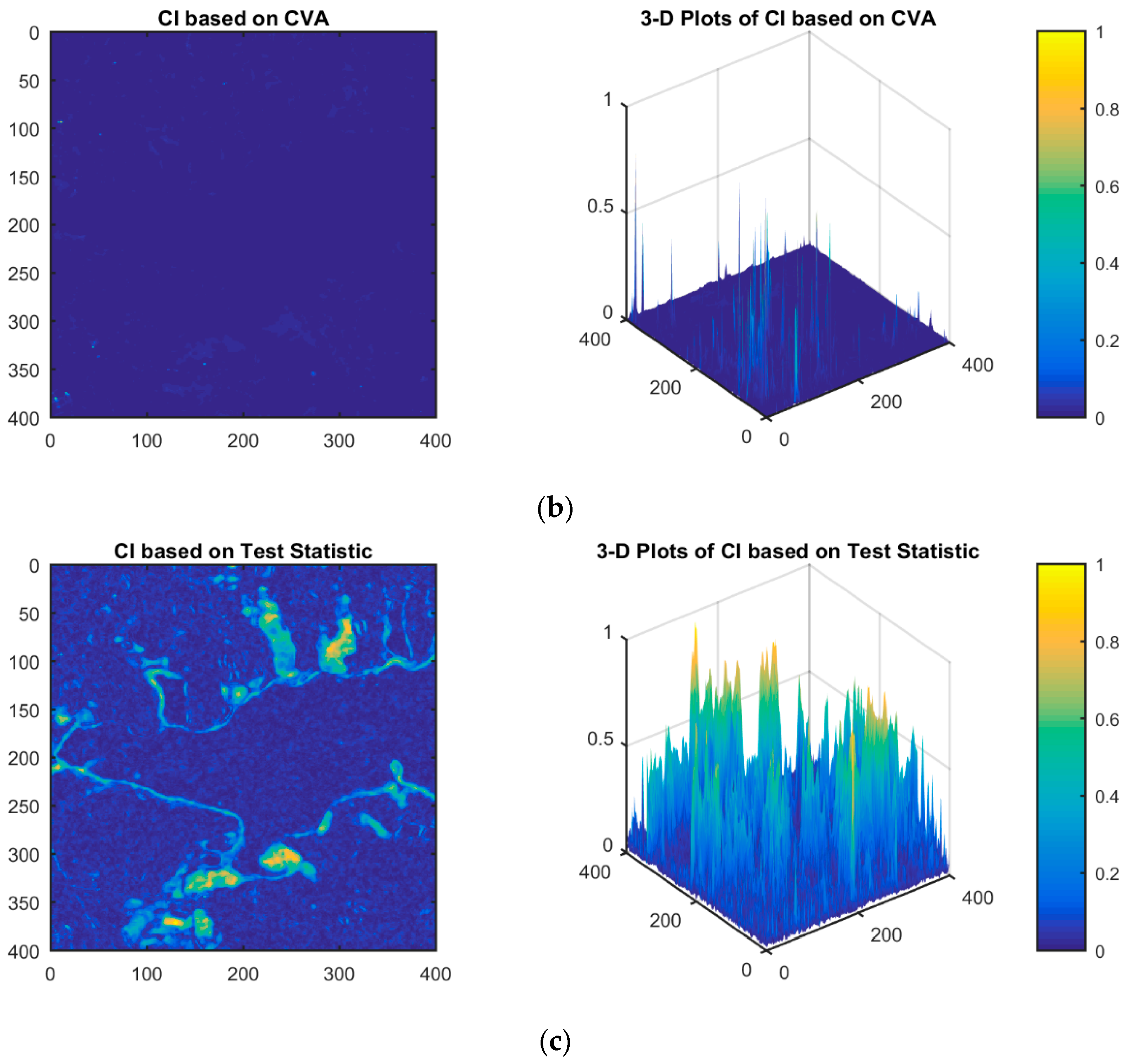

**Figure 12.**CI maps and 3-D plots of Region 2 based on (

**a**) log-ratio, (

**b**) CVA, and (

**c**) test statistics at the different dates of 25 June 2015 and 6 July 2016.

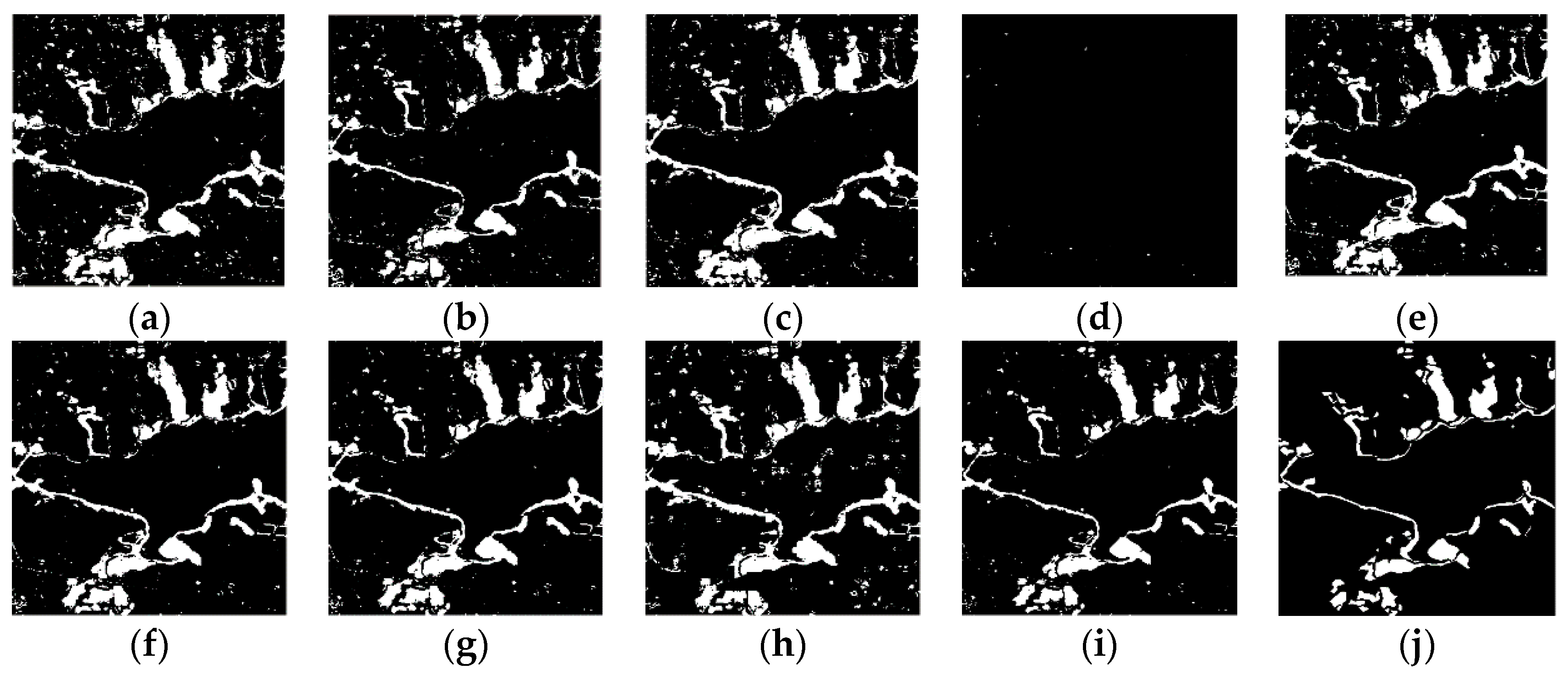

**Figure 13.**Change detection results in Region 2 between 25 June 2015 and 6 July 2016 based on the following: (

**a**) log-ratio (HH) and improved K&I; (

**b**) log-ratio (HV) and improved K&I; (

**c**) log-ratio (VV) and improved K&I; (

**d**) CVA and improved K&I; (

**e**) test statistic with 5% significance level; (

**f**) test statistic with 1% significance level; (

**g**) test statistic and K&I; (

**h**) test statistic and CFAR; (

**i**) test statistic and improved K&I (the proposed method); (

**j**) Ground reference (white denotes the change and black denotes the non-change).

**Figure 14.**RADARSAT-2 PolSAR images of Region 2 indicated in Figure 3, acquired on (

**a**) 25 June 2015 and (

**b**) 6 July 2016. (

**c**) The ground-truth map (white denotes the change and black denotes the non-change).

**Figure 15.**CI maps and 3-D plots of Region 3 based on (

**a**) log-ratio, (

**b**) CVA, and (

**c**) test statistics at the different dates of 25 June 2015 and 6 July 2016.

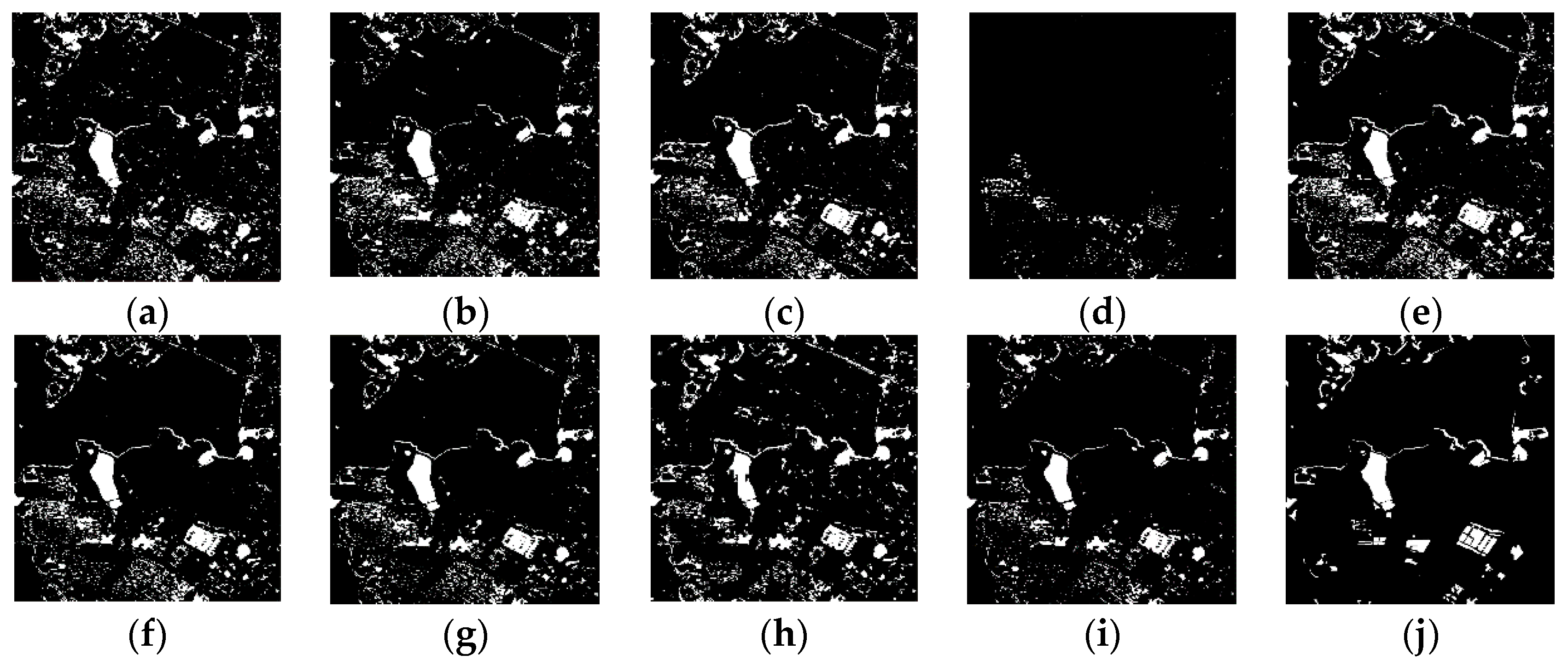

**Figure 16.**Change detection results in Region 3 between 25 June 2015 and 6 July 2016 based on the following: (

**a**) log-ratio (HH) and improved K&I; (

**b**) log-ratio (HV) and improved K&I; (

**c**) log-ratio (VV) and improved K&I; (

**d**) CVA and improved K&I; (

**e**) test statistic with 5% significance level; (

**f**) test statistic with 1% significance level; (

**g**) test statistic and K&I; (

**h**) test statistic and CFAR; (

**i**) test statistic and improved K&I (the proposed method); (

**j**) Ground reference (white denotes the change and black denotes the non-change).

Method | FA (%) | TE (%) | OA (%) | KAPPA |
---|---|---|---|---|

HH and improved K&I | 10.49 | 11.17 | 88.83 | 0.4574 |

HV and improved K&I | 7.78 | 8.67 | 91.33 | 0.5292 |

VV and improved K&I | 8.45 | 9.31 | 90.69 | 0.5078 |

CVA and improved K&I | 0.67 | 7.41 | 92.59 | 0.0994 |

Test statistic with 5% significance level | 8.77 | 9.32 | 90.68 | 0.5204 |

Test statistic with 1% significance level | 6.9 | 7.82 | 92.18 | 0.5597 |

Test statistic and K&I | 6.16 | 7.24 | 92.76 | 0.5757 |

Test statistic and CFAR | 5.99 | 7.32 | 92.68 | 0.5626 |

Test statistic and improved K&I (the proposed method) | 5.79 | 6.98 | 93.02 | 0.5827 |

Method | FA (%) | TE (%) | OA (%) | KAPPA |
---|---|---|---|---|

HH and improved K&I | 6.55 | 7.03 | 92.96 | 0.4413 |

HV and improved K&I | 5.06 | 5.80 | 94.20 | 0.4774 |

VV and improved K&I | 5.19 | 5.67 | 94.33 | 0.5041 |

CVA and improved K&I | 1.03 | 4.73 | 95.27 | 0.0415 |

Test statistic with 5% significance level | 6.17 | 6.42 | 93.58 | 0.4857 |

Test statistic with 1% significance level | 4.59 | 5.04 | 94.96 | 0.5398 |

Test statistic and K&I | 3.96 | 4.51 | 95.49 | 0.5629 |

Test statistic and CFAR | 6.53 | 6.84 | 93.16 | 0.4630 |

Test statistic and improved K&I (the proposed method) | 2.69 | 3.51 | 96.49 | 0.6098 |

Method | FA (%) | TE (%) | OA (%) | KAPPA |
---|---|---|---|---|

HH and improved K&I | 6.69 | 7.97 | 92.03 | 0.5135 |

HV and improved K&I | 6.51 | 7.99 | 92.01 | 0.5026 |

VV and improved K&I | 6.37 | 7.50 | 92.50 | 0.5388 |

CVA and improved K&I | 1.08 | 7.36 | 92.64 | 0.0599 |

Test statistic with 5% significance level | 7.22 | 7.99 | 92.01 | 0.5358 |

Test statistic with 1% significance level | 5.37 | 6.57 | 93.43 | 0.5749 |

Test statistic and K&I | 4.86 | 6.19 | 93.81 | 0.5862 |

Test statistic and CFAR | 6.70 | 7.92 | 92.08 | 0.5179 |

Test statistic and improved K&I (the proposed method) | 3.18 | 5.09 | 94.91 | 0.6141 |

Method | FA (%) | TE (%) | OA (%) | KAPPA |
---|---|---|---|---|

HH and improved K&I | 7.15 | 7.62 | 92.38 | 0.6402 |

HV and improved K&I | 4.78 | 6.23 | 93.77 | 0.6686 |

VV and improved K&I | 6.53 | 7.15 | 92.85 | 0.6541 |

CVA and improved K&I | 0.09 | 9.35 | 90.65 | 0.0017 |

Test statistic with 5% significance level | 6.80 | 7.17 | 92.83 | 0.6593 |

Test statistic with 1% significance level | 5.30 | 6.09 | 93.91 | 0.6906 |

Test statistic and K&I | 5.64 | 5.92 | 94.08 | 0.6755 |

Test statistic and CFAR | 7.67 | 8.28 | 91.72 | 0.6130 |

Test statistic and improved K&I (the proposed method) | 3.26 | 4.81 | 95.19 | 0.7282 |
