# Distributed Global Function Model Finding for Wireless Sensor Network Data

^{1}

^{2}

^{3}

^{4}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

#### 2.1. Data Mining in Wireless Sensor Networks (WSNs)

#### 2.2. Function Mining

## 3. Function Finding Algorithm by Using Gene Expression Programming for Wireless Sensor Networks Data

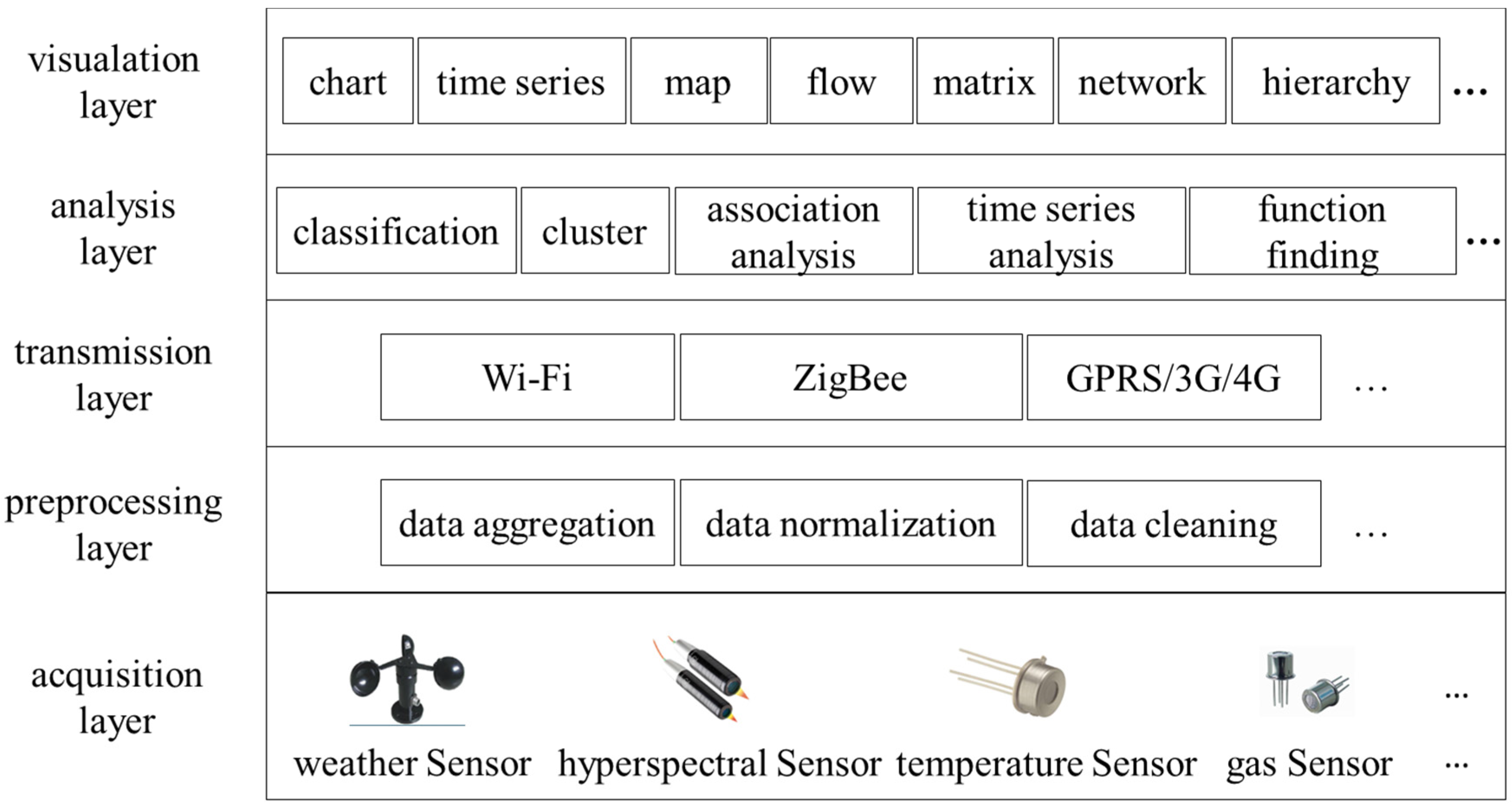

#### 3.1. Function Finding in Wireless Sensor Networks

#### 3.2. Coding of Gene Expression Programming (GEP)

**Definition 1.**Let string $G$ be defined as a triplet $G=<GHead,GTail,L>$, $F$ be basic elementary function set and $T$ be terminal set. Where $GHead$, $GTail$ and $L$ represent head, tail, length of the $G$ respectively. The elements of $GHead$ randomly generates from $F$ and $T$, the elements of $GTail$ randomly generates from $T$. Then string $G$ is called gene.

**Property 1.**Let the length of $GHead$ be $h$, the length of $GTail$ be $t$, maximum number of arguments of operator in the $GHead$ be $n$. Then, $h$ and $t$ follow the equation:

**Definition 2.**The string which is composed of one or more $G$ is called the chromosome, and denoted as $C$.

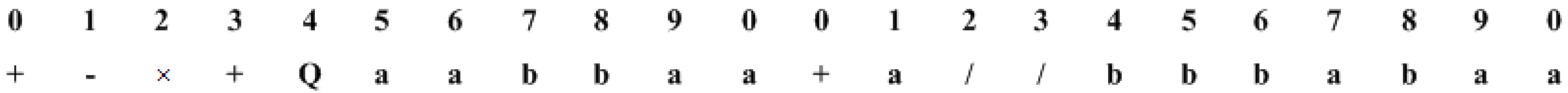

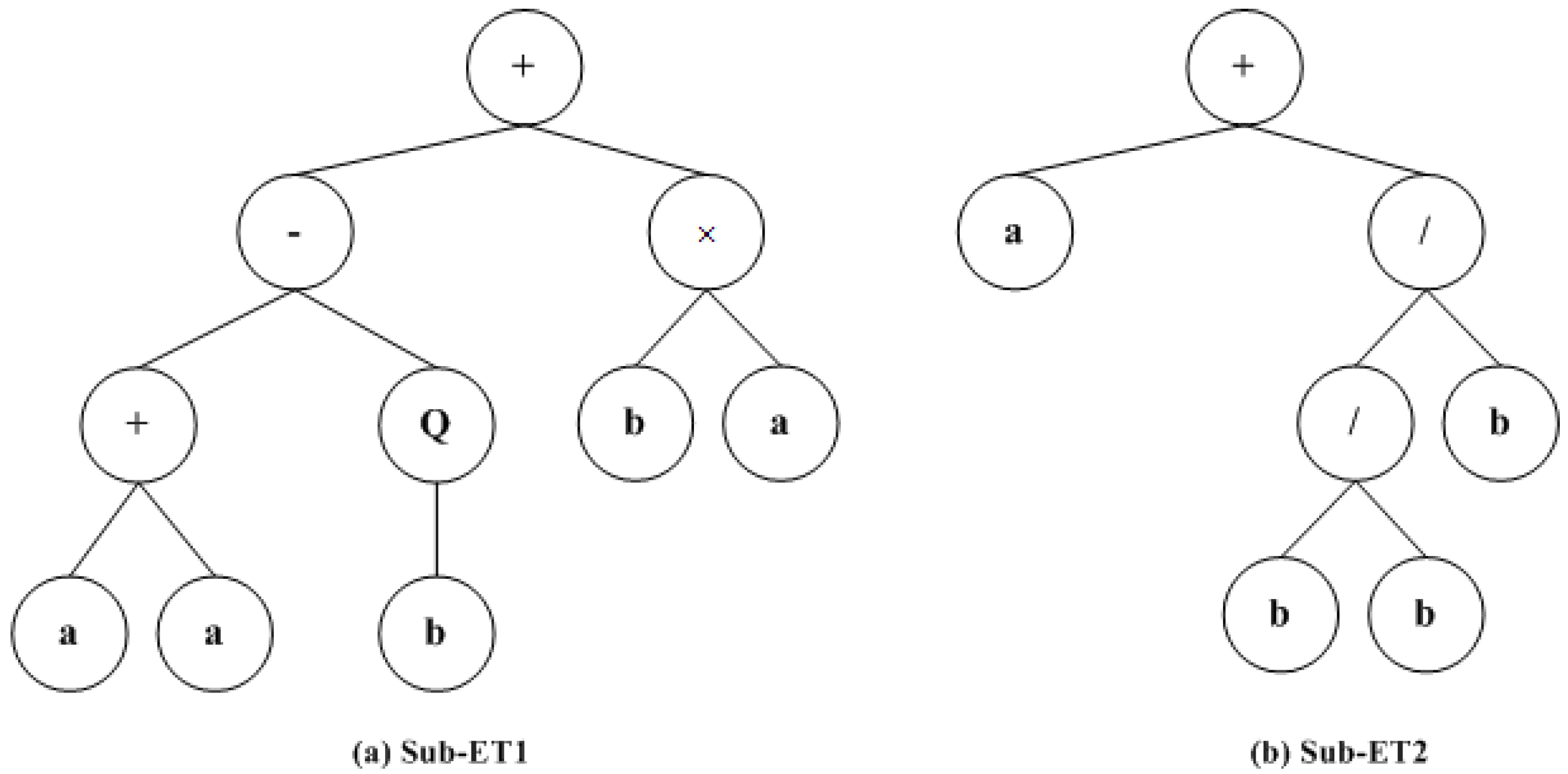

**Example 1.**Let function set be $F=\{+,-,\times ,Q\}$, terminal set be $T=\{a,b\}$, length of gene head be $h=5$, where “$Q$” represents the square root function. From function set $F$, we know that maximum number of arguments of all operators is 2. According to Equation (1), length of gene tail is 6. The randomly generated chromosome is shown in Figure 2.

_{1}and Sub-ET

_{2}is respectively performed. The result of decoding is linked by addition function and simplified by mathematica software. The final function model is $f\left(a,b\right)=3a+ab+\frac{1}{b}-\sqrt{b}$.

#### 3.3. Adaptive Population Generation Strategy Based on Collaborative Evolution of Sub-Population

Algorithm 1. APGS-CESP ($Pop$) |

Input: Pop, ${P}_{s}$, ${P}_{m}$, ${P}_{t}$, ${P}_{r}$, popSize; |

Output: new Population; |

Begin { |

1. for (int i = 1; i <= MaxGen; i++){ |

2. ${F}_{\mathrm{max}}[i]$ = MaxFitness (Pop [i]); |

3. $Sum{F}_{\mathrm{max}}$ = 0; $Sum{F}_{\mathrm{max}}+={F}_{\mathrm{max}}[i]$; |

4. if ($i\text{\hspace{0.17em}}\mathrm{mod}\text{\hspace{0.17em}}10==0$){ |

5. if ($sum{F}_{max}\text{\hspace{0.17em}}\mathrm{mod}\text{\hspace{0.17em}}10==0$) { |

6. $subPop\leftarrow RandomInitPop(subPopSize)$; |

7. $Pop\leftarrow Insert(subPop,Pop)$; |

8. $EvalueFitness(Pop)$; |

9. $Pop\leftarrow Select({P}_{s},Pop,popSize)$; |

10. $Pop\leftarrow Mutate({P}_{m},Pop)$; |

11. $Pop\leftarrow ISTransposition({P}_{t},Pop)$; |

12. $Pop\leftarrow RISTransposition({P}_{t},Pop)$; |

13. $Pop\leftarrow GeneTransposition({P}_{t},Pop)$; |

14. $Pop\leftarrow OnePointRecombination({P}_{r},Pop)$; |

15. $Pop\leftarrow TwoPointRecombination({P}_{r},Pop)$; |

16. $Pop\leftarrow GeneRecombination({P}_{r},Pop)$;}}} |

17. $newPopulation=Pop$; |

18. Return newPopulation;} |

#### 3.4. Description of Function Finding Algorithm Using Gene Expression Programming (FF-GEP)

Algorithm 2. FF-GEP |

Input: popSize, maxGen, maxFitness, ${P}_{s}$, ${P}_{m}$, ${P}_{t}$, ${P}_{r}$; |

Output: Best Function Expression; |

Begin { |

1. double $fitness=0.0$; int $i=0$; |

2. $Pop\leftarrow InitPop(popSize)$; |

3. $EvalueFitness(Pop)$; |

4. while (($fitness\le maxFitness$) or ($i\le maxGen$)) { |

5. $Pop\leftarrow Select({P}_{s},Pop,popSize)$; |

6. $Pop\leftarrow Mutate({P}_{m},Pop)$; |

7. $Pop\leftarrow ISTransposition({P}_{t},Pop)$; |

8. $Pop\leftarrow RISTransposition({P}_{t},Pop)$; |

9. $Pop\leftarrow GeneTransposition({P}_{t},Pop)$; |

10. $Pop\leftarrow OnePoint\mathrm{Re}combination({P}_{r},Pop)$; |

11. $Pop\leftarrow TwoPoint\mathrm{Re}combination({P}_{r},Pop)$; |

12. $Pop\leftarrow Gene\mathrm{Re}combination({P}_{r},Pop)$; |

13. $Pop\leftarrow APGS-SPAE(Pop)$; |

14. $EvalueFitness(Pop)$;} |

15. return BestFunctionExpression;} |

## 4. Distributed Global Function Model Finding for Wireless Sensor Networks Data

#### 4.1. Algorithm Idea

#### 4.2. Global Model Generation Algorithm Based on Unconstrained Nonlinear Least Squares

**Definition 3.**In WSNs, we propose the number of the sensor node and sink node are k and n, respectively. For each sink node, it contains a sensor data set $S=[{x}_{1},\mathrm{...},{x}_{m}\text{\hspace{0.17em}}{y}_{m+1}]$, where $S\in {R}^{m+1}$ and ${y}_{m+1}$ represents target value for each sensor data set. Then, the set of each sink node can be obtained yielding to GEP by employing the approach of function model mining, such that ${y}_{i}({x}_{m+1})={f}_{i}({x}_{1},{x}_{2},\mathrm{...},{x}_{m}),i\in [1,n]$. Hence, ${y}_{i}({x}_{m+1})={f}_{i}({x}_{1},{x}_{2},\mathrm{...},{x}_{m})$ is the local function model with m-dimension of the i-th sink node.

**Definition 4.**Suppose that there exist n sink nodes and ${f}_{i}(X),i\in [1,n]$, where $X=({x}_{1},{x}_{2},\mathrm{...},{x}_{m})$. There exists a set of constants ${a}_{i}\ne 0,i\in [1,n]$ such that $f({x}_{1},{x}_{2},\mathrm{...},{x}_{m})={\displaystyle \sum _{i=1}^{n}{a}_{i}{f}_{i}(X)}$. Thus, $f({x}_{1},{x}_{2},\mathrm{...},{x}_{m})$ is called global function model.

**Lemma 1.**

**Proof:**

Algorithm 3. GMG-UNLS |

Input: local Function Model ${f}_{i}\left(X\right),i\in \left[1,n\right]$, k sample data; |

Output: global Function Model $f(X)$; |

Begin { |

1. double ${a}_{1},{a}_{2},\mathrm{...},{a}_{n}$;//Defining n real variables. |

2. Set $f(X)={\displaystyle \sum _{i=1}^{n}{a}_{i}{f}_{i}(X)}$. //Building global function equation. |

3. Set $Q({a}_{1},{a}_{2},\mathrm{...},{a}_{n})={\displaystyle \sum _{i=1}^{k}{({y}_{i}-{\displaystyle \sum _{j=1}^{n}{a}_{j}{f}_{j}({X}_{i})})}^{2}}$;//Building function model, where ${y}_{i},i\in [1,k]$ is target value for k sample data. |

4. $k\text{\hspace{0.17em}sample data}\to Q({a}_{1},{a}_{2},\mathrm{...},{a}_{n})$; // Substituting k sample data into $Q({a}_{1},{a}_{2},\mathrm{...},{a}_{n})$. |

5. $\frac{\partial Q}{\partial {a}_{i}}=0$, $i\in [1,n]$; // $({a}_{1},{a}_{2},\mathrm{...},{a}_{n})$ is obtained by solving non homogeneous linear equations. |

6. return $f(X)$;}// Substituting $({a}_{1},{a}_{2},\mathrm{...},{a}_{n})$ into $\sum _{i=1}^{n}{a}_{i}{f}_{i}(X)$ and returning $f(X)$. |

#### 4.3. Description of DGFMF-WSND

Algorithm 4. DGFMF-WSND |

Input: GEPGSH, popSize; maxGen; maxFitness; ${P}_{s}$, ${P}_{m}$, ${P}_{t}$, ${P}_{r}$; |

Output: Global Function; |

Begin { |

Server: |

1. ReceivePara (T, GEPParas, i, GEPGSH); // Parameters are received from ith client according to GEPGSH. |

2. InitPop (Pop S); //Initializing population of FF-GEP. |

3. LocalFunction (i) = FF-GEP (popSize; maxGen; maxFitness; ${P}_{s}$, ${P}_{m}$, ${P}_{t}$, ${P}_{r}$); |

Client: |

4. T = Read (SampleData); |

5. int gridcodes = SelectGridCodes (); |

6. for (int i = 0; i < gridcodes; i++) { |

7. TransPara (T, GEPParas, i, GEPGSH); //Transmitting parameters to server. |

8. TransService (LocalFunction [i]);} |

9. GlobalFunction = GMG-UNLS (LocalFunction); |

10. return Global Function;} |

## 5. Experimental Section

#### 5.1. Experimental Environment

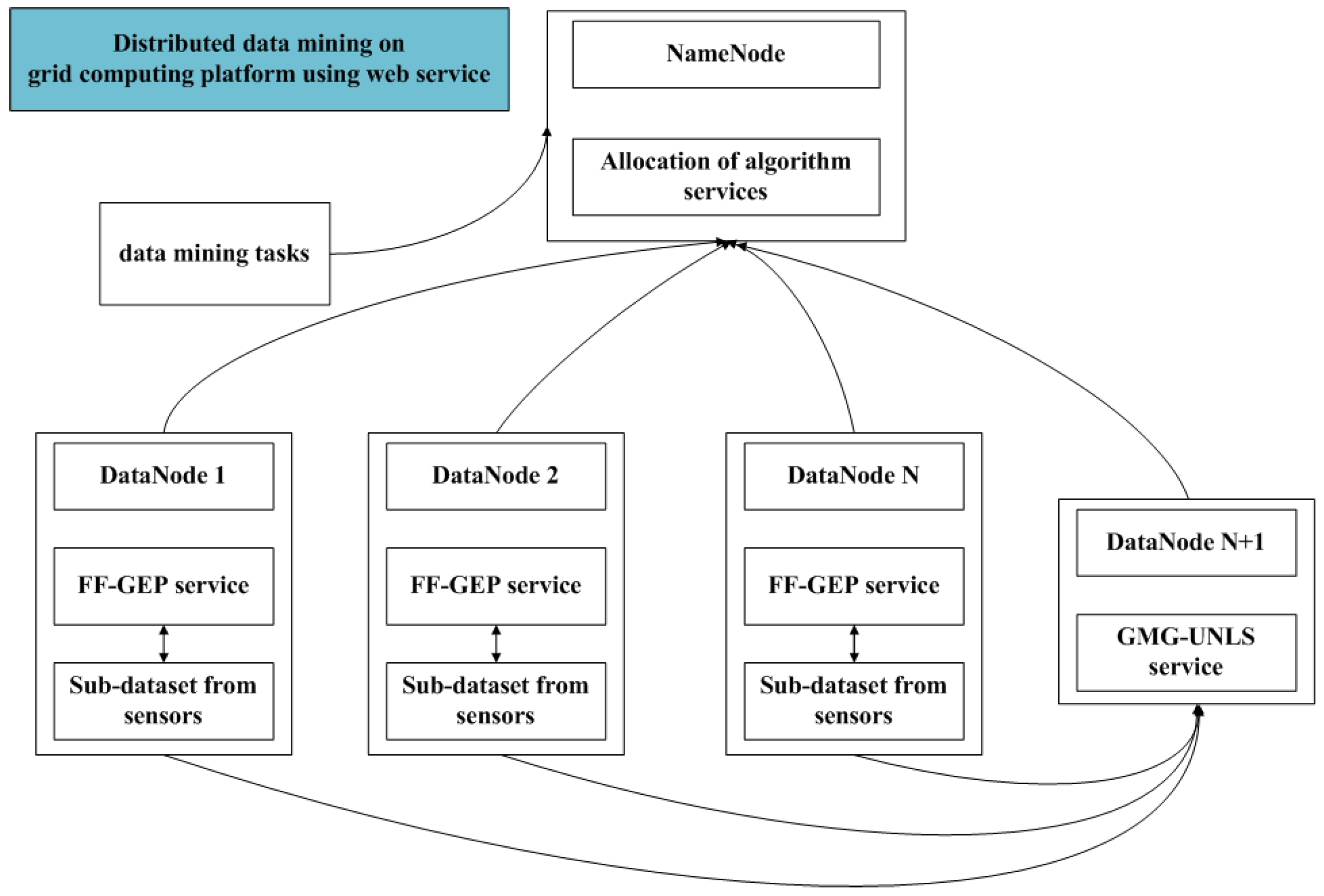

**Figure 4.**Distributed data mining on grid computing platform using web services with gene expression programming (GEP) and function finding algorithm using gene expression programming (FF-GEP) and global model generation algorithm based on unconstrained nonlinear least squares (GMG-UNLS).

#### 5.2. Data Resources

Datasets | Number of Attributes | Number of Instances |
---|---|---|

Leaf optical properties experiment 93 (LOPEX93) | 9 | 1938 |

European Network of Excellence on Intelligent Technologies for Smart Adaptive Systems (EUNITE) | 3 | 730 |

Gas Sensor Array Drift Dataset (GSADD) | 128 | 13,910 |

Dodgers Loop Sensor (DLS) | 3 | 50,400 |

## 6. Comparative Analysis

**Definition 5.**Let ${\widehat{y}}_{i}$, ${y}_{i}$ and ${\overline{y}}_{i}$ be predicted value, real value and mean value of the i-th original data, respectively. Let $SSR={\displaystyle \sum _{i=1}^{n}{({\widehat{y}}_{i}-{\overline{y}}_{i})}^{2}}$ be sum of squares for regression, $SST={\displaystyle \sum _{i=1}^{n}{({y}_{i}-{\overline{y}}_{i})}^{2}}$ be sum of squares for total. Then ${R}^{2}=\frac{SSR}{SST}$ is called coefficient of determination.

**Definition 6.**Let ${F}_{R-max}$ be real maximum fitness value, ${F}_{M-max}$ be model-based maximum fitness value. If $\frac{{F}_{R-max}-{F}_{M-max}}{{F}_{R-max}}\le \mathsf{\delta}$, then the corresponding algorithm is convergent.

**Definition 7.**Let $Stime$ be time-consumption of DGFMF-WSND in a single machine environment, $Ctime$ be time-consumption of DGFMF-WSND in parallel computing environment. Then ${S}_{peedup}=\frac{Stime}{Ctime}\times 100\%$ is called speed-up ratio.

**Definition 8.**Let $m\cdot dataT$ be time-consumption to perform dataset with an increase of m times on a cluster with an increase of m times, $dataT$ be time-consumption of the original dataset. Then ${S}_{caleup}=\frac{m\cdot dataT}{dataT}\times 100\%$ is called scale-up ratio.

**Definition 9.**Suppose that the algorithm runs N times independently, and $\frac{{F}_{R-max}-{F}_{M-max}\left[i\right]}{{F}_{R-max}}\le \mathsf{\delta},i\in \left[1,N\right]$, where ${F}_{M-max}\left[i\right]$ be the i-th model-based maximum fitness value. Then, by Definition 6, it is clear that the i-th run of the algorithm is convergent. Thus, the sum of the number of algorithm convergence $K,K\le N$ is called number of convergence of the algorithm.

**Definition 10.**Suppose that the algorithm runs N times independently, $K[i],i\le N$ represents the corresponding number of generation when the algorithm is convergent under the condition of the i-th run. Thus, $\frac{{\displaystyle \sum _{i=1}^{N}K\left[i\right]}}{N}$ is called average number of convergence generation.

**Example 1:**To compare the performance of ACO (Ant Colony Optimization) [50], SA (Simulated Annealing) [51], GP [16], GA [17], GEP [20] and FF-GEP, for four datasets in Table 1, the four algorithms run 50 times independently, and the maximum number of generation of four algorithms is 5000. By Definition 6, Figure 5 shows comparison of number of convergence for GP, GA, GEP and FF-GEP. Comparison of average generation of convergence for GP, GA, GEP and FF-GEP are shown in Figure 6. Meanwhile, Table 2 shows comparison of value of ${R}^{2}$ for four test datasets in Table 1 based on the four algorithms. Degree of fitting between model value and real value of four test datasets in Table 1 based on FF-GEP is shown Figure 7 without taking into account the time-consumption.

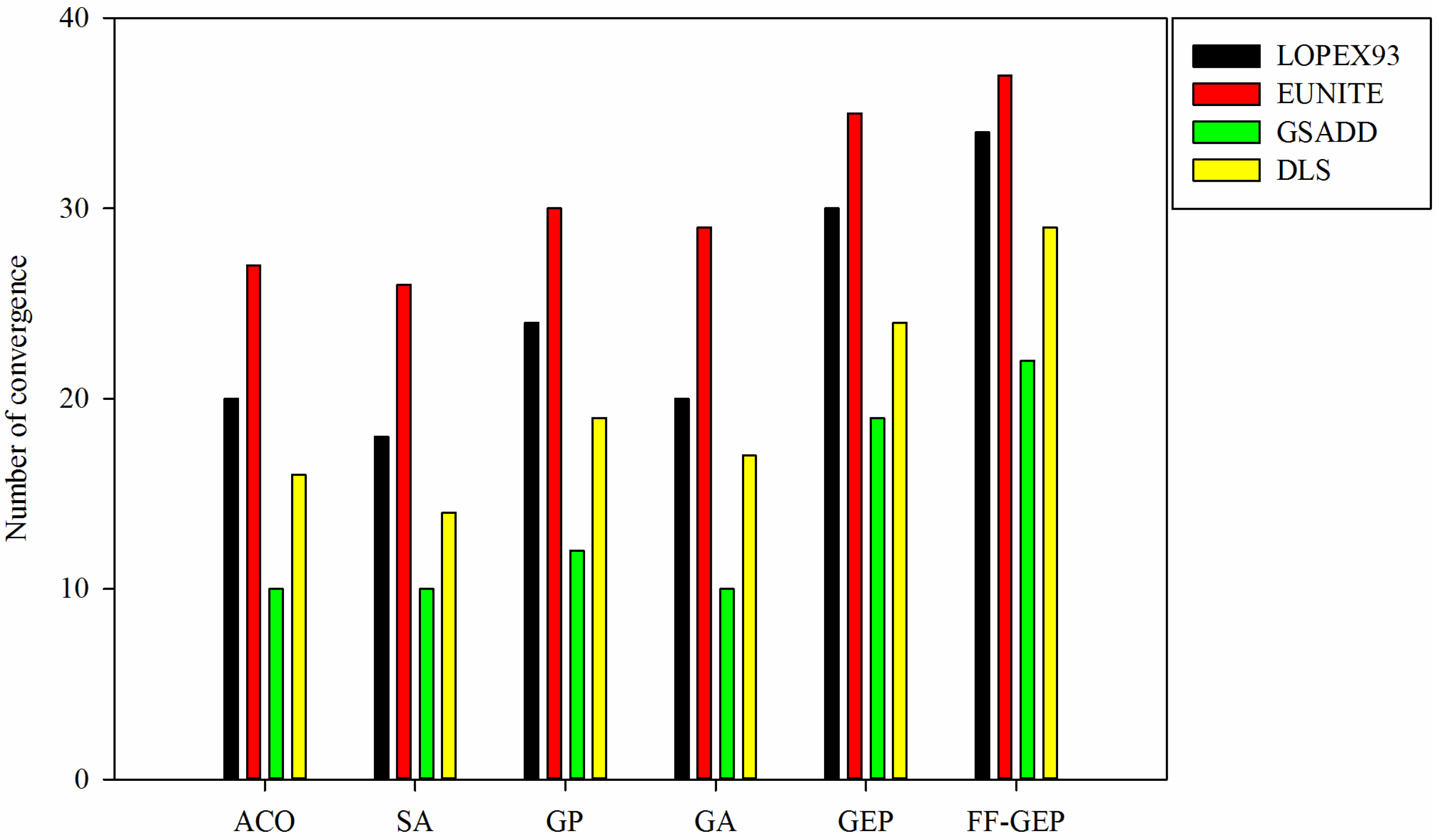

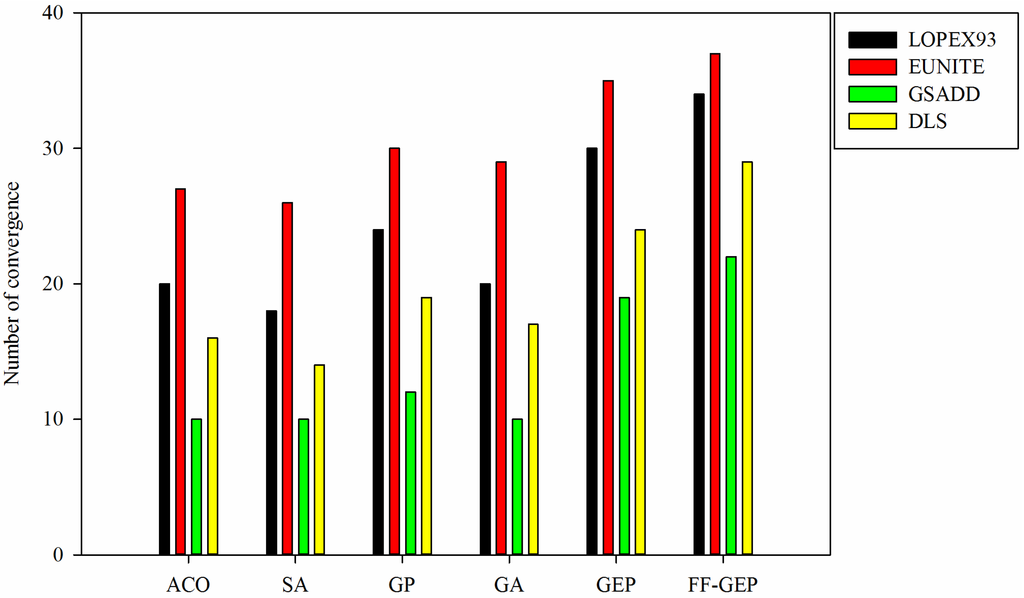

**Figure 5.**Comparison of number of convergence for ACO (Ant Colony Optimization), SA(Simulated Annealing), genetic programming (GP), genetic algorithm (GA), gene expression programming (GEP) and function finding algorithm using gene expression programming (FF-GEP).

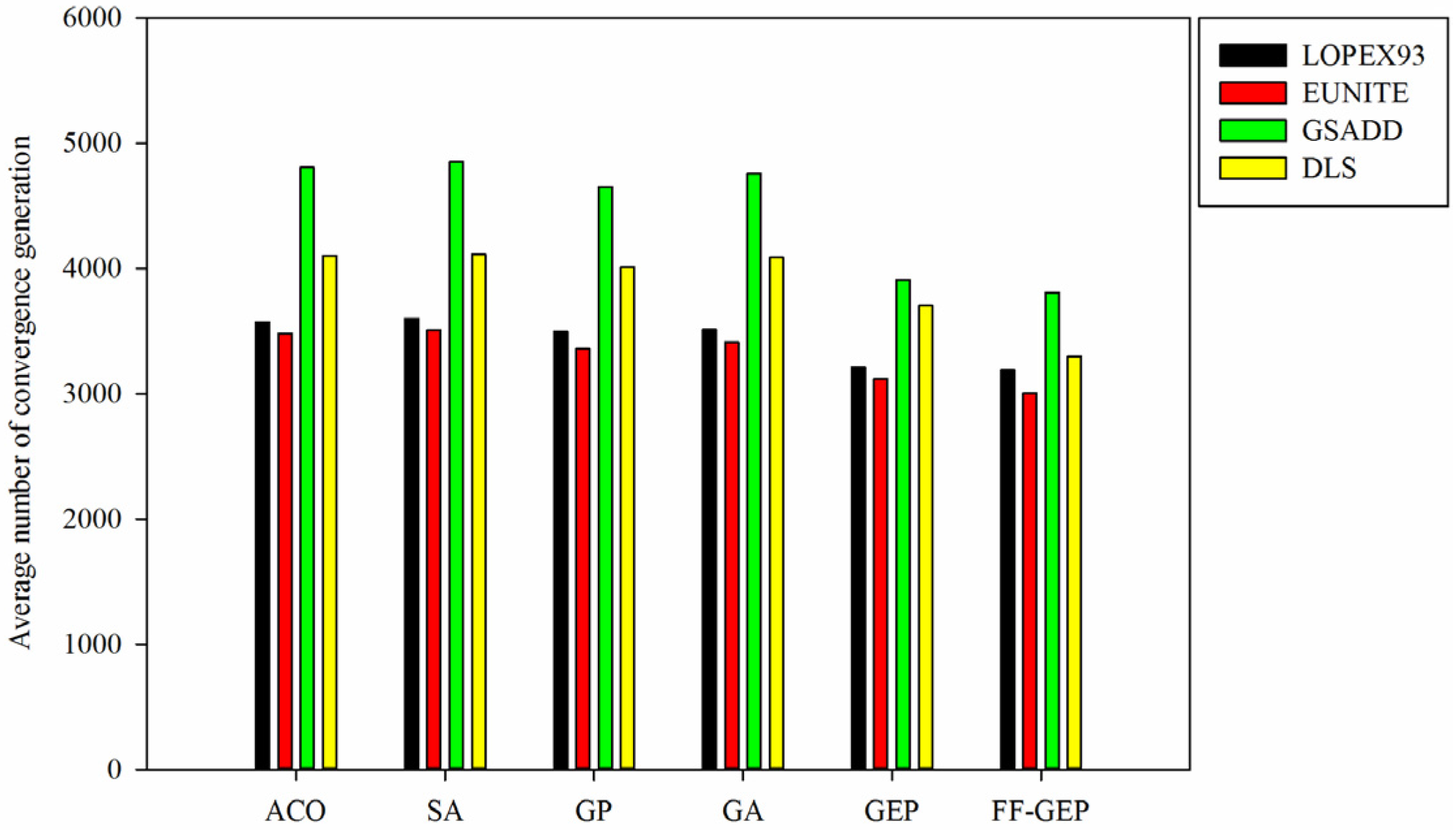

**Figure 6.**Comparison of average number of convergence generation for ACO (Ant Colony Optimization), SA(Simulated Annealing), genetic programming (GP), genetic algorithm (GA), gene expression programming (GEP) and function finding algorithm using gene expression programming (FF-GEP).

**Table 2.**Comparison of value of ${R}^{2}$ for four test datasets based on ACO (Ant Colony Optimization), SA(Simulated Annealing), genetic programming (GP), genetic algorithm (GA), gene expression programming (GEP) and function finding algorithm using gene expression programming (FF-GEP).

Datasets | Algorithms | |||||
---|---|---|---|---|---|---|

ACO | SA | GP | GA | GEP | FF-GEP | |

LOPEX93 | 0.8355 | 0.8291 | 0.8700 | 0.8490 | 0.9118 | 0.9381 |

EUNITE | 0.8914 | 0.8901 | 0.9187 | 0.8926 | 0.9263 | 0.9575 |

GSADD | 0.7012 | 0.6997 | 0.7393 | 0.7035 | 0.8321 | 0.8686 |

DLS | 0.7801 | 0.7729 | 0.7903 | 0.7844 | 0.88 | 0.9097 |

**Example 2:**In order to better evaluate performance of algorithm, Example 2 focuses on comparison of average time-consumption and fitting degree between real value and model value. Figure 8 shows average time-consumption of ACO, SA, GP, GA, GEP and FF-GEP. Average time-consumption of DGFMF-WSND with the increase of number of computing nodes is shown in Figure 9. Comparison of value of ${R}^{2}$ for LOPEX 93, EUNITE, GSADD and DLS datasets with the increase of number of computing nodes is shown in Figure 10. Figure 11 shows fitting degree between model value and real value of four test datasets in Table 1 based on DGFMF-WSND on six computing nodes.

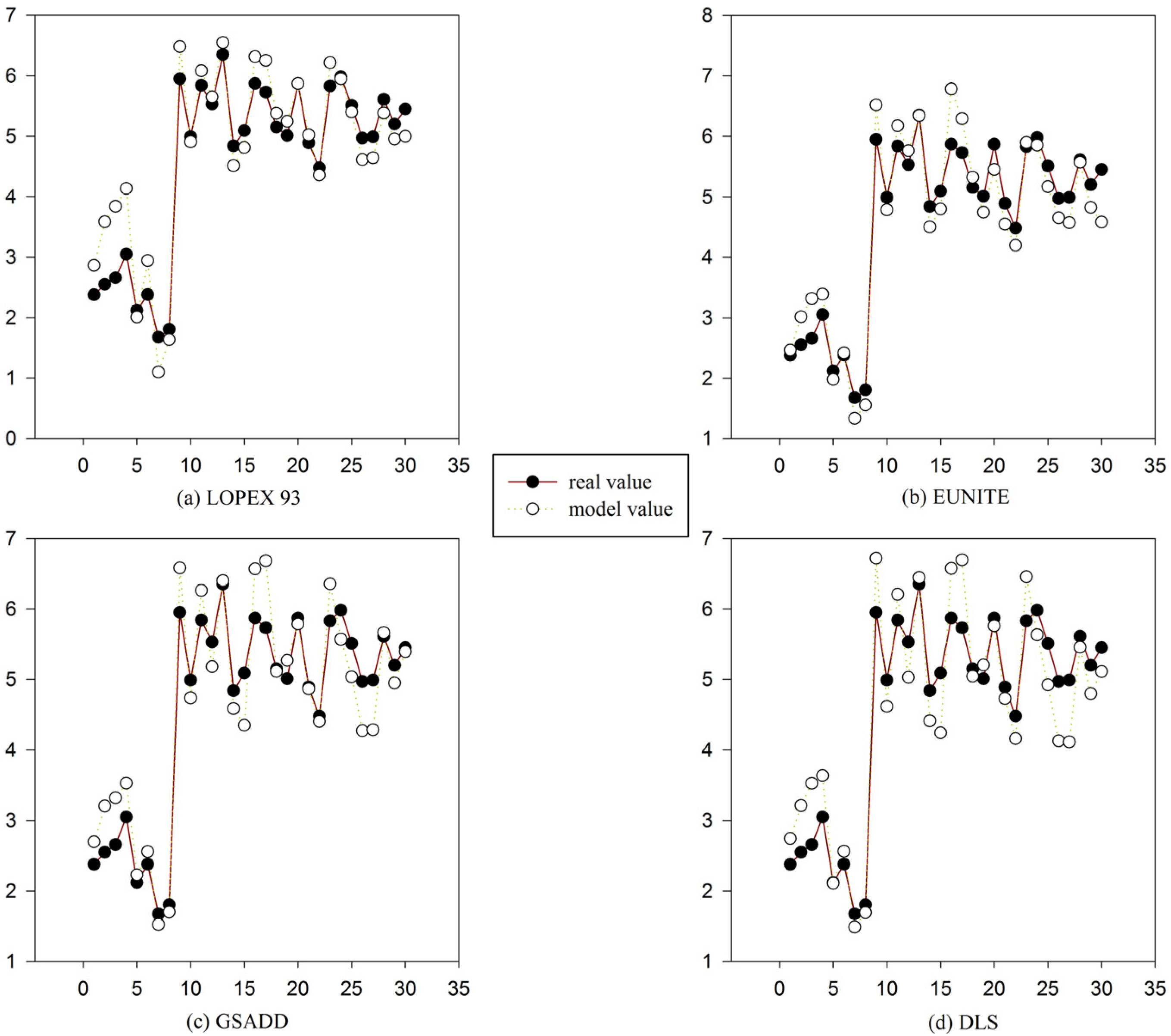

**Figure 7.**Comparison between model value and real value of four test datasets in Table 1 using gene expression programming (GEP) and function finding algorithm using gene expression programming (FF-GEP). (

**a**) Comparison between model value and real value of LOPEX93 datasets using GEP and FF-GEP; (

**b**) comparison between model value and real value of EUNITE datasets using GEP and FF-GEP; (

**c**) comparison between model value and real value of GSADD datasets using GEP and FF-GEP; and (

**d**) comparison between model value and real value of DLS datasets using GEP and FF-GEP.

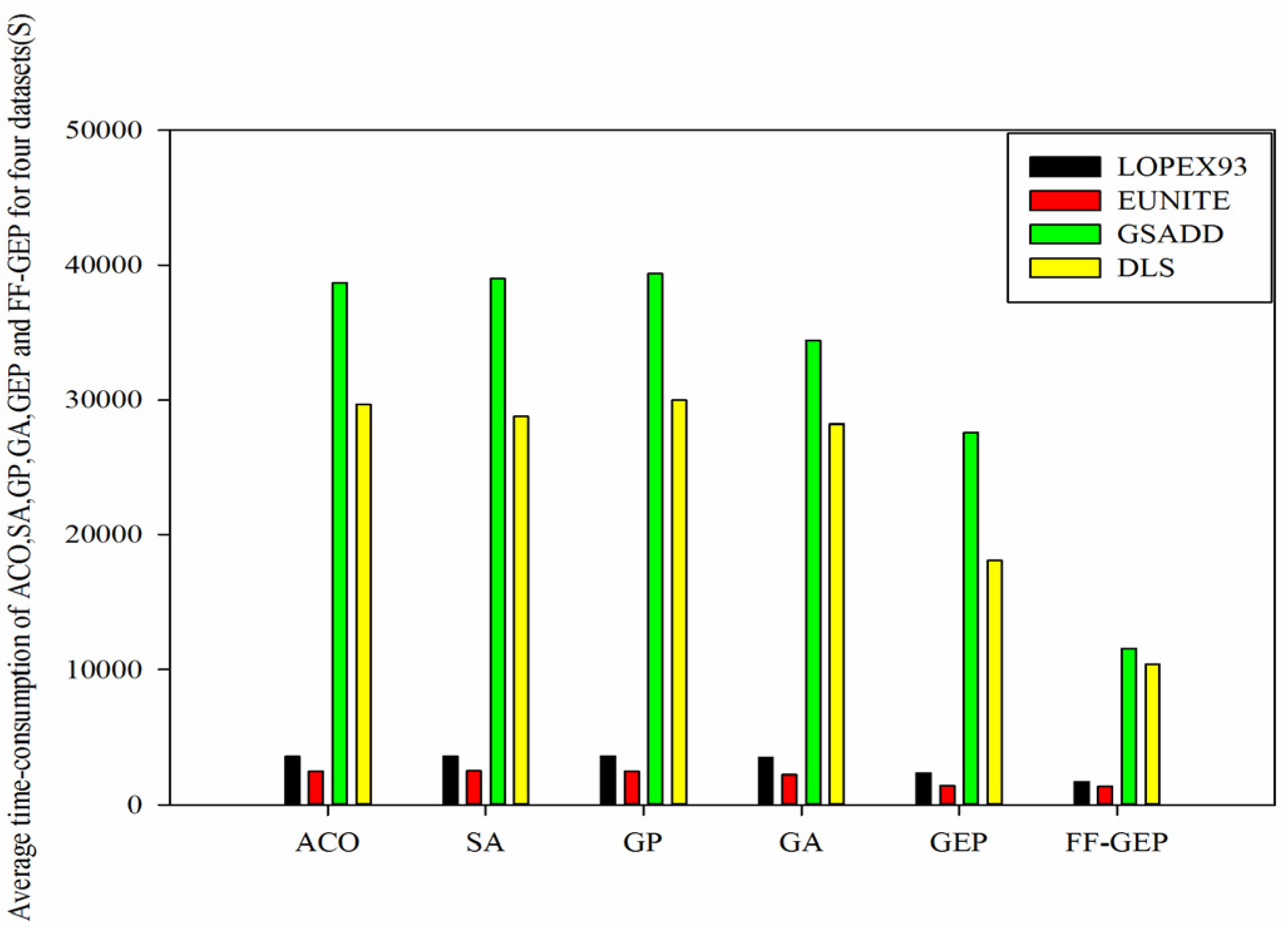

**Figure 8.**Comparison of average time-consumption of ACO (Ant Colony Optimization), SA(Simulated Annealing), genetic programming (GP), genetic algorithm (GA), gene expression programming (GEP) and function finding algorithm using gene expression programming (FF-GEP) for four datasets.

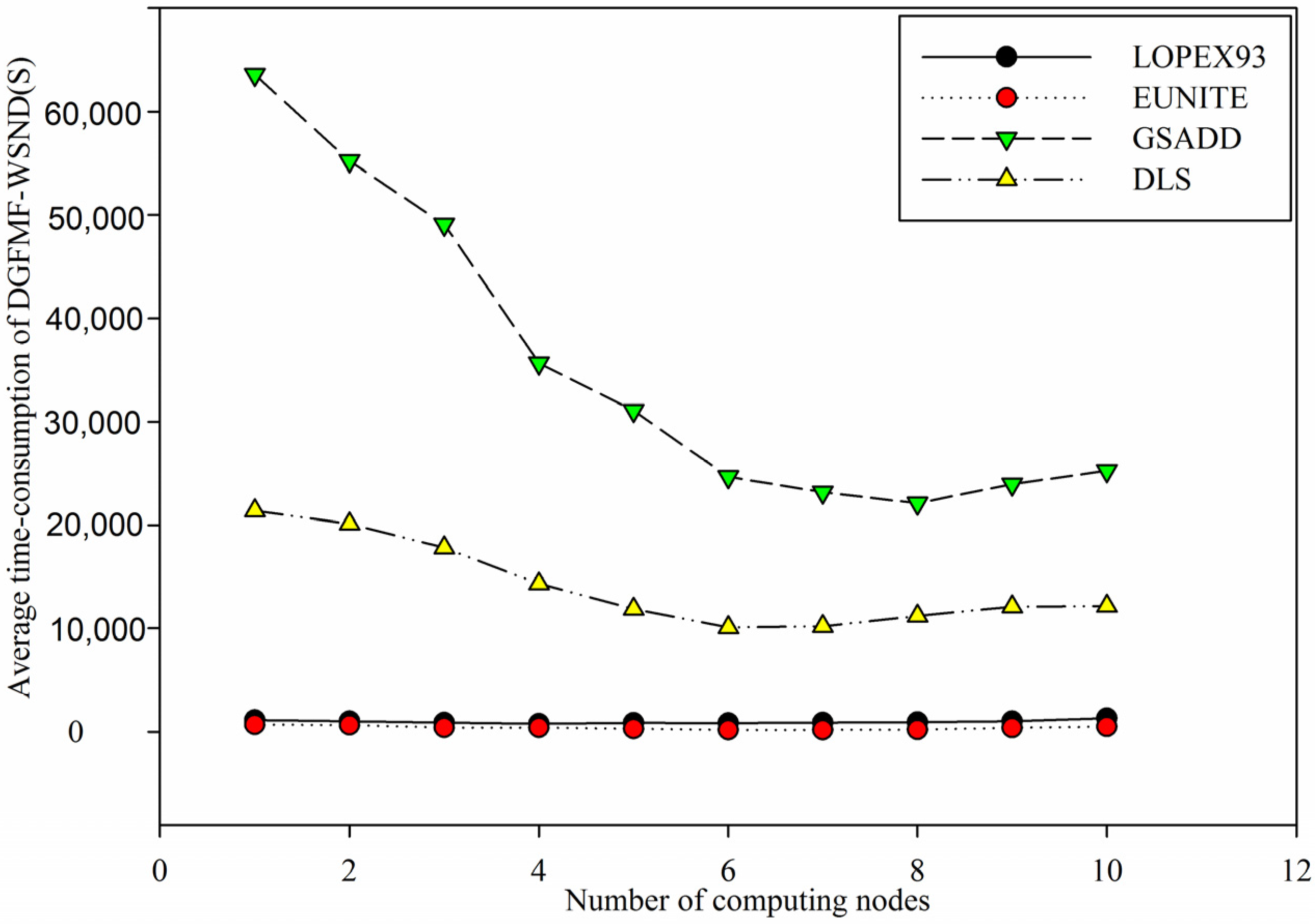

**Figure 9.**Comparison of average time-consumption of DGFMF-WSND for four datasets with the increase of number of computing nodes.

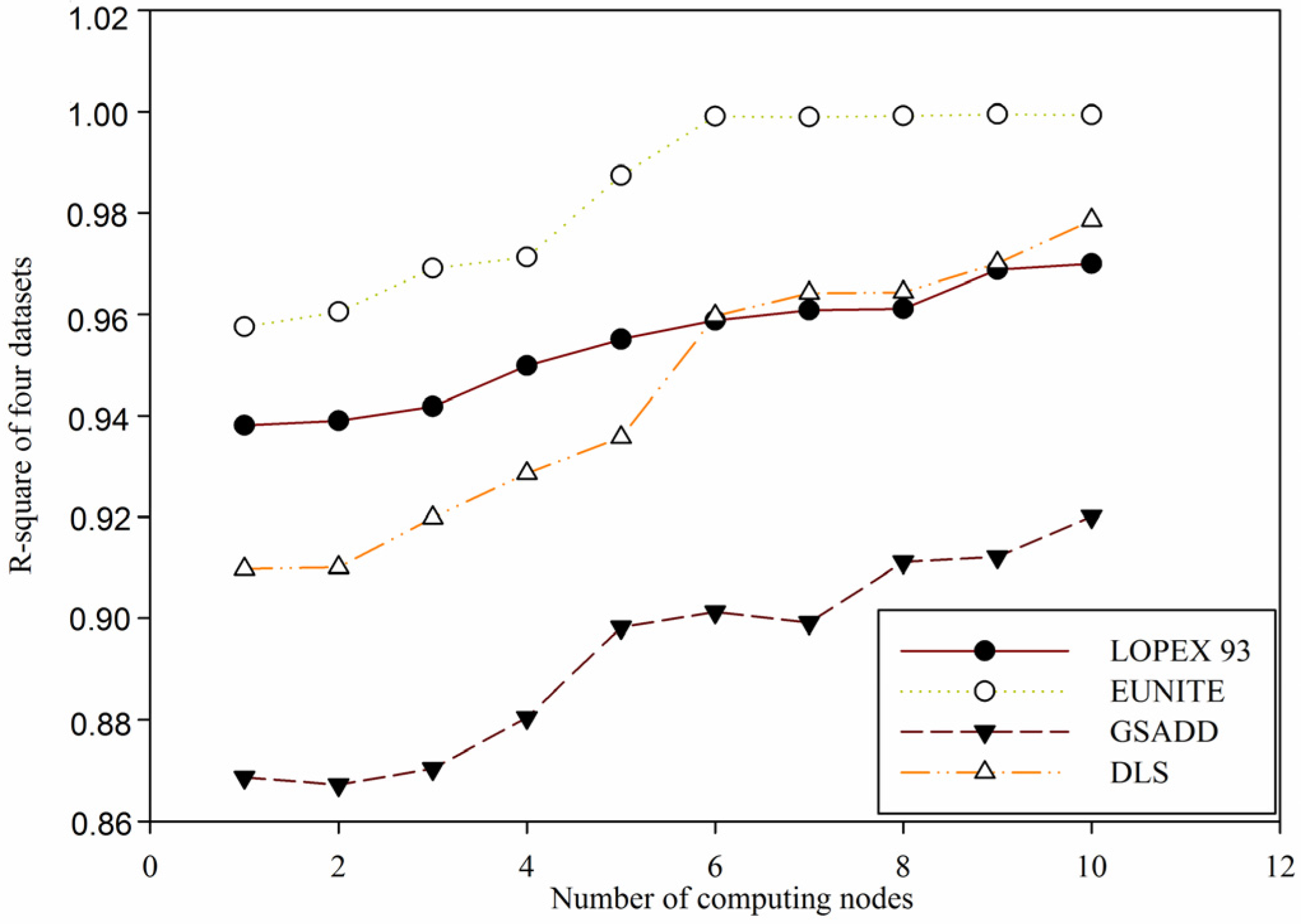

**Figure 10.**Comparison of value of ${R}^{2}$ for four test datasets in Table 1 based on distributed global function model finding for wireless sensor networks data (DGFMF-WSND) with the increase of number of computing nodes.

**Example 3:**To reflect the parallel performance of DGFMF-WSND, LOPEX93 and EUNITE datasets in Table 1 are expanded 1000, 2000, 4000 and 8000 times to respectively form four new datasets. Comparison of speed-up ratio of DGFMF-WSND for the four new datasets with the increase of number of computing nodes is shown in Figure 12. Figure 13 shows comparison of scale-up ratio of DGFMF-WSND for LOPEX93 and EUNITE datasets with the increase of number of computing nodes.

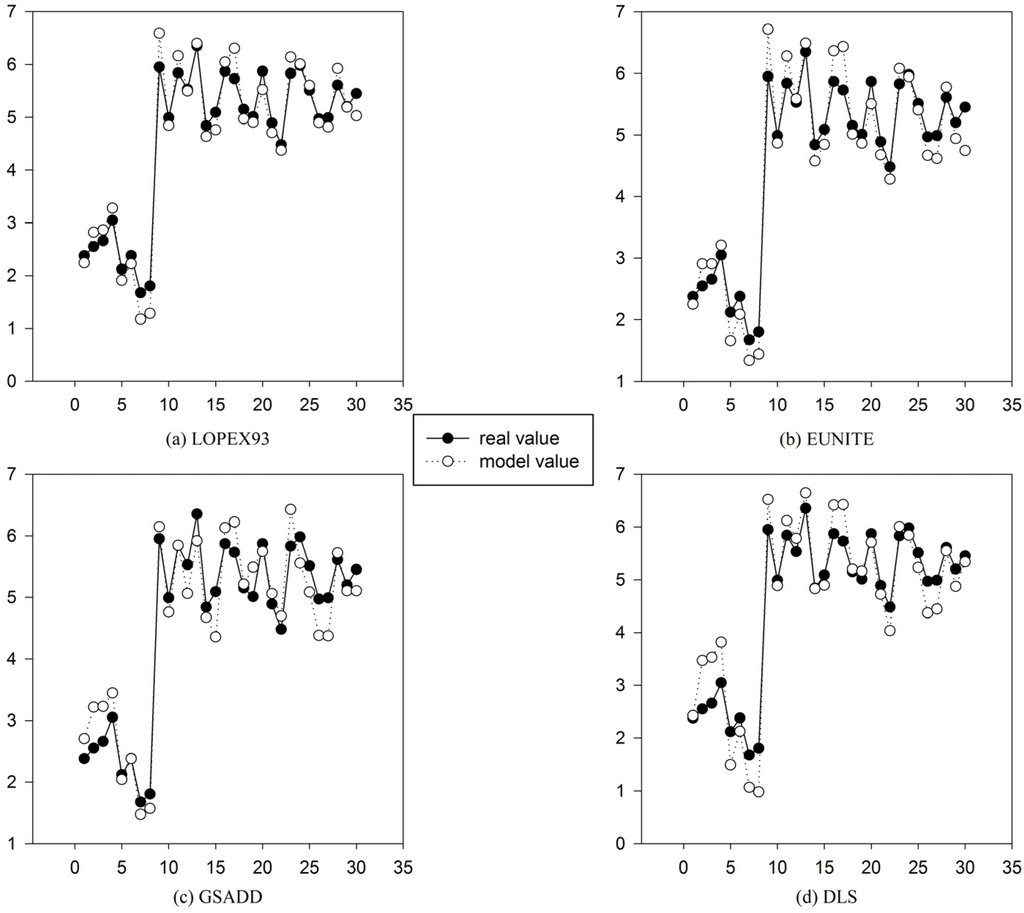

**Figure 11.**Comparison between model value and real value of four test datasets in Table 1 based on DGFMF-WSND. (

**a**) Comparison between model value and real value of LOPEX93 datasets based on DGFMF-WSND; (

**b**) comparison between model value and real value of EUNITE datasets based on DGFMF-WSND ; (

**c**) comparison between model value and real value of GSADD datasets based on DGFMF-WSND; and (

**d**) comparison between model value and real value of DLS datasets based on DGFMF-WSND.

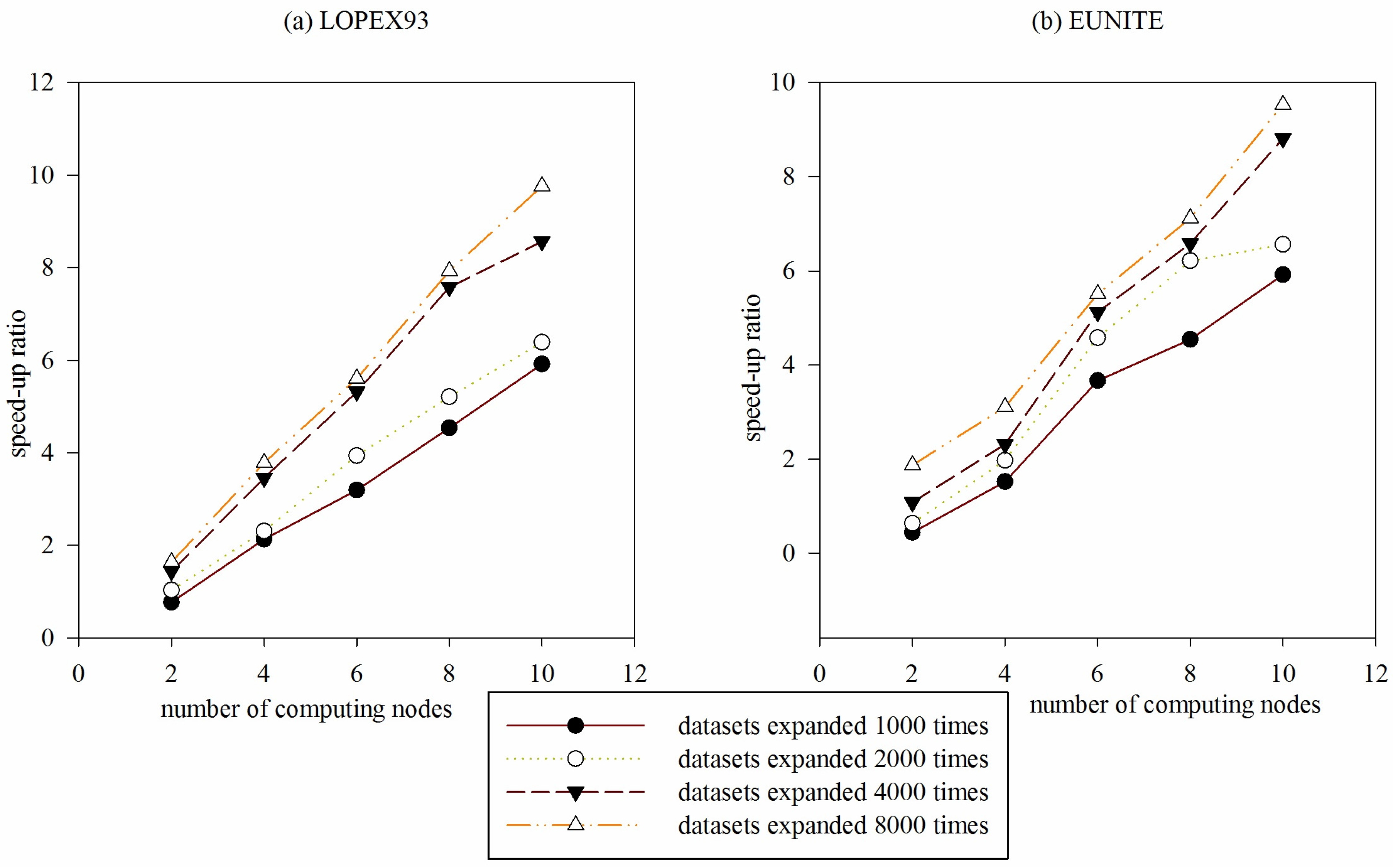

**Figure 12.**Comparison of speed-up ratio of DGFMF-WSND for two datasets with the increase of number of computing nodes. (

**a**) Comparison of speed-up ratio of DGFMF-WSND for LOPEX93 datasets with the increase of number of computing nodes; and (

**b**) comparison of speed-up ratio of DGFMF-WSND for EUNITE datasets with the increase of number of computing nodes.

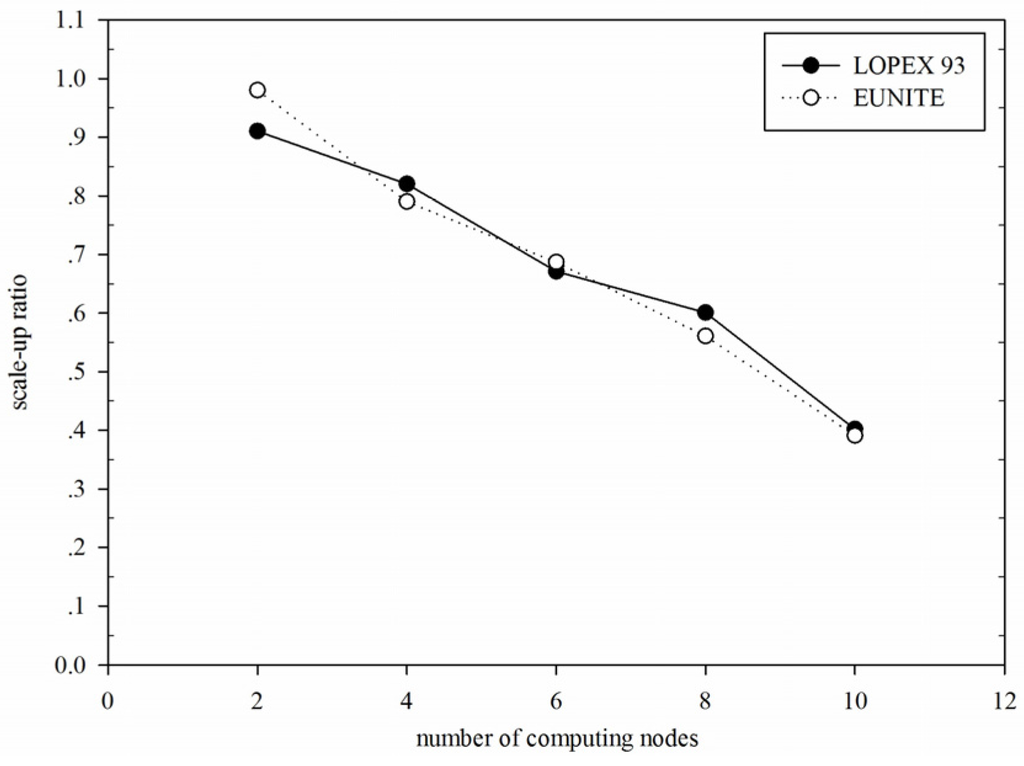

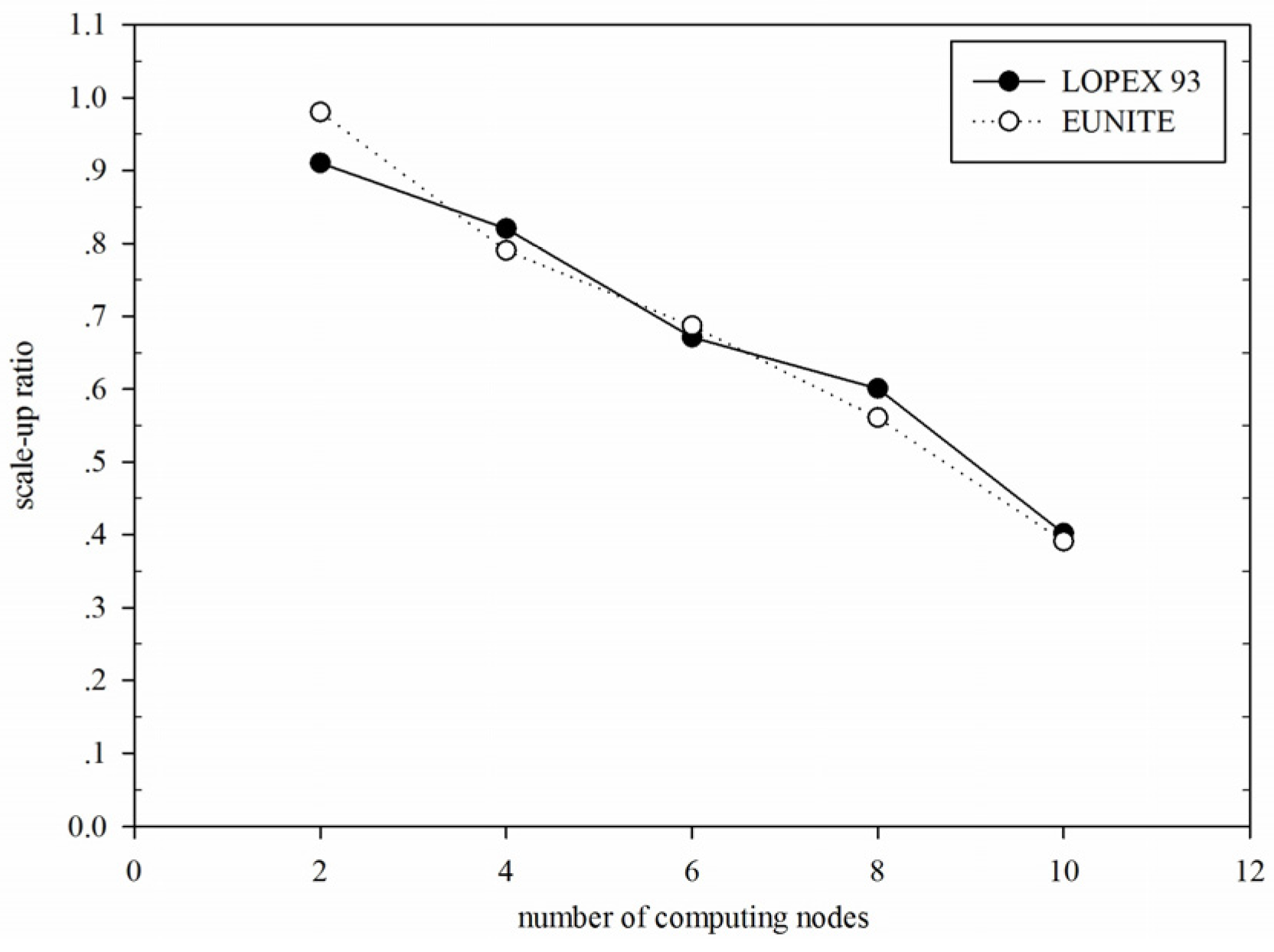

**Figure 13.**Comparison of scale-up ratio of DGFMF-WSND for LOPEX93 and EUNITE datasets with the increase of number of computing nodes.

## 7. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Mahmood, A.; Shi, K.; Khatoon, S.; Xiao, M. Data mining techniques for wireless sensor networks: A survey. Int. J. Distrib. Sens. Netw.
**2013**, 2013, 1–24. [Google Scholar] [CrossRef] - Liu, Y. Wireless sensor network applications in smart grid: Recent trends and challenges. Int. J. Distrib. Sens. Netw.
**2012**, 2012, 1–8. [Google Scholar] [CrossRef] - Abbasi, A.Z.; Islam, N.; Shaikh, Z.A. A review of wireless sensors and networks’ applications in agriculture. Comput. Stand. Interfaces
**2014**, 36, 263–270. [Google Scholar] - Costa, F.G.; Ueyama, J.; Braun, T.; Pessin, G.; Osório, F.S.; Vargas, P.A. The use of unmanned aerial vehicles and wireless sensor network in agricultural applications. In Proceedings of the 2012 IEEE International Geoscience and Remote Sensing Symposium (IGARSS), Munich, Germany, 22–27 July 2012; pp. 5045–5048.
- Aslan, Y.E.; Korpeoglu, I.; Ulusoy, Ö. A framework for use of wireless sensor networks in forest fire detection and monitoring. Comput. Environ. Urban Syst.
**2012**, 36, 614–625. [Google Scholar] [CrossRef] - Othman, M.F.; Shazali, K. Wireless sensor network applications: A study in environment monitoring system. Procedia Eng.
**2012**, 41, 1204–1210. [Google Scholar] [CrossRef] - Durisic, M.P.; Tafa, Z.; Dimic, G.; Milutinovic, V. A survey of military applications of wireless sensor networks. In Proceedings of the 2012 Mediterranean Conference on Embedded Computing (MECO), Bar, Montenegro, 19–21 June 2012; pp. 196–199.
- Fong, S.; Wong, R.; Vasilakos, A. Accelerated pso swarm search feature selection for data stream mining big data. IEEE Trans. Serv. Comput.
**2015**. [Google Scholar] [CrossRef] - Tsai, C.-W.; Lai, C.-F.; Chao, H.-C.; Vasilakos, A.V. Big data analytics: A survey. J. Big Data
**2015**, 2, 1–32. [Google Scholar] [CrossRef] - Lee, J.-S.; Cheng, W.-L. Fuzzy-logic-based clustering approach for wireless sensor networks using energy predication. Sens. J. IEEE
**2012**, 12, 2891–2897. [Google Scholar] [CrossRef] - Liu, Z.; Zheng, Q.; Xue, L.; Guan, X. A distributed energy-efficient clustering algorithm with improved coverage in wireless sensor networks. Future Gener. Comput. Syst.
**2012**, 28, 780–790. [Google Scholar] [CrossRef] - Boukerche, A.; Samarah, S. An efficient data extraction mechanism for mining association rules from wireless sensor networks. In Proceedings of the IEEE International Conference on Communications, 2007. ICC’07, Glasgow, UK, 24–28 June 2007; pp. 3936–3941.
- Huang, S.; Dong, Y. An active learning system for mining time-changing data streams. Intell. Data Anal.
**2007**, 11, 401–419. [Google Scholar] - Spinosa, E.J.; de Leon F de Carvalho, A.P.; Gama, J. Novelty detection with application to data streams. Intell. Data Anal.
**2009**, 13, 405–422. [Google Scholar] - Cao, F.; Li, M. Spherical data fitting by multiscale moving least squares. Appl. Math. Model.
**2015**, 39, 3448–3458. [Google Scholar] [CrossRef] - Koza, J.R.; Rice, J.P. Genetic Programming II: Automatic Discovery of Reusable Programs; MIT Press: Cambridge, UK, 1994; Volume 40. [Google Scholar]
- Li, M.-Q.; Kou, J.; Lin, D.; Li, S. Basic Theory and Application of Genetic Algorithm; Science Publishing Company: Beijing, China, 2002; Volume 3. [Google Scholar]
- Yeun, Y.S.; Lee, K.H.; Han, S.M.; Yang, Y.S. Smooth fitting with a method for determining the regularization parameter under the genetic programming algorithm. Inf. Sci.
**2001**, 133, 175–194. [Google Scholar] [CrossRef] - Gálvez, A.; Iglesias, A. A new iterative mutually coupled hybrid GA-PSO approach for curve fitting in manufacturing. Appl. Soft Comput.
**2013**, 13, 1491–1504. [Google Scholar] [CrossRef] - Ferreira, C. Gene Expression Programming: Mathematical Modeling by an Artificial Intelligence (Studies in Computational Intelligence); Springer-Verlag New York, Inc.: New York, NY, USA, 2006. [Google Scholar]
- Chen, F.; Deng, P.; Wan, J.; Zhang, D.; Vasilakos, A.V.; Rong, X. Data mining for the internet of things: Literature review and challenges. Int. J. Distrib. Sens. Netw.
**2015**, 501. [Google Scholar] [CrossRef] - Liu, X.-Y.; Zhu, Y.; Kong, L.; Liu, C.; Gu, Y.; Vasilakos, A.V.; Wu, M.-Y. CDC: Compressive data collection for wireless sensor networks. IEEE Trans. Parallel Distrib. Syst.
**2015**, 26, 2188–2197. [Google Scholar] [CrossRef] - Sawaitul, S.D.; Wagh, K.; Chatur, P. Classification and prediction of future weather using back propagation algorithm-an approach. Int. J. Emerg. Technol. Adv. Eng.
**2012**, 2, 110–113. [Google Scholar] - Erdogan, S.Z.; Bilgin, T.T. A data mining approach for fall detection using k-nearest neighbour algorithm on wireless sensor network data. IET Commun.
**2012**, 6, 3281–3287. [Google Scholar] [CrossRef] - Tripathy, A.; Adinarayana, J.; Vijayalakshmi, K.; Merchant, S.; Desai, U.; Ninomiya, S.; Hirafuji, M.; Kiura, T. Knowledge discovery and leaf spot dynamics of groundnut crop through wireless sensor network and data mining techniques. Comput. Electron. Agric.
**2014**, 107, 104–114. [Google Scholar] [CrossRef] - Huang, J.-Y.; Liao, I.-E.; Chung, Y.-F.; Chen, K.-T. Shielding wireless sensor network using markovian intrusion detection system with attack pattern mining. Inf. Sci.
**2013**, 231, 32–44. [Google Scholar] [CrossRef] - Liew, C.S.; Wah, T.Y.; Shuja, J.; Daghighi, B. Mining personal data using smartphones and wearable devices: A survey. Sensors
**2015**, 15, 4430–4469. [Google Scholar] - Zheng, J.-L.; Tang, C.; Xu, K.; Yang, N.; Duan, L.; Li, H. Gene expression programming evolution difficulty prediction based on posture model. J. Softw.
**2011**, 22, 899–913. [Google Scholar] [CrossRef] - Ryan, N.; Hibler, D. Robust gene expression programming. Procedia Comput. Sci.
**2011**, 6, 165–170. [Google Scholar] [CrossRef] - Zhu, M.; Tang, C.; Dai, S.; Chen, Y.; Qiao, S.; Xiang, Y. Naive gene expression programming based on genetic neutrality. J. Comput. Res. Dev.
**2010**, 47, 292–299. [Google Scholar] - Peng, Y.; Yuan, C.; Qin, X.; Huang, J.; Shi, Y. An improved gene expression programming approach for symbolic regression problems. Neurocomputing
**2014**, 137, 293–301. [Google Scholar] [CrossRef] - Karakasis, V.K.; Stafylopatis, A. Efficient evolution of accurate classification rules using a combination of gene expression programming and clonal selection. IEEE Trans. Evolut. Comput.
**2008**, 12, 662–678. [Google Scholar] [CrossRef] - Nazari, A.; Torgal, F.P. Modeling the compressive strength of geopolymeric binders by gene expression programming-gep. Expert Syst. Appl.
**2013**, 40, 5427–5438. [Google Scholar] [CrossRef][Green Version] - Yi, L.; Xiangyun, L.; ZHANG, H. A gene expression programming algorithm for highway construction cost prediction problems. J. Transp. Syst. Eng. Inf. Technol.
**2011**, 11, 85–92. [Google Scholar] - Güllü, H. Function finding via genetic expression programming for strength and elastic properties of clay treated with bottom ash. Eng. Appl. Artif. Intell.
**2014**, 35, 143–157. [Google Scholar] [CrossRef] - Zhao, X.; Yang, B.; Gao, S.; Chen, Y. Multi-contour registration based on feature points correspondence and two-stage gene expression programming. Neurocomputing
**2014**, 145, 512–529. [Google Scholar] [CrossRef] - Lee, C.-H.; Yang, C.-B.; Chen, H.-H. Taiwan stock investment with gene expression programming. Procedia Comput. Sci.
**2014**, 35, 137–146. [Google Scholar] [CrossRef] - Mousavi, S.M.; Mostafavi, E.S.; Hosseinpour, F. Gene expression programming as a basis for new generation of electricity demand prediction models. Comput. Ind. Eng.
**2014**, 74, 120–128. [Google Scholar] [CrossRef] - Chen, L.; Kou, C.-H.; Ma, S.-W. Prediction of slump flow of high-performance concrete via parallel hyper-cubic gene-expression programming. Eng. Appl. Artif. Intell.
**2014**, 34, 66–74. [Google Scholar] [CrossRef] - Huo, L.-M.; Fan, X.-Q.; Huang, L.-H.; Liu, W.-N.; Zhu, Y.-L. Short-term load forecasting based on gene expression programming with error cycling compensation. Proc. CSEE
**2008**, 28, 103–107. [Google Scholar] - Mousavi, S.M.; Aminian, P.; Gandomi, A.H.; Alavi, A.H.; Bolandi, H. A new predictive model for compressive strength of hpc using gene expression programming. Adv. Eng. Softw.
**2012**, 45, 105–114. [Google Scholar] [CrossRef] - Khattab, H.; Abdelaziz, A.; Mekhamer, S.; Badr, M.; El-Saadany, E. Gene expression programming for static security assessment of power systems. In Proceedings of the 2012 IEEE Power and Energy Society General Meeting, San Diego, CA, USA, 22–26 July 2012; pp. 1–8.
- Janeiro, F.M.; Santos, J.; Ramos, P.M. Gene expression programming in sensor characterization: Numerical results and experimental validation. IEEE Trans. Instrum. Meas.
**2013**, 62, 1373–1381. [Google Scholar] [CrossRef] - Sabar, N.R.; Ayob, M.; Kendall, G.; Qu, R. A dynamic multiarmed bandit-gene expression programming hyper-heuristic for combinatorial optimization problems. IEEE Trans. Cybern.
**2014**, 45, 217–228. [Google Scholar] [CrossRef] [PubMed] - Zhang, K.; Sun, S. Web music emotion recognition based on higher effective gene expression programming. Neurocomputing
**2013**, 105, 100–106. [Google Scholar] [CrossRef] - Meyer, C.D. Matrix Analysis and Applied Linear Algebra; Siam: Raleigh, NC, USA, 2000. [Google Scholar]
- Leaf Optical Properties Experiment 93 (LOPEX93). Available online: http://teledetection.ipgp.jussieu.fr/opticleaf/lopex.htm (accessed on 22 September 2015).
- World-Wide Competition within the Eunite Network. Available online: http://neuron-ai.tuke.sk/competition/ (accessed on 21 October 2015).
- UC Irvine Machine Learning Repository. Available online: http://archive.ics.uci.edu/ml/datasets.html (accessed on 27 October 2014).
- Ke, L.; Zhang, Q.; Battiti, R. MOEA/D-ACO: A multiobjective evolutionary algorithm using decomposition and antcolony. IEEE Trans. Cybern.
**2013**, 43, 1845–1859. [Google Scholar] [CrossRef] [PubMed] - Youhua, W.; Weili, Y.; Guansheng, Z. Adaptive simulated annealing for the optimal design of electromagnetic devices. IEEE Trans. Magn.
**1996**, 32, 1214–1217. [Google Scholar] [CrossRef]

© 2016 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons by Attribution (CC-BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Deng, S.; Yang, L.-C.; Yue, D.; Fu, X.; Ma, Z.
Distributed Global Function Model Finding for Wireless Sensor Network Data. *Appl. Sci.* **2016**, *6*, 37.
https://doi.org/10.3390/app6020037

**AMA Style**

Deng S, Yang L-C, Yue D, Fu X, Ma Z.
Distributed Global Function Model Finding for Wireless Sensor Network Data. *Applied Sciences*. 2016; 6(2):37.
https://doi.org/10.3390/app6020037

**Chicago/Turabian Style**

Deng, Song, Le-Chan Yang, Dong Yue, Xiong Fu, and Zhuo Ma.
2016. "Distributed Global Function Model Finding for Wireless Sensor Network Data" *Applied Sciences* 6, no. 2: 37.
https://doi.org/10.3390/app6020037
