Modeling the Leaching of Cobalt and Manganese from Submarine Ferromanganese Crusts by Adding Steel Scrap Using Design of Experiments and Response Surface Methodology

Abstract

Due to the scarcity of high-grade minerals on the Earth’s surface and the ever-increasing demand for critical metals required in the production of clean energy, the search for alternative sources has become essential. Ferromanganese crusts, a mineral resource located in the depths of the ocean, contain high concentrations of valuable metals, particularly cobalt (Co) and manganese (Mn). A leaching process using sulfuric acid, with the addition of steel scrap, has been proposed for processing this resource. The study investigated the extraction of manganese (Mn) and cobalt (Co) under acidic conditions at 25 °C, employing a factorial experimental analysis. Statistical models were adjusted using response surface methodology to evaluate the effects of time and the ferromanganese crust/Fe(res) (iron residue) ratio as predictive variables. The results demonstrated that the extraction of Mn and Co could be effectively modeled through multiple regression, with strong goodness-of-fit indicators. Optimal extraction was achieved at extended durations (30 min) and lower ferromanganese crust/Fe(res) ratios (1/3) for the sampled values. Gradient analysis revealed that extraction efficiency was directly proportional to time and inversely proportional to the ferromanganese crust/Fe(res) ratio, except in the case of Co extraction at higher durations and lower ratio levels. Additionally, no precipitation of Mn or Co species was observed in the analyzed residues.

1. Introduction

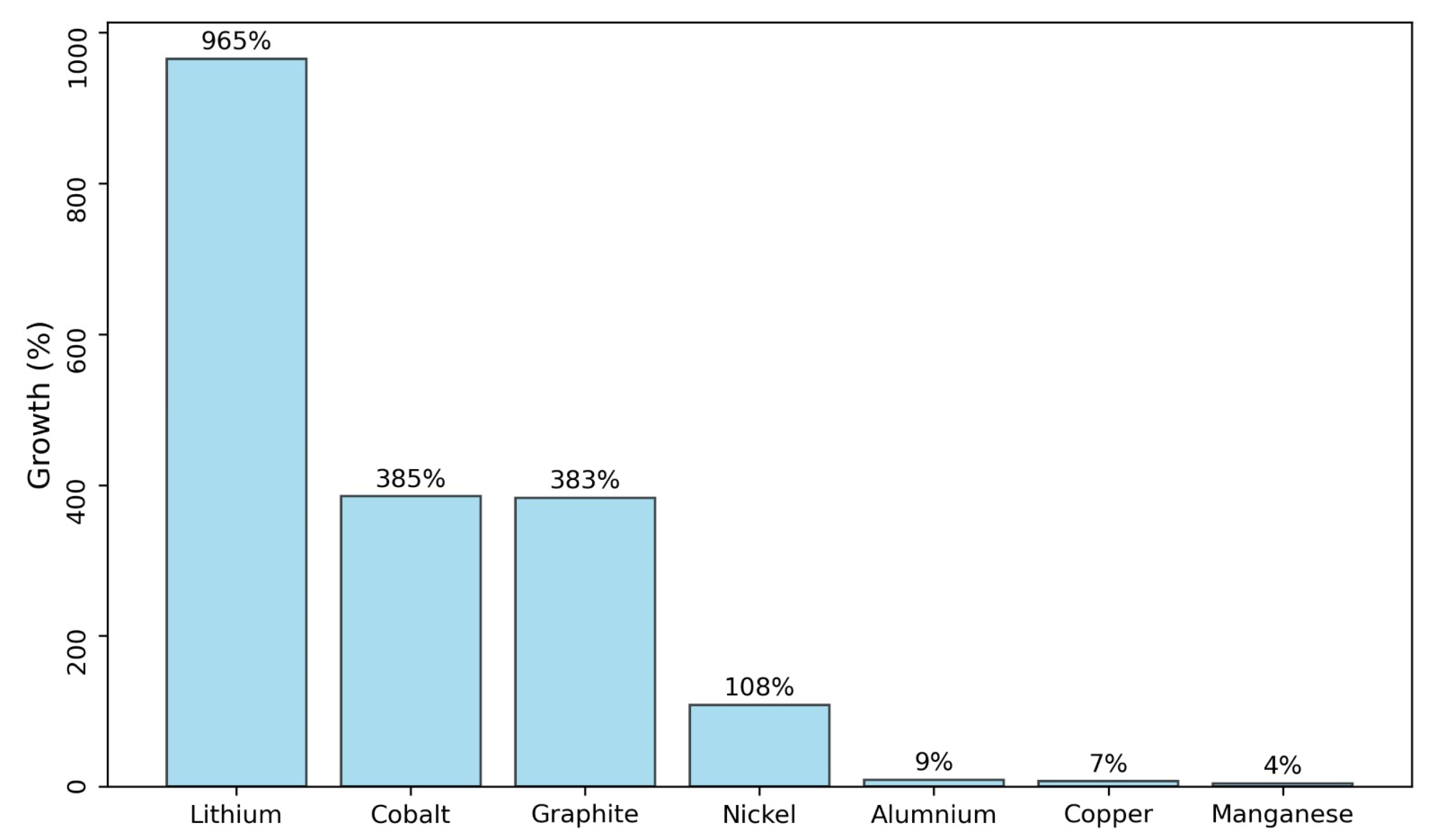

The increasing demand for critical raw materials, driven by their essential role in clean energy technologies, has raised concerns about potential supply shortages. Developing countries, particularly in Africa, which possess 30% of the world’s mineral reserves, are pivotal sources of these materials [1,2]. Critical minerals such as cobalt (Co), lithium (Li), nickel (Ni), and manganese (Mn) are essential to produce clean energy technologies [3,4,5]. The demand for these minerals is particularly significant in the production of electric vehicle batteries, with each battery requiring up to 200 kg of essential minerals. Notably, the battery sector accounts for 70% of the global demand for cobalt [6,7,8]. For this reason, these minerals are classified as ‘critical raw materials’ due to their immense importance and the limited availability of reserves on the Earth’s surface [9]. Consequently, a steady increase in their demand is expected in the medium to long term (see Figure 1).

It is imperative to generate fresh momentum to address the stagnation in the growth capacity of the terrestrial mining industry. Large-scale mining, which plays a critical role in surplus production, faces significant challenges, chief among them being the decline in ore grades. To compensate for this deterioration and maintain profitability, overexploitation becomes prevalent, leading to the substantial generation of polluting waste, such as tailings [7,10,11,12,13].

Among the minerals found on the seafloor, ferromanganese crusts offer a promising alternative for the recovery of metals required in contemporary clean technologies, particularly due to their high Co and Mn content [14,15,16]. These resources are distributed across the global oceanic expanse, occurring at depths ranging from 400 to 7000 m along the slopes of submarine mountains and ridges [17], and plateaus. There are few studies on the co-processing of ferromanganese crusts for Co and Mn extraction, a process that generally involves leaching with a reducing agent and, in some cases, preliminary roasting steps.

With respect to studies that specifically utilize steel slag as a reducing agent and sulfuric acid to recover Co and Mn from underwater mineral resources, two recent investigations stand out. In the study by Pérez et al. [12], it was demonstrated that Co and Mn could be jointly dissolved from marine nodules, with the best results achieved using a reducing agent ratio of 1:2 (nodule/steel slag) at 60 °C for a duration of 15 min. This process resulted in extraction efficiencies of 98% for Mn and 55% for Co. Subsequently, Pérez et al. [12] replicated these conditions to recover Co and Mn from ferromanganese crusts. The researchers found that the optimal results were obtained with a reducing agent ratio of 1:2 (Fe-Mn crust/steel slag) at 60 °C for 10 min, achieving joint extraction efficiencies of approximately 80% for Co and ~40% for Mn. The proposed reactions (Reactions (1)–(4)) for the dissolution of Co and Mn from ferromanganese crusts using foundry slags and H₂SO₄ are outlined in

Table 1. Suggested reactions for the extraction of Co and Mn from deep-sea minerals [12].

Reaction	ΔG° (kJ)	Reaction No.
Fe3O4 (s) + 4H2SO4 (l) $\leftrightarrow$ FeSO4 (aq) + Fe2(SO4)3 (s) + 4H2O (l)	−264.27	(1)
2FeSO4 (aq) + 2H2SO4 (aq) + MnO2 (s) $\leftrightarrow$ Fe2(SO4)3 (s) + 2H2O (l) + MnSO4 (aq)	−221.44	(2)
CoO + H2SO4 $\leftrightarrow$ CoSO4 + H2O	−115.43	(3)
Co3O4 + 4H2SO4 + 2FeSO4 $\leftrightarrow$ 3CoSO4 + 4H2O + Fe2(SO4)3	−354.18	(4)

.

In this study, a novel acid-reductive leaching mechanism is proposed, repurposing steel residue (slag) from the Chilean steel industry for the joint recovery of Co and Mn from ferromanganese crusts. This approach offers a sustainable solution to resource recovery, minimizing waste and the environmental impact associated with traditional mining methods. The response surface methodology (RSM) and design of experiments (DOE) were employed to optimize the leaching parameters, ensuring maximum recovery efficiency and showcasing the potential for industrial applications within circular economic practices. The utilization of RSM and DOE to model the leaching parameters for Co and Mn is pivotal in optimizing and understanding the complex interactions between various process variables in laboratory experiments. These methodologies provide a structured framework for DOE, enabling the efficient exploration of the effects of multiple factors and their interactions on leaching outcomes. This is particularly advantageous in leaching processes, where variables such as pH, temperature, reagent concentration, and time significantly influence the extraction efficiency of metals like Co and Mn. RSM has proven effective in optimizing leaching conditions by evaluating the impact of multiple variables and their interactions. For instance, in the study of Co dissolution, RSM facilitated the identification of optimal conditions for Co recovery, achieving an impressive recovery rate of 95.79% under specific conditions of pH, temperature, and ferrous sulphate concentration [18]. Similarly, RSM has been utilized to optimize Mn leaching from low-grade ores by identifying the critical interaction between H₂SO₄ concentration and the quantity of glucose [19]. Complementarily, DOE provides a systematic and efficient approach to exploring the experimental space, minimizing the number of experiments needed to comprehend the system. This is exemplified using central composite design within RSM, which effectively examines the influence of variables on leaching outcomes. Notably, both RSM and DOE excel in modeling complex interactions between variables, a critical feature in leaching processes where multiple factors may interact in a non-linear manner. For instance, the interaction between leaching time and the quantity of ferrous sulphate has been identified as significant in cobalt dissolution [18].

Recent studies have investigated optimization techniques for Cu and Co extraction from ores, emphasizing the use of RSM and DOE. Response surface methodology (RSM) and artificial neural networks (ANN) have been applied to model and predict leaching behavior [20,21]. RSM has been used to optimize parameters such as particle size, temperature, and redox potential for Cu extraction from chalcopyrite [22,23]. Similarly, RSM has been applied to optimize leaching parameters for Cu extraction from hematite-dominated ore, considering acid concentration, temperature, and contact time [24]. ANN models have shown high accuracy in predicting copper and cobalt recovery, with correlation coefficients exceeding 0.95 [20,21]. DOE approaches, such as central composite design, have been employed to investigate and optimize operational conditions for Cu ion recovery using emulsion liquid membrane methods [25]. These modeling techniques provide valuable tools for enhancing extraction processes and underscore the effectiveness of employing and/or combining RSM, DOE, and ANN methods for optimizing and predicting outcomes in the hydrometallurgical extraction of copper and cobalt. This approach offers improved efficiency and higher recovery rates. Finally, understanding the impact of time and the crust/Fe ratio on the leaching process of Co and Mn from ferromanganese submarine crusts is crucial to optimizing efficiency, reducing costs, and improving process sustainability. Analyzing leaching time helps determine the duration required to achieve maximum dissolution of the target metals. Insufficient time may result in incomplete recovery, while excessive durations can lead to inefficiencies and increased costs. The crust/Fe ratio, on the other hand, ensures an adequate amount of leaching agent is available to dissolve the metals without wasting chemical reagents. Striking a balance between the quantity of mineral and the leaching agent minimizes excessive reagent use, significantly reducing operating costs while avoiding issues such as solution saturation or the formation of unwanted precipitates.

Examining the relationship between these parameters allows for the fine-tuning of operating conditions to maintain consistent and predictable extraction, reducing variability and enhancing process stability. In summary, a detailed analysis of these variables not only improves the technical and economic efficiency of the leaching process but also delivers operational and environmental benefits essential for modern, sustainable operations.

2. Background

These modeling techniques provide valuable tools for enhancing extraction processes and underscore the effectiveness of employing and/or combining RSM, DOE, and ANN methods for optimizing and predicting outcomes in the hydrometallurgical extraction of Cu and Co. This approach offers improved efficiency and higher recovery rates. Finally, understanding the impact of time and the crust/Fe ratio on the leaching process of Co and Mn from ferromanganese submarine crusts is crucial to optimizing efficiency, reducing costs, and improving process sustainability. Analyzing leaching time helps determine the duration required to achieve maximum dissolution of the target metals. Insufficient time may result in incomplete recovery, while excessive durations can lead to inefficiencies and increased costs. The crust/Fe ratio, on the other hand, ensures an adequate amount of leaching agent is available to dissolve the metals without wasting chemical reagents. Striking a balance between the quantity of mineral and the leaching agent minimizes excessive reagent use, significantly reducing operating costs while avoiding issues such as solution saturation or the formation of unwanted precipitates. Examining the relationship between these parameters allows for the fine-tuning of operating conditions to maintain consistent and predictable extraction, reducing variability and enhancing process stability. In summary, a detailed analysis of these variables not only improves the technical and economic efficiency of the leaching process but also delivers operational and environmental benefits essential for modern, sustainable operations [26,27]. Methods such as population balance modeling (PBM) are employed to predict the distribution of particle sizes in processes like grinding and flotation, supporting the design and optimization of these operations [26].

In terms of the contribution of modeling to mineral processing, models such as the MiSCOR model for the upstream supply chain play a significant role. This model addresses the dynamics of the upstream segment of the mineral supply chain, offering a standardized framework that seamlessly integrates with the downstream segment. It is specifically designed to enhance collaboration and decision-making in mineral supply chain management [28]. Another noteworthy model is model predictive static programming (MPSP), a technique applied to control problems in mineral processing, such as grinding and flotation circuits. MPSP provides computational efficiency and enhanced performance compared to traditional methods, making it a highly viable option for achieving optimal control in mineral processing plants [29].

Geochemical modeling for mineralization processes is another approach with extensive applications in mineral processing management. This method is vital for developing mineralization processes, particularly in the context of CO₂ utilization. It supports feedstock selection and process engineering by predicting product speciation in complex systems [30]. Mathematical modeling of particle motion is utilized to simulate particle movement in enrichment devices, aiding in the identification of effective parameters for optimizing the enrichment process [31]. Process simulations are employed to model mineral processing operations at various levels, ranging from bulk processes to mineral-specific models. These simulations provide valuable insights into the processing of Fe ore and other minerals, aiding in their optimization and improved efficiency [32]. Algorithms and simulation models are developed to optimize the transport and unloading of mineral resources, enhancing operational efficiency and reducing costs [33]. While the primary focus of mineral process modeling is on enhancing efficiency and sustainability, challenges such as integrating various modeling techniques and the need for standardized frameworks persist. The adoption of artificial intelligence and advanced computational methods is continually evolving, presenting new opportunities for innovation in mineral processing. However, the complex nature and inherent variability of mineral processing systems demand ongoing research and development efforts to fully realize the potential of these modeling methodologies. The extraction of Cu and Co is a complex process that requires the application of various modeling methods to optimize efficiency and yield. These methodologies are crucial for addressing the challenges posed by the unique chemical properties of copper and cobalt ores, as well as the diverse mineralogical composition of the feed material. The sections below explore different modeling approaches and techniques employed in the extraction of these metals.

• Redox Chemistry in Ore Processing: A dual-benefit strategy harnesses the redox properties of Cu and Co ores, enabling simultaneous extraction without the need for additional oxidizing or reducing agents. This approach achieves high recovery efficiencies of 99.67% for copper and 98.20% for cobalt by capitalizing on the oxidizing properties of Co3+ in oxide ores and the reducibility of sulfide ores [34].
• Neural Networks and Response Surface Methodology: This approach has been implemented to forecast and improve the leaching characteristics of Cu-Co ores. The ANN employs a backpropagation algorithm to model the process, while RSM utilizes the Box-Behnken design for optimization. The method achieves leaching yields of 93.46% for Cu and 89.43% for Co, with a strong correlation between predicted and experimental values [20].
• Ammonium Sulfate Roasting: An innovative method involves ammonium sulphate roasting for the selective extraction of metals from oceanic Co-rich crusts. This process converts metal oxides into sulphates, achieving high leaching efficiencies for Co, Ni, and Cu, while minimizing Fe leaching. The method is efficient, environmentally friendly, and economically advantageous compared to traditional techniques [35,36].
• Metal Melt Extraction: A method involving metal melting entails heating a Cu-Co alloy with a metal extraction medium under an inert atmosphere, effectively separating Cu from the alloy. The extracted Cu can then be utilized as a high-quality raw material, while the remaining alloy is suitable for further processing, such as acid leaching [37].
• Pressure Leaching and Electrodeposition: The extraction of cathode Cu from Co concentrate involves pressure leaching, followed by Cu recovery and electrodeposition. This process incorporates steps for the removal and recycling of extractants, improving the efficiency of the extraction process and enhancing the quality of the final Cu product [38,39].
• Continuous Fluid Separation: A production method for extracting Co from Cu extraction tail liquid utilizes a continuous fluid separation system with chelate resin. This approach streamlines the process, reduces costs, and enhances cobalt purification efficiency by eliminating the need for traditional precipitation steps [40].
• Taguchi Method and ANOVA: The Taguchi method and analysis of variance (ANOVA) are employed to optimize heap leaching conditions for Cu and Co recovery from tailings. This statistical approach identifies optimal leaching parameters, including particle size, acidity, and flow rate, leading to significant metal recovery rates [41].
• Microfluidic Extraction: A procedure is employed to separate Cu and Co ions in a microchannel by optimizing parameters such as pH, flow rate, and extractant concentration. This method achieves a high Cu extraction rate while minimizing Co co-extraction, providing a more efficient and effective separation process [42].

The formulation of extraction processes for Cu and Co through the application of response surface methodology (RSM) and design of experiments (DOE) necessitates the optimization of numerous process parameters to enhance the efficiency and yield of extraction methods. RSM is a statistical approach used for modeling and analyzing problems where multiple variables influence the response of interest, with the goal of optimizing this response. DOE, on the other hand, is a structured methodology designed to elucidate the relationship between factors affecting a process and the resulting output. Together, these methodologies provide a robust framework for optimizing extraction processes. The optimization of process parameters using RSM in the extraction of copper and cobalt has proven highly effective in refining key variables. For instance, during the extraction of Cu from sulfuric solutions containing cobalt, RSM was utilized to fine-tune parameters such as the initial pH, volumetric flow rate, and extractant concentration. This approach achieved a Cu extraction efficiency of 96.73%, while simultaneously minimizing Co extraction to just 2.41% [42]. Similarly, RSM was employed to optimize the leaching conditions for cobalt dissolution from heterogenite, identifying critical factors such as the ferrous sulphate dosage, leaching time, and temperature [18]. Methodologies such as the Box-Behnken design and central composite design (CCD) have been utilized to analyze the effects of various factors on extraction processes. For example, the Box-Behnken design was used to model the leaching behavior of Cu-Co ores, considering parameters such as solid percentage, time, particle size, and Fe²⁺ ion concentration [20]. CCD was employed to evaluate cobalt ion extraction using an aqueous two-phase system, highlighting the influence of cobalt ion concentration and volume on extraction efficiency [43].

The integration of response surface methodology (RSM) with artificial neural networks (ANN) has been investigated to enhance prediction accuracy and process optimization. In one study, ANN was combined with RSM to model the leaching behavior of Cu-Co ores, achieving high correlation coefficients and low root mean square errors, highlighting the effectiveness of this integrated approach [20]. RSM has also been employed in the design of counter-current leaching systems for Cu extraction, optimizing factors such as acid consumption, iron concentration, and leaching time. This approach improved overall leaching efficiency by up to 80% [44]. The application of RSM in developing environmentally sustainable extraction techniques, such as aqueous two-phase systems, demonstrates its potential to reduce the environmental impact associated with traditional extraction methods. This approach replaces hazardous organic solvents with water, aligning with sustainable and eco-friendly practices [43]. The optimized extraction processes developed through RSM and DOE have significant industrial applications, particularly in the recovery of metals from low-grade ores and waste materials.

While RSM and DOE are powerful tools for optimizing extraction processes, their integration with advanced modeling techniques, such as artificial neural networks (ANNs), can significantly enhance the robustness and applicability of these models across diverse industrial settings. Moreover, the shift towards eco-friendly extraction methods highlights the crucial importance of sustainable practices within the field of metallurgy.

Although considerable progress has been made in the extraction of Cu and Co, challenges remain, including the variability in ore mineralogy and the pressing need for sustainable methodologies. Future research efforts could focus on combining these approaches with emerging technologies to further improve efficiency and promote environmental sustainability. In the context of Co leaching, RSM has been employed to model the effects of various parameters, such as acid concentration and the presence of a reducing agent, offering valuable insights into the optimal conditions for maximizing Co recovery [45]. The use of mathematical models and simulations further aids in understanding the dynamic behavior of the leaching process. For Mn, RSM has been applied to optimize the reductive leaching process, exploring various reducing agents and acid concentrations. This methodology identifies the most significant variables influencing Mn extraction, enabling the achievement of high extraction efficiencies [19,46].

3. Materials and Methods

3.1. Ferromanganese Crusts

Studied samples were recovered in the course of two different cruises performed by the Geological Survey of Spain (IGME): sample DRAGO 0511/DR04-15 was sampled during the DRAGO 0511 cruise on board the RV Miguel Oliver on the Echo Seamount, located 263 nautical miles southwest of Canary Islands; while sample SUBVENT 1/DA06-4 was recovered through the SUBVENT 1 cruise on board RV Hespérides on the Gaire Seamount, sited 240 nautical miles west-southwest to Canary Islands (see Figure 2).

Both seamounts are part of the Canary Islands Seamount Province, which forms an ancient seamount track in the north-east Atlantic Ocean, dating back to the Cretaceous period (approximately 142–72 Ma). Co-rich ferromanganese deposits are found covering these seamounts as almost continuous pavements with varying thicknesses (0.1–25 cm). The Echo Seamount is a guyot-type seamount (Figure 2A), characterized by a conical structure with a flat summit, rising from 3700 m to 250 m at its peak. The sample studied, recovered via dredging on the eastern flank, exhibited an average thickness of 2.5 cm. In contrast, Gaire Seamount is a very deep and small structure with a ridge-like morphology-oriented NNW–SSE. It measures 6 km in length and 5 km in width in the region of its secondary cone, at depths ranging from 4900 to 4650 m (Figure 2B). The studied sample was also recovered via dredging along a track from ESE to WNW and displayed a thickness of 6.4 cm.

3.2. Iron Residue

The steel residue, or “slag”, was sourced from the steel smelting operations of CAP Company in Chile. This by-product comprised 82.65% Fe₃O₄, 13.03% Fe₂O₃, and 0.27% metallic iron (see

Table 2. Chemical analysis of steel residue.

Element	Mass (wt. %)
Fe3O4	82.65
Fe2O3	13.03
Fe0	0.27
CaO	0.75
SiO2	1.5
Al2O3	0.3
MgO	0.2
SO3	0.08
P2O5	0.2
K2O	0.015
MnO	0.8
C	0.2

). Initially, the slag particles ranged in size from 1 to 10 mm; however, they were subsequently ground using a mortar to reduce their size, producing particles within the range of −140 to +100 µm.

3.3. Leaching Test

Leaching tests were conducted in a 200 mL glass reactor with a solid-to-liquid ratio of 0.1 (100 mL of acid solution). A total of 10 g of ferromanganese crusts was maintained in suspension and agitated using a 5-position magnetic stirrer (IKA ROS, CEP 13087-534, Campinas, Brazil) at 600 rpm, with a particle size range of −140 to +100 µm. The temperature was controlled using an oil-heated circulator (Julabo, St. Louis, MO, USA), and experiments were conducted at temperatures ranging from 25 to 60 °C. All tests were performed in duplicate, with analysis carried out using 5 mL undiluted samples analyzed via atomic absorption spectroscopy (AAS), ensuring a variation quotient of ≤5% and a relative difference of 5–10%. The pH and oxidation-reduction potential (ORP) of the leaching solutions were measured using a pH-ORP meter (HANNA HI-4222, St. Louis, MO, USA). ORP measurements were taken with a platinum electrode cell and a saturated Ag/AgCl reference electrode.

3.4. Estimation of Factorial DOE

To address this and investigate Mn and Co extraction from ferromanganese crusts, two independent variables were selected for a factorial design comprising 32 experiments: time and the ferromanganese crust/Fe(res) ratio. The experiments were conducted under controlled conditions to evaluate the influence of these variables on extraction efficiency. The results demonstrated a significant correlation between extraction efficiency and both variables, identifying optimal conditions for maximizing Mn and Co recovery. This methodology enables the evaluation of the most significant variables and their respective impacts while providing an experimental framework that, through coefficient calculation, facilitates the optimization of the response variable [49,50,51]. A factorial design was applied involving two factors, each one having three levels; thus, 9 experimental tests were carried out, obtaining the response variables Mn and Co extraction. Minitab 18 software was used for the experimental design and development of a multiple regression equation [52].

Then, the explained variable was expressed based on linear effect of explanatory variables and considering the effects of interaction and curvature, as shown in Equation (1).

$$Mn|Co Extraction \left(\%\right)=\alpha +{\displaystyle \sum }_{\forall i}{\beta }_i{x}_i+{\displaystyle \sum }_{\forall i}{\displaystyle \sum }_{\forall j}{\beta }_{ij}{x}_i{x}_j ,\forall i,j\in \left\{time, crust/Fe\right\}$$

(1)

where $\alpha$ is an overall constant, $x_i$ is the value of the level $i$ of the factor $x$, ${\beta }_i$ is the coefficient of the linear factor $x_i$, ${\beta }_{ij}$ is the coefficient of the interactions $x_i\cdot x_j$, and Mn and Co extraction are the dependent variables.

Table 3. Experimental conditions.

Parameters [Variable]/Values	Low	Medium	High
$\mathrm{Time} \left(\min \right) [x_1$]	10	20	30
$\mathrm{Ferromanganese} \mathrm{Crust}/\mathrm{Fe}\left(\mathrm{res}\right) [x_2$]	1/3	1/2	1/1
Codifications	−1	0	1

shows the values of the levels for each factor, while

Table 4. Experimental configuration and Cu and Co extraction.

		Sample	Drago 0511/DR04-15 [S1]		Subvent 1/DA06-4 [S2]
Test	Time (min)	Ferromanganese Crust/Fe(res)	Mn Extraction (%)	Co Extraction (%)	Mn Extraction (%)	Co Extraction (%)
1	−1	−1	74.15	31	73.95	29
2	−1	0	69.5	28	71.25	27.5
3	−1	1	55	20.55	56.5	17.6
4	0	−1	72.45	32.8	73.45	31
5	0	0	74.21	31.5	74.21	30
6	0	1	67.8	27.25	66.7	26.55
7	1	−1	83	35.95	84.7	33
8	1	0	81.85	34.65	82	32.5
9	1	1	73.55	31.4	71.8	30.45

shows the recovery obtained for each configuration.

4. Results and Discussion

4.1. Sample Characterization

The studied cobalt-rich ferromanganese crusts are dark brown to black in color, with a botryoidal to current-smoothed surface. The botryoids vary in size from millimetric to centimetric, characteristic of hydrogenetic growth, which occurs through slow precipitation from cold seawater. Cross sections of the samples reveal finely laminated growth, forming two to three distinct layers (Figure 3A). Polished thin sections examined under a reflected light microscope show two primary internal structures within the ferromanganese crusts: dendritic to mottled (Figure 3B) and columnar to densely parallel (Figure 3C). The crusts’ mineralogy is dominated by poorly crystalline Fe and Mn oxyhydroxides, with Fe-vernadite ((Mn⁴⁺, Fe³⁺, Ca, Na)(O, OH)₂ · nH₂O) being the primary mineral, constituting 70–90% of the composition. Vernadite, a poorly crystalline mineral, is identified primarily by its reflections at 2.45 and 1.72 Å.

Other manganese minerals, present in minor quantities, include birnessite and asbolane, while Fe minerals are represented by the goethite group. Detrital and authigenic minerals are also present, such as quartz, feldspar, and clays, with calcite typically originating from bioclastic accumulation. These minerals form light-colored laminae interspersed with oxyhydroxide minerals.

Figure 3. (A) Crosscut section of Co-rich ferromanganese crust SUBVENT 1/DA06-4. (B,C) Photomicrographs of characteristic internal textures—dendritic-mottled and columnar-dense parallel, respectively. Canary Islands Seamounts Province.

Figure 3. (A) Crosscut section of Co-rich ferromanganese crust SUBVENT 1/DA06-4. (B,C) Photomicrographs of characteristic internal textures—dendritic-mottled and columnar-dense parallel, respectively. Canary Islands Seamounts Province.

The geochemistry of the samples studied, Drago 0511/DR04-15 and Subvent 1/DA06-4, aligns with the mineralogical results, showing the highest contents of Fe and Mn (averaging 19.6 wt.% and 19.5 wt.% respectively) among the major elements. The aluminum-silicate elements have a total average of 19 wt.%, with the highest content observed in the deepest sample (SUBVENT 1/DA06-4), which also exhibits a significant input of detrital minerals, as confirmed by the XRD analysis (

Table 5. Bulk mineralogy of studied samples. 10 Å Mn-oxide represented by todorokite, asbolane, and/or buserite, CFA = carbonate-fluorapatite.

Sample	Main Minerals	Accessory Minerals
DRAGO 0511/DR04-15	vernadite, birnessite, goethite	Quartz, calcite, CFA, clay
SUBVENT 1/DA06-4	vernadite, birnessite, goethite	10 Å Mn-oxides, quartz, feldspars, CFA, clay

). In contrast, the sample DRAGO 0511/DR04-15 shows higher concentrations of CaO and P₂O₅ (6.05 wt.% and 2.47 wt.% respectively), linked to the presence of phosphates (CFA), also identifiable in the mineralogical analysis.

Fe-Mn crusts, due to their genetic processes and mineralogy, concentrate high contents of critical and strategic elements. Between them the most enriched are Co, Ni, Cu, V, Mo, and REY, with an average of 3300, 2600, 900, 800, 380, and 2300 µg/g, respectively (See

Table 6. Bulk chemistry of samples in selected elements for this study.

Sample	Fe wt%	Mn wt%	Co µg/g	Ni µg/g	Cu µg/g	REE + Y µg/g
DRAGO 0511/DR04-15	19.9	14.5	4262	2359	474	2298
SUBVENT 1/DA06-4	19.4	15.7	2424	2844	1342	2323
Mean	19.7	15.1	3343	2602	908	2311

)

4.2. Effect of Variables

Principal components analysis reveals that the factors of time (min) and the ferromanganese crust/Fe(res) ratio have a significant effect, as variations in their levels impact the response differently. This is evident from the main effects plots for Mn and Co extraction shown in Figure 4 and Figure 6, respectively. The main effects analysis indicates that for both samples, S1 and S2, as well as for both Mn and Co extraction, time is directly proportional to mineral extraction, whereas the ferromanganese crust/Fe(res) ratio is inversely proportional to mineral extraction.

Leaching time is directly correlated with an increase in mineral recovery percentage, as the extended duration allows for the complete progression of the chemical and physical reactions that drive mineral dissolution. This phenomenon is primarily attributed to the inherently gradual nature of chemical reactions. Specifically, as the duration increases, the molecules of the leaching agent have more opportunities to interact with the target mineral, thereby improving the extraction efficiency of the desired metal. Several additional factors contribute to this behavior: (i) Reagent diffusion: the leaching agent penetrates the mineral more effectively over time; (ii) Dissolution of less reactive minerals: certain minerals, which require more time for complete dissolution, are progressively broken down; (iii) Dilution of reaction products: prolonged leaching can dilute the concentration of reaction products, such as metal ions in the solution, enabling reactions to continue with greater efficiency; and (iv) Secondary processes: extended leaching times may activate secondary mechanisms, such as the oxidation of accompanying elements or the breakdown of passivating layers, improving mineral exposure to the leaching agent.

In contrast, the recovery rates of Co and Mn decline as the scale-to-iron ratio increases, due to several factors that affect the interaction between the target mineral and the leaching agent. For example: (i) Insufficient reagent concentration: as the quantity of mineral increases without a proportional rise in the leaching agent, the reagent becomes spread too thinly across a larger number of particles, potentially leading to inadequate concentrations for complete metal dissolution; (ii) Reduced mixture uniformity: at higher mineral concentrations, the mixture may become less homogenous, hindering the leaching agent’s ability to effectively interact with the mineral particles, thereby reducing process efficiency; and (iii) Solution saturation: a larger quantity of mineral may release more metal ions into the solution, increasing the concentration of dissolved constituents. This can result in solution saturation, impairing the leaching agent’s capacity to further dissolve the metal.

Overall, these factors highlight the delicate balance required to optimize leaching conditions for maximum recovery efficiency. Contour graphs (see Figure 5 and Figure 7), on the other hand, show that the maximum Mn extraction is reached at higher time levels and lower to medium levels of ferromanganese crust/Fe(res) ratio (both samples S1 and S2), while the maximum Co extraction is also reached at higher time levels and lower ferromanganese crust/Fe(res) ratio levels (also both samples S1 and S2).

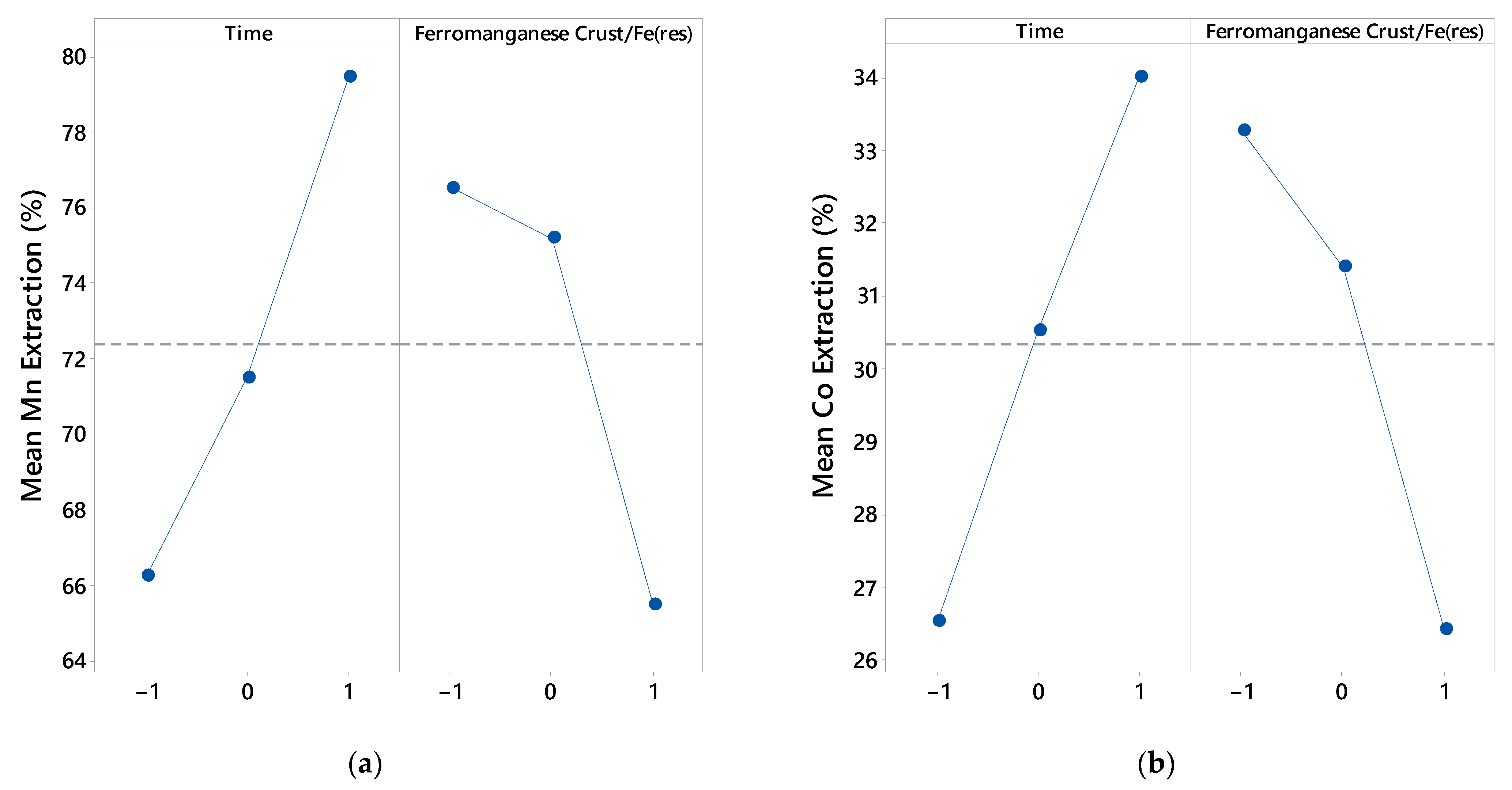

Figure 4. Linear main effect plot for Mn (a) and Co (b) extraction (%) [S1].

Figure 4. Linear main effect plot for Mn (a) and Co (b) extraction (%) [S1].

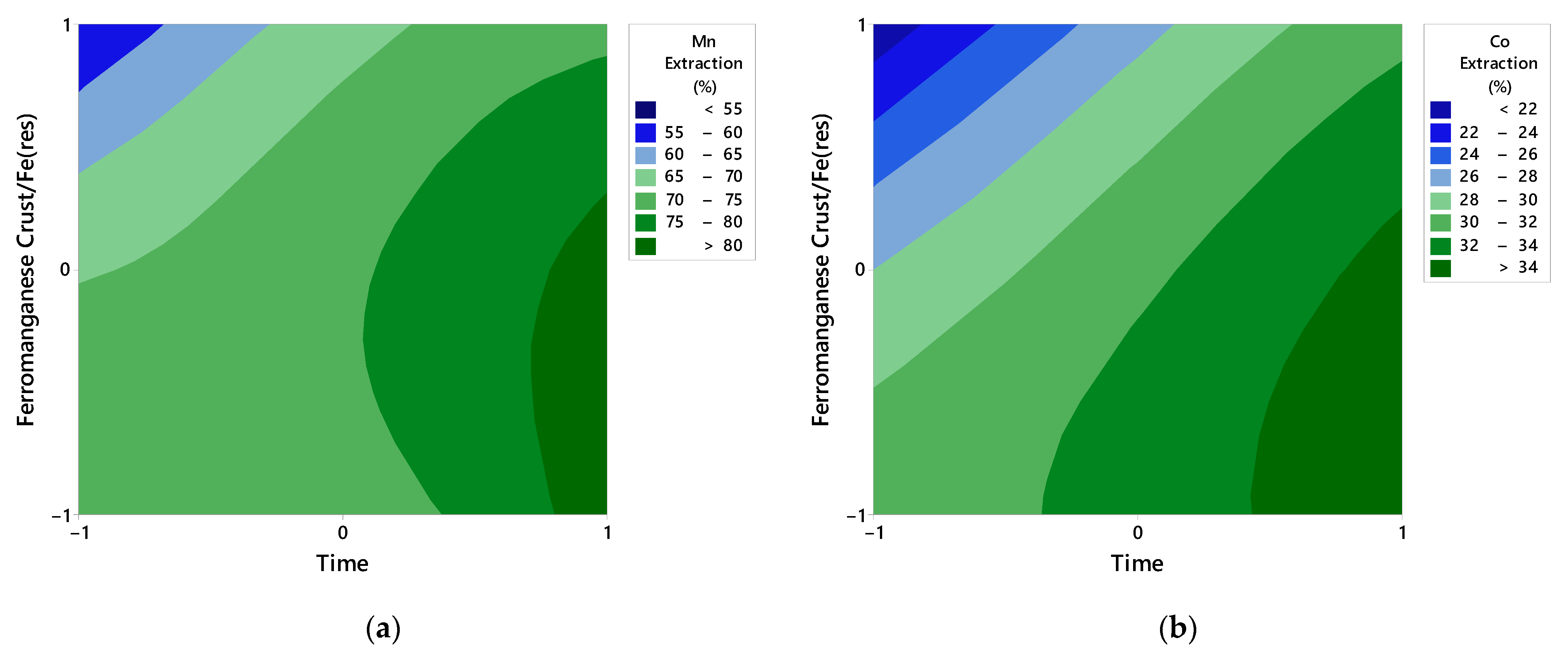

Figure 5. Contour plot of Mn (a) and Co (b) Extraction (%) versus ferromanganese crust/Fe(res) and time (min) [S1].

Figure 5. Contour plot of Mn (a) and Co (b) Extraction (%) versus ferromanganese crust/Fe(res) and time (min) [S1].

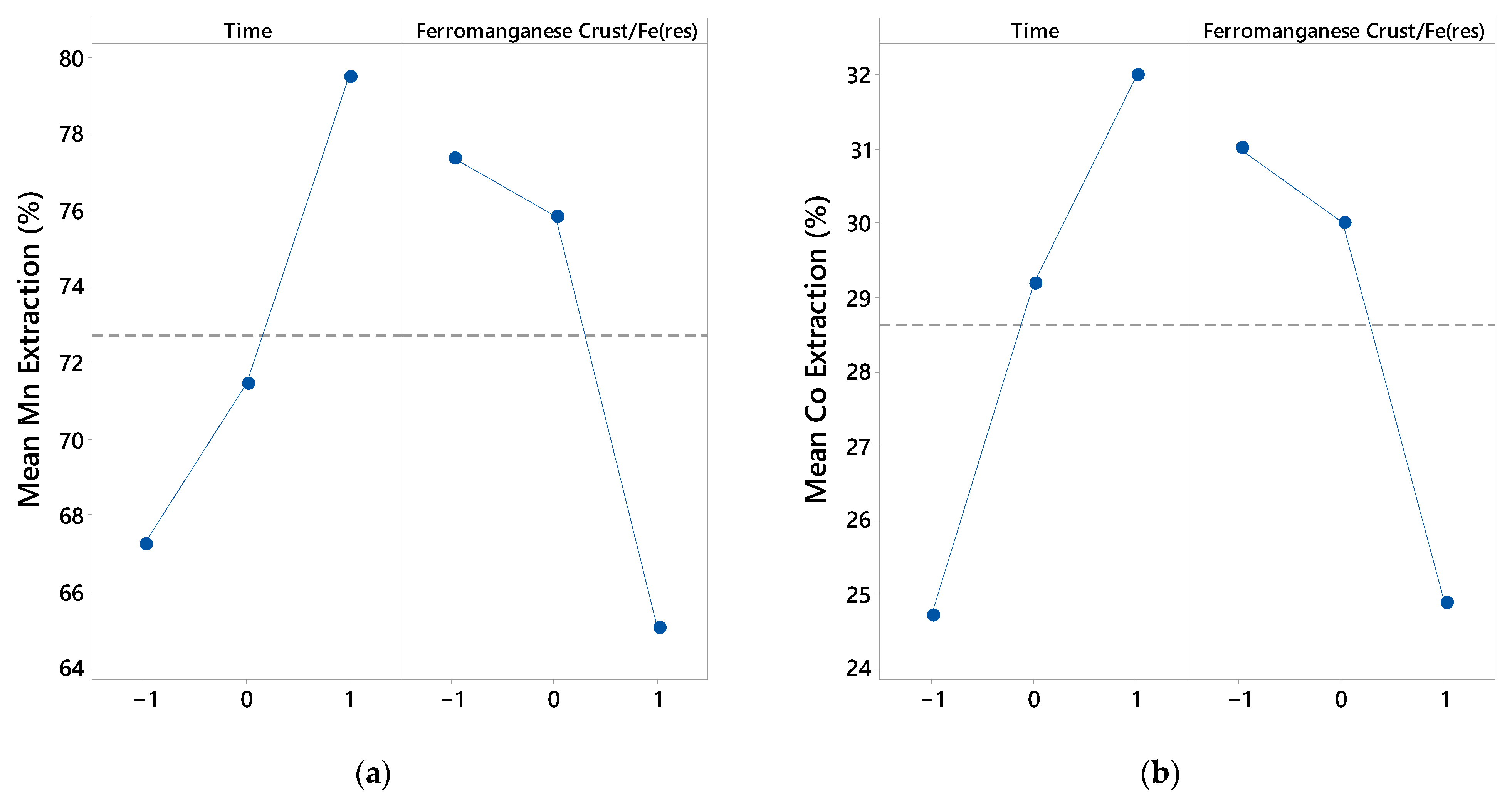

Figure 6. Linear main effect plot for Mn (a) and Co (b) extraction (%) [S2].

Figure 6. Linear main effect plot for Mn (a) and Co (b) extraction (%) [S2].

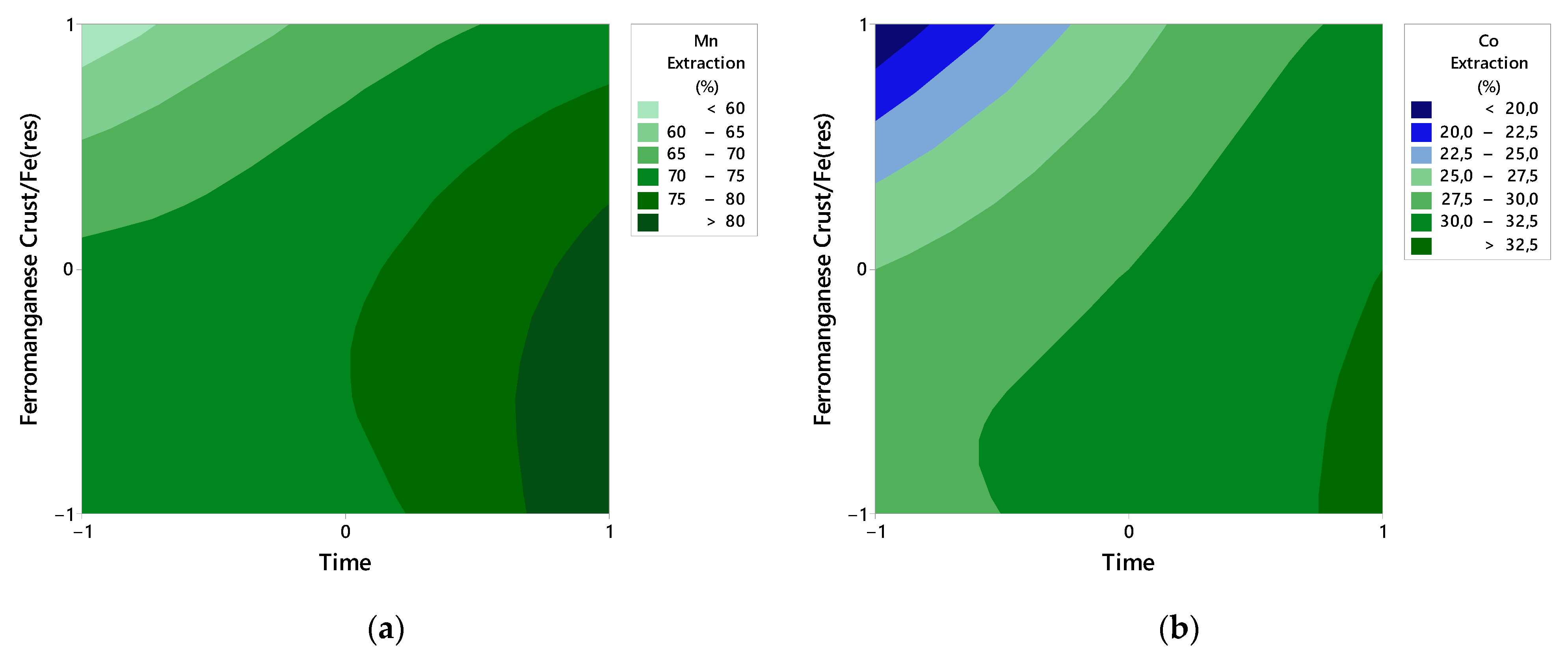

Figure 7. Contour plot of Mn (a) and Co (b) Extraction (%) versus ferromanganese crust/Fe(res) and time (min) [S2].

Figure 7. Contour plot of Mn (a) and Co (b) Extraction (%) versus ferromanganese crust/Fe(res) and time (min) [S2].

Developing the ANOVA test and the multiple regression adjustment (see

Table 7. Regression models fitted for Mn and Co extraction (%).

Sample	Regression Model	R2 (%)	Equation
S1	$Mn Ext. \left(\%\right)=72.39+6.62x_1-5.54x_2$	82.64	(2)
S1	$Co Ext. \left(\%\right)=31.383+3.742x_1-3.425x_2-1.558x_1^2+1.475x_1{x}_2$	98.86	(3)
S2	$Mn Ext. \left(\%\right)=75.82+6.13x_1-6.18x_2-4.64x_2^2$	92.89	(4)
S2	$Co Ext. \left(\%\right)=28.622+3.642x_1-3.067x_2+2.212x_1{x}_2$	90.30	(5)

), the Mn and Co extraction for samples S1 and S2 according to the predictive variables of time and ferromanganese crust/Fe(res) ratio is given by Equations (2)–(5), respectively.

It was observed that Mn extraction can be described by multiple linear regression for S1 and quadratic regression for S2, with the interaction factor not contributing significantly to the variability of the model. In contrast, for Co extraction, the quadratic time factor and interaction factor are significant for the S1 model, while only the interaction factor is significant in the S2 model. The ANOVA test indicates that the models adequately represent Mn and Co extraction for the sampled values. Furthermore, the models do not require additional adjustments and are validated by the following goodness-of-fit statistics:

• The p-values of the models (p < 0.05) confirm their statistical significance.
• The R² statistic demonstrates that a substantial proportion of the total variability is explained by the models.
• The F-test results (

  Table 8. ANOVA statistics for Mn and Co extraction models for both samples S1 and S2.

  Equation	F-Value	p-Value	S	Critical F-Value
  (2)	14.28	0.005	3.95919	5.14
  (3)	87.07	0.000	0.69439	19.24
  (4)	21.77	0.003	2.76168	5.41
  (5)	15.52	0.006	1.82772	5.41

  ) show the models’ significance, as the F-values from the regressions are significantly greater than the critical F-values for all fitted models.

Additionally, the residual normality test indicates that the residuals are normally distributed. The p-value of the Kolmogorov-Smirnov (KS) test (p > 0.15) exceeds the significance level, and the KS statistics are lower than the critical KS indicator (

Table 9. Residuals study for Mn and Co extraction (%).

Equation	$\mathit{\mu }$	$\mathit{\sigma }$	KS	Critical KS	Normality Test of Residuals (p-Value)
(2)	−0.02379	1.075	0.185	0.453	>0.15
(3)	−0.05316	1.098	0.143	0.453	>0.15
(4)	0.02917	1.038	0.174	0.453	>0.15
(5)	−0.18040	1.140	0.097	0.453	>0.15

). Consequently, the assumption of normality for the regression model residuals cannot be rejected.

Gradient analysis of Mn and Co extraction, ∇Mn and ∇Co extraction ($x_1, x_2$) (see

Table 10. Gradient analysis for Mn and Co extraction (%) of Equations (2) to (5).

Sample S1	∇ Mn Extraction (%) [Equation (2)]				∇ Co Extraction (%) [Equation (3)]
	$Levels x_1|x_2$	−1	0	1	$Levels x_1|x_2$	−1	0	1
	−1	(6.6; −5.5)	(6.6; −5.5)	(6.6; −5.5)	−1	(5.4; −4.9)	(6.9; −4.9)	(8.3; −4.9)
	0	(6.6; −5.5)	(6.6; −5.5)	(6.6; −5.5)	0	(2.3; −3.4)	(3.7; −3.4)	(5.2; −3.4)
	1	(6.6; −5.5)	(6.6; −5.5)	(6.6; −5.5)	1	(−0.8; −2)	(0.6; −2)	(2.1; −2)
Sample S2	∇ Mn Extraction (%) [Equation (4)]				∇ Co Extraction (%) [Equation (5)]
	$Levels x_1|x_2$	−1	0	1	$Levels x_1|x_2$	−1	0	1
	−1	(6.1; 3.1)	(6.1; −6.2)	(6.1; −15.5)	−1	(5.9; −5.3)	(3.6; −5.3)	(1.4; −5.3)
	0	(6.1; 3.1)	(6.1; −6.2)	(6.1; −15.5)	0	(5.9; −3.1)	(3.6; −3.1)	(1.4; −3.1)
	1	(6.1; 3.1)	(6.1; −6.2)	(6.1; −15.5)	1	(5.9; −0.9)	(3.6; −0.9)	(1.4; −0.9)

), indicates the increases and decreases in the response variable in function of the predictor variables. The response decreases with respect to the variable $x_1$ and increases with respect to the variable $x_2$ for Mn extraction for both samples S1 and S2, for the entire set of sampled variables. However, although the trend is usually maintained for Co extraction, there is an exception in the trend of gradient of $x_1$ levels for lower levels of $x_2$ (for sample S1), where the gradient is positive for lower and medium values of time and negative for higher time values.

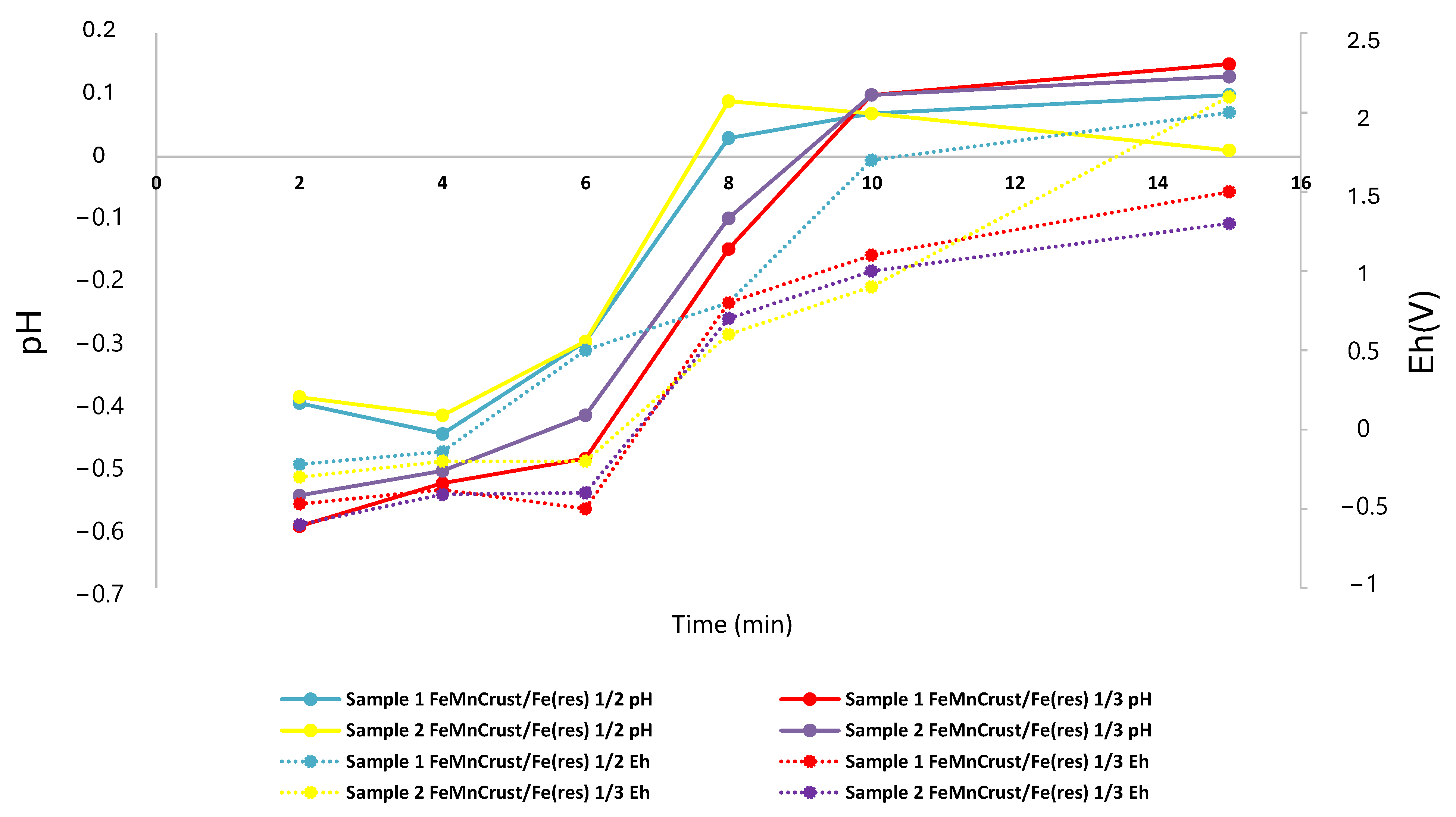

As shown in previous research [10,12], in a leaching process conducted in an acidic medium with the addition of iron as a reducing agent, the potential range for manganese dissolution is 1.4 to 1.2 V, with a pH range of 2 to 8. For Co dissolution, the potential range is 0.8 to 0.25 V, and the pH range is 2 to 4.5. Therefore, the results presented in Figure 8 fall within the appropriate potential and pH ranges to facilitate the regeneration of Fe³⁺ and Fe²⁺ ions, enabling the simultaneous dissolution of both elements.

4.3. Residue Analysis

Waste from the two samples analyzed does not show the presence of contaminating elements, specifically Fe precipitations. Furthermore, according to the previous study by Pérez et al. [12], the high concentration of ferric and ferrous ions in the system allows it to operate within redox and pH ranges that favor manganese dissolution, preventing its precipitation.

4.3.1. DRAGO 0511/DR04-15

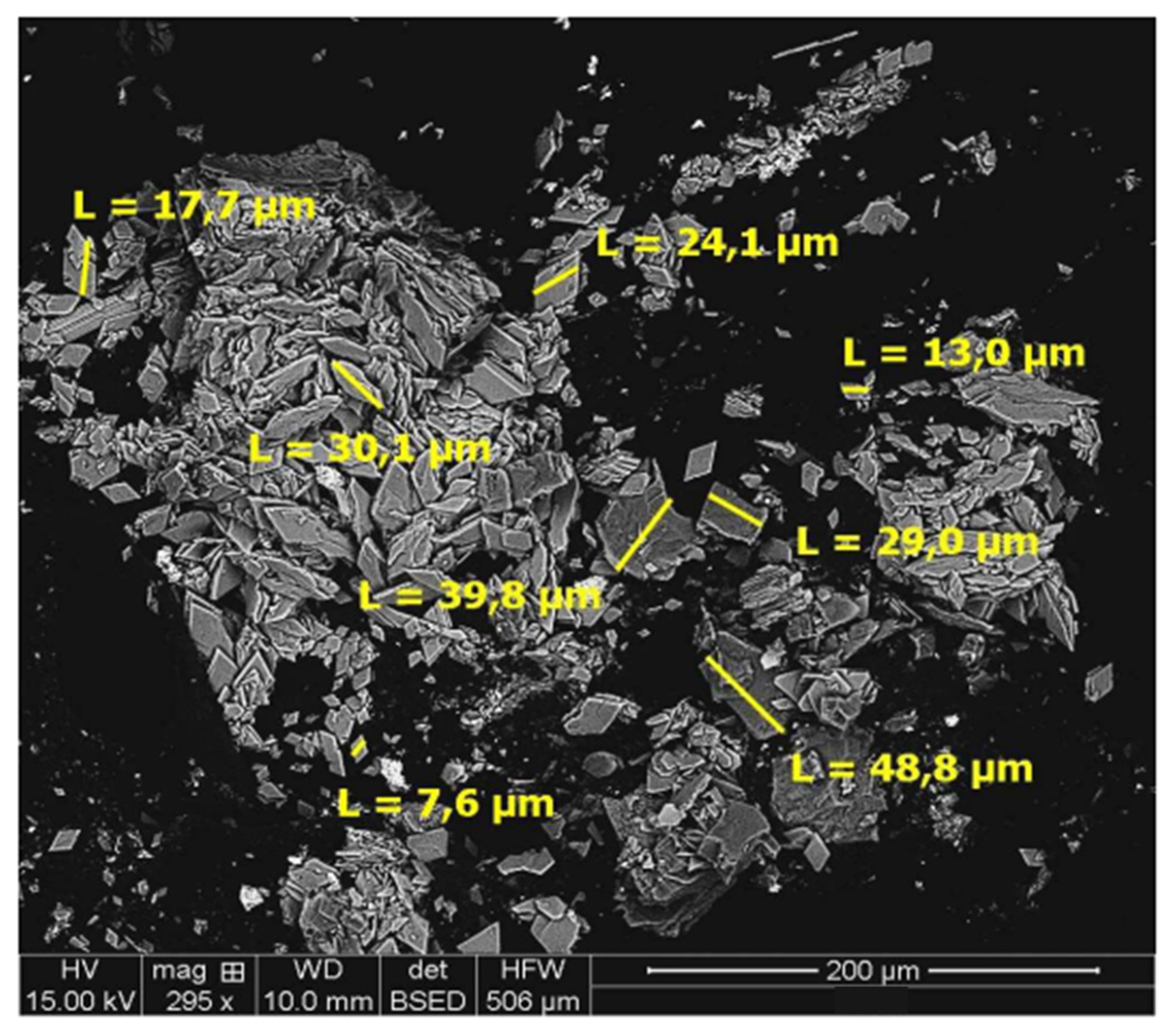

Figure 9 shows a micrograph obtained via SEM-EDS, used to identify elemental associations. The image reveals particles with Fe/S/O and Si/S/O associations, as well as impurities with Fe/O, Al/Si/O, and Mg/Si/O associations. The Si/S/O particles range in size from 29.0 µm to 48.8 µm in length, while the Fe/S/O particles range from 7.6 µm to 30.1 µm in length.

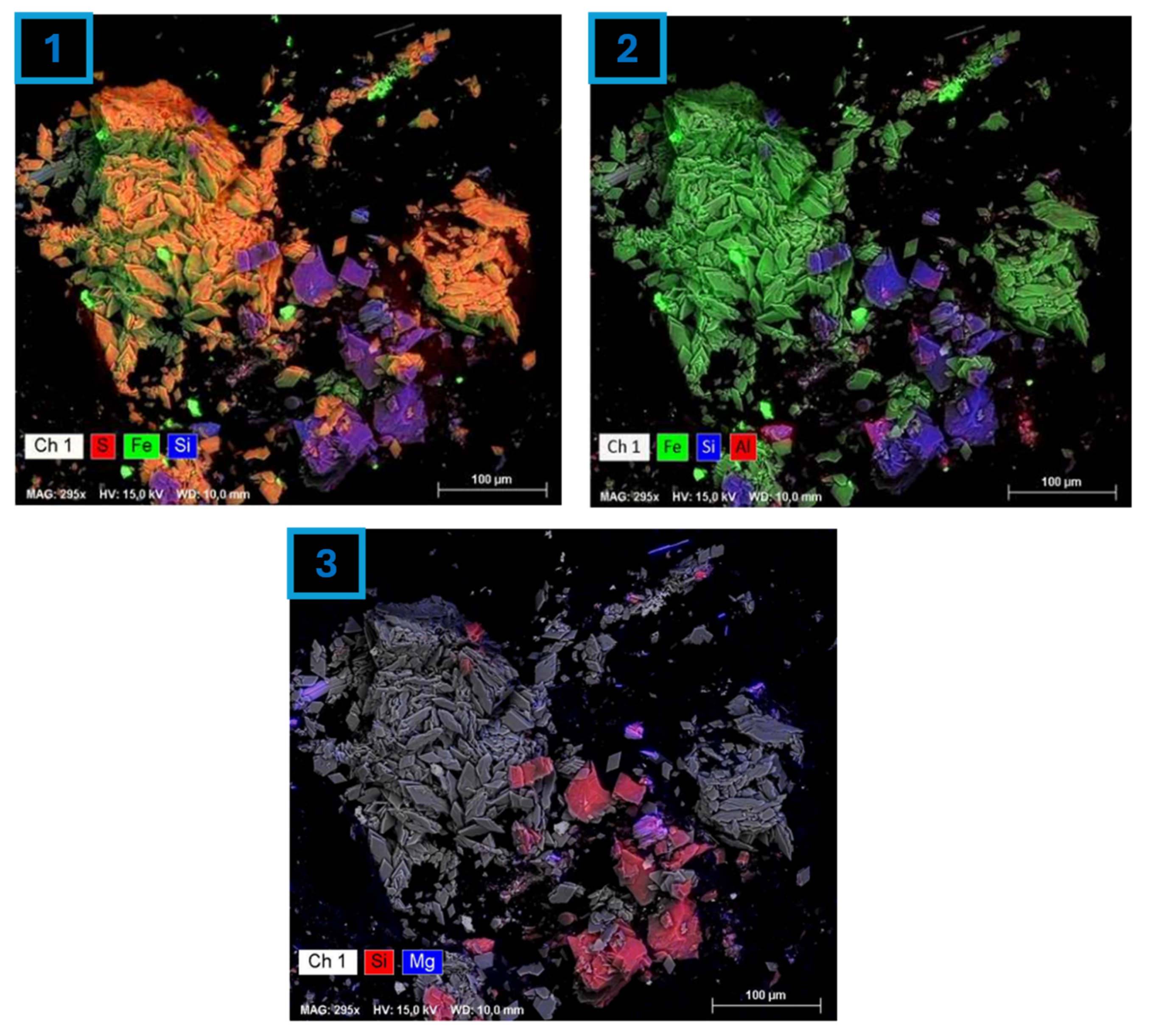

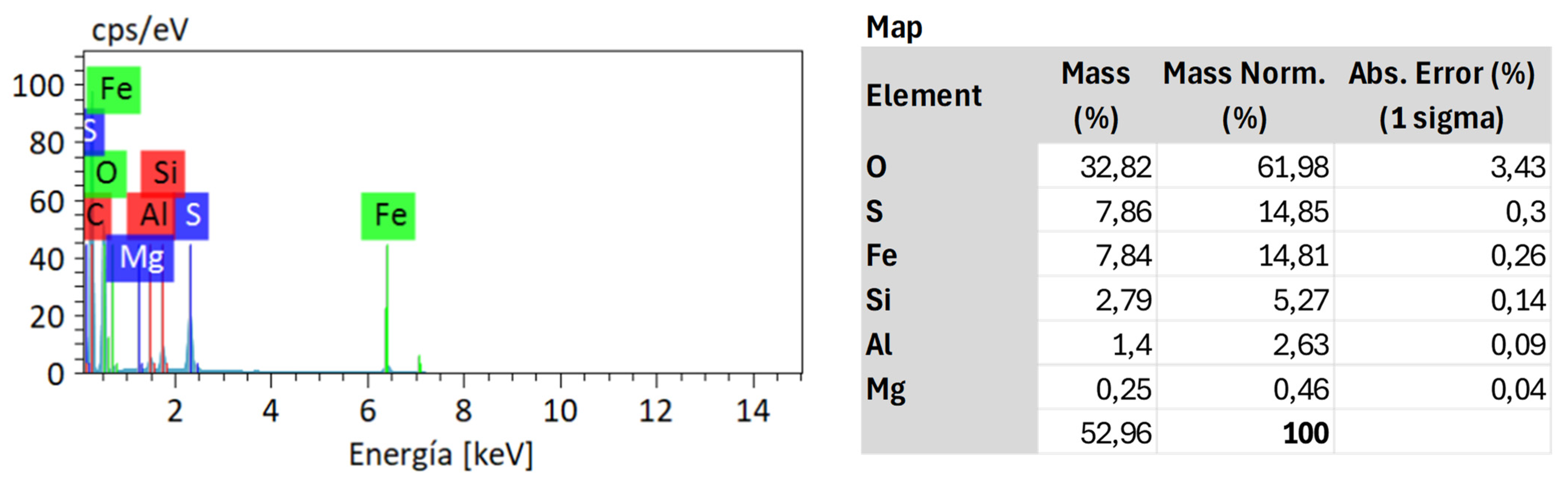

Figure 10 depicts particles with Fe/S/O associations (orange in (1), green in (2), and gray in (3)) and Si/S/O associations (purple in (1), blue in (2), and pink in (3)). Additionally, impurities with Fe/O associations are shown (lemon green in (1) and (2), and light gray in (3)), as well as Al/Si/O associations (dark green in (1) and uncolored in (2) and (3)) and Mg/Si/O associations (pink in (2), and uncolored in (1) and (3)). The analysis confirms the absence of contaminating elements and demonstrates that no cobalt or manganese compound precipitation occurred (see Figure 11).

4.3.2. SUBVENT 1/DA06-4

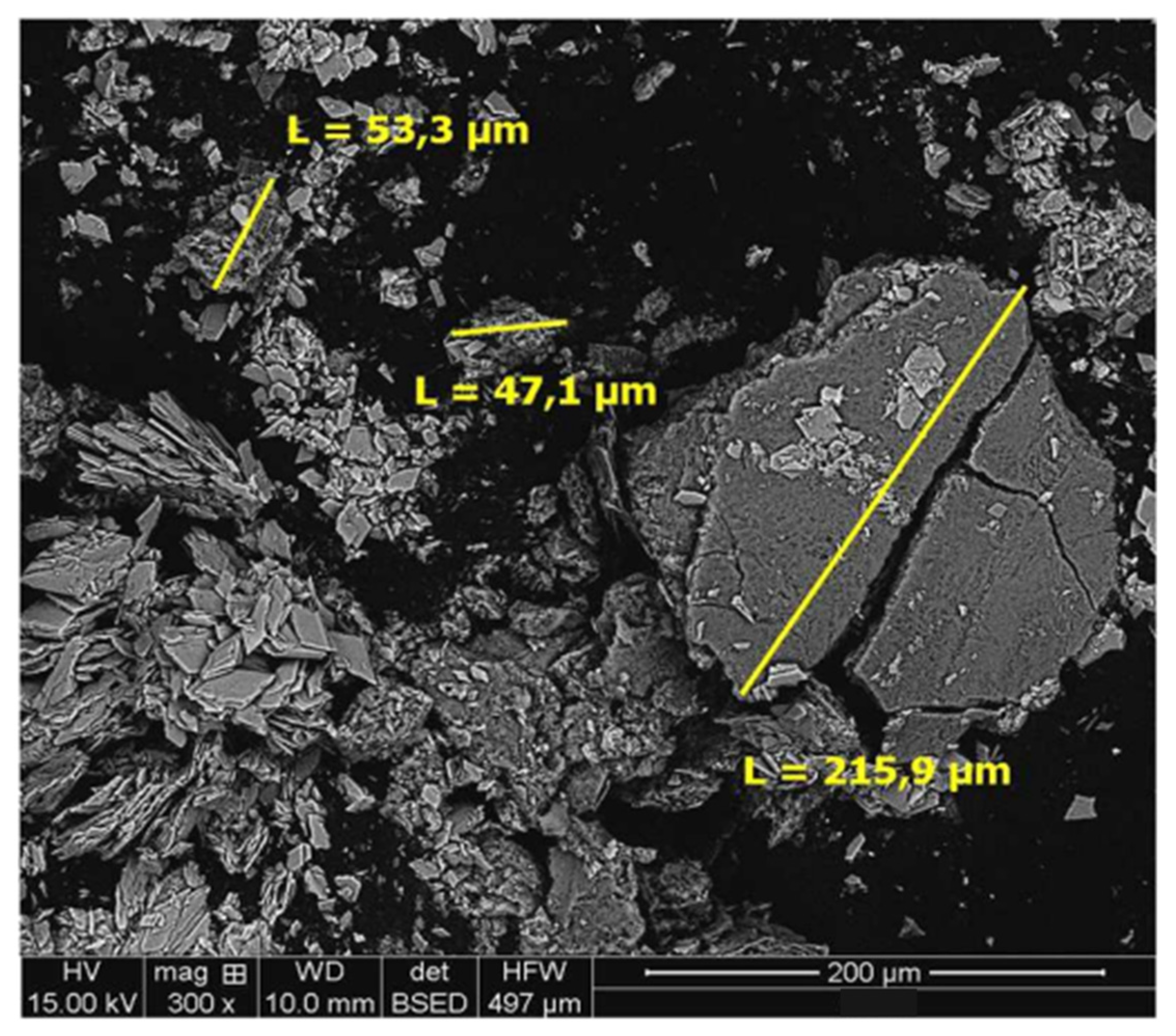

The micrograph in Figure 12 (obtained via SEM-EDS) displays particles with Fe/S/O and Si/S/O associations, where the Si/S/O particles range in size from 47.1 to 215.9 µm in length. Additionally, the presence of Fe impurities is observed.

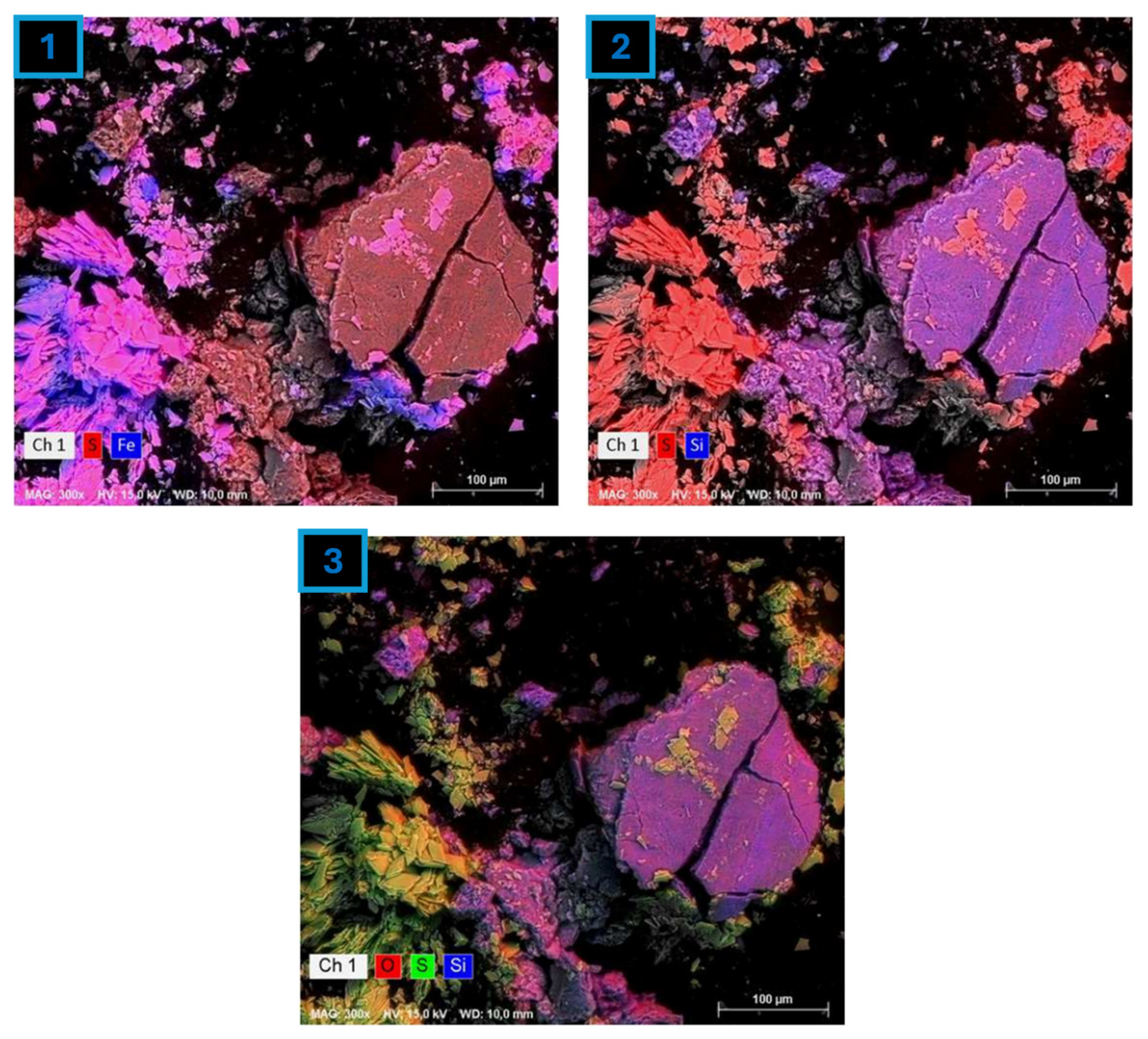

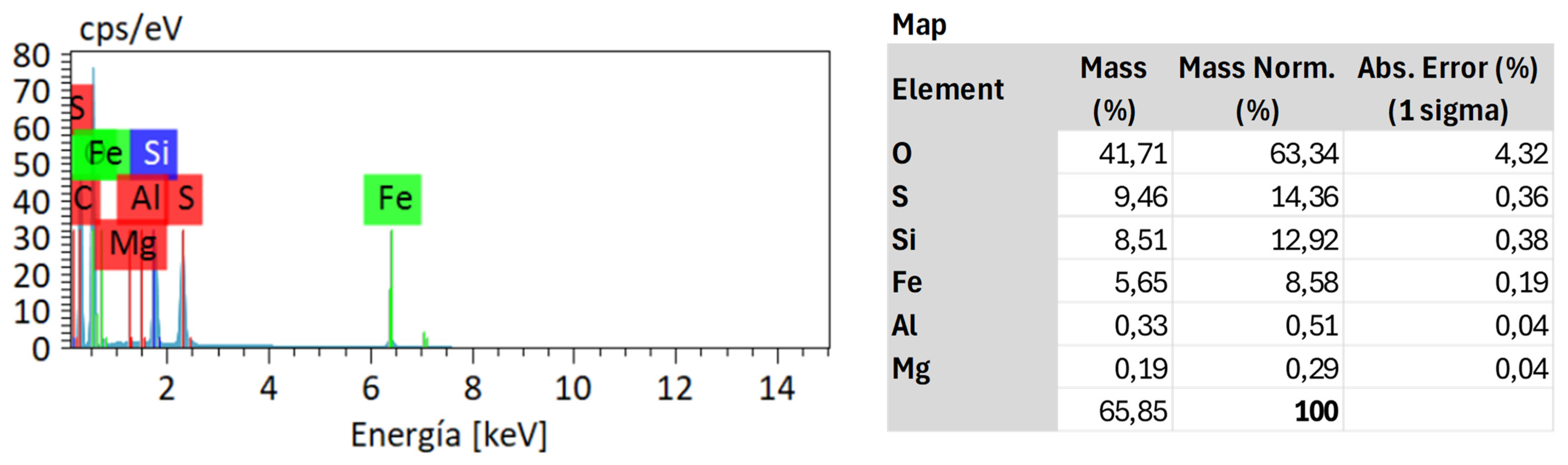

Figure 13 illustrates particles with Si/S/O associations (red in (1), purple in (2) and (3)) and Fe/S/O associations (pink in (1), red in (2), and orange in (3)). Additionally, Fe impurities are identified (blue in (1) and uncolored in (2) and (3)). Similar to Sample 1, this sample shows no evidence of contaminating element formation (see Figure 14).

5. Conclusions

This study presents results obtained through statistical models to investigate Mn and Co extraction in an acid medium at a room temperature of 25 °C. The effects of time and the ferromanganese crust/Fe(res) ratio were studied as predictive variables. The key findings are as follows:

• Mn and Co extraction can be effectively modeled using multiple regression techniques, with strong goodness-of-fit indicators.
• Optimal Mn and Co extraction is achieved at longer durations (30 min) and lower ferromanganese crust/Fe(res) ratios (1/3) for both samples, S1 and S2.
• Gradient analysis shows that Mn and Co extraction for both samples is directly proportional to time and inversely proportional to the ferromanganese crust/Fe(res) ratio in most cases, except for Co extraction at higher time levels and lower ferromanganese crust/Fe(res) ratios.
• No precipitation of Co or Mn species was observed in the studied residues.

While RSM and DOE offer substantial advantages in modeling leaching processes, alternative approaches such as Bayesian statistics and genetic programming could provide valuable additional insights and suggest interesting avenues for future research. Bayesian models, for instance, incorporate probabilistic elements to predict leaching outcomes based on prior and posterior knowledge, offering a novel perspective on process optimization [45]. Similarly, genetic programming can be utilized to develop predictive models for leaching processes, serving as a robust tool for understanding the relationships between process parameters and leaching efficiency [53]. These alternative methodologies could complement RSM and DOE, enabling a more comprehensive understanding of leaching processes.
