A Two-Layer User Energy Management Strategy for Virtual Power Plants Based on HG-Multi-Agent Reinforcement Learning
Abstract
1. Introduction
- (1)
- A two-layer optimization framework for the VPP has been proposed, in which the upper layer coordinates the scheduling and benefit allocation among various stakeholders and the lower layer executes intelligent decision-making for users.
- (2)
- A detailed household power management model is proposed to generate predicted power demands and allocate power within each household user in the lower layer.
- (3)
- A HG-multi-agent reinforcement-based method is proposed, which reconstructs the objective functions of each stakeholder with the hierarchical game algorithm to simplify the solving process, utilizing the multi-agent Q-learning algorithm combined with upper-layer solution information to accelerate training and solving.
2. Two-Layer Optimization Framework for VPP

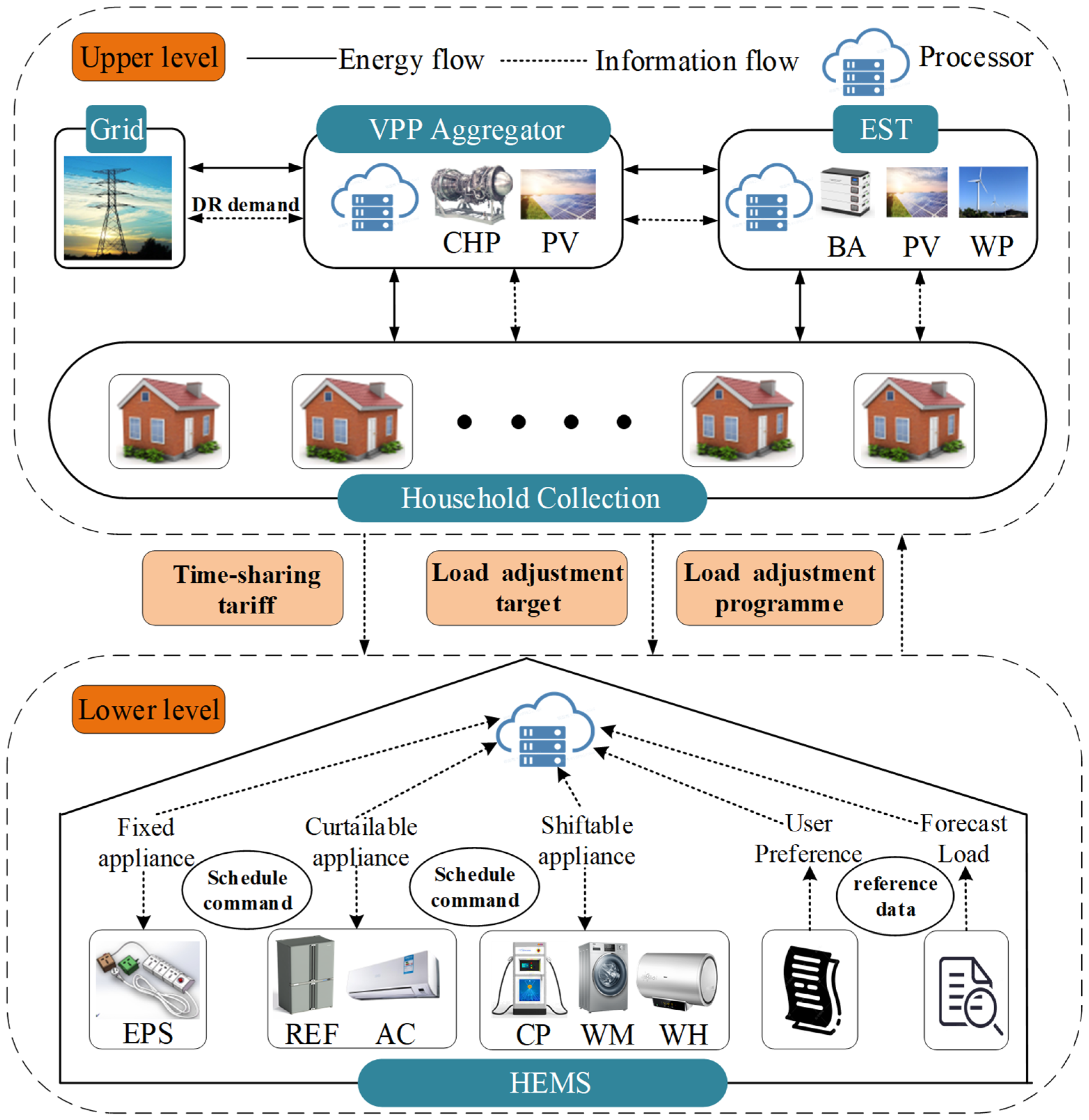

2.1. Operation Tasks of the Two-Layer Optimization Framework
- (1)
- Upper layer: Coordinate the scheduling and benefit allocation among stakeholders
- (2)
- Lower layer: Execute intelligent decision-making for users

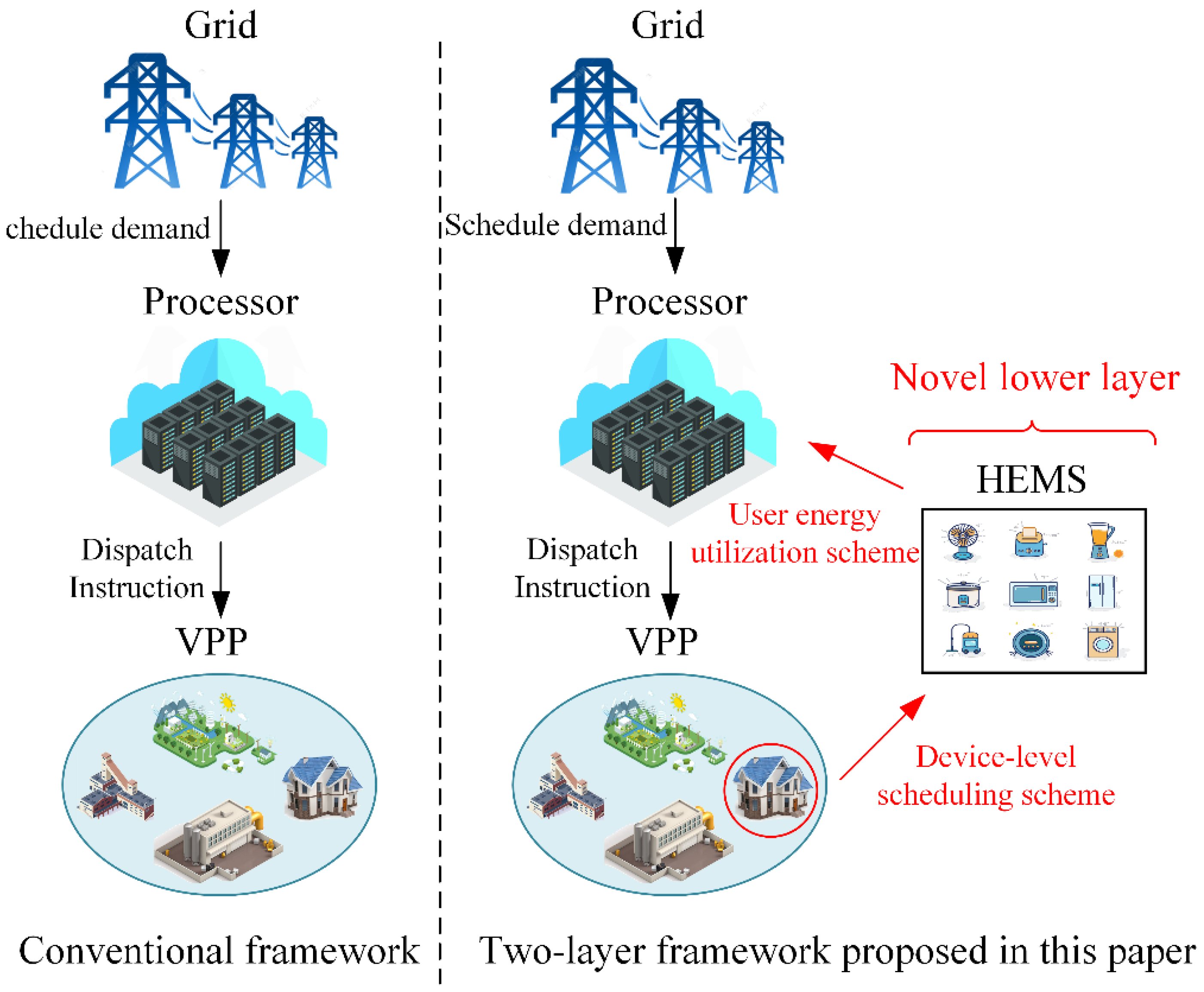

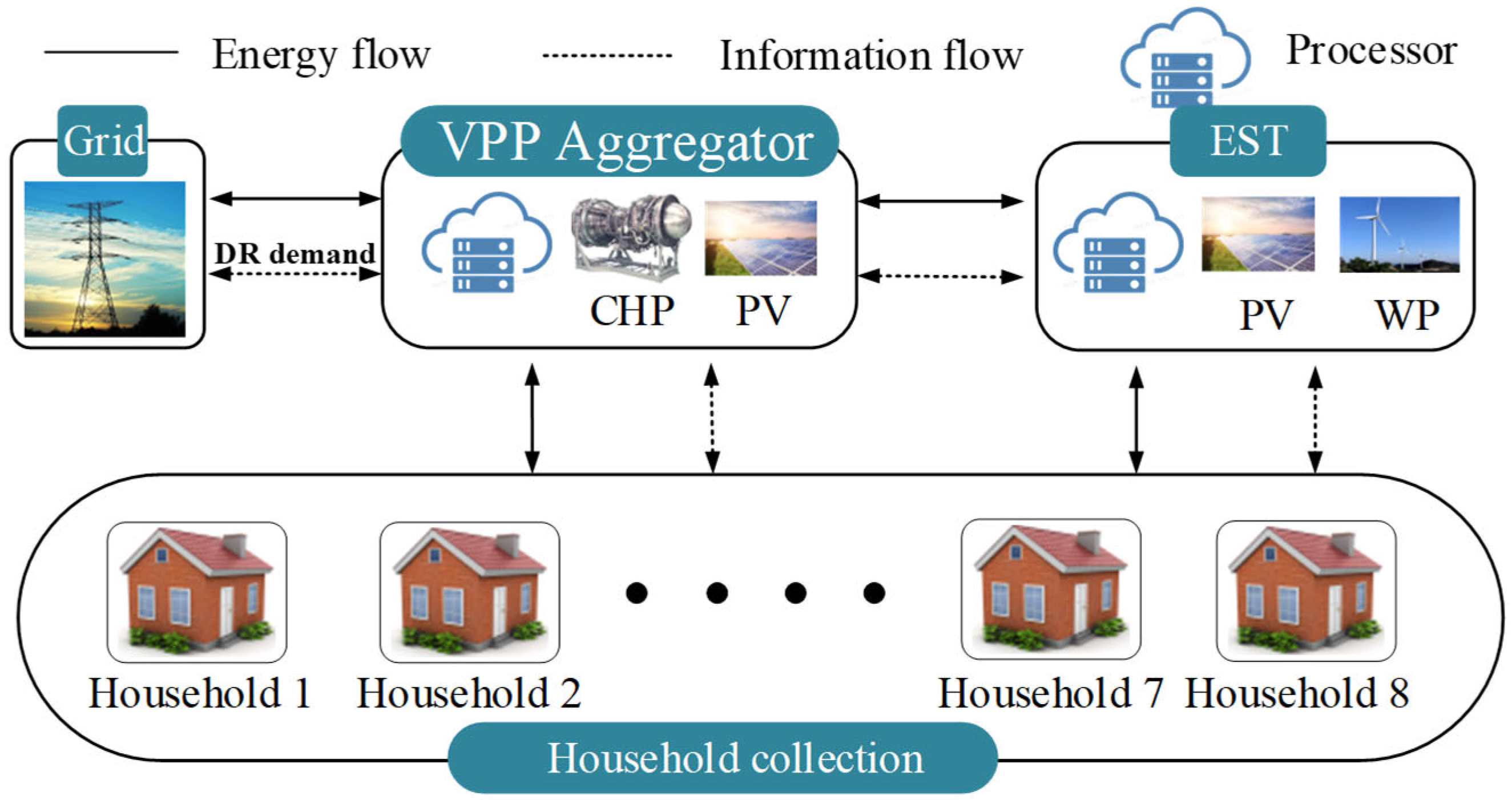

2.2. Comparison of the Framework
3. Mathematical Model for the Proposed Framework
3.1. Mathematical Model for the Upper Layer
- (1)
- VPP aggregator model
- (2)
- EST model
- (3)
- Household collection model
- (4)
- Laddered DR mechanism
3.2. Mathematical Model for the Lower Layer
- (1)
- State
- (2)
- Action
- (3)
- Reward
4. HG-Multi-Agent Reinforcement Learning

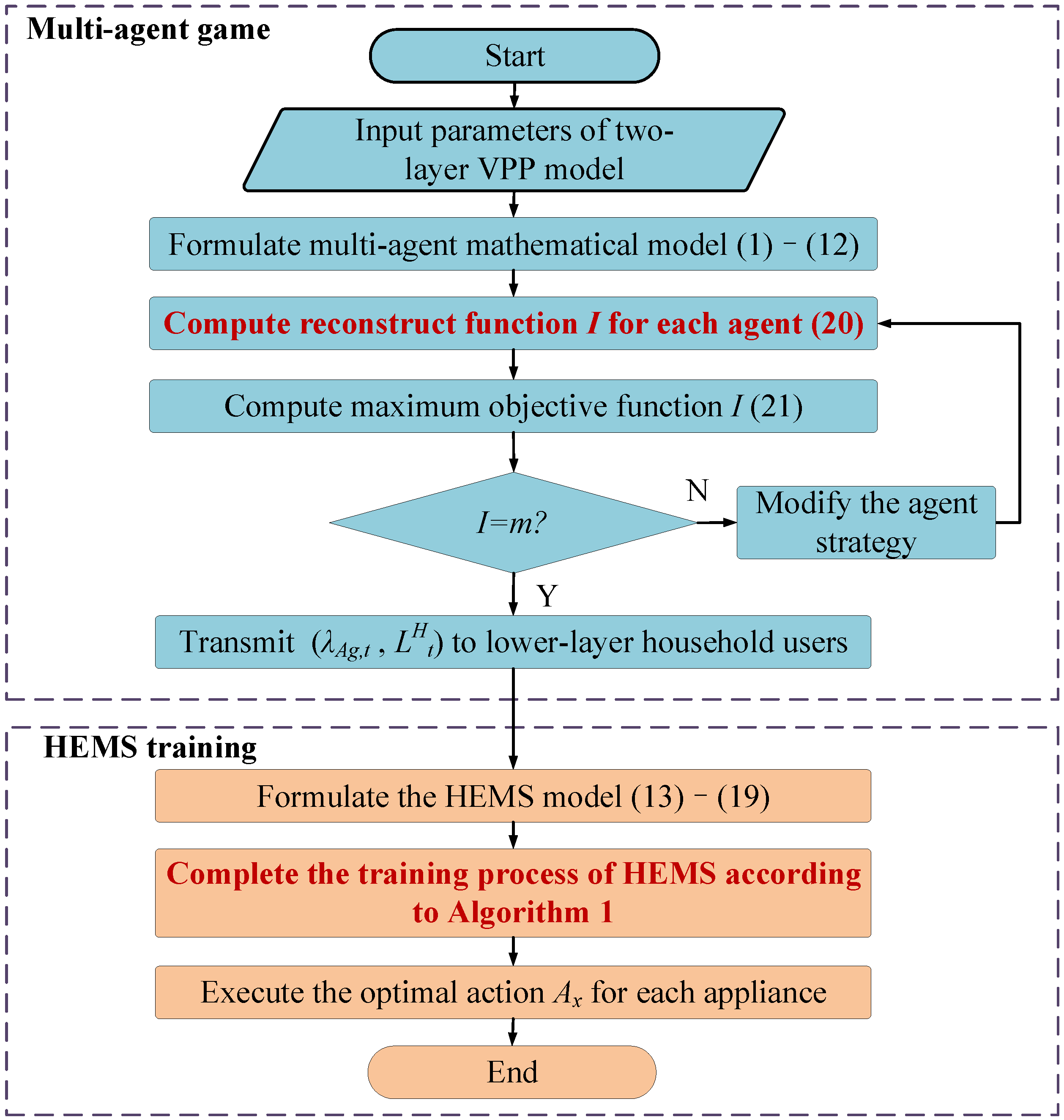

4.1. Flowchart of the Solving Method
4.2. Hierarchical Game Algorithm
4.3. Multi-Agent Q-Learning Algorithm
Algorithm 1: Multi-Agent Q-learning Algorithm | |
1 | Initialization initialize Q-value |
2 | for episode = 1,2,…, max episode do |
3 | for t = 1,2,…, max time slot do |
4 | Initialize the state st |
5 | Choose the arbitrary action at of the device by (14)–(16) |
6 | Calculate the current reward r(st, at) and the next state st+1 by(17)–(19) |
7 | Update the Q-value Q(st, at) by(21) |
8 | Save st+1 |
9 | Calculate the absolute value diff between the Q values under two episodes |
10 | End until the diff is less than the set value ρ |
11 | Output the optimal policy |
5. Evaluation Results

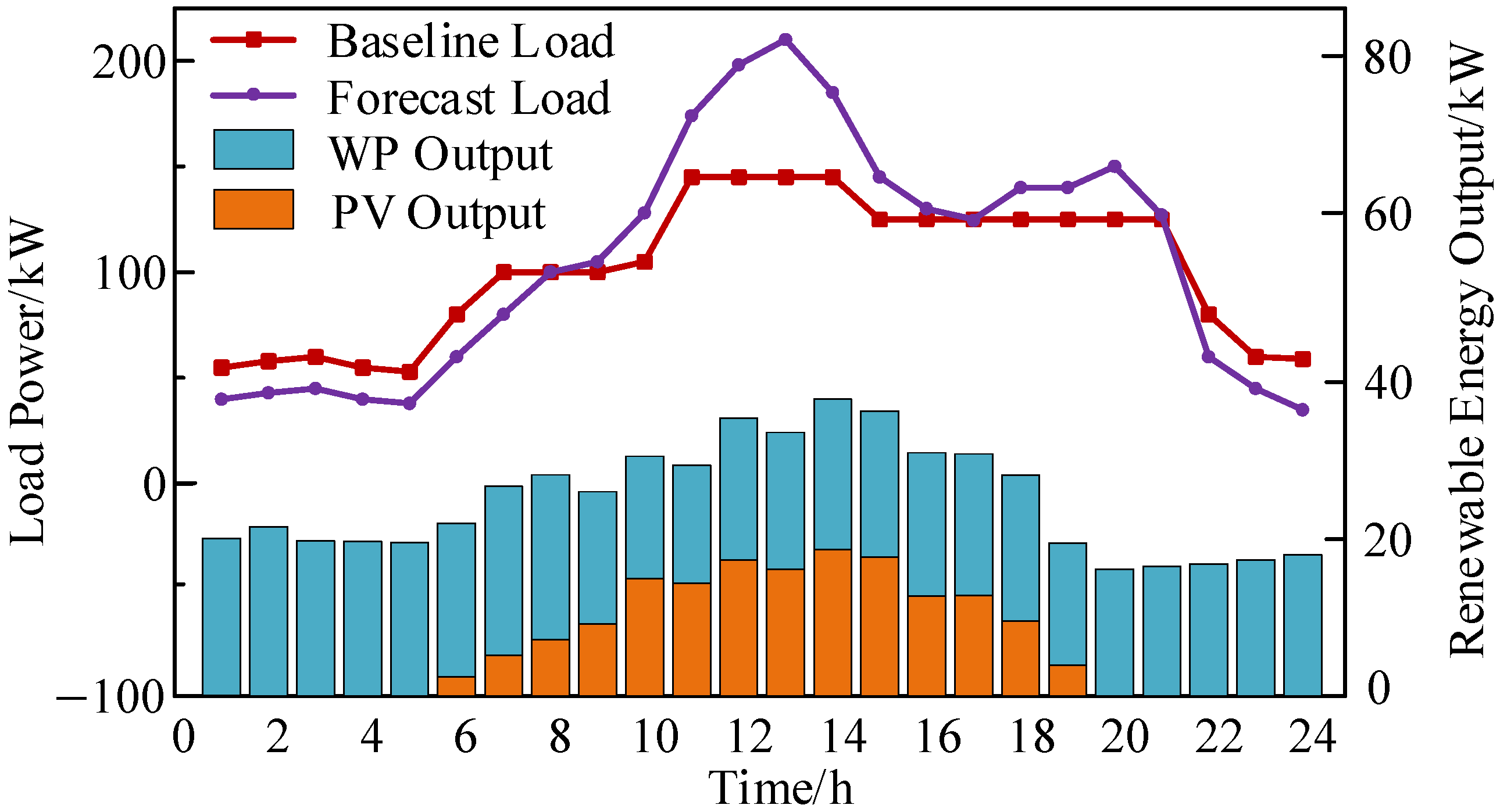

5.1. Case Study Setting

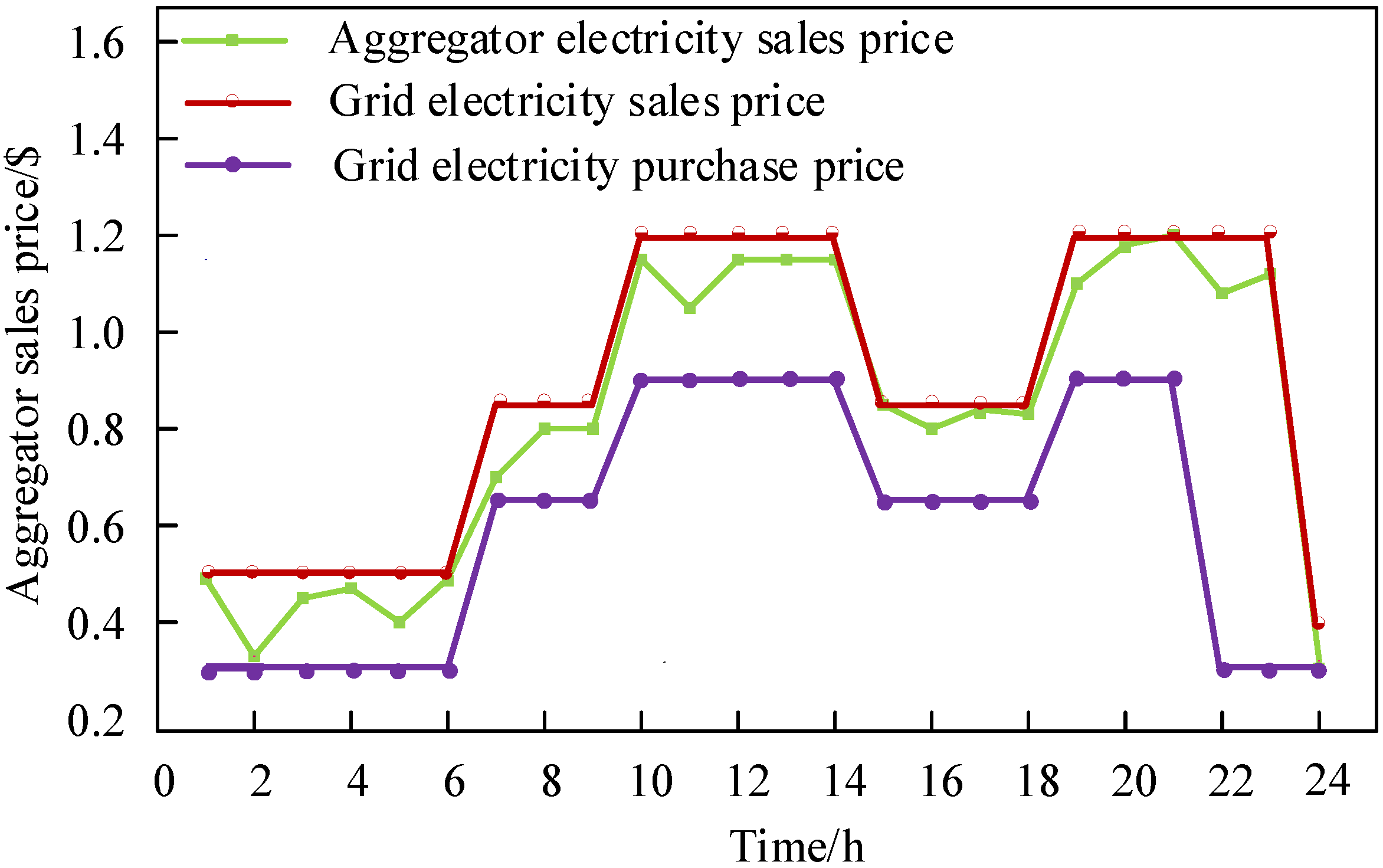

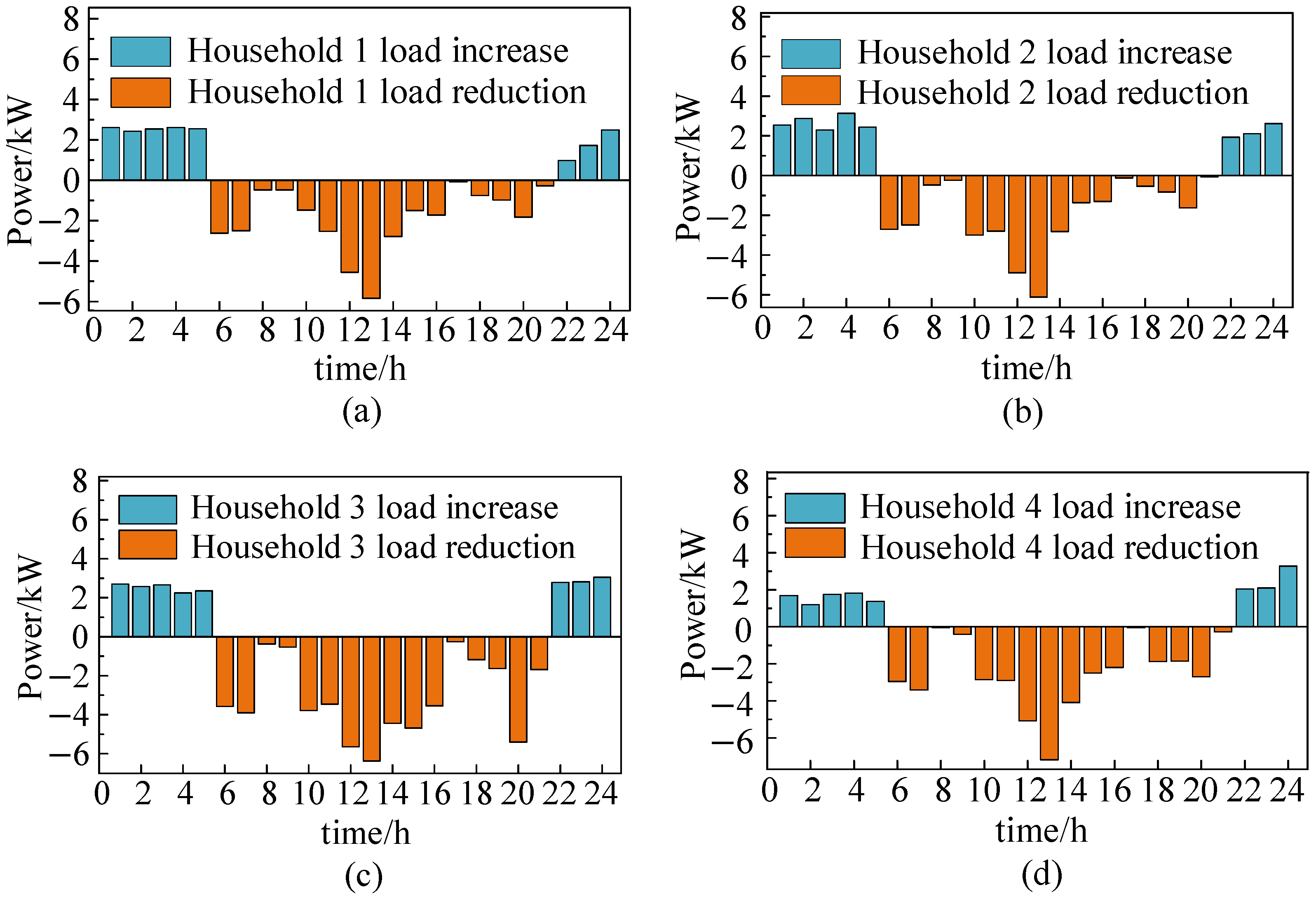

5.2. Analysis of Game Results

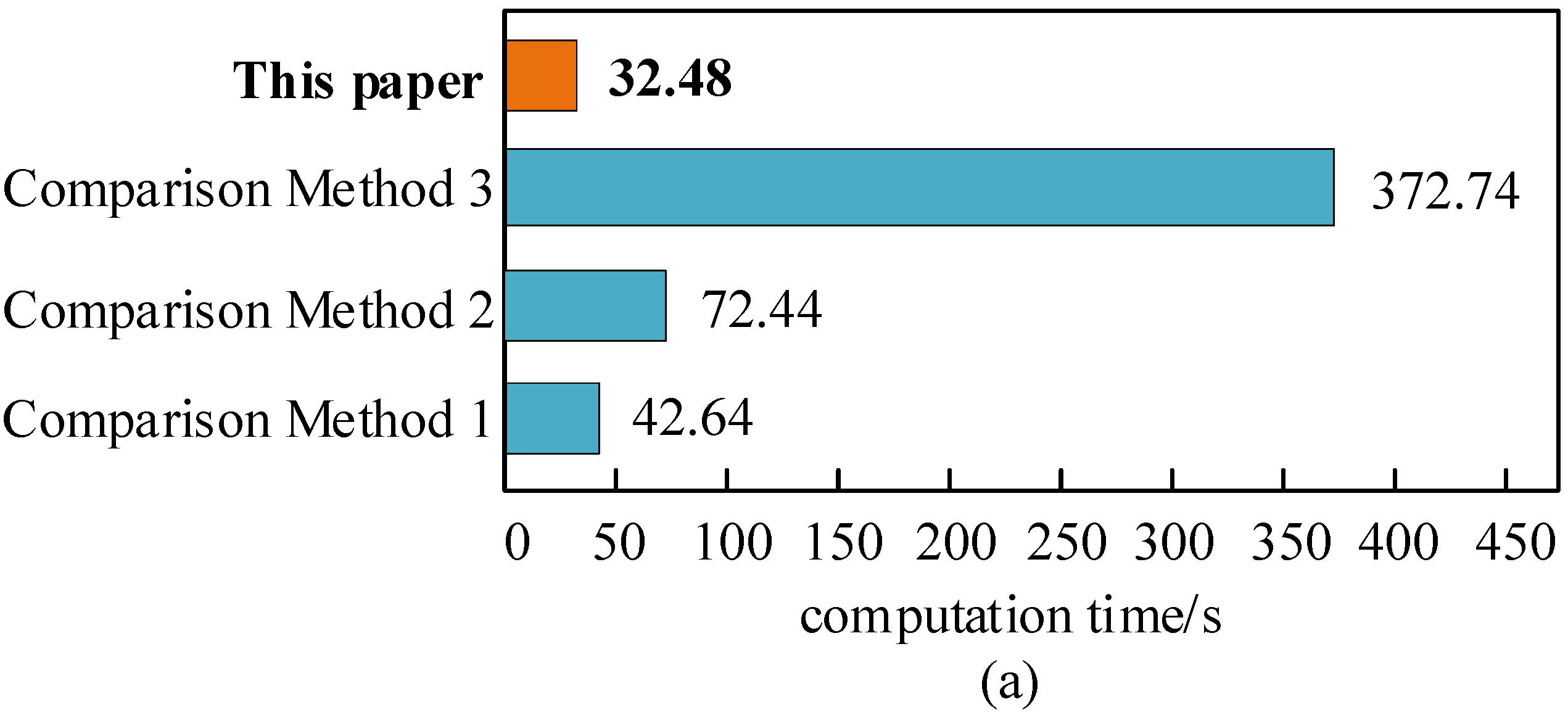

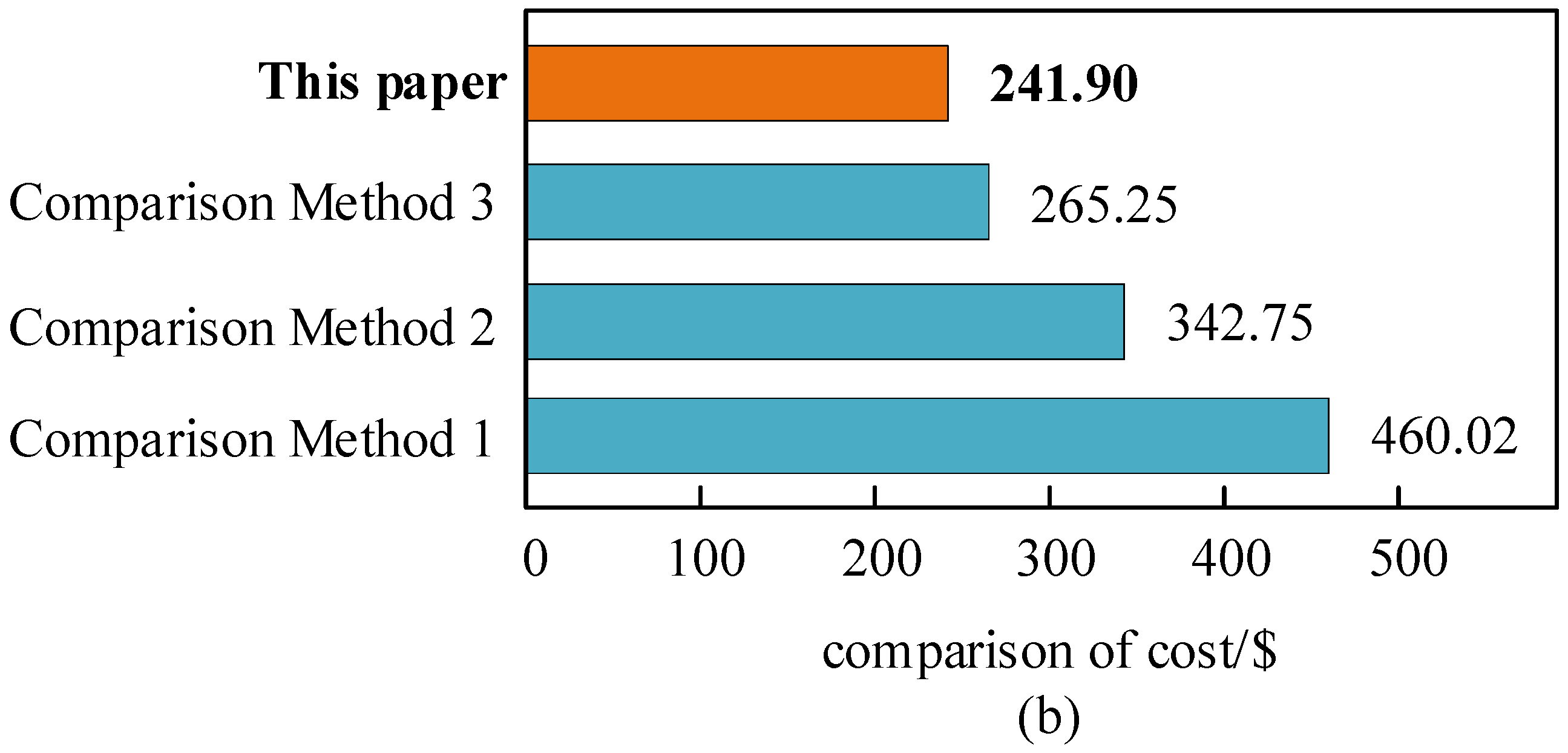

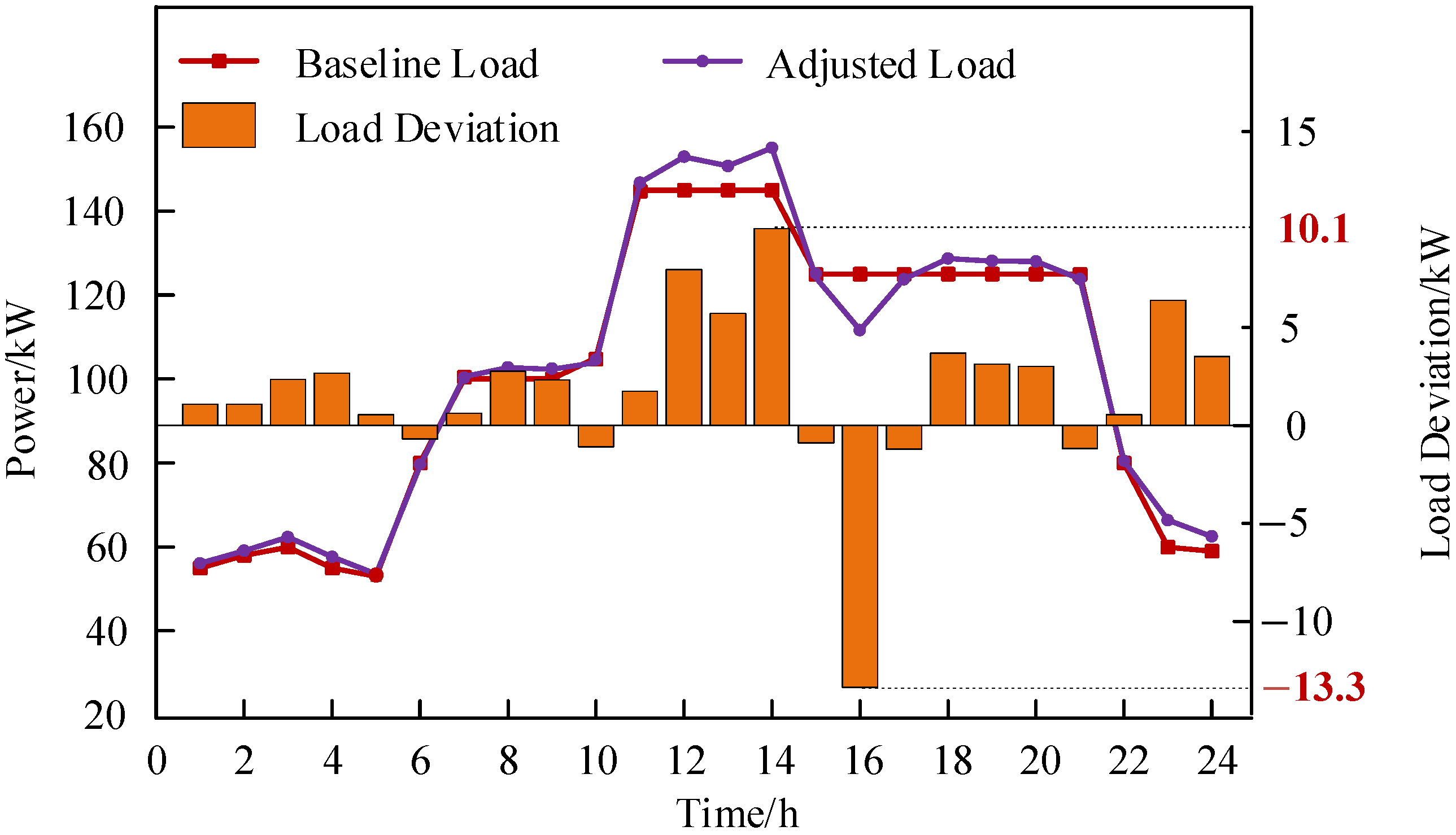

5.3. Comparative Analysis of the HG-Multi-Agent Reinforcement Learning Method

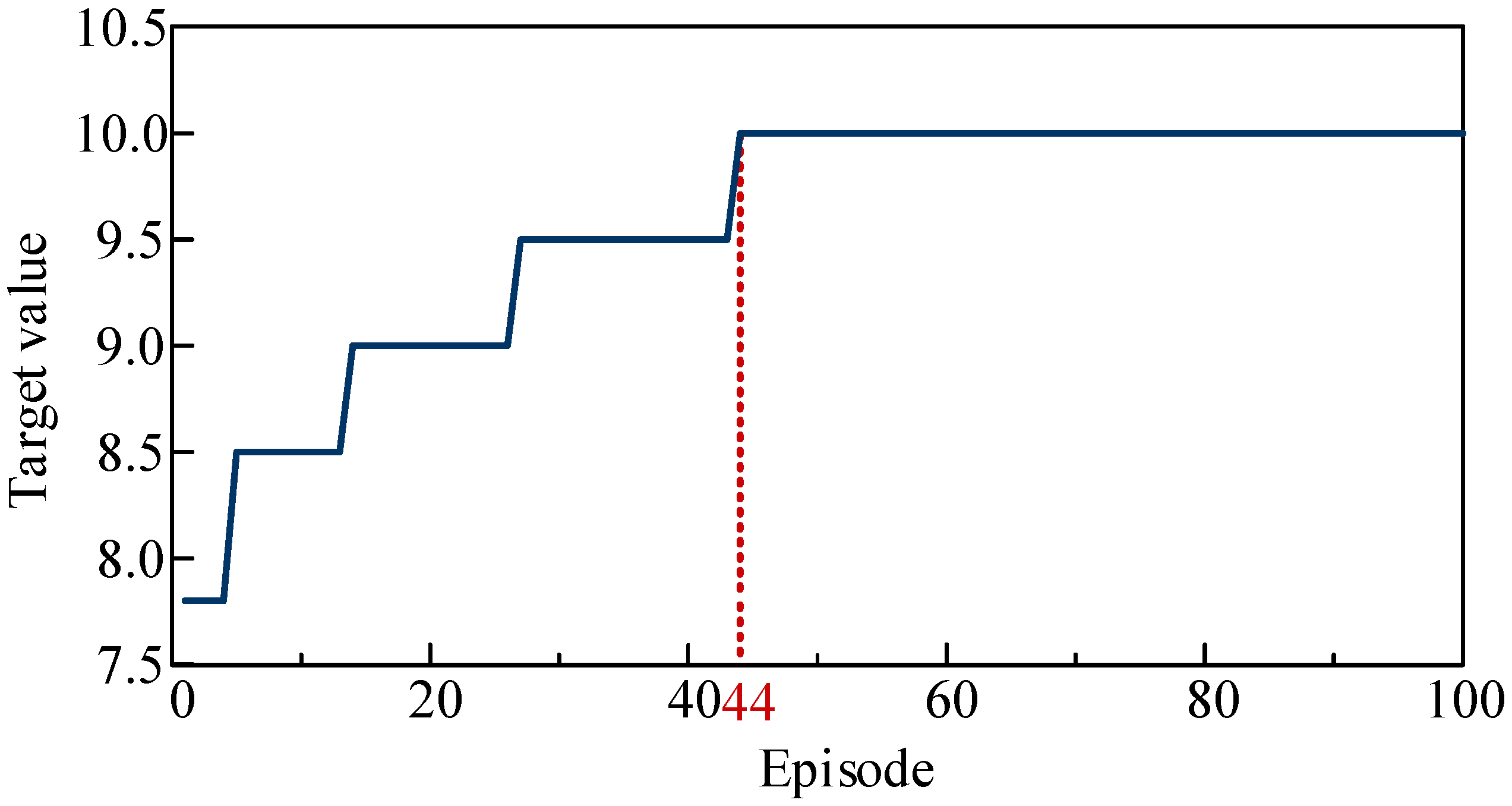

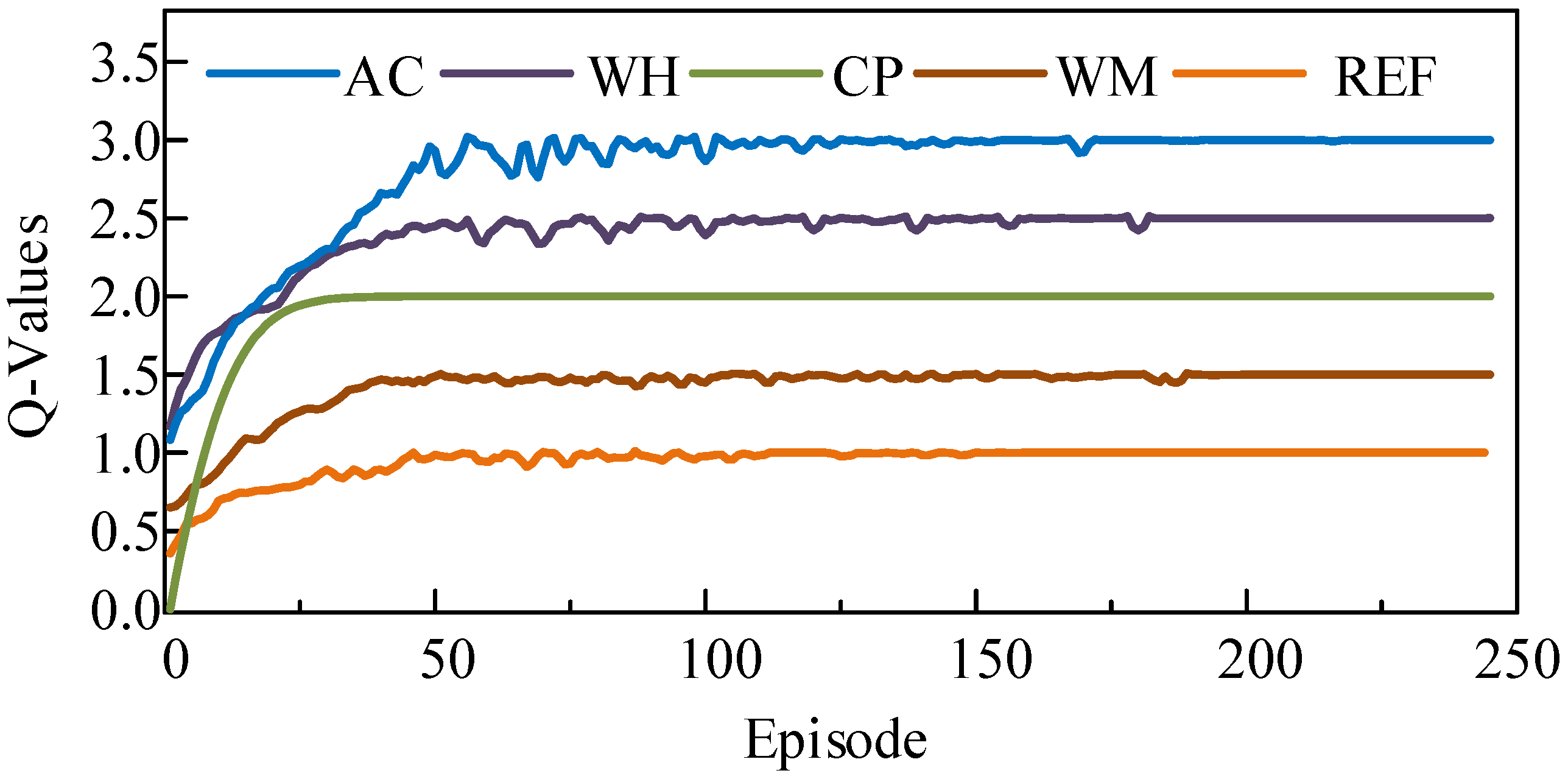

5.4. Convergence Analysis

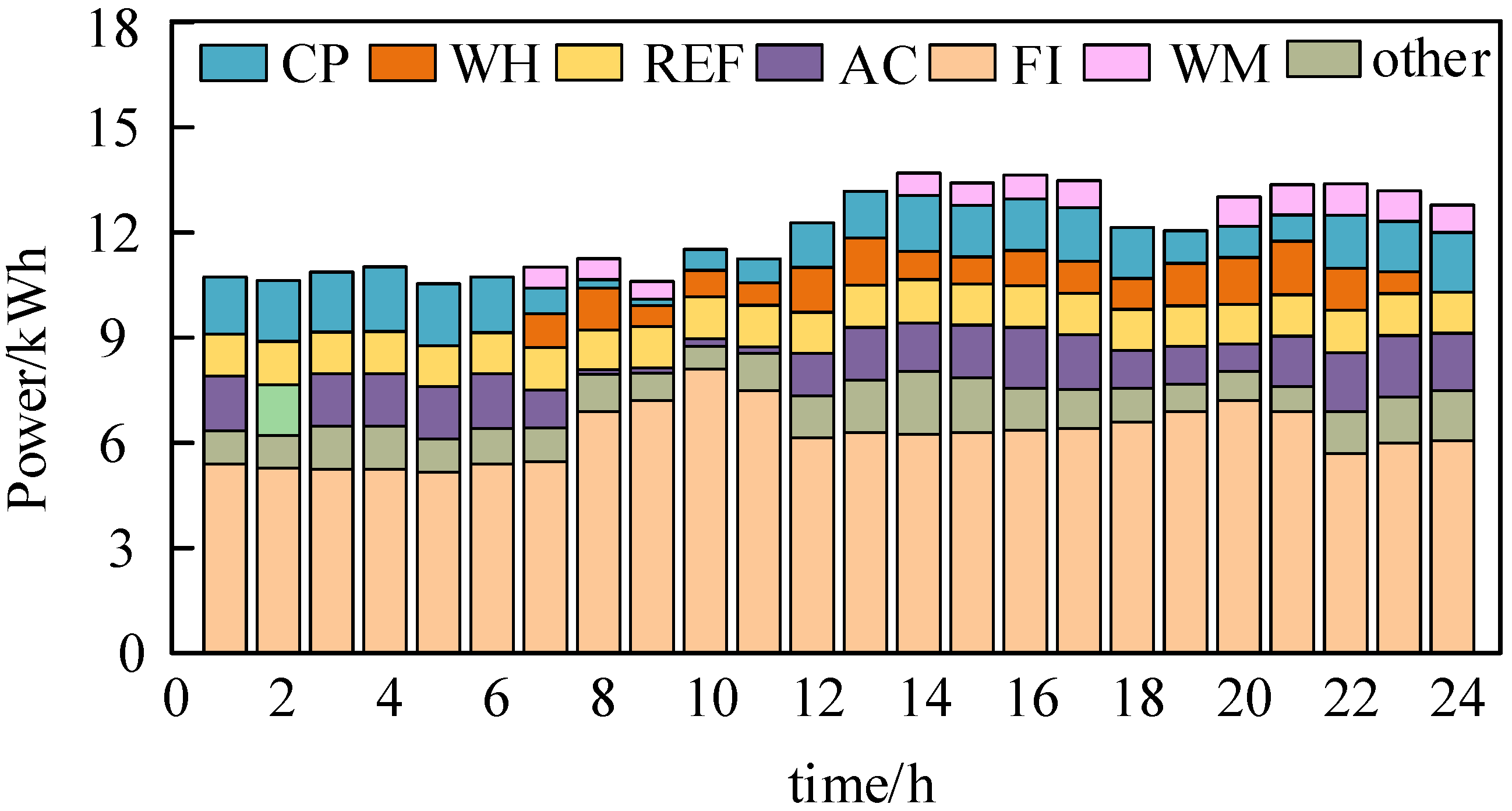

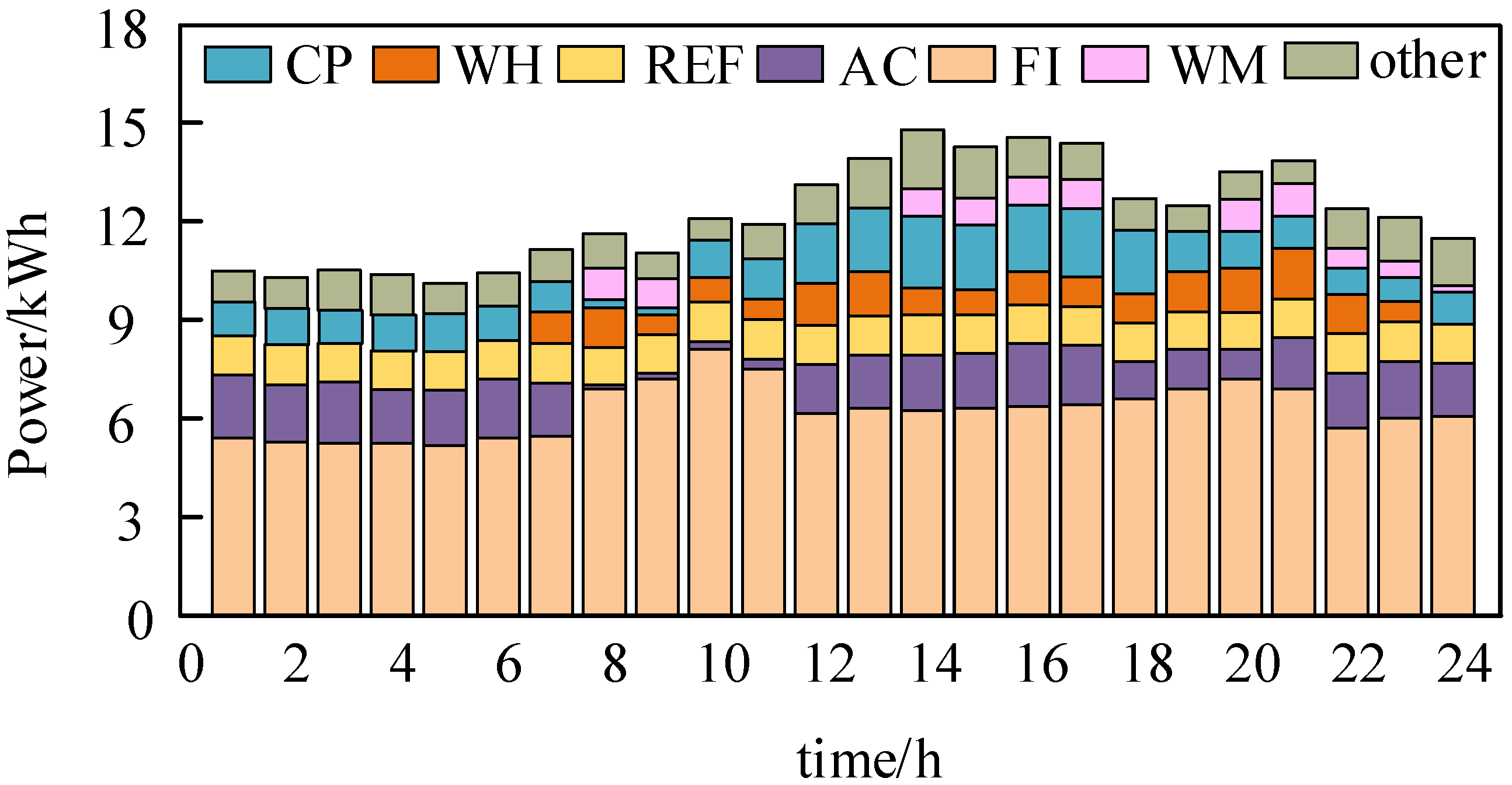

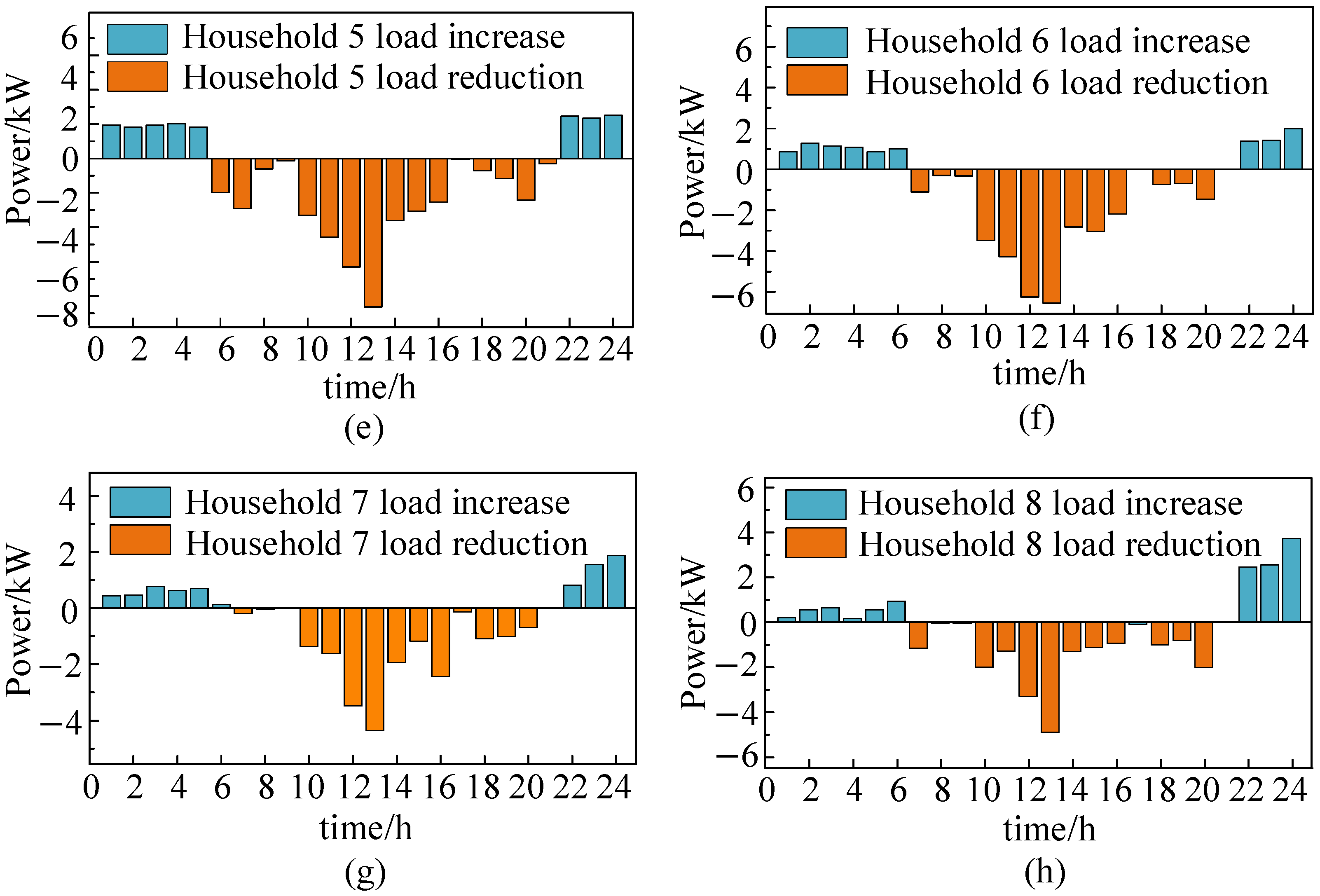

5.5. Analysis of Single-Household Load Adjustment
6. Conclusions
- (1)
- Compared to the conventional framework for optimized operation, the proposed framework and strategy can increase VPP aggregator benefit by over 56.2%, reduce user energy costs by over 12.9%, and increase ESS benefit by over 7.8%.
- (2)
- The proposed stepped DR mechanism helped the VPP reduce peak load by approximately 39.33%. Moreover, it safeguards users’ interests in cases of load adjustment deviations, increasing their willingness to respond to the power company’s policies actively.
- (3)
- Compared to conventional methods, the HG-multi-agent reinforcement learning method can reduce calculation time by over 23.8% and lower user costs after DR compensation by over 8.8%.
