Article

UaVirBASE: A Public-Access Unmanned Aerial Vehicle Sound Source Localization Dataset

by
Gabriel Jekateryńczuk
*,
Rafał Szadkowski
and
Zbigniew Piotrowski
Institute of Communication Systems, Faculty of Electronics, Military University of Technology, 00-908 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(10), 5378; https://doi.org/10.3390/app15105378
Submission received: 17 April 2025 / Revised: 7 May 2025 / Accepted: 9 May 2025 / Published: 12 May 2025
(This article belongs to the Special Issue AI in Audio Analysis: Spectrogram-Based Recognition)

Abstract

:
This article presents UaVirBASE, a publicly available dataset for the sound source localization (SSL) of unmanned aerial vehicles (UAVs). The dataset contains synchronized multi-microphone recordings captured under controlled conditions, featuring variations in UAV distances, altitudes, azimuths, and orientations relative to a fixed microphone array. UAV orientations include front, back, left, and right-facing configurations. UaVirBASE addresses the growing need for standardized SSL datasets tailored for UAV applications, filling a gap left behind by existing databases that often lack such specific variations. Additionally, we describe the software and hardware employed for data acquisition and annotation alongside an analysis of the dataset’s structure. With its well-annotated and diverse data, UaVirBASE is ideally suited for applications in artificial intelligence, particularly in developing and benchmarking machine learning and deep learning models for SSL. Controlling the dataset’s variations enables the training of AI systems capable of adapting to complex UAV-based scenarios. We also demonstrate the architecture and results of the deep neural network (DNN) trained on this dataset, evaluating model performance across different features. Our results show an average Mean Absolute Error (MAE) of 0.5 m for distance and height, an average azimuth error of around 1 degree, and side errors under 10 degrees. UaVirBASE serves as a valuable resource to support reproducible research and foster innovation in UAV-based acoustic signal processing by addressing the need for a standardized and versatile UAV SSL dataset.

1. Introduction

Humans possess an innate ability to localize sounds in their environment, seamlessly determining the direction and distance of a sound source. This ability is crucial for interpreting and responding to dynamic scenes, as it allows for the integration of auditory and visual information. Inspired by this human capability, sound source localization (SSL) has emerged as a fundamental area of research in acoustic signal processing [1]. It has a broad range of applications, from robotics [2], urban noise monitoring [3], and visual scene analysis [4] to wildlife monitoring [5] and IoT systems [6].
In recent years, the growing prevalence of unmanned aerial vehicles has further amplified interest in SSL, particularly for detecting and localizing umanned aerial vehicles (UAVs) in scenarios such as security operations, surveillance, airspace monitoring, and even military applications [7]. However, UAV localization introduces unique challenges, including the blending of rotor noise with environmental sounds, varying flight altitudes, rapid and dynamic movements, and strong ego-noise from motors and propellers, which result in low signal-to-noise ratios (SNRs) and dynamic acoustic transmission paths [8]. To address these complexities, UAV localization systems often rely on various technologies, including RF radio, radar, acoustic, vision-based methods, or fusion sensors [9]. Each of these approaches has unique advantages and limitations [10].
RF radio methods are widely used due to their cost-effectiveness and suitability for long-range detection, but they can be affected by signal interference or deliberate suppression by UAVs [11]. Radar systems, on the other hand, are robust and provide wide spatial coverage and high angular resolution [12]. Yet, they face challenges distinguishing UAVs from other low-altitude, slow-moving objects such as birds. Vision-based methods provide high precision and excellent tracking capabilities; however, they struggle in conditions of low visibility or environments with visual obstructions [13]. Acoustic localization using microphone arrays complements these technologies by leveraging the unique rotor noise generated by UAVs, which is difficult to conceal and remaining unaffected by low visibility or radio interference. However, acoustic methods face challenges in environments with high background noise levels, where distinguishing UAV sounds from other ambient sounds can be difficult. Additionally, the range of acoustic detection is typically shorter compared to RF or radar-based systems, limiting its application in large-scale monitoring scenarios [14].
Fusion sensor systems, which integrate data from multiple modalities, such as combining two [15,16,17] or three sources [18], have demonstrated their effectiveness in overcoming the limitations of individual methods. By leveraging the complementary strengths of RF, radar, vision-based, and acoustic techniques, these systems significantly enhance the reliability and accuracy of UAV detection and localization, especially in complex and dynamic environments [9].
However, despite their effectiveness, fusion systems can be resource-intensive, requiring substantial hardware, integration, and computational infrastructure investment. This makes them less feasible for cost-sensitive applications. In contrast, acoustic localization stands out as a more cost-effective alternative. With relatively inexpensive hardware, such as microphone arrays, and the ability to utilize computationally efficient classical algorithms, acoustic systems provide a practical solution for budget-conscious UAV monitoring scenarios. Despite their limited detection range and susceptibility to noise compared to RF or radar-based methods, their affordability and simplicity make acoustic localization an appealing choice for applications with constrained budgets.

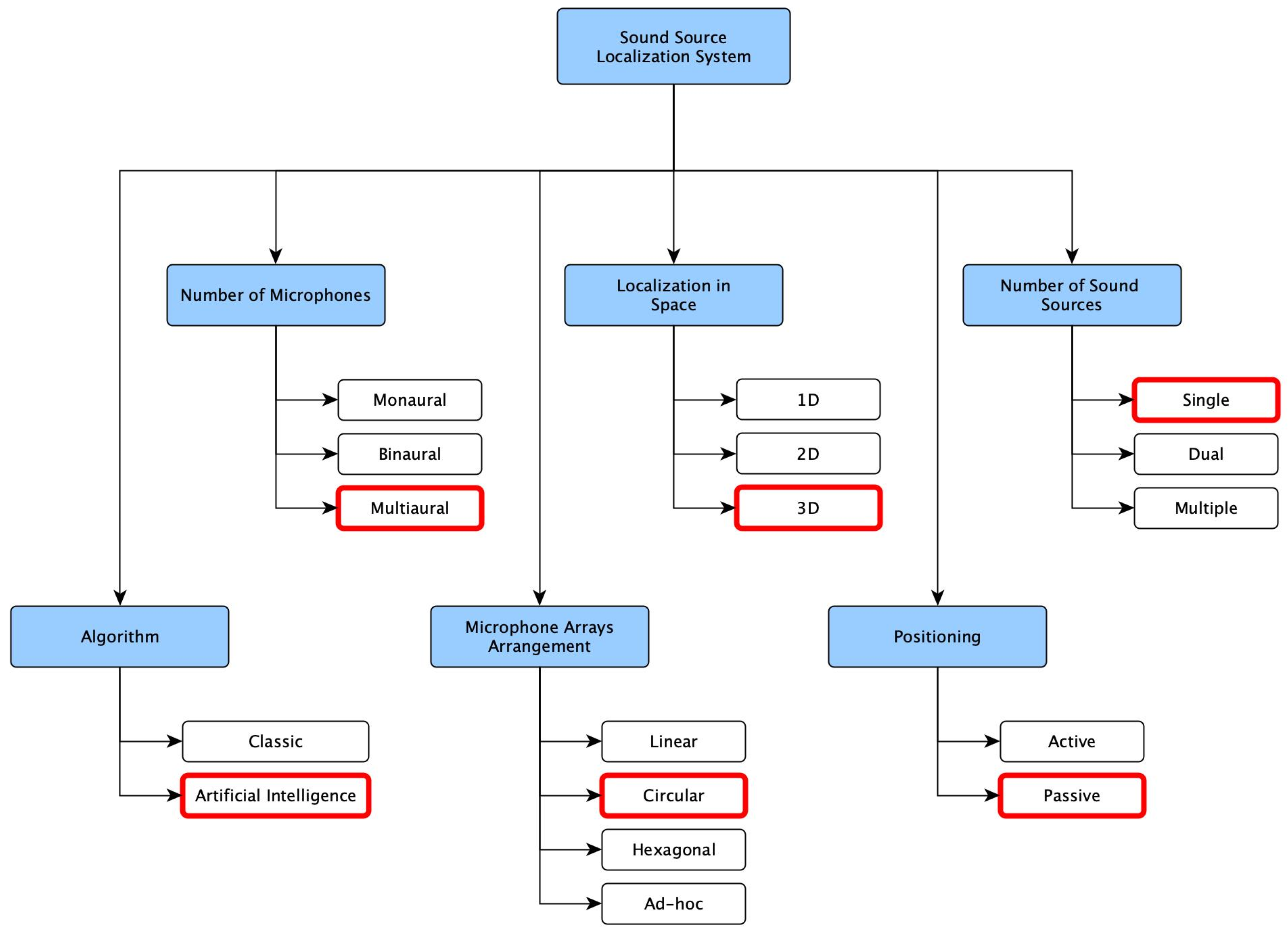

To address the challenges of sound source localization, numerous methods have been developed, broadly categorized into classical approaches and artificial intelligence (AI)-based methods [19]. Classical techniques, such as Time Difference of Arrival (TDoA), Direction of Arrival (DoA), and beamforming, rely on well-established signal processing frameworks [20]. These methods are computationally efficient and perform well in controlled conditions but often face limitations in dynamic, noisy, or complex environments.
On the other hand, AI finds applications in many fields, ranging from digital watermarking [21], 3D printing material optimization [22], and process planning [23] to deepfake generation [24] or victim verification [25], showcasing its versatility across diverse domains. In acoustics, AI-based methods leverage the power of machine learning and deep learning models to capture intricate spatial and acoustic relationships. These approaches offer enhanced robustness and adaptability, particularly in environments with significant background noise or non-stationary sound sources. By learning directly from the data, AI-driven methods address many of the challenges associated with classical approaches, although this is at the cost of requiring large, high-quality datasets [26] and considerable computational resources.
Recognizing the growing prominence of artificial intelligence and its potential to transform acoustic localization, we undertook a significant initiative: creating a dedicated sound dataset for UAV localization. This dataset was meticulously designed to address the multifaceted challenges of UAV SSL. It includes UAV rotor noise recorded at varying altitudes, distances, and angles relative to the microphone array—front, back, right, and left of the drone—and background noise from the urban environment. The primary goal of this work was to develop a structured, extensible, and fully replicable experimental setup for UAV localization—including the dataset, hardware configuration, and training process—that reflects the complexities of real-world spatial audio recording. While this first version includes a single UAV, it establishes a replicable framework and serves as a foundation for broader multi-UAV datasets. In doing so, it enables the training and evaluation of AI algorithms designed for UAV localization, fostering the development of more robust and adaptive systems. The dataset also enables the classification of the UAV’s orientation relative to the microphone array, determining whether the drone is positioned at the front, back, right, or left. These detailed positional data allow for the more precise determination of UAV locations, supporting advancements in localization techniques.
Although several UAV acoustic datasets have been published [27,28,29,30,31,32,33,34,35,36,37,38], they primarily focus on detection or classification tasks and often lack spatial detail or comprehensive labeling. Many of these datasets contain mono or stereo recordings with limited metadata and are not designed for full sound source localization. In contrast, UaVirBASE offers high-resolution 8-channel audio captured at 96 kHz and a 32-bit depth, with detailed annotations covering azimuth, distance, height, and the drone’s relative side. This enables spatial reasoning and directional modeling far beyond the capabilities of existing datasets. Our initiative bridges a critical gap in available resources for the research community, emphasizing the importance of high-quality data in driving innovation and addressing the challenges of modern UAV monitoring requirements.

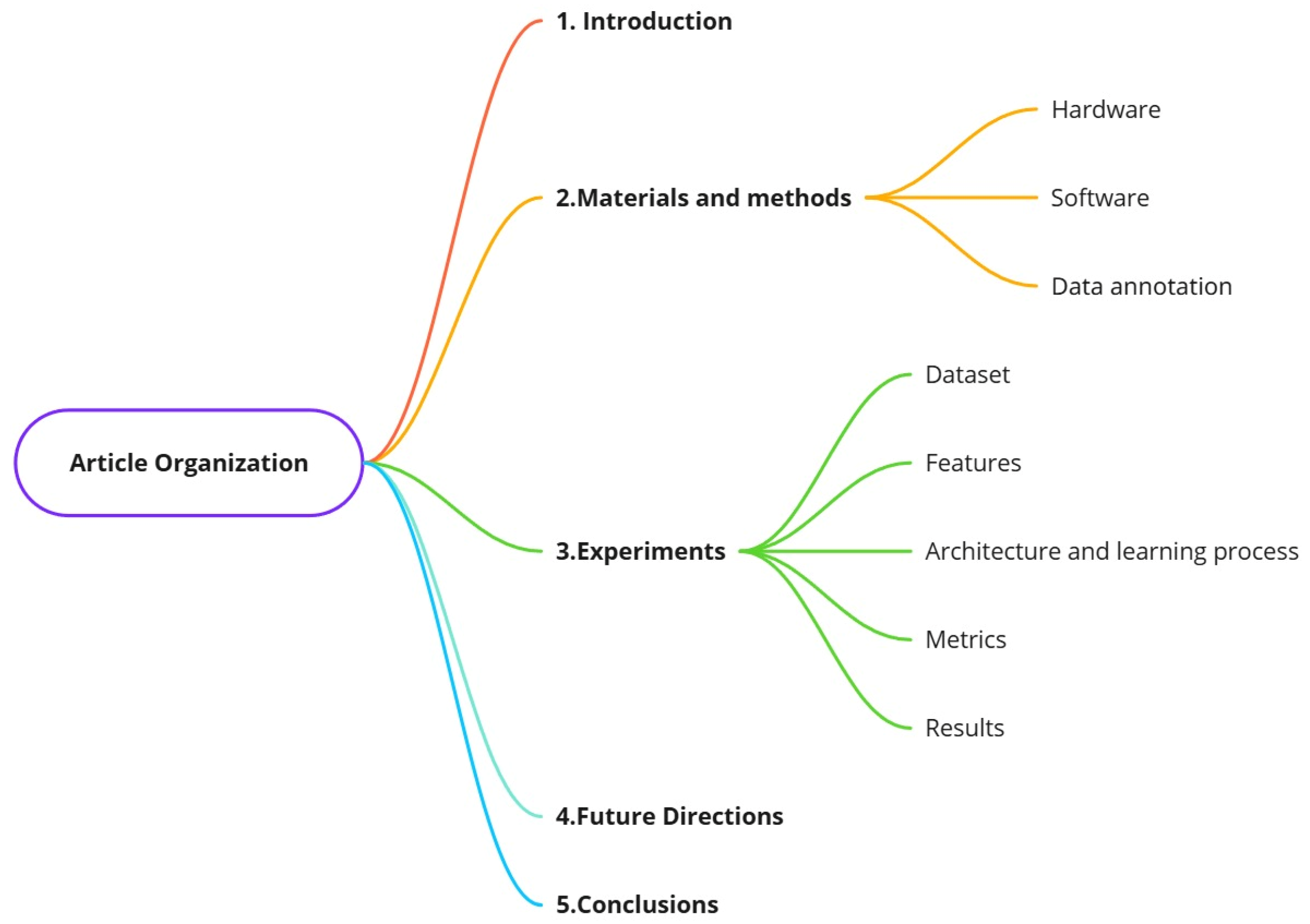

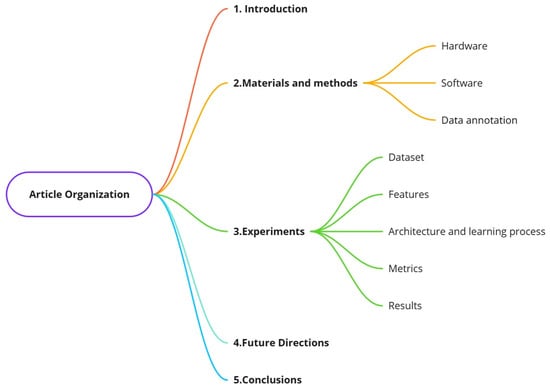

As shown in Figure 1, the structure of this article includes the following sections: Section 1 is the Introduction. Section 2, titled Materials and Methods, presents the hardware and software components used for data collection, along with the data annotation process. Section 3 details the experimental setup, including the structure of the UaVirBASE dataset, the selected audio features, the architecture and training process of the deep neural network model, the evaluation metrics used, and the results obtained. Section 4 discusses future directions, and Section 5 concludes the study.

2. Materials and Methods

To meet the specific requirements of high-resolution acoustic data collection for UAV localization, we developed a custom recording system tailored to this task. Existing commercial solutions lacked the necessary flexibility in terms of modularity, portability, and compatibility with various configurations and sensor types. Therefore, the system was built using a combination of commercially available components (e.g., microphones, audio interfaces, and cables) and custom-designed structural elements fabricated using Fused Deposition Modeling (FDM), which is a layer-by-layer 3D printing process [39].
As with designing any system, we initially had to determine the essential parameters and establish a framework. By adopting the already proposed system of the classification of SSL systems [19] with minor modifications, we could streamline the process and guarantee that all necessary parameters were adequately captured. The selected algorithm could be omitted to create the dataset, as the dataset itself does not mandate its usage for either the classic or AI approach. However, there is an example in the later chapter of this article demonstrating the basic usage of the dataset in a neural network. Therefore, we have decided to mark it in the system summary in Figure 2.
Before deciding on the number of microphones, there is a change in the proposed categorization. While monaural and binaural designations were left unchanged, we bunched the number of microphones above that into one multiaural group. We decided to use a circular arrangement of eight microphones on two levels (four each). Another change in the graph regarding localization is the space category. There were now three groups with a defined number of dimensions. We decided to capture as much data as possible to categorize this system as 3D.
Finally, since the system relied solely on microphones and did not incorporate speakers or other sound-emitting devices for echolocation, it was classified as passive.
With this information, we proceeded with the specific hardware and configuration used. The selection of microphones influences further design decisions, including mounting methods and their localization, as well as the connections and hardware utilized for signal collection.

2.1. Hardware

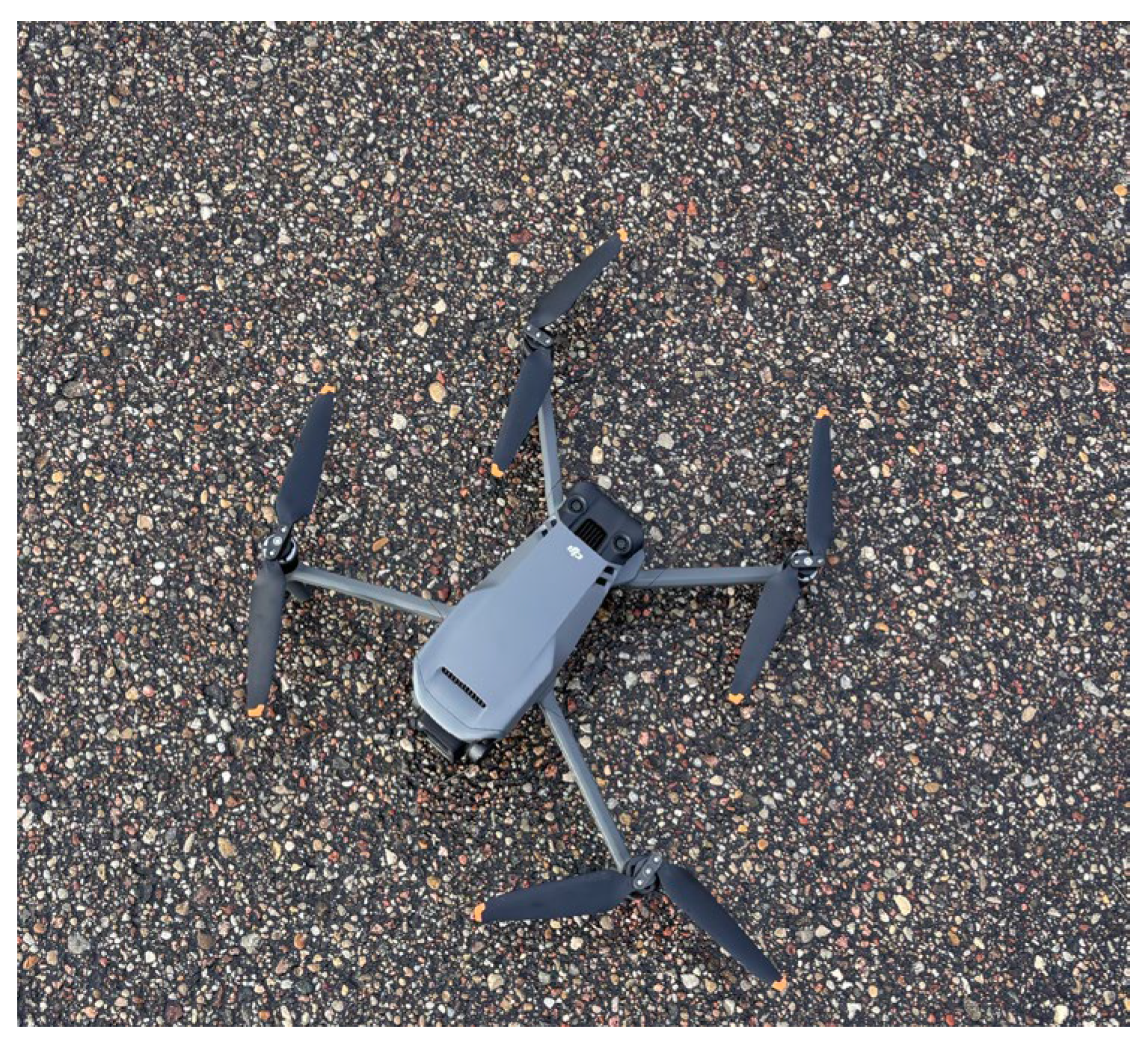

For this study, we used a single UAV model—the DJI Mavic 3 Cine—which was sufficient to demonstrate and validate the recording system’s functionality. This drone was selected due to its commercial availability, stable flight behavior, and representative acoustic characteristics. The inclusion of additional UAV models is a concept planned for future work and can be integrated into the current system without major changes.

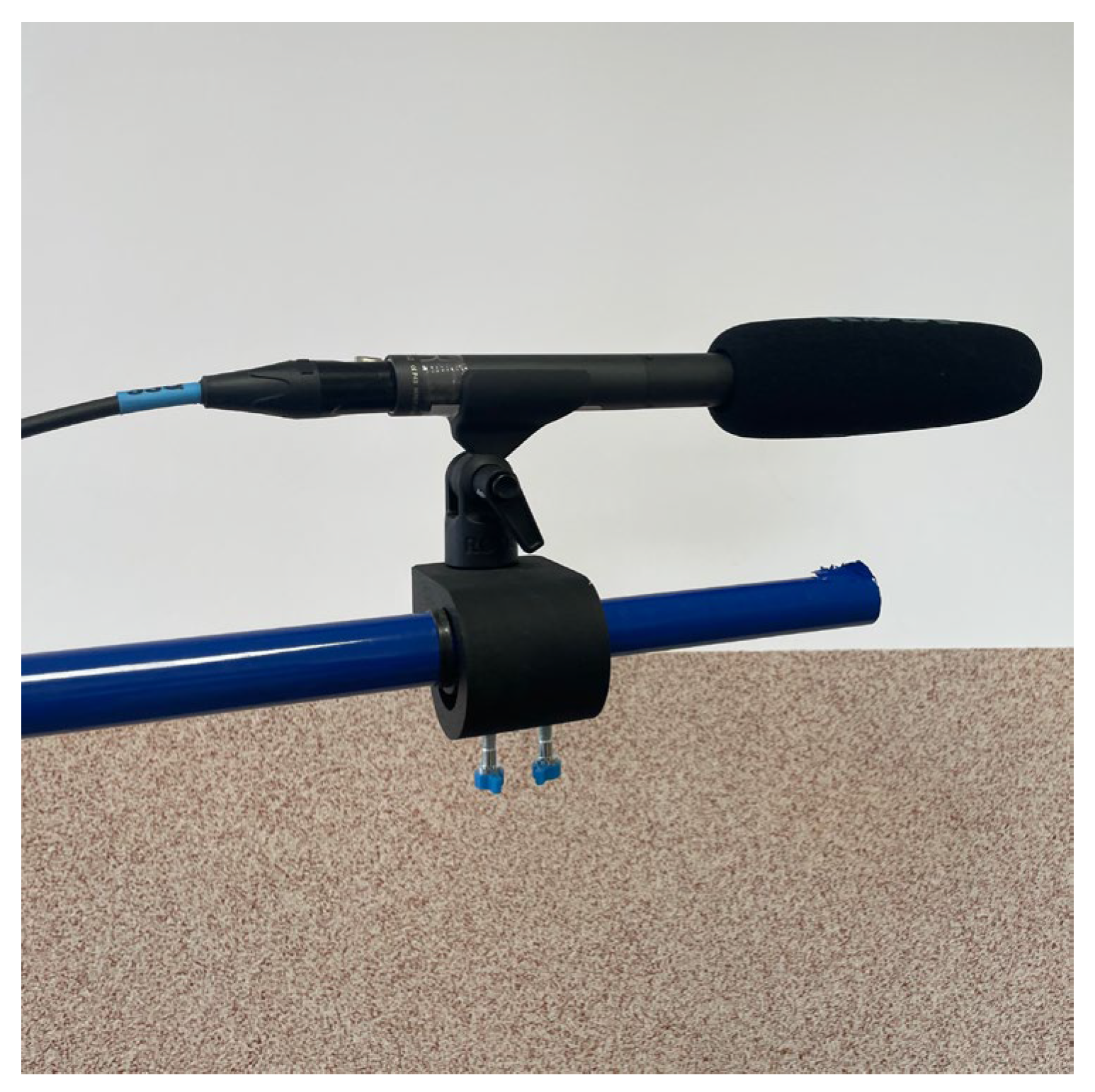

We opted to utilize microphones with a supercardioid pattern, as they offer superior noise rejection compared to omnidirectional microphones. While this choice may restrict the application of certain methods, such as TDoA, as the object’s sound may be more challenging to isolate when the microphone is facing away from it, it does provide additional information regarding direction. The microphone directed at the sound source will capture it more precisely. Given these considerations, we selected the Røde NTG2 shotgun microphone [40]. This microphone has a relatively high dynamic range of 113 dB and a frequency range of 20 Hz to 20 kHz. Although it does not encompass infrasound or ultrasound, it should be adequate to capture the diverse range of noises generated by the rotors of the UAV.
The next crucial component is the audio interface. It should be user-friendly and have sufficient connectivity to accommodate eight microphones. Additionally, it should have a high sampling rate and bit resolution. We chose to use the Behringer UMC1820 [41]. This interface surpasses the selected microphones for the available audio frequency band. Furthermore, it offers a 96 kHz sampling rate, which should provide sufficient audio quality for our purposes.
For static localization, we opted to refrain from utilizing Global Positioning System (GPS) technology. However, further research is underway to develop dynamic localization capabilities with UAVs in motion, utilizing high-resolution GPS data. Instead, we chose to employ conventional methods of distance measurement. For this purpose, we utilized a measuring wheel and verified the results using a laser rangefinder. This enabled us to determine the horizontal distance while the remaining components of the position were measured using sensors onboard the UAV.
Due to the multifaceted nature of sound wave propagation, influenced by factors such as temperature, humidity, and atmospheric pressure, we incorporated data from a local weather station. The strategic placement of the station at the recording location provided access to weather data and enabled the collection of wind conditions, including direction and speed. This additional information significantly enhanced our dataset and potentially facilitated the more effective de-noising of the recordings. However, we chose not to perform de-noising ourselves but instead provided the recordings in their raw, unaltered form. To facilitate the aforementioned data streaming for app development, we selected the SenseCap S212 8-in-1 Weather Sensor [42], which boasts a compact design while offering a comprehensive suite of sensors, easy mounting, and before-mentioned remote data streaming capabilities.
For data recording, we also decided to record the whole recording session “from the side”. We used Zoom h4essential [43] with two connected Behringer B-1 [44] microphones.
These are the primary “off-the-shelf” hardware components utilized in constructing a database. Now, let us proceed with describing how they were assembled for recording. We designated our recording rig as “Acoustic Head”; henceforth, we will refer to the constructed device by this name. In this setup, we recorded the DJI Mavic 3 Cine UAV (Figure 3).

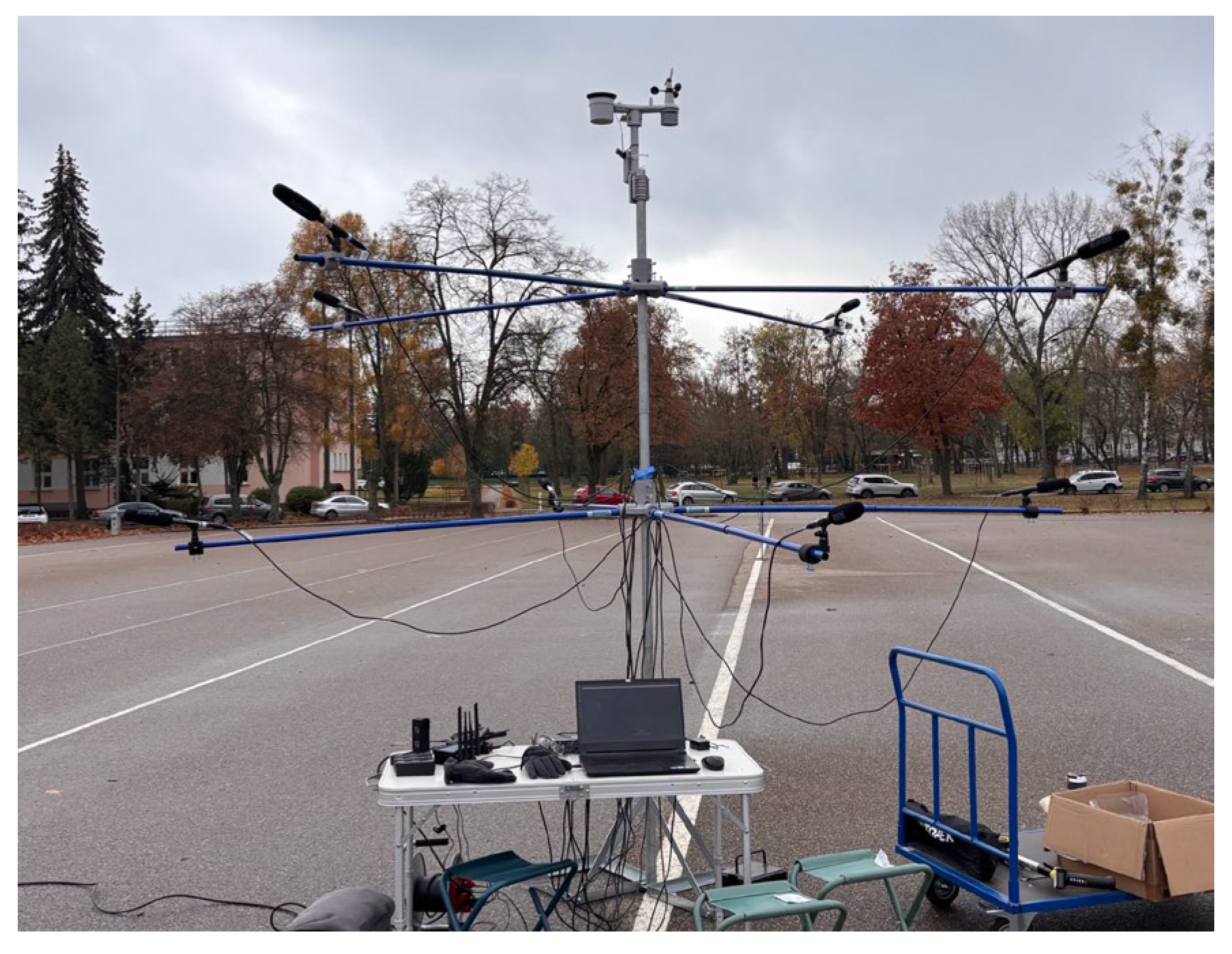

As previously mentioned, we utilized eight microphones divided into two levels (four microphones per level). Each level comprised four arms, with a microphone mounted on each arm (Figure 4).
These levels are independent, and the distance between them can be adjusted as per the requirement (Figure 5). Furthermore, each microphone can have its distance from the center changed independently of other microphones (Figure 6). Additionally, each microphone’s angle can also be selected.

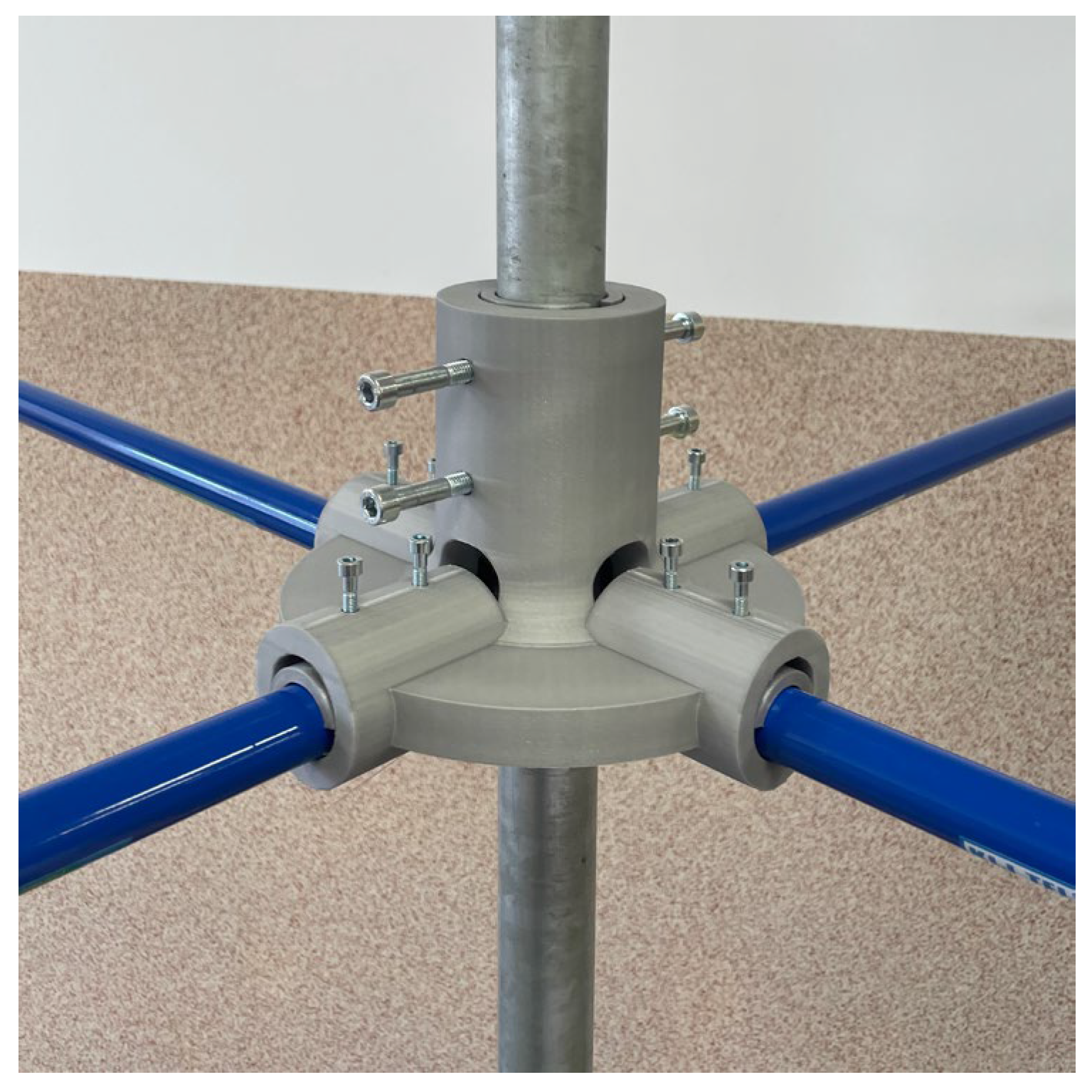

Such a setup allows for easy configuration, switching microphone angles, and changing the distance from the center and the distance between levels.
A summary of the hardware components used in this study is provided in Table 1.

2.2. Software

The creation of the UaVirBASE Recorder software (version 1.0) was motivated by a clear need to overcome the limitations of existing audio recording tools for scientific research. While widely used platforms like Audacity [45] provide basic recording functionalities, they lack the advanced features, flexibility, and precision required for complex experimental setups, such as sound source localization using microphone arrays. Our goal was to design a system that not only meets the technical demands of such experiments but also facilitates efficient data collection and ensures the integrity of the resulting datasets.
One of the primary challenges we faced was the inflexibility of commercial or open-source recording tools. Most existing solutions do not allow researchers to dynamically modify recording parameters such as the sampling rate, bit depth, or microphone configurations during an experiment. This lack of adaptability can hinder experimental workflows and limit the ability to capture data under varying conditions. Furthermore, many of these tools are tailored for general-purpose audio recording rather than the high-performance requirements of scientific studies.
Another critical limitation was the lack of automated data labeling in existing software. Labeling experimental data manually is time-consuming and prone to human error, especially when dealing with large datasets. For our research, which involves the creation of a public-access dataset for unmanned aerial vehicle (UAV) sound source localization, accuracy in labeling is paramount. Automated labeling features in the UaVirBASE Recorder ensure that all data are consistently and correctly annotated, eliminating potential errors and significantly speeding up the data processing pipeline.
In addition to the above limitations, cross-platform compatibility emerged as another important consideration. Many recording programs behave inconsistently across operating systems, with Linux often lacking robust support for advanced recording functionalities. Given that our experimental setup required a Linux-based environment for its stability and integration with other research tools, existing solutions proved insufficient. Developing a custom software solution allowed us to ensure seamless functionality across platforms, with a particular focus on optimizing performance in Linux environments.
The UaVirBASE Recorder was developed in Python (version 3.11.4) and is compatible with both Linux (Ubuntu) and Windows 10/11 operating systems. The software is designed to support up to 12 microphones simultaneously, making it ideal for multi-channel acoustic data collection. It offers recording capabilities at 32-bit float precision and supports the maximum sampling rate of the connected microphones—96 kHz for this dataset. These specifications ensure high-fidelity audio recordings, capturing intricate details critical for sound source localization studies.

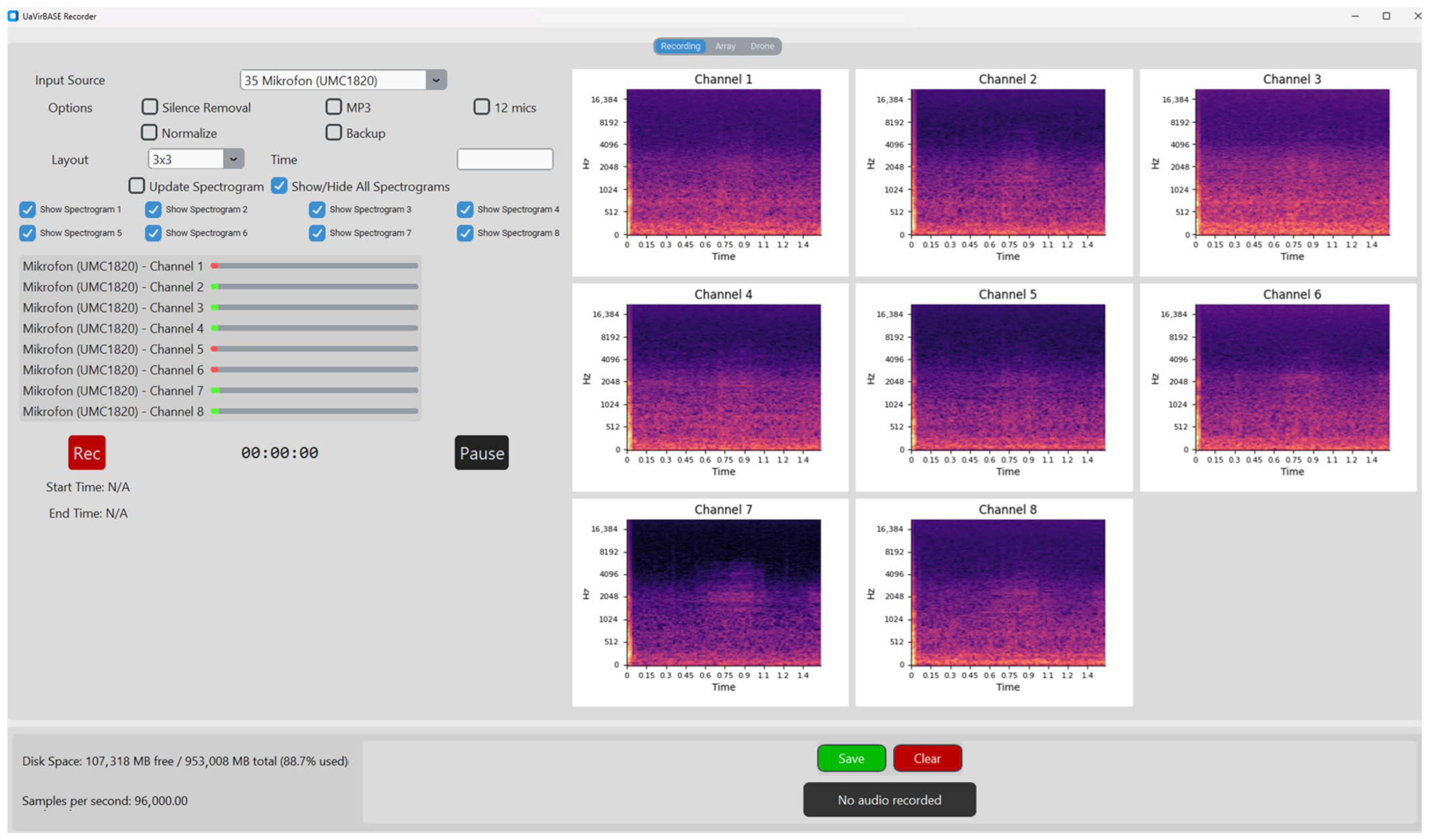

As shown in Figure 7, the interface allows for the simultaneous visualization of live spectrograms for individual audio channels. These spectrograms, displayed in a grid layout, provide immediate insights into the frequency content and temporal dynamics of the captured audio signals. Users can toggle individual spectrograms on or off for focused analysis.
Beyond visualization, the software includes essential functionalities for recording management:
  • Silence Removal and Normalization help optimize recordings by removing unnecessary data and ensuring consistent amplitude levels across channels.
  • Backup Recording, a critical data redundancy feature, ensures that all recordings are securely saved.
  • MP3 support enables audio data to be saved in the MP3 format for reduced file size and storage efficiency. Recordings are saved in the high-quality WAV (Waveform Audio File Format) for maximum fidelity by default. A control panel is used for starting, pausing, and stopping recordings, minimizing operational complexity during experiments.
  • To ensure uniformity in the length of audio files across recordings, the time field allows users to specify the duration (in seconds), after which the recording will automatically stop and be saved.
The real-time status bar updates on recording parameters, including the current sampling rate, disk space usage, and recording duration. Moreover, metadata such as start and end times for recordings are displayed, providing an apparent temporal reference that simplifies subsequent data processing. The interface also incorporates straightforward file management through dedicated save and clear buttons.

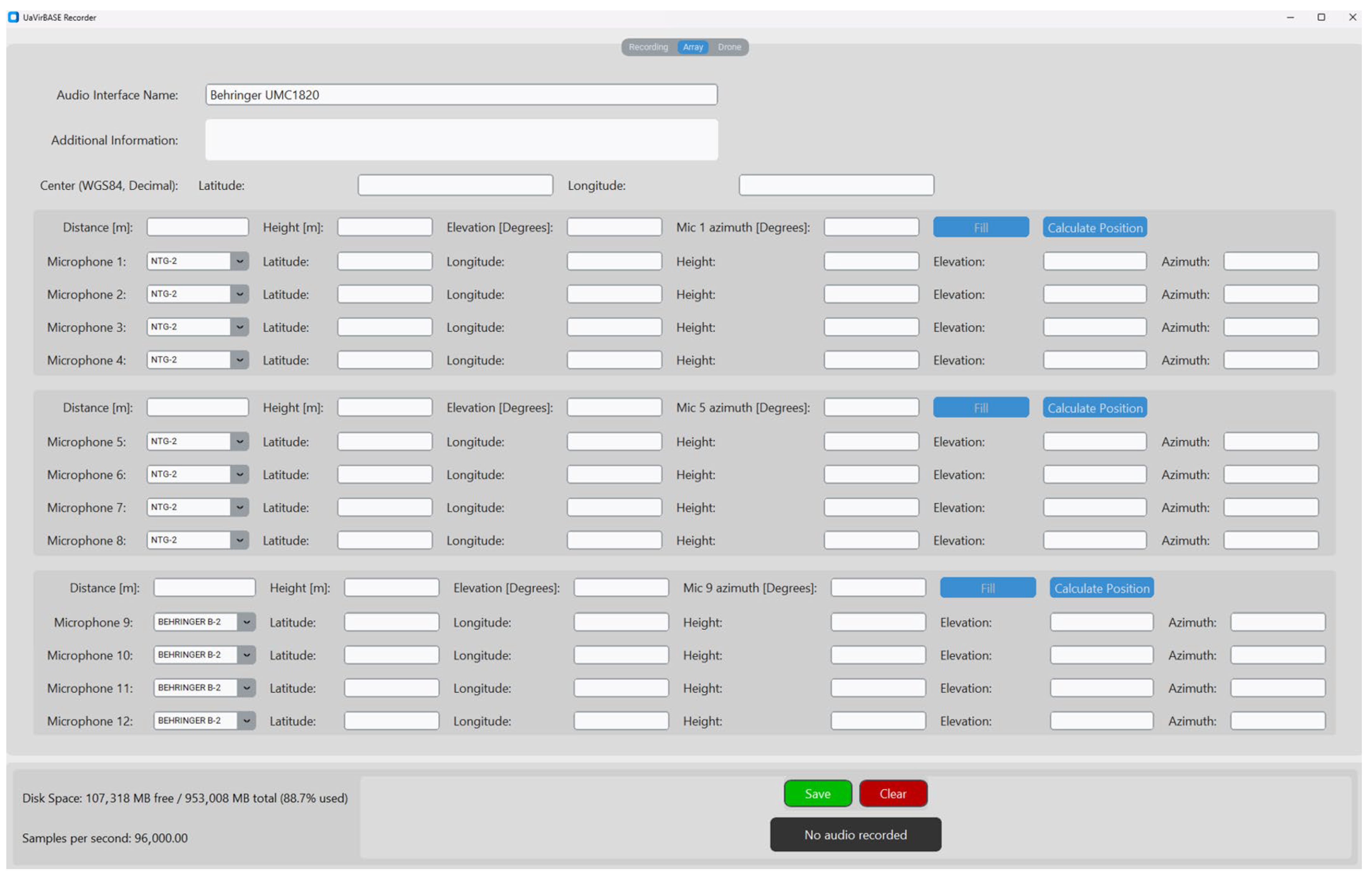

The Array Tab (Figure 8) provides an interface for configuring and managing microphone arrays. This tab’s core feature is the ability to define the spatial configuration of microphones relative to a central reference point. It also allows the selection of core hardware elements, such as audio interfaces and microphones.
One of its key functionalities is the capability to define the array’s reference point through WGS84 coordinates. By entering the latitude and longitude of the central location, users establish a fixed anchor point from which the positions of all microphones are determined.
For each microphone, users can specify several parameters that define its exact position and orientation within the array:
  • Distance is the radial distance of the microphone from the center, measured in meters.
  • Height is the vertical position of the microphone relative to the ground, also in meters.
  • Elevation and azimuth—these parameters define the microphone’s vertical and horizontal angles relative to the center point, ensuring precise orientation and alignment within the array.
Using the provided data, the precise position of each microphone is calculated, taking into account its distance, height, elevation, and azimuth relative to the central reference point. Each microphone is uniquely labeled once the calculations are complete, ensuring clear identification and organization within the array.

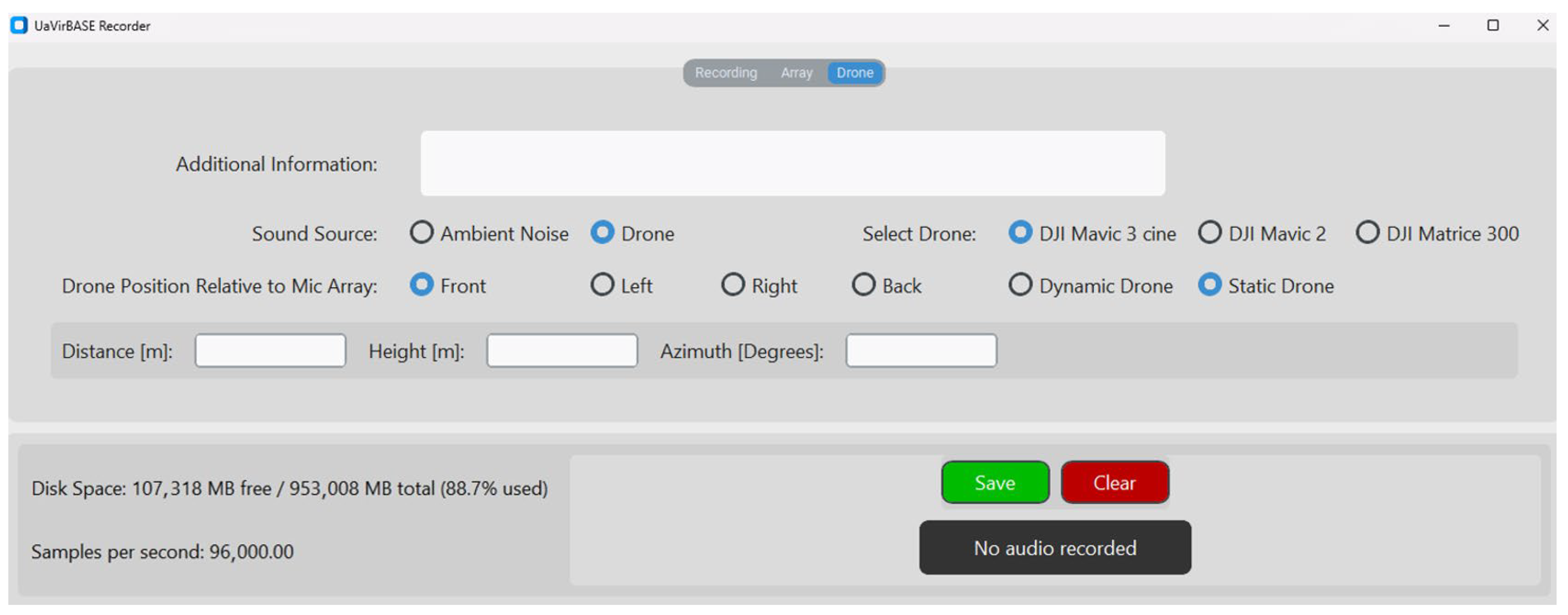

Figure 9 depicts a dedicated interface for configuring the sound source. This tab allows us to select whether the recording will capture ambient noise or a drone’s acoustic signature. In the case of drones, users can choose from a predefined list of models, such as DJI Mavic 3 Cine, DJI Mavic 2, or DJI Matrice 300, ensuring compatibility and accurate metadata labeling.
Additionally, the tab enables users to specify whether the drone is static (stationary) or dynamic (moving). The software records the drone’s position relative to the microphone array for static drones. This includes the distance, height, and azimuth (with north defined as 0 degrees). These fields allow for precise spatial configuration, ensuring the recorded data accurately represent real-world conditions.
By combining these features, the Drone Tab simplifies setting up drone-based experiments, providing flexibility and precision in defining the acoustic environment. Whether simulating a stationary noise source or replicating the dynamics of a moving UAV, this tab ensures that the collected data are accurate and reproducible.

2.3. Data Annotation

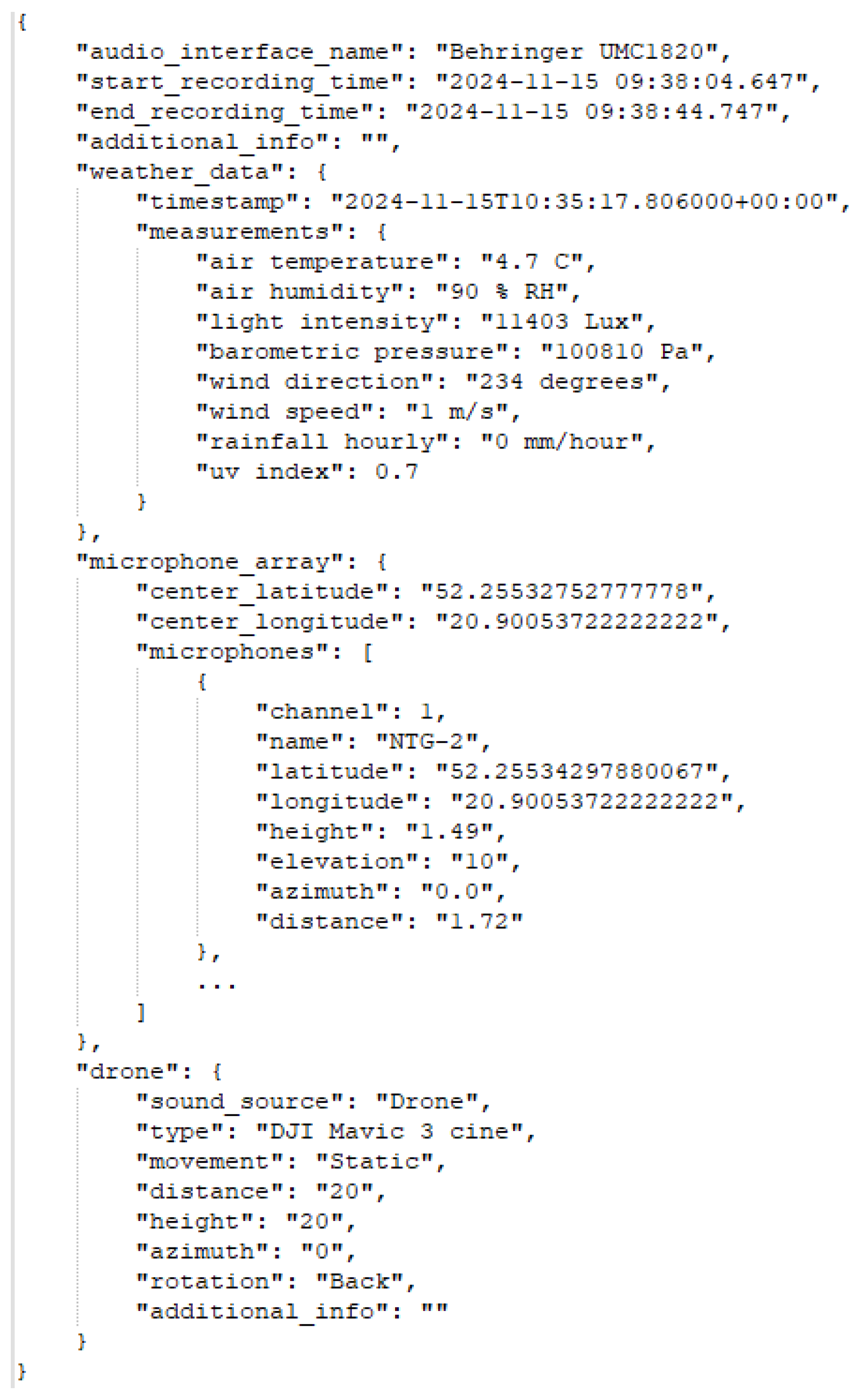

After each recording session, two files were generated: an a.wav file containing the multi-channel audio data and a.json file that stores metadata. The JSON file includes comprehensive information about the recording setup, including environmental conditions, microphone array configuration, and sound source characteristics. The labeling process was fully automated and integrated into the recording system. UAV parameters—such as distance, height, azimuth, and side orientation—were predefined through the recording interface and automatically stored in the JSON file. Microphone positions were established using physical measurements (e.g., tape measure for distance and height and compass for azimuth), and data on the weather were collected in real time via a weather sensor. This setup ensured precise and consistent ground truth labeling without the need for manual annotation. An excerpt of the metadata structure is shown in Figure 10.
Due to its length, the provided structure does not include all microphone labels. However, all microphone labels are listed in the same format, as shown in the example.

3. Experiments

This section provides an in-depth analysis of the created dataset, the architecture and configuration of the deep neural network model, the feature extraction methods utilized, and the results achieved during training. We outline the dataset’s structure, highlight the importance of the selected features, describe the model’s architecture, and discuss the training outcomes supported by relevant metrics and observations. The model was implemented using the PyTorch framework (version 2.6.0+cu126).

3.1. Dataset

The dataset created for this study consists of recordings from two distinct sound sources: ambient noise and UAV sounds. As summarized in Table 2, the dataset includes four ambient noise recordings totaling 1.19 GB with a combined duration of 416 s. In contrast, the UAV recordings—captured using a single DJI Mavic 3 Cine drone—are more extensive, with 128 recordings amounting to 14.61 GB and a total length of 5120 s.
In addition to the previously described recordings, we collected 18 audio files totaling 16.15 GB using the Zoom H4essential recorder. These recordings have a total duration of 33,090 s, sampled at a 96 kHz frequency with a 32-bit depth, ensuring high-resolution audio capture.
We performed recordings at varying heights and distances to capture UAV acoustic signatures under controlled conditions. The UAV was positioned and recorded under the following configurations:
  • Height: 10 m; distance: 10 m;
  • Height: 10 m; distance: 20 m;
  • Height: 20 m; distance: 10 m;
  • Height: 20 m; distance: 20 m.
At each position, recordings were conducted with an azimuth resolution of 45 degrees, covering eight orientations around the acoustic array.
Furthermore, for each UAV position and orientation, we recorded four separate sessions where the UAV was facing different directions relative to the acoustic measurement system:
  • On the left side, towards the acoustic array;
  • On the back side, towards the acoustic array;
  • On the right side, towards the acoustic array;
  • On the front side, towards the acoustic array.
Each recording session lasted 40 s, with 75% of the data (30 s) used for training and the remaining 25% (10 s) used for testing. This setup resulted in 64 files per height–distance combination, 16 files per azimuth angle, and 32 files per UAV orientation.

3.2. Features

For our experiments, we decided to utilize five distinct audio features: MFCC (Mel-Frequency Cepstrum Coefficient), Mel Spectrogram, STFT (Short-Time Fourier Transform), LFCC (Linear-Frequency Cepstrum Coefficient), and Bark Spectrogram. Each feature was selected based on its unique characteristics and ability to capture specific aspects of audio signals. The model was trained on each feature and configuration for 50 epochs to evaluate its effectiveness.
MFCCs provide a compact representation of the spectral envelope of a signal by mapping it onto the Mel-frequency scale, which approximates the human auditory system’s response. The process involves applying a Fourier Transform, converting to the Mel scale, taking the logarithm, and applying a Discrete Cosine Transform (DCT) to extract a set of coefficients.
A Mel Spectrogram is a time–frequency representation of an audio signal where the frequency axis is transformed to the Mel scale. It is obtained by applying a Short-Time Fourier Transform (STFT) followed by Mel filterbank processing, which smooths the spectrum into perceptually relevant frequency bands.
STFT is a fundamental method for time–frequency analysis, dividing the signal into small overlapping windows and applying the Fourier Transform to each window separately. The result is a spectrogram representing how the signal’s frequency content evolves.
LFCCs are similar to MFCCs but use a linear frequency scale instead of the Mel scale. This allows for a more uniform representation of the spectral content across all frequencies rather than emphasizing lower frequencies, as in MFCCs.
A Bark Spectrogram represents the power of an audio signal in critical bands based on the Bark scale, which approximates how humans perceive differences in frequency. It is computed similarly to a Mel Spectrogram but applies Bark filterbanks instead of Mel filters.

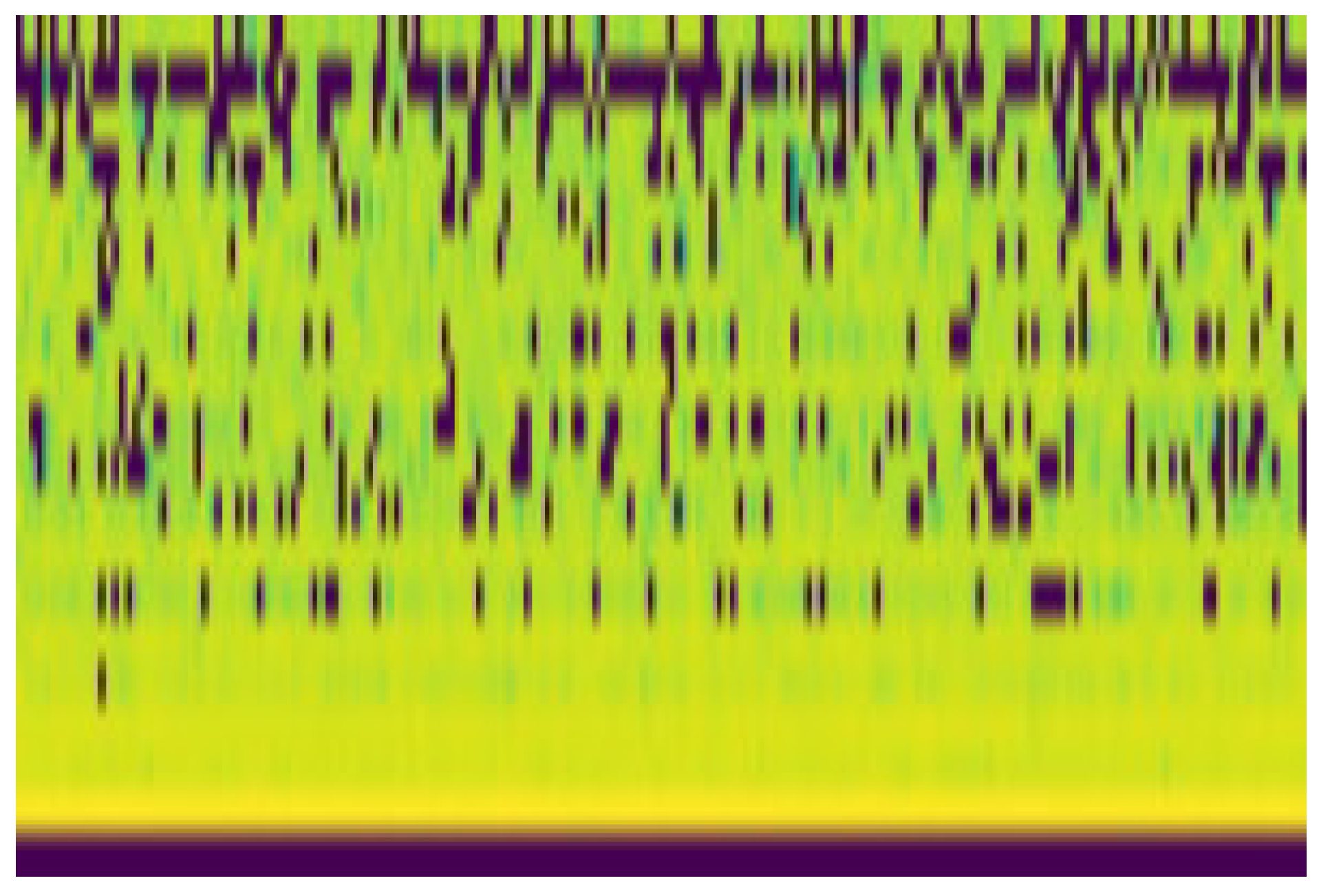

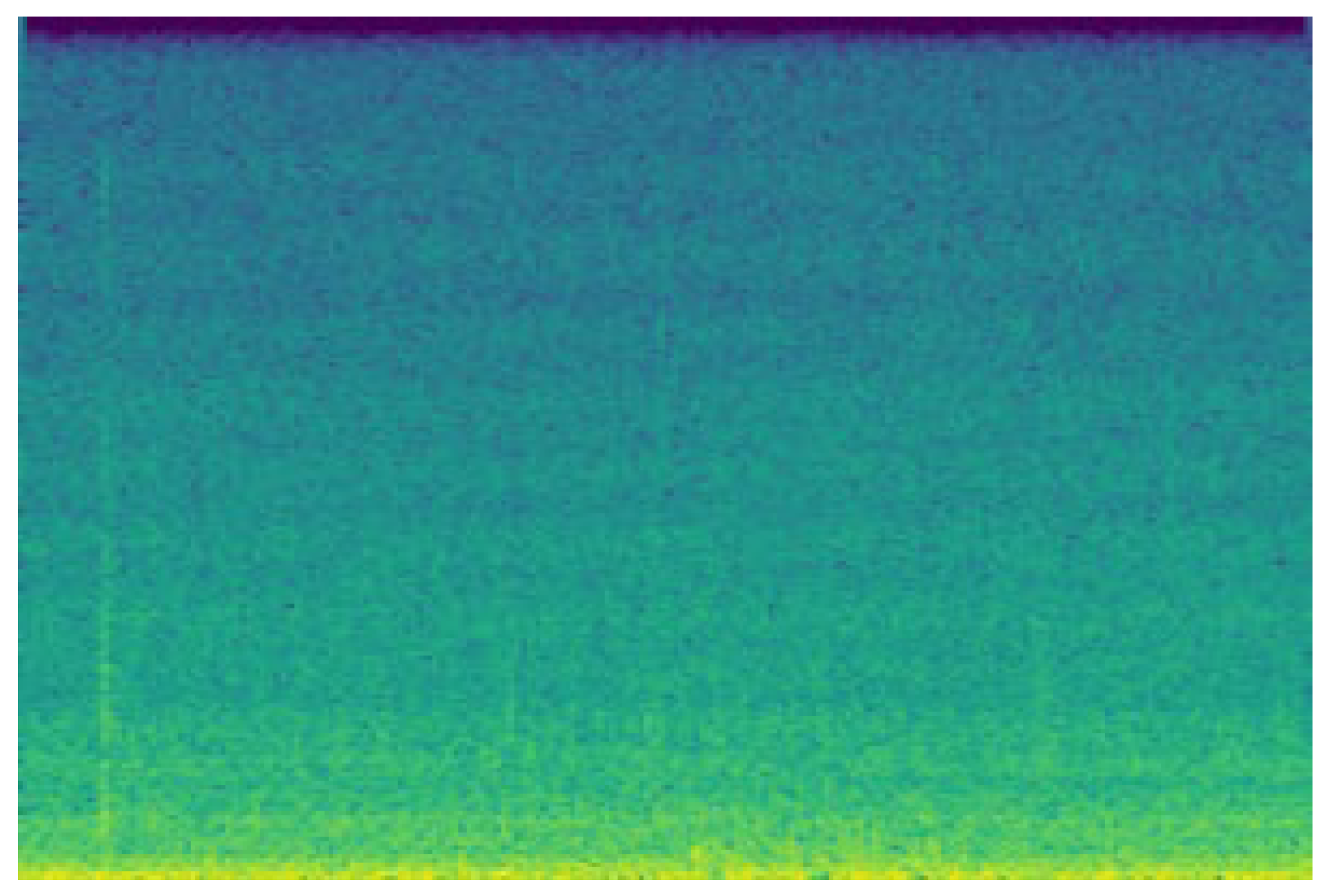

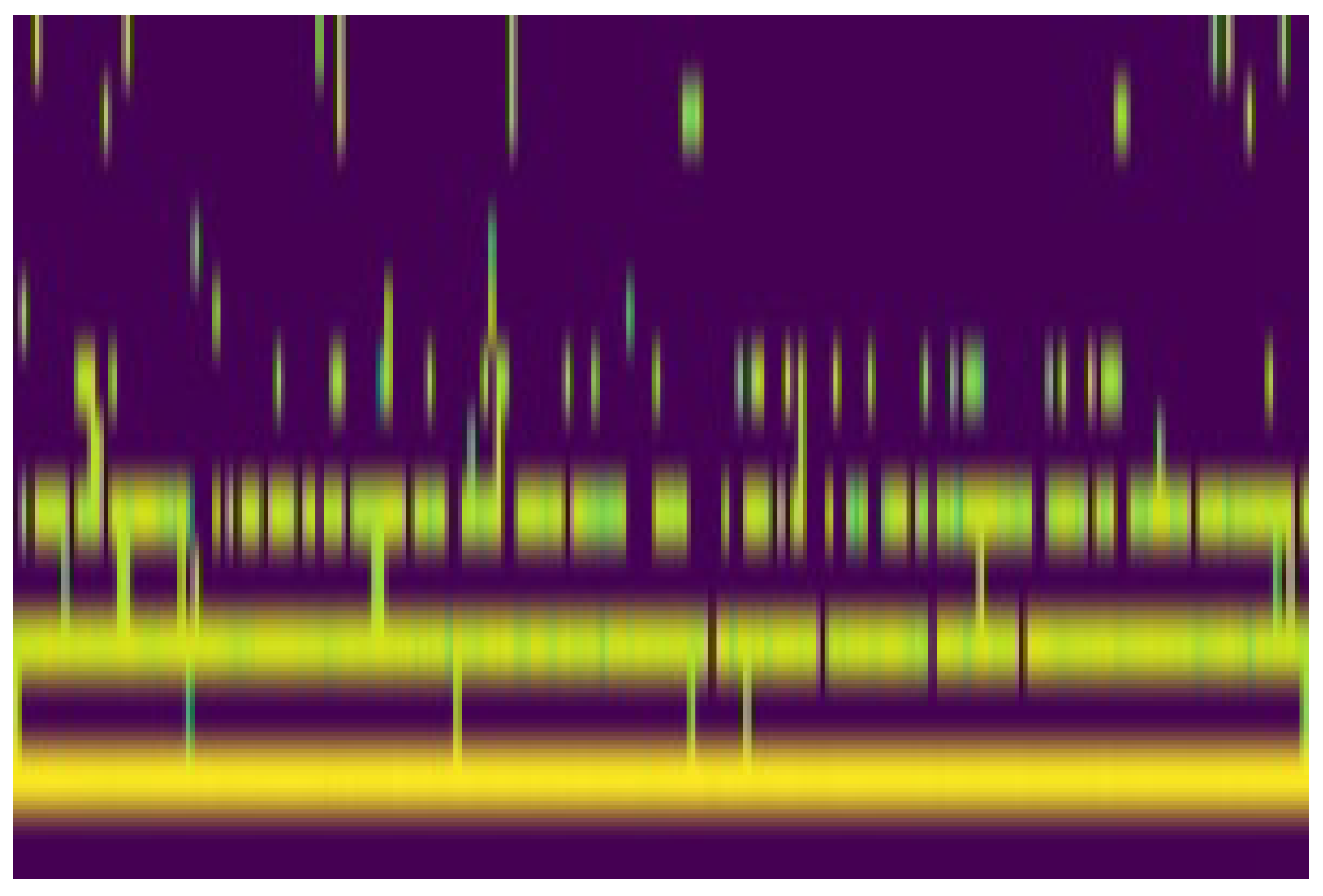

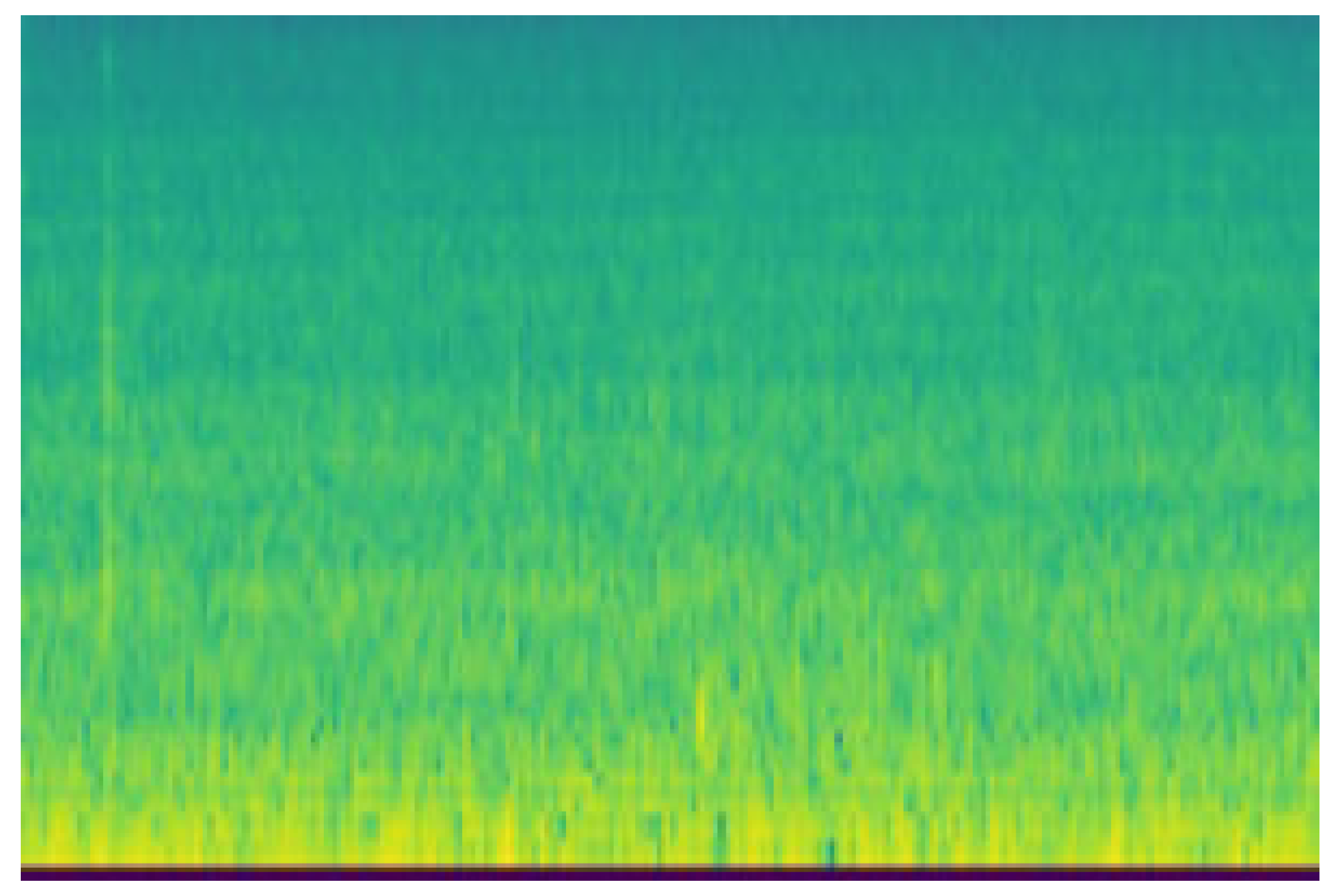

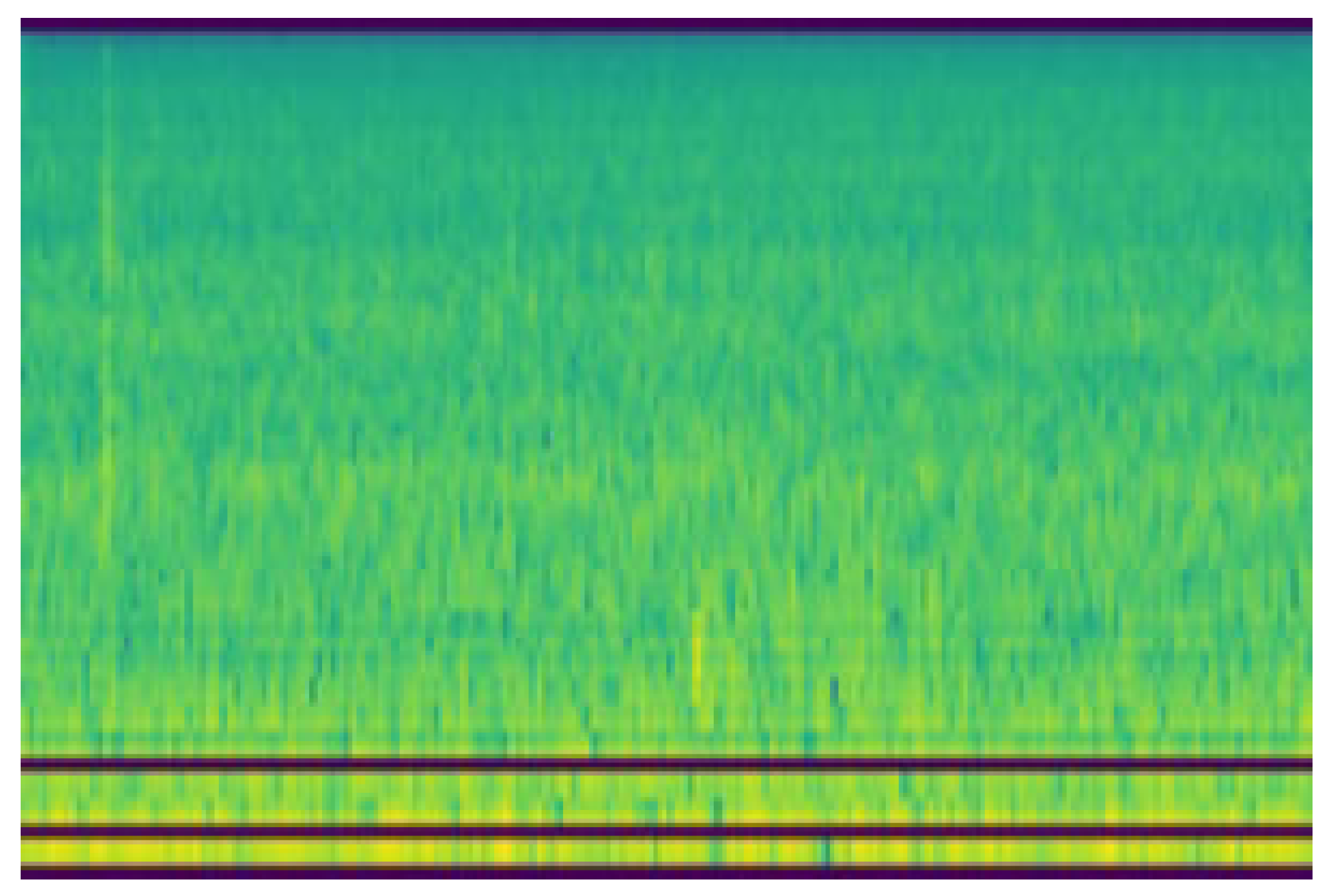

Figure 11, Figure 12, Figure 13, Figure 14 and Figure 15 below illustrate example visualizations of the same audio signal.

3.3. Architecture and Learning Process

Deep learning, particularly convolutional neural networks (CNNs), is well suited for analyzing the time–frequency representations of audio signals, such as spectrograms. In this study, we selected a deep residual CNN due to its ability to effectively learn spatial patterns in 2D acoustic feature maps while preserving gradient flow through skip connections. Compared to traditional machine learning models, CNNs offer superior performance on image-like input data and can automatically extract hierarchical features without manual feature engineering. Residual architectures, in particular, are known for their robustness in training deep networks and preventing vanishing gradients. While this approach requires more computational resources and a larger amount of training data, it provides strong generalization capabilities when sufficient data are available.

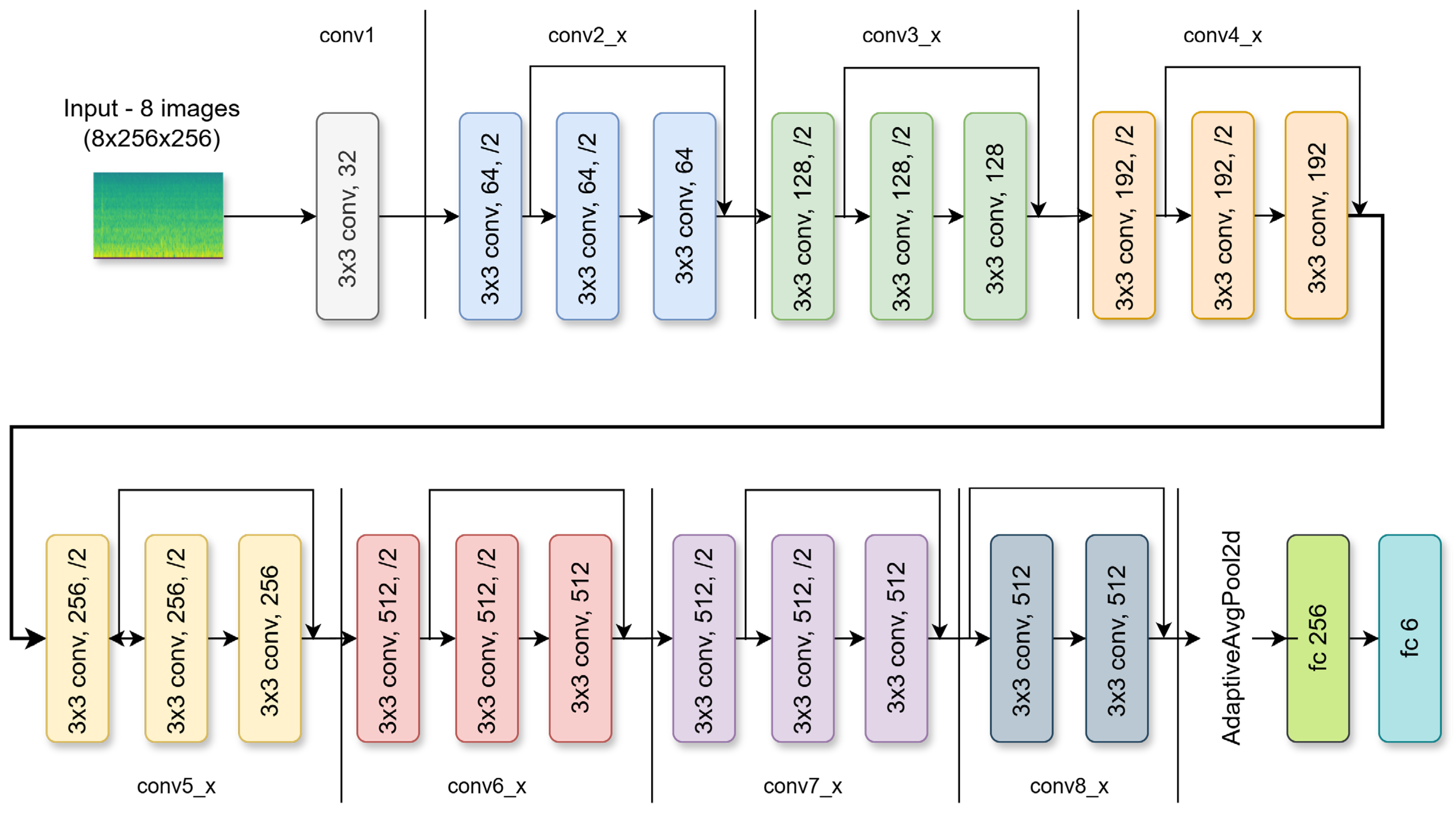

The proposed architecture is a deep residual convolutional neural network designed to process and analyze eight input images of (256 × 256) size. It consists of multiple convolutional layers with residual connections, which help efficiently extract hierarchical features while maintaining gradient stability. The network follows a ResNet-inspired design, with skip connections facilitating better feature propagation and mitigating vanishing gradients. Group normalization is applied throughout the network to stabilize activations and accelerate convergence. The model gradually reduces spatial dimensions while increasing the number of feature channels, enabling it to capture local and global patterns effectively. Following feature extraction, a global pooling layer condenses the information, which is then processed by fully connected layers. The final output consists of six continuous values representing different predicted parameters. The use of GELU activation and dropout regularization ensures stability and prevents overfitting. The architecture is shown in Figure 16.
Table 3 below outlines the specifications of each layer, including output dimensions, filter size, and stride.
The training process focuses on optimizing a deep learning model using the Adam optimizer, set with a learning rate of 0.0002 and betas (0.5, 0.9) to ensure stable and efficient convergence. Training is conducted for 50 epochs per configuration, utilizing a batch size of 32, balancing computational efficiency and performance.
Each training iteration follows a structured pipeline: forward propagation, where the model processes input data and generates predictions; loss computation, using the Mean Squared Error to evaluate deviations across six continuous outputs; and backpropagation, where the model updates its weight based on gradients derived from the loss.
To further refine training dynamics, a learning rate scheduler adaptively adjusts the learning rate based on model performance, reducing it when progress slows. This prevents stagnation in optimization and allows for finer weight updates as training progresses.

3.4. Metrics

We utilized two commonly used metrics for evaluating performance—MAE (Mean Absolute Error) and RMSE (Root Mean Squared Error). These metrics were chosen to measure prediction errors in distance, height (in meters), azimuth, and side (in degrees), helping to quantify the accuracy of the model’s estimates for each parameter. MAE calculates the average of the absolute differences between predicted and actual values. In the context of distance and height, this gives a straightforward understanding of how much, on average, the model’s predictions deviate from the actual values in meters. For azimuth and the side, expressed in degrees, MAE tells us how much the predicted angular positions differ on average from the actual angles.
In contrast, RMSE calculates the square root of the average squared differences between predicted and actual values. It is susceptible to larger errors, placing greater emphasis on instances where the model’s predictions significantly deviate from the actual values.
M A E = 1 N i = 1 N |   x i x |
M S E = 1 N i = 1 N ( x i x ) 2

3.5. Results

The results are labeled from a to d, where each label corresponds to a specific parameter:
  • a represents the distance (measured in meters);
  • b represents the height (measured in meters);
  • c corresponds to the azimuth (measured in degrees);
  • d represents the side (also measured in degrees).
To assess the model’s performance, we varied several key parameters. These included the following:
  • Frequency sample rate—the rate at which the signal is sampled, which can impact the analysis’s temporal and frequency resolution.
  • FFT size—the number of points used in the Fast Fourier Transform determines the resolution of the frequency domain representation.
  • Hop length—the number of samples between consecutive frames in time–frequency transformations, affecting both computational efficiency and the trade-off between time and frequency resolution.
  • Extra parameters—parameters typical to the feature, e.g., the number of MFC coefficients for MFCC or LFC coefficients for LFCC.
The results for selected audio features are shown in Table 4.
Building on the results above, the Mel Spectrogram demonstrated the most favorable performance compared to the other feature extraction techniques. Notably, increasing the frequency sample rate from 16 kHz yielded a more significant error reduction compared to increasing the sample rate from 44.1 kHz to 96 kHz. However, it is also evident that raising the frequency sample rate to 96 kHz results in further improvements, particularly in the case of MFCC. This finding suggests that a higher sample rate can provide finer temporal details, contributing to more accurate estimations, especially in the context of certain features like MFCC.
Given these observations, we decided to investigate further how other parameters, including the n_fft, hop length, and the number of Mel coefficients, influence the performance of the Mel Spectrogram. Since it has yielded the best results so far, we chose it as the focus for exploring the impact of these changes. To provide a more comprehensive analysis, we created a table with the results based on the following adjustments:
  • Frequency sample rate: 44.1 kHz and 96 kHz.
  • FFT size: 1024, 2048 and 4096.
  • Hop length: 50% and 75% overlap.
  • The number of Mel coefficients: 64, 128, and 256.
By varying these parameters, we aimed to identify their individual and combined effects on the performance of the Mel Spectrogram and further fine-tune the model for improved accuracy in spatial parameter estimations. The results of these experiments are presented in Table 5 below.
Analyzing the results presented in the table, it becomes evident that, in most cases, using 64 Mel coefficients resulted in the worst performance. This suggests a lower number of Mel coefficients may not capture sufficient spectral information to achieve optimal results. An interesting trend emerged for parameter a: a hop length overlap of 75% led to better results, indicating that a greater degree of overlap contributed to improved performance. On the other hand, when considering height, the best outcomes were observed with a 50% overlap, suggesting that the impact of the hop length’s overlap may be parameter-dependent.
Another key observation is that parameter d (side) achieved the highest performance when the number of Mel coefficients was set to 128. This implies that, at least for this parameter, a higher number of Mel coefficients provides a more detailed spectral representation, leading to improved results. However, when examining distance, height, and azimuth, no clear trend was identified regarding the impact of the number of Mel coefficients. The results for these parameters do not show a consistent improvement or decline as the number of coefficients changes, making it difficult to draw definitive conclusions.
Additionally, when analyzing the effect of frequency sample, it is not straightforward to determine whether a higher frequency consistently leads to better performance. The results for both frequency values are comparable, indicating that the influence of this factor is less pronounced than other parameters.
The most significant factor affecting the proposed configurations appears to be the number of Mel coefficients. This parameter has the most significant impact on performance, highlighting the importance of selecting an appropriate number of coefficients to maximize the model’s effectiveness. Further analysis could be beneficial in understanding the interaction between Mel coefficients and other parameters and determining the optimal configuration for different use cases.

4. Future Directions

Based on our current work and an analysis of future requirements, we identified several key areas for further development and improvement. The current dataset exhibits limitations in three key spatial dimensions:
  • Azimuth Resolution—the localization is presently constrained to a 45° angular increment; thus, we aim to increase angular resolution.
  • Altitude Range—the existing recordings cover a limited vertical spectrum (10 and 20 m). We plan to extend this with low- and high-altitude scenarios.
  • Radial Distance—the current operational radius from the acoustic head is limited to 20 m. Future trials will focus on extending this range to include greater distances.
Expanding spatial coverage in all three dimensions—along the azimuth, altitude, and radial distance—is expected to improve the precision and robustness of UAV localization. However, increasing the resolution and range also means handling more data and more complex scenarios, which significantly raises processing demands. This can impact real-time performance and require greater computational efficiency. As a result, improvements such as reducing input data size and simplifying model structures will be necessary to maintain accuracy while keeping latency and resource usage within practical limits.
Another identified limitation is the absence of multiple UAV types and overlapping sources in the dataset. At present, our recordings are limited to a single UAV model and single-object scenarios. To address this, we plan to expand our fleet and conduct additional recording sessions using different UAV models individually to increase acoustic diversity. In future stages, we also intend to perform sessions with multiple UAVs operating simultaneously, enabling research into more complex tasks such as sound source separation, interference handling, and multi-target classification.
In parallel with the spatial expansion, we are also working on complementary datasets focused on UAV detection and classification tasks, which will support broader use cases beyond localization. Looking ahead, we plan to develop a dataset involving dynamic UAV movements tracked via GPS to enable future research into real-time acoustic tracking and trajectory estimation. These additions will extend the practical relevance of our work to more complex scenarios involving moving targets and diverse drone behaviors.
Additionally, we are exploring the development of a similar project and dataset tailored for an ad hoc network using a mesh of independent sensors. Such a system poses unique challenges, requiring the design and implementation of new software and hardware solutions distinct from those presented in this study.
As we continue refining our device and dataset, it is evident that creating a large, high quality and comprehensive dataset requires substantial time and resources. The sheer diversity of commercially available UAVs, not to mention custom-built or one-of-a-kind vehicles, makes it impractical for a single team to catalog them all. We are considering publishing our software and hardware as an open-source project to address this challenge. This approach would invite contributions from other interested parties, enabling them to create their own datasets.

5. Conclusions

In this paper, we present a self-created UAV sound database designed for UAV localization, focusing on distance, height, and azimuth and predicting the drone’s side relative to the microphone array. To validate the utility of the dataset, we implemented a deep neural network (DNN) model and demonstrated that the dataset is effective for these tasks. Such a system has practical potential for ground-based UAV monitoring in real-world applications, including airspace surveillance, infrastructure protection, and acoustic detection in areas where visual or RF-based systems are limited.
The results indicate that our model, trained using this dataset, achieves strong performance, with an average MAE of 0.5 m for distance and height. The azimuth error, on average, is around 1 degree, demonstrating the model’s ability to accurately estimate the direction of the sound source. Furthermore, the model reliably predicts the position of the side of the drone, with an average error below 10 degrees, showcasing the ability to classify the drone’s orientation relative to the microphone array. On the other hand, RMSE for distance, height, and azimuth does not vary significantly, indicating stable and consistent predictions for these parameters. However, the RMSE for the side angle is notably higher, suggesting greater variability in these predictions. This implies that while the model can classify the drone’s general orientation well, fine-grained distinctions in its exact side positioning may be more challenging to capture.
Our analysis also reveals that the Mel Spectrogram outperforms other feature extraction methods, such as STFT, LFCC, MFCC, and the Bark Spectrogram, to provide the most accurate results. This suggests that Mel Spectrograms are particularly well-suited for UAV localization tasks involving acoustic data. Additionally, we show that specific parameters, such as the audio frequency sample rate and key feature extraction parameters—like FFT size, hop length, and the number of coefficients—significantly impact the model’s performance. Our experiments show that using very low parameter values in feature extraction leads to a noticeable drop in model performance, likely due to insufficient resolution in the time or frequency domain. Increasing these values improves accuracy, but only up to a certain point. Beyond that, further gains are minimal while computational demands rise sharply. This indicates that selecting moderate parameter settings can offer an effective balance between accuracy and efficiency.
These findings underscore the importance of carefully considering both the dataset and the feature extraction process when designing UAV sound source localization systems. The results suggest that with proper training and parameter tuning, deep learning models can achieve high levels of accuracy in real-world UAV localization tasks.
In conclusion, our study not only introduces a valuable resource in the form of the UAV sound database but also provides insights into effective methodologies for UAV localization using acoustic signals. All the data and code related to this research have been made publicly available under a GitLab repository, ensuring transparency and reproducibility.
Although the current version of UaVirBASE includes data from only one UAV, it presents a fully described and reproducible setup for UAV localization using spatial audio. The dataset is accompanied by detailed metadata, the documentation of the hardware configuration, and a publicly available training code. This will enable others to replicate the setup and develop their own datasets for related research applications.
We believe this research contributes to the advancement of UAV-based localization systems and lays a foundation for future work to improve sound-based localization in complex UAV environments.

Author Contributions

G.J. contributed to the introduction, future conditions, description of results, and deep neural network. R.S. contributed to hardware and conclusions. The other author, Z.P., contributed to the software and made a revision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Military University of Technology, Faculty of Electronics, grant number UGB/22-747, on the application of artificial intelligence methods to cognitive spectral analysis, satellite communications, and watermarking and technology deepfakes.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The source code and dataset used in this study can be found at the GitLab repository: https://gitlab.com/g.jekaterynczuk/uavirbase_ssl# (accessed on 16 April 2025).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

UAVUnmanned Aerial Vehicle
SSLSound Source Localization
AIArtificial Intelligence
RFRadio Frequency
FFTFast Fourier Transform
AIArtificial Intelligence
TDoATime Difference of Arrival
DoADirection of Arrival
WGS84World Geodetic System 1984
IoTInternet of Things
MP3MPEG Audio Layer-3
WAVWaveform Audio File Format
SNRSignal-to-Noise Ratio
MFCCMel-Frequency Cepstrum Coefficient
STFTShort-Time Fourier Transform
LFCCLinear-Frequency Cepstrum Coefficient
DCTDiscrete Cosine Transform
MAEMean Absolute Error
RMSERoot Mean Squared Error
DNNDeep Neural Network
GPSGlobal Positioning System
JSONJavaScript Object Notation

References

  1. Senocak, A.; Ryu, H.; Kim, J.; Oh, T.-H.; Pfister, H.; Chung, J.S. Sound Source Localization Is All about Cross-Modal Alignment. arXiv 2023, arXiv:2309.10724. [Google Scholar]
  2. Rascon, C.; Meza, I. Localization of Sound Sources in Robotics: A Review. Robot. Auton. Syst. 2017, 96, 184–210. [Google Scholar] [CrossRef]
  3. Jung, I.-J.; Jung, S.S.; Cho, W.-H.; Lee, B.K.; Park, T. Application of Sound Source Localization Algorithm for Urban Noise Source Monitoring. In Proceedings of the 10 th Convention of the European Acoustics Association, Turin, Italy, 11–15 September 2023. [Google Scholar]
  4. Song, Z.; Wang, Y.; Fan, J.; Tan, T.; Zhang, Z. Self-Supervised Predictive Learning: A Negative-Free Method for Sound Source Localization in Visual Scenes. arXiv 2022, arXiv:2203.13412. [Google Scholar]
  5. Verreycken, E.; Simon, R.; Quirk-Royal, B.; Daems, W.; Barber, J.; Steckel, J. Bio-Acoustic Tracking and Localization Using Heterogeneous, Scalable Microphone Arrays. Commun. Biol. 2021, 4, 1275. [Google Scholar] [CrossRef]
  6. Ko, J.; Kim, H.; Kim, J. Real-Time Sound Source Localization for Low-Power IoT Devices Based on Multi-Stream CNN. Sensors 2022, 22, 4650. [Google Scholar] [CrossRef]
  7. Hadi, H.J.; Cao, Y.; Nisa, K.U.; Jamil, A.M.; Ni, Q. A Comprehensive Survey on Security, Privacy Issues and Emerging Defence Technologies for UAVs. J. Netw. Comput. Appl. 2023, 213, 103607. [Google Scholar] [CrossRef]
  8. Wang, L.; Cavallaro, A. Deep-Learning-Assisted Sound Source Localization from a Flying Drone. IEEE Sens. J. 2022, 22, 20828–20838. [Google Scholar] [CrossRef]
  9. Seidaliyeva, U.; Ilipbayeva, L.; Taissariyeva, K.; Smailov, N.; Matson, E.T. Advances and Challenges in Drone Detection and Classification Techniques: A State-of-the-Art Review. Sensors 2023, 24, 125. [Google Scholar] [CrossRef]
  10. Famili, A.; Stavrou, A.; Wang, H.; Park (Jerry), J.-M.; Gerdes, R. Securing Your Airspace: Detection of Drones Trespassing Protected Areas. Sensors 2024, 24, 2028. [Google Scholar] [CrossRef]
  11. Chiper, F.-L.; Martian, A.; Vladeanu, C.; Marghescu, I.; Craciunescu, R.; Fratu, O. Drone Detection and Defense Systems: Survey and a Software-Defined Radio-Based Solution. Sensors 2022, 22, 1453. [Google Scholar] [CrossRef]
  12. Lei, Y.; Qilei, Z.; Tao, Y.; Miao, W.; Shenjing, W. Effective Detection and Localization of Small Maneuvering UAV Swarm via Coherent FDA Radar. IET Conf. Proc. 2024, 2023, 793–800. [Google Scholar] [CrossRef]
  13. Yousaf, J.; Zia, H.; Alhalabi, M.; Yaghi, M.; Basmaji, T.; Shehhi, E.A.; Gad, A.; Alkhedher, M.; Ghazal, M. Drone and Controller Detection and Localization: Trends and Challenges. Appl. Sci. 2022, 12, 12612. [Google Scholar] [CrossRef]
  14. Zitar, R.A.; Al-Betar, M.; Ryalat, M.; Kassaymeh, S. A Review of UAV Visual Detection and Tracking Methods. arXiv 2023, arXiv:2306.05089. [Google Scholar]
  15. Jamil, S.; Fawad; Rahman, M.; Ullah, A.; Badnava, S.; Forsat, M.; Mirjavadi, S.S. Malicious UAV Detection Using Integrated Audio and Visual Features for Public Safety Applications. Sensors 2020, 20, 3923. [Google Scholar] [CrossRef] [PubMed]
  16. Dudczyk, J.; Czyba, R.; Skrzypczyk, K. Multi-Sensory Data Fusion in Terms of UAV Detection in 3D Space. Sensors 2022, 22, 4323. [Google Scholar] [CrossRef]
  17. Frid, A.; Ben-Shimol, Y.; Manor, E.; Greenberg, S. Drones Detection Using a Fusion of RF and Acoustic Features and Deep Neural Networks. Sensors 2024, 24, 2427. [Google Scholar] [CrossRef]
  18. Lee, H.; Han, S.; Byeon, J.-I.; Han, S.; Myung, R.; Joung, J.; Choi, J. CNN-Based UAV Detection and Classification Using Sensor Fusion. IEEE Access 2023, 11, 68791–68808. [Google Scholar] [CrossRef]
  19. Jekateryńczuk, G.; Piotrowski, Z. A Survey of Sound Source Localization and Detection Methods and Their Applications. Sensors 2023, 24, 68. [Google Scholar] [CrossRef]
  20. Liaquat, M.U.; Munawar, H.S.; Rahman, A.; Qadir, Z.; Kouzani, A.Z.; Mahmud, M.A.P. Localization of Sound Sources: A Systematic Review. Energies 2021, 14, 3910. [Google Scholar] [CrossRef]
  21. Bistroń, M.; Piotrowski, Z. Efficient Video Watermarking Algorithm Based on Convolutional Neural Networks with Entropy-Based Information Mapper. Entropy 2023, 25, 284. [Google Scholar] [CrossRef]
  22. Rojek, I.; Mikołajewski, D.; Kotlarz, P.; Tyburek, K.; Kopowski, J.; Dostatni, E. Traditional Artificial Neural Networks Versus Deep Learning in Optimization of Material Aspects of 3D Printing. Materials 2021, 14, 7625. [Google Scholar] [CrossRef] [PubMed]
  23. Rojek, I.; Mikołajewski, D.; Kotlarz, P.; Macko, M.; Kopowski, J. Intelligent System Supporting Technological Process Planning for Machining and 3D Printing. Bull. Pol. Acad. Sci. Tech. Sci. 2021, 357, 136722. [Google Scholar] [CrossRef]
  24. Naitali, A.; Ridouani, M.; Salahdine, F.; Kaabouch, N. Deepfake Attacks: Generation, Detection, Datasets, Challenges, and Research Directions. Computers 2023, 12, 216. [Google Scholar] [CrossRef]
  25. Piotrowski, Z.; Bistroń, M.; Jekateryńczuk, G.; Kaczmarek, P.; Pietrow, D. Victim Verification with the Use of Deep Metric Learning in DVI System Supported by Mobile Application. Appl. Sci. 2025, 15, 727. [Google Scholar] [CrossRef]
  26. Arjomandi Rad, M.; Hajali, T.; Martinsson Bonde, J.; Panarotto, M.; Wärmefjord, K.; Malmqvist, J.; Isaksson, O. Datasets in Design Research: Needs and Challenges and the Role of AI and GPT in Filling the Gaps. Proc. Des. Soc. 2024, 4, 1919–1928. [Google Scholar] [CrossRef]
  27. GitHub—Saraalemadi/DroneAudioDataset. Available online: https://github.com/saraalemadi/DroneAudioDataset (accessed on 4 May 2025).
  28. Sound-Based Drone Fault Classification Using Multi-Task Learning. Available online: https://zenodo.org/records/7779574#.ZCOvfXZBwQ8 (accessed on 4 May 2025).
  29. Drone Authentication via Acoustic Fingerprint—Enlighten Research Data. Available online: https://researchdata.gla.ac.uk/1348/ (accessed on 4 May 2025).
  30. DroneNoise Database. Available online: https://salford.figshare.com/articles/dataset/DroneNoise_Database/22133411 (accessed on 4 May 2025).
  31. The DREGON Dataset—DREGON. Available online: http://dregon.inria.fr/datasets/dregon/ (accessed on 4 May 2025).
  32. ScienceDB. Available online: https://www.scidb.cn/en/detail?dataSetId=b2b4bdad91284ecaa6ffc26f919199ff (accessed on 4 May 2025).
  33. Acoustic Interactions for Robot Audition—Unmanned Aerial Systems (AIRA-UAS). Available online: https://calebrascon.info/AIRA-UAS/ (accessed on 4 May 2025).
  34. The SPCup19 Egonoise Dataset—DREGON. Available online: http://dregon.inria.fr/datasets/the-spcup19-egonoise-dataset/ (accessed on 4 May 2025).
  35. Signal Processing Cup 2019—DREGON. Available online: http://dregon.inria.fr/datasets/signal-processing-cup-2019/ (accessed on 4 May 2025).
  36. GitHub—AcousticPrint/AcousticPrint: Harini Kolamunna, Junye Li, Thilini Dahanayake, Suranga Seneviratne, Kanchana Thilakaratne, Albert Y. Zomaya, and Aruna Seneviratne. Available online: https://github.com/AcousticPrint/AcousticPrint (accessed on 4 May 2025).
  37. GitHub—Cri-Lab-Hbku/Drone-Payload. Available online: https://github.com/cri-lab-hbku/Drone-Payload (accessed on 4 May 2025).
  38. Malicious UAVs Detection. Available online: https://www.kaggle.com/datasets/sonain/malicious-uavs-detection (accessed on 4 May 2025).
  39. Audacity ® | Free Audio Editor, Recorder, Music Making and More! Available online: https://www.audacityteam.org/ (accessed on 5 February 2025).
  40. Dostatni, E.; Osiński, F.; Mikołajewski, D.; Sapietová, A.; Rojek, I. Neural Networks for Prediction of 3D Printing Parameters for Reducing Particulate Matter Emissions and Enhancing Sustainability. Sustainability 2024, 16, 8616. [Google Scholar] [CrossRef]
  41. NTG2 | Multi-Powered Shotgun Microphone | RØDE. Available online: https://rode.com/en/microphones/shotgun/ntg2 (accessed on 5 February 2025).
  42. Behringer | Product | UMC1820. Available online: https://www.behringer.com/product.html?modelCode=0805-AAN (accessed on 5 February 2025).
  43. SenseCAP S2120 8-in-1 LoRaWAN Weather Sensor—Seeed Studio. Available online: https://www.seeedstudio.com/sensecap-s2120-lorawan-8-in-1-weather-sensor-p-5436.html (accessed on 5 February 2025).
  44. Zoom H4essential—ZOOM Europe. Available online: https://www.zoom-europe.com/en/handy-recorders/zoom-h4e (accessed on 5 February 2025).
  45. Behringer | Product | B-1. Available online: https://www.behringer.com/product.html?modelCode=0504-AAB (accessed on 5 February 2025).
Figure 1. Structure and organization of the article.
Figure 1. Structure and organization of the article.
Applsci 15 05378 g001
Figure 2. Classification of the developed SSL architecture based on key configuration parameters.
Figure 2. Classification of the developed SSL architecture based on key configuration parameters.
Applsci 15 05378 g002
Figure 3. UAV used in this study: DJI Mavic 3 Cine.
Figure 3. UAV used in this study: DJI Mavic 3 Cine.
Applsci 15 05378 g003
Figure 4. Self-built “Acoustic Head” recording microphone array.
Figure 4. Self-built “Acoustic Head” recording microphone array.
Applsci 15 05378 g004
Figure 5. Attachment point of the level, allowing for vertical adjustment.
Figure 5. Attachment point of the level, allowing for vertical adjustment.
Applsci 15 05378 g005
Figure 6. Single microphone mounting with adjustable horizontal positioning along the arm.
Figure 6. Single microphone mounting with adjustable horizontal positioning along the arm.
Applsci 15 05378 g006
Figure 7. UaVirBASE Recorder interface—recording control panel with live spectrograms.
Figure 7. UaVirBASE Recorder interface—recording control panel with live spectrograms.
Applsci 15 05378 g007
Figure 8. Microphone array configuration interface in the UaVirBASE Recorder.
Figure 8. Microphone array configuration interface in the UaVirBASE Recorder.
Applsci 15 05378 g008
Figure 9. Sound source configuration panel in the UaVirBASE Recorder.
Figure 9. Sound source configuration panel in the UaVirBASE Recorder.
Applsci 15 05378 g009
Figure 10. Example structure of the metadata label file (.json).
Figure 10. Example structure of the metadata label file (.json).
Applsci 15 05378 g010
Figure 11. Short-Time Fourier Transform (STFT).
Figure 11. Short-Time Fourier Transform (STFT).
Applsci 15 05378 g011
Figure 12. Mel Spectrogram.
Figure 12. Mel Spectrogram.
Applsci 15 05378 g012
Figure 13. Mel-Frequency Cepstral Coefficients (MFCCs).
Figure 13. Mel-Frequency Cepstral Coefficients (MFCCs).
Applsci 15 05378 g013
Figure 14. Linear-Frequency Cepstral Coefficients (LFCCs).
Figure 14. Linear-Frequency Cepstral Coefficients (LFCCs).
Applsci 15 05378 g014
Figure 15. Bark Spectrogram.
Figure 15. Bark Spectrogram.
Applsci 15 05378 g015
Figure 16. The architecture of the deep residual convolutional neural network used in the experiments.
Figure 16. The architecture of the deep residual convolutional neural network used in the experiments.
Applsci 15 05378 g016
Table 1. Hardware components summary.
Table 1. Hardware components summary.
ComponentModel/DescriptionKey Specifications/FeaturesPurpose
UAVDJI Mavic 3 Cine (DJI, Shenzhen, China)QuadrocopterAcoustic sound source
MicrophonesRøde NTG2 (RØDE Microphones, Sydney, Australia)Supercardioid, 20 Hz–20 kHz, 113 dB dynamic rangeDirectional sound capture
Microphone MountCustom dual-level frame (self-made)Two levels (4 mics each), adjustable distance and angleSpatial audio array configuration
Audio InterfaceBehringer UMC1820 (Behringer, Zhongshan, China)8 XLR inputs, 32-bit, supports 96 kHz sampling rateMulti-channel audio signal acquisition
Secondary RecorderZoom H4essential
(Zoom Corporation, Dongguan, China)
2-channel, 96 kHz/32-bit floatWhole session recorder
Weather StationSenseCAP S2120 (Seed Studio, Shenzhen, China)Temp, wind speed, humidity, barometric pressure, directionEnvironmental metadata capture
Distance MeasurementBosch GLM 150 C Laser (Bosch, Penang, Malaysia)±1.5 mm accuracy, up to 150 m rangeDrone distance positioning
Mounting HardwareFDM 3D-printed components (self-made)Custom brackets, arms, mountsMicrophone positioning and adjustment
Table 2. Dataset summary.
Table 2. Dataset summary.
Sound SourceNumber of RecordingsTotal Size [GB]Length [s]
Ambient Noise41.19416
UAV12814.615120
Table 3. The successive layers and output that shape our model.
Table 3. The successive layers and output that shape our model.
LayerOutputFilterStride
conv132 × 256 × 2563 × 3@321
conv2_x64 × 128 × 1283 × 3@641, 2
conv3_x128 × 64 × 643 × 3@1281, 2
conv4_x192 × 32 × 323 × 3@1921, 2
conv5_x256 × 16 × 163 × 3@2561, 2
conv6_x512 × 8 × 83 × 3@5121, 2
conv7_x512 × 4 × 43 × 3@5121, 2
conv8_x512 × 4 × 43 × 3@5121
Adaptive avg pool 2d512--
fc 1256--
fc 26--
Table 4. Results for selected features.
Table 4. Results for selected features.
FeatureFrequency Sample Rate [kHz]FFT SizeHop
Length
Extra
Parameters
MAERMSE
abcdabcd
MFCC16512256n_mfcc = 13 n_mels = 641.061.282.1533.991.541.753.8258.16
44.11024512n_mfcc = 26 n_mels = 1280.680.81.327.220.971.131.9750.79
9640962048n_mfcc = 40 n_mels = 2560.570.411.4318.770.780.612.443.25
Mel Spectrogram16512256n_mels = 640.540.411.1513.090.760.661.731.45
44.11024512n_mels = 1280.390.410.918.610.580.551.3626.88
9640962048n_mels = 2560.410.431.098.410.640.621.3325.62
STFT16512256-0.961.332.8515.951.411.897.0137.44
44.11024512-0.580.591.0811.080.790.851.9229.27
9640962048-0.50.581.3414.790.780.822.1336.08
LFCC16512256n_lfcc = 131.11.262.6331.661.571.754.7957.11
44.11024512n_lfcc = 260.650.661.3918.40.880.891.9839.6
9640962048n_lfcc = 400.560.631.614.080.750.842.4833.08
Bark Spectrogram16512256n_barks = 640.410.471.0414.040.650.781.5435.54
44.11024512n_barks = 1280.620.591.1410.950.870.871.7329.53
9640962048n_barks = 2560.450.481.1811.180.610.651.7430.89
Table 5. Results for different Mel Spectrogram configurations.
Table 5. Results for different Mel Spectrogram configurations.
Frequency Sample Rate [kHz]FFT SizeHop
Length
Mel
Coefficients
MAERMSE
abcdabcd
44.11024256640.460.491.2212.670.60.641.6332.67
1280.420.411.099.00.560.571.5326.89
2560.530.521.0910.510.720.71.628.29
512640.470.491.239.790.620.681.7927.64
1280.460.421.029.590.60.571.3424.69
2560.460.481.1510.270.630.641.6127.57
2048640.470.50.9810.520.650.681.2928.87
1280.480.511.2811.630.630.71.6531.49
2560.450.390.9510.340.60.511.2328.34
1024640.520.451.1212.980.690.621.5132.91
1280.440.421.08.770.580.571.3825.38
2560.360.30.949.50.490.421.3625.77
96512640.570.551.1614.30.780.781.5733.79
1280.530.291.399.290.70.381.6226.18
2560.430.61.010.830.620.81.5128.63
1024640.560.61.3916.350.760.81.9930.06
1280.470.491.299.180.680.651.8225.49
2560.530.561.1611.850.740.731.7530.17
4096640.540.481.2912.00.720.641.831.75
1280.380.470.8110.240.520.641.0627.63
2560.370.470.929.040.50.661.3226.47
2048640.650.611.2714.90.840.91.7434.38
1280.460.40.879.480.670.571.2726.13
2560.430.451.039.450.630.631.3426.56
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jekateryńczuk, G.; Szadkowski, R.; Piotrowski, Z. UaVirBASE: A Public-Access Unmanned Aerial Vehicle Sound Source Localization Dataset. Appl. Sci. 2025, 15, 5378. https://doi.org/10.3390/app15105378

AMA Style

Jekateryńczuk G, Szadkowski R, Piotrowski Z. UaVirBASE: A Public-Access Unmanned Aerial Vehicle Sound Source Localization Dataset. Applied Sciences. 2025; 15(10):5378. https://doi.org/10.3390/app15105378

Chicago/Turabian Style

Jekateryńczuk, Gabriel, Rafał Szadkowski, and Zbigniew Piotrowski. 2025. "UaVirBASE: A Public-Access Unmanned Aerial Vehicle Sound Source Localization Dataset" Applied Sciences 15, no. 10: 5378. https://doi.org/10.3390/app15105378

APA Style

Jekateryńczuk, G., Szadkowski, R., & Piotrowski, Z. (2025). UaVirBASE: A Public-Access Unmanned Aerial Vehicle Sound Source Localization Dataset. Applied Sciences, 15(10), 5378. https://doi.org/10.3390/app15105378

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
