Systematic Review

The Use of Smart Rings in Health Monitoring—A Meta-Analysis

by
Matteo Fiore
1,†,
Alessandro Bianconi
1,†,
Gaia Sicari
1,
Alice Conni
1,*,
Jacopo Lenzi
1,
Giulia Tomaiuolo
1,
Flavia Zito
1,
Davide Golinelli
2 and
Francesco Sanmarchi
1
1
Department of Biomedical and Neuromotor Sciences, University of Bologna, 40126 Bologna, Italy
2
Health Services Research, Evaluation and Policy Unit, Local Health Authority of Romagna, 48121 Ravenna, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Appl. Sci. 2024, 14(23), 10778; https://doi.org/10.3390/app142310778
Submission received: 11 October 2024 / Revised: 13 November 2024 / Accepted: 20 November 2024 / Published: 21 November 2024
(This article belongs to the Special Issue Advanced Technologies for Health Improvement)
Browse Figures
Versions Notes

Abstract

:
Smart Rings (SRs) are user-friendly devices capable of measuring various health parameters, making them suitable for remote continuous monitoring in diverse clinical settings. Since the available evidence on the accuracy of SRs recording health data is highly heterogeneous, this systematic review, conducted in accordance with PRISMA guidelines, searched for articles evaluating the efficacy of SRs for sleep, respiratory, and cardiovascular monitoring across the PubMed, SCOPUS, and ProQuest databases. Meta-analyses were conducted for health outcomes evaluated in at least three studies with a comparable study population and design, and the same comparison device. Nineteen articles were included: eleven analyses focused on sleep quality, eight on cardiovascular parameters, and one on oxygen saturation. Studies analysing cardiovascular outcomes found a good accuracy of SRs in measuring heart rate (HR) with a mean bias of −0.4 bpms (limits of agreement (LoAs): −2.7; 1.8). The meta-analyses showed variability in SRs’ efficacy in monitoring total sleep time (mean bias: −21.3 min, LoAs: −69.9, 27.4) and REM duration (mean bias: −18.2 min, LoAs: −33.3, −3.1). The results highlighted the promising potential of SRs for HR monitoring. Further research is needed to clarify the reliability of SRs in monitoring sleep quality and their use directed to a broader range of health parameters. With further development, SRs could become valuable tools for healthcare professionals.

1. Introduction

The development of wearable health technology has introduced innovative tools suitable for real-time health monitoring, potentially transforming patient care and engagement. Connected devices such as smart rings (SRs) can monitor a range of physiological parameters. This study focuses on assessing the potential of SRs in healthcare—particularly for sleep and cardiovascular monitoring—through a systematic review and meta-analysis approach. Below, we introduce IoMT and its role in advancing wearable medical technology.

1.1. IoMT and Wearable Devices

Internet of Medical Things (IoMT) refers to the integration of IoT (Internet of Things) technology into the healthcare sector [1]. This term indicates the use of connected devices, such as wearable sensors and smart medical equipment, to collect and exchange data to improve clinical decision making [2,3] (Figure 1A). Access to near-real-time data may alert users of emergency alterations in biomarkers, enabling timely medical interventions [4]. Moreover, IoMT represents an opportunity for empowering patients to monitor their own health data while potentially reducing patient care costs [5]. The combination of IoMT and telemedicine has the potential to improve patient care by allowing remote monitoring [6]. This scenario eliminates costly in-person visits, leading to more efficient and cost-effective care [7,8]. However, IoMT faces some challenges. For example, the data integration between IoMT networks and Electronic Medical Records (EMRs) can be difficult to establish [9,10]. As IoMT devices generate large volumes of data in various formats, the lack of standard protocols complicates integration into EMR systems. Furthermore, differences in technology infrastructure across healthcare organizations and varying data-sharing regulations contribute to these difficulties. Privacy concerns and strict compliance requirements impose additional constraints on data transfer and storage, creating barriers to full integration [9,10,11,12].
Moreover, healthcare institutions may struggle to collect all EMRs from different stakeholders due to data quality issues and administrative requirements, which is a major challenge in achieving interoperability [11]. Some studies have highlighted the potential privacy issues and patient data security [12,13]; thus, implementing appropriate data security strategies is essential to protect sensitive patient data [14]. Additionally, IoMT devices require high-quality evidence of their performance and accuracy before being used for clinical and diagnostic purposes.

1.2. Smart Rings

SRs are compact devices worn on the finger that can monitor a variety of health metrics in real time [15], such as oxygen saturation (SpO2), heart rate (HR), sleep quality (SQ), physical activity level, and stress level [15]. SRs can be connected to smartphones or other devices [16], allowing users to view and monitor their data in real time [17] (Figure 1B). Two key benefits of SRs are their unobtrusive nature and user-friendliness, making them more comfortable to wear for extended periods of time [15], in contrast to traditional medical equipment that requires attaching sensors and wires to the body, or stationary applications that need a constant power supply [18]. The low-power design of SRs enables a prolonged usage [18] and continuous monitoring of physiological parameters in a range of clinical settings [19]. This feature allows the identification of clinical patterns that would otherwise be hard to detect [5,20]. SRs may help patients in managing their chronic disease by providing real-time feedback on their activity levels and vital signs. For example, patients with heart disease could use SRs to monitor their HR and receive alerts if it becomes abnormal [21]. Another explored application of SRs is in the mental health field, where metrics such as sleep quality, activity levels, and HR variability may provide insight into a patient’s emotional and psychological state allowing for early detection of mental health issues, such as depression and anxiety, and help patients better manage their condition [22].
Furthermore, continuous monitoring may act as a positive feedback mechanism, nudging patients towards healthy habits [23], such as engaging in more physical activity and improving sleep hygiene. One particular SR, the Oura Ring®, has become compatible with Natural Cycles, a Food and Drug Administration (FDA)-cleared birth control app [24]. This app analyses body temperature and other fertility indicators to determine fertility status, facilitating pregnancy planning or prevention. According to the current literature, multiple SR applications have been theorized, simulated, and commercialized, ranging from monitoring hand hygiene compliance [25,26] to providing feedback systems for evaluating chest compression efficacy [27].

1.3. Aim of the Study

As the use of SRs in healthcare settings continues to expand, it is important to assess the reliability and accuracy of these devices. Previous studies have highlighted the potential risk of inaccurate data collection from IoMT, leading to erroneous diagnosis, unnecessary procedures, wasted resources, and increased costs [28,29,30]. Since the available evidence reporting the accuracy of SRs recording health data is highly heterogeneous, and a summary of the body of literature is not yet available, this systematic review and the meta-analysis aim to evaluate the efficacy of SRs in sleep, respiratory, and cardiovascular monitoring compared to approved medical devices. Additionally, this review seeks to synthesize the findings of the included studies to provide an overview of the potential impact of these tools on patient care, emphasizing the importance of accurate and reliable data in healthcare applications.
The structure of this paper is as follows: Section 2 covers the methods used in this systematic review, including data sources, inclusion criteria, and analytical techniques. Section 3 presents the main results on the accuracy of SRs in monitoring health parameters. Section 4 discusses the implications of these findings, considering both strengths and limitations. Section 5 offers limitations. Finally, Section 6 presents the conclusions, underlining the need for further research to fully establish smart rings as reliable health monitoring tools.

2. Materials and Methods

As IoMT grows, research is needed to measure the effectiveness of wearable health devices. This section explains the methods used in this study, focusing on how smart rings were evaluated for accuracy in health monitoring.

2.1. Data Sources and Searches

The PRISMA Statement guidelines were followed while conducting this systematic review [28]. A comprehensive literature search was conducted using three databases: MEDLINE, Scopus, and ProQuest. Search strings were composed using relevant terms to identify articles that focused on evaluating SRs’ performance in health monitoring compared to approved FDA or European Conformity (CE)-marked medical devices as benchmarks. This search strategy has been shown to be an efficient approach for systematic reviews of diagnostic test accuracy studies [29]. The search strategy recommended by the Cochrane Collaboration, which combines terms for the ‘target condition’ and ‘index test’, was employed [30]. The specific search strategy for each database is available in the Supplementary Material (Table S1) (last search update: 1 July 2024). Inclusion criteria encompassed primary peer-reviewed articles, published in English, and assessing the efficacy of SRs for monitoring sleep, respiratory, and cardiovascular parameters. Exclusion criteria included non-primary studies (i.e., meta-analyses, reviews, systematic reviews, scoping reviews, opinion papers), surveys, and articles published in languages other than English. This systematic review was registered with PROSPERO (CRD42022374308) on 28 November 2022.

2.2. Data Extraction

Three pairs of reviewers (MF and AC, GT and AB, FS and GS) independently screened articles, initially by title and abstract, and subsequently by full text, to determine eligibility for inclusion. Discrepancies in reviewers’ decisions were resolved through discussion within each pair. Reviewers performed data extraction on the same set of articles using a standardized extraction form to ensure the reliability of the data extraction and quality assessment process. In cases where consensus on screening or data extraction could not be attained, a third independent author (DG) resolved the decision conflict. The data extraction explored multiple variables: first author, year of publication, country, number of participants, mean age, gender distribution, type of SR, control device, total time of recording, type of estimates, specific measured outcome, SR’s accuracy results, and conflicts of interest. The extracted variables were summarized and reported through tabulation.

2.3. Quality and Risk of Bias Assessment

Risk of bias assessment of the included studies was carried out independently in pairs using the validated Quality Assessment of Diagnostic Accuracy Studies (QUADAS-2) tool [31]. The Grading Quality of Evidence and Strength of Recommendations methodology was applied to rate the quality of evidence [32]. Reasons used to downgrade the quality of evidence were study limitations, inconsistency, and imprecision. Indirectness was not used as a downgrading reason because studies that were not relevant were excluded before the quality assessment. Publication bias was not formally assessed so the possibility of this bias was not excluded but not considered sufficient to require downgrading the quality of evidence.

2.4. Data Synthesis and Analysis

To assess the consistency and accuracy of smart rings in health monitoring, we synthesised data from eligible studies and performed meta-analyses on various outcomes. Our criteria mandated that any outcome be assessed in at least three studies, and that the SR be compared with a gold-standard control device, grounding our findings in validated clinical metrics. According to the Cochrane Handbook for Systematic Reviews of Interventions [30], the use of rigorously validated control devices is essential for ensuring the accuracy and reliability of diagnostic comparisons. In the medical field, gold-standard devices like polysomnography (PSG) for sleep monitoring and pulse oximetry for oxygen saturation are widely validated [33,34].
We primarily employed the Bland–Altman method for our meta-analysis, a technique specifically tailored for comparing two methods of clinical measurement. This method evaluates the agreement between two quantitative measurements by constructing limits of agreement (LoAs). These LoAs are established around the mean difference between measurements and provide a range within which 95% of the differences between measurements lie. Using the Bland–Altman framework for meta-analysis, we utilised a limits of agreement (LoAs) approach described by Tipton [35]. This method was chosen not only because of its extensive application in primary Bland–Altman studies but also due to its capability to provide an estimate of the pooled LoAs in the larger population, transcending just the sampled individuals. It is worth noting that the ‘population LoA’ derived from this approach tends to be wider than those frequently reported in meta-analyses of Bland–Altman studies [35].
The pooled LoAs were determined using the formula δ ± 2√ (τ2 + σ2), where:
  • δ represents the average bias across studies (mean difference between the two methods across all studies).
  • τ2 represents the between-study variation, capturing the variability in differences across studies.
  • σ2 signifies the average within-study variation in differences.
Estimates for both δ and σ2 were derived by employing a weighted least-squares model, to account for the varying levels of precision in the studies included in our meta-analysis, providing a more balanced estimation, and minimizing the potential bias from smaller studies with high variability [36]. To calculate their standard errors (SEs), we adopted the robust variance estimation (RVE) technique. This decision was made given the presence of studies included in our review that implemented repeated-measures designs but did not accommodate for potential correlations between measurements [37]. For uniformity and ease of meta-analysis, results from individual studies were standardised (for example, HR was expressed in beats per minute (bpms); total sleep time and rapid eye movement duration were indicated in minutes). All computations were executed using the R-Studio statistical software (v.4.4.2, RStudio, PBC, Boston, MA, USA). The code relative to the data analyses is reported in the Supplementary Material (S2).

3. Results

This section reviews the findings on smart rings’ performance in monitoring health data, including sleep, cardiovascular parameters, and oxygen levels. It highlights the strengths and limitations of smart rings for monitoring these metrics.

3.1. Study Selection and Description

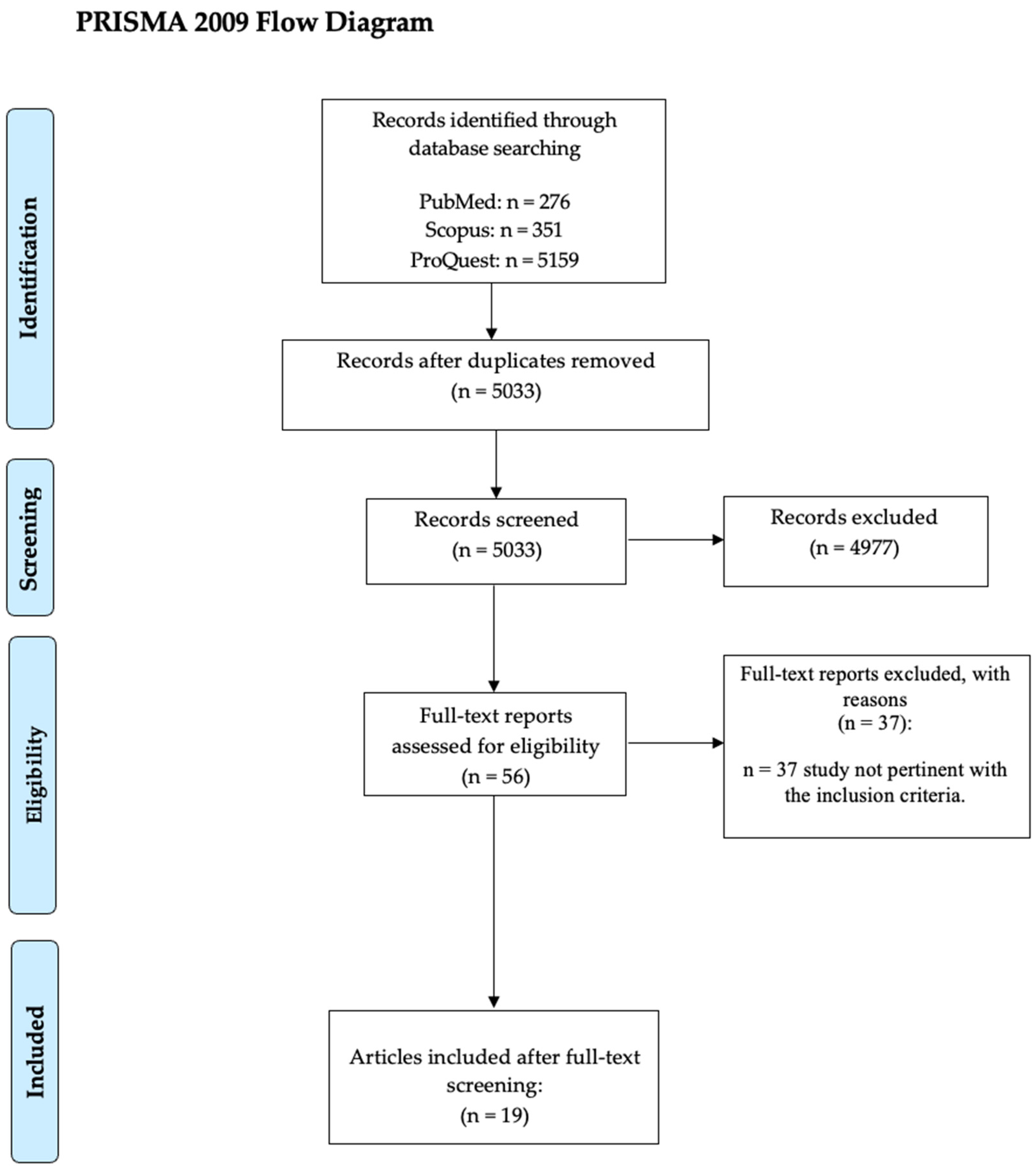

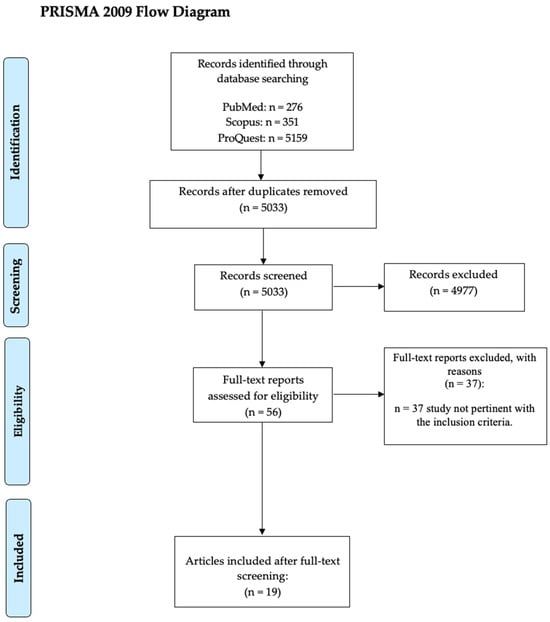

The initial search identified 5786 articles (PubMed n = 276, Scopus n = 351, ProQuest = 5159). A total of 753 studies were excluded after the deduplication process. A total of 5033 articles were screened, with 4977 excluded at the title/abstract screening stage. A total of 56 articles were assessed for eligibility by full-text evaluation. A final number of 19 articles [38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56] met the criteria for final inclusion (Figure 2). In order to synthetize the characteristics and the results of the included studies, all the extracted data are reported in Table 1 (as mentioned above, the information extracted were: first author, year of publication, country, number of participants, mean age, gender distribution, type of SR, control device, total time of recording, type of estimates, specific measured outcome, SR’s accuracy results, and conflicts of interest). Ten studies explored sleep quality, one both sleep and cardiovascular parameters, seven only cardiovascular parameters, and one SaO2. All articles included in this systematic review were published between 2017 and 2024, with one published in 2017, four in 2020, four in 2021, four in 2022, two in 2023, and four in 2024. The studies were conducted in various countries, with five studies in the USA, two in Switzerland, three in Singapore, one in Australia, three in South Korea, three in Finland, one in Japan, and one in multiple countries. The populations were comprised of adolescents in one study, adolescents and adults in two, healthy adults in thirteen, adults with persistent atrial fibrillation (AF) in one, adults undergoing invasive blood pressure monitoring in one, and adults with sleep disorders in one. The mean number of participants enrolled was 49, with a range of 5 to 118 patients. Eleven studies analysed the efficacy of SRs in measuring sleep quality parameters, seven assessed their efficacy in measuring cardiovascular parameters, and one analysed the efficacy of SRs on measuring oxygen saturation (Table 1). Moreover, no studies analysing the cost-effectiveness of implementing SRs in sleep, cardiovascular, or respiratory monitoring were found.

3.2. Sleep Quality

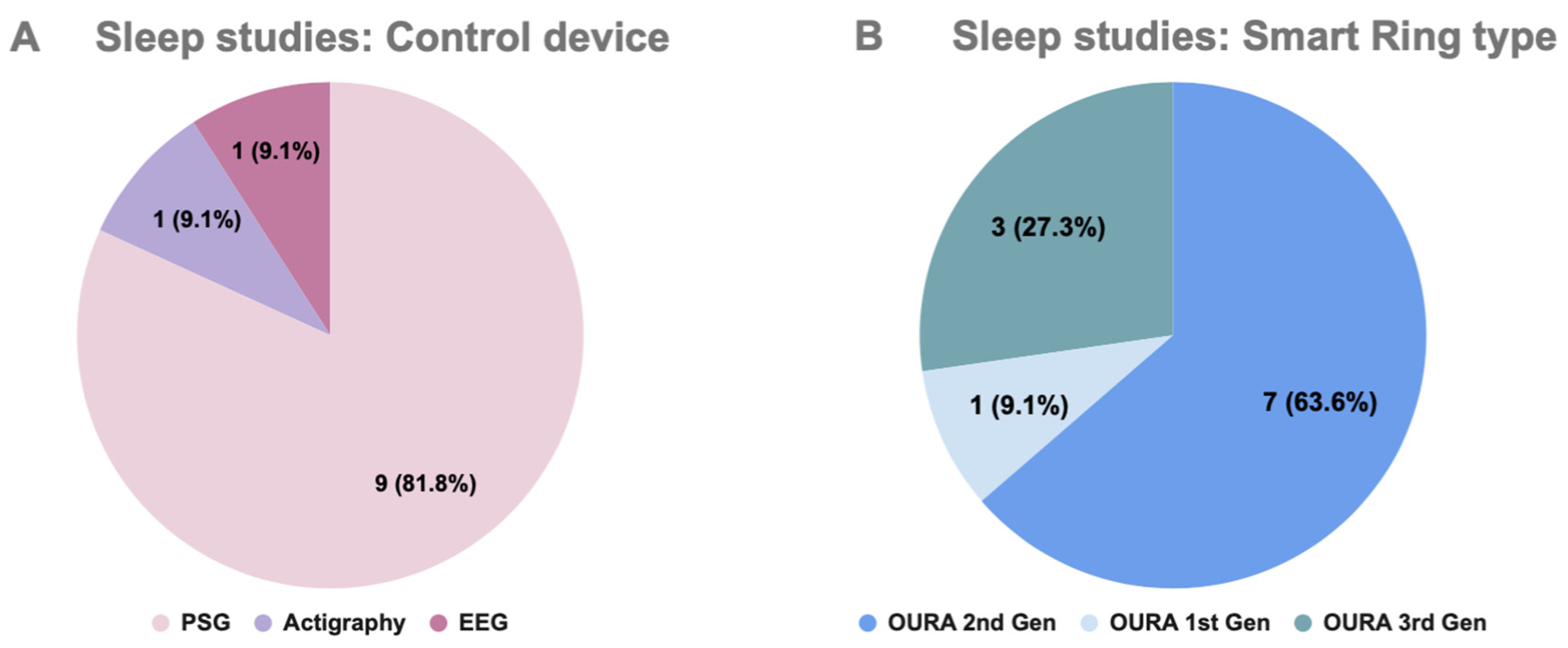

A total of eleven studies assessed the accuracy of SRs in measuring sleep quality outcomes (Table 1). The mean nights of recording were 57 ± 138, with a range from of one to 440 nights. The second generation of Oura Ring® was the most studied type of SR, in seven studies, and the first generation of Oura Ring® was analysed in one, while three focused on the third generation of Oura Ring®. The control devices were the standard PSG in nine studies, actigraphy in one, and electroencephalography (EEG) in one (Figure 3). In three studies, funding was not specified, three studies were funded by public resources, two from both public and private fundings, one was an independent third-party evaluation, and in one, conflicts of interest emerged. The outcomes explored were: total sleep time (TST) in ten studies, rapid eye movement (REM) time in nine, light sleep time in seven, deep sleep time in seven, N1 and N2 sleep (equivalent to light sleep) in two, N3 sleep (equivalent to deep sleep) in two, Wake After Sleep Onset (WASO) in six, and Sleep Efficiency (SE) in four. All outcomes were analysed through Bland–Altman Plots. The studies’ results demonstrate heterogeneity in the data, indicating that the estimates may not always be statistically accurate. A meta-analysis was conducted on three studies that analysed the accuracy of the second generation of Oura Ring® compared to PSG (Table 2). These meta-analyses showed a pooled mean bias for TST equal to −21.30 min (SD = 5.4, LOA_L = −69.9, LOA_U = 27.4, CI_Lm = −45,916.4, CI_Um = 45,873.8), and a pooled mean bias for REM sleep equal to −18.2 min (SD = 5.8, LOA_L = −33.3, LOA_U = −3.1; CI_Lm = −281.5, CI_Um = 245.1). The sensitivity analyses also showed the presence of strong uncertainty around the results for the TST outcome due to the width of the LoAs confidence intervals, without substantially altering the interpretation of the main analysis results. However, the sensitivity analysis for REM obtained by removing the results from Chee et al. [42] showed a substantial decrease in the uncertainty of the results with a pooled mean bias of −20.8 min (SD = 6.1; LoA_L = −32.9; LoA_U = −8.8; CI_Lm = −36.3; CI_Um = −5.4), denoting a very low heterogeneity between the results of the two remaining studies for this outcome [44,50] (Table S3).

3.3. Cardiovascular and SaO2 Parameters

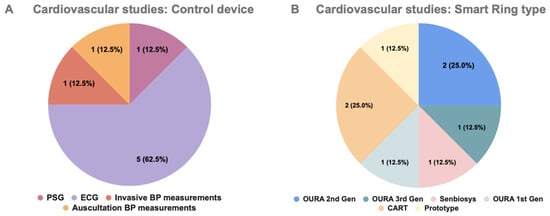

A total of eight studies analysed the accuracy of SRs in measuring cardiovascular outcomes (Table 1). The recording duration ranges between a minimum of 9 min to a maximum of 37.1 h of sleep. The accuracy of Oura Ring® devices was analysed in four studies: two studies analysed the second generation, and one the first generation, and one study the third one. Other types of SR analysed in the studies included CART Ring® in two studies, Senbiosys® in one study, and a prototype in one study. The control devices were ECG in five studies, an invasive Blood Pressure device in one study, a PSG in one study and the measurement of BP by auscultation in one (Figure 4). The outcomes explored were heart rate (HR) in five studies, atrial fibrillation (AF) in one study, and Systolic, Diastolic and Mean Blood Pressure (SBP, DBP, MBP) in two studies. Financial statements and possible conflict of interest were explored: in two studies funding was not specified, two were funded by public resources, four received private funding. A meta-analysis was conducted including three studies that analysed the accuracy of Oura Ring® devices in measuring nocturnal HR compared to ECG (Table 3). The meta-analysis found a pooled mean bias for nocturnal HR of −0.41 (SD = 1.09; LOA_L = −2.65, LOA_U = 1.81; CI_Lm = −5.95, CI_Um = 5.11).
Only one study assessed the precision of SRs in measuring oxygen saturation (SaO2) with respect to a pulse oximeter (Table 1). The study was carried out in the USA, using a prototype as SR, and Masimo Radical-7 pulse oximeter as a control device, with eleven healthy adults, and it received private funding. The overall Root Mean Square Error for the SR was approximately 2.1% for both the finger and the fingertip placement.

4. Discussion

The main findings of this meta-analysis are the following: (a) smart rings show promising accuracy in heart rate monitoring; (b) their reliability in measuring sleep phases is highly variable; (c) this variability underscores the need for standardized research methodologies.

4.1. Meta-Analysis on Sleep Outcomes

The meta-analyses on sleep outcomes revealed a considerable variability in the accuracy of SRs in analysing different sleep phases, due to the between-studies heterogeneity in the point estimates for mean biases and the considerable width of the LoAs confidence intervals. The considerable variability across studies may result from the lack of standardization in recording duration. This diversity in study protocols may impact the accuracy and reliability of sleep quality assessments using SRs, leading to the observed heterogeneity in outcomes. Future research should standardize protocols for SR validation in sleep monitoring to ensure more consistent and clinically meaningful results. Additionally, given the potential impact of smart ring technology on public health and quality of life, further exploration of its role in sleep quality monitoring is crucial [57]. In a study by Altendahl et al. [58], results indicate that duration of REM sleep may be a greater contributor to brain white matter integrity than overall sleep quality. Sleep deprivation, both in quality and duration, is associated with increased mortality risk [59,60]. This underlines the potential importance and benefits of monitoring REM and sleep time. As SRs may be suitable for this purpose, further studies analysing their accuracy are needed. Furthermore, SRs only cost USD 100–USD 300, a fraction of the costs associated with the equipment and expertise needed for PSG. Thus, these devices are potentially cost-effective sleep measurement tools [48]. However, no study has assessed both the direct and indirect cost and considered all the health and economic benefits.
The included studies varied by study population, potentially affecting the generalizability of the results. This could also partly explain the wide uncertainty that emerged from the meta-analytical findings, since sensitivity analyses on Oura® accuracy in measuring REM, obtained by excluding the results from the one study on adolescents [42], showed an important reduction in LOAs’ and CIs’ width, denoting that different age groups may respond differently to sleep quality measurements.

4.2. Meta-Analysis on Cardiovascular Outcomes

The second meta-analysis suggests a clinically acceptable accuracy of SRs in measuring HR, considering a cut-off error of 5% between the SR measurement and the gold-standard device measurement, as suggested by Shcherbina et al. [61]. These findings suggest that SRs may represent a useful tool for monitoring HR. However, further research is needed to evaluate their capabilities in monitoring HR variability and detecting arrhythmias. These investigations would be essential for FDA and CE approval and the use of SRs in clinical practice. Unlike traditional HR monitors, which often require straps or electrodes, SRs are discrete and can be worn continuously, making them an attractive and non-invasive option for individuals who require continuous HR monitoring [62], such as atrial fibrillation patients [63].

4.3. Expanding the Role of Smart Rings in Digital Health

This systematic review underscores the growing interest in SR technology as a health monitoring tool. The expansion of the IoMT industry [64,65,66,67] suggests that healthcare professionals and patients will have access to a broader array of health data [68]. The integration of AI, big data, and machine learning algorithms could enable real-time data analysis and insights for clinicians and patients [69,70]. The results are in line with the current performance of other smart wearables. For example, a recent meta-analysis assessing the accuracy of smartwatches in detecting AF showed a specificity of 94% and a sensitivity of 93%. Moreover, wearable devices show promising results in monitoring the athlete’s internal and external workloads, though their technology readiness level needs substantial developments, particularly in acquiring more effective biomarkers [71,72].
As part of the digital health ecosystem, SRs offer unique opportunities for building Digital Twins and developing personalized treatment plans [73,74]. Data acquired through SRs can be used to develop treatment plans tailored to the patient’s specific needs, improving the efficacy of the treatment and reducing the risk of adverse events [75]. This could lead to advances in patient care and clinical decision making and potentially enhance patient–doctor relationships by streamlining communication, providing access to health information, and enabling remote monitoring and care [76,77]. However, digital health technologies must complement and empower the patient–doctor relationship, which is essential for fostering trust and empathy, both correlated with better health outcomes [78]. SRs have the potential to promote patient engagement by providing feedback and monitoring progress, which can motivate patients to make healthy lifestyle choices [79]. However, more studies are needed to understand the power of this technology in promoting a healthy lifestyle [80] and to improve adherence to treatment plans [81].

4.4. Challenges and Future Directions

Despite the potential of SRs to promote patient engagement and healthy lifestyle choices, more research is needed to understand their influence on behaviour and treatment adherence. Further studies may focus on standardizing the methodology of the SR accuracy assessment and measuring different sleep and cardiovascular parameters across diverse patient populations. In particular, by aligning study designs, we can better evaluate SR reliability and accuracy. Further research with diverse and larger populations is critical to validate SRs as a consistent and reliable tool in clinical practice.
Ensuring the security and reliability of SR technology is another challenge [82]. Continuous connectivity requires fault-tolerant networks with backup systems. Cybersecurity is crucial to protect patient data and maintain the digital health ethical standards [82]. Additionally, evaluating the cost–benefit and financial sustainability of SRs in healthcare systems is crucial for understanding their potential scalability and accessibility. As the technology matures and gains approval from regulatory bodies, continued investment in research and development will be necessary to maximize the potential of SRs.

5. Limitations

Our systematic review and meta-analysis present several limitations that should be considered when interpreting the results. The included studies exhibit considerable heterogeneity in methodology, such as the choice of the study population and the recording time, which contributes to the observed variability in the accuracy of SRs for measuring sleep. For this reason, the results of this study should not be interpreted as conclusive. Additionally, many studies had relatively small sample sizes [53] or a limited number of recording nights [43,44,50], potentially restricting the generalizability of our findings. Future research with larger and more diverse patient populations is needed to validate SRs’ accuracy and reliability in health monitoring. Publication bias may have influenced the studies included in our analysis, with null or unfavourable results possibly remaining unpublished [83], leading to an overestimation of SRs’ efficacy in health monitoring. Our review primarily focused on sleep and cardiovascular outcomes, but SRs can potentially monitor a broader range of health parameters. Further research is needed to evaluate their accuracy and reliability in monitoring other health parameters, such as mental health outcomes. Moreover, we did not assess the economic implications and financial sustainability of SRs in healthcare systems. Future studies should investigate cost-effectiveness and scalability to better understand their potential impact on healthcare systems and accessibility for specific patient populations. The review’s limitation to English language studies may have excluded relevant research published in other languages. Furthermore, the literature shows that different ages are correlated with different sleep patterns, quality, and quantity [84]. These differences should be accounted for in the design of future studies analysing SR performance. Furthermore, general agreement on the standard acceptable cut-off error between the SR measurement and the gold-standard device measurement regarding the time of different sleep phases was not found in the current literature. Taking these limitations into account, our findings offer a preliminary understanding of the potential role of SRs in health monitoring. More comprehensive research is needed to overcome these limitations and provide a clearer picture of SRs’ true capabilities in healthcare.

6. Conclusions

This systematic review and meta-analysis evaluated the accuracy and reliability of SRs in monitoring sleep and cardiovascular parameters compared to gold-standard medical devices. Our findings indicate that SRs show promising results in heart rate monitoring but exhibit wide variability in their ability to accurately measure different sleep phases. Despite these mixed results, the growing interest in SRs and other IoMT devices suggests that they have the potential to play a significant role in future digital health applications. The convenience and ease of use associated with SRs make these devices an attractive option for individuals requiring continuous health monitoring. However, the limitations identified in our review highlight the need for further research and development to improve the accuracy and reliability of SRs in monitoring a broader range of health parameters. Standardization of study methodologies, larger sample sizes, and cost–benefit analyses are essential to better understand the true potential of SRs in healthcare. In conclusion, while SRs show potential as health monitoring tools, further research is needed to address their limitations and fully understand their capabilities in healthcare settings. As technology advances and research continues, SRs may emerge as valuable tools for both patients and healthcare professionals, contributing to the growing field of digital health.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/app142310778/s1, Table S1: Detailed search strategy for each database; Table S2: R script for total sleep time, rapid eye movements and heart rate meta-analysis. Table S3. Sensitivity analyses for TST and REM time.

Author Contributions

Conceptualization, M.F. and A.B.; methodology, A.B., J.L. and G.T.; software, F.S.; validation, D.G., J.L. and G.S.; formal analysis, A.C.; investigation, J.L.; resources, A.B. and F.Z.; data curation, A.B.; writing—original draft preparation, M.F.; writing—review and editing, M.F. and A.B.; visualization, A.C.; supervision, F.S.; project administration, F.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ashfaq, Z.; Rafay, A.; Mumtaz, R.; Zaidi, S.M.H.; Saleem, H.; Zaidi, S.A.R.; Mumtaz, S.; Haque, A. A review of enabling technologies for Internet of Medical Things (IoMT) Ecosystem. Ain Shams Eng. J. 2022, 13, 101660. [Google Scholar] [CrossRef]
  2. Hemmati, A.; Rahmani, A.M. Internet of Medical Things in the COVID-19 Era: A Systematic Literature Review. Sustainability 2022, 14, 12637. [Google Scholar] [CrossRef]
  3. Razdan, S.; Sharma, S. Internet of Medical Things (IoMT): Overview, Emerging Technologies, and Case Studies. IETE Tech. Rev. 2022, 39, 775–788. [Google Scholar] [CrossRef]
  4. Benkhadra, K.; Alahdab, F.; Tamhane, S.; Wang, Z.; Prokop, L.J.; Hirsch, I.B.; Raccah, D.; Riveline, J.P.; Kordonouri, O.; Murad, M.H. Real-time continuous glucose monitoring in type 1 diabetes: A systematic review and individual patient data meta-analysis. Clin. Endocrinol. 2017, 86, 354–360. [Google Scholar] [CrossRef] [PubMed]
  5. Arora, S. IoMT (Internet of Medical Things): Reducing Cost While Improving Patient Care. IEEE Pulse 2020, 11, 24–27. [Google Scholar] [CrossRef]
  6. Pratap Singh, R.; Javaid, M.; Haleem, A.; Vaishya, R.; Ali, S. Internet of Medical Things (IoMT) for orthopaedic in COVID-19 pandemic: Roles, challenges, and applications. J. Clin. Orthop. Trauma 2020, 11, 713–717. [Google Scholar] [CrossRef]
  7. Basatneh, R.; Najafi, B.; Armstrong, D.G. Health Sensors, Smart Home Devices, and the Internet of Medical Things: An Opportunity for Dramatic Improvement in Care for the Lower Extremity Complications of Diabetes. J. Diabetes Sci. Technol. 2018, 12, 577–586. [Google Scholar] [CrossRef]
  8. Costa, P.D.; Rodrigues, P.P.; Reis, A.H.; Costa-Pereira, A. A review on remote monitoring technology applied to implantable electronic cardiovascular devices. Telemed. J. E Health 2010, 16, 1042–1050. [Google Scholar] [CrossRef]
  9. Barbalho, I.M.P.; Fernandes, F.; Barros, D.M.S.; Paiva, J.C.; Henriques, J.; Morais, A.H.F.; Coutinho, K.D.; Coelho Neto, G.C.; Chioro, A.; Valentim, R.A.M. Electronic health records in Brazil: Prospects and technological challenges. Front. Public Health 2022, 10, 963841. [Google Scholar] [CrossRef]
  10. Roehrs, A.; da Costa, C.A.; Righi, R.D.R.; Rigo, S.J.; Wichman, M.H. Toward a Model for Personal Health Record Interoperability. IEEE J. Biomed. Health Inf. 2019, 23, 867–873. [Google Scholar] [CrossRef]
  11. Hameed, S.S.; Hassan, W.H.; Abdul Latiff, L.; Ghabban, F. A systematic review of security and privacy issues in the internet of medical things; the role of machine learning approaches. PeerJ Comput. Sci. 2021, 7, e414. [Google Scholar] [CrossRef] [PubMed]
  12. Design Considerations and Pre-market Submission Recommendations for Interoperable Medical Devices|Guidance for Industry and Food and Drug Administration Staff. Available online: https://www.fda.gov/media/95636/download (accessed on 9 October 2024).
  13. Elsayeh, M.; Ezzat, K.A.; El-Nashar, H.; Omran, L.N. Cybersecurity Architecture for the Internet of Medical Things and Connected Devices Using Blockchain. Biomed. Eng-App Bas C 2021, 33, 2150013. [Google Scholar] [CrossRef]
  14. Mohammadi, D. Features Data security in the brave new world of eHealth. Lancet Resp. Med. 2016, 4, 611. [Google Scholar] [CrossRef] [PubMed]
  15. Asgari Mehrabadi, M. Holistic Health Monitoring and Personalized Intervention for Well-being Promotion. Available online: https://escholarship.org/uc/item/2dv4h97k (accessed on 9 October 2024).
  16. Bisht, R.S.; Jain, S.; Tewari, N. Study of Wearable IoT devices in 2021: Analysis & Future Prospects. In Proceedings of the 2021 2nd International Conference on Intelligent Engineering and Management (ICIEM), London, UK, 28–30 April 2021; pp. 577–581. [Google Scholar]
  17. Partheniadis, K.; Stavrakis, M. Design and evaluation of a digital wearable ring and a smartphone application to help monitor and manage the effects of Raynaud’s phenomenon. Multimed. Tools Appl. 2019, 78, 3365–3394. [Google Scholar] [CrossRef]
  18. Magno, M.; Salvatore, G.A.; Jokic, P.; Benini, L. Self-Sustainable Smart Ring for Long-Term Monitoring of Blood Oxygenation. IEEE Access 2019, 7, 115400–115408. [Google Scholar] [CrossRef]
  19. Iqbal, S.M.A.; Mahgoub, I.; Du, E.; Leavitt, M.A.; Asghar, W. Advances in healthcare wearable devices. NPJ Flex. Electron. 2021, 5, 9. [Google Scholar] [CrossRef]
  20. Lu, L.; Zhang, J.Y.; Xie, Y.; Gao, F.; Xu, S.; Wu, X.H.; Ye, Z.W. Wearable Health Devices in Health Care: Narrative Systematic Review. JMIR Mhealth Uhealth 2020, 8, e18907. [Google Scholar] [CrossRef]
  21. Tosi, F.; Cavallo, F.; Pistolesi, M.; Fiorini, L.; Rovini, E.; Becchimanzi, C. Designing Smart Ring for the Health of the Elderly: The CloudIA Project. In Proceedings of the 21st Congress of the International Ergonomics Association (IEA 2021), Online, 13–18 June 2021; Lecture Notes in Networks and Systems. pp. 384–392. [Google Scholar]
  22. Cohen, G.L.; Garcia, J. Educational Theory, Practice, and Policy and the Wisdom of Social Psychology. Policy Insights Behav. Brain Sci. 2014, 1, 13–20. [Google Scholar] [CrossRef]
  23. Hinchliffe, N.; Capehorn, M.S.; Bewick, M.; Feenie, J. The Potential Role of Digital Health in Obesity Care. Adv. Ther. 2022, 39, 4397–4412. [Google Scholar] [CrossRef]
  24. FDA Allows Marketing of First Direct-to-Consumer App for Contraceptive Use to Prevent Pregnancy. Available online: https://www.fda.gov/news-events/press-announcements/fda-allows-marketing-first-direct-consumer-app-contraceptive-use-prevent-pregnancy (accessed on 9 October 2024).
  25. Xu, W.T.; Yang, H.Q.; Chen, J.Z.; Luo, C.W.; Zhang, J.; Zhao, Y.L.; Li, W.J. WashRing: An Energy-Efficient and Highly Accurate Handwashing Monitoring System via Smart Ring. IEEE Trans. Mob. Comput. 2024, 23, 971–984. [Google Scholar] [CrossRef]
  26. Zhang, X.; Kadimisetty, K.; Yin, K.; Ruiz, C.; Mauk, M.G.; Liu, C.C. Smart ring: A wearable device for hand hygiene compliance monitoring at the point-of-need. Microsyst. Technol. 2019, 25, 3105–3110. [Google Scholar] [CrossRef]
  27. Lee, S.; Song, Y.; Lee, J.; Oh, J.; Lim, T.H.; Ahn, C.; Kim, I.Y. Development of Smart-Ring-Based Chest Compression Depth Feedback Device for High Quality Chest Compressions: A Proof-of-Concept Study. Biosensors 2021, 11, 35. [Google Scholar] [CrossRef] [PubMed]
  28. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 2021, 372, n71. [Google Scholar] [CrossRef] [PubMed]
  29. Preston, L.; Carroll, C.; Gardois, P.; Paisley, S.; Kaltenthaler, E. Improving search efficiency for systematic reviews of diagnostic test accuracy: An exploratory study to assess the viability of limiting to MEDLINE, EMBASE and reference checking. Syst. Rev. 2015, 4, 82. [Google Scholar] [CrossRef] [PubMed]
  30. Higgins, J.P.T.; Thomas, J.; Chandler, J.; Cumpston, M.; Li, T.; Page, M.J.; Welch, V.A. Cochrane Handbook for Systematic Reviews of Interventions, 2nd ed.; John Wiley & Sons: Chichester, UK, 2019. [Google Scholar]
  31. Whiting, P.F.; Rutjes, A.W.; Westwood, M.E.; Mallett, S.; Deeks, J.J.; Reitsma, J.B.; Leeflang, M.M.; Sterne, J.A.; Bossuyt, P.M.; QUADAS-2 Group. QUADAS-2: A revised tool for the quality assessment of diagnostic accuracy studies. Ann. Intern. Med. 2011, 155, 529–536. [Google Scholar] [CrossRef] [PubMed]
  32. Schunemann, H.J.; Oxman, A.D.; Brozek, J.; Glasziou, P.; Jaeschke, R.; Vist, G.E.; Williams, J.W., Jr.; Kunz, R.; Craig, J.; Montori, V.M.; et al. Grading quality of evidence and strength of recommendations for diagnostic tests and strategies. BMJ 2008, 336, 1106–1110. [Google Scholar] [CrossRef]
  33. Rundo, J.V.; Downey, R. Polysomnography. In Clinical Neurophysiology: Basis and Technical Aspects; Handbook of Clinical Neurology; Elsevier: Amsterdam, The Netherlands, 2019; pp. 381–392. [Google Scholar]
  34. Jubran, A. Pulse oximetry. Crit. Care 2015, 19, 272. [Google Scholar] [CrossRef]
  35. Tipton, E.; Shuster, J. A framework for the meta-analysis of Bland-Altman studies based on a limits of agreement approach. Stat. Med. 2017, 36, 3621–3635. [Google Scholar] [CrossRef]
  36. Borenstein, M.; Hedges, L.V.; Higgins, J.P.T.; Rothstein, H.R. Introduction to Meta-Analysis; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2009. [Google Scholar]
  37. Tipton, E. Small sample adjustments for robust variance estimation with meta-regression. Psychol. Methods 2015, 20, 375–393. [Google Scholar] [CrossRef]
  38. Altini, M.; Kinnunen, H. The Promise of Sleep: A Multi-Sensor Approach for Accurate Sleep Stage Detection Using the Oura Ring. Sensors 2021, 21, 4302. [Google Scholar] [CrossRef]
  39. Asgari Mehrabadi, M.; Azimi, I.; Sarhaddi, F.; Axelin, A.; Niela-Vilen, H.; Myllyntausta, S.; Stenholm, S.; Dutt, N.; Liljeberg, P.; Rahmani, A.M. Sleep Tracking of a Commercially Available Smart Ring and Smartwatch Against Medical-Grade Actigraphy in Everyday Settings: Instrument Validation Study. JMIR Mhealth Uhealth 2020, 8, e20465. [Google Scholar] [CrossRef] [PubMed]
  40. Boukhayma, A.; Barison, A.; Haddad, S.; Caizzone, A. Ring-Embedded Micro-Power mm-Sized Optical Sensor for Accurate Heart Beat Monitoring. IEEE Access 2021, 9, 127217–127225. [Google Scholar] [CrossRef]
  41. Cao, R.; Azimi, I.; Sarhaddi, F.; Niela-Vilen, H.; Axelin, A.; Liljeberg, P.; Rahmani, A.M. Accuracy Assessment of Oura Ring Nocturnal Heart Rate and Heart Rate Variability in Comparison With Electrocardiography in Time and Frequency Domains: Comprehensive Analysis. J. Med. Internet Res. 2022, 24, e27487. [Google Scholar] [CrossRef] [PubMed]
  42. Chee, N.; Ghorbani, S.; Golkashani, H.A.; Leong, R.L.F.; Ong, J.L.; Chee, M.W.L. Multi-Night Validation of a Sleep Tracking Ring in Adolescents Compared with a Research Actigraph and Polysomnography. Nat. Sci. Sleep. 2021, 13, 177–190. [Google Scholar] [CrossRef] [PubMed]
  43. de Zambotti, M.; Rosas, L.; Colrain, I.M.; Baker, F.C. The Sleep of the Ring: Comparison of the OURA Sleep Tracker Against Polysomnography. Behav. Sleep. Med. 2019, 17, 124–136. [Google Scholar] [CrossRef] [PubMed]
  44. Ghorbani, S.; Golkashani, H.A.; Chee, N.I.Y.N.; Teo, T.B.; Dicom, A.R.; Yilmaz, G.; Leong, R.L.F.; Ong, J.L.; Chee, M.W.L. Multi-Night at-Home Evaluation of Improved Sleep Detection and Classification with a Memory-Enhanced Consumer Sleep Tracker. Nat. Sci. Sleep. 2022, 14, 645–660. [Google Scholar] [CrossRef]
  45. Kainec, K.A.; Caccavaro, J.; Barnes, M.; Hoff, C.; Berlin, A.; Spencer, R.M.C. Evaluating Accuracy in Five Commercial Sleep-Tracking Devices Compared to Research-Grade Actigraphy and Polysomnography. Sensors 2024, 24, 635. [Google Scholar] [CrossRef]
  46. Kinnunen, H.; Rantanen, A.; Kenttä, T.; Koskimäki, H. Feasible assessment of recovery and cardiovascular health: Accuracy of nocturnal HR and HRV assessed via ring PPG in comparison to medical grade ECG. Physiol. Meas. 2020, 41, 04NT01. [Google Scholar] [CrossRef]
  47. Kwon, S.; Hong, J.; Choi, E.K.; Lee, B.; Baik, C.; Lee, E.; Jeong, E.R.; Koo, B.K.; Oh, S.; Yi, Y. Detection of Atrial Fibrillation Using a Ring-Type Wearable Device (CardioTracker) and Deep Learning Analysis of Photoplethysmography Signals: Prospective Observational Proof-of-Concept Study. J. Med. Internet Res. 2020, 22, e16443. [Google Scholar] [CrossRef]
  48. Lee, T.; Cho, Y.; Cha, K.S.; Jung, J.; Cho, J.; Kim, H.; Kim, D.; Hong, J.; Lee, D.; Keum, M.; et al. Accuracy of 11 Wearable, Nearable, and Airable Consumer Sleep Trackers: Prospective Multicenter Validation Study. JMIR Mhealth Uhealth 2023, 11, e50983. [Google Scholar] [CrossRef]
  49. Mastrototaro, J.J.; Leabman, M.; Shumate, J.; Tompkins, K.L. Performance of a Wearable Ring in Controlled Hypoxia: A Prospective Observational Study. JMIR Form. Res. 2024, 8, e54256. [Google Scholar] [CrossRef] [PubMed]
  50. Miller, D.J.; Sargent, C.; Roach, G.D. A Validation of Six Wearable Devices for Estimating Sleep, Heart Rate and Heart Rate Variability in Healthy Adults. Sensors 2022, 22, 6317. [Google Scholar] [CrossRef] [PubMed]
  51. Ong, J.L.; Golkashani, H.A.; Ghorbani, S.; Wong, K.F.; Chee, N.I.Y.N.; Willoughby, A.R.; Chee, M.W.L. Selecting a sleep tracker from EEG-based, iteratively improved, low-cost multisensor, and actigraphy-only devices. Sleep Health 2024, 10, 9–23. [Google Scholar] [CrossRef] [PubMed]
  52. Schukraft, S.; Haddad, S.; Faucherre, Y.; Arroyo, D.; Togni, M.; Barison, A.; Boukhayma, A.; Cook, S.; Caizzone, A. Remote blood pressure monitoring with a wearable photoplethysmographic device in patients undergoing coronary angiography: The senbiosys substudy. Blood Press. Monit. 2022, 27, 402–407. [Google Scholar] [CrossRef]
  53. Stone, J.D.; Rentz, L.E.; Forsey, J.; Ramadan, J.; Markwald, R.R.; Finomore, V.S.; Galster, S.M.; Rezai, A.; Hagen, J.A. Evaluations of Commercial Sleep Technologies for Objective Monitoring During Routine Sleeping Conditions. Nat. Sci. Sleep. 2020, 12, 821–842. [Google Scholar] [CrossRef]
  54. Stone, J.D.; Ulman, H.K.; Tran, K.; Thompson, A.G.; Halter, M.D.; Ramadan, J.H.; Stephenson, M.; Finomore, V.; Galster, S.M.; Rezai, A.R.; et al. Assessing the Accuracy of Popular Commercial Technologies That Measure Resting Heart Rate and Heart Rate Variability. Front. Sports Act. Liv 2021, 3, 585870. [Google Scholar] [CrossRef]
  55. Svensson, T.; Madhawa, K.; Nt, H.; Chung, U.I.; Kishi, A. Validity and reliability of the Oura Ring Generation 3 (Gen3) with Oura sleep staging algorithm 2.0 (OSSA 2.0) when compared to multi-night ambulatory polysomnography: A validation study of 96 participants and 421,045 epochs. Sleep Med. 2024, 115, 251–263. [Google Scholar] [CrossRef]
  56. Kim, J.; Chang, S.A.; Park, S.W. First-in-Human Study for Evaluating the Accuracy of Smart Ring Based Cuffless Blood Pressure Measurement. J. Korean Med. Sci. 2024, 39, e18. [Google Scholar] [CrossRef]
  57. Chattu, V.K.; Manzar, M.D.; Kumary, S.; Burman, D.; Spence, D.W.; Pandi-Perumal, S.R. The Global Problem of Insufficient Sleep and Its Serious Public Health Implications. Healthcare 2018, 7, 1. [Google Scholar] [CrossRef]
  58. Altendahl, M.; Cotter, D.L.; Staffaroni, A.M.; Wolf, A.; Mumford, P.; Cobigo, Y.; Casaletto, K.; Elahi, F.; Ruoff, L.; Javed, S.; et al. REM sleep is associated with white matter integrity in cognitively healthy, older adults. PLoS ONE 2020, 15, e0235395. [Google Scholar] [CrossRef]
  59. Grandner, M.A.; Patel, N.P. From sleep duration to mortality: Implications of meta-analysis and future directions. J. Sleep Res. 2009, 18, 145–147. [Google Scholar] [CrossRef] [PubMed]
  60. Leary, E.B.; Watson, K.T.; Ancoli-Israel, S.; Redline, S.; Yaffe, K.; Ravelo, L.A.; Peppard, P.E.; Zou, J.; Goodman, S.; Mignot, E.; et al. The Association between Rem Sleep and Risk of Mortality in Three Independent Cohorts. Sleep 2020, 43, A19–A20. [Google Scholar] [CrossRef]
  61. Shcherbina, A.; Mattsson, C.M.; Waggott, D.; Salisbury, H.; Christle, J.; Hastie, T.; Wheeler, M.T.; Ashley, E.A. Accuracy in Wrist-Worn, Sensor-Based Measurements of Heart Rate and Energy Expenditure in a Diverse Cohort. J. Pers. Med. 2017, 7, 3. [Google Scholar] [CrossRef] [PubMed]
  62. Bathilde, J.B.; Then, Y.L.; Chameera, R.; Tay, F.S.; Zaidel, D.N.A. Continuous Heart Rate Monitoring System as an IoT edge device. In Proceedings of the 2018 IEEE Sensors Applications Symposium (SAS), Seoul, Republic of Korea, 12–14 March 2018; pp. 367–372. [Google Scholar]
  63. Chon, K.H.; McManus, D.D. Detection of atrial fibrillation using a smartwatch. Nat. Rev. Cardiol. 2018, 15, 657–658. [Google Scholar] [CrossRef]
  64. Quasim, M.T.; Khan, M.A.; Abdullah, M.; Meraj, M.; Singh, S.P.; Johri, P. Internet of Things for Smart Healthcare: A Hardware Perspective. In Proceedings of the 2019 First International Conference of Intelligent Computing and Engineering (ICOICE), Hadhramout, Yemen, 15–16 December 2019; pp. 1–5. [Google Scholar]
  65. Sadhu, P.K.; Yanambaka, V.P.; Abdelgawad, A.; Yelamarthi, K. Prospect of Internet of Medical Things: A Review on Security Requirements and Solutions. Sensors 2022, 22, 5517. [Google Scholar] [CrossRef]
  66. Tang, V.; Choy, K.L.; Ho, G.T.S.; Lam, H.Y.; Tsang, Y.P. An IoMT-based geriatric care management system for achieving smart health in nursing homes. Ind. Manag. Data Syst. 2019, 119, 1819–1840. [Google Scholar] [CrossRef]
  67. Volpes, G.; Valenti, S.; Genova, G.; Bara, C.; Parisi, A.; Faes, L.; Busacca, A.; Pernice, R. Wearable Ring-Shaped Biomedical Device for Physiological Monitoring through Finger-Based Acquisition of Electrocardiographic, Photoplethysmographic, and Galvanic Skin Response Signals: Design and Preliminary Measurements. Biosensors 2024, 14, 205. [Google Scholar] [CrossRef]
  68. Dash, S.; Shakyawar, S.K.; Sharma, M.; Kaushik, S. Big data in healthcare: Management, analysis and future prospects. J. Big Data 2019, 6, 54. [Google Scholar] [CrossRef]
  69. Khan, M.F.; Ghazal, T.M.; Said, R.A.; Fatima, A.; Abbas, S.; Khan, M.A.; Issa, G.F.; Ahmad, M.; Khan, M.A.; Tawalbeh, L.a. An IoMT-Enabled Smart Healthcare Model to Monitor Elderly People Using Machine Learning Technique. Comput. Intell. Neurosci. 2021, 2021, 2487759. [Google Scholar] [CrossRef]
  70. Manickam, P.; Mariappan, S.A.; Murugesan, S.M.; Hansda, S.; Kaushik, A.; Shinde, R.; Thipperudraswamy, S.P. Artificial Intelligence (AI) and Internet of Medical Things (IoMT) Assisted Biomedical Systems for Intelligent Healthcare. Biosensors 2022, 12, 562. [Google Scholar] [CrossRef]
  71. Passos, J.; Lopes, S.I.; Clemente, F.M.; Moreira, P.M.; Rico-Gonzalez, M.; Bezerra, P.; Rodrigues, L.P. Wearables and Internet of Things (IoT) Technologies for Fitness Assessment: A Systematic Review. Sensors 2021, 21, 5418. [Google Scholar] [CrossRef] [PubMed]
  72. Prasitlumkum, N.; Cheungpasitporn, W.; Chokesuwattanaskul, A.; Thangjui, S.; Thongprayoon, C.; Bathini, T.; Vallabhajosyula, S.; Kanitsoraphan, C.; Leesutipornchai, T.; Chokesuwattanaskul, R. Diagnostic accuracy of smart gadgets/wearable devices in detecting atrial fibrillation: A systematic review and meta-analysis. Arch. Cardiovasc. Dis. 2021, 114, 4–16. [Google Scholar] [CrossRef] [PubMed]
  73. Björnsson, B.; Borrebaeck, C.; Elander, N.; Gasslander, T.; Gawel, D.R.; Gustafsson, M.; Jörnsten, R.; Lee, E.J.; Li, X.; Lilja, S.; et al. Digital twins to personalize medicine. Genome Med. 2019, 12, 4. [Google Scholar] [CrossRef] [PubMed]
  74. Elayan, H.; Aloqaily, M.; Guizani, M. Digital Twin for Intelligent Context-Aware IoT Healthcare Systems. IEEE Internet Things J. 2021, 8, 16749–16757. [Google Scholar] [CrossRef]
  75. Sahal, R.; Alsamhi, S.H.; Brown, K.N. Personal Digital Twin: A Close Look into the Present and a Step towards the Future of Personalised Healthcare Industry. Sensors 2022, 22, 5918. [Google Scholar] [CrossRef]
  76. Awad, A.; Trenfield, S.J.; Pollard, T.D.; Ong, J.J.; Elbadawi, M.; McCoubrey, L.E.; Goyanes, A.; Gaisford, S.; Basit, A.W. Connected healthcare: Improving patient care using digital health technologies. Adv. Drug Deliv. Rev. 2021, 178, 113958. [Google Scholar] [CrossRef]
  77. Shah, S.S.; Gvozdanovic, A.; Knight, M.; Gagnon, J. Mobile App–Based Remote Patient Monitoring in Acute Medical Conditions: Prospective Feasibility Study Exploring Digital Health Solutions on Clinical Workload During the COVID Crisis. JMIR Form. Res. 2021, 5, e23190. [Google Scholar] [CrossRef]
  78. Riedl, D.; Schüßler, G. The Influence of Doctor-Patient Communication on Health Outcomes: A Systematic Review. Z. Für Psychosom. Med. Und Psychother. 2017, 63, 131–150. [Google Scholar] [CrossRef]
  79. Prainsack, B. The value of healthcare data: To nudge, or not? Policy Stud. 2020, 41, 547–562. [Google Scholar] [CrossRef]
  80. Haile, C.; Kirk, A.; Cogan, N.; Janssen, X.; Gibson, A.-M.; MacDonald, B. Pilot Testing of a Nudge-Based Digital Intervention (Welbot) to Improve Sedentary Behaviour and Wellbeing in the Workplace. Int. J. Environ. Res. Public Health 2020, 17, 5763. [Google Scholar] [CrossRef]
  81. Varnfield, M.; Karunanithi, M.; Lee, C.-K.; Honeyman, E.; Arnold, D.; Ding, H.; Smith, C.; Walters, D.L. Smartphone-based home care model improved use of cardiac rehabilitation in postmyocardial infarction patients: Results from a randomised controlled trial. Heart 2014, 100, 1770–1779. [Google Scholar] [CrossRef] [PubMed]
  82. Rahman, M.; Jahankhani, H. Security Vulnerabilities in Existing Security Mechanisms for IoMT and Potential Solutions for Mitigating Cyber-Attacks. In Information Security Technologies for Controlling Pandemics; Advanced Sciences and Technologies for Security Applications; Springer: Cham, Switzerland, 2021; pp. 307–334. [Google Scholar]
  83. Thornton, A. Publication bias in meta-analysis its causes and consequences. J. Clin. Epidemiol. 2000, 53, 207–216. [Google Scholar] [CrossRef] [PubMed]
  84. Schwarz, J.F.A.; Åkerstedt, T.; Lindberg, E.; Gruber, G.; Fischer, H.; Theorell-Haglöw, J. Age affects sleep microstructure more than sleep macrostructure. J. Sleep Res. 2017, 26, 277–287. [Google Scholar] [CrossRef] [PubMed]
Applsci 14 10778 g001

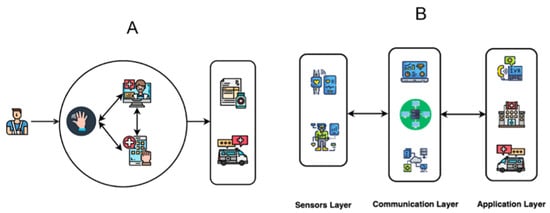

Figure 1. (A) SR’s concept of function. The SR registers and collects the health data (SpO2, heart rate and others) communicating with smartphones or other devices. These data can be used to monitor patient vital signs and alert healthcare professionals to potential problems or changes in a patient’s condition. (B) IoMT ecosystem architecture and layers. The collection layer consists of medical sensors. Devices collect the health data and transmit them to a gateway node. The communication layer stores those data and analyses them using conventional threshold values to report any abnormality. Last is the application layer: using a web-based interface, medical professionals can check and verify the diagnostics and take corresponding measures.
Figure 1. (A) SR’s concept of function. The SR registers and collects the health data (SpO2, heart rate and others) communicating with smartphones or other devices. These data can be used to monitor patient vital signs and alert healthcare professionals to potential problems or changes in a patient’s condition. (B) IoMT ecosystem architecture and layers. The collection layer consists of medical sensors. Devices collect the health data and transmit them to a gateway node. The communication layer stores those data and analyses them using conventional threshold values to report any abnormality. Last is the application layer: using a web-based interface, medical professionals can check and verify the diagnostics and take corresponding measures.
Applsci 14 10778 g001
Applsci 14 10778 g002
Figure 2. PRISMA flowchart describing the selection process of the included studies.
Figure 2. PRISMA flowchart describing the selection process of the included studies.
Applsci 14 10778 g002
Applsci 14 10778 g003
Figure 3. (A) Sleep studies: control device characteristics. PSG: polysomnography. EEG: electroencephalography. (B) Sleep studies: smart ring characteristics. Gen: generation.
Figure 3. (A) Sleep studies: control device characteristics. PSG: polysomnography. EEG: electroencephalography. (B) Sleep studies: smart ring characteristics. Gen: generation.
Applsci 14 10778 g003
Applsci 14 10778 g004
Figure 4. (A) Cardiovascular studies: control device. PSG: polysomnography. ECG: Electrocardiogram. BP: Blood Pressure. (B) Cardiovascular studies: smart ring type. Gen: generation.
Figure 4. (A) Cardiovascular studies: control device. PSG: polysomnography. ECG: Electrocardiogram. BP: Blood Pressure. (B) Cardiovascular studies: smart ring type. Gen: generation.
Applsci 14 10778 g004
Table 1. Characteristics of the studies using smart rings for health monitoring (sleep, cardiovascular, and SaO2 outcomes).
Table 1. Characteristics of the studies using smart rings for health monitoring (sleep, cardiovascular, and SaO2 outcomes).
AuthorsYearCountryStudy PopulationSample SizeMean Age (Years)GenderRing TypeControl DeviceTime RecordingType EstimateSpecific OutcomeMeasure of AssessmentFinancial Statement
Sleep Quality
Altini et al. [38]2021MultipleAdolescents and healthy adults11830.1 ± 16.4F:65; M:53OURA
2nd Gen		PSG440 nightsBland–Altman PlotsTST (min)16.3 (12.9)Conflicts of interest emerge
Light sleep (min)58.1 (56.9)
Deep sleep (min)26.9 (29.9)
REM sleep (min)42.8 (40.5)
Ghorbani et al. [44]2022SingaporeHealthy adults5837.1 ± 13.0F:27; M:32OURA
2nd Gen		PSG3 nightsBland–Altman PlotsTST (min)−18.1 (23.4)Yes, both from public and private
Sleep efficiencyNo Data
Light sleep (min)−46.9 (42.2)
Deep sleep (min)49.9 (47.4)
REM sleep (min)−21.1 (37.6)
WASO (min)16.7 (25.3)
Chee et al. [42]2021SingaporeAdolescents52n/aF:30; M:29OURA
2nd Gen		PSG15 nightsBland–Altman PlotsTST (min)−47.3 (24.6)Not specified
N1 + N2 (min)−81.2 (32.2)
N3 (min)46.8 (36.3)
WASO (min)46.3 (22.0) (min)
REM (min)−12.8 (28.9) (min)
De Zambotti et al. [43]2017USAAdolescents and healthy adults4117.2 ± 2.4F:13; M:28OURA
1st Gen		PSG1 nightBland–Altman PlotsTST (min)−1.3 (21.7) (min)Yes, from public
SOL (min)−0.2 (7.0) (min)
WASO (min)1.5 (20.7) (min)
N1 + N2 (min)−3.7 (66.2) (min)
N3 (min)19.6 (41.2) (min)
REM (min)−17.2 (50.2) (min)
Asgari Mehrabadi et al. [39]2020FinlandHealthy adults4533.1 ± 6.4F:23; M:22OURA
2nd Gen		Actigraphy6 nightsBland–Altman PlotsTST (min)−15.3 (39.7) (min)Not specified
Sleep Efficiency (%)1.3 (5.9)
WASO (min)17.4 (28.2) (min)
Stone et al. [53]2020USAHealthy adults5F: 22, 23, and 27;
M: 41 and 26 years		F:3; M:2OURA
2nd Gen		EEG98 nightsBland–Altman PlotsTST (min)0.2 (0.0, 0.4) (min)Independent third-party evaluation
SE1.7 (0.2, 3.2)
TWT (min)−0.2 (−0.3, 0.0) (min)
Miller et al. [50]2022AustraliaHealthy adults5325.4 ± 5.9F:26; M:27OURA
2nd Gen		PSG1 nightBland–Altman PlotsTST (min)1.5 (40.9) (min)Not specified
N1 (min)No data
N2 (min)No data
Light sleep (min)19.8 (57.4) (min)
Deep sleep (min)2.4 (56.4) (min)
REM sleep (min)−20.7 (35.3) (min)
Deep/REM (min)No data
Wake (min)−3.1 (36.1) (min)
HR (bpms)0.1 (4.5)
HRV (RMSSD, ms)−10.2 (39.4)
Lee et al. [48]2023South KoreaAdults with sleep disorders5343.6 ± 14.136 F; 39 MOURA
3rd Gen		PSG350 hBland–Altman Plots; sensitivity, specificityLight sleep (sensitivity)0.51Yes, from public
Light sleep (specificity)0.76
Deep sleep (sensitivity)0.78
Deep sleep (specificity)0.80
REM (sensitivity)0.71
REM (specificity)0.87
REM (Bland–Altman Bias)−9.5
Ong et al. [51]2023SingaporeHealthy adults6038.5 ± 15.134 F; 26 MOURA
3rd Gen		PSG1 nightBland–Altman PlotsTST0.9 (34.6)Yes, both from public and private
WASO−11.2 (30.6)
Light Sleep−14.7 (38.4)
Deep sleep7.6 (30.5)
REM8.1 (24.2)
SE (%)0.2 (8.2)
Kainec et al. [45]2024USAHealthy adults5322.5 ± 3.531 F; 22 MOURA
2nd Gen		PSG1 nightBland–Altman PlotsTST−13.9 (41.1)Yes, from public
WASO39.6 (0.4 x ref)
Light Sleep−49.5 (59.0)
Deep sleep94.9 (0.6 x ref)
REM5.8 (37.7)
Svensson et al. [55]2024JapanHealthy adults9641.9 ± 13.8n/aOURA
3rd Gen		PSG≤3 nightsBland–Altman PlotsSE (%) [Dominant Hand]1.5 (4.2)Yes, from private
TST [Dominant Hand]3.6 (25.0)
Light Sleep [Dominant Hand]−4.2 (23.2)
Deep sleep [Dominant Hand]2.2 (33.4)
REM [Dominant Hand]5.6 (17.6)
SE (%) [Non-Dominant Hand]1.1 (4.8)
TST [Non-Dominant Hand]2.1 (26.2)
Light Sleep [Non-Dominant Hand]−5.0 (40.5)
Deep sleep [Non-Dominant Hand]3.1 (33.8)
REM [Non-Dominant Hand]4.1 (17.8)
Cardiovascular outcomes
Miller et al. [50]2022AustraliaHealthy adults5325.4 ± 5.9F:26; M:27OURA
2nd Gen		PSG1 nightBland–Altman Plots [mmHg]HR (bpms);
HRV (RMSSD, ms)		0.1 (4.5)
−10.2 (39.4)		Not specified
Cao et al. [41]2022FinlandHealthy adults3532.3 ± 6.4F:19; M:16OURA
3rd Gen		ECG1 nightBland–Altman PlotsHR (bpms)−0.4 (−0.9, 0.0)Yes, from public
Schukraft et al. [52]2022SwitzerlandAdults requiring invasive BP monitoring2568.9 ± 6.4F:10; M:15Senbiosys device (SBF2003)Invasive BP measurements9 minBland–Altman Plots [mmHg]SBP2.3 ± 11.3Yes, from public
RMSE [mmHg]7.3
Bland–Altman Plots [mmHg]
RMSE [mmHg]		DBPBAP: 0.5 ± 6.9
RMSE: 3.6
RMSE [mmHg]MBPRMSE: 3.6
Kinnunen et al. [46]2020FinlandAdults6031.6 ± 11.8F:40; M:20OURA
1st Gen		ECG5 min segment; 1 nightBland–Altman PlotsHR (bpms)−0.6 [−1.4, 0.1]Yes, from private
Stone et al. [54]2021USAHealthy adults520.33 ± 2.08
F: 19.50 ± 0.71		F:2; M:3OURA
2nd Gen		ECG (5 lead)3 or 5 minBland–Altman PlotsHR (bpms)−2.3 (−5.6, 0.9)Yes, from private
Kwon et al. [47]2020KoreaAdults with persistent AF who underwent cardioversion recruited prospectively10063.8 ± 8.5F:19; M:81CART (Sky Labs Inc) + Deep Learning AlgorithmECG (1 lead)15 minAccuracy,
Sensitivity,
Specificity,
Positive predictive value,
Negative predictive value,
AUCa (95% CI)		AFAccuracy: 96.9
Sensitivity: 98.9
Specificity: 94.3
Positive predictive value: 95.6
Negative predictive value: 98.7
AUCa (95% CI): 0.99 (0.99–0.99)		Yes, from private
Boukhayma et al. [40]2021SwitzerlandHealthy adults734.3 ± 5.3M:7PrototypeECG (4 leads)37.10 h of sleep and 35.11 h of wake recordingMAE;
ME;
RMSE;
MAPE		beat-to-beat detection accuracy;(MAE) of 8.10 ms;
(ME) of 0.24 ms;
(RMSE) of 13.97 ms;
(MAPE) of 0.80%		Not specified
Kim et al. [56]2024KoreaHealthy adults8940.1 ± 12.0M: 42; F: 47CART (Sky Labs Inc)BP measurement by auscultation526 SBP samples; 513 DBP samplesBland–AltmanSBP0.2 (5.9)Yes, from private
DBP−0.1 (4.7)
SaO2 outcomes
Mastrototaro et al. [49]2024USAHealthy adults1126.9 ± 4.1F: 5; M: 6PrototypeMasimo Radical-7 pulse oximetern/a; 258 samplesRMSESaO22.1%Yes, from private
M: Male; F: Female; OURA: Oura Ring®; Gen: generation; PSG: polysomnography; TST: total sleep time; REM: rapid eye movement; WASO: Wake After Sleep Onset; N1, N2, N3: Stages of NREM Sleep (N1: light sleep, N2: intermediate-depth sleep, N3: deep sleep or slow-wave sleep); SE: Sleep Efficiency; SOL: Sleep Onset Latency; EEG: Electroencephalography; HR: heart rate; HRV: heart rate variability; SBP: Systolic Blood Pressure; DBP: Diastolic Blood Pressure; MBP: Mean Blood Pressure; ECG: Electrocardiogram; AF: atrial fibrillation; BPMs: Beats Per Minute; RMSSD: Root Mean Square of the Successive Differences; AUCa (95% CI): Area Under the Curve with 95% confidence interval; BAPs: Bland–Altman Plots; MAE: Mean Absolute Error; ME: Mean Error; RMSE: Root Mean Square Error; MAPE: Mean Absolute Percentage Error.
Table 2. Results of the meta-analyses of the accuracy of Oura Ring® in monitoring sleep quality compared to PSG.
Table 2. Results of the meta-analyses of the accuracy of Oura Ring® in monitoring sleep quality compared to PSG.
Mean Bias (min)SDLoAsCI_LmCI_Um
TST−21.35.4−69.9, 27.4−45,916.445,873.8
REM−18.25.8−33.3, −3.1−281.5245.1
Abbreviations: SD = Standard Deviation, LoAs = limits of agreement, CI_Lm = 95% confidence interval lower bound of the lower LoA, CI_Um = 95% confidence interval upper bound of the upper LoA.
Table 3. Results of the meta-analyses of the accuracy of Oura Ring® in monitoring cardiovascular parameters compared to PSG.
Table 3. Results of the meta-analyses of the accuracy of Oura Ring® in monitoring cardiovascular parameters compared to PSG.
Mean Bias (min)SDLoAsCI_LmCI_Um
Nocturnal HR−0.41.1−2.7, 1.8−6.05.1
Abbreviations: SD = Standard Deviation, LoAs = limits of agreement, CI_Lm = 95% confidence interval lower bound of the lower LoA, CI_Um = 95% confidence interval upper bound of the upper LoA.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fiore, M.; Bianconi, A.; Sicari, G.; Conni, A.; Lenzi, J.; Tomaiuolo, G.; Zito, F.; Golinelli, D.; Sanmarchi, F. The Use of Smart Rings in Health Monitoring—A Meta-Analysis. Appl. Sci. 2024, 14, 10778. https://doi.org/10.3390/app142310778

AMA Style

Fiore M, Bianconi A, Sicari G, Conni A, Lenzi J, Tomaiuolo G, Zito F, Golinelli D, Sanmarchi F. The Use of Smart Rings in Health Monitoring—A Meta-Analysis. Applied Sciences. 2024; 14(23):10778. https://doi.org/10.3390/app142310778

Chicago/Turabian Style

Fiore, Matteo, Alessandro Bianconi, Gaia Sicari, Alice Conni, Jacopo Lenzi, Giulia Tomaiuolo, Flavia Zito, Davide Golinelli, and Francesco Sanmarchi. 2024. "The Use of Smart Rings in Health Monitoring—A Meta-Analysis" Applied Sciences 14, no. 23: 10778. https://doi.org/10.3390/app142310778

APA Style

Fiore, M., Bianconi, A., Sicari, G., Conni, A., Lenzi, J., Tomaiuolo, G., Zito, F., Golinelli, D., & Sanmarchi, F. (2024). The Use of Smart Rings in Health Monitoring—A Meta-Analysis. Applied Sciences, 14(23), 10778. https://doi.org/10.3390/app142310778

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
