Fire Risk Assessment of Urban Utility Tunnels Based on Improved Cloud Model and Evidence Theory
Abstract
:1. Introduction
- (1)
- The research on the fire safety of urban utility tunnels mainly focuses on the causative factors of fire accidents, spreading characteristics, and fire protection design. The research on fire risk evaluation is less [12].
- (2)
- There are some problems in the fire risk evaluation, such as single index weighting and strong subjectivity. These ignore the impact of randomness, fuzziness, and uncertainty of risk evaluation on the evaluation results. In terms of risk evaluation, the cloud model can transform qualitative concepts and quantitative values. It can replace the traditional membership solution function and comprehensively consider the evaluation problem’s randomness and fuzziness [13,14]. The evidence theory has a solid ability for multi-information fusion. The reliability of risk assessment can be improved by effectively fusing the evaluation results through evidence theory [15,16].
2. Assessment Index System for Urban Utility Tunnels Fire Risk
3. Fire Risk Assessment Model of Urban Utility Tunnels
3.1. The Improved Cloud Model Based on Cloud Entropy Optimization
3.1.1. Cloud Model
3.1.2. Cloud Entropy Optimization
3.2. Evidence Theory
3.2.1. Basic Probability Distribution Function
3.2.2. The Improved Synthesis Rules of Evidence Theory Based on Dynamic and Static Weights
4. Instance Verification
4.1. Determining Membership Degree of Indicator Level Based on the Improved Cloud Model
4.2. Determining the Basic Probability Distribution Function for the Indicator
4.3. Evidence Fusion Based on Dynamic and Static Weights
4.4. Analysis of Results and Recommendations
5. Conclusions
- (1)
- The improved cloud model based on cloud entropy optimization calculates the membership degree of index level, which considers the fuzziness and clarity of risk level division and solves the problem of randomness and fuzziness of fire risk assessment.
- (2)
- The improved evidence theory based on dynamic and static weights achieve the combined weighting of the dynamic and static weights of indicators by using the game theory for reference, which makes up for the shortcomings of the single assignment method and makes the weight distribution more reasonable. Additionally, it efficiently reduces the conflict of evidence fusion in the traditional evidence theory and improves the accuracy of the evaluation results.
- (3)
- The method proposed in this paper is verified by an example. The fire risk level of this urban utility tunnel is medium, which is consistent with the actual situation, proving the rationality and feasibility of the method. By comparing the evaluation results of the traditional cloud model, the improved cloud model and the improved cloud model with traditional evidence theory, the effectiveness and superiority of this method are proved. At the same time, corresponding management and control measures are proposed for the indicators of utility tunnels with a high fire risk weight, which have a certain reference value.
- (4)
- Compared with other scholars’ research, it can be found that the literature [9] uses the fuzzy analysis method, which has strong subjectivity. The literature [11] simply uses Bayesian network instead of weight adjustment strategy, resulting in weak reliability. Although this method has high accuracy and good applicability, it does not use dynamic evaluation methods. Future research will consider how to combine the indicator results and the actual situation to conduct dynamic trend assessment and prediction so as to better conduct fire risk management.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Alaghbandrad, A.; Hammad, A. Framework for multi-purpose utility tunnel lifecycle cost assessment and cost-sharing. Tunn. Undergr. Space Technol. 2020, 104, 103528. [Google Scholar] [CrossRef]
- Liu, H.N.; Zhu, G.Q.; Pan, R.L.; Yu, M.M.; Liang, Z.H. Experimental investigation of fire temperature distribution and ceiling temperature prediction in closed utility tunnel. Case Stud. Therm. Eng. 2019, 14, 100493. [Google Scholar] [CrossRef]
- Mi, H.; Liu, Y.; Jiao, Z.; Wang, W.; Wang, Q. A numerical study on the optimization of ventilation mode during emergency of cable fire in utility tunnel. Tunn. Undergr. Space Technol. 2020, 100, 103403. [Google Scholar] [CrossRef]
- Zhang, G.; Shi, M. Bayesian assessment of utility tunnel risk based on information sharing mechanism. J. Intell. Fuzzy Syst. 2021, 41, 4749–4757. [Google Scholar] [CrossRef]
- Ou, L.; Chen, Y.; Zhang, J.; Ma, C. Dematel-ISM-based study of the impact of safety factors on urban rail tunnel construction projects. Comput. Intell. Neurosci. 2022, 2022, 2222556. [Google Scholar] [CrossRef]
- He, L.; Ma, G.; Hu, Q.; Cai, Q.; Bai, Y.; Tang, S.; Tan, J. A novel method for risk assessment of cable fires in utility tunnel. Math. Probl. Eng. 2019, 2019, 2563012. [Google Scholar] [CrossRef]
- Yi, L.; Wang, X.; Yang, Y.; Wang, Y.; Zhou, Y. A simplified mathematical model for estimating gas temperature and velocity under natural smoke exhaust in sloping city tunnel fires. Sustain. Cities Soc. 2020, 55, 102071. [Google Scholar] [CrossRef]
- Xin, L.; Yuanyuan, Z.; Boyan, J.; Guowei, Z.; Li, Z. Effects of Fire Compartmentation and Smoke Exhaust Measures on Smoke Spread Caused by Cable Fire in Utility Tunnel. Adv. Civ. Eng. Mater. 2021, 2021, 4407919. [Google Scholar] [CrossRef]
- Sajid, Z.; Yang, Y.; You, P.; Deng, H.; Cheng, X.; Danial, S.N. An explorative methodology to assess the risk of fire and human fatalities in a subway station using fire dynamics simulator (FDS). Fire 2022, 5, 69. [Google Scholar] [CrossRef]
- Mi, H.; Zhang, X.; Wang, W.; Yang, W.; Jiang, X. A Risk Analysis Method of Cable Fire in Utility Tunnel Based on a Bayesian Network. Math. Probl. Eng. 2022, 2022, 1952263. [Google Scholar] [CrossRef]
- Chen, Y.; Li, X.; Wang, W.; Wu, G.; Wang, L. Risk assessment and prediction of underground utility tunnels based on Bayesian network: A Case Study in Beijing, China. J. Circuits Syst. Comput. 2022, 2022, 2350096. [Google Scholar] [CrossRef]
- Tang, F.; Hu, L.H.; Yang, L.Z.; Qiu, Z.W.; Zhang, X.C. Longitudinal distributions of CO concentration and temperature in buoyant tunnel fire smoke flow in a reduced pressure atmosphere with lower air entrainment at high altitude. Int. J. Heat Mass Transf. 2014, 75, 130–134. [Google Scholar] [CrossRef]
- Li, Q.; Wang, Z.; Lu, L.; Ma, Q. Construction Risk Evaluation of Poor Geological Channels Based on Cloud Model-Improved AHP–Matter–Element Theory. Sustainability 2021, 13, 9632. [Google Scholar] [CrossRef]
- Liu, J.; Shi, H.; Wang, R.; Si, Y.; Wei, D.; Wang, Y. Quantitative risk assessment for deep tunnel failure based on normal cloud model: A case study at the ASHELE copper mine, China. Appl. Sci. 2021, 11, 5208. [Google Scholar] [CrossRef]
- Xie, S.; Chen, Y.; Dong, S.; Zhang, G. Risk assessment of an oil depot using the improved multi-sensor fusion approach based on the cloud model and the belief Jensen-Shannon divergence. J. Loss Prev. Process Ind. 2020, 67, 104214. [Google Scholar] [CrossRef]
- Mi, H.; Liu, Y.; Wang, W.; Xiao, G. An integrated method for fire risk assessment in residential buildings. Math. Probl. Eng. 2020, 2020, 9392467. [Google Scholar] [CrossRef]
- Li, Q.; Zhou, J.; Feng, J. Safety Risk Assessment of Highway Bridge Construction Based on Cloud Entropy Power Method. Appl. Sci. 2022, 12, 8692. [Google Scholar] [CrossRef]
- Matellini, D.B.; Wall, A.D.; Jenkinson, I.D.; Wang, J.; Pritchard, R. A Three-Part Bayesian Network for Modeling Dwelling Fires and Their Impact upon People and Property. Risk Anal. 2018, 38, 2087–2104. [Google Scholar] [CrossRef]
- Lu, J.; Liu, W.; Yu, K.; Zhou, L. The Dynamic Evolution Law of Coal Mine Workers’ Behavior Risk Based on Game Theory. Sustainability 2022, 14, 4015. [Google Scholar] [CrossRef]
- Sun, S.; Xu, C.; Wang, A.; Yang, Y.; Su, M. Safety evaluation of urban underground utility tunnel with the grey clustering method based on the whole life cycle theory. J. Asian Archit. Build. Eng. 2022, 21, 2532–2544. [Google Scholar] [CrossRef]
- Xie, S.; Dong, S.; Chen, Y.; Peng, Y.; Li, X. A novel risk evaluation method for fire and explosion accidents in oil depots using bow-tie analysis and risk matrix analysis method based on cloud model theory. Reliab. Eng. Syst. Saf. 2021, 215, 107791. [Google Scholar] [CrossRef]
- Dong, J.; Wang, D.; Liu, D.; Ainiwaer, P.; Nie, L. Operation Health Assessment of Power Market Based on Improved Matter-Element Extension Cloud Model. Sustainability 2019, 11, 5470. [Google Scholar] [CrossRef]
- Wu, G.; Duan, K.; Zuo, J.; Zhao, X.; Tang, D. Integrated Sustainability Assessment of Public Rental Housing Community Based on a Hybrid Method of AHP-Entropy Weight and Cloud Model. Sustainability 2017, 9, 603. [Google Scholar]
- Yang, J.; Liu, H.; Yu, X.; Lv, Z.; Xiao, F. Entropy-cloud model of heavy metals pollution assessment in farmland soils of mining areas. Pol. J. Environ. Stud. 2016, 25, 1315–1322. [Google Scholar] [CrossRef]
- Li, S.; Sun, Q.; Liu, S. Risk assessment for supply chain based on Cloud model. J. Intell. Fuzzy Syst. 2021, 41, 3523–3540. [Google Scholar] [CrossRef]
- Cai, Q.; Hu, Q.; Ma, G. Improved hybrid reasoning approach to safety risk perception under uncertainty for mountain tunnel construction. J. Constr. Eng. Manag. 2021, 147, 04021105. [Google Scholar] [CrossRef]
- Shang, H.; Xu, J.; Zheng, Z.; Qi, B.; Zhang, L. A Novel Fault Diagnosis Method for Power Transformer Based on Dissolved Gas Analysis Using Hypersphere Multiclass Support Vector Machine and Improved D–S Evidence Theory. Energies 2019, 12, 4017. [Google Scholar] [CrossRef]
- Lin, C.J.; Zhang, M.; Li, L.P.; Zhou, Z.Q.; Liu, S.; Liu, C.; Li, T. Risk assessment of tunnel construction based on improved cloud model. J. Perform. Constr. Facil. 2020, 34, 04020028. [Google Scholar] [CrossRef]
- Wu, X.; Duan, J.; Zhang, L.; AbouRizk, S.M. A hybrid information fusion approach to safety risk perception using sensor data under uncertainty. Stoch. Environ. Res. Risk Assess. 2018, 32, 105–122. [Google Scholar] [CrossRef]
- Zhou, K. Comprehensive evaluation on water resources carrying capacity based on improved AGA-AHP method. Appl. Water Sci. 2022, 12, 1–9. [Google Scholar] [CrossRef]
- Cox, L.A., Jr. Game theory and risk analysis. Risk Anal. 2009, 29, 1062–1068. [Google Scholar] [CrossRef]
- Ju, W.; Wu, J.; Kang, Q.; Jiang, J.; Xing, Z. A method based on the theories of game and extension cloud for risk assessment of construction safety: A case study considering disaster-inducing factors in the construction process. J. Build. Eng. 2022, 62, 105317. [Google Scholar] [CrossRef]
Target | First-Level Indicator | Secondary Indicators | Evaluation Criteria |
---|---|---|---|
Fire risk of urban utility tunnels A | Tunnel fire protection capacity B1 | Structural design C1 | The complexity of the internal structure of tunnels |
Fire resistance class C2 | The overall fire-resistance rating of tunnels | ||
Fire load C3 | The quantity of combustible substances contained in tunnels | ||
Electrical equipment condition C4 | Electrical equipment aging and breakage rate | ||
Fire zone setting C5 | The reasonableness of fire partitioning | ||
Fire control capability B2 | Fire detection system C6 | The advancement of fire detection systems | |
Fire alarm system C7 | The advancement of fire alarm systems | ||
Fire-fighting equipment configuration C8 | The perfection of fire-fighting equipment | ||
Water supply and fire extinguishing system C9 | The capability of water supply and fire-fighting systems | ||
Ventilation and smoke extraction system C10 | The advancement of ventilation and smoke extraction systems | ||
Emergency evacuation capability B3 | Emergency lighting system C11 | Emergency lighting illumination and duration | |
Safe route planning C12 | The rationality of safe route planning | ||
Evacuation sign C13 | The rationality of indicator setting | ||
Personnel prevention and control capacity B4 | Personnel security behavior C14 | The standardization of personnel operations | |
Personnel security awareness C15 | The strength of personnel security awareness | ||
Personnel emergency response capacity C16 | The strength of personnel emergency response capacity | ||
Personnel working status C17 | The physical and psychological state of personnel | ||
Security management capability B5 | Fire control management system C18 | The perfection of fire control management systems | |
Fire education training C19 | The frequency of fire education training | ||
Routine fire inspection C20 | The strength and frequency of routine fire inspections | ||
Fire emergency planning C21 | The perfection of fire emergency planning |
Risk Level | I | II | III | IV | V |
---|---|---|---|---|---|
Interpretation Index interval | Extremely low risk [0, 2) | Low risk [2, 4) | Medium risk [4, 6) | High risk [6, 8) | Extremely high risk [8, 10) |
Indicators | Expert 1 | Expert 2 | Expert 3 | Expert 4 | Expert 5 | Average Value |
---|---|---|---|---|---|---|
Structural design C1 | 4 | 6 | 5 | 4 | 6 | 5.0 |
Fire-resistance class C2 | 5 | 7 | 6 | 5 | 7 | 6.0 |
Fire load C3 | 4 | 5 | 5 | 4 | 4 | 4.4 |
Electrical equipment condition C4 | 5 | 6 | 4 | 3 | 5 | 4.6 |
Fire zone setting C5 | 3 | 4 | 3 | 2 | 3 | 3.0 |
Fire detection system C6 | 3 | 4 | 3 | 5 | 6 | 4.2 |
Fire alarm system C7 | 4 | 5 | 5 | 4 | 3 | 4.2 |
Fire-fighting equipment configuration C8 | 5 | 4 | 6 | 4 | 5 | 4.8 |
Water supply and fire extinguishing system C9 | 5 | 6 | 7 | 5 | 4 | 5.4 |
Ventilation and smoke extraction system C10 | 3 | 2 | 2 | 3 | 2 | 2.4 |
Emergency lighting system C11 | 3 | 3 | 2 | 3 | 3 | 2.6 |
Safe route planning C12 | 2 | 2 | 3 | 2 | 2 | 2.4 |
Evacuation sign C13 | 3 | 1 | 2 | 1 | 1 | 1.4 |
Personnel security behavior C14 | 2 | 4 | 5 | 4 | 3 | 3.8 |
Personnel security awareness C15 | 3 | 2 | 2 | 3 | 2 | 2.4 |
Personnel emergency response capacity C16 | 4 | 5 | 4 | 4 | 5 | 4.4 |
Personnel working status C17 | 2 | 2 | 3 | 3 | 2 | 2.4 |
Fire control management system C18 | 1 | 2 | 1 | 3 | 2 | 1.8 |
Fire education training C19 | 4 | 5 | 4 | 3 | 4 | 4.0 |
Routine fire inspection C20 | 5 | 7 | 6 | 6 | 5 | 5.8 |
Fire emergency planning C21 | 6 | 5 | 4 | 5 | 6 | 5.2 |

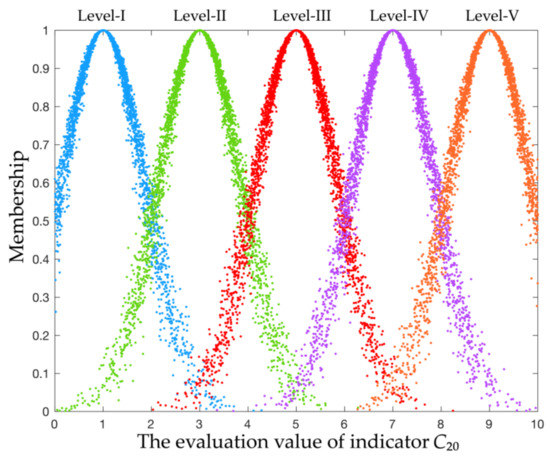

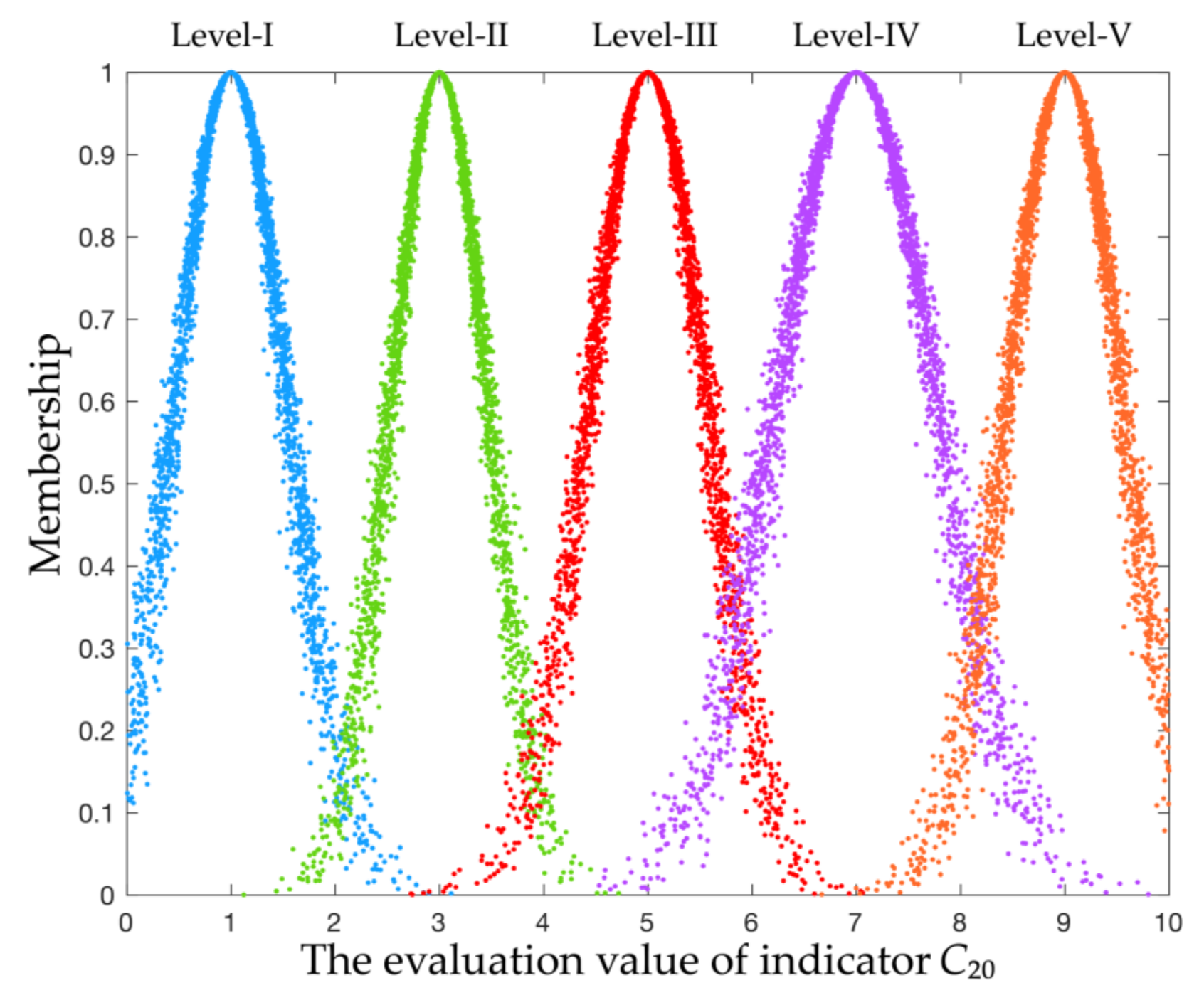

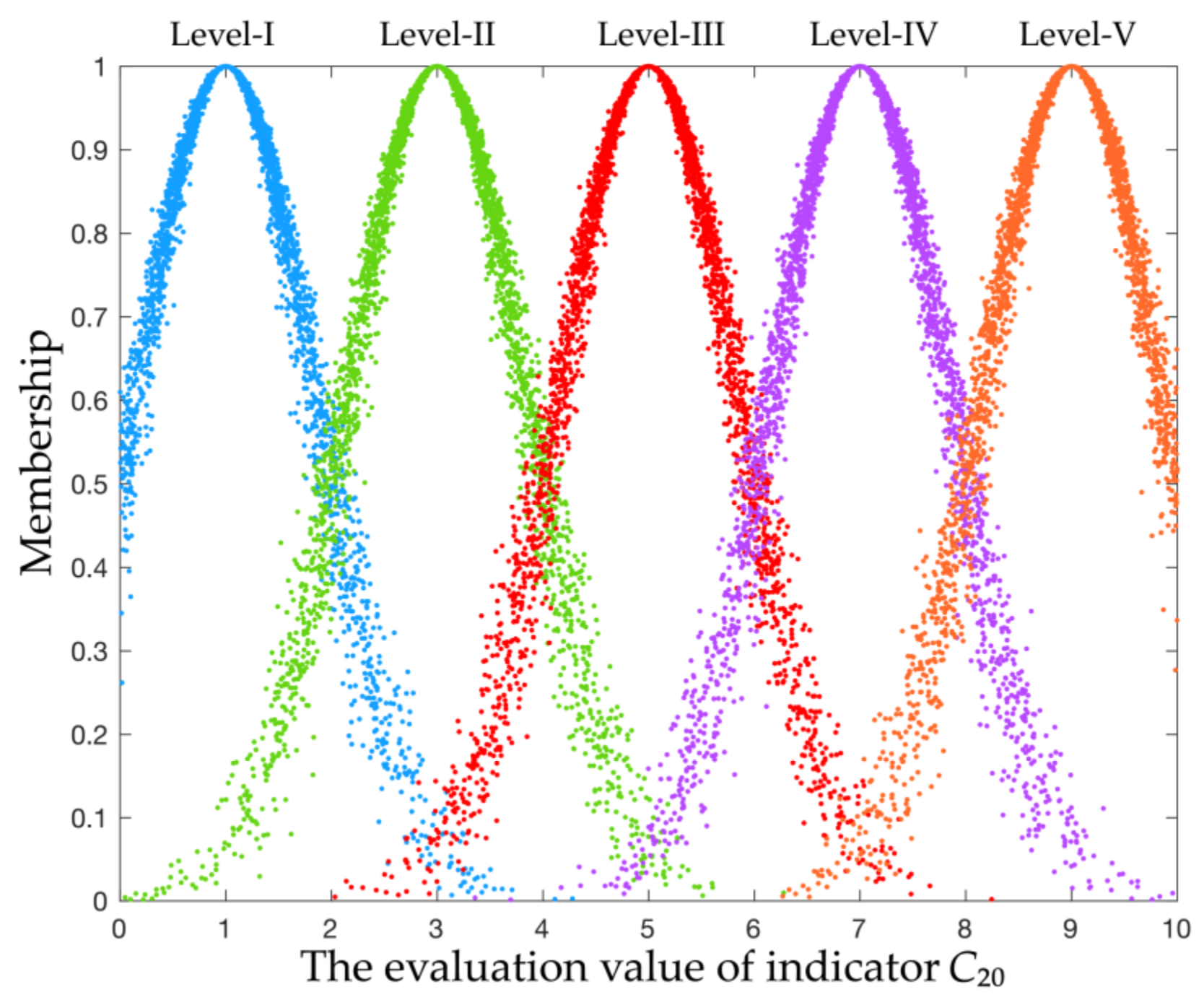

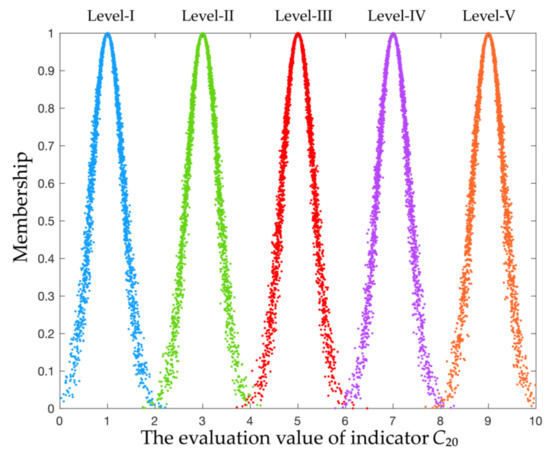

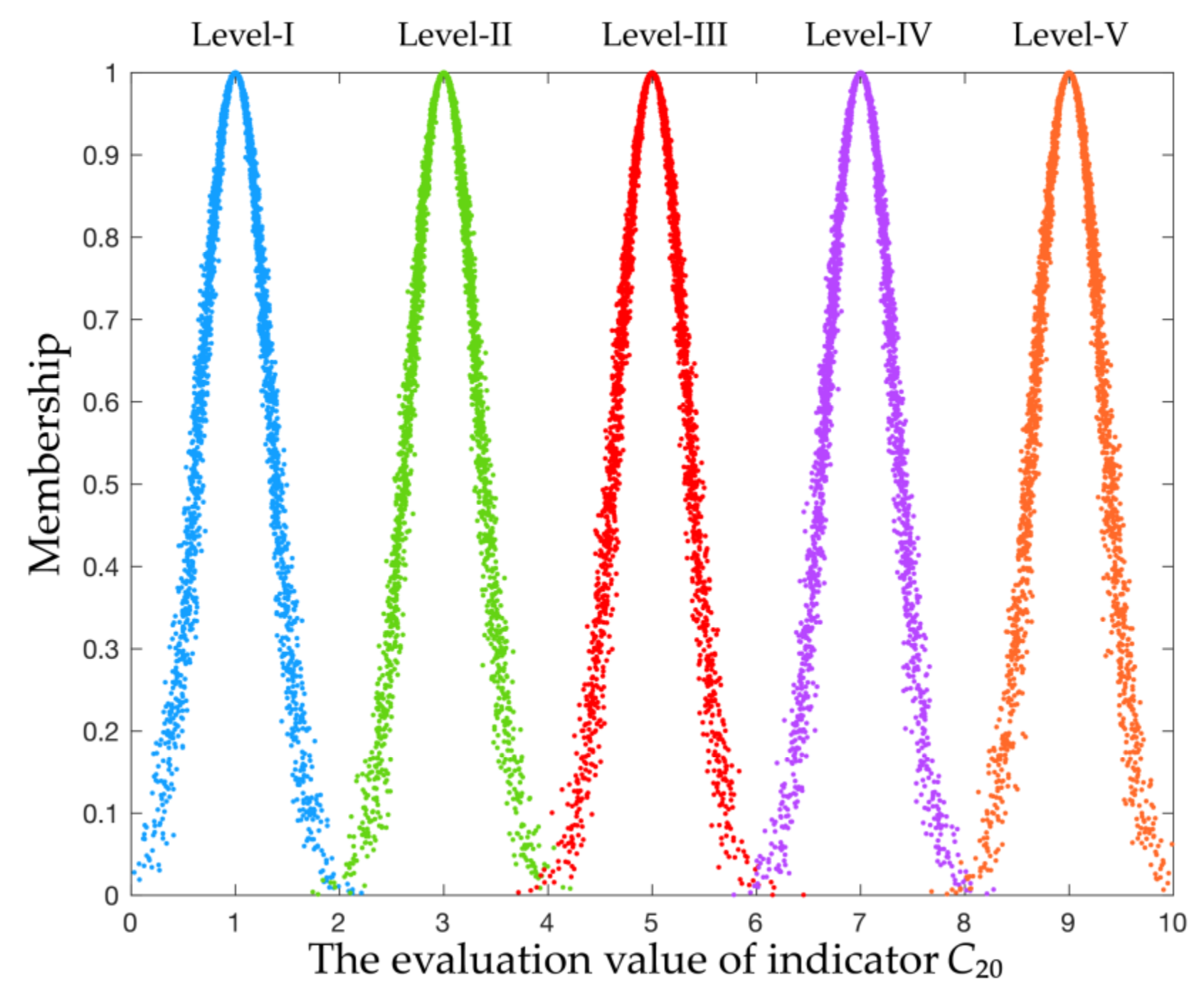

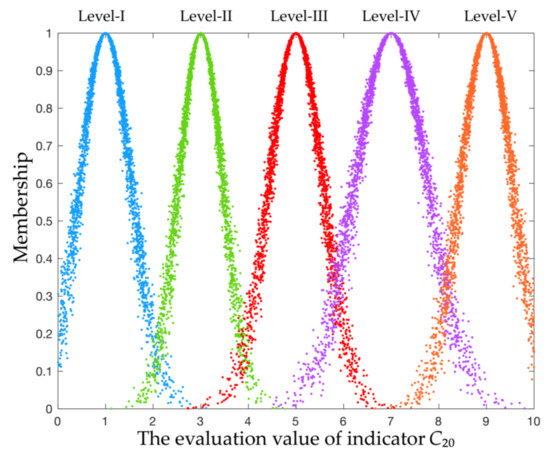

Indicator C20 | Rule | The “50% Correlative Degree” Rule | Cloud Entropy Optimization Algorithm |
---|---|---|---|
I | (1, 0.3333, 0.03333) | (1, 0.8493, 0.08493) | (1, 0.5394, 0.05394) |
II | (3, 0.3333, 0.03333) | (3, 0.8493, 0.08493) | (3, 0.4633, 0.04633) |
III | (5, 0.3333, 0.03333) | (5, 0.8493, 0.08493) | (5, 0.5610, 0.05610) |
IV | (7, 0.3333, 0.03333) | (7, 0.8493, 0.08493) | (7, 0.7642, 0.07642) |
V | (9, 0.3333, 0.03333) | (9, 0.8493, 0.08493) | (9, 0.5535, 0.05535) |
Indicators | Dynamic Weights | Static Weights | Combined Weights |
---|---|---|---|
Structural design C1 | 0.0156 | 0.0522 | 0.0198 |
Fire-resistance class C2 | 0.0337 | 0.0431 | 0.0348 |
Fire load C3 | 0.0659 | 0.0474 | 0.0638 |
Electrical equipment condition C4 | 0.0898 | 0.0474 | 0.0849 |
Fire zone setting C5 | 0.0160 | 0.0359 | 0.0182 |
Fire detection system C6 | 0.0754 | 0.0526 | 0.0729 |
Fire alarm system C7 | 0.0746 | 0.0398 | 0.0707 |
Fire-fighting equipment configuration C8 | 0.0313 | 0.0526 | 0.0337 |
Water supply and fire extinguishing system C9 | 0.0455 | 0.0478 | 0.0457 |
Ventilation and smoke extraction system C10 | 0.0443 | 0.0332 | 0.0431 |
Emergency lighting system C11 | 0.0358 | 0.0631 | 0.0389 |
Safe route planning C12 | 0.0443 | 0.0485 | 0.0448 |
Evacuation sign C13 | 0.0387 | 0.0441 | 0.0393 |
Personnel security behavior C14 | 0.0655 | 0.0591 | 0.0648 |
Personnel security awareness C15 | 0.0443 | 0.0411 | 0.0440 |
Personnel emergency response capacity C16 | 0.0667 | 0.0493 | 0.0647 |
Personnel working status C17 | 0.0444 | 0.0373 | 0.0436 |
Fire control management system C18 | 0.0407 | 0.0413 | 0.0408 |
Fire education training C19 | 0.0675 | 0.0600 | 0.0665 |
Routine fire inspection C20 | 0.0348 | 0.0496 | 0.0365 |
Fire emergency planning C21 | 0.0252 | 0.0546 | 0.0285 |
Assessment Method | I | II | III | IV | V | Risk Level | ||
---|---|---|---|---|---|---|---|---|
Traditional cloud model 1 | 0.0238 | 0.1025 | 0.2163 | 0.0007 | 0.0000 | III | ||
Traditional cloud model 2 | 0.1205 | 0.3853 | 0.4846 | 0.0622 | 0.0002 | III | ||
The improved cloud model | 0.1226 | 0.3231 | 0.3576 | 0.0844 | 0.0047 | III | ||
The improved cloud model with traditional evidence theory | 0.0003 | 0.4044 | 0.5953 | 0.0000 | 0.0000 | 0.0000 | 1.62 × 1018 | III |
The improved cloud model with the improved evidence theory | 0.0087 | 0.4212 | 0.5665 | 0.0027 | 0.0001 | 0.0008 | 777,253 | III |
