Image-Guided Surgical and Pharmacotherapeutic Routines as Part of Diligent Medical Treatment

Abstract

This contribution is part of the objective of diligent universal care that ensures the well-being of a patient. It aims to analyze and propose enriched image-guided procedures for surgical interventions and restricted delivery of implanted drugs in minimally invasive and non-ionizing circumstances. This analysis is supported by a literature review conducted in two ways. The first aims to illustrate the importance of recent research and applications involved in different topics of the subject; this is mainly the case for the introduction’s literature. The second concerns the literature dedicated to having more detailed information in context; this mainly concerns the citations in the different sections of the article. The universal goals of medical treatments are intended to involve the well-being of the patient and allow medical personnel to test new therapies and carry out therapeutic training without risk to the patient. First, the various functionalities involved in these procedures and the concerns of the magnetic resonance imaging technique (MRI) and ultrasound imaging technique (USI), recent contributions to the subject are reviewed. Second, the intervention procedures guided by the image and the implemented actions are analyzed. Third, the components of the fields involved in MRI are examined. Fourth, the MRI control of the treatments, its performance and its compliance are analyzed. Compatibility with MRI via electromagnetic compatibility (EMC) is conferred and demonstrated for an actuation example. Fifth, the extension of the concepts mentioned in the article, in the context of patient comfort and the training of medical staff is proposed. The main contribution of this article is the identification of the different strategic aids needed in healthcare related to image-assisted robotics, non-ionized, minimally invasive and locally restrictive means. Furthermore, it highlights the benefits of using phantoms based on real biological properties of the body, digital twins under human control, artificial intelligence tools and augmented reality-assisted robotics.

1. Introduction

Over the past few decades, medical procedures have moved from a direct fully invasive “hand-eye” pairing process to a minimal invasive (MI) process with robot-imaging pairing in a closed-loop treatment architecture. Acts related to the invasive nature mainly concern surgical interventions (Sis) and the restricted dispensing of drugs. Currently, both of these procedures can use MI image-guided (IG) robotics, which enables patient comfort and safety, and medical staff accuracy and efficiency. MI surgeries can be performed on most parts of the body, and the restricted drug delivery (RDD) that can be accomplished by implanted therapies, helps prevent the generalization of drugs throughout the body. Most imaging devices can be used in IG procedures. However, different imaging techniques are each tolerable for a specific situation. For example, those involving ionizing radiation would not be suitable for long interval exposure actions. In such a case, only the two imaging techniques exerting non-ionizing (NI) characteristics can be used; namely magnetic resonance imaging technique (MRI) and ultrasound imaging technique (USI).

An Imaging device is supposed to provide high-resolution 3D picturing of target configuration and neighboring material, including treatment instruments. Robotic assistance works normally within the imaging scaffold along with the target throughout imaging, permitting cooperative tasks to monitor treatment in a closed-loop mode. This can include pursuing target motion and deformation, localizing robotized equipment, and supervising therapy release. With the ever-increasing medical use of imaging technique-robot linked procedures, this presaged a new methodology to aid treatment techniques that allow medical staff to supervise patients better and more efficiently. Positioning robotic organizations within the frame of the scanner allows for a synergy of the imaging’s visual ability and the robotic assistant’s manipulation skill, resulting in closed-loop processing. With respect to imaging techniques with non-ionizing behavior, both MRI and USI reflect the characteristics mentioned above regarding imaging devices. Note that both imaging techniques can work in procedures with MI, IG, and NI for either SI or RDD operations. It should be noted that the only difference in behavior between these two imaging techniques is that the USI can only operate in airless and boneless windows. Additionally, operational precautions are required for MRI, for which the scaffolding environment must be free of electromagnetic (EM) noise. Nevertheless, MRI seems to be the universal imaging tool conditional to avoiding EM noise.

Robotic systems mainly contain actuation and sensing components. In the case of MRIs, the whole system is made of non-magnetic and non-conductive materials. This assumes that actuators and sensors contain negligible magnetic and conductive materials. Given that the scanner, is hyper sensitive to electromagnetic disturbances, questions on MRI-IG robots’ presence in this environment are of concern. Matters that do not disturb the scanner are called MRI-compatible and those that are disruptive are labelled MRI-incompatible. The latter produce artifacts deteriorating the images. The scanner compatibility relates to its functional ability and can be controlled via functional control (FC) analysis. For MRI, FC analysis is via electromagnetic compatibility (EMC) analysis.

Although SI and RDD robotic actions can behave autonomously, medical staff can supervise and modify their conducts via remote control of the procedure. In other words, the robot-imaging duo that replaced the hand-eye one is still mastered in a different way.

The different issues related to IG treatments in MI and NI circumstances are widely covered in the literature, and in particular in recent research and applications in several medical fields. We have selected a few samples of each item representing different treatments. In the next paragraphs, this recent literature will be presented to show the wealth of current activity on the subject.

Regarding SI, many contributions have been proposed recently, see examples [1,2,3,4,5,6,7]. These selected examples of recent works show different interests of SI using MRI or USI. Two of them are reviews of state of the art MRI-guided robotic interventions. The other five concern different applications, myocardial perfusion without exogenous contrast agents, artificial intelligence-assisted ultrasound-guided robotic trans-carotid revascularization, MRI safety considerations for MRI-guided radiotherapy, intraoperative transapical cardiac MRI-guided intervention and MR conditional biopsy, and ablation needle tip artifacts. For research concerning imaging performance in general, see examples [8,9,10,11,12,13]. These include different imaging of metastatic spinal cord compression, pediatric body imaging, MRI cephalometric, and muscle fatty infiltration. Artifacts in images due to incompatibility of external insertions were also investigated, see examples [14,15,16,17,18,19,20]. These concern artifacts mainly in MRI due to metals, MRI artifact, and evaluation of pre examination screening, effects of metallic biomaterial, metal-artifact reduction, imaging-phantom study, imaging for periprosthetic joint infection, off-resonance artifact correction, and metal artifacts from passive implants. Several studies on safety conditions related to imaging techniques are reported, e.g., [21,22,23,24]. These concern safety in radiation therapy, radiofrequency-induced implant heating, active auditory implants, and metallic implants. New or improved designs of scanners are given in examples [25,26,27,28,29,30,31]. These improvements concern breast intervention robot, reducing MRI susceptibility artefacts in implants, hip arthroplasty implants with metal artifact correction, improving MR image quality in metallic implants, superconducting magnet designs and MRI accessibility, improved visualization in patients with implants, and 3D-printing techniques for optimized imaging compatibility. Numerous investigations have been carried out on MRI-compatible devices; see examples [32,33,34,35,36,37,38,39,40,41]. These concern MRI-compatible devices in cardiac MRI, compatible fiber optic multi sensor, self-supervised reconstruction of gradient descent, safe robotic manipulator, compatible robots, compatible endonasal surgical robotic system, imaging-enhanced cranial neurosurgery, plastic piezoelectric motor stator, and compatible piezoelectric motors.

Recent work considering RDD has been reported in the literature; see e.g., [42,43,44,45,46,47,48,49,50]. These regard USI-guided DD enhancement, microbubble-mediated USI DD, microneedle patches for DD, DD to cancer cells, spatial, temporal, and dose control of DD, nanoparticles-based strategies to improve the delivery of therapeutic RNA in precision oncology, nanoparticle-based delivery systems in pancreatic cancer, and nano-drug delivery system for cancer. Contributions on implanted technologies and their concerns could be found, e.g., in [51,52,53,54,55,56,57,58,59]. These concern artefacts of biodegradable magnesium-based implants, assessment of implant-related pain and dysfunction, cochlear implant positioning and MR imaging quality, adverse local tissue reactions near metal implants after total hip arthroplasty, metal artefact reduction sequences for a piezoelectric bone conduction implant, image quality and artifact reduction of a cochlear implant, MRI in patients with cardiac implantable electronic devices, and MRI artifacts caused by auditory implants. Implanted treatment structures might manage confined conduct MI-imbedded equipment. These structures employ RDD for nearby tissue containing a specified area. Implanted treatments designate at best the practice of biodegradable ingredients and at least materials compatible with the treatment [60,61,62,63,64,65,66,67,68,69,70,71], as well as wireless operated implanted actuations.

The evolution, described in the above lines, from early hand-eye pairing of SI and RDD until robot-imaging IG controlled MI- and NI-universal procedure using MRI under FC (EMC analysis) and hand-eye supervision is schematically summarized (Memento) in Figure 1.

This contribution aims to review, analyze, and confer MI and NI procedures of SI and implanted RDD using IG robotics.

The second section of the paper assesses and analyzes image guided medical procedures involving surgical interventions and implantable drug delivery schemes as well as their functional required specifications. The third section describes and illustrates the different field components of MRI and discusses safety issues related to these components. In the fourth section, the MRI-controlled treatments performance and compliance are analyzed and exhibited. This involves a compatibility compliance check of electromagnetic field perturbations and EMC conformity control applied to an actuation example. The fifth section offers a discussion of possible extensions of the different paper concepts from the perspective of patient well-being, staff training, and task verification.

2. Image Guided Medical Procedures

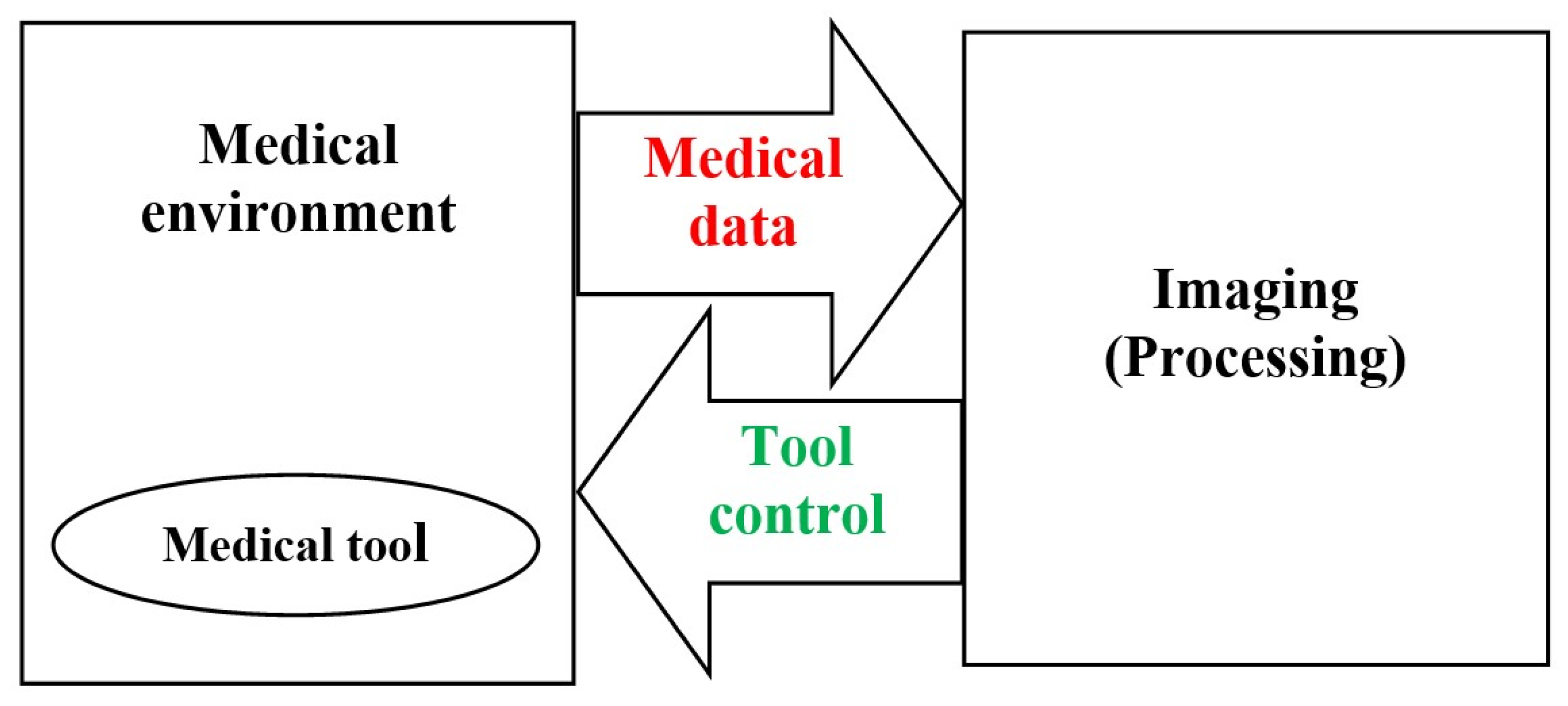

As mentioned earlier, mildly intrusive automated surgical or therapeutic treatments have emerged as an important tool in current medication. This involves IG robotics of SI and implanted therapies. It characterizes the advantages of MI treatment, e.g., faster catch-up intervals for patients, and escapes many of its disadvantages for medical personnel, e.g., disturbed pointer-vision matching and lack of autonomy within the treatment of the concerned body portion of the patient. Thus, the automated MI treatment reduces the body and mental burden after the staff weigh it. Nevertheless, offering personalized and appropriate support to further improve clinical performance remains a subject of exploration. Figure 2 illustrates schematics principle of IG medical procedures, involving medical environment (surgery, implanted therapeutic, etc.), medical tools (surgical needle, drug source, etc.), and medical data (action, position, etc.).

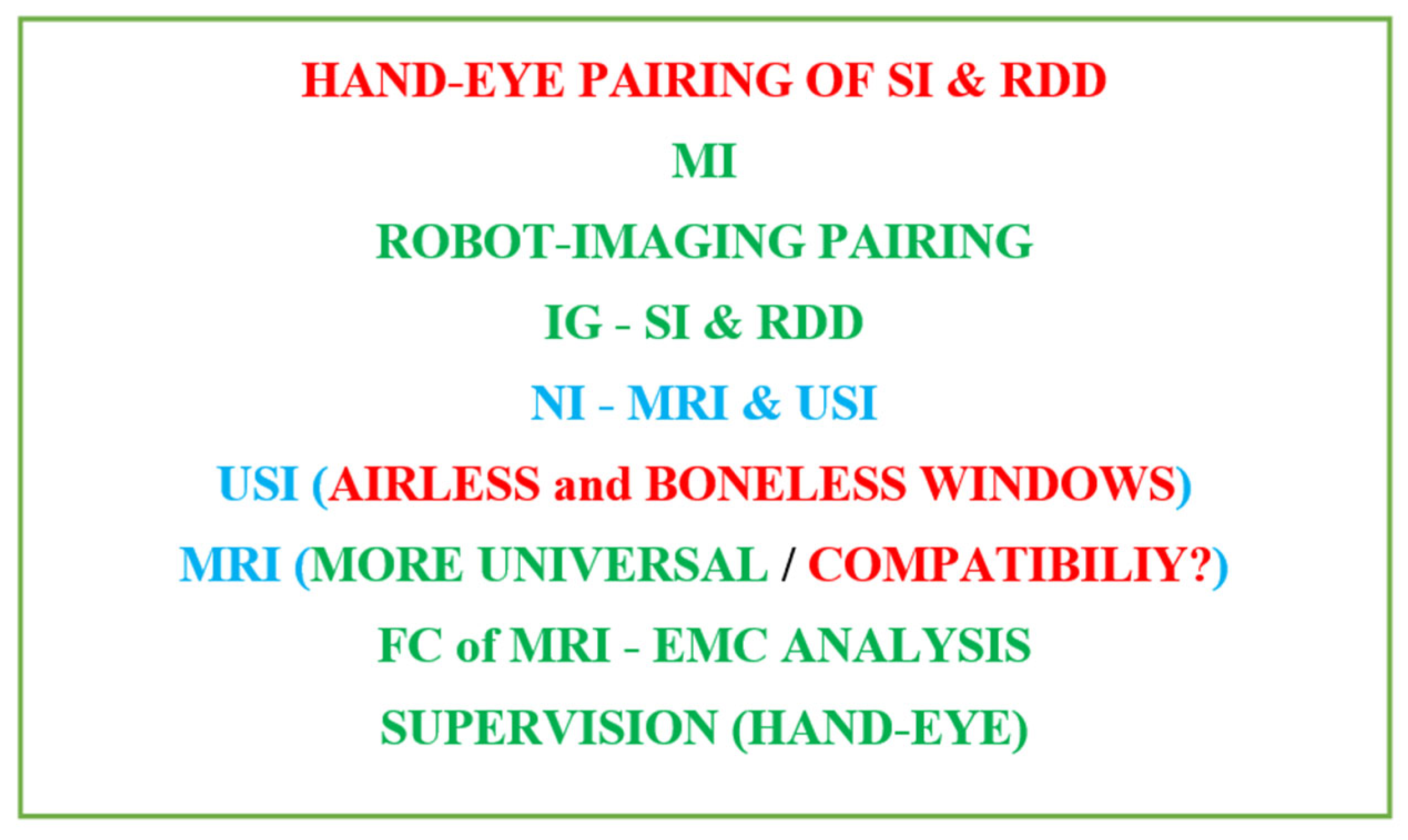

As mentioned earlier, choosing NI behavior involves using IRM or USI for IG operation of SI or RDD. As discussed and summarized in Figure 1, MRI appears to be suitable for all parts of the body without restriction. Due to its universal character, we will focus on MRI analysis, knowing that the USI can be used if it is suitable for the materials examined. Note that USI reflects good maneuverability and reasonable cost while MRI, despite producing soft tissue imaging, is more complicated and expensive. Therefore, from the point of view of practical use, the choice between the two imaging techniques depends on the situation. Therefore, the USI must be used whenever possible, even for interventions. Only in cases involving bone and/or air, such as the brain and many other parts of the body, should we use MRI. Normally, surgical centers performing MRI-assisted treatments are expected to have surgical-imaging rooms and do not need to move the scanner. Regarding imaging costs, if the well-being of the patient is taken into account, the only option for non-ionizing and minimally invasive treatment regarding a brain intervention, for example, is an MRI-assisted intervention.

Indeed, MRI can deliver high-grade 3D imagining of object structure, nearby tissue, and instruments; however, there are substantial challenges in its use for effectually guiding SI or RDD procedures. These challenges consist of the use of three magnetic fields of dissimilar natures (as we will see later), allergic reactions to EM noise, and the restrained work area inside the imaging scaffold. This last drawback can be overcome by using an open structure scanner while accepting the disadvantage of a lower field intensity and therefore slower operation. On the other hand, MRI appears to be superior to other imaging strategies for different reasons. In addition to its NI behavior, it exhibits exceptional contrast allowing the visualization of tumors as well as other characters not detectable by other imaging techniques. It has true 3D-imaging potential, including multimodal detection, e.g., blood flow, temperature, biomarker tracking, etc. Under these conditions, the practice of robotic assistance by an MRI can allow an excellent IS or RDD.

2.1. Image Guided Surgical Interventions

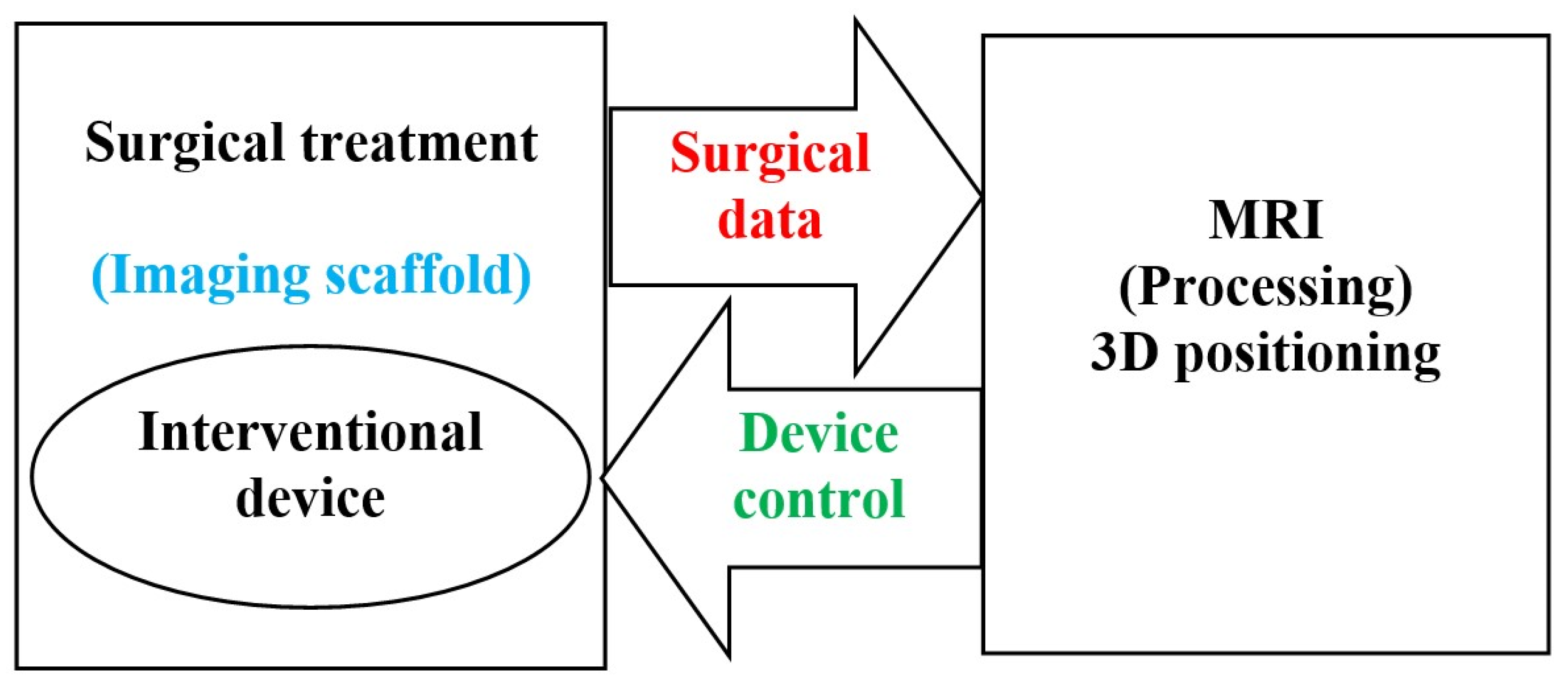

Intraoperative imaging has fashioned a necessity to elaborate medical tools that satisfy the requests of diverse imaging techniques. Imaging backgrounds are demanding and they intensely influence the shape of the utensils used there. Advances in image resolution and disjunction capability have made interventions possible during the imaging procedure. 3D-imaging technique provides actual faithful descriptions of the human tissues while the instrument is being operated within a specified space, by tracking the coordinates of the image. In IG intraoperative procedures and MI-NI SI, MRI is increasingly more utilized due to its consistency, precision, and security. Due to its superior ability to differentiate tumor tissue from normal tissue, MRI is employed in SI for biopsies or tumor abstractions, for example [72,73,74,75,76,77,78]. The employed tools should be compatible with MRI. This compatibility has steered advancement of novel materials adapted for such tools. The use of an MRI-compatible robot to facilitate the approach to the body tissues inside the imaging scaffold permits the patient to remain within the scaffold during the entire SI time. Such IG association permits an important reduction of the SI duration, a higher SI accuracy, and faster recovery progression. Currently, the more accurate the IG association, the more recognizable the MRI-compatible strategies will be. Figure 3 schematically summarizes the representation of IG-SI, involving the interventional device in the MRI scaffold, the surgical data (action and location), the MRI imaging processing, and the device control.

2.2. Implantable Drug Delivery Schemes

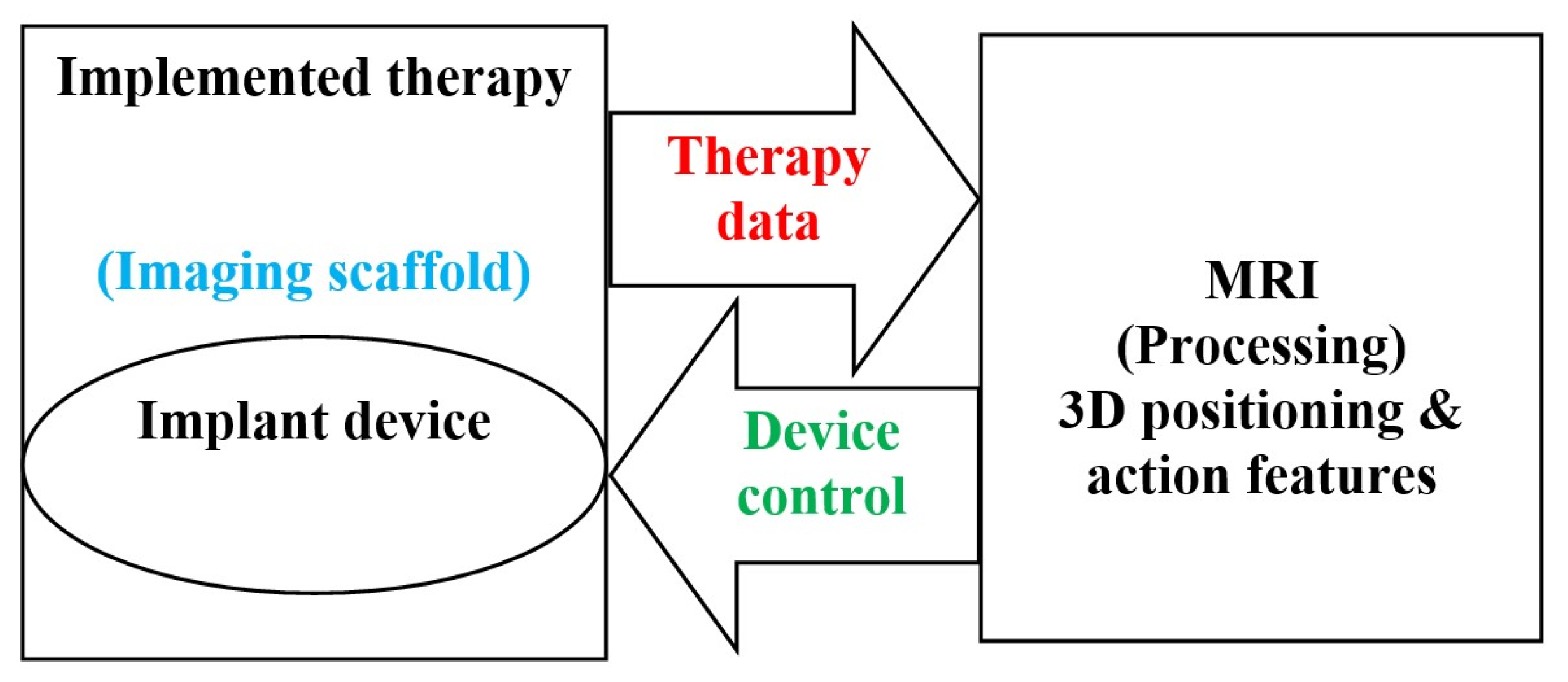

Operational drug delivery (DD) devices are able to deliver drugs to the target location and maintain drug intensity within a curatively relevant range. The dosage provided should deliver the drug for a specific duration necessary to achieve the greatest positive effect with the least adverse side consequences to adjacent healthy matters. Classical DD by means of discontinuous oral or intravenous delivery can result in high and rapid blood drug intensities soon after administration, thus intolerable harmful consequence may occur for patients. Another problem with these delivery modes is that they undergo first-pass metabolic rate, resulting in a significant reduction in drug concentration by the liver before attaining normal spread and hence often multiple deliveries are needed. DD made locally, sustainably, and supervised, can have the least adverse side effects possible. The use of DD implants enables such behavior.

The most used DD schemes comprise polymer reservoir-based structures, pumps (peristaltic, infusion, and osmotic), and micro and nano electromechanical structures (MEMS and NEMS), see e.g., [79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94]. Reservoir structures utilize drug release by dispersion via a film structure. The different pumps are used according to the type of disorder, the location of the implant, and the DD permanence. Larger ones are more suited to prolonged illnesses, while smaller pumps like the osmotic pump will be more suited to local-specific particular effects using DD of uniform release. Regarding MEMS and NEMS, they behave at micro and nano levels of DD without any significant danger due to a precipitous onset of the drug.

Even though implants present sophisticated and effectual ways for controlled DD, all of them necessitate placing by medical staff. The corresponding SIs differ according to the implant location and are connected to possible defies and unfavorable outcomes. Even if side consequences are generally slight, in certain conditions they can be substantial. It may be noted that the convolution and restrictions of SI for implant placing and withdrawing have weighty influences on the technology tolerability by the patient. Intrinsically, upcoming mechanism layout should utilize MI methodologies and reduced implant sizes, and less introduction-withdrawal processes can fully influence their capacity.

Future implants could be mainstream DD methodology, if thoughtfully designed with miniature size for MI insertion and continuous DD avoiding inclusion-exclusion with ease of drug filling. In fact, all of the implants described in the last paragraph are made from non-biodegradable materials and require the disposal of SI. Two next challenges should be acknowledged: The first concerns the facilitation of self-contained implanted DD systems addressing simple and spatially homogeneous problems using constant drug release and biodegradable structures that facilitate disposal of implanted systems [60,61,62,63,64,65,66,67,68,69,70,71]. The second concerns the treatment of spatially complicated cases requiring non-uniform DD, focusing only on diseased areas and avoiding healthy areas. This requires mobile implants with actions in restricted areas. Such a problem is closely similar to that of a complex SI requiring precise spatial assistance, as the IG assistance discussed in the last section. This implanted therapy will be MI-NI-IG-RDD [42,43,44,45,46,47,48,49,50]. The implant structure may be of non-biodegradable material but must be MRI-compatible when using such imaging techniques [95,96]. This procedure is similar to the MI-NI-IG-SI replacing the assisted actuated-robot with an assisted actuated-RDD implant. Wireless driving and monitoring transmission entails conveying strength and signals from an outside supply to the embedded device free of physical connection [95,96]. Figure 4 shows a schematically summarized representation of an MRI IG-implanted DD, including therapeutic device (DD source) in MRI scaffold, DD data (treated zone location), MRI processing, and device control.

2.3. The Necessary Specifications of Surgeries and Drug Deliveries

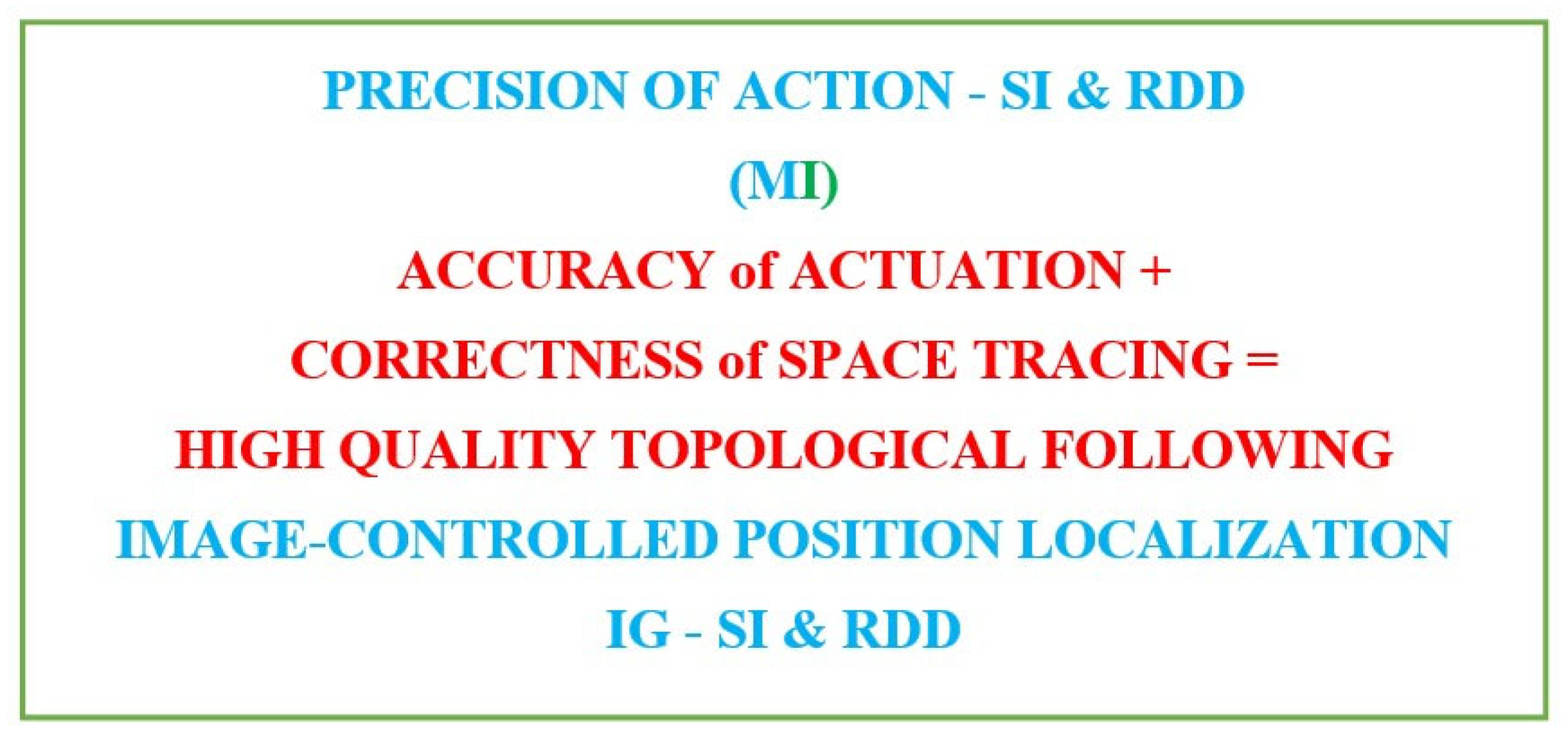

For the well-being of patient, treatment should be precisely limited to the touched region in SI and RDD, as described in Section 2.1 and Section 2.2. Such precision is associated with the actuation accuracy of the mechanism and is greatly connected to the correctness of the space tracing. Consequently, the necessary condition for such high quality topological following is the image-controlled position localization. The summary of these necessary specifications are highlighted in Figure 5.

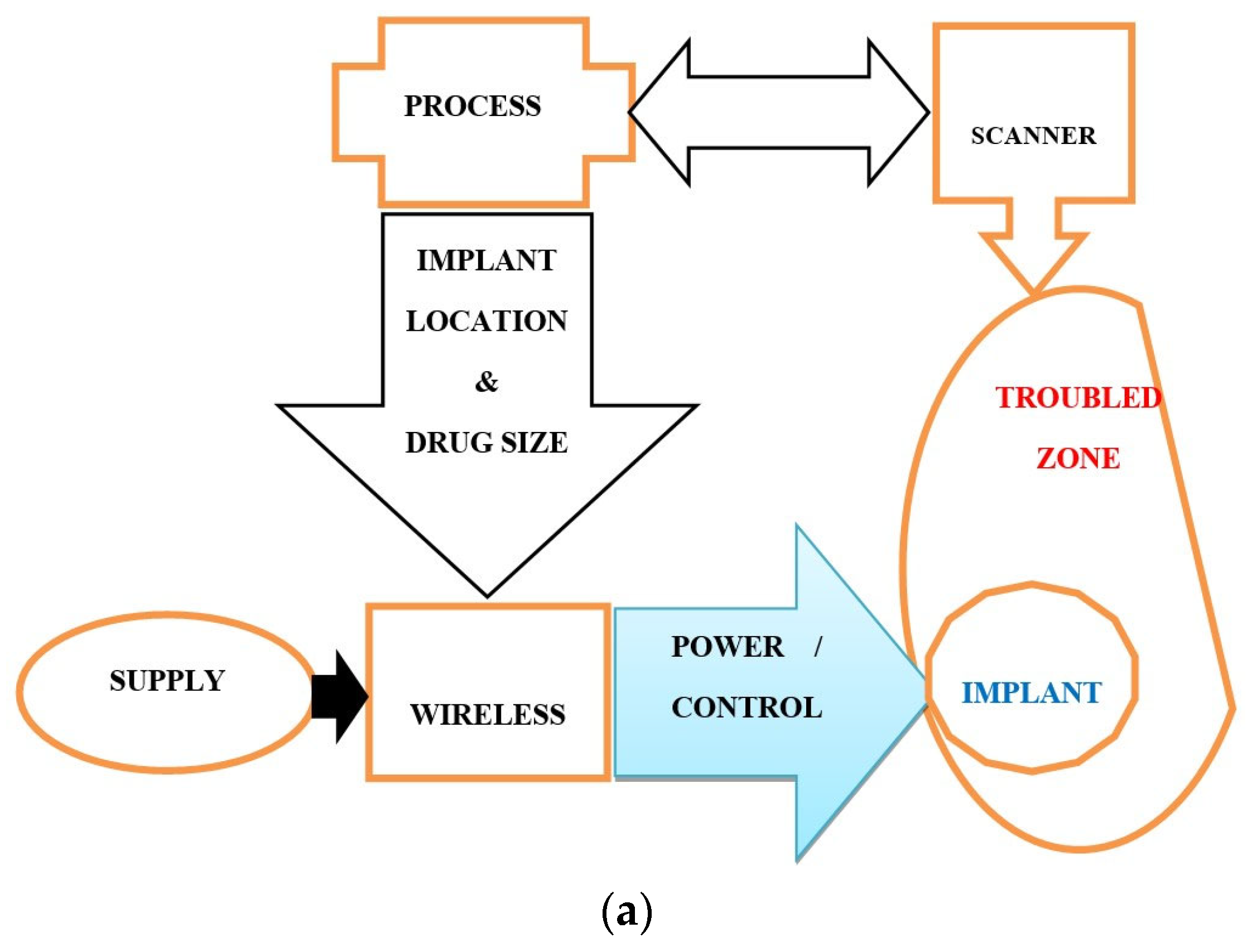

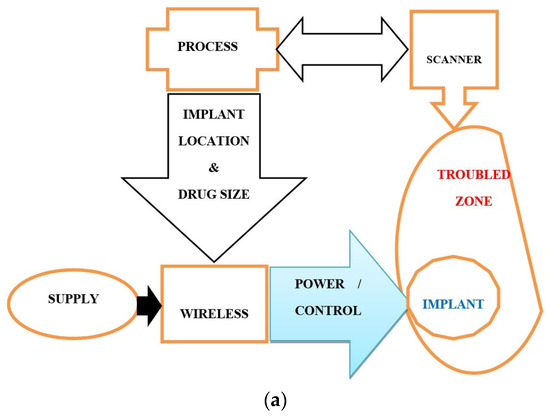

Such a scheme may entail a collaborative arrangement functioning self-sufficiently as shown for example in the case of RDD in Figure 6. Figure 6a shows a collaborative self-governed IG-RDD scheme including the scanner, the body troubled zone, the implant, the control system and the supply. Figure 6b illustrates two scanned brains, a safe brain, (left) and an affected brain (right) with a troubled indicated zone.

3. MRI Field Components

The image produced in an MRI is created by signals resulting from the interaction of magnetic fields and biological tissues. In an imaging progression, three magnetic fields of different natures are used to form 3D images. The first type is a high static field generating a magnetization vector in biological tissues aligning the tissue particles (protons) and measuring their density. The second type corresponds to three low-frequency space gradient fields locating aligned protons in tissues and forming a 3D spatial reconstruction of different tissue divisions in images. The third one is a radiofrequency field stimulating the magnetization vector to permit its detection by the scanner and the conversion of tissue assets into images [95].

Indeed, MRI, in principle, is used to image the nuclei of hydrogen atoms that are confined within the human body. A nucleus (a proton, for hydrogen), is a positive charge mass which rotates around an axis on itself. In the body tissues, protons are arbitrarily oriented and do not spin together. Consequently, they exhibit zero resultant magnetic field (the human body has no magnetization) and they perform out of phase. Reflecting the principle of MRI, protons need three essential organizations inside the explored fragment of the body tissue: to align all the protons in a fixed direction, to rotate them all together in the tissue, and to localize their distinctive origin in the space. Proton alignment could be realized by the insertion of the fragment of the body tissue in a high-strength magnet to drive them together in the axial orientation of its static magnetic field B₀. In order to achieve protons spinning together, an excitation by supplying wave radiofrequency B₁ with a frequency equal to the protons’ rotation natural frequency f_L (Larmor frequency of protons) could be used allowing such action of resonance. In order to localize protons distinctive positions in the space, one may use their associated magnetic field’s distinctive values. For this, a 3D space gradient G(x, y, z) with pulsations of very low-frequency repetition could be applied to the field B₀, allowing the position distinctive values of B_0d (x, y, z) = B₀ + G(x, y, z).

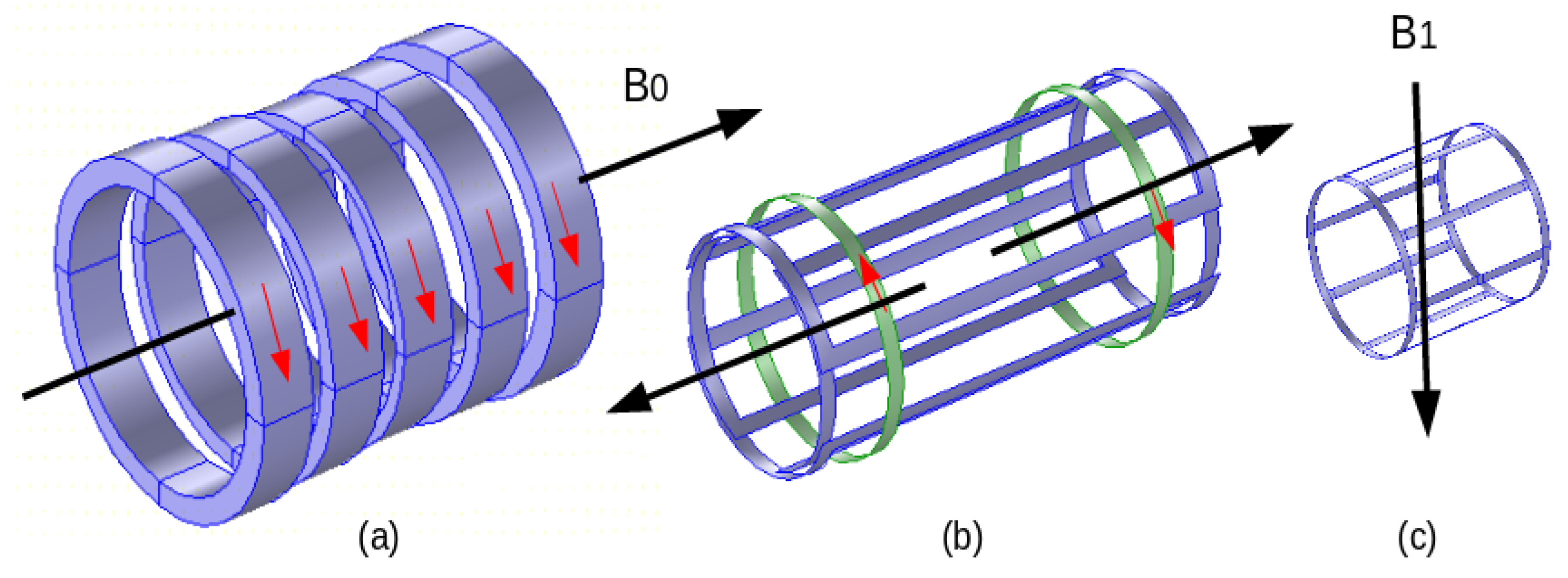

The MRI system uses three different fields, B₀, B₁, and G(x, y, z), to determine imaging of the examined fragment of the body in the following way. The value of the Larmor frequency of protons f_L is dependent of the static field value and equal to 42.5 MHz per tesla. The corresponding position distinctive values f_Ld (x, y, z) are functions of B_0d (x, y, z). An excitation of protons by radiofrequency (RF) wave energy followed by a relaxation restoring this energy permit the corresponding signal detection by a suitable tuned RF antenna coil. These signals correspond to values of B₁ of frequencies of f_Ld (x, y, z), which allow coding of a spatial imaging for the concerned body part. Note that the frequency of B₁ is equal to f_L, which is usually tuned to value of f_Ld (x, y, z) in the center of the examined body fragment.

The three different fields employed in the MRI system are very different in nature with respect to their magnitude, frequency, and existence during system operation: B₀: 0.2–10T, 0 Hz, always present, gradient: 0–50 mT/m, 0–10 kHz, multiple pulses of few ms, B₁: 0–50 μT, 8–300 MHz, (amp. mod. pulses) of few ms. These fields are produced by the strong magnet, gradient coils, and RF coil, respectively. The most popular RF coil comes in the form of a birdcage and is used as tuned RF antenna. In conventional operation of the scanner, its correct operation requires the protection and compensation of the magnet and gradient fields. The RF field arrangement seems the most exposed and represents a weakness to noise fields and certain nearby external materials. Figure 7 shows a representation of the MRI three components and their corresponding fields.

Safety in MRI

In modern MRI schemes, one looks for briefer cycles with superior chronological and spatial resolutions. Such features seek mainly optimized performance of the scanner and comfort of the patient. As mentioned previously, the final image resulting from an MRI is produced by an interaction between its different fields and the biological tissues subjected to the imaging process. This interaction is at the origin of the signals converted into an image. Such an interaction may produce other undesirable effects regarding patient health or image quality. Due to these effects, understanding their behaviors is necessary for patient safety and the technical characteristics of scanner signals and images. Thus, the design of the scanner components and the realization concerns of different patient treatments could be adapted.

There are possible biological effects due to the interaction of the different magnetic fields with living tissues. We will discuss these fields successively. Theoretically, the harmless field is the static one B₀, as only body-embedded ferromagnetic matters could produce patient security troubles depending on the field strength. In general, the medical staff ponder such a problem prior to the imaging procedure. The RF field B₁ could be the most menacing for living tissues as the specific absorption rate (SAR) activated is relatively important depending on field strength and frequency. A high SAR with a long exposure duration can produce a temperature rise non-tolerated by the body [97,98]. In the case of MRI, the RF sequences are short enough and respect the limits fixed by the international safety standards [99,100]. The coils in pulsed low-frequency field gradients in MRI are constructed in such a way that the 3D gradient is uniform and can be regulated [95]. A difficult question concerns the output of the gradient involving the field strength and the rate of change of course. Shorter cycles with less imaging time can be achieved with higher gradient output. However, higher outputs may lead to disagreeable peripheral nerve stimulation (PNS) [101]. In general, PNS in this context appears not to worry the patient; however, excessive gradient outputs can steer to life-worrying cardiac stimulation [101]. Again, the medical staff can consider such a problematic prior to the imaging procedure.

From the foregoing analysis, one can notice that optimizing the effectiveness of the MRI components, even in view of patient well-being, cannot be achieved disregarding patient security. Indeed, each case could be different and inquiring about personal data prior to treatment is essential. Note also that the interaction of the patient tissues with the different fields can cause image artifacts due to, e.g., embedded devices in the body. Considering inquired personal data, such artifacts can be counterweighed.

4. MRI-Controlled SI and RDD—Performance and Compliance

As mentioned before, the MRI system is very sensitive to EM perturbations under the form of external field noises or the introduction of certain types of material in imaging scaffold nearby the different MRI three field sources. The magnetic and conductive materials are of main concern The MRI system is typically shielded against external field noises. Regarding external materials inserted in the imaging scaffold, the static field and the gradient low frequency field are compensated and protected for slight matter introduction. For more vulnerable RF fields, it is important to control the conformity of such matter insertion.

In the case of MRI-controlled treatments, we are facing a problem relating to external matter introduction in the imaging scaffold. In such a situation, only non-magnetic and non-conductor materials can be employed. Nevertheless, in such case, we need an actuation action. Few high-performance actuators are free of non-magnetic and non-conductor materials. Piezoelectric actuators could be suitable candidates, but they need to be checked to verify their conformity, i.e., not perturbing the RF field distribution [102,103,104,105,106,107,108,109,110,111]. These actuators are composed of piezo material behaving dielectric and very thin (trivial) electrodes. The dielectric material is not supposed to perturb the field but the electrodes need to be controlled, even in the case of trivial size conductors.

4.1. Compatibility Compliance Check

We can generally characterize the MRI-compatibility of an external object as being MRI-safe, not affecting image quality, and working as expected. As mentioned before, MRI utilizes static field B₀, field gradients (position conditional field) and RF field B₁. A good MRI needs a constant uniform magnetic field B₀ (by using shimming coils) and uniform linear controlled field gradients. These fields require adjustments and compensations for consistent functioning of the scanner. The image feature can be compromised for different causes. The scanner can be the origin of reduced quality image for e.g., insufficiently shimmed. Living tissues can also reduce the image feature due to susceptibility variations e.g., between soft tissues and air holes in the brain. In addition, body embedded matters e.g., prostheses and particularly metallic ones, can also deteriorate image quality. The image alteration due to metallic materials, which present susceptibility variations, hang on the size, shape, and direction with respect to B₁. In addition, the induced currents in metals primarily by the RF field but also low-frequency gradient fields, can affect the image. The most important cause of image perturbation could be the associated tools involved in the robotic system. These could interact mainly with the RF field, which is the most vulnerable among the fields in an MRI. The main robot body and medical tools are actually constructed of non-magnetic, non-conducting materials. Different solutions are proposed for the mechatronic part of the robot involving electronics, sensors, actuators, etc., which represent a challenging compatibility question [37,38,39,40,41,95,96,110,112,113,114,115,116,117,118,119,120,121].

Experimental conformity control of MRI-compatibility could be achieved for existing IG installations by measuring the field perturbations due to the introduction of the tested tools inside or nearby the imaging scaffold, depending on the use of the tool. This can be conducted through sensor arrays fixed in specific positions. Such a control procedure, in the case of MRI systems, is relatively complicated (need of specific shielded chambers) and generally expensive. The field perturbation measuring tools could perturb themselves; therefore, the field and the procedure have to be managed to compensate such self-effect. In addition, the nature of the tested tools may be unsafe and can cause damages for the scanner components. Moreover, such experimental control cannot be used in the design of inexistent installations. Under these conditions, an interesting solution could be a control by numerical modeling via EMC analysis to verify the MRI compatibility of the different tools [95,96,97,122,123,124].

4.2. Electromagnetic Field Perturbations

The field perturbations in a uniform electromagnetic field (EMF), due to the introduction of materials with specific characteristics, are governed by their induced EMF. The EMF equations (see the next section) are function of the next vector variables and parameters: H and E are the magnetic and electric fields, B and D are the magnetic and electric inductions, J is the current density, σ is the electric material conductivity, and ω is the angular frequency pulsation of the source field. The magnetic and electric comportment material laws between B/H and D/E are represented by the material permeability μ and the permittivity ε, respectively. Note that the conductor and dielectric behaviors of non-magnetic matters are dependent on the frequency following the relative values of σ and ω.ε in the relation J = σ E + j ω D such that when σ >> ω.ε, the behavior is mainly a conductor, and for σ << ω.ε, it is mainly dielectric. In the RF range, the above-mentioned electrodes in piezoelectric actuators belong to the first category and the piezoelectric material to the second, respectively.

4.3. EMC Conformity Control

The EMC analysis aims to control the influence of hosting in the MRI atmosphere diverse stuffs employed in medical treatments. Intended for EMC analysis, we can reflect expressions (1)–(4) that give the EMF equations:

∇ × H = J

(1)

J = σ E + j ω D + Je

(2)

E = − ∇ V − j ω A

(3)

B = ∇ × A

(4)

In the EMF Equations (1)–(4), H, E, B, D, and J have been defined before, A and V are the magnetic vector and electric scalar potentials. J_e the source current density. The parameters σ, ω, μ, and ε have been defined before. The symbol ∇ is a vector of partial derivative operators, and its three possible implications are gradient (product with a scalar field), divergence and curl (dot and cross products, respectively, with a vector field). The Input source term in EMF Equations (1)–(4) is J_e or its equivalent electric field σ E_e.

The ruling Equations (1)–(4) can be solved locally in the birdcage RF coil-antenna for reference conditions (without inserted matter) compared to situations involving the diverse controlled matters. This can be accomplished by means of numerical discretized methods [125,126,127,128,129,130,131] or other techniques allowing local computations.

The magnetic compatibility of a material is characterized by its permeability μ (=μ₀. μ_r) or the susceptibility χ (=μ_r−1). For a high magnetic material, μ_r >> 1 and μ_r ≈ χ. For non-magnetic material, μ_r = 1 and χ = 0. Thus, a magnetic material that is MRI-compatible has μ_r ≈ 1, or χ ≈ 0. In addition, the conductivity σ characterizes the electric compatibility of a material, so an electric conductor that MRI-compatible has σ ≈ 0. Therefore, a completely MRI-compatible material has zero values for both χ and σ. In practice, a magnetic field as B₁ could be perturbed by the introduction of a magnetic material with non-zero value of χ and indirectly due to eddy currents induced in a material introduced in the imaging scaffold having a non-zero value of σ.

Note that these perturbations depend on the size, the shape, and the orientation of the introduced matter as well as the frequency of the field (as will be demonstrated in the next example).

4.4. Application Example

Let us consider a simple example illustrating the mentioned methodology for checking the compliance of the materials inserted into the birdcage coil positioned in the tunnel of an MRI. The corresponding case geometry involves a 30 cm diameter and 30 cm length birdcage coil-antenna located in a 60 cm diameter tunnel. The tested matters have a form of a cube with 5 cm side (125 cm³) embedded in the center of the birdcage coil. A RF field in the birdcage coil at 63.87 MHz corresponds to the frequency f_L (for a value of B₀ of 1.5 T) tuned to the value in the center of the considered geometry. The corresponding RF field distribution in the tunnel can be computed for the reference case (without tested matter) and for the different cases, involving tested matters in the studied scheme. Computations are based on 3D discretization of the field E using edge finite elements with appropriate boundary conditions. Figure 8 illustrates the RF field distribution in the reference case.

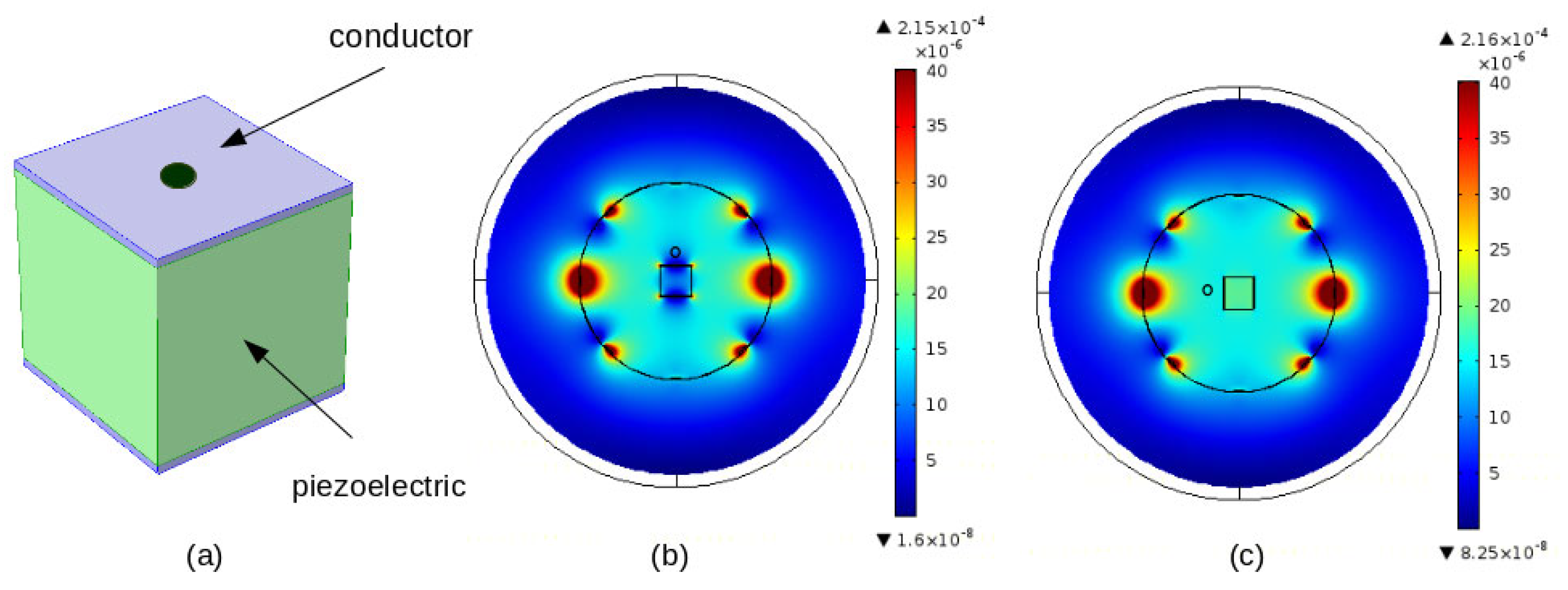

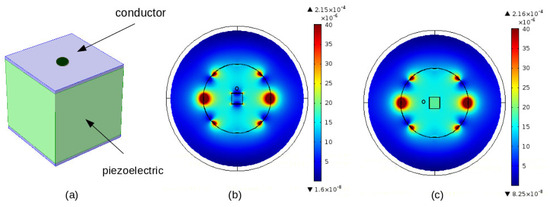

We will illustrate now the case of piezoelectric actuation involving piezo material coated on two opposite faces by very thin electrodes. The characteristics of the piezo are µ_r = 1.0, ε_r = [450°990°990], σ = 0 S/m. Note that the relative permittivity is given by an anisotropic vector where the value in polarization direction is less than in the other two directions. The electrodes conductors are characterized as µ_r = 1.0, ε_r = 1.0, σ = 3.77 × 10⁷ S/m.

Since the currents induced by a field develop in the section of the conductor perpendicular to the direction of the field, we can consider the following two opposite cases. Field distributions were calculated for both situations of electrodes perpendicular and parallel to the direction of the field. Figure 9 displays the field distributions for both cases. The results confirmed that the orientation of the electrodes and hence the actuator (evoked in Section 4.3) plays an important role. The influence of the conducting electrode can be considerably reduced if it is parallel to the field. Note that Figure 9c shows almost the same field distributions as Figure 8.

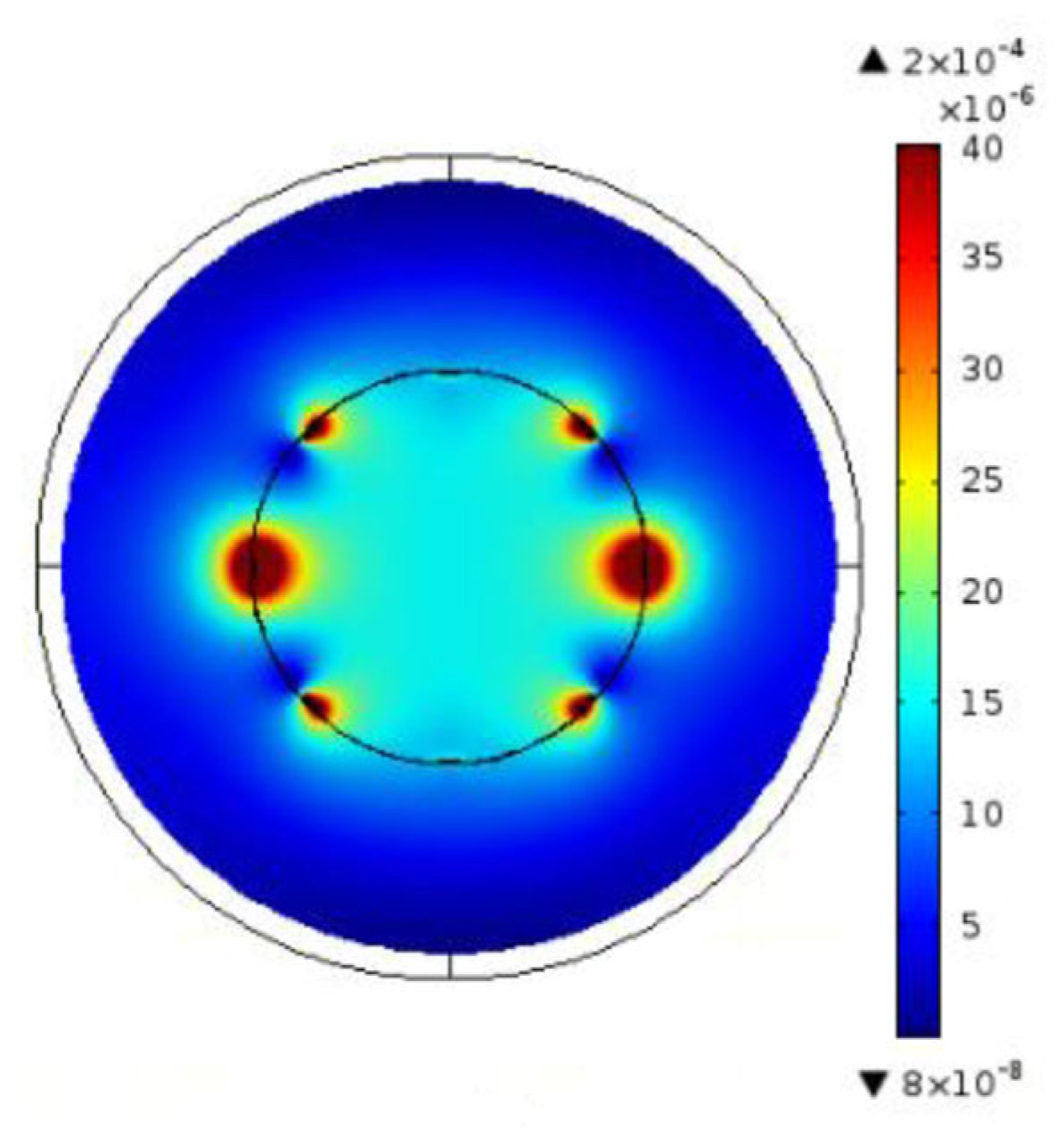

Notice that the field distributions of Figure 8 and Figure 9 are reached for equal input conditions; consequently, they can offer a behavioral evocation. At that point, the present EMC analysis in MRI light up a procedure for checking any disturbs through image-guided maneuvers.

5. Discussion

In this manuscript, the analysis and evaluation carried out on image-guided procedures of surgical interventions and restricted delivery of implanted drugs under minimally invasive and non-ionizing circumstances have illustrated that such a topic is totally beneficial. At this stage, various questions deserve to be raised:

To know how to go further in the well-being of the patient and allow the medical team to verify new therapies and even to carry out treatment training without risk for the patient, we can use physical copies of the real patient. This helps elucidate the treatment most suited to the actual patient. This can be conducted on different levels. The use of a physical phantom built of materials corresponding to the real body biological properties in the IG, SI, and RDD automated procedures (see Figure 3, Figure 4 and Figure 6) reflects the simplest level.

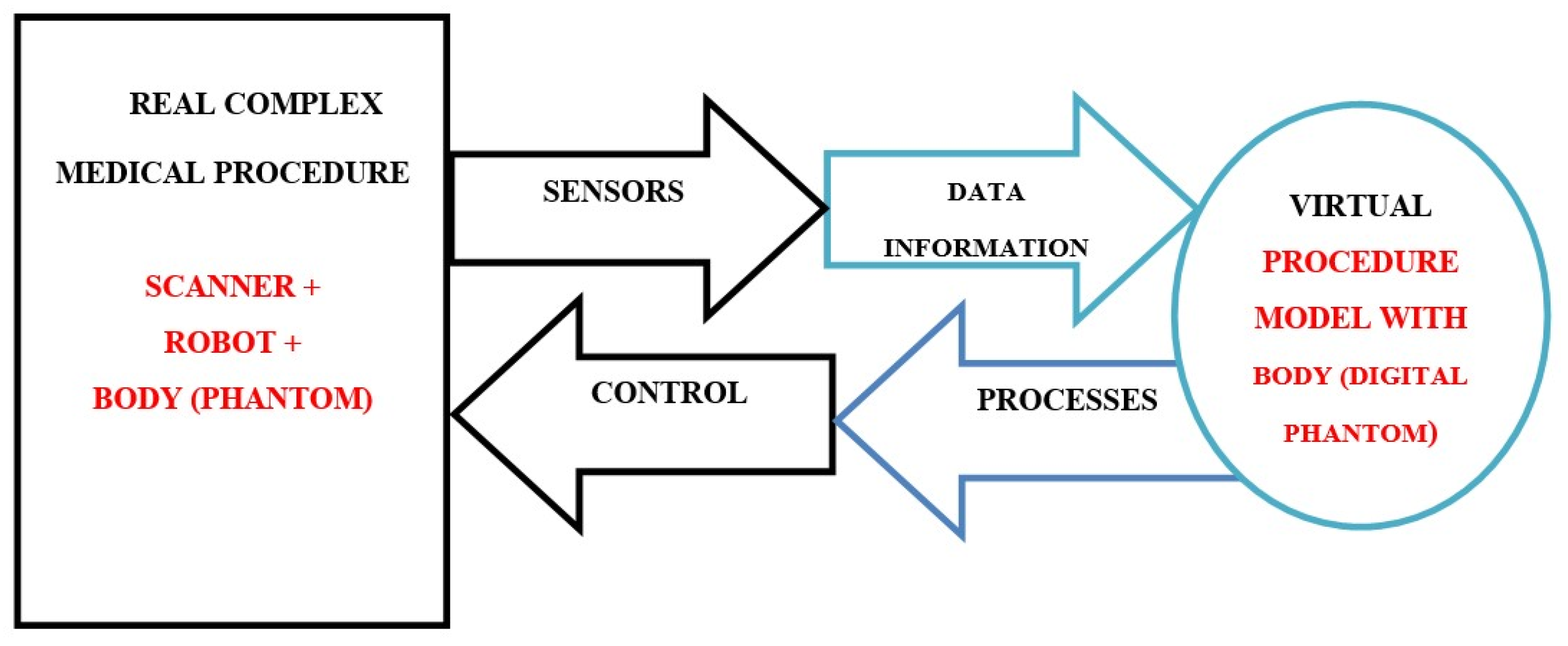

A more sophisticated level corresponds to the practice of a matching process of the physical phantom treatment process and a virtual replica of such process. Such a twin of real-virtual procedure permits a self-corrected behavior. The real part delivers sensor-processed data to the virtual side and the last forward-control instructions issued from the mathematical model of the real part. This matching procedure allows mastering all undesired and hazarded functioning phenomena. The matching real-virtual twin uses the concept of digital twin (DT), [132]. Such a concept exists and is practiced in different industrial fields [133,134,135]. Figure 10 illustrates schematically the DT concept in the case of medical procedures assisted by imaging IG. The real part includes the complex medical procedure involving the scanner, the robot, and body phantom. The virtual side comprises the digital procedure model involving the digital body phantom. The matching link in between these two sides include sensing, control, and processes.

The superior level of using IG medical treatments regards real procedures of DT involving the real patient. Moreover, this matching twin could be amended with “Human-in-the-loop” approaches permitting the supervision, the control, and the correction of its functioning; we will call such twins HDTs.

The DT concept is gradually entering the healthcare field using virtual replicas of physical individuals that go beyond a static image integrating the dynamic behavior of a real living individual [136,137,138,139,140,141,142,143,144,145,146]. Human–robot interaction associated with DT allows higher control of IG, SI, and RDD, minimizing risk for the patient [147,148,149]. The quality of the body model plays an important role in matching behavior; see for example [150,151,152,153]. One of the important challenges is real-time modeling of tissues, with distortion and development that resemble reality. DT and HDT potentially revolutionize the treatment, investigation and training of IG, SI, and RDD. Despite its capabilities, medical treatment is still in its beginning in terms of its ability to represent human tissue in a living, real-time digital replica.

Furthermore, to go beyond, the involvement of artificial intelligence (AI) practices in these medical treatments contributes to reducing the complexity of information acquisition and post-processing in MRI through the use of strategy acceleration and offering faster analysis times with easier image processing [145,154]. AI can be used also to execute planed recurrent training jobs in IG robots.

This can be profusely enlarged by using increased interaction of human and robot advancing the global system performing through augmented reality (AR)-assisted robotic operations. AR associated to IG-MRI in complex procedures can allow significant reduction of hazards like tissue damage, bleeding, post-operative trauma, etc. In addition, DT can play an important role in AR-assisted robotic operations regarding patient-adapted treatment. This permits determination of precisely the disorder source and required action utilizing patient individual modeling from deep learning databases. Moreover, the association AR-DT allows an important accuracy in the domain of suturing, tying, and placement contrasted to hand operations [155,156,157,158,159].

6. Conclusions

In this paper, the assessment of image-guided procedures of surgical interventions and implanted restricted drug delivery under minimally invasive and non-ionizing circumstances has been realized. Analysis of the different concerns confronted in this review has revealed that there is an incessant progress in this domain. The matters of significance erected by this topic are various, the most significant of which are summarized as follows.

The universal goals of medical treatments could be to go further in the well-being of the patient and to allow medical personnel to test new therapies and carry out therapeutic training without risk to the patient. Due to these purposes, different strategic aids can be requested in healthcare:

• Image-assisted robotics, non-ionized, minimally invasive, and locally restrictive means;
• Physical phantoms based on the actual biological properties of the body;
• Digital twins under human control;
• Artificial intelligence tools and robotics assisted by augmented reality.

The specific challenges on this topic fall into two categories. The first is linked to the operation of the robotic assistance by the scanner, which can be improved using augmented reality and artificial intelligence tools. The second concerns the complete automation, conditioned on patient safety, of image-guided procedures, which can be carried out by digital twins controlled by humans in real time. This may enable more precise, minimally invasive restrictive actions with the possibility of strict human observational control.

One of the most difficult problems concerns the behavior of tissues in real time in virtual simulations, which is needed among others in matching of real–virtual twins. This problem faces different difficulties, computational complexities, tedious tasks relating to the calculation time and real-time matching speed required. The main cause of these difficulties is the non-linearity of biological tissues reflecting complex constitutive laws representing the deformation and displacement behaviors of elastic tissues. Either approximate constitutive laws, adapted computational techniques, or a combined methodology could address this open research problem.
