# Investigating How Reproducibility and Geometrical Representation in UMAP Dimensionality Reduction Impact the Stratification of Breast Cancer Tumors

^{1}

^{3}VdA, Via Lavoratori-Vittime del Col du Mont, N. 28, 11100 Aosta, Italy

^{2}

^{3}

^{3}VdA, Via Lavoratori-Vittime del Col du Mont, N. 28, 11100 Aosta, Italy

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Data

#### 2.2. UMAP

#### 2.3. Clustering Algorithms

#### 2.4. Reproducibility

Algorithm 1 Pseudocode of the pipeline |

for$clust\_algo$ in {HDBSCAN, DBSCAN, OPTICS, agglomerative clustering} dofor M in {Euclidean, Spherical, Hyperbolic} dofor NN in $\{10,15,\dots ,100\}$ dofor t in $\{1,2,\dots ,T=100\}$ do generate UMAP embedding E with output metric equal to M and number of near neighbors equal to NN; apply $clust\_algo$ on E and save the proximity matrix ${A}_{t}$, where the ${a}_{ij}$ element of matrix ${A}_{t}$ is equal to 1 if the i-th and j-th sample were assigned to the same cluster, 0 otherwise, for $i,j=1,\dots ,n$, with n the sample size; end for set $P=\frac{1}{T}{\sum}_{t=1}^{T}{A}_{t}$; set k equal to the mode of the number of clusters identified over the T clustering results; implement spectral clustering with k groups and P as affinity matrix. end forend forend foramong the M UMAP embeddings with different NN, select, within the various $clust\_algo$, the cluster output with the highest ARI. |

## 3. Results

#### 3.1. UMAP

#### 3.2. Clustering

#### 3.2.1. Irreproducibility Issues

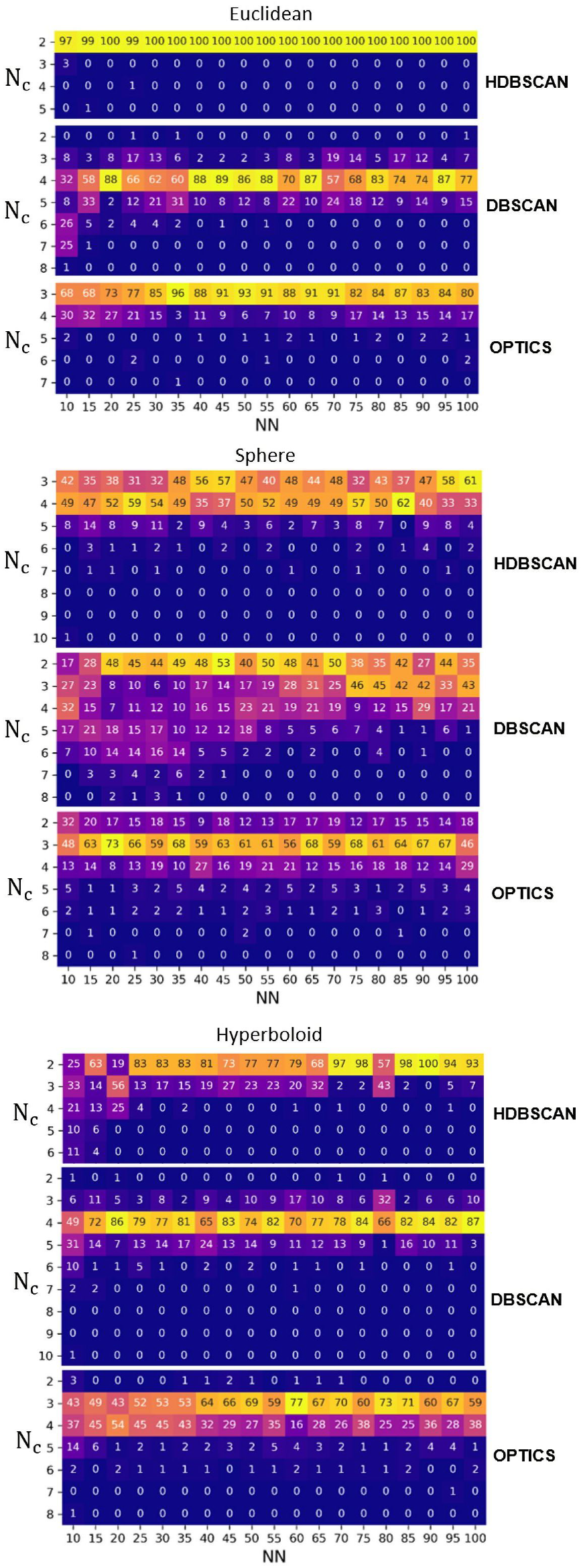

_{c}and ARI. In Figure 3, for each clustering technique, we report the absolute frequency of the estimated N

_{c}over the T iterations for each NN. The Euclidean metric shows the least variability in estimating N

_{c}over the T runs for each NN: the mode of N

_{c}is equal to 2 for HDBSCAN, 4 for DBSCAN, and 3 for OPTICS. The hyperbolic space is slightly more variable than the Euclidean one: the mode of N

_{c}is equal to 2 for HDBSCAN, except for NN equal to 10 and 20, 4 for DBSCAN, and it varies between 3 and 4 for OPTICS. On the contrary, the spherical surface has the highest variability in estimating N

_{c}: the mode of N

_{c}varies between 3 and 4 for HDBSCAN, it ranges from 2 to 5 for DBSCAN, and it is equal to 3 for OPTICS.

#### 3.2.2. Reproducible Results

- N${}_{c}=4$ and ARI equal to
**0.47**(spherical metric), N${}_{c}=2$ and ARI equal to 0.33 (Euclidean metric), and N${}_{c}=3$ and ARI equal to 0.46 (hyperbolic metric), for HDBSCAN; - N${}_{c}=3$ and ARI equal to 0.39 (spherical metric), N${}_{c}=4$ and ARI equal to 0.45 (Euclidean metric), and N${}_{c}=4$ and ARI equal to
**0.46**(hyperbolic metric), for DBSCAN; - N${}_{c}=4$ and ARI equal to 0.28 (spherical metric), N${}_{c}=4$ and ARI equal to
**0.38**(Euclidean metric), and N${}_{c}=4$ and ARI equal to**0.38**(hyperbolic metric), for agglomerative clustering; - N${}_{c}=3$ and ARI equal to 0.41 (spherical metric), N${}_{c}=3$ and ARI equal to
**0.44**(Euclidean metric), and N${}_{c}=3$ and ARI equal to**0.44**(hyperbolic metric), for OPTICS.

#### 3.2.3. Biological Interpretation

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

^{3}VdA and the Project 5000genomi@VdA are co-founded by “Fondo Europeo di Sviluppo Regionale (FESR) Programma Investimenti per la crescita e l’occupazione 2014/20” (European Social Fund, ESF, and European Regional Development Fund, ERDF), the Autonomous Region of the Aosta Valley, and the Italian Ministry of Labour and Social Policy (CUP B68H19005520007). J.B., M.A., A.C. (Andrea Cina) and S.M. have carried out this work supported by a grant of the EU-ESF, the Autonomous Region of the Aosta Valley, and the Italian Ministry of Labour and Social Policy. The Astronomical Observatory of the Autonomous Region of the Aosta Valley (OAVdA) is managed by the Fondazione Clément Fillietroz-ONLUS, which is supported by the Regional Government of the Aosta Valley, the Town Municipality of Nus, and the “Unité des Communes valdôtaines Mont-Émilius”.

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

#### Appendix A.1. Reproducibility

- (1)
- comparison in terms of ARI of two clustering outputs generated by HDBSCAN applied to two separate runs of UMAP (NN $=65$; spherical embedding);
- (2)
- for each $T=10,20,\dots ,100$, comparison in terms of ARI of two clustering outputs generated by two independent runs of our proposed pipeline.

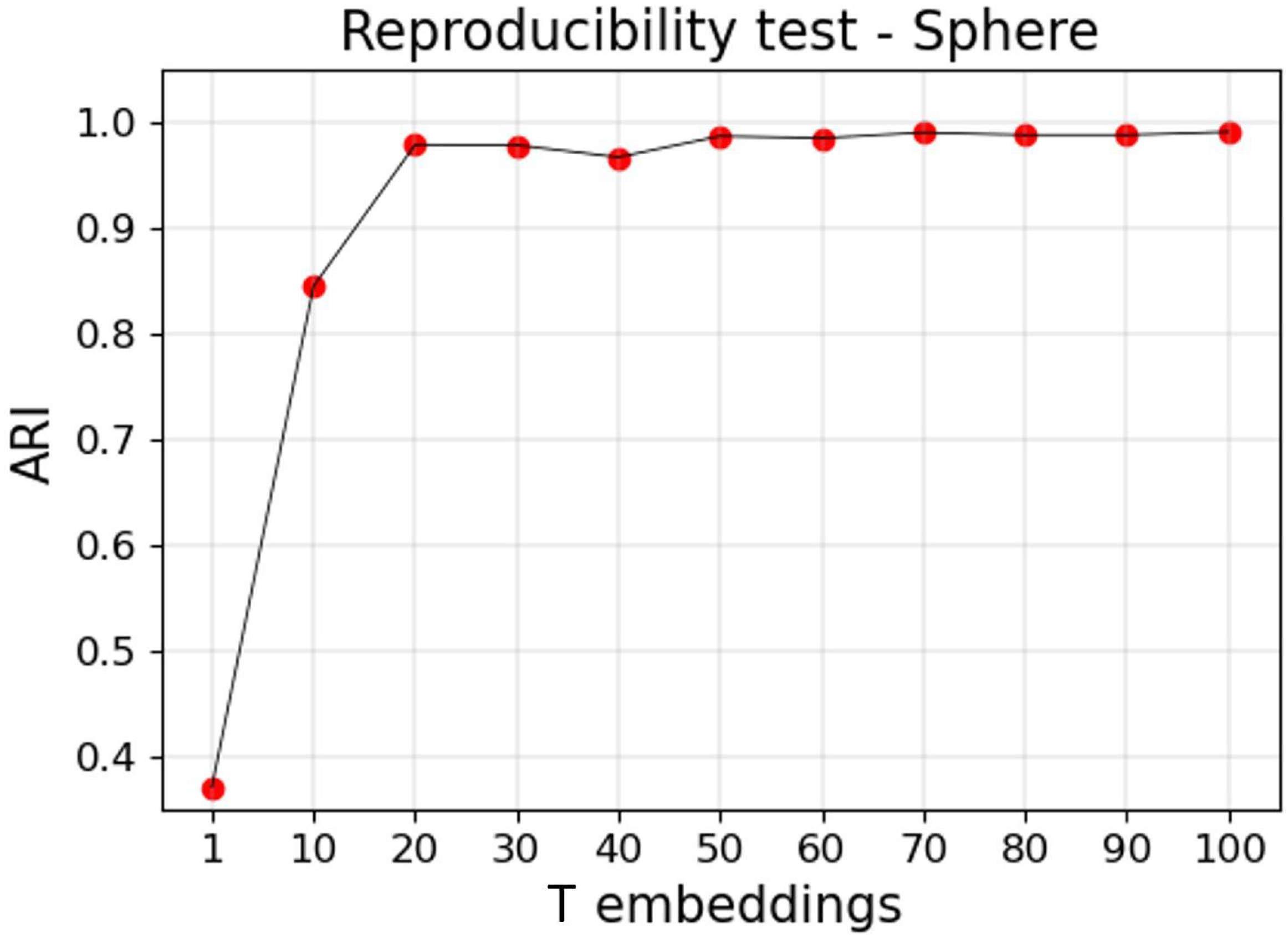

**Figure A1.**Reproducibility test. ARI scores between cluster labels obtained from two separate runs of T UMAP embeddings. With $T=1$, the figure reports the ARI between two clustering outputs generated by HDBSCAN applied to two independent runs of UMAP. With $T>1$, the ARI indicates the concordance between two clustering outputs generated by two separate runs of our proposed procedure.

**Table A1.**Joint frequencies of cluster outputs and BC subtypes related to two separate UMAP runs (top tables: A and B), and two independent runs of our proposed procedure with $T=100$ (bottom tables: C and D).

(A) | 1 Embedding Iter1 | (B) | 1 Embedding Iter2 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

Clusters | Clusters | ||||||||||

NC | 1 | 2 | 3 | NC | 1 | 2 | 3 | ||||

Basal | 1 | 1 | 184 | 6 | Basal | 8 | 0 | 179 | 5 | ||

Her2 | 0 | 31 | 4 | 47 | Her2 | 5 | 41 | 0 | 36 | ||

LumA | 1 | 553 | 8 | 1 | LumA | 9 | 339 | 0 | 215 | ||

LumB | 2 | 200 | 1 | 4 | LumB | 9 | 132 | 0 | 66 | ||

Normal | 1 | 24 | 12 | 3 | Normal | 12 | 21 | 3 | 4 | ||

(C) | 100 Embeddings Iter1 | (D) | 100 Embeddings Iter2 | ||||||||

Clusters | Clusters | ||||||||||

NC | 1 | 2 | 3 | NC | 1 | 2 | 3 | ||||

Basal | 9 | 1 | 180 | 2 | Basal | 9 | 1 | 180 | 2 | ||

Her2 | 8 | 35 | 0 | 39 | Her2 | 7 | 35 | 0 | 40 | ||

LumA | 2 | 560 | 0 | 1 | LumA | 3 | 559 | 0 | 1 | ||

LumB | 11 | 196 | 0 | 0 | LumB | 9 | 198 | 0 | 0 | ||

Normal | 11 | 24 | 3 | 2 | Normal | 10 | 24 | 3 | 3 |

#### Appendix A.2. Clustering Results

**Table A2.**Comparison of clustering performances. N

_{c}, ARI, and homogeneity score estimated for each NN and latent space (spherical, Euclidean, hyperbolic) for HDBSCAN and DBSCAN clustering methods.

HDBSCAN | Euclidean | Sphere | Hyperboloid | ||||||
---|---|---|---|---|---|---|---|---|---|

NN | Nclust | Ari | Homog | Nclust | Ari | Homog | Nclust | Ari | Homog |

10 | 2 | 0.33 | 0.31 | 4 | 0.45 | 0.43 | 3 | 0.46 | 0.42 |

15 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.44 | 2 | 0.33 | 0.32 |

20 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.44 | 3 | 0.45 | 0.42 |

25 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.44 | 2 | 0.33 | 0.32 |

30 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.44 | 2 | 0.33 | 0.32 |

35 | 2 | 0.33 | 0.32 | 4 | 0.45 | 0.43 | 2 | 0.33 | 0.32 |

40 | 2 | 0.33 | 0.32 | 3 | 0.37 | 0.35 | 2 | 0.33 | 0.32 |

45 | 2 | 0.33 | 0.32 | 3 | 0.37 | 0.35 | 2 | 0.33 | 0.32 |

50 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.43 | 2 | 0.33 | 0.32 |

55 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.43 | 2 | 0.33 | 0.32 |

60 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.43 | 2 | 0.33 | 0.32 |

65 | 2 | 0.33 | 0.32 | 4 | 0.47 | 0.43 | 2 | 0.33 | 0.32 |

70 | 2 | 0.33 | 0.32 | 4 | 0.47 | 0.43 | 2 | 0.33 | 0.32 |

75 | 2 | 0.33 | 0.32 | 4 | 0.47 | 0.43 | 2 | 0.33 | 0.32 |

80 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.43 | 2 | 0.33 | 0.32 |

85 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.43 | 2 | 0.33 | 0.32 |

90 | 2 | 0.33 | 0.32 | 3 | 0.45 | 0.4 | 2 | 0.33 | 0.32 |

95 | 2 | 0.33 | 0.32 | 3 | 0.45 | 0.39 | 2 | 0.33 | 0.32 |

100 | 2 | 0.33 | 0.32 | 3 | 0.46 | 0.4 | 2 | 0.33 | 0.32 |

10 | 4 | 0.39 | 0.42 | 4 | 0.28 | 0.39 | 4 | 0.45 | 0.43 |

15 | 4 | 0.45 | 0.42 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.43 |

20 | 4 | 0.45 | 0.43 | 2 | 0.33 | 0.32 | 4 | 0.45 | 0.42 |

25 | 4 | 0.45 | 0.43 | 2 | 0.33 | 0.32 | 4 | 0.46 | 0.43 |

30 | 4 | 0.45 | 0.43 | 2 | 0.32 | 0.31 | 4 | 0.45 | 0.43 |

35 | 4 | 0.45 | 0.42 | 2 | 0.31 | 0.3 | 4 | 0.45 | 0.43 |

40 | 4 | 0.45 | 0.42 | 2 | 0.32 | 0.3 | 4 | 0.45 | 0.43 |

45 | 4 | 0.45 | 0.42 | 2 | 0.32 | 0.3 | 4 | 0.45 | 0.43 |

50 | 4 | 0.44 | 0.42 | 2 | 0.32 | 0.31 | 4 | 0.45 | 0.43 |

55 | 4 | 0.43 | 0.4 | 2 | 0.29 | 0.28 | 4 | 0.45 | 0.43 |

60 | 4 | 0.45 | 0.42 | 2 | 0.31 | 0.29 | 4 | 0.45 | 0.43 |

65 | 4 | 0.45 | 0.42 | 2 | 0.32 | 0.31 | 4 | 0.45 | 0.43 |

70 | 4 | 0.36 | 0.38 | 2 | 0.32 | 0.3 | 4 | 0.45 | 0.43 |

75 | 4 | 0.39 | 0.38 | 3 | 0.37 | 0.38 | 4 | 0.45 | 0.43 |

80 | 4 | 0.37 | 0.36 | 3 | 0.38 | 0.38 | 4 | 0.45 | 0.43 |

85 | 4 | 0.37 | 0.36 | 2 | 0.32 | 0.31 | 4 | 0.44 | 0.43 |

90 | 4 | 0.38 | 0.37 | 3 | 0.4 | 0.39 | 4 | 0.45 | 0.43 |

95 | 4 | 0.37 | 0.36 | 2 | 0.32 | 0.31 | 4 | 0.45 | 0.43 |

100 | 4 | 0.36 | 0.36 | 3 | 0.39 | 0.38 | 4 | 0.44 | 0.42 |

**Table A3.**Comparison of clustering performances. N

_{c}, ARI, and homogeneity score estimated for each NN and latent space (spherical, Euclidean, hyperbolic) for OPTICS and agglomerative clustering (Agg.).

OPTICS | Euclidean | Sphere | Hyperboloid | ||||||
---|---|---|---|---|---|---|---|---|---|

NN | Nclust | Ari | Homog | Nclust | Ari | Homog | Nclust | Ari | Homog |

10 | 3 | 0.42 | 0.39 | 3 | 0.4 | 0.38 | 3 | 0.43 | 0.4 |

15 | 3 | 0.43 | 0.4 | 3 | 0.41 | 0.38 | 3 | 0.44 | 0.41 |

20 | 3 | 0.44 | 0.41 | 3 | 0.41 | 0.39 | 4 | 0.36 | 0.41 |

25 | 3 | 0.44 | 0.41 | 3 | 0.41 | 0.39 | 3 | 0.44 | 0.41 |

30 | 3 | 0.44 | 0.41 | 3 | 0.41 | 0.39 | 3 | 0.44 | 0.41 |

35 | 3 | 0.43 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.43 | 0.41 |

40 | 3 | 0.44 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.44 | 0.41 |

45 | 3 | 0.43 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.44 | 0.41 |

50 | 3 | 0.44 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.44 | 0.41 |

55 | 3 | 0.44 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.44 | 0.41 |

60 | 3 | 0.44 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.44 | 0.41 |

65 | 3 | 0.43 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.43 | 0.41 |

70 | 3 | 0.43 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.42 | 0.4 |

75 | 3 | 0.43 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.43 | 0.4 |

80 | 3 | 0.43 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.43 | 0.41 |

85 | 3 | 0.43 | 0.4 | 3 | 0.41 | 0.39 | 3 | 0.43 | 0.4 |

90 | 3 | 0.43 | 0.41 | 3 | 0.4 | 0.38 | 3 | 0.43 | 0.4 |

95 | 3 | 0.43 | 0.4 | 3 | 0.4 | 0.38 | 3 | 0.42 | 0.4 |

100 | 3 | 0.43 | 0.41 | 3 | 0.39 | 0.37 | 3 | 0.42 | 0.4 |

10 | 4 | 0.37 | 0.48 | 4 | 0.28 | 0.42 | 4 | 0.38 | 0.49 |

15 | 4 | 0.37 | 0.48 | 4 | 0.28 | 0.42 | 4 | 0.38 | 0.49 |

20 | 4 | 0.36 | 0.48 | 4 | 0.24 | 0.4 | 4 | 0.36 | 0.49 |

25 | 4 | 0.36 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.37 | 0.47 |

30 | 4 | 0.37 | 0.48 | 4 | 0.24 | 0.4 | 4 | 0.36 | 0.47 |

35 | 4 | 0.37 | 0.48 | 4 | 0.24 | 0.4 | 4 | 0.36 | 0.47 |

40 | 4 | 0.37 | 0.49 | 4 | 0.24 | 0.41 | 4 | 0.36 | 0.47 |

45 | 4 | 0.38 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.36 | 0.47 |

50 | 4 | 0.38 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.35 | 0.47 |

55 | 4 | 0.38 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.35 | 0.47 |

60 | 4 | 0.37 | 0.49 | 4 | 0.24 | 0.41 | 4 | 0.35 | 0.47 |

65 | 4 | 0.37 | 0.48 | 4 | 0.24 | 0.41 | 4 | 0.35 | 0.47 |

70 | 4 | 0.38 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.36 | 0.48 |

75 | 4 | 0.37 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.36 | 0.48 |

80 | 4 | 0.37 | 0.48 | 4 | 0.24 | 0.4 | 4 | 0.35 | 0.48 |

85 | 4 | 0.37 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.36 | 0.48 |

90 | 4 | 0.38 | 0.49 | 4 | 0.24 | 0.4 | 4 | 0.35 | 0.48 |

95 | 4 | 0.37 | 0.48 | 4 | 0.24 | 0.39 | 4 | 0.34 | 0.47 |

100 | 4 | 0.38 | 0.49 | 4 | 0.24 | 0.41 | 4 | 0.34 | 0.47 |

## References

- Baptiste, M.; Moinuddeen, S.S.; Soliz, C.L.; Ehsan, H.; Kaneko, G. Making sense of genetic information: The promising evolution of clinical stratification and precision oncology using machine learning. Genes
**2021**, 12, 722. [Google Scholar] [CrossRef] - Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global cancer statistics 2020: Globocan estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin.
**2021**, 71, 209–249. Available online: https://acsjournals.onlinelibrary.wiley.com/doi/pdf/10.3322/caac.21660 (accessed on 20 April 2022). [CrossRef] [PubMed] - Oze, I.; Ito, H.; Kasugai, Y.; Yamaji, T.; Kijima, Y.; Ugai, T.; Kasuga, Y.; Ouellette, T.K.; Taniyama, Y.; Koyanagi, Y.N.; et al. A personal breast cancer risk stratification model using common variants and environmental risk factors in japanese females. Cancers
**2021**, 13, 3796. [Google Scholar] [CrossRef] [PubMed] - Russnes, H.G.; Lingjærde, O.C.; Børresen-Dale, A.-L.; Caldas, C. Breast cancer molecular stratification: From intrinsic subtypes to integrative clusters. Am. J. Pathol.
**2017**, 187, 2152–2162. [Google Scholar] [CrossRef] - Wordsworth, S.; Doble, B.; Payne, K.; Buchanan, J.; Marshall, D.A.; McCabe, C.; Regier, D.A. Using “big data” in the cost-effectiveness analysis of next-generation sequencing technologies: Challenges and potential solutions. Value Health
**2018**, 21, 1048–1053. [Google Scholar] [CrossRef] [Green Version] - Arakelyan, A.; Melkonyan, A.; Hakobyan, S.; Boyarskih, U.; Simonyan, A.; Nersisyan, L.; Nikoghosyan, M.; Filipenko, M.; Binder, H. Transcriptome patterns of brca1-and brca2-mutated breast and ovarian cancers. Int. J. Mol. Sci.
**2021**, 22, 1266. [Google Scholar] [CrossRef] [PubMed] - Wang, M.; Klevebring, D.; Lindberg, J.; Czene, K.; Grönberg, H.; Rantalainen, M. Determining breast cancer histological grade from rna-sequencing data. Breast Cancer Res.
**2016**, 18, 48. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hao, Y.; He, L.; Zhou, Y.; Zhao, Y.; Li, M.; Jing, R.; Wen, Z. Improving model performance on the stratification of breast cancer patients by integrating multiscale genomic features. BioMed Res. Int.
**2020**, 2020, 1475368. [Google Scholar] [CrossRef] - Altman, N.; Krzywinski, M. The curse(s) of dimensionality. Nat. Methods
**2018**, 15, 399–400. [Google Scholar] [CrossRef] [PubMed] - Townes, F.W.; Hicks, S.C.; Aryee, M.J.; Irizarry, R.A. Feature selection and dimension reduction for single-cell rna-seq based on a multinomial model. Genome Biol.
**2019**, 20, 295. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Sun, X.; Liu, Y.; An, L. Ensemble dimensionality reduction and feature gene extraction for single-cell rna-seq data. Nat. Commun.
**2020**, 11, 5853. [Google Scholar] [CrossRef] [PubMed] - McInnes, L.; Healy, J.; Melville, J. Umap: Uniform manifold approximation and projection for dimension reduction. arXiv
**2018**, arXiv:1802.03426. [Google Scholar] - Yang, Y.; Sun, H.; Zhang, Y.; Zhang, T.; Gong, J.; Wei, Y.; Duan, Y.-G.; Shu, M.; Yang, Y.; Wu, D.; et al. Dimensionality reduction by umap reinforces sample heterogeneity analysis in bulk transcriptomic data. Cell Rep.
**2021**, 36, 109442. [Google Scholar] [CrossRef] [PubMed] - Lebedev, T.; Vagapova, E.; Spirin, P.; Rubtsov, P.; Astashkova, O.; Mikheeva, A.; Sorokin, M.; Vladimirova, U.; Suntsova, M.; Konovalov, D.; et al. Growth factor signaling predicts therapy resistance mechanisms and defines neuroblastoma subtypes. Oncogene
**2021**, 40, 6258–6272. [Google Scholar] [CrossRef] - Dorrity, M.W.; Saunders, L.M.; Queitsch, C.; Fields, S.; Trapnell, C. Dimensionality reduction by umap to visualize physical and genetic interactions. Nat. Commun.
**2020**, 11, 1537. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Cao, J.; Spielmann, M.; Qiu, X.; Huang, X.; Ibrahim, D.M.; Hill, A.J.; Zhang, F.; Mundlos, S.; Christiansen, L.; Steemers, F.J. The single-cell transcriptional landscape of mammalian organogenesis. Nature
**2019**, 566, 496–502. [Google Scholar] [CrossRef] [PubMed] - Maćkiewicz, A.; Ratajczak, W. Principal components analysis (pca). Comput. Geosci.
**1993**, 19, 303–342. [Google Scholar] [CrossRef] - Leelatian, N.; Sinnaeve, J.; Mistry, A.M.; Barone, S.M.; Brockman, A.A.; Diggins, K.E.; Greenplate, A.R.; Weaver, K.D.; Thompson, R.C.; Chambless, L.B. Unsupervised machine learning reveals risk stratifying glioblastoma tumor cells. eLife
**2020**, 9, e56879. [Google Scholar] [CrossRef] - Becht, E.; McInnes, L.; Healy, J.; Dutertre, C.-A.; Kwok, I.W.; Ng, L.G.; Ginhoux, F.; Newell, E.W. Dimensionality reduction for visualizing single-cell data using umap. Nat. Biotechnol.
**2019**, 37, 38–44. [Google Scholar] [CrossRef] [PubMed] - Allaoui, M.; Kherfi, M.L.; Cheriet, A. Considerably improving clustering algorithms using umap dimensionality reduction technique: A comparative study. In International Conference on Image and Signal Processing; Springer: Berlin/Heidelberg, Germany, 2020; pp. 317–325. [Google Scholar]
- Gu, A.; Sala, F.; Gunel, B.; Ré, C. Learning mixed-curvature representations in product spaces. In Proceedings of the International Conference on Learning Representations, Vancouver, BC, Canada, 30 April–3 May 2018. [Google Scholar]
- Ding, J.; Regev, A. Deep generative model embedding of single-cell RNA-Seq profiles on hyperspheres and hyperbolic spaces. Nat. Commun.
**2019**, 12, 1–17. [Google Scholar] [CrossRef] [PubMed] - Nickel, M.; Kiela, D. Learning continuous hierarchies in the lorentz model of hyperbolic geometry. In Proceedings of the International Conference on Machine Learning, Stockholm, Sweden, 10–15 July 2018; pp. 3779–3788. [Google Scholar]
- He, Z.; Zhang, J.; Yuan, X.; Xi, J.; Liu, Z.; Zhang, Y. Stratification of breast cancer by integrating gene expression data and clinical variables. Molecules
**2019**, 24, 631. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Liu, J.; Lichtenberg, T.; Hoadley, K.A.; Poisson, L.M.; Lazar, A.J.; Cherniack, A.D.; Kovatich, A.J.; Benz, C.C.; Levine, D.A.; Lee, A.V. An integrated tcga pan-cancer clinical data resource to drive high-quality survival outcome analytics. Cell
**2018**, 173, 400–416. [Google Scholar] [CrossRef] [Green Version] - Ali, M.; Jones, M.W.; Xie, X.; Williams, M. Timecluster: Dimension reduction applied to temporal data for visual analytics. Vis. Comput.
**2019**, 35, 1013–1026. [Google Scholar] [CrossRef] [Green Version] - Pealat, C.; Bouleux, G.; Cheutet, V. Improved time-series clustering with umap dimension reduction method. In Proceedings of the 2020 25th International Conference on Pattern Recognition (ICPR), Milan, Italy, 10–15 January 2021; pp. 5658–5665. [Google Scholar]
- Rand, W.M. Objective criteria for the evaluation of clustering methods. J. Am. Stat. Assoc.
**1971**, 66, 846–850. [Google Scholar] [CrossRef] - Rosenberg, A.; Hirschberg, J. V-measure: A conditional entropy-based external cluster evaluation measure. In Proceedings of the 2007 Joint Conference on Empirical Methods in Natural Language Processing and Computational Natural Language Learning (EMNLP-CoNLL), Prague, Czech Republic, 28–30 June 2007; pp. 410–420. [Google Scholar]
- Diaz-Papkovich, A.; Anderson-Trocmé, L.; Gravel, S. A review of umap in population genetics. J. Hum. Genet.
**2021**, 66, 85–91. [Google Scholar] [CrossRef] [PubMed] - Aalto, M.; Verma, N. Metric learning on manifolds. arXiv
**2019**, arXiv:1902.01738. [Google Scholar] - Campello, R.J.; Moulavi, D.; Sander, J. Density-based clustering based on hierarchical density estimates. In Pacific-Asia Conference on Knowledge Discovery and Data Mining; Springer: Berlin/Heidelberg, Germany, 2013; pp. 160–172. [Google Scholar]
- Ester, M.; Kriegel, H.-P.; Kuntze, D.; Sander, J.; Xu, X. A density-based algorithm for discovering clusters in large spatial databases with noise. In Proceedings of the Second International Conference on Knowledge Discovery and Data Mining, Portland, OR, USA, 2–4 August 1996; Volume 96, pp. 226–231. [Google Scholar]
- Ankerst, M.; Breunig, M.M.; Kriegel, H.P.; Sander, J. OPTICS: Ordering points to identify the clustering structure. ACM Sigmod Rec.
**1999**, 28, 49–60. [Google Scholar] [CrossRef] - Day, W.H.; Edelsbrunner, H. Efficient algorithms for agglomerative hierarchical clustering methods. J. Classif.
**1984**, 1, 7–24. [Google Scholar] [CrossRef] - Jamail, I.; Moussa, A. Current state-of-the-art of clustering methods for gene expression data with rna-seq. In Pattern Recognition; IntechOpen: London, UK, 2020. [Google Scholar]
- Santos, J.M.; Embrechts, M. On the use of the adjusted rand index as a metric for evaluating supervised classification. In Proceedings of the International Conference on Artificial Neural Networks, Limassol, Cyprus, 14–17 September 2009; Springer: Berlin/Heidelberg, Germany, 2009; pp. 175–184. [Google Scholar]
- Higham, D.J.; Kalna, G.; Kibble, M. Spectral clustering and its use in bioinformatics. J. Comput. Appl. Math.
**2007**, 204, 25–37. [Google Scholar] [CrossRef] [Green Version] - Gaynor, S.M.; Lin, X.; Quackenbush, J. Spectral clustering in regression-based biological networks. bioRxiv
**2019**, 651950. [Google Scholar] [CrossRef] - Huang, G.T.; Cunningham, K.I.; Benos, P.V.; Chennubhotla, C.S. Spectral clustering strategies for heterogeneous disease expression data. In Biocomputing 2013; World Scientific: Singapore, 2013; pp. 212–223. [Google Scholar]
- Larsen, M.J.; Kruse, T.A.; Tan, Q.; Laenkholm, A.-V.; Bak, M.; Lykkesfeldt, A.E.; Sørensen, K.P.; Hansen, T.v.O.; Ejlertsen, B.; Gerdes, A.-M. Classifications within molecular subtypes enables identification of brca1/brca2 mutation carriers by rna tumor profiling. PLoS ONE
**2013**, 8, e64268. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Bao, X.; Shi, R.; Zhao, T.; Wang, Y.; Anastasov, N.; Rosemann, M.; Fang, W. Integrated analysis of single-cell rna-seq and bulk rna-seq unravels tumour heterogeneity plus m2-like tumour-associated macrophage infiltration and aggressiveness in tnbc. Cancer Immunol. Immunother.
**2021**, 70, 189–202. [Google Scholar] [CrossRef] - Landry, A.P.; Balas, M.; Alli, S.; Spears, J.; Zador, Z. Distinct regional ontogeny and activation of tumor associated macrophages in human glioblastoma. Sci. Rep.
**2020**, 10, 19542. [Google Scholar] [CrossRef] [PubMed] - Chari, T.; Banerjee, J.; Pachter, L. The specious art of single-cell genomics. bioRxiv
**2021**. [Google Scholar] [CrossRef] - Ektefaie, Y.; Yuan, W.; Dillon, D.A.; Lin, N.U.; Golden, J.A.; Kohane, I.S.; Yu, K.H. Integrative multiomics-histopathology analysis for breast cancer classification. NPJ Breast Cancer
**2021**, 7, 147. [Google Scholar] [CrossRef] [PubMed]

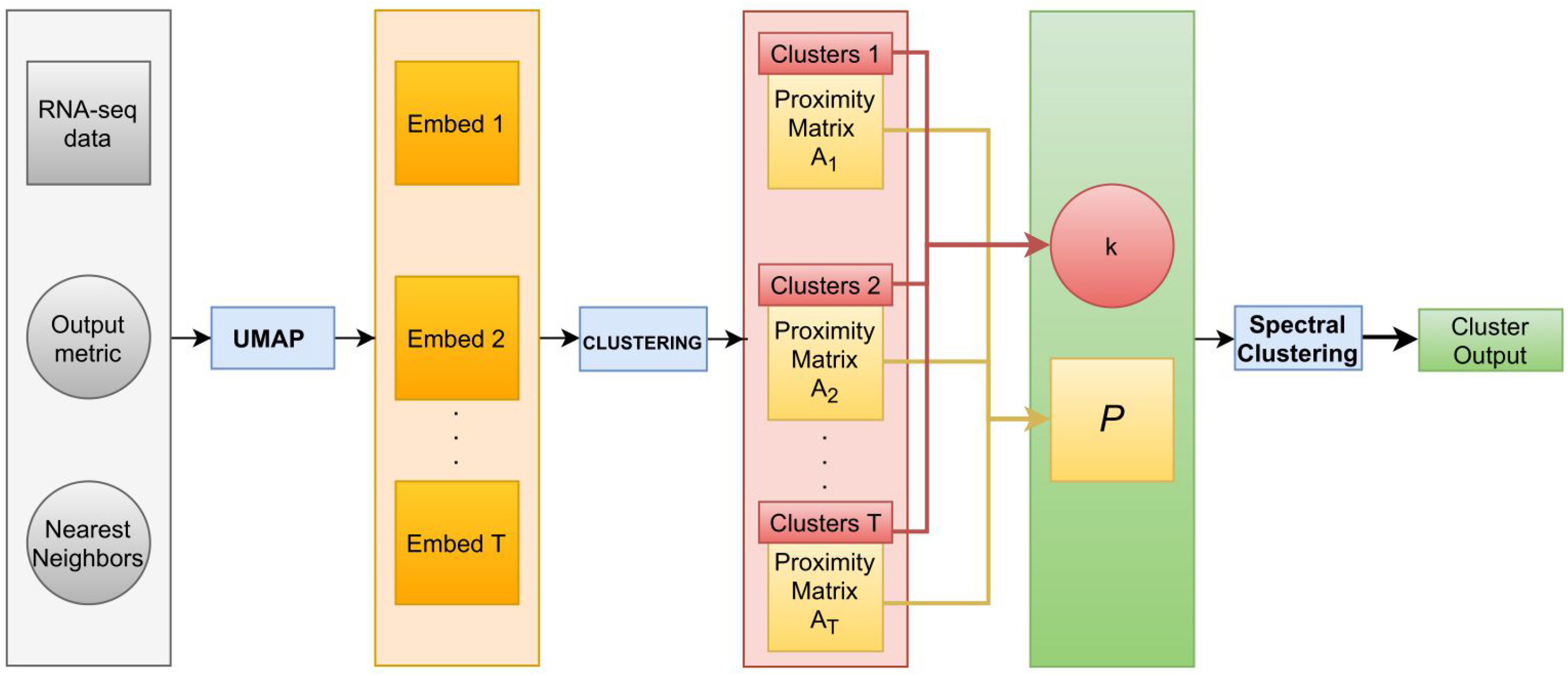

**Figure 1.**Methodological workflow of our pipeline. Starting from RNA-seq data, on the left, given an output metric and number of NN (our hyperparameters), we generated T UMAP embeddings, onto which we applied a clustering algorithm. Then, we set k equal to the mode of the number of clusters identified by the clustering technique on T embeddings and we computed the affinity matrix P by summing all T proximity matrices related to each clustering result. Finally, we applied spectral clustering on P with k groups to obtain one final reproducible cluster.

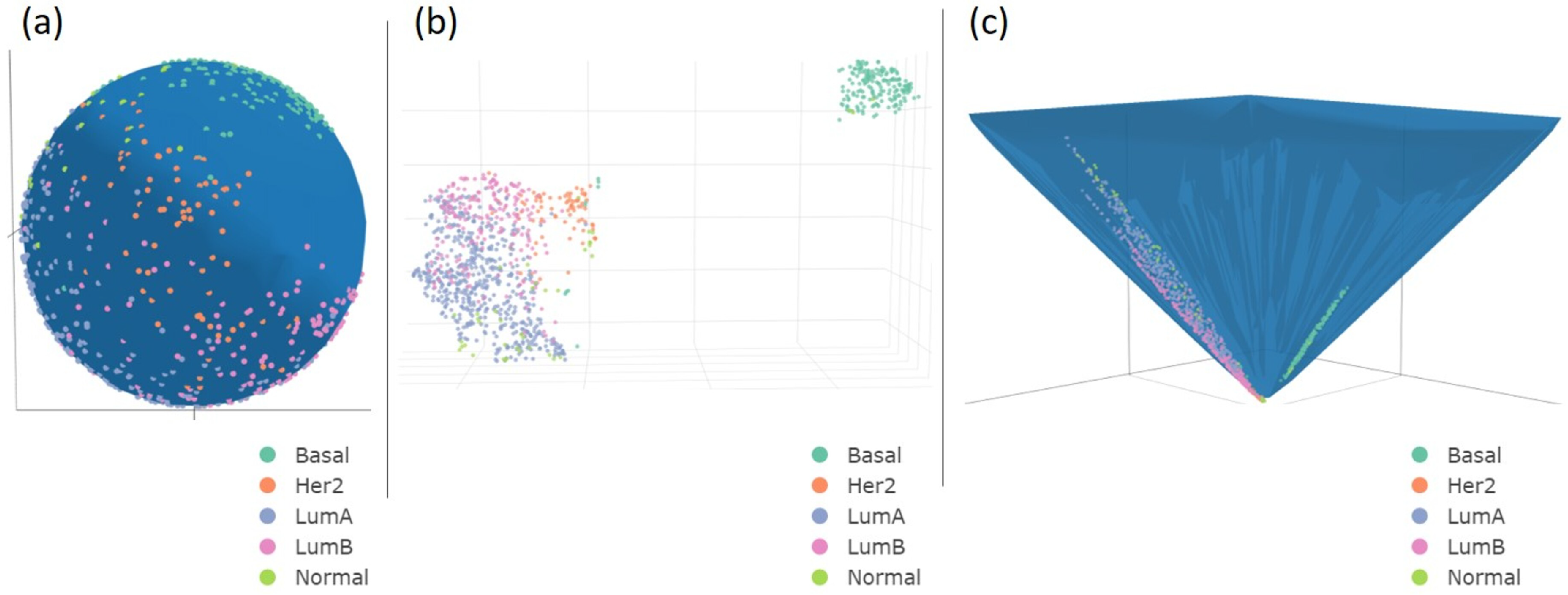

**Figure 2.**A 3D visualization of UMAP projection (NN = 65). The pictures show 1084 samples grouped by five BC subtypes on a spherical surface (

**a**), Euclidean space (

**b**), and hyperboloid (

**c**). The input RNA-seq data comprised 20,530 genes. We reduced it to three dimensions for Euclidean space and two dimensions for spherical and hyperbolic embedding.

**Figure 3.**Variability of the number of clusters (N

_{c}) estimation. Absolute frequency of the N

_{c}obtained from implementing HDBSCAN, DBSCAN, OPTICS in $T=$ 100 iterations on UMAP embeddings. NN ranging from 10 to 100, for Euclidean, spherical, and hyperbolic space. A lighter color (yellow) indicates a higher frequency value, while a darker color (blue) indicates a lower, tending to zero, frequency value. We did not report N

_{c}of the agglomerative clustering since it is fixed a priori.

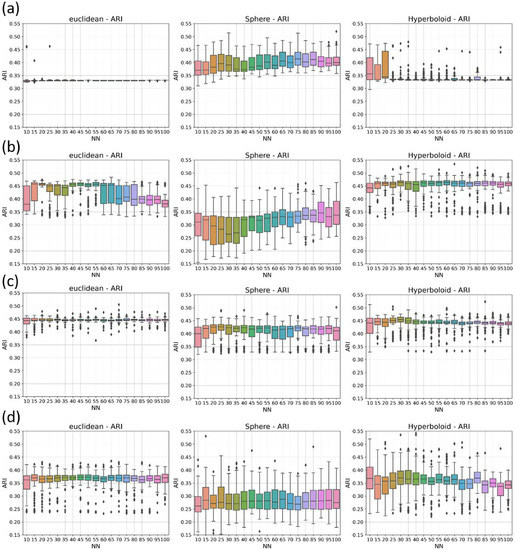

**Figure 4.**Variability of clustering performances. Quantitative results of HDBSCAN (

**a**), DBSCAN (

**b**), OPTICS (

**c**), and agglomerative clustering (

**d**) applied to $T=100$ UMAP embeddings, in terms of ARI for each NN. From left to right, panels correspond, respectively, to Euclidean, spherical, and hyperbolic space. Each boxplot represents the distribution of the ARI values, along the T iterations for each specific NN.

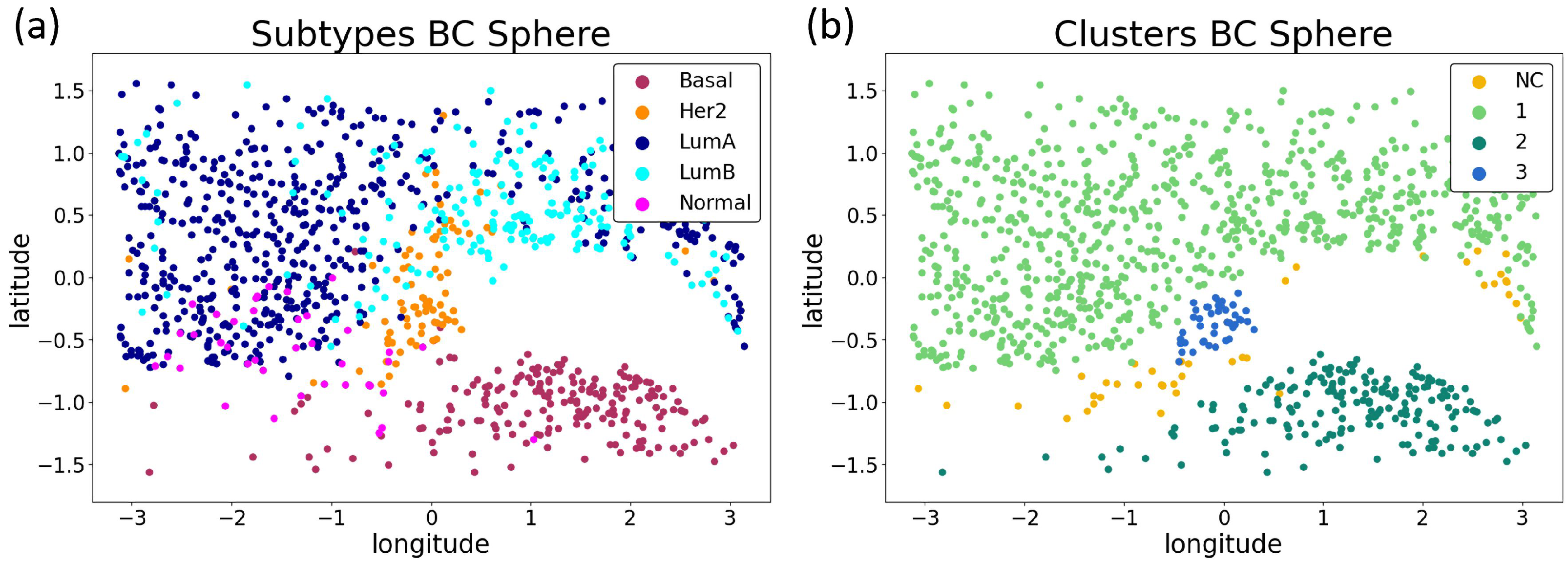

**Figure 5.**Visualization of the best UMAP embedding. Two-dimensional spherical surface mapped by UMAP with NN equal to 65 (see Table A2 in Appendix A). The points correspond to the BC samples. In (

**a**) on the left, the color indicates the tumor subtype, whose acronym is shown by labels, for a total of 5 BC types. In (

**b**), the colors refer to the different clusters identified by our method for HDBSCAN, for a total of 4 groups. Latitude and longitude are the commonly used coordinates to identify a point (i.e., a sample) on the spherical surface, expressed in radians. NC stands for the cluster constituted by Not Clusterable points (see Methods section).

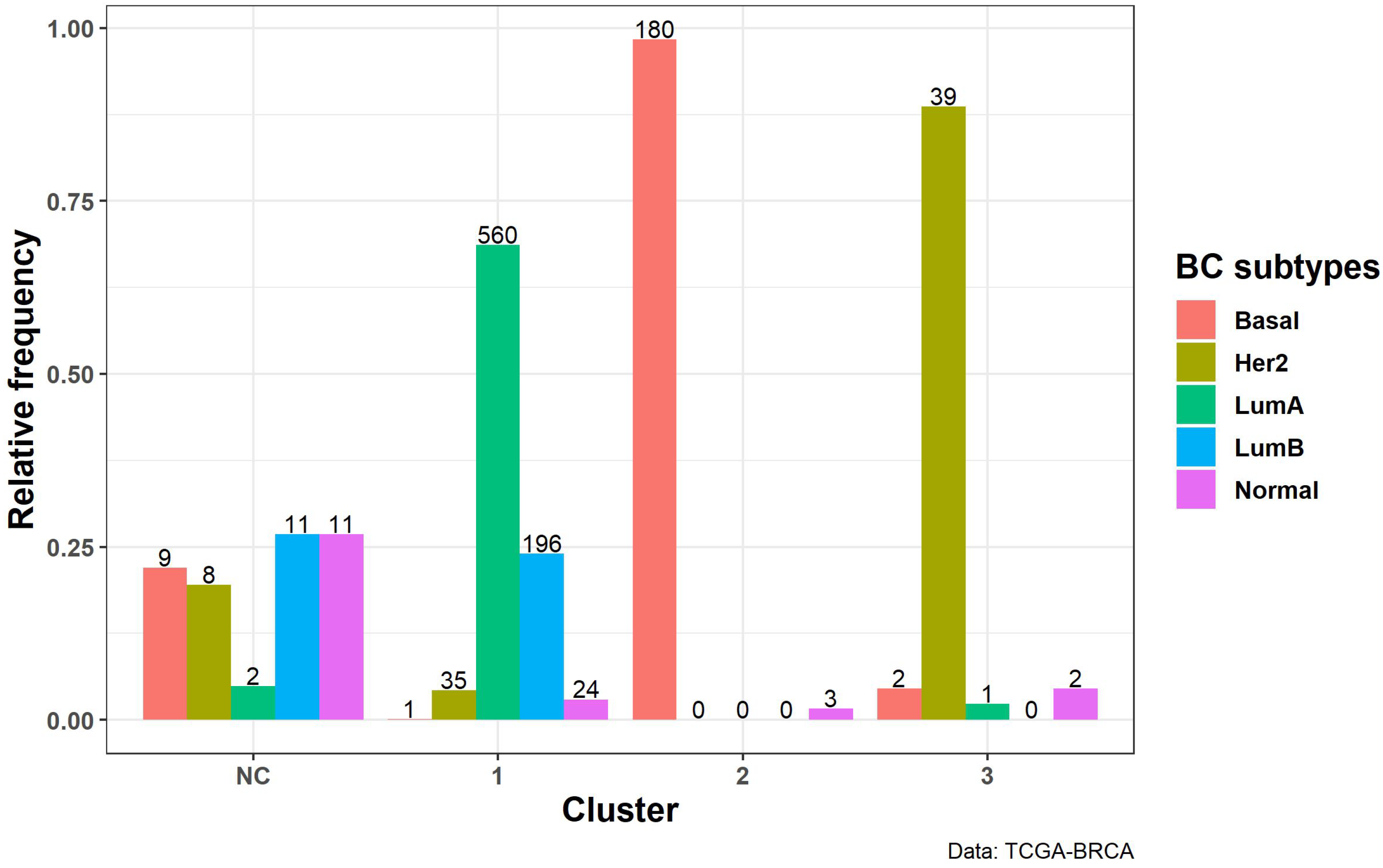

**Figure 6.**BC subtype distribution over estimated clusters. Relative (vertical axis) and absolute (top of the bars) frequency of BC subtypes within each cluster, identified on spherical UMAP embedding with NN $=65$. On the horizontal axis, we report the cluster labels. NC stands for Not Clusterable (see Methods section).

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Bollon, J.; Assale, M.; Cina, A.; Marangoni, S.; Calabrese, M.; Salvemini, C.B.; Christille, J.M.; Gustincich, S.; Cavalli, A.
Investigating How Reproducibility and Geometrical Representation in UMAP Dimensionality Reduction Impact the Stratification of Breast Cancer Tumors. *Appl. Sci.* **2022**, *12*, 4247.
https://doi.org/10.3390/app12094247

**AMA Style**

Bollon J, Assale M, Cina A, Marangoni S, Calabrese M, Salvemini CB, Christille JM, Gustincich S, Cavalli A.
Investigating How Reproducibility and Geometrical Representation in UMAP Dimensionality Reduction Impact the Stratification of Breast Cancer Tumors. *Applied Sciences*. 2022; 12(9):4247.
https://doi.org/10.3390/app12094247

**Chicago/Turabian Style**

Bollon, Jordy, Michela Assale, Andrea Cina, Stefano Marangoni, Matteo Calabrese, Chiara Beatrice Salvemini, Jean Marc Christille, Stefano Gustincich, and Andrea Cavalli.
2022. "Investigating How Reproducibility and Geometrical Representation in UMAP Dimensionality Reduction Impact the Stratification of Breast Cancer Tumors" *Applied Sciences* 12, no. 9: 4247.
https://doi.org/10.3390/app12094247
