Development, Performance, and Vehicle Applications of High Energy Density Electrochemical Capacitors

Abstract

This paper is concerned with the development and performance of high-energy density electrochemical supercapacitors (ECCs) and their application in HEVs, PHEVs, and HFCVs. Detailed test data are shown for the Skeleton Technology 5000 F carbon/carbon EDLC device and the Aowei 9000 F hybrid (4 V) supercapacitor (HSC). The EDLC device had an energy density of 8.4 Wh/kg and the hybrid SC had an energy density between 30 and 65, depending on its rated voltage and the power of the discharge. These energy densities are significantly higher than previous ECCs tested. They indicate that good progress is being made in increasing the energy density of commercial ECCs. Vehicle applications of the advanced ECCs were evaluated based on Advisor simulations on city and highway driving cycles. Simulations were made for six vehicle types ranging from compact passenger cars to Class 8 long haul trucks. The fuel economy was calculated for each vehicle type using a lithium battery, the EDLC Skeleton Technology capacitor and the two Aowei hybrid capacitors as energy storage in the powertrain. The 4.1 V hybrid capacitor in all cases was lighter and smaller than the lithium battery. The fuel economies of the HEVs on the FUDS cycle were significantly higher (30–50%) than that of the corresponding ICE vehicle, except for the long haul truck, for which the fuel economy improvement was 20%. In almost all cases, the fuel economy improvement was highest when using the 4.1 V hybrid capacitor. Simulations were also run for fuel cell-powered vehicles. For the fuel cell vehicles, the fuel economies using the three energy storage technologies varied only slightly. For all the fuel cell vehicles simulated, the 4.1 V hybrid capacitor was the lightest and smallest of the energy storage options, and produced the best fuel economy. As in the case of HEVs, the hybrid capacitors appeared to be the best option for energy storage in fuel cell vehicle applications.

1. Introduction

This paper is concerned with the development, performance, and application of high-energy density capacitors as energy storage devices in competition with batteries. It is a follow-on paper to one recently published by the authors in the Journal of Energy Storage [1]. As energy storage devices, capacitors have an inherent advantage over batteries in terms of cycle life and power capability, but in most cases they have much lower energy density and higher costs. The relative importance of the advantages and disadvantages depends on the application and the design and performance characteristics of the capacitors and batteries being compared. The capacitors of interest in this paper are electrochemical capacitors. The batteries of primary interest are nickel metal hydride (NMH) and lithium-ion (NMC and LTO). In this paper, the electrochemical capacitors (ECC) will be discussed in terms of their energy storage mechanism, electrode materials, and construction. Next, the present commercial status and projected future development of ECCs will be considered. In that section, recent test data taken at UC Davis on advanced ECCs will be presented. The last sections of the paper will include the consideration of ECCs and lithium batteries in several hybrid vehicle applications. In some cases, comparisons are made with using ECCs in place of batteries. These comparisons are made based on computer simulations.

2. Energy Storage, Materials, and Construction of Electrochemical Capacitors

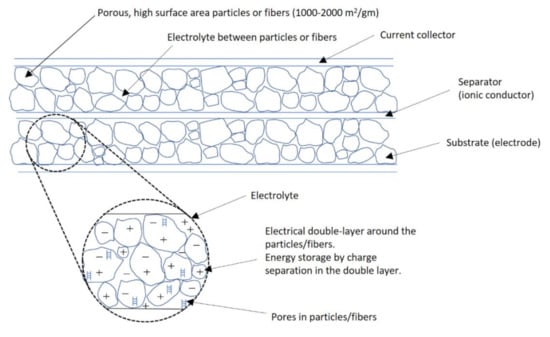

Electrochemical capacitors (ECC) are devices that store electrical energy [2] by capacitive (charge separation) mechanisms and require electrochemical phenomena to function. As shown in Figure 1, the charge is stored in the nanopores of a microporous material that form the electrodes of the device. The construction of the electrochemical capacitor is similar to that of a battery, but they use different materials in the electrodes.

Most of the electrochemical capacitors commercially available use microporous activated carbon in both electrodes, and are termed electric double-layer capacitors (EDLCs). These devices are considered ideal ECCs in that by storing the electrical charge in the double layer, they can attain very high power capability (>5 kW/kg) and extremely long cycle life (>1 million deep discharge cycles). However, at present, EDLCs have energy densities of only 3–5 Wh/kg. This low energy density limits the applications for which the EDLCs can compete with batteries. Recent research [1,3,4] on EECs has focused on significantly improving their energy density. This can be done by increasing the specific capacitance (F/g) of the electrode materials and the rated (maximum) voltage of the cell for both EDLCs and other types of electrochemical capacitors.

Based on the weight of the active material in the electrodes, the energy density of an EDLC is given by:

(Wh/kg)_act.mat. = 1/8 (F/g) (V_r² − V_min²)/3.6

(1)

The resistance R of any EEC is difficult to calculate as it depends on the ionic conductivity of the electrolyte, the thickness and porosity of the electrodes, the electronic conductivity of the carbon and the contact resistance between the carbon particles and the current collector. The maximum power from a ECC can be calculated from V_r²/4R, and its pulse power capability (W/kg) can be calculated [2] using:

Pulse power (W) = 9/16 (1 − η_eff) V_r^2/R

(2)

(W/kg)_pulse = 3/2 (1 − η_eff)(Wh/kg/RC) (3600)

(3)

where RC is the time constant of the SC and η_eff is the efficiency of the pulse.

The pulse power capability is proportional to the energy density and RC of the device. Many researchers use V_r²/4R to rate the power capability of their devices, but the pulse power capability is a more realistic estimate for most applications. In many cases, an efficiency of 95% is used to calculate the power capability. Both capacitance and resistance can be determined from charge/discharge tests of devices.

Hybrid supercapacitors (HSC) are being developed [1,2,3,4] to increase the energy density. As shown in Figure 2, “hybrid” indicates that one of the electrodes is like those in an EDLC, and one is like an electrode in a battery.

The energy stored in an HSC is dominated by the voltage of the battery-like electrode and the capacitance of the carbon electrode [1,2].

E_{HSC,act mat} = ½ (F/g)_carb W_carb [V_max² − (V_max − ∆V_carb)²] where ∆V_carb = V_max/2

(4)

E_{HSC,act mat} = 3/8 (F/g)_carb W_carb V_max²

(5)

The energy density of the HSC will be higher than that of EDLC devices using the same carbons and electrolyte, because the cell voltage will be higher and the carbon is used more efficiently. The resistance R of the HSC tends to be significantly higher than that of the EDLC because of the resistance of the battery-like electrode. As a result, the RC time constant of HSCs is higher, and the power density is lower than EDLCs. The same formula can be used to calculate the pulse power capacity of both HSCs and EDLCs.

The maximum voltage of the supercapacitors (SCs; ECC or HSC) is dependent primarily on the electrolyte used. The ionic conductivity of the electrolyte is an important factor in determining the resistance of the supercapacitors. The characteristics [5,6,7] of electrolytes that can be used in SCs are shown in

Table 1. The characteristics of various electrolytes used in supercapacitors.

Electrolyte	Diameter of Molecule (Å)	Density (g/cm3)	Ionic Conductivity (mS/cm)	Max Operating Voltage (V)
Aqueous
KOH	1.8	1.29	540	1
KCL	1.8	1.09	210	1
H2SO4	2.9	1.2	750	1
Na2SO4	2.9	1.13	91	1.2−1.5
Li2SO4	2.9	1.2	75	1.5−2.0
LiNO3	2.6	1.2	150	1.5−2.0
Organic
TEABF4/PC	4−5	1.2	15	2.5−3
TEABF4/CAN	4−5	0.78	60	2.5−3
Ionic liquids
Imidazolium/[EMIM]+[BF4]−	5−6	1.3−1.5	8 (25 C)	4.3
Tetraalkylammonium [nPrMe3N]+ [N(CF3SO2)2]−	5−6	1.3−1.5	1.4 (25 C)	5.3
Pyridinium/[BuPyr]+ [BF4]−	4−5	1.3−1.5	1.9 (25 C)	3.4
Piperidinium/[MePrPip]+ [N(CF3SO2)2]−	4−5	1.3−1.5	1.5	5.6

.

Most commercial SCs use organic electrolytes because, even for EDLCs, the rated voltages can be 2.5–3 V rather than 1–1.5 V for aqueous electrolytes. The higher rated voltages result in a much higher energy density than for devices using aqueous electrolytes. Aqueous electrolytes have much higher ionic conductivity than organic electrolytes, resulting in lower resistances in devices using aqueous electrolytes. Ionic liquid electrolytes (4–5 V) have much lower ionic conductivity than organic electrolytes, and for that reason ionic liquids have been used to a very limited extent in SCs, except for in high-temperature applications, even though they permit the design of devices with significantly higher rated voltages.

3. Status and Future Development of Electrochemical Capacitors

3.1. Present Performance of Supercapacitors

A summary of the characteristics of electrochemical capacitors that have been tested at UC Davis is given in

Table 2. Summary of the characteristics of available electrochemical capacitors.

Device	V Rate	C (F)	R (mOhm) c	RC (s)	Wh/kg a	W/kg (95%) b	W/kg Match.Imped d	Weight (kg)	Vol. (L)
EDLCs
Maxwell	2.7	2885	0.375	1.1	4.2	994	8836	0.55	0.414
Ioxus	2.85	3095	0.33	1.0	5.0	1355	12,065	0.51	0.41
Skeleton Tech.	2.85	3450	0.13	0.45	5.4	3353	29,809	0.52	0.39
Skeleton Tech.	3.4	3200	0.48	1.5	8.9	1730	15,400	0.40	0.096
Skeleton Tech.	3.0	3320	0.25	0.83	5.6	1878	17,310	0.54	0.39
Skeleton Tech.	3.0	1900	0.52	0.98	4.9	1430	13,520	0.34	0.22
Skeleton Tech.	2.85	4100	0.22	0.90	6.3	1956	19,230	0.53	0.39
Skeleton Tech	3.0	5000	0.25	1.25	8.4	1783	15,845	0.568	0.39
Yunasko *	2.75	1275	0.11	0.13	4.55	8791	78,125	0.22	0.15
DAE-China	2.7	1668	0.6	1.0	6.2	1734	15,420	0.197	0.15
DAE-China	2.7	990	1.8	1.78	4.9	801	6935	0.146	0.11
DAE-China	2.7	412	3.7	1.52	4.1	791	7037	0.07	0.054
NessMaxwell	3.0	3650	0.27	0.98	6.5	1875	16,666	0.50	0.394
Ness	2.7	3160	0.4	1.3	4.4	982	8728	0.522	0.379
Hybrid SC
Aowei-China	3.8	10,000	2.0	20	40	1142	9162	0.197	0.14
Aowei-China	4.1	10,000	2.0	20	65	1142	9162	0.197	0.14
DAE-China	3.8	850	4.5	3.8	12.4	993	8828	0.087	0.062
Yunasko	2.7	7200	1.4	10	26	1230	10,947	0.119	0.065
Yunasko	2.7	3200	1.5	7.8	30	3395	30,200	0.068	0.038
JSR Micro	3.8	2300	0.77	1.77	7.6	1366	12,200	0.387	0.214
JSR Micro	3.8	1100	1.15	1.26	10	2450	21,880	0.144	0.077

^a Energy content at 400 W/kg constant power, Vrated–1/2 Vrated; ^b Power based on P = 9/16 × (1 − EF) × V_o²/R, EF = efficiency of discharge; ^c Steady-state resistance including pore resistance; ^d Matched impedance power based on P = V_oc²/4R_DC; All devices except those with * are packaged in metal/plastic containers.

. Both EDLC and hybrid HSC have been tested. The EDLC devices using activated carbon have rated voltages of 2.7–3.0 V and energy densities of 5–6 Wh/kg. EDLCs that use composites of carbon and graphene have energy densities of 8–9 Wh/kg. The power capability (W/kg)_95% of most EDLCs is between 1000 and 2000, but there are devices with much higher power (>3000 W/kg). The RC time constants of most EDLCs are between 1 and 2 s, but high-power devices have time constants of <0.5 s. It is generally accepted that EDLCs using activated carbon have cycle lives of 500, 000 to 1 million deep discharge cycles at reasonable temperature (<35 °C).

Hybrid supercapacitors (HSC) have also been tested at UC Davis, as shown in Table 2. The energy densities of the hybrid supercapacitors are significantly higher than those of the EDLCs, varying from 10 to 60 Wh/kg. The rated voltage of most of the HSCs is 3.8–4.0 V. Most of the available HSCs use lithiated graphite in the negative electrode and activated carbon in the positive electrode. Yunasko uses a mixture of carbon and a metal oxide in both electrodes. Aowei-China has not disclosed the chemistry of their devices [8]. The power capability of the HSCs seems to be about the same as that of the EDLC devices, even though their RC time constants are much higher. Both JRS Micro and Aowei-China claim the cycle lives of their devices are comparable to those of EDLC devices. That is unexpected, and has not been confirmed by third parties. As shown by the linear V vs. t discharge profile in Figure 3, the Aowei cells show typical hybrid supercapacitor discharge behavior that is very different from batteries.

3.2. Test Data for Advanced Electrochemical Capacitors

The Skeleton 5000 F EDLC and the Aowei-China 9000 F HSC have been tested at UC Davis. They are both advanced devices and are the best of their type in terms of energy density. The testing was done following the procedures described in [9,10]. The test data for the devices are given in

Table 3. Tests of the 5000 F Skeleton carbon/graphene supercapacitor.

Constant Current Tests
Current A	Time s	A s	C F	mOhm
60	126.3	7578	5056
100	74.3	7430	5061	0.25
200	37.1	7420	5080	0.15
300	23.7	7110	5042	0.25
Constant Power Tests
Power W	W/kg	Time s	Wh	Wh/kg
80	140	215	4.77	8.4
150	264	113	4.71	8.29
300	528	55	4.58	8.06
400	704	40	4,44	7.82

RC = 1.26 s, (W/kg)_95% = 1783; Charge/discharge 3 V–1.5 V, Charge 150 A, hold 60 s, Weight 0.568 kg, Volume 0.39 L.

and

Table 4. Test data for the Aowei 9000 F supercapacitor.

Constant Current Tests
Test Conditions	Discharge Time s	Capac. F	Resistance mOhms	Wh	Wh/kg
3.8–2.8 V charge 100 A *
50 A	186	10,333	2.0	8.4	42
100 A	84	10,500	2.0	7.5	37.5
150 A	51	10,520	1.87	6.7	33.5
200 A	32	10,226	1.9	5.5	27.5
4.05–2.5 V charge 50 A **
50 A	240	8955	4.2	14.7	73.5
100 A	138	10,615	2.5	12.3	61.5
150 A	91	10,748	1.93	11.9	59.5
200 A	64	11,034	1.95	11.0	55.0
Constant Power test Data for the Aowei 9000 F Supercapacitor
Test Conditions	Discharge Time s	W/kg	Wh	Wh/kg	Ceff
3.8–2.8 V charge 50 A
100 W	312	500	8.67	44	9455
200 W	140	1000	7.78	39.5	8485
300 W	84	1500	7.0	35.5	7636
400 W	57	2000	6.33	32.1	6909
500 W	40	2500	5.55	28.2	6061
4.05–2.5 V charge 50 A *
100 W	491/449	500	13.6/12.47	69/63.3	9665
200 W	232/205	1000	12.89/11.39	65.4/57.8	9143
300 W	139/123	1500	11.58/10.25	58.8/52.0	8209
400 W	missing	2000	----	---	----
500 W	76/63	2500	10.56/8.75	53.6/44.4	7480

Cell weight 197 g, RC = 20 s, (W/kg)_95% = 1142; Resistance of cell measured using an impedance meter 1.15–1.25 mOhms; * 50 A charge was applied with a 120 s hold at charge cutoff voltage; ** 100 A charge was applied with a 60 s hold at charge cutoff voltage; Discharge cutoff voltage 2.5/2.8.

. In both cases, the test data obtained at UC Davis agreed well with those claimed by the manufacturer of the devices. The test results of each of the devices will be used in Section 4 to model the performance of advanced SC in simulations for various vehicle applications. It can be anticipated that other companies than SkeletonTechnologies and Aowei-China will produce advanced ECC and HSC devices in the near future. This is especially true of the HSC devices.

3.3. Projections of the Future Development of Advanced Supercapacitors

A method of analysis was developed in [1] to project the performance of ECCs using advanced materials in terms of their energy and power characteristics. The method was implemented using Excel and applied to symmetric and asymmetric devices (EDLCs and hybrid HSC) using advanced carbons, metal oxides and polymer composites in the electrodes. The inputs for the calculations are based on available test data from the literature, which are summarized in [9,10]. The ECCs analyzed are unpackaged devices, but all other weights and volumes are considered. The resistances do not include interface and micro-pore resistances, but all others are included. The electrode material and electrolyte characteristics for each of the advanced ECs analyzed and the results of the performance calculations are shown in

Table 5. Projected supercapacitor performance for various cell material designs.

Supercap Type/Design
EDLC  Symmetric  Carbon/carbon	Electrode Chemistry  Electrolyte	V	(Wh/kg)act  (Wh/kg)cell	(Wh/L)cell	(W/kg)cell  95% eff.	(kW/kg)act  Mat.imped.	Ohm-cm	RC s
Activated Carbon  Aqueous H2SO4	150 F/g  1.3 Ohm-cm	1–0.5	3.9  0.9	1.9	4249	166.6	0.14	0.06
Activated Carbon  Aqueous Li2SO4	200 F/g  11 Ohm-cm	1.6–0.8	13.3  2.21	4.8	706	37.7	1.2	0.84
Activated Carbon  Organic ACN	80 F/g  18 Ohm-cm	3–1.5	18.75  6.97	9.64	2171	51.9	2.4	0.87
Nano-carbon  Organic ACN	210 F/g  18 Ohm-cm	3–1.5	49.2  16.9	21.0	5353	138.0	1.1	0.86
3D Carbon  Ionic liquid	300 F/g  116 Ohm-cm	4.1–2	175  38.5	46.7	1855	75.1	7.8	4.2
3D Carbon  Organic ACN	300 F/g  18 Ohm-cm	3–1.5	70.3  20.6	39.1	1950	59.2	2.5	2.8
Hybrid SC Asym Graphite/Carbon
Active Carbon Lithiate Graphite  Organic ACN	80 F/g  370 mAh/g  18 Ohm-cm	4–2	96.8  35.6	55.1	6851	165.5	1.5	1.4
3D Carbon  LTO Carbon  Organic ACH	300 F/g  150 mAH/g  18 Ohm-cm	3–1.5	155.7  60.8	100.4	3962	90.3	1.5	4.2
3D Carbon  LI GRph with Sic  Ionic liquid	300 F/g  600 mAh/g  116 Ohm-cm	4.1–2	356  74.1	157.8	4079	174.2	3.5	4.7
Hybrid SC Asym Metal Oxide/Carbon
Carbon CuO   Nano-graphene  Aqueous KOH	950 F/g  200 F/g  2 Ohm-cm	1.6–0.8	26.5  12.2	30.1	2600	50.11	0.35	0.82
Carbon MgO  Nano-graphene  Aqueous KOH	300 F/g  210 F/g  2 Ohm-cm	1.6–0.8	13.8  6.2	18.5	4171	82.6	0.26	0.26
Carbon CuO  3D Carbon  Ionic Liquid	950 F/g  300 F/g  116 ohm-cm	4–2	271  83.4	316	1086	31.4	1.5	1.42
Hybrid SC Asymmetric Polymers
P doped pMet Comp  N doped pMet comp  Organic PC	240 F/g  180 F/g  65 ohm-cm	3–1.5	65  24.1	44.6	2102	50.4	4.5	3.8
P doped pMet comp  Active Carbon  Organic PC	240 F/g  120 F/g  65 Ohm-cm	3–1.5	54.1  21.8	40.9	1009	22.2	0.8	1.8
Carbon	800 F/g  180 F/gm  12 Ohm-cm	1.6–0.8	53.4  15.3	29.4	1557	48.3	0.8	1.8
P doped pMet comp  3D Nano-carbon Ionic Liquid	900 F/g  300 F/g  116 ohm-cm	4–2	354  58.7	110.8	1866	100.1	3.6	1.88

. The results for the performance of the devices are given in terms of both the weight of the active material in the cell and the total weight of the cell. The characteristics of small laboratory cells described in the literature are in most cases given in terms of the weight of the active material in the electrodes, which significantly overestimates the energy density and power capability potential of cells fabricated using the materials being studied. However, the present projections of the performance (Wh/kg, Wh/L, and (W/kg)_95%) of the cells shown in Table 5 indicate that the future development of ECCs should yield devices with large improvements in performance. Key to the improvements in both EDLCs and hybrid supercapacitors will be the development of nano-carbons and graphene materials with high specific capacitance (>200 F/g) in organic and ionic liquid electrolytes with ionic conductivity greater than 10 mS/cm.

4. Vehicle Applications of Supercapacitors

In this section of the paper, applications of supercapacitors are evaluated based on Advisor [11] simulations of hybrid-electric vehicles, from compact passenger cars to long haul trucks. Special attention is given to the use of the advanced ECCs discussed in the previous sections. The fuel economy of vehicles utilizing hybrid-electric (HEV), plug-in hybrid (PHEV), and hydrogen fuel cell (FCV) powertrains are analyzed using lithium batteries and EECs in place of the batteries. The supercapacitors can be used alone in the HEV and FCV powertrains and in combination with lithium batteries in the PHEVs.

4.1. Hybrid-Electric Vehicles (HEVs)

The application of supercapacitors in hybrid-electric passenger cars has been studied at the University of California, Davis in the past [12,13,14,15,16]. A summary of Advisor simulation results for a mid-size passenger car taken from [12] is shown in

Table 6. Mild and Micro-HEV Advisor simulation results using various supercapacitors [12].

Energy Storage System	Weight of the Ultracaps. (kg) *	Energy Stored	mpg FUDS	mpg FEDHW	mpg US06
Mild HEV 20 kW motor
Yunasko hybrid	12 6	300 Wh 150 Wh	47.4 45.3	46.5 46.0	32.2 31.6
JM Energy hybrid	11	100 Wh	47.8	47.2	31.9
Yunasko C/C Maxwell C/C	22 28	100 Wh 100 Wh	46.0 47.2	46.4 47.5	31.6 32.2
Skeleton 2014 C/C 3200F	13	115	47.8	47.0	31.9
High power LiTiO battery	14	1120	40.6	40.3	30.5
ICE Ford Focus engine 120 kW			25.5	36.8	26.8
Fuel economy improvement			80%	27%	19%
Micro start stop HEV	Supercap with a lead-acid battery, 4 kW electric motor
Yunasko hybrid	5 kg 3 kg	150 Wh 75 Wh	32.4 32.1	41.4 41.2	28.9 28.5
Yunasko C/C	11 kg	50 Wh	32.2	41.2	28.6
Maxwell C/C	12 kg	50 Wh	32.3	41.3	28.3
Skeleton C/C 3200F	5	50 Wh	33.1	40.2	28.0
Fuel economy improvement			26%	12%	7%

Mid-size passenger car: weight 1660 kg, C_d 0.3, A_f 2.2 m2, fr 0.009; * Weight of cells only without packaging in a pack.

. These results indicate that large improvements in fuel economy in city driving can be expected in both mild and micro-hybrids with supercapacitors that store relatively small quantities of energy (less than 200 Wh). In most cases, the capacitors used in the previous simulations were of the carbon/carbon EDLC type, having energy densities of 4–5 Wh/kg (see Table 2). The electric motors were small (4 and 20 kW). The IC gasoline engines used were not as efficient as expected in future engines, so the baseline fuel economy of the reference mid-size car was relatively low (25–36 mpg). It is of interest to evaluate the use of the advanced supercapacitors in HEVs for a wide range of car, SUV, and truck types with more advanced gasoline and diesel engines. This was done in the present study.

Advisor HEV simulations were run in this study for compact and mid-size cars, small and large SUVs, a delivery van, and Class 7 Box and Class 8 long haul trucks. For each vehicle type, a simulation was performed for a lithium battery, an EDLC Skeleton Tech capacitor, and the two Aowei hybrid capacitors. The characteristics of the energy storage devices used in the vehicle simulations are summarized in

Table 7. Characteristics of the energy storage device used in the simulations.

Storage Technology	Voltage Vr	Energy Density Wh/kg	Density Kg/L	Power Capacity (W/kg)95%
NCM lithium battery	4.2	161	2.5	485
EDLC capacitor Skeleton	3.0	8.2	1.4	1783
Aowei hybrid capacitor 3.8 V	3.8	40	1.4	1142
Aowei hybrid capacitor 4.1 V	4.1	65	1.4	2284 (1/2R)

. The characteristics shown for each energy storage device are based on testing those devices at UC Davis. In the case of the ECCs, the characteristics are based on those shown in Table 2. As indicated in Table 7, the resistance of the Aowei 4.1 V device was reduced to half the measured value. In the case of the lithium battery, the characteristics are based on test data for NMC cells. NMC cells are available with higher power (lower resistance) but lower energy density than those values shown in Table 7.

The energy storage device in each simulation was sized (Wh) such that the simulation showed a round-trip efficiency of close to 90% on the city and highway driving cycles. A high round-trip efficiency is needed to achieve close to the maximum improvement in fuel economy by hybridizing the vehicle powertrain. The HD trucks were run on the HHDDT-transient and cruise driving cycles, and the other vehicle types were run on the FUDS and Fed-highway cycles. The maximum power of the electric motor in the powertrain was varied from 30 kW for the compact car to 200 kW for the long haul truck. The general control strategy [13,14] for the HEV powertrain is that the electric motor provides the power demanded alone when possible, and when the SOC of the energy storage device permits. When that is not possible, the engine provides the power demanded by the vehicle and recharges the energy storage device. This strategy results in the engine operating at high efficiency nearly all the time. The engine maps used in the simulations assumed maximum engine efficiencies of 38% for gasoline engines and 44% for diesel engines.

The results of the simulations for each of the vehicles are shown in

Table 8. Summary of the Advisor HEV simulation results and key inputs.

	kg	L	Wh	EM kW	Mpg * FUDS	Mpg ** Highway	Efficiency %
Compact car
ICE gasoline					42.5	53.7
Lithium battery	16	6.4	2600	30	52.3 (23)	50.6	88
EDLC Skeleton	25	17.9	205		58.7 (38)	58.2 (5)	95
Aowei 3.8 V	11	7.9	440		56.2	56.8	90
Aowei 4.1 V	8	5.7	520		56.8 (34)	58.6 (9.1)	89
Mid-size car
ICE gasoline					34.7	46
Lithium battery	28	11.2	4508	40	49 (41)	47 (2.2)	89
EDLC Skeleton	34	24.3	279		54.8 (58)	47.5 (3.2)	95
Aowei 3.8 V	18	12.9	720		52.9	48.2	90
Aowei 4.1 V	12	8.6	780		54.9 (58)	48.8 (6.1)	94 (1/2R)
Small SUV				40
ICE gasoline					35.3	44.7
Lithium battery	25	10	4025		51 (45)	43.3	87
EDLC Skeleton	34	24.2	279		53.2 (51)	46 (2.8)	95
Aowei 3.8 V	13	9.3	520		52.5	44.8	89
Aowei 4.1 V	10	7.1	650		54.1 (53)	46.5 (4.0)	93 (1/2R)
Large SUV
ICE gasoline					17.9	25.5
Lithium battery	37	14.8	5957	60	26 (45)	22	88
EDLC Skeleton	56	40	459		30.3 (69)	23.9	95
Aowei 3.8 V	22	15.7	880		30	22.8	91
Aowei 4.1 V	15	10.7	975		32 (79)	23.4	94 (1/2R)
Delivery van
ICE diesel					12.8	12.7
Lithium battery	53	21.2	8533	100	15.6 (22)	13.2 (3.9)	85
EDLC Skeleton	43	30.7	353		19 (48)	16.6	93
Aowei 3.8 V	35	25	1400		18.4	15.9	87
Aowei 4.1 V	25	17.9	1625		18.3 (43)	16.6	92 (1/2R)
Class 7 box trk
ICE diesel					6	9.9	85
Lithium battery	98	39.2	15,778	200	9.9 (65)	9.0	85
EDLC Skeleton	85	60.7	697		9.0 (50)	10.1 (2)	93
Aowei 3.8 V	50	35.7	2000		9.2	9.4	87
Aowei 4.1 V	30	21.4	1950		9.2 (53)	10.0 (11)	92 (1/2R)
Long haul truck
ICE Diesel					4.0	6.9
Lithium battery	135	54	21,735	250	4.9 (23)	6.6	84
EDLC Skeleton	114	81.4	935		4.8 (20)	7.3 (5.8)	93
Aowei 3.8 V	74	52.9	2960		5.0	7.1	88
Aowei 4.1 V	44	40	2860		4.8 (20)	7.2 (4.4)	90 (1/2 R)

* All city driving cycles are FUDS except for HD trucks, which are HHDDT-transient. ** All highway cycles are FED-HW except for HD trucks, which are HHDDT-cruise.

. City and highway fuel economy results are shown in the table for each vehicle type and energy storage device. Advisor output graphics for several HEVs are shown in Figure 4, comparing the results for the operation of the vehicle with the lithium battery and the 4.1 V supercapacitor on the FUDS cycle. The energy storage units were sized such that their round-trip efficiency on the simulated driving cycles were close to 90%. For all vehicle types, the weight and volume of the capacitors decreased in the expected order: EDLC, hybrid 3.8 V, hybrid 4.1 V. The 4.1 V hybrid capacitor in all cases was lighter and smaller than the lithium battery, and its energy storage capacity was lower by a factor of 5–6. The fuel economies of the HEVs on the FUDS cycle were significantly higher (30–50%) than that of the corresponding ICE vehicle, except for the long haul truck, for which the fuel economy improvement was 20%. The effect of hybridizing on fuel economy on the highway cycles was small, being at most 10%, but it was much less in most cases. The effect on the highway fuel economy of the long haul truck was 4–6%. In almost all cases, the fuel economy improvement was highest when using the 4.1 V hybrid capacitor.

Supercapacitors have not been used in the past in hybrid vehicles both because their energy density has been too low and their cost much too high. The development of the HSC devices has mitigated the energy density problem, and it is interesting to consider the cost issue by estimating the cost of the 4.1 V hybrid capacitor. This can be done using the simple relationship [1]

USD/Wh = USD/kg/Wh/kg

(6)

using as a baseline capacitor a 2.7 V 3000 F carbon/carbon EDLC having an energy density of 4.5 Wh/kg and selling for 0.25 cents/F, with Wh = 2.28, wt. 0.55 kg, cost USD 7.5, USD 13.6/kg and USD/Wh 3.29. If the energy density of the hybrid capacitor is 65 Wh/kg and its USD/kg is the same as the baseline EDLC, the USD/Wh of the hybrid capacitor would be 13.6/65 = 0.210 or USD 210/kWh. Since the 4.1 V hybrid capacitor stores less energy by a factor of 5–6, the cost of the capacitor would be less than that of the lithium battery in the various HEVs. This result indicates that cost may not be an issue in using HSC devices in HEVs in the future.

The simulation results shown in Table 8 indicate that the use of ECCs results in fuel economy improvements in most cases greater than with lithium batteries. There has not been a lot of published data on the fuel economy of vehicles using ECCs for energy storage. However, the test results given in [17,18,19] from NREL show that there is every reason to believe that ECCs will function very well in place of batteries in HEVs. In the NREL program, the nickel metal hydride battery in an HEV Saturn Vue was replaced by JSR Micro HSC (see Table 2). In-vehicle testing showed that the fuel economy of the vehicle with supercapacitors (180 Wh) was in all tests at least as high as that with the batteries. The laboratory bench testing of HEV energy storage systems at NREL also showed that the supercapacitors functioned as projected in the simulations.

4.2. Plug-in Hybrid Vehicles (PHEVs)

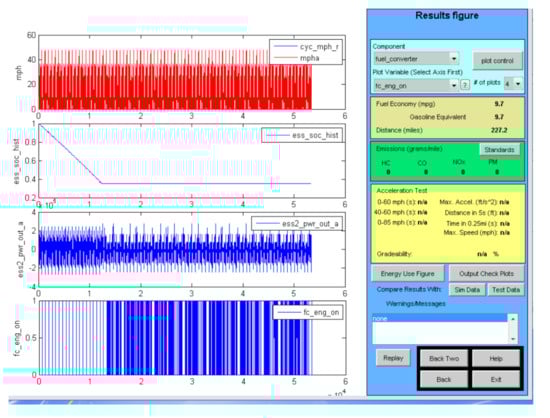

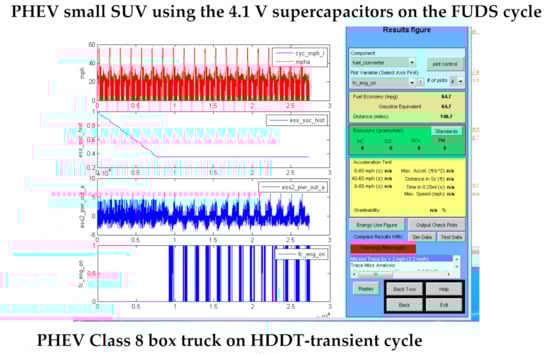

Advisor simulations were also run for PHEVs using supercapacitors. The PHEVs operate as an EV until the main storage battery is depleted, and as an HEV for further driving. The PHEVs simulated were set up with a supercapacitor to assist the main storage battery during periods of high power demand, and then to operate independently of the battery in the HEV mode. Hence the PHEV fuel economy in the HEV mode would be essentially that shown in Table 8 for each type of vehicle. The use of the supercapacitor to assist the main storage battery will permit it to be optimized for energy density rather than power. As shown in [15,16], this will reduce the size and cost of the main battery and extend its cycle life. Advisor output graphics of PHEVs operating in the EV and HEV modes are shown in Figure 5 for a small SUV and a Class 8 box truck.

4.3. Fuel Cell Vehicles (FCV) Using Supercapacitors

Fuel cell vehicles are hybrid-electric vehicles using a battery to assist the fuel cell during periods of high-power demand and to recovery energy during vehicle braking. As in HEVs, supercapacitors can replace the power battery. The supercapacitors are more efficient than the battery, especially during regenerative braking in large vehicles. Advisor simulations using fuel cells [20,21] were run for some of the same vehicles as were evaluated under the HEVs category. The fuel cell efficiency used in the simulations was 60%. The results of the simulations are shown in

Table 9. Summary of the Advisor fuel cell simulation results and key inputs.

	kg	L	Wh	EM kW	Mpg * FUDS	Mpg * Highway	Efficiency %
Mid-size car
ICE gasoline					34.7	46
Lithium battery	28	11.2	4508	160	107	95.9	91
EDLC Skeleton	34	24.3	279		113.5	96.9	97
Aowei 3.8 V	18	12.9	720		108.3	95.7	94
Aowei 4.1 V	12	8.6	780		109.9	95	95 (1/2R)
small SUV
ICE gasoline					35.3	44.7
Lithium battery	25	10	4025	160	85.2	77.3	87
EDLC Skeleton	34	24	279		95.3	77.9	97
Aowei 3.8 V	13	9.3	520		90.6	76.5	93
Aowei 4.1 V	10	7.1	650		92.5	77.3	95 (1/2R)
Delivery van
ICE diesel					12.8	12.7
Lithium battery	53	21.2	8533	200	27.9	22.5	86
EDLC Skeleton	43	30.7	353		29.4	22.6	94
Aowei 3.8 V	35	25	1400		28.5	22.6	991
Aowei 4.1 V	25	17.9	1625		28.7	22.6	94 (1/2R)
Long haul truck
ICE Diesel					4.0	6.9
Lithium battery	169	68	21,735	350	6.4	10.5	85
EDLC Skeleton	135	96	935		6.7	10.5	97
Aowei 3.8 V	86	61	2960		6.5	10.5	94
Aowei 4.1 V	52	37	2860		6.6	10.5	93 (1/2 R)

* Fuel cell efficiency 60%.

. In general, the vehicles using supercapacitors had slightly higher equivalent fuel economy than the corresponding vehicle using a battery. As found in [20,21], the effect of hybridization on fuel consumption using fuel cells is smaller than in vehicles using engines. Note from Table 9 that the advanced Aowei supercapacitors are also smaller and lighter than the lithium battery they can replace. The advantage of the supercapacitors in terms of increasing the fuel economy decreases for larger vehicles that require higher power from the fuel cell. However, in larger vehicles, the advantage in size of the supercapacitor compared to the battery is greater. To a good approximation, the hydrogen consumption is

kgH2/mi = 1/mpgG equivalent

(7)

Advisor output graphics are shown in Figure 6 for several types of vehicles using fuel cells.

As was the case with hybrid vehicles using engines, there has been very little published data on the use of supercapacitors in fuel cell vehicles in recent years. Both Honda and Hyundai used supercapacitors in their early development of fuel cell vehicles [22,23], but both switched to lithium batteries in their later developments. However, there have been many analyses performed on fuel cell systems that show supercapacitors will function well in fuel cell systems [24,25]. In addition, there have been many laboratory studies of supercapacitors with fuel cells that show that supercapacitors and fuel cells are very compatible [26,27]. Hence, with the large increase in the energy density, and the related expected large reduction in cost (USD/kWh), of supercapacitors, they should be seriously considered for fuel cell hybrid vehicle applications.

5. Summary and Conclusions

This paper is concerned with the development and performance of high-energy density electrochemical supercapacitors (ECCs) and their application in HEVs, PHEVs, and HFCVs. Detailed test data are shown for the Skeleton Technology 5000 F carbon/carbon EDLC device and the Aowei 9000 F hybrid (4 V) supercapacitor (SC). The EDLC device had an energy density of 8.4 Wh/kg, and the hybrid SC had an energy density between 30 and 65, depending on its rated voltage and the power of the discharge. These energy densities are significantly higher than previous electrochemical capacitors tested. They indicate that progress is being made in increasing the energy density of commercial ECCs. Further progress is expected as the advanced electrode materials being studied in the laboratory, which have high specific capacitance (F/g), begin to be used in commercial products. It is important that the high-energy density capacitors have a high power capability, which will be the case if EDLC devices have an RC time constant less than 1 s and the hybrid devices have an RC time constant less than 3–5 s.

Vehicle applications of the advanced EECs were evaluated based on Advisor simulations on city and highway driving cycles. Simulations were made for six vehicle types ranging from compact passenger cars to Class 8 long haul trucks. The fuel economy was calculated for each vehicle type using a lithium battery, the EDLC Skeleton Technology capacitor and the two Aowei hybrid capacitors as energy storage in the powertrain. The energy storage units were sized such that their round-trip efficiencies on the simulated driving cycles were close to 90%. For all vehicle types, the weight and volume of the capacitors decreased in the expected order; EDLC, hybrid 3.8 V, hybrid 4.1 V. The 4.1 V hybrid capacitor in all cases was lighter and smaller than the lithium battery. The fuel economies of the HEVs on the FUDS cycle were significantly higher (30–50%) than that of the corresponding ICE vehicle, except for the long haul truck, for which the fuel economy improvement was 20%. The effect of hybridizing on fuel economy on the highway cycles was small, at most 10%, but it was much less in most cases. The effect on the highway fuel economy of the long haul truck was 4–6%. In most cases, the fuel economy improvement was highest when using the 4.1 V hybrid capacitor. The estimated cost of the 4.1 V hybrid capacitor was USD 210/kWh. Hence, since the capacitor stores less energy than the battery by a factor of 5–6, its cost will be less than that of the battery.

Simulations were also run for fuel cell-powered vehicles using the same lithium battery and capacitors for energy storage to assist the fuel cell. The fuel consumption of the fuel cell vehicles is given in terms of equivalent gasoline consumption, which translates to (1/mi/gal) kgH2/mi. For the fuel cell vehicles, the fuel economies using the three energy storage technologies varied only slightly. For all the fuel cell vehicles simulated, the 4.1 V hybrid capacitor was the lightest and smallest of the energy storage options, and produced the best fuel economy. As in the case of HEVs, the hybrid capacitors appeared to be the best option for energy storage in vehicle applications.
