Vapor-Phase Incorporation of Ge in CZTSe Absorbers for Improved Stability of High-Efficiency Kesterite Solar Cells

Institute of Physics—Ultrafast Nanoscale Dynamics (UND), Carl von Ossietzky University of Oldenburg, D-26129 Oldenburg, Germany
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Appl. Sci. 2022, 12(3), 1376;
Submission received: 1 December 2021 / Revised: 17 January 2022 / Accepted: 21 January 2022 / Published: 27 January 2022



Featured Application

Controlled incorporation of Ge in kesterites via vapor phase source.


We report an approach to incorporate Ge into Cu2ZnSnSe4 using GeSe vapor during the selenization step of alloyed metallic precursors. The vapor incorporation slowly begins at T ≈ 480 °C and peaks at 530 °C, resulting in a Ge-based composition shift inside the previously formed kesterite layer. We initially observe the formation of a Ge-rich surface layer that merges into a homogeneous distribution of the incorporated element during the further dwelling stage of the annealing. This approach is very versatile and could be used in many similar fabrication processes for incorporating Ge into CZTSe-absorber layers. Because the vapor-based composition shift in the layer happens after the formation of the absorber film towards the end of the fabrication process, most process parameters and the precursor structure may not need any significant re-optimization. The careful integration of this step could help to reduce Sn-related deep defects and accompanying VOC losses. The best CZTGSe-power-conversion efficiency obtained in this series is 10.4 % (with EG = 1.22 eV, FF = 54%, JSC = 36 mA/cm2, VOC = 540 mV, VOCdef,SQ = 417 mV). These results demonstrate the potential of this approach for Ge incorporation into kesterite absorbers.

1. Introduction

Ge incorporation into the kesterite (Cu2ZnSnSe4) system in order to form Cu2Zn(Sn,Ge)Se4 (CZTGSe) material is considered to be a promising approach for obtaining photovoltaic absorbers with a higher and tunable band gap in the range of 1.0 eV to 1.5 eV [1,2]. In addition, Ge is known to occupy the Sn sites, possibly reducing or passivating Sn-related deep defects, i.e., VSn, SnZn and CuSn, which are assumed to be a major cause of high VOC deficits in kesterite [3,4,5,6,7]. Commonly reported approaches for Ge incorporation into kesterites are based on the inclusion of Ge in the precursor layer, which can be grown by spray coating, electrodeposition and sputtering [2,8,9,10]. It has been reported that such approaches can lead to the localized incorporation of Ge [6], significant variation in grain size [8] and inferior device performance, which can be improved by ambient storage [2]. However, most of the reported processes have in common that they are based on processes that were previously optimized for a Ge-free-material system. As a consequence of adding Ge to the precursor, the entire alloy configuration, distribution of elements, and overall composition ratios in the precursor are changed, altering the reaction pathway for the kesterite-phase formation. In such a case, a well-optimized process for Ge-free-kesterite growth may need further optimization steps for Ge incorporation. The precursor structure and further process parameters may need a full re-optimization or even significant modifications to avoid the formation of other secondary phases and further undesirable defects.
Here we report an approach in which we avoid the aforementioned problems by using an alternative method to incorporate Ge into the layer after the high-temperature phase of the selenization process, thereby maintaining the previously optimized precursor structure and the main formation pathway identical to the Ge-free growth process. In brief, the Ge is incorporated into the already-formed kesterite-absorber layer via the vapor phase during the high-temperature phase of the selenization process. During this step the composition of the layer is usually shifted from Cu-rich to Cu-poor [11,12]. Since the main kesterite phase formation route is unaltered, the process offers high reproducibility in terms of layer morphology and targeted final-layer composition. The Ge-based devices show slightly lower efficiencies and could reach the range of 10%, which is slightly below the as-grown efficiencies of Ge-free devices. However, investigations into long-term device stability indicate an improvement of the long-term performance by adding Ge to kesterite solar cells.

2. Materials and Methods

CZTSe and CZTGSe absorbers were prepared by the one-step selenization of stacked elemental and alloyed precursor layers (Zn/Cu-Sn/Zn). The samples were produced on 3 mm soda-lime glass (SLG) coated with two 250 nm Mo layers and treated with Ar plasma (in a von Ardenne cluster tool) for 3 min before being cut into the desired size of 25 mm by 25 mm, and one more minute of direct treatment (and without leaving the vacuum) before sputtering the metallic-precursor layer (von Ardenne cluster tool). The Ar-plasma-etching steps were performed in order to remove oxides and organic residues from the surface. The substrates were provided by ZSW (Zentrum für Sonnenenergie und Wasserstofforschung Baden-Württemberg) as well as Manz AG. The Zn/Cu-Sn/Zn precursor stack was prepared by using the sputter durations of 324 s, 1625 s, and 44 s, respectively. The sputtering rates were estimated from a sputtering process of long duration over a large area and were approximately 23.7 μgs−1cm−2 for Zn and 11.1 μgs−1cm−2 for the Cu-Sn layer of the mixed target [13]. Annealing was performed in a semi-closed graphite susceptor (a.k.a. graphite box) inside a conventional quartz-glass tube furnace (Carbolite Eurotherm 2416CG, 2416P8) by following the same process parameters as previously reported for our Ge-free-reference process, i.e., pump and purge cycles under N2, 10 mbar base pressure, a heating ramp of 10 °C/min, 20 min dwelling time upon reaching a temperature of 530 °C [12,14]. Two identical graphite boxes were used to maintain one “clean” box for the Ge-free-reference process. The graphite boxes could hold two samples for simultaneous processing, and had pockets on each side of the samples for the even distribution of Se pellets, Sn wire, and Ge flakes. The amount and purities of the added reactants were 210 ± 2 mg of Se pellets (Mateck, 5N purity), 37.0 ± 0.4 mg of Sn wire (AlfaAesar, 4N purity, i.e., 10.0 ± 0.1 cm wire with 0.25 mm diameter) and, depending on the desired Ge addition, between 0 mg (reference process) and 110 ± 5 mg of Ge flakes (AlfaAesar, 5N purity). The reference process for synthesizing Ge-free absorbers is described in more detail elsewhere [11,12,13]. In brief, the Cu-rich and alloyed precursor layer (Zn/Cu-Sn/Zn) is annealed in presence of elemental Sn wire and Se pellets in a semi-closed graphite box. During the high-temperature stage of the annealing process (i.e., at T = 530 °C), SnSe2−x vapor (from the selenized Sn wire) incorporates into the layer, which then shifts towards a Cu-poor composition. This reference process was adapted in order to incorporate Ge into the absorber layer. Adding Ge (in addition to the Sn wire) to the presented approach was expected to yield a similar composition shift towards a Cu-poor composition due to the simultaneous supply of GeSe2−x and SnSe2−x vapor to the sample surface. GeSe2−x has a higher vapor pressure [15,16,17,18] (see Figure S1), and can thus reach the samples earlier (already at lower temperatures) than SnSe2−x. The resulting absorbers were approximately (1.5 ± 0.5) μm in thickness.
The fabricated CZTSe and CZTGSe absorbers were subsequently coated with a CdS-buffer layer by chemical-bath deposition (solution containing cadmium acetate, ammonia, and thiourea [14,19]) for 10 min at 70 °C resulting in an approximately 50 nm CdS layer. 75 nm of i-ZnO and 500 nm of Al:ZnO (RF-sputtered, von Ardenne cluster tool) were added afterwards to finish the solar-cell device, as shown in Figure 1. No anti-reflective coating or metallic contact grid was applied to any of the samples presented here. Sample contacting was performed by exposing the Mo layer and placing two Indium dots for the back contacting. The front contacting was established by carefully placing probe heads directly on the ZnO. Each sample was divided into nine smaller cells by mechanical scribing, resulting in laboratory-scale cells of approximately 5 mm by 5 mm.
The final absorber compositions were determined by cross-calibrated (except for Ge content) energy-dispersive X-ray spectroscopy (EDX) measurements (FEI Helios 600i). An averaging of three independent and randomly positioned measurements was performed per sample. EDX surface mappings and EDX cross-section mappings of cleaved samples were performed for analysis of the elemental distribution. Shallow-angle-focused ion-beam milling was performed on some samples to investigate the depth-resolved element distributions (FEI Helios 600i), which is described in more detail in [11]. Raman measurements were performed with the laser wavelengths 532 nm and 457 nm (LabRAM Aramis Horiba). IV measurements under standard test conditions on each solar cell were performed using an AAA-class sun simulator (Photo Emission Tech Inc., USA). External-quantum-efficiency (EQE) measurements were taken at room temperature with a spectral range of 300 nm to 1400 nm (Bentham TMc300 Monochromator, lamps from Bentham instruments Ltd., ILD 75E QH chop, Xenon and Quartz-Halogen, Stanford research systems SR 830 DSP lock-in amplifier). The band gap EG of the absorber was extracted by performing a linear extrapolation of EQE² over the energy E. Urbach energies EU were obtained by linearly fitting ln(EQE) as a function of the E of the exponential tail below the band gap edge [20,21]. The presented values for the VOC deficit are given relative to the Shockley–Queisser limit according to the empiric Equation (1) [2,22,23]
V O C d e f S Q 0.928 × E G q 0.176 V V O C ,
where EG is the band gap extracted from EQE, q is the elementary charge and VOC is the open-circuit voltage obtained from IV measurements. Accelerated-aging tests were performed in a climate chamber (Weiss Umwelttechnik GmbH, type SC 600/70) at a temperature of 85 °C and relative humidity of 20%. The samples were placed in petri dishes covered with lids to protect the samples from any possible water-droplet condensation in the chamber.

3. Results and Discussion

The effective incorporation of Ge into the kesterite absorber is shown in Figure 2 by the EDX results along with the EQE spectra and the EG values extracted from them. By varying the added Ge amount, CZTGSe-absorber layers with Ge/(Ge + Sn) ratios in the range of 0.0 to 0.86 were synthesized. For better viewing, only a few selected EQE spectra covering the discussed range are shown in Figure 2a; band gap values extracted from the full set of available EQE spectra are shown in Figure 2b as a function of the Ge content.
We find a clear shift in the absorber band gap towards higher energies with increasing Ge content, showing the expected linear behavior for the samples with Ge/(Ge + Sn) < 0.67. The slope of this relation amounts to (0.600 ± 0.014) eV per Ge/(Ge + Sn), which is close to the value of 0.52 reported in the literature for other growth techniques [1,2]. For higher Ge contents, i.e., ≥ 0.67, further increased Ge content in the layer does not lead to the expected band gap rise, indicating that the incorporation of Ge into the kesterite crystal may have reached a saturation point, above which the further addition of Ge may rather lead to condensation, secondary phases, or crystal defects. In this region, major losses, which are predominant in the high wavelength part of the presented EQE spectra, are visible, indicating the presence of transport issues, increased recombination, and reduced collection lengths [2].
The morphology of the samples was influenced by the added Ge content as shown in Figure 3. The morphology of the reference sample shows sharp grains with sizes of approximately 2 μm. Samples with added Ge show a clear trend towards larger grains and less sharp edges. The most extreme sample with Ge/(Ge + Sn) = 0.86 shows grain sizes of approximately 5–6 μm. With increased grain size the density of the grain boundaries decreases, which could influence the recombination behavior. Overall, the possible effects of grain size are assumed to be overlapped by other effects (e.g., secondary phases, strain, etc.); therefore, within this study no conclusions were drawn about the possible influence of grain size on the device performance.
The SEM top-view images in Figure 3 show the formation of rod-shaped particles on top of the samples with Ge/(Ge + Sn) ≥ 0.67. Using Raman measurements on the surface, these particles were identified as SnSe. For the performance of a depth-dependent phase analysis, a shallow-angle cross section was created using focused ion-beam milling [24]. The Raman and EDX measurements of the wedge-shaped cross section revealed that the SnSe secondary phase was occurring throughout the full depth of the absorber layer (see Figure S2). Interestingly, the sample with Ge/(Ge + Sn) ratio of 0.86 did not show clear SnSe secondary phases; however, large voids between the grains were observed, possibly indicating an evaporation of volatile secondary phases formed in the process (e.g., SnSe2−x and GeSe2−x).
Considering sample homogeneity, morphology and EQE characteristics, the developed process therefore seems suitable for synthesizing CZTGSe-absorber layers with low to intermediate amounts of Ge (i.e., Ge/(Ge + Sn) ≤ 0.43), which appears to be more than sufficient to cover the composition range for highest expected device performance reported in the literature [2,8,25]. The discussion in the following section is therefore focused on the samples with Ge/(Ge + Sn) ≤ 0.43.
According to our previous work on Ge-free-kesterite devices [11,12], the CZTSe phase forms below a temperature of 400 °C in the presence of secondary phases (e.g., ZnSe and Cu2Se). At higher temperatures, the SnSe2−x vapor from the supplied Sn wire in the graphite susceptor incorporates into the layer, leading to further growth of the CZTSe phase by reacting with ZnSe and Cu2Se, leading to a composition shift (Cu-rich to Cu-poor). To understand the formation path and the composition shift in the Ge-containing process, a series of interrupted-annealing experiments was performed. The selenization process was interrupted at different temperatures by quenching with nitrogen gas. Raman and EDX analyses were carried out on the samples and the results are summarized in Figure 4a,b.
Up to 400 °C, the process is expected to behave identical to our reference Ge-free kesterite process. No significant amount of Ge was found in the layer (Ge/(Ge + Sn) < 0.02) and the A1 mode is centered at wavenumbers below 196 cm−1, indicating no presence of Ge in the CZTSe phase [26]. After reaching the annealing temperature of 480 °C, the first indications of Ge incorporation were observed. Raman shows a shift of the A1 mode from 194.6 cm−1 at 430 °C to 196.3 cm−1 at 480 °C and the EDX measurements show a ratio of Ge/(Ge + Sn) ≈ 0.06. Once the temperature reaches 500 °C, Raman peaks related to secondary phases disappear (as described above for the reference process [11,12], here shown Cu2-xSe at 263 cm−1 [27,28]), the A1 mode shifts further to 196.8 cm−1 and the Ge content (from EDX) further increases (Ge/(Ge + Sn) ≈ 0.07). At 530 °C, the largest A1 mode shift of 201.7 cm−1 is observed, which would correspond to a Ge content of Ge/(Ge + Sn) ≈ 0.56 (see Figure S3). However, the corresponding Ge content observed from EDX measurements only amounted to Ge/(Ge + Sn) ≈ 0.24. The possible reason for this significant discrepancy could be a higher Ge concentration at the surface region of the layer detected by Raman, which is more surface sensitive than EDX [8]. For the samples with a dwell time of 10 min and longer, the A1 mode shifts back towards lower wavenumbers, i.e., 199.4 ± 0.3 cm−1, and the peak position matches again with the EDX measured Ge concentration (Ge/(Ge + Sn) ≈ 0.30) (see Figure S3). To investigate the possibility of a composition gradient in the sample from the interruption experiment, we performed cross-sectional EDX mappings of the sample corresponding to 530 °C (quenched), and 530 °C with 20 min of dwell time (normal procedure). Figure 4c shows the Sn and Ge distribution across the depth of these samples, exhibiting higher accumulation of Ge on the surface of the layer for the interrupted sample (Figure 4c, left hand side). The sample with dwell time shows intermixed Ge and Sn throughout the depth of the absorber (Figure 4c, right hand side). This result confirms the previously discussed observation from Raman and EDX and illustrates the formation and decay of an initial front-surface Ge gradient during this process. We note that the Sn content in the layer stays constant throughout all the samples. The overall composition shifted from a Cu-rich start to a Cu-poor (& Zn-rich) absorber during the process due to GeSe incorporation (see Figure S4).
The ex-situ Raman and EDX measurements suggest that the Ge incorporation into kesterite does not significantly influence the reported formation path of the kesterite phase [11,12]. In the case of Ge incorporation, the Cu-rich to Cu-poor composition shift occurs at a slightly lower temperature (480 °C to 530 °C) due to the higher vapor pressure of GeSe2−x as compared to SnSe2−x (see Figure S1). This means that up to this temperature the process is unaltered and all reaction steps and pre-steps of the kesterite formation are not influenced.
We note that XRD measurements of selected samples further confirms that no significant Ge incorporation is observed until 450 °C. XRD measurements show no signature peaks corresponding to the SnSe2−x and GeSe2−x phases (Figure S5 and description).
To measure the PV device characteristics, all the samples were coated with CdS and TCO layers to fabricate the solar cells. A summary of IV parameters and EQE analysis for samples with Ge/(Ge + Sn) ≤ 0.43 is given in Figure 5.
As expected, the open-circuit voltage VOC is increased, and the short-circuit current JSC drops due to the increased band gap (see Figure 2). However, the VOC deficit follows the trend of the Voc, showing that the increased band gap of the absorber is only partially converted into an open-circuit voltage gain. The magnitude of the VOC deficit, commonly attributed to Sn-related deep defects, remains unaffected by the approach in our study.
The Urbach energy EU, extracted from the EQE spectra, describes the magnitude of the band tailing and is considered as an indicator of crystal quality [29,30]. A clear difference between EU of the reference and Ge-containing samples is visible. This can be explained by an increase in the general crystal disorder by adding an extra element to the crystal structure in the case of Ge-containing kesterite.
The fill factor FF of all CZTGSe devices was found to be lower than the reference CZTSe. A possible reason for this could be the non-adapted solar-cell-device-processing steps. These were only optimized for the Ge-free kesterite and simplified for a facile procedure that contains no treatments besides the main steps (i.e., no air annealing, no etching, etc.). In the case of Ge-containing kesterite, additional steps such as etching or pre-treatment for the buffer-layer deposition might be necessary to improve the CdS homogeneity and quality of the interface in order to overcome the loss in the observed fill factors. The noticeable scattering of the data shown in Figure 5 is due to process variations over a longer time range (months), different substrate batches and different CdS deposition batches. The overall PCE η for CZTGSe cells is lower than the Ge-free-CZTSe reference, yet still shows one of the highest reported efficiencies of 10.4%, with a Ge/(Ge + Sn) ratio of 0.32 (EG = 1.22 eV). The IV curves of the corresponding sample are shown in Figure S6. IV curves for the five different Ge ranges introduced in the context of Figure 3 are compared in Figure S7. In addition to the IV and EQE measurements of freshly fabricated devices, a time-stability analysis was performed using an accelerated-aging procedure. A total of 12 CZTSe solar cells and 12 CZTGSe solar cells with Ge/(Ge + Sn) ≈ 0.30 ± 0.02 were kept in a controlled climate chamber at 85 °C for a total duration of 1000 h. Since the devices were not encapsulated, the relative humidity RH was maintained at 20% [31]. To rule out the mechanical stress by repeated sample measurements and to obtain more reliable data on the influence of handling, the best, the worst and one intermediate cell per sample was only measured initially and after the completion of the entire aging duration of 1000 h. These were found not to differ from the presented values and are also included in the corresponding boxplots at 0 h and 1000 h. The evolution of the sample efficiencies is summarized in Figure 6.
In the accelerated-aging results, which compare the CZTSe and CZTGSe samples in terms of device efficiency, a distinct difference is visible. The CZTSe samples suffered from a quick drop in efficiency after the first 24 h of accelerated aging in the climate chamber (mean of 10.4% to approximately 7.0%). A slow but incomplete recovery of the efficiency up to 8.2% took place after the initial drop. The CZTGSe samples, on the other hand, did not feature the initial drop but also slowly improved their efficiency as the aging progressed from 6.5% to 8.4%. After 100 h of accelerated aging, the mean efficiency slightly overtook the reference. These results indicate that the long-term stability of the kesterite absorber can be improved by Ge incorporation, which needs more careful attention in future investigations.

4. Conclusions

We have introduced a facile process for Ge incorporation in kesterite absorbers. The process involves the supply of GeSe2−x vapor during the selenization/annealing step of kesterite-absorber preparation. The main advantage of this process is its versatile adaptability, allowing for the reuse of the existing reference process based on a pre-optimized precursor-alloy configuration, thereby preserving the main reaction path of the Ge-free process (up to 450 °C). The straightforward evaluation of as-grown CZTGSe solar cells showed promising efficiencies of > 10 %, but no direct improvement relative to the reference CZTSe devices was achieved. However, an accelerated-aging test at 85 °C revealed that Ge-containing devices may perform superior to their Ge-free counterparts in terms of stability.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: Vapor pressure curves for relevant compounds.; Figure S2: Depth dependent EDX mapping of the samples.; Figure S3: Raman A1 peak position vs. Ge/(Ge + Sn) ratio for the samples; Figure S4: Cu/(Ge + Sn) ratio development for various samples.; Figure S5: X-ray diffractogram of the selected samples; Figure S6: PCE IV curves for sample with the best efficiency from this study.; Figure S7: IV curves of the Ge-incorporated samples.

Author Contributions

Conceptualization, D.N., D.P. and L.G.; Methodology, D.N. and T.K.; Software, D.N.; Validation, D.N., T.K., D.P. and L.G.; Formal Analysis, D.N. and T.K..; Investigation, D.N. and T.K.; Resources, L.G.; Data Curation, D.N. and T.K.; Writing—Original Draft Preparation, D.N.; Writing—Review & Editing, D.N., T.K., D.P. and L.G.; Visualization, D.N. and T.K.; Supervision, L.G.; Project Administration, L.G.; Funding Acquisition, D.P. and L.G. All authors have read and agreed to the published version of the manuscript.


This project has received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No. 952982 (“Custom-Art”). David Nowak thanks the Nagelschneider Stiftung for the scholarship. Talat Khonsor was gratefully funded by the Hans-Böckler Stifung.

Data Availability Statement

Raw data is available at (accessed on 17 January 2022).


The authors thank Erik Ahlswede and coworkers (ZSW Stuttgart) for kindly providing Mo-coated SLG substrates. We also thank the Manz A.G. for providing SLG substrates as well. We also thank our colleague Sarah Bredemeier for performing XRD measurements.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Khadka, D.B.; Kim, J. Band Gap Engineering of Alloyed Cu2ZnGexSn1–xQ4 (Q = S,Se) Films for Solar Cell. J. Phys. Chem. C 2015, 119, 1706–1713. [Google Scholar] [CrossRef]
  2. Collord, A.D.; Hillhouse, H.W. Germanium Alloyed Kesterite Solar Cells with Low Voltage Deficits. Chem. Mater. 2016, 28, 2067–2073. [Google Scholar] [CrossRef]
  3. Gershon, T.; Gokmen, T.; Gunawan, O.; Haight, R.; Guha, S.; Shin, B. Understanding the relationship between Cu2ZnSn(S,Se)4 material properties and device performance. MRS Commun. 2014, 4, 159–170. [Google Scholar] [CrossRef]
  4. Kim, S.; Park, J.-S.; Walsh, A. Identification of Killer Defects in Kesterite Thin-Film Solar Cells. ACS Energy Lett. 2018, 3, 496–500. [Google Scholar] [CrossRef] [Green Version]
  5. Chen, S.; Walsh, A.; Gong, X.-G.; Wei, S.-H. Classification of Lattice Defects in the Kesterite Cu2ZnSnS4 and Cu2ZnSnSe4 Earth-Abundant Solar Cell Absorbers. Adv. Mater. 2013, 25, 1522–1539. [Google Scholar] [CrossRef]
  6. Márquez, J.; Stange, H.; Hages, C.J.; Schaefer, N.; Levcenko, S.; Giraldo, S.; Saucedo, E.; Schwarzburg, K.; Abou-Ras, D.; Redinger, A.; et al. Chemistry and Dynamics of Ge in Kesterite: Toward Band-Gap-Graded Absorbers. Chem. Mater. 2017, 29, 9399–9406. [Google Scholar] [CrossRef]
  7. González-Castillo, J.R.; Pulgarin, F.A.; Rodriguez, E.; Vigil-Galán, O.; Courel-Piedrahita, M.; Andrade-Arvizu, J.A. Influence of Ge content on Cu2Zn(SnGe)Se4 physical properties deposited by sequential thermal evaporation technique. Mater. Sci. Semicond. Process. 2018, 83, 96–101. [Google Scholar] [CrossRef]
  8. Andrade-Arvizu, J.; Fonoll-Rubio, R.; Sánchez, Y.; Becerril-Romero, I.; Malerba, C.; Valentini, M.; Calvo-Barrio, L.; Izquierdo-Roca, V.; Placidi, M.; Vigil-Galán, O.; et al. Rear Band gap Grading Strategies on Sn–Ge-Alloyed Kesterite Solar Cells. ACS Appl. Energy Mater. 2020, 3, 10362–10375. [Google Scholar] [CrossRef]
  9. Guo, Q.; Ford, G.M.; Yang, W.-C.; Hages, C.; Hillhouse, H.W.; Agrawal, R. Enhancing the performance of CZTSSe solar cells with Ge alloying. Sol. Energy Mater. Sol. Cells 2012, 105, 132–136. [Google Scholar] [CrossRef]
  10. Lv, X.; Zhu, C.; Hao, H.; Liu, R.; Wang, Y.; Wang, J. Improving the performance of low-cost water-based solution-synthesised Cu2ZnSn1-xGex(S,Se)4 absorber thin films by germanium doping. Ceram. Int. 2020, 46, 25638–25645. [Google Scholar] [CrossRef]
  11. Pareek, D.; Taskesen, T.; Márquez, J.A.; Stange, H.; Levcenco, S.; Simsek, I.; Nowak, D.; Pfeiffelmann, T.; Chen, W.; Stroth, C.; et al. Reaction Pathway for Efficient Cu 2 ZnSnSe 4 Solar Cells from Alloyed Cu-Sn Precursor via a Cu-Rich Selenization Stage. Sol. RRL 2020, 4, 2000124. [Google Scholar] [CrossRef] [Green Version]
  12. Taskesen, T.; Pareek, D.; Nowak, D.; Kogler, W.; Schnabel, T.; Ahlswede, E.; Gütay, L. Potential of CZTSe Solar Cells Fabricated by an Alloy-Based Processing Strategy. Z. Naturforsch. A 2019, 74, 673–682. [Google Scholar] [CrossRef]
  13. Nowak, D.; Taskesen, T.; Pareek, D.; Pfeiffelmann, T.; Mikolajczak, U.; Gütay, L. Tuning of Precursor Composition and Formation Pathway of Kesterite Absorbers Using an In-Process Composition Shift: A Path toward Higher Efficiencies? Sol. RRL 2021, 5, 2100237. [Google Scholar] [CrossRef]
  14. Taskesen, T.; Steininger, V.; Chen, W.; Ohland, J.; Mikolajczak, U.; Pareek, D.; Parisi, J.; Gütay, L. Resilient and reproducible processing for CZTSe solar cells in the range of 10%. Prog. Photovoltaics: Res. Appl. 2018, 26, 1003–1006. [Google Scholar] [CrossRef]
  15. Honig, R.E. Vapor Pressure Data for the More Common Elements. R. C. A. Rev. 1957, 18, 195–204. [Google Scholar]
  16. Robert, E.V.; de Wild, J.; Dale, P. Reaction chemistry of group IV containing copper chalcogenide semiconductors Cu2MX3 (M = Sn, Ge and X = S, Se). J. Alloy. Compd. 2017, 695, 1307–1316. [Google Scholar] [CrossRef]
  17. Xue, D.-J.; Liu, S.-C.; Dai, C.-M.; Chen, S.; He, C.; Zhao, L.; Hu, J.-S.; Wan, L.-J. GeSe Thin-Film Solar Cells Fabricated by Self-Regulated Rapid Thermal Sublimation. J. Am. Chem. Soc. 2017, 139, 958–965. [Google Scholar] [CrossRef]
  18. Irene, E.A.; Wiedemeier, H. ChemInform Abstract: The Sublimation Kinetics of Gese Single Crystals. Chem. Inf. 1975, 6, 182–192. [Google Scholar] [CrossRef]
  19. Taskesen, T.; Neerken, J.; Schoneberg, J.; Pareek, D.; Steininger, V.; Parisi, J.; Gütay, L. Device Characteristics of an 11.4% CZTSe Solar Cell Fabricated from Sputtered Precursors. Adv. Energy Mater. 2018, 8, 1703295. [Google Scholar] [CrossRef]
  20. Hassanien, A.; Akl, A.A. Effect of Se addition on optical and electrical properties of chalcogenide CdSSe thin films. Superlattices Microstruct. 2016, 89, 153–169. [Google Scholar] [CrossRef]
  21. Urbach, F. The Long-Wavelength Edge of Photographic Sensitivity and of the Electronic Absorption of Solids. Phys. Rev. (Series I) 1953, 92, 1324. [Google Scholar] [CrossRef]
  22. Bourdais, S.; Choné, C.; Delatouche, B.; Jacob, A.; Larramona, G.; Moisan, C.; Lafond, A.; Donatini, F.; Rey, G.; Siebentritt, S.; et al. Is the Cu/Zn Disorder the Main Culprit for the Voltage Deficit in Kesterite Solar Cells? Adv. Energy Mater. 2016, 6, 1502276. [Google Scholar] [CrossRef]
  23. Rey, G.; Weiss, T.; Sendler, J.; Finger, A.; Spindler, C.; Werner, F.; Melchiorre, M.; Hála, M.; Guennou, M.; Siebentritt, S. Ordering kesterite improves solar cells: A low temperature post-deposition annealing study. Sol. Energy Mater. Sol. Cells 2016, 151, 131–138. [Google Scholar] [CrossRef]
  24. Stroth, C.; Sayed, M.H.; Schuster, M.; Ohland, J.; Hammer-Riedel, I.; Hammer, M.S.; Wellmann, P.; Parisi, J.; Gütay, L. Depth-resolved and temperature dependent analysis of phase formation processes in Cu–Zn–Sn–Se films on ZnO substrates. J. Mater. Sci. Mater. Electron. 2017, 28, 7730–7738. [Google Scholar] [CrossRef]
  25. Giraldo, S.; Jehl, Z.; Placidi, M.; Izquierdo-Roca, V.; Pérez-Rodríguez, A.; Saucedo, E. Progress and Perspectives of Thin Film Kesterite Photovoltaic Technology: A Critical Review. Adv. Mater. 2019, 31, e1806692. [Google Scholar] [CrossRef] [Green Version]
  26. Chen, G.; Wang, W.; Chen, S.; Whang, Z.; Huang, Z.; Zhang, B.; Kong, X. Bandgap engineering of Cu2ZnSn1-xGexS(e)4 by adjusting Sn-Ge ratios for almost full solar spectrum absorption. J. Alloy. Compd. 2017, 718, 236–245. [Google Scholar] [CrossRef]
  27. Xue, C.; Papadimitriou, D.; Raptis, Y.S.; Richter, W.; Esser, N.; Siebentritt, S.; Lux-Steiner, M.C. Micro-Raman Study of Orientation Effects of CuxSe-Crystallites on Cu-rich CuGaSe2 Thin Films. J. Appl. Phys. 2004, 96, 1963–1966. [Google Scholar] [CrossRef]
  28. Ishii, M.; Shibata, K.; Nozaki, H. Anion Distributions and Phase Transitions in CuS1-xSex(x = 0-1) Studied by Raman Spectroscopy. J. Solid State Chem. 1993, 105, 504–511. [Google Scholar] [CrossRef]
  29. Hages, C.J.; Carter, N.J.; Agrawal, R. Generalized quantum efficiency analysis for non-ideal solar cells: Case of Cu2ZnSnSe4. J. Appl. Phys. 2016, 119, 014505. [Google Scholar] [CrossRef]
  30. Jean, J.; Mahony, T.S.; Bozyigit, D.; Sponseller, M.; Holovský, J.; Bawendi, M.G.; Bulović, V. Radiative Efficiency Limit with Band Tailing Exceeds 30% for Quantum Dot Solar Cells. ACS Energy Lett. 2017, 2, 2616–2624. [Google Scholar] [CrossRef]
  31. Larramona, G.; Chone, C.; Meissner, D.; Ernits, K.; Bras, P.; Ren, Y.; Salinas, R.M.; Rodríguez-Villatoro, J.L.; Vermang, B.; Brammertz, G. Stability, reliability, upscaling and possible technological applications of kesterite solar cells. J. Physics: Energy 2020, 2, 024009. [Google Scholar] [CrossRef]

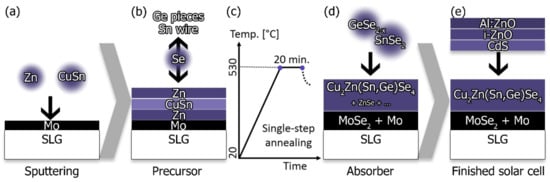

Figure 1. Sample preparation steps: (a) Sputtering of Zn and Cu-Sn, (b) precursor stack annealed under Se atmosphere with Sn wire and Ge pieces, (c) performed temperature profile, (d) (simplified) reaction scheme, and (e) the solar-cell finishing steps.
Figure 1. Sample preparation steps: (a) Sputtering of Zn and Cu-Sn, (b) precursor stack annealed under Se atmosphere with Sn wire and Ge pieces, (c) performed temperature profile, (d) (simplified) reaction scheme, and (e) the solar-cell finishing steps.
Applsci 12 01376 g001

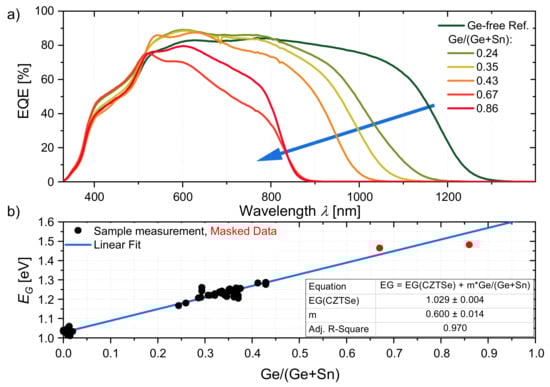

Figure 2. (a) EQE spectra for selected samples and (b) extracted band gaps over Ge/(Ge + Sn) ratio determined from EDX measurements. The estimated uncertainty in values is ± 0.01 for Ge/(Ge + Sn) ratio for samples up to Ge/(Ge + Sn) = 0.43 and ± 0.04 for the masked data (excluded samples with Ge/(Ge + Sn) ≥ 0.67). The band gap values have an uncertainty around 1 meV, estimated based on the fitting function.
Figure 2. (a) EQE spectra for selected samples and (b) extracted band gaps over Ge/(Ge + Sn) ratio determined from EDX measurements. The estimated uncertainty in values is ± 0.01 for Ge/(Ge + Sn) ratio for samples up to Ge/(Ge + Sn) = 0.43 and ± 0.04 for the masked data (excluded samples with Ge/(Ge + Sn) ≥ 0.67). The band gap values have an uncertainty around 1 meV, estimated based on the fitting function.
Applsci 12 01376 g002

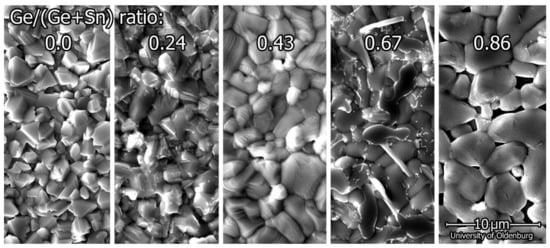

Figure 3. SEM pictures showing the morphology of samples with varied Ge/(Ge + Sn) ratios.
Figure 3. SEM pictures showing the morphology of samples with varied Ge/(Ge + Sn) ratios.
Applsci 12 01376 g003

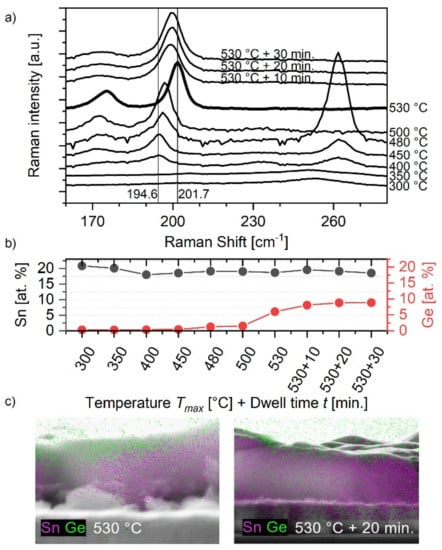

Figure 4. (a) Raman spectra and (b) atomic percentages of Sn and Ge for the samples prepared from interrupted-annealing experiments, quenched at temperatures of 300 °C, 350 °C, 400 °C, 450 °C, 480 °C, 500 °C, 530 °C and for samples with Tmax of 530 °C including a dwelling step of 10 min, 20 min and 30 min duration. (c) The cross-section EDX mappings show the distribution of Sn and Ge for samples without and with a dwelling step.
Figure 4. (a) Raman spectra and (b) atomic percentages of Sn and Ge for the samples prepared from interrupted-annealing experiments, quenched at temperatures of 300 °C, 350 °C, 400 °C, 450 °C, 480 °C, 500 °C, 530 °C and for samples with Tmax of 530 °C including a dwelling step of 10 min, 20 min and 30 min duration. (c) The cross-section EDX mappings show the distribution of Sn and Ge for samples without and with a dwelling step.
Applsci 12 01376 g004

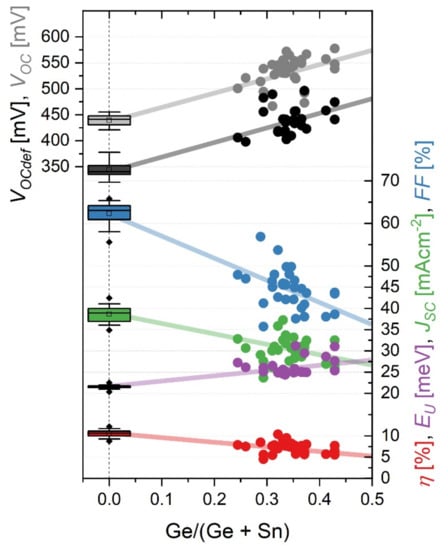

Figure 5. Device properties for CZTGSe-based solar cells with varying Ge content: VOC and VOC deficit, calculated relative to the Shockley-Queisser limit on the left axis; ɳ, EU, JSC and FF on the right axis. Trend lines provided as a guide for the eyes.
Figure 5. Device properties for CZTGSe-based solar cells with varying Ge content: VOC and VOC deficit, calculated relative to the Shockley-Queisser limit on the left axis; ɳ, EU, JSC and FF on the right axis. Trend lines provided as a guide for the eyes.
Applsci 12 01376 g005

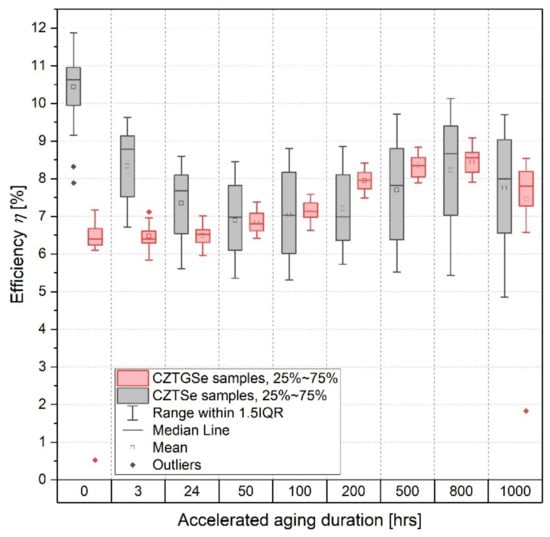

Figure 6. Accelerated aging results for non-encapsulated CZTSe references and CZTGSe solar cells.
Figure 6. Accelerated aging results for non-encapsulated CZTSe references and CZTGSe solar cells.
Applsci 12 01376 g006
