A New Research Scheme for Full-Scale/Model Test Comparisons to Validate the Traditional Wind Tunnel Pressure Measurement Technique
Abstract
:1. Introduction

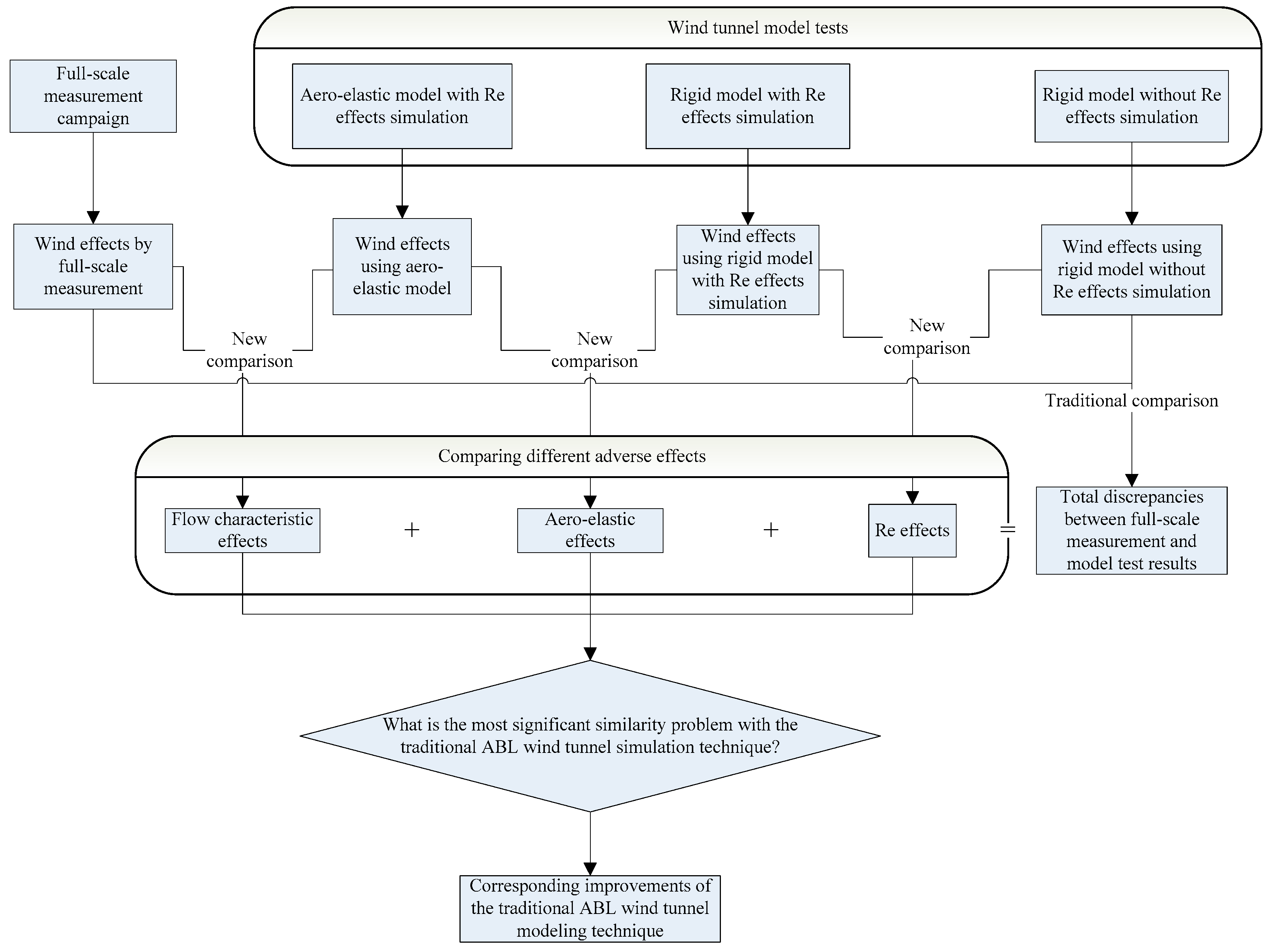

2. A New Research Scheme for Full-Scale/Model Test Comparisons
- (1)
- Conduct full-scale measurements for wind effects on the full-scale structure.
- (2)
- Manufacture an aero-elastic pressure measurement model and a rigid pressure measurement model of the prototype in the wind tunnel, and simulate the high Re effects on these models by roughening the surfaces of the models.
- (3)
- Conduct wind tunnel model tests for wind effects on scaled models.
- (4)
- Compare wind effects according to the in situ measurements to those according to the wind tunnel model test using the rigid model without Re effects simulation to quantify the total discrepancies, which contain Re effects, flow characteristic effects and aero-elastic effects. Then, use the wind effects measured on the aero-elastic and the rigid models with the high Re effects simulation to separate the mingled adverse effects. Specifically, flow characteristic effects can be obtained by subtracting wind effects from full-scale measurements from those using the aero-elastic model with high Re effects simulation; aero-elastic effects can be obtained by subtracting wind effects using the aero-elastic model with high Re effects simulation from those using the rigid model with high Re effects simulation; and Re effects can be obtained by subtracting wind effects using the rigid model with high Re effects simulation from those using the rigid model without high Re effects simulation.
- (5)
- Reveal the most significant adverse influence on the reliability of the traditional ABL wind tunnel pressure measurement technique by comparing the three adverse effects.
3. Case Study: Peng-Cheng Cooling Tower

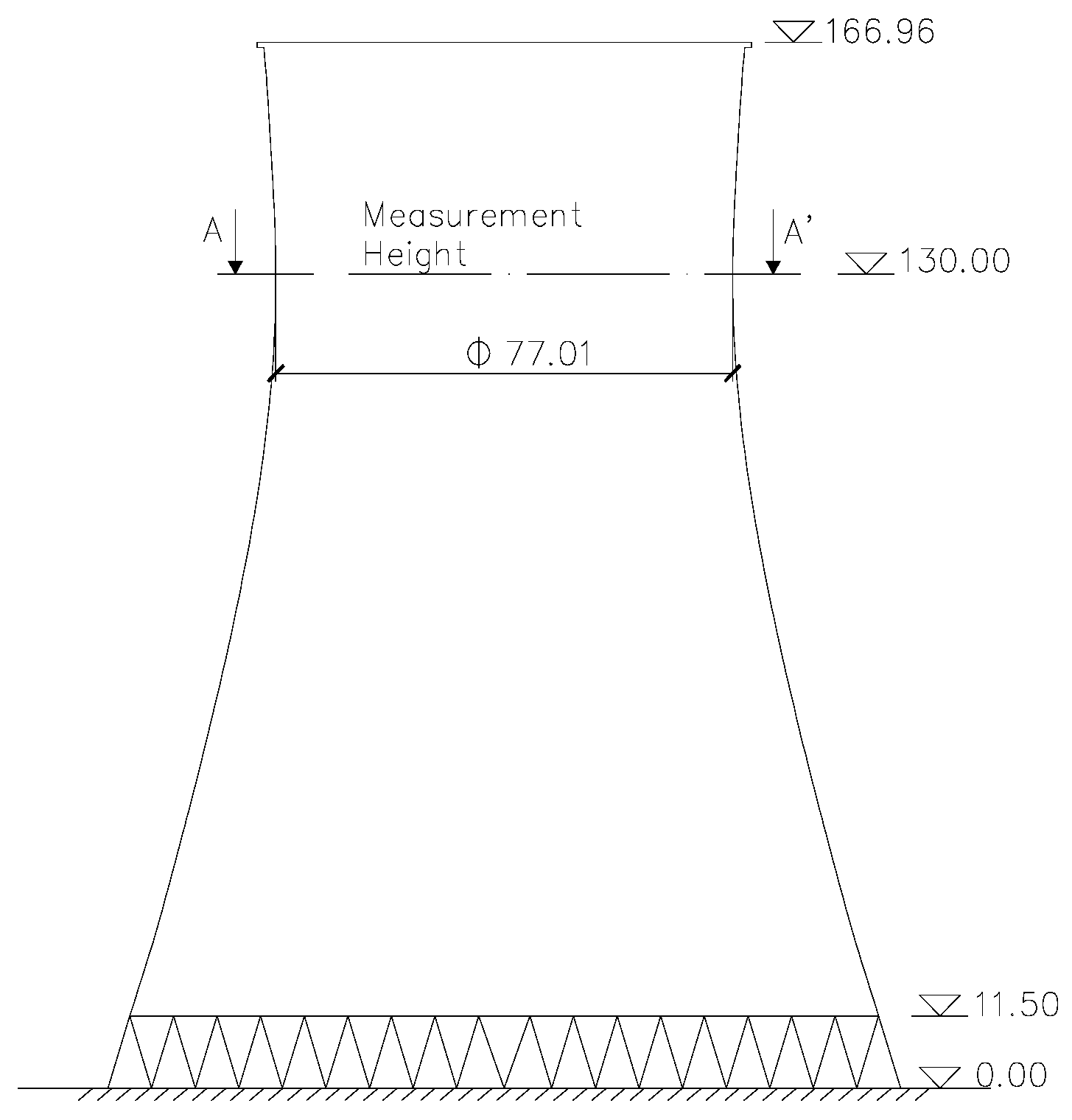

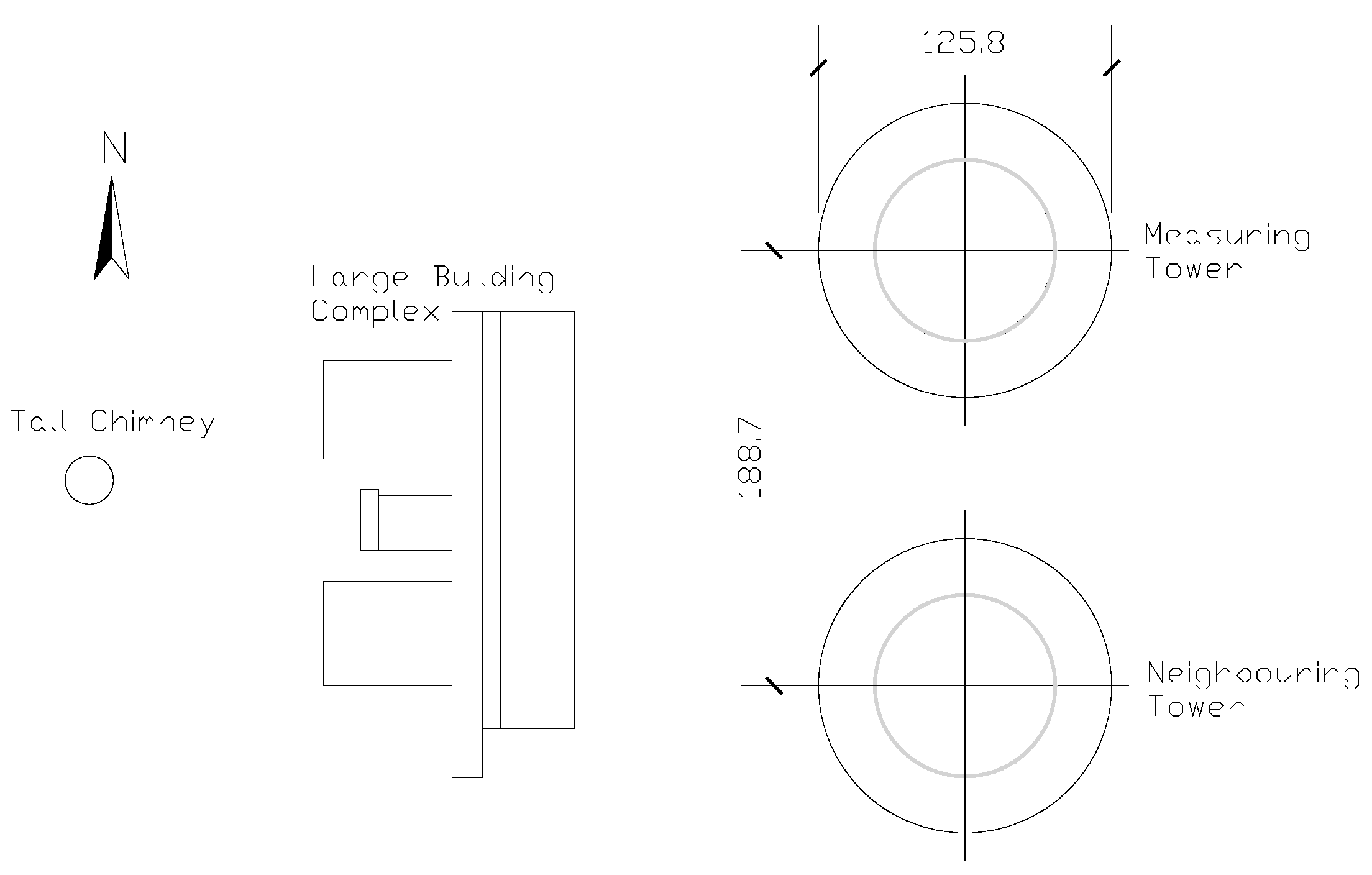

3.1. Engineering Background

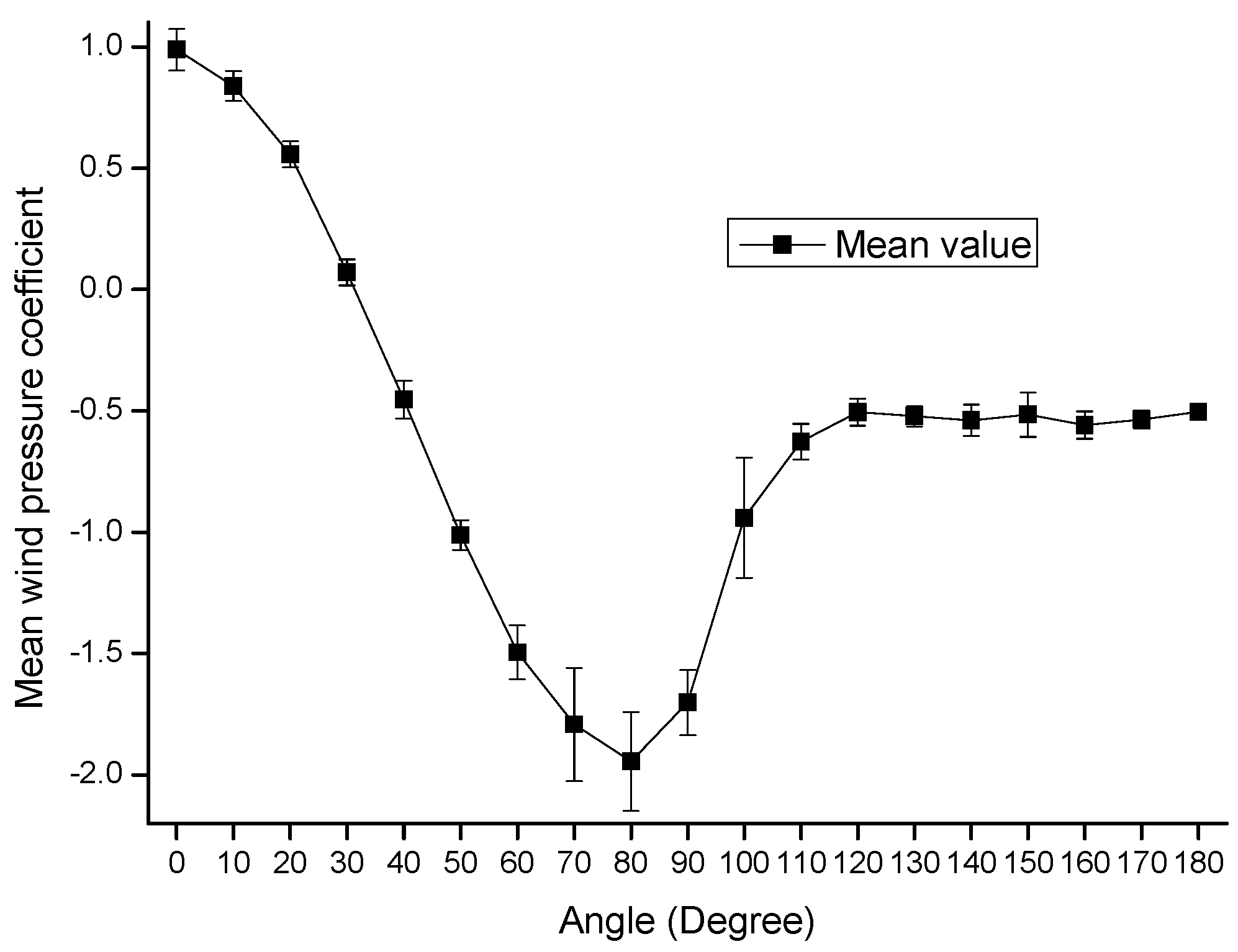

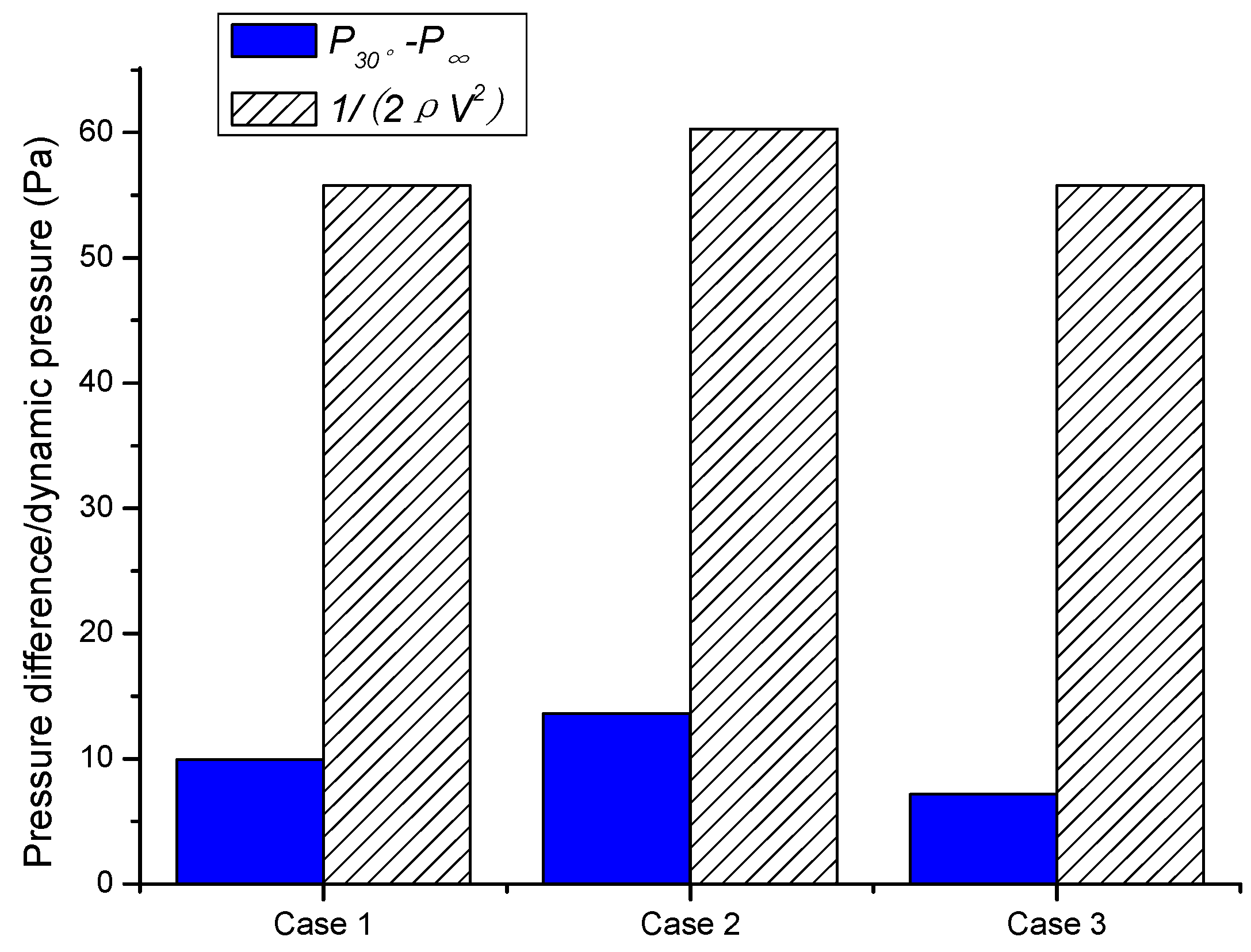

3.2. Full-Scale Measurements

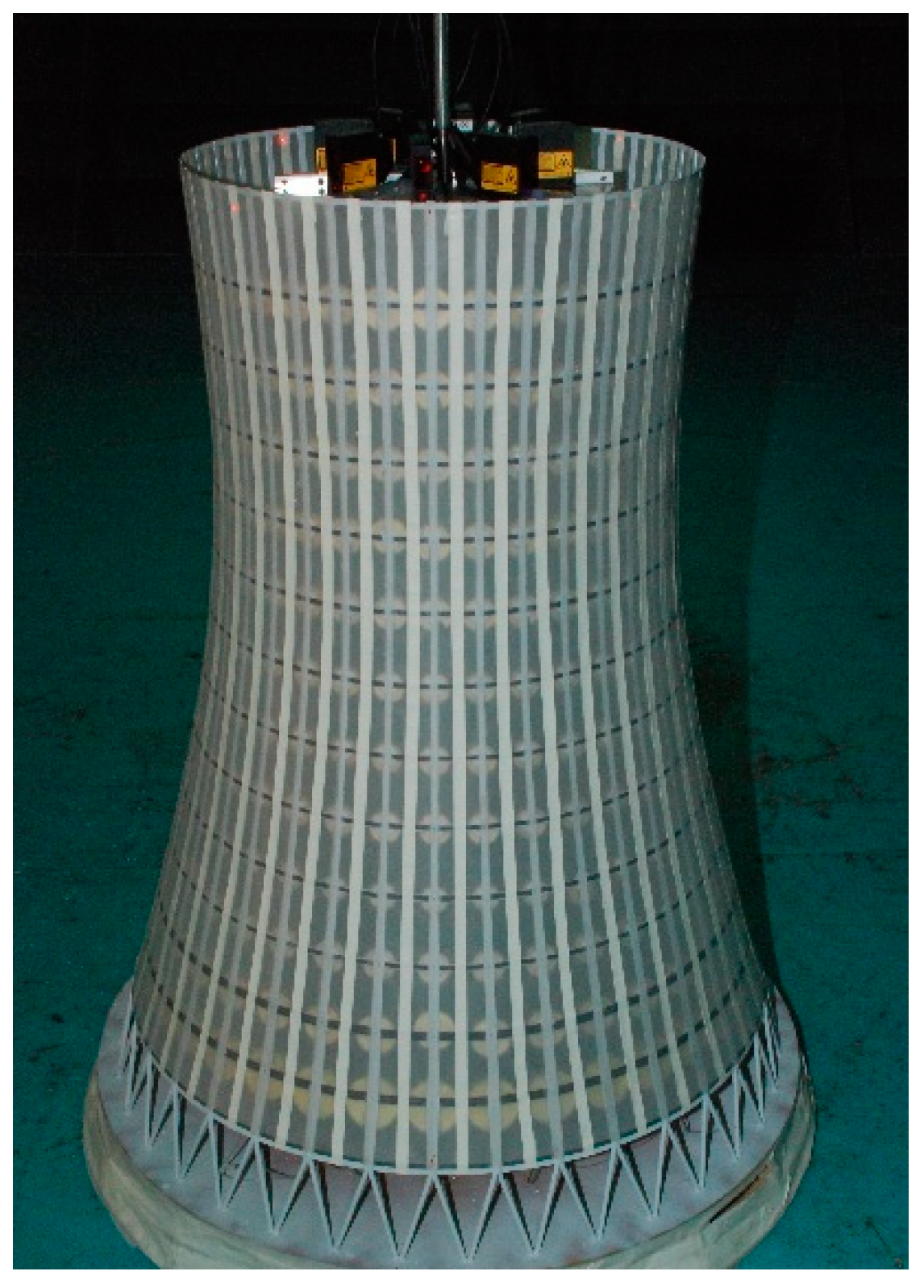

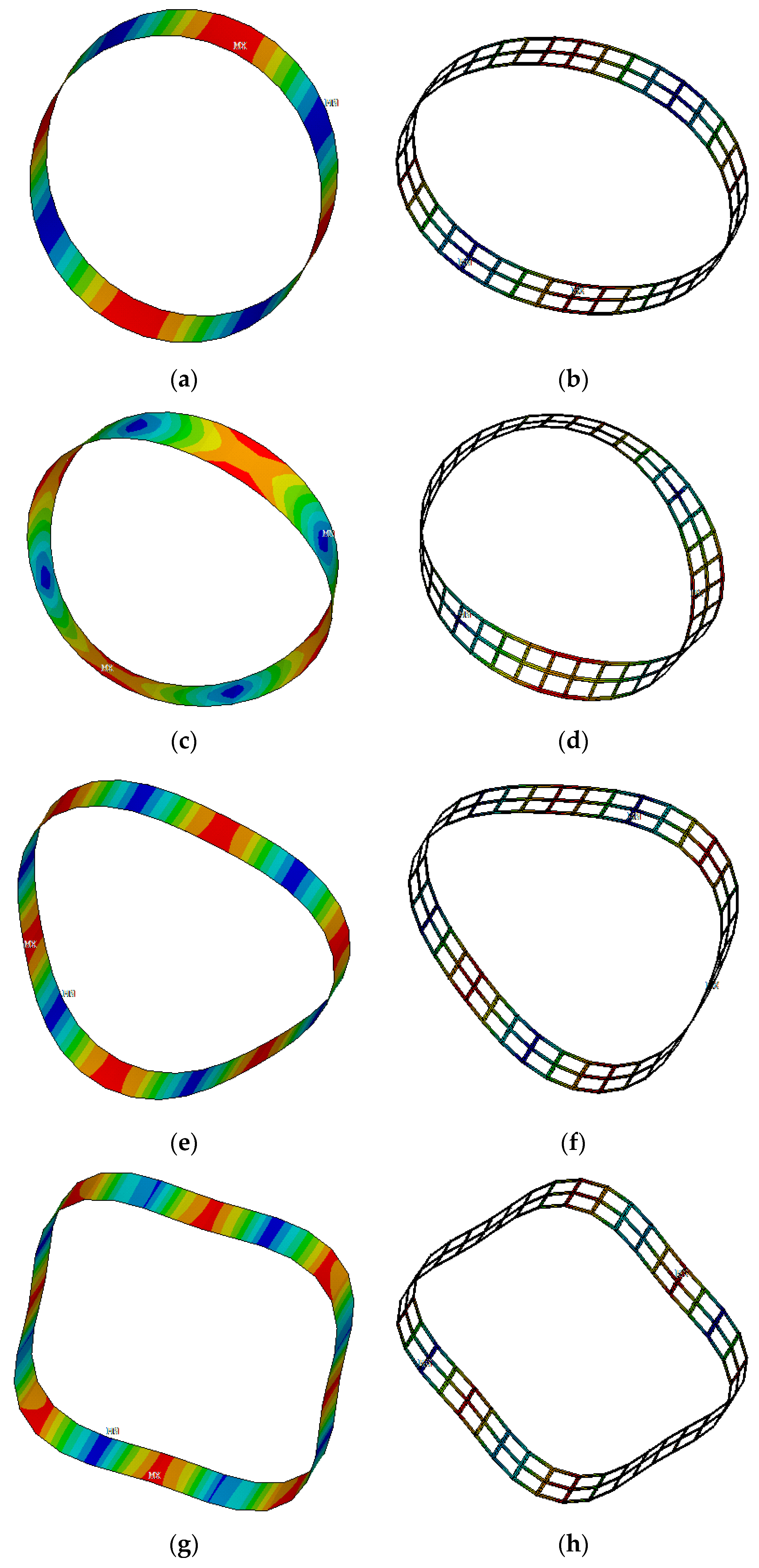

3.3. Wind Tunnel Model Tests Using an Aero-Elastic Model of Peng-Cheng Tower
3.4. Wind Tunnel Model Tests Using the Rigid Model of Peng-Cheng Tower

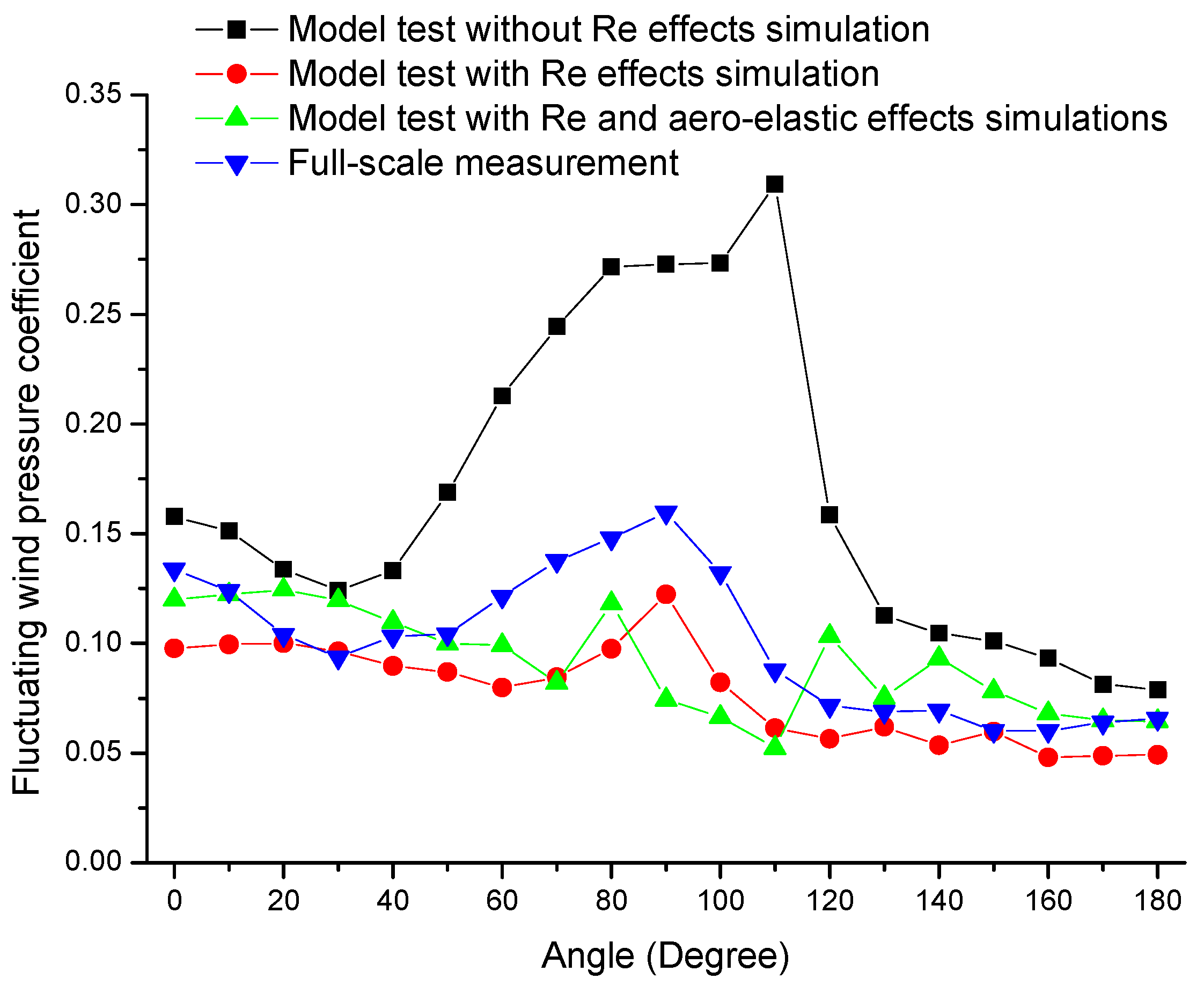

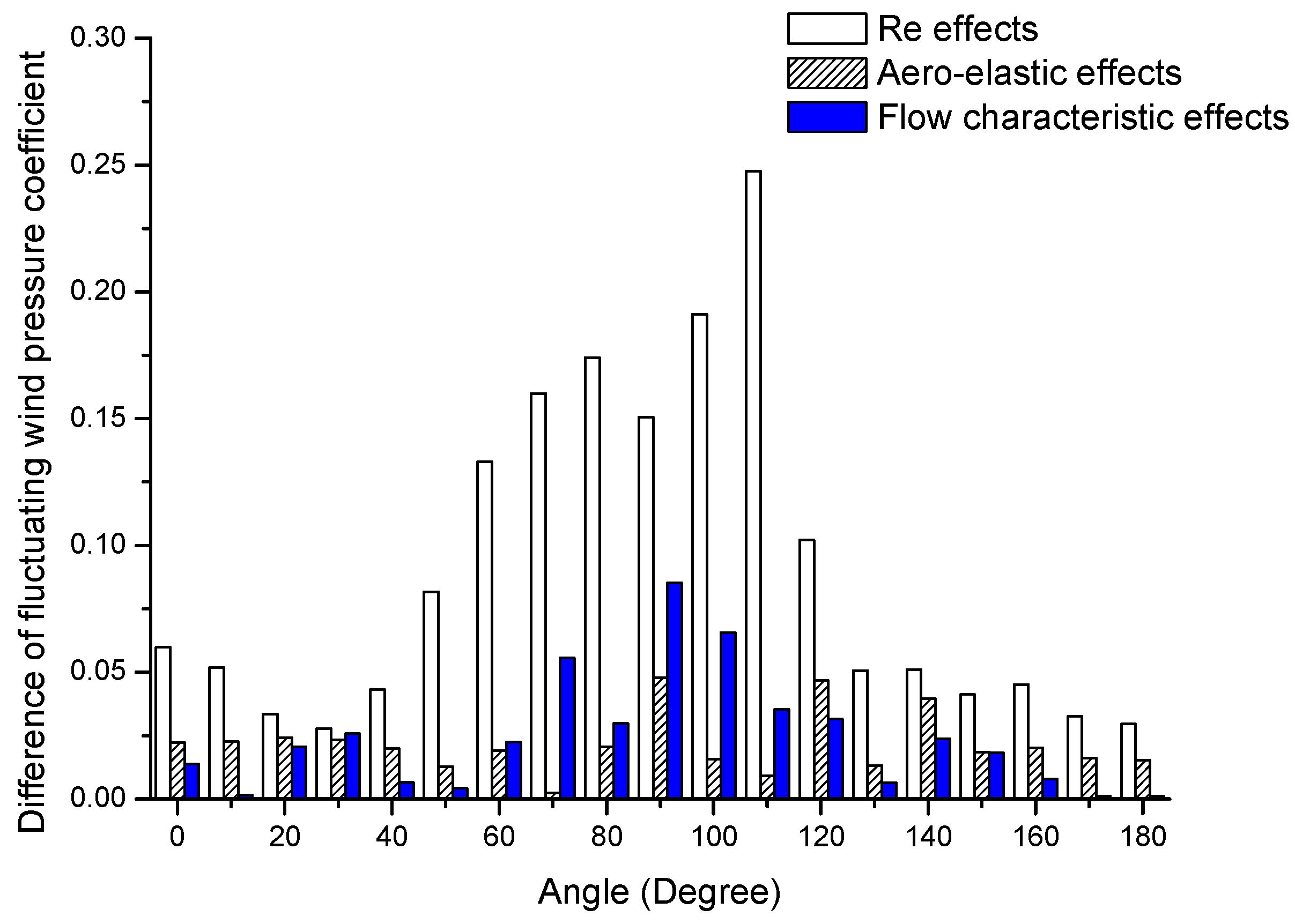

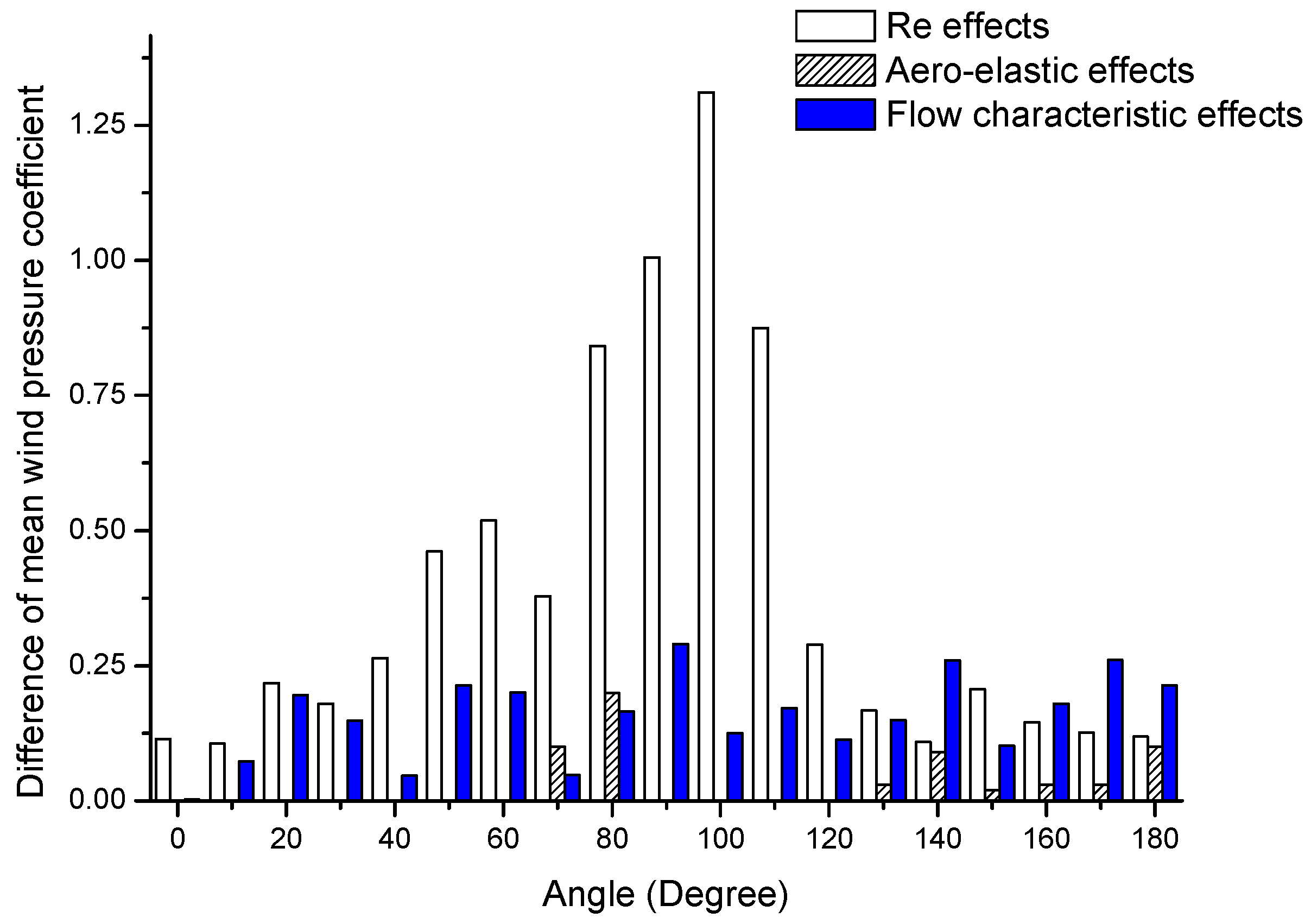

3.5. Results and Comparisons
4. Conclusions
